USER MANUAL
ANGLED BLACK GLASS TOUCH
CONTROL COOKER HOOD
eiQCHA90B/ eiQCHA90SS
Thank you for choosing electriQ
Please read this user manual before using this
product and keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire product
range
2
CONTENTS
SAFETY
3
PRODUCT OVERVIEW
5
VENTING OPTIONS
6
INSTALLATION
7
FILTER INFORMATION
11
OPERATION
12
CLEANING AND MAINTENANCE
13
TROUBLESHOOTING
14
TECHNICAL SPECIFICATION
15
SUPPORT
16
3
SAFETY PRECAUTIONS
Whilst this product is compliant with all safety requirements,
incorrect or inappropriate use can lead to both personal injury and
potential damage to property. Please read the contents of this
instruction booklet thoroughly before fitting or using this appliance.
• The cooker hood must be installed in accordance with the
installation instructions and all measurements followed.
• All installation work must be carried out by a competent person
or qualified electrician.
• The unit must be connected to an earthed power supply.
• If venting externally, make sure the ducting has no bends
sharper than 90 degrees as this will reduce the efficiency of the
cooker hood.
• The cooker hood is for domestic use only and is not designed for
commercial use. It should only be used for the purpose it was
intended – to extract vapours and cooking odours.
• Do not flambé or use an open flame under the cooker hood.
• Do not try to use the cooker hood without the grease filters or if
the filters are excessively greasy. They should be cleaned
regularly (see “Maintenance”) or replaced as necessary.
• The extraction fan must be level to avoid grease collection at
one end, as this could cause a potential fire risk.
• Do not leave frying pans unattended during use because
overheated fat or oils might catch fire.
• If the cooker hood is damaged, do not attempt to use it.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or a similarly qualified person in
order to avoid a hazard.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play
with the appliance. It is not a toy.
• The plug must be accessible after installation for isolation in
case of an emergency – or an appropriate fused switch if the
unit is hard-wired to the mains via a spur.
4
• The minimum distance between the surface of the hob and the
lowest part of the hood should be at least 65cm. A distance of
between 65cm and 75cm gives peak efficiency.
• The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other fuels.
• When the hood is vented externally and used with appliances
which burn fuel (e.g. gas, oil, wood) the area must be sufficiently
ventilated to ensure safe operation. Fresh air must be allowed to
freely enter the room to prevent a partial vacuum.
• A partial vacuum can starve the heating appliance of oxygen,
impairing combustion. It can also prevent toxic fumes from
leaving the room, or can cause fumes to be sucked into the
room from outside.
• Safe operation is only possible when the partial vacuum within
the working area does not exceed 4 Pa (0.04 mbar). This can
be achieved by ensuring air is able to enter the room from
outside through a suitable sized opening which cannot be sealed
during operation. A number of alternative solutions are available
to ensure this. If in any doubt, professional advice should be
sought.
• Regulations concerning the discharge of air have to be fulfilled.
• There is a potential fire risk if cleaning is not carried out in
accordance with the instructions.
• Clean your appliance periodically by following the method given
in the chapter MAINTENANCE
• If used in recirculation mode, the charcoal filters trap odours and
must be replaced at least once a year depending on how
frequently the cooker hood has been used.
• For safety reasons, please use only the same size of fixing or
mounting screw, which are recommended in this instruction
manual.
• Warning: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards
CAUTION: Accessible parts of the hood can become
very hot during use with cooking appliances, whether in use
or not, due to heat rising from the hob. Sufficient time
should be allowed for the unit to cool before touching either
the housing or the grease filters.
5

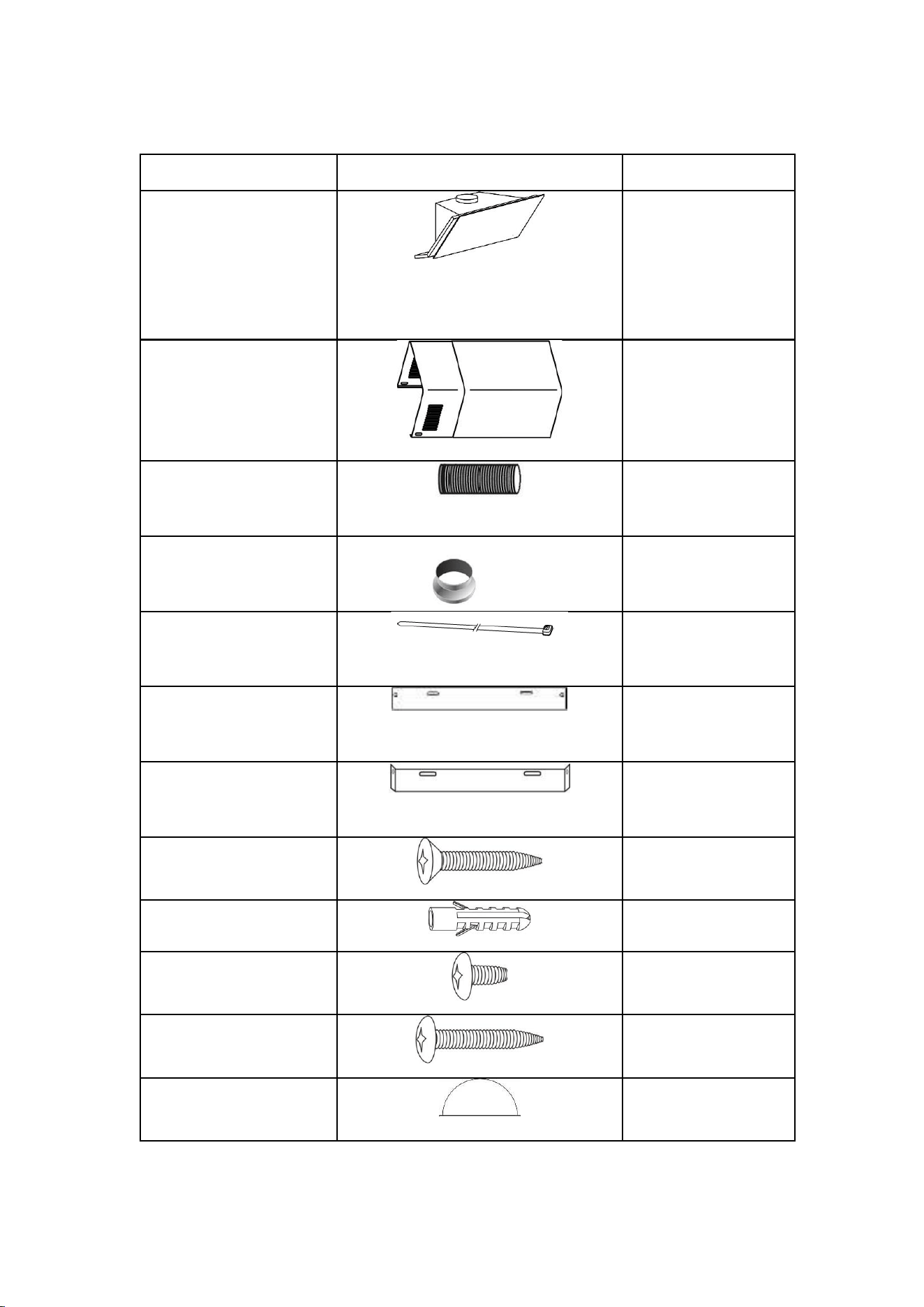

PRODUCT OVERVIEW - PARTS SUPPLIED
Description
Illustration
Qty.
Cooker hood
1
Chimney
2
Exhaust Pipe
1
Adaptor
1
cable tie
1
Plate I
1
Plate II
1
Screw
(4mm x 40mm)
4
Wall plug
8
Screw
(4mm x 8mm)
6
Screw
(4mm x 30mm)
4
Air Flaps
2
6

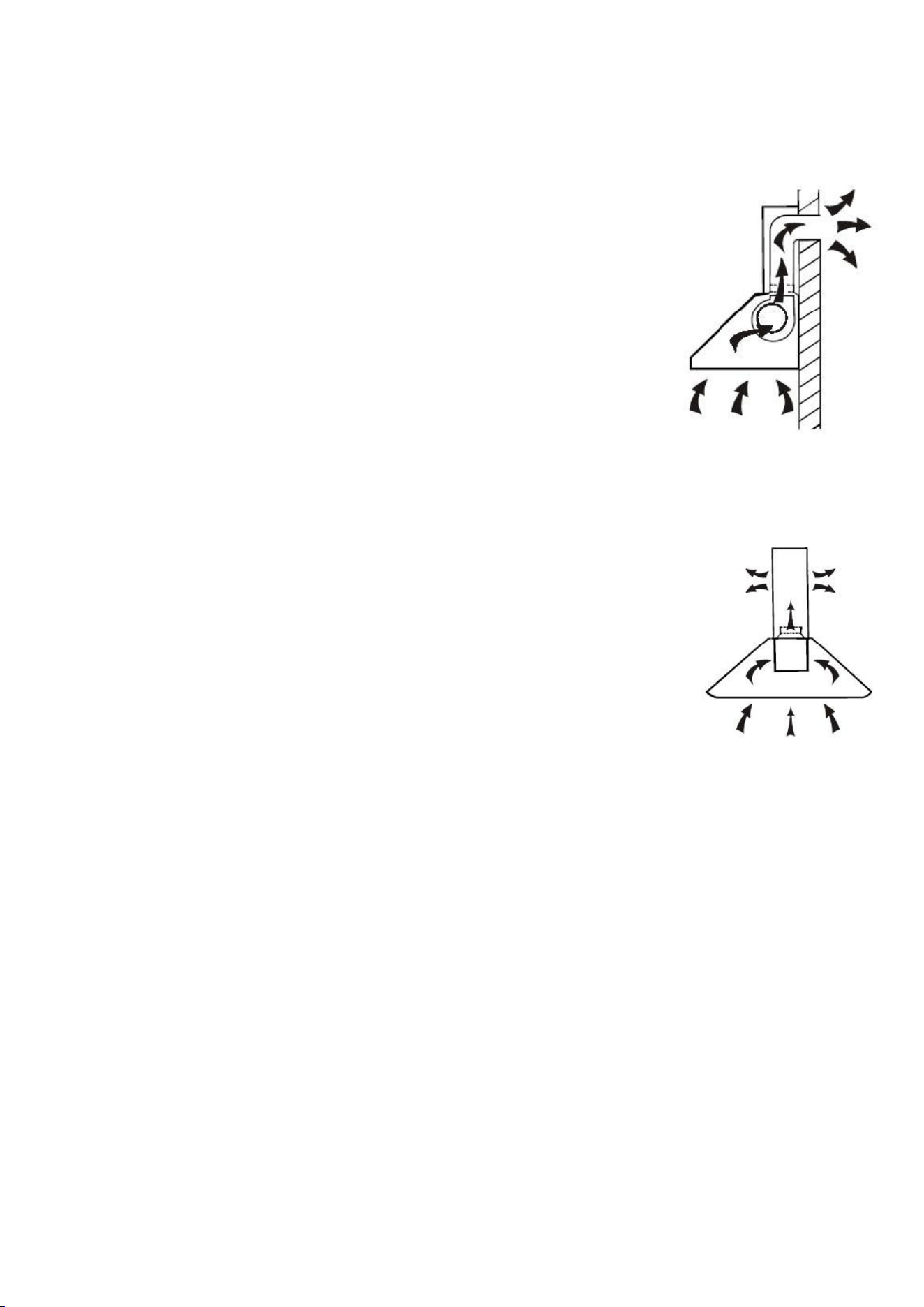

EXTERNAL VENTING
If you have an outlet to the outside, your cooker hood can be
connected as shown in the diagram using any suitable
extraction duct (enamel, aluminium, flexible pipe or
inflammable material with an interior diameter of 150mm) can
be used.
An adaptor is supplied to enable you to connect your hood to
pre-existing 120mm diameter ducting.
If this is the chosen installation method consideration to the
route of the vent pipe should be made prior to installation.
RECIRCULATION
This cooker hood also supports the recirculation of air once it has passed
through the filters. The filtered air is then expelled through the
vent holes in the side of the chimney.
When setting the unit up in this configuration, carbon filters
should also be used to remove odours from the air. Details of
sourcing and fitting the filters can be found in the Carbon filter
section.
When setting up for recirculation the installation instructions
should be followed, but a vent pipe should not be attached, and instead the air
can be routed back into the room through the top of the unit.
7
INSTALLATION
1. Before installation, ensure you have not connected the appliance to the
mains supply.

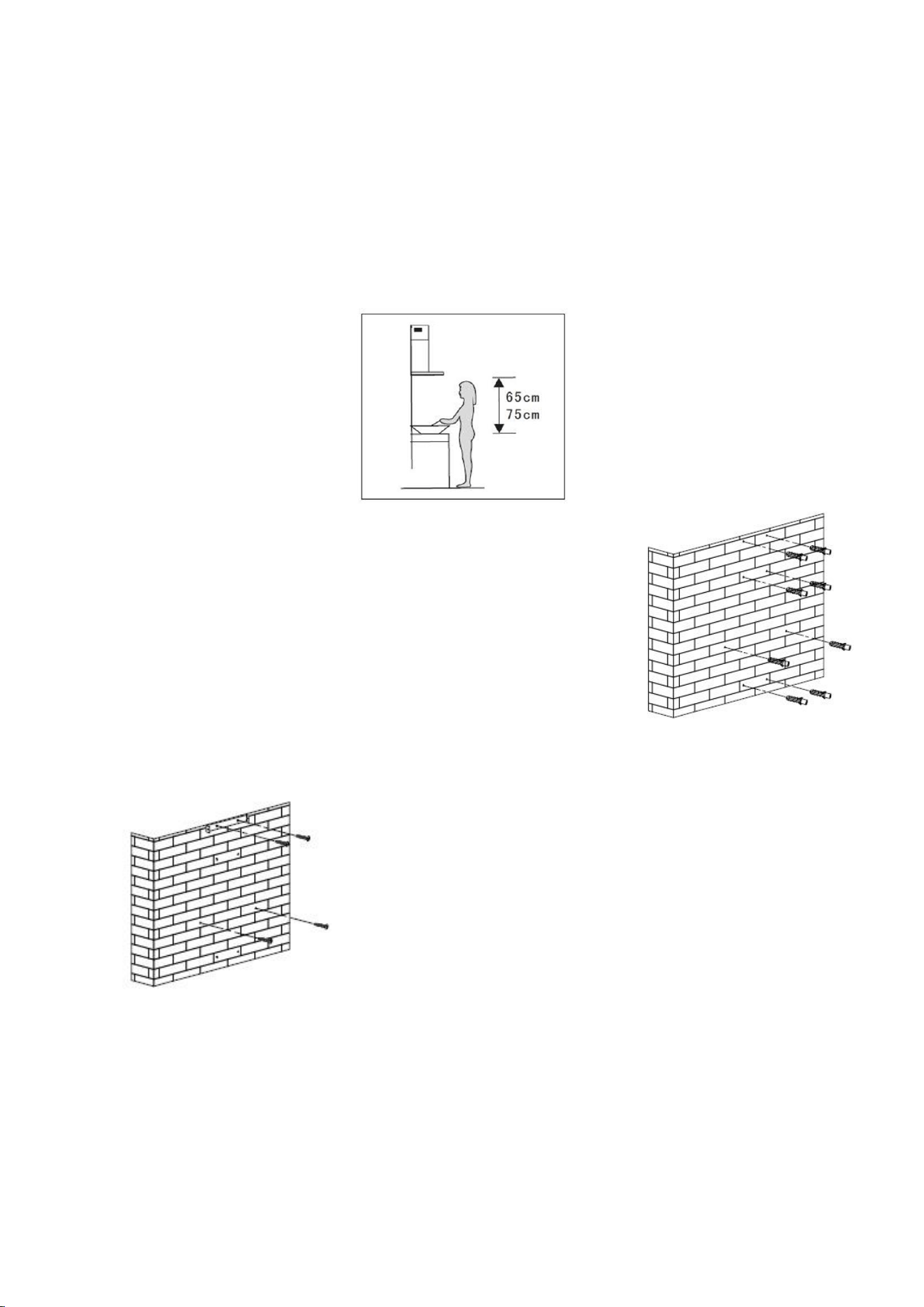

2. The cooker hood should be placed at a distance of 65~75cm above the
cooking plane for best effect.
3. Install the hanging screw on a suitable place once
the installation height is fixed, and keep it in line. The
fixed position of the inside chimney bracket is the
place of chimney. Also install the safety hole in the
wall. Total drill 8 holes and insert the Wall plug.
4. Put 2 x Screws (4mm x30mm) into hanging
hood position and keep it away from wall distance 3-
4mm, screw and tighten the bracket onto the wall
with the screws (4mm x 40mm) and wall plugs
provided.
8

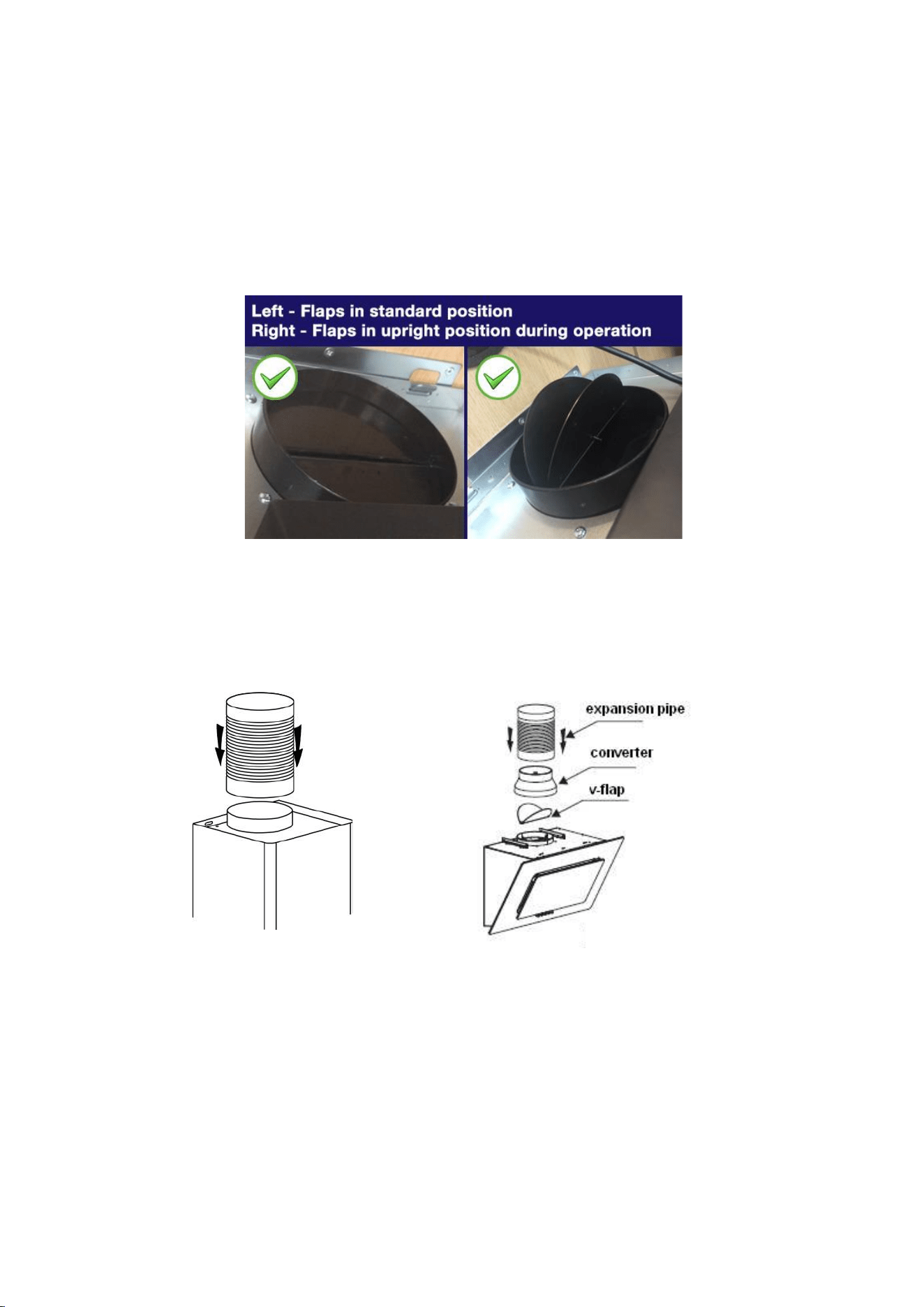

5. The 2 x airflaps should be installed at this stage, as access is easier before
the unit is wall mounted. On the top of the Hood Unit itself, where the air outlet
vent is located, the 2 x flaps should be carefully installed, bending very slightly
so the lugs at each end locate into the holes, enabling flaps to pivot upwards
when the unit is in operation, opening up the outlet fully for the air to pass
through. Please note: the small spindles/lugs at each end of each flap locate
into the holes on the housing, not the grooves above them.
6. Hang the cooker hood on wall.
7. Install the v-flap and converter onto the cooker hood. Fix the expansion
pipe on the converter using a cable tie. Hang the cooker hood onto the hook.
8. Adjust the height of the chimney to approximately the required height.
Then install plate I on the chimney. Two screws (4mm x 8mm) are used.
9. Put the inner chimney into the outer chimney. Then pull the inner chimney
upwards. Adjust to reach the approximate height required. Fine height
adjustment is done later.
9
NOTE: Remember not to fix the
screw too tightly, so that later height
adjustment can be done more easily.

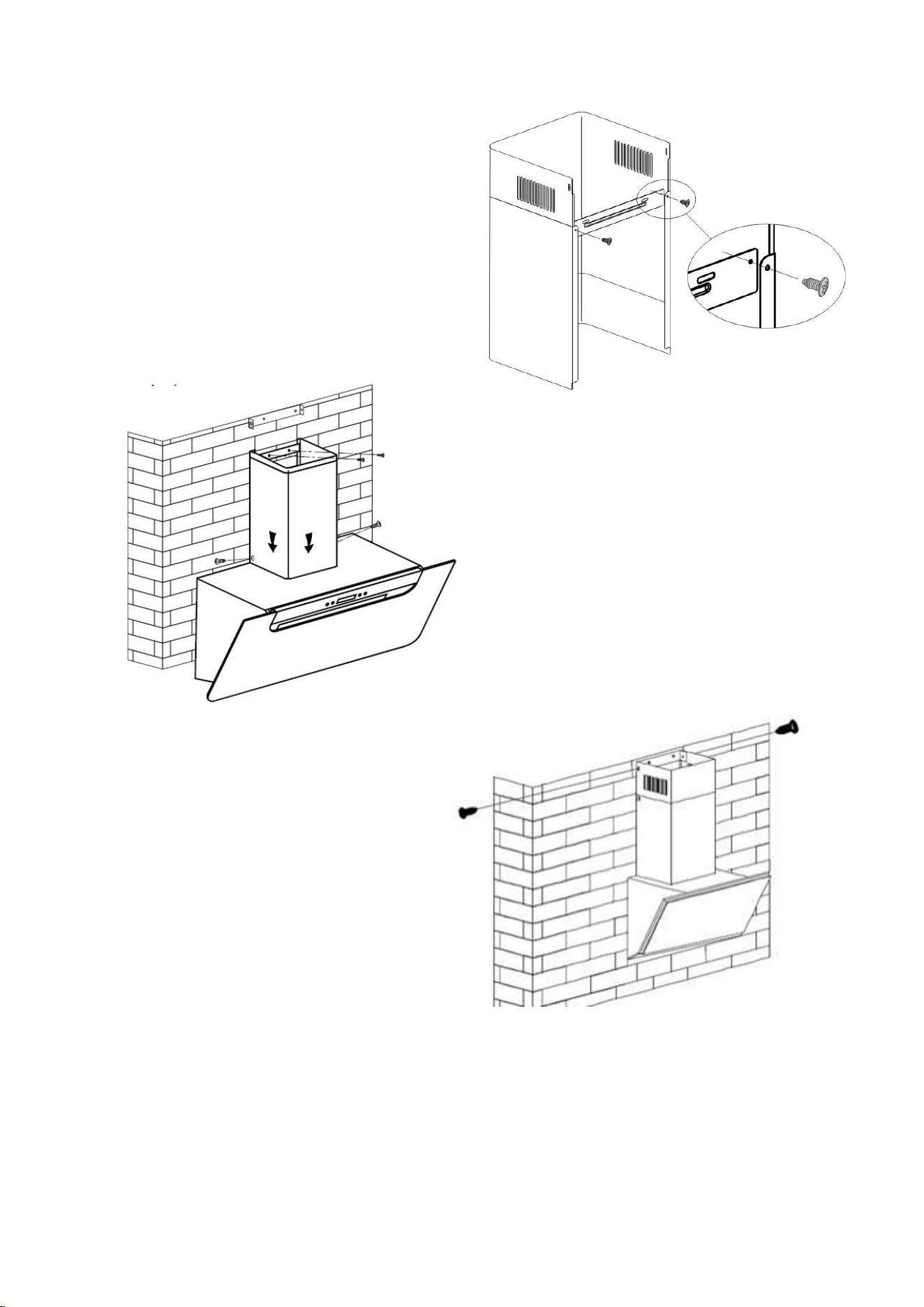

9. Fix the chimney set into the
chimney bracket and fix with 2 x
screws (4mmx8mm), then fix the
outer chimney bracket into wall with
2 x screws (4mm x 40mm), pull out
the exhaust pipe to outside.
10. Pull up the inner chimney and
fix it into inner chimney bracket
with 2 x screws (4mm x 8mm).

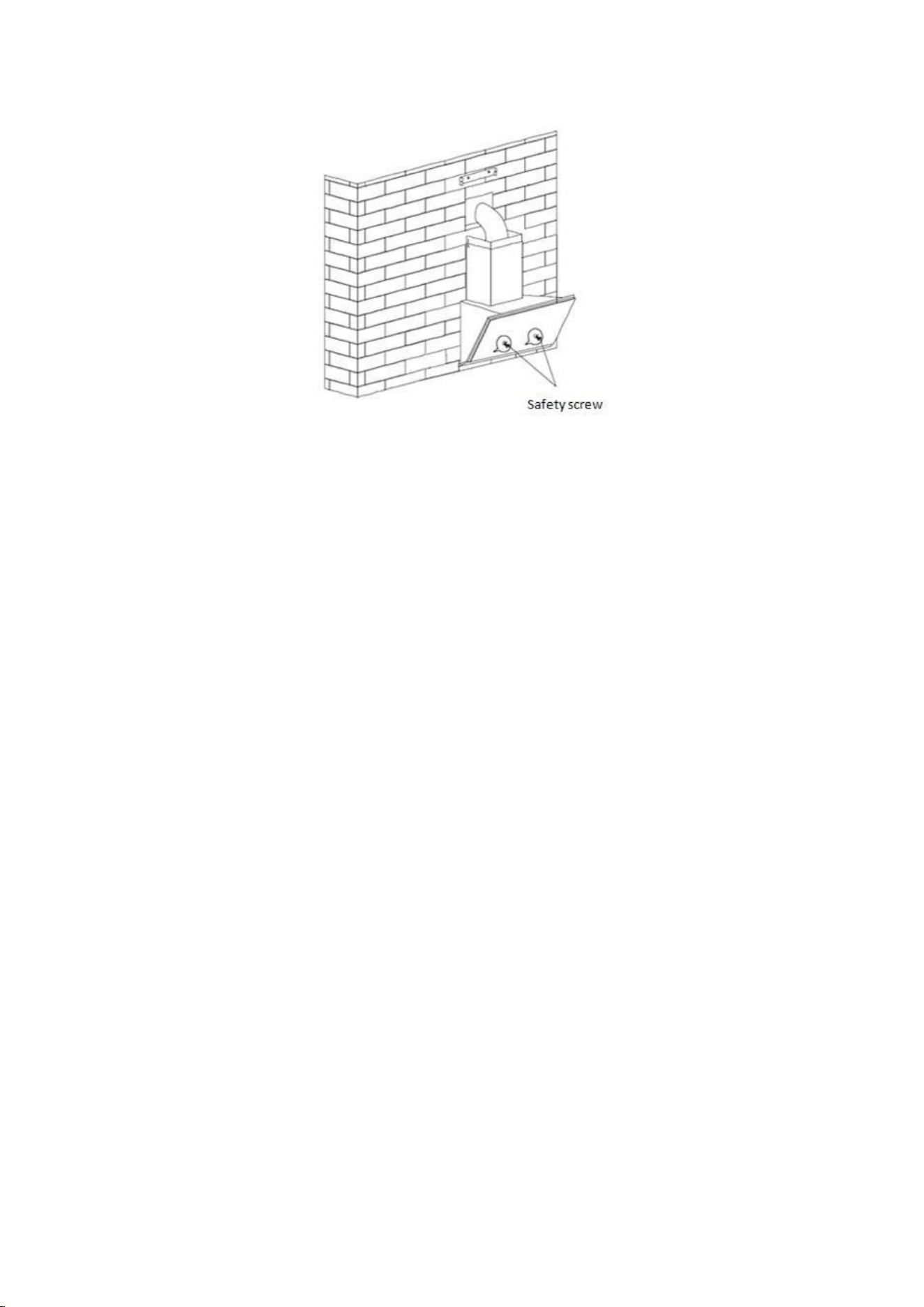

11. Take out the Aluminum filter and fix the safety hole with 2 x screws (4mm
x30mm).
10
12. Before usage, read all the instructions and make sure that the voltage (V)
and the frequency (Hz) indicated on the identification plate (found inside
the cooker hood) and all the data inside the appliance are exactly the
same as the voltage and frequency in your home. Then plug the power
lead into the power socket (or if connecting directly to the main via a
switched spur, ensure the work is carried out by a competent, qualified
person) and the cooker hood is then ready for use.
11
CARBON FILTER
（OPTIONAL）
Activated carbon filters should be used to trap odours (optional – available
from the same stockist you purchased the hood from) and must be used if the
hood is not vented to the outside. Reference:
eiQCF110 Carbon Filter Pack– fits model eiQCHA90B, eiQCHA90SS

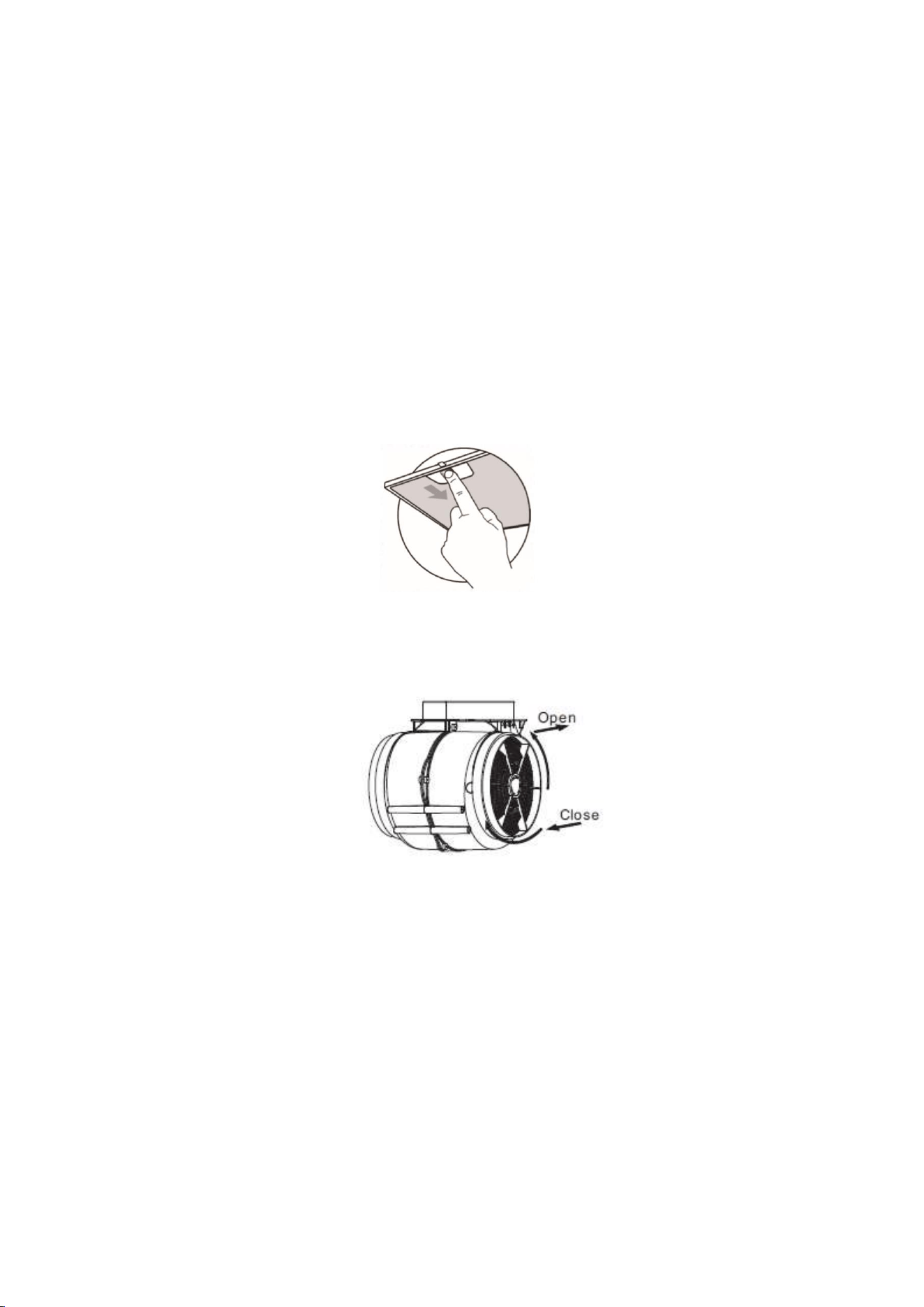

In order to install the activated carbon filters, the aluminium filter should be
removed first. Press the lock and pull it downward as below:
Put the activated carbon filter onto the end of the motor unit and turn it in anti-
clockwise direction. Repeat the same on the other side (see diagram).
NOTE:
• Make sure the filter is securely locked. Otherwise, it could loosen and
cause damage to the unit.
• When the activated carbon filters are attached, the suction power will
be lowered.
• The charcoal filter cannot be washed or recycled. It should be changed
at three or six months according to the amount of use the hood
receives. Replacements are available from the stockist you purchased
the hood from.
12

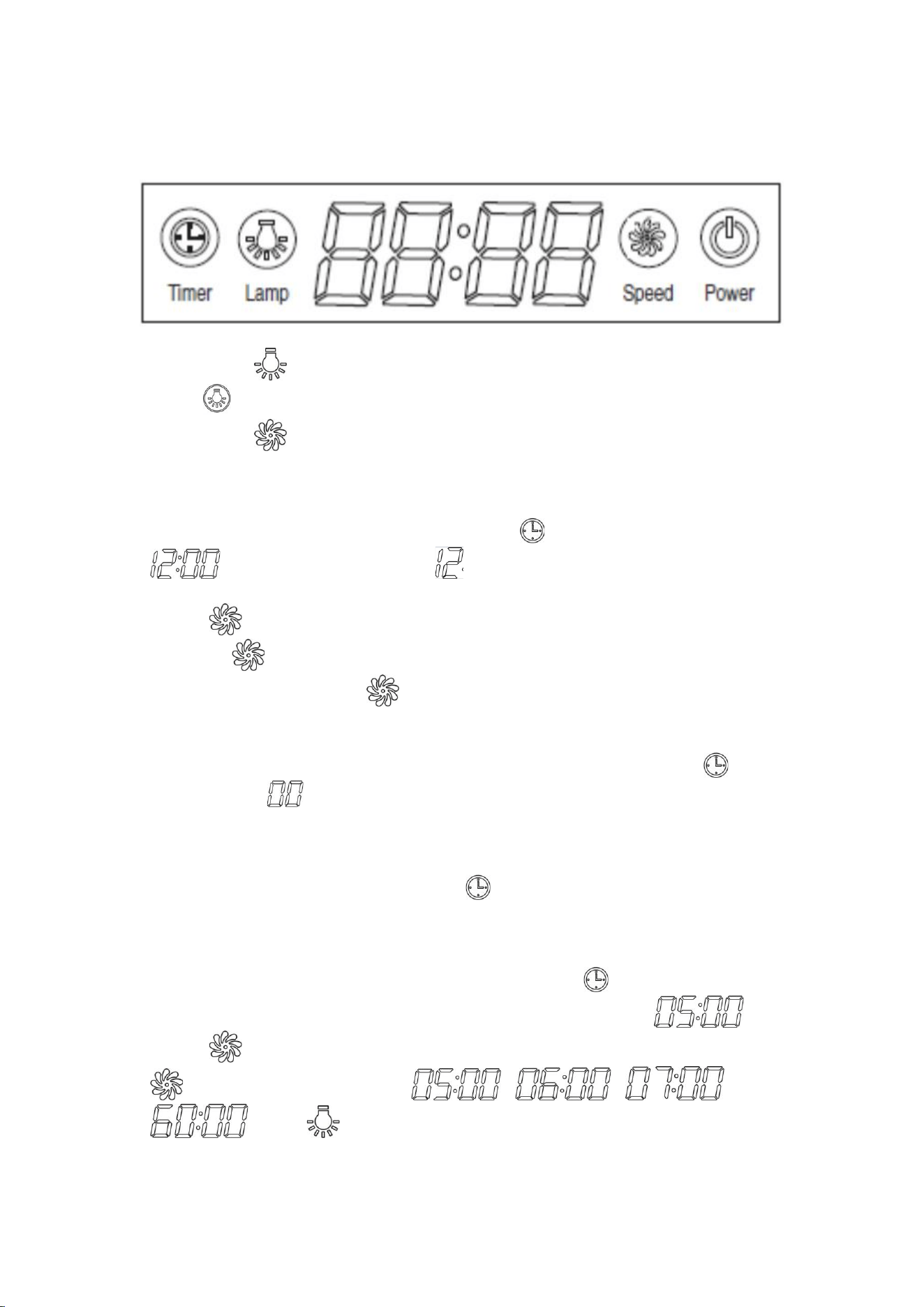

OPERATION
1. Press “ ” button once and the lights will be turned on. The LCD will
show Press again to turn off.
2. Press “ ” button once; the hood works at LOW speed and LCD will
display low speed. Press the speed button repeatedly to cycle through Low
Medium and Fast speeds. If speed is pressed again after Fast speed. The
fan will be turned off.
3. For Timer settings, press and hold the “ ” button for 2 to 3 seconds;
will be shown on LCD and
flashes; which represents the hour.
Press “ ” button once and the time will increase by 1 hour. Continue
pressing “ ” button; the timer will reach 23. When LCD shows 23; it
doesn’t work by pressing “ ” button. Press the lamp button to reduce the
hour by 1 each time.
After setting the hour; you can start setting the minute by pressing “ ”
button again.
on LCD flashes; which represents minutes.
Follow the previous steps for changing the hour, to change the minutes.
After setting hour and minutes, press “ ” to confirm.
The timer button is used for delay timer function. Delay timer function allows
you to set the hood to automatically power off according to the delay timer
you can set between 1 minute to 60 minutes. Press “ ” button once and
the hood will enter the delay timer mode. The LCD will show .
Press “ ” button once and the timer will increase by 1. Continue pressing “
” button; it will display from ; ; … until
Press “ ” button to reduce the timer. After setting delay timer
press the timer button to confirm the settings.
13
MAINTENANCE
Before cleaning, switch the unit off and pull out the plug, or switch off at the
relevant mains switch if the unit has been hard-wired in. Make sure the unit
has no power being fed to it.
REGULAR CLEANING
Use a soft cloth moistened with warm mildly soapy water or household
cleaning detergent. Never use metal pads, chemicals, abrasive material or a
stiff brush to clean the unit.
NOTE: Do not use a steam-cleaner to clean the hood; electrical components
could be damaged or short-circuit as a result
CLEANING THE FILTERS
• Remove the filters by pulling the latch until the filter cover comes off.
• Put into a dishwasher with detergent, set the temperature below 60 degrees.
Or wash by hand with warm soapy water, making sure to dry thoroughly.
• Make sure that the hood is disconnected from the mains before cleaning or
maintenance.
Replacement grease filters are available from the same stockist from which
you purchased the hood:
90cm models: eiQAL03E690 x 3
LIGHT REPLACEMENT
Before changing the bulb, ensure the hood is
turned off and the power is disconnected
before attempting to change the bulb. Wait
until the flitting has cooled down before
commencing replacement.
1. Remove the aluminium grease filter from
the hood.
2. Locate the top of the bulb and begin to gently unscrew it until
it is has come out of the unit. Do not use force, as this may
shatter the bulb and cause injury.
3. Replace with a new bulb, following the previous steps in
reverse order.
4. Refit the aluminium grease filters.
14
TROUBLESHOOTING
Fault
Cause
Solution
Light on, but
fan does not
work
The fan blade is
jammed.
Switch off the unit. Repair to be carried
out by qualified service personnel only.
The motor is
damaged.
Both light
and fan do
not work
Halogen light bulb
blown
Replace the bulb with correct rating.
Power cord loose
Plug in to the power supply again.
Excessive
Vibration
The fan blade is
damaged.
Switch off the unit. Repair to be carried
out by qualified service personnel only.
The fan motor is not
fixed tightly.
Switch off the unit. Repair to be carried
out by qualified service personnel only.
The unit is not hung
properly on the
bracket.
Take down the unit and check whether
the bracket is in proper location.
Suction
performance
not good
1 Grease filters
clogged?
2 Distance between
the unit and the
cooking plane too
great.
1 Clean or replace grease filters.
2 Adjust the distance to between
cooking surface to hood.
15
INFORMATION FOR COOKER HOOD
Symbol
Value
Unit
Model identification
eiQCHA90B/eiQCHA90SS
Annual Energy
Consumption
AEC
hood
43.2
kWh/a
Time increase factor
f
0,8
Fluid Dynamic
Efficiency
FDE
hood
33.2
Energy Efficiency
Index
EEI
hood
45.1
Measured airflow rate
at the best efficiency
Q
BEP
415.8
m
3
/h
Measured air
pressure at best
efficiency point
P
BEP
418
Pa
Maximum airflow
Q
max
643.8
m
3
/h
Measured electric
power input at best
efficiency point
W
BEP
145.4
W
Nominal power of the
lighting system
W
L
1,0
W
Average illumination
of the lighting system
on the cooking
surface
E
middle
41
lux
Measured power
consumption on
standby mode
P
S
0.42
W
Measured power
consumption on off
mode
P
O
-
W
Sound power level
L
WA
73
dB
The following shows how to reduce total environmental impact (e.g. energy
use) of the cooking process).
(1) Install the cooker hood in a proper place where there is efficient
ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
16
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance could not be dismantled by user. At the end of life, the appliance should not
be disposed of with household waste. Check with you Local Authority or retainer for
recycling advice.
electriQ UK SUPPORT
www.electriQ.co.uk/support
Call: 0871 984 4416
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Business Park
Lowfields Way, Elland
West Yorkshire, HX5 9DA
Recycling facilities are now available for all customers at which you can
deposit your old electrical products. Customers will be able
to take any old electrical equipment to participating sites run
by their local councils. Please remember that this equipment
will be further handled during the recycling process, so
please be considerate when depositing your equipment.
Please contact the local council for details of your local
household waste recycling centres.
