USER MANUAL
COOKER HOOD WITH COLOUR
CHANGING LED
eiQATS60
Thank you for choosing electriQ
Please read this user manual before using this
product and keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire product range
2
CONTENTS
SAFETY
3
INSTALLATION
5
OPERATION
7
TROUBLESHOOTING
8
CLEANING AND MAINTENANCE
8
FILTER INFORMATION
9
BULB REPLACEMENT
10
TECHNICAL SPECIFICATIONS
11
SUPPORT
12
PRODUCT FICHE
13
3
SAFETY PRECAUTIONS
Whilst this product is compliant with all safety requirements, incorrect or
inappropriate use can lead to both personal injury and potential damage
to property. Please read the contents of this instruction booklet thoroughly
before fitting or using this appliance.
• The cooker hood must be installed in accordance with the installation
instructions and all measurements followed.
• All installation work must be carried out by a competent person or
qualified electrician.
• The unit must be connected to an earthed power supply.
• If venting externally, make sure the ducting has no bends sharper than
90 degrees as this will reduce the efficiency of the cooker hood.
• The cooker hood is for domestic use only and is not designed for
commercial use. It should only be used for the purpose it was intended
– to extract vapours and cooking odours.
• Do not flambé or use an open flame under the cooker hood.
• Do not try to use the cooker hood without the grease filters or if the
filters are excessively greasy. They should be cleaned regularly (see
“Maintenance”) or replaced as necessary.
• The extraction fan must be level to avoid grease collection at one end,
as this could cause a potential fire risk.
• Do not leave frying pans unattended during use because overheated fat
or oils might catch fire.
• If the cooker hood is damaged, do not attempt to use it.
• If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or a similarly qualified person in order to avoid a
hazard.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the
appliance. It is not a toy.
• The plug must be accessible after installation for isolation in case of an
emergency – or an appropriate fused switch if the unit is hard-wired to
the mains via a spur.
• The minimum distance between the surface of the hob and the lowest
part of the hood should be at least 65cm. A distance of between 65cm
and 75cm gives peak efficiency.
4
• The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
• When the hood is vented externally and used with appliances which
burn fuel (e.g. gas, oil, wood) the area must be sufficiently ventilated to
ensure safe operation. Fresh air must be allowed to freely enter the
room to prevent a partial vacuum.
• A partial vacuum can starve the heating appliance of oxygen, impairing
combustion. It can also prevent toxic fumes from leaving the room, or
can cause fumes to be sucked into the room from outside.
• Safe operation is only possible when the partial vacuum within the
working area does not exceed 4 Pa (0.04 mbar). This can be achieved
by ensuring air is able to enter the room from outside through a suitable
sized opening which cannot be sealed during operation. A number of
alternative solutions are available to ensure this. If in any doubt,
professional advice should be sought.
• Regulations concerning the discharge of air have to be fulfilled.
• There is a potential fire risk if cleaning is not carried out in accordance
with the instructions.
• Clean your appliance periodically by following the method given in the
chapter MAINTENANCE
• If used in recirculation mode, the charcoal filters trap odours and must
be replaced at least once a year depending on how frequently the
cooker hood has been used.
• For safety reasons, please use only the same size of fixing or mounting
screw, which are recommended in this instruction manual.
• Warning: Failure to install the screws or fixing device in accordance with
these instructions may result in electrical hazards
CAUTION: Accessible parts of the hood can become very hot during
use with cooking appliances, whether in use or not, due to heat
rising from the hob. Sufficient time should be allowed for the unit
to cool before touching either the housing or the grease filters
5
INSTALLATION
If you have an outlet to the outside, your cooker hood can be
connected as below picture by means of an extraction duct
(enamel, aluminum, flexible pipe or non-flammable material with
an interior diameter of 120/150mm)
1. Before installation, turn the unit off and unplug it from
the outlet.

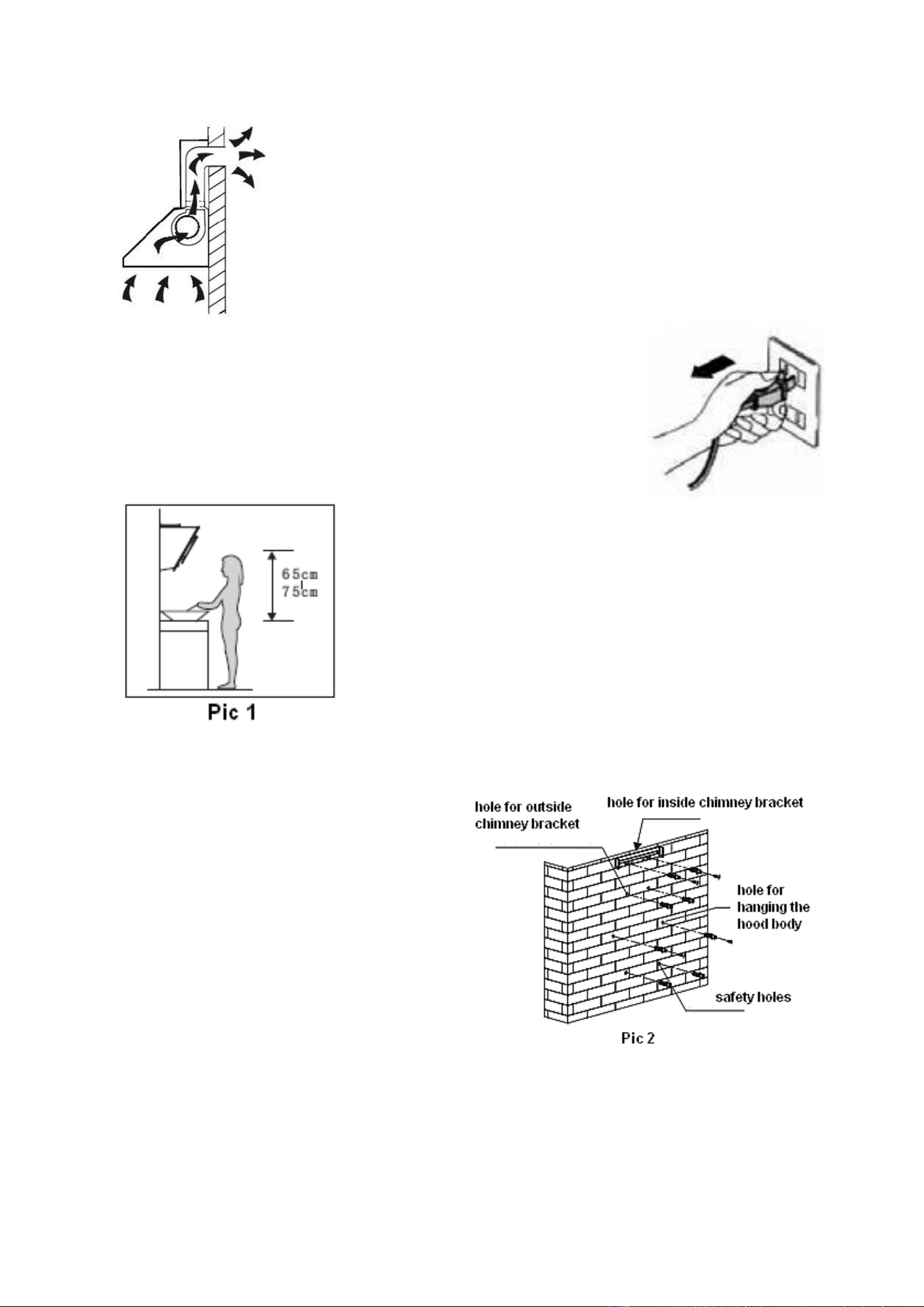

2. The cooker hood should be placed at a distance of
65~75cm above the cooking surface for best effect.
3. After deciding the height of the
cooker hood, measure the position
of the holes for hanging the hood,
inside the chimney bracket, outside
the chimney bracket and safety
holes. Drill 8 φ8 holes and insert
wall plugs into the holes. Fix the
inside chimney bracket onto the wall
with 2 ST4 x 40mm screws. Screw
2ST4 x 8mm screws in the hole for
hanging the hood body and the
screws installed should protrude 3-
5mm out of the wall to hang the
hood onto.
6

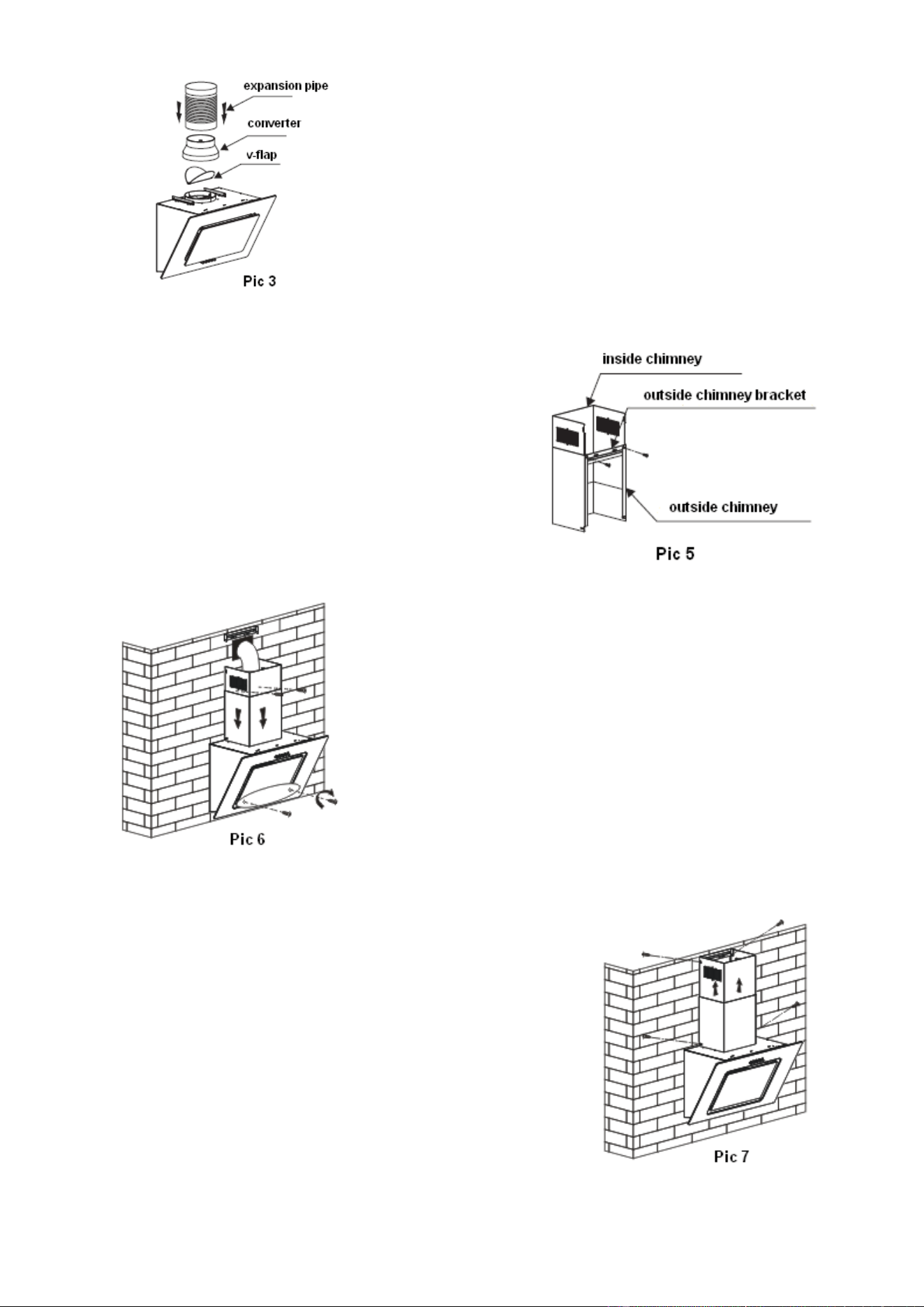

4. Install the v-flap and converter onto the cooker hood.
Fix the expansion pipe on the converter using a cable
tie. See Pic 3. Hang the cooker hood onto the hook.
5. Install the outside chimney bracket onto the
outside chimney with 2 ST4*8mm screws, be
sure the inside chimney can be flexed freely.
6. Fix the cooker hood with 2 ST4*30mm safety screws.
Note: The two safety vents are positioned on the back
housing, with diameter of 6mm. Put the two chimneys
onto the cooker hood, fix the outside chimney on the wall
with 2 ST4*40mm screws and lead the expansion pipe
to the outside. See pic 6.
7. Adjust the height of the inside chimney to the
position of the inside chimney bracket and fix on it
with 2pcs ST4*8mm screws. Fix the outside
chimney onto the hood body with 2pcs ST4*8mm
screws. See Pic 7.
7
START USING YOUR COOKER HOOD

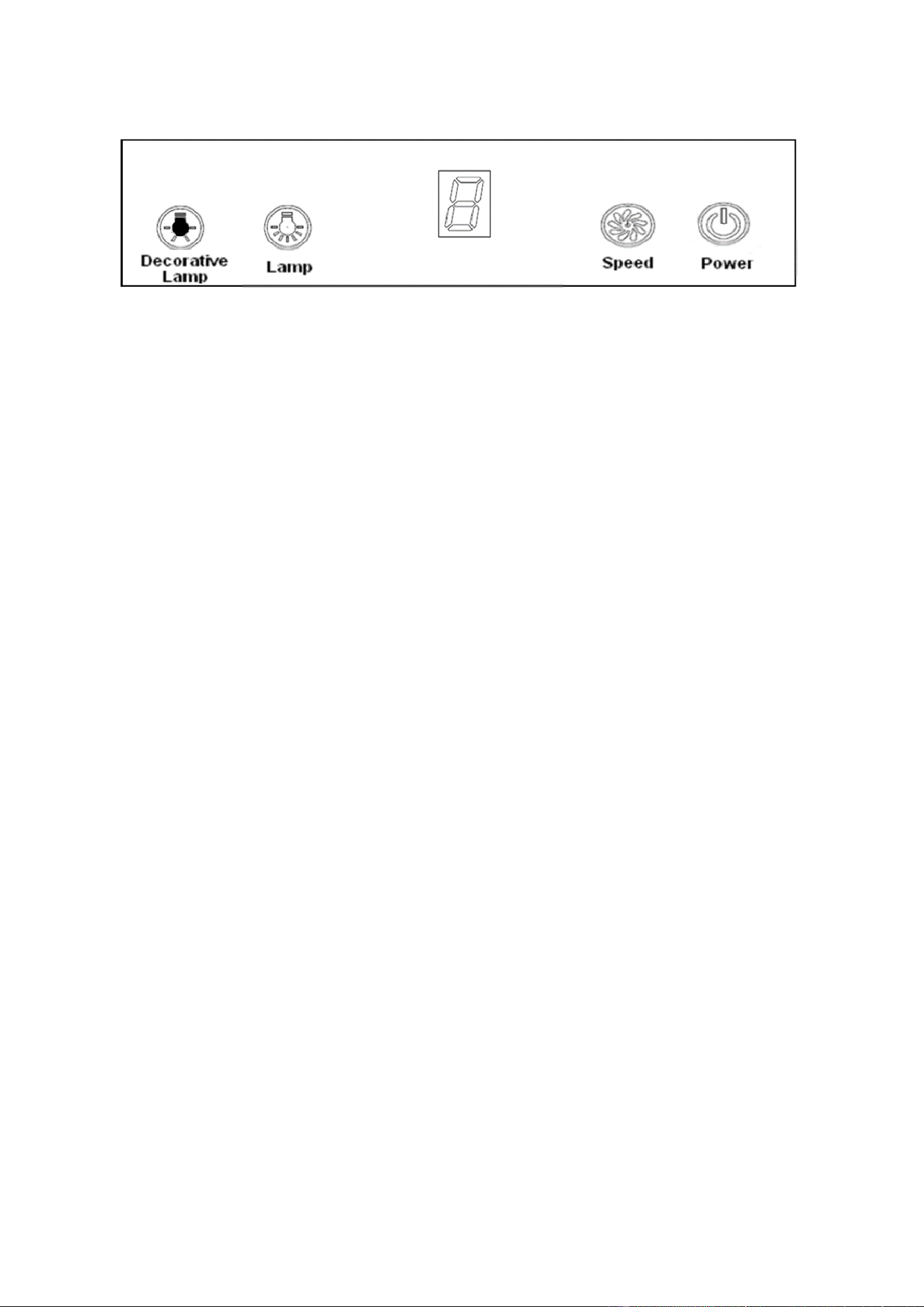

1. Press the “Power” button, to turn the cooker hood on and off.
2. Press the “Speed” button to cycle between fan speeds, the LED display will indicate
the fan speed with the numbers 1, 2 and 3.
3. Press “Light” button to turn the hoods light on and off.
4. Press the decorative lamp button once and the white LED light will be turned on.
Press again to turn it off. Press and hold this button for 3 seconds to eneter the colour
changing mode of the cooker hood. In this mode, press the decorative lamp button
once to pause on a chosen colour and to turn the decorative light, press and hold the
button for 3 seconds. The cooker hood will store your last chosen colour.
8
TROUBLESHOOTING
Fault
Cause
Solution
Light on, but
fan does not
work
The fan blade is
jammed.
Switch off the unit. Repair to be carried out
by qualified service personnel only.
The motor is damaged.
Both light
and fan do not
work
Halogen light bulb blown
Replace the bulb with correct rating.
Power cord loose
Plug in to the power supply again.
Excessive
Vibration
The fan blade is
damaged.
Switch off the unit. Repair to be carried out
by qualified service personnel only.
The fan motor is not fixed
tightly.
Switch off the unit. Repair to be carried out
by qualified service personnel only.
The unit is not hung
properly on the bracket.
Take down the unit and check whether the
bracket is in proper location.
Suction
performance
not good
Grease filters clogged?
Distance between the
unit and the cooking
plane too great.
Clean or replace grease filters.
Adjust the distance to between 70cm and
80cm.
MAINTENANCE
Before cleaning, switch the unit off and pull out the plug, or switch off at the relevant
mains switch if the unit has been hard-wired in. Make sure the unit has no power being
fed to it.
REGULAR CLEANING
Use a soft cloth moistened with warm mildly soapy water or household cleaning
detergent. Never use metal pads, chemicals, abrasive material or a stiff brush to clean
the unit.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life
expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may
be used.
NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent
any unsightly crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
IMPORTANT
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives,as this will affect the appliance
appearance and potentially remove any printing of artwork on the control panel and
will void manufactures warrantee.
9
GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a
mild detergent and then brush it gently with a soft brush. Please do not apply too much
pressure so as to avoid any damage to it . (Leave to dry naturally out of direct sun light)
Filters should be washed separately to crockery and kitchen utensils. it is advisable
not to use rinse aid.
INSTALLING GREASE MESH FILTERS
To install filters for the following four steps:
• Angle the filter into slots at the back of the hood.
• Push the button on handle of the filter.
• Release the handle once the filter fits into a resting position.
• Repeat to install all filters.
CARBON FILTER-not supplied
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
should be changed at three or six months according to your cooking habits. The
installation procedure of activated carbon filter is as below.

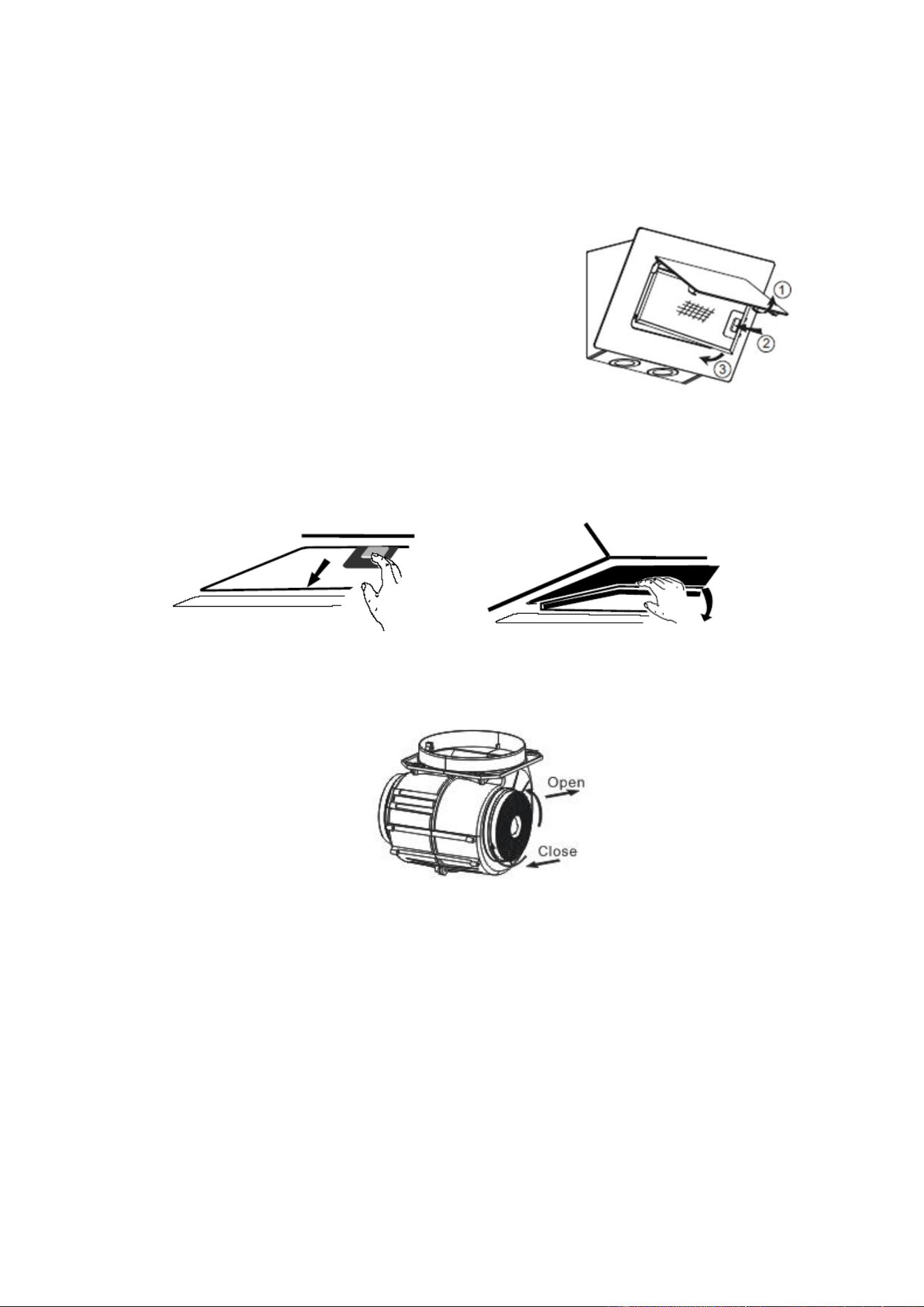

1. Before installing or replacing the carbon filters, please remove power to the unit.
2. Press the filter lock and remove the mesh filter.
3. Turn the carbon filter on both sides of the motor anti-clockwise. Replace the
carbon filters with the new carbon filters.
4. Place the mesh filter.
5. Connect the power supply to the wall socket.
FILTER REPLACEMENT
Carbon Filter: EIQCF130
Grease Filter: EIQALGS
10
BULB REPLACEMENT
• The bulb must be replaced by the manufacturer, its service agent or
similarly qualified persons.
• Always switch off the electricity supply before carrying out any operations
on the appliance. When handling bulb, make sure it is completely cool
down before any direct contact to hands.
• When handling globes hold with a cloth or gloves to ensure perspiration
does not come in contact with the globe as this can reduce the life of the
globe.
CHANGING THE LIGHTS
• Remove the grease filter.

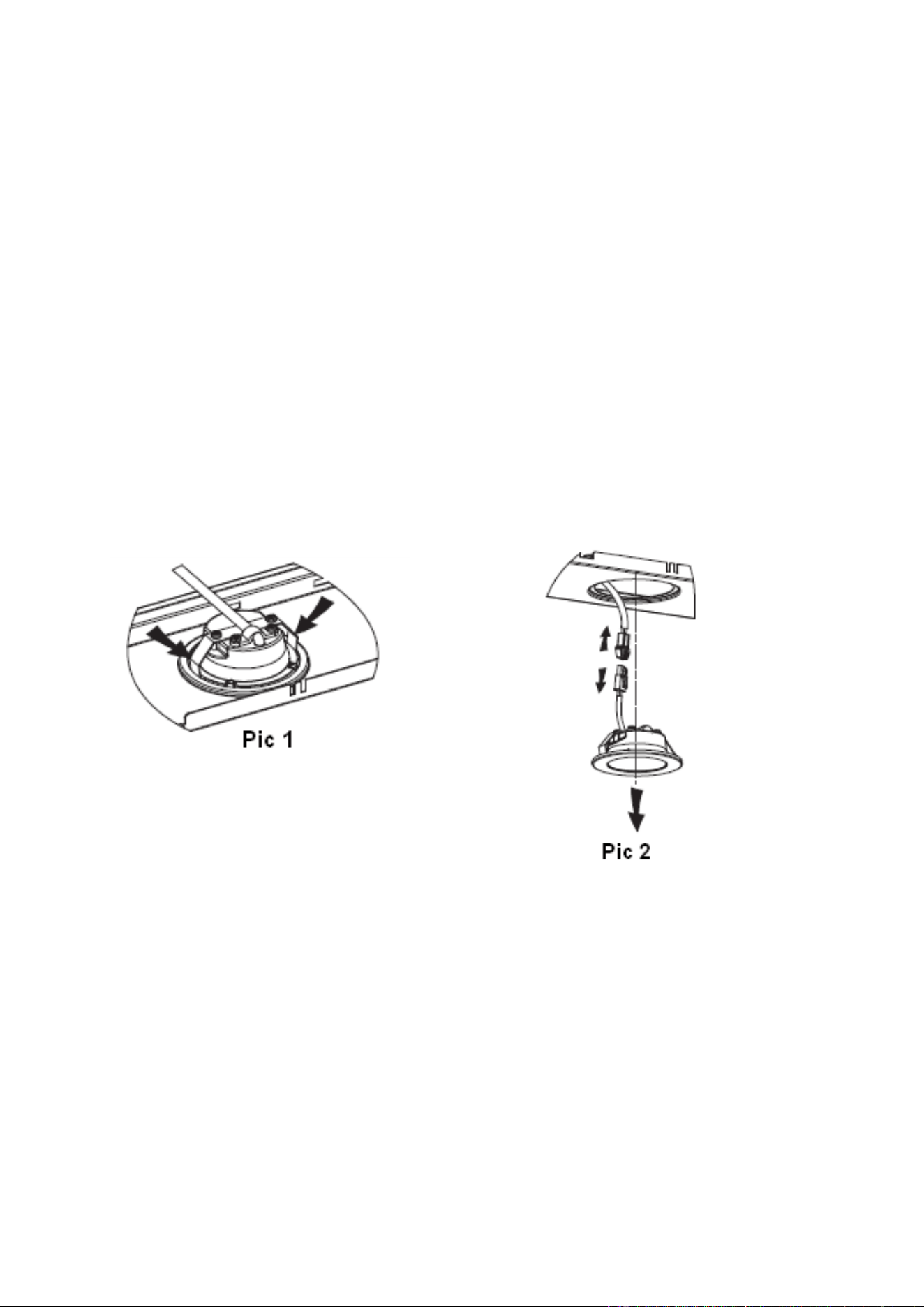

• Press the spring splinter of both sides of the LED light to the inside until the light is
pressed out, see pic 1.
• Slightly pull the light connection wire out, and disconnect the light. See pic 2.
• Reverse the procedure to reinstall.
ILCOS D code for this lamp is: DSR-1.5/65-S-64
Max wattage: 2×1.5W
Voltage range: DC 12V
11
CHANGING THE COLOURFUL LED LIGHTS
• Open the inner glass.

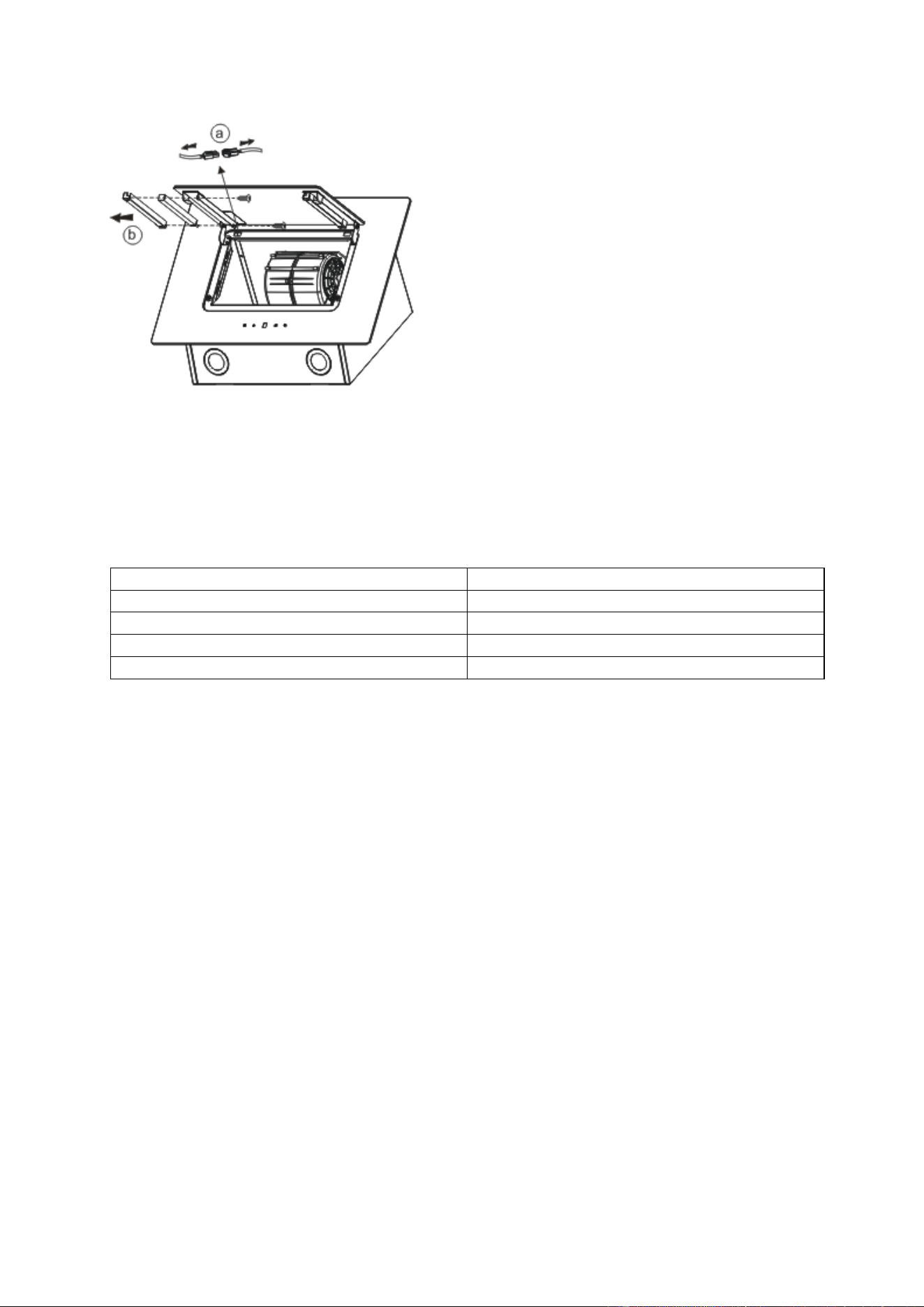

• Find and dismantle the terminal of the light
connecting wires as shown in a.
• Use a screwdriver to unscrew the two
screws on the -light cover, take out and
replace the light as shown in b.
• Reverse the procedure to reinstall.
Max wattage: 2×4 W
Voltage range: DC 12V
Dimensions: 165×14mm
TECHNICAL SPECIFICATIONS
MODEL
eiQATS60
MOTOR POWER
1*65W
WIDTHxHEIGHT (mm)
600x400
MOTOR AIR FLOW
330m3/h
ENERY EFFICIENCY
B
12
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in any way which is not shown in the user manual.
The appliance must not be dismantled by an unqualified person. At the end of its life,
the appliance should not be disposed of with general household waste. Check with
your Local Authority or retainer for recycling advice.
electriQ UK SUPPORT
www.electriQ.co.uk/support
Call: 0330 390 3061
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Business Park
Lowfields Way, Elland
West Yorkshire, HX5 9DA
Recycling facilities are now available for all customers at
which you can deposit your old electrical products.
Customers will be able to take any old electrical equipment
to participating sites run by their local councils. Please
remember that this equipment will be further handled during
the recycling process, so please be considerate when
depositing your equipment. Please contact the local council
for details of your local household waste recycling centers.
13
PRODUCT FICHE
Symbol
Value
Unit
Model identification
eiQATS60
Annual Energy
Consumption
AEC
hood
28.7
kWh/a
Time increase factor
f
1.5
Fluid Dynamic Efficiency
FDE
hood
14.1
Fluid Dynamic Efficiency
class
Class D
Energy Efficiency Index
EEI
hood
66.1
Energy Efficiency class
Class B
Maximum airflow
Q
max
299.5
m
3
/h
Measured airflow rate at
the best efficiency
Q
BEP
180.5
m
3
/h
Measured air pressure at
best efficiency point
P
BEP
132
Pa
Measured electric power
input at best efficiency
point
W
BEP
46.8
W
Nominal power of the
lighting system
W
L
4.2
W
Average illumination of
the lighting system on the
cooking surface
E
middle
143
lux
Measured power
consumption on off mode
P
O
0.38
W
Measured power
consumption on standby
mode
P
S
-
W
Sound power level
L
WA
Highest setting: 63
Lowest setting: 58
dB
