USER GUIDE
NZ AU
GAS-ON-GLASS COOKTOP
CG301DLPGB5, CG301DNGGB5, CG301DLPGG5 &
CG301DNGGG5 models
5
SAFETY AND WARNINGS
WARNING!
Electrical Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• Switch the power to the cooktop off at the wall
before cleaning or maintenance.
• Connection to a good earth wiring system is
essential and mandatory.
• Alterations to the domestic wiring system must
only be made by a qualified electrician.
• Do not cook on a broken or cracked cooktop. If
the glass should break or crack, turn off the gas
supply and switch the appliance off immediately
at the mains power supply (wall switch) and
contact a qualified technician.
• Do not modify this appliance.
WARNING!
Fire Hazard
Failure to follow this advice may result in
serious injury.
• Never leave the appliance unattended when
in use. Boilover causes smoking and greasy
spillovers that may ignite.
• Do not place articles on or against this
appliance.
6
SAFETY AND WARNINGS
WARNING!
Poisoning Hazard
Failure to follow this advice may result in
poisoning or death.
• Never use this appliance as a space heater to
heat or warm the room. Doing so may result in
carbon monoxide poisoning and overheating of
the appliance.
WARNING!
Explosion Hazard
Failure to follow this advice may result in
death or serious injury.
• Do not use or store flammable materials such as
gasoline near this appliance.
• Do not spray aerosols in the vicinity of this
appliance while it is in operation.
WARNING!
Hot Surface Hazard
Failure to follow this advice may result in
serious injury.
• This appliance becomes hot during use. Do not
touch the cooktop components, burners, pan
supports or the glass when hot.
• Before cleaning, turn the burners off and make
sure the whole cooktop is cool.
7
SAFETY AND WARNINGS
READ AND SAVE THIS GUIDE
WARNING!
To reduce the risk of fire, injury to persons or damage when using the appliance, follow
the important safety instructions listed below. Read all the guidance before installing or
using the appliance.
Installation
z
This is a Type A gas appliance.
z
Save these instructions for the local electrical inspector’s use.
z
Installation must comply with your local building and local electricity regulations.
z
This appliance is to be installed and serviced only by Fisher & Paykel trained and
supported service technician or qualified person.
z
The manufacturer accepts no responsibility for the incorrect installation of appliances.
Incorrect installation may result in personal injury, damage to property and may
invalidate any warranty or liability claims.
z
This appliance shall be installed in accordance with the regulations in force and only
used in a well-ventilated space.
z
Do not install this appliance next to a downdraft ventilation unit.
z
Packing elements (eg plastic bags, polystyrene foam, staples, packing straps etc) and
tools should not be left around during and after installation, especially if they are within
easy reach of children, as these may cause serious injuries.
z
Make sure you recycle the packaging material.
z
Before disposing of any appliance, make sure that it can no longer be used and that all
hazardous parts are removed or made harmless, so that children playing with the old
appliance cannot harm themselves.
z
Servicing shall be carried out only by authorized personnel.
z
Only genuine replacement parts may be used for servicing the appliance. These are
available from your nearest Fisher & Paykel Service Centre.
z
The adjustment conditions for this appliance are stated on the data plate. Prior to
installation, ensure that the local distribution conditions (nature of the gas and gas
pressure) and the adjustment of the appliance are compatible. If in doubt, refer to the
local gas network operator or gas supplier to confirm gas type at installation site.
z
Do not use or store flammable materials on or near this appliance.
z
Do not spray aerosols in the vicinity of this appliance while it is in operation.
z
You must remove the transit screws before installing the cooktop.
z
Particular attention shall be given to the relevant requirements regarding ventilation.
z
These appliances are registered in: New Zealand at www.energysafety.govt.nz and
Australian Gas Association at www.aga.asn.au.
General Use
z
CAUTION: This appliance is for cooking purposes only. It shall not be used for other
purposes, for example, room heating.
z
Keep children away from the cooktop when it is in use.
z
Household appliances are not intended to be played with by children.
z
Children of less than 8 years old must be kept away from the appliance unless
continuously supervised. This appliance can be used by children aged from 8 years
and above, and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, if they have been given supervision or
instruction concerning the use of the appliance in a safe way and they understand
the hazards involved. Cleaning and user maintenance shall not be done by children
without supervision.
8
SAFETY AND WARNINGS
z
If the electrical supply cord is damaged, it must only be replaced by an
authorised person.
z
If the appliance is connected to the gas supply with a flexible hose, make sure that the
hose cannot come in contact with the bottom of the appliance or any sharp edges.
z
Ensure that the electrical connection plug is accessible after installation.
z
This appliance should be connected to a circuit that incorporates an isolating switch
providing full disconnection from the electricity supply.
z
Do not use an asbestos mat or decorative covers between the flame and the saucepan
as this may cause serious damage to your cooktop.
z
Do not place aluminium foil or plastic dishes on the cooktop burners.
z
Do not let large saucepans, frying pans or woks push any other pans aside. This could
make them unstable or deflect heat onto your benchtop and damage the surface.
z
Do not use a steam cleaner for cleaning this cooktop.
z
Saucepan handles may be hot to touch. Ensure saucepan handles do not overhang
other gas burners that are on. Keep handles out of reach of children.
z
Do not stand or place heavy objects on this appliance.
z
After use, ensure that the burner dials are in the ‘OFF’ (o) position.
z
Where this appliance is installed in marine craft or in caravans, it shall not be used as
a space heater.
z
CAUTION: In case the glass surface breaks:
z
Immediately shut off all burners and any electrical heating element, and disconnect
the appliance from the power supply.
z
Do not touch the appliance surface.
z
Do not use the appliance.
z
Take care not to drop any heavy or sharp objects on the cooktop. The glass is tough,
but sharp or heavy objects falling on it (e.g. pepper mill, heavy-based frying pan) may
crack or chip it.
z
CAUTION: The use of a gas cooking appliance results in the production of heat and
moisture in the room in which it is installed. Ensure the kitchen is well ventilated. Keep
natural ventilation holes open or install a mechanical ventilation device (mechanical
extractor hood). Prolonged intensive use of the appliance may call for additional
ventilation, for example opening of a window, or more effective ventilation, for example
increasing the level of mechanical ventilation where present. Consult a professional
before installation of the additional ventilation.
z
After having unpacked the appliance, check to ensure that it is not damaged. In case of
doubt, do not use it and consult your supplier or a professionally qualified technician.
z
Packing elements (eg plastic bags, polystyrene foam, nails, packing straps, etc.) should
not be left around within easy reach of children, as these may cause serious injuries.
z
Do not modify this appliance.
z
This appliance is to be serviced only by Fisher & Paykel trained and supported service
technician or qualified electrician in order to avoid a hazard.
z
Some products are supplied with protective film on steel and aluminium parts. This film
must be removed before using the appliance.
z
Never leave the cooktop unattended when in use. Boil-over causes smoking and greasy
spills that may ignite.
z
Never allow flames to extend beyond cookware or curl up its sides. This could discolor
and damage the utensil and you may get burned touching a hot handle.
z
Keep handles out of the way. Turn handles so that they don’t extend over the edge of
the cooktop or another burner that is on.
z
Take care when deep-frying. Oil or fat can overheat quickly, particularly on high.
9
FIRST USE
Cooktop features and accessories
1 Burner
2 Trivet
3 Control dial
4 Small pan support
5 Wok stand
6 Serial label (on cooktop base)
4
5
6
3
1
2
10
FIRST USE
When using the burner, you can choose
to use the inner burner only or both the
inner and outer burners as desired.
When you have finished cooking, turn the dial
clockwise back to
O (OFF).
Setting both the inner and outer rings
Turn the dial to any heat setting between
MEDIUM and HIGH before releasing.
If the flame on the outer ring appears to
flutter, turn the dial slightly towards high to
stabilise.
Setting the inner ring
Turn the dial to any heat setting between
MEDIUM and LOW before releasing.
Lighting the burner
Push the dial down and turn counterclockwise
to the highest heat setting. Once the burner
is lit, hold the dial down for a further 3
seconds.
Note: Refer to 'Manually lighting the cooktop'
if your burner will not light.
Inner burner only
Inner and outer
burner
11
MANUAL LIGHTING
If the burner will not light after several attempts, the burner can be manually lit. If you have
attempted to light the burner with the ignition, allow 5 minutes for any accumulated gas to
dissipate before manually lighting. Lighting your cooktop this way can be achieved if your
power is off.
1. Carefully hold a lit match near the burner.
2. Push the dial down and turn
counterclockwise to the highest heat setting.
Once the burner is lit continue to hold the dial
down for a further 3 seconds.
3. Wait until the flame is burning evenly
before adjusting the heat setting as required.
4. When you have finished cooking, turn the
dial clockwise back to O (OFF).
12
BURNER PARTS
Ensure all parts are correctly
fitted before using the burner.
Flames should burn blue,
without yellow tips or fluttering
around the burner cap.
Ensure the trivet is securely
positioned and level. If
necessary, adjust the height of
its feet.
Burner cap
Burner ring
Ignitor
Burner skirt
do not remove
Probe
Flame
spreader
Correct alignment
Incorrect alignment
13

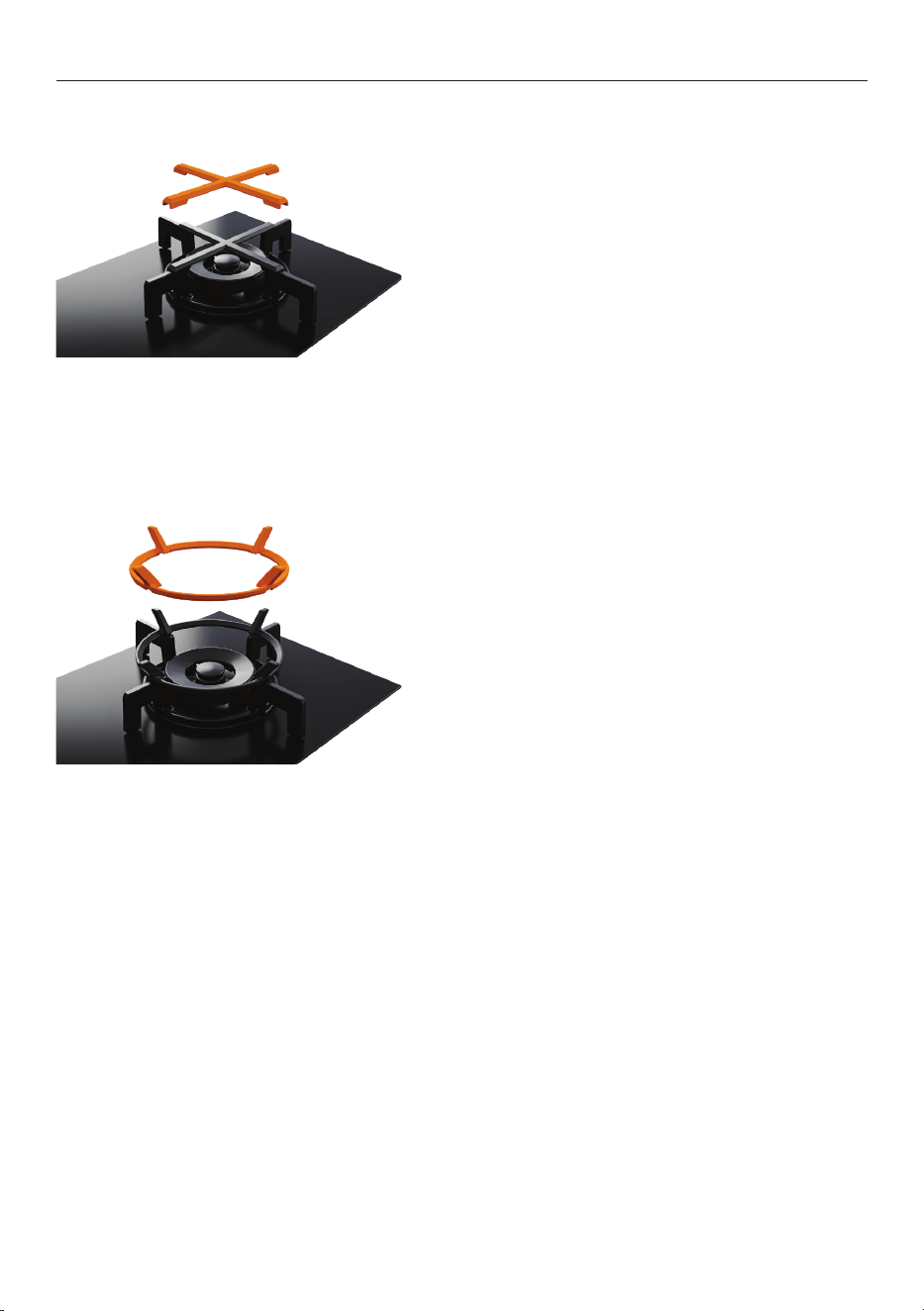

BURNER ACCESSORIES
Small pan support
Use the small pan support for cookware with
a base diameter smaller than 200mm.
Using the small pan support
Ensure the cooktop is cool before positioning
the small pan support on the centre of
the trivet. Ensure the support is securely
positioned and level before using.
Wok stand
The wok stand is designed to allow the safe
use of a wok. This accessory must be used
when cooking with a wok.
Using the wok stand
Ensure the cooktop is cool before slotting
the wok stand onto the centre of the burner.
Ensure all notches rest securely on the burner
pan supports before use.
14
COOKWARE GUIDE
For optimal performance, ensure the size of the cookware is suitable for the burner in use.
BURNER
MIN. DIAMETER MAX. DIAMETER
MM MM
Dual wok
Pan without small pan support 200 340
Wok with wok stand 240 400
Note: measurements provided from base of pan
15
CARE AND CLEANING
When cleaning your cooktop, switch the power off at the wall.
We do not recommend using the following cleaning products as they may cause damage:
z
Plastic or stainless steel scouring pads
z
Abrasive or solvent cleaners
z
Acid or alkaline cleaners
z
Stainless steel cleaners or polishes
z
Laundry detergents or disinfectants
Everyday cleaning such as fingerprints, marks, metal sheen and non-sugary spills
Apply cooktop cleaner, then wipe with a damp cloth. Dry with a clean, lint-free cloth
or paper towel. If further cleaning is required, apply cooktop cleaner following the
manufacturer’s instructions.
Boilovers, melts and hot sugary spills
Remove these immediately with a glass scraper, but beware of hot surfaces.
1 Turn off the cooktop.
2 Hold the scraper at a 30° angle, and move the spill to a cool area of the cooktop.
3 Wipe clean with a damp cloth or paper towel.
Cleaning the burner caps, rings, flame spreaders and accessories
When cleaning these parts, ensure they are completely dry before refitting as wet burner
parts may result in an irregular, dangerous flame.
1 Remove the parts that you wish to clean.
2 Clean in hot soapy water with a stiff nylon brush.
3 Rinse in warm water and dry thoroughly.
4 Ensure all parts are replaced correctly.
Cleaning the ignitor and probe
Burners should be cleaned regularly. Food residue may obstruct the ignitor and the notches
of the flame spreader, preventing the burner from functioning correctly.
1 Remove the parts required to access the ignitor and probe.
2 Clean carefully with a stiff nylon brush dipped in methylated spirits ensuring any build
up is removed.
3 Ensure all parts are replaced correctly.
16
LEAK TESTING
Leak test connection points
Manual shut-off valve
Follow the below instructions to carry out leak testing:
z
Ensure all dials are set to OFF before connecting cooktop to gas supply.
z
After final gas connection is made, turn gas supply on and test all connections in gas
supply piping for gas leaks with a soapy water solution.
z
In order to avoid property damage or serious personal injury, never use a match or open
flame. If a leak is present, tighten joint or unscrew, apply more joint compound, tighten
again and retest connection for leak.
17
TROUBLESHOOTING
Why won’t my cooktop turn on?
There may be no power. Make sure the cooktop is connected to the power supply and
switched on at the wall. Check the circuit breaker, or check if there is a power cut in your
home or area. If your cooktop still won’t turn on, call Customer Care or your Authorized
Service Center.
There is a strong gas smell
The gas connection could be leaking. Open a window and check for leaks. Refer to ‘Leak
testing’ for details. Do not use the cooktop until the leak has been repaired.
There is a slight rubbery or metallic smell when I use the cooktop for the first time
This is normal for first use and is caused by manufacturing residues burning off. The
smell will disappear with use.
There is no clicking/ sparking when trying to ignite the cooktop
z
There may be a power failure. You can still use your cooktop in a power failure, but
will need to match-light the burners. Refer to ‘Manual lighting’ for details.
z
The ignitor may be dirty or wet. Clean the ignitor following the guidance in
‘Care and cleaning’.
There is clicking/sparking, but the burner won’t light easily or at all
z
The gas supply may not be turned on at the valve or gas bottle. Turn all the burners
off, and check whether the gas supply to the cooktop is turned on. Wait 1 minute, then
try relighting the burner, holding the dial down for a few more seconds.
z
The gas supply to the house may not be working. You should hear the gas when you
turn a burner on. If you use bottled gas, not hearing the gas may indicate you are
getting near the end of the bottle and need to replace it.
z
Burner parts may be clogged or wet. Ensure parts are clean and dry. See ‘Care and
cleaning’ for guidance.
z
Burner parts may not have been replaced correctly. Check the assembly and ensure
the burner cap is sitting flat.
The burner goes out after lighting
The dial may not have been held down for long enough. Wait for 1 minute, then try to
relight the burner, holding the dial down for a few more seconds.
18
TROUBLESHOOTING
The flame has been extinguished
z
The flame may have been blown out by draught. In this case, the flame failure
protection will automatically cut the gas supply to the burner off, stopping
gas from escaping.
z
The flame may have been extinguished by a spill. Turn the burner off, then wait for
at least 5 minutes before attempting to relight. This is to allow for any accumulated
gas to disperse.
The flame goes out at low settings
The gas supply pressure may be low. Check this with your service person or installer.
What should I do if the glass gets cracked or chipped?
Stop using the cooktop. Turn off the power supply at the wall, and call Customer Care or
your Authorized Service Center.
19
MANUFACTURER’S WARRANTY AND SERVICE GUIDE
To access your Warranty and Service Guide
Scan the QR code with your smartphone to access your warranty and
book a service, or view online at https://www.fisherpaykel.com/nz/help-
and-support/warranty-information
To access your Warranty and Service Guide
Scan the QR code with your smartphone to access your warranty and
book a service, refer to your separate warranty and service book or
view online at https://www.fisherpaykel.com/au/help-and-support/
warranty-information
This product has been designed for use in a domestic (residential) environment. This
product is not designed for any commercial use. Any commercial use by the customer will
affect this product’s Manufacturer’s Warranty.
AU
NZ
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
Tow n
Country
432631A 02.25
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2025. All rights reserved.
The models shown in this guide may not be available in all markets and are subject to
change at any time.
The product specifications in this guide apply to the specific products and models
described at the date of issue. Under our policy of continuous product improvement,
these specifications may change at any time.
For current details about model and specification availability in your country, please go
to our website or contact your local Fisher&Paykel dealer.
