ELECTRIC MELTING FURNACE
MODEL:KD-Z6651
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: KD-Z6651
NOTE：Periodically check the intactness of the inwall, to avoid damages of the
heating coil !
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
ELECTRIC MELTING
FURNACE
- 2 -
Warning - To reduce the risk of injury, user must read instructions
manual carefully.
FCC Information:
CAUTION:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment!
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1) This product may cause harmful interference.
2)This product must accept any interference received, including
interference that may cause undesired operation.
SAFETY INSTRUCTIONS
1.1 General safety information for the use of electrical devices:
To avoid injury from or electric shock, please ensure compliance with safety instructions
when using this device. Please read the instruction carefully and make sure that you have
understood it well. Keep the manual near the equipment to be able to read it at any time.
1.1.1 Always use current sources connected to the ground and provide the necessary
voltage (indicated on the label on the device). If you have any doubts, let an electrician
check that the unit is properly grounded. Never use a damaged power cable.
1.1.2 Do not open the unit of solar radiation. Use the device in a protected location to avoid
damaging the equipment or endangering others. Make sure the device is able to cool after 3
hours of constant working and avoid placing it too close to other devices that produce heat.
1.1.3 Before cleaning, disconnect it. Use a soft damp cloth for cleaning. Avoid using
detergent and make sure that no liquid enters the unit. If the metal contains acid or alkali
materials, a chemical reaction may occur that could corrode the heating element. Please
keep the top cover open during melting process.
1.1.4 No internal element of this device needs to be maintained by the user. Please do not
disassemble and repair yourself privately.
- 3 -
1.2 General safety information for the use of melting furnaces:
●The user manual should be kept close to the device and should always be accessible to
the users. Instruct your employees on how to use the melting furnace properly.
● Make sure your working area is well aerated.
● Keep the escape routes clear.
● Keep a fire extinguisher ready for use.
● Always use safety gloves.
●Do not place melting furnaces on combustible supports or close to combustible materials.
●Do not let the device be without surveillance during the heating.
●Do not overfill the crucible, in order to prevent it from overflowing during the heating.
●Add solid melting materials by inserting them slowly into the hot liquid mass.
1.3 Specific safety information for the use of melting furnaces:
●In order to ensure long durability and good function of your device,
we strongly advise you to work less than 3 hours once. Please ensure to
stop for 30 minutes after 2 hours of continuous work.
●The maximal operating temperature tolerated by the melting furnace is 1150℃. Never
exceed this value.
●Recycled gold or silver contains acid and alkali which may corrode the heating element. If
you want to melt that kind of metal, please open the cover of the melting chamber with
regularity to let the toxic substance evaporate.
FCC Information
CAUTION:
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment!
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1) This product may cause harmful interference.
2)This product must accept any interference received, including interference that may
cause undesired operation.
WARNING:
Changes or modifications to this product not expressly approved by the party.responsible
for compliance could void the user's authority to operate the product.
- 4 -
Note:
This product has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This product generates, uses and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this product does cause harmful interference to radio or television
reception,which can be determined by turning the product off and on, the user is
encouraged to try to correct the interference by one or more of the following measures.
· Reorient or relocate the receiving antenna.
· Increase the distance between the product and receiver.
· Connect the product to an outlet on a circuit different from that to which the receiver is
connected.
· Consult the dealer or an experienced radio/TV technician for assistance.
MODEL AND PARAMETERS
Model
KD-Z6651
Input
AC 120V 60Hz
Max. Power
1500W
Max. Temperature
1200℃
Temperature Error
±5℃
Working Temperature
0-50℃
Cavity Size
155*158*130mm
Material
Stainless Steel(Shell)
- 5 -

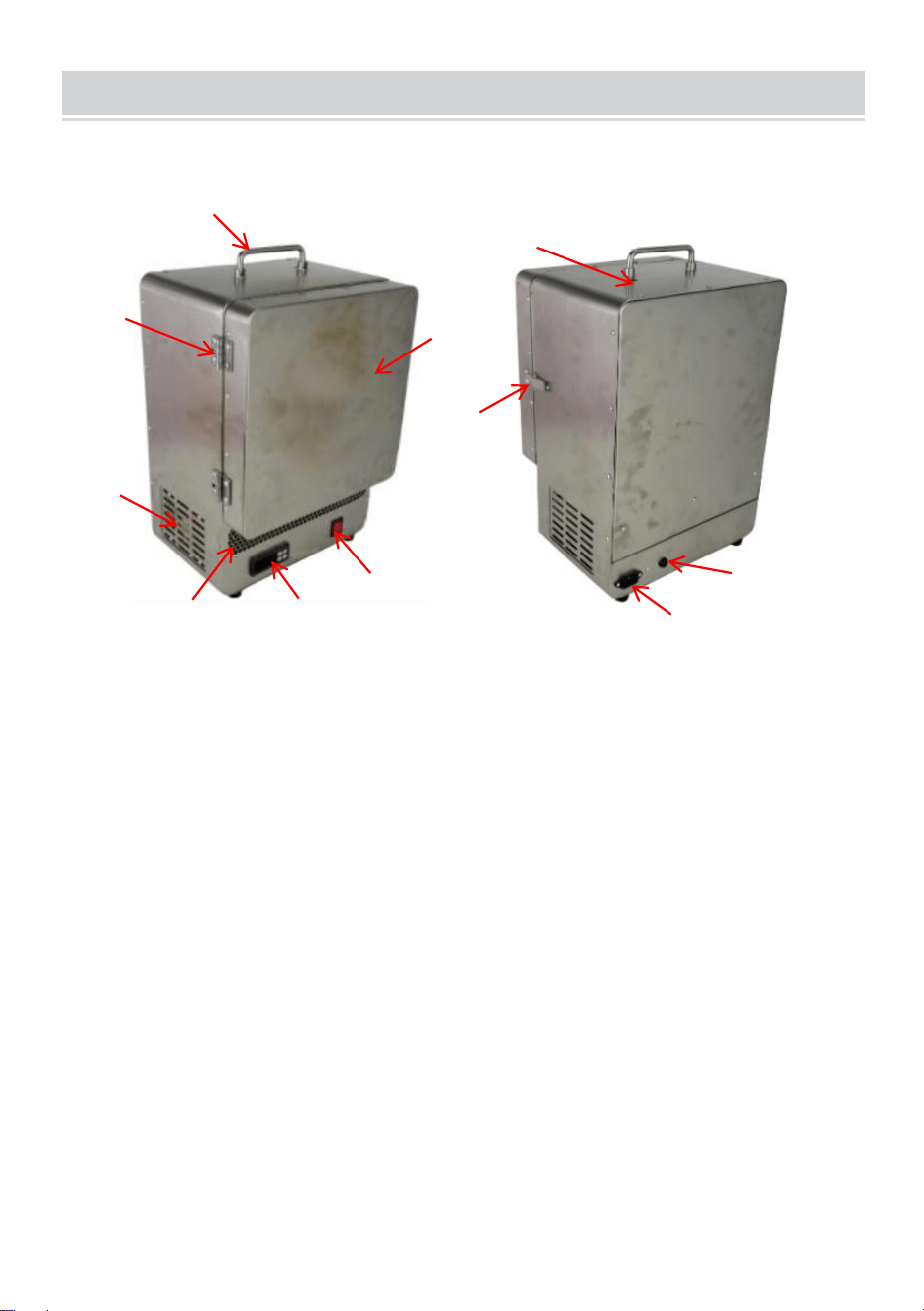

STRUCTURE DIAGRAM
1.Handle
2.Door hinge
3.Door
4.Heat dissipation fan
5.Heat dissipation holes
6.Temperature control meter
7.Power switch
8.Internal ventilation hole
9.Lock latch
10.Electrical outlets
11.Safety seat
1
2
3
4
5
6
7
8
9
10
11
- 6 -

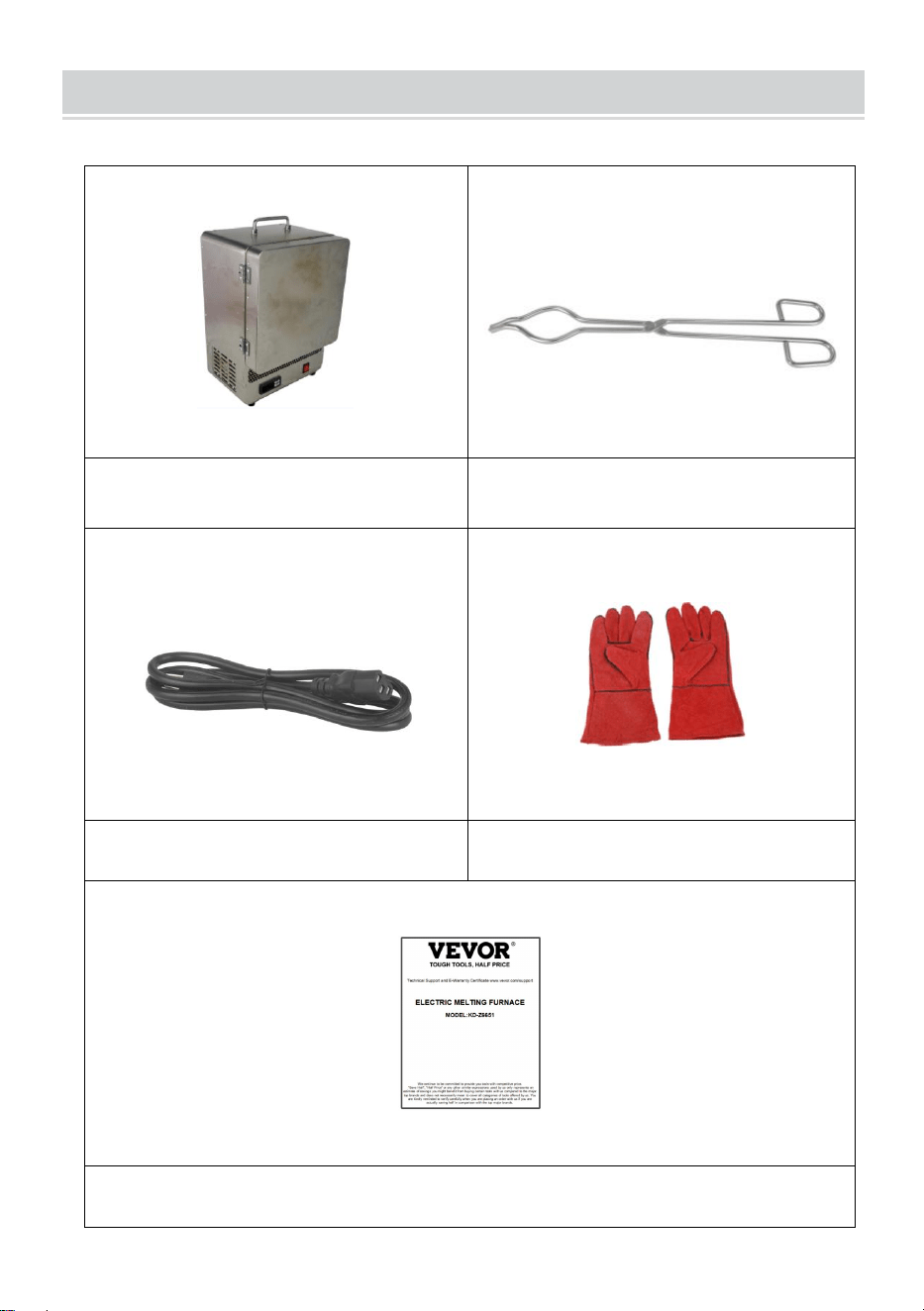

PARTS LIST
Melting Furnace x1
Crucible Tong x1
Power Cord x1
Insulated Gloves x1
User Manual x1
- 7 -

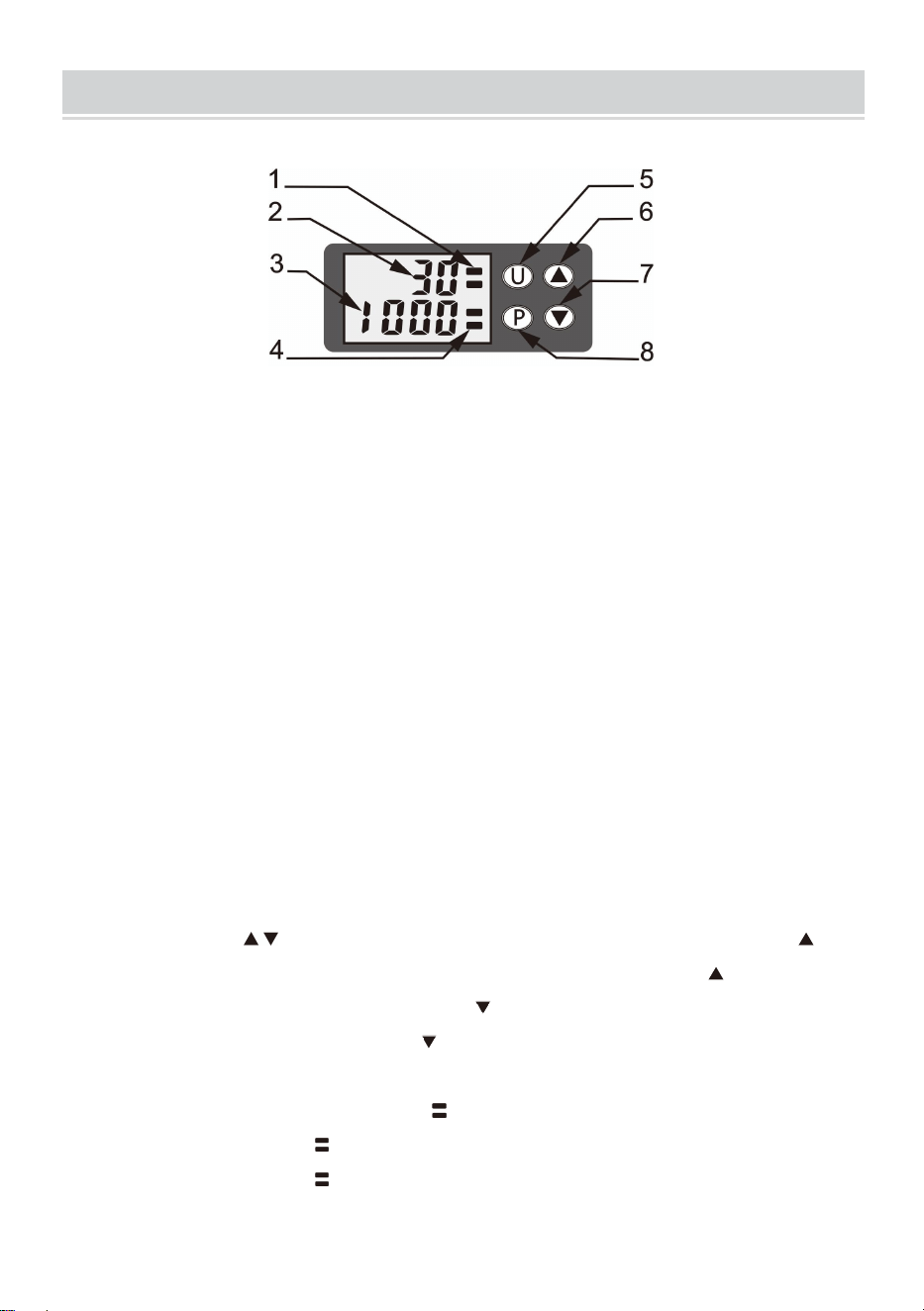

PROCEDURE FOR TEMPERATURE CONTROL
1. Heat display symbol
2. Show the actual temperature in the furnace
3. Display the set temperature
4. Heat preservation display symbol
5. U button to set the temperature (After pressing the button, the setting
temperature will blink.)
6.Add temperature (Display setting temperature flicker to add temperature)
7. Reduce temperature (Display setting temperature flicker to reduce
temperature.)
8. Start heating/Confirm setting temperature
Procedure:
1. The temperature on the display is the actual temperature inside the
furnace.
2. Press the key U, the temperature number under the display will flash.
When flashing, it means the temperature can be set.
3. Press the key to adjust the required temperature Short press the
number will progressively increase by 1 degree, long press the number
will speedily increase Short press the number will progressively
decrease by 1 degree, long press the number will speedily decrease.
4. Press the key P to confirm the setting temperature.
5. Upside the display, the symbol means heating and insulation.Upside
the display, the symbol flashing means increasing the temperature. Below
the display, the symbol flashing means the holding temperature.
- 8 -

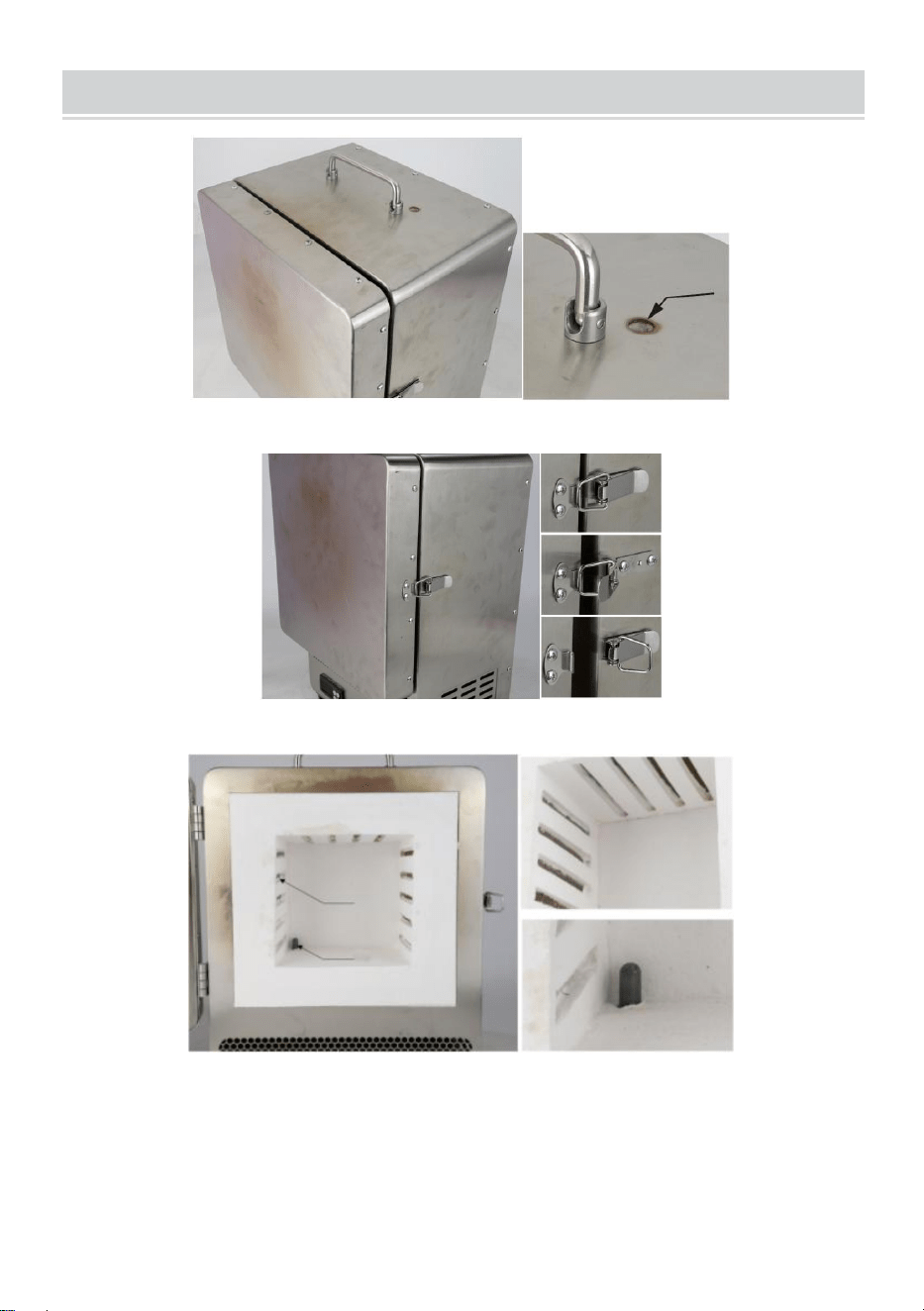

USE
Internal high temperature vents
Buckle opening mode diagram
1. Integrated fiber cotton heating wire
2. Temperature sensor
NOTE ： Periodically check the intactness of the inwall, to avoid damage to the
heating coil !
1
2
- 9 -

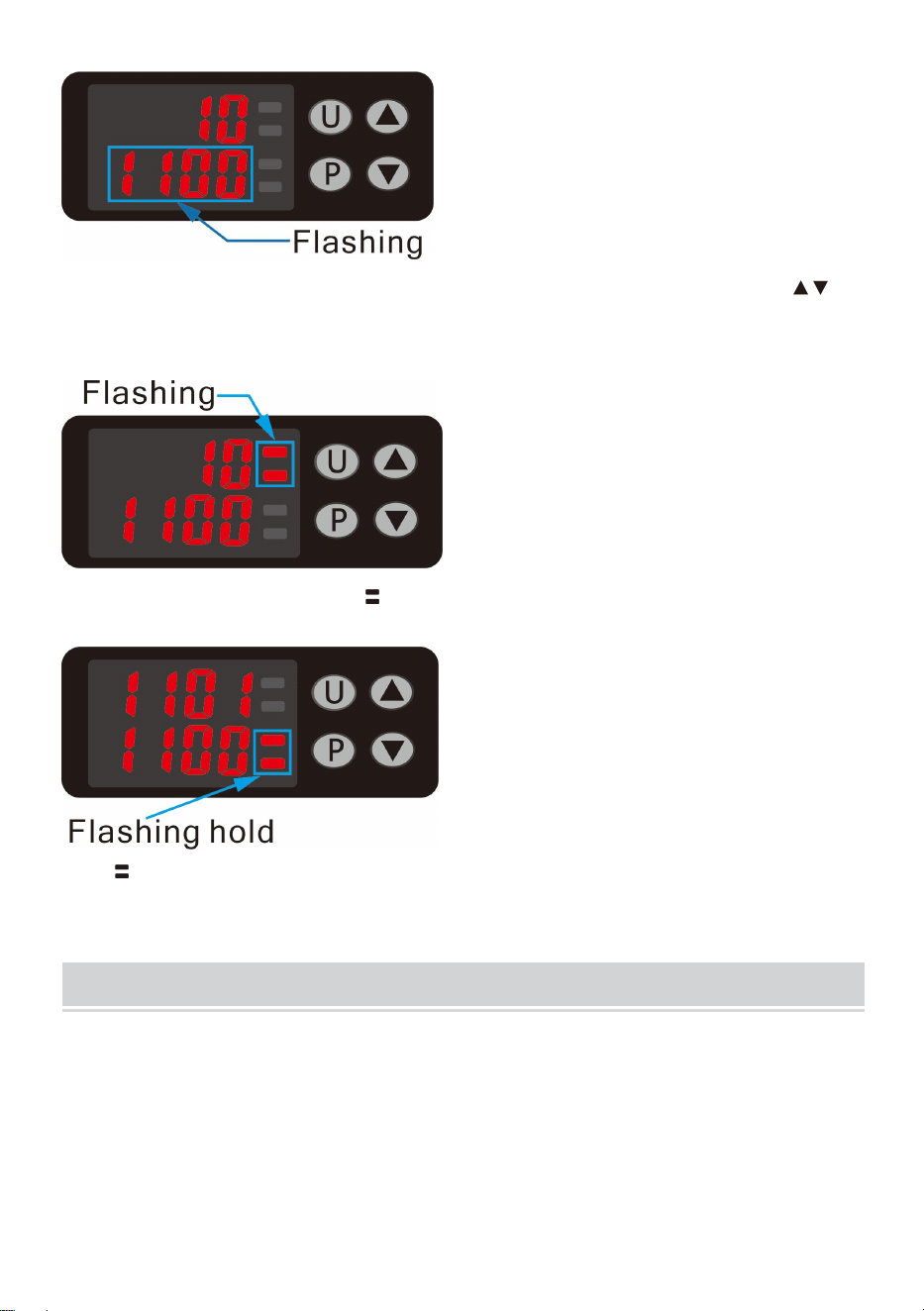

1. Press U to set the temperature. The number below blinks. Press to
adjust the temperature. Press P to confirm.
2. Press the P key and the “ ” blink for the start of heating.
3. “ ” blinking in the lower right corner indicates heat preservation.
INSTRUCTIONS FOR METALS MELTING
IMPORTANT: The graphite crucible is only adapted to melt gold, Silver, copper
and other noble metals!
List of the metal types which can be molten in the crucible provided with the
device:
- 10 -
Metal
Symbol
Density
Density Fusion Point
Copper
Cu
8.92g/cm3
1084.62
℃
Silver
Ag
0.49g/cm3
962.78℃
Gold
Au
19.30g/cm3
1064.18℃
Please consider that the crucible shouldn't be completely filled to reach an optimal
result. If you overfill the crucible, the device won't be able to produce the heat
needed to let the metal melt. Moreover, the melting process often produces vapors.
If you overfill the crucible, it can lead to over pressure and the use of the device
gets dangerous for the user, at the latest by opening the cover.
Please buy an adapted crucible to melt other metals. Always inform yourself about
the production of vapors during the melting process to check the compatibility of
the device with your intentions.
HOW TO DETECT HEATING COIL
CAUTION: Never open the device without the authorization of your seller.
The heating coil may get damaged, and you have to exchange it.
To do it, please follow these given instructions: Check the function of the
heating coil.

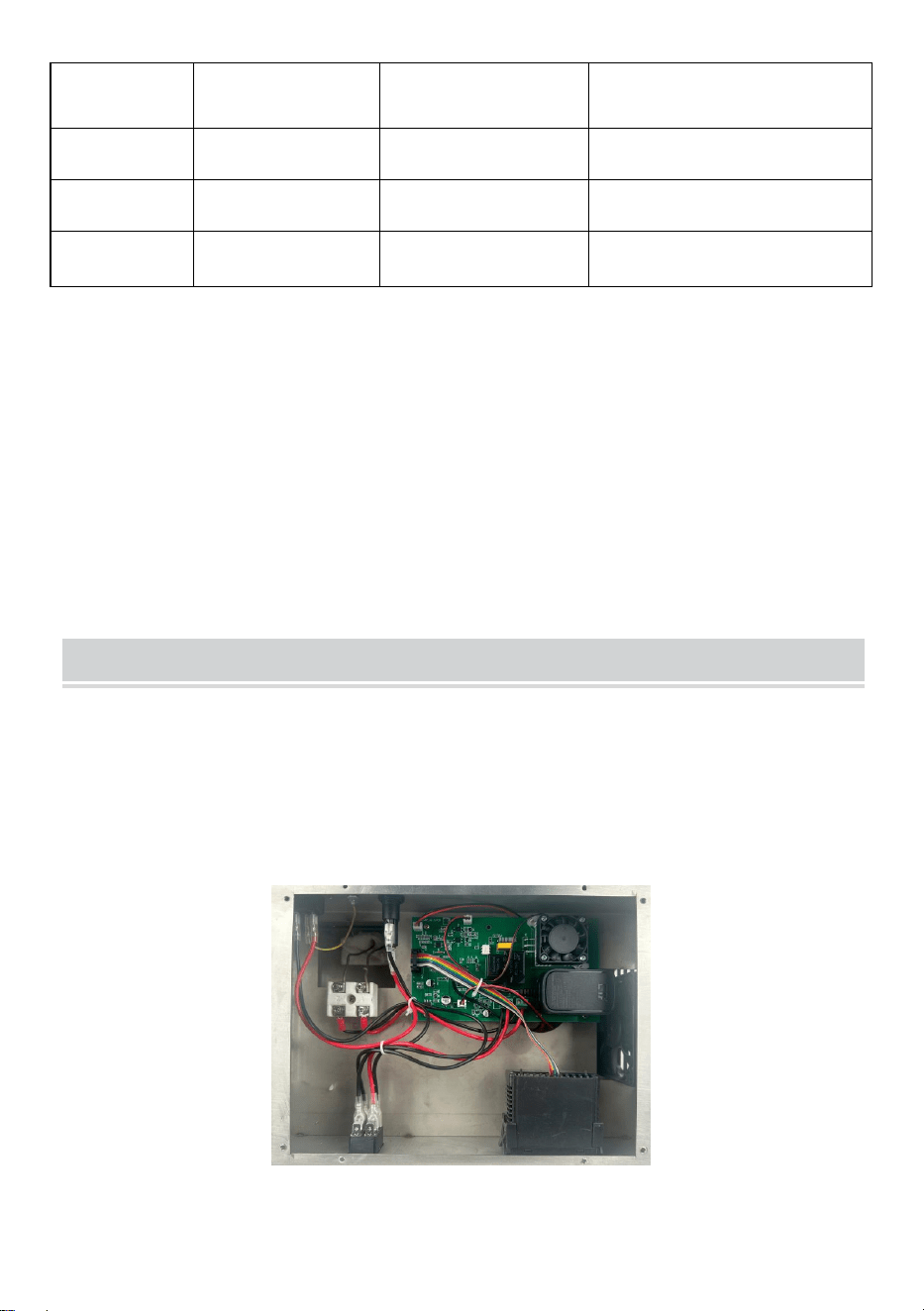

1. First open the bottom of the furnace.
- 11 -

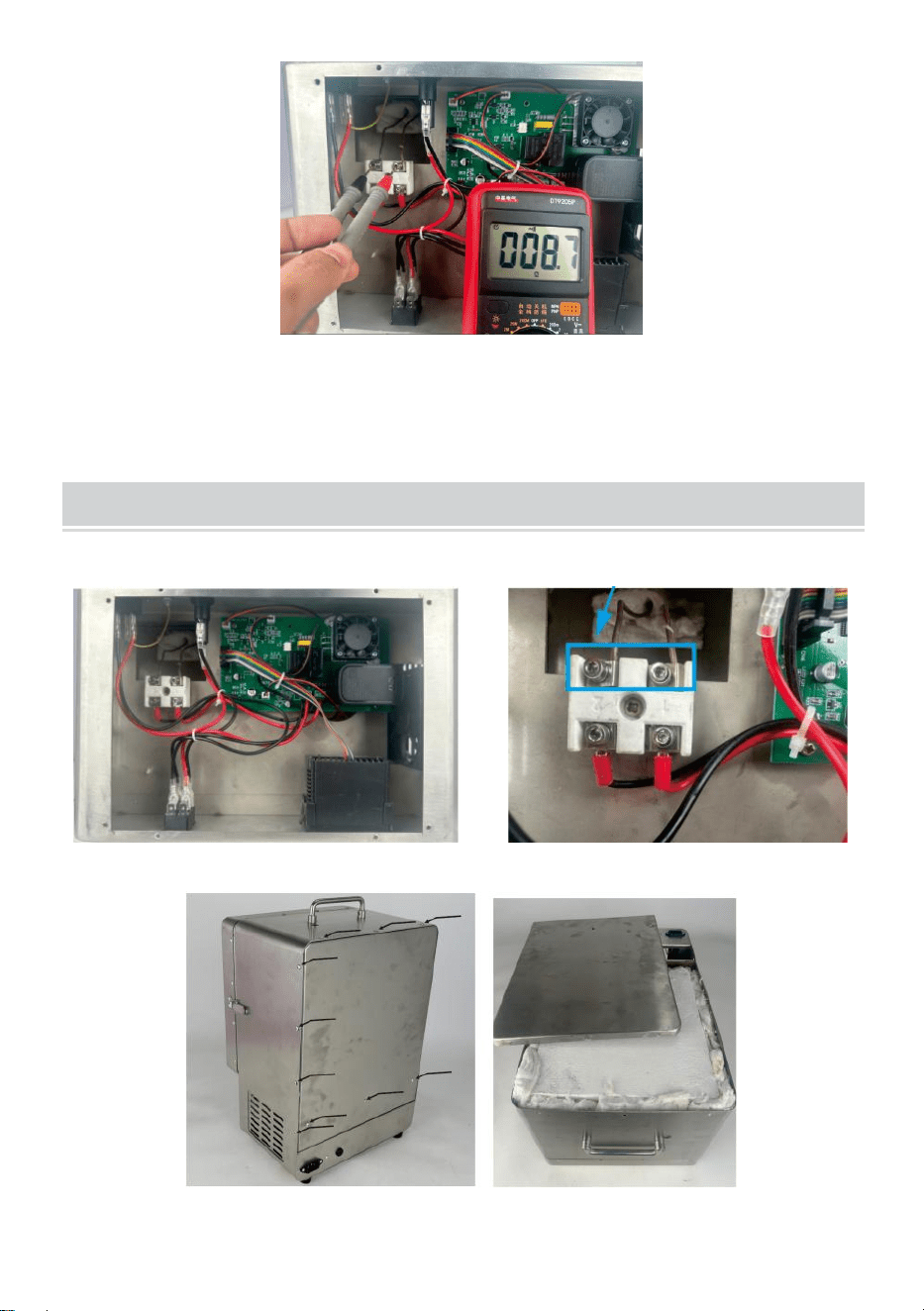

2. Check the resistance of the heating coil like this.
NOTE: The resistance is about 8.7Ω. If there is no resistance, the heating
wire is broken, and you need to change a new heating coil.
REPLACE THE HEATING COIL
1. Remove the heating wire connector and remove the two bolts.
2. Open the screws on the stainless steel and remove the cover.
- 12 -

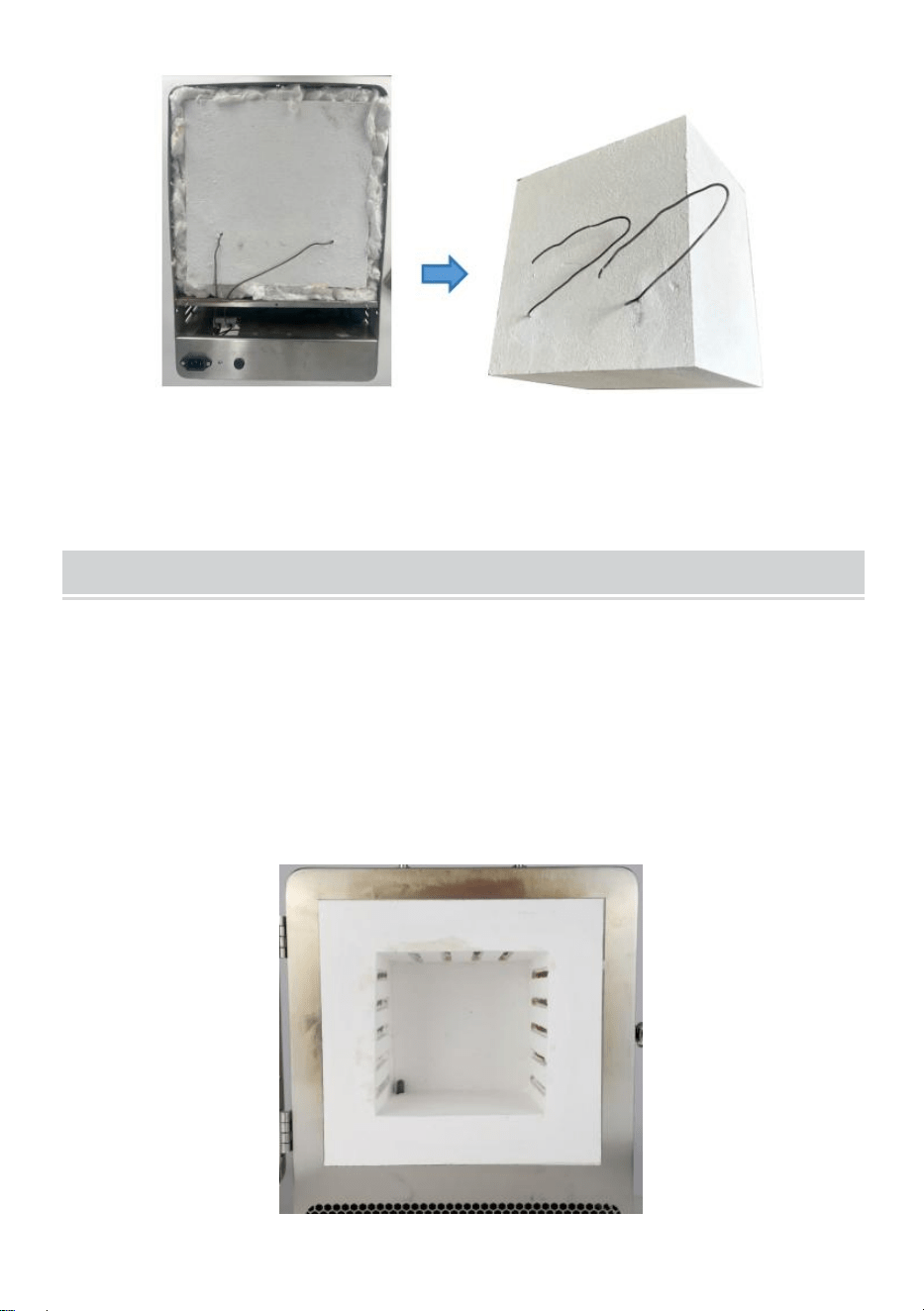

3. You can take out the thermal insulation wire cylinder.
Put on the new heating wire cylinder, and install the heating wire cylinder
back according to the steps previously removed.
MATTERS NEEDING ATTENTION
Display error codes to determine machine problems
●ERR1:The temperature measuring circuit on the board is broken
●ERR2:The thermocouple is broken or not connected
●ERR3:Thermocouple temperature measurement is out of range
●ERR4:The temperature sensing element on the board is broken or falls off
●ERR5:The fan is broken or falls off
●ERR6:The temperature control element is high
- 13 -
NOTE:
1. Metal material falling into the heating wire cylinder short circuit, in the
work of the crucible broken metal flow heating wire cylinder burned off.
This you need to buy a replacement heating wire cylinder.
2. After pressing the P key, the upper right corner flashes on the beginning
of heating, and it can be judged that the heating wire is burned off if it is not
heated within one minute.
MAINTENANCE
1. Clean the exterior and interior regularly to avoid impurities and metal
residues.
2. Before and after use, you need to check whether the device is normal.
