207-1100
OPERATING INSTRUCTIONS
WARNING
NOTE:
CARE AND MAINTENANCE
1. Lubricate the tool before operating. See “CARE AND MAINTENANCE”
section for oiling instructions.
2. Loosen the collet fixing cap counterclockwise with one wrench while
holding the other wrench on the flats of the collet base.(See Figure 1)
3. Insert a grinding accessory like a grinding stone into the collet hole.
(See Figure 2)
4. Tighten the collet fixing cap by turning clockwise with one wrench while
holding the other wrench on the flat side of the collet base. Make sure
the collet fixing cap is securely tightened. (See Figure 3)
5. Remove the air cap from the tool air inlet and connect the air supply hose
to the tool. Set the air pressure at 90 PSI. (See Figure 4)
6. Push forward the lever block and press down on the lever trigger. How far
the lever trigger is pressed determines the tool rotation speed. Then the
tool starts to work. (See Figure 5)
The tool should be lubricated daily(or before each use) with air tool oil
(not included).
1. Disconnect the tool from air supply. (See Figure 6)
2. Place a few drops of air tool oil into the air inlet. (See Figure 7)
4. After operating the tool and before storing the tool, disconnect the air hose
and place 4 or 5 drops of air tool oil into the air inlet, then re-connect the
air hose and run the tool to evenly distribute the oil throughout the tool for
30 seconds approximately. This will prolong the tool life.
5. Avoid storing the tool in a humid environment which promotes rusting of
internal mechanisms. Always oil the tool before storage.
6. When the tool is seriously damaged or out of life, it should be left in a resource
recycling can. Never discard in open flame.
3. Connect the tool to the air supply. Run the tool without load for a few
seconds to distribute the oil through the tool.
Air tool oil is available at major tool hardware stores. Lubricate the tool
only with specified lubricants. Lubricate the air inlet using only pneumatic
tool oil. Do not use detergent oil. During continuous operation, the tool
should be oiled every 1 to 2 hours. This may be done using an in-line oiler,
or manually. If done manually, proceed as follows:
Avoid the misuse of thicker oil which may lead to the reduced
performance or malfunction.
Only use grinding accessories that have an RPM rating equal
to or greater than the tool itself.
Note: Any excess oil may be propelled from the exhaust area- keep
the tool away from you and point in a safe direction.
NOTE:
NOTE:
Please refer to the diagram below.
1. Make sure that the air compressor being used for the air tool operation supplies the correct output
(CFM).
2. Have the tool in the “off” position when connecting the tool to the air supply.
3. Use normal 90 psi (orranging from 6.0 to 8.0kg.) air pressure while running the tool. High pressure
and unclean air will shorten the tool’s life due to faster wear and also may create a hazardous situation.
4. Drain water from air compressor tank and drain condensation from air lines daily. Water can cause
damage to this tool.
5. Clean the air inlet filter cartridge weekly. The recommended hook-up procedure can be viewed in
the diagram below.
6. Line pressure should be increased accordingly to make up for extra long air hoses (usually over 8
meters). The minimum hose diameter should be 1/4” I. D. and the fittings should have the same
inside dimensions. But usually a 3/8” I.D. air hose is recommended for air supply to get the best
function of air tool operation.
7. Use proper hoses and fittings. We do not suggest connecting quick change couplings directly to
the tool since they may cause failure due to vibration. Instead, add a leader hose and connect
coupling between air supply and hose whip.
8. Check hoses for damage or wear before each use. Make certain that all connections are secure.
Mini Air Die Grinder Kit
Manual
AIR SUPPLY
Maximum speed: 22, 000 RPM
Required pressure: 90 PSI
Average air consumption: 3 CFM
Air inlet: 1/4 in. 18 NPT (Female)
Hose size: 3/8 in.
Accessories: (1) 1/4" Straight Die Grinder；(1) Tree Die Grinding Stone； (1) Cone Die Grinding Stone；
(1) Large Cone Die Grinding Stone；(1) Cylindrical Die Grinding Stone；(1) Ball Die Grinding Stone；
(1) 1/4" NPT Industrial Style Steel Plug； (2) Collet Wrenches

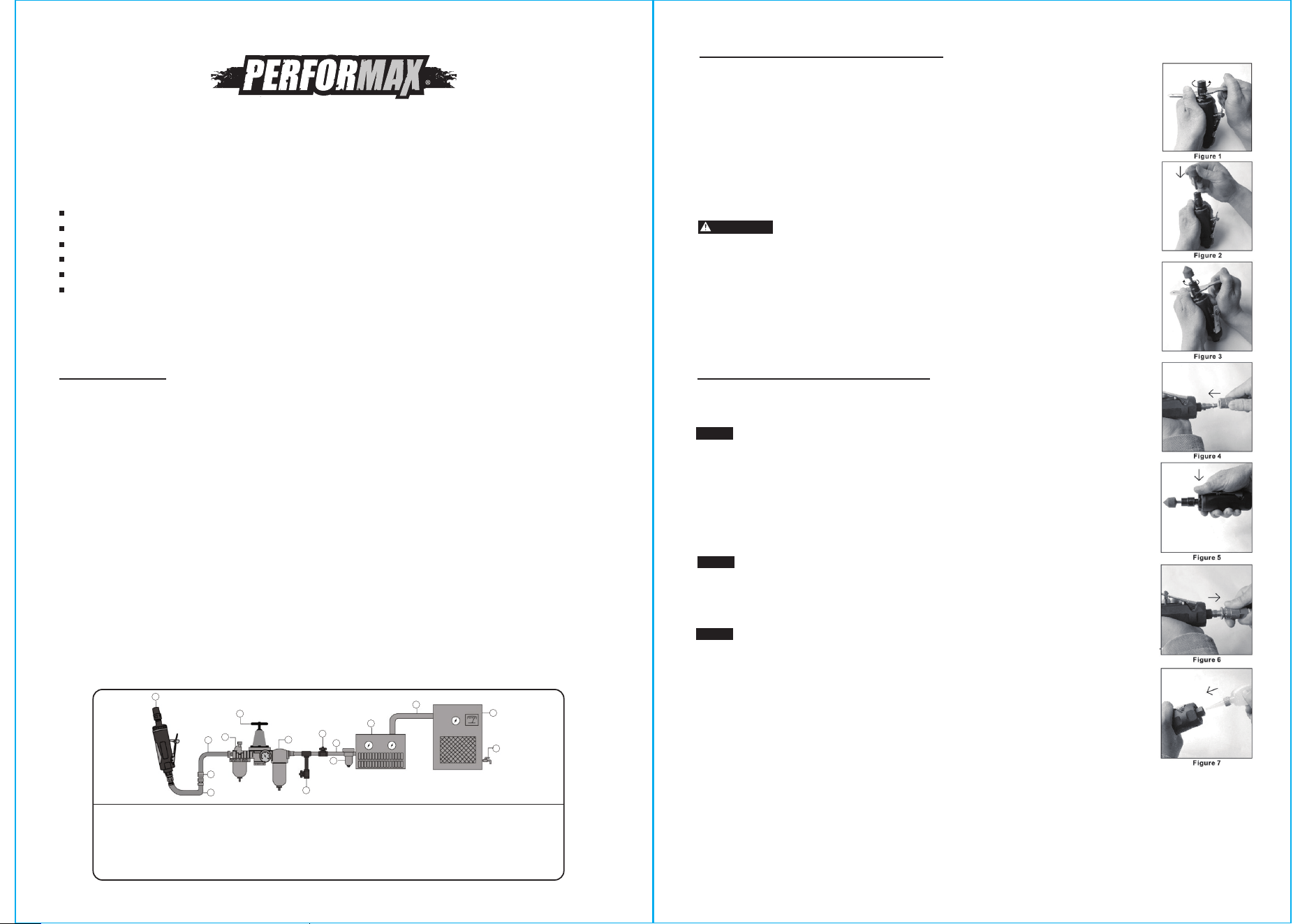

AIR SYSTEM LAYOUT:
1. Air Tool
2. Air Hose 3/8”(I.D.)
3. Oiler
4. Pressure Regulator
5. Filter
6. Shut Off Valve
7. Whip Hose
8. Coupler Body And Connector
9. Drain Daily
10. 1/2” Or Larger Pipe And Fitting
11. Air Dryer
12. 1” Or Larger Pipe And Fitting
13. Air Compressor
14. Auto Drain
15. Draing Daily
1
2
8
7
3
4
5
9
6
14
10
11
12
13
15
