Technical data:
User Manual
Impact Drill
Model: PID04A
Shenzhen Take Tools Co., Ltd.
Web: www.tacklifetools.com
Facebook: www.facebook.com/Tacklife.US/
E-mail: [email protected]
ADD: No.B714,Niulanqian Building, Minzhi Road,
Longhua District, Shenzhen, Guangdong, China 518000
To reduce the risk of injury, user must read instruction manual.
The product covered by this manual is a Class II tool.
Do not throw the electronic waste products into the domestic refuse. Such products
must be delivered with a recycling center.
1
6
7
3
8
4
5
2
1
2
3
4
5
6
7
8

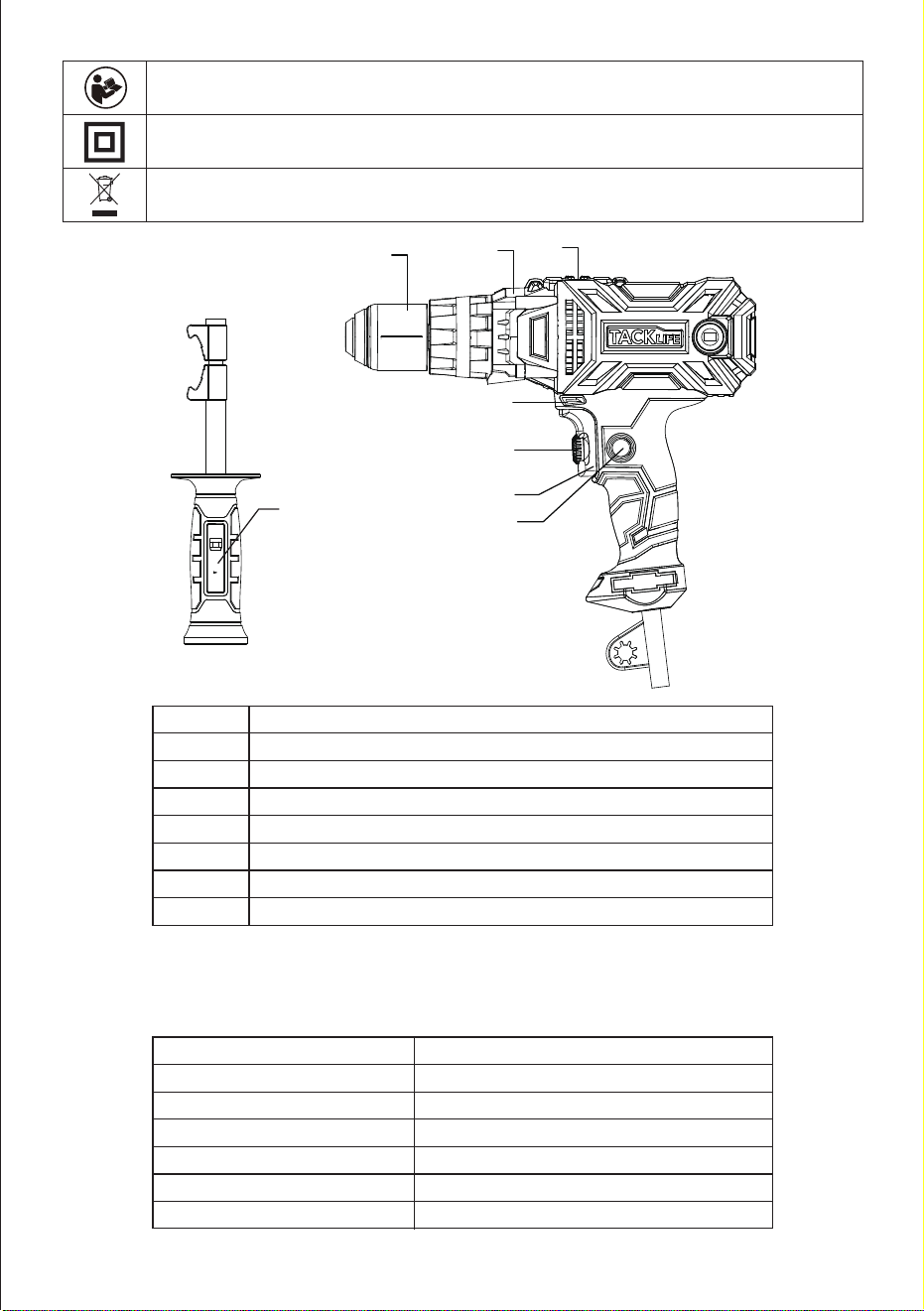

Chuck
Aux.handle
Rotation direction adjustor
Switch button
Lock-on button
Function adjustor
Shift on torsional
Speed adjustor
PID04A
120V
60Hz
4A
n
01
: 510/min / n
02
:1800/min
Ø13mm
1.7 kg
Models
Rated voltage(V)
Rated Frequency(HZ)
Rated Current(A)
n
0
(/min)
Maximum capacity of chuck
Mass of tool(kg)
Intended Use
The tool specifically designed to bore holes in various materials such as metal, plastics, wood, etc,
when equipped with diamond core bit and have a device for setting the torque and means for switching
off the rotation.
The tool also can not be used for tightening and loosening screws, nuts, and the like.
General Power Tool Safety Warnings
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instruc-
tions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool.
1)
a)
b)
c)
2)
a)
b)
c)
d)
e)
f)
NOTE The term “residual current device (RCD)”may be replaced by the term “ground fault
circuit interrupter (GFCI)” or “earth leakage circuit breaker (ELCB)”.
3)
a)
b)
c)
d)
e)
f)
g)
Work area safety
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk
of electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refriger-
ators. There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in serious personal injury.
Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energizing power tools that have the switch on
invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can reduce dust-related hazards.
4)
a)
b)
c)
d)
e)
f)
g)
5)
a)
Additional Safety Warnings for Hammer Drill:
-
-
-
Operation Instructions
Power tool use and care
Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
Service
Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
Wear ear protectors with impact drilling. Exposure to noise can cause hearing loss.
Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
Hold power tools by insulated gripping surfaces, when performing an operation where the cutting
accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live” and could give the operator an electric shock.
Mounting the aux.handle and ruler
-
-
INSERTING A TOOL INTO CHUCK
WARNING: Before installing tool, remove mains plug from mains supply.
Remove chuck key from key storage tab at base of drill handle, place key into chuck, turn key anti-clock-
wise to undo/loosen chuck, inset drill/tool and firmly tighten chuck by turning key clockwise. Remove key
and replace in storage tab at base of drill handle.

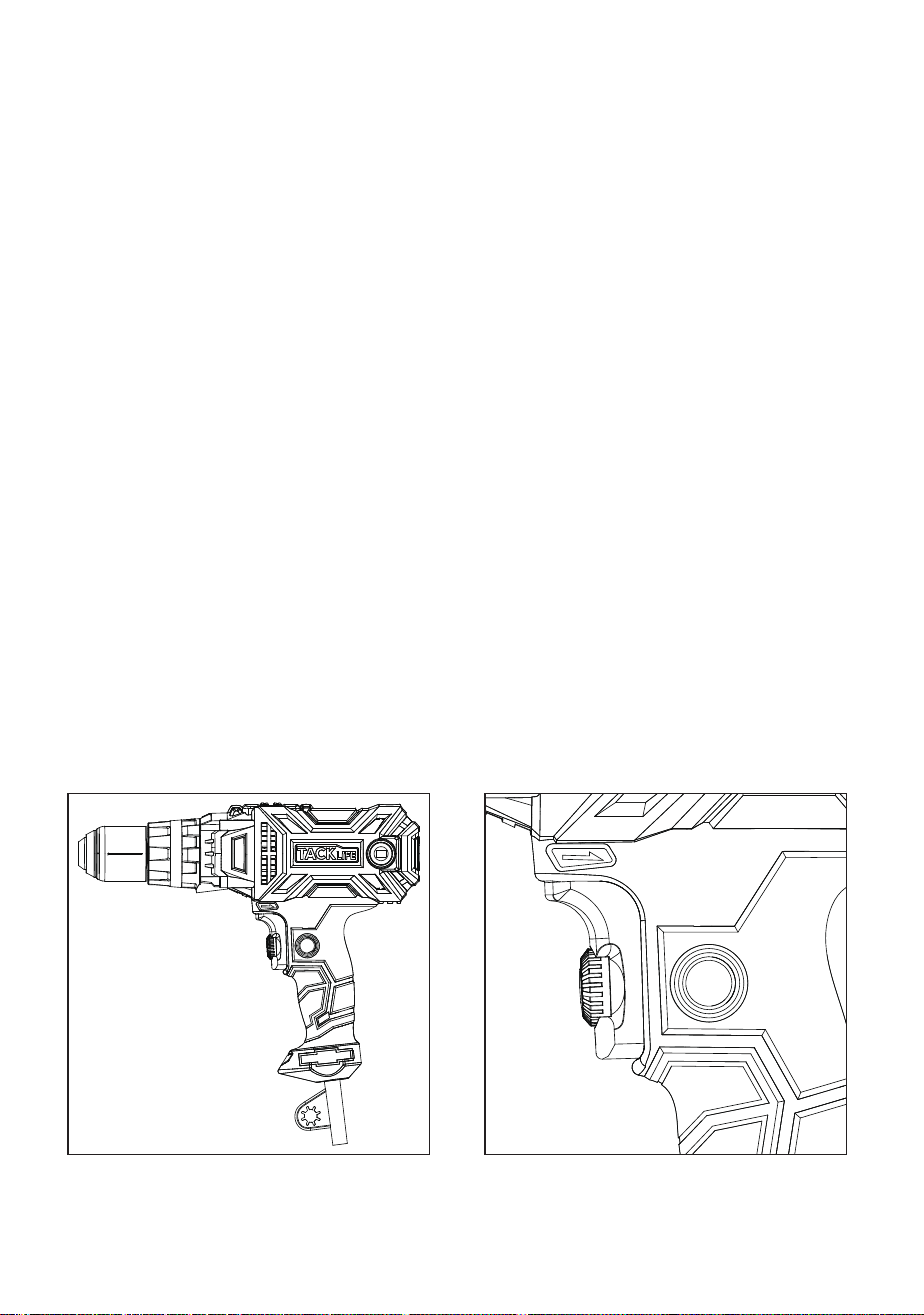

Switch on and off
-
-
-
-
Forward and Reverse Rotation control
The rotation direction can be adjusted by the adjusting button :

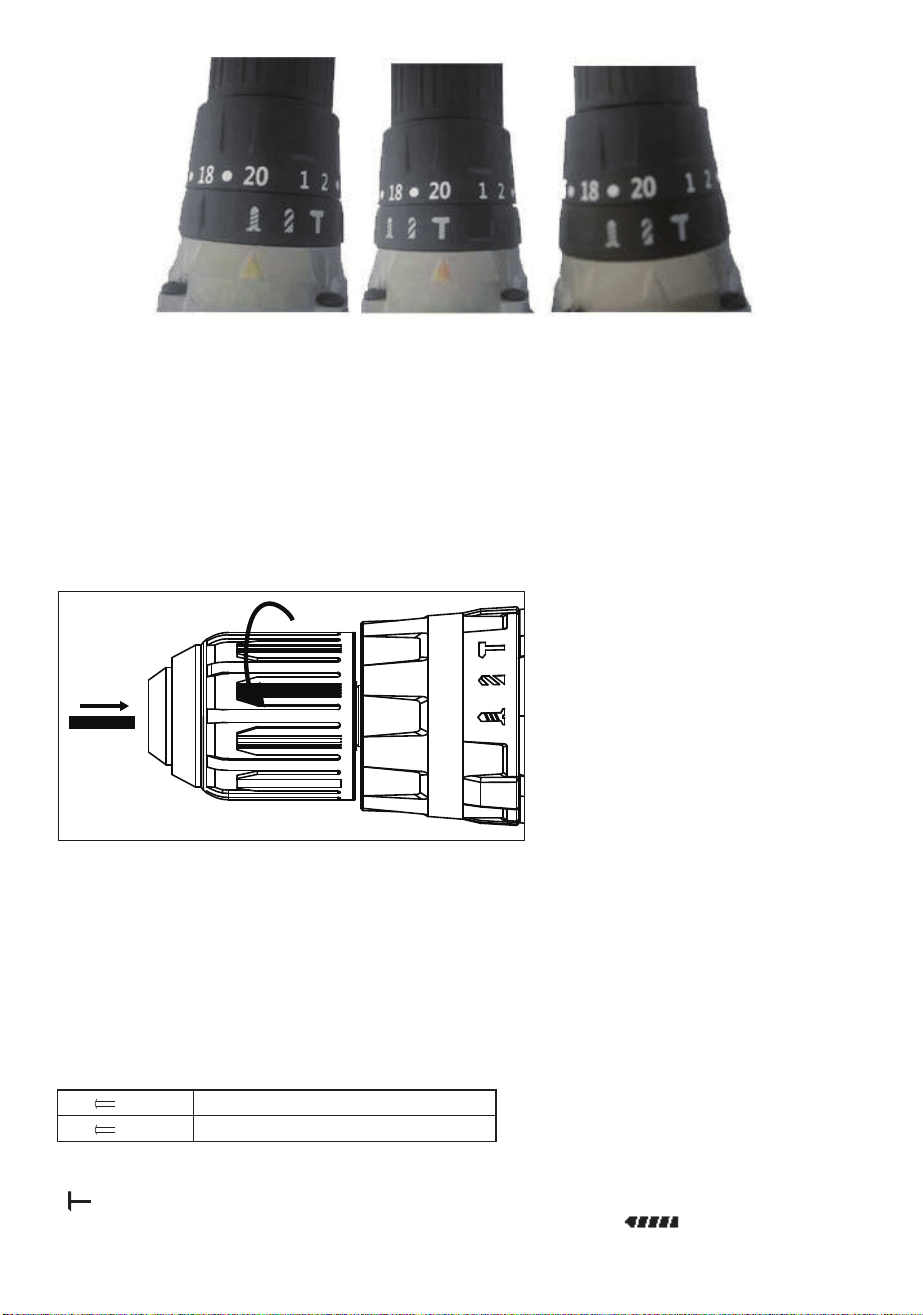

Drill/Impact action adjustor
When drilling masonry and concrete pushthe drill/impact action selector switch into the hammer position
“ ”;
When drilling wood, metal, plastic push the switch into the drill position “ ”.
Loosen the knob on the aux.handle and slide the aux.handle over the chuck on the tool, turn the
aux.handle in the required position and fasten the knob firmly.
Loosen the ruler knob and insert the ruler in its intended hole, set the ruler to the required drilling
depth then fasten the knob.
To switch the tool on, you press the switch button. The further you press the switch button, the higher
the speed of the tool;
To switch off the tool, you release the switch button;
To switch the tool to continuous mode, you keep the switch button pressed and at the same time
press the lock-on button. Subsequently release the switch button.
To switch off continuous mode, you press the switch button.
/R clockwise
counterclockwise
/L
MAINTENANCE
1.
2.
3.
4.
5.
6.
Cleaning
WARING! Before cleaning or performing any maintenance, the power supply shall be disconnected from
the tool. Compressed dry air blow may be the most effective cleaning method. Always wear safety
goggles when cleaning tools with compressed air.
Ventilation openings must be kept clean. Do not attempt to clean by inserting pointed objects through
openings.
Regularly inspect all mountings and screws and ensure they are properly tightened. Should and of the
screws be loose, tighten them immediately. Failure to do so may result in serious damage.
Environment
Your power tool requires no additional lubrication or maintenance. There are no user serviceable
parts in your power tool.
Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth.
Always store your power tool in a dry place.
Keep the motor ventilation slots clean.
If you see some sparks flashing in the ventilation slots, this is normal and will not damage your power
tool.
If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord
available through the service organization.
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your local authority or retailer for recycling advice.
