Installation Guide
AT-VSP-800-BL and AT-VSP-800-WH
1
Velocity System 8” Scheduling Touch Panel
AT-VSP-800-BL and AT-VSP-800-WH

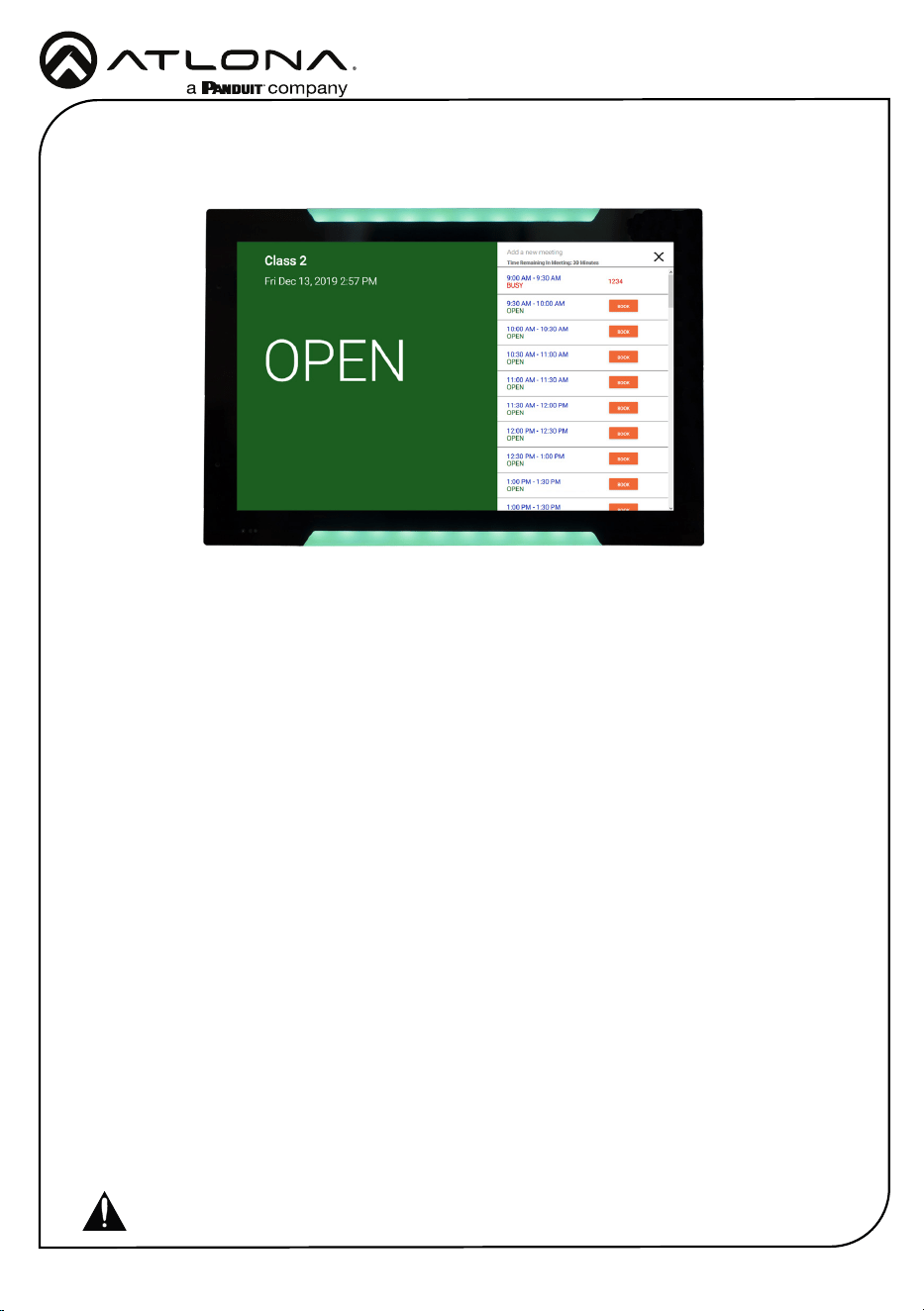

The Atlona AT-VSP-800 is a Velocity System 8” scheduling touch panel. It features contemporary,
rened styling with 1280×800 native resolution, and a capacitive glass surface that supports
touch and gesture interactions. Bright LED lighting on the edge of the bezel is ideal for providing
a visual representation of room status in scheduling applications. This touch panel conveniently
installs into a wall or furniture via a one-gang US, UK, or EU opening. The VSP-800 features
Power over Ethernet (PoE), enabling a single network connection for data and power. Setting up
the touch panel is eortless as room scheduling and AV control GUIs are automatically uploaded
from the Velocity System hardware or software server gateway during system conguration.
1 x AT-VSP-800
1 x Metal 1-gang mounting plate
1 x Metal 2-gang US horizontal mounting plate
4 x Mounting screws
1 x Installation Guide
Package Contents
Operating Notes
• The Velocity 8” Scheduling Touch Panel (AT-VSP-800) must be on the same network as the
Velocity Gateway (AT-VGW-HW-3/10/20) or it will be unable to sync for scheduling.
• The AT-VTP-800 is PoE capable, to power the unit, simply plug it into a 802.3af compatible
network switch. If the network switch is not PoE capable, a PoE injector (purchased separately)
can be used.
IMPORTANT: Velocity Gateway (AT-VGW-HW-3/10/20) must be set up before the AT-
VSP-800 is fully functional.
Installation Guide
AT-VSP-800-BL and AT-VSP-800-WH
2
Mounting Instructions

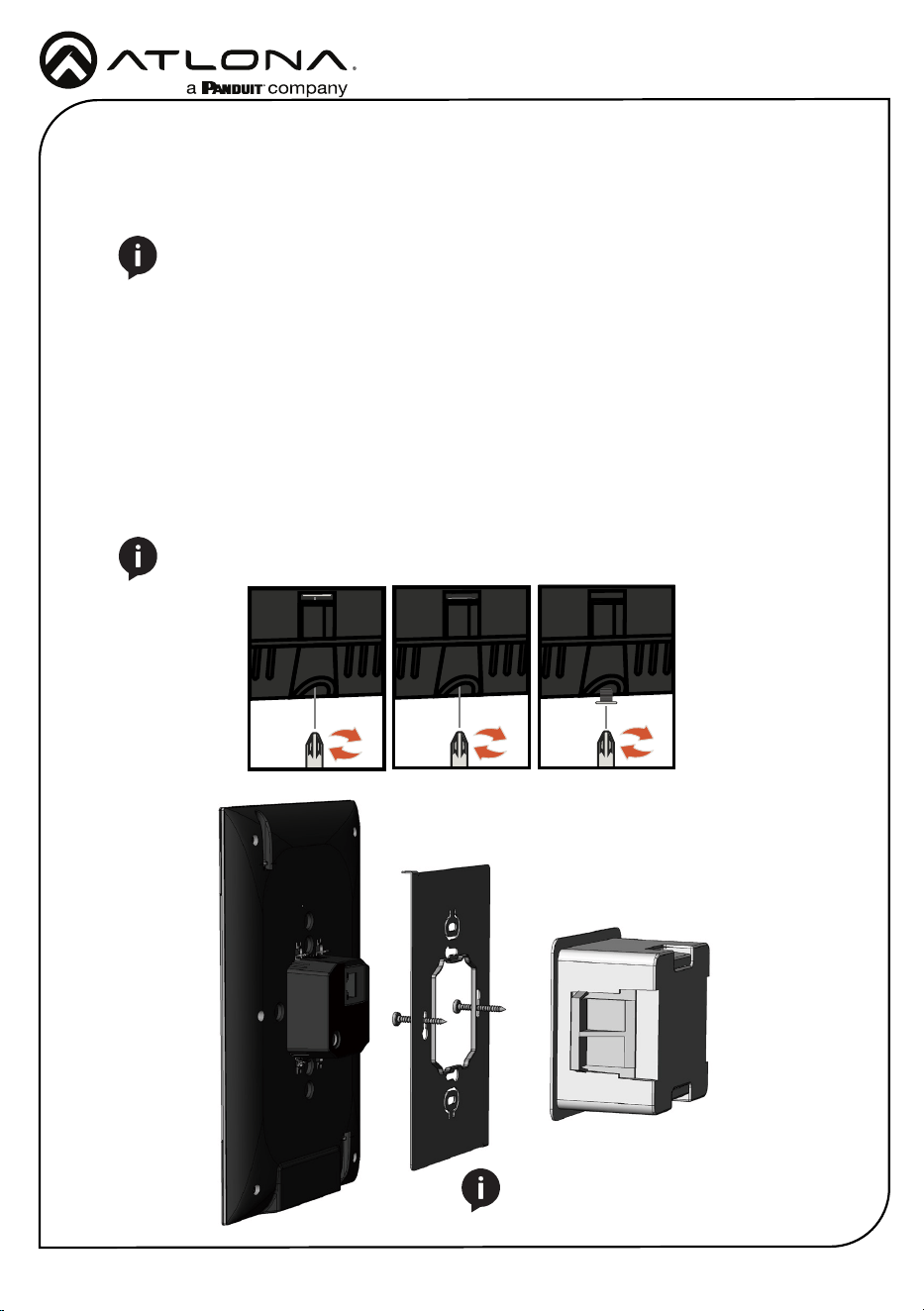

The AT-VSP-800 can be mounted to a 1 gang back plate.
UK back box:
1 Select the type of 1 gang back box to use and install into a wall.
2 Thread the Ethernet cable through the 1 gang box.
3 Install the included mounting plate into the 1 gang box.
a If using a UK back box, place the screws in the two inside mounting holes.
b If using a US back box, place the screws through the outside screw holes.
4 Loosen or remove the two screws located at the top and bottom of the unit.
5 Place the unit onto the metal back plate, the dual prongs inserting into the small opening on
the back of the unit.
6 Tighten/attach the screws at the top and bottom of the touch pad.
NOTE: Install using the region’s safety guidelines for electrical boxes.
NOTE: To avoid damage to the unit, do not overtighten the screws.
NOTE: For horizontal installation, turn
the unit and mounting plate on its side.
The same back box can be used.
Installation Guide
AT-VSP-800-BL and AT-VSP-800-WH
3

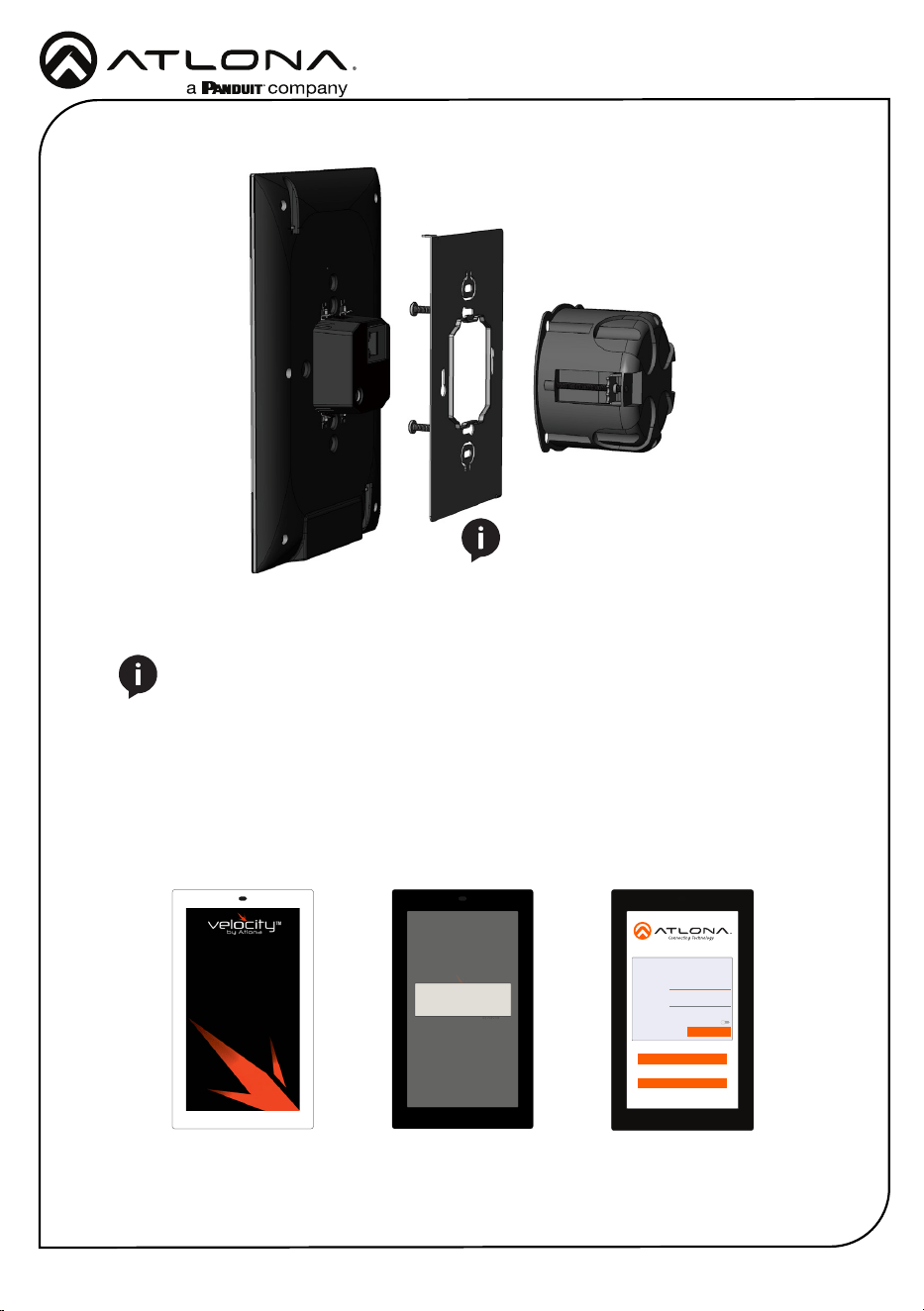

US back box:
1-gang Vertical installation
2-gang Horizontal installation
To install the touch panel in landscape orientation in a wall the US 2-gang installation
plate should be used. Use the 4 included screws to install the unit into the back box.
Installation Guide
AT-VSP-800-BL and AT-VSP-800-WH
4

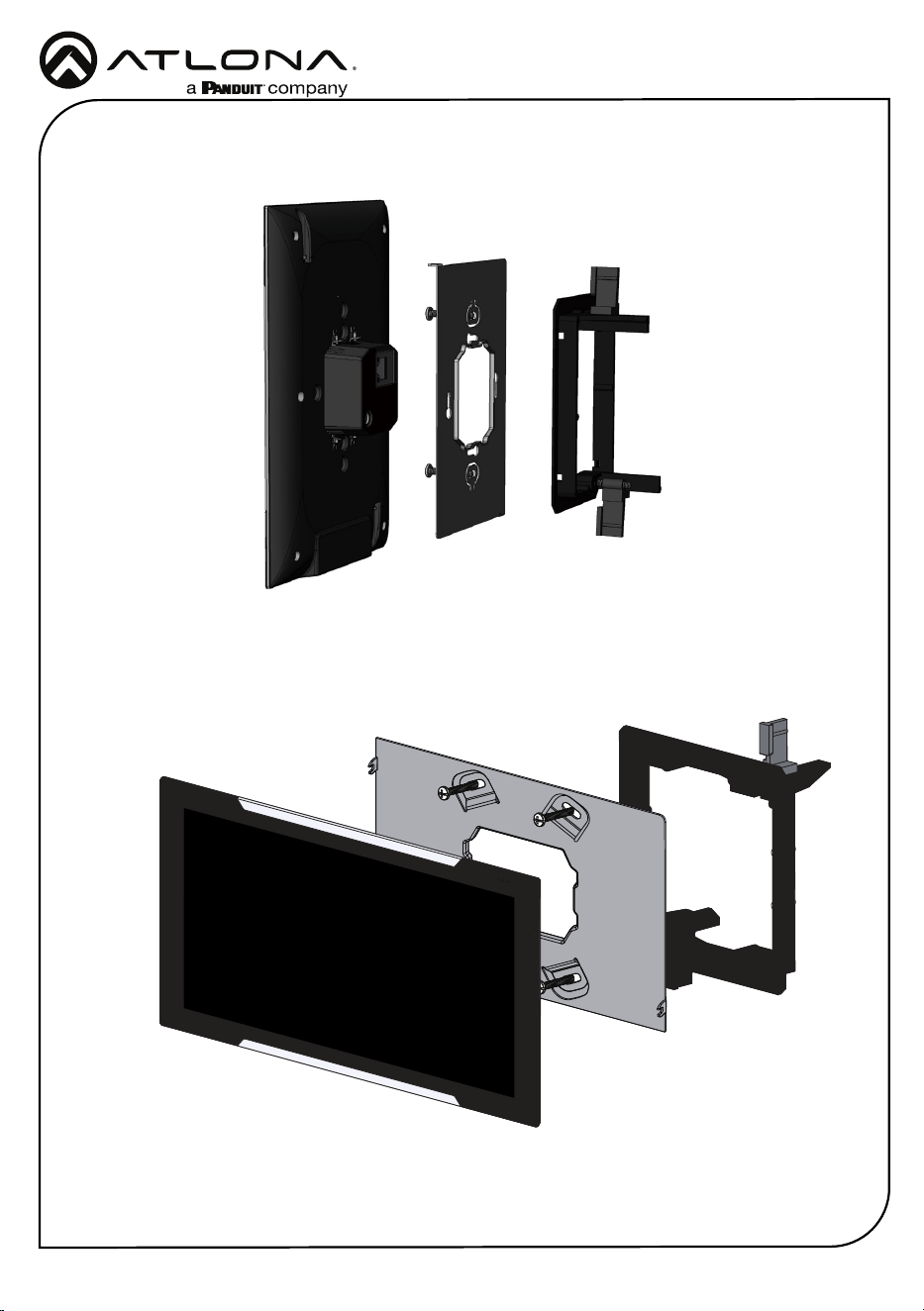

EU back box:
NOTE: For horizontal installation, turn
the unit and mounting plate on its side.
The same back box can be used.
Installation and Set Up
1 Connect the Ethernet cable into the back of the unit.
a If the Ethernet cable is connected to a non PoE switch, use a PoE injector using 802.3at
(purchased separately).
2 Secure the unit in either the wall or optional stand, as explained in the mounting instructions.
3 The Velocity logo will display during the booting process and will go directly into setup.
Press CONTINUE to start the setup process.
NOTE: Installation of the Velocity Touch Panel can only be done after Velocity has
been set up. View the installation guides for VGW-HW/VGW-SW and Velocity Manual
for instructions.
Initial Setup
CONTINUE
You will be guided through the setup process
in the next few screens.
Velocity Device Setup
Wired
Address
Device
Alias
Panel Settings
Velocity
URL
Enable
HTTPS
0.0.0.0
Velocity Touch Panel
10.0.0.123
SCAN FOR GATEWAYS
SAVE AND CONTINUE
PANEL SETTINGS
4 The unit will load a new screen. Change the Device Alias (if needed) to help dierentiate
when there are multiple touch panels at a site. A new screen will open.
Installation Guide
AT-VSP-800-BL and AT-VSP-800-WH
5
Scanning for Gateways
CANCEL
Scanning for Gateways
CANCEL
USE
10.0.0.234

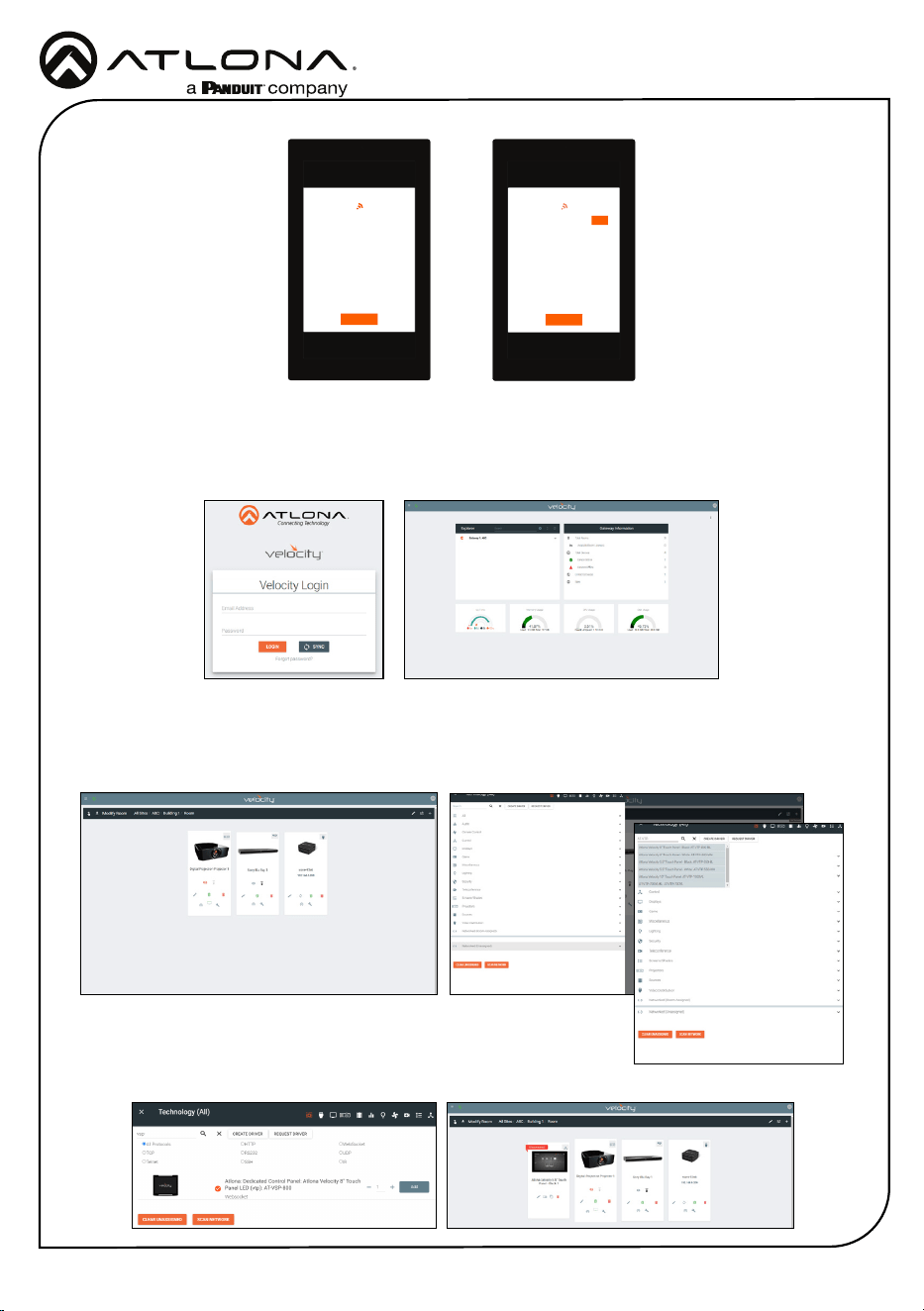

5 Press the SCAN FOR GATEWAYS button.
6 The touch panel will scan for new gateways. Once the correct gateway is found, press USE.
7 On a network computer, use a browser to log into Velocity.
8 Navigate to the room the VTP will be located in.
9 Select the + button to add the unit.
10 Type the SKU into the search eld and select the correct panel from the drop down.
11 Select the ADD button. A tile for the unit will appear in the room.
Installation Guide
AT-VSP-800-BL and AT-VSP-800-WH
6
NOTE: The room must be completely set up to receive the control interface.

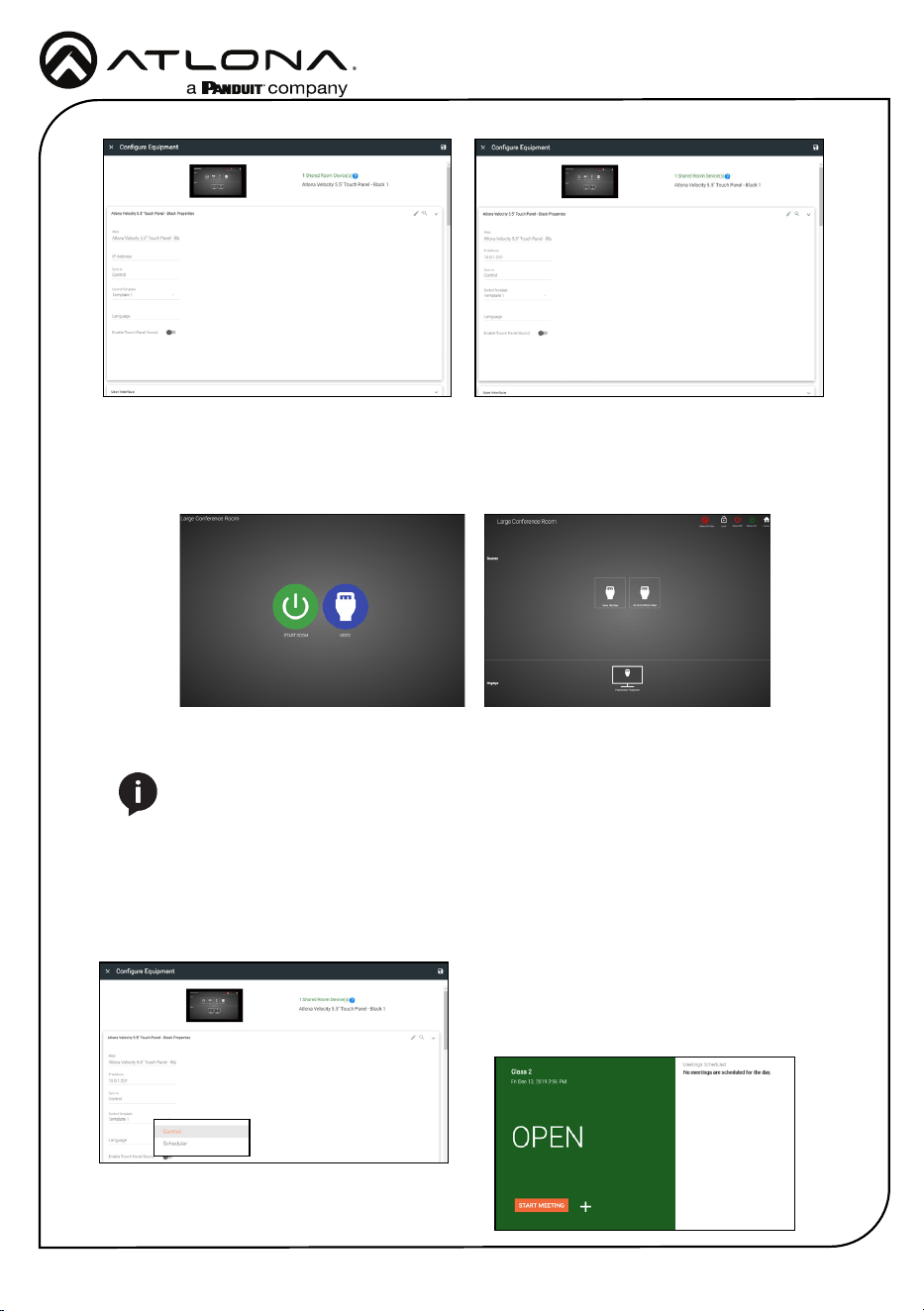

12 Select the Edit button on the tile to open the unit settings.
13 Enter the IP of the VTP into the IP Address eld and select the save icon in the top right
corner of the screen. The screen will close, the panel will sync to the gateway, and the room
control will display on the panel.
14 Depending on the room options there may be multiple buttons on the home page. Select the
any icon to open the room’s control page.
15 Select sources and displays by tapping on them or dragging and dropping the source on
the display.
Scheduling
The panel can be set to scheduling, to do this, continue from step 13 to the next few steps.
1 Select the Sync to drop down menu and
choose Scheduler.
2 Select the Save button. Once selected, the
Scheduler will appear on the panel.
Installation Guide
AT-VSP-800-BL and AT-VSP-800-WH
7
ABC
DEF
GHI JKL MNO
PQRS
TUV WXYZ
1 2 3
4 5 6
7 8
0
9
CANCEL
VERIFY
Set Configuration PIN
(Note: Once a pin is set, it will be required to edit settings going
forward)
(Enter a blank pin to remove)
ADVANCED SETTINGS
Set Static IP
IP Address
Subnet Mask
Default Gateway
DNS Server
75.75.75.75
10.0.0.1
255.255.255.0
10.0.0.123
URL
Gateway Settings
Device Settings
Touch Screen LAN Configuration
0.0.0.0
Alternate URL
0.0.0.0
Alias
Velocity Scheduling Panel 800
SAVE
FACTORY RESET
CLEAR CACHE
SCAN NETWORK
CANCEL
SET PIN
Cache has been successfully cleared. Press
OK to restart.
OK
ADVANCED SETTINGS
Set Static IP
IP Address
Subnet Mask
Default Gateway
DNS Server
75.75.75.75
10.0.0.1
255.255.255.0
10.0.0.123
URL
Gateway Settings
Device Settings
Touch Screen LAN Configuration
0.0.0.0
Alternate URL
0.0.0.0
Alias
Velocity Scheduling Panel 800
SAVE
FACTORY RESET
CLEAR CACHE
SCAN NETWORK
CANCEL
SET PIN
Changing advanced settings requires
application restart.
OK
Device Settings - The touch pad can be renamed for easier syncing with Velocity. Type the
name into the Alias eld.
Touch Screen LAN Conguration - The current IP settings will display in these elds. To
switch to a static IP, select the Set Static IP slider, ll in the IP information, and press Save.
Set PIN - The default PIN of 554361 can be changed to a new pin by pressing the Set PIN
button. Type the new PIN in and press Save PIN.
Clear Cache - Press the Clear Cache button to release the current cache of the VSP. Press
the OK button to verify.
Factory Reset - Press the Factory Reset button to clear all the settings and start the touch
pad set up again. Press the OK button to verify.
Advanced Settings
Verify your PIN
554361
ABC
DEF
GHI JKL MNO
PQRS
TUV WXYZ
1 2 3
4 5 6
7 8
0
9
CANCEL
VERIFY
URL
GATEWAY SETTINGS
TOUCH SCREEN SETTINGS
System Volume
Screen Brightness
0.0.0.0
REFRESH PAGE
CLEAN SCREEN
CLOSE
ABOUT VELOCITY
ADVANCED SETUP
Once the touch pad has been set up, the settings can be changed or reset only through the
advanced settings.
1 To access the settings, swipe from the left side of the touch pad to the right.
2 Select Advanced Setup.
3 Type in the PIN. Default PIN is 554361.
ADVANCED SETTINGS
Set Static IP
IP Address
Subnet Mask
Default Gateway
DNS Server
75.75.75.75
10.0.0.1
255.255.255.0
10.0.0.123
URL
Gateway Settings
Device Settings
Touch Screen LAN Configuration
0.0.0.0
Alternate URL
0.0.0.0
Alias
Velocity Scheduling Panel 800
SAVE
FACTORY RESET
CLEAR CACHE
SCAN NETWORK
CANCEL
SET PIN
Within the advanced settings, all the touch pad settings can be changed or reset.
Gateway Settings -
a If the gateway IP is known, it can be typed into the URL eld.
b If the gateway IP is unknown, press the Scan Network button to search for and add
the gateway.
Installation Guide
AT-VSP-800-BL and AT-VSP-800-WH
8
About Velocity
Device IP Address 10.X.X.XXX
Version Info
Current Version X.X.X
CHECK FOR UPDATES
BACK
Downloading image file from server to update
OS image.
About Velocity
Device IP Address 10.X.X.XXX
Version Info
Current Version X.X.X
CHECK FOR UPDATES
BACK
Installing system update...
Loading...

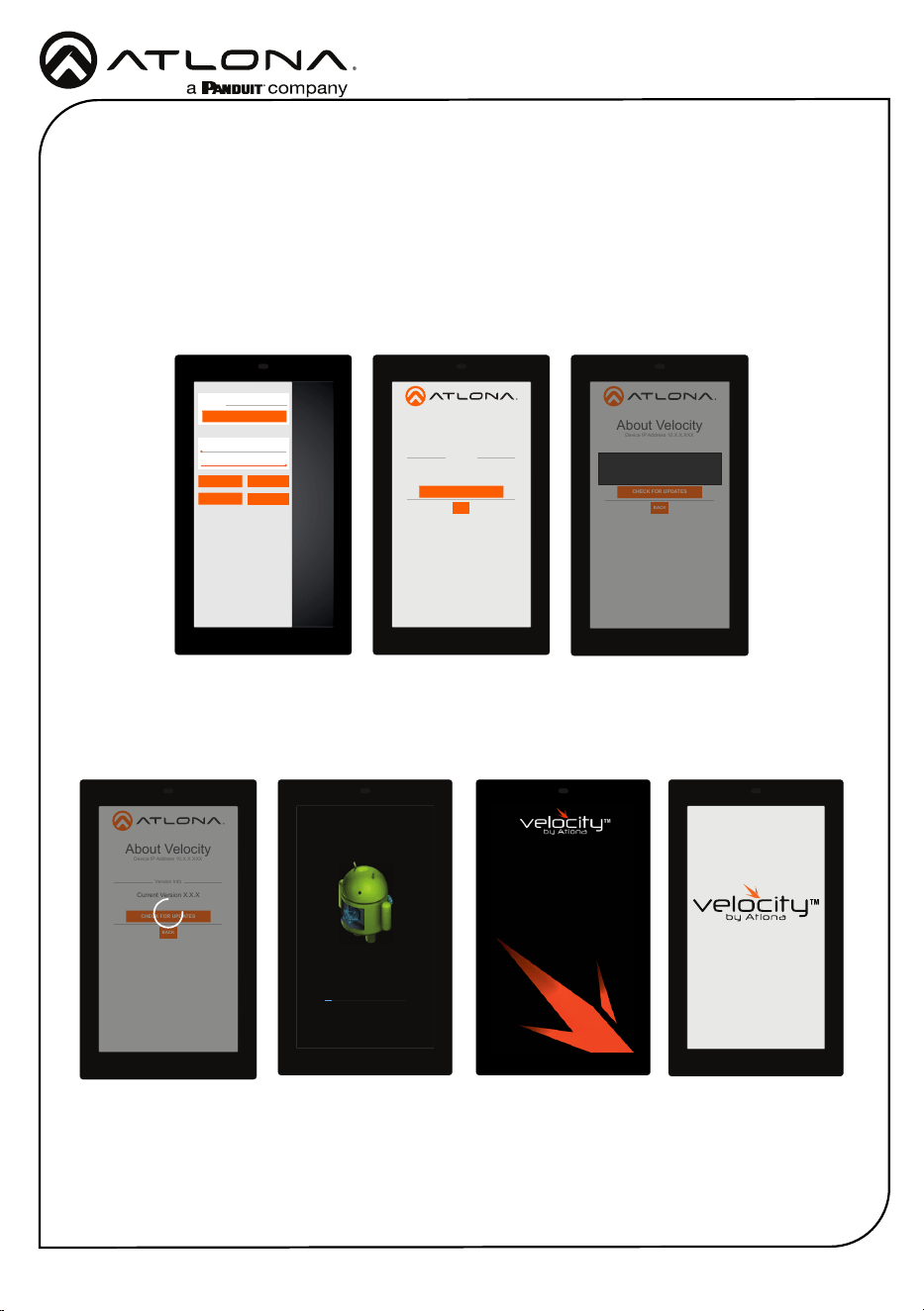

When the installation starts, it will switch to an Android update screen. Once completed it will
restart the touch panel. The splash screen will appear, before the loading screen takes over. The
update is complete when it returns to the control screen. This process can take up to 5 minutes
to complete.
Firmware Updating
URL
GATEWAY SETTINGS
TOUCH SCREEN SETTINGS
System Volume
Screen Brightness
0.0.0.0
REFRESH PAGE
CLEAN SCREEN
CLOSE
ABOUT VELOCITY
ADVANCED SETUP
The touch panel can be updated from within its settings menu. To update, the panel must be
connected to a network with internet access.
1 Swipe from the left side of the touch pad to the right to open the gateway settings menu.
2 Select the ABOUT VELOCITY button. A new screen will take over.
3 Select the CHECK FOR UPDATES button. A pop up will appear if there is an update.
4 Press the YES on the touch screen for the unit to download and install the rmware.
About Velocity
Device IP Address 10.X.X.XXX
Version Info
Current Version X.X.X
CHECK FOR UPDATES
BACK
About Velocity
Device IP Address 10.X.X.XXX
Version Info
Current Version X.X.X
CHECK FOR UPDATES
BACK
Do you want to install the latest OS image on
this device?
NO YES
Installation Guide
AT-VSP-800-BL and AT-VSP-800-WH
9
Version 4
© 2023 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered
trademarks are the property of their respective owners. Pricing, specications and availability subject to change without notice. Actual products, product images, and
online product images may vary from images shown here.
US International
atlona.com • 408.962.0515 • 41.43.508.4321
The English version can be found under the resources tab at:
https://atlona.com/product/vsp-800/.
