Thank you for purchasing the PYLE Audio PDA35BT Class T Digital Audio Power Amplifier. This amplifier features the
Tripath TP2050 chipset that provides 50W contin uous power per channel (100W total) into an 8 ohm load. Class T
amplifiersusesTripath’sproprietaryDigitalPowerProcessingTechnologyoffertheaudiofidelityofa
ClassABamplifier
whileprovidingthepowerefficiencyofaClassD.

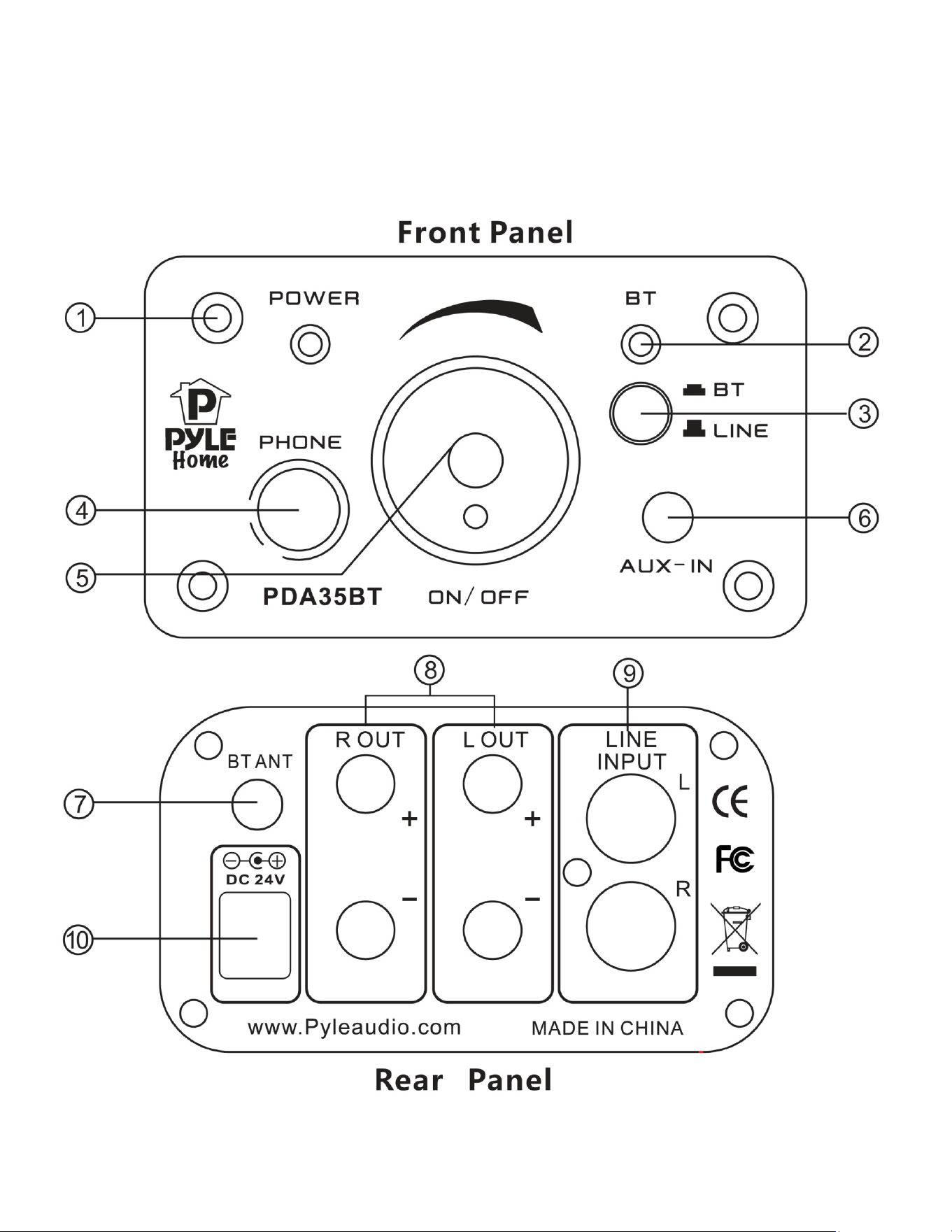

FrontPanel:
1.PowerLED
RedpowerLEDindicatestheunitisreceivingpowerandisfullyoperational.
2.BluetoothLED
BlueBluetoothLEDindicatestheunitisreceivingtheBTsignal.
3.BT/LINEInputSwitch
ModebuttonswitchesbetweentheBluetoothandLineaudioinputs.PushinisforBluetoothfunction,and
pushoutis
forlineaudioinput.
4.1/4''HeadphoneJack
The PDA35BT is a high fidelity headphone amplifier that will drive any headphone easil y and delivers colossal sound
stageandeffortlessdynamicrang.The1/4''stereojackallowsconnectionoflargerhomeandstudio‐styleheadphones.
Anadapteris
alsoprovidedsothatsmaller3.5mmpersonnelstyleheadphonescanbeused.
Note:Whenheadphonesarepluggedintotheheadphonejack,thespeakeroutputconnectionsaredisconnected.
5.Power/VolumeControl
Thiscontrolturnsontheunitandadjuststhevolumeleveloftheamplifier.Whentheunitisturned
on, thepowerLED
will became fully illuminated. To turn the unit off, turn the control fully counterclockwise until it “clicks” to the off
position.ItisnormalforthepowerLEDtoslowlydimandthengocompletelyoutwhentheunitisfirstturnedoff.
6.3.5mm
Aux/AudioInput
The unit features a convenient front mounted 3. 5mm stereo input for quick connection of iPods, MP3 players, and
otherportableaudiodevices.
RearPanel:
7.BluetoothAntenna
UsingtheantennaisbestreceivingforBluetoothsignal.
8.SpeakerOutputs
Thespeaker output connections utilize highcurrent banana plugreceptacles that are spaced on3/ 4''centersand are
compatiblewithstandarddoublebananaplugconnectors(soldseparately).The connectionsarecolorcodedfor
easy
polarityidentification.Highqualityscrew‐onbananaplugsthatwillaccept10AWG‐18AWGwireareincluded
9.RCA‐TypeAudio/LineInput
RCA‐typelinelevelinputforpermanentconnectionoflargerdevicessuchasCDplayers,PCs,andDVDplayers.AnRCA
to 3. 5mm adapter is also provided
for added connection flexibility. Note: When a device is plugged into the front
mounted3.5mminput,theRCAinputjacksaredisconnected.
10.PowerConnection
The PDA35BT operates on 24VDC and MUST be used with a power supply that can provide at least 5A. A world
compatible(100V‐240V)switchmodepowersupplyisincludedwiththeunitandissuppliedwithaU.S.Astylecord.To
operateinother
countriesanappropriatepowercordwillneedtobepurchased.Thepowerconnectionontheunitisa
2. 5mm x 5. 5mm jack with center pin being positive. Note: if an inappropriate power supply is used and the unit is
damaged,thewarrantywillbevoided.Ensurethatthe
amplifierispowereddown.Locatethebananaplugsandremove
theprotectiverubberboots.Loosenthesetscrewsusingasmallstraightbladescrew
ConnectingyourloudspeakerstothePDA35BT:
Remove approximately 1/ 2'' of the insulation from your speaker wire positive and negative conductors. Slide the
appropriatecolored(red
forpositive,blackfornegative)rubberbootoverthespeakerwire.Inserttheconductorsinto
thebananaplugsandtightenthesetscrewsandslideprotectiverubberbootsbackintoplace.Whileobservingproper
polarityinsertbananaplugsintothespeakeroutputreceptaclesonthebackofthePDA35BT.
BLUETOOTH
OPERATIONINSTRUCTION:
Externaldeviceswhich haveabuilt‐ in Bluetooth feature canbeconnected tothisamplifier wirelessly to play through
theamplifier’sspeakers.
1.Atfirstbesurethattheamplifierispoweredon,andturnthevolumetotheLOWposition.Andit’sbettertopullthe
BluetoothAntennaon
atthebackpanelforbetterreceiving.
2.PresstheBT/Linebuttonswitchinonthefrontpanel,youwillhearthevoice“POWERON”andalso“PAIRING”,and
thentheunitisautomaticallyreadytopairwithyourexternal device.
3.TurnontheBluetoothofyourexternaldeviceslike
Smartphone,Computer,andothers,etc.
4.Search for available Bluetoothdevices within range of your external device and wait for your device to select “BT‐
RY”onthepairingdeviceslists.
5.Andsecondslaterwhenyouheardavoice“YourDeviceisConnected”,then theBluetoothpairingissuccess.
6.You
cannowplaymusiconyourexternaldevicethroughtheamplifier.
Features:
Model:PDA35BT
Built‐inBluetoothforWirelessAudioStreaming
WorkswithAllofYourFavoriteDevices
(iPhone,Android,Smartphone,iPad,Tablet,etc.)
1/4''HeadphoneJack(DoublesasHeadphoneAmp)
3.5mm(AUX)InputConnectorJack
AbilitytoConnectAdditionalExternalDevices
LEDIndicatorLights
RotaryKnobVolumeControl
BluetoothButtonActivation
SpeakerInput:Banana
PlugSpeakerConnectors
SpeakerOutput:RCA(L/R)ConnectorJacks
ShortCircuit,ThermalandOverloadProtection
Mini/CompactAmp
TechnicalSpecs:
MAXPowerOutput:100Watt
RMSPowerOutput:50Wattx2@8Ohm
T.H.D.:<0.01%@30Watt,<5.0%@50Watt
BluetoothVersion:4.0
BluetoothWireless
Range:30'Feet
BluetoothNetworkName:'BT‐RY'
BluetoothPassword:'BT‐RY'
ClassTAmpDesign
Min.SpeakerImpedance:6Ohm
S/NRatio:103dB,A‐Weighted
InputImpedance:2KOhm+/‐5%
FrequencyResponse:20‐20kHz
ChannelSeparation:95dB
DynamicRange:>100dB
Efficiency:85%
PowerRequirement:24VDC,5A
Worldwide
Compatibility:100‐240V,Switchable
Dimensions(HxWxD):1.9''x3.6''x4.9''
Weight:1.06lbs.
AccessoriesIncluded:
(2)PairScrew‐TypeBananaPlugSpeakerConnectors
3.5mmto1/4''StereoHeadphoneAdapter
3.5mmtoDualRCA'Y'ConnectorCable
3.5mmAudioInputCable
WallPlugPowerAdapter
