V18039 Alarm Clock Instructions
We value each and every one of our customers and promise to provide a lifetime warranty
service. Simply visit the following link to activate the lifetime warranty service.
www.jall-us.com
Missing accessories, incorrect color, or any other problems, please contact us:
ThreeDucksDirect@outlook.com

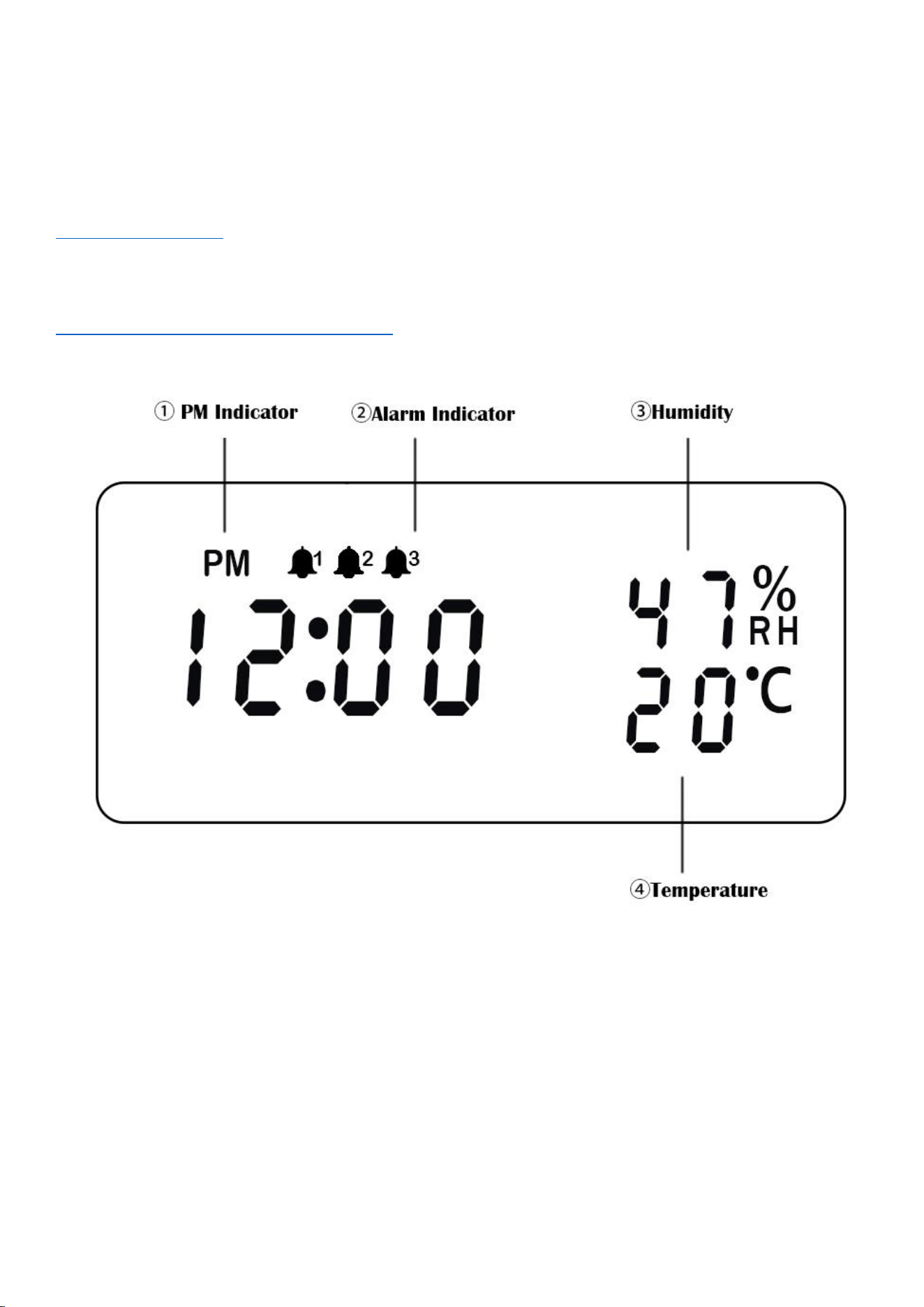

Front
①
AM/PM Indicator
– AM/PM Indicator is for 12-hour system only.
②
Alarm Indicator
– If you switch on one of the alarms, it will be on.
③
Humidity
– This shows the current indoor humidity level, which is detected by a sensor and cannot be manually changed.
④
Temperature
–This shows the current indoor temperature in Celsius or Fahrenheit, which is detected by a sensor and
cannot be manually changed.
2
/
7

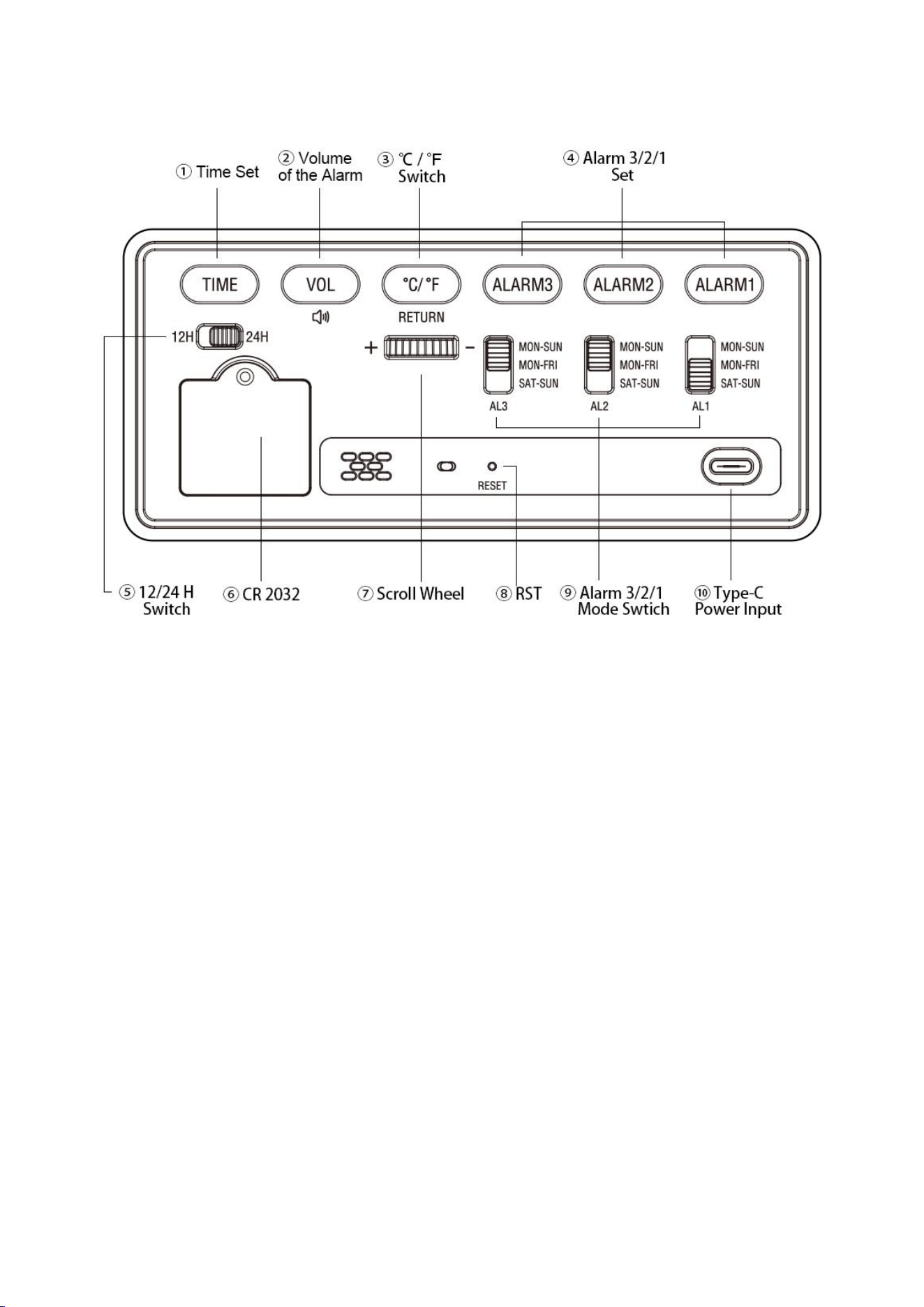

Back
①Time Set – Hold the “TIME” button, then use the scroll wheel to set “Year”, “Date”, “Time”.
②Volume – Press the "Vol" button once to adjust the volume of the alarm. There are 5 levels to choose from: V1-V5.
③℃ / ℉ Switch – Press the "°C / °F" button once to switch between Celsius and Fahrenheit on the display.
④Alarm 3/2/1 Set – Press the "Alarm" button once will turn the alarm ON or OFF.
– Hold the "Alarm" button to enter the alarm setting mode.
Notice: The alarm will be turned ON by default after setting the alarm.
⑤ 12/24H Switch – A convenient switch to toggle between 12-hour and 24-hour display modes.
⑥ CR 2032 – The CR2032 battery is used to retain your alarm settings, allowing the clock to restore the current time without
re-setting after power is restored.
Note: If the alarm fails to restore its settings after a power outage, it is possible that the CR 2032 battery is drained and needs
to be replaced.
⑦ Scroll Wheel – Turn it to adjust brightness in normal status, or select value in setting menu.
⑧ Reset – If you find the clock works abnormally, you can use a small stick to push “RESET” button to initialize.
⑨ Alarm 3/2/1 Mode Switch – “MON-SUN” = Every day; "MON-FRI" = Weekday mode, only activates the alarm on Monday
through Friday. "SAT-SUN" = Weekend mode, only activates the alarm on Saturday and Sunday.
⑩ Power Input – Please use the original power cord and adapter. If missing, please contact us.
Note: Using a non-original power cord and adapter may cause malfunction of the alarm clock. An excessive current may
damage the circuit board and result in the wireless charging function not working properly.( If your adapter is 5V 1A or 5V 2A,
it can be used as a replacement)
3
/
7
1. Package Includes:
1 x Digital Alarm Clock
1 x User Manual
1 x USB Type C Cable
1 x 5V 1A Power Adapter
2. Operating Instructions:
3. Setting:
3.1 Time Setting:
4
/
7
3.2 Normal Time Or Military Time (12/24H):
3.3 Alarm Setting:
5
/
7
3.4 Brightness Setting:
3.5 Temperature Setting:
6
/
7
3.6 Alarm Volume Setting:
3.7 Snooze:
①When the alarm goes off, press any button once. The corresponding alarm indicator light will flash,
giving you an extra 9 minutes of snooze time.
Notice: The snooze function will automatically shut off after 4 consecutive uses.
②To turn off the snooze feature, simply press any button on the back twice. This will stop the flashing of
the alarm indicator light. Alarm will go off on the next day.
3.8 Reset:
7
/
7
4. Product Features:
Input Voltage: AC110v-240V, 50/60HZ.
Output Voltage: DC5V / 500MA-2100MA.
5. Trouble Shooting:
1) Missing power cord, or instructions, please contact us on Amazon or by email for a new
replacement.
2) Please understand the temperature sensor is pre-set inside the clock. As electronic
components may produce heat when working. So it’s normal that the temperature is not as
accurate as other professional thermometer. It’s normal there are 1-2 degrees difference.
The temperature cannot reset manually because it’s detected by sensor automatically. If
the difference is higher than 5 degrees, please contact us for a new replacement.
3) If some numbers are getting dimmer or flash constantly, please take a picture or a short
video and contact us for a new replacement.
4) Please use the original power cord and adapter to work. If it’s broken, please contact us
for a new power cord & adapter.
5) If you find the clock fails to remember settings. That’s because the CR2032 memory
battery has run out of its power. You have to take out the battery shelf on the back of the
clock to change CR2032 battery.
6) If you happen to find that the screen is not lit, please try unplugging and reconnecting the
power cord, and pressing the RESET button on the back of the alarm clock. If the issue
persists, please contact us for a new replacement.
