Introduction 535FBX
Product description
The product is a backpack pole saw with a combustion
engine.
Work is constantly in progress to increase your safety
and efficiency during operation. Speak to your servicing
dealer for more information.
Intended use
The product is used for cutting branches and twigs.
Note: National regulations can set limit to the
operation of the product.
Only use the product with accessories that are approved
by the manufacturer. Refer to
Accessories on page 31
.

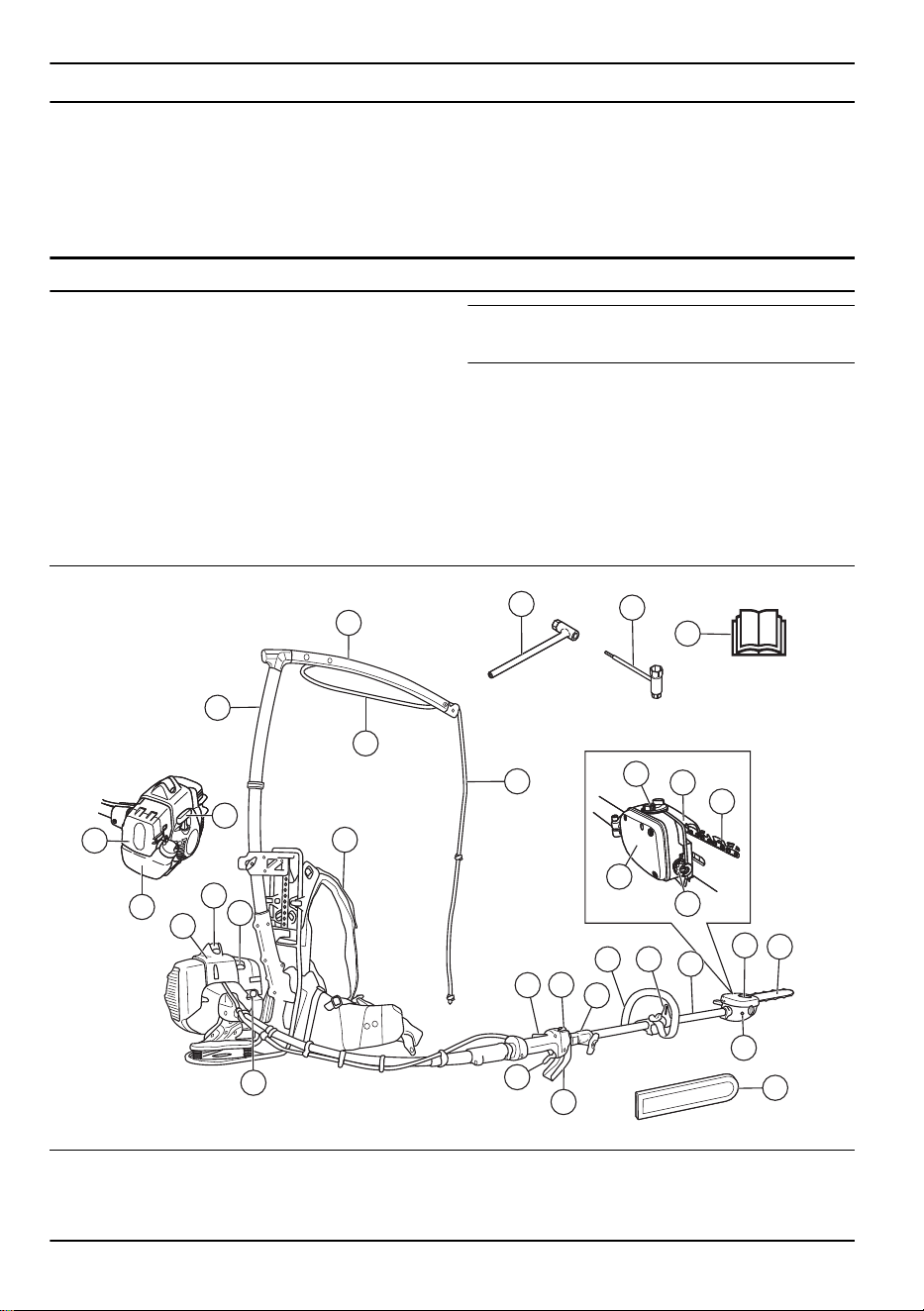

Product overview 535FBX
3
31
30
29
11
5
3
2
1
9
4
6
7
8
10
12
13
14
15
16
17
18
19
21
22
23
20
26
27
28
25
24
1. Air filter cover
2. Starter rope handle
3. Load reducer
4. Fuel tank
2 1301 - 008 - 27.02.2025
5. Stem guard
6. Engine cover
7. Spark plug cap and spark plug
8. Choke control
9. Harness
10. Air purge bulb
11. Cord
12. Throttle trigger
13. Throttle hand guard
14. Throttle trigger lockout
15. Stop switch
16. Shaft coupling
17. Loop handle
18. Suspension ring
19. Shaft
20. Adjustment screw for the chain lubrication
21. Bar nut
22. Guide bar
23. Transport guard
24. Chain tension screw
25. Chain oil tank
26. Saw chain
27. Protective guard for saw chain
28. Chain oil tank
29. Operator's manual
30. Combination wrench
31. Spark plug wrench

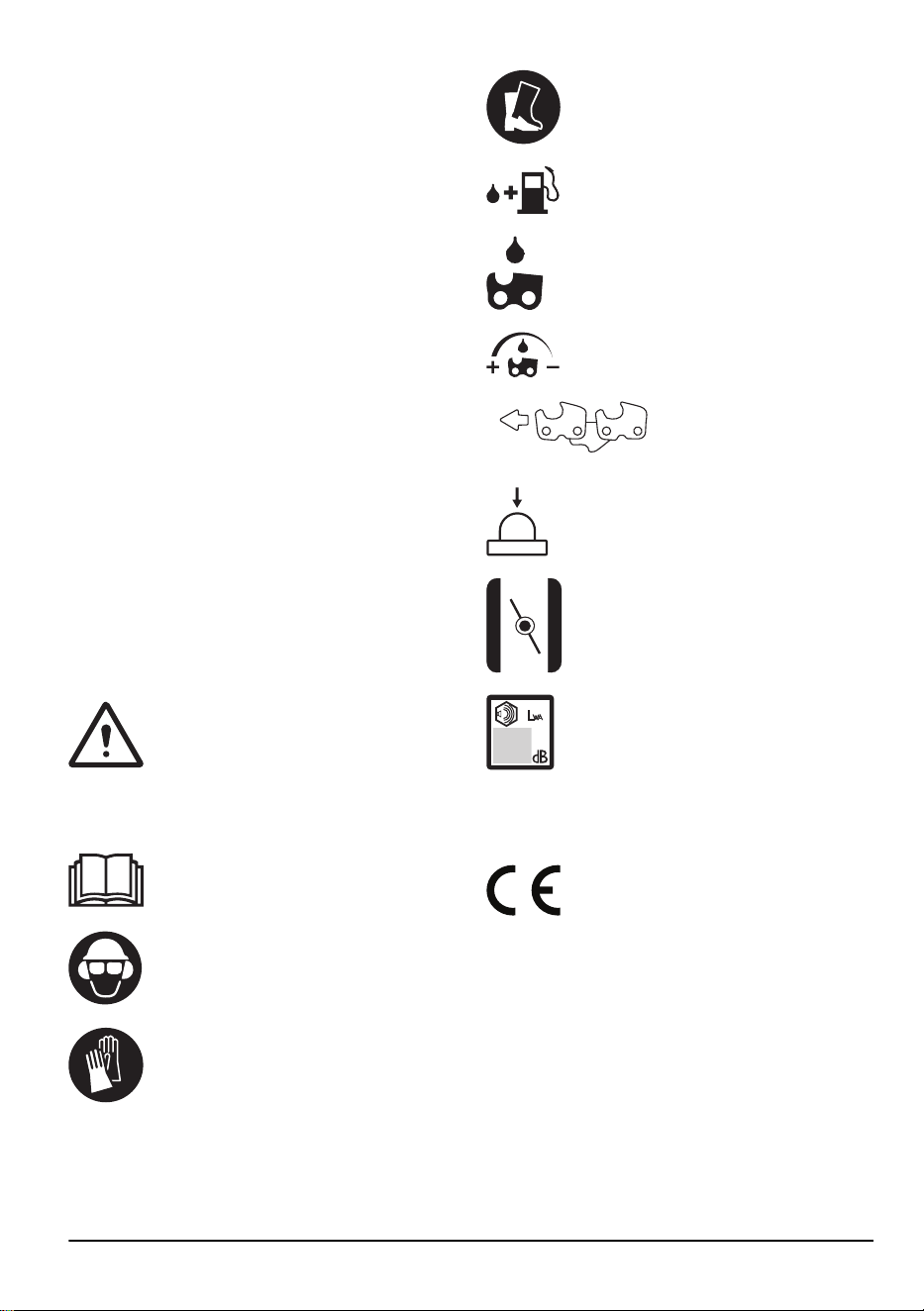

Symbols on the product
WARNING! This product is dangerous.
Injury or death can occur to the operator
or bystanders if the product is not used
carefully and correctly. To prevent injury
to the operator or bystanders, read
and obey all safety instructions in the
operator's manual.
Please read the operator's manual
carefully and make sure that you
understand the instructions before use.
Use a protective helmet in locations where
objects can fall on you. Use approved
hearing protection. Use approved eye
protection.
Use approved protective gloves.
Use heavy-duty slip-resistant boots.
Fuel.
Chain oil.
Adjustment of the oil flow.
Direction of rotation, saw
chain.
Primer bulb.
Choke.
Noise emission to the environment
label as per EU and UK directives
and regulations, and New South Wales
legislation "Protection of the Environment
Operations (Noise Control) Regulation
2017". The guaranteed sound power level
of the product is specified in
Technical
data on page 29
and on the label.
The product agrees with the applicable
EC directives.
yyyywwxxxx
The rating plate shows the seri-
al number. yyyy is the production
year, ww is the production week
and xxxx is the sequential number.
1301 - 008 - 27.02.2025 3
This product is not electrically insulated. If the product touches or comes close to high-volt-
age power lines it could lead to death or serious injury. Electricity can jump from one point
to another by arcing. The higher the voltage, the greater the distance electricity can jump.
Electricity can also travel through branches and other objects, especially if they are wet.
Always keep a distance of at least 10 m between the machine and high-voltage power lines
and/or any objects that are touching them. If you have to work within this safe distance you
should always contact the relevant power company to make sure the power is switched off
before you start work.
The operator of the product must ensure, while working, that no persons or animals come
closer than 15 meters.
Note: Other symbols/decals on the product refer to
certification requirements for other commercial areas.
Euro V Emissions
WARNING: Tampering with the engine
voids the EU type-approval of this product.
Product damage
We are not responsible for damages to our product if:
• the product is incorrectly repaired.
• the product is repaired with parts that are not
from the manufacturer or not approved by the
manufacturer.
• the product has an accessory that is not from the
manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service
center or by an approved authority.
Safety 535FBX
Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of
injury or death for the operator or bystanders
if the instructions in the manual are not
obeyed.
CAUTION: Used if there is a risk of
damage to the product, other materials or
the adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary
in a given situation.
General safety instructions
WARNING: Read the warning
instructions that follow before you use the
product.
• This product produces an electromagnetic field
during operation. This field may under some
circumstances interfere with active or passive
medical implants. To reduce the risk of serious or
fatal injury we recommend persons with medical
implants to consult their physician and the medical
implant manufacturer before operating this product.
• This product is a dangerous tool if you are not
careful or if you use the product incorrectly. This
product can cause serious injury or death to the
operator or others.
• It is very important that you read and understand
the contents of this operator’s manual. If you feel
uncertainty about a work situation or the operating
procedures after you read the operator's manual,
speak to a service agent before you continue.
• Under no circumstances may the design of the
product be modified without the permission of the
manufacturer. Do not use a product that appears
to have been modified by others and only use
accessories recommended for this product. Non-
authorized modifications and/or accessories can
result in serious personal injury or the death of the
operator or others.
• Do a check of the product before use. Refer to
Safety devices on the product on page 6
and
To check before starting on page 14
. Do not use
a product that is damaged or does not operate
correctly. Do the safety checks, maintenance and
service instructions described in this manual.
• A used muffler/spark arrester and spark arrester
mounting face may contain deposits of combustion
particles that may be carcinogenic. Avoid being
exposed to these compounds when handling the
4 1301 - 008 - 27.02.2025
muffler and /or spark arrester. Prior to any handling
of the muffler and/or the spark arrester, refer to
To
do a check of the muffler on page 7
.
Safety instructions for assembly
WARNING: Read, understand and
obey these instructions carefully before you
use the product.
• The complete clutch cover and shaft must be fitted
before the machine is started, otherwise the clutch
can come loose and cause personal injury.
• The only accessories you can operate with this
product are the cutting attachments we recommend.
Refer to
Attachments on page 31
.
• Use approved protective gloves.
• Make sure that you assemble the protective cover
and shaft correctly before you start the engine.
Safety instructions for operation
WARNING: Read the warning
instructions that follow before you do
maintenance on the product.
• Use personal protective equipment, refer to
Personal
protective equipment on page 6
.
• This product is not electrically insulated. If the
product touches or comes close to high-voltage
power lines it could lead to death or serious bodily
injury. Electricity can jump from one point to another
by arcing. The higher the voltage, the greater the
distance electricity can jump. Electricity can also
travel through branches and other objects, especially
if they are wet. Always keep a distance of at least 10
m between the product and high-voltage power lines
and/or any objects that are touching them. If have
to work within this safe distance you should always
contact the relevant power company to make sure
the power is switched off before you start work.
• Overexposure to vibration can lead to circulatory
damage or nerve damage in persons who have
poor circulation. Speak to your physician if you
experience symptoms of overexposure to vibration.
Such symptoms include numbness, loss of feeling,
tingling, pricking, pain, loss of strength, changes in
skin colour or condition. These symptoms usually
show in the fingers, hands or wrists. The risk
increases at low temperatures.
• The inside of the muffler contain chemicals that may
be carcinogenic. Avoid contact with these elements
in the event of a damaged muffler. Long term
inhalation of the engine’s exhaust fumes, chain oil
mist and sawdust can represent a health risk.
• Never use the machine indoors or in spaces lacking
proper ventilation. Exhaust fumes contain carbon
monoxide, an odourless, poisonous and highly
dangerous gas.
• Do not operate a product without a muffler or
with a damaged muffler. A damaged muffler can
increase the noise level and the risk of fire. Keep fire
extinguishing tools near. If you must have a spark
arrestor mesh in your area, do not use the product
without or with a broken spark arrestor mesh.
• If the saw chain does not stop when idling, adjust
the idle speed. Refer to
To adjust the throttle wire on
page 20
. Do not use the product until it is correctly
adjusted or repaired.
• This product has a long reach. Make sure that no
people or animals come closer than 15 m when the
product is running.Always look behind you before
you turn around with the product. Stop the product
immediately if a person or animal enters the 15 m
safety zone. If more than one operator does work in
the same area, keep a safety distance of a minimum
of 15 m.
• Observe the applicable safety regulations for work
in the vicinity of overhead power lines. Also falling
branches can result in short-circuiting.
• Never stand directly underneath a branch that is
being cut. This could lead to serious or even fatal
personal injury.
• Watch out for stumps of branches that can be thrown
out when you cut. Do not cut too close to the ground
where stones and other objects can be thrown out.
• Do not operate the product in bad weather, such
as dense fog, heavy rain, strong wind and intense
cold. To operate in bad weather can make you tired
and add risks, such as icy ground and unpredictable
felling direction.
• Do not use the product if you are tired, ill, or under
the influence of alcohol, drugs or medicine, as this
has a negative effect on your vision, alertness,
coordination and judgment.
• Make sure that you can move safely and have a safe
stance. Examine the area around you for obstacles
such as roots, rocks, branch and ditches. Be careful
during work on slopes.
• Do not remove the cut material, or let other persons
remove cut material, while the engine is on or
the cutting equipment rotates, as this can result in
serious injury.
• Do not overreach. Keep a stable position of the feet
and a good balance at all times.
• Always hold the product with both hands. Hold the
product on the right side of your body.
1301 - 008 - 27.02.2025
5
• Keep your hands and feet away from the saw chain
until it has stopped completely when the product is
deactivated.
• Never work from a ladder, stool or any other raised
position that is not fully secured.
• Do not put the product down with the engine on
unless you have it in clear view.
• Listen for warning signals and loud voices when you
use hearing protection. Always remove your hearing
protection when the engine stops.
• Stop the engine before you move to a new work
area. Always attach the transport guard before you
move the equipment.
• Never allow children to use or be in the vicinity of
the product. Remove the spark plug cap when the
product is not under close supervision.
Personal protective equipment
WARNING: Read the warning
instructions that follow before you use the
product.
• Always use approved personal protective equipment
when you use the product. Personal protective
equipment cannot fully prevent injury but it
decreases the degree of injury if an accident does
occur. Let your dealer help you select the right
equipment.
• Use a protective helmet where there is a risk of
falling objects.
• Use approved hearing protection that provides
adequate noise reduction. Long-term exposure to
noise can result in permanent hearing impairment.
• Use approved eye protection. If you use a visor,
you must also use approved protective goggles.
Approved protective goggles must comply with the
ANSI Z87.1 standard in the USA or EN 166 in EU
countries.
• Use a visor for face protection. A visor is not enough
for protection of the eyes.
+
• Use gloves when necessary, for example when you
attach, examine or clean the cutting equipment.
• Use sturdy non-slip boots.
• Use clothing made of a strong fabric. Always use
heavy, long pants and long sleeves. Do not use
loose clothing that can catch on twigs and branches.
Do not wear jewelry, short pants, sandals or go with
bare feet. Put your hair up safely above shoulder
level.
• Keep first aid equipment close at hand.
Safety devices on the product
WARNING: Read the warning
instructions that follow before you use the
product.
• Do not use a product with safety devices that are
damaged or do not operate correctly.
• Do a check of the safety devices regularly. Refer to .
• If the safety devices are damaged or do not operate
correctly, speak to your Husqvarna servicing dealer.

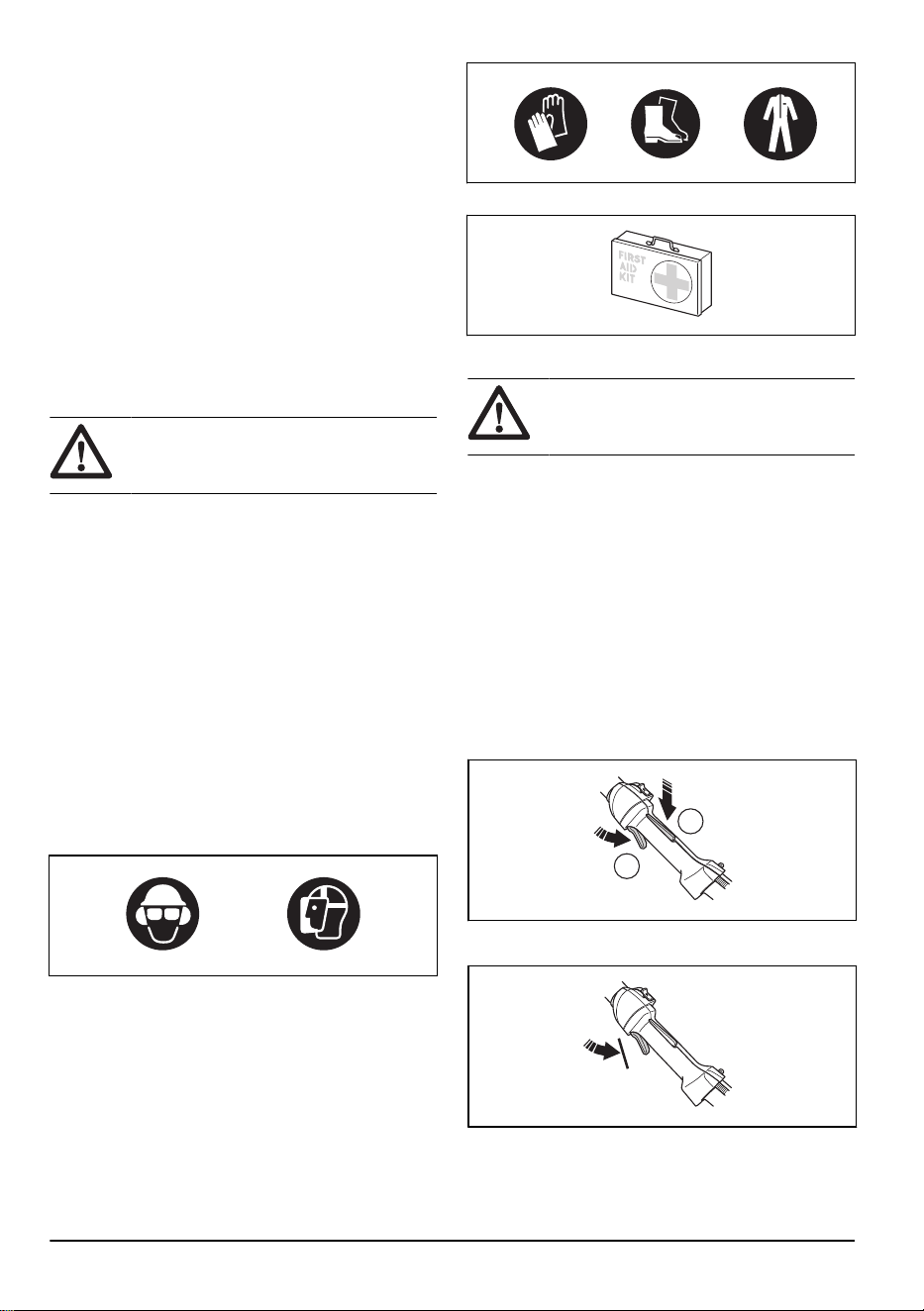

To do a check of the throttle trigger lockout
The throttle trigger lockout prevents accidental operation
of the throttle control.
1. Push the throttle trigger lockout (A) and make sure
that the throttle control is released (B). When you
release the handle, the throttle control and the
throttle trigger lockout move back to their initial
positions.
A
B
2. Release the throttle trigger lockout and make sure
that the throttle control is locked at idle speed.
6
1301 - 008 - 27.02.2025

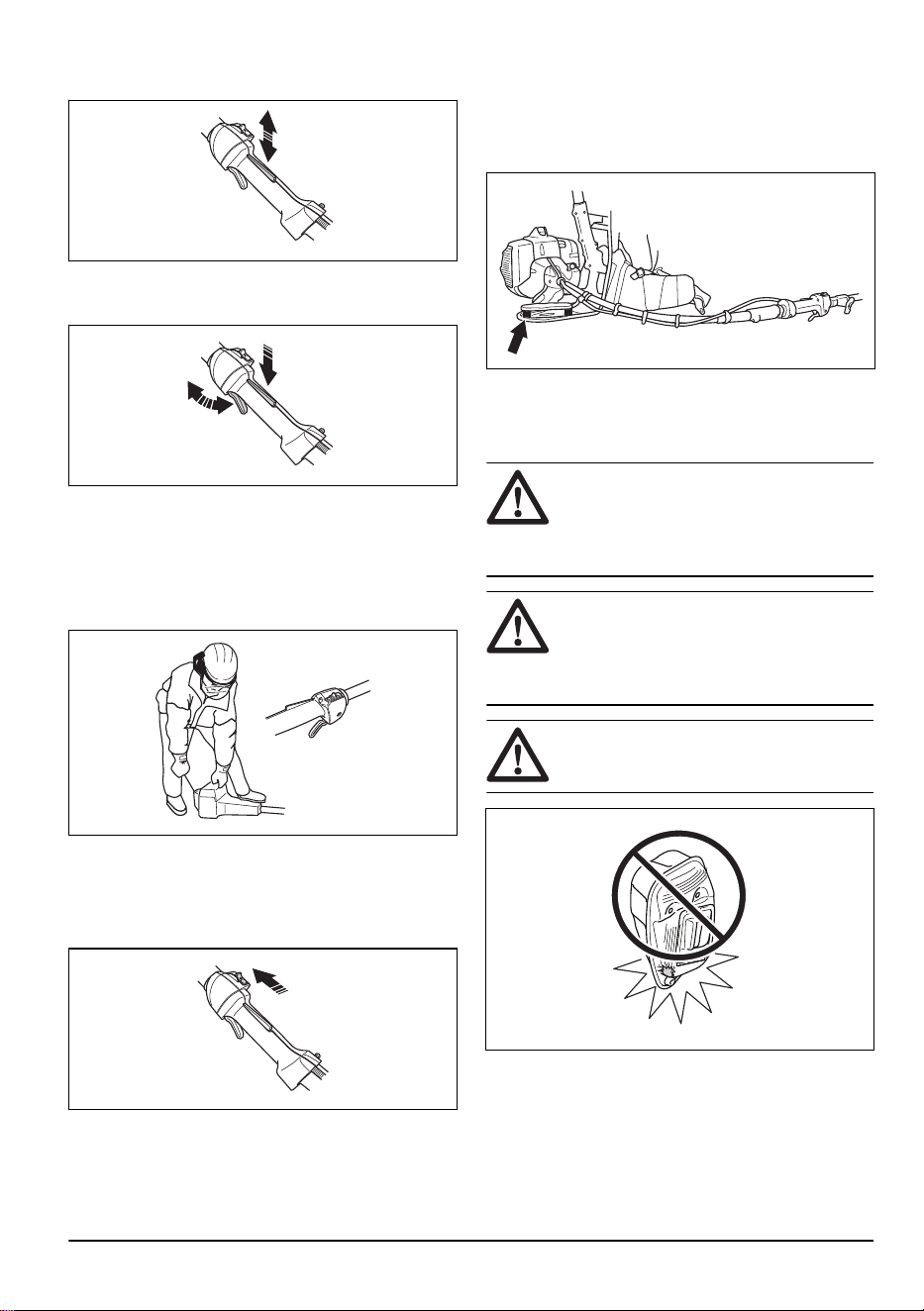

3. Push the throttle trigger lockout and make sure that it
goes back to its initial position when you release it.
4. Make sure that the throttle control and throttle trigger
lockout move freely and that the return springs
operate correctly.
5. Start the product and apply full throttle. Refer to
To
start the product on page 17
.
6. Release the throttle control and make sure that the
cutting attachment stops. If the cutting attachment
rotates with the throttle in the idle position, do a
check of the carburetor adjustments. Refer to
To
adjust the idle speed on page 19
.
To do a check of the stop switch
1. Start the engine.
2. Move the stop switch to the stop position and make
sure that the engine stops.
To do a check of the vibration damping system
The vibration damping system of the product decreases
the vibration between the engine unit and the shaft unit
of the product. This keeps the vibration in the handles to
a minimum which makes the operation easier.
1. Stop the engine.
2. Do a visual check for deformation and damage, for
example cracks.
3. Make sure that the elements of the vibration
damping systems is attached correctly.
To do a check of the muffler
WARNING: Bear in mind that the
exhaust fumes from the engine are hot and
may contain sparks which can start a fire.
Never start the product indoors or near
combustible material!
WARNING: Never use the machine
indoors or in spaces lacking proper
ventilation. Exhaust fumes contain carbon
monoxide, an odourless, poisonous and
highly dangerous gas.
WARNING: Never use a product with a
faulty muffler.
The muffler keeps noise levels to a minimum and sends
exhaust fumes away from the operator. For mufflers it is
very important that you follow the instructions on how to
check, maintain and service your product.
1301 - 008 - 27.02.2025
7

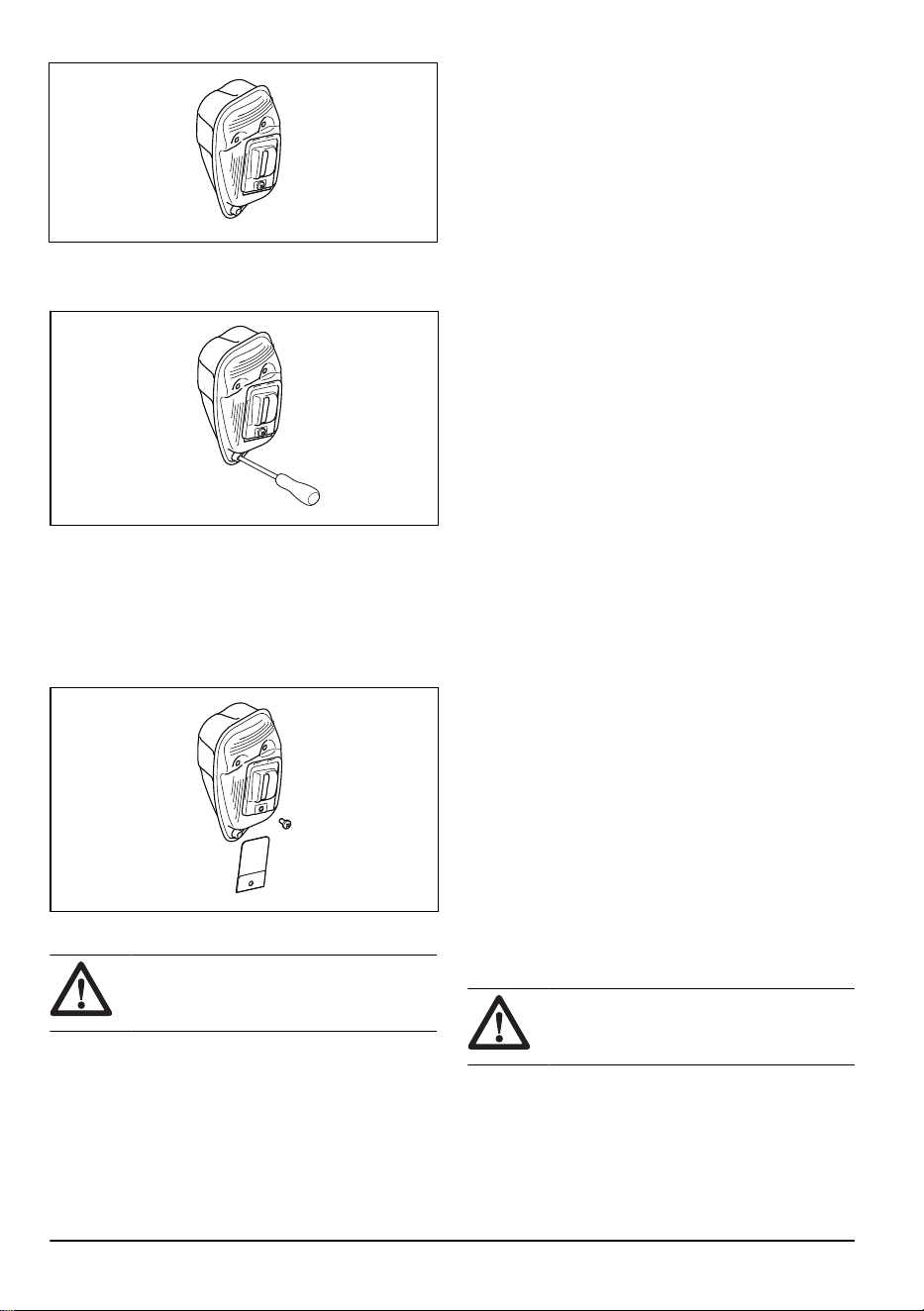

• Do a visual check for damage and deformation.
• Make sure that the muffler is correctly attached to
the product.
• If the muffler on your product has a spark arrester
screen, do a visual check. Replace the spark
arrester screen if it is damaged.
a) Clean the spark arrester screen if it is blocked.
A blocked mesh will make the engine overheated
which can cause serious damage.
b) Make sure that the spark arrestor mesh is
attached correct.
Fuel safety
WARNING:
Read the warning
instructions that follow before you use the
product.
• Do not mix the fuel indoor or near a heat source.
• Do not start the product if there is fuel or engine oil
on the product. Remove the unwanted fuel/oil and
let the product dry. Remove unwanted fuel from the
product.
• If you spill fuel on your clothing, change clothing
immediately.
• Do not get fuel on your body, it can cause injury. If
you get fuel on your body, use a soap and water to
remove the fuel.
• Do not start the engine if you spill oil or fuel on the
product or on your body.
• Do not start the product if the engine has a leak.
Examine the engine for leaks regularly.
• Be careful with fuel. Fuel is flammable and the fumes
are explosive and can cause injuries or death.
• Do not breathe in the fuel fumes, it can cause injury.
Make sure that there is sufficient airflow.
• Do not smoke near the fuel or the engine.
• Do not put warm objects near the fuel or the engine.
• Do not add the fuel when the engine is on.
• Make sure that the engine is cool before you refuel.
• Before you refuel, open the fuel tank cap slowly and
release the pressure carefully.
• Make sure there are sufficient airflow when refueling
and mixing fuel (petrol and two-stroke oil) or draining
the fuel tank.
• Fuel and fuel vapor are highly flammable and can
cause serious injury when inhaled or allowed to
come into contact with the skin. For this reason,
observe caution when handling fuel and make sure
there is sufficient airflow.
• Tighten the fuel tank cap carefully or a fire can
occur.
• Move the product at a minimum of 3 m (10 ft) from
the position where you filled the tank before a start.
• Do not put too much fuel in the fuel tank.
• Make sure that a leak cannot occur when you move
the product or fuel container.
• Do not put the product or a fuel container where
there is an open flame, spark or pilot light. Make
sure that the storage area does not contain an open
flame.
• Only use approved containers when you move the
fuel or put the fuel into storage.
• Empty the fuel tank before long-term storage. Obey
the local law on where to dispose fuel.
• Clean the product before long-term storage.
• Remove the spark plug cap before you put the
product into storage to make sure that the engine
does not start accidentally.
Safety instructions for maintenance
WARNING:
Read the warning
instructions that follow before you do
maintenance on the product.
• Do only the maintenance and servicing given in
this operator's manual. Let professional servicing
personnel do all other servicing and repairs.
• Regularly do the safety checks, maintenance and
service instructions given in this manual. Regular
maintenance increases the life of the product
8
1301 - 008 - 27.02.2025

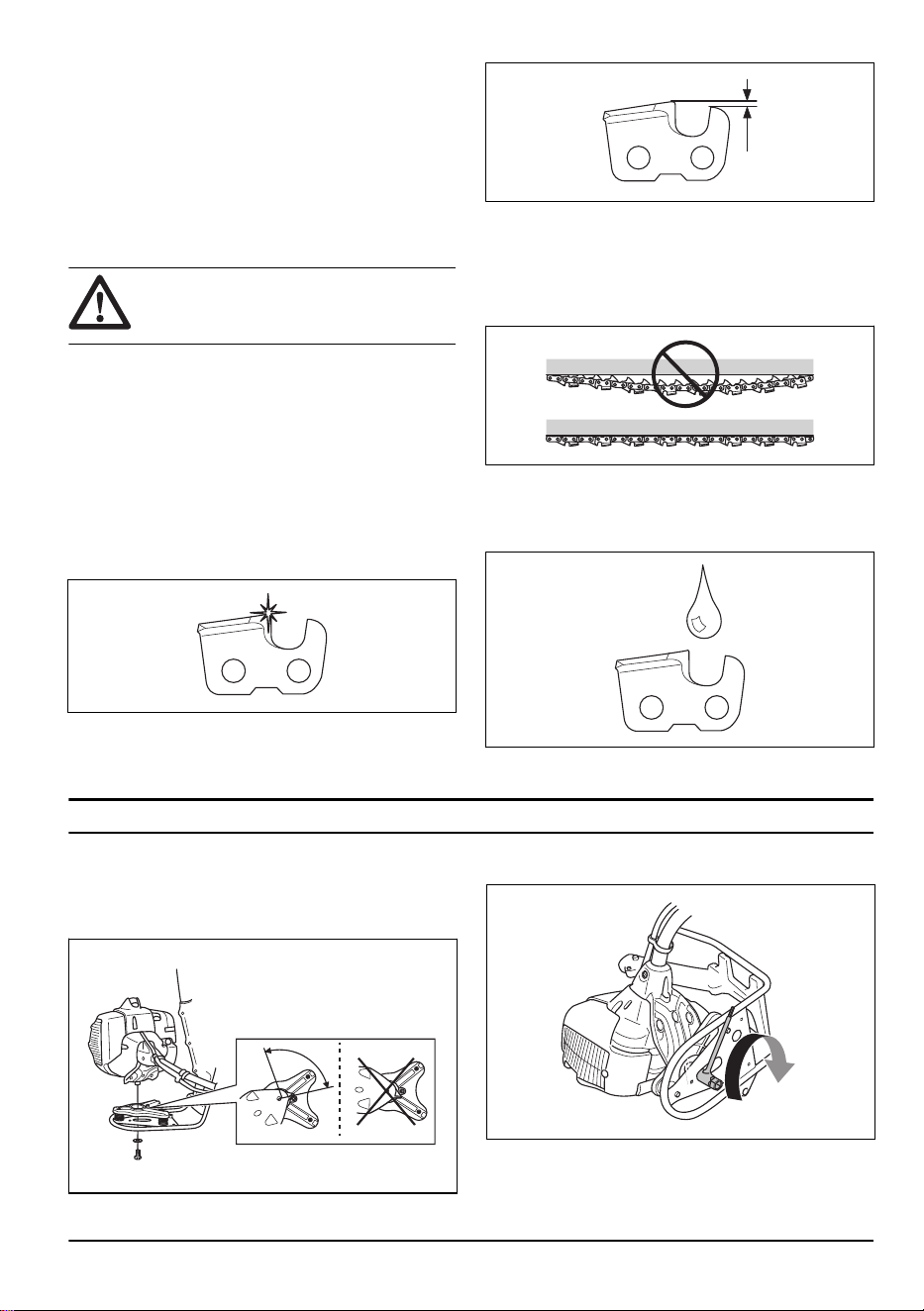

and decreases the risk of accidents. Refer to
Maintenance 535RBX on page 18
for instructions.
• If the safety checks in this operator's manual is
not approved after you do maintenance, speak to
your servicing dealer. We guarantee that there are
professional repairs and servicing available for your
product.
Safety instructions for the cutting
equipment
WARNING: Read the warning
instructions that follow before you use the
product.
• Only use the guide bar/saw chain combinations
and filing equipment that we recommend. Refer to
Filing equipment and filing angles on page 31
for
instructions.
• Use protective gloves when you use or do
maintenance on the saw chain. A saw chain that
does not move can also cause injuries.
• Keep the cutting teeth correctly sharpened. Obey the
instructions and use the recommended file gauge. A
saw chain that is damaged or incorrectly sharpened
increases the risk of accidents.
• Keep the correct depth gauge setting. Obey the
instructions and use the recommended depth gauge
setting.
• Make sure that the saw chain has the correct
tension. If the saw chain is not tight against the guide
bar, the saw chain can derail. An incorrect saw chain
tension increases wear on the guide bar, saw chain
and chain drive sprocket. Refer to
To tension the
chain on page 26
.
• Do maintenance on the cutting equipment regularly
and keep it correctly lubricated. If the saw chain is
not correctly lubricated, the risk of wear on the guide
bar, saw chain and chain drive sprocket increases.
Assembly 535FBX
To assemble the engine to the frame
1. Assemble the engine and the frame with the bolt.
Make sure that the heel is put on the correct side of
the stop. Refer to the illustration.
2. Tighten the nut with the combination wrench to
approximately 15 Nm.
1301 - 008 - 27.02.2025 9

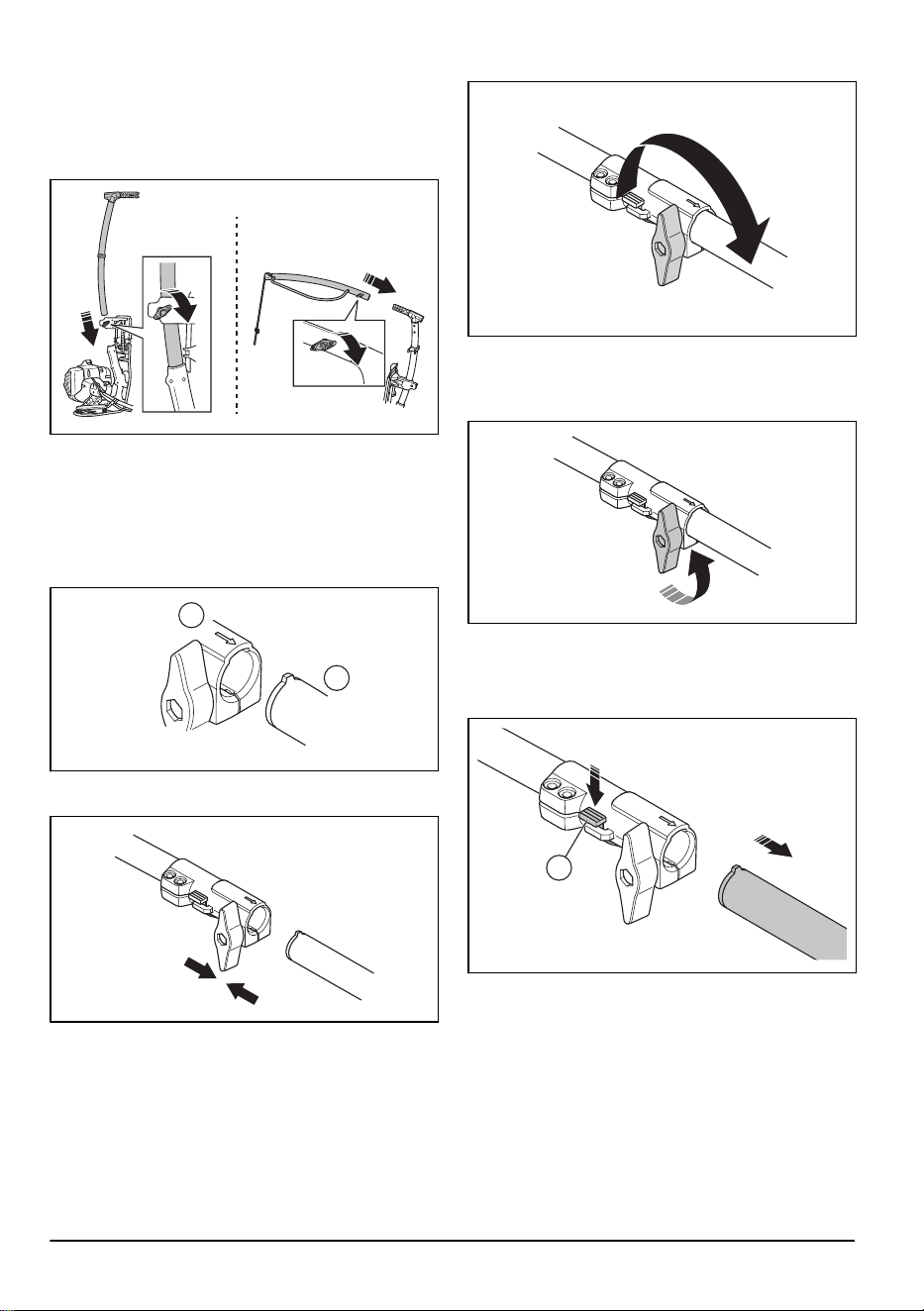

To assemble the load reducer
1. Attach the bottom part of the load reducer to the
frame.
2. Adjust the bottom part of the load reducer to a
correct work height. Tighten the knob.
3. Install the top part of the load reducer. Tighten the
knob.

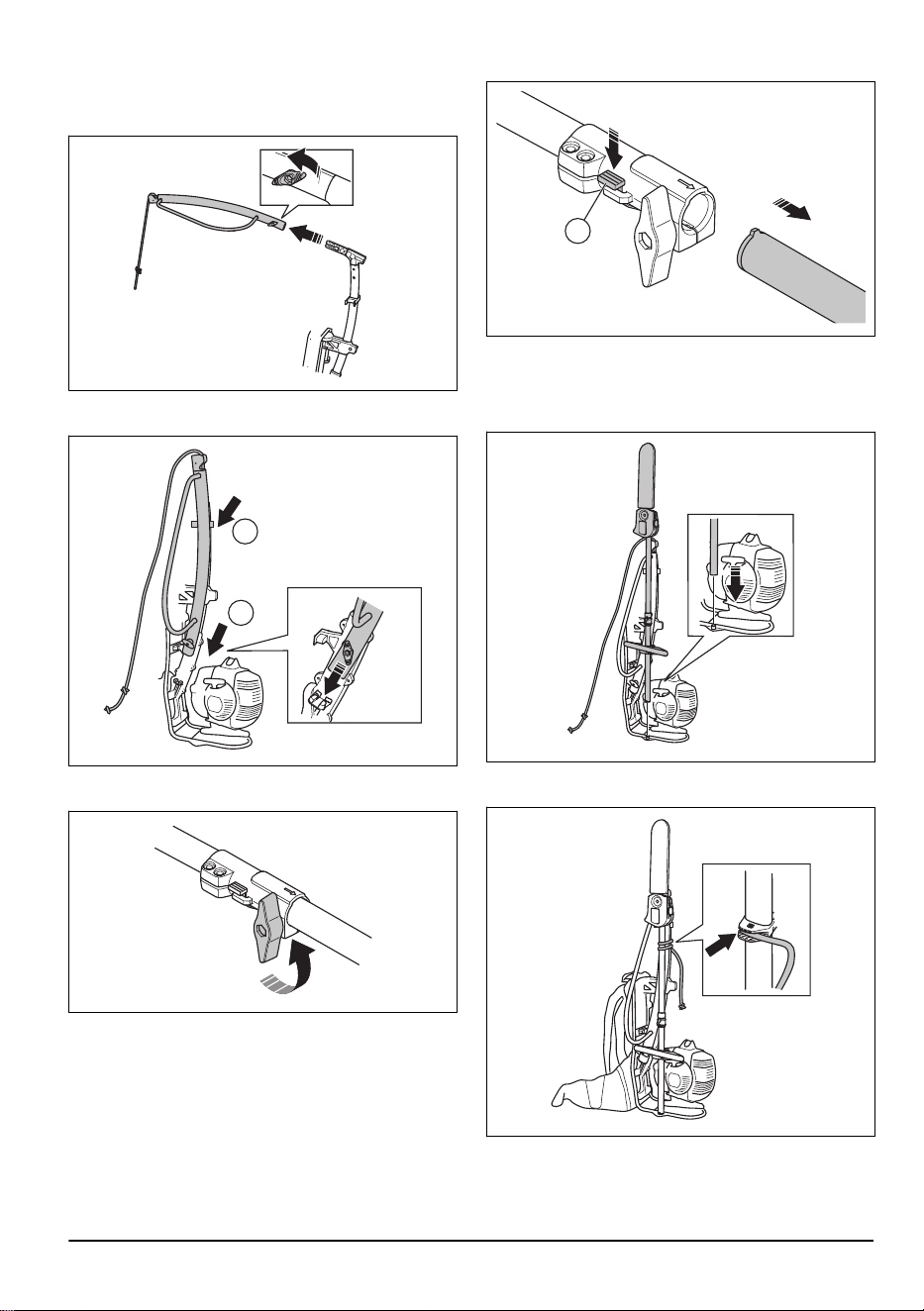

To assemble the two-piece shaft
1. Turn the knob to loosen the coupling.
2. Align the tab of the cutting attachment (A) with the
arrow of the coupling (B).
A
B
3. Carefully push the shaft into the coupling until you
hear a click.
4. Tighten the knob fully.
To disassemble the two-piece shaft
1. Turn the knob 3 turns or more to loosen the
coupling.
2. Push and hold the button (C).
3. Hold tight to the end of the shaft that the engine is
attached to.
4. Pull the attachment straight out of the coupling.
C
10
1301 - 008 - 27.02.2025

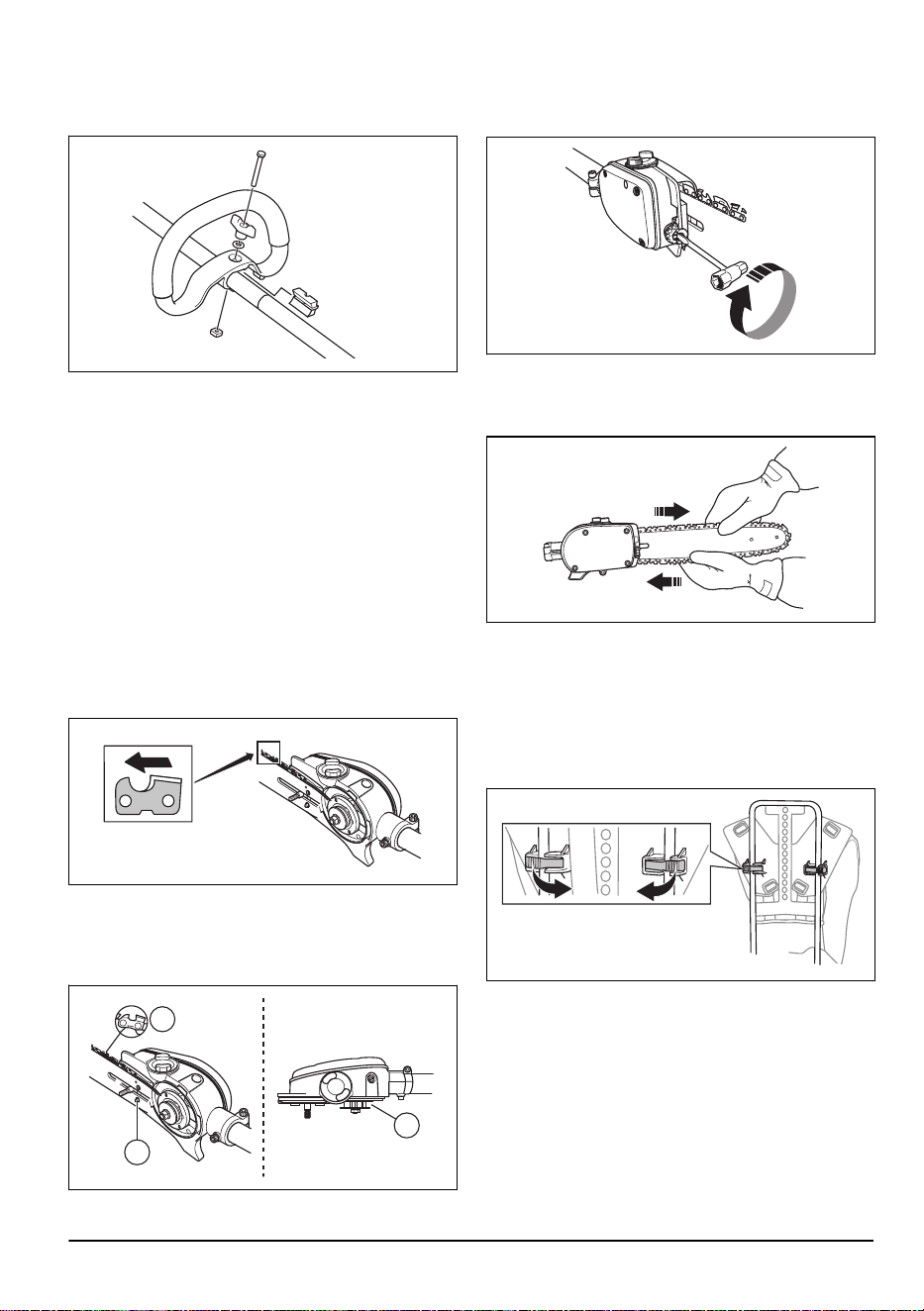

To assemble the loop handle
1. Put the loop handle onto the shaft, between the
arrows.
2. Put the spacer into the slot of the loop handle.
3. Install the nut, the knob and the screw. Do not
tighten fully.
4. Adjust the product to an applicable operation
position.
5. Tighten the knob.
To assemble the bar and chain
1. Unscrew the bar nut and remove the protective
cover.
2. Fit the bar over the bar bolt. Place the bar in its
rearmost position. Place the chain over the drive
sprocket and in the groove on the bar. Begin on the
top side of the bar.
3. Make sure that the edges of the cutting links are
facing forward on the top edge of the guide bar.
4. Fit the cover and locate the chain adjuster pin (A) in
the hole in the bar. Check that the drive links of the
chain fit correctly on the drive sprocket (B) and that
the chain is in the groove in the bar (C). Tighten the
bar nut finger-tight.
B
A
C
5. Tension the chain by turning the chain tensioning
screw clockwise using the combination spanner. The
chain should be tensioned until it does not sag from
the underside of the bar.
6. The chain is correctly tensioned when it does not
sag from the underside of the bar, but can still be
turned easily by hand. Hold up the bar tip and tighten
the bar nuts with the combination spanner.
7. When fitting a new chain, the chain tension has to be
checked frequently until the chain is run-in. Check
the chain tension regularly. A correctly tensioned
chain ensures good cutting performance and long
life.
To adjust the backplate height
1. Loosen the 2 fasteners that hold the backplate.
1301 - 008 - 27.02.2025
11

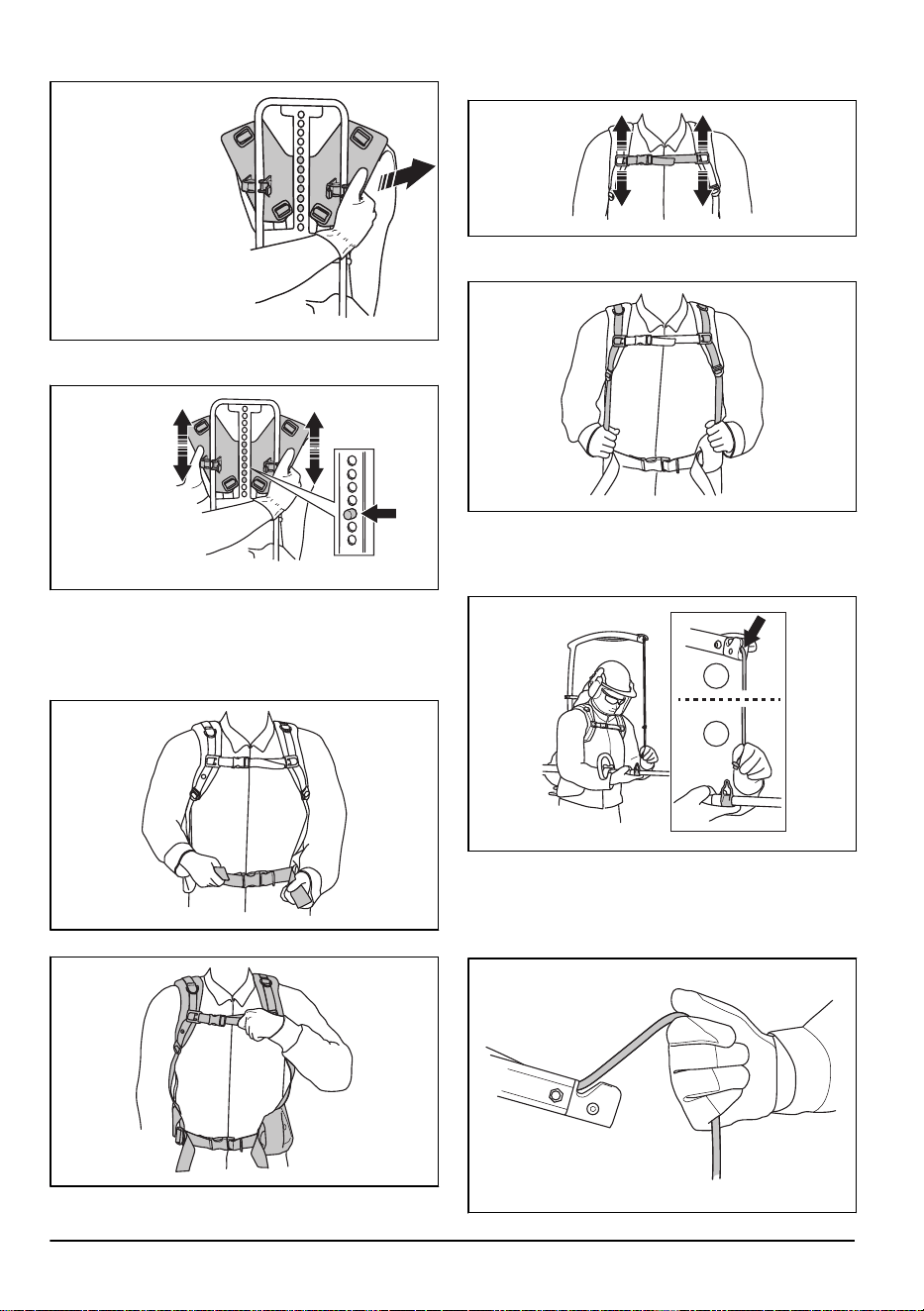

2. Loosen the backplate from the frame on 1 side.
3. Adjust the backplate to the correct height. Make sure
that the pin aligns with 1 of the holes on the frame.
To adjust the harness
1. Put on the harness of the product.
2. Tighten the hip strap tightly. Make sure that the hip
strap aligns with the hip.
3. Tighten the chest strap.
4. Adjust the chest strap vertically. Make sure that the
chest strap is tight against your body.
5. Adjust the shoulder strap until the weight is equal on
your shoulders.
To set the work height
1. Pull out the cord to the necessary work length and
make a knot.
A
B
2. Install the knot to the suspension ring on the shaft.
3. To make the cord shorter, pull the cord up by
the top part of the load reducer. The load reducer
automatically winds the cord when the tension
decreases.
12
1301 - 008 - 27.02.2025
To set the product in transport position
1. Loosen the knob and remove the top part of the load
reducer.
2. Attach the top part (B) of the load reducer to the
bottom part (A) of the load reducer.
B
A
3. Turn the knob 3 turns or more to loosen the coupling
on the shaft.
4. Push and hold the button (C).
C
5. Hold tight in the end of the shaft that the engine is
attached to.
6. Pull the attachment straight out of the coupling.
7. Install the shaft to the knob on the frame.
8. Wind the cord around the load reducer and the shaft.
Attach the cord to the shaft.
1301 - 008 - 27.02.2025
13

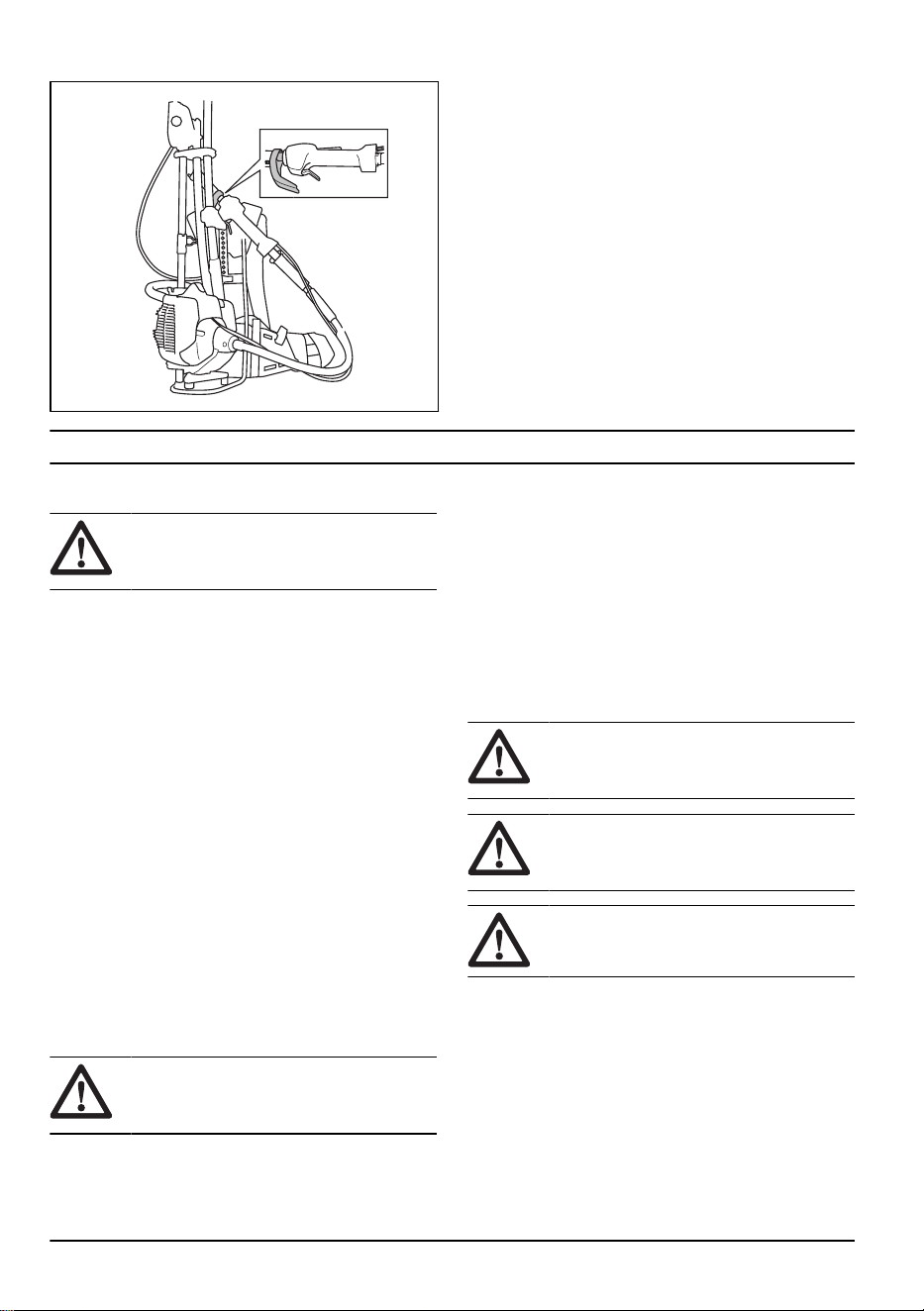

9. Hang the throttle hand guard on the frame.
Operation 535FBX
Introduction
WARNING: Before you operate the
product, you must read and understand the
safety chapter.
To check before starting
1. Inspect the working area. Remove any objects that
could be thrown out.
2. Check the saw chain. Never use blunt, cracked or
damaged equipment.
3. Check that the product is in perfect working order.
4. Check that all nuts and screws are tight.
5. Make sure the chain is adequately lubricated, refer
to
To check the chain lubrication on page 27
.
6. Check that the saw chain always stops when the
engine is idling.
7. Only use the product for the purpose it was intended
for.
8. Make sure the handle and safety features are in
order. Never use a machine that has any parts
missing or has been modified in relation to the
specification.
Fuel
This product has a two-stroke engine.
CAUTION: Incorrect type of fuel can
result in engine damage. Use a mixture of
gasoline and two-stroke oil.
Premixed fuel
• Use Husqvarna premixed alkylate fuel for best
performance and extension of the engine life. This
fuel contains less harmful chemicals compared
to regular fuel, which decreases harmful exhaust
fumes. The quantity of remains after combustion is
lower with this fuel, which keeps the components of
the engine more clean.
To mix fuel
Gasoline
CAUTION: Do not use gasoline with an
octane number less than 90 RON (87 AKI).
This can cause damage to the product.
CAUTION: Do not use gasoline with
more than 10% ethanol concentration (E10).
This can cause damage to the product.
CAUTION: Do not use leaded gasoline.
This can cause damage to the product.
• Always use new unleaded gasoline with a minimum
octane number of 90 RON (87 AKI) and with less
than 10% ethanol concentration (E10).
• Use gasoline with a higher octane number if you
frequently use the product at continuously high
engine speed.
• Always use a good quality unleaded gasoline/oil
mixture.
14
1301 - 008 - 27.02.2025

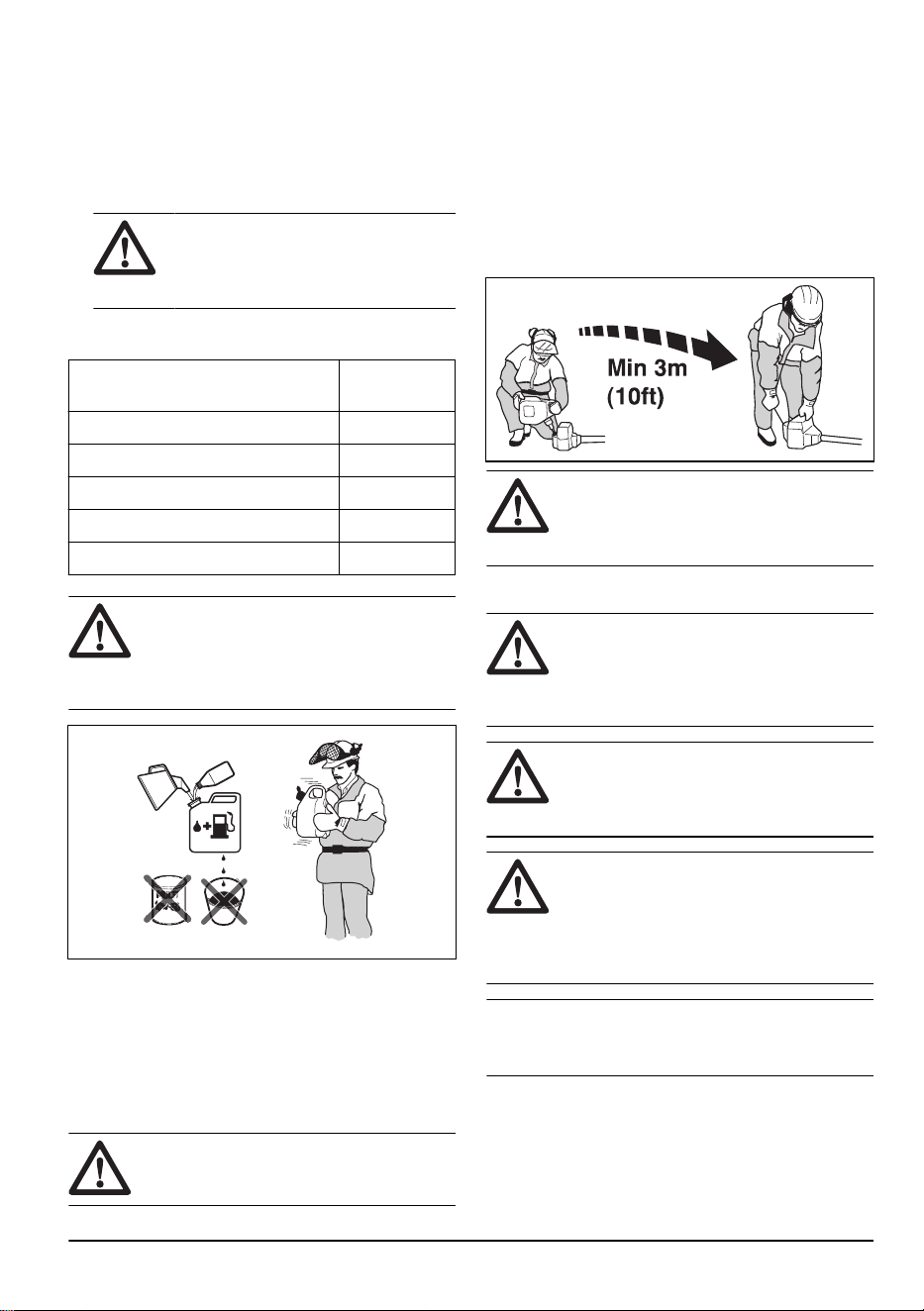

Two-stroke oil
• For best results and performance use Husqvarna
two-stroke oil.
• If Husqvarna two-stroke oil is not available, use a
two-stroke oil of good quality for air-cooled engines.
Speak to your servicing dealer to select the correct
oil.
CAUTION: Do not use two-stroke
oil for water-cooled outboard engines,
also referred to as outboard oil. Do not
use oil for four-stroke engines.
To mix gasoline and two-stroke oil
Gasoline, liter Two-stroke oil,
liter
2% (50:1)
5 0.10
10 0.20
15 0.30
20 0.40
CAUTION: Small errors can influence
the ratio of the mixture drastically when you
mix small quantities of fuel. Measure the
quantity of oil carefully and make sure that
you get the correct mixture.
1. Fill half the quantity of gasoline in a clean container
for fuel.
2. Add the full quantity of oil.
3. Shake the fuel mixture.
4. Add the remaining quantity of gasoline to the
container.
5. Carefully shake the fuel mixture.
CAUTION: Do not mix fuel for more
than 1 month at a time.
To fill the fuel tank
1. Clean the area around the fuel tank cap.
2. Shake the container and make sure that the fuel is
fully mixed. Use a fuel container with an anti-spill
valve.
3. Fill the fuel tank.
4. Tighten the fuel tank cap carefully.
5. Move the product 3 m (10 ft) or more away from the
refueling area and fuel source before starting.
CAUTION: Contamination in the tanks
causes malfunction. Clean the fuel tank and
chain oil tank regularly and replace the fuel
filter one time a year or more.
To use the correct chain oil
WARNING: Do not use waste oil,
which can cause injury to you and the
environment. Waste oil also causes damage
to the oil pump, the guide bar and the saw
chain.
WARNING: The saw chain can break
if the lubrication of the cutting equipment is
not sufficient. Risk of serious injury or death
to the operator.
WARNING: This product has a function
that lets the fuel run out before the chain
oil. Use the correct chain oil for this safety
function to operate correctly. Speak to your
servicing dealer when you select your chain
oil.
Note: This product has an automatic chain lubrication
system. You can also adjust the oil flow. Refer to
To
check the chain lubrication on page 27
.
• Use Husqvarna chain oil for maximum saw chain
life and to minimise environmental damage. If
Husqvarna chain oil is not available, we recommend
you to use a standard chain oil.
• Use a chain oil with good adherence to the saw
chain.
1301 - 008 - 27.02.2025
15

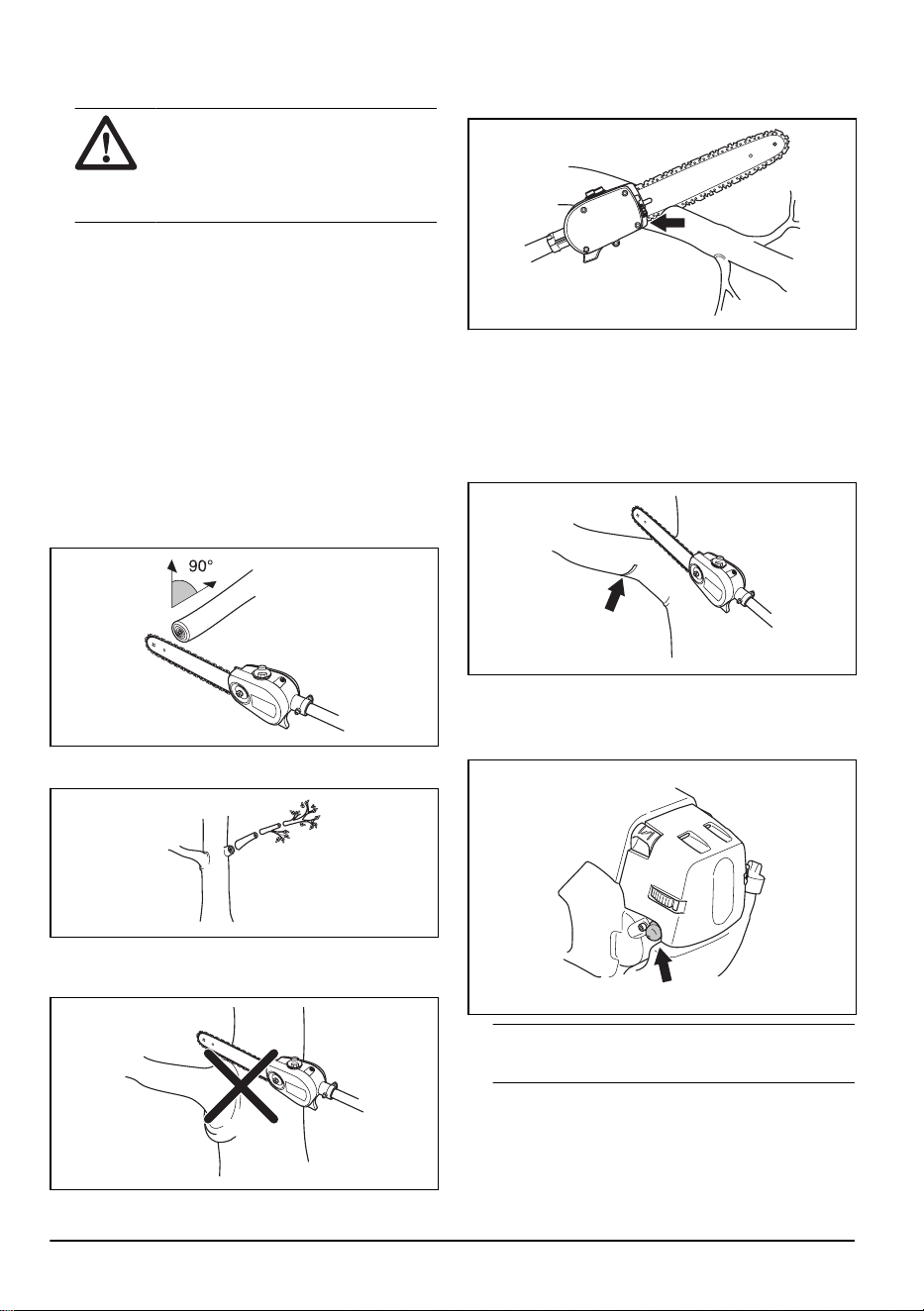

• Use a chain oil with correct viscosity range that
agrees with the air temperature.
CAUTION: If the oil is too thin, it
runs out before the fuel. In temperatures
below 0°C/32°F some chain oils become
too thick, which can cause damage to
the oil pump components.
• Use the recommended cutting equipment. Refer to
Recommended cutting equipment on page 31
.
To use the product
• Hold the product as close to your body as possible to
get the best balance.
• Make sure that the tip does not touch the ground.
• Do not rush the work, but work steadily until all the
branches have been cut back cleanly.
• Always slow the engine to idle speed after each
working operation. Long periods at full throttle
without any load on the engine can lead to serious
engine damage.
• Always work at full throttle.
• Whenever possible position yourself so that you can
make the cut at right angles to the branch.
• Cut large branches in sections so that you have
better control over where they fall.
• Never cut through the swelling at the root of the
branch as this will slow down healing and increase
the risk of fungal attack.
• Use the stop at the base of the cutting head to
provide support during cutting. This will help prevent
the cutting attachment from bouncing on the branch.
• Make an initial cut on the underside of the branch
before cutting through the branch. This will prevent
tearing of the bark, which could lead to slow healing
and cause permanent damage to the tree. The cut
should not be deeper than ⅓ of the branch thickness
to prevent jamming. Keep the chain running while
you withdraw the cutting attachment from the branch
to prevent it jamming.
To prepare the product for start
1. Push the air purge bulb again and again until the fuel
starts to fill the air purge bulb.
Note:
It is not necessary to fully fill the air purge
bulb.
16 1301 - 008 - 27.02.2025

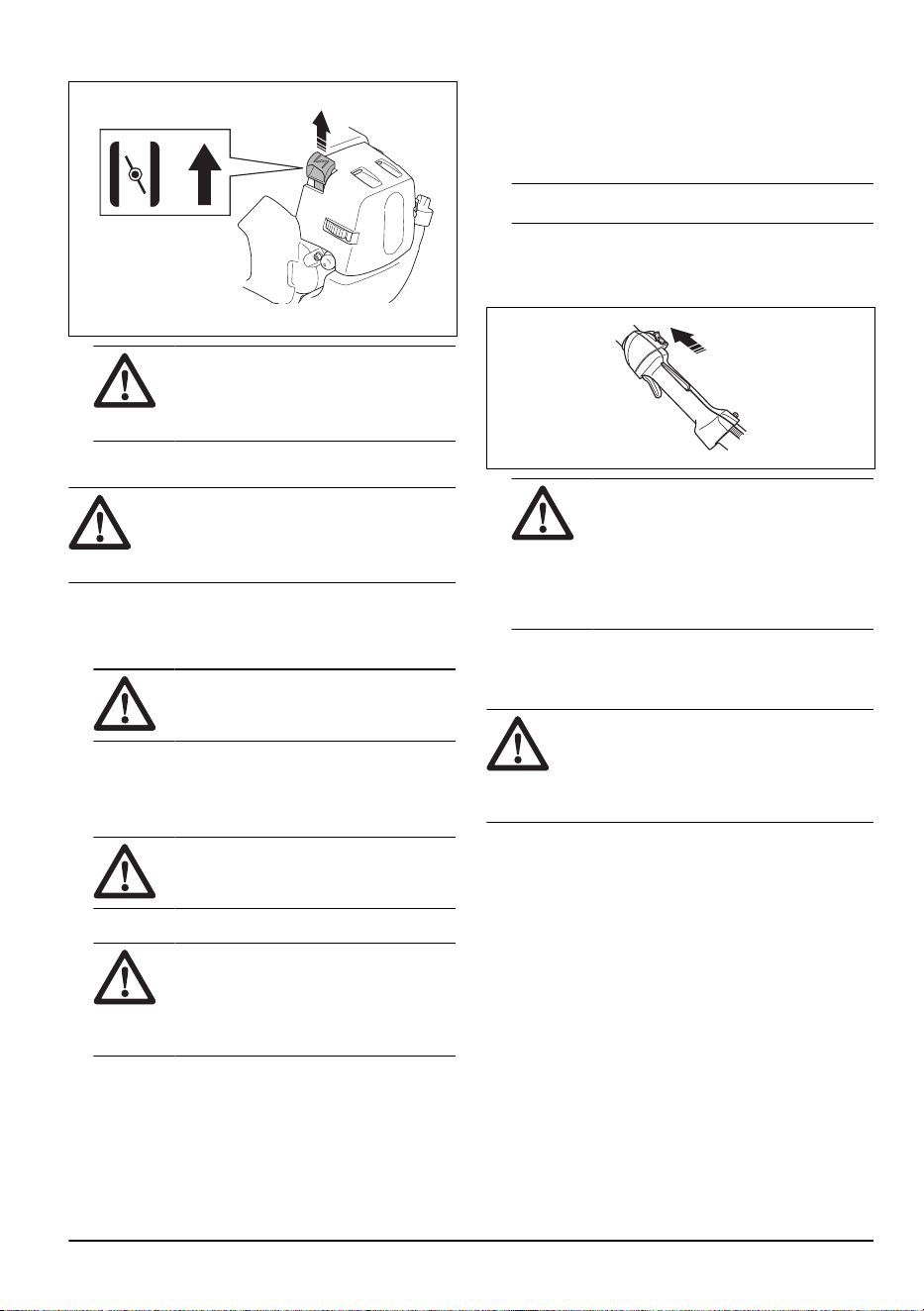

2. Move the choke control up into choke position.
WARNING: Be careful, risk of cut
injuries. The saw chain starts to rotate
immediately when you start the engine
with the choke.
To start the product
WARNING: Read the warning
instructions in the safety chapter before you
start the product (refer to
Safety 535FBX on
page 4
).
1. Use protective gloves.
2. Hold the body of the product on the ground with your
left hand.
CAUTION: Do not use your feet!
3. Hold the starter rope handle with your right hand.
4. Slowly pull out the starter rope with your right hand
until you feel some resistance (the starter pawls
grip).
WARNING:
Do not twist the starter
rope around your hand.
5. Pull the cord quickly and with power.
CAUTION:
Do not pull the starter
rope all the way out and do not let go off
the starter rope handle when the starter
rope is fully extended. This can cause
damage to the product.
6. Pull the starter rope until the engine starts or for a
maximum of 5 times.
7. Reset the choke when the engine starts or after you
pull the starter rope 5 times.
8. If it is necessary, pull the starter rope again and
again until the engine starts.
9. Let the engine run for 10 seconds.
10. Operate the throttle gradually.
11. Make sure the engine runs smoothly.
Note: If the engine stops, do the procedure again.
To stop the product
1. Move the stop switch into the stop position to stop
the engine.
CAUTION: The stop switch
automatically goes back to its initial
position. In order to prevent accidental
starting, the spark plug cap must
be removed from the spark plug
when assembling, checking and/or
maintenance is done.
Forestry clearing
General work instructions
WARNING:
Be careful when you cut a
tree that is in tension. The tree can move
quickly before or after you cut it. Keep a
correct position and operating procedure to
prevent serious injury.
• Clear an open space at one end of the work area,
and start the work from there.
• Move in a regular pattern across the work area.
• Move the product fully to the left and right, to clear a
width of 4–5 m on each turn.
• Clear a length of 75 m before you turn and go back.
Move the fuel can along with you as you continue.
• Move in a direction where you do not go across
ditches and obstacles more than necessary.
• Move in a direction where the wind makes the cut
vegetation fall in the cleared area.
• Move along slopes, not up and down.
1301 - 008 - 27.02.2025
17
Maintenance 535RBX
Introduction
Below you will find some general maintenance
instructions. If you need further information please
contact your service workshop.
Maintenance schedule
The following is a list of the maintenance steps that
must be performed on the product. Most of the items are
described later in this chapter.
Note: The user must only carry out the maintenance
and service work described in this operator's manual.
More extensive work must be carried out by an
authorized service workshop.
18 1301 - 008 - 27.02.2025
Maintenance Daily Weekly Monthly
Clean the external surface. X
Make sure that the throttle trigger lock and the throttle works correctly. X
Do a check of the stop switch to make sure that it works correctly. X
Make sure that the saw chain does not rotate at idle speed. X
Clean the air filter. Replace if necessary. X
Check the saw chain with regard to visible cracks in the rivets and links, whether
the saw chain is stiff or whether the rivets and links are abnormally worn.
X
Clean the area under the protective cover. X
Make sure that the screws and nuts are tight. X
Examine the engine, the fuel tank and the fuel lines for leaks. X
Clean the cooling system. X
Examine the starter and the starter rope for damages. X
Examine the vibration damping elements for damages and cracks. X
Clean the outside of the spark plug. Remove it and do a check of the electrode
gap. Adjust the gap to the correct distance (refer to
Technical data 535FBX on
page 29
) or replace the spark plug. Make sure that the spark plug is fitted with
a suppressor.
X
Clean the outside of the carburetor and the space around it. X
File off any burrs from the edges of the bar. X
Clean or replace the spark arrester screen on the muffler. X
Clean the fuel tank. X
Do a check of the fuel filter for contamination and the fuel hose for cracks or
other defects. Replace if necessary.
X
Do a check of all cables and connections. X
Do a check of the clutch, clutch springs and the clutch drum for wear. Replace if
necessary by an authorized service workshop.
X
Examine the spark plug. Replace the spark plug if it is necessary. X
Make sure that the muffler is correctly attached, has no damages and that no
parts of the muffler are missing.
X

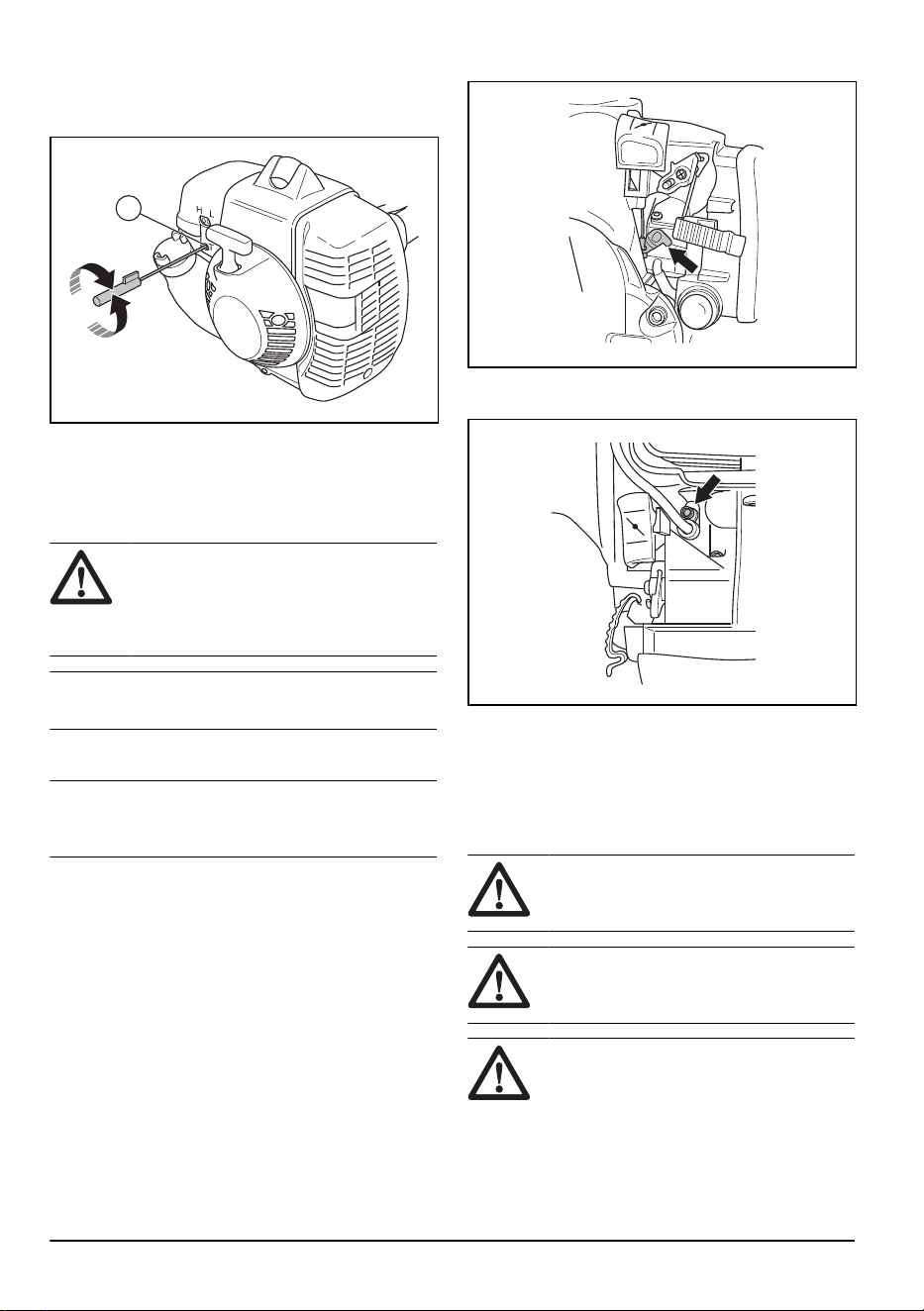

To adjust the idle speed
1. Make sure that the air filter is clean and the air filter
cover is attached before you adjust the idle speed.
2. Start the product. Refer to
Air filter on page 22
1301 - 008 - 27.02.2025 19
3. Adjust the idle speed with the idle adjustment screw
T which is identified with "T" mark. Turn the idle
adjustment screw clockwise until the saw chain
starts to turn.
T
4. Turn the idle adjustment screw counterclockwise
until the saw chain stops.
The idle speed is correct when the engine operates
smoothly in all positions. The idle speed must be below
the speed when the saw chain starts to turn.
WARNING: If the saw chain does not
stop when you adjust the idle speed, turn
to your nearest servicing dealer. Do not use
the product until it is correctly adjusted or
repaired.
Note: Refer to
Technical data 535FBX on page 29
for the recommended idle speed.
To adjust the throttle wire
Note:
The throttle wire must be adjusted after 100
hours of operation or if the engine does not operate
correctly.
1. Make sure that the idle speed is correctly adjusted,
refer to
To adjust the idle speed on page 19
.
2. Stop the engine.
3. Remove the cylinder cover.
4. Push and hold the throttle trigger fully.
5. Push the throttle cam with your finger.
6. If the throttle cam moves, adjust the throttle wire.
a) Turn the adjustment screw clockwise.
b) Push the throttle cam with your finger. If the
throttle cam does not move, the throttle wire is
correctly adjusted.
7. Install the cylinder cover and do a check of the idle
speed.
To do a check of the muffler
WARNING:
Do not use a product that
has a damaged muffler or a muffler that is in
bad condition.
WARNING: Do not use the product if
the spark arrester screen on the muffler is
missing or damaged.
WARNING: A used muffler/spark
arrester and spark arrester mounting
face may contain deposits of combustion
particles on the surfaces that may be
carcinogenic. To avoid skin contact and
inhalation of such particles when cleaning
and/or servicing the spark arrester, make
sure you always:
20 1301 - 008 - 27.02.2025
• wear gloves;
• clean and/or service in a well ventilated
area;
• do not use pressurized air to clean the
spark arrester screen;
• use a steel brush and brush away from
your body when cleaning the spark
arrester.

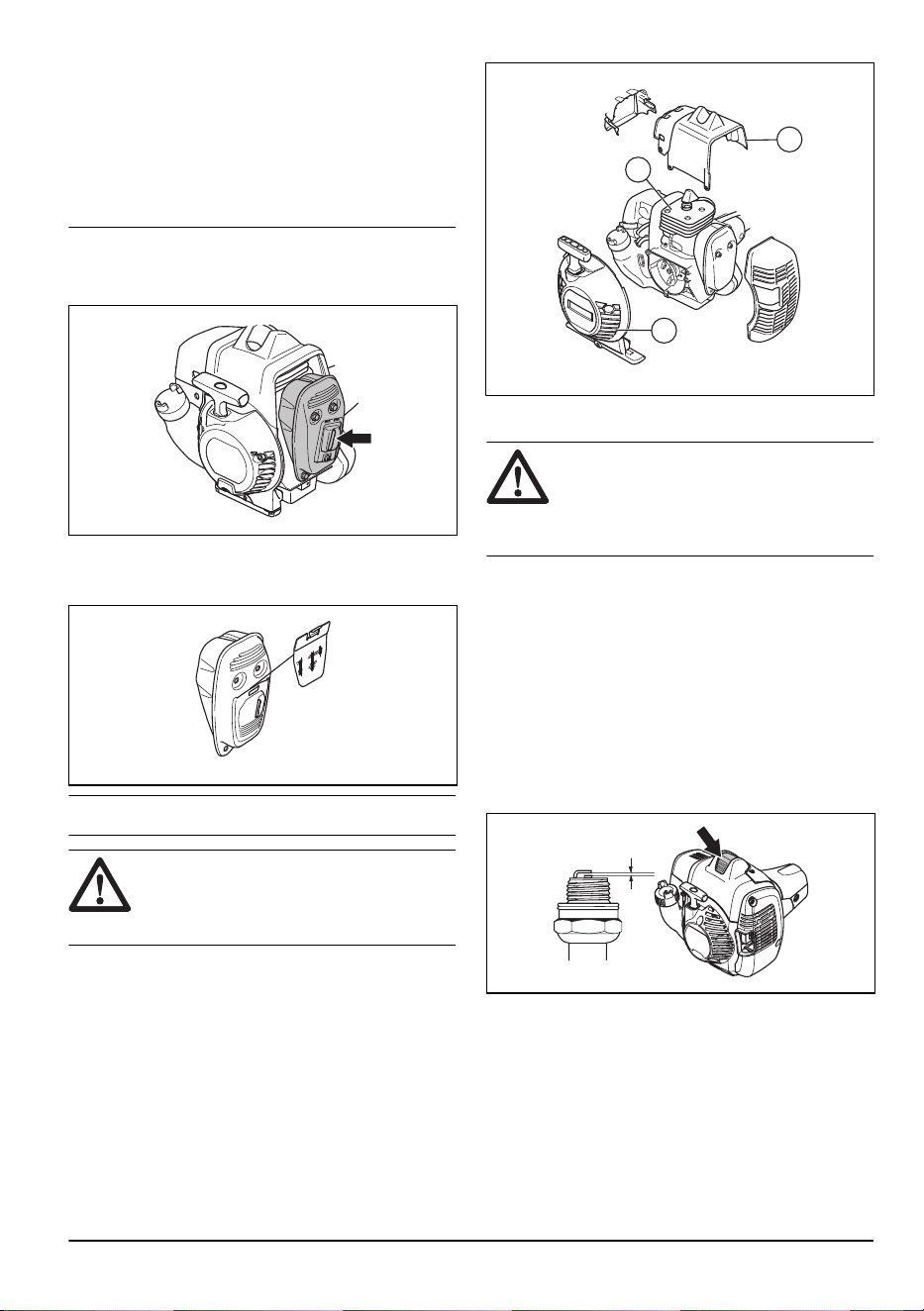

1. Examine the muffler for damages.
2. Make sure that the muffler is correctly attached to
the product.
3. If your product has a special spark arrester screen,
clean the spark arrester screen weekly.
4. Replace a damaged spark arrester screen.
Note: Do not remove the muffler from the product.
CAUTION: If the spark arrester screen
is blocked, the product becomes too hot
and this causes damage to the cylinder and
piston.
Cooling system
The product has a cooling system to keep the operation
temperature as low as possible.
Clean the components of the cooling system with a
brush weekly or more frequently in rougher conditions.
A dirty or blocked cooling system makes the product too
hot which causes damage to the piston and cylinder.
The cooling system has the following components:
1. Air intake on the starter.
2. Cooling fins on the cylinder.
3. Cylinder cover.
3
2
1
To examine the spark plug
CAUTION: Always use the
recommended spark plug type, refer to
Technical data 535FBX on page 29
.
Incorrect spark plug type can cause damage
to the product.
• Examine the spark plug if the engine is low on
power, is not easy to start or does not operate
correctly at idle speed.
• To decrease the risk of unwanted material on the
spark plug electrodes, obey these instructions:
a) Make sure that the idle speed is correctly
adjusted.
b) Make sure that the fuel mixture is correct.
c) Make sure that the air filter is clean.
• If the spark plug is dirty, clean it and make sure that
the electrode gap is correct, refer to
Technical data
535FBX on page 29
.
• Replace the spark plug if it is necessary.
1301 - 008 - 27.02.2025
21

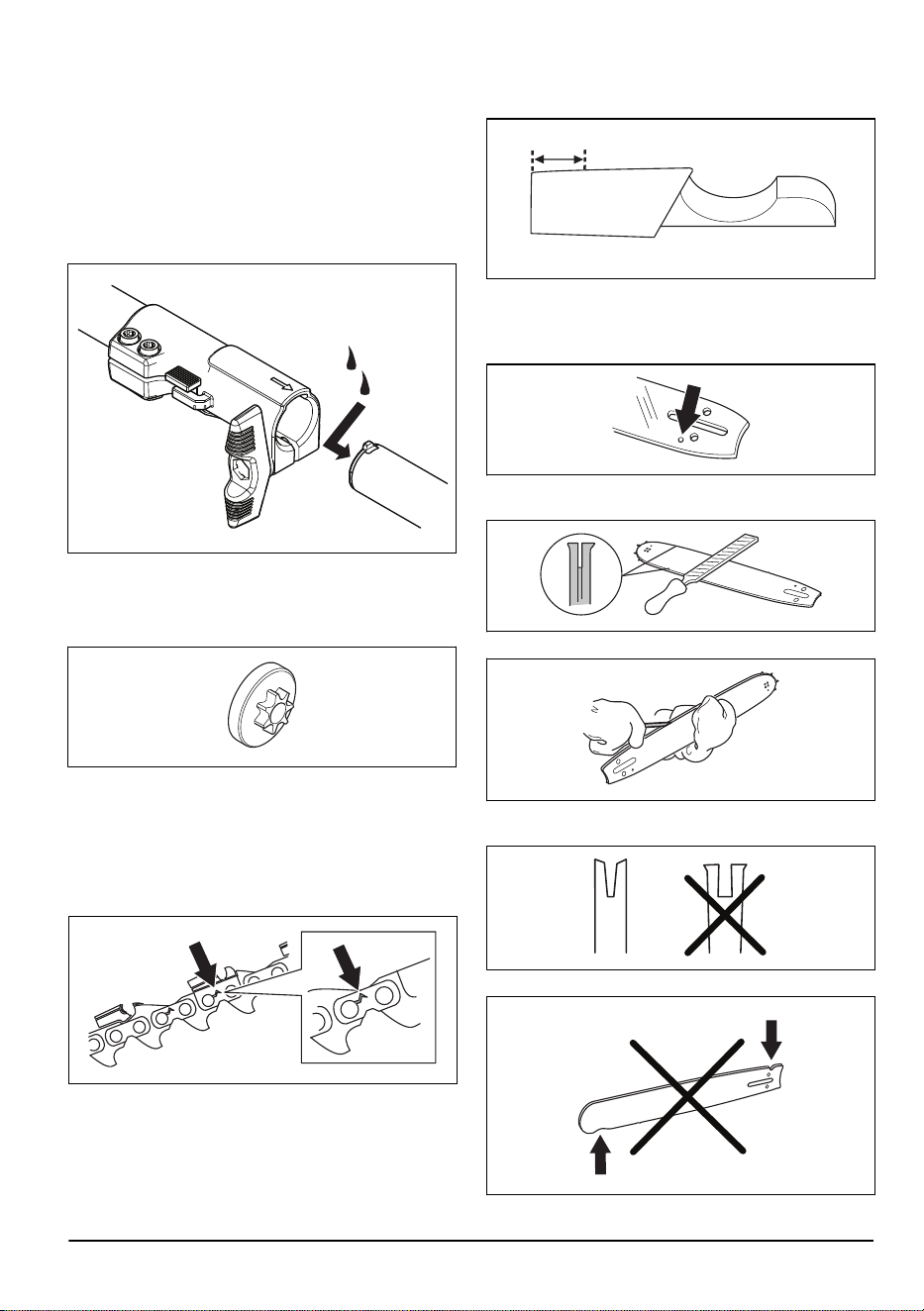

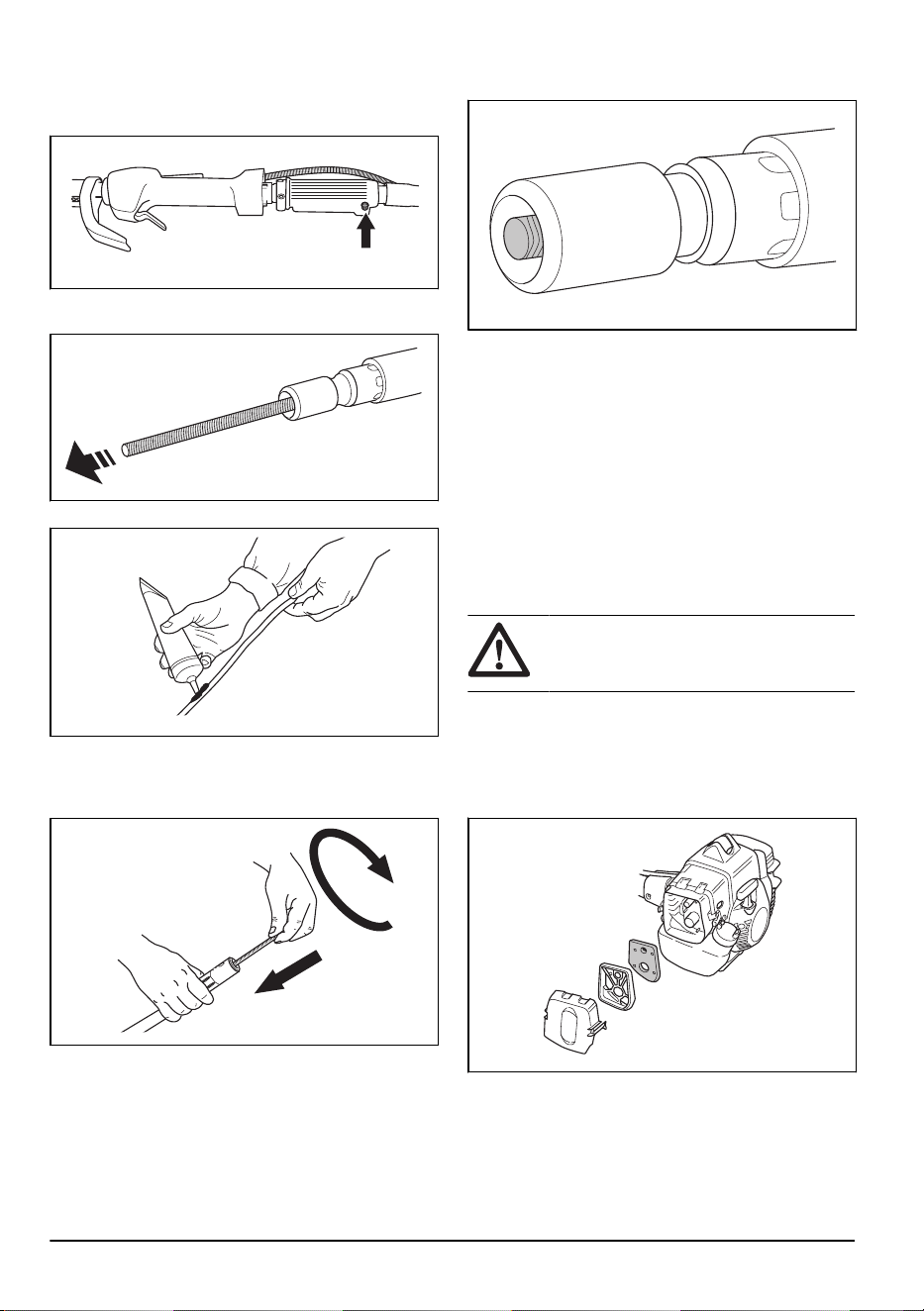

To lubricate the drive shaft
1. Pull up the knob and remove the drive shaft sleeve
from the clutch cover.
a) Shake or pull the drive shaft out of the drive shaft
sleeve.
2. Lubricate the drive shaft.
3. Push and turn the drive shaft at the same time to put
it back in the drive shaft sleeve. Keep approximately
10 mm / 0.40 in. of the drive shaft outside the edge
of the drive shaft sleeve.
4. Align the hole in the drive shaft sleeve with the knob
on the clutch cover.
5. Push and turn the drive shaft at the same time to
connect it.
Air filter
Remove dust and dirt from the air filter to keep it clean
and prevent these problems:
• Carburetor malfunctions.
• Problems when you start the product.
• Loss of engine power.
• Increased wear to engine parts.
• Too much fuel consumption.
To clean the air filter
CAUTION: An air filter that is damaged,
very dirty or soaked with fuel must always be
replaced.
If you use an air filter for a long time, it cannot be fully
cleaned. Replace the air filter with a new one at regular
intervals.
1. Move the choke lever up, to close the choke valve.
2. Remove the air filter cover and remove the air filter.
3. Clean the air filter with warm soap water.
4. Replace the air filter if it is too dirty to fully clean it.
Always replace a damaged air filter.
5. Also clean the inner surface of the filter cover. Use
air or a brush.
22
1301 - 008 - 27.02.2025
6. Do a check of the rubber sealing surface. Replace
the filter on the rubber seal if it is damaged.
7. Make sure that the filter is dry before you assemble
it.
Two piece-shaft
Apply grease to the end of the drive shaft after each 30
hours of operation. There is a risk that the drive shaft
ends (splined coupling) on models with two-piece shafts
will seize if they are not lubricated regularly.
To do a check of the spur sprocket
The clutch drum has a spur sprocket that is welded on
the clutch drum.
• Make sure that the spur sprocket is not worn, if it is
worn speak to your local Husqvarna servicing dealer.
To examine the cutting equipment
1. Make sure that there are no cracks in rivets and
links and that no rivets are loose. Replace if it is
necessary.
2. Make sure that the saw chain is easy to bend.
Replace the saw chain if it is rigid.
3. Compare the saw chain with a new saw chain to
examine if the rivets and links are worn.
4. Replace the saw chain when the longest part of the
cutting tooth is less than 4 mm/0.16 in. Also replace
the saw chain if there are cracks on the cutters.
To do a check of the guide bar
1. Make sure that the oil channel is not blocked. Clean
if it is necessary.
2. Examine if there are burrs on the edges of the guide
bar. Remove the burrs using a file.
3. Clean the groove in the guide bar.
4. Examine the groove in the guide bar for wear.
Replace the guide bar if it is necessary.
5. Examine if the guide bar tip is rough or very worn.
1301 - 008 - 27.02.2025
23
6. Make sure that the bar tip sprocket turns freely and
that the lubricating hole in the bar tip sprocket is not
blocked. Clean and lubricate if it is necessary.
7. Turn the guide bar daily to extend its life cycle.

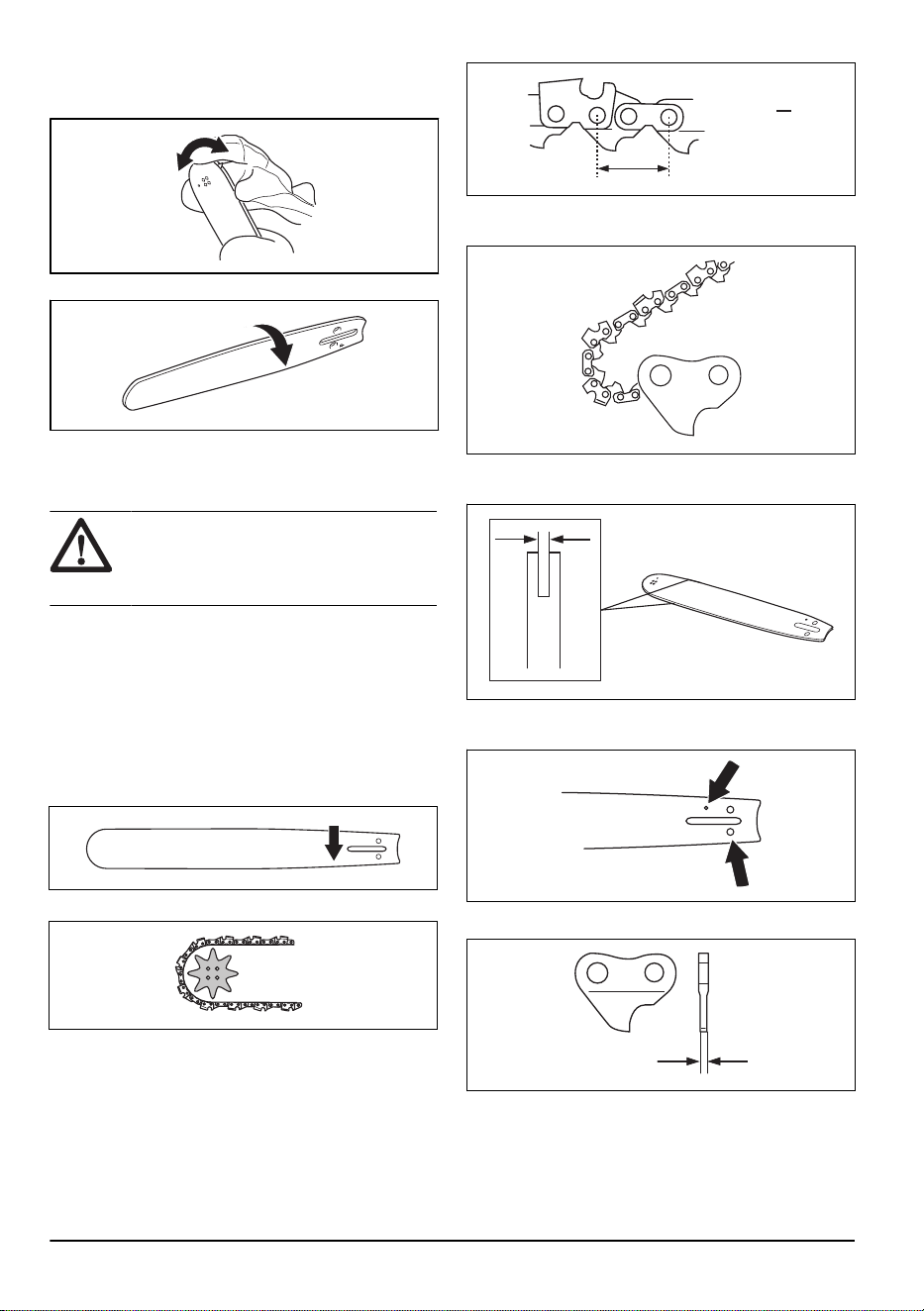

To sharpen the saw chain
Information about the guide bar and saw chain
WARNING: Use protective gloves
when you use or do maintenance on the
saw chain. A saw chain that does not move
can also cause injuries.
Replace a worn or damaged guide bar or saw chain with
the guide bar and saw chain combination recommended
by Husqvarna. This is necessary to keep the safety
functions of the product. Refer to
Recommended cutting
equipment on page 31
, for a list of replacement bar
and chain combinations that we recommend.
• Guide bar length, in/cm. Information about the guide
bar length can usually be found on the rear end of
the guide bar.
• Number of teeth on bar tip sprocket (T).
• Chain pitch, in. The distance between the drive links
of the saw chain must align with the distance of the
teeth on the bar tip sprocket and drive sprocket.
PITCH =
D
D
2
• Number of drive links. The number of drive links is
decided by the type of guide bar.
• Bar groove width, in/mm. The groove width in guide
bar must be the same as the chain drive links width.
• Chain oil hole and hole for chain tensioner. The
guide bar must align with product.
• Drive link width, mm/in.
General information about how to sharpen the
cutters
Do not use a blunt saw chain. If the saw chain is blunt,
you must apply more pressure to push the guide bar
24
1301 - 008 - 27.02.2025
through the wood. If the saw chain is very blunt, there
will be no wood chips but sawdust.
A sharp saw chain eats through the wood and the wood
chips becomes long and thick.

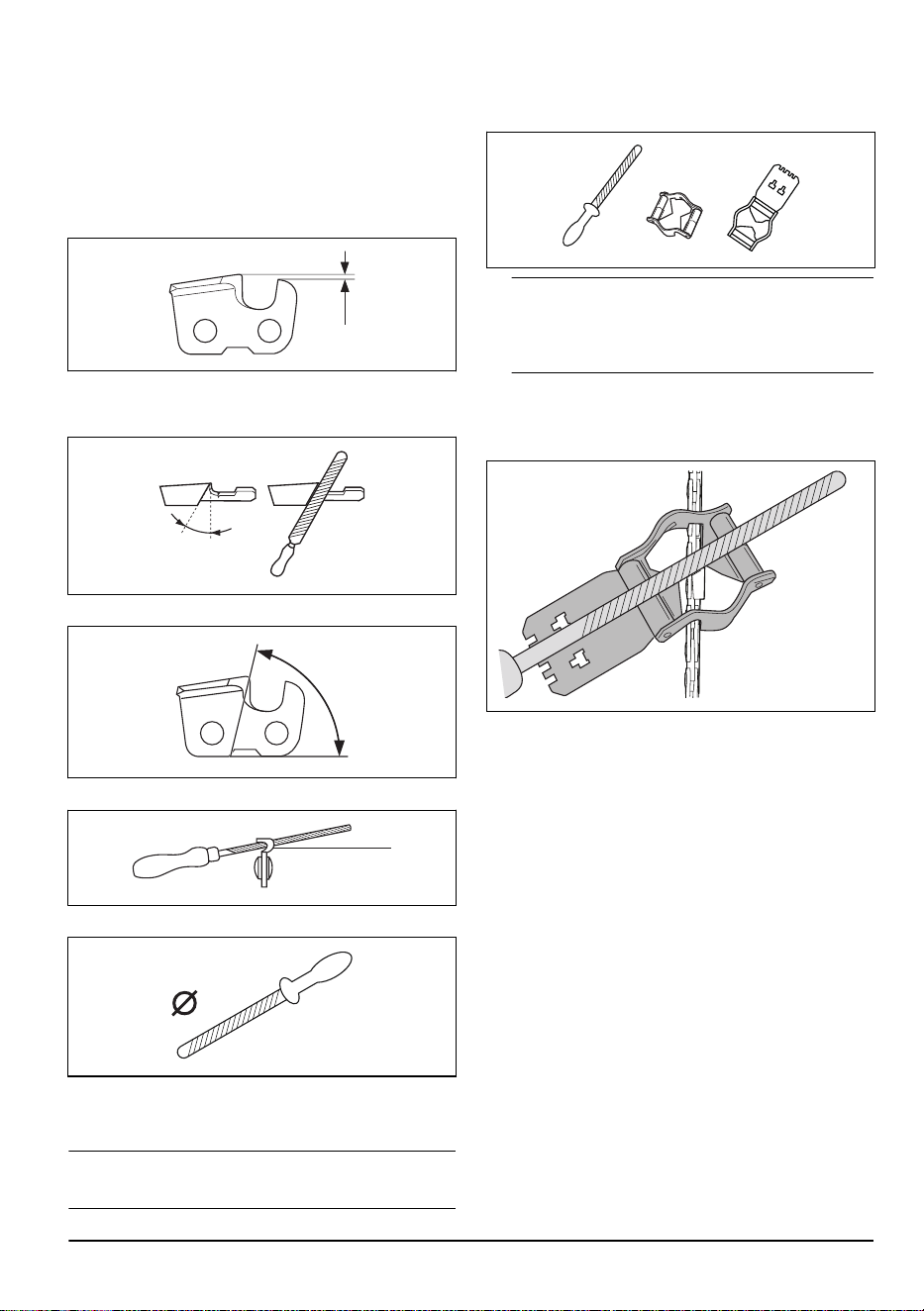

The cutting tooth (A) and the depth gauge (B) together
makes the cutting part of the saw chain, the cutter. The
difference in height between the two gives the cutting
depth (depth gauge setting).
A
B
When you sharpen the cutter, think about the following:
• Filing angle.
• Cutting angle.
• File position.
• Round file diameter.
It is not easy to sharpen a saw chain correctly without
the correct equipment. Use Husqvarna file gauge. This
will help you to keep maximum cutting performance.
Note:
Refer to
To sharpen the cutters on page 25
for
information about sharpening of the saw chain.
To sharpen the cutters
1. Use a round file and a file gauge to sharpen the
cutting teeth.
Note: Refer to
Filing equipment and filing angles
on page 31
for information about which file and
gauge that Husqvarna recommends for your saw
chain.
2. Apply the file gauge correctly on to the cutter. Refer
to the instruction supplied with the file gauge.
3. Move the file from the inner side of the cutting teeth
and out. Decrease the pressure on the pull stroke.
4. Remove material from one side of all the cutting
teeth.
5. Turn the product around and remove material on the
other side.
6. Make sure that all cutting teeth are the same length.
General information about how to sharpen the
cutters
Do not use a blunt saw chain. If the saw chain is blunt,
you must apply more pressure to push the guide bar
through the wood. If the saw chain is very blunt, there
will be no wood chips but sawdust.
A sharp saw chain eats through the wood and the wood
chips becomes long and thick.
The cutting tooth (A) and the depth gauge (B) together
makes the cutting part of the saw chain, the cutter. The
1301 - 008 - 27.02.2025
25
difference in height between the two gives the cutting
depth (depth gauge setting).

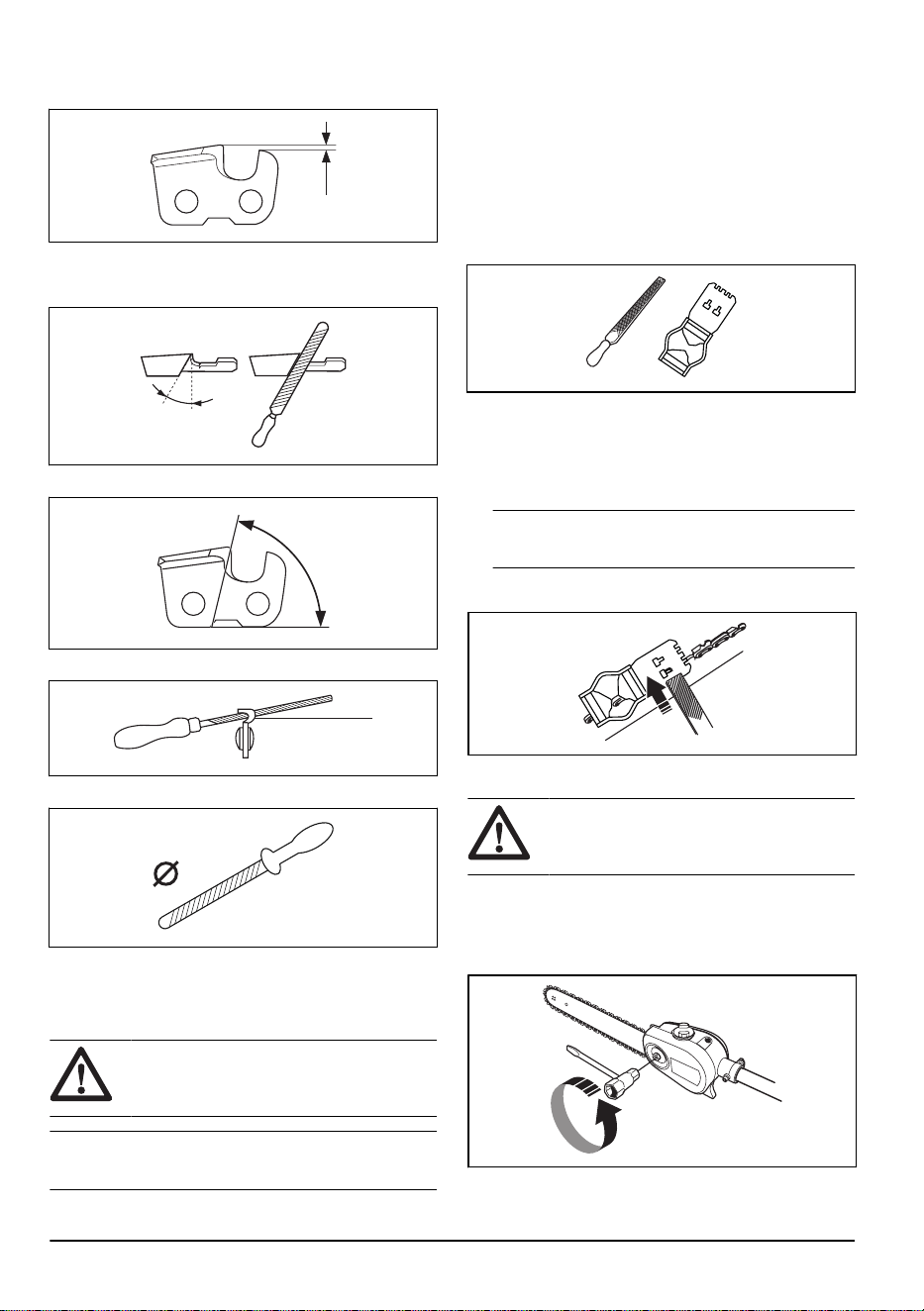

A
B
When you sharpen the cutter, think about the following:
• Filing angle.
• Cutting angle.
• File position.
• Round file diameter.
It is not easy to sharpen a saw chain correctly without
the correct equipment. Use a Husqvarna recommended
file gauge. This will help you to keep maximum cutting
performance and the kickback risk at a minimum.
WARNING:
The force of the kickback
increases a lot if you do not follow the
sharpening instructions.
Note: Refer to
To sharpen the saw chain on page 24
for information about sharpening of the saw chain.
To adjust the depth gauge setting
Before you adjust the depth gauge setting or sharpen
the cutters, refer to
General information about how to
sharpen the cutters on page 24
, for instructions. We
recommend you to adjust the depth gauge setting after
each third operation that you sharpen the cutting teeth.
We recommend that you use our depth gauge tool to
receive the correct depth gauge setting and bevel for the
depth gauge.
1. Use a flat file and a depth gauge tool to adjust
the depth gauge setting. Only use a Husqvarna
recommended depth gauge tool to get the correct
depth gauge setting and bevel for the depth gauge.
2. Put the depth gauge tool on the saw chain.
Note: See the package of the depth gauge tool for
more information about how to use the tool.
3. Use the flat file to remove the part of the depth
gauge that extends through the depth gauge tool.
To tension the chain
WARNING:
A saw chain with an
incorrect tension can derail from the guide
bar and cause serious injury or death.
A saw chain becomes longer when you use it. Adjust the
saw chain regularly.
1. Loosen the bar nut that hold the clutch cover/chain
brake. Use a wrench.
2. Tighten the bar nuts by hand as tightly as you can.
26
1301 - 008 - 27.02.2025

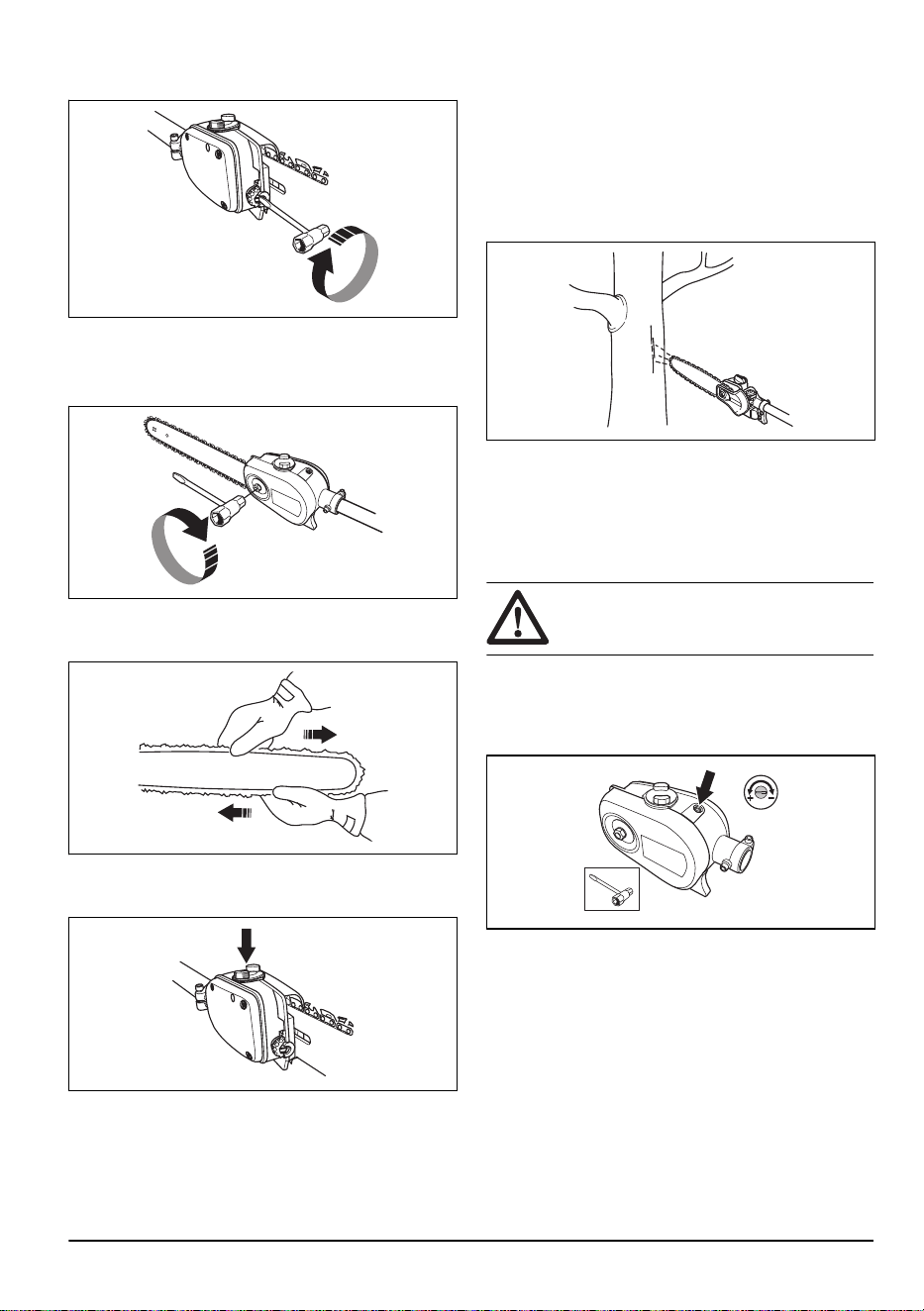

3. Lift the front of the guide bar and turn the chain
tensioning screw. Use a wrench.
4. Tighten the saw chain until it is tight against the
guide bar but still can move easily.
5. Tighten the bar nuts using the wrench and lift the
front of the guide bar at the same time.
6. Make sure you can pull the saw chain around freely
by hand and that it does not hang from the guide
bar.
To fill with chain oil
1. Open the oil cap on top of the bar head.
2. Fill with Husqvarna saw chain oil.
3. Attach the cap again.
To check the chain lubrication
1. Check the chain lubrication each time you refuel.
Aim the tip of the bar at a light coloured surface
about 20 cm (8 inches) away. After 1 minute running
at 75 % throttle you should see a distinct line of oil
on the light surface.
2. If the saw chain lubrication does not operate
correctly, do a check of the guide bar. Refer to
To do
a check of the guide bar on page 23
for instructions.
Speak to your servicing dealer if the maintenance
steps does not help.
To adjust chain lubrication
WARNING: Stop the engine before you
make adjustments to the oil pump.
Turn the adjustment screw for the oil pump. Use a
screwdriver or combination wrench.
• Turn the adjuster screw clockwise to decrease the oil
flow.
• Turn the adjuster screw counterclockwise to
increase the oil flow.
1301 - 008 - 27.02.2025
27
Troubleshooting
The engine does not start
Check Possible cause Procedure
Stop switch. The stop switch is in the stop posi-
tion.
Let an approved service agent re-
place the stop switch.
Fuel tank. Incorrect fuel type. Drain the fuel tank and fill with cor-
rect fuel.
Spark plug and cylinder. The spark plug is dirty or wet. Make sure that the spark plug is dry
and clean.
The spark plug electrode gap is in-
correct.
Clean the spark plug. Make sure that
the electrode gap is correct, refer to
Technical data 535FBX on page 29
.
Make sure that the spark plug has a
supressor.
The spark plug is loose. Tighten the spark plug.
Engine is flooded because of repea-
ted starts with full choke after igni-
tion.
Remove and clean the spark plug.
Put the product on its side with the
spark plug hole away from you. Pull
the starter rope handle 6-8 times. As-
semble the spark plug and start the
product. Refer to
To start the product
on page 17
.
The engine starts but stops again
Check
Possible cause Procedure
Fuel tank Incorrect fuel type. Empty the fuel tank and fill it with correct fuel.
Air filter The air filter is clogged. Clean the air filter.
Transportation and storage
Transportation and storage
• For storage and transportation of the product and
fuel, make sure that there are no leaks or fumes.
Sparks or open flames, for example from electrical
devices or boilers, can start a fire.
• Always use approved containers for storage and
transportation of fuel.
• Empty the fuel and chain oil tanks before
transportation or before long-term storage. Discard
the fuel and chain oil at an applicable disposal
location.
• Use the transportation guard on the product to
prevent injuries or damage to the product. A saw
chain that does not move can also cause serious
injuries.
• Remove the spark plug cap from the spark plug.
• Attach the product safely during transportation.
To prepare your product for long-term
storage
1. Stop the product and let it become cool before you
disassemble it.
28 1301 - 008 - 27.02.2025
2. Disassemble and clean the saw chain and the
groove in the guide bar.
CAUTION: If the saw chain and
guide bar are not cleaned, they can
become rigid or blocked.
3. Attach the transportation guard.
4. Clean the product. Refer to
Maintenance 535RBX on
page 18
for instructions.
5. Do a complete servicing of the product.
Disposal
• Obey the local recycling requirements and applicable
regulations.
• Discard all chemicals, such as oil or fuel, at a service
center or at an applicable disposal location.
• When the product is no longer in use, send it to
a Husqvarna dealer or discard it at a recycling
location.
Technical data 535FBX
Technical data
Engine
Cylinder displacement, cm
3
34.6
Cylinder bore, mm 38.0
Stroke, mm 30.5
Recommended max. speed, rpm 11700
Idle speed, rpm 2900
Max. engine output, according to ISO 8893, kW/rpm 1.6/8400
Catalytic converter muffler Yes
Speed-regulated ignition system Yes
Ignition system
Spark plug Champion RCJ 6Y
Electrode gap, mm 0.5
Fuel and lubrication system
Fuel tank capacity, litre/cm
3
0.6/600
Oil tank capacity, litre/cm
3
0.26/260
Weight
Without fuel, cutting attachment, kg 12.4
Noise emissions
1
Sound power level, measured dB (A) 110
Sound power level, guaranteed dB (A) 111
Sound levels
2
Equivalent sound pressure level at the operator’s ear, measured according to ISO 22868, dB(A):
1
Reported data for the noise output level has a typical dispersion (standard deviation) of 2 dB (A).
2
Reported data for equivalent sound pressure level for the product has a typical statistical dispersion (standard
deviation) of 1 dB (A).
1301 - 008 - 27.02.2025 29
Equipped with approved accessory (original)
94
Vibration levels
3
Equivalent vibration levels (a
hv,eq
) at handles, measured according to ISO 22867, m/s
2
:
Equipped with approved accessory (original), front/rear 1.8/1.2
3
Reported data for equivalent vibration level has a typical statistical dispersion (standard deviation) of 1 m/s
2
.
30 1301 - 008 - 27.02.2025

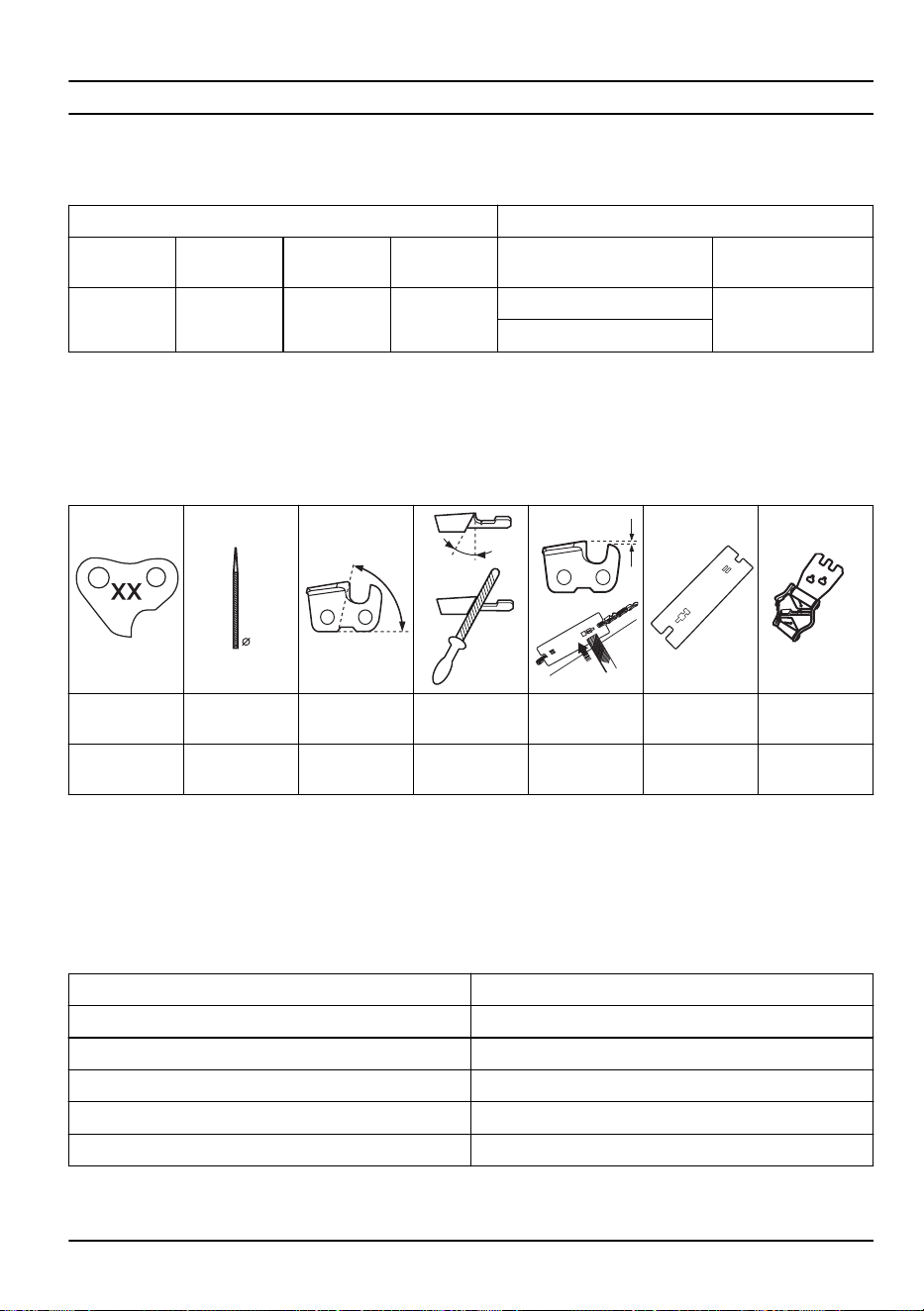

Accessories
Recommended cutting equipment
Recommended guide bar and saw chain combination.
Guide bar Saw chain
Length, in. Pitch, in. Gauge, mm
Max. nose ra-
dius
Type
Length, drive links,
no.
13 0.325 1.3
10T Husqvarna H30
56
Husqvarna SP33G
Filing equipment and filing angles
Husqvarna file gauge gives you the correct filing angles.
We recommend you to always use a Husqvarna file
gauge to restore the sharpness of the saw chain. The
part numbers are given in the table below.
If you do not know which saw chain you have on your
product, turn to your servicing dealer.
H30
3/16 in. / 4.8
mm
80° 30°
0.025 in. /
0.65 mm
505 69 81-00 505 69 81-08
SP33G
3/16 in. / 4.8
mm
80° 30°
0.025 in. /
0.65 mm
- 586 93 84-01
Attachments
The attachments are recommended for use in combination with the specified power heads and have been evaluated
to applicable ISO- and EN safety requirement standards by the Swedish Machinery Testing Institute.
Approved attachments
Use with
Hedge trimmer attachment HA200 535FBX
Hedge trimmer attachment HA860 535FBX
Saw attachment PA1100 535FBX
Extension attachment EX780 535FBX
Pole saw attachment PAX730 535FBX
1301 - 008 - 27.02.2025 31
Approved attachments Use with
Pole saw attachment PAX1100 535FBX
32 1301 - 008 - 27.02.2025
Declaration of Conformity 535FBX
EU Declaration of Conformity
We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel:
+46-36-146500, declare on our sole responsibility that
the product:
Description Pole saw
Brand Husqvarna
Type / Model 535FBX
Identification Serial numbers dating from 2024 and onwards
complies fully with the following EU directives and
regulations:
Directive/ Regulation Description
2006/42/EC "relating to machinery"
2014/30/EU ”relating to electromagnetic compability”
2000/14/EC "relating to the noise emissions in the environment"
2011/65/EU “on the restriction of the use of certain hazardous substances in electrical and electronic
equipment ”
and that the following standards and/or technical
specifications are applied: EN ISO 12100:2010,
CISRPR 12:2007/A1:2009, EN ISO 14982:2009, EN
ISO 11680-1:2021, EN ISO 11680-2:2021, EN IEC
63000:2018.
Notified body: 0404, SMP Svensk Maskinprovning AB,
Box 4053, SE-904 03 Umeå, Sweden has carried out
EC type examination in accordance with the machinery
directive's (2006/42/EC) article 12, clause 3b.
Certificate number: 0404/09/2163
For information relating to noise emission, refer to
Technical data on page 29
.
Huskvarna, 2024-12-17
Stefan Holmberg, Development Manager, R&D Director,
Technology Management, Husqvarna AB
Responsible for technical documentation
1301 - 008 - 27.02.2025 33
34 1301 - 008 - 27.02.2025
1301 - 008 - 27.02.2025 35
www.husqvarna.com
Original instructions
1144550-26
2025-03-12
