Sunpentown International Inc.
1-800-330-0388
14625 Clark Ave.
City of Industry, CA 91745
www.spt-usa.com
Made in China

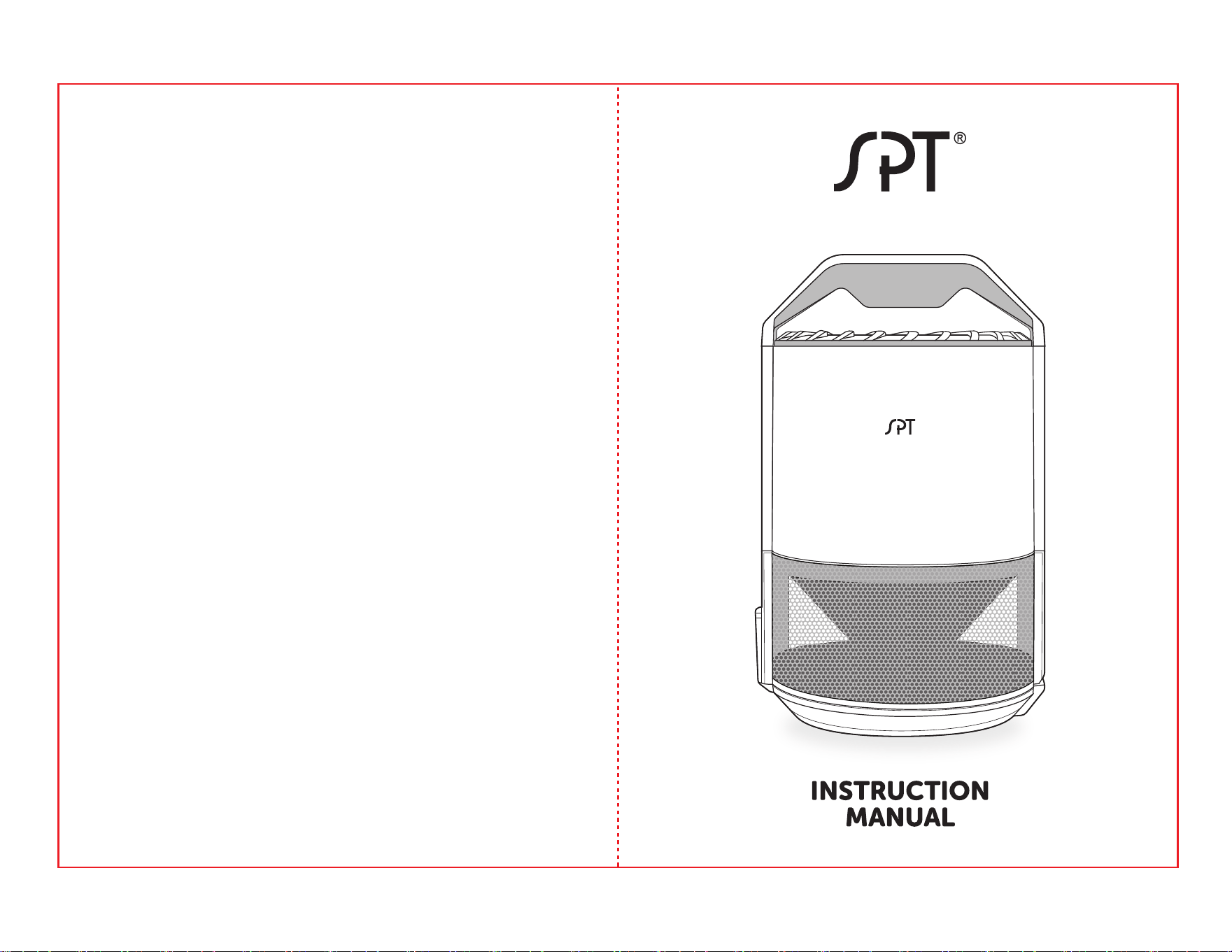

INDOOR ELECTRIC INSECT TRAP
Your Guarantee
SET-04S
128克铜板纸。黑色印刷，双面印刷，127X177.8MM,折页4P
If this product is found to be faulty as a result of faulty
materials or workmanship within one year from date of
purchase, it will be repaired free of charge.
This guarantee is subject to the following terms:
What is NOT COVERED:
Sunpentown must be notified of the fault.
Proof of purchase must be presented to Sunpentown’s nominated
representative.
The warranty will be void if the product if modified, misused or repaired by
an unauthorized person.
The warranty after repair will not be extended beyond the original
one-year period.
All replacement parts will be new or reconditioned.
Parts, which are replaced, become the property of Sunpentown.
The warranty applies for the use of the product in the USA only.
Warranty does not include freight charges.
Incidental or consequential damage caused by possible defects with this
product.
Damage to product caused by improper power supply voltage, accident,
fire, floods or acts of nature.
Failure of product resulting from unauthorized modifications to the product.
Improper installation or failure to perform the necessary maintenance.
●
●
●
●
●
●
●
●
●
●
●
●
This GUARANTEE is in addition to your Statutory Rights
SUNPENTOWN INTERNATIONAL INC.
Tel: 800-330-0388 Fax:626-336-7116
14625 Clark Ave., City of Industry CA 91745
www.sunpentown.com
Model: SPT SET-04S Indoor Electric Insect Trap
Dimension: 8.78 in. height, 5.12 in. diameter Weight: 0.88lbs
Usually a glue pad can last up to one month but you may replace it as
frequently as necessary when it becomes less sticky or when it is
covered with a lot of insects. Glue pads are sticky. Keep out of reach
of children and DO NOT ingest. Carefully read all directions and
warnings on glue pad packaging.
The insect trap is intended for use indoors at night. Unplug when
not in use.
1. Press the Push Button to open the insect trap.
2. Remove the film of a glue pad to expose the sticky side.
3. Place the glue pad with sticky side up in the tray and close the trap.
4. Plug the power adapter into the wall outlet.
5. Turn on the unit by pressing either the AUTO MODE or MANUAL
MODE button.
6. Turn it o by pressing either the AUTO MODE or MANUAL MODE
button again.
AUTO MODE
Press the AUTO MODE button to activate automatic mode. The fan and
light will start running automatically when the light-sensitive sensor detects
it is dark enough to eectively trap insects.
MANUAL MODE
Press the MANUAL button to turn on the insect trap and press it again to turn
it o. In MANUAL MODE, the machine will run continuously regardless of
whether it is dark or not until you turn it o.
TRAY RELEASE BUTTON
Press the “PUSH” button to open the trap to replace the glue pad.
GLUE PAD REPLACEMENT
1. Press the tray release button (the “PUSH” button) to open the trap.
2. Throw away the old glue pad.
3. Place a new glue pad into the tray with the sticky side facing up.
4. Close the trap.
