Dishwasher
Installation Manual
USA
250762-0
Installation Manual
BS24DW
INTRODUCTION 1
1. IMPORTANT SAFETY INSTRUCTIONS 1
1.1 INSPECT THE DISHWASHER 2
2. TOOLS WHICH MAY BE NEEDED 3
3. MATERIALS WHICH MAY BE NEEDED 3
4. MATERIALS SUPPLIED 4
4.1 PARTS SUPPLIED 4
4.2 MANUAL BAG 4
4.3 DISHWASHER PARTS BAG 1 4
4.4 PARTS ATTACHED TO THE REAR OF THE DISHWASHER 4
5. DISHWASHER SPECIFICATIONS 5
5.1 TECHNICAL FEATURES 6
6. PREPARATIONS 6
6.1 FOAM RUBBER INSTALLATION 6
6.2 ELECTRICAL PREPARATION 7
6.3 GROUNDING INSTRUCTIONS 7
6.4 STEAM PROTECTION FOIL 8

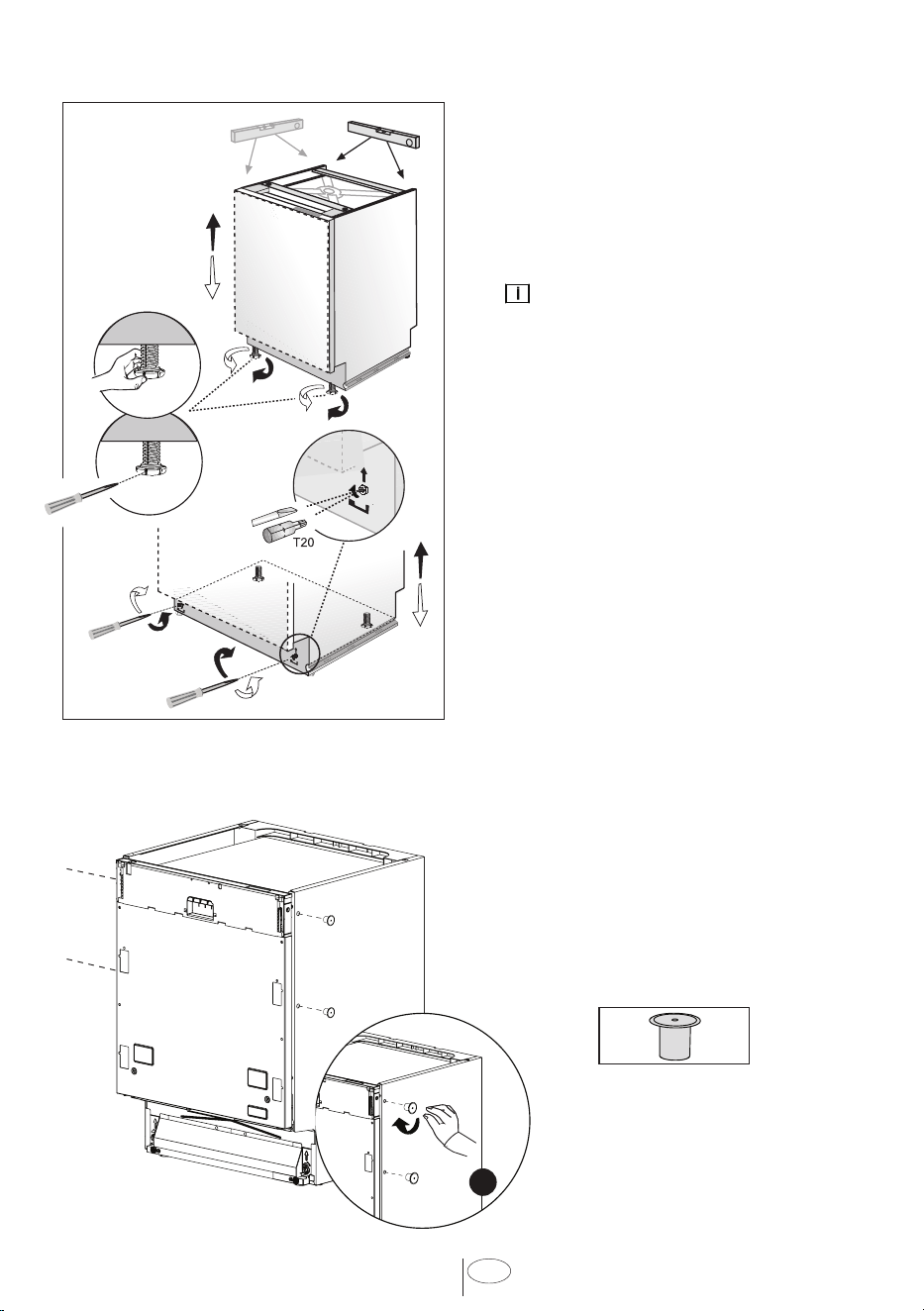

6.5 ADJUSTING HEIGHT 9
6.6 INSTALLING THE SIDE PLUGS 9

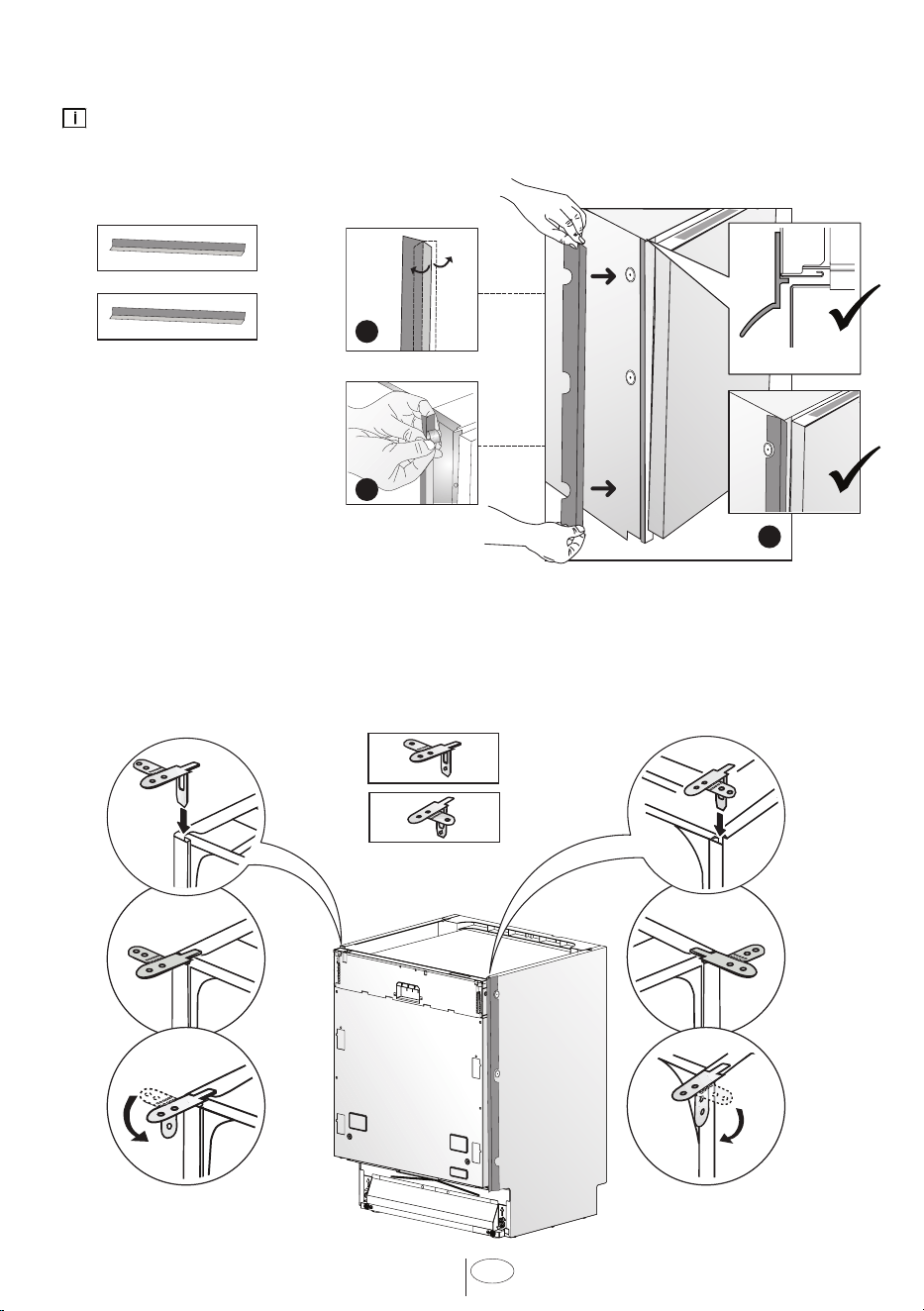

6.7 INSTALLING THE SIDE TRIM STRIPS 10
6.8 PREPARATION FOR INSTALLING MOUNTING BRACKETS 10
6.9 PREPARING THE WATER CONNECTION 11

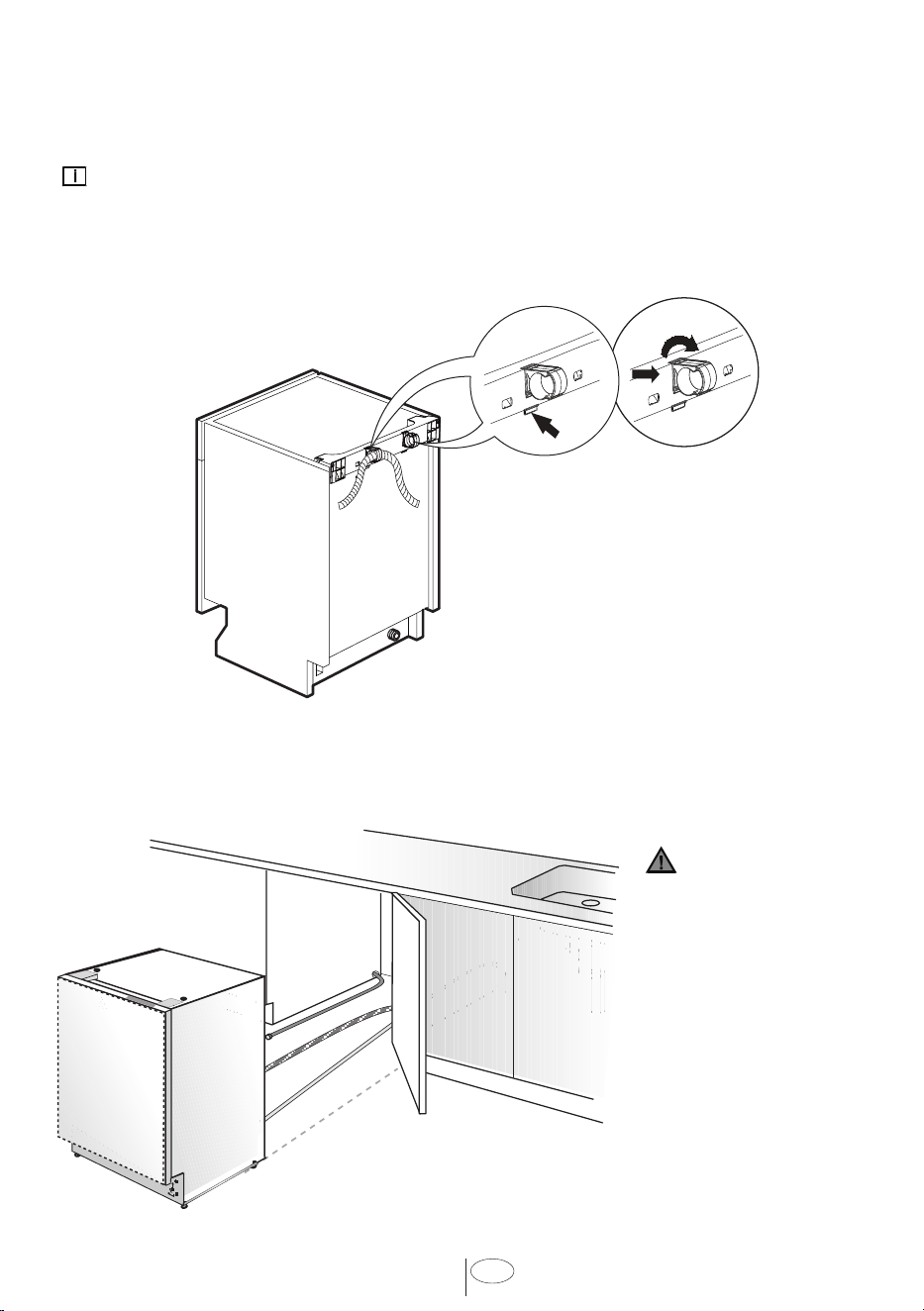

7. PLACEMENT OF DISHWASHER INTO THE OPENING 12
8. SECURING THE DISHWASHER 13

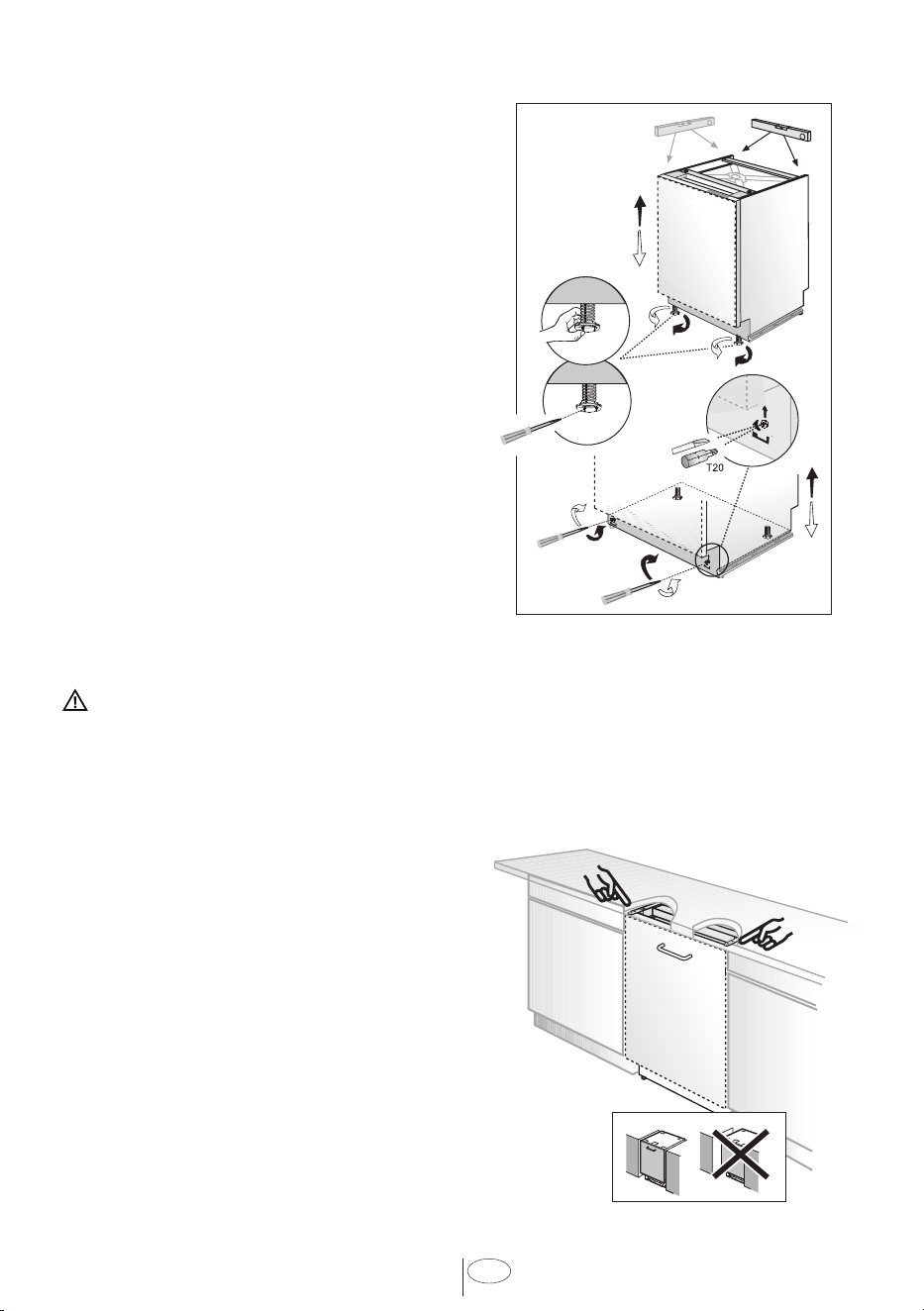

8.1 READJUSTING FOOT LEVELS 13
8.2 ATTACHING THE CORNER BRACKETS 13
8.3 FIXING THE CABINET TO THE COUNTER 14
9. CONNECTION 15

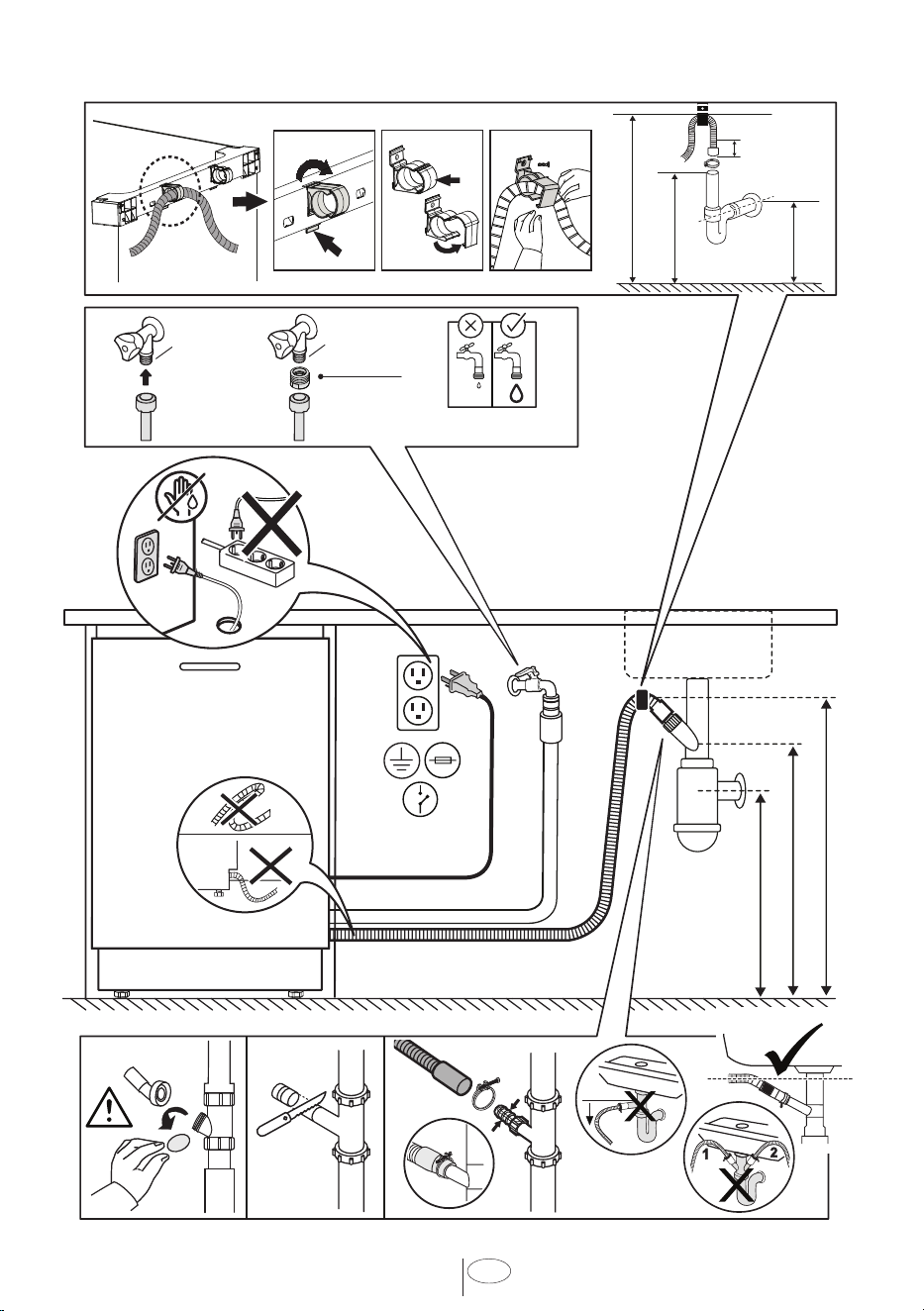

9.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL CONNECTIONS 16
9.2 DRAIN PREPARATION 16
10. ADJUSTING THE MOVABLE TOE KICK 18
10.1 FELT AND RUBBER ASSEMBLY 20
10.2 ADJUSTING THE KITCHEN CABINET KICK PLATE 22
11. ELECTRICAL CONNECTION 22
12. INSTALLER CHECKLIST 23
13. SELF HELP HINTS: 23
To prevent accidents, which could cause serious injury or death, as well
as machine damage read these instructions before installation and / or
use.
1
USA
INTRODUCTION
Please read this installation manual
and particularly the safety instructions
completely and carefully. They will save you
time and effort and help to ensure optimum
dishwasher performance.
Be sure to observe all listed warnings and
cautions. Look particularly for the icons with
exclamation marks inside. The information
icon also will provide important references.
WARNING:
Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
CAUTION:
Indicates a potentially hazardous situation
which, if not avoided, may result in injury.
It may also be used to alert against unsafe
practices.
NOTICE:
Indicates a potentially hazardous situation
which, if not avoided, may result in damage
to the dishwasher, the table-ware, the
equipment or the environment.
1. IMPORTANT SAFETY
INSTRUCTIONS
In addition to these instructions, the
dishwasher shall be installed:
• In accordance with all local codes or, in
absence of a local code,
• In the United States, with the National
Electric Code,
• In Canada, with the Canadian Electric
Code C22.1-latest edition/Provincial
and Municipal codes and/or local codes.
NOTICE :
Read these installation instructions
completely before installing and follow
them carefully. Save these installation
instructions and pass them on to any
future user.
WARNING
When installing the dishwasher,
follow basic precautions, including
the following:
• The dishwasher should only be
converted from cord-connected to
permanently connected by a licensed
electrician.
• Installation and repair should be
performed by a qualified installer.
Work by unqualified persons could be
dangerous and may void the warranty.
NOTICE :
• Do not operate the appliance if
damaged, malfunctioning, partially
disassembled or if it has missing or
broken parts.
• Also follow the safety instructions of
the user manual.
• To reduce the risk of electric shock,
fire, or injury to persons, the installer
must ensure that the dishwasher is
completely enclosed at the time of
installation.
• Only connect the dishwasher to the
power supply when all installation and
plumbing work is complete.
• If the dishwasher is installed in a
location that experiences freezing
temperatures (e.g. in a vacation home,
cabin, etc.), you must drain all the
water from the dishwasher’s interior.
Water system ruptures that occur as
a result of freezing are not covered by
warranty.
2
USA
• CAUTION:
Dishwasher must be
secured to adjacent cabinetry using
the brackets provided. Failure to do
this may cause damage to property or
bodily injury.
• Connect to a properly rated, protected
and sized power supply circuit to avoid
electrical overload. The dishwasher
is designed for an electrical supply
of 120 V (volts), 60 Hz (hertz), AC,
connected to a dishwasher-dedicated,
properly grounded electrical circuit
with a fuse or breakers rated for 15
amperes. These requirements must
be met to prevent injury and machine
damage. Consult a qualified electrician
if in doubt.
• Do not use any extension cord or
portable outlet device to connect the
dishwasher to a power supply.
• Ensure that any plastic wrappings,
bags, small pieces etc. are disposed
of safely and kept out of the reach of
children. Danger of suffocation!
• Remove the door to the washing
compartment when removing an old
dishwasher from service or discarding
it. Ensure that the appliance presents
no danger to children while being
stored for disposal.
• Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about
the possibility of recycling these
materials.
NOTICE :

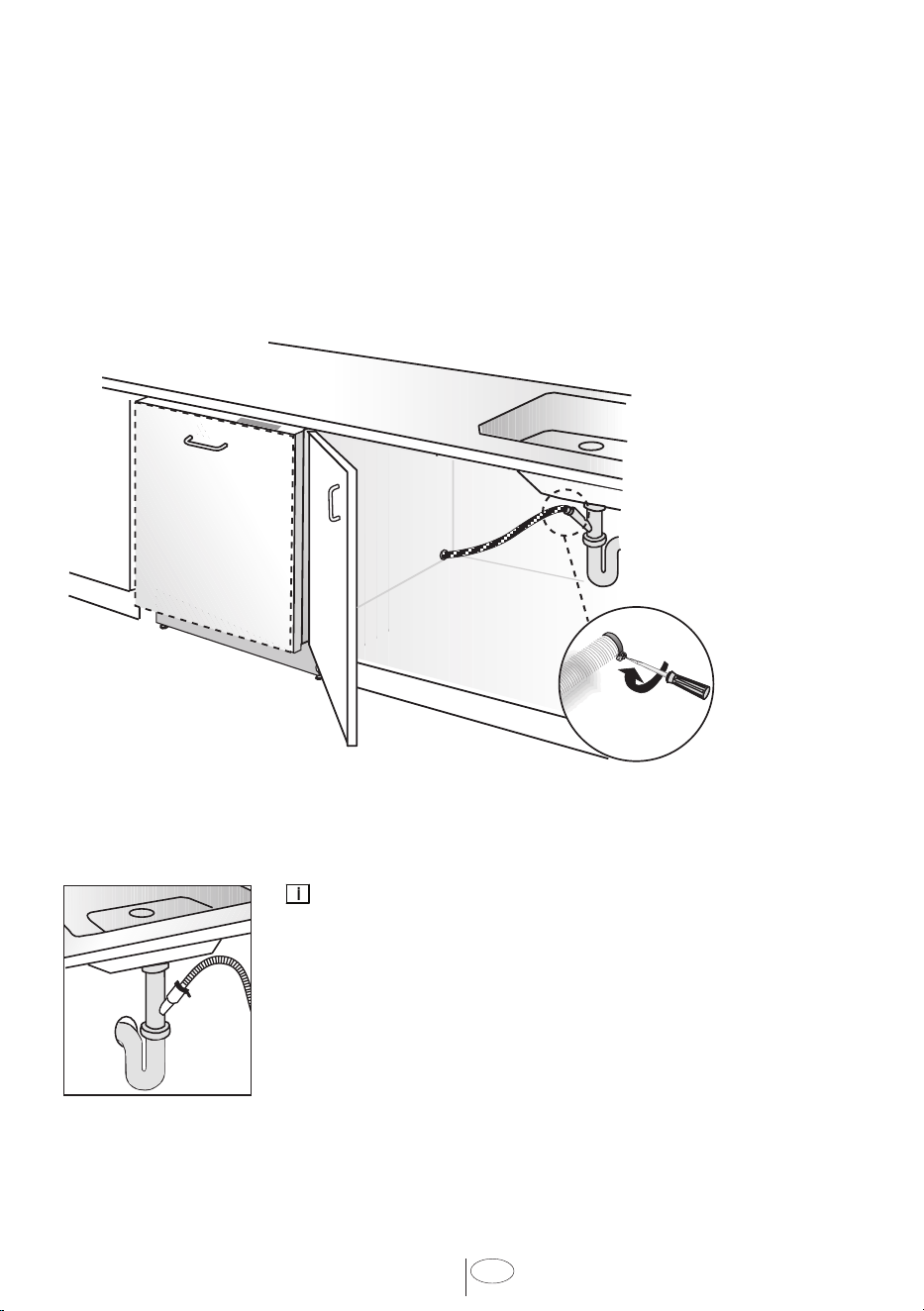

• The dishwasher drain hose must be
installed with a drain loop at least
28” (710mm) off the cabinet floor;
otherwise the dishwasher may not
drain properly.
• This dishwasher is intended for
residential use only, and should not be
used in commercial establishments.
• New installation - If the dishwasher is
a new installation, most of the work
must be done before the dishwasher is
moved into place.
• Replacement - If the dishwasher is
replacing another dishwasher, check
the existing dishwasher connections
for compatibility with the new
dishwasher, and replace parts as
necessary.
1.1 INSPECT THE DISHWASHER
After unpacking the dishwasher and prior
to installation, thoroughly inspect the
dishwasher for possible freight or cosmetic
damage. Report any damage immediately.
NOTICE :
• Do not discard any bags or items that
come with the original package until
after the entire installation has been
completed.
3
USA

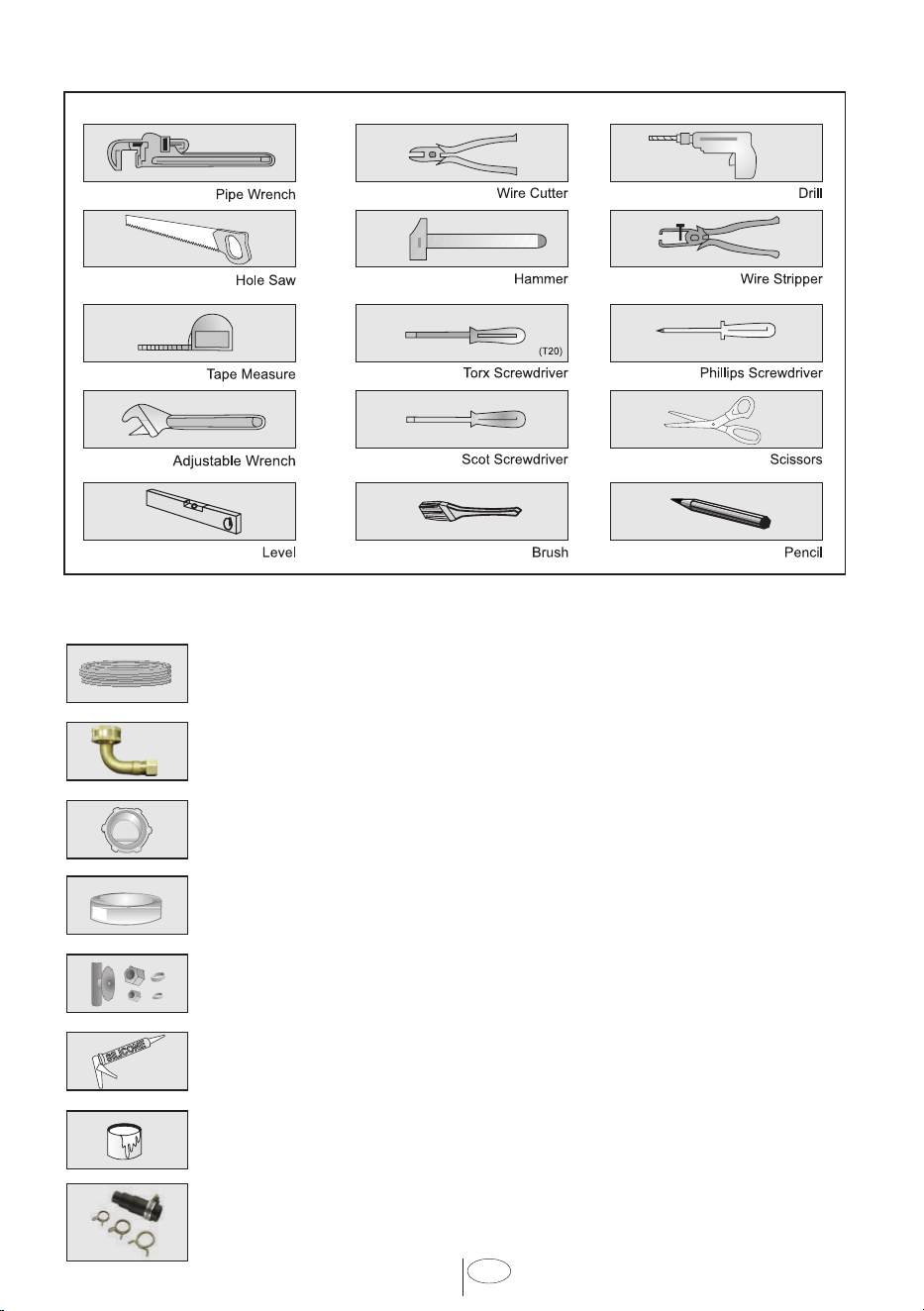

2. TOOLS WHICH MAY BE NEEDED
3. MATERIALS WHICH MAY BE NEEDED
(Additional materials may be required to comply with local codes)
Hot Water Supply Line - Minimum 3/8” O.D. copper tubing or metal braided
dishwasher supply line.
Elbow with 3/4” FHT(female threaded) for dishwasher side, and sized to
fit your water supply line (copper tubing/compression fitting, or braided
hose) on the other side. Dishwasher connection is 3/4” male.
UL listed conduit connector or strain relief.
Teflon tape or other pipe thread compound to seal plumbing connections.
Shut-off valve and fittings appropriate for hot water supply line (copper
tubing/compression fitting, or braided hose).
Silicone
Glue
Dishwasher Discharge Hose Adaptor
4
USA
a.
x1
e.
x1
f.
x1
j.
x1
k.
x1
l.
x1
p.
x1
z.
x1
b.
x1
y.
x4
d.
x4
v.
x4
h.
x1
g.
x1

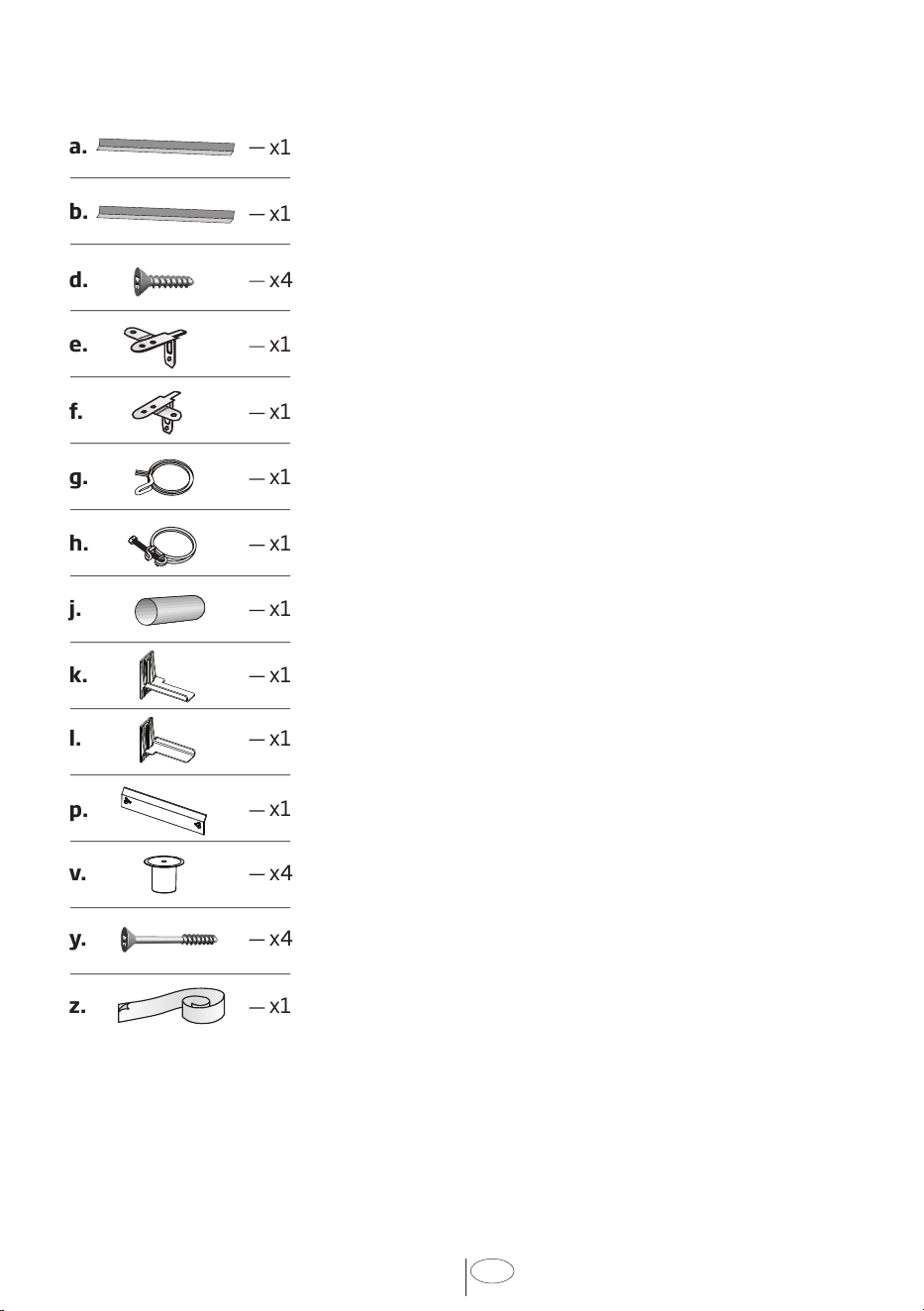

4.1 PARTS SUPPLIED
Parts for your dishwasher will come in several plastic
bags. Check your parts bags shown to make sure you
have all the parts as listed to the left.
4.2 MANUAL BAG
The dishwasher comes with a manual bag containing:
• User manual,
• Installation manual
4.3 DISHWASHER PARTS BAG 1
This dishwasher bag comes with the following parts:
d.
Screws Ø 3/16” x 1/2” (Ø 4 mm x 13 mm)
e.
Mounting Bracket Left
f.
Mounting Bracket Right
g.
Spring Clamp
h.
Screw Clamp
j.
Rubber Connector
k.
Toe Kick Bracket - Left
l.
Toe Kick Bracket – Right
v.
Side centering
y.
Screws Ø 3/16” x 1 7/16” (Ø 4 mm x 36 mm)
z.
Steam protection foil
4.4 PARTS ATTACHED TO THE REAR OF
THE DISHWASHER
a.
Side Trim Strips (Left)
b.
Side Trim Strips (Right)
p.
Toe Kick
4. MATERIALS SUPPLIED
5
USA

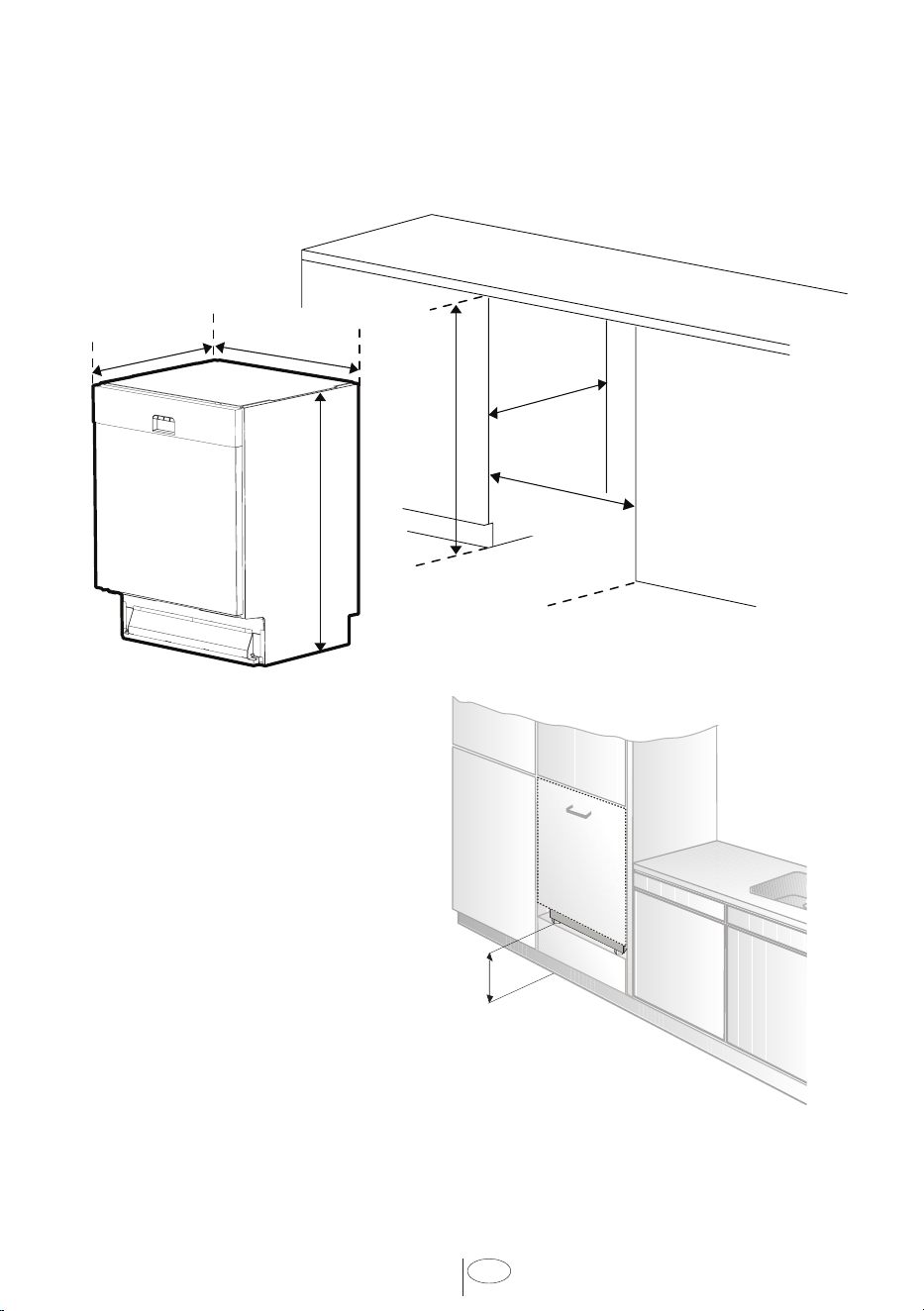

5. DISHWASHER SPECIFICATIONS
TALL TUB MODELS
24”
(610 mm)
34” - 35
15∕16
”
(864 mm - 913 mm)
23 ⅝ “ - 24“
(600 mm - 610 mm)
(550 mm)
21 ⅝”
(598 mm)
23 9⁄16”
33 ⅞” - 35 ⅞”
(861 mm - 911 mm)
19 11/16”
max
500mm
6
USA
6. PREPARATIONS

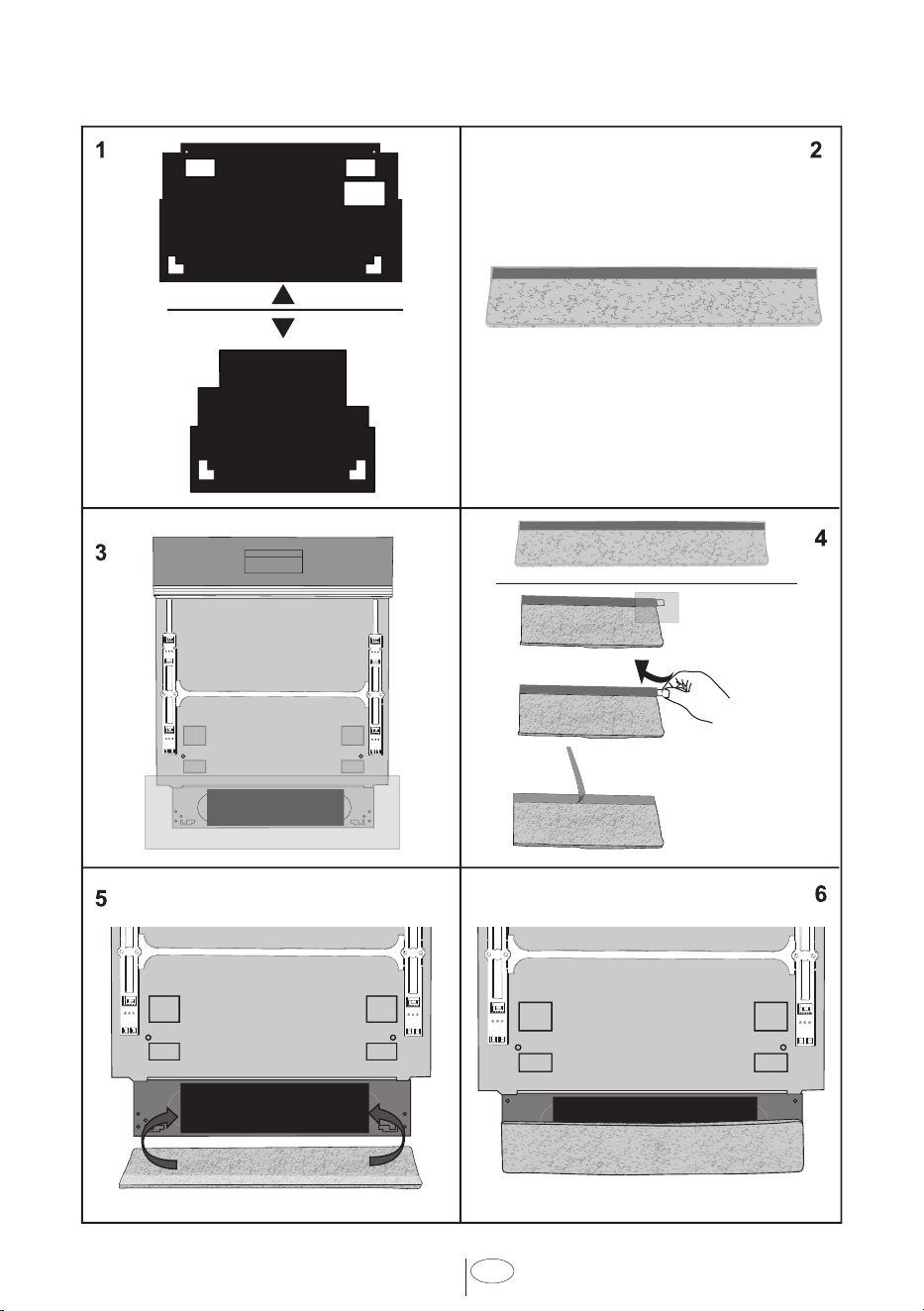

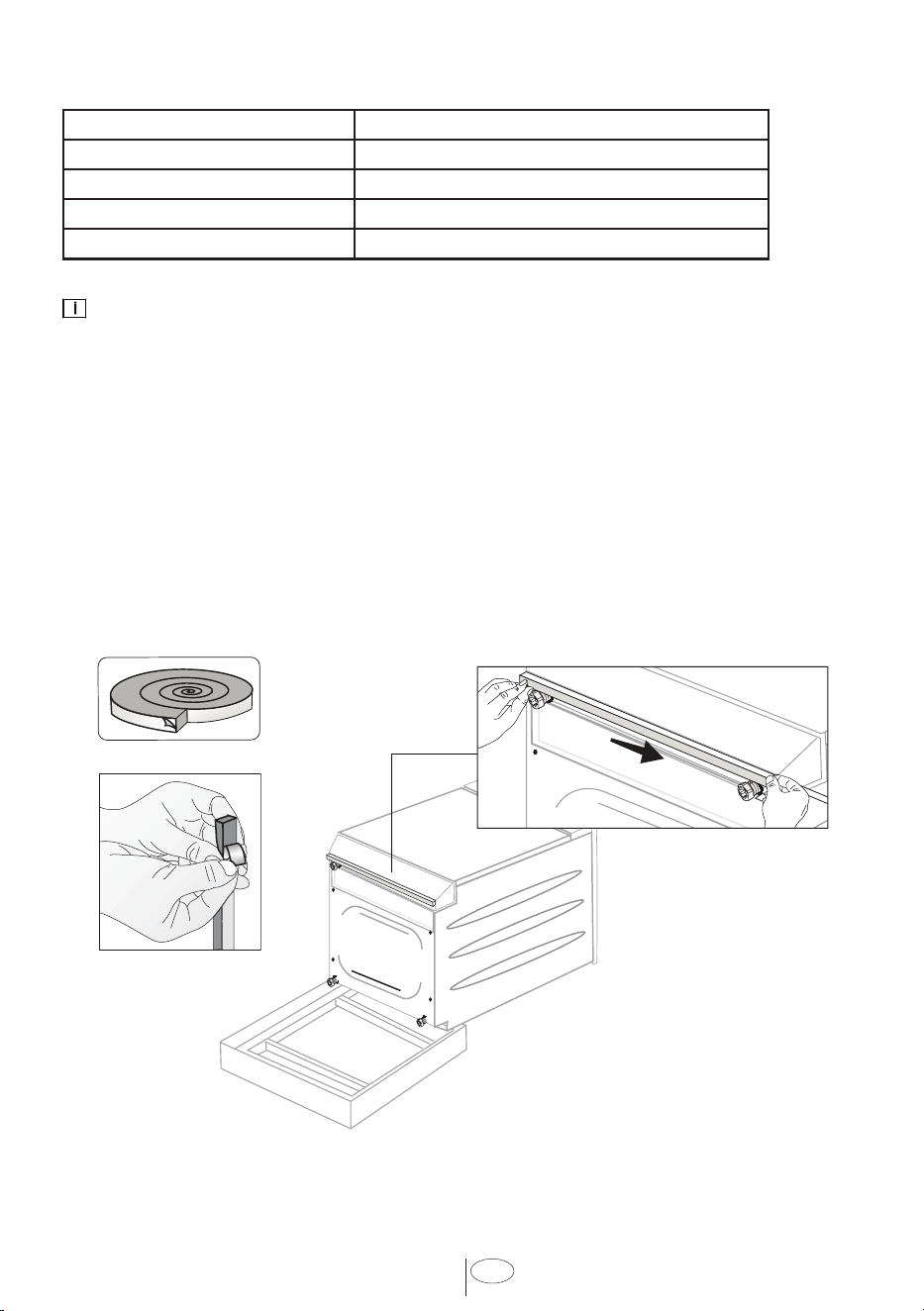

6.1 FOAM RUBBER INSTALLATION
Please open the foam insulation tape and follow the instructions in it.
This step is not imperative, but it will help you improve your soundproofing.
5.1 TECHNICAL FEATURES
Permissible water pressure
4.35 - 145 psi (0.3 - 10 bars)
Electrical connection
120 V (volts), 12 A (amps), 60Hz (hertz)
Required Curcuit Breaker
15 A(amps), Dedicated
Total power
1400 W (watts)
Heater power
1100 W (watts)
NOTICE :
Because we continually strive to improve our products, we may change our specifications
and design without prior notice.
This device corresponds to the following directives:
UL 749 Household Dishwasher directive.
7
USA
6.2 ELECTRICAL PREPARATION
WARNING
The dishwasher is designed for an electrical supply of 120 V, 60 Hz, AC,
connected to a dishwasher-dedicated, properly grounded electrical circuit
with a fuse or breaker rated for 15 amperes.
• Only connect the dishwasher to the power supply when all installation and plumbing
work is complete.
• Do not use any extension cord or portable outlet device to connect the dishwasher to
a power supply.
• The power-supply receptacle for the appliance shall be installed in a cabinet or on a
wall adjacent to the undercounter space in which the appliance is to be installed.
• The access hole of the supply cord to the installation compartment must be smooth
and rounded and it must be large enough for the attachment plug to pass through.
The longest dimension of the opening shall not be more than 1,5” (38 mm).If the
partition is metal, it needs to be covered with an edge protector.
• Care must be taken when the appliance is installed or removed, to reduce the
likelihood of damage to the power-supply cord.
6.3 GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of a malfunction or breakdown, grounding
will reduce the risk of electric shock by providing a path of least resistance for electric
current. This appliance is equipped with a cord having an equipment-grounding conductor
and a grounding plug. The plug must be plugged into an appropriate outlet that is installed
and grounded in accordance with all local codes and ordinances. This appliance must be
connected to a grounded metal, permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and connected to the equipment-
grounding terminal or lead on the appliance.
WARNING
Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service representative if you are in doubt
whether the appliance is properly grounded. Do not modify the plug provided with the
appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
8
USA

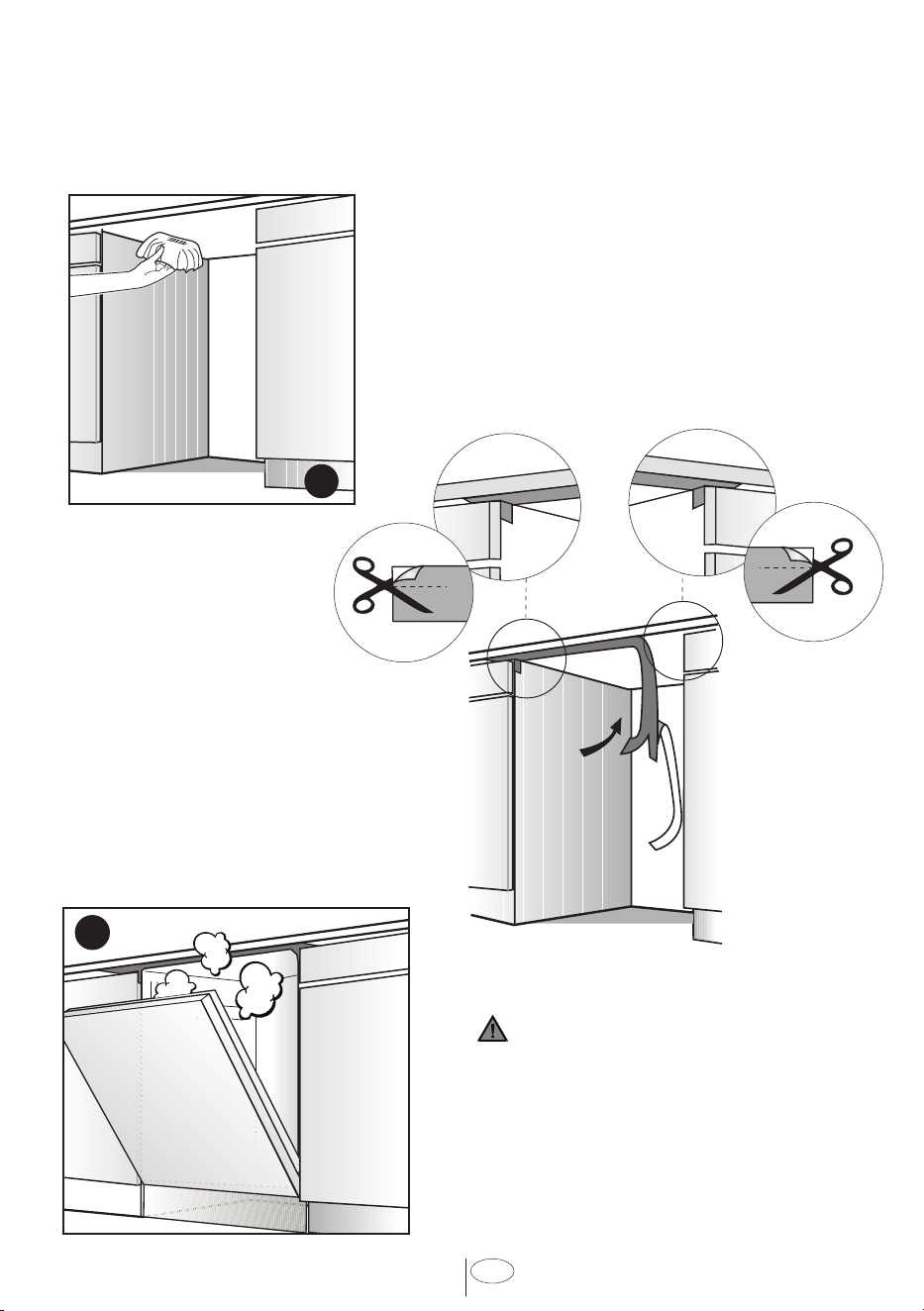

6.4 STEAM PROTECTION FOIL
Steam will form inside the dishwasher during operation. At the end of the cycle, when
the dishwasher door is opened, it is required to use a steam protection foil to prevent any
steam from collecting on the underside of the counter top.
6.4.1 FITTING THE PROTECTION FOIL
Before applying the steam protection foil to the
underside of the countertop, clean the area with
a damp cloth (as shown in Figure
A
). Once the
area dries, apply the steam protection foil.
CAUTION
Steam protection foil must be applied
where the steam escapes when door is first
opened.
Failure to install the steam
protection foil during installation can
lead to damage to the cabinets and
countertop.
The steam protection
foil will be applied at the
location where the hot
steam escapes when you
first open the door (as
shown in Figure
B
).
A
B
9
USA
6.5 ADJUSTING HEIGHT
Adjust the front foot level by hand or
slotted screwdriver to balance and raise
the dishwasher to the enclosure height.
Adjust the rear foot level with a
screwdriver to balance and raise the
dishwasher to the enclosure height.
NOTICE :
• Make sure the dishwasher is plumb
and notice that the dishwasher
can be placed under the counter
with approximately 3/32” (2 mm) of
clearance.
• Turning the screwdrive in the
direction of the black arrows (as
shown in the illustration right) will
raise the rear feet, causing the
dishwasher to go down in the back.
• Turning the screwdriver in the
direction of the white arrows (as
shown in the illustration right) will
lower the rear feet, causing the
diswasher to go up in the back.
6.6 INSTALLING THE SIDE PLUGS
A
A
x4
v.
• Install the plugs on both sides of
your machine.
• Tighten with hand, don’t use
screwdriver (Figure A)
10
USA
6.7 INSTALLING THE SIDE TRIM STRIPS
NOTICE :
• Make sure you are using the correct side of the trim. The flexible material should be
facing forward (Figure A).
A
B
C
x1
a.
x1
b.
Remove the adhesive tape
(Figure
B
)
Place the trim strips on
the front edge of the side
walls (Figure
C
).
TOP VIEW
6.8 PREPARATION FOR INSTALLING MOUNTING BRACKETS
Place the two mounting brackets into the top corners of the dishwasher.
Bend sides of mounting brackets as shown in the figure.
x1
e.
x1
f.
11
USA
Water Connection
6.9 PREPARING THE WATER CONNECTION
Install an easily accessible shut-off valve (not supplied) in the water supply line. All solder
connections must be made before the water line is connected to the dishwasher’s water
inlet valve. Water can also be supplied to the dishwasher by using a flexible braided hose
line.
Check with your plumbing supply sources for the proper hose and elbow and necessary
fittings for the water supply line. This material is not supplied, and must be purchased
separately.
WARNING
Installation should be performed by a qualified installer. Work by unqualified
persons could be dangerous and may void the warranty.
If the dishwasher is installed in a location that experiences freezing
temperatures (e.g. in a vacation home, cabin etc.), you must drain all the
water from the dishwasher’s interior. Water system ruptures that occur as a
result of freezing are not covered by warranty.
6.9.1 WATER SUPPLY CONNECTION
Water supply may be connected to the
dishwasher in one of two ways:
• With metal braided hose.
• With copper tubing.
CAUTION
• Hot water supply line: Use minimum
3/8” O.D. copper tubing or metal
braided dishwasher supply line.
• Temperatures required for soldering
and sweating will damage the
dishwasher’s water inlet valve so if
any such operation is needed, keep
the heat source min. 7-7/8” (200mm)
away from the dishwasher’s water
inlet valve.
• There should not be any sharp bends
in the water line that may restrict the
water flow.
NOTICE :
After connections are made turn on the
water supply to check for leaks.
12
USA
7. PLACEMENT OF DISHWASHER INTO THE OPENING
Now place the dishwasher into the opening and get ready to connect all hoses and
electrical connections.
Before placing the machine in the cabinet, remove the hose holders from the back of the
machine as shown in the figure.
NOTICE :
• If you do not remove these parts holding the hose, you cannot fully place the machine
in the cabinet.
• Do not throw away these parts, you can use to fix the hose it to the cabinet or wall.
CAUTION
Make sure all hoses
are pulled through
the side opening
of the cabinet, no
hoses are kinked
and all slack is taken
out as shown in the
above figure.
13
USA
8.1 READJUSTING FOOT
LEVELS
WARNING
Dishwasher must be secured to adjacent cabinetry using the mounting
brackets provided. Failure to do this may cause damage to property or
bodily injury.

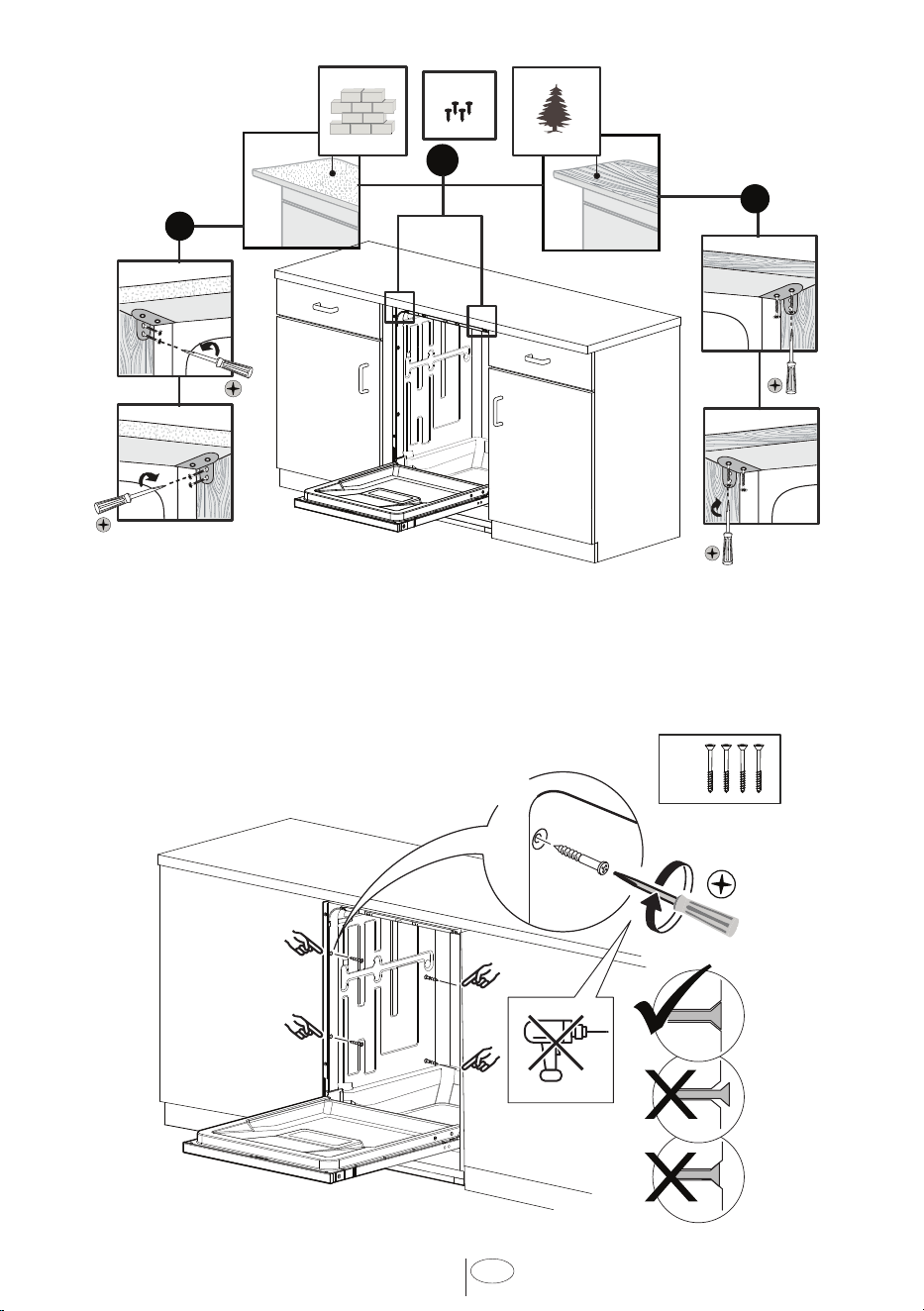

8.2 ATTACHING THE CORNER BRACKETS
Make sure the machine is level with the counter.
The machine should not be ahead or behind the
counter.
If your counter is wooden, fix the mounting
brackets on the right and left sides under the
bench with the screws provided as shown in (A).
If your bench is not wooden, fix the mounting
brackets on the right and left sides under the
bench with the screws provided as shown in (B).
Make sure you do not go through the top of the
countertop or damage granite.
A B
8. SECURING THE DISHWASHER
Now that the dishwasher is in the cabinet
you must readjust the feet to bring the
dishwasher up to the required height and
attach it underneath the countertop.
1. Readjust the front foot levels with
adjusting wrench to balance the
dishwasher and raise it up under the
countertop, make sure the unit is level.
2. Readjust the rear foot levels with a
screwdriver to balance the dishwasher.
14
USA
8.3 FIXING THE CABINET TO THE COUNTER
4x
y.
Fix the machine from the inside of the cabinet at the four points
indicated with the screws provided.
?
d.
A
B
15
USA
~1800 mm
~2000 mm
~1500 mm
~59 1/16”
~70 7/16”
~78 3/4”
(300 mm)
min. 11 13/16”
(500 mm)
min. 19 11/16”
max. 39 3/8” (1000 mm)
h.
Ø min 1”
(25 mm)
(min. 300 mm)
min. 11 13/16”
(min. 120 mm)
min. 4 3/4”
(max. 1000 mm)
max. 39 3/8”
(min. 500 mm)
min. 19 11/16”
min: 0,05 MPa/0,5 Bar
max: 1 Mpa/10 Bar
3/4"
(26,4 mm)
3/4"
(26,4 mm)
1/2"
(20,9 mm)
3/4"
(26,4 mm)
9. CONNECTION
16
USA
9.1 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL
CONNECTIONS
9.1.1 DRAIN HOSE CONNECTION
Connect the drain hose to the drain plumbing.
1. Use the supplied rubber connection hose and drain hose clamps to connect the
dishwasher drain hose to the plumbing drain connection.
2. Use the spring clamp to secure the rubber connection hose to the dishwasher drain
hose. Use the screw clamp to secure the rubber connection hose to the plumbing drain
connection.
Note that the marks
on the rubber
connection hose
should be on the
drain hose side.
The dishwasher drain hose may be connected to the drain plumbing in one of three ways
(Figure
A
,
B
,
C
).
9.2 DRAIN PREPARATION
NOTICE :
• Either one of the above methods must be used or the
dishwasher will not operate properly.
• A hose that attaches to a sink spray can burst if it is
installed on the same water line as the dishwasher. If
your sink has one, it is recommended that the hose be
disconnected and the hole plugged.
• The total length of the drain hose is 76-3/4” (1950mm).
If a hose extension is required, a drainage hose of equal
quality must be used.
• The maximum length must not exceed 157-1/2”
(4000mm). Otherwise, the cleaning process is
negatively influenced.
17
USA

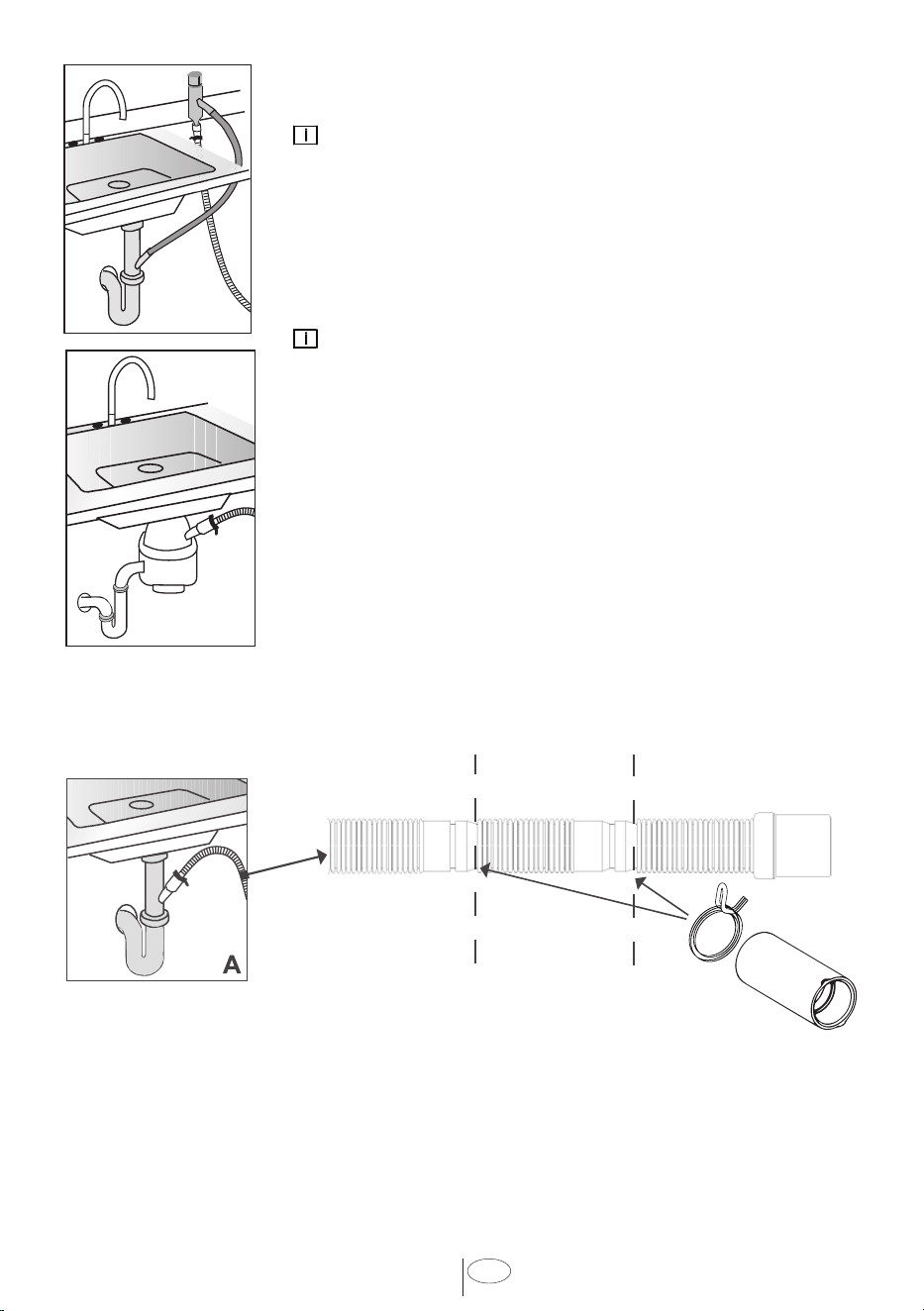

6.6.1 UNDER THE SINK DRAIN (ALTERNATIVE)
6.6.1 DESAGÜE DEBAJO DEL FREGADERO (ALTERNATIVO)
g.
j.
9.2.1 UNDER THE SINK DRAIN
Install a Y-branch tail pipe. (Figure
A
)
NOTICE :
You must add a loop at least 28” (710mm) above the floor
of the cabinet and above the drain connection in the drain
hose to prevent waste water from not draining properly, and
causing either poor washing results or a bad odor.
9.2.2 INSTALLING AN AIR GAP
If the local ordinance requires an air gap (Figure
B
).
NOTICE :
Check with local ordinance for type of air gap required.
9.2.3 DISPOSAL
Remove the drain connection plug before attaching the drain
hose from the dishwasher.
Every disposal has a hook up for a dishwasher; consult your
disposer manual for correct connection. (Figure
C
)
9.2.1 UNDER THE SINK DRAIN (ALTERNATIVE)
If the connection diameter is different than standard discharge hose connections, please
use the connector piece provided with the machine with instructions illustrated.
18
USA

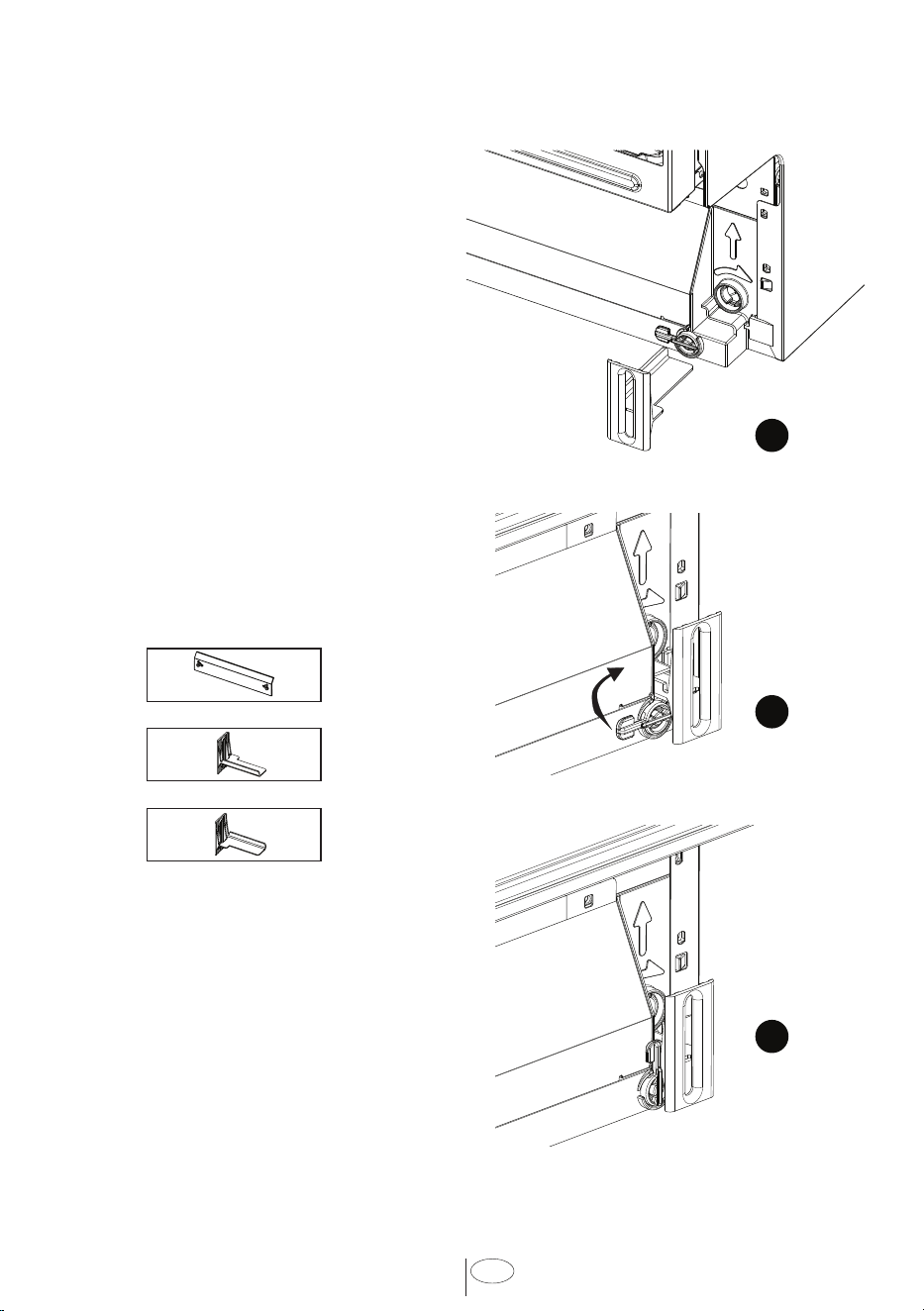

10. ADJUSTING THE MOVABLE TOE KICK
Now that you have successfully
installed the dishwasher, you need to
attach the toe kick to the dishwasher.
The two piece toe kick can be adjusted
to the height and depth needed for
your kitchen. Be sure to use the slotted
toe kick in the front and the other
behind it. They slide into each other.
Place parts K and L to the channel
shown in Figure A for both sides as
shown in Figure B. Then fix them in
the direction shown with the arrow in
Figure C and Figure B.
x1
x1
x1
p.
k.
l.
A
B
C
19
USA

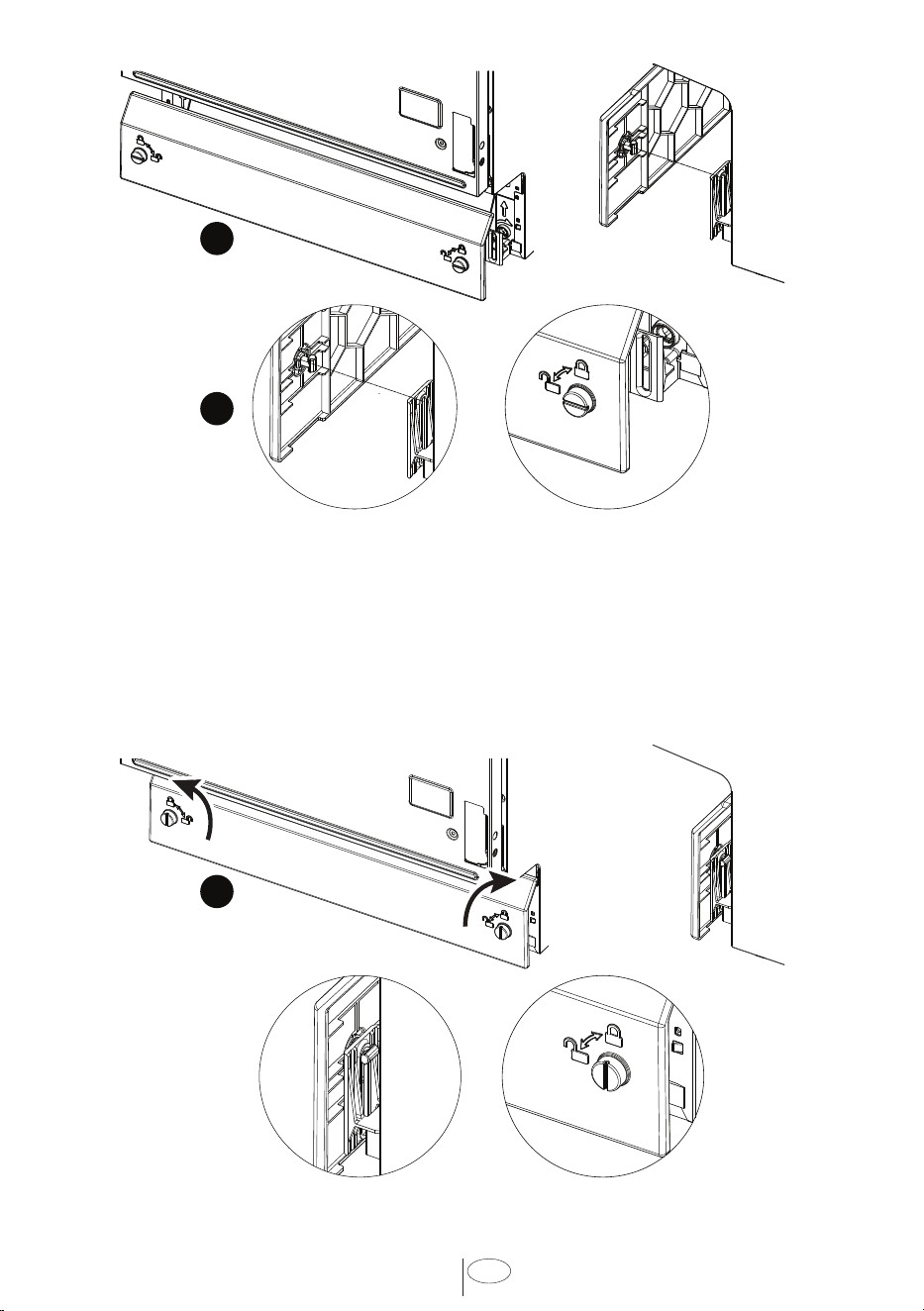

Open the fixing part on the Toe Kick(p). (D)
Place it on the slots, which are on the brackets fixed before, and adjust the
height (max. 40 mm). (E)
Close the fixing part on the Toe Kick. (F)
D
E
F
20
USA

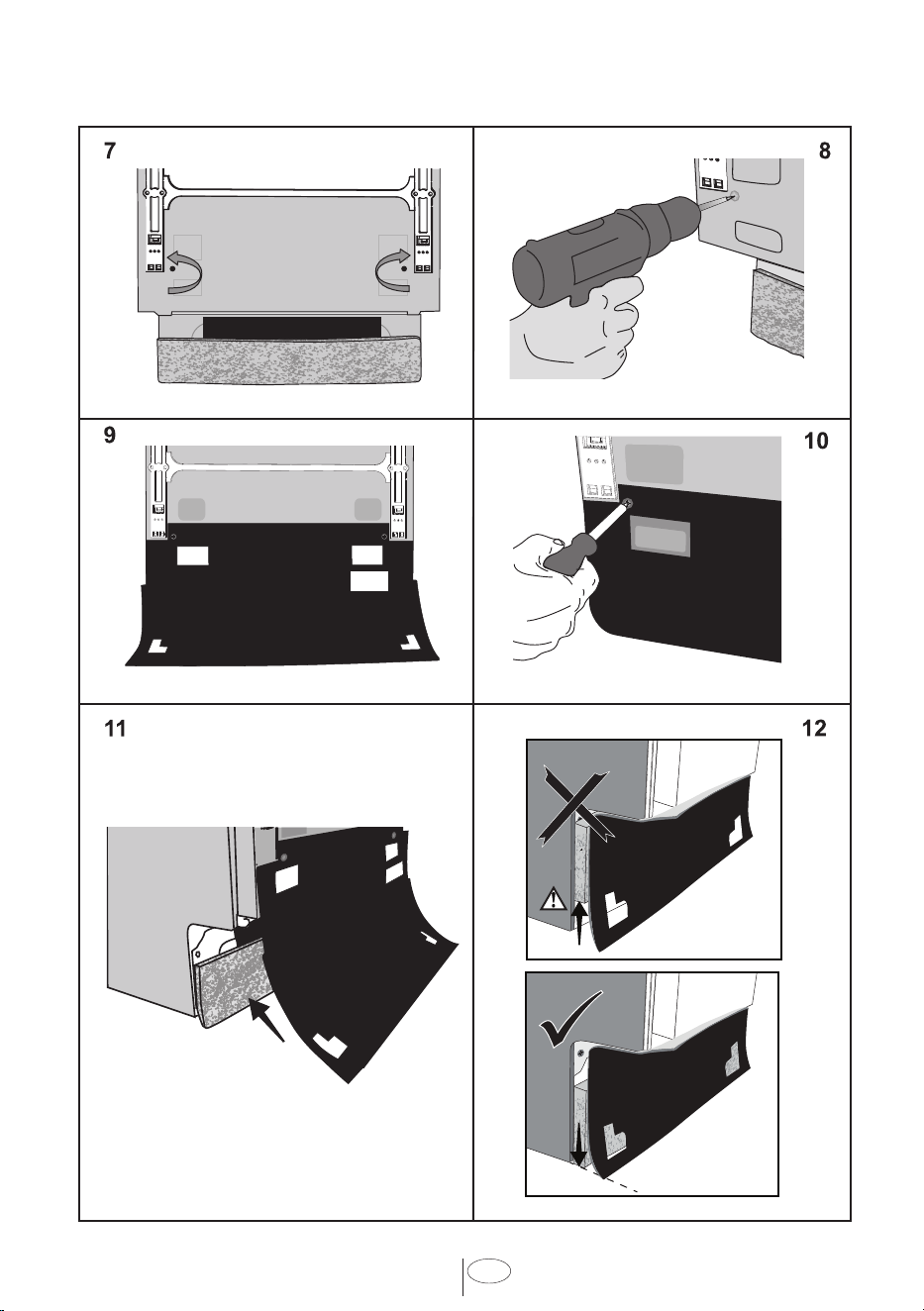

10.1 FELT AND RUBBER ASSEMBLY
21
USA
22
USA

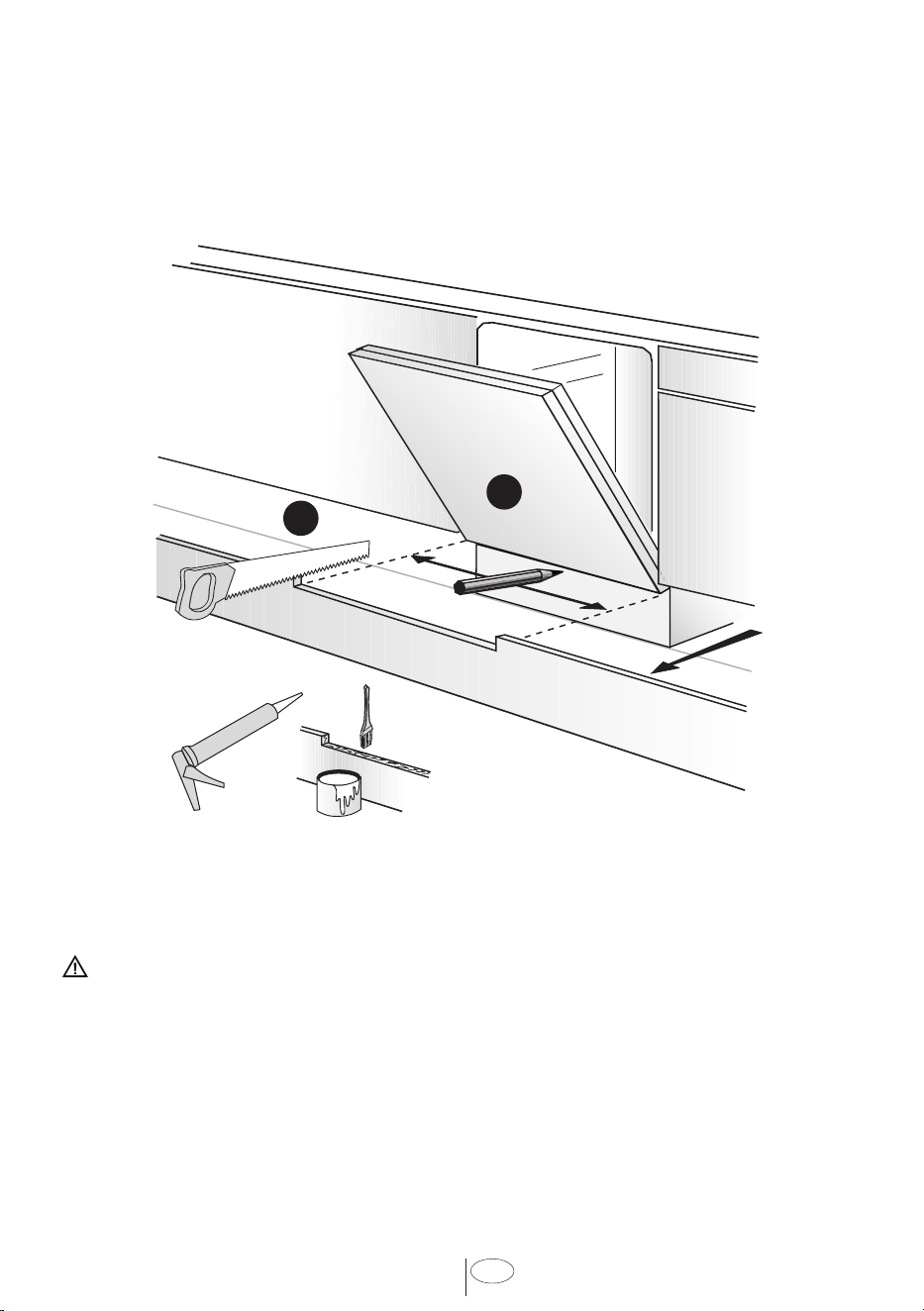

10.2 ADJUSTING THE KITCHEN CABINET KICK PLATE
• Check whether the bottom of the door hits the toe kick of the kitchen cabinet (
A
).
• If the door hits the toe kick cut the necessary section out of the toe kick (
B
).
• Apply silicon or sealant to the cut edge of the kitchen cabinet toe kick or paint so it
does not absorb moisture.
A
B

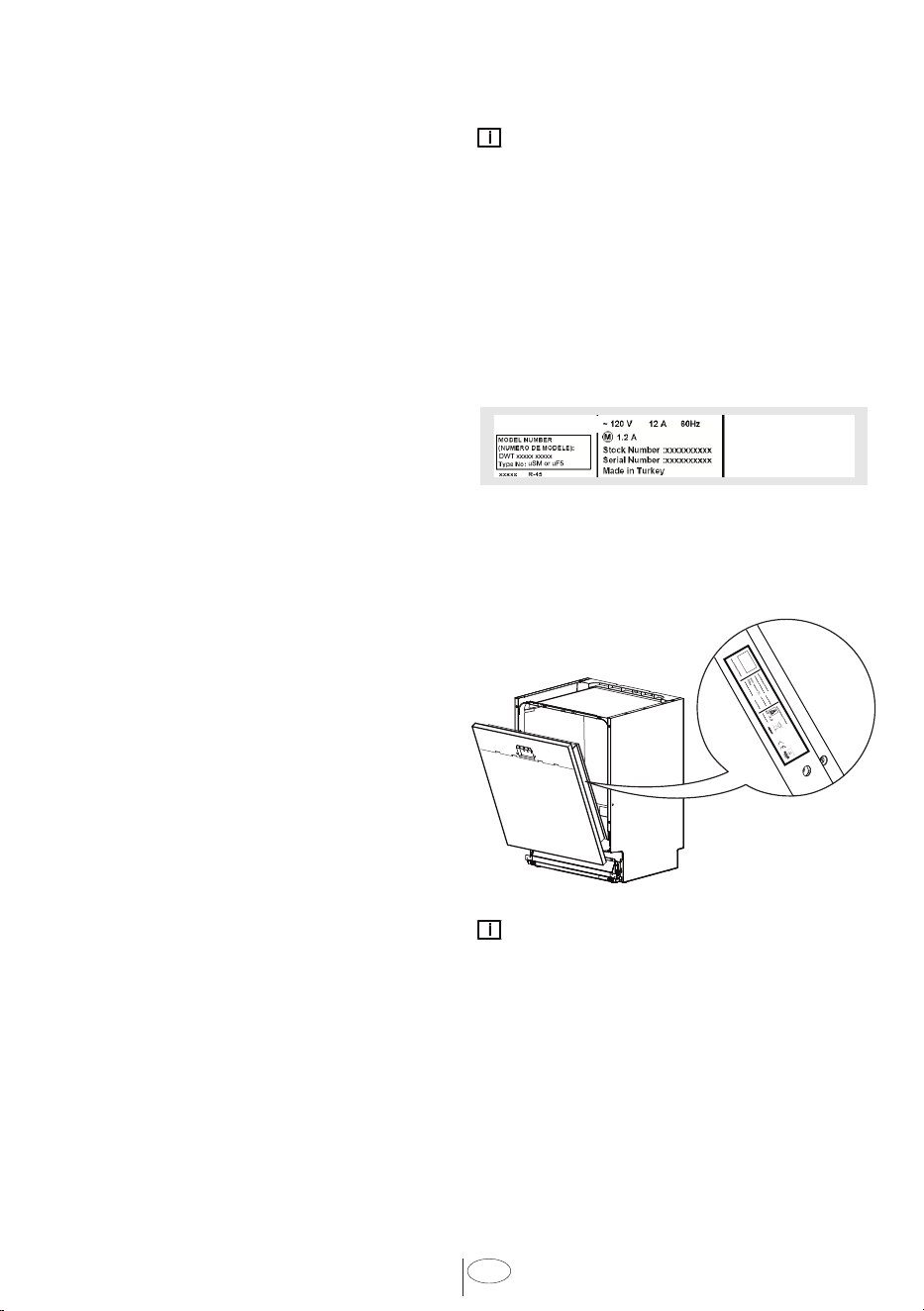

11. ELECTRICAL CONNECTION
WARNING
• Make sure the voltage and frequency listed on the data plate correspond with the
household electrical supply. This data must correspond to prevent injury and machine
damage. Consult a qualified electrician if in doubt.
23
USA
12. INSTALLER CHECKLIST
Your installer must have completed and
checked the following:
• The dishwasher is square and level.
• The dishwasher is fastened securely
to the cabinetry.
• The dishwasher door opens and closes
freely. The dishwasher door must
close without hitting any cabinetry or
counter top.
• The inlet water supply is turned on
and checked for leaks.
• The drain hose has been connected
and checked for leaks. There must be
no kinks or obstructions in the drain
hose.
• The drain hose must be installed with
a 28" (710mm) high drain loop for drain
hook-ups without any air removed.
• If the dishwasher drain is hooked up to
a garbage disposal, the drain hopper
plug must be removed.
• The spray arms are free and rotate
freely.
• The rinse cycle has been run.
• The water level will be below the
filter screen after the end of the wash
program. It is normal to find some
water in the drain filter area.
13. SELF HELP HINTS:
The screen does not come on:
• Check to make sure the breaker to the
dishwasher is in the on position.
• Check to make sure that the Supply
cord is plugged.
No Water is coming into the
dishwasher:
• Check to make sure the hot water
shut-off is in the ON position.
Water does not drain:
• Make sure drain hose is not kinked or
comes out of air gap next to the sink.
• Remove drain hose from disposal
making sure plug is removed.
NOTICE :
• If your dishwasher is not operating
properly after following these steps:
Contact your dealer to schedule an
authorized service agent to inspect
your new dishwasher for any function
related failure.
• The manufacturer warranty does
not cover installation, conversion or
customer education service visits.
You will find the model and serial number
information on the label located on the
right-hand side of the inner door of your
dishwasher, as shown above.
NOTICE :
Please make a copy of your invoice and
keep it with this manual and register your
dishwasher on-line.
kg
x,0 - x,0
