20V MAX CORDLESS
BRUSHLESS PRUNER SHEARS
Instruction Manual
MODEL 20731, 20731BT
CONTENTS
WELCOME 3
Introduction ..................................................................................................... 3
Specifications ................................................................................................... 3
SAFETY 4
General Safety Rules ........................................................................................ 4
Pruner Shear Safety Warnings ......................................................................... 6
Electrical Information (Charger) ....................................................................... 7
Battery & Charger Safety Warnings ................................................................. 8
BEFORE OPERATING 10

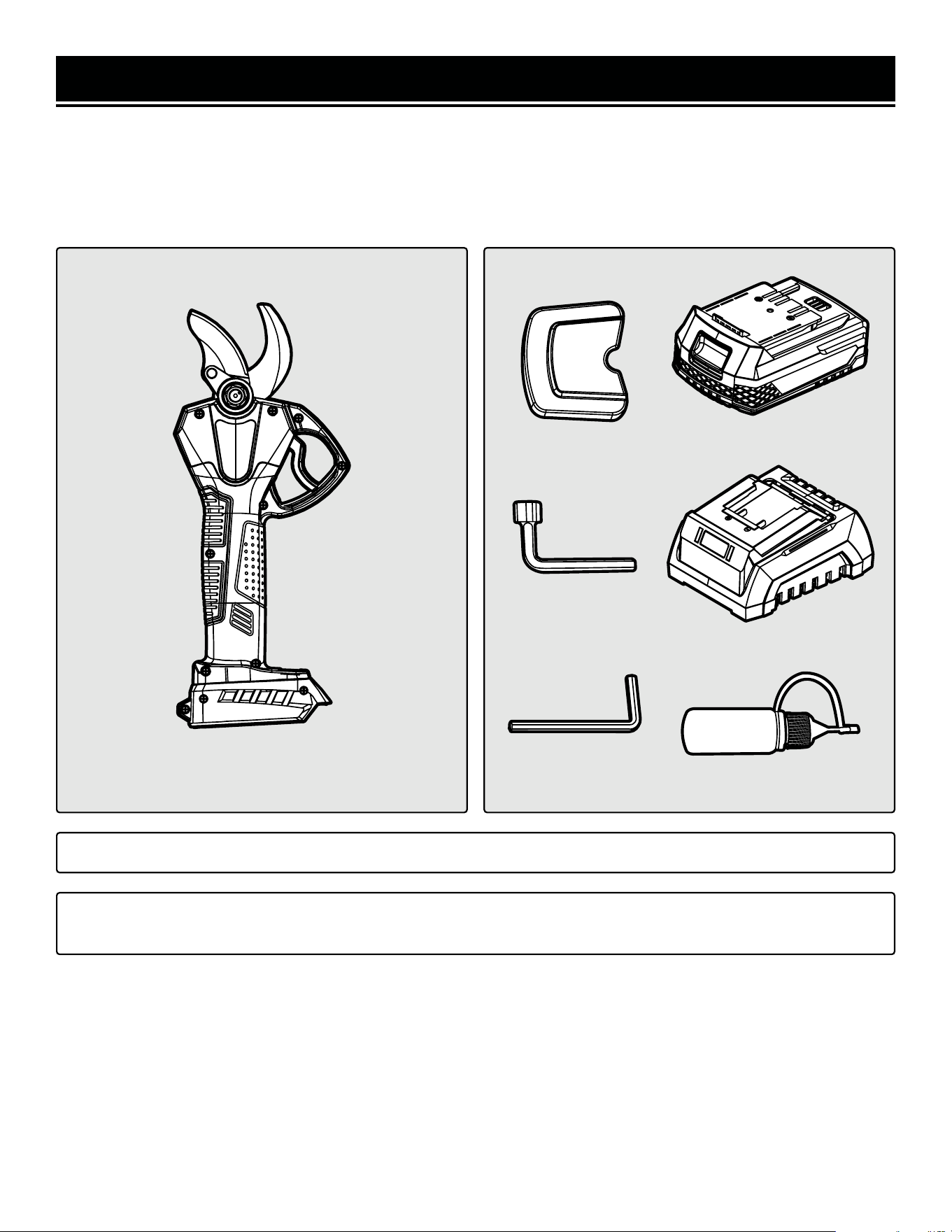

Unpacking & Packing List ...............................................................................10

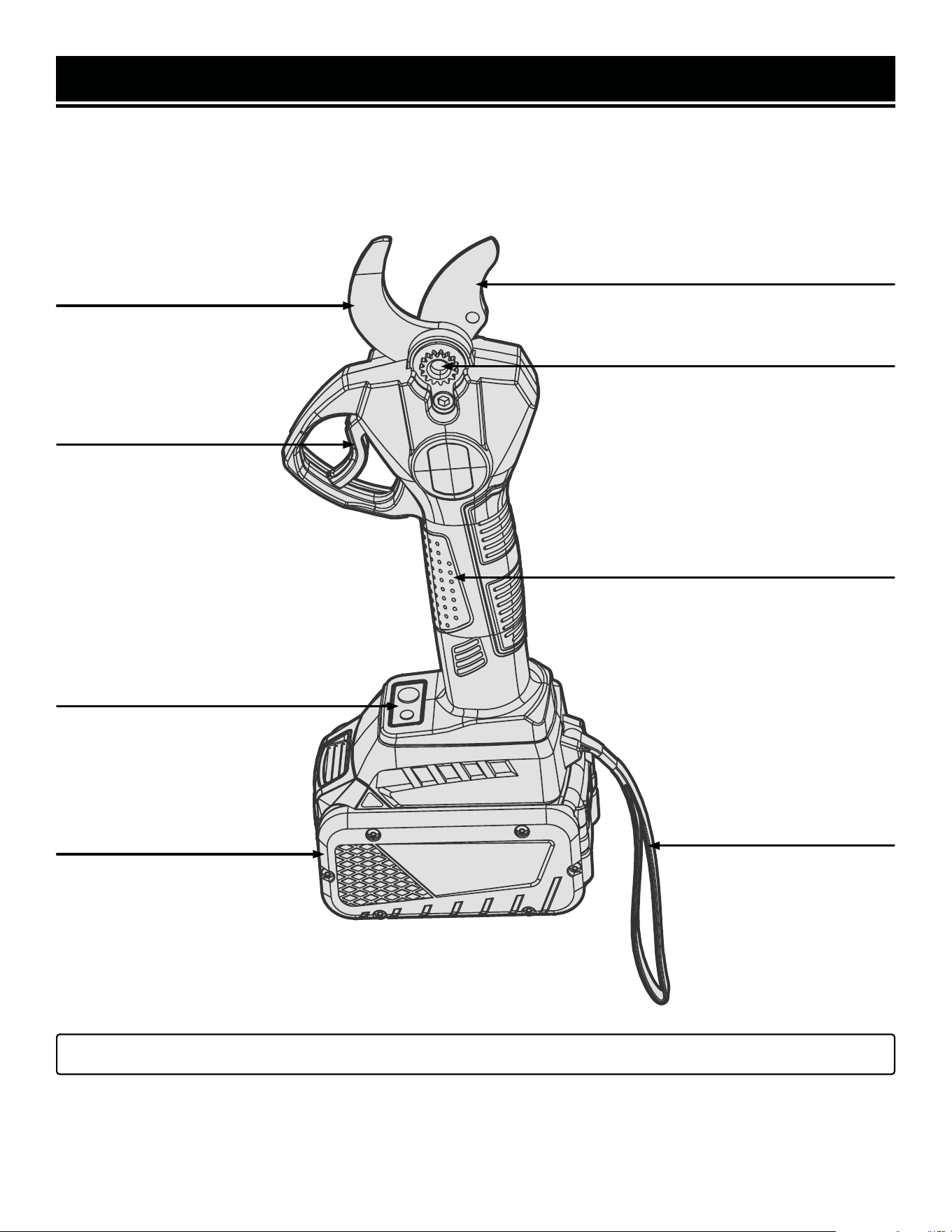

Know Your Pruner Shears .............................................................................. 11

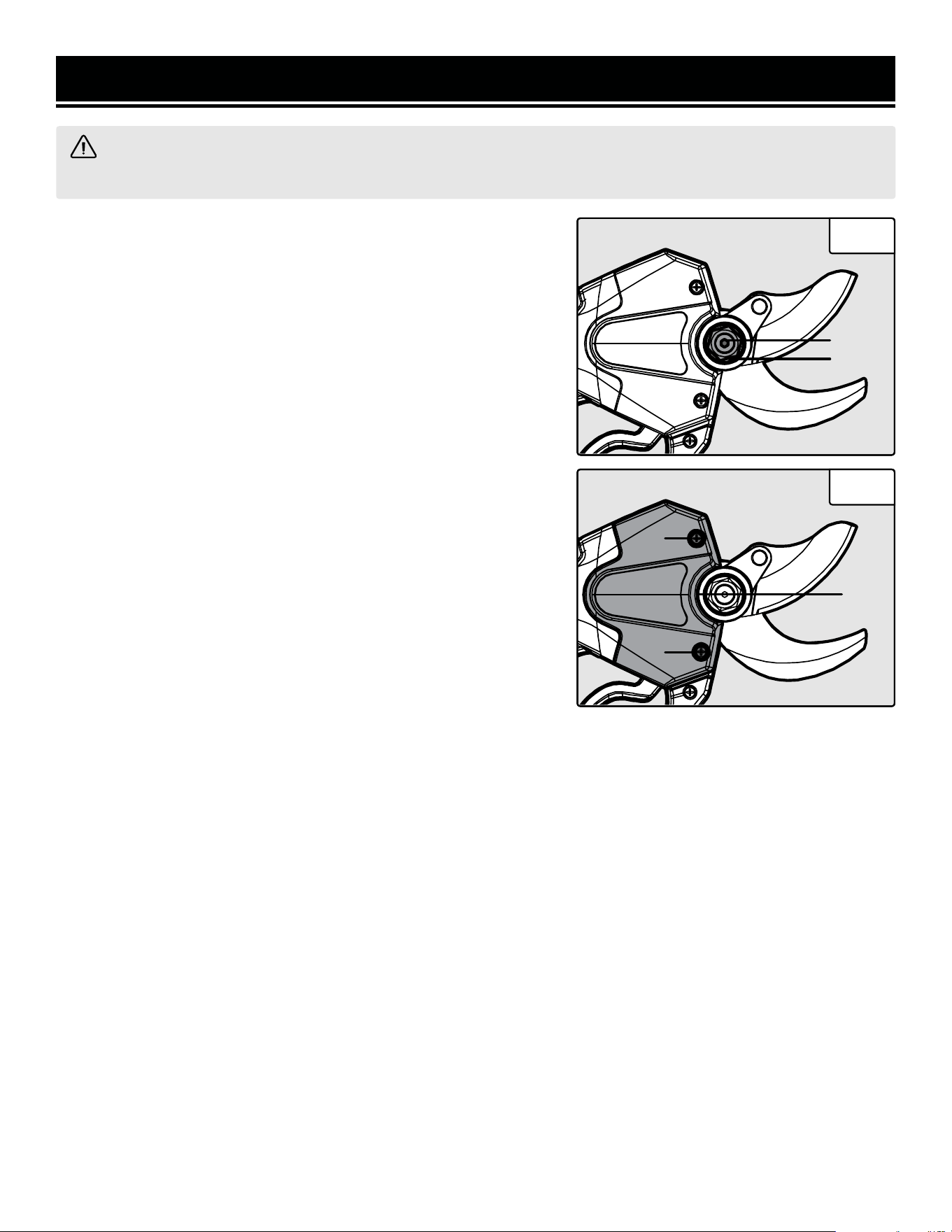

Assembly & Adjustments ............................................................................... 12
OPERATION & MAINTENANCE 13

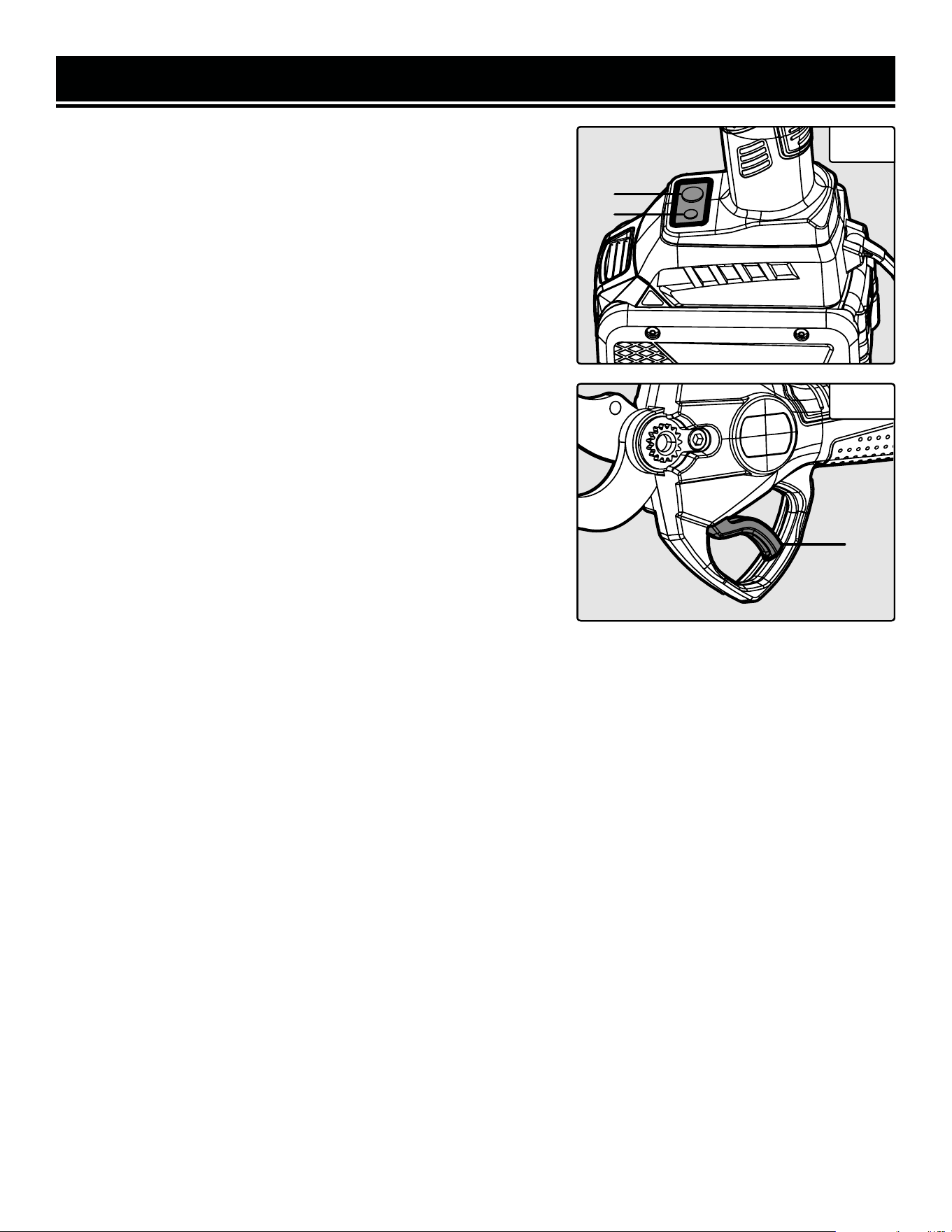

Operation ....................................................................................................... 13
Maintenance ....................................................................................................14

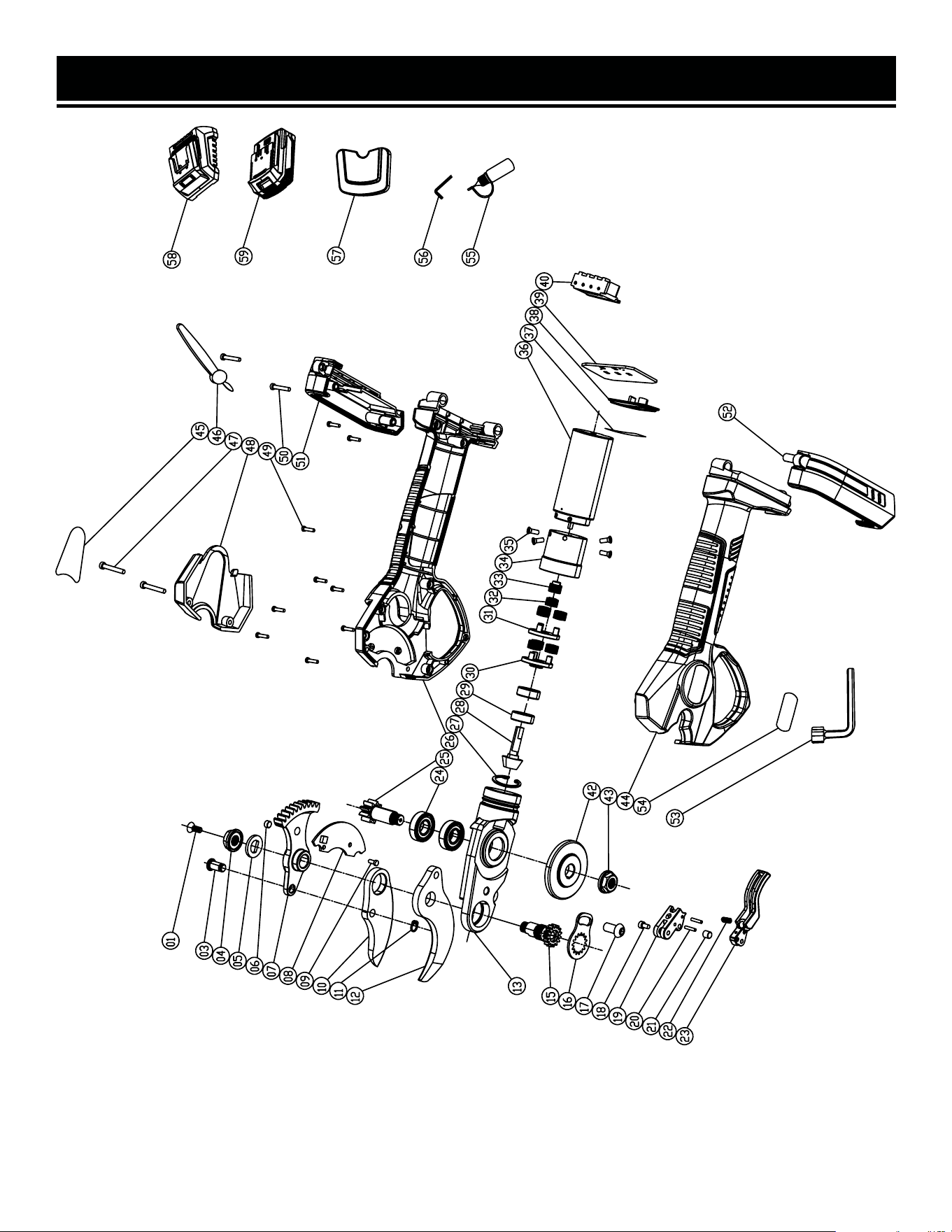

Exploded View & Parts List .............................................................................17
Warranty Statement ........................................................................................19
WEN plans to continue to add more items to our 20V line. For an up-to-date list of the 20V cordless tools compatible
with the included battery and charger, visit wenproducts.com and search model number 20202 (2Ah), 20204 (4Ah),
or 20205 (5Ah). In the battery’s description, there will be a list of current products that this battery can be used with.
2
To purchase accessories and replacement parts for your tool, visit WENPRODUCTS.COM
20V 4.0Ah Max Battery (Model 20204, 20204B, and 20204D)
20V 2A Charger (Model 20200C)
20V 5.0Ah Max Battery (Model 20205)
20V 5A Quick Charger (Model 20201Q)
20V 2.0Ah Max Battery (Model 20202, 20202B, 20202D)
20V 2A Dual Port Charger (Model 20200D)
SPECIFICATIONS
INTRODUCTION
Thanks for purchasing this WEN product. We know you are excited to put your tool to work, but first, please take
a moment to read through the manual. Safe operation of this tool requires that you read and understand this op-
erator’s manual and all the labels affixed to the tool. This manual provides information regarding potential safety
concerns, as well as helpful assembly and operating instructions for your tool.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-847-429-9263.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
Indicates danger, warning, or caution. The safety symbols and the explanations with them deserve your
careful attention and understanding. Always follow the safety precautions to reduce the risk of fire, electric shock
or personal injury. However, please note that these instructions and warnings are not substitutes for proper ac-
cident prevention measures.
Model Number 20731, 20731BT
Included Battery* 2.0Ah Battery (Model 20202)*
Included Charger* 20V, 2A DC (Model 20200C)*
Max Cutting Diameter 1-3/16 in. (30mm)
Cutting Diameter Presets 1 in. and 1-3/16 in.
Blade Lubricating Oil General-Purpose Machine Oil (Not Included)
Product Weight
Without Battery: 2 lbs
With 2Ah Battery: 3 lbs
Product Dimensions 11.22 in. x 4.72 in. x 2.36 in.
Battery Models** All WEN 20V MAX Batteries**
Charger Models All WEN 20V MAX Chargers
**NOTE: Some tools may not be compatible with WEN 20V MAX 1.5Ah Batteries, model 49120B. Contact WEN
customer service at 1-847-429-9263, M-F with questions.
*NOTE: Battery and charger only included with model 20731. 20731BT does not include a battery or charger.
3
GENERAL SAFETY RULES
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ig-
nite the dust or fumes.
3. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never mod-
ify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfac-
es such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of elec-
tric shock.
4. Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is un-
avoidable, use a ground fault circuit interrupter (GFCI)
protected supply. Use of a GFCI reduces the risk of elec-
tric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a respira-
tory mask, non-skid safety shoes and hearing protection
used for appropriate conditions will reduce the risk of
personal injury.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
4
GENERAL SAFETY RULES
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained us-
ers.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s opera-
tion. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different
from those intended could result in a hazardous situa-
tion.
8. Use clamps to secure your workpiece to a stable
surface. Holding a workpiece by hand or using your
body to support it may lead to loss of control.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is main-
tained.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals, work in a well-ventilated area
with approved safety equipment such as dust masks
specially designed to filter out microscopic particles.
5
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
PRUNER SHEARS SAFETY WARNINGS
PRUNER SHEARS SAFETY
1. TOOL PURPOSE. The purpose of your pruner shears
is to remove small branches. Do not push it beyond its
limits or capacities. Using the pruner shears in a way for
which it was not designed can result in serious injuries,
machine damage, and voiding of the warranty.
2. Hold the pruner shears by the insulated gripping
surfaces only. If the pruner shears contact a live wire,
the exposed metal parts may become live and could
cause electric shock. Always maintain a firm grip on the
handle while cutting to avoid loss of control.
3. Keep all parts of the body away from the blades.
Do not remove cut material or hold material to be cut
when the blades are moving. The blades will continue to
move after the switch has been turned OFF. A moment of
inattention while operating the tool may result in serious
personal injury
4. Keep bystanders, especially children, at a safe dis-
tance away from the shears during operation.
5. Wear eye and hearing protection. Always wear eye
protection with side shields marked to comply with ANSI
Z87.1, along with head protection. Following this rule
will reduce the risk of serious personal injury.
6. Clear the area to be cut before each use. Remove
all objects such as cords, lights, wires, and loose strings
which can become entangled in the cutting blade or cre-
ate a tripping hazard.
7. Before starting the power tool, make sure the blade
is not in contact with any objects. Stop the tool, remove
the battery, and make sure the blade has stopped com-
pletely before setting the tool down.
8. Never cut any materials with a diameter larger than
1-3/16 inches (30mm).
9. Always stop the motor when the cutting is delayed
or when walking from one cutting location to the next.
10. Keep the tool clean of clippings and other debris.
They may become lodged in the cutting blades.
11. Store the unit inside in a dry place with the blade
guard installed, remove the battery from the tool, and
keep out of the reach of children and untrained indi-
viduals.
12. Never douse or squirt the unit with water or any
other liquid. Keep hands dry, clean, and free from de-
bris.
13. Clean after every use. See maintenance instruc-
tions for more information.
14. Secure the unit while transporting.
15. Do not use the tool in bad weather conditions.
16. Keep all power cords and cables away from the
cutting area. Power cords or cables may be hidden and
can be accidentally cut by the blade.
17. When clearing jammed material or servicing the
tool, make sure the power switch is OFF and the bat-
tery is removed from the tool. Accidental startups may
occur and cause serious personal injury.
18. Carry the tool properly to avoid serious personal
injury.
19. When transporting or storing the tool, always re-
move the battery pack from the tool and install the
blade cover. Proper handling of the tool will decrease
the risk of personal injury from the blades.
20. Do not grasp the exposed cutting blades or edges
when picking up or handling the tool.
21. Remove the battery pack before adjusting, clean-
ing, or storing the tool. Always remove the battery
when the tool is not in use.
22. Only use this tool with the batteries and chargers
listed.
23. Save these instructions. Refer to them frequently
and use them to instruct others who may use this tool.
WARNING! Do not operate the power tool until you have read and understood the following instructions and
the warning labels.
DANGER! Keep hands away from the blade. Contact with the blade will result in personal injury.
6
ELECTRICAL INFORMATION (CHARGER)
AMPERAGE
REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
2A 18 gauge 16 gauge 16 gauge 14 gauge
IMPORTANT: Servicing a double-insulated product requires extreme care and knowledge of the system, and
should be done only by qualified service personnel using identical replacement parts. Always use original factory
replacement parts when servicing.
1. Polarized Plugs. To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider
than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not modify the machine
plug or the extension cord in any way.
2. Ground fault circuit interrupter protection (GFCI) should be provided on the circuit or outlet used for this power
tool to reduce the risk of electric shock.
3. Service and repair. To avoid danger, electrical appliances must only be repaired by a qualified service technician
using original replacement parts.
GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. The table below shows
the correct size to be used according to cord length and ampere rating. When in doubt, use a heavier cord. The
smaller the gauge number, the heavier the cord.
DOUBLE-INSULATED CHARGER
The charger’s electrical system is double-insulated where two systems of insulation are provided. This
eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need
to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are
isolated from the internal metal components with protecting insulation.
1. Examine extension cord before use. Make sure your extension cord is properly wired and in good condition.
Always replace a damaged extension cord or have it repaired by a qualified person before using it.
2. Do not abuse extension cord. Do not pull on cord to disconnect from receptacle; always disconnect by pulling on
plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.
Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
3. Use a separate electrical circuit for your tool. This circuit must not be less than a 12-gauge wire and should be
protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in
the OFF position and the electric current is rated the same as the current stamped on the motor nameplate. Running
at a lower voltage will damage the motor.
7
• Avoid dangerous environments – Do not charge the
battery pack in rain, snow or in damp or wet locations.
Do not use the battery pack or charger in the presence
of explosive atmospheres (gaseous fumes, dust or flam-
mable materials) because sparks may be generated when
inserting or removing the battery pack, which could lead
to a fire.
• Charge in a well-ventilated area – Do not block the
charger vents. Keep them clear to allow for proper ven-
tilation. Do not allow smoking or open flames near a
charging battery pack. Vented gases may explode.
NOTE: The safe temperature range for the battery charg-
ing is 41°F to 104°F. Do not charge the battery outside in
freezing weather; charge it at room temperature.
• Maintain charger cord – When unplugging the char-
ger, pull the plug, not the cord, from the receptacle to
reduce the risk of damage to the electrical plug and cord.
Never carry the charger by its cord or yank it by the cord
to disconnect it from the receptacle. Keep the cord away
from heat, oil and sharp edges. Make sure the cord will
not be stepped on, tripped over or subjected to dam-
age or stress when the charger is in use. Do not use the
charger with a damaged cord or plug. Replace a dam-
aged charger immediately.
• Do not use an extension cord unless it is absolutely
necessary – Using the wrong, damaged or improperly
wired extension cord poses a risk of fire and electric
shock. If an extension cord must be used, plug the char-
ger into a properly wired 16 gauge or larger extension
cord with the female plug matching the male plug on the
charger. Make sure that the extension cord is in good
electrical condition.
• Charger is rated for 120 volt AC only – The charger
must be plugged into an appropriate receptacle.
• Use only recommended attachments – Use of an at-
tachment not recommended or sold by WEN Products
may result in risk of fire, electric shock or personal in-
jury.
• Unplug charger when not in use – Make sure to re-
move battery packs from unplugged chargers.
• Do not burn or incinerate battery packs – Battery
packs may explode, causing personal injury or dam-
age. Toxic fumes and materials are created when battery
packs are burned.
• Do not crush, drop or damage battery packs – Do not
use the battery pack or charger if they have sustained a
sharp blow, been dropped, run over or have been dam-
aged in any way (i.e. pierced with a nail, hit with a ham-
mer, stepped on, etc.).
• Do not disassemble – Incorrect reassembly may pose
a serious risk of electric shock, fire or exposure to toxic
battery chemicals. If the battery or charger are damaged,
call WEN customer service at 1-847-429-9263 for as-
sistance.
• Battery chemicals cause serious burns – Never let a
damaged battery pack contact the skin, eyes or mouth.
If a damaged battery pack leaks battery chemicals, use
rubber or neoprene gloves to safely dispose of it. If skin
is exposed to battery fluids, wash the affected area with
soap and water and rinse with vinegar. If eyes are ex-
posed to battery chemicals, immediately flush with wa-
ter for 20 minutes and seek medical attention. Remove
and dispose of contaminated clothing.
• Store your battery pack and charger in a cool, dry
place – Do not store the battery pack or charger where
temperatures may exceed 104 °F, such as in direct sun-
light or inside a vehicle or metal building during the
summer.
• Do not short circuit – A battery pack will short circuit if
a metal object makes a connection between the positive
and negative contacts on the battery pack. Do not place
a battery pack near anything that may cause a short cir-
cuit, such as paper clips, coins, keys, screws, nails and
other metallic objects. A short-circuited battery pack
poses a risk of fire and severe personal injury.
BATTERY & CHARGER SAFETY WARNINGS
Despite all of the safety precautions, caution must always be taken when handling batteries. The following
points must be obeyed at all times to ensure safe use. Safe use can only be guaranteed if undamaged cells are
used. Incorrect handling of the battery pack can cause cell damage.
WARNING! To reduce the risk of electric shock,
always unplug the charger before performing any
cleaning or maintenance. Do not allow water to
flow into the charger. Use a Ground Fault Circuit
Interrupter (GFCI) to reduce shock hazards.
8
BATTERY & CHARGER SAFETY WARNINGS
ABOUT THE BATTERY
1. The battery pack has to be charged completely before you use the tool for the first time.
2. For optimum battery performance, avoid low discharge cycles by charging the battery pack frequently.
3. Lithium-ion batteries are subject to a natural aging process. The battery pack must be replaced at the latest when
its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no longer capable
of meeting the high power requirements needed for the proper operation of your tool, and therefore pose a safety
risk.
4. Do not throw battery packs into an open fire as this poses a risk of explosion. Do not ignite the battery pack or
expose it to fire.
5. Do not exhaustively discharge batteries. Exhaustive discharge will damage the battery cells. The most common
cause of exhaustive discharge is lengthy storage or non-use of partially discharged batteries. Stop working as soon
as the performance of the battery falls noticeably or the electronic protection system triggers. Place the battery pack
in storage only after it has been fully charged.
6. Protect batteries and the tool from overloads. Overloads will quickly result in overheating and cell damage inside
the battery housing even if this overheating is not apparent externally.
7. Avoid damage and shocks. Immediately replace batteries that have been dropped from a height of more than
one meter or those that have been exposed to violent shocks, even if the housing of the battery pack appears to be
undamaged. The battery cells inside the battery may have suffered serious damage. In such instances, please read
the waste disposal information for proper battery disposal.
8. If the battery pack suffers overloading and overheating, the integrated protective cutoff will switch off the equip-
ment for safety reasons.
9. Use only original battery packs. The use of other batteries poses a fire risk and may result in injuries or an explo-
sion.
ABOUT THE CHARGER
Protect battery charger and cord from damage. Keep the charger and its cord away from heat, oil and sharp edges.
Electrical plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with ground-
ed appliances. Unmodified plugs and matching outlets will reduce the risk of electric shock.
Keep the battery charger, battery pack(s), and the cordless tool out of the reach of children.
Do not use the supplied battery charger to charge other cordless tools.
During periods of heavy use, the battery pack will become warm. Allow the battery pack to cool to room temperature
before inserting it into the charger to recharge.
Do not overcharge batteries. Do not exceed the maximum charging times. These charging times only apply to dis-
charged batteries. Frequent insertion of a charged or partially charged battery pack will result in overcharging and
cell damage. Do not leave battery in the charger for days on end.
Never use or charge a battery if you suspect that it has been more than 12 months since last time they were charged.
There is a high probability that the battery pack has already suffered dangerous damage (exhaustive discharge).
Do not use batteries that have been exposed to heat during the charging process, as the battery cells may have suf-
fered dangerous damage.
Do not use batteries that have suffered curvature or deformation during the charging process or those that exhibit
other atypical symptoms (gassing, hissing, cracking, etc.)
9
Components Accessories
UNPACKING & PACKING LIST
UNPACKING
Carefully remove the pruner shears from the packaging and place it on a sturdy, flat surface. Make sure to take out
all contents and accessories. Do not discard the packaging until everything is removed. Check the packing list below
to make sure you have all of the parts and accessories. If any part is missing or broken, please contact customer
service at 1-847-429-9263 (M-F 8-5 CST), or email [email protected].
*NOTE: Battery and charger only included with model 20731. 20731BT does not include a battery or charger.
*20V Charger (1)
*20V 2.0Ah Battery (1)
Blade Guard (1)
**Oil Bottle (1)
13mm Blade Nut
Wrench (1)
2.5mm Hex
Wrench (1)
Pruner Shears (1)
10
**NOTE: Oil is not included with this tool. The blade comes pre-oiled from the factory and only needs to be oiled
for general maintenance. See p. 15 for more information.
KNOW YOUR PRUNER SHEARS
TOOL PURPOSE
Easily remove small branches with your WEN 20V Pruner Shears. Refer to the following diagrams to become fa-
miliarized with all the parts and controls of your shears. The components will be referred to later in the manual for
assembly and operation instructions.
*NOTE: Battery and charger only included with model 20731. 20731BT does not include a battery or charger.
Fixed Blade
Movable Blade
Power Trigger
Handle
Power Button & LED Indicator Light
*20V 2.0Ah Battery
Safety Strap
Oil Inlet
11
WARNING! To avoid injury from accidental startups, be sure that the tool is switched OFF and the battery is
removed from the tool before inspecting the unit, making adjustments, or changing accessories.
ASSEMBLY & ADJUSTMENTS
CHARGING THE BATTERY PACK
The 20V battery pack for this tool is supplied in a low charge condition to prevent possible problems, and must be
charged completely before you use the tool for the first time.
NOTE: The battery pack and charger are not included with model 20731BT.
1. Connect charger to a 120V, 60Hz AC outlet. The green lights on the charger will illuminate, indicating that the
charger is powered.
2. Slide the battery all the way into the charger port until it clicks. The red light on the corresponding charger port
will illuminate, indicating that the battery is charging.
Charging Indication:
• Solid Green: Ready to Charge
• Solid Red: Charging
• Solid Green: Charged
3. When the battery is charged, the red light will turn off and the green light will turn on. Remove the battery from
the charger and unplug the charger from the power supply.
NOTE: Battery will not reach full charge the first time it is charged. Allow several cycles for the battery to fully
charge. The battery pack may become warm while charging; this is normal. If the battery is hot after continuous use
in the tool, allow it to cool to room temperature before charging. This will prolong the life of your battery.
The battery pack is equipped with three LED battery life indication lights. Press and hold the power button on the
front or rear of the battery to check the battery’s charge status.
Battery Life Indication:
• Three Lights: The battery is fully charged.
• Two Lights: The battery is about 60% charged.
• One Light: The battery is almost out of power and needs to be charged.
INSERTING AND REMOVING THE BATTERY
1. To install the battery, slide the battery pack into the battery port. Make sure the release latch on the rear side of
the battery pack snaps into place and the battery is secure before beginning operation.
2. To remove the battery pack, press the battery release latch on the front of the battery and pull the battery pack out.
12
Fig. 4
OPERATING THE PRUNER SHEARS
1. Install the battery pack. Make sure that the battery has a sufficient
charge.
2. Press the power button (Fig. 4 - 1). The LED indicator light (Fig.
4 - 2) will illuminate and the tool will beep twice when it has been
powered ON.
3. After the pruner has been powered ON, quickly pull the trigger (Fig.
5 - 1) twice to unlock the blade. If the blades are closed, they will
automatically open.
4. The pruner has two cutting diameter presets, 1" and 1-3/16". To
switch between the two presets, pull and hold the trigger for more
than two seconds until you hear a beep, then release the trigger.
When switching from 1-3/16" to 1", you will hear one beep. When
switching from 1" to 1-3/16", you will hear two beeps.
5. For normal pruning: Pull the trigger to close the blade and release
the trigger to open the blade.
6. To lock the blade in the closed position: Pull and hold the trigger
for about five seconds.
7. To unlock the blade from the closed position: Quickly pull the
trigger twice to unlock the blade.
8. Automatic Standby Mode: If the trigger has not been pulled for
three minutes, two beeps will sound. The pruner shears will still be
powered ON but will not operate until the blade is unlocked. Quickly
pull the trigger twice to unlock the blade.
9. Once you are done pruning, lock the blade in the closed position.
Press and hold the trigger for about five seconds.
10. Power the pruner OFF by pushing the power button. The LED
indicator light will turn OFF.
11. Remove the battery from the pruner and place the blade guard
over the blade.
OPERATION
1
13
Fig. 5
1
2
CHANGING THE BLADE
NOTE: Only use genuine WEN replacement blades (part no. 20731-
010). Replacement blades are available for purchase at
wenproducts.com.
WARNING! Switch the tool OFF and remove the battery before chang-
ing the blade.
WARNING! Always wear protective gloves when changing the blade.
Handle the blade with caution.
WARNING! NEVER attempt to operate the pruner without the blade
and mounting hardware installed properly.
WARNING! If your blade is dull, it can be sharpened; however, if it is
severely nicked, warped, or damaged, it should be replaced.

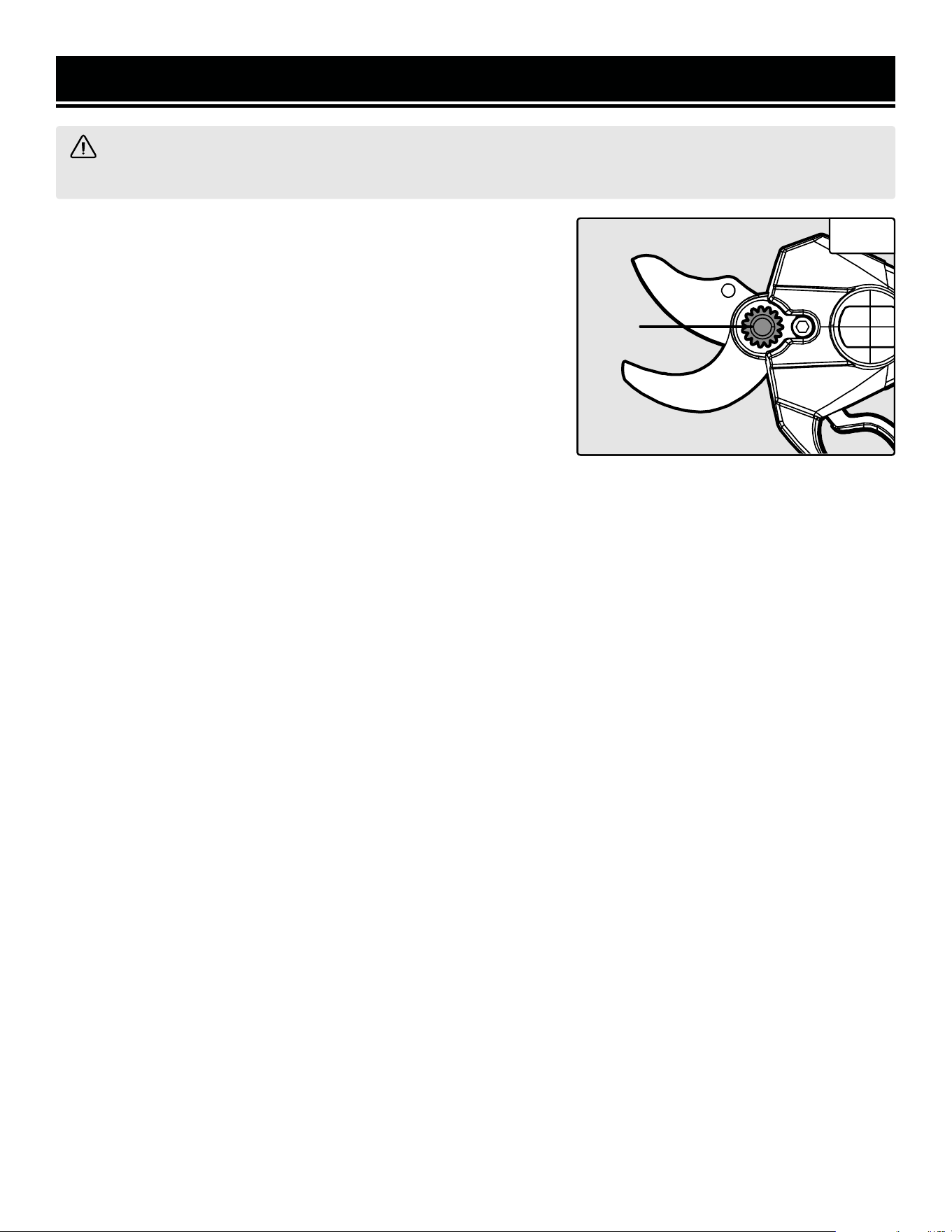

1. Using the included 2.5mm hex wrench, loosen and remove the
blade screw (Fig. 1 - 1). Turn the screw clockwise to loosen it (it is
left-hand threaded).
2. Using the included blade nut wrench, loosen and remove the blade
nut (Fig. 1 - 2). Turn the nut counterclockwise to loosen it.
3. Using a Phillips head screwdriver (not included), loosen and re-
move the two side cover screws (Fig. 2 - 1).
Fig. 1
MAINTENANCE
1
Fig. 2
2
1
1
2
4. Slide the side cover (Fig. 2 - 2) forward (toward the blades) and carefully remove it from the pruner.
5. Carefully lift the old blade off and replace with the new blade, making sure the gear teeth of the blade mesh with
the drive gear on the tool.
6. Replace the side cover, side cover screws, blade nut, and blade screw.
7. Before beginning operation, make sure that the blade and fasteners are securely installed.
TIGHTENING THE BLADE
WARNING! Switch the tool OFF and remove the battery before tightening the blade.
1. Check to ensure the blade is tight before each use. A well tightened blade should not move from left to right.
2. Using the included 2.5mm hex wrench, loosen and remove the blade screw (Fig. 1 - 1). Turn the screw clockwise
to loosen it (it is left-hand threaded).
3. Using the included blade nut wrench, adjust the blade nut (Fig. 1 - 2) tension until the tool clicks. Turn the nut
clockwise to tighten it.
4. Replace the blade screw and check the tightness of the blade.
It is possible to have slight movement in the direction of blade closure. This movement is normal and may be caused
by the gap between the rack and pinion teeth.
WARNING! To avoid accidents, turn the tool OFF and remove the battery from the battery terminal before
cleaning, adjusting, or performing any maintenance or lubrication work.
14
LUBRICATING THE BLADE
For easier operation and a longer blade life, lubricate the blade before
and after each use. If you are planning to use the pruner for an ex-
tended period of time, it is advised to lubricate the blade periodically
during operation.
NOTE: Oil is not included with this tool. The blade comes pre-oiled
from the factory and only needs to be oiled for general maintenance.
We recommend using general-purpose machine oil.
1. Locate the oil inlet (Fig. 3 - 1) on the side of the pruner.
2. Place the oil bottle nozzle into the lubricating inlet and lubricate
the blades.
MAINTENANCE
1
Fig. 3
WARNING! To avoid accidents, turn the tool OFF and remove the battery from the battery terminal before
cleaning, adjusting, or performing any maintenance or lubrication work.
15
3. Open and close the blade of the tool several times to distribute the oil.
SHARPENING THE BLADE
WARNING! Switch the tool OFF and remove the battery before sharpening the blade.
WARNING! Always wear protective gloves when sharpening the blade. Handle the blade with caution.
If the blade becomes dull, and starts to crush branches instead of cut them, it should be sharpened. If the blade is
heavily nicked, damaged, or warped, it should be replaced (see section “REPLACING THE BLADE”).
1. Use a fine-toothed file. Keeping the file flush with the existing blade bevel, use light, firm pressure to push the file
from the heel of the blade towards the tip.
2. Lift the file off the blade.
3. Repeat until the blade is sharpened.
4. Remove any burrs from the blade.
MAINTENANCE
ROUTINE INSPECTION
Before each use, inspect the general condition of the tool.
If any of these following conditions exist, do not use until
parts are replaced or the sharpener is properly repaired.
Check for:
• Loose hardware or improper mounting
• Misalignment or binding of moving parts
• Damaged battery or battery terminal
• Cracked or broken parts
• Any other condition that may affect its safe operation
CLEANING & STORAGE
1. Brush or blow dust and debris out of the air vents us-
ing compressed air or a vacuum. Keep the air vents free
of obstructions, sawdust, and wood chips. Do not spray,
wash, or immerse the air vents in water.
2. Wipe off the housing and the plastic components us-
ing a moist, soft cloth. Do not use strong solvents or
detergents on the plastic housing or plastic components.
Certain household cleaners may cause damage, and may
cause a shock hazard.
PRODUCT DISPOSAL
Used power tools should not be disposed of together
with household waste. This product contains electronic
components that should be recycled. Please take this
product to your local recycling facility for responsible
disposal and to minimize its environmental impact.
WARNING! To avoid accidents, turn the tool OFF and remove the battery from the battery terminal before
cleaning, adjusting, or performing any maintenance or lubrication work.
WARNING! Any attempt to repair or replace electrical parts on this tool may be hazardous. Servicing of the
tool must be performed by a qualified technician. When servicing, use only identical WEN replacement parts.
Use of other parts may be hazardous or induce product failure.
DISINFECTING THE BLADE
Pruning tools should be disinfected to prevent the
spread of pathogens among plants. Although it is not
always practical to handle disinfectants when making
multiple cuts on the same tree or pruning several trees
or shrubs, it will minimize plant loss.
Ethanol or isopropyl alcohol are ideal for sanitizing
pruning equipment because blades can simply be wiped
or dipped into disinfectant without a prolonged soak.
Products sold as rubbing alcohol usually contain 70%
isopropyl alcohol and can be used directly from the con-
tainer. Be sure to follow the label's safety precautions.
STORING THE BATTERY AND CHARGER
• Make sure the battery is fully charged before storage in
order to maximize the life of the battery.
• Do not store the battery pack on the tool. Remove the
battery from the tool before storage.
• After charging, the battery pack may be stored in the
charger, as long as the charger is not plugged in.
• Store the charger at normal room temperature. Do not
store it in excessive heat. Do not use the charger in di-
rect sunlight or in damp conditions. Do not charge out-
side. Recharge at room temperature.
• Keep the charger clean and clear of debris. Do not al-
low foreign material to get into the recessed cavity or
onto the contacts. Wipe the charger clean with a dry
cloth. Do not use solvents or water, and do not place the
charger in wet conditions.
• Always unplug the charger when charging is complete.
Never leave your charger plugged in if it is not charging
a battery.
16
EXPLODED VIEW & PARTS LIST
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
17
EXPLODED VIEW & PARTS LIST
NO. PART NO. DESCRIPTION QTY.
1 20731-001
Countersunk Socket
Flat-head Bolt, M4x10
1
3 20731-003 Pivot Pin 1
4 20731-004 Lock Nut 1
5 20731-005 Washer 1
6 20731-006 Magnet, 5x3mm 1
7 20731-007 Blade Gear 1
8 20731-008 Sensor PCB 1
9 20731-009
Self-tapping Screw,
ST2.5x5
1
10 20731-010 Movable Blade 1
11 20731-011 Retaining Ring, 6mm 1
12 20731-012 Fixed Blade 1
13 20731-013 Gearbox Housing 1
15 20731-015 Gearshaft 1
16 20731-016 Locking Plate 1
17 20731-017
Socket Head Bolt,
M6x12
1
18 20731-018
Socket Head Bolt,
M3x6
1
19 20731-019 Support Plate 1
20 20731-020 Pin, 2x10 2
21 20731-021 Magnet, 5x4mm 1
22 20731-022 Trigger Spring 1
23 20731-023 Trigger Spring 1
24 20731-024 Ball Bearing, 6900 2
25 20731-025 Pinion Shaft 1
26 20731-026
Right Housing
Assembly
1
27 20731-027 Retaining Ring, 17mm 1
28 20731-028 Worm Gear Shaft 1
29 20731-029 Ball Bearing, 606 2
30 20731-030
Secondary Planetary
Gear Carrier
1
NO. PART NO. DESCRIPTION QTY.
31 20731-031
Primary Planetary Gear
Carrier
1
32 20731-032 Planetary Gear 6
33 20731-033 Motor Pinion 1
34 20731-034 Ring Gear 1
35 20731-035 Screw, M3x5 4
36 20731-036
Brushless Motor
Assembly
1
37 20731-037 Label 1
38 20731-038 Power Button Board 1
39 20731-039 PCB 1
40 20731-040 Battery Terminal 1
42 20731-042 Large Gear 1
43 20731-043 Nut, M8 1
44 20731-044 Left Housing Assembly 1
45 20731-045 Label 1 1
46 20731-046 Wrist Strap 1
47 20731-047 Bolt, M3x25 2
48 20731-048 Blade Cover 1
49 20731-049
Self-tapping Screw,
ST2.8x10
10
50 20731-050
Self-tapping Screw,
ST3x25
2
51 20731-051 Left Battery Housing 1
52 20731-052 Right Battery Housing 1
53 20731-053 Wrench 1
54 20731-054 Label 2 1
55 20731-055 Oil Bottle 1
56 20731-056 Hex Wrench, 2.5mm 1
57 20731-057 Blade Sheath 1
58 20200C 20V Max Charger 1
59 20202 20V Max Battery, 2Ah 1
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
18
EXPLODED VIEW & PARTS LISTWARRANTY STATEMENT
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to quality.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power
tools will be free from defects in material or workmanship during personal use for a period of two (2) years from date
of purchase or 500 hours of use; whichever comes first. Ninety days for all WEN products if the tool is used for pro-
fessional or commercial use. Purchaser has 30 days from the date of purchase to report missing or damaged parts.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which are
defective in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepair, abuse, neglect, normal wear and tear, improper maintenance, or other conditions adversely affecting the
Product or the component of the Product, whether by accident or intentionally, by persons other than Seller. To make
a claim under this Limited Warranty, you must make sure to keep a copy of your proof of purchase that clearly defines
the Date of Purchase (month and year) and the Place of Purchase. Place of Purchase must be a direct vendor of Great
Lakes Technologies, LLC. Purchasing through third party vendors, including but not limited to garage sales, pawn
shops, resale shops, or any other secondhand merchant, voids the warranty included with this product. Contact tech-
[email protected] or 1-847-429-9263 with the following information to make arrangements: your shipping
address, phone number, serial number, required part numbers, and proof of purchase. Damaged or defective parts and
products may need to be sent to WEN before the replacements can be shipped out.
Upon the confirmation of a WEN representative, your product may qualify for repairs and service work. When returning
a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must be shipped
in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The product must be
fully insured with a copy of the proof of purchase enclosed. There must also be a description of the problem in order
to help our repairs department diagnose and fix the issue. Repairs will be made and the product will be returned and
shipped back to the purchaser at no charge for addresses within the contiguous United States.
THIS LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME, IN-
CLUDING BELTS, BRUSHES, BLADES, BATTERIES, ETC. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURA-
TION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT
NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME
STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IN-
CIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUN-
TRY.
THIS LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA
AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT
THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER WARRANTY
SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING CHARGES MAY
APPLY.
19
V. 2024.01.15
THANKS FOR
REMEMBERING
