Model: C2224SH
Digital LED TV
Instruction Book
Contents
Unpacking the TV/ Accessories 1
Installing / Removing the Base Stand 2
Front / Right Side View and Controls 3
Rear View and Sockets 4
Remote Control 6
Installing Batteries in the Remote Control 7
Remote Control Operation Range 7
Making Video and Audio Connections 8
Connecting an AV Device with an HDMI Cable 8
Connecting a Digital Audio Receiver 10

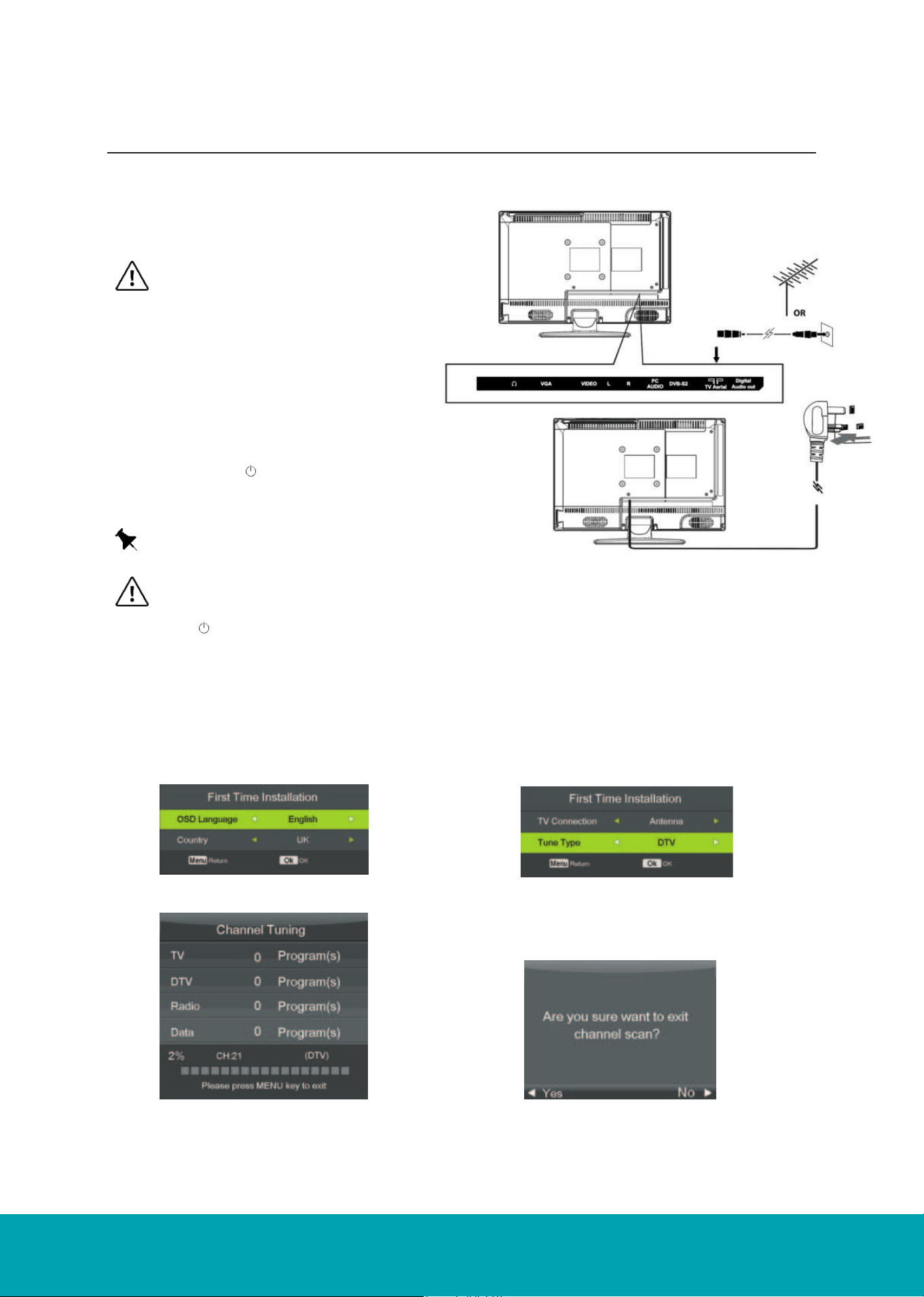

Turning the TV on for the First Time 11

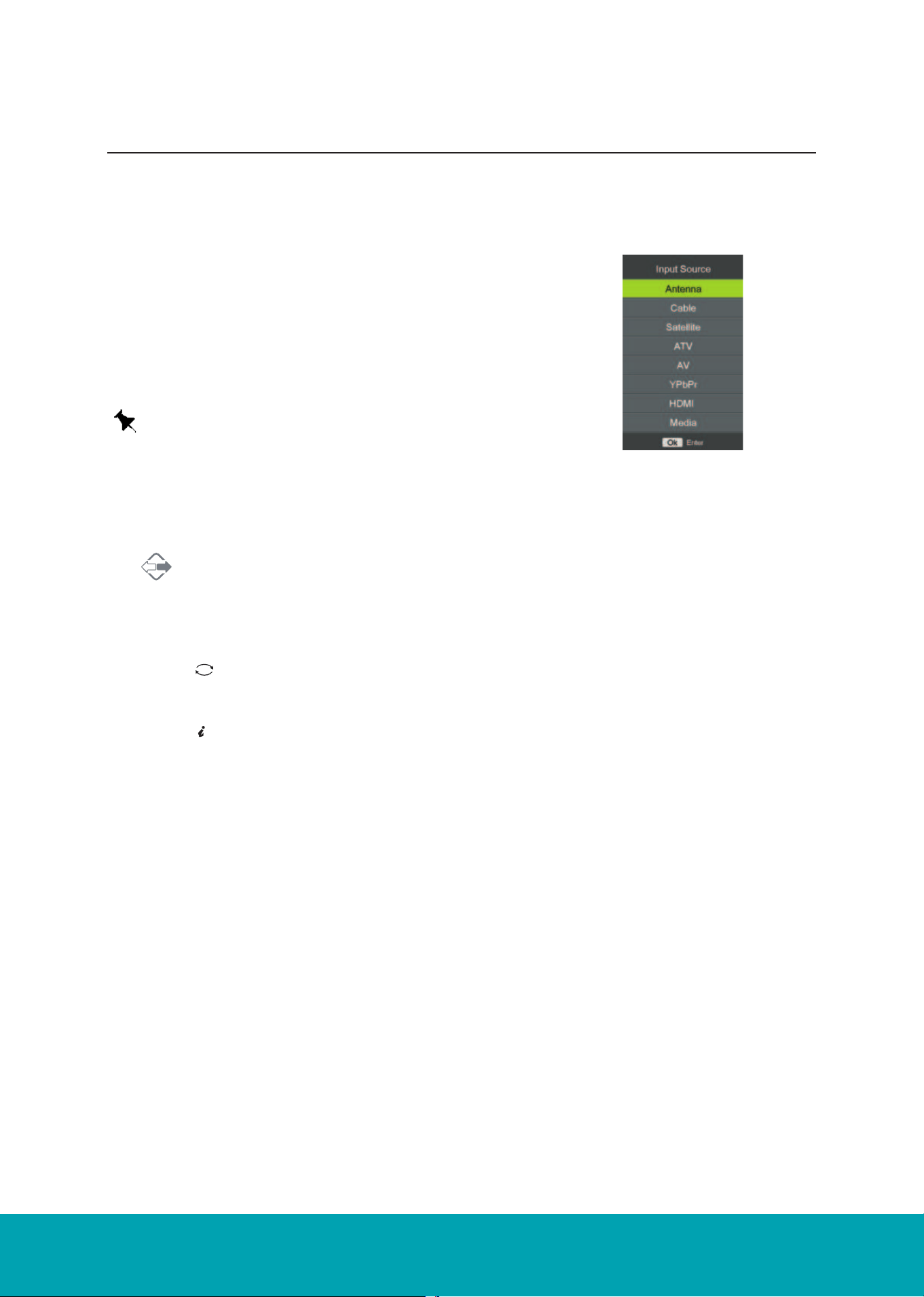

Basic Operation 13
Picture Setting 14
Sound Setting 15

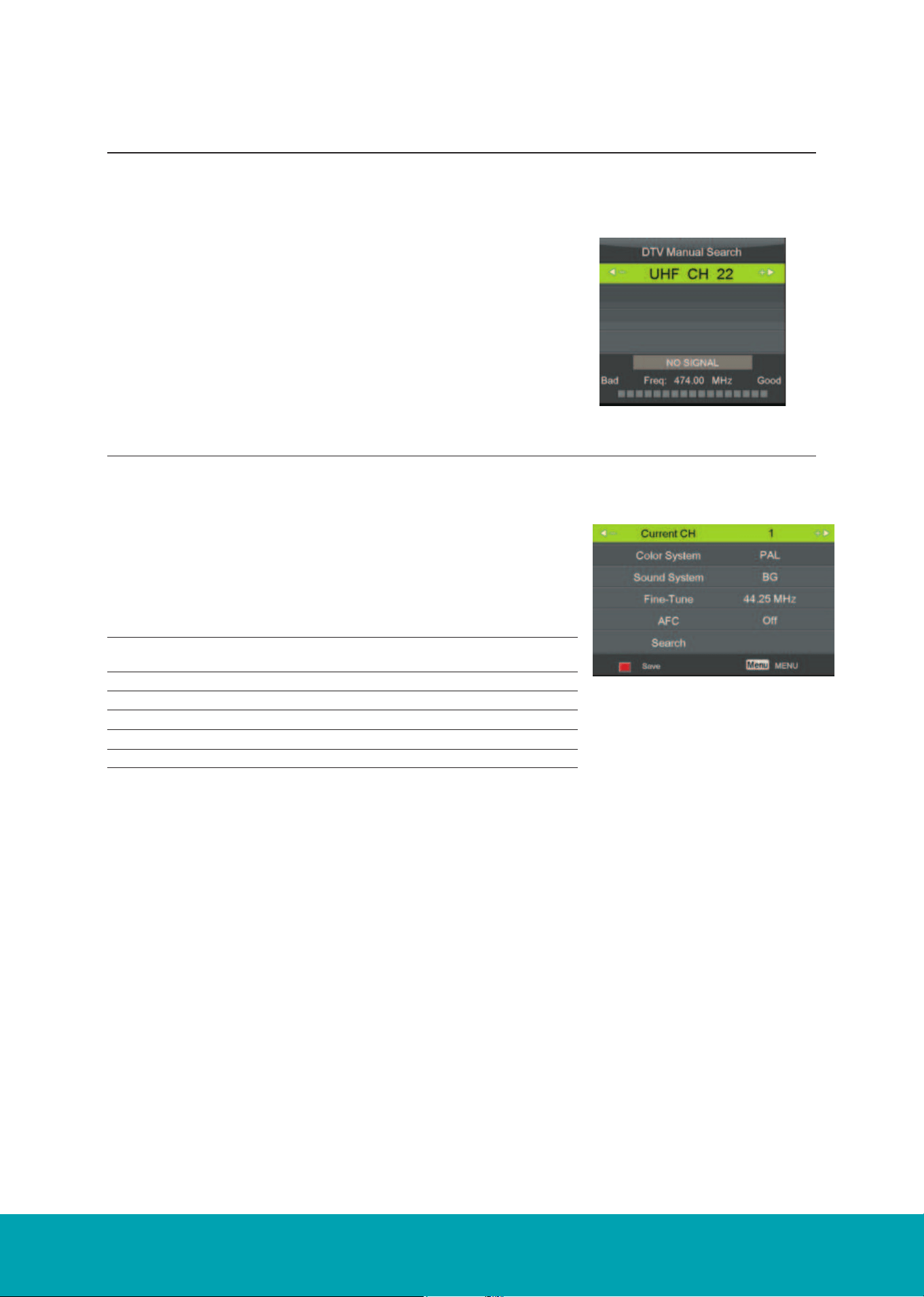

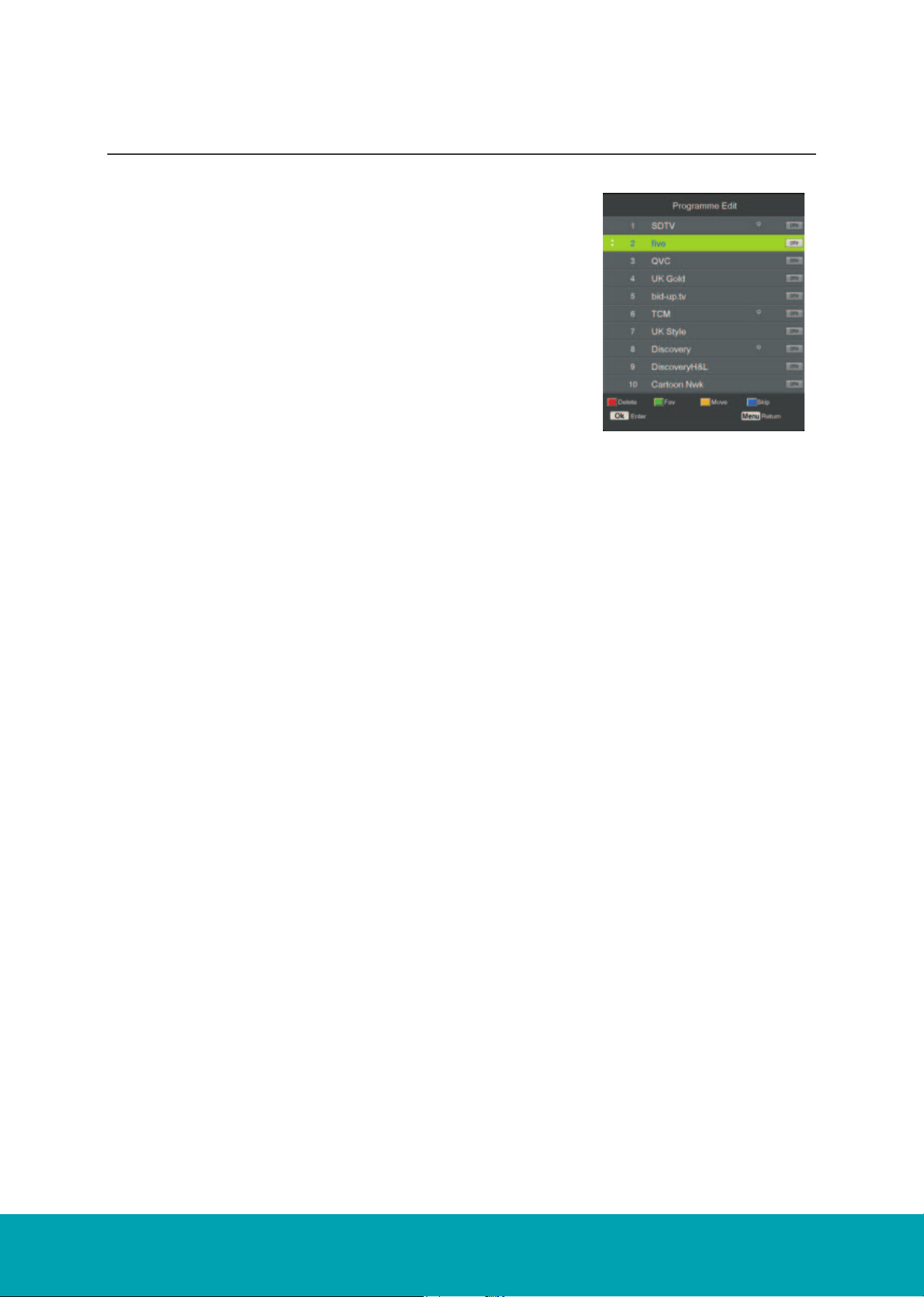

Channel Setting 20
Lock Setting 21
Time Setting 23
Option Setting 24
Connecting a USB Storage Device 25

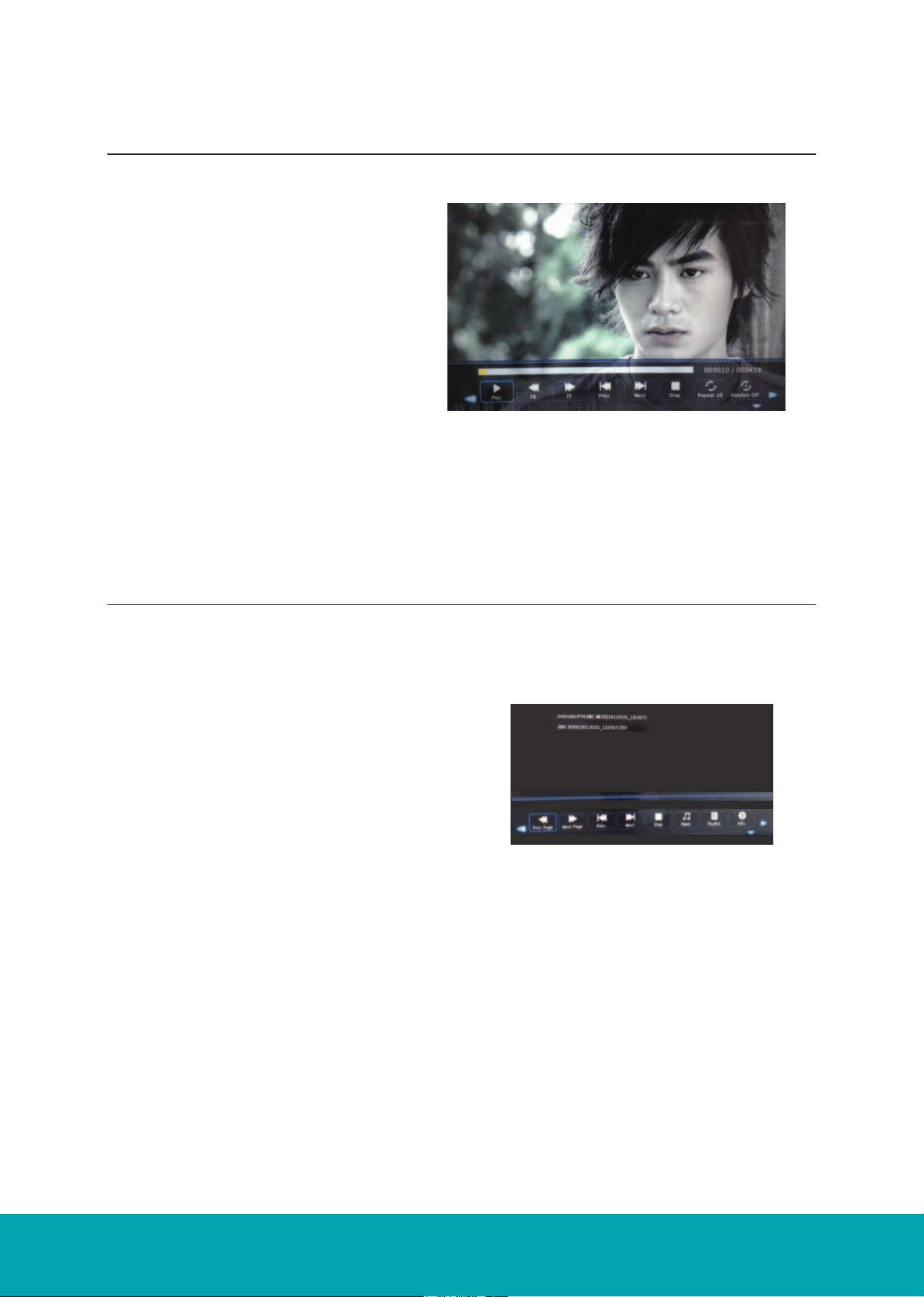

Multimedia Operation 26
Maintenance 29
Hints and Tips 29

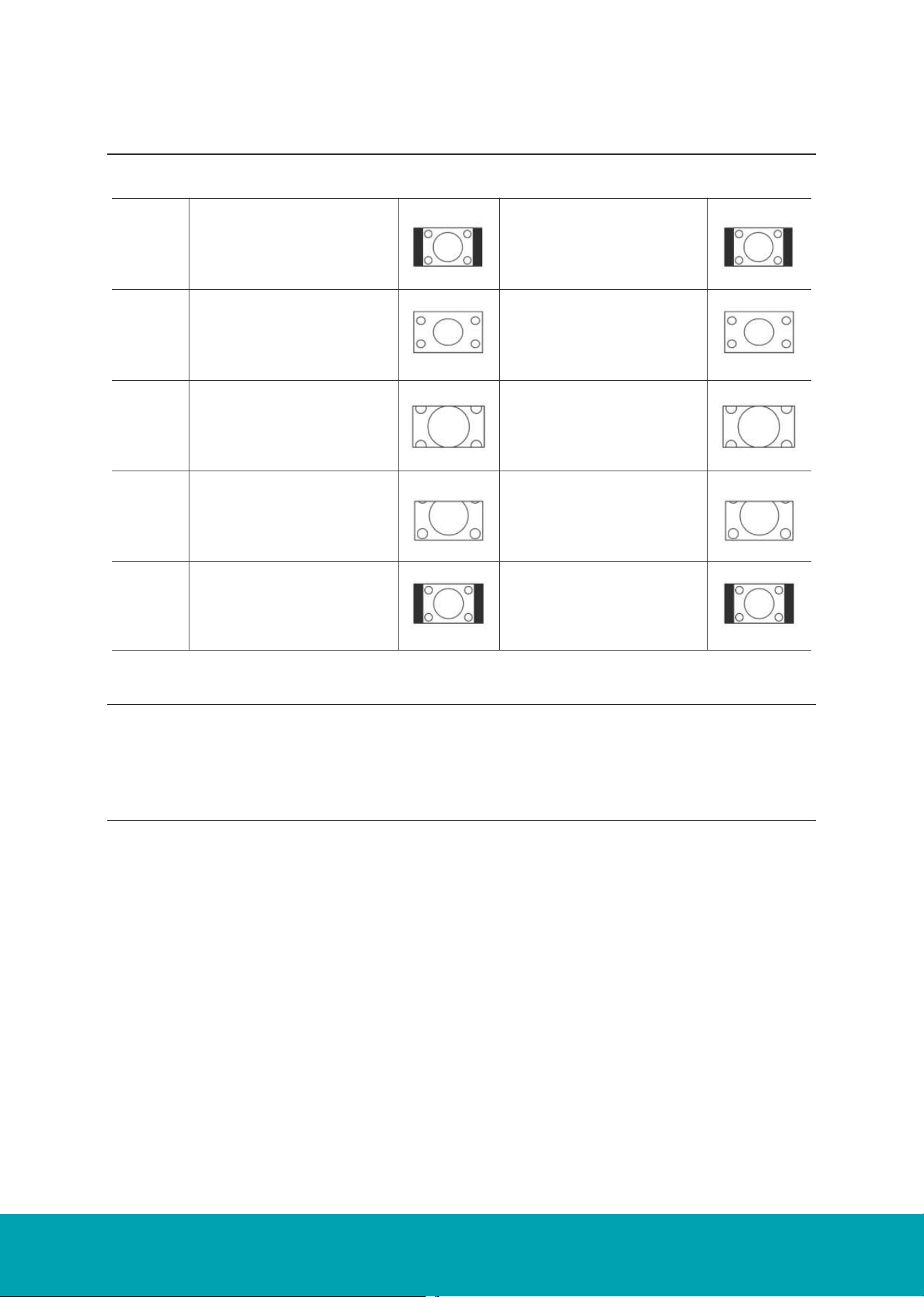

Display Modes 31
Specications 32
Safety Warnings 33
C2224SH Instruction Book
1
x 6
ST4x12
Thank you for purchasing your new 22" Full HD LED TV.

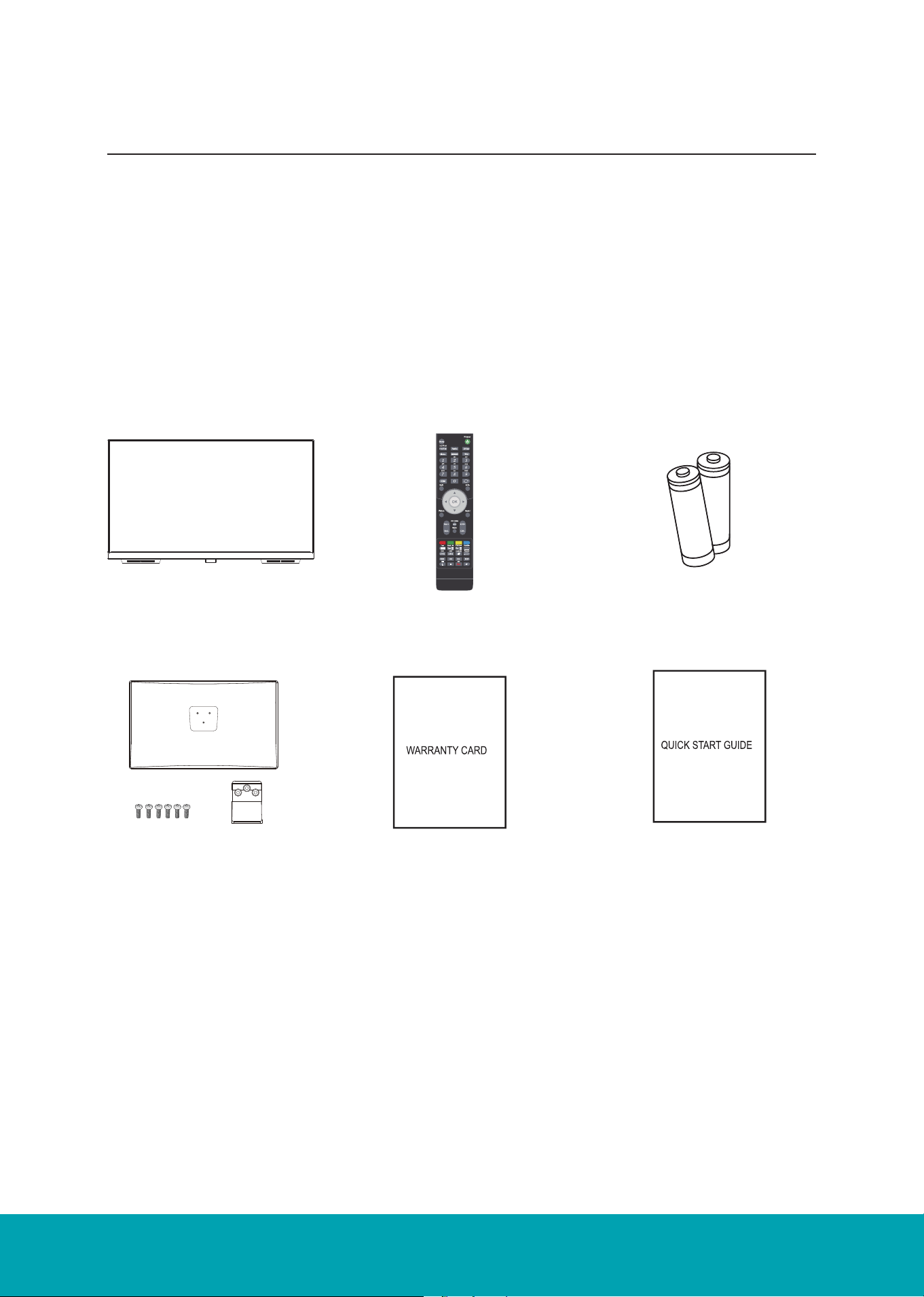

Unpacking the TV/ Accessories
TV Set
Stand
Remote Control Batteries
Quick Start Guide
Warranty Card
Your new TV has many features and incorporates the latest technology to enhance your viewing experience.
We recommend that you spend some time reading this instruction manual in order that you fully understand these
features. You will also find some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
C2224SH Instruction Book
2
TV set
Stand& Screws(ST4 x 12)
x 6
2
1
x 3
x 3

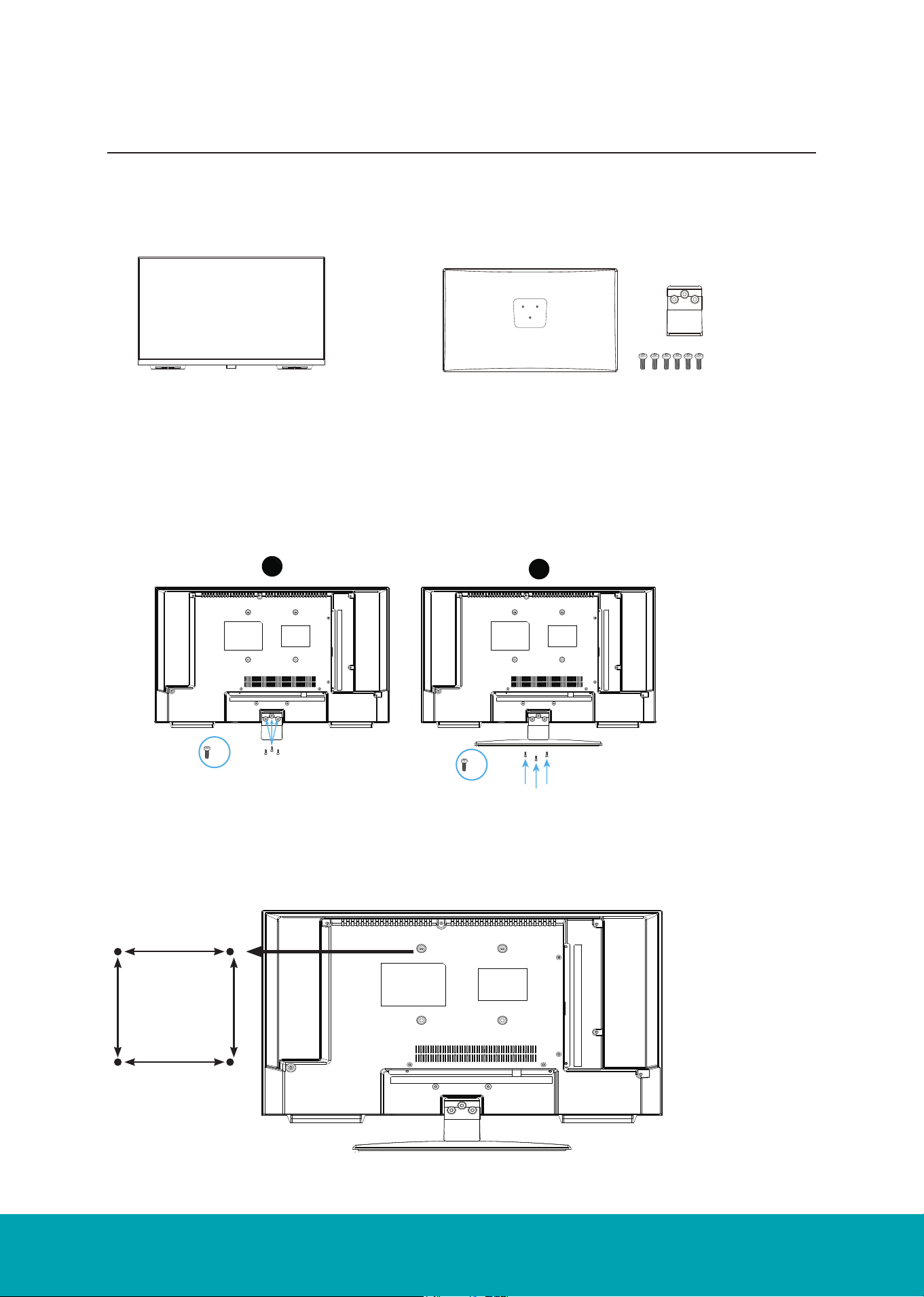

Installing / Removing the Base Stand
The Parts
Installation
Place the TV face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to the TV.
Attach the stand feet in the positions shown and secure them.
The Unit is VESA-Compliant and designed to be wall mounted with a VESA-Compliant
100x100 mm mounting kit.
Mount this unit according to the instructions of the wall bracket (not supplied)
100mm
Four Mounting Holes
Screw size M4 x 8
100mm
C2224SH Instruction Book
3
Front / Right Side View and Controls
Item Description
1. IR (Infrared Receiver) Receives IR signals from the remote control.
Do not put anything near the sensor, as its function may be affect-
ed.
2. POWER LED Illuminates green when the TV is turned on. Illuminates red when
the TV is in standby mode. The LED will alternate between red and
green when the PVR timer programming has started in the standby
mode.
3. STANDBY Switches the TV on from standby mode.
Switches the TV back to standby mode.
C2224SH Instruction Book
4
4
VIDEO L R

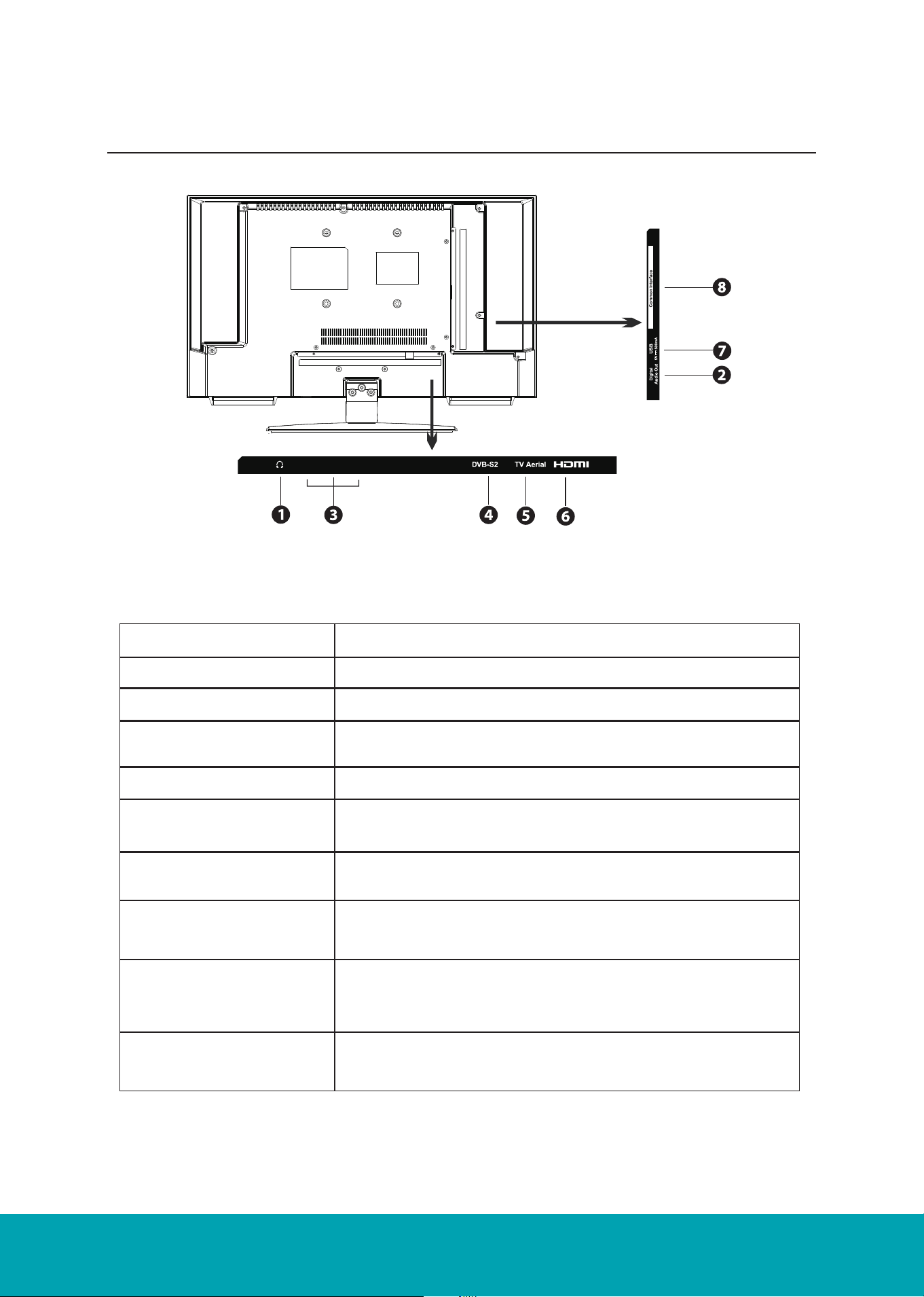

Rear View and Sockets
Socket Description
1. Headphone out To connect to the earphones.
2. Digital Audio Out Digital output to audio system
3. Video / AUDIO (L / R) To connect to a DVD player, Digital Set-Top-Box, or other AV
devices with composite (AV) video and audio output sockets.
4. DVB-S2 To connect a Satellite signal.
5. TV Aerial To connect to the aerial socket on the wall with the RF coaxial
cable
6. HDMI IN To connect to a High-Definition (HD) signal output device, such
as a set-top box, blu-ray disc player or AV receiver.
7. USB Allows the insertion of a USB storage device to play video,
audio, photo and text files (Media mode) and record DTV pro-
grammes on to a USB storage device.
8. Mini YPbPr To connect to a DVD player, Digital Set-Top-Box, or other AV
devices with component (YPbPr) video and audio output sock-
ets.
9. CI(Common Interface)
Slot
Allows the insertion of a Common Access Module.
C2224SH Instruction Book
5
5

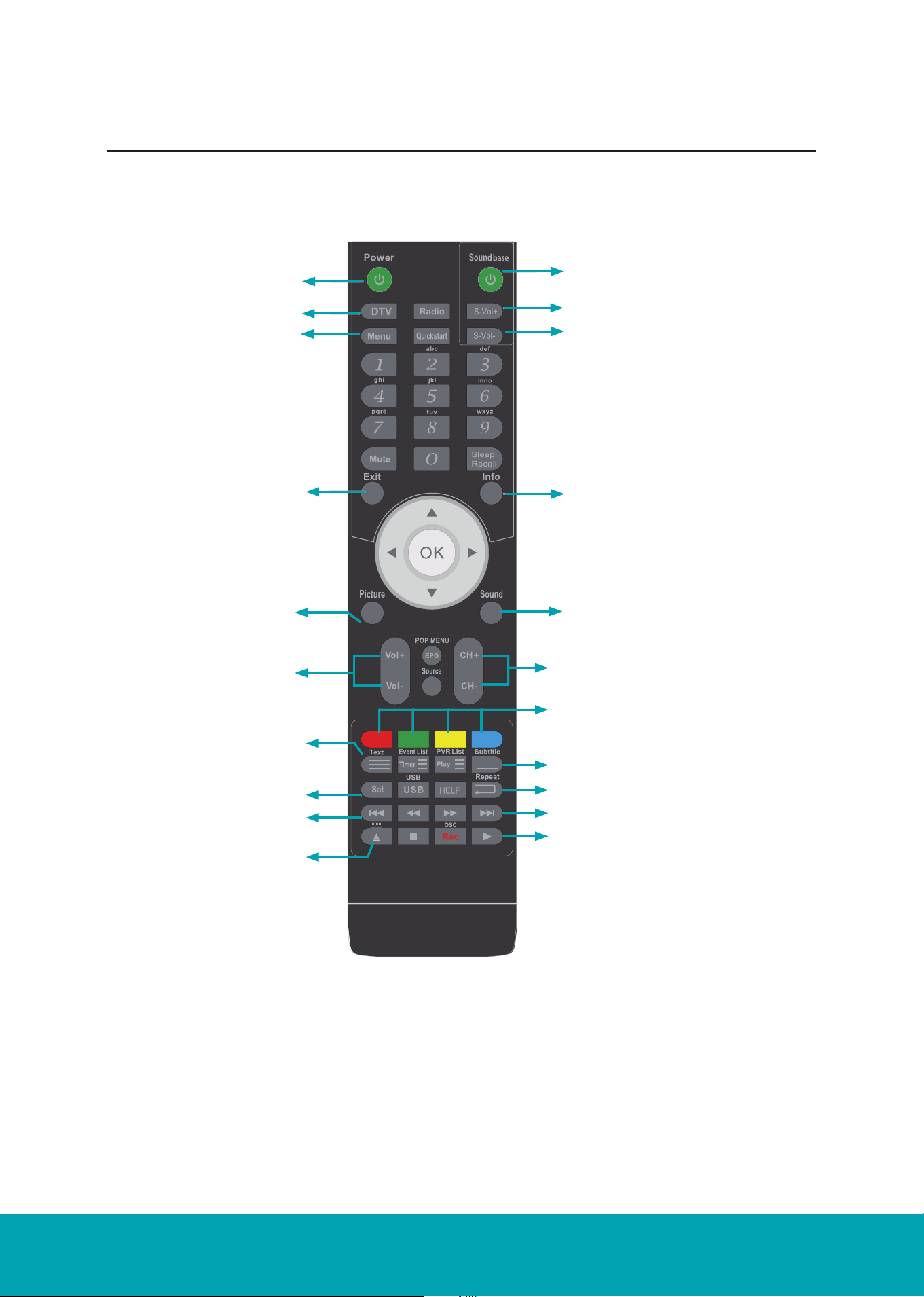

Rear View and Sockets
Dependant on the Model of the TV some keys will have no function
Power Turn on or standby
Sound base / Sound bar
On/Off
S-Vol+
Volume up
S-Vol-
Volume down
Sound / Nicam key
Info key
In DVD mode-shows now/next
2nd press Extended program info.
Whilst Recording Shows details of
recording and space available on
the Card.
TXT Mode - Index function
Channel +/-
Increase and decrease channel
number
Subtitle DVD and DTV mode only
Repeat Select the repeat mode
Prev Track, File, Day. (Medoia, PVR, EPG)
Pause / Play
PVR & Multimedia
Soft Keys
The action is shown on the menu and changes for
each menu. Reserved for MHEG in DTV
DTV Switch to DTV
Menu
Sound
Channel
Feature
Setup
Exit
Exit from
any menu
Picture / Aspect key
Volume +/-
Increase & decrease the
volume
Teletext / MHEG 5
You cannot record this
Sat Switch to Satellite Mode *
Prev Track, File, Day.
(Medoia, PVR, EPG)
Show the keyboard in Android mode *
DVD Eject
C2224SH Instruction Book
6
6

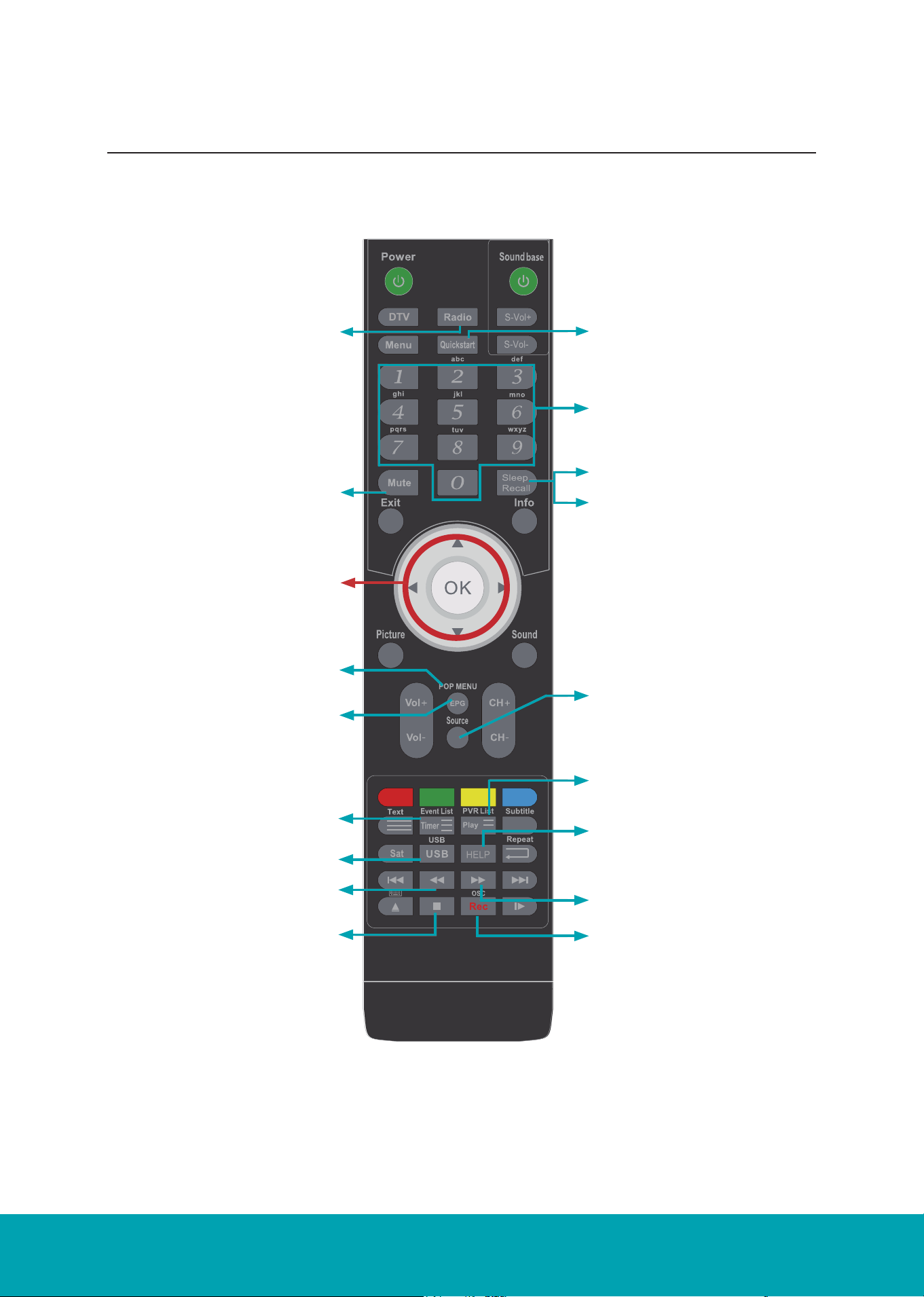

Remote Control
Functions of remote control buttons
Dependant on the model of the TV some keys will have no function
Radio Switch between TV & Radio Quickstart Searches all ATV and
DTV Channels
Sleep (for wakeup TV models
only) Activate the wake up function*
Recall
Go back to the last selected channel
Input
Satellite
DTV
ATV
AV
SCART
YPbPr
PC
HDMI
USB
PVR list
Display list of recorded programs
(DTV mode)
Help
This displays a page that gives tele-
phone numbers of service. Press to
enter, press again to exit
OSC
Show the OSC menu in blu-ray DVD*
Rec
Start recording
Number Buttons Press 0-9 to
select a TV channel directly when
you are watching TV. The channel
change after 2 seconds.
Mute Mute Sound
POP Menu Pop Menu in blu-ray DVD*
USB Switch to USB mode
Stop PVR and Multimedia
Fast Reverse
EPG Press to enter the EPG, and
press again to exit
Timer Show the schedule list.
(DTV mode)
Thumb Stick (▲/▼/◄/►/OK)
Allows you to navigate the on-
screen menus and adjust the system
setting to your preference
Fast Forward
C2224SH Instruction Book
7
7

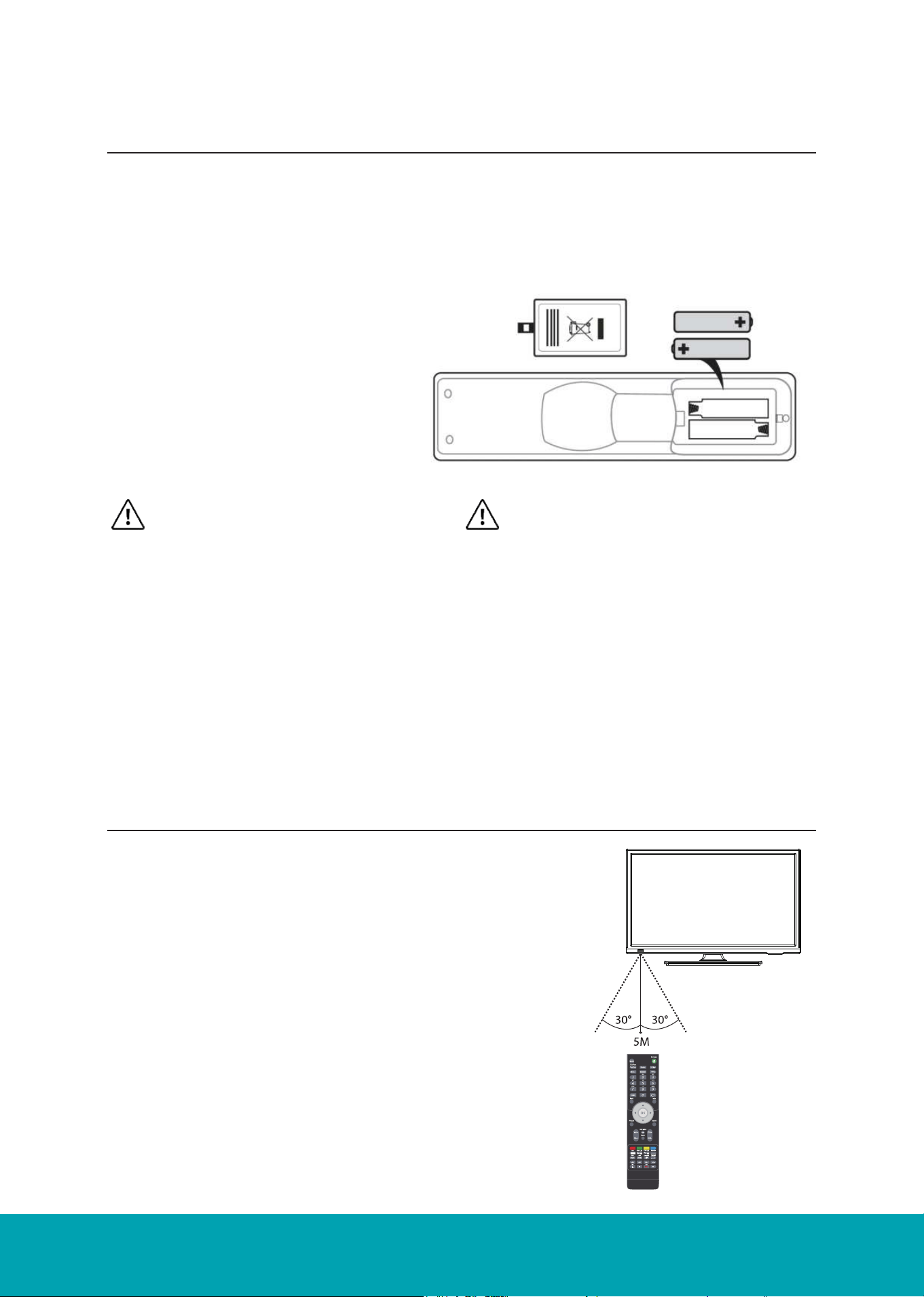

Installing Batteries in the Remote Control
Remote Control Operation Range
1. Press and lift the back cover to open the battery compartment of the remote control.
2. Insert two 1.5V AAA size batteries. Make sure to match the (+) and (-) ends of the
batteries with the (+) and (-) ends indicated in the battery.
3. Close the battery compartment cover.
Point the remote control at the TV no more than 5 meters frmo the remote
control sensor on the TV and within 60° in front of the TV. The operating
distance may vary depending on the brightness of the room.
Remote Code: 0156
To use your sky remote control with this TV follow the instructions
given with the sky remote to programme different codes.
Handling the Batteries
• Improper or incorrect use of batteries may
cause corrosion or battery leakage, which
could cause re, personal injury or damage to
property.
• Only use the battery type indicated in this
manual.
• When the batteries are exhausted, the remote
will not function. Replace both batteries at the
same time with new ones.
• Do not install new batteries with used ones
and do not mix different types of batteries.
• Do not dispose of used batteries as domestic
waste. Dispoe of them in accordance with
local regulations.
Handling the Remote Control
• Take care of your fingernails when you press
and hold the battery release tab.
• Do not drop or cause impact to the remote
control.
• Do not spill water or any liquid on the remote
control.
• Do not place the remote control under direct
sunlight or near sources of excessive heat.
• Remove the battery from the remote control
when not in use for a long period of time, as it
could cause corrosion or battery leakage and
may result in physical injury and/or property
damage including re.
C2224SH Instruction Book
8
L R H DM I VGA
TV A erial
VI DEO
Pow er
8
Making Video and Audio Connections
Connecting an AV Device with an HDMI Cable
Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV
device for compatibility and connection procedures.
When connecting any external AV device, do not connect the main cable to the main socket until all other
connections are complete.
• This TV can accept High-Definition Multimedia Interface (HDMI) and supports HDCP (High-Bandwidth Digital
Content Prorection) Protocol.
• The TC has a total of HDMI input sockets, please make sure the correct input source is selected corresponding
to your connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or comput-
er) switch to the HDMI function and the TV will automatically detect the resolution used by the HDMI source.
• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to
1920x1080p.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or comput-
er) switch to the HDMI function and the TV will automatically detect the resolution used by the HDMI source.
• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to
1920x1080p.
1. Use an HDMI cable to connect the TV’s HDMI
input socket to the external AV device’s HDMI
output socket.
2. Plug the connected devices in the main socket.
3. Press the STANDBY button on the TV or the
button on the remote control to turn on your TV.
4. Press the SOURCE button on the TV or the
SOURCE button on the remote control to display
the Source List. Use the ▲▼ buttons to select
HDMI and then press the OK button to
confirm.

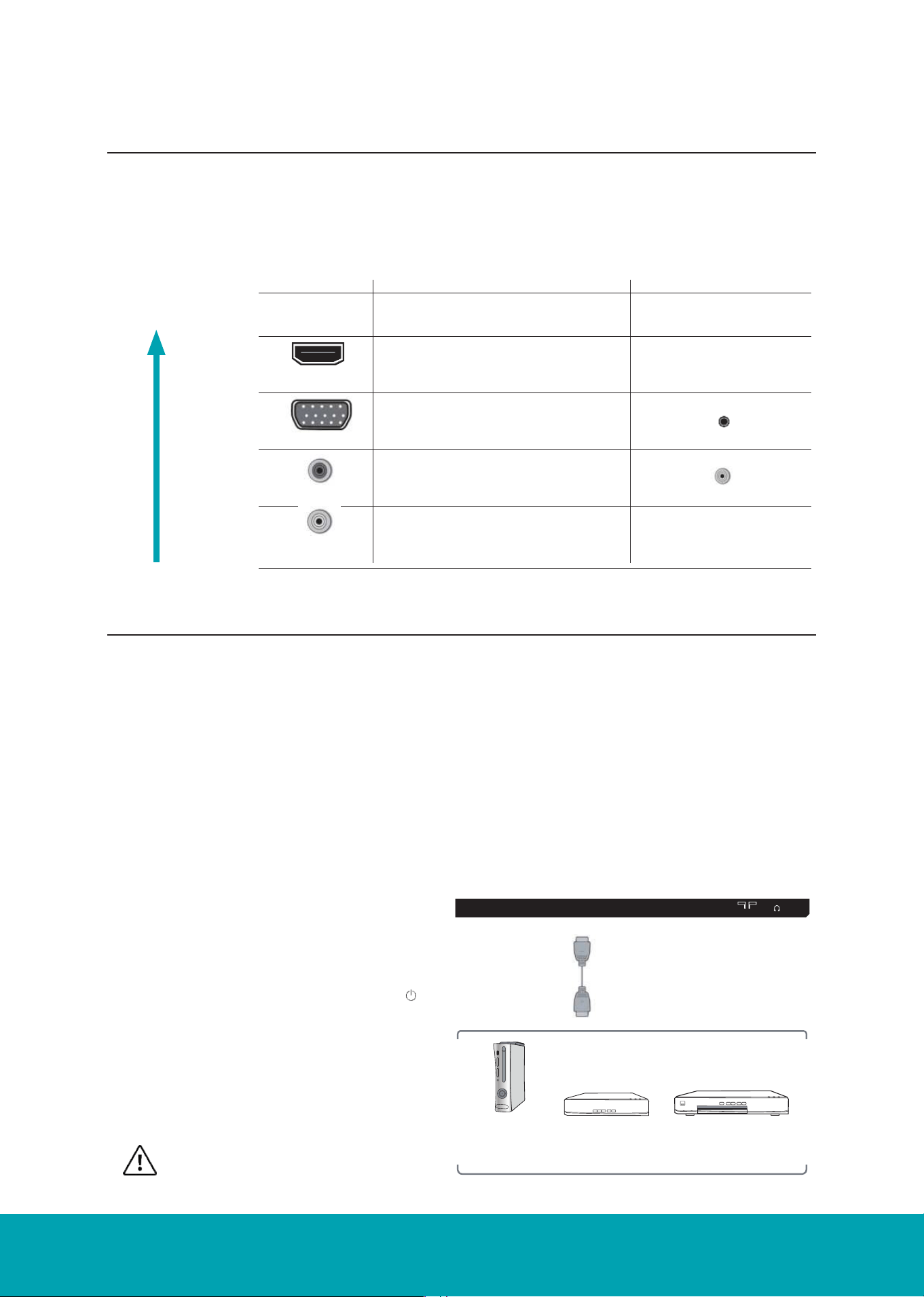

Signal Type
HDMI
(480i/480p/576i/576p/720p/1080i/1080p)
Component Video
(480i/480p/576i/576p/720p/1080i/1080p)
PC
Composite Video
Separate Audio
Connection Required
HDMI
VGA
Mini YPbPr
Mini AV
No
No
Yes
Yes
PC Audio
Mini AV
Best Video
Performance
Rear View of TV
Although this TV is able to connect to an HDMI
device, it is possible that some devices may not
operate correctly.
HDMI Cable
(ot included)
Game Console Set-top Box
8
Blu-ray Player/DVD
Player/Recorder
8
C2224SH Instruction Book
9
Making Video and Audio Connections

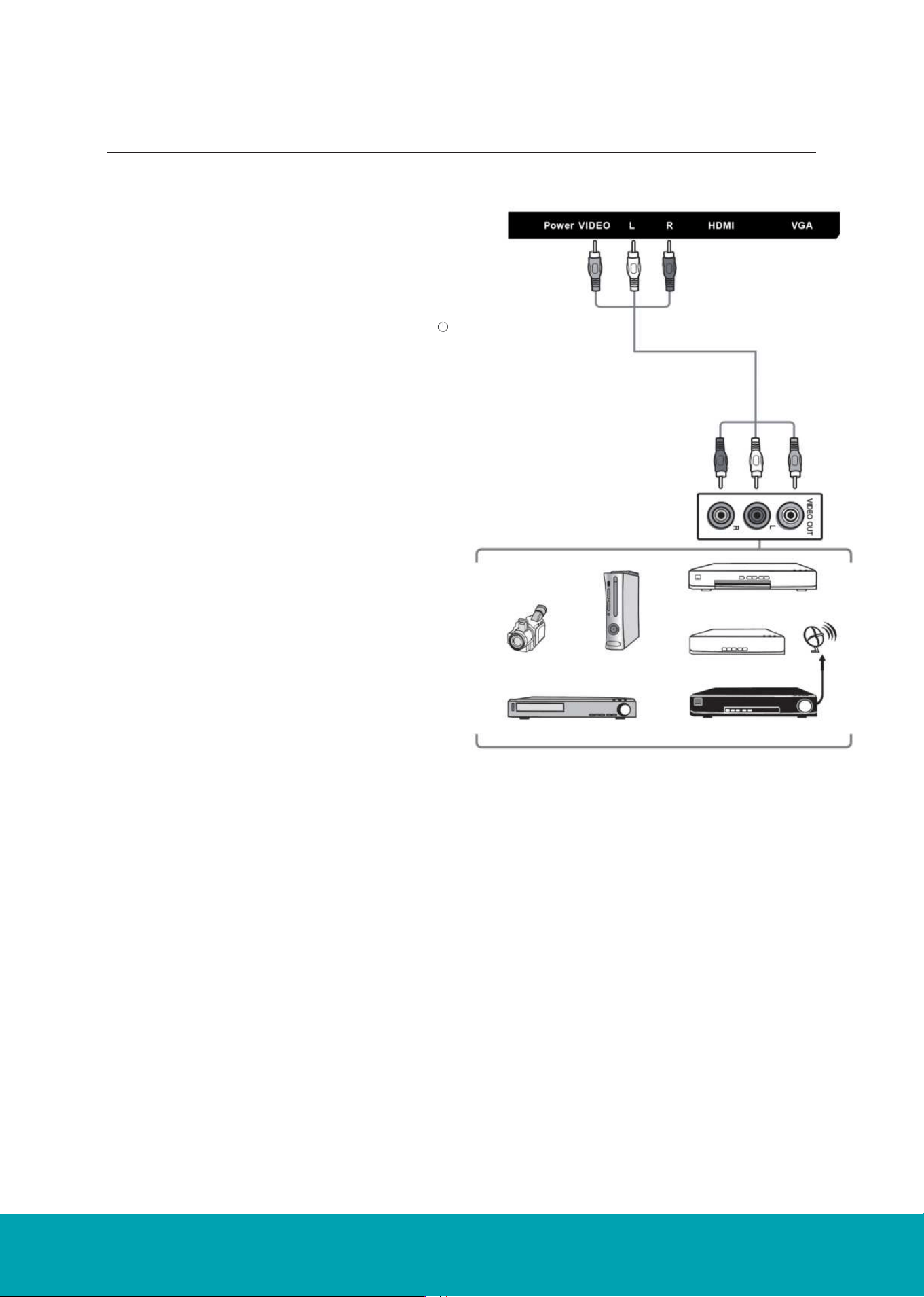

1. Use an AV cable to connect the TV’s Mini AV in-
put sockets to an external AV device’s compos-
ite audio/video sockets. (Video=yellow, Audio
Left=white, and Audio Right=red)
2. Plug the connected devices into the main
socket.
3. Press the STANDBY button on the TV or the
button on the remote control.
4. Press the SOURCE button on the TV or the
SOURCE button on the remote control to
display the Source List. Use the ▲▼ buttons
to select AV and then press the OK button to
ocnfirm.
Rear View of TV
Yellow (Video)
White (L)
Red (R)
Yellow (Video)
White (L)
Red (R)
AV Cable
(not included)
Video Camera Game Console Set-top Box
Satellite
Antenna
cable
Satellite Receiver
VCR
DVD Player/Recorder
C2224SH Instruction Book
10

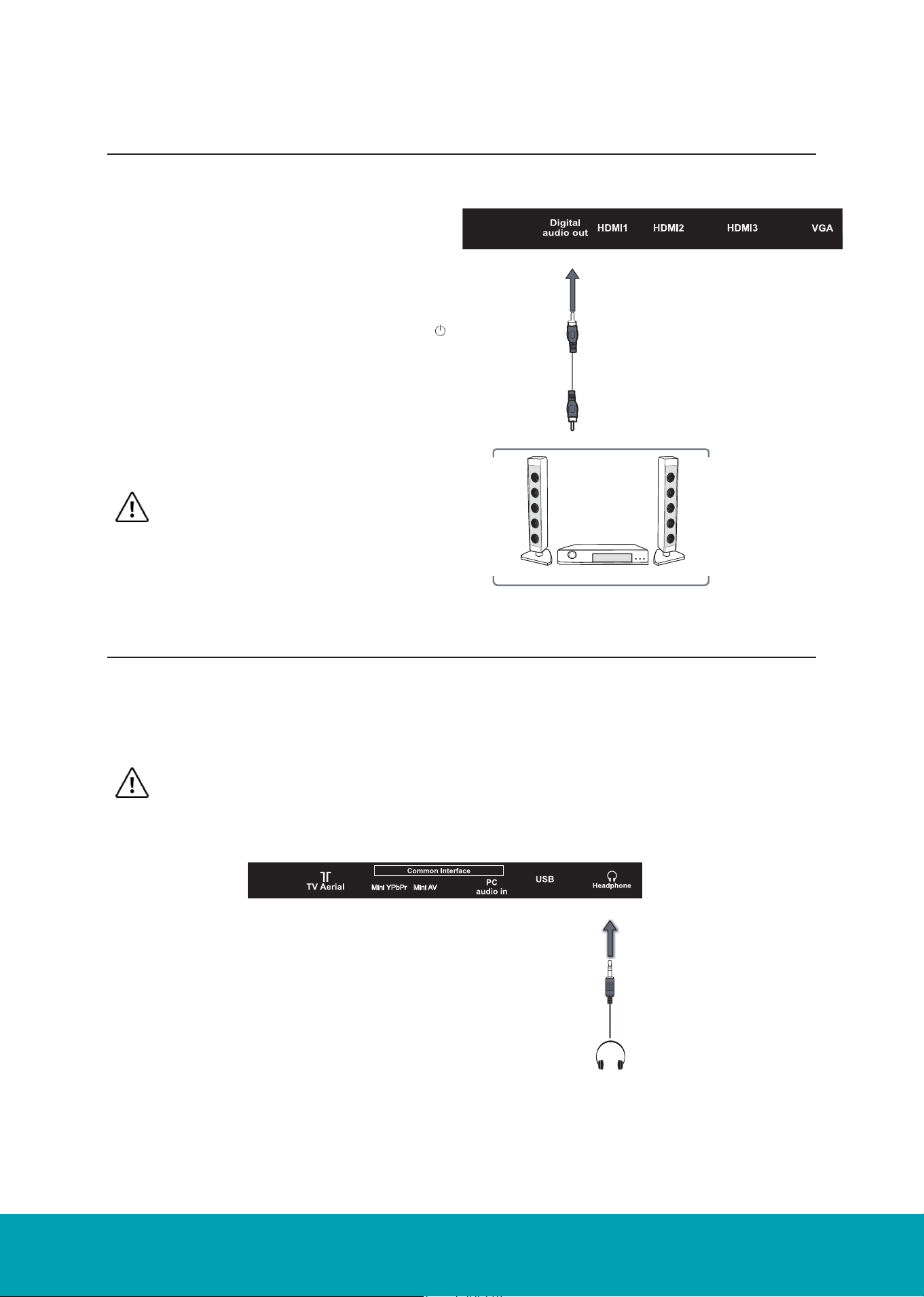

Connecting a Digital Audio Receiver
Connecting Headphones
1. Use an audio cable to connect the TV’s Digital
Audio out socket to an external audio receiver’s
audio coaxial input socket.
2. Plug the connected devices into the main
socket.
3. Press the STANDBY button on the TV or the
button on the remote control.
4. Press the SOURCE button on the TV or the
SOURCE button on the remote control to
display the Source List. Use the ▲▼ buttons
to select PC and then press the OK button to
confirm.
For better sound quality, you may want to play the audio through your multi-channel audio receiver.
Connect your headphones to the TV’s Headphone out socket.
Before putting on headphones, turn the volume down then put the headphones on and slowly increase the
volume until you reach a comfortable listening level.
The TV›s volume control will have no effect. You may
control the audio level via the Audio Receiver.
Long-term exposure to loud music may cause hearing damage. It is best to avoid
extreme volume when using earphones, especially for extended periods.
11
Mini YPbPr Mini AV
Audio Cable
(not included)
Audio Receiver
Rear View of TV
Rear View of TV
11
Mini YPbPr Mini AV
Earphones Cable
(not included)
C2224SH Instruction Book
11
1. Connect one end of the RF coaxial cable to the
aerial socket on the wall and other end of the
cable to the aerial socket at the rear bottom of
your TV.
2. Connect the main cable to the main socket
after you have completed all the connections.
3. At this stage, the TV switches to the main
socket after you have completed all the con-
nections.
4. In standby mode, press the STANDBY button
on the TV or the button on the remote con-
trol to turn the TV on. The LED indicator will
change from red to green.
Turning the TV on for the First Time
Do not connect the TV to the main supply until you
have completed all the connections.
• Always disconnect the TV from the main socket
when not in use for a long period of time
• The STANDBY button on the rear right side of the TV
or the button on the remote control is only used for
switching the TV into standby, it does not disconnect
the TV from the main power. To completely
disconnect the main power, please remove the main
cable from the main socket.
The STANDBY button is located on the rear
right side of the TV.
RF coavial cable
(not included)
5. If this is the first time you are turning on the TV and there are no programs in the TV memory, the Quick
Start menu will appear on the screen. There are 4 steps as follow:
1
3
2
4
C2224SH Instruction Book
12
• Press the Info button to view the current information.
• Press the VOL +/- button on the TV or on the remote control to adjust the volume.
• If you wish to switch the sound off, press the Mute button. Press the Mute button again or the VOL+ or - button to
resume audio listening.
/
1. Press the Source button on the TV or the Source button on the
remote control to display the input source list.
2. Press the ▲▼ buttons to select the input source that you want.
3. Press OK button to confirm your selection. If you do not press
the OK button to confirm, the TV will automatically confirm the
selected input source within 4 seconds.
Selecting the Input Source
Channel Section
Display Channel Information
Volume Adjustment
In DTV mode, press the Radio button to switch to TV/digital radio
channels directly.
• Press the CH+/- buttons on the TV or on the remote control repeatedly or the 0-9 buttons on the remote control to
select the channel.
• If a blocked channel is selected, the password screen will be displayed. Press the 0-9 buttons to enter the pass-
word, the channel will then be unlocked (refer to page 20 for details on LOCK)
• Press the button to return to the previously viewed channel.
/
Press the OK button to enter the Channel List. Then use the ▲▼ buttons to highlight and select the channel.
Press the OK button to view the selected channel.
Alternative
/
/
C2224SH Instruction Book
13
Basic Operation

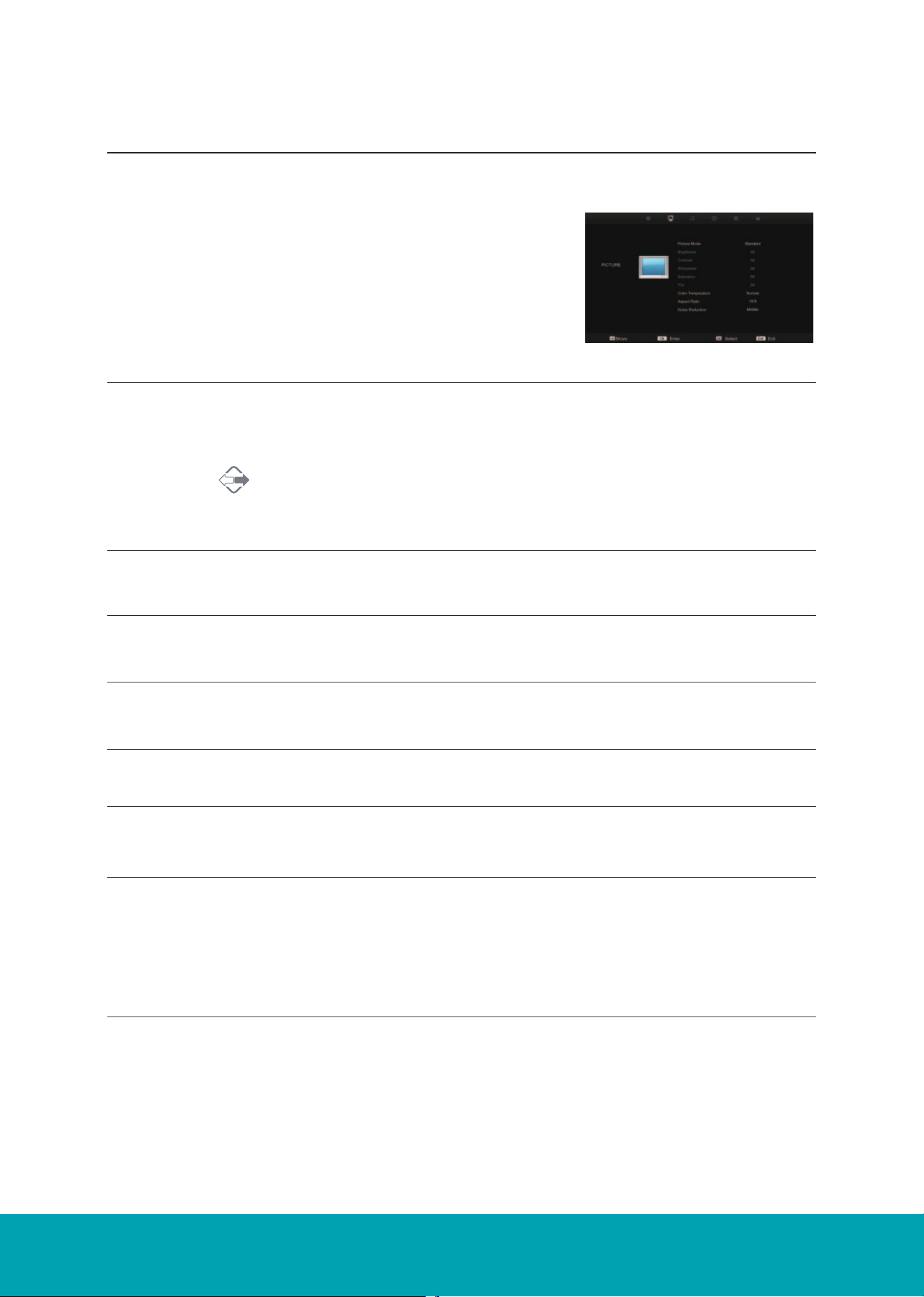

Allows you to set your preferred picture mode.
Picture Mode
Brightness
Contrast
Sharpness
Saturation
Tint (For
NTSC format)
Color
Temperature
Aspect Ratio
1. Press the Menu button and then press the ◄► buttons to select
the PICTURE menu.
2. Press the OK or ▼ buttons and then press the ▲▼ buttons to
select the PICTURE menu.
Press ▲▼ buttons to cycle among picture mode: Dynamic /
Standard / Mild / User and then press the OK button to confirm.
Press the ◄► buttons to increase or decreases the amount of white in the picture. (for
User mode)
Press the ◄► buttons to adjust the difference between light and dark levels in the pic-
ture. (for User mode)
Press the ◄► buttons to adjust the level of crispness in the edges between light and dark
areas of the picture. (for User mode)
Press the ◄► buttons to increase or decrease the saturation.
Press the ◄► buttons to adjust the balance between red and green levels. (Tint is only
available for NTSC signal input via the SCART or AV IN)
Press the ▲▼ buttons to cycle among colour temperature: Standard / Cool / Warm and
then press the OK button to confirm.
Adjusts the colour components independently to achieve a warm or cool.
• Standard
• Cool: Increases the blue tint
• Warm: Increases red tint
Press the ▲▼ buttons to cycle among aspect ratio: 4:3 / 16:9
Auto / Zoom1 / Zoom2 and then press the OK button to confirm.
/
You may press the Picture button once and then press the ◄►
buttons to select the picture mode directly.
Alternative
C2224SH Instruction Book
14
Picture Setting
This selection will allow you to
view a picture with an original
4:3 aspect ratio. Black bars will
appear on both the left and right
of the screen.
This selection will allow you to
view a picture with an original
4:3 aspect ratio. Black bars will
appear on both the left and right
of the screen.
This selection will allow you to
view a picture with an original
4:3 aspect ratio. Black bars will
appear on both the left and right
of the screen.
This selection will allow you to
view a picture with an original
4:3 aspect ratio. Black bars will
appear on both the left and right
of the screen.
This selection will allow you to
view a picture with an original
4:3 aspect ratio. Black bars will
appear on both the left and right
of the screen.
This selection will allow you to
view a picture with an original
4:3 aspect ratio. Black bars will
appear on both the left and right
of the screen.
This selection will allow you to
view a picture with an original
4:3 aspect ratio. Black bars will
appear on both the left and right
of the screen.
This selection will allow you to
view a picture with an original
4:3 aspect ratio. Black bars will
appear on both the left and right
of the screen.
This selection will allow you to
view a picture with an original
4:3 aspect ratio. Black bars will
appear on both the left and right
of the screen.
This selection will allow you to
view a picture with an original
4:3 aspect ratio. Black bars will
appear on both the left and right
of the screen.
4:3
16:9
Zoom1
Zoom2
Just scan
(in HDMI
mode
only)
Noise
Reduction
Press the ◄► buttons to select to reduce the noise level of the connected
device: Off / Low / Middle / High and then press the Menu button to confirm.
3. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.
C2224SH Instruction Book
15

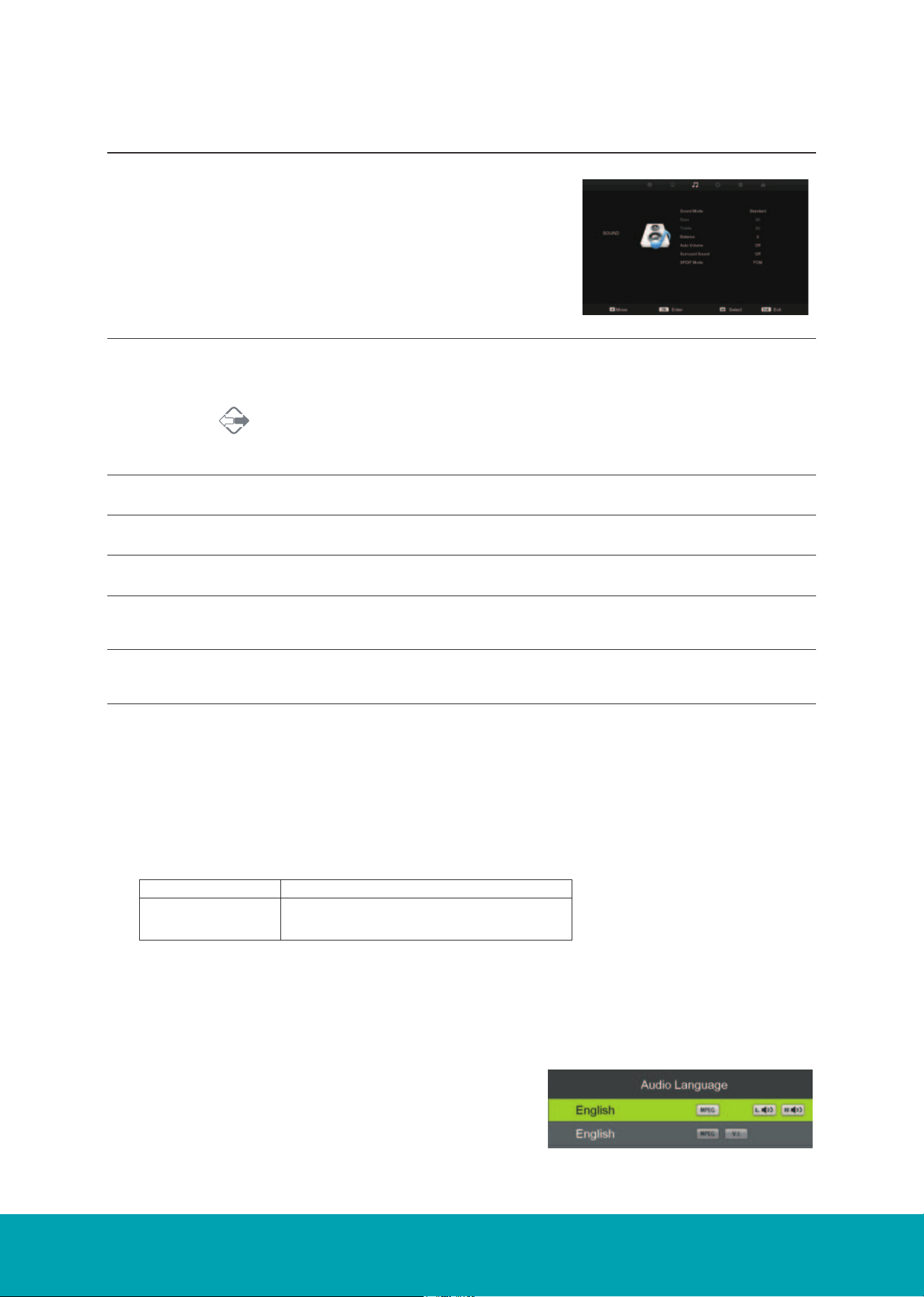

Sound Setting
Allows you to select an audio-enhancement technique.
1. Press the Menu button and then press the ◄► buttons to select
the SOUND menu.
2. Press the OK or ▼ buttons and then press the ▲▼ buttons to
select the following sound options and then press the OK button.
Sound Mode Press ▲▼ buttons to select an audio-enhancement technique:
Standard / Movie / Music / Sports / User and then press the MENU button to confirm.
/
You may press the Sound button once and then press ◄►
buttons to select the sound mode.
Alternative
Bass
Treble
Balance
Auto
Volume
Surround
Sound
SPDIF
Mode
Press the ◄► buttons to control the relative intensity of lower-pitched sounds. (for user mode)
Press the ◄► buttons to control the relative intensity of higher-pitched sounds. (for user mode)
Press the ◄► buttons to control the relative volume of speakers in a multiple speaker system.
This feature automatically adjusts the audio level when the TV is turned on. This function is
acitivated by selecting “ON”
Turn on/off the surrond sound function by selecting “On” or “Off”
Select the spdif mode for the TV from off, PCM and Auto.
3. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.
When a programme is selected, press the Sound button twice and then press the ◄► buttons to select Mono/
Nicam Stereo for the selected station.
If the stereo signal is weak in the stereo reception, you can switch to mono by pressing the Sound button twice and then
press the ◄► buttons to select Mono/Nicam Stereo. In mono reception, the clarity of sound is improved. To switch
back to stereo, press the Sound button twice and then press the ◄► buttons to select Mono/Nicam Stereo again.
While watching a DTV programme, you can press the Sound button to
display the audio language list (only applicable when the TV programme
has its feature).
Press the ▲▼ buttons to select an audio language or audio format if
available and then press the ◄► buttons to select sound track between
Left, Right and Stereo. Press the OK button to confirm and exit.
Volume Adjustment
Mono Sound Selection
Speaker Sound Output Selection (DTV Mode)
Broadcast
Mono
Stereo
On Screen Display
MONO
NICAM STEREO
C2224SH Instruction Book
16
▲
▼
Channel Setting (ATV, DTV or Radio Mode)
Allows you to setup a variety of channel options
Auto Tuning
1. Press the Menu button and then press the ◄► buttons to select
the CHANNEL menu.
2. Press the OK or ▼ buttons and then press the ▲▼ buttons to se-
lect the following channel options and then press the OK button.
1. Press the ▲▼ buttons to Auto Tuning then press the OK button to
confirm.
2. In the Auto Tuning menu, there are 2 options for you to select
from: Tune Type and Country.
3. Press the Menu Button to return back to the main menu.
4. Press the Exit button to exit the menu.
▲
▼
C2224SH Instruction Book
17
1. Press the ▲▼ buttons to ATV Manual Tuning then press the OK
button to confirm.
2. Select ATV manual search item to enter air channel manual
search in ATV source and the user operation interface as following
3. Press the Menu button to return back to the main menu.
4. Press the Exit button to exit the menu.
Channel Setting (ATV, DTV or Radio Mode)
DVB - T Manual tuning
ATV Manual tuning
How to search Digital Channels manually.
To search analogue channel by entering parameters manually.
1. Select DVB-T Manual Tuning, press the OK button to confirm.
2. Select a channel number by pressing the ► button or by using
the number buttons on the remote control. The strength and
quality of the signal indicaiton bars are below.
3. Select Start to begin the search.
4. To exit the tuning menu press EXIT.
ered location of
Storage To 1 Press the ◄► buttons to change teh numbered location of the
found channel.
Sound System Selects the sound system: BG / DK / I / L / L’.
Color System Selects the color system: Auto / SECAM / PAL.
Current Channel Displays the current channel number.
Search Press ◄► buttons to start the manual training.
Fine-Tune Press ◄► buttons to make manual fine tuning adjustments.
C2224SH Instruction Book
18
Channel Setting (TV, DTV or Radio Mode)

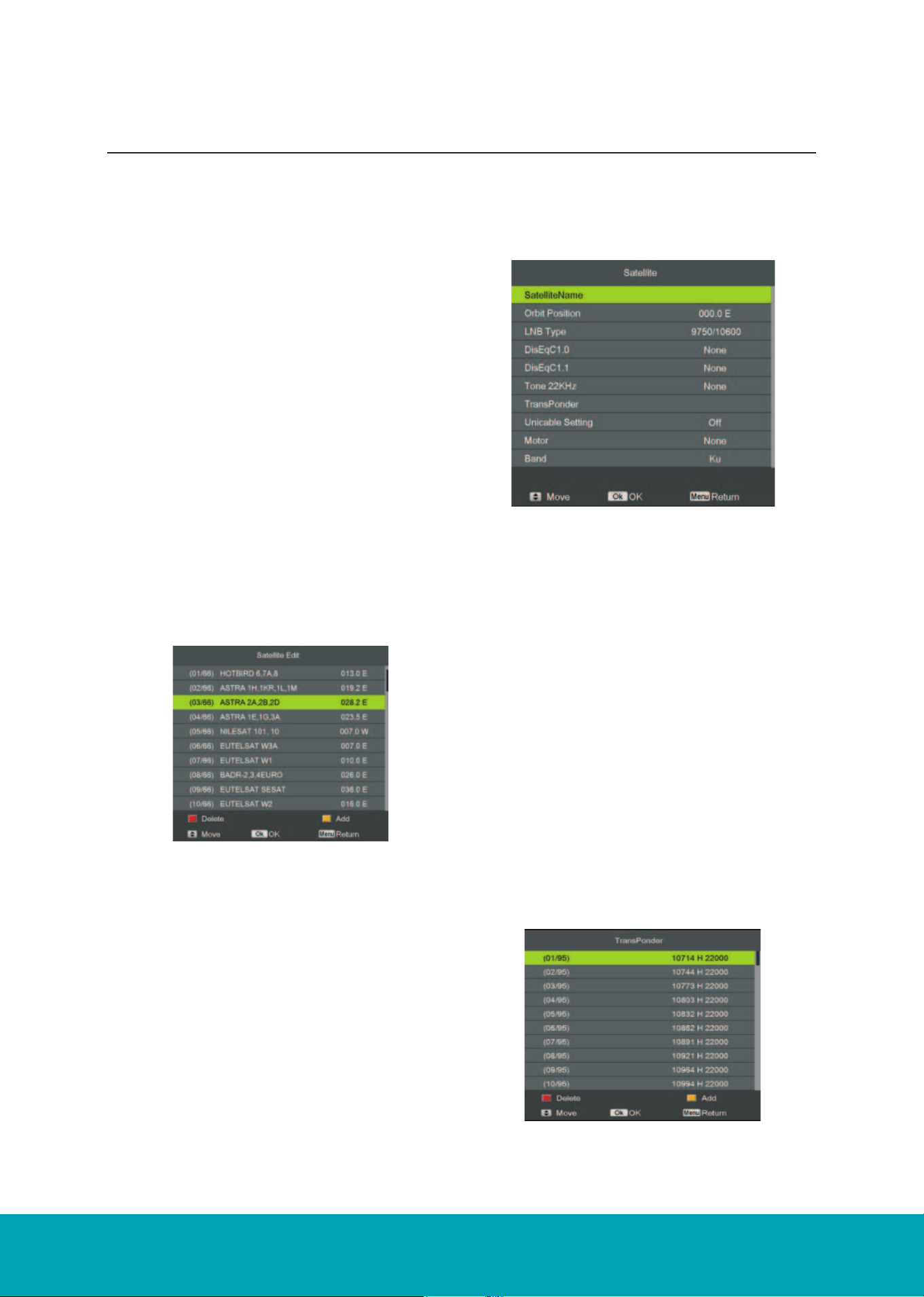

Satellite Edit
Satellite List
Satellite Edit
1. If you do not have a fixed dish aligned to Astra 19.2E
fitted with universal LNB you will need to use this
section.
2. If you have a fixed Dish aligned to a different Satel-
lite or with a different LNB you will need to use this
section.
3. If you have a motorised Dish with a DiSEqc rotator
and wish to tune more than one satellite you will need
this section.
4. If you are on a DiSEqC switch system you will need
this section.
The first 2 installations can be done by most people so
long as you know what satellite your dish is aligned with
and what type of LNB it is fitted with.
Installation of 3 & 4 require experienced user or engineer.
Satellite name: Press the OK button to open the edit menu as
below image.
Press the number buttons on the remote to edit the name.
Orbit Position: Press the number buttons to edit longitude angle
and press LEFT / RIGHT button to change longitude direction.
LNB type: LNB Frequency
DiSEqC1.0: 4 select 1 switch (Require the user device support
DiSEqC 1.0 protocol). Press ◄► to select LNB1/LNB2/LNB3/
LNB4/None.
LNB1/LNB2/LNB3/LNB4/: Corresponding to a satellite, after
selecting the corresponding list will appear in the satellite list.
DiSEqC1.1: 16 select 1 switch (Require the user device support
DiSEqC1.0 protocol) Equipment needs support DiSEqC 1.1
protocol, most control 16 ↑LNB. Press ◄► to select LNB1 ~
LNB16None.
LNB 1-LNB 16: Correspinding to a satellite, after selecting the
corresponding list will appear in the satellite list.
Tone 22KHz: The level of the LO switch/DS switch (Require the
user to have installed 22KHz Satellite signal switch). Press ◄►
to select Auto/On/Off.
Transponder: Press OK button to edit the transponder.
The Satellite list displays the satellite names.
No. The current list number of the selected satellite Satellite
name. The No. cannot be edited.
C2224SH Instruction Book
19
Channel Setting (TV, DTV or Radio Mode)

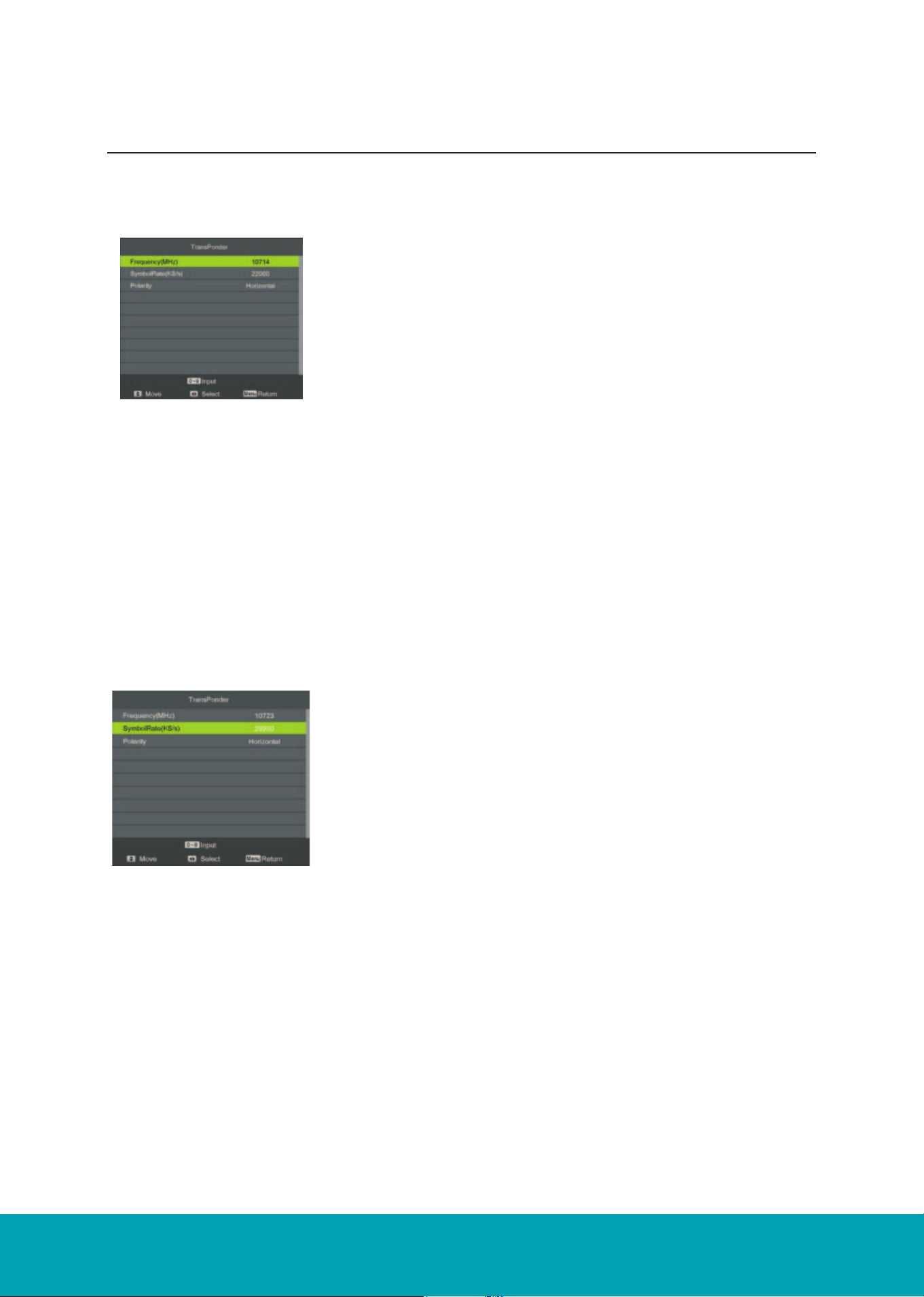

Edit Transponder Menu
Press OK button to edit the Transponder Motor: Control of multi-satellite polar (Require the
user device support DiSEqC 1.2 or DiSEqC 1.3
protocol), left and right buttons to select DiSEqC
1.2 / DiSEqC 1.3 / None.
DiSEqC 1.2: DiSEqC 1.2 Protocol selection
DiSEqC 1.3: DiSEqC 1.3 Protocol selection
For Motor definite “DiSEqC 1.2”, operating instruc-
tions:
Press RED button to enter “Set Limit” menu.
Press OK button to enter Set Position menu.
Band: Band selection, press LEFT/RIGHT button to
select.
Press RED button to delete a Satellite.
Press Yellow button to Add a New Satellite.
Frequency: Set the downlink frequency.
Symbol (ks/s): Set the Symbol Rate.
Polarity: Set the polarity (horizontal or vertical).
Delete Transponder
Press the RED button to delete the Transponder.
Add Transponder
Press the Yellow button to delete the Transponder.
Frequency: Set the downlink frequency.
Symbol (ks/s): Set the Symbol Rate.
Polarity: Set the polarity (horizontal or vertical).
C2224SH Instruction Book
20
.
button again to cancel it.
.
Channel Setting
Programme Edit
Delete
Favorite
Skip
Signal Information
CI Information
Software Update (USB)
Use up/down keys to select program edit. Press OK or Right button to
enter the menu. Use up/down buttons to navigate through the menu.
Press the red key on the remote control to delete a channel.
Press up/down to select the channel, press Green button to set the
channel as favorite, press Green button again to cancel it.
Press MENU to return to the main menu.
Press up/down to select the channel you wish to skip.
Press the BLUE button, a logo will appear next to the channel name and the channel will be skipped
when you scroll through the channels.
Press the BLUE button again on the highlighted channel to disable the skip funciton.
Press MENU to return to the main menu.
Only available in DTV mode, signal information includes: channel/network/modulation/quality/strength
When insert CI Module, display CI Information.
1. Download the software to the usb device, then insert the usb device to the unit.
2. Press the menu button to select the CHANNEL menu.
3. Press the left/right buttons to select Software Update (USB) and then press the OK button to update
software.
4. When the updating is completed, the unit will be reset to standby mode.
C2224SH Instruction Book
21
1. Press the ▲▼ buttons to Lock System then press the OK button to confirm.
2. Use the 0-9 buttons to input a 4-digit password to enter the LOCK menu and then press the OK but-
ton to turn the Lock System On.
3. Press the Menu button to return back to the main menu.
4. Press the Exit button to exit the menu.
• The default password is “0000”.
• If you change the password, be sure to remember the new password! If you forget the new
password, press the master password “8899”
Key Lock: Press the ▲▼ buttons to select the “Key Lock” option and then choose between the
options ON or OFF. After selecting ON, the front panel buttons TV/AV/Menu/CH+/CH-/VOL+/VOL-
of the device will be locked.
Hotel Mode: Enter the Hotel Setting menu.
Set Password: If you had already changed the password, enter the current password.
Block Program: This feature is available only for digital TV and the tuned-in channel must support it.
Parental Guidance: Off: turn off Parental Lock
4-18: turn on Parental Lock and set the age level that are permitted wo watch
the program.
1. Press the Menu button and then press the ▲▼ buttons to se-
lect the Lock menu.
2. Press the OK or ▼ buttons and then press the ▲▼ buttons to
select the feature options and then press OK button.
Lock Setting
Lock System
C2224SH Instruction Book
22
Lock Setting
Hotel Mode
Press the up/down buttons to select the “Hotel Mode” option and then press right button to choose be-
tween the options ON or OFF.
Source Lock
Press the up/down buttons to select the “Source Lock” option and then press OK to enable the menu.
Press the right button to toggle between ON and OFF.All signal sources labelled ON will not be available
any more in the signal source selection menu.
Default Source
Press up/down buttons to select the “Default Source” option and then press right button to choose a
signal source or OFF. This function lets you set the signal source(DTV/Cable/ ATV/AV/SCART/YPbPr/PC/
HDMI1/HDMI2/HDMI3/USB) to be used when powering on the unit. It will be used until you select a differ-
ent signal source or disable this function(OFF).
Default Prog
Set the default program.
Max Volume
Press up/down buttons to select the “Max Volume” option and then press right button to set the desired
volume.
Then the output volume will never exceed the set maximumvalue.
Default Volume
Press up/down buttons to select the “Default Volume” option and then press right button to set the default
volume.
Clear Lock
Press up/down buttons to select the “Clear Lock” option and then press right button to enable it.All hotel
settings will remain disabled until you enable the Hotel Lock again.
C2224SH Instruction Book
23
1. Press the Menu button and then press the ▲▼ buttons to se-
lect the Time menu.
2. Press the OK or ▼ buttons and then press the ▲▼ buttons to
select the feature options and then press OK button.

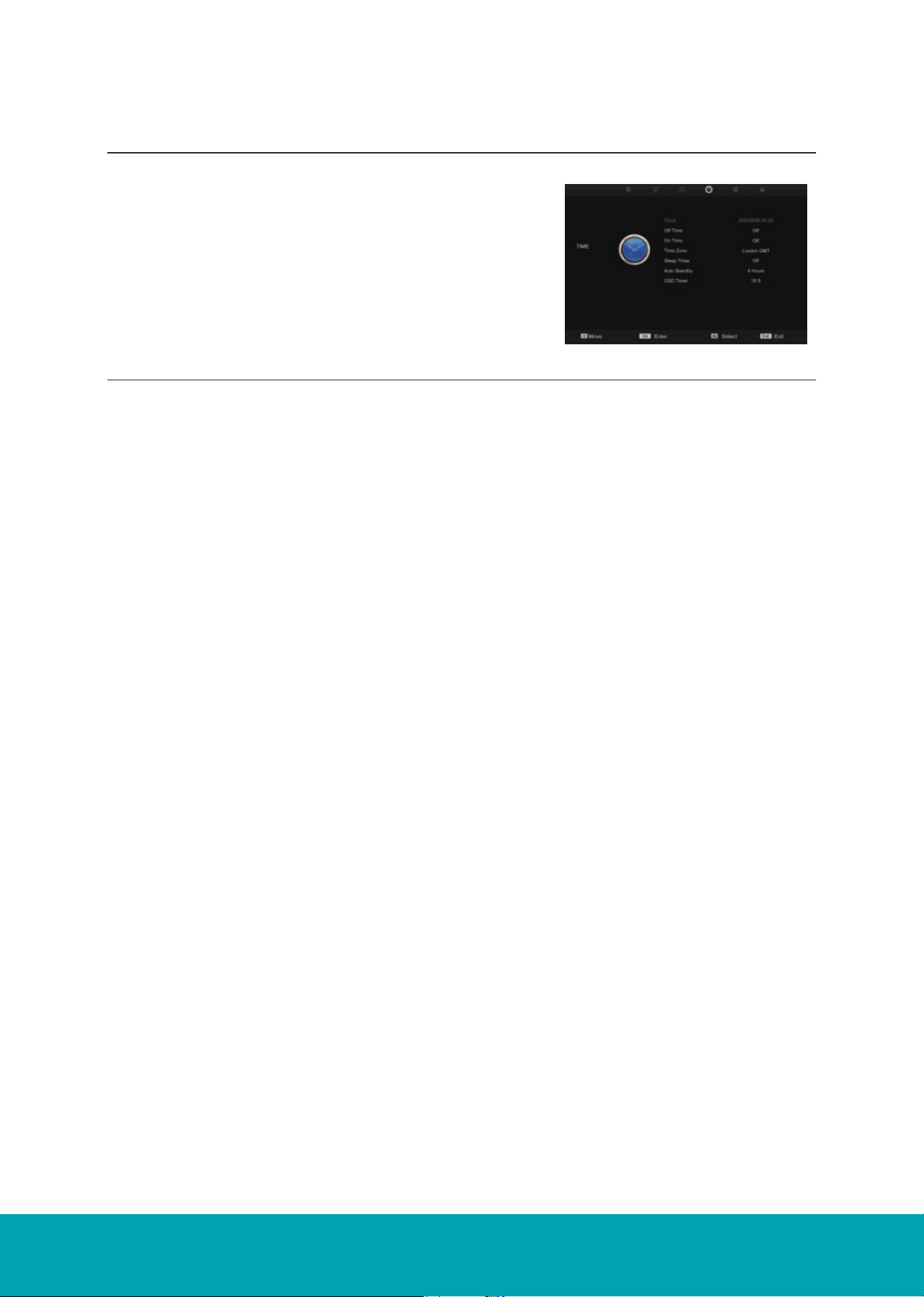

Time Setting
Clock
Press the OK button to set date and time.
Off Time
Press the OK button to set off time.
On Time
Press the OK button to set on time.
Time Zone
When you select a Time Zone city, the TV time is set by the time offset information based on
Time Zone and GMT which is received with the broadcast signal and the time is set automatical-
ly by a digital signal.
Press the up/down/left/right buttons to select the desired time zone city and then press the OK
button to confirm. (DTV mode)
Sleep Timer
The sleep timer automatically switches the TV to standby after the preset time has elapsed.
The clock will be set automatically when receiving a digital signal. Time must be set before using
Sleep Timer function.
Press up/down buttons to select a period of time after which the TV automatically switches to
standby mode:OFF/10/20/.../180/240 min and then press the OK button to confirm. The timer
begains to count down from the number of minutes selected.
Auto Standby
The unit will automatically switch to standby mode 4 hours after the last time the remote control
was used.
A reminder screen will pop up and count down before the unit switches to standby mode.
If you want to operate the TV for a long period of time, tun off the auto standby function by se-
lecting Never.
OSD Off Timer
Press up/down buttons to select the display time of the on-screen menu:5s/10s/15s/20s/
25s/30s/Nevel and then press the OK button to confirm.
C2224SH Instruction Book
24
1. Press the Menu button and then press the ▲▼ buttons to se-
lect the Option menu.
2. Press the OK or ▼ buttons and then press the ▲▼ buttons to
select the feature options and then press OK button.

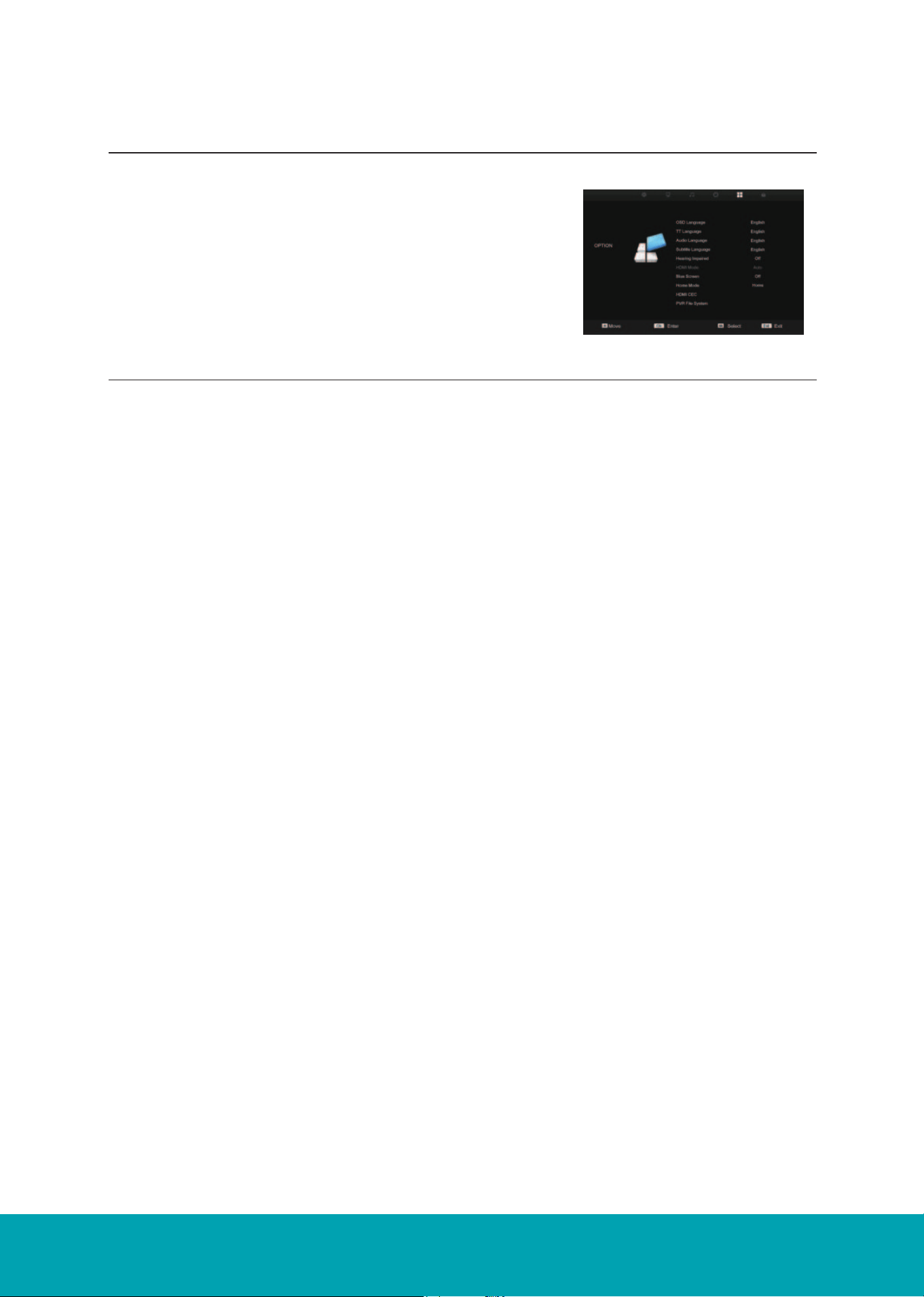

Option Setting
OSD Language
Allows you to select the on screen display menu language.
TT Language
Select the Teletext languages. The availability of this function depends on the tuned-in channel.
(can only be selected in ATV mode)
Audio Languages
Select the audio languages. The availability of this function depends on the tuned-in channel.
(can only be selected in DTV mode)
Subtitle Language
Select the subtitle language. The availability of this function depends on the tuned-in channel.
(can only be selected in DTV mode)
Hearing Impaired
Allows you to show more information in subtitles for the hearing-impaired in some
programmes(can only be selected in DTV mode)
Blue Screen
Allows you to switch the Blue Screen on/off when TV is no signal.
Home mode
Allow you to select among:Max Performance mode Home mode and Max Economy mode.
HDMI CEC
Allow you to set HDMI CEC functions.
PVR File System
Allows you to test the speed of the USB device or Format the USB device.
C2224SH Instruction Book
25
1. Switch off the TV before connecting any USB
storage device.
2. Connect your USB storage device to the USB port of your TV.
3. Plug the connected devices into the mains socket
4. Press the STANDBY button on of the TV
or the button on the remote control to turn on your TV.
5. Press the SOURCE button on the TV or the
SOURCE button on the remote control to display the
Source List. Use the ▲▼ buttons to select Media and
then press the OK button to confirm.
�����������������

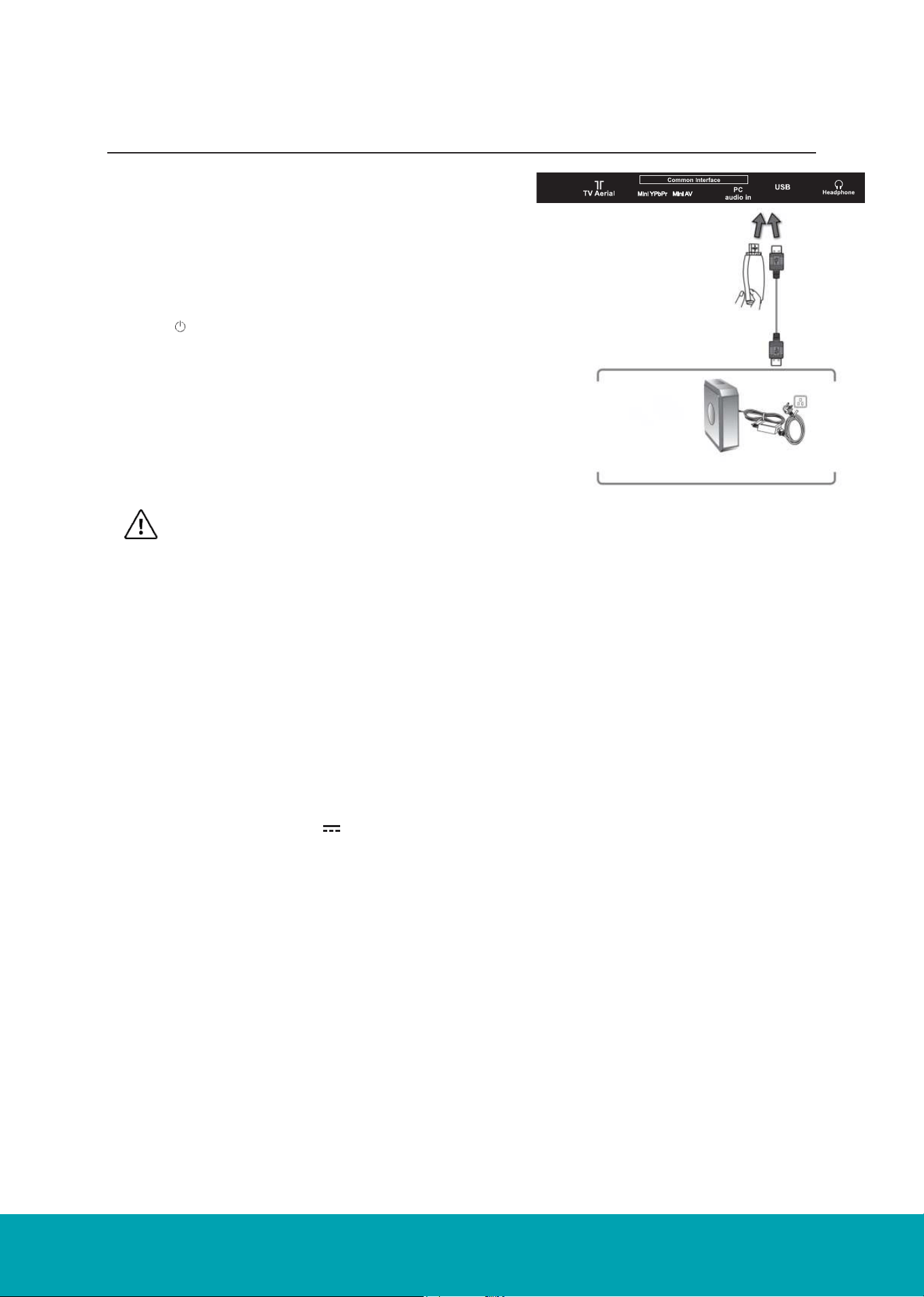

Connecting a USB Storage Device
�����������������
• If a hard disk is used, make sure its mains adapter is connected to the mains supply.
• If a USB hub is used, make sure its mains adapter is connected to the mains supply as
the total current consumption may exceed 500mA.
• The maximum supported storage space of the hard disk is 1 TB.
• The file system only supports HiSpeed FS, FAT16, FAT32, NTFS formats (NTFS Com
pressed files are not supported).
• If you want to store the video streaming of a DTV programme, the transfer rate of the
USB storage device must not be less than 5MB/s, otherwise the picture and sound of
the programme will be affected and a warning statement will be shown on the screen. If
this happens, please upgrade your USB storage device.
• The TV screen will be blank temporarily as it will take time to start up and stabilise the
connected hard disk. This is normal and the starting time may vary depending on the
brand and the memory size of the connected hard disk.
• Disconnect the USB storage device if it is not in use.
• USB output: DC 5V 500mA
USB Cable
(not included)
USB
USB Hub
Portable
hard disk
Adapter
C2224SH Instruction Book
26
Multimedia Operation
Basic Operation
1. Press the SOURCE button on the remote control to display the input source menu, select the USB
source the up/down button and press the OK button to enter the Multimedia menu below.
2. Press left/right buttons to select the files on the USB device(PHOTO,MUSIC,MOVIE, TEXT)to view or
play.
Press the up/down/left/right buttons to select and the OK button to activate the file or open folder. Press
| button to play the files in full screen mode.When in full screen mode press the OK button to show the
navigation option menu on the bottom of the screen or press stop button to return to files.
Return to main menu
Return to main menu
C2224SH Instruction Book
27

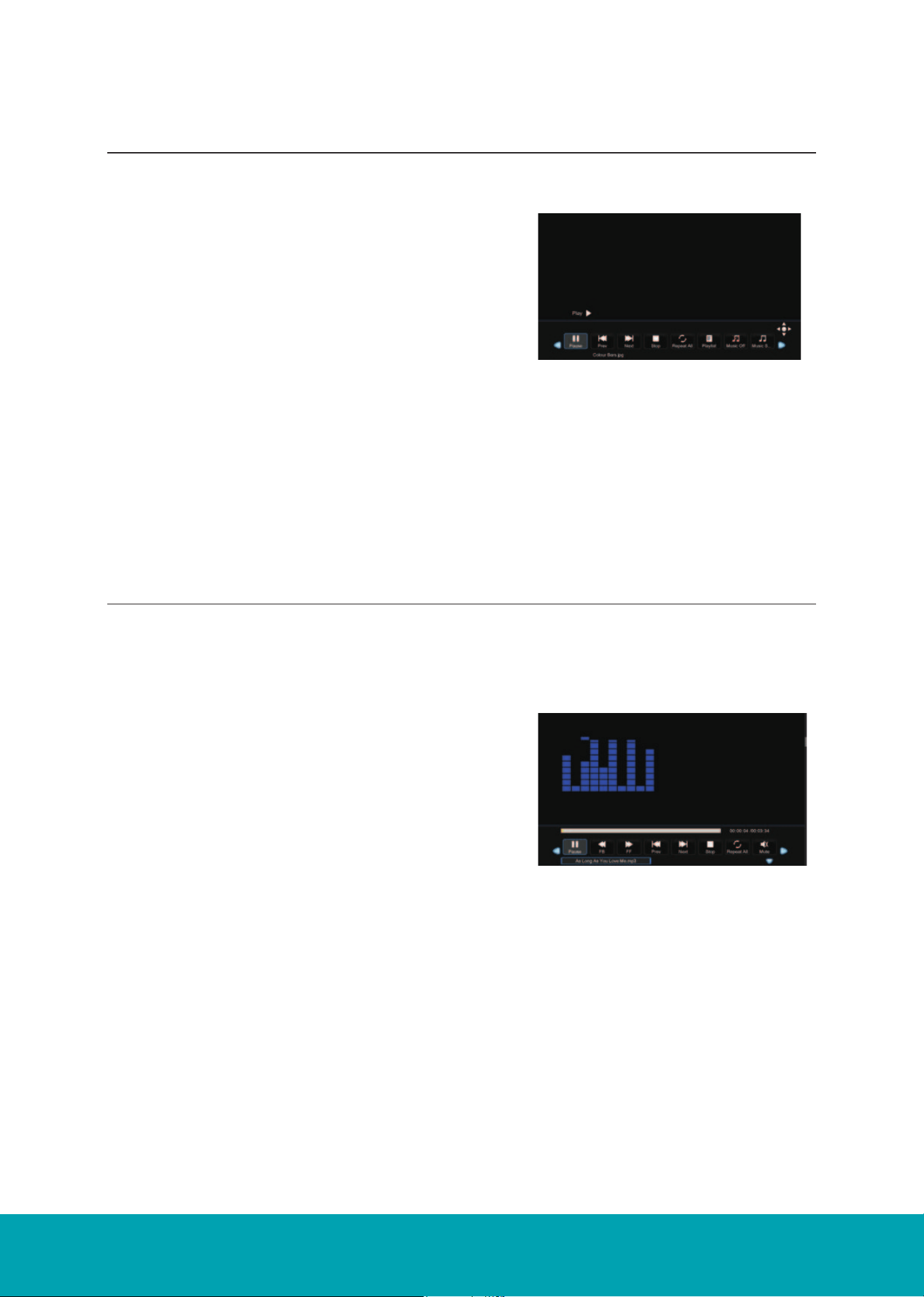

1. Photo
Photo Viewing
Press left/right buttons to select the option on the menu, and
press the OK button to activate.
Repeat: Select the repeat mode from Repeat All, Repeat1,
Repeat None.
Music: Play/Pause the background music of your choice.
Playlist: Display the playlist on the screen and select the photo of
your choice.
Info: Display the information of the file.
Rotate: Rotate the photo clockwise/counterclockwise
Zoom In/Out: Zoom In/Out of your photos.
Move view: Move the photo in Zoom out mode.
2. Music
Listen to music
Press left/right buttons to select the option on the menu,
and press the OK button to activate.
Play: Play the music.
FB: Retreat quickly.
FF: Fast forward.
Prev./Next: Go to a song/Turn to the next song.
Stop: Stop playing.
Repeat: Select the repeat mode from Repeat All, Repeat1,
Repeat None.
Play List: Display the playlist on the screen.
Info. Display the information of the music file.
Play: Play the photo.
Prev./Next: Go to on a picture/Go to the next picture.
Stop: Stop auto turning pages.
,
,
C2224SH Instruction Book
28
3. Movie
Watch a Film
Press left/right buttons to select the option on
the menu, and press the OK button to activate.
Play: Play the movie.
-B: Retreat quickly.
FF: Fast forward.
Prev./Next: Go to a video/Turn to the next video.
Stop: Stop playing.
Repeat: Select the repeat mode from Repeat All, Repeat1, Repeat None.
Aspect Ratio: Select the aspect ratio of the on screen display.
Move View: Moves the enlarged picture area.
4. Text
View text files
Press left/right buttons to select the option on the
menu, and press the OK button to activate.
Prev/Next page: Turn to previous/next page of the text.
Prev./Next: Turn to previous/next file.
Stop: Stop auto turning pages.
Music: Play/pause the background music of your choice.
Playlist: Display the playlist on the screen.
Info: Display the information of the text file.
3.Movie
Watch a film
Press left/right buttons to select the option on the
menu,and press the OK button to activate.
Play: Play the movie.
FB:
Retreat quickly.
FF: Fast forward.
Prev./Next:
Go to a video/Turn to the next video.
Stop: Stop playing.
Repeat: Select the repeat mode from Repeat All,
Repeat1,Repeat None.
Aspect Ratio: Select the aspect ratio of the on screen display.
Move View: Moves the enlarged picture area.
4.Text
View text files
Press left/right buttons to select the option on the
menu,and press the OK button to activate.
Prev/Next page: Turn to previous/next page of the text.
Prev./Next:
Turn to previous/next file.
Stop: Stop auto turning pages.
Music: Play/pause the background music of your choice.
Playlist:
Display the playlist on the screen.
Info: Display the information of the text file.
3.Movie
Watch a film
Press left/right buttons to select the option on the
menu,and press the OK button to activate.
Play: Play the movie.
FB: Retreat quickly.
FF:
Fast forward.
Prev./Next: Go to a video/Turn to the next video.
Stop: Stop playing.
Repeat: Select the repeat mode from Repeat All,
Repeat1,Repeat None.
Aspect Ratio: Select the aspect ratio of the on screen display.
Move View: Moves the enlarged picture area.
4.Text
View text files
Press left/right buttons to select the option on the
menu,and press the OK button to activate.
Prev/Next page: Turn to previous/next page of the text.
Prev./Next: Turn to previous/next file.
Stop: Stop auto turning pages.
Music: Play/pause the background music of your choice.
Playlist: Display the playlist on the screen.
Info: Display the information of the text file.
C2224SH Instruction Book
29
Maintenance
Hints and Tips
Careful and regular cleaning can prolong the life of your TV.
The following table contains various hints and tips to get the best performance from your TV.
The TV does not operate properly.
The TV does not respond when
pressing any buttons
TV cannot be switched on
The remote control does not work
Power is suddenly turned off
No Picture & No Sound
Picture appears slowly after
switching on
No or poor colour or poor picture
Horizontal / Vertical bar or picture
shaking
Lines or streaks in pictures
No pictures when connecting HDMI
Picture appears in wrong ratio
Poor reception on some channels
The video function does not work
• The TV may freeze up during use. Disconnect the mains cable from the
mains socket for a few minutes. Reconnect the mains cable and try to
operate it again as usual.
• Check that the TV is connected to the mains supply
• Make sure all connected AV devices are switched off before switching
on your TV.
• Check to see if there are any objects between the TV and the remote
control causing an obstruction. Ensure that you are pointing the
remote control directly at the TV.
• Ensure that the batteries are installed with the correct polarity (+ to +, -
to -).
• Install new batteries.
• Check the power of the TV. The mains supply maybe interrupted.
• Check if the sleep timer is set.
• Check whether the Auto Standby is activated.
• Check whether the TV is switched on.
• Try another channel. The problem may be caused by the broadcaster.
• This is normal, the image is muted during the TV startup process.
Please contact your service centre, if the picture has not appeared after
five minutes.
• Adjust the settings in the PICTURE menu.
• Try another channel. The problem may be caused by the broadcaster.
• Check if the video cables are connected properly.
• Check for local interference such as an electrical appliance or power
tool.
• Check aerial (Change the position of the aerial.)
• Check if the input source is HDMI.
• Adjust the Aspect Ratio settings in the PICTURE menu.
• Station or cable channel may be experiencing problems, tune to anoth-
er station.
• Station signal is weak, reposition the aerial for better reception.
• Check for sources of possible interference.
Be sure to Disconnect the mains cable from the mains socket before any cleaning.
Never use alcohol, benzine, pain-thinner, cleaning fluid or other
chemicals. Do not use compressed air to remove dust.
1. Use a soft dry cloth to wipe away the dust from the screen and
surfaces.
2. If the surfaces are extremely dirty, clean the TV with a cloth
which has been dipped in a weak soapy water. Wring the cloth
until it is almost dry, then use it to wipe the TV.
3. Ensure there is no excess water on the screen. Allow any water
or dampness to evaporate before switching the TV on.
C2224SH Instruction Book
30
The audio function does not work
Picture OK but no sound
No output from one of the speakers
Unusual sound from inside the TV
No sound when connecting HDMI
Audio noise
Password
There is a problem in PC mode
Lost Password
The signal is out of range (Invalid
Format)
Vertical bar or stripe on background
& Horizontal Noise & Incorrect
position
Screen colour is unstable or single
colour
• Press the VOL + / - buttons.
• Sound muted? Press the Mute button.
• Try another channel. The problem may be caused by the broadcaster.
• Adjust the Balance settings in the SOUND menu.
• A change in ambient humidity or temperature may result in an unusual
noise when the TV is switched on or off and does not indicate a fault with
the TV.
• Check if the input source is HDMI.
• Keep the RF coaxial cable away from the other connected cables.
• Select the Change Pin Code setting in the FEATURE menu, then enter
the following master password “ 8899”. The master password clears your
previous password and allows you to enter a new password.
• Adjust the resolution, horizontal frequency, or vertical frequency.
format)
• Use Auto configure or adjust clock, phase, or H/V position.
• Check the signal cable.
• Reinstall the PC video card.
FAQs (Frequently Asked Questions)
Why have I lost some / all of my channels?
• It happens sometimes, if you have a weak signal. Usually it just means you’ll need to rescan your digital box or TV.
Don’t worry, it easy to do. And once you’ve done it, you should get all the Freeview channels available to you. If prob-
lems persist you may need to get your aerial checked. Talk to your retailer or contact your local aerial installer.
• In most cases, blocking is caused by a reception problem - either the signal is too weak or there is some kind of
interference. Talk to your retailer or contact your local aerial installer.
• Blocking can also be caused by a digital signal that is too strong. If you are still experiencing blocking and the signal
is strong, consult your local aerial installer for advice.
• Some, but only a few, homes may be able to use a set top aerial. However, for a much better reception, we strongly
recommend that you use a rooftop aerial.
• If you do not have access to a rooftop aerial - for example, if you rent a flat and the aerial is the responsibility of your
landlord, or if you’re using a second TV in the bedroom and don’t want the hassle and expense of using extension
cables, a set - top aerial may be your only option.
• If you are installing a new aerial, we recommend a wideband rooftop aerial rather than a loft aerial. Loft aerials gen-
erally receive a weaker digital signal and are more likely to get interference from other electrical devices in the home.
We suggest you have an aerial survey done before getting an aerial upgrade.
• Talk to your retailer or contact your local aerial installer.
Why do I get ‘blocking’ on my digital picture?
Can I watch Freeview using a portable set-top aerial?
What type of aerial do I need?
C2224SH Instruction Book
31
Display Modes
The screen resolution has been optimised during production for the display modes listed below.
Resolution
Resolution
Vertical Frequency (Hz)
Vertical Frequency (Hz)
Aspect Ratio
Aspect Ratio
480i:720 x 480
480i:720 x 480
60
60
50
50
50
50
4:3 / 16:9 / Zoom1 / Zoom2
4:3 / 16:9 / Zoom1 / Zoom2 /
Just Scan
50
50
50
50
60
60
60
60
60
60
480P:720 x 480
480P:720 x 480
576i: 720 x 576
576i: 720 x 576
576P: 720 x 576
576P: 720 x 576
720P: 1280 x 720
720P: 1280 x 720
1080i: 1920 x 1080
1080i: 1920 x 1080
1080P: 1920 x 1080
1080P: 1920 x 1080
YPbPr Mode
HDMI Mode
C2224SH Instruction Book
32
Panel System 22 inch LED Panel
Display Resolution 1920 pixels (horizontal) x 1080 pixels (vertical)
Television System PAL I / BG / DK / SECAM BG/DK
Brightness 180cd/m2
Contrast Ratio 3000: 1
Power Source 100-240V~ 50/60Hz
Energy Efficiency Class E
Operating Power Consumption 15 W
Operating Temperature 0°C-50°C
Vesa Wall Mounting Size / Screw Size 100 x 100mm / M4 x 8
Speaker Power 2.5W + 2.5W
Dimension (W x D x H) without base 494 x 80.4 x 305 mm
Dimension (W x D x H) with base 494 x 160 x 349.5 mm
Weight (Net) 2.3kg
Specications
This TV has been tested against the European standards for Energy efficiency using the standard signals and condi-
tions specified in the standard. The result is shown on the energy efficiency label. This is the energy that you would
expect the TV to consume under normal working conditions when measured over a period of time. At some times the
TV will use more power than this and at some times less. The factors that cause this fluctuation are the actual signals
being received, and the Volume setting. Generally speaking the mains voltage, brightness / contrast settings and
other settings have a very small effect on energy usage and can to all intense and purposes be ignored. The differ-
ence between the power consumed when receiving a high bit rate channel with the volume at max and a low bit rate
channel with volume at zero is usually less than 3 watts.
Features and specifications are subject to change without prior notice.
C2224SH Instruction Book
33
Safety Warnings
• Read all the instructions carefully before using the unit
and keep them for future reference.
• Retain the manual. If you pass the unit onto a third
party make sure to include this manual.
• Check that the voltage marked on the rating label
matches your mains voltage.
Damage
• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any
doubt about it working normally, or if it is damaged
in any way - switch off, withdraw the mains plug and
consult your dealer.
Location of Unit
• The unit must be placed on a flat stable surface and
should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as
the unit may fall off or tip over.
• The mains socket must be located near the unit and
should be easily accessible.
• This unit is designed for indoor use only.
Temperature
• Avoid extreme degrees of temperature, either hot or
cold. Place the unit well away from heat sources such
as radiators or gas / electric fires.
• Avoid exposure to direct sunlight and other sources of
heat.
Naked Flames
• Never place any type of candle or naked flame on the
top of or near the unit.
Moisture
• To reduce the risk of fire, electric shock or product
damage, do not expose this unit to rain, moisture, drip-
ping or splashing. No objects filled with liquids, such
as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious
damage. Switch it off at the mains immediately.
Withdraw the mains plug and consult your dealer.

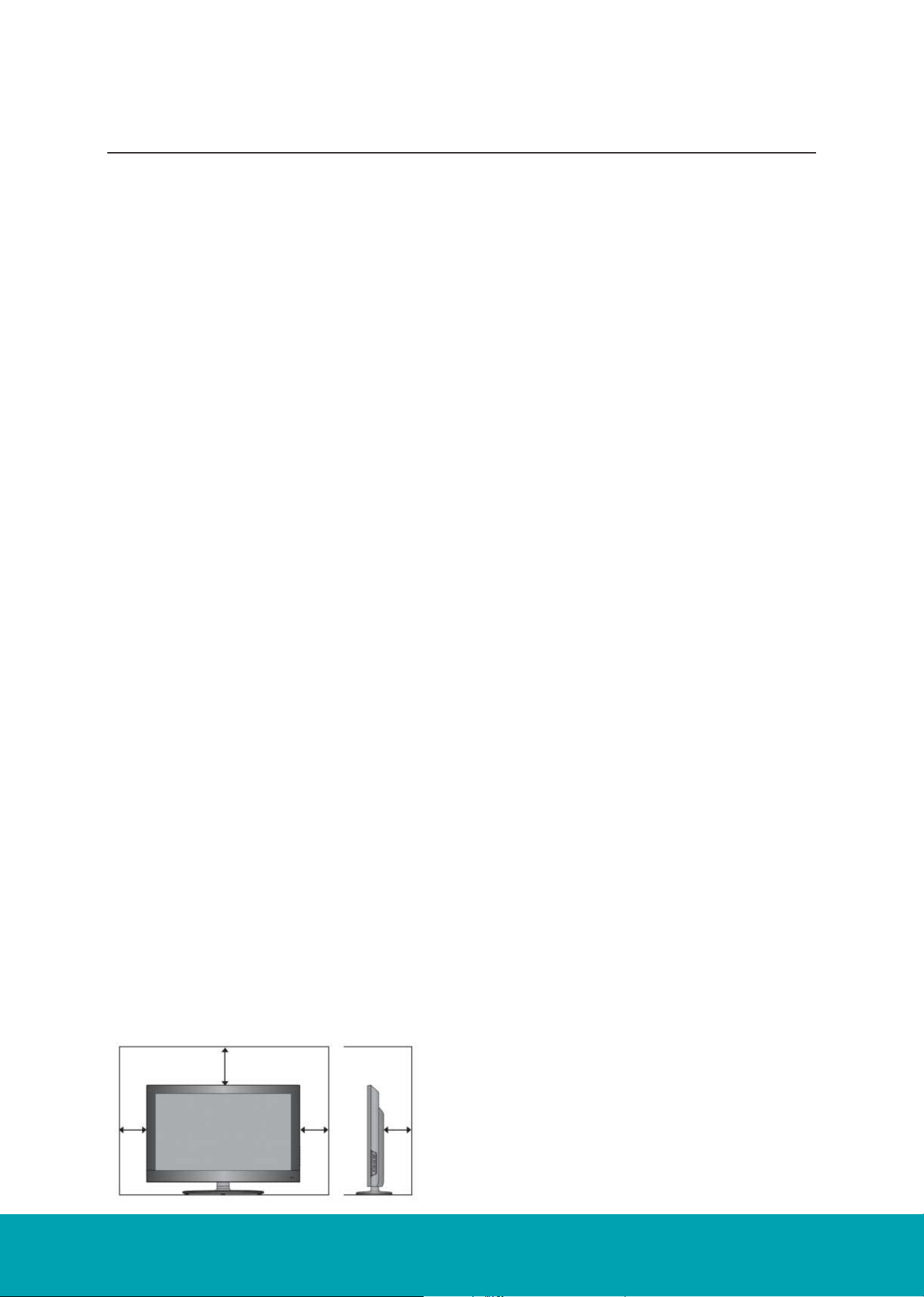

Ventilation
• To prevent the risk of electric shock or fire hazard due
to overheating, ensure that curtains and other materi-
als do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure the unit
is well ventilated.
• Make sure that there is a gap of at least 10 cm on both
sides and a gap of 20 cm at the top.
Safety
• Always disconnect the unit from the mains supply
before connecting / disconnecting other devices or
moving the unit.
• Unplug the unit from the mains socket during a light-
ning storm.
Mains Cable
• Make sure the unit or unit stand is not resting on top of
the mains cable, as the weight of the unit may damage
the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by
the manufacturer, its service agent, or similarly quali-
fied persons in order to avoid a hazard.
Interference
• Do not place the unit on or near appliances which may
cause electromagnetic interference. If you do, it may
adversely affect the operating performance of the unit,
and cause a distorted picture or sound.
Optimum viewing
• View the unit in moderate light to prevent eye strain. It
is recommended to watch the unit from a distance 3-7
times that of the screen height.
LED screen
• The LED screen is manufactured using high-precision
technology. However, some tiny black points and /
or bright points (red, blue or green in colour) may
constantly appear on the LED screen. These points
are generated in the manufacturing process and are
normal.
Screen Burn
• A characteristic of Plasma and LED TV Panels is that
displaying the same image for a long time may cause
a permanent after-image to remain on the screen. This
is called screen burn. Most pictures shown on the unit
will be constantly moving and fill the screen.
• Examples of images that you need to watch out for are
as follows (this is not an all-inclusive list):
1. Black Bars: If black bars appear at the left / right
or top / bottom of the screen, it is recommended to
change the format so that the picture fills the entire
screen.
2. TV Channel Logos: e.g. Shopping channel logos
and pricing displays - especially if they are bright and
stationary. Moving or low-contrast graphics are less
likely to cause ageing of the screen.
3. Time Displays
4. Teletext: Do not view a stationary page for long
periods of time.
5. TV Menus
6. Pause Mode: Do not leave the screen in pause
mode for long periods of time, e.g. when watching
videos.
• To prevent screen burn if viewing any of the above for
long periods of time, reduce contrast and brightness
when viewing. Once burn-in occurs it will never disap-
pear completely.
20cm
10cm 10cm
10cm
C2224SH Instruction Book
34
Safety Warnings
Headphones
• Listening to loud sounds for prolonged periods of time
may permanently damage your hearing.
• Before putting on headphones, turn the volume down
then put the headphones on and slowly increase the
volume until you reach a comfortable listening level.
Standby
• The U button on the remote control does not switch off
the unit completely. The unit will continue to draw elec-
tricity from the mains supply while in standby. In the
interests of safety and to avoid unnecessary energy
consumption, never leave the unit in standby while un-
attended for long periods of time, e.g. overnight, while
on holiday or while out of the house. Switch it off and
disconnect the mains plug from the mains socket.
Batteries
• Batteries used in the remote control for this unit are
easily swallowed by young children and this is danger-
ous.
• Keep loose batteries away from young children and
make sure that the battery holder tray is secure in the
remote control. Seek medical advice if you believe a
cell has been swallowed.
• Please dispose of batteries correctly by following the
guidance in this manual.
Supervision
• Children should be supervised to ensure that they do
not play with the unit and the remote control.
• Never let anyone especially children push anything into
the holes, slots or any other openings in the case - this
could result in a fatal electric shock.
Service
• To reduce the risk of electric shock, do not remove
screws. The unit does not contain any user-service-
able parts. Please leave all maintenance work to
qualified personnel.
• Do not open any fixed covers as this may expose dan-
gerous voltages.
Maintenance
• Ensure to unplug the unit from the mains socket before
cleaning.
• Do not use any type of abrasive pad or abrasive clean-
ing solutions as these may damage the unit’s surface.
• Do not use liquids to clean the unit.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the unit's enclo-
sure that may be of sufficient magnitude to
constitute a risk of electric shock.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and mainte-
nance (servicing) instructions in the manual
accompanying the unit.
Important Note
This TV is fitted with the latest ECO friendly power sav-
ing technology. If whilst viewing the TV remote control
is not used for a period of 4 hours, the Auto Standby
feature will operate and power down the TV. A warning
message will be displayed to inform you that the TV is
about to power down.
Packaging materials are not toys. Please keep away
from children. Plastic bags can cause suffocation when
pulled over the head.
C2224SH Instruction Book
35
EN 55032:2015
EN IEC6100-3-2:2019
EN 6100-3-3:2013
EN 55035:2017
EN 60065:2014+A11:2017
Waste Electrical Recycling
Correct disposal of Product
This sign indicates that this product may not be disposed of with your regular household
waste. The recycling and separate collection of such products is your responsibility. Please
drop off the above mentioned waste at a designated place for recycling waste electrical and
electronic equipment. If you do not know where to drop off your waste equipment for recy-
cling, please contact your local city office or household waste collection service.
The crossed out wheeled dust bin symbol indicates that batteries and /or accumulators must
be collected and disposed of separately from household waste.
If the battery or accumulator contains more than the specified values of lead (Pb), mercury
(Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemi-
cals symbols for lead(Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed
out wheeled dust bin symbol.
By participating in separate collection of batteries, you will help to assure the proper dispos-
al of products and batteries thus help to prevent potential negative consequences for the
environment and human health.
For more detailed information about the collection and recycling programmes available in
your country, please contact your local city office or the shop where you purchased this
product.
This appliance complies with European Safety and Electrical directives.
It fullfils the following EU regulations:
EN 55032:2015
EN IEC6100-3-2:2019
EN 6100-3-3:2013
EN 55035:2017
EN 60065:2014+A11:2017
