Icon Legend................................2
Notices....................................3
Initial Setup...............................4
Pole Assembly.............................7
Extension Arm Assembly............10
Handle Assembly......................14
Backboard to Rim Assembly........17
Parts Identifi er..........................i-iv
Backboard to Pole Assembly.......24
Final Assembly..........................27
Maintenance Instructions..........32
Registration........................33
Warning Sticker........................34
Warranty................................35
TABLE OF CONTENTSTOOLS REQUIRED
3/4" (x2)
5/16"
(x1, included)
Rubber Mallet
Electric Drill
Carpenter’s Level Shovel
(80 lb bag x 13)
Concrete Mix
Tape Measure
1/2" (x2)
3/8"
(x1, included)
9/16" (x2)
ASSEMBLY INSTRUCTIONS
MODEL 90569
CRANK ADJUST
®
BASKETBALL SYSTEM
• Requires at least 1040 lb (472 kg) of concrete mix to fi ll
a volume of 5.1 ft
3
(0.14 m
3
).
• Requires, at least, 3 days for concrete to cure, plus
3-4 hours to complete assembly steps.
• At least 3 people recommended for setup.
BEFORE ASSEMBLY:
Save this instruction in the event that the manufacturer has to be contacted for replacement parts.
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
QUESTIONS?
Model Number: 90569
Product ID:
For Customer Service in Mainland
Europe and the United Kingdom,
E-mail: [email protected]
Live Chat:
www.lifetime.com/customerservice
For Customer Service in Australia and
New Zealand, E-mail:
or call: 1.300.219.540
Scan the code, or search http://go.lifetime.com/90569playlist
OR WATCH THE HOW-TO ON YOUTUBE
3D ANIMATION
OF THE FULL ASSEMBLY
WATCH
SCAN THE
CODE
OR SEARCH
1189602,
1210176
YouTube
®
and the YouTube logo are trademarks of Google, LLC.
2
• Indicates the parts to be used for a section.
• Indicates special heed should be taken when reading.
• Indicates the hardware to be used for a section.
• Indicates the tools to be used for a section.
• Indicates no hardware required for a specifi c page.
• Indicates no parts required for a specifi c section.
• Indicates to use/not to use an electric drill for a specifi c step.
ICON LEGEND
• Indicates the use of a centerlock nut. A nut with this marking will require some effort to tighten.
This hardware was designed with this feature in order to prevent loosening later.
1221760
11/19/2021
3
WARNINGS & NOTICES
Most injuries are caused by misuse and/or not following instructions. Use caution when using this product.
To ensure safety, do not attempt to assemble this product without following the instructions carefully. Check entire box and inside all packing
material for parts and/or additional instruction material. Before beginning assembly, read the instructions and identify parts using the hardware
identifi er and parts list in this document. Proper and complete assembly, use and supervision are essential for proper operation and to reduce the
risk of accident or injury. A high probability of serious injury exists if this product is not installed, maintained, and operated properly.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
Owner must ensure that all players know and follow these rules for safe operation of the system.
• If using a ladder during assembly, use extreme caution.
• Three capable adults are recommended for this operation.
• Assemble the pole sections properly. Failure to do so could cause the pole sections to separate during play or transport.
• Before digging, contact utility company to locate underground power cables, gas, and water lines. Ensure that there are no
overhead power lines within 20' (7 m) radius of pole locations.
• Minimum operational height is 6'-6" (1.98 m) to the bottom of the backboard.
SAFETY INSTRUCTIONS
SAFE HANDLING OF THE GLASS BACKBOARD
BEFORE & DURING ASSEMBLY
1. Thoroughly inspect the backboard before beginning assembly. Do not use the backboard if there are any chips,
cracks, or other defects in the board. Call our customer service department if any problems are found.
2. Use extreme caution when handling or working around the backboard.
3. Keep tools, hardware, and other sharp and heavy objects away from the backboard.
4. Never rest the backboard directly on a hard surface, such as concrete or pavement. Always place cardboard or
other cushioning material between the backboard and the ground or other hard surfaces.
5. Always lay the backboard fl at. Never place it in a position where it might tip over and break.
6. Glass is very heavy. Always use at least two adults when picking up or moving the backboard.
General Handling & Care
1. Inspect the backboard before each use. Do not use the backboard if there are any chips, cracks, or other defects in
the board. If any signs of damage are found, follow the instructions for “handling broken glass” below.
2. Use extreme caution when handling or working around the backboard.
3. The backboard was designed for use with a basketball. Do not use other types of balls or other objects with the
system. Do not use this system for any purpose other than its designed purpose.
Handling Broken Glass
At the fi rst sign of breakage:
1. Keep everyone, especially children, away from the immediate area of the backboard.
2. Put on eye protection, and wear thick utility gloves and long sleeves. Small pieces of tempered glass may pop out of
the backboard.
3. Lower the backboard to its lowest height, and completely cover the backboard with a tarp.
4. Do not remove the backboard from the system without fi rst lowering the system to its lowest setting. Carefully read
and follow the “removing backboard from system” instructions below.
Removing Backboard from System
1. With the backboard at its lowest height, have at least two capable adults support the system while one adult
removes the hardware securing the pole to the playing surface.
2. Have at least three capable adults carefully lay the system down. Make sure to rest the rim on a sheet of cardboard
or other non-abraisive surface.
3. Loosen and remove the hardware from the steps performed in the backboard to pole assembly section of this
manual in reverse order. Keep the hardware.
4. Loosen and remove the hardware from the steps performed inthe backboard to rim assembly section to safely
remove the rim. Keep all parts and hardware from this section for reassembly.
4
Metal Parts
AEZ (x4)
AEI (x4)
Carpenter’s Level Shovel
(80 lb bag x 13)
Concrete Mix
Tape Measure
3/4"
(x2)
Hardware Blister Pack
TOOLS REQUIRED
PARTS REQUIRED
HARDWARE REQUIRED

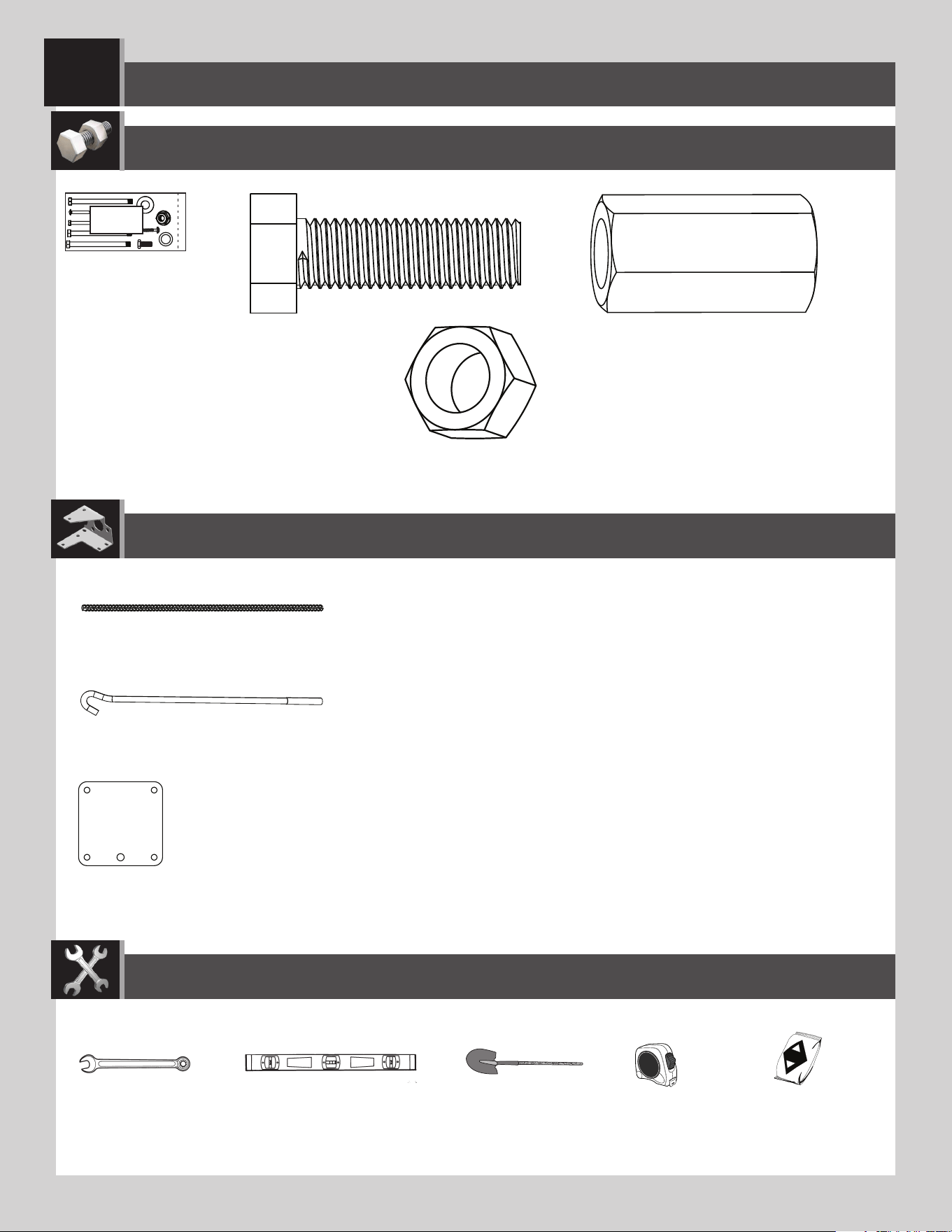

INITIAL SETUP
1
AOE (x8)
AE0 (x1)
CYV (x1)
AKT (x1)
FNG
5
TOOLS AND HARDWARE REQUIRED
u SECTION 1 (CONTINUED)
1

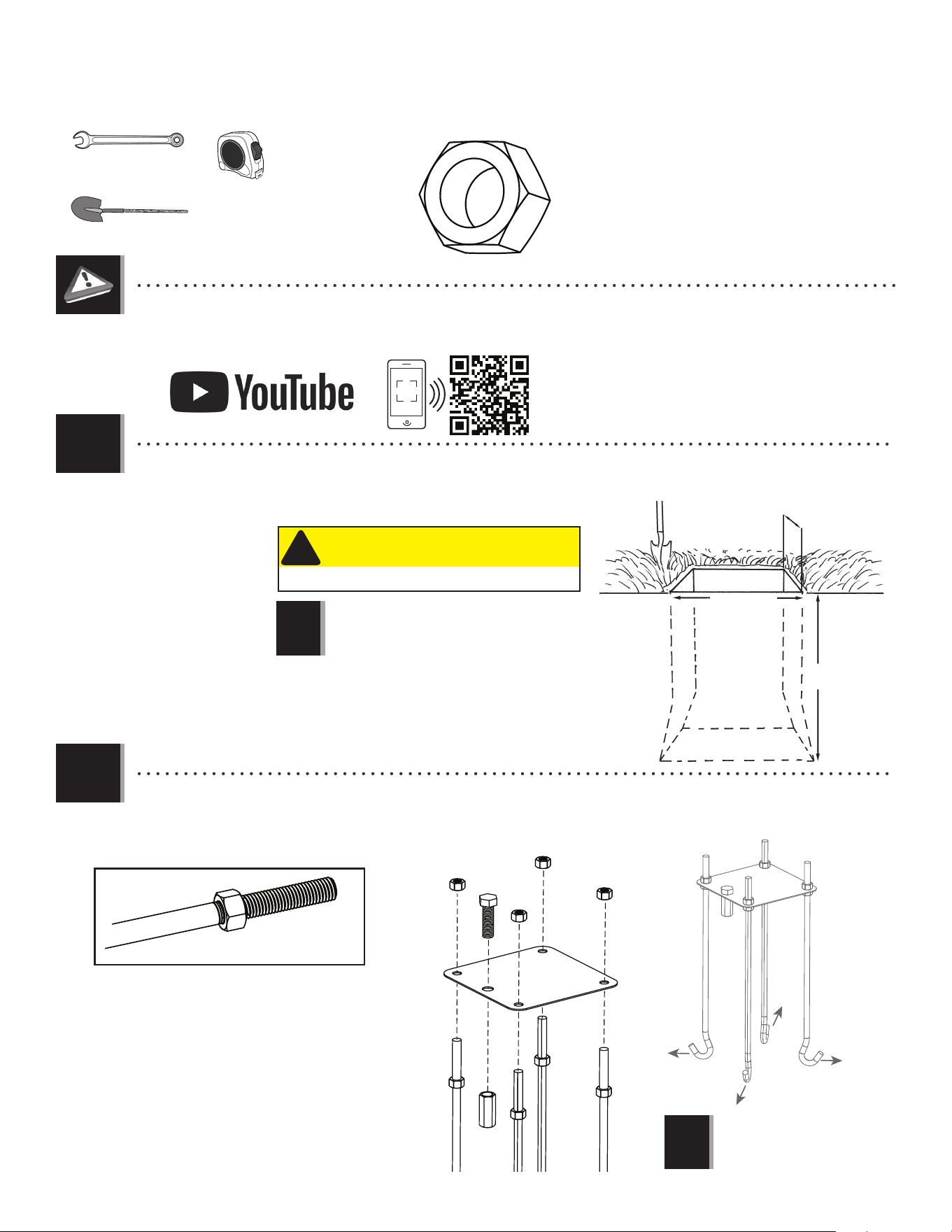

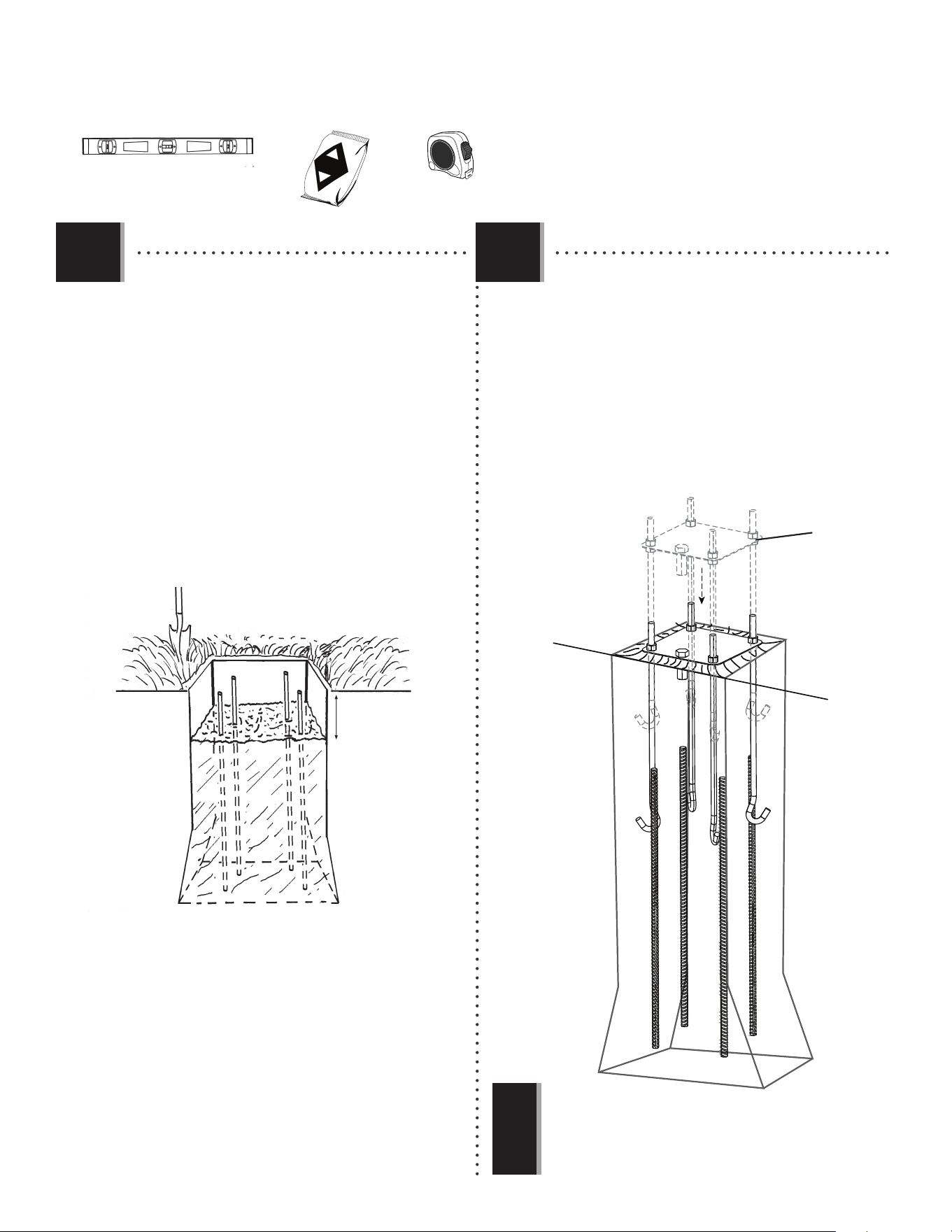

• Dig a hole 30" (≈76 cm) deep and 21" (≈53 cm) square. The edge of the hole should be flush with the edge of the playing
court. In areas where frost heaves may pose a problem, consult your local building inspector to determine the appropriate
hole depth. Bell out the bottom of the hole as indicated. We recommend building a form to keep the top of the concrete level
and square. Place the form so it is level with the playing surface.
21" (≈53 cm)
30" (≈76 cm)
21" (≈53 cm)
Before digging, call to locate any buried utility lines.
CAUTION
!
3/4” (x2)
1.1
!
• There must be a 3' (≈92 cm) area
behind the pole to allow the user to
adjust the Rim height.
1.2
AEI
AOE
AOE (x8)
• Thread a Hex Nut (AOE) all the way onto each J-Bolt (AEI). Slide the threaded ends of the J-Bolts through the corner
holes in the Template (AKT), and secure them completely with 1/2” Hex Nuts (AOE). Insert the Bolt (AEO) through the center
hole in the Template and tighten the Nut Coupler (CYV) onto the Bolt as far as it will go.
AKT
CYV
AOE
AOE
AOE
AOE
AEO
!
• Ensure the curved ends of the
J-Bolts point outward away from
the corners as shown.
• http://go.lifetime.com/crankadjustpole
• In case of any trouble with this section, scan the code below to view a video on its assembly.
• En cas d'avoir des problèmes avec cette section, scanner le code QR en dessous pour voir une vidéo de l’assemblage.
• En caso de tener problemas con esta sección, escanear el código QR debajo para ver un video del ensamblaje.
6
TOOLS AND HARDWARE REQUIRED
u SECTION 1 (CONTINUED)
• Center the Template (AKT) over the hole. Insert the
J-Bolts (AEI) into the concrete and agitate the Template
assembly to eliminate any air bubbles. Push the
J-Bolts into the concrete mix until the Template
is resting flat against the concrete. Form the
concrete into a downward slope toward the
playing surface to allow water runoff. The lower
four Hex Nuts (AOE) will be in the concrete permanently.
Clean off any concrete on the Template or
the exposed portion of the J-Bolts. Using a
carpenter’s level, ensure the Template is square to the
playing surface. Plate should be level and about
1/2” above the playing surface for water to drain
off of the steel.
18” (20 cm)
AEZ
(80-lb Bag x 13)
• Mix the concrete according to the instructions
on the bags. Please note that a thicker mix of
concrete will dry stronger. Pour the concrete into
the hole, stopping about 18” (46 cm) from the
top of the hole. Push the four pieces of 24”
Rebar (AEZ) firmly to the bottom of the hole. The
Rebar should be arranged in a square about
8” (20 cm) wide in the center of the hole so
each piece will be next to a J-Bolt when it is
placed in the concrete mix. Finish filling the
hole to the top with concrete. The top of the
concrete should extend about 1/2” (13 mm)
above the playing surface and slope downward
toward the playing surface to allow water
runoff.
1.3
!
• You are now finished with the initial assembly steps. DO NOT PROCEED
WITH THE ASSEMBLY until the concrete has fully cured. Curing will take
a minimum of 72 hours (3 days). In humid climates or wet weather,
allow additional time for the concrete to cure. Never use the system
without first following the initial setup instructions.
1.4
AKT
AEI
AOE
Playing surface
7

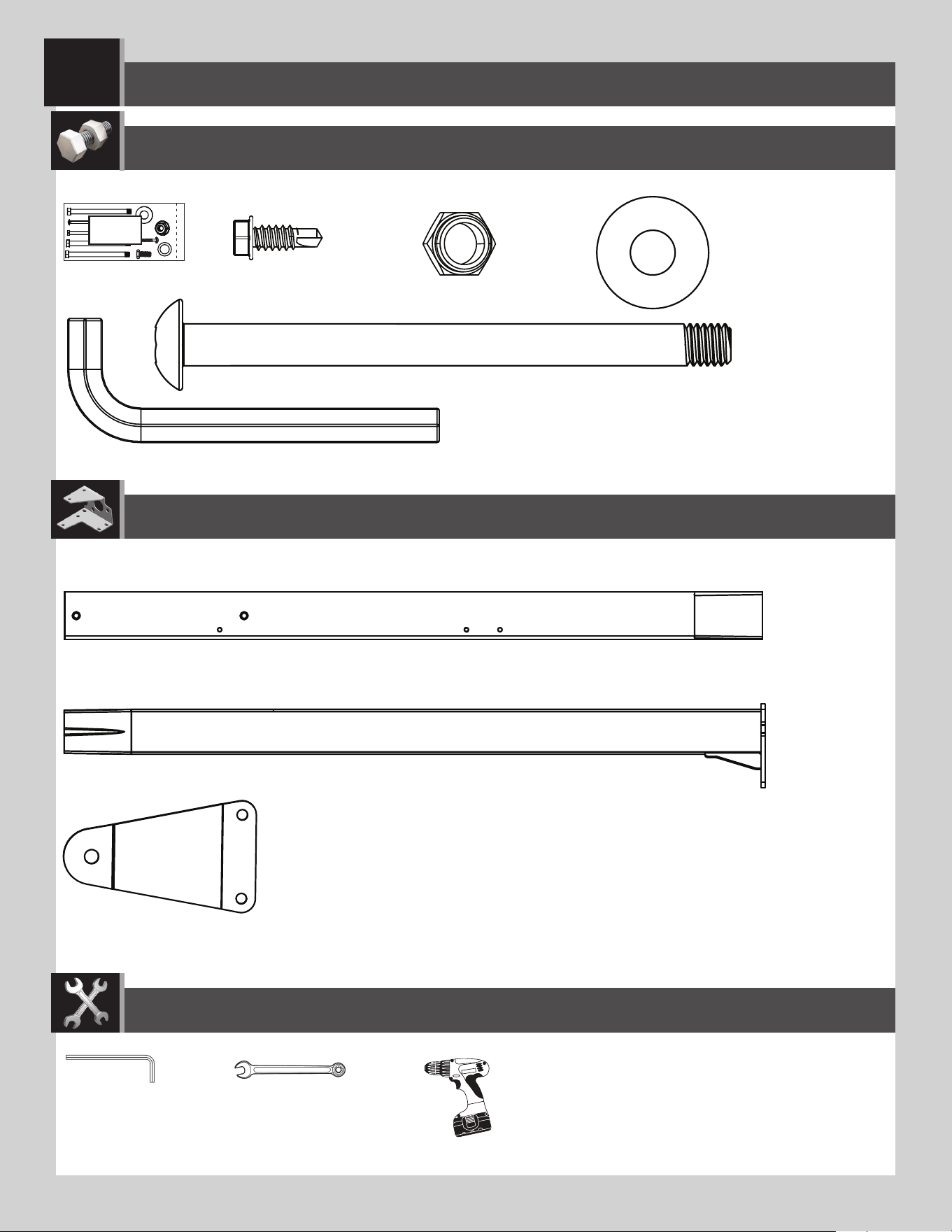

Hardware Blister Pack
HARDWARE REQUIRED
POLE ASSEMBLY
2
CMV (x1)
EJG (x2)
CUB (x2)
BCO
PARTS REQUIRED
ALH (x1)
ALE (x1)
EJS (x2)
Large Parts
TOOLS REQUIRED
9/16" (x1)
5/16"
(x1, included)
EJH (x4)
Electric Drill
ELW (x1)
8
TOOLS AND HARDWARE REQUIRED
u SECTION 2 (CONTINUED)
2.1
The gussets and small
hole face the same
direction
WARNING
The Poles must be seated together! Even if the Poles cover
the slots before seating, they must be struck on a hard
surface three times! Failure to seat the Poles correctly
could allow the Poles to separate during use, which could
lead to serious personal injuries or property damage.
2.2
• Raise the pole assembly about 12 inches off
the ground. Strike the end of the poles against
a piece of scrap wood or thick cardboard three
times to ensure the poles are seated properly.
WARNING
Do not hit your feet with the Pole Sections, as
serious injury could occur.
ALH
ALE
6x
3x

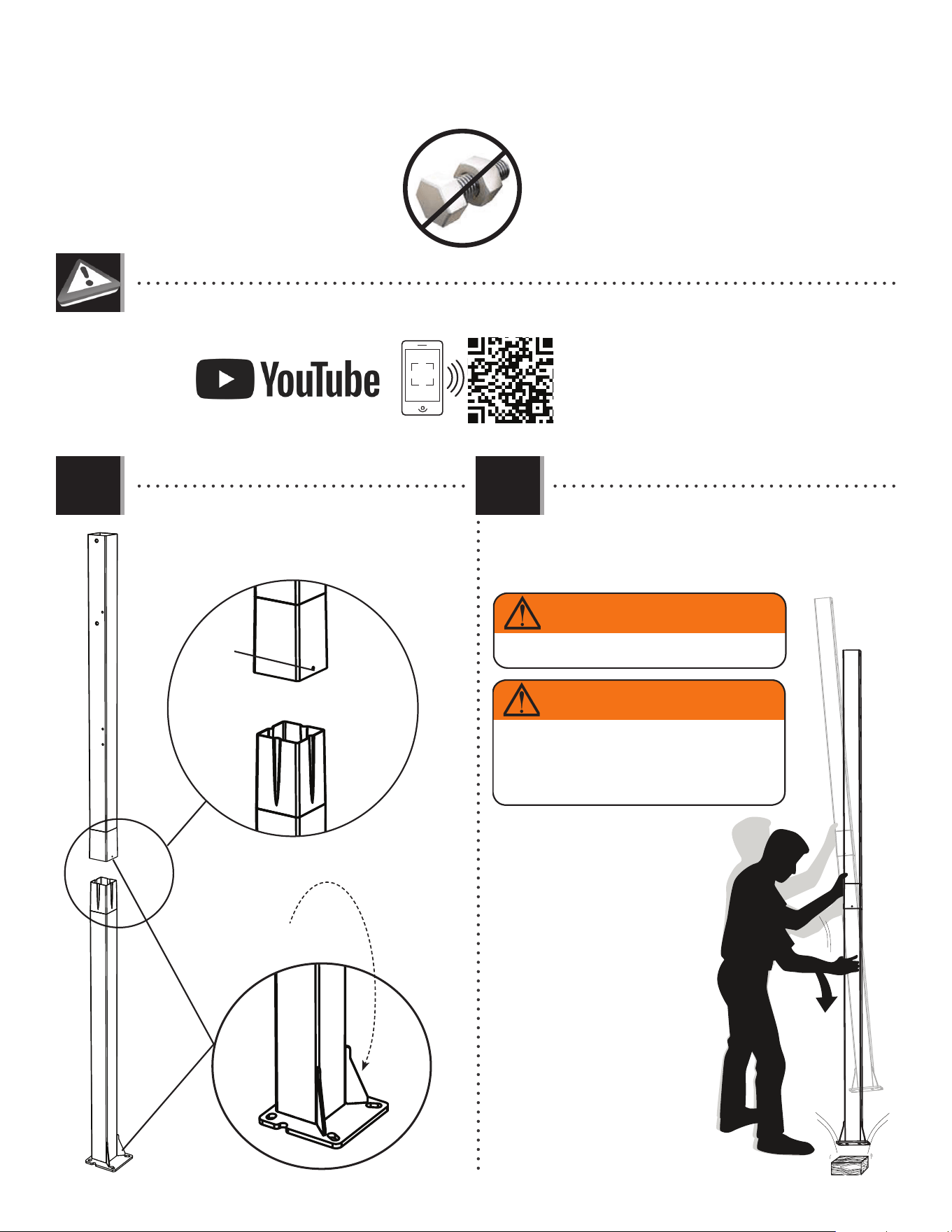

• Slide the flared end of the Top Pole (ALH) onto
to the swaged end of the Bottom Pole (ALE). The
small hole in the bottom of the Top Pole should
face away from the playing surface.
small
hole
• In case of any trouble with this section, scan the code below to view a video on its assembly.
• http://go.lifetime.com/crankadjustpole
9
TOOLS AND HARDWARE REQUIRED
u SECTION 2 (CONTINUED)

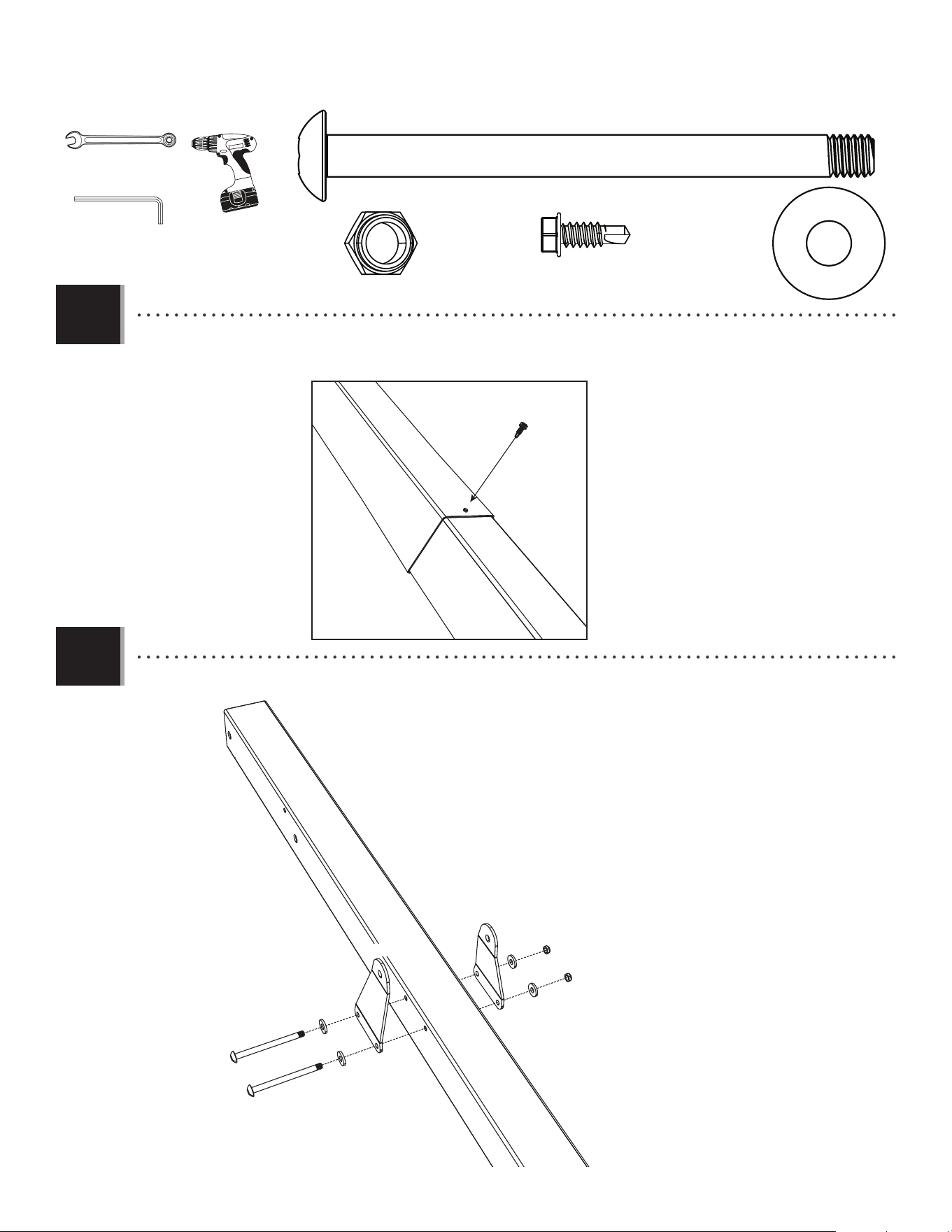

• Attach the Pole Brackets (EJS) to the Top Pole (ALH) with the hardware shown.
CMV (x1)
CMV
2.3
• Use an electric drill to secure the Top Pole to the Bottom Pole using a Self-Drilling Screw (CMV). You may need to
use a hex driver or chuck the self-drilling screw directly into an electric drill.
9/16"
5/16"
EJG (x2)
EJG
ALH
EJG
CUB (x2)
EJH (x4)
EJH
EJH
EJH
CUB
EJS
EJS
CUB
EJH
2.4
10

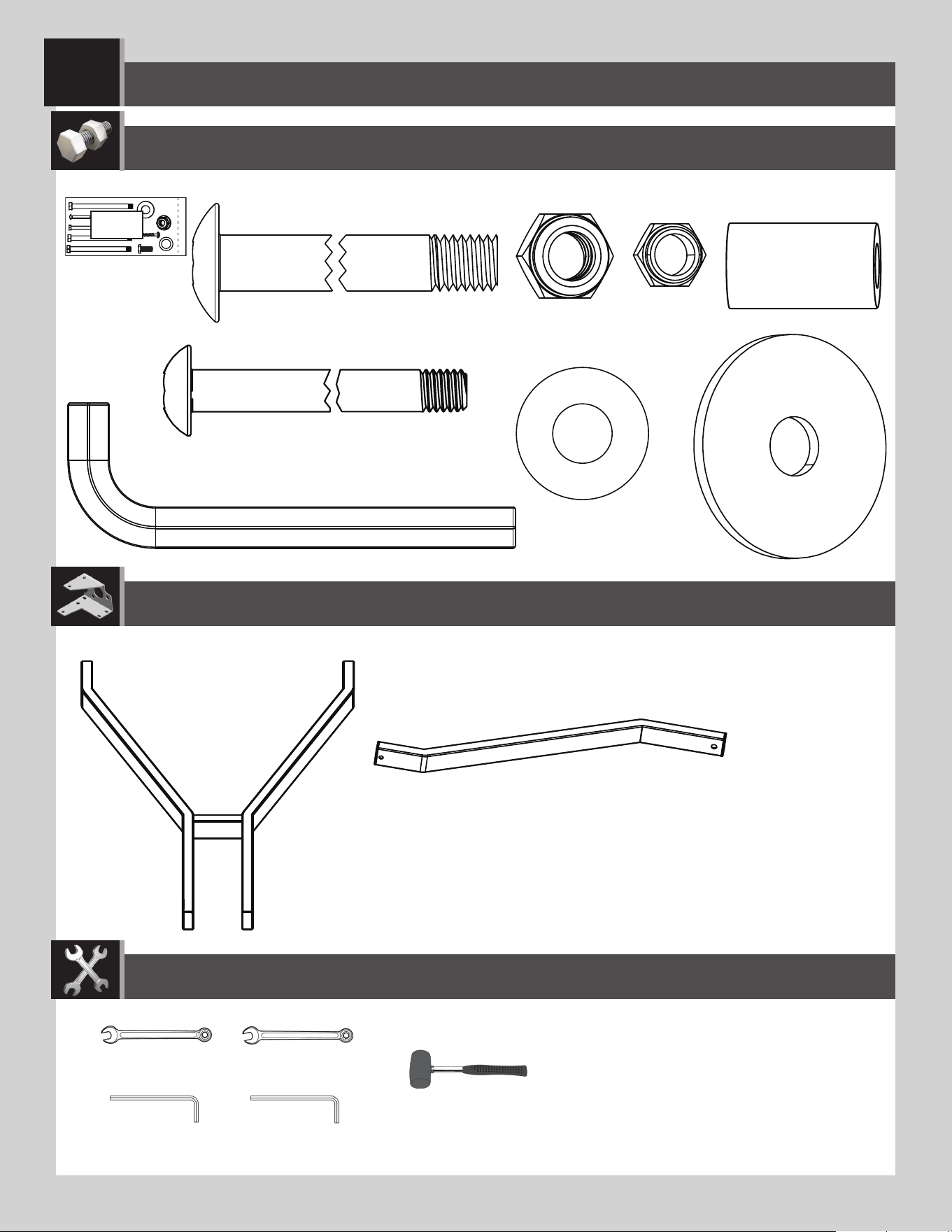

CUG (x2)
AEG (x4)
CYF (x2)
EJM (x2)
EJL (x1)
DIQ (x4)
CZF
Hardware Blister Pack
HARDWARE REQUIRED
EXTENSION ARM ASSEMBLY
3
CUB (x1)
AKE (x1)
Metal Parts
TOOLS REQUIRED
PARTS REQUIRED
AKD (x2)
3/4"
3/8" (included)
9/16"
5/16" (included)
Rubber Mallet
AOQ (x1)
11
TOOLS AND HARDWARE REQUIRED
u SECTION 3 (CONTINUED)
CUG
AEG
AEG
CYF
DIQ
DIQ
AKE
3/4"
3/8"
CUG (x1)
AEG (x2)
CYF (x1)
DIQ (x2)
3.1

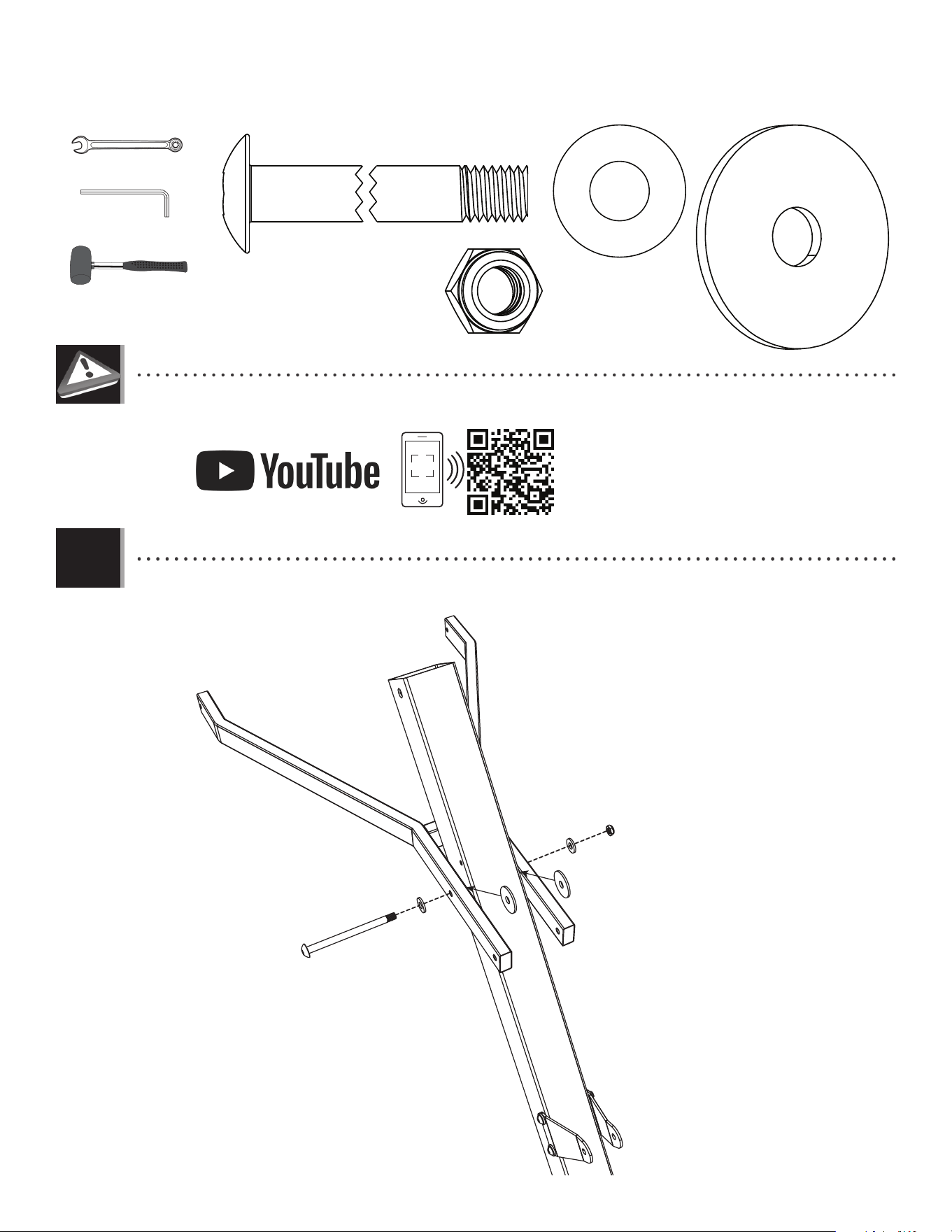

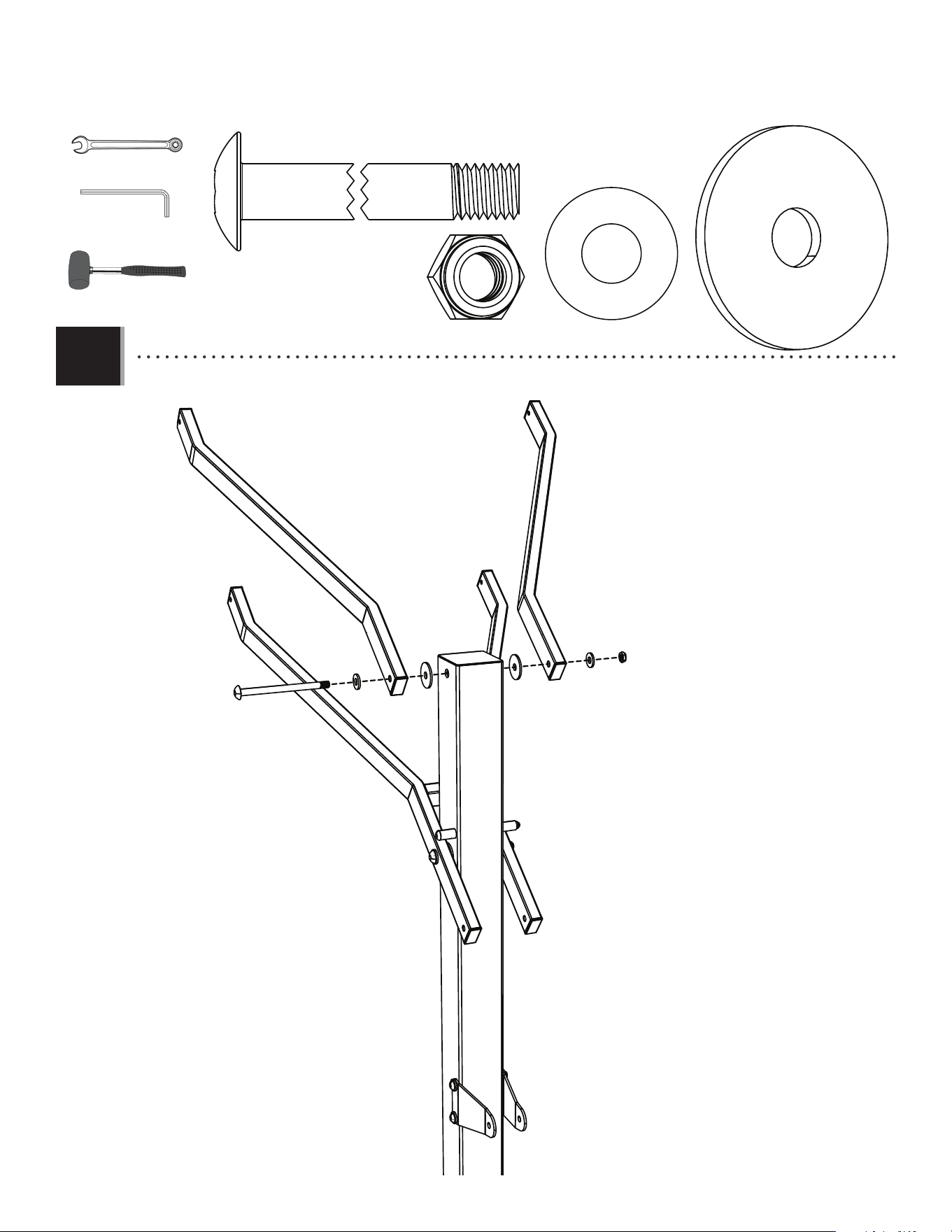

• Secure the Lower Extension Arm Assembly (AKE) through the first set of holes on the Pole above the Handle Brackets.
Ensure the Large Plastic Washers (DIQ) are placed between the Extension Arms and the Pole on each side.
• In case of any trouble with this section, scan the code below to view a video on its assembly.
• http://go.lifetime.com/crankadjustarms
12
TOOLS AND HARDWARE REQUIRED
u SECTION 3 (CONTINUED)
3.2

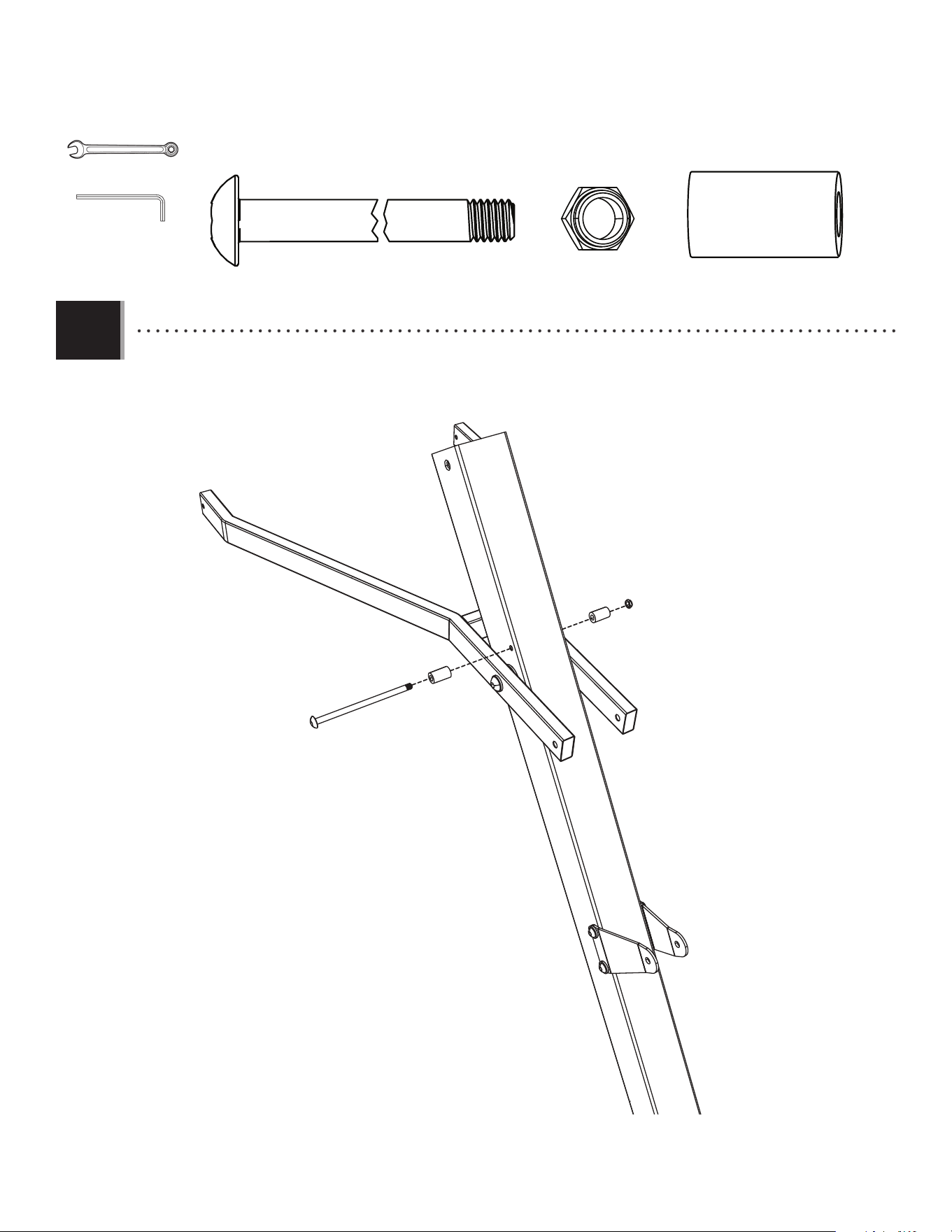

• Install the Bolt (EJL) through the Pole with a long Rubber Spacer (EJM) on either side. Make sure the back end of the
Extension Arm Assembly remains beneath this hardware.
EJL
EJM
EJM
CUB
EJM (x2)
EJL (x1)
CUB (x1)
9/16"
5/16"
13
TOOLS AND HARDWARE REQUIRED
u SECTION 3 (CONTINUED)
3.3
• Attach the Upper Extension Arms (AKD) to the Pole as shown.
CUG (x1)
CUG
AEG
AEG
CYF
DIQ
DIQ
CYF (x1)
AEG (x2)
DIQ (x2)
3/4"
3/8"
AKD
AKD
14
EJQ (x1)
Hardware Blister Pack

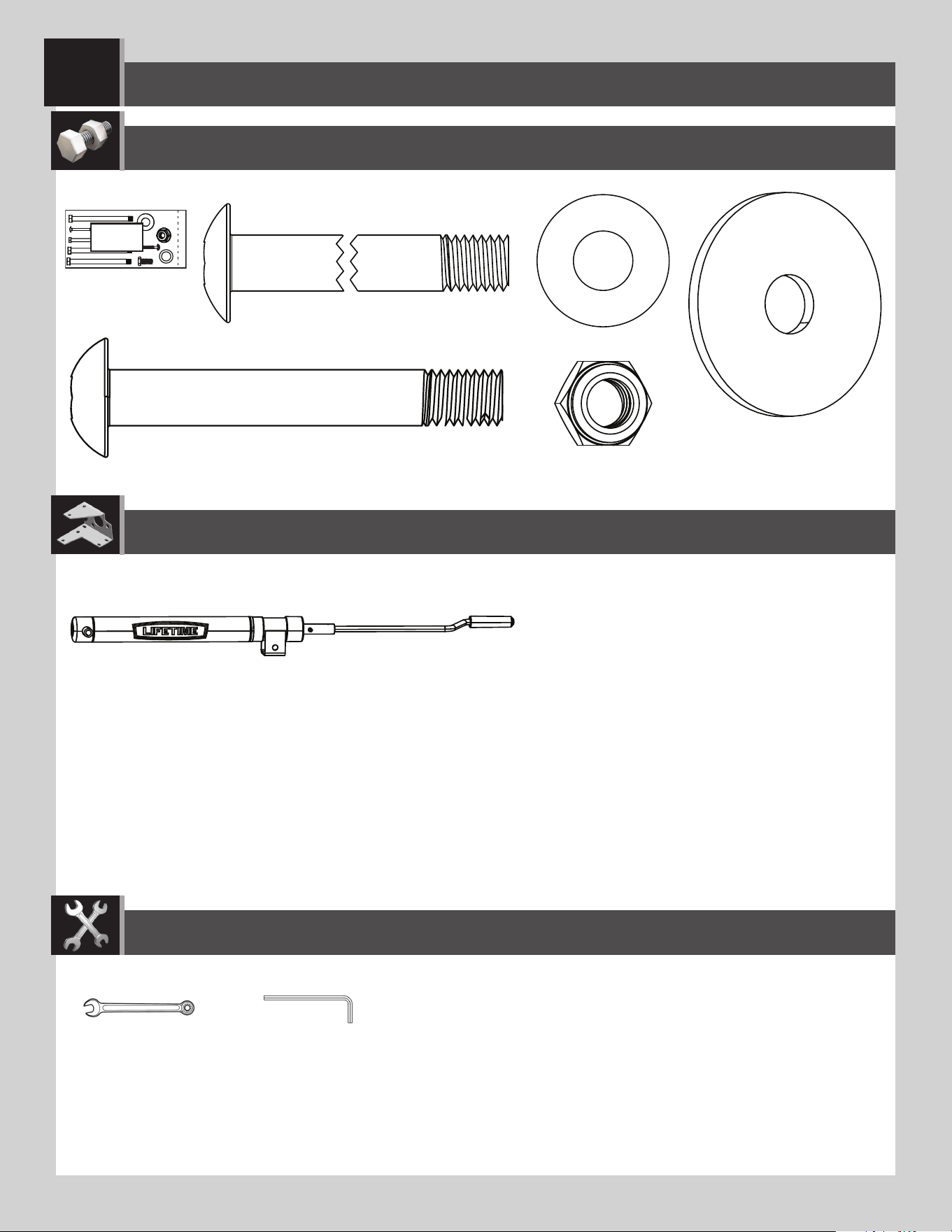

HARDWARE REQUIRED
HANDLE ASSEMBLY
4
CUG (x1)
CYF (x2)
AEG (x4)
DIQ (x2)
BCT
ELX (x1)
PARTS REQUIRED
Large Parts
TOOLS REQUIRED
3/4"
3/8"
15
TOOLS AND HARDWARE REQUIRED
u SECTION 4 (CONTINUED)
AEG
AEG
CYF
CYF (x1)
3/4"
3/8"
CUG (x1)
AEG (x2)
CUG
ELX

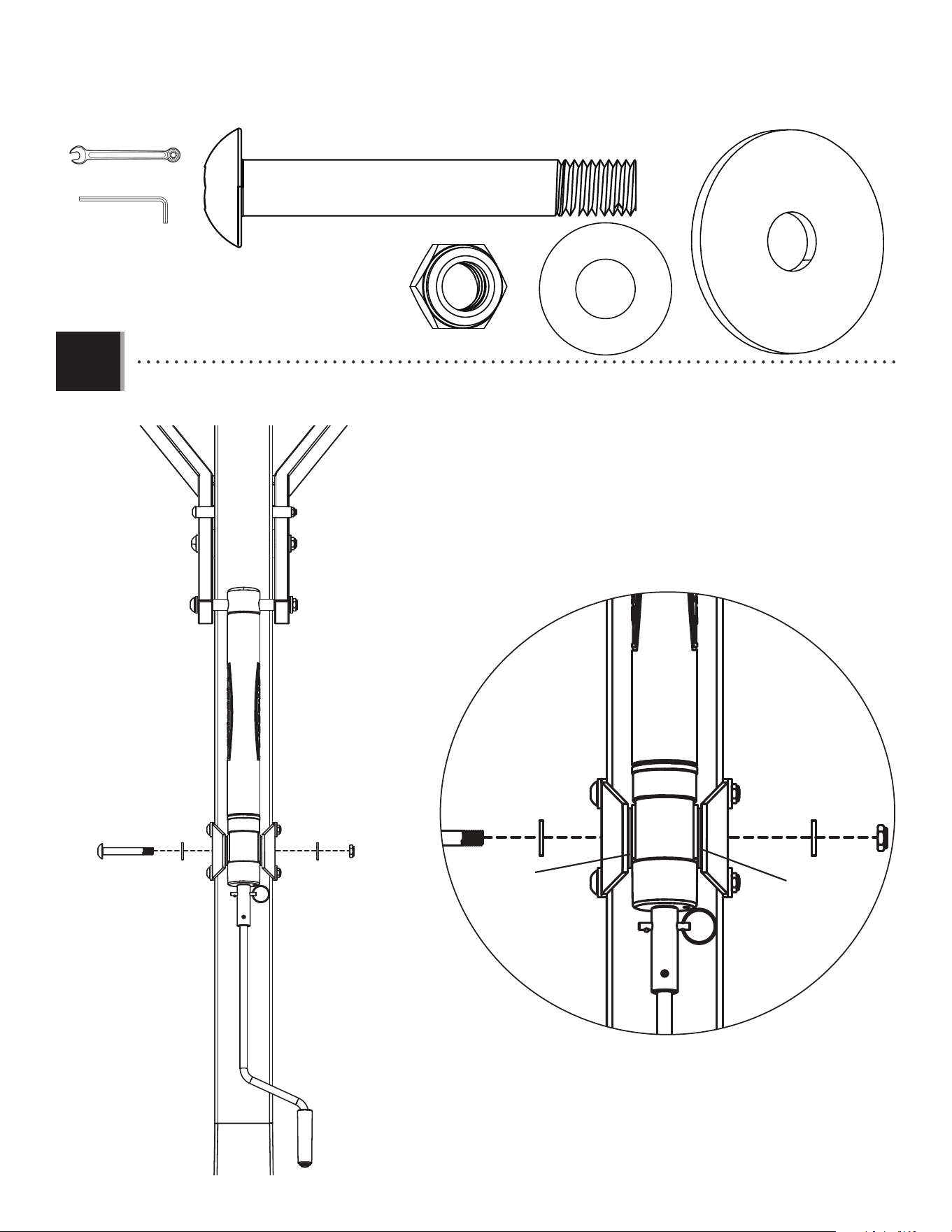

• Align the Spacer at the top of the Crank Adjust Assembly (ELX) with the holes in the Lower Extension Arms. Secure
using the hardware shown, but do not overtighten this hardware.
4.1
• In case of any trouble with this section, scan the code below to view a video on its assembly.
• http://go.lifetime.com/crankadjusthandle
16
TOOLS AND HARDWARE REQUIRED
u SECTION 4 (CONTINUED)
3/4"
3/8"
4.2

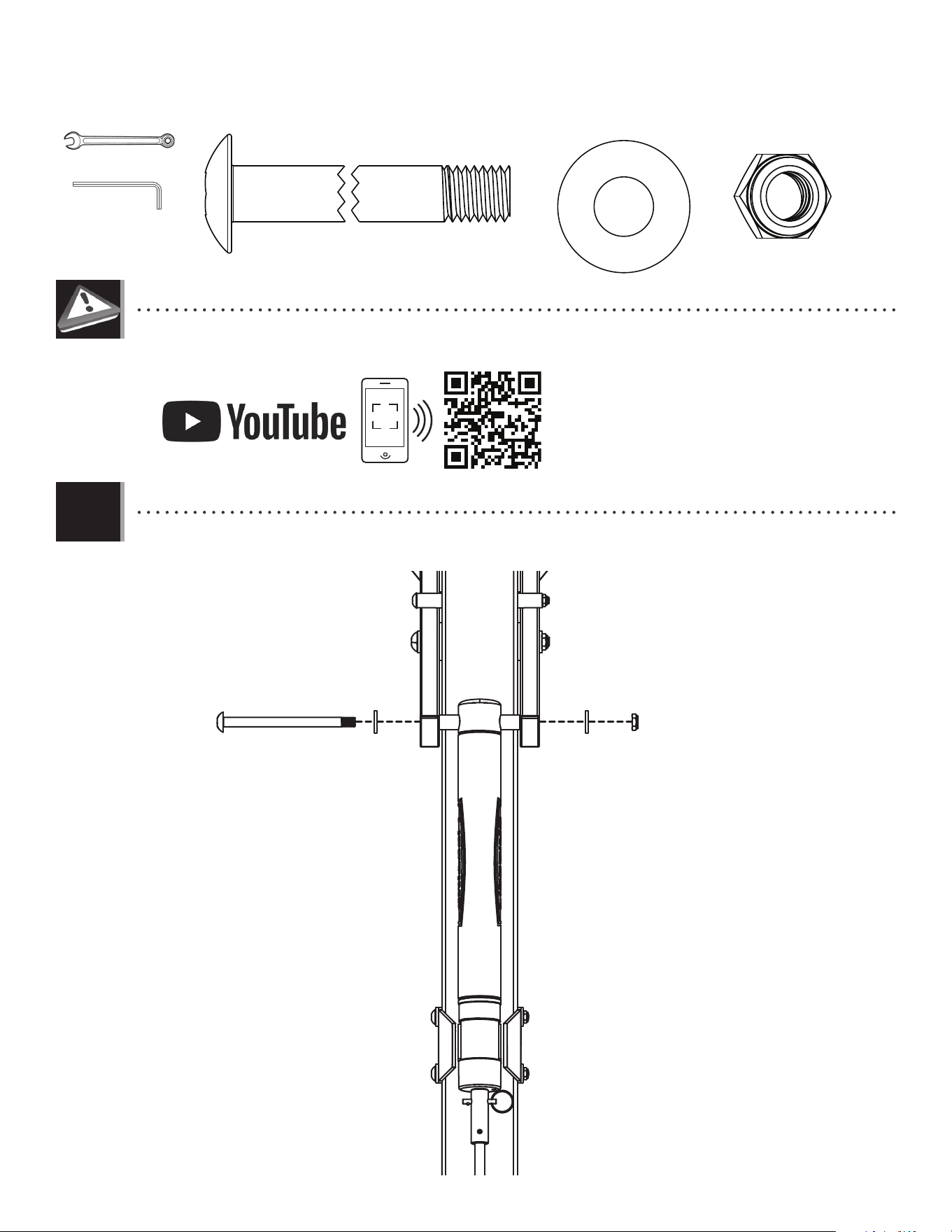

• Install the hardware indicated in the location shown. Make sure the Large Plastic Spacers (DIQ) are placed between
the Crank Adjust Assembly and the Pole Brackets.
CYF (x1)
EJQ (x1)
AEG (x2)
AEG
AEG CYF
DIQ
DIQ
EJQ
DIQ (x2)
17

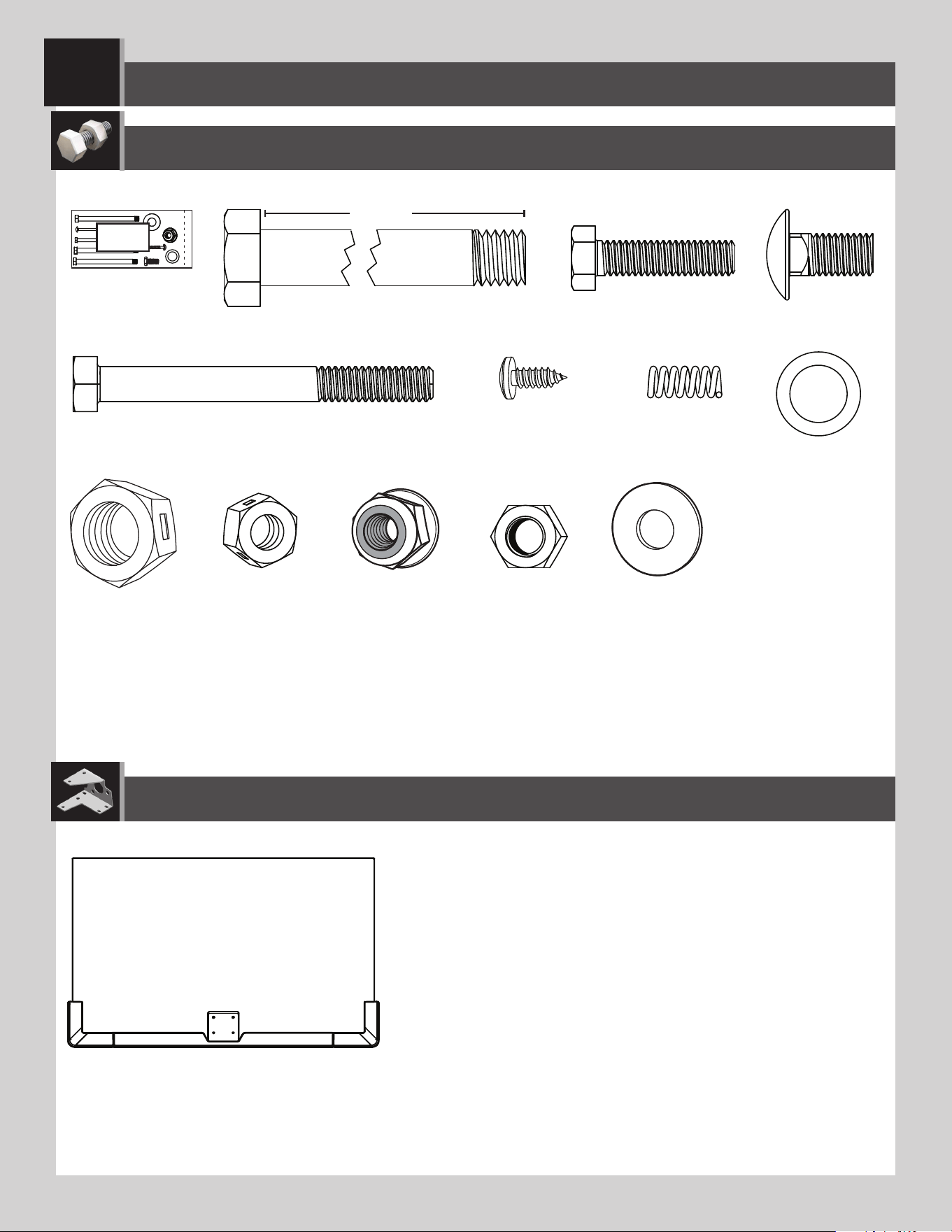

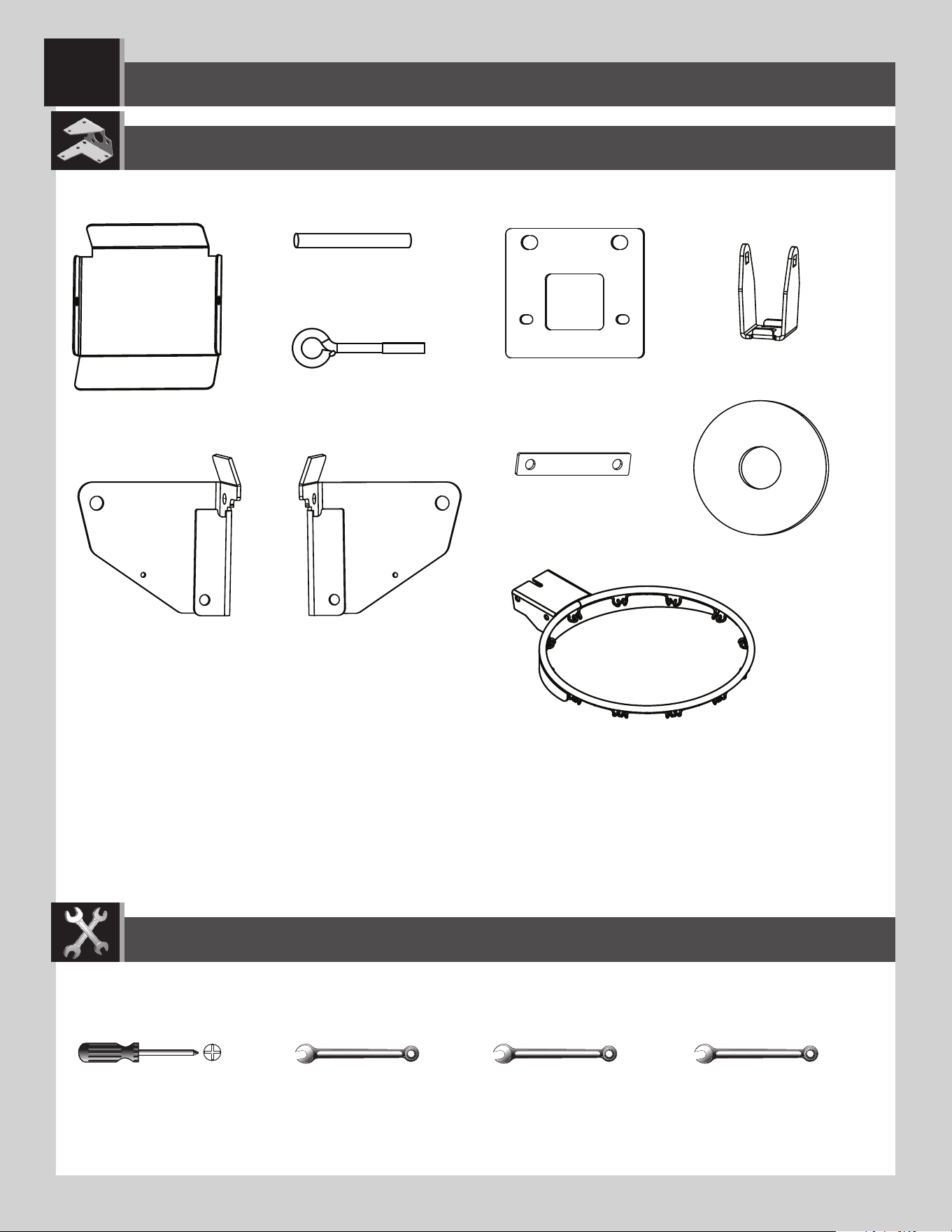

BACKBOARD-TO-RIM ASSEMBLY
5
Hardware Blister Pack
PARTS REQUIRED
HARDWARE REQUIRED
AJI (x1)
Glass and Metal Parts
ANK (x4)
ABK (x4)
ADX (x2) BGZ (x1)
ANL (x1)
5 9/16"
AAX (x1)
ABD (x8)
ANM (x2)
ABB (x2)
ANN (x2)
ANJ (x2)
ELG (x2)
BCS
18
BACKBOARD-TO-RIM ASSEMBLY
5
TOOLS REQUIRED
Metal Parts
PARTS REQUIRED
AMB (x1)
AMA (x1)
BGY (x1)
AMC (x1)
AMK (x1)
BPZ (x1)
BQA (x1)
1/2" 9/16" 3/4"
(1)
(2) (2) (2)
ALX (x1)
ALY (x1)
ANO (x1)
i
This page intentionally left blank

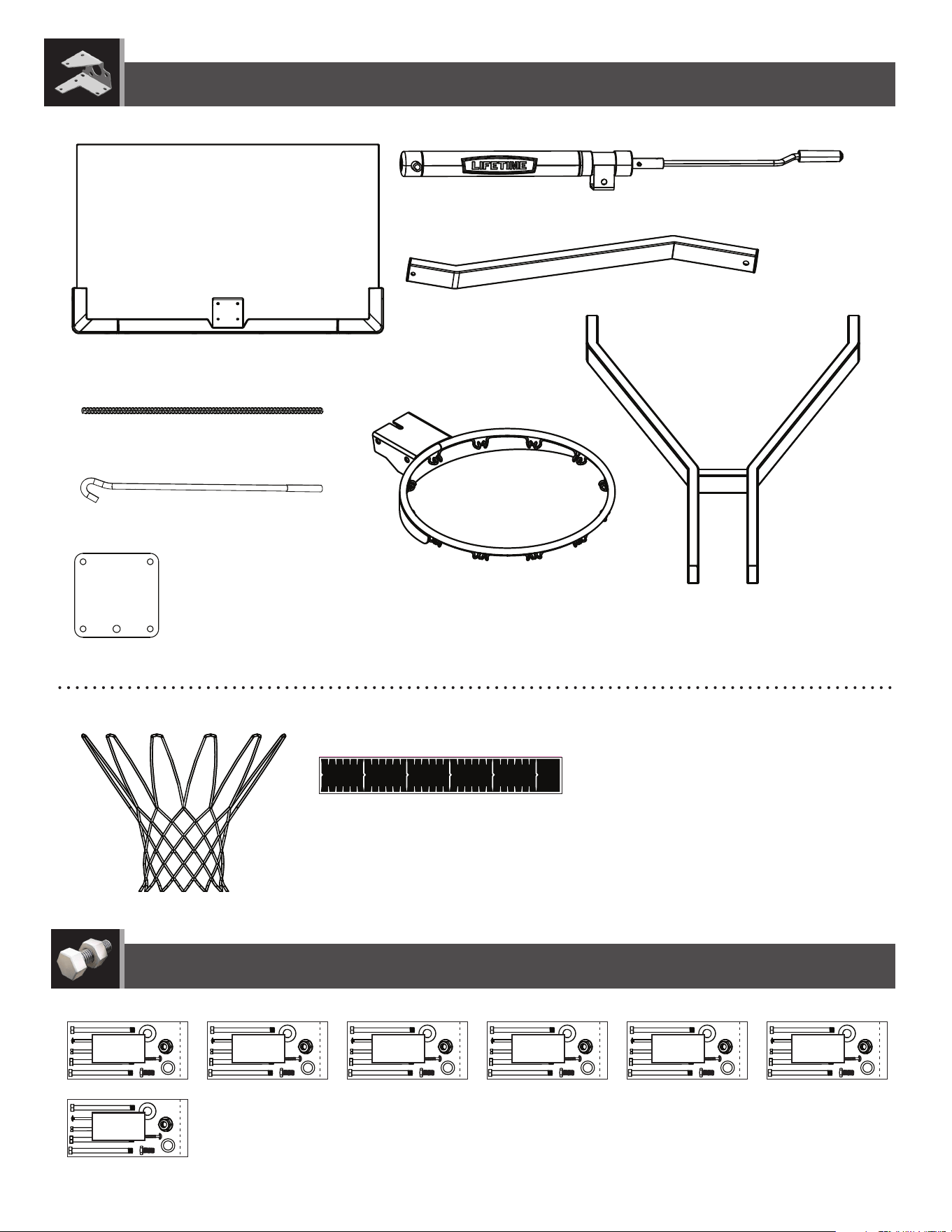

Removable Reference Section
PARTS IDENTIFIER
ii
PARTS IDENTIFIER
Removable Reference Section
Metal Parts
AMB (x1)
AMA (x1)
BGY (x1)
AMC (x1)
AMK (x1)
BPZ (x1)
BQA (x1)
ALY (x1)
ALH (x1)
ALE (x1)
EJS (x2)
ANO (x1)
iii
PARTS IDENTIFIER
HARDWARE BAG AND BLISTER PACK IDENTIFIER
Removable Reference Section
FNG BCO CZF BCT BCS BCR
CZG
AJI (x1)
AKZ (x1)
ELX (x1)
AKE (x1)
AKD (x2)
AEZ (x4)
AKT (x1)
AEI (x4)
ALX (x1)
Metal Parts
Plastic Parts
AKP (x1)
12024 64
9'
8.5'
9.5'
10'
7.5'
8'
C
M
Y
CM
MY
CY
CMY
K
1202464_CrankAdjust_Height_Sticker.pdf 1 7/1/2019 1:14:25 PM
iv
This page intentionally left blank
Removable Reference Section
PARTS IDENTIFIER
19
SECTION 5 (CONTINUED)
TOOLS AND HARDWARE REQUIRED

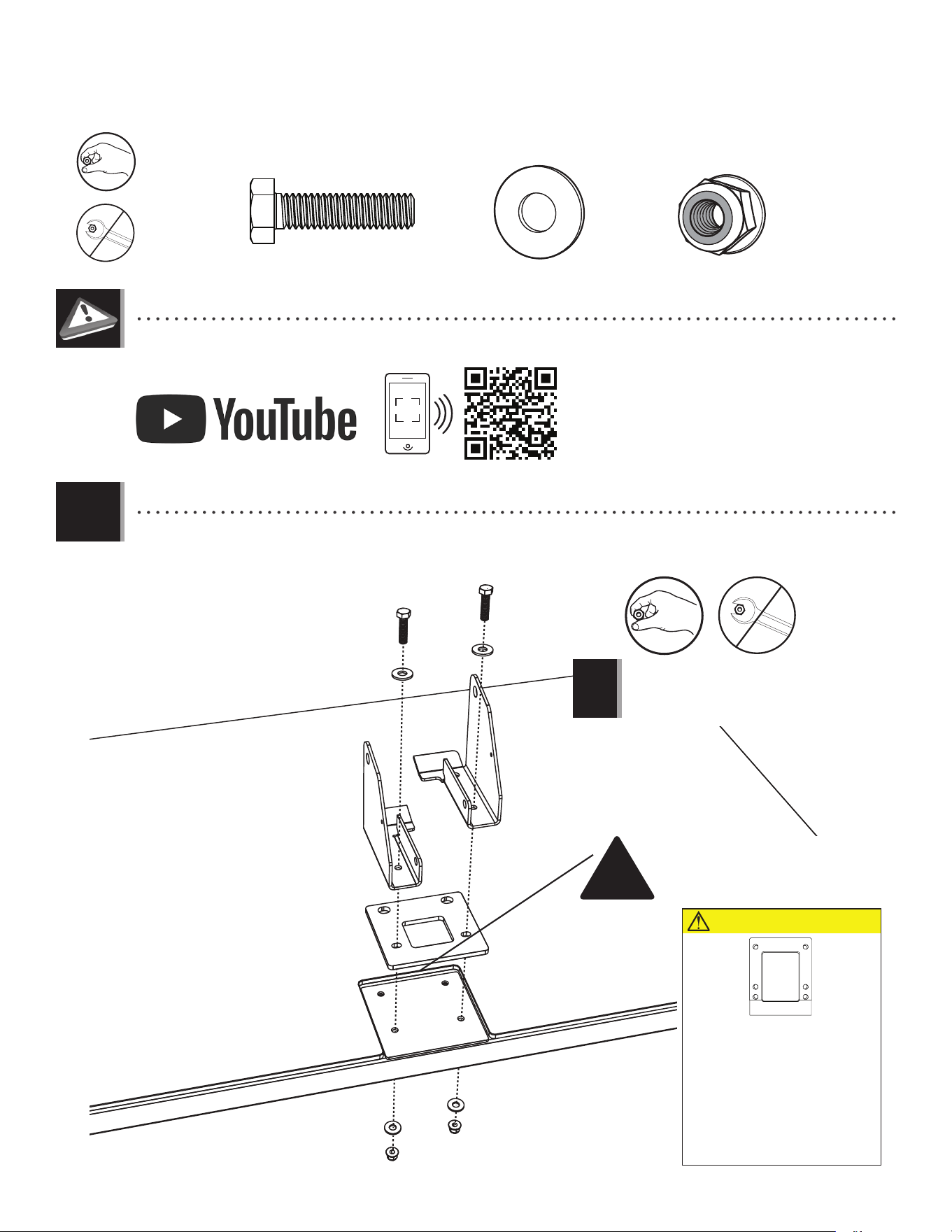

• Lay the backboard (AJI) face up with the rim holes exposed over the edge of a table. Place the rim impact spacer (BGY)
in the backboard. Add the left and right rim housings (AMC and AMB) on top of the rim impact spacer and slide the
hardware shown into place.
ANJ (x2)
ABD (x4)
ABK (x2)
5.1
• WARNING: The glass backboard will break if
the rim spacer is not installed as shown in
this step. This may result in personal injury
or property damage.
ANJ
ANJ
ABD
ABD
ABD
ABD
AMB
AMC
BGY
AJI
ABK
ABK
• Only fi nger-tighten this hardware for
now. It will be securely fastened later in
the assembly.
!
• In case of any trouble with this section, scan the code below to view a video on its assembly.
• http://go.lifetime.com/crankadjustbackboardtorim
!
CAUTION
A Rim Spacer must be
installed in this location,
or your Glass Backboard
will break.
Call Customer Service if
you have any questions:
1-800-225-3865
1033078 Sticker, Rim Spacer Caution (for Glass BB)
3.5” W x 4.5” H
1033078
20
SECTION 5 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
5.2
5.3

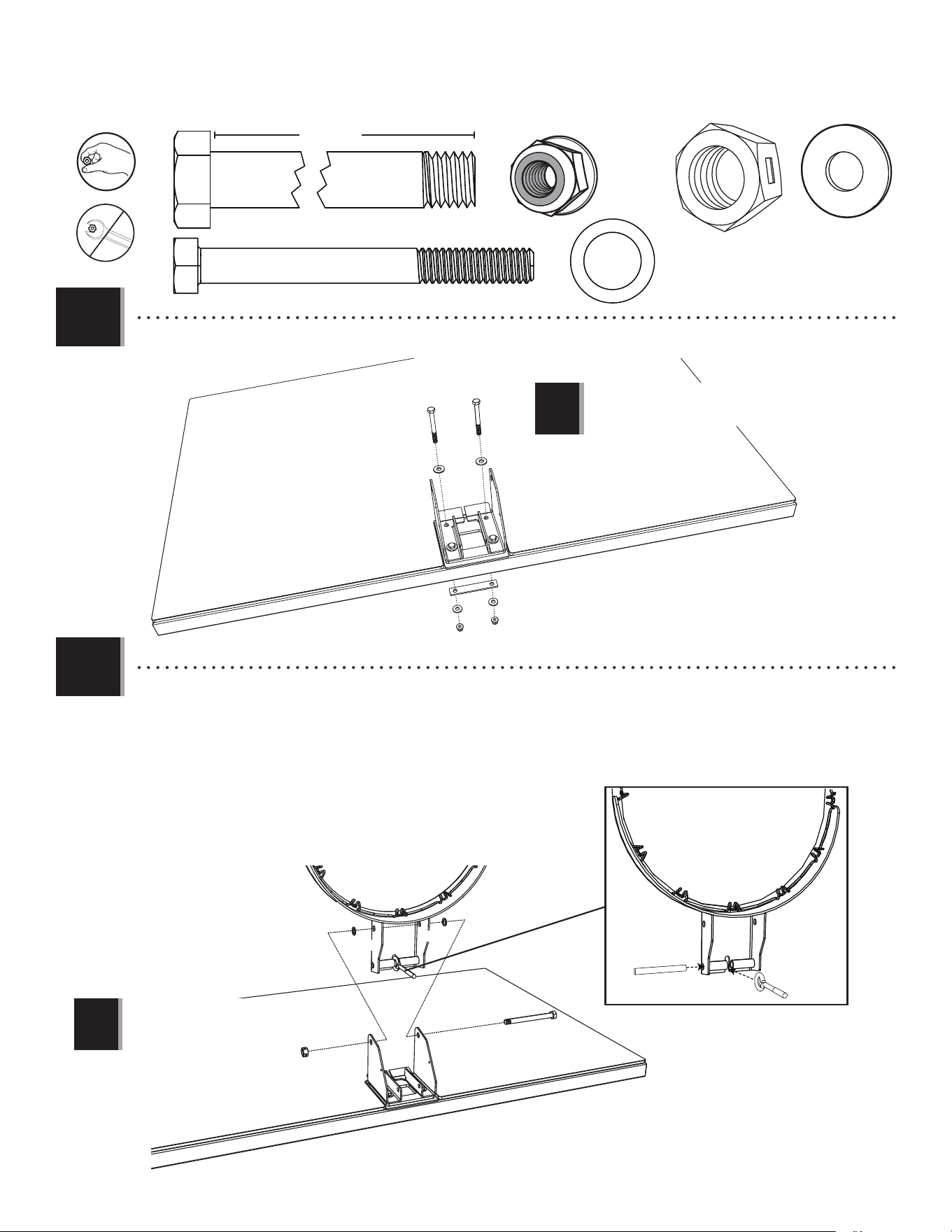

• Secure the rim adapter plate (ALY) to the backboard (AJI) by using the hardware as shown.
• Slide the end of the rim pin (BPZ) into the rim (ALX) and through the eye bolt (BQA) in the location indicated. Attach the
rim to the rim housing using the hardware shown, making sure the washers (ANK) rest between the rim and the rim
housing.
ABD (x4)
ABK (x2)
ABD
ABD
ABD
ABD
ELG
ELG
ALY
ABK
ABK
AJI
BPZ
BQA
ALX
ANK
ANK
ANL
AAX
5 9/16"
ANL (x1)
AAX (x1)
ANK (x2)
ELG (x2)
• Only fi nger-tighten this
hardware for now.
!
• Only fi nger-tighten this
hardware for now.
!
21
SECTION 5 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
ANM (x2)
ABB (x2)
ALX
BQA
AMK
ANK (x2)
ANM
ANM
ABB
ABB
5.4

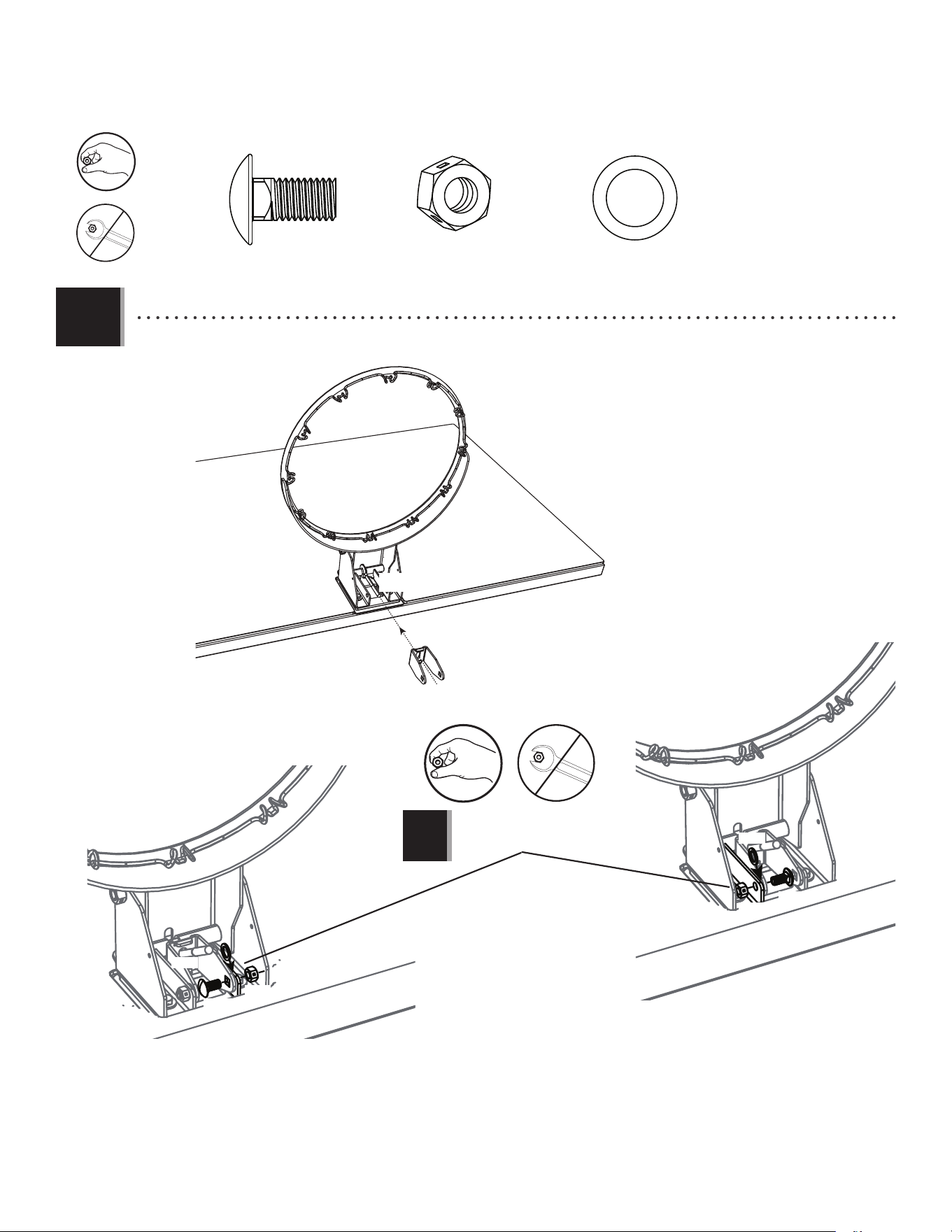

• Slide the spring holder clevis (AMK) onto the eye bolt (BQA) and secure with the hardware shown.
ANK
ANK
• Only fi nger-tighten this
hardware for now.
!
22
SECTION 5 (CONTINUED)
TOOLS AND HARDWARE REQUIRED

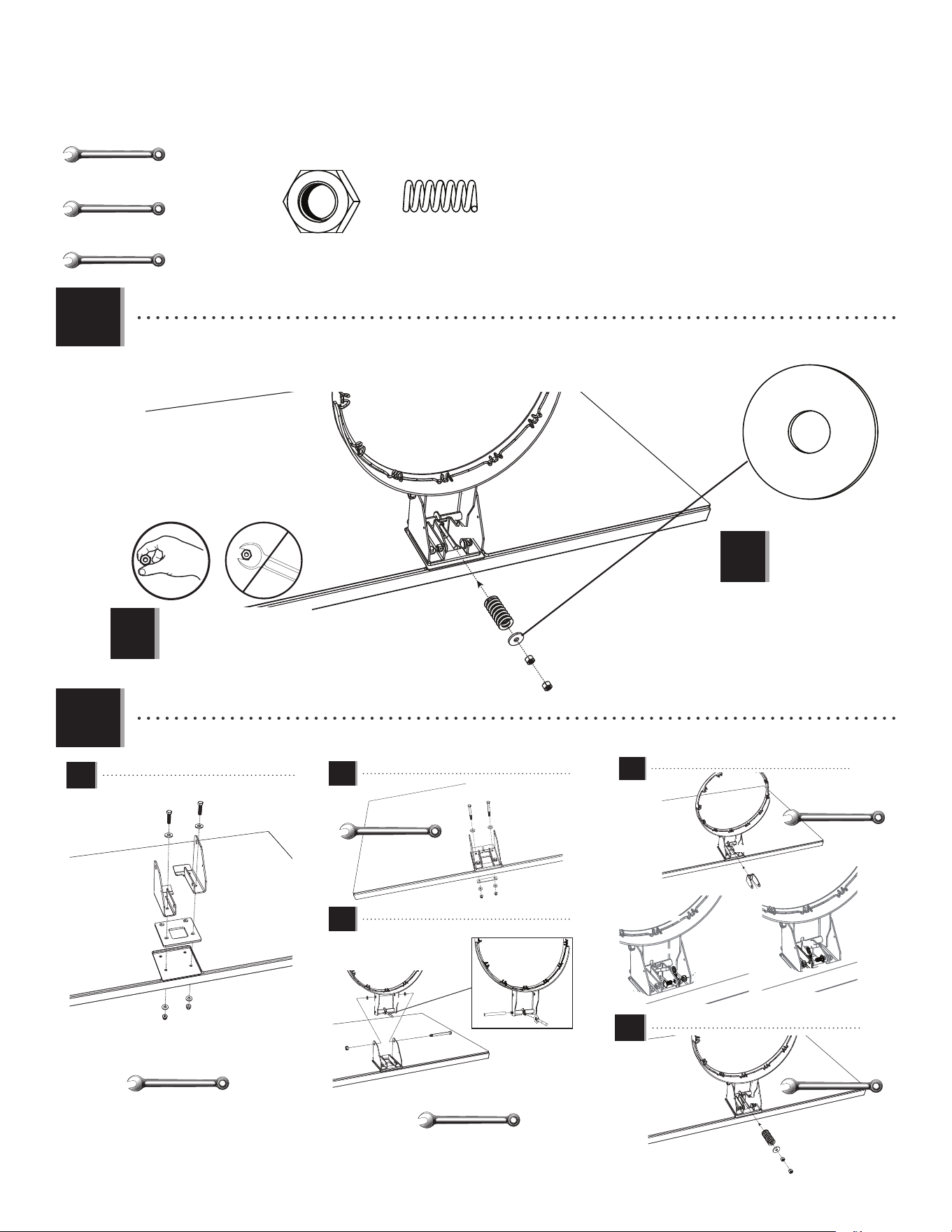

5.5
5.6
• Slide the compression spring (BGZ) onto the eye bolt (BQA), and secure with the hardware shown. Tighten the nuts (ANN)
to adjust rim tension.
• Secure the hardware from steps 5.1–5.5 in the order they were assembled.
BQA
ANN
ANN
ANN (x2)
ANO
BGZ (x1)
ANO (x1)
BGZ
5.1
ANJ
ANJ
ABD
ABD
ABD
ABD
AMB
AMC
BGY
AJI
ABK
ABK
1/2”
(2)
5.2
5.3
ABD
ABD
ABD
ABD
ELG
ELG
ALY
ABK
ABK
BPZ
BQA
ALX
ANK
ANK
ANL
AAX
1/2”
(2)
3/4”
(2)
ALX
BQA
AMK
ANM
ANM
ABB
ABB
5.4
ANK
ANK
5.5
BQA
ANN
ANN
ANO
BGZ
9/16"
(2)
9/16”
(2)
9/16”
(2)
1/2"
(2)
3/4"
(2)
• Spacer (ANO) is found
in the rim kit.
!
• Only fi nger-tighten this
hardware for now.
!
23
SECTION 5 (CONTINUED)
TOOLS AND HARDWARE REQUIRED
ADX (x2)
AMA
AMA
ADX
ADX
(1)
5.7

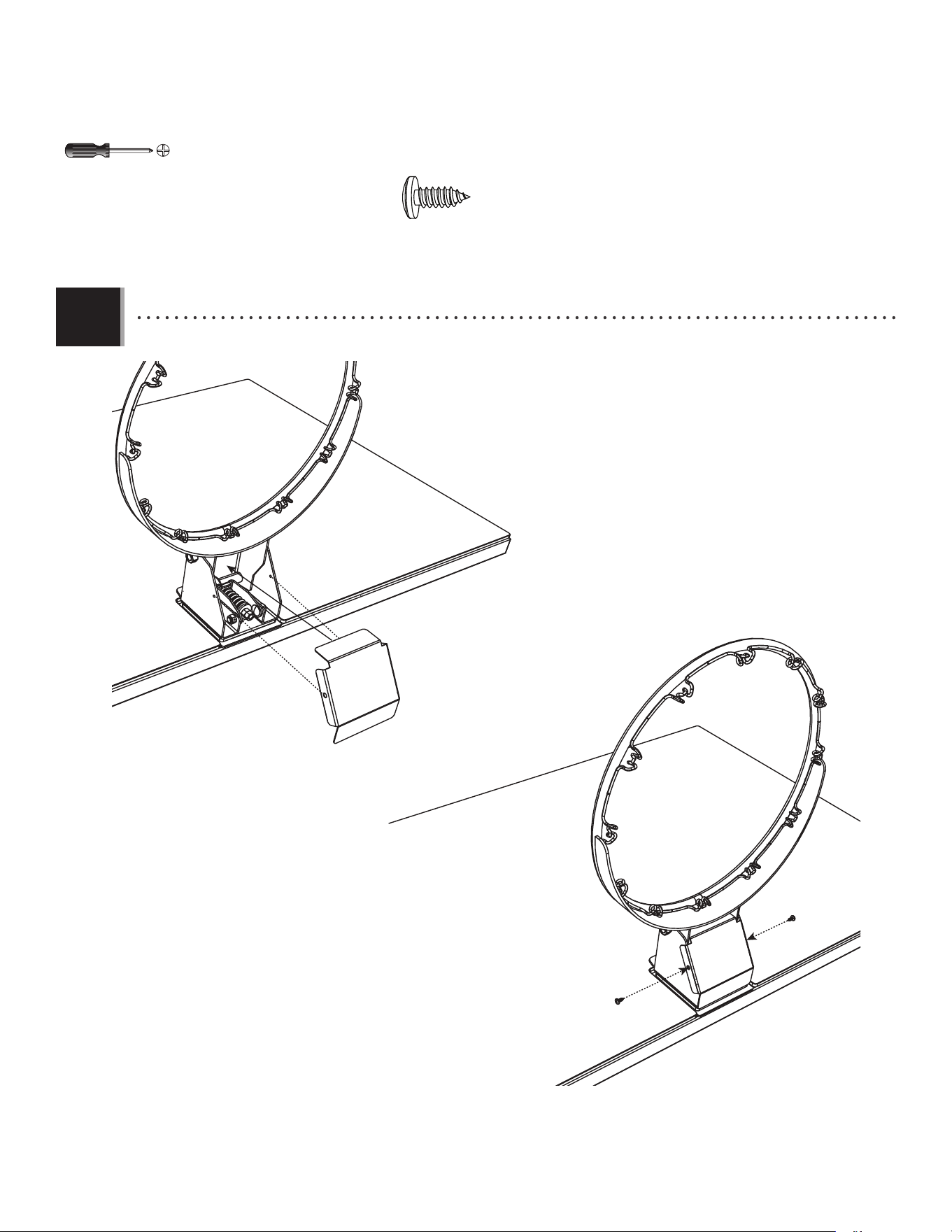

• Attach the Rim Cover Plate (AMA) to the Rim with the hardware shown.
24
9/16"
5/16"
PARTS REQUIRED
TOOLS REQUIRED
EKM (x4) CUB (x4)
EJH (x12)
NO NEW PARTS ARE REQUIRED FOR THIS SECTION
BCR
Hardware Blister Pack
HARDWARE REQUIRED

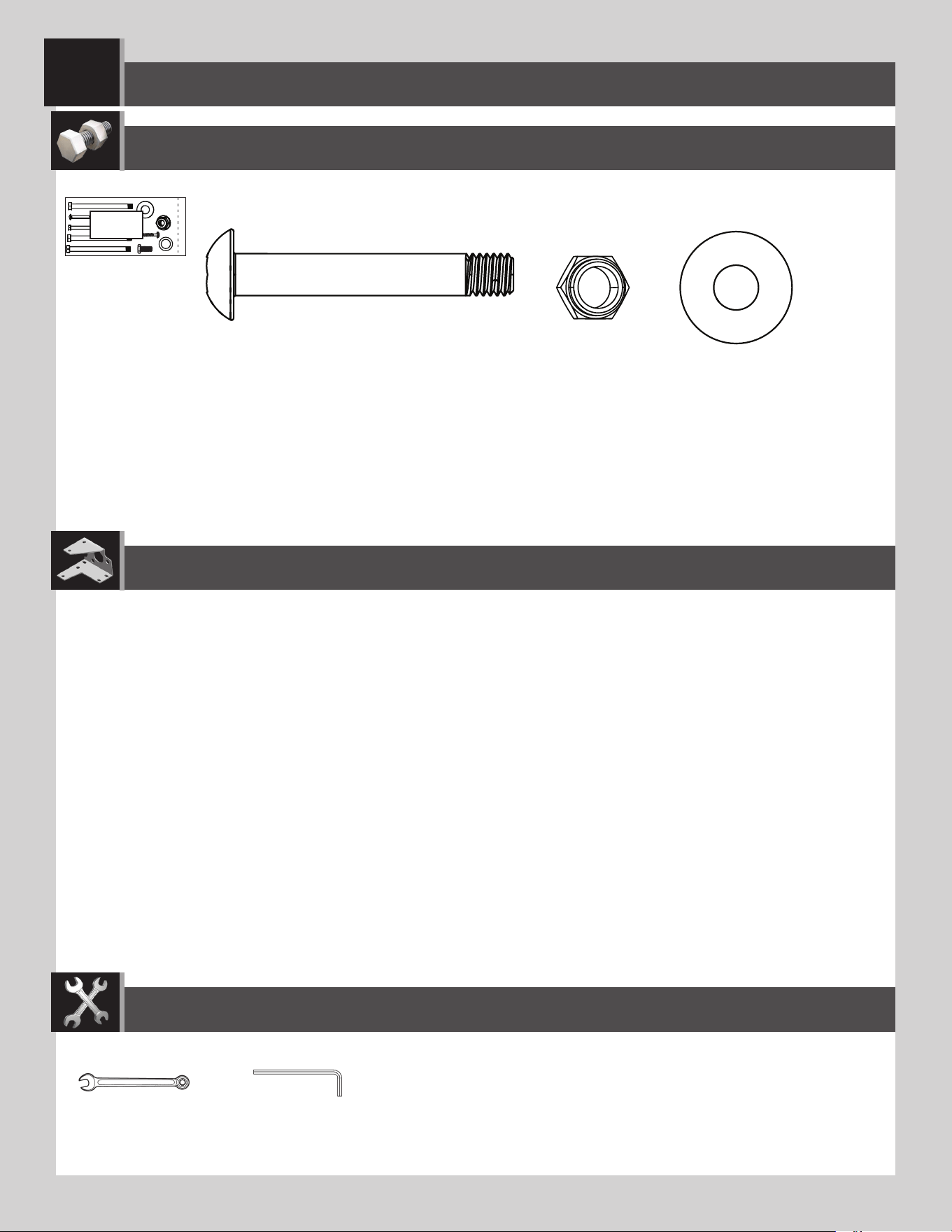

5
6
BACKBOARD TO POLE ASSEMBLY
25
TOOLS AND HARDWARE REQUIRED
u SECTION 6 (CONTINUED)
CAUTION: AT LEAST TWO ADULTS ARE REQUIRED TO COMPLETE ASSEMBLY.
TO PREVENT SERIOUS INJURIES, THE POLE SHOULD BE HELD DOWN BY AT LEAST ONE ADULT AT ALL TIMES.
• If you have trouble with this section, scan the code below to view a video on its assembly.
EKM (x2)
CUB (x2)
EJH (x6)
EKM
EKM
EJH
EJH
EJH
EJH
EJH EJH
CUB
CUB
9/16”
5/16"
6.1
• Attach the Lower Extension Arms (AKE) to the Backboard (AJI) using the hardware shown.
• http://go.lifetime.com/crankadjustbackboardtopole
26
TOOLS AND HARDWARE REQUIRED
u SECTION 6 (CONTINUED)
9/16”
5/16"

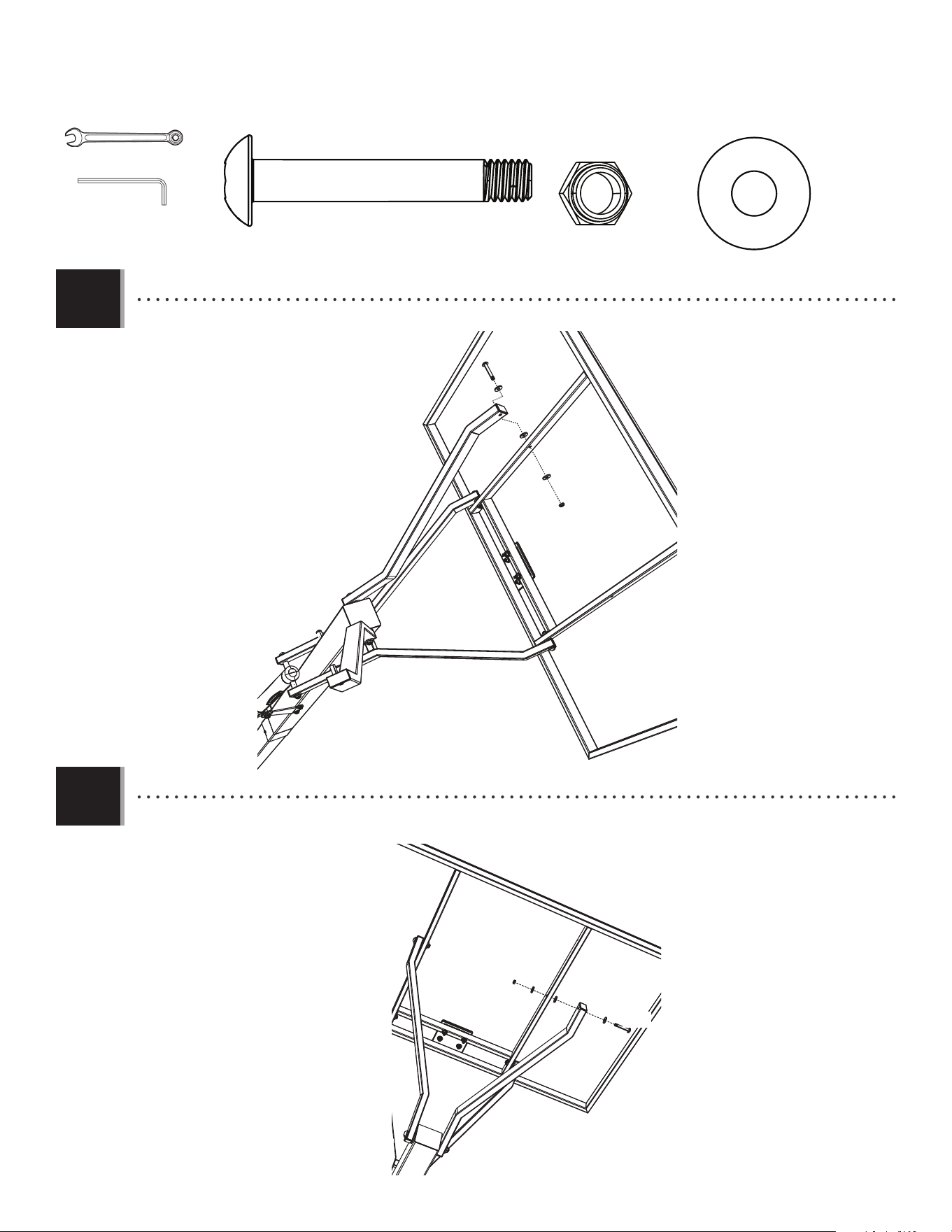

6.2

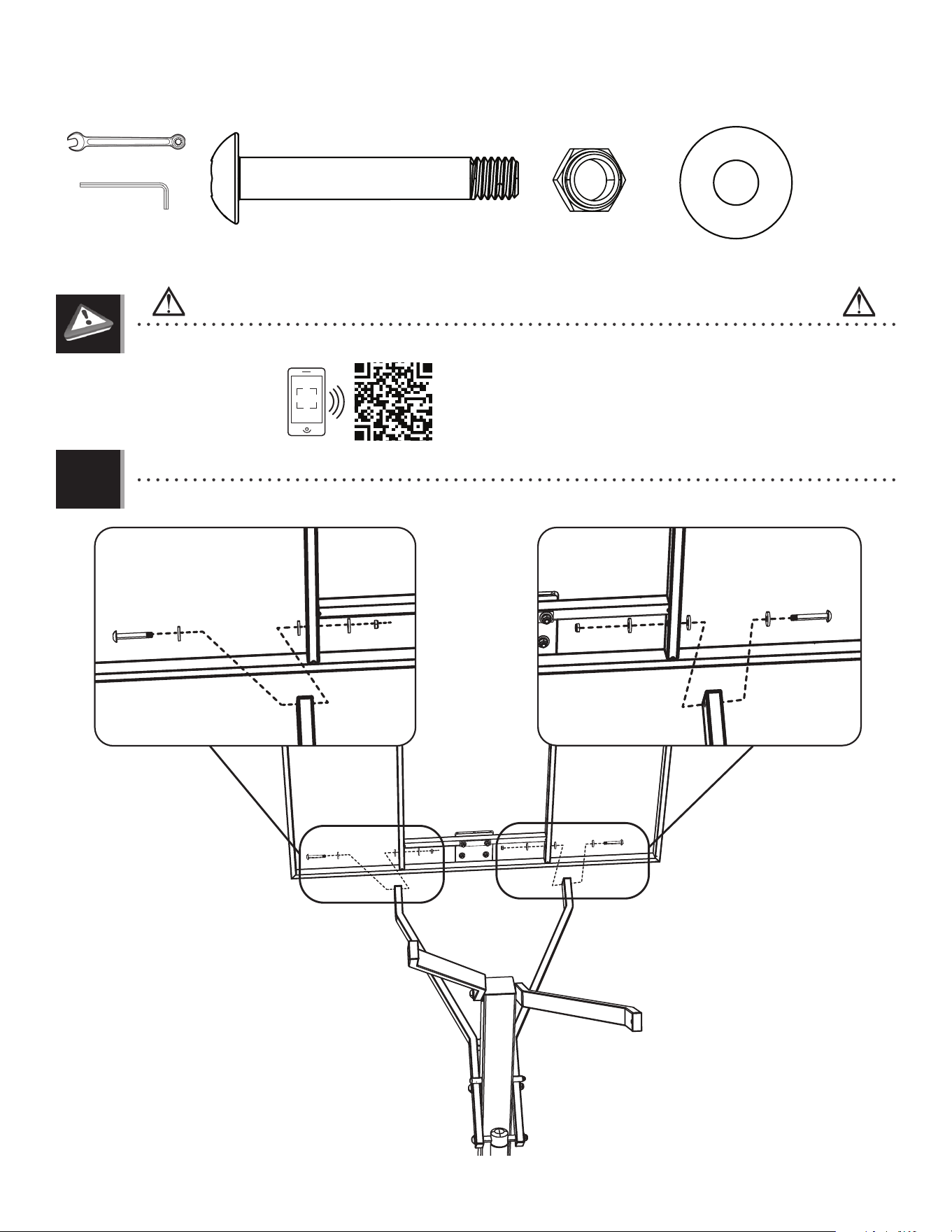

• Attach the Upper Extension Arm (AKD) to the Backboard (AJI) using the hardware shown.
EJH (x6)
EKM (x2) CUB (x2)
6.3
• Repeat step 6.2 to attach the remaining Upper Extension Arm to the Backboard.
EKM
EKM
EJH
EJH
EJH
EJH
EJH
EJH
CUB
CUB
27

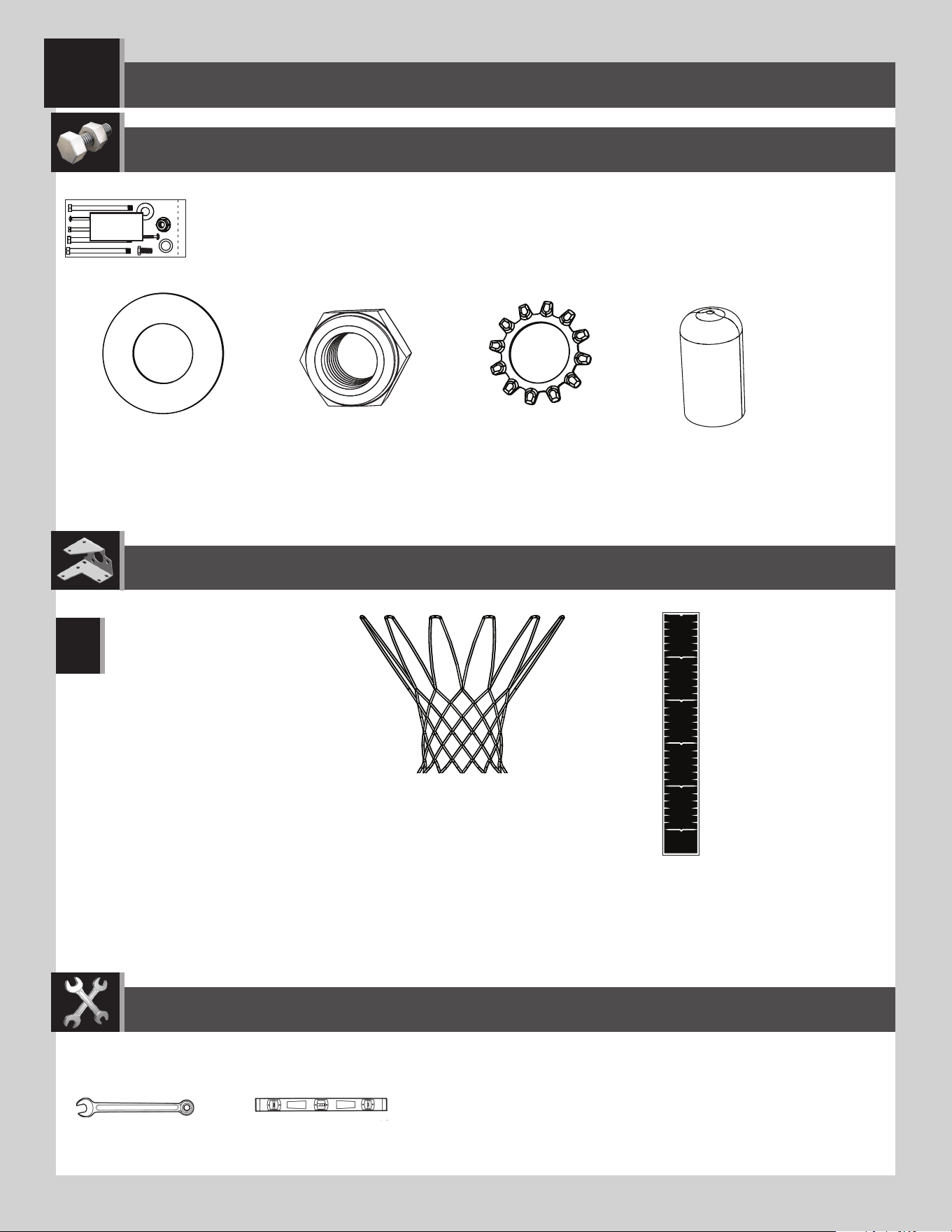

AQN (x4)
AOR (x4)
ADM (x4)
AQO (x4)
Hardware Blister Pack
HARDWARE REQUIRED
FINAL ASSEMBLY
7
PARTS REQUIRED
TOOLS REQUIRED
3/4”
(x1)
Carpenter’s Level
(x1)
!
• DO NOT PROCEED with this Section until
the concrete from Section 1 has been
allowed to cure at least 72 hours (3 days).
CZG
AKZ (x1)
AKP (x1)
12024 64
9'
8.5'
9.5'
10'
7.5'
8'
C
M
Y
CM
MY
CY
CMY
K
1202464_CrankAdjust_Height_Sticker.pdf 1 7/1/2019 1:14:25 PM
28
TOOLS AND HARDWARE REQUIRED
u SECTION 7 (CONTINUED)
3/4”
DO NOT PROCEED WITH THIS SECTION UNTIL THE CONCRETE FROM SECTION 1 HAS BEEN
ALLOWED TO CURE AT LEAST 72 HOURS (3 DAYS).
7.1

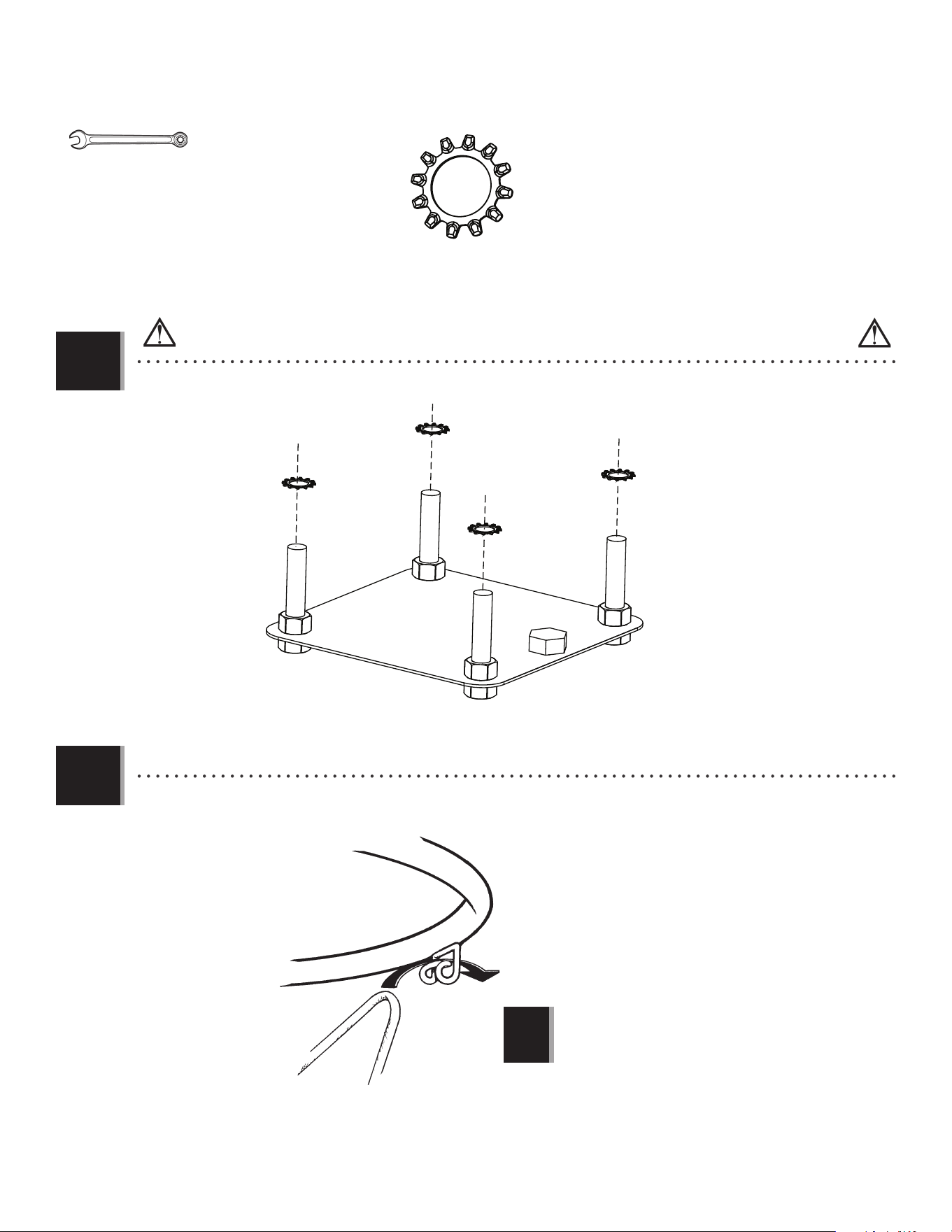

• Stack a Star Washer (AQN) onto the exposed ends of the J-Bolts (AEI).
AQN (x4)
7.2
• Attach the Net (AKZ) to the Rim (ALX).
ALX
AKZ
!
• If a replacement Net is needed, please call our Customer
Service Department. Our Nets are shorter than average
to reduce the risk of entanglement.
AEI
AQN
AEI
AQN
AEI
AQN
AEI
AQN
29
TOOLS AND HARDWARE REQUIRED
u SECTION 7 (CONTINUED)

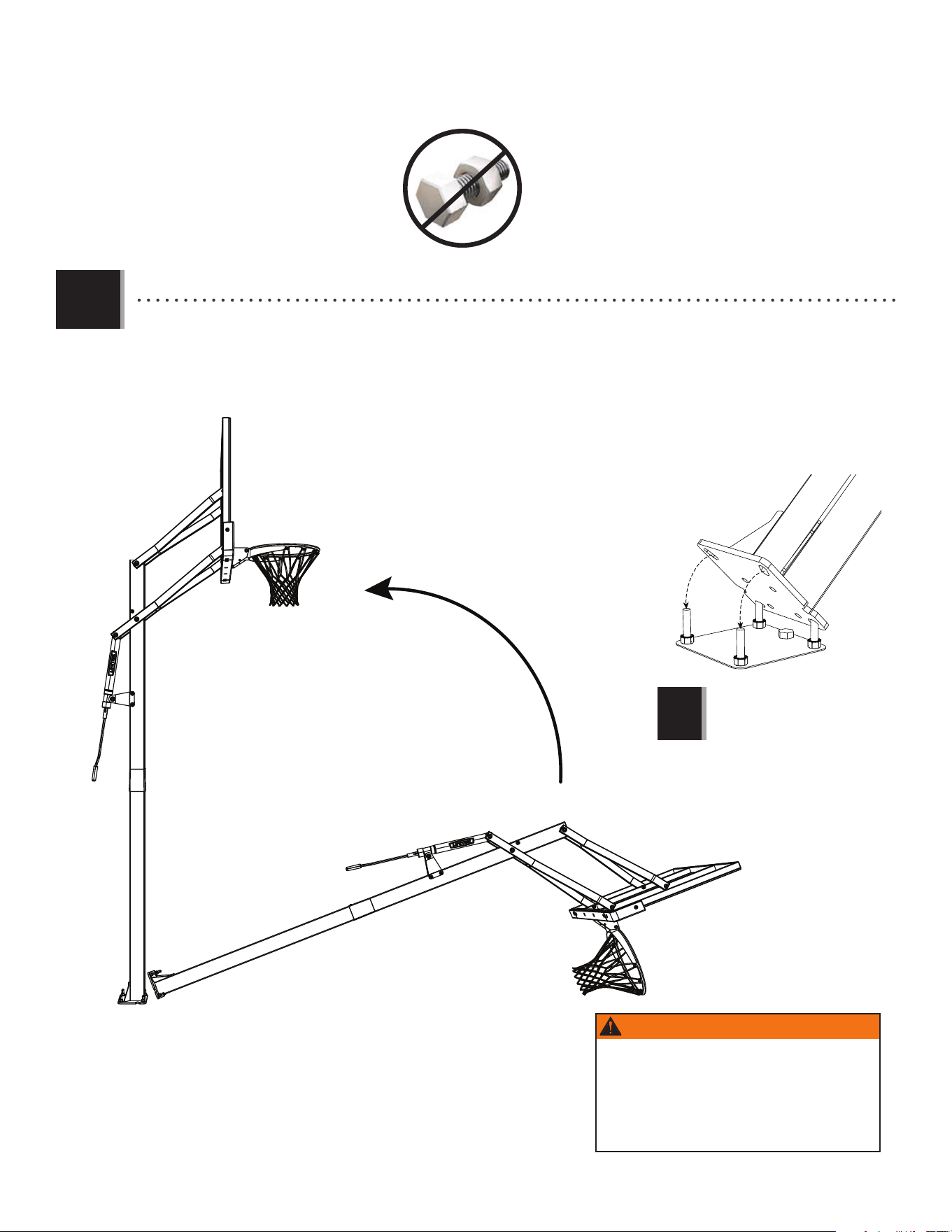

7.3
A MINIMUM OF THREE ADULTS ARE REQUIRED FOR THIS STEP.
• Position the Pole so the slots in the plate at the bottom of the Pole align with the two (2) J-Bolts closest to the
playing surface. Push the plate against the Bolts, ensuring the slots are aligned exactly with the Bolts. With the
system adjusted to its lowest position, have at least three adults slowly and carefully lift the Pole so the Bolts slide
through the slots. Align the holes at the back of the plate with the Bolts at the back of the Template, and stand
the system completely upright.
!
• Avoid scraping the holes in the
plate over the bolts, as this can
damage the threads.
WARNING
The assembled system is very heavy. At least
three adults are required to complete these steps.
Keep hands and fingers clear of pinch points.
Do not put hands or fingers between the Pole and
the mounting plate at any time. Stand the Pole up
slowly and carefully. Failure to follow all of these
instructions and warnings could lead to property
damage or serious personal injuries.
30
TOOLS AND HARDWARE REQUIRED
u SECTION 7 (CONTINUED)
A MINIMUM OF THREE ADULTS ARE REQUIRED FOR THIS STEP.

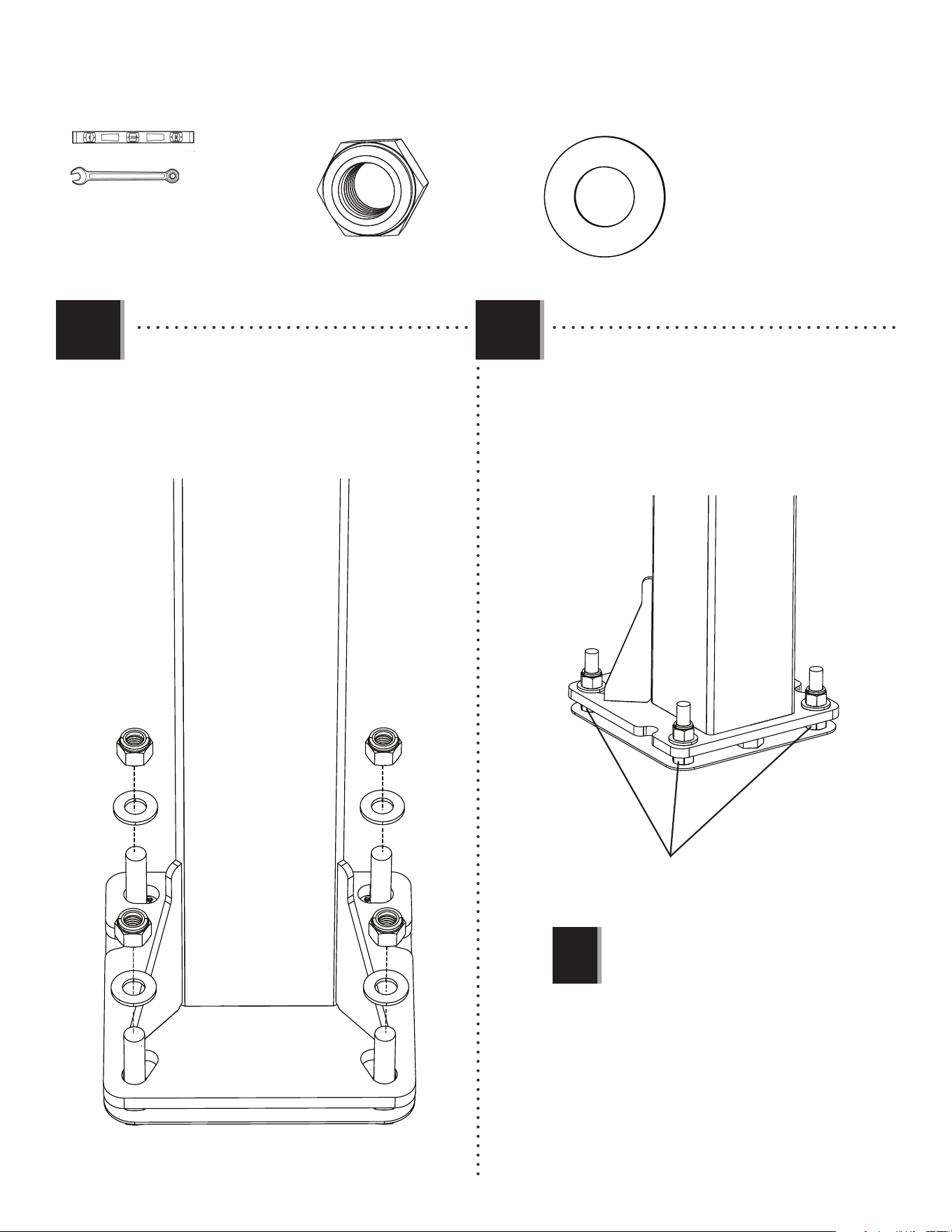

• At least two people should support the Pole as
one person slides a Washer (AOR) onto to the end
of each J-Bolt. Secure the Pole into position
with four (4) Nylock Nuts (ADM). Do not completely
tighten the nuts until instructed later in the
assembly.
ADM
AOR
ADM (x4)
3/4”
A MINIMUM OF THREE ADULTS ARE REQUIRED FOR THIS STEP.
• Two adults should continue supporting the Pole.
Using a carpenter’s level on the face and the side
of the Backboard, adjust the Hex Nuts between
the Template and the Pole plate until the Pole
plate is resting level on all four Nuts, with the
Backboard hanging plumb.
7.4 7.5
!
• Ensure the bottom and side edges
of the Backboard are level and
perpendicular to the playing surface.
AOR (x4)
Hex Nuts
31
TOOLS AND HARDWARE REQUIRED
u SECTION 7 (CONTINUED)
AQO
AQO
AQO
AQO

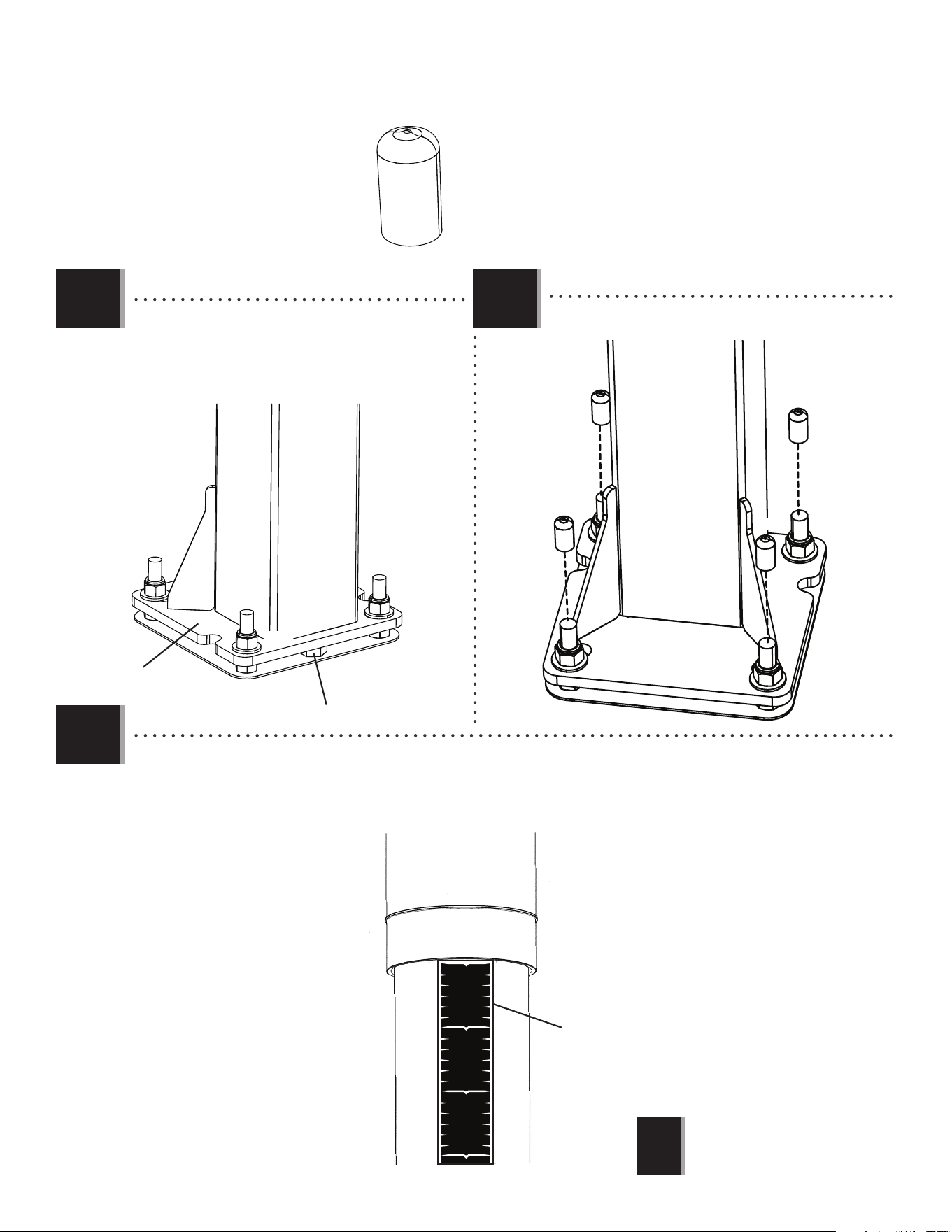

• Tighten the four Hex Nuts (ADM) on top of the pole
plate until they are secure against the plate,
ensuring the Backboard remains vertical. Turn
the center Hex Bolt (AEO) until it is flush against
the pole plate.
7.6 7.7
• Place a Plastic Cap (AQO) onto each J-Bolt.
AQO (x4)
7.8
• Lower the Backboard until the top of the Rim is 7 feet 6 inches above the playing surface. Remove about an inch
of backing from the top of the Height Sticker (AKP). Apply the Sticker to the back of the Crank Mechanism, lining up
the top of the sticker with the Crank Adjust Cover. To prevent wrinkles, press the Sticker into place while slowly
removing the rest of the backing.
Crank Adjust
Cover
AKP
!
• Actual height sticker may vary
from the example shown here.
ADM
ADM
ADM
AEO
1202 464
9'
8.5'
9.5'
10'
7.5'
8'
C
M
Y
CM
MY
CY
CMY
K
1202464_CrankAdjust_Height_Sticker.pdf 1 7/1/2019 1:14:25 PM
Pole Plate
32
The life of your basketball system depends on many variables. The climate, exposure to corrosives such as salt, pesticides, or herbicides,
and excessive use or misuse can all contribute to Pole failure, which may cause property damage or personal injury.
Check your basketball system frequently for loose hardware, excessive wear, and signs of corrosion. For safety reasons, and to
prolong the life of your basketball system, you must take the following preventive measures.
a. Check all Nuts and Bolts. If any are loose, tighten them.
b. Check all parts for excessive wear and tear. If necessary, replace any parts that have been worn or damaged through usage.
Contact our Customer Service Department for replacement parts.
c. Inspect the Warning Sticker on the Pole. If it is ripped, faded, or illegible, call our Customer Service Department to request
a replacement Sticker.
d. Check all Pole sections for visible rust or chipped or cracked paint. If either are present, do the following:
1. Use an emery cloth to completely remove any rust or chipped paint.
2. Clean the area with a damp cloth and allow it to dry.
3. Apply two coats of a rust preventative, high gloss enamel paint to the area. Allow the paint to dry between coats.
IF RUST HAS PENETRATED THROUGH THE POLE ANYWHERE, REPLACE IT IMMEDIATELY!
MAINTENANCE INSTRUCTIONS / ENSAMBLAJE DEL ARMAZÓN / ASSEMBLAGE DE LA CHARPENTE
The life of your basketball system depends on many variables. The climate, exposure to corrosives such as salt, pesticides, or herbicides,
and excessive use or misuse can all contribute to Pole failure, which may cause property damage or personal injury.
Check your basketball system frequently for loose hardware, excessive wear, and signs of corrosion. For safety reasons, and to
prolong the life of your basketball system, you must take the following preventive measures.
a. Check all Nuts and Bolts. If any are loose, tighten them.
b. Check all parts for excessive wear and tear. If necessary, replace any parts that have been worn or damaged through usage.
Contact our Customer Service Department for replacement parts.
c. Inspect the Warning Sticker on the Pole. If it is ripped, faded, or illegible, call our Customer Service Department to request
a replacement Sticker.
d. Check all Pole sections for visible rust or chipped or cracked paint. If either are present, do the following:
1. Use an emery cloth to completely remove any rust or chipped paint.
2. Clean the area with a damp cloth and allow it to dry.
3. Apply two coats of a rust preventative, high gloss enamel paint to the area. Allow the paint to dry between coats.
IF RUST HAS PENETRATED THROUGH THE POLE ANYWHERE, REPLACE IT IMMEDIATELY!
The life of your basketball system depends on many variables. The climate, exposure to corrosives such as salt, pesticides, or herbicides,
and excessive use or misuse can all contribute to Pole failure, which may cause property damage or personal injury.
Check your basketball system frequently for loose hardware, excessive wear, and signs of corrosion. For safety reasons, and to
prolong the life of your basketball system, you must take the following preventive measures.
a. Check all Nuts and Bolts. If any are loose, tighten them.
b. Check all parts for excessive wear and tear. If necessary, replace any parts that have been worn or damaged through usage.
Contact our Customer Service Department for replacement parts.
c. Inspect the Warning Sticker on the Pole. If it is ripped, faded, or illegible, call our Customer Service Department to request
a replacement Sticker.
d. Check all Pole sections for visible rust or chipped or cracked paint. If either are present, do the following:
1. Use an emery cloth to completely remove any rust or chipped paint.
2. Clean the area with a damp cloth and allow it to dry.
3. Apply two coats of a rust preventative, high gloss enamel paint to the area. Allow the paint to dry between coats.
IF RUST HAS PENETRATED THROUGH THE POLE ANYWHERE, REPLACE IT IMMEDIATELY!
33
LIFETIME’S PROMISE TO YOU:
We invite you to read our privacy policy at www.lifetime.com
REGISTER today!
At Lifetime
®
, we are committed to providing innovative and quality products. While registering, you will have the opportunity to give us your feedback. Your input is
valuable to us.
• You can also opt in to receive new product notifi cations or promotions.
• In the unlikely event of a product recall or safety modifi cation, your registration provides the information we need to notify you directly.
• Registration is fast, easy, and completely voluntary.
Maintaining your privacy is our long-standing policy at Lifetime
®
. And you can rest assured that Lifetime
®
will not sell or provide your
personal data to other third parties, or allow them to use your personal data for their own purposes.
REGISTER YOUR PRODUCT ONLINE AT WWW.LIFETIME.COM
LA PROMESA DE LIFETIME
®
PARA USTED:
Lo invitamos a leer nuestra política de privacidad en www.lifetime.com (sólo en inglés)
¡REGISTRARSE hoy mismo!
En Lifetime
®
, estamos comprometidos a ofrecer productos innovadores y de calidad. Al registrarse, usted tendrá la oportunidad de darnos su retroalimentación.
Su información es valiosa para nosotros.
• También puede optar por recibir nuestras notifi caciones o promociones.
• En el caso improbable de que el producto deba ser retirado del mercado o que sufra alguna modifi cación, su registro provee la
información que necesitamos para notifi carle directamente.
• El registro es rápido, fácil y completamente voluntario.
Mantener privacidad es nuestra política permanente en Lifetime
®
. Y puede estar seguro que Lifetime
®
no venderá ni dará datos personales a
terceros, ni les permitirá usar datos personales para sus propios fi nes.
REGISTRAR EL PRODUCTO EN LÍNEA EN WWW.LIFETIME.COM
LA PROMESSE DE LIFETIME :
Nous vous invitons à lire notre politique de confi dentialité à www.lifetime.com (en anglais seulement)
ENREGISTRER CE PRODUIT aujourd’hui!
Chez Lifetime
®
, nous nous engageons à fournir des produits innovateurs de qualité. Lors de votre inscription, vous aurez l’occasion de nous faire parvenir vos
commentaires. Votre opinion est importante pour nous.
• On peut également choisir de recevoir des avis ou des promotions dans le cadre de nouveaux produits.
• Dans l’éventualité peu probable d’un rappel ou d’un avis de sécurité, l’inscription fournit les renseignements nécessaires nous
permettant de communiquer avec vous.
• L’inscription est rapide, facile et complètement volontaire.
Conserver votre confi dentialité est notre politique de longue date chez Lifetime
®
. Vous pouvez donc être rassuré par le fait que Lifetime
®
ne
vendra pas ou ne fournira pas vos données personnelles à des tiers, et ne leur permettra pas d’utiliser vos données personnelles à leurs
propres fi ns.
ENREGISTRER CE PRODUIT EN LIGNE À WWW.LIFETIME.COM
34
WARNING STICKER / AUTOCOLLANT D’AVERTISSEMENT / AUTOADHESIVO DE ADVERTENCIA
FAUTE DE NE PAS SUIVRE CES AVERTISSEMENTS, VOUS RISQUEZ DE CAUSER
DES BLESSURES GRAVES ET/OU DES DOMMAGES À L’ÉQUIPEMENT.
Le propriétaire doit s’assurer que tous les joueurs con-
naissent et appliquent les règles suivantes afin d’utiliser
l’équipement en toute sécurité.
SI NO SE OBEDECEN ESTAS ADVERTENCIAS PUEDEN PRODUCIRSE
GRAVES LESIONES Y/O DAÑOS A LA PROPIEDAD.
El propietario del sistema debe asegurarse de que todos
los jugadores conozcan y respeten estas reglas para que el
sistema se use en forma segura.
WARNING
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY
AND/OR PROPERTY DAMAGE.
Owners must ensure that all players know and follow these
rules for safe operation of the system.
• Only hang from the Rim briefly to regain balance or avoid
injuring others. Release the Rim as soon as safely possible.
• During play, especially when performing dunk type activities,
keep player’s face away from the Backboard, Rim, and Net.
Serious injury could occur if teeth/face come in contact with
the Backboard, Rim, or Net. Player should wear a mouth
guard during play.
• Do not slide, climb, or play on Base or Pole.
• When adjusting height or moving system, keep hands and
fingers away from moving parts.
• Do not allow children to move or adjust system.
• Do not wear jewelry (rings, watches, necklaces, etc.) during
play. Objects may entangle in Net.
• Keep water and organic material away from Pole Base. Grass,
litter, etc. could cause corrosion and/or deterioration.
• Never play on damaged equipment.
• Once a month check Pole and all metal parts for signs of
corrosion (rust, pitting, chipping). Completely remove rust and
repaint with exterior enamel. If rust has penetrated any steel
part, replace that part immediately.
• Check system before each use for proper ballast, loose
hardware, excessive wear, instability, and signs of corrosion
and repair before use.
• Do not use the system to lift or hoist anything. The
mechanism is designed to lift only the weight of the
Backboard and Rim. Do not hang anything from the Handle,
Rim, Backboard, or Lifter Arms as this will damage the
system and void the warranty.
• Ne vous suspendez pas à l’anneau plus que nécessaire pour
retrouver votre équilibre ou éviter de blesser les autres joueurs.
Relâchez l’anneau aussitôt que possible.
• Lors d’un match, particulièrement dans le cas des smashs, le
visage du joueur ne doit pas faire face au panneau, à l’anneau, ni au
filet. Le joueur risque de graves blessures si ses dents ou son visage
entrent en contact avec le panneau, l’anneau, ou le filet. Les joueurs
doivent toujours porter un protège-dents lorsqu’ils jouent.
• Ne glissez pas, ne grimpez pas, et ne jouez pas sur la base ou le
poteau.
• Lorsque vous ajustez la hauteur ou lorsque vous déplacez
l’équipement, gardez vos mains et doigts loin des pièces mobiles.
• Ne permettez pas aux enfants de déplacer ou d’ajuster
l’équipement.
• Ne portez pas de bijoux (bagues, montres, colliers, etc.) lorsque
vous jouez. Ces objets pourraient s’accrocher au filet.
•Gardez de l’eau et de la matiére organique loin de la base. Le
gazon, les déchets, etc. pourraient provoquer la corrosion et/ou la
détérioration.
• Une fois par mois, vérifiez que le Poteau et toutes les pièces en
métal ne montrent pas de signes de corrosion (rouille, piqûres,
écaillage). Enlevez toute la rouille et repeignez complètement avec
une peinture pour extérieur. Si la rouille a pénétré une des pièces en
acier, vous devrez remplacer immédiatement la pièce en question.
• A chaque fois que vous allez utiliser l’équipement, vérifiez d’abord
l’équilibre, la possibilité de pièces desserrées ou usées, la stabilité
de l’équipement et tout signe de corrosion ou réparation nécessaire
avant utilisation.
• Ne jouez jamais avec un équipement endommagé.
• N’utilisez pas l’équipement pour lever ou soulever quoique ce soit.
Son mécanisme a été conçu uniquement pour soutenir le poids du
panneau et de l’anneau. N’accrochez rien au manche, à l’anneau,
au panneau ni aux leviers sous peine d’endommager l’équipement
et d’annuler la garantie.
• Cuélguese del aro sólo en forma breve, para recuperar el equilibrio
o evitar lesionar a otros jugadores. Suéltese del aro lo más pronto
que pueda hacerlo con seguridad.
• Durante el juego, especialmente al embocar violentamente de
alto, la cara de los jugadores debe mantenerse alejada del tablero,
el aro y la red. Pueden producirse lesiones graves si los dientes o la
cara entran en contacto con el tablero, el aro o la red. Los jugadores
deben usar un protector bucal durante el juego.
• No se deslice, no trepe ni juegue sobre la base o el poste.
•Mantenga las manos y los dedos alejados de las piezas movibles
cuando regule la altura o desplace el sistema.
• No deje que los niños regulen ni desplacen el sistema.
• No use joyas (anillos, relojes, collares o gargantillas, etc.) durante el
juego. Estos objetos pueden engancharse en la red.
• Guarde aqua y materia orgánica. Césped, basura,etc., prodrian
causar corrosión et/o deterioros.
• Controle el poste y todas las piezas metálicas una vez al mes
en busca de signos visibles de corrosión (oxidación, picaduras,
escamado). Elimine todo rastro de óxido y vuelva a pintar con
esmalte para exteriores. Si el óxido ha penetrado cualquier pieza de
acero, reemplace esa pieza de inmediato.
• Inspeccione el sistema antes de cada uso para verificar que esté
adecuadamente contrapesado, que los elementos de fijación no
estén flojos, que no haya desgaste excesivo, inestabilidad ni signos
de corrosión. Si encuentra irregularidades, repárelas antes de usar
el sistema.
• Nunca juegue con un equipo dañado.
•No use el sistema para levantar ningún objeto. El mecanismo está
diseñado para elevar solamente el peso del tablero con el aro. No
cuelgue nada de la agarradera, el aro, el tablero ni los brazos de
elevación, ya que esto puede dañar el sistema y anular la garantía.
www.lifetime.com
# 1176611
ADVERTENCIAAVERTISSEMENT
Lifetime Products, Inc., Clearfield, UT 84016
1-800-225-3865
7/12/2016
35
THE MANUFACTURER RESERVES THE RIGHT TO MAKE SUBSTITUTIONS TO WARRANTY CLAIMS IF PARTS ARE UNAVAILABLE OR OBSOLETE.
1. Lifetime basketball systems are warranted to the original purchaser to be free from defects in material or workmanship
for a period of fi ve years from the date of original retail purchase. The word “defects” is defi ned as imperfections that
impair the use of the product. Defects resulting from misuse, abuse or negligence will void this warranty. This warranty
does not cover defects due to improper installation, alteration or accident. This warranty does not cover damage caused
by vandalism, rusting, “acts of nature” or any other event beyond the control of the manufacturer.
2. This warranty does not cover breakage of the tempered glass playing surface.
3. This warranty is nontransferable and is expressly limited to the repair or replacement of defective product. If the product
is defective within the terms of this warranty, Lifetime Products, Inc. will repair or replace defective parts at no cost to
the purchaser. Shipping charges to and from the factory or distribution center are not covered and are the responsibility
of the purchaser. Labor charges and related expenses for removal, installation or replacement of the basketball system
or its components are not covered under this warranty.
4. This warranty does not cover scratching or scuffi ng of the product that may result from normal usage. In addition,
defects resulting from intentional damage, negligence, unreasonable use or hanging from the rim will void this warranty.
5. Liability for incidental or consequential damages is excluded to the extent permitted by law. While every attempt is made
to embody the highest degree of safety in all equipment, freedom from injury cannot be guaranteed. The user assumes
all risk of injury resulting from the use of this product. All merchandise is sold on this condition, and no representative
of the company may waive or change this policy.
6. This product is not intended for institutional or commercial use; Lifetime Products, Inc. does not assume any liability for
such use. Institutional or commercial use will void the warranty.
7. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
8. This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of merchantability
or fi tness for use to extent permitted by Federal and state law. Neither Lifetime Products, Inc., nor any representative
assumes any other liability in connection with this product. This warranty gives you specifi c legal rights, and you may
also have other rights which vary from state to state.
www.lifetime.com
PLEASE INCLUDE YOUR DATED SALES RECEIPT AND PHOTOGRAPHS OF DAMAGED PARTS.
REPORT PRODUCT DEFECTS IN WRITING TO:
Lifetime Products, Inc., PO Box 160010 Clearfi eld, UT 84016-0010
or call 1-800-225-3865 M-F 7 a.m. to 5 p.m. MST.
REGISTER YOUR PRODUCT FOR QUICKER CUSTOMER SERVICE.
Visit www.lifetime.com or call 1-800-225-3865 to register your product today.
FOR INTERNATIONAL WARRANTY CLAIMS:
All warranty claims must be accompanied by a sales receipt. Report all warranty claims in writing to your regional sales
support representative. Please include your dated sales receipt and photographs of damaged parts.
To Identify the representative for your region, please visit: www.lifetime.com/international
5-YEAR LIMITED FACTORY WARRANTY
W
A
R
R
A
N
T
Y
W
A
R
R
A
N
T
Y
WARRANTY
36
www.lifetime.com
Or call: 1-800-424-3865
7:00 am–5:00 pm (M–F) MST and 9:00 am–1:00 pm Saturday MST
To purchase accessories or other Lifetime
®
products, visit us at:
www.lifetime.com
ENHANCE YOUR LIFETIME
®
PURCHASE BY ADDING ACCESSORIES OR OTHER GREAT PRODUCTS
© 2021
Lifetime Products, Inc., Clearfi eld, UT
