OWNER’S MANUAL
COMMERCIAL DRYER
Before beginning installation, read these instructions carefully.
this will simplify installation and ensure that the dryer is
installed correctly and safely. leave these instructions near the
dryer after installation for future reference.
MFL62512875
www.lg.com
MODEL
RN1329AD1S / RV1329AD1S
RN1329AD5S / RV1329AD5S
RN1329AD6S / RV1329AD6S
RN1329AN4S / RV1329AN4S
RN1329AN7S / RV1329AN7S
RN1329AN1S / RV1329AN1S
MFL62512875_150414.indd 1 2015.4.14 9:43:18 AM
2
PRODUCT FEATURES
OUTSTANDING PERFORMANCE
The dryer features the largest capacity, quick drying times, quiet operation, and an energy-saving system.
ARTISTIC DESIGN
Modern front panel look and big clear glass door make your dryer look stylish
EASY OF USE
An entire selection of user-friendly functions makes operating the dryer easy.
ULTRA CAPACITY
The larger drum enables better tumbling and less tangling and wrinkling of the laundry.
PRODUCT FEATURES
MFL62512875_150414.indd 2 2015.4.14 9:43:18 AM
3
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
w
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric
shock, or to prevent property damage, Injury to persons, or death.
Your Safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER, WARNING, or CAUTION.
These words mean:
w
DANGER
You will be killed or seriously injured if you don’t immediately follow instructions.
w
WARNING
You can be killed or seriously injured if you don’t follow instructions.
w
CAUTION
You may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.
w
IMPORTANT SAFETY INSTRUCTIONS
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use
of the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children without supervision.
Children of less than 3 years should be kept away
unless continuously supervised.
MFL62512875_150414.indd 3 2015.4.14 9:43:19 AM
4
IMPORTANT SAFETY INSTRUCTIONS
• Read all instructions before using the dryer.
• Before use, the dryer must be properly installed as described in
this manual.
• Do not place items exposed to cooking oils in your dryer. Items
contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire.
• Do not dry articles that have been previously cleaned in, washed
in, soaked in, or spotted with gasoline, dry-cleaning solvents, or
other flammable or explosive substances as they give off vapors
that could ignite or explode.
• Do not reach into the dryer if the drum or any other part is
moving.
• Do not repair or replace any part of the dryer or attempt any
servicing unless specifically recommended in this Owner’s
Manual or in published user-repair instructions that you
understand and have the skills to carry out.
• Do not tamper with controls.
• Before the dryer is removed from service or discarded, remove
the door to the drying compartment.
• Do not allow children to play on or in the dryer. Close supervision
of children is necessary when the dryer is used near children.
• Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or
product.
• Do not use heat to dry articles containing foam rubber or
similarly textured rubber-like materials.
• Keep area around the exhaust opening and adjacent surrounding
areas free from the accumulation of lint, dust, and dirt.
• The interior of the dryer and exhaust vent should be cleaned
periodically by qualified service personnel.
• Do not install or store the dryer where it will be exposed to the
weather.
• Always check the inside of the dryer for foreign objects.
• Clean lint screen before or after each load.
•
Do not dry unwashed items in the
tumble dryer.
•
Items that have been soiled with
substances such as cooking oil,
acetone, alcohol,petrol,kerosene,spot
removers, turpentine, waxes and
wax removers should be washed in
hot water with an extra amount of
detergent before being dried in the
tumble dryer.
•
Items such as foam rubber(latex
foam), shower caps, waterproof
textiles, rubber backed articles and
clothes or pillows fitted with foam
rubber pads should not be dried in
the tumble dryer.
•
Fabric softeners, or similar products,
should be used as specified by the
fabric softener instructions.
• The final part of a tumble dryer cycle occurs without heat(cool
down cycle) to ensure that the items are left at a temperature
that ensures that the items will not be damaged.
•
If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
• Never operate the dryer without lint filter in place. Never operate
the dryer with a wet lint filter.
•
The lint trap has to be cleaned
frequently.
•
Lint must not to be allowed to
accumulate around the tumble dryer.
•
Adequate ventilation has to be provided
to avoid the back flow of gases into the
room from appliances burning other
fuels, including open fires.
• Electric Dryer Max capacity is 10kg
• Gas Dryer Max capacity is 10,2kg
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Children should be supervised not to play with the appliance.
•
The tumble dryer is not to be used if
industrial chemicals have been used
for cleaning
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
BASIC SAFETY PRECAUTIONS
w
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
w
WARNING
Never stop a tumble dryer before the end of the drying cycle unless all
items are quickly removed and spread out so that the heat is dissipated.
MFL62512875_150414.indd 4 2015.4.14 9:43:19 AM
5
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
■ WhAT IS NOT COvEREd.
Service trips to your home to instruct you on the product.
If the product is connected to any voltage other than that shown on the rating plate.
If the fault is caused by accidents, neglects, misuses of Acts of God.
If the fault is caused by reasons except for normal domestic use or use in accordance with the owner’s manual.
If the fault is caused by pests, for example, rats or cockroaches etc..
Noise or vibration that is considered normal,for example, water drain sound, spin sound or warning beeps.
Correcting the installation for example, leveling the product, adjustment of drain.
Normal maintenance recommended by the owner’s manual.
Removal of foreign objects/substances from the machine including the pump and inlet hose filter, for example,
grit,nails, bra wires and buttons etc..
Replace fuses in or correct wiring or correct house plumbing.
Correction of unauthorized repairs.
Incidental or consequential damage to personal property caused by possible defects with this appliance.
If this product is used for commercial purposes, it is not warranted.
(Example:Public places such as public bathroom, lodging house, training center, dormitory)
If the product is installed outside the normal service area, any cost of transportation involved in the repair of the
products, or the replacement of a defective part, shall be borne by the owner.
READ ALL INSTRUCTIONS BEFORE USE
w
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, Injury to persons, or death.
WHAT TO DO IF YOU SMELL GAS: (AppLICABLE FOR GAS MODELS)
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this appliance
or any other appliances.
• Installation and service must be performed by
a qualified installer, service agency, or the gas
supplier.
1. do not try to light a match or cigarette, or turn on
any gas or electrical appliance.
2. do not touch any electrical switches. do not use
any phone in your building.
3. Clear the room, building, or area of all occupants.
4. Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions carefully.
5. If you cannot reach your gas supplier, call the fire
department.
disposal of your old appliance
1. All electrical and electronic products should be disposed of separately from the
municipal waste stream via designated collection facilities appointed by the
government or the local authorities.
2. The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
3. For more detailed information about disposal of your old appliance, please contact
your city office, waste disposal service or the shop where you purchased the product.
MFL62512875_150414.indd 5 2015.4.14 9:43:19 AM
6
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
w
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, injury to persons, or death.
GROUNdING INSTRUCTIONS
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of least
resistance for electric current. This appliance must be
equipped with a cord having an equipmentgrounding
conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances. Do not use an adapter or
extension cord. Do not remove ground prong. If you
don’t have the proper outlet, consult an electrician.
Do not modify the plug provided with the appliance.
If it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
This appliance must be connected to a grounded metal,
permanent wiring system or an equipmentgrounding
conductor must be run with the circuit conductors and
connected to the equipmentgrounding terminal or lead
on the appliance. Electric shock can result if the dryer
is not properly grounded. The appliance may only be
installed in a room if the room meets the appropriate
ventilation requirements specified in the national
installation regulations. Minimum required spacing of
2,54cm to adjacent appliances, walls and furniture.
w
WARNING
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with
a qualified electrician or service person if you are in doubt as to whether the appliance is properly grounded.
SAFETY INSTRUCTIONS FOR INSTALLATION
w
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
• Properly ground dryer to conform with all
governing codes and ordinances. Follow details in
the installation instructions. Electric shock can result
if the dryer is not properly grounded.
• Before use, the dryer must be properly installed as
described in this manual. Electric shock can result if
the dryer is not properly grounded.
• Install and store the dryer where it will not be
exposed to temperatures below freezing or
exposed to the weather.
• All repairs and servicing must be performed
by an authorized servicer unless specifically
recommended in this Owner’s Manual. Use only
authorized factory parts. Failure to follow this
warning can cause serious injury, fire, electric shock, or
death.
• To reduce the risk of electric shock, do not install
the dryer in humid spaces. Failure to follow this
warning can cause serious injury, fire, electric shock, or
death.
• Connect to a properly rated, protected, and sized
power circuit to avoid electrical overload. Improper
power circuit can melt, creating electric shock and/or
fire hazard.
• Remove all packing items and dispose of all
shipping materials properly. Failure to do so can
result in death, explosion, fire, or burns.
• Place dryer at least 18 in. above the floor for a
garage installation. Failure to do so can result in
death, explosion, fire, or burns.
• Keep all packaging from children. Packaging
material can be dangerous for children. There is a
risk of suffocation.
• Keep the area underneath and around your
appliances free of combustible materials such as
lint, paper, rags, chemicals, etc. Failure to do so can
result in fire.
• do not place candles, smoking materials, or other
flammables on to top of the product. Dripping wax,
smoke, or fire can result.
• Remove all protective vinyl film from the product.
Failure to do so can cause product damage, smoke or
fire.
• Means for disconnection with contact separation
at least 3mm is that the means for disconnection
must be incorporated in the fixed wiring according
to the wiring rules.
MFL62512875_150414.indd 6 2015.4.14 9:43:19 AM
7
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
w
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, injury to persons, or death.
SAFETY INSTRUCTIONS FOR INSTALLATION
• The appliance is not to be used by children or persons
with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have
been given supervision or instruction.
Children being supervised not to play with the
appliance.
•
That the appliance must not
be installed behind a lockable
door, a sliding door or a door
with a hinge on the opposite
side to that of the tumble
dryer, in such a way that a full
opening of the tumble dryer
door is restricted.
Exhaust/ducting:
• Gas dryers MUST be exhausted to the outside.
Failure to follow these instructions can result in fire or
death.
• The dryer exhaust system must be exhausted
to the outside of the dwelling. If the dryer is not
exhausted outdoors, some fine lint and large
amounts of moisture will be expelled into the
laundry area. An accumulation of lint in any area of
the home can create a health and fire hazard.
• Use only rigid metal or flexible metal 4-inch (10.2
cm) diameter ductwork inside the dryer cabinet
or for exhausting to the outside. Use of plastic
or other combustible ductwork can cause a fire.
Punctured ductwork can cause a fire if it collapses
or becomes otherwise restricted in use or during
installation.
• ductwork is not provided with the dryer, and you
should obtain the necessary ductwork locally. The
end cap should have hinged dampers to prevent
backdraft when the dryer is not in use. Failure to
follow these instructions can result in fire or death.
•
For washing machines
having ventilation openings
in the base, the installation
instructions shall state that
the openings must not be
obstructed by a carpet.
• Exhaust air must not be discharged into a flue
which Is used for exhausting fumes from appliances
burning gas or other fuels.
• The exhaust duct must be 4 inches (10.2 cm) in
diameter with no obstructions. The exhaust duct
should be kept as short as possible. Make sure
to clean any old ducts before installing your new
dryer. Failure to follow these instructions can result in
fire or death.
• dO NOT use sheet metal screws or other fasteners
which extend into the duct that could catch lint and
reduce the efficiency of the exhaust system. Secure
all joints with duct tape. For complete details,
follow the Installation Instructions. Failure to follow
these instructions can result in fire or death.
• In the appliance enclosure or in the built-in
structure, keep ventilation opening clear of
obstruction.
• Adequate ventilation has to be provided to avoid the
back flow of gases into the room from appliances
burning other fuels, including open fires Do not dry
unwashed items in the tumble dryer.
MFL62512875_150414.indd 7 2015.4.14 9:43:20 AM
8
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
w
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, injury to persons, or death.
SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY
w
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
• do not, under any circumstances, cut or remove
the ground prong from the power cord. To prevent
injury to persons or damage to the dryer, the electrical
power cord must be plugged into a properly grounded
outlet.
• For personal safety, this dryer must be properly
grounded. Failure to do so can result in electric shock
or injury.
• Refer to the installation instructions in this manual
for specific electrical requirements for your model.
Failure to follow these instructions can create an
electric shock hazard and/or a fire hazard.
• This dryer must be plugged into a properly
grounded outlet. Electric shock can result if the
dryer is not properly grounded. have the wall
outlet and circuit checked by a qualified electrician
to make sure the outlet is properly grounded.
Failure to follow these instructions can create an
electric shock hazard and/or a fire hazard.
• The dryer should always be plugged into its own
individual electrical outlet which has a voltage
rating that matches the rating plate. This provides
the best performance and also prevents overloading
house wiring circuits which could cause a fire hazard
from overheated wires.
• Never unplug your dryer by pulling on the power
cord. Always grip plug firmly and pull straight out
from the outlet. The power cord can be damaged,
resulting in a risk of fire and electric shock.
• Repair or replace immediately all power cords that
have become frayed or otherwise damaged. do not
use a cord that shows cracks or abrasion damage
along its length or at either end. The power cord can
melt, creating electric shock and/or fire hazard.
• When installing or moving the dryer, be careful not
to pinch, crush, or damage the power cord. This will
prevent injury and prevent damage to the dryer from
fire and electric shock.
• To reduce the risk of injury to persons, adhere
to all industry recommended safety procedures
including the use of long sleeved gloves and safety
glasses. Failure to follow all of the safety warnings in
this manual could result in property damage, injury to
persons or death.
• The final part of the tumble dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not
be damaged.
SAvE ThESE INSTRUCTIONS
MFL62512875_150414.indd 8 2015.4.14 9:43:20 AM
9
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
w
CAUTION
These instructions are only valid if the following country code is on the appliance. If this code is not present on
the appliance, it is necessary to refer to the technical instructions which will provide the necessary information
concerning the modification of the appliance to the condition of use for the country Before installation, check that
the local distribution conditions, nature of gas and pressure, and the adjustment of the appliance are compatible.
• the method of connection and the installation regulations in the country where the appliance is to be installed
(if such regulations exist); also the ventilation dimensions shall be given for the purposes of installation in those
countries where there are no appropriate regulations.
w
WARNING
Never stop a tumble dryer before the end of the drying cycle unless
all items are quickly removed and spread out so that the heat is
dissipated.
SAvE ThESE INSTRUCTIONS
MFL62512875_150414.indd 9 2015.4.14 9:43:20 AM
10
CONTENTS
2 PRODUCT FEATURES
3 IMPORTANT SAFETY
INSTRUCTIONS
4 BASIC SAFETY PRECAUTIONS
6 GROUNDING INSTRUCTIONS
6 SAFETY INSTRUCTIONS FOR INSTALLATION
8 SAFETY INSTRUCTIONS FOR CONNECTING
ELECTRICITY
11 INTRODUCING YOUR DRYER
11 Specifications
12 Accessory
12 Control panel feature
15 OPERATING YOUR DRYER

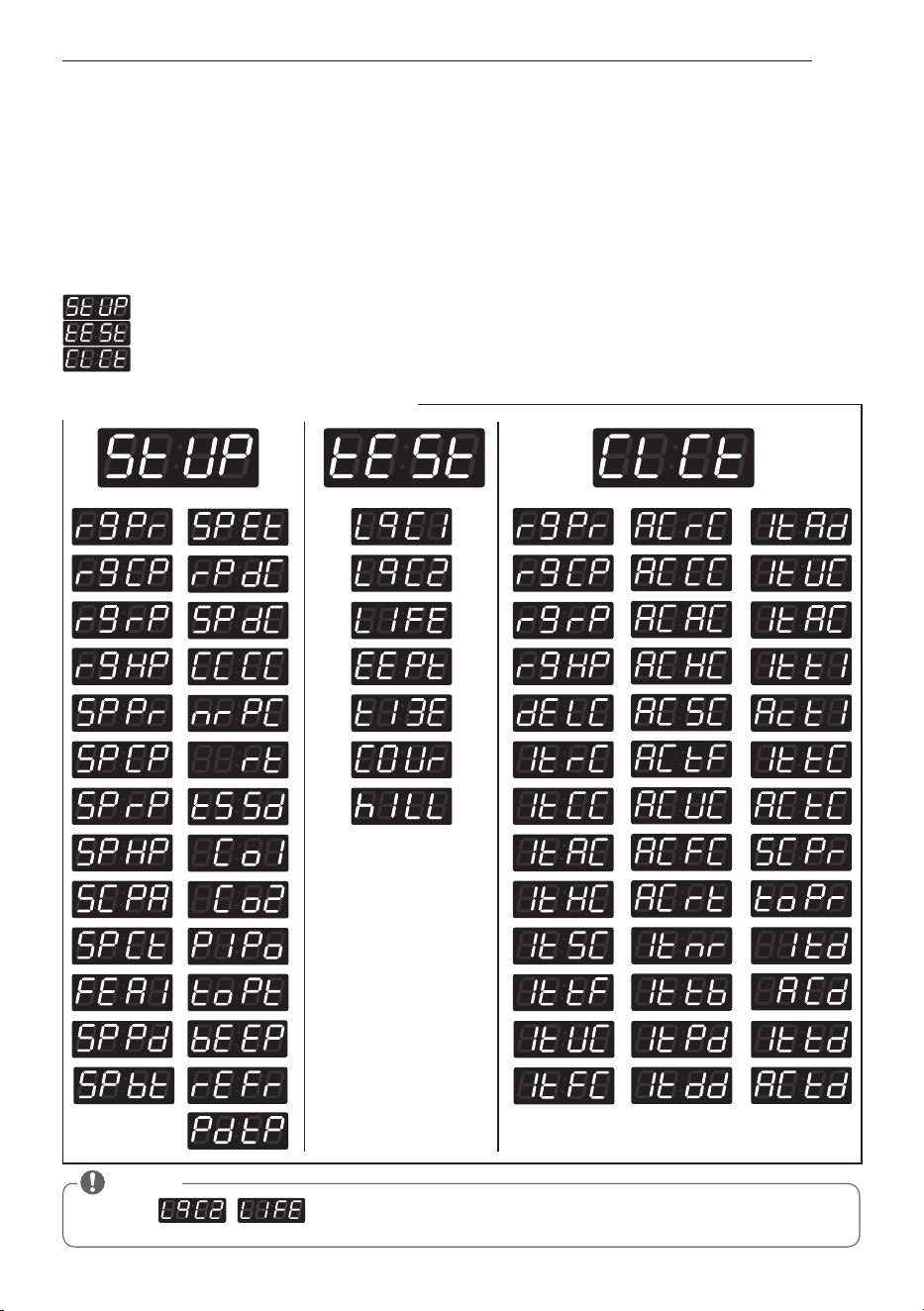

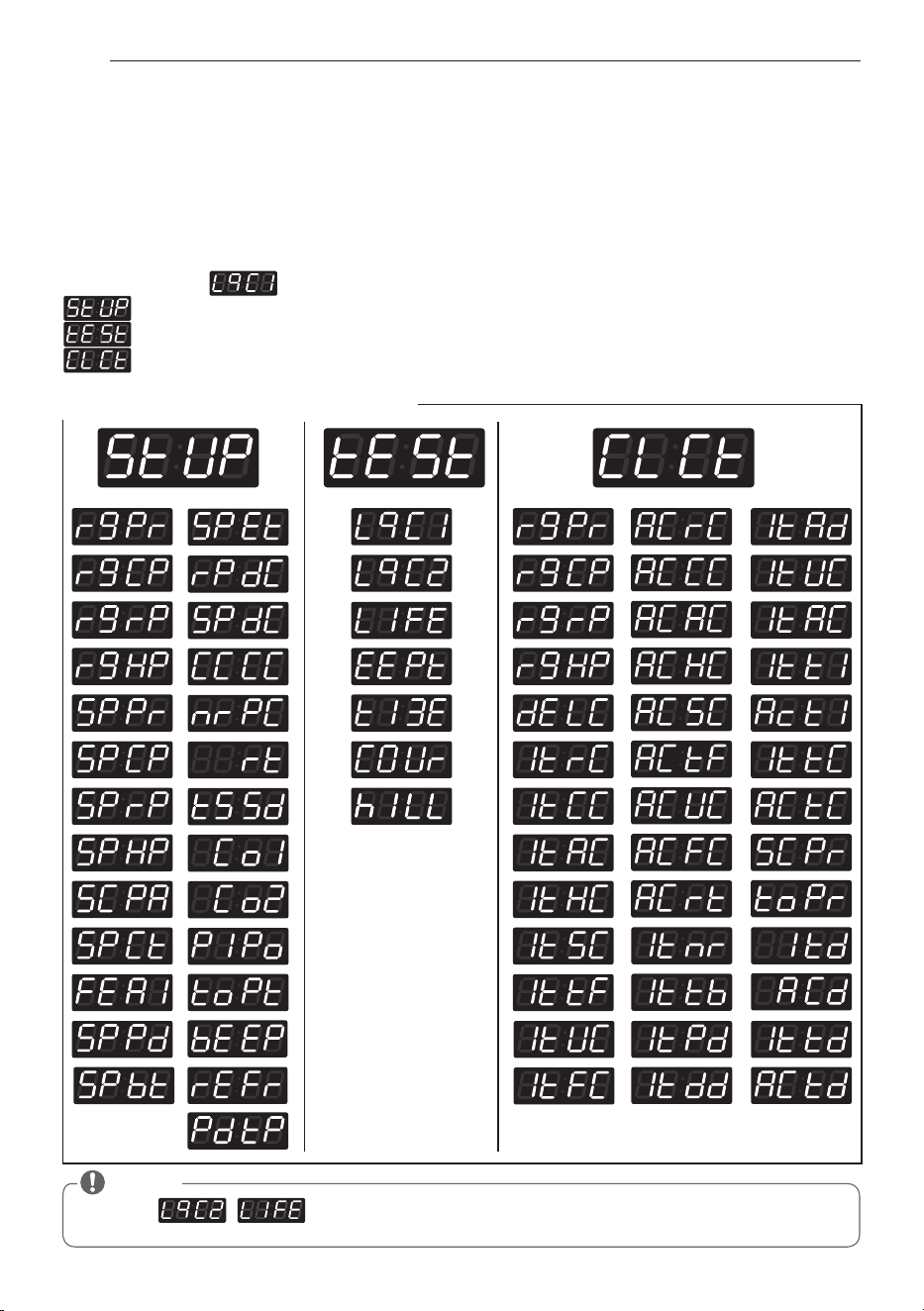

16 PROGRAMMING MODE

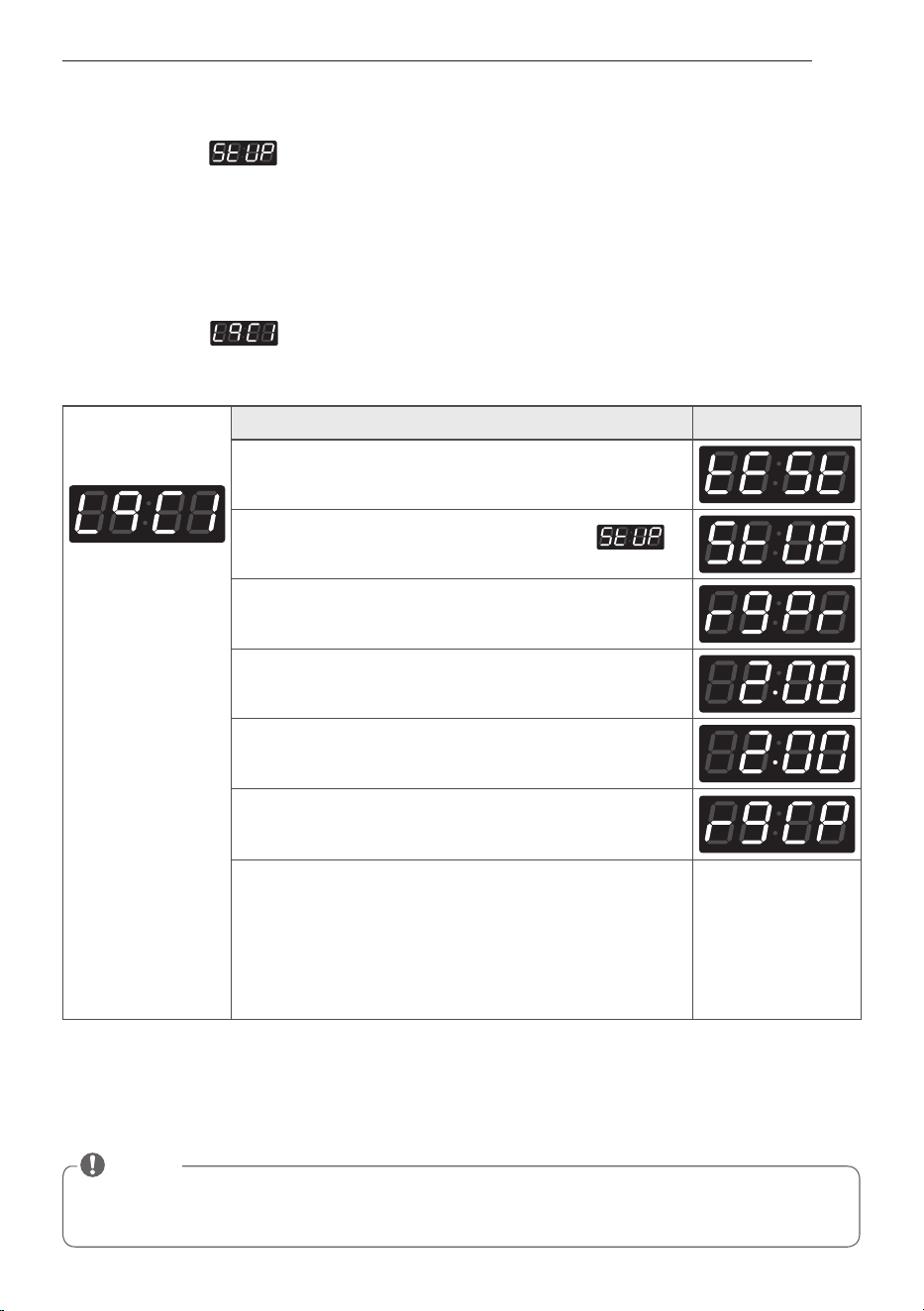

19 Programming Mode - Setup Mode
19 1. How to change regular price.
20 2. How to change special price

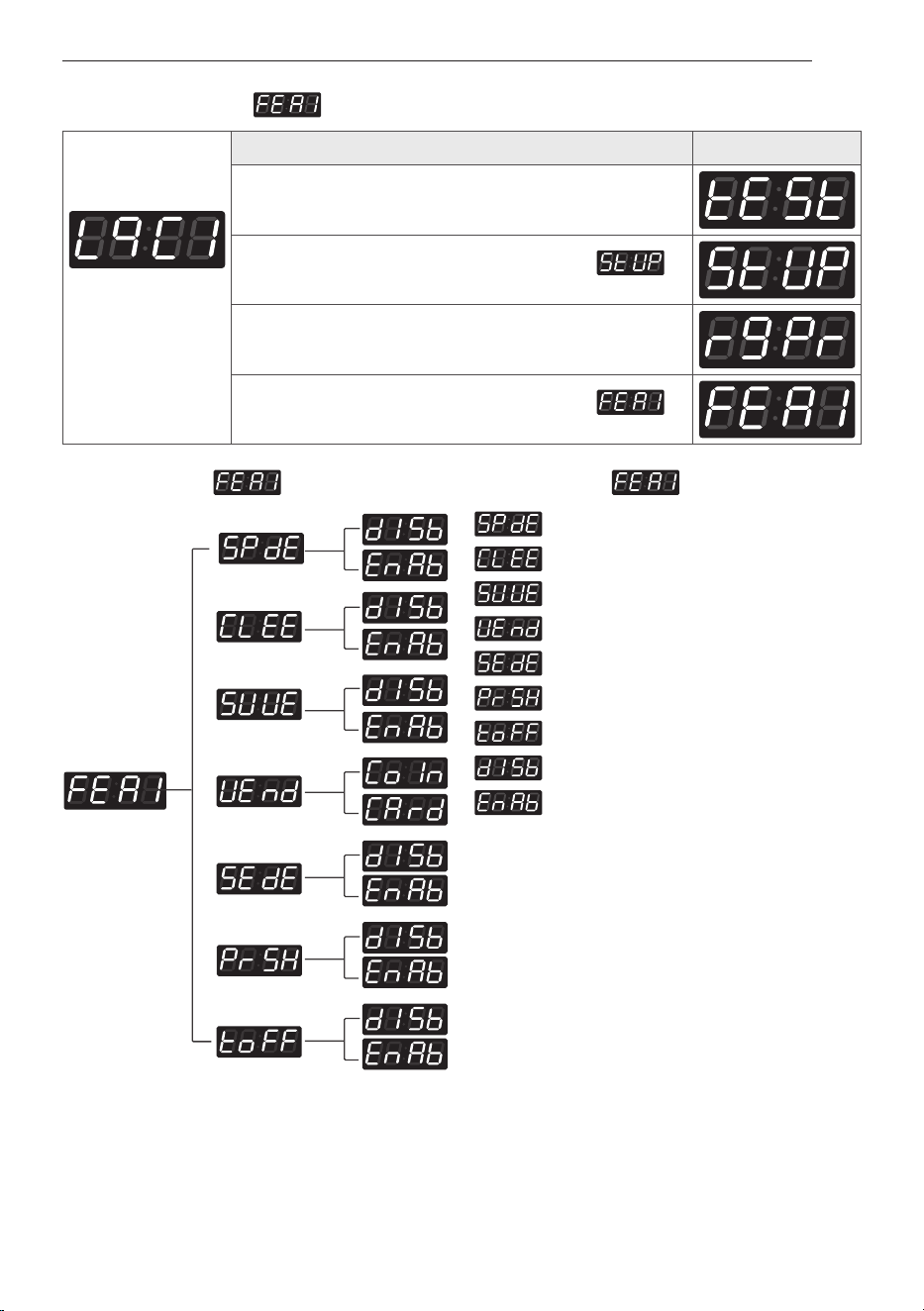

21 3. How to enter the FEA1
25 4. How to enter the special price day setup
27 5. Special price beginning time setup
28 6. Special price ending time setup
29 7. Regular priced dryer cycle time
30 8. Special priced dryer cycle time
31 9. Value of coin 1
32 10. Value of coin 2
(Set up for top off price and e-suds coin
pulse)
33 11. Penny increment pricing offset
34 12. Top off time

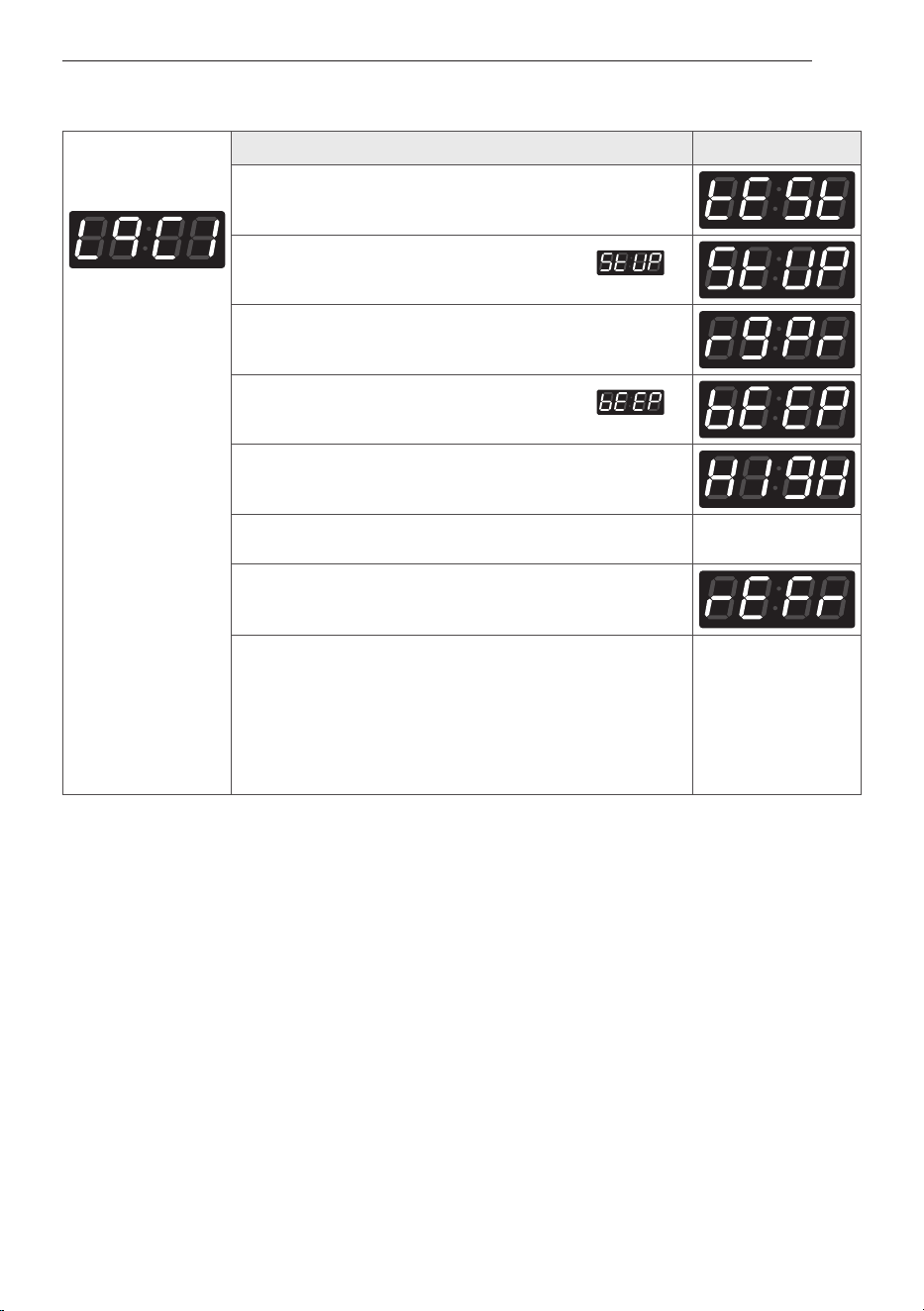

35 13. Beep volume
36 14. Time to keep the coin (Use only for coin
type)

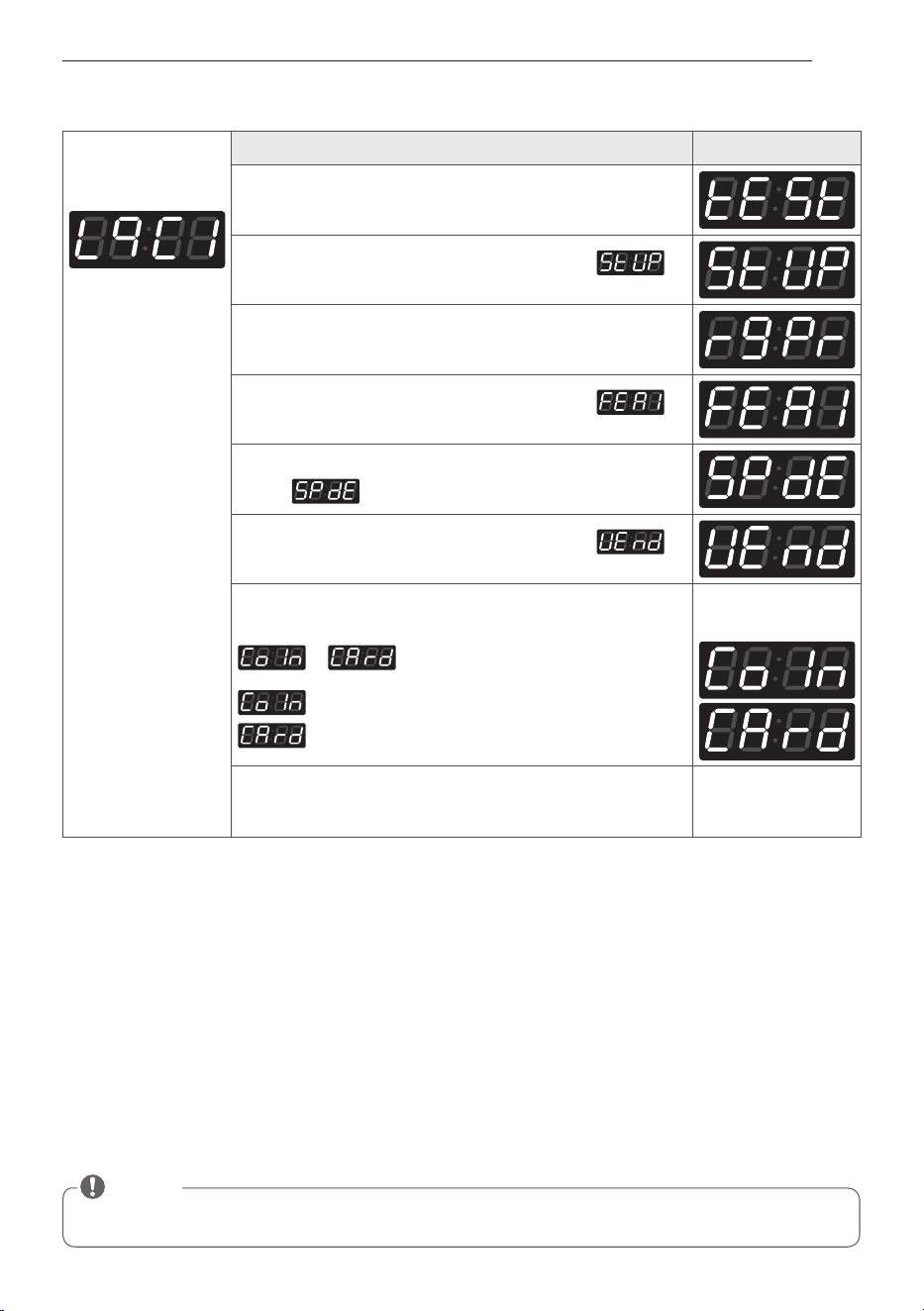

37 15. Product type setup – coin/card type or
OPL setup
38 Programming Mode - Test Mode
39 1. Lqc1

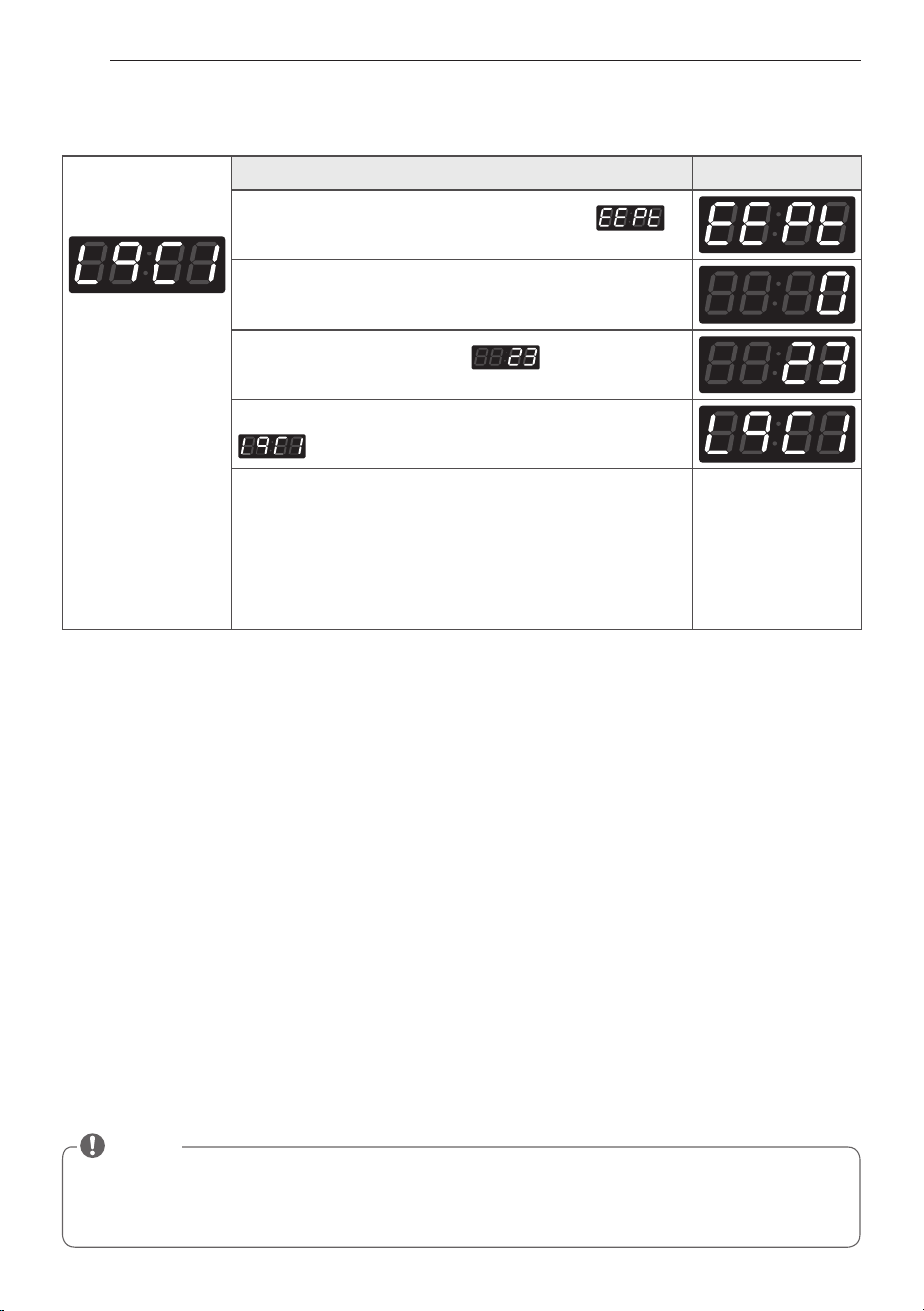

40 2. Factory reset - EEPt
41 3. Time Set Up

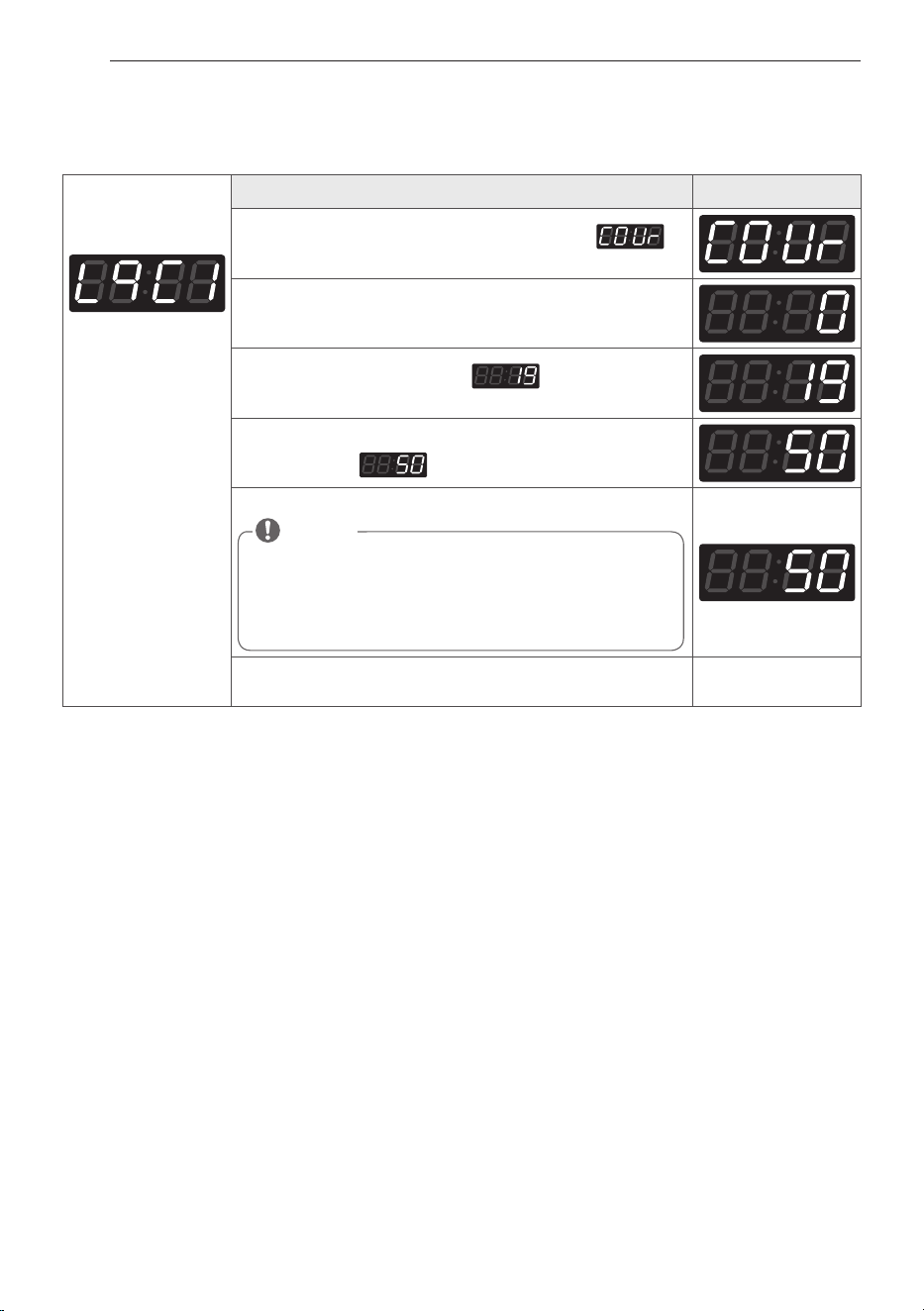

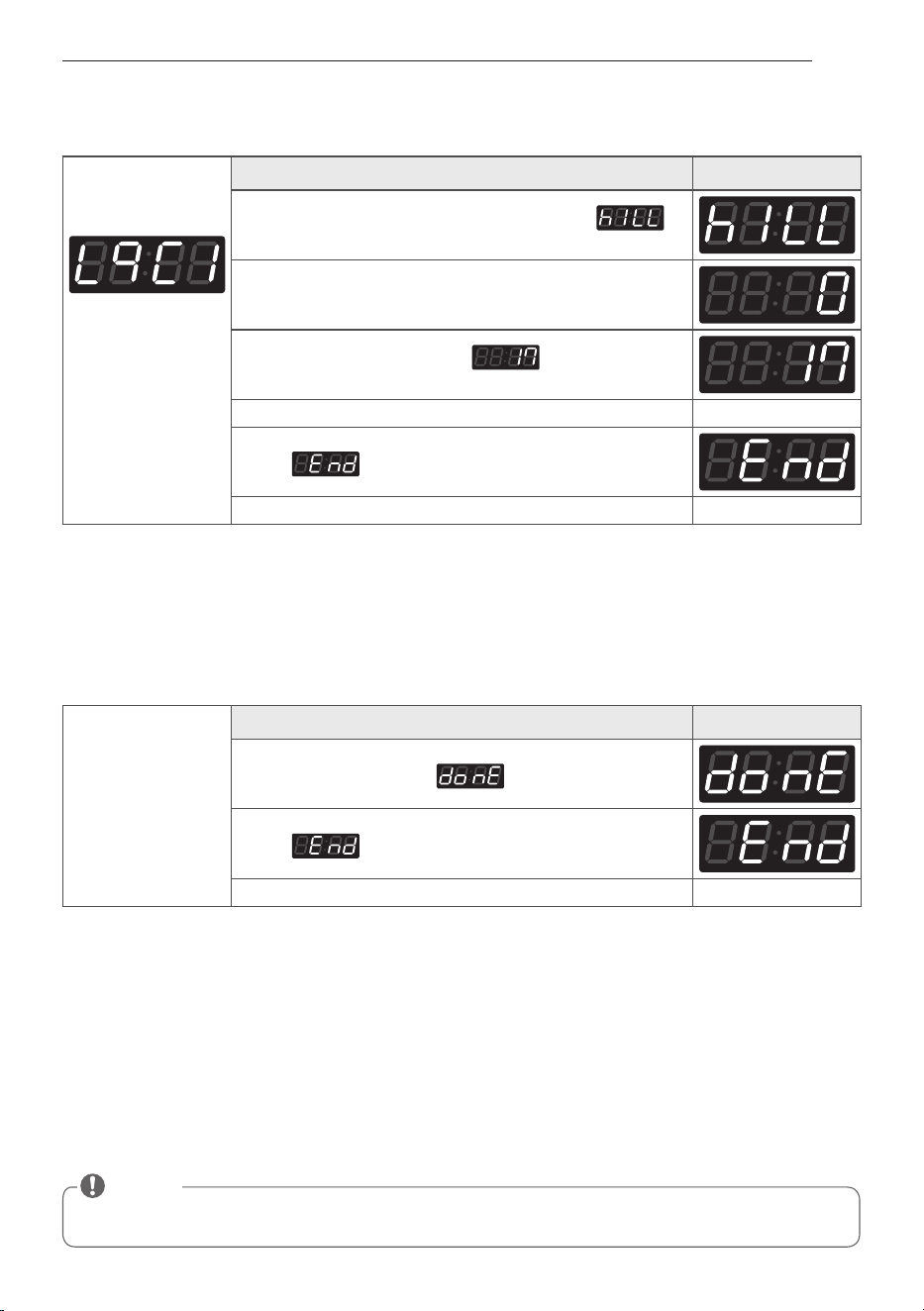

42 4. Courtesy cycle
43 5. Cycle Kill
44 Programming Mode - Collect Mode

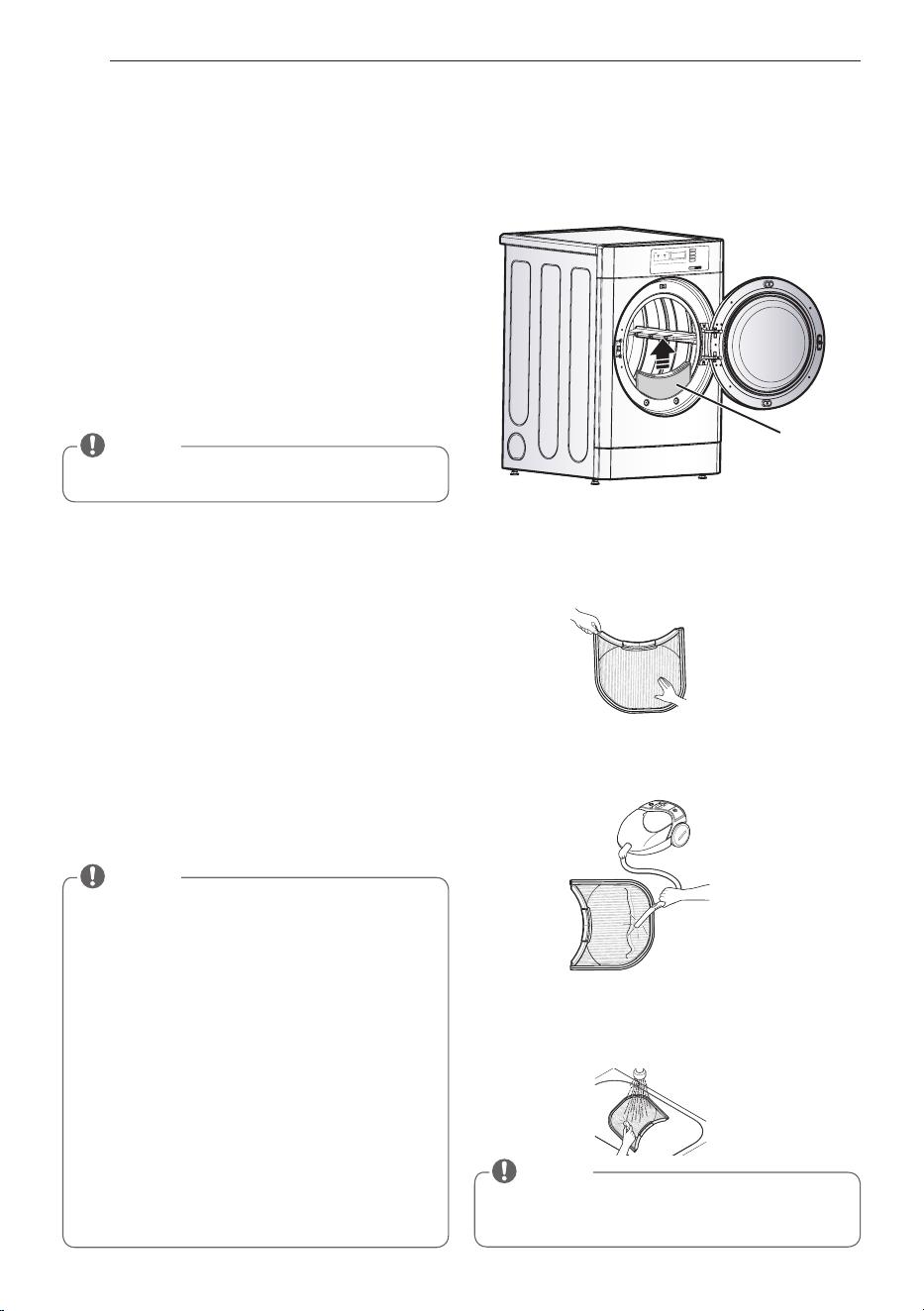

46 MAINTENANCE

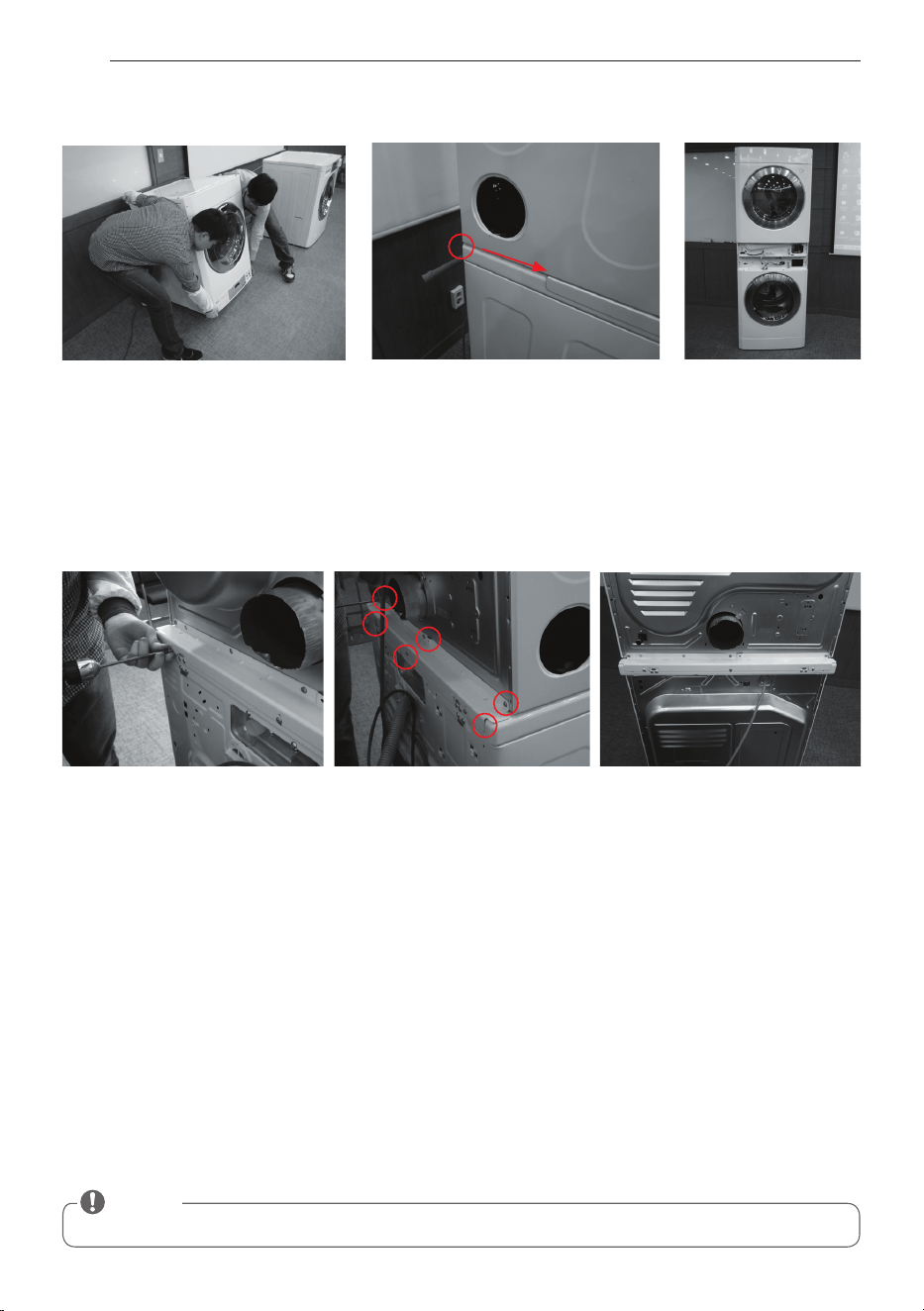

47 STACK MACHINE INSTALLATION
INSTRUCTIONS
47 Suitable model for stacking
47 Sliding kit
47 Stacking kit
48 Stacking the machine
48 Stacking bracket installation
49 ERROR MODE
49 POWER FAIL RECOVERY
49 DEFAULT DRYER SETTINGS

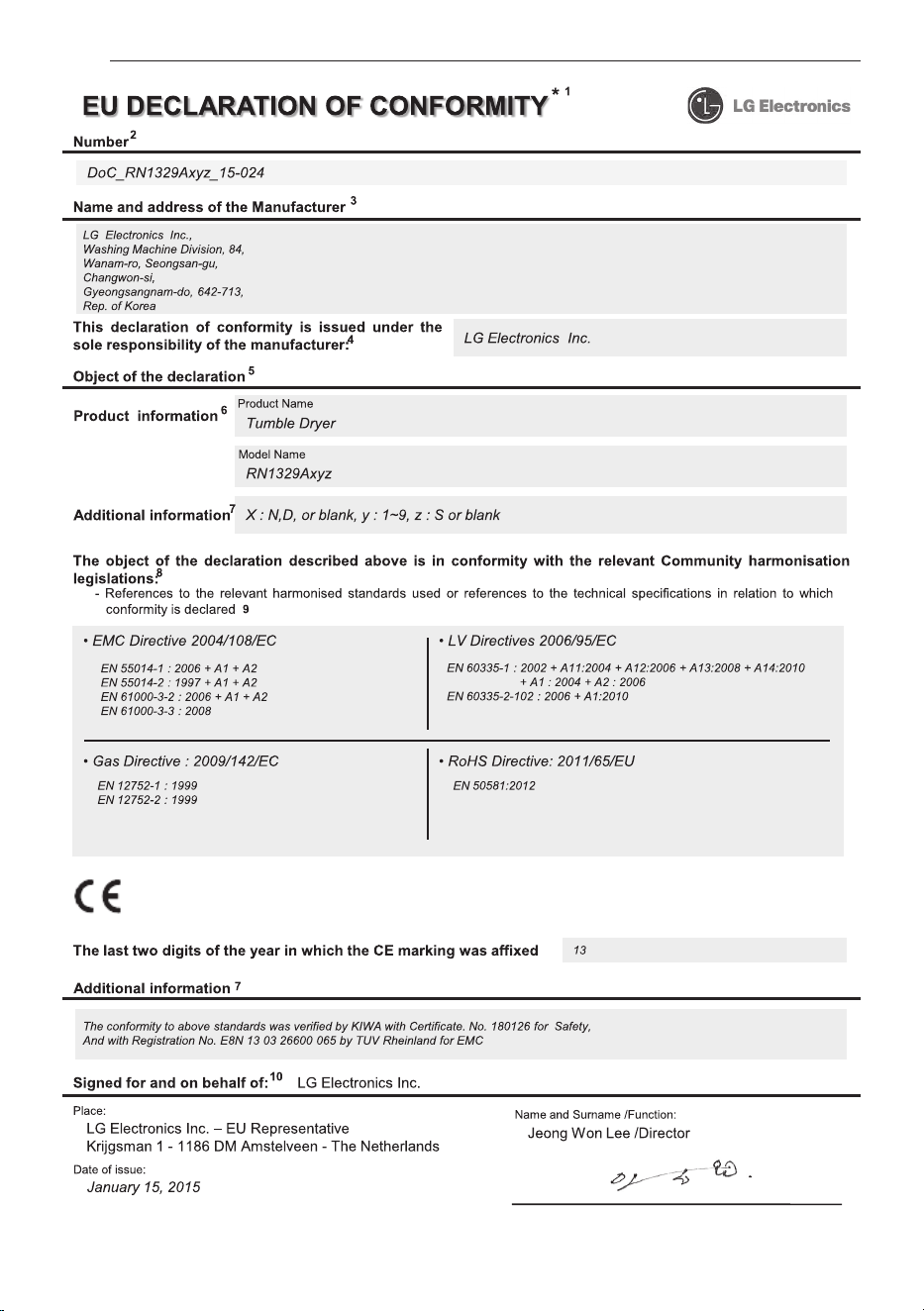

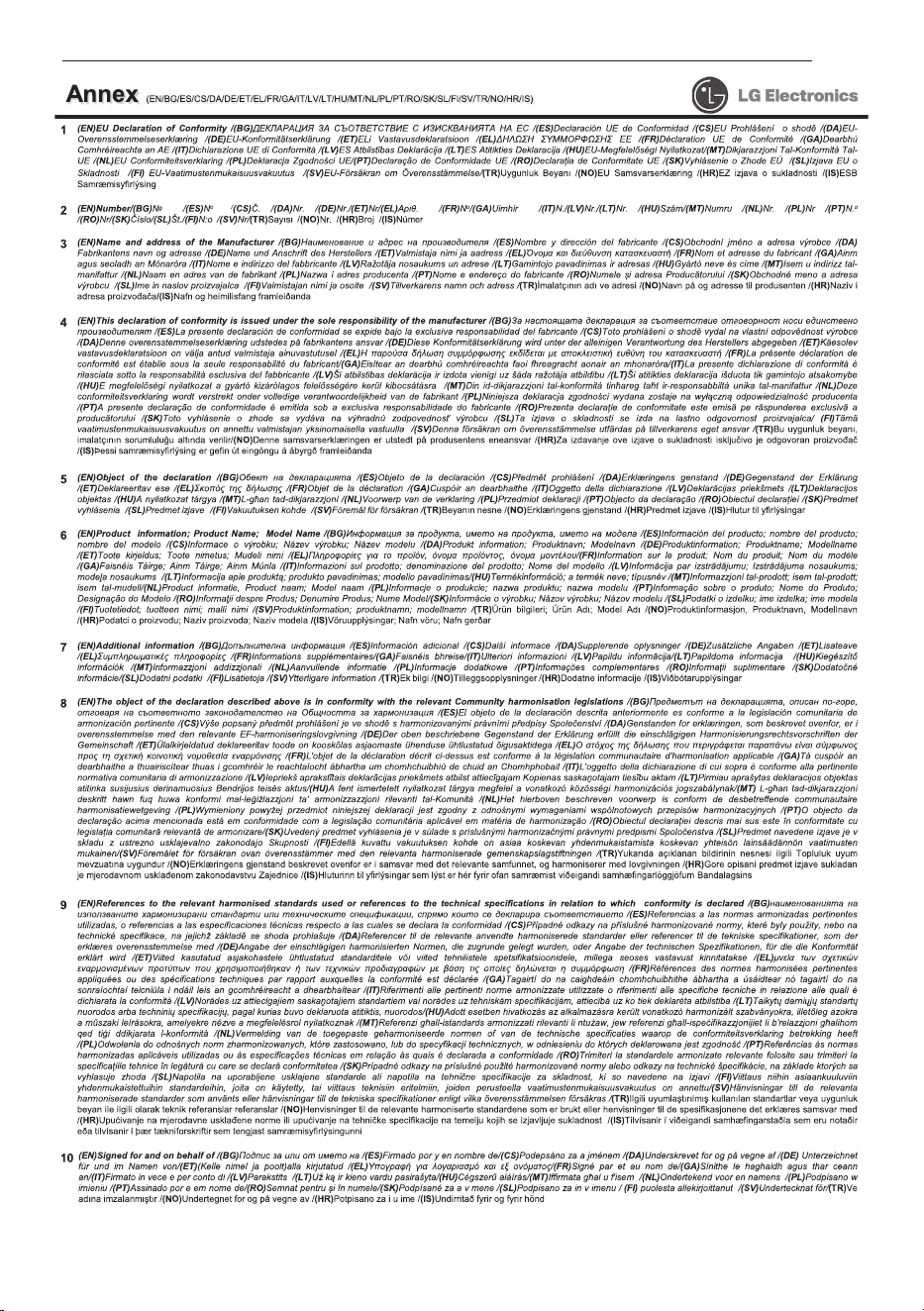

50 Declaration of Conformity
CONTENTS
MFL62512875_150414.indd 10 2015.4.14 9:43:20 AM
11

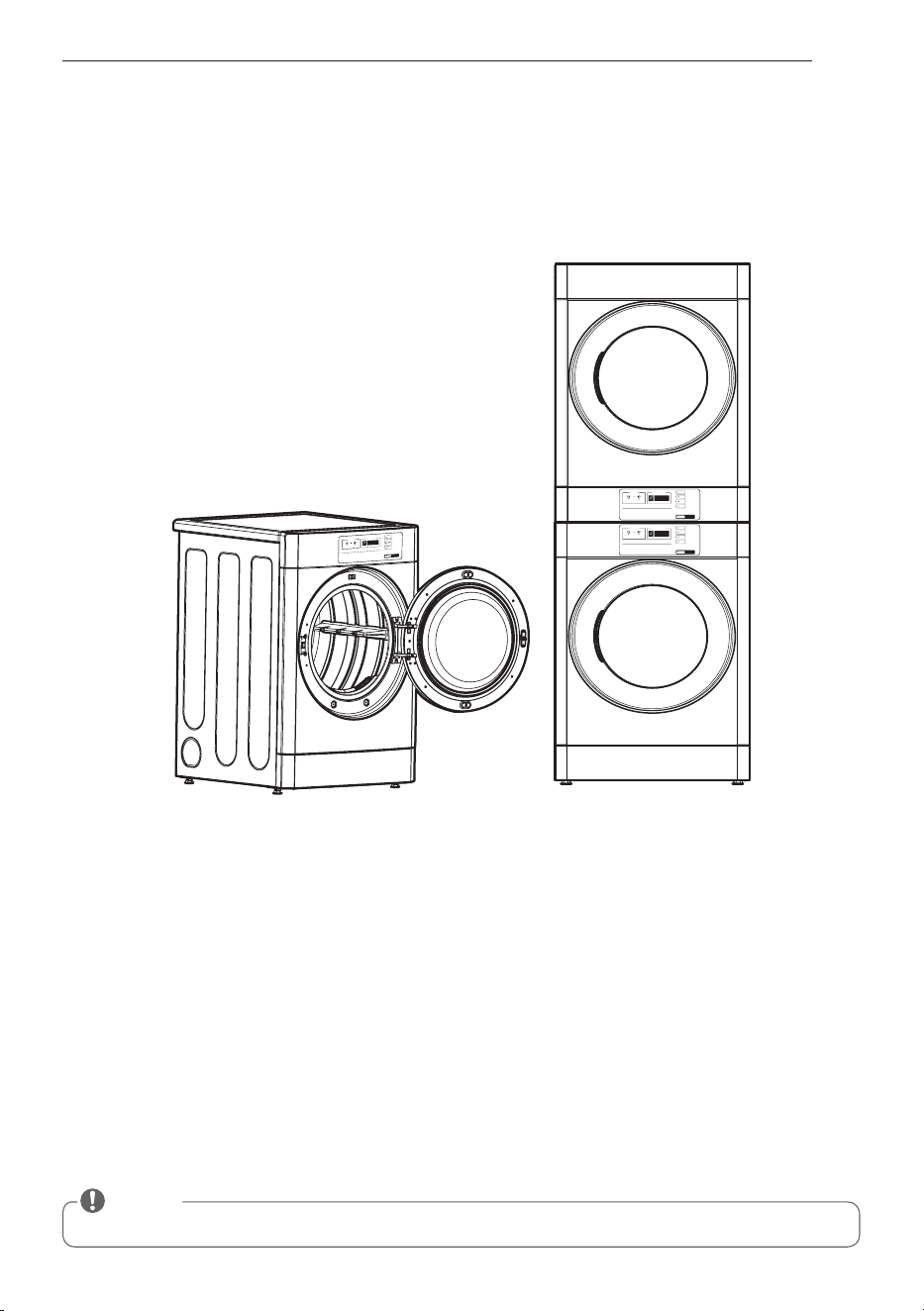

INTRODUCING YOUR DRYER
INTRODUCING YOUR DRYER
Specifications
■ Type : Electric and Gas Dryer
■ Rating : Please refer to the rating label regarding detailed information.
■ Single dryer size : 686mm(W) x 764mm(D) x 983mm(H)
■ Stack dryer size : 686mm(W) x 764mm(D) x 1954mm(H)
■ Electric Dryer Max capacity : 10kg
■ Gas Dryer Max capacity : 10,2kg
■ Weight : 59,4 kg
■ Specifications are subject to change by manufacturer.
Specifications subject to change by manufacturer.
NOTE
MFL62512875_150414.indd 11 2015.4.14 9:43:23 AM
12
INTRODUCING YOUR DRYER
Accessories
OPL sheet
(only for OPL type)

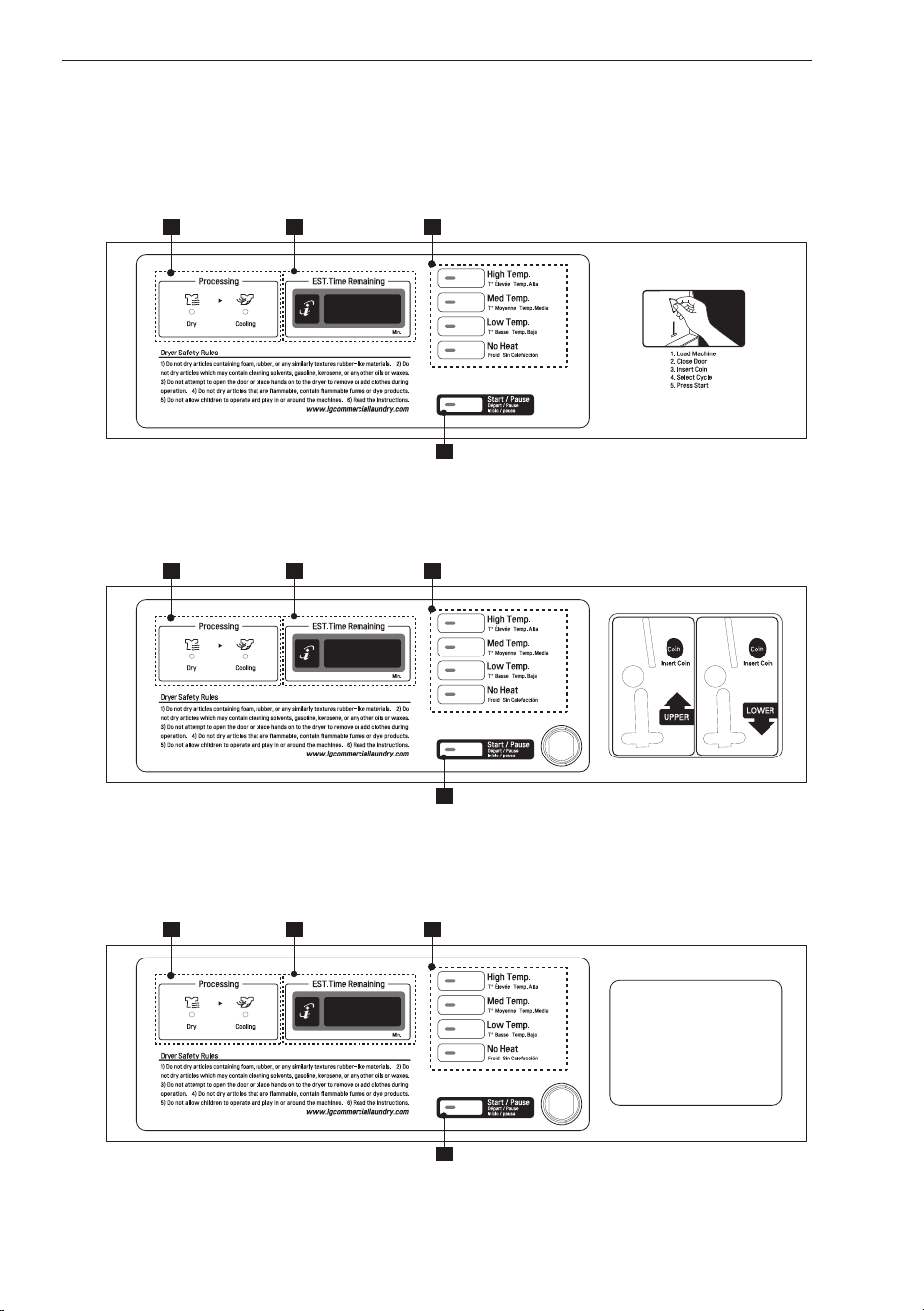

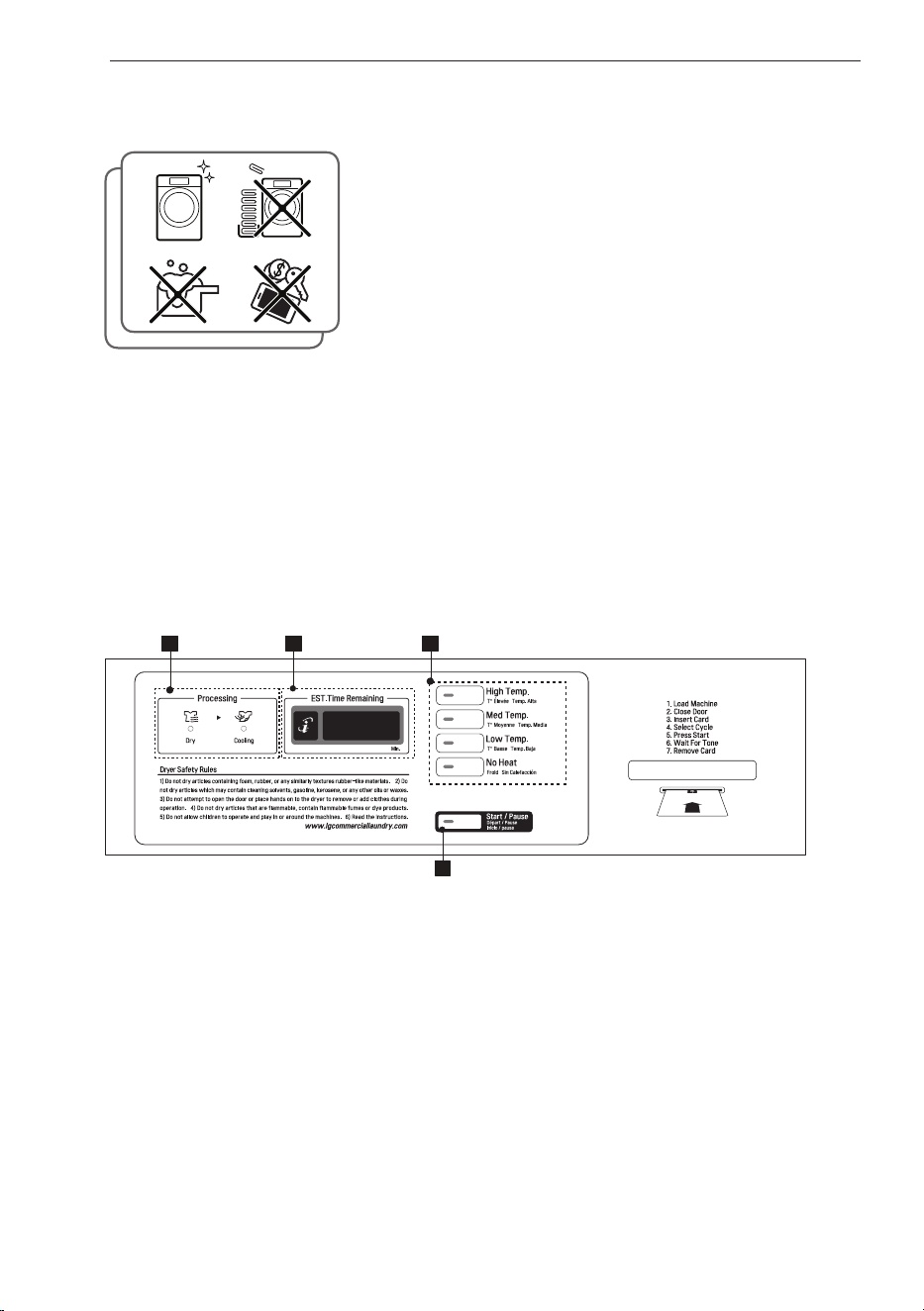

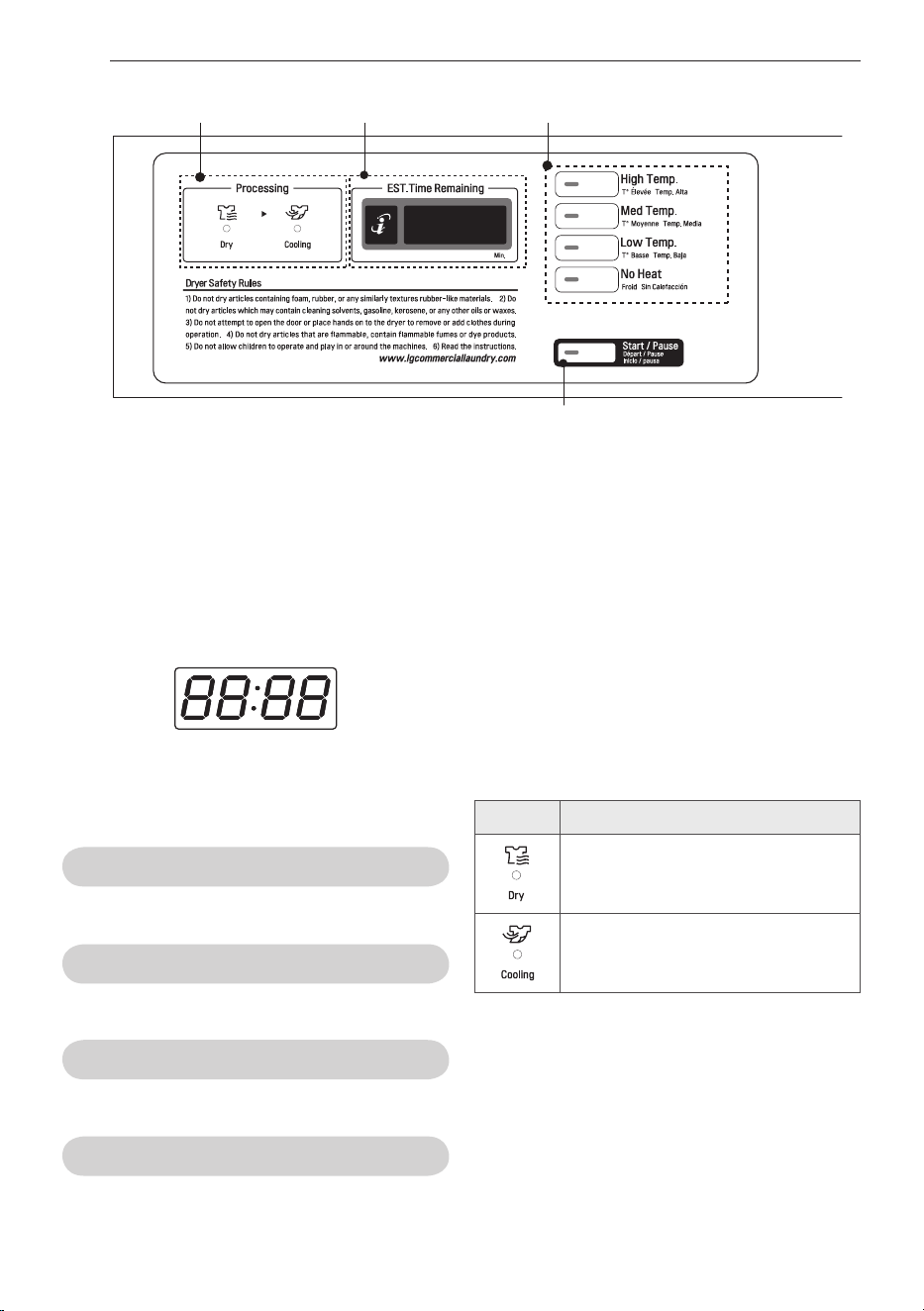

Control panel features
■ Card type
- Side by side(RN1329Ad1S / Rv1329Ad1S)
- Stack upper(RN1329Ad5S / Rv1329Ad5S)
- Stack lower(RN1329Ad6S / Rv1329Ad6S)
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1. display LEd
2. Cycle button
3. Start/Pause button
4. Status LEd
MFL62512875_150414.indd 12 2015.4.14 9:43:26 AM
13
INTRODUCING YOUR DRYER
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
- Stack upper (RN1329AN7S / Rv1329AN7S)
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
- Stack lower (RN1329AN1S / Rv1329AN1S)
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1. display LEd
2. Cycle button
3. Start/Pause button
4. Status LEd
Control panel features
■ Coin type
- Side by side (RN1329AN4S / Rv1329AN4S)
MFL62512875_150414.indd 13 2015.4.14 9:43:30 AM
14
INTRODUCING YOUR DRYER
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
1 24
3
display LEd Cycle button
Start/Pause button
Status LEd
display LEd
The Display shows the vend price, remaining time, and
programming options.
Error codes are also displayed here.
Cycle button
Press the cycle button to Select the desired cycle based
on laundry types and conditions.
high Temp.
Use this cycle to get high heat for heavy fabrics, such
as jeans corduroys or work clothes (High heat).
Med Temp.
Use for drying sturdy fabrics such as work casual
clothes (Medium heat).
Low Temp.
Use for drying synthetic fabrics,washable knit fabrics
and noiron finishes (Low heat).
No heat
Use for items that require heat-free drying such as
plastics or rubber.
Start/Pause button
The Start LED flashes when the full vend price has been
satisfied then the cycle has been chosen or the machine
is paused.
The Start LED flashes when a card is inserted to add time
to the current cycle.
If you press the Start/Pause button while dryer is
working, machine will be paused.
Status LEd
LEd description
LED flashes whenever the heating cycle
is in operation.
LED flashes whenever the cool down
cycle is in operation.
MFL62512875_150414.indd 14 2015.4.14 9:43:33 AM
15
OPERATING YOUR DRYER
OPERATING YOUR DRYER
1. Ready mode
1) Coin / Card type
- The cycle LEDs flash at the same time, when the
price of cycles are equal.
2) OPL type
- The cycle LEDs is lit at the same time, and displayed
‘PUSH’.
2. Insert card/coin/Token
(not for OPL type)
■ Insert a cash card that has a sufficient balance.
The card balance should be more than the
programmed vend price for a selected cycle.
■ Insert a sufficient amount of change that is a more
than the programmed vend price for a selected cycle.
3. Select the cycle
Press the desired cycle and the start button. The display
LED will show the remaining time and the selected cycle
starts.
4. Top off (To add more time)
■ After a debit card is inserted, the operating time can
be increased to 10 minutes/10p (default), when the
Start button or the chosen course button has been
pressed.
(The card should have enough balance to satisfy
increasing time.)
■ The operating time can be increased to 10
minutes/10p (default) by adding more coins.
When the COOL DOWN has been working, if time is
added, it goes back to the DRYING.
Time can be added up 99 minutes.
5. Change cycle
■ You cannot change the cycle while the machine is
running.
■ But if the door is opened, the machine stops
temporarily and the cycle can be changed.
■ Press the Pause button then you can change the
cycle.
6. Cycle finish
■ After the COOL DOWN of cycle, the machine stops
and LED display shows End.
If you press any key or open the door, the dryer
defaults to the ready mode.
Owner can control the additional time and money
setting (top off price).
NOTE
The last 2 minutes of the remaining time are always
for the cool down portion.
NOTE
When the coin amount is not enough, the machine
will not start.
NOTE
When the card balance is not enough, machine
displays the balance for 5 seconds and then displays
message repetitively
NOTE
MFL62512875_150414.indd 15 2015.4.14 9:43:34 AM
16
PROGRAMMING MODE
PROGRAMMING MODE

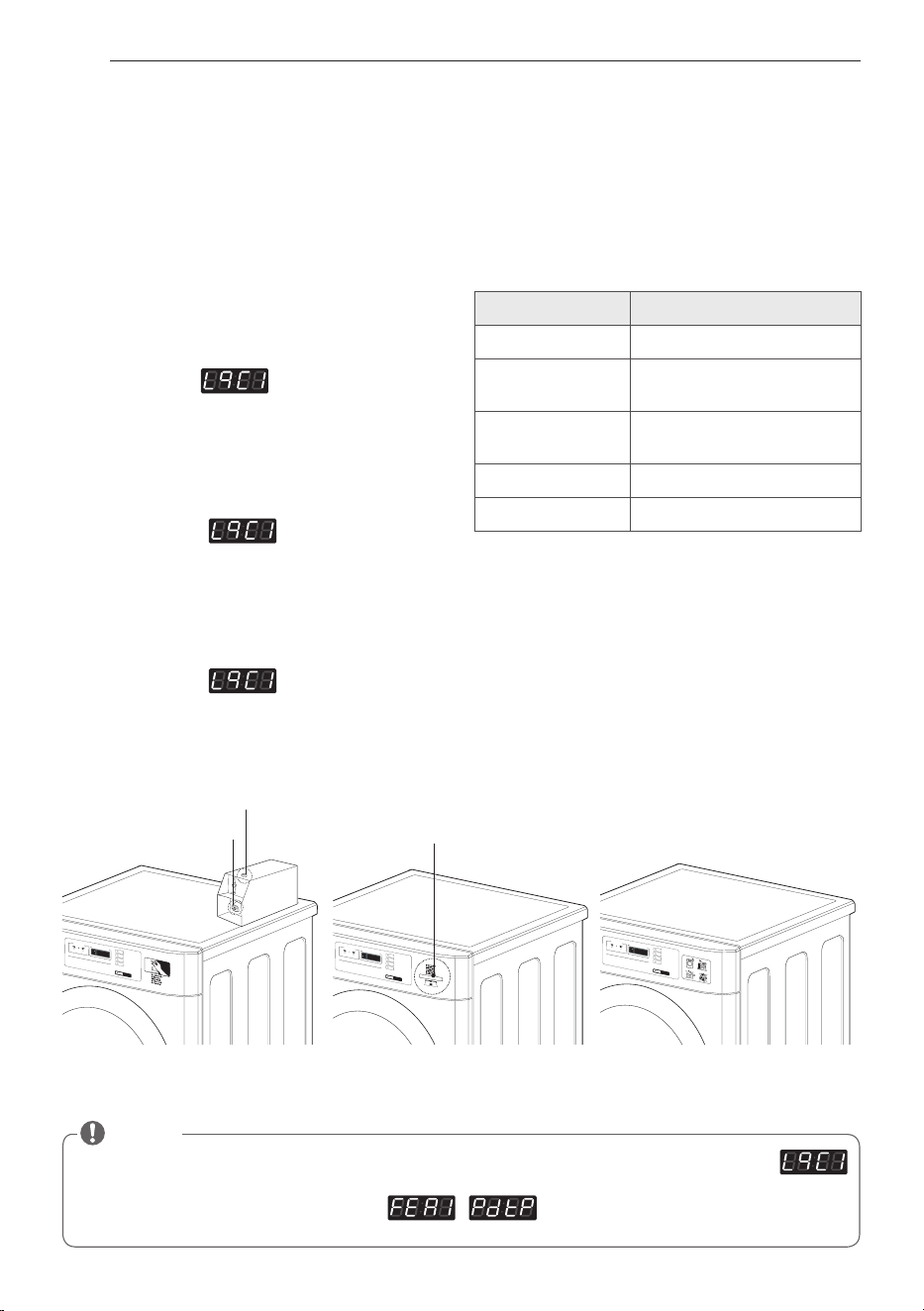

1. Programming mode
You can check machine information or change setting on Program setup or Diagnostic test.
There are two methods that you can enter programming mode.
■ how to enter “Programming mode”
You can enter programming mode only for Idle state
and pause state.
- Card Type
1) Insert service card.
2) Display will show
- Coin Type
1) Dissemble upper coin box key.
2) Take out the coin drop from the coin box.
3) Turn on/off the toggle switch at the back of the coin
box.
4) Display will show “
”.
- OPL/Coin Type
1) Push the High Temp. and Low Temp. button at the
same time.
2) Push the Med Temp. button 3 times.
3) Push the Start button.
4) Display will show “
”
■ how to use button
You can change Dryer vend price, cycle time and Cycle
parameters, etc.
Press button description
High Temp. Move to upper level
Med Temp.
Move to the mode in the
same level (+)
Low Temp.
Move to the modes in the
same level (-)
No Heat -
Start Enter the selected mode
• If you turn on the power without connecting the meter case for the first time, the machine will display .
• When the machine comes from the factory, it is set in the coin type. You can change Card/Coin type by button.
(For more information refer to SETUP mode’s
/ .)
• The machine will display “PUSH” for OPL type
NOTE
Coin Box Key
Coin Vault
Coin type
Insert debit card
Card type
OPL type
MFL62512875_150414.indd 16 2015.4.14 9:43:36 AM
17
PROGRAMMING MODE
Card / Coin type
■ Algorithm Flow Chart shows how to control programming mode.
■ Before program set, check the structure of programming mode.
1. Turn on/off toggle switch or Insert the service card to entering set up mode.
2. Press High Temp. button to move the upper level.
3. Press Med Temp.(+) or Low Temp.(-) button if you want to be at the same level.
4. Press Start button to enter the details of Set up, Diagnostic Tests mode.
is to set price value, time value and vend type etc.
consists of line test, reset, free cycle and kill cycle.
Is to collect the usage data.
■ Structure of Programming mode
• Do not use , .
• It is only used in inspecting the machine.
NOTE
MFL62512875_150414.indd 17 2015.4.14 9:43:39 AM
18
PROGRAMMING MODE
OPL type
■ Algorithm Flow Chart shows how to control programming mode.
■ Before program set, check the structure of programming mode.
OPL/Coin Type
1) Push the High Temp. and Low Temp. button at the same time.
2) Push the Med Temp. button 3 times.
3) Push the Start button.
4) Display will show “ “
is to set price value, time value and vend type etc.
consists of line test, reset, free cycle and kill cycle.
Is to collect the usage data.
■ Structure of Programming mode
• Do not use , .
• It is only used in inspecting the machine.
NOTE
MFL62512875_150414.indd 18 2015.4.14 9:43:40 AM
19
PROGRAMMING MODE
PROGRAMMING MODE - Setup Mode
Setup Mode : (display)
■ You can change dryer vend price, cycle time, and cycle parameters, etc.
■ Entering set up mode
• Coin type - Turn on/off toggle switch.
• Card type - Insert the service card.
• Stack type - Take off control panel, and turn on/off toggle switch.
• OPL/Coin Type – Push “High Temp.” + “Low Temp.” and the ‘3’.
• Then, dryer displays
.
1. how to change regular price.
• rgCP (regular cold price) is not available in dryer.
• rgrP (regular warm price) is not available in dryer.
• rgHP (regular hot price) is not available in dryer.
NOTE
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Start button.
Display previous regular price.
Press Med Temp.(+) or Low Temp.(-) button to set regular price.
(The vend price can be set from 0 to 9,90 in 0.1 increments.)
Press the Start button.
The machine sets up the regular price, then advances to the
next process automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type – Press “High Temp.” twice.
MFL62512875_150414.indd 19 2015.4.14 9:43:41 AM
20
PROGRAMMING MODE

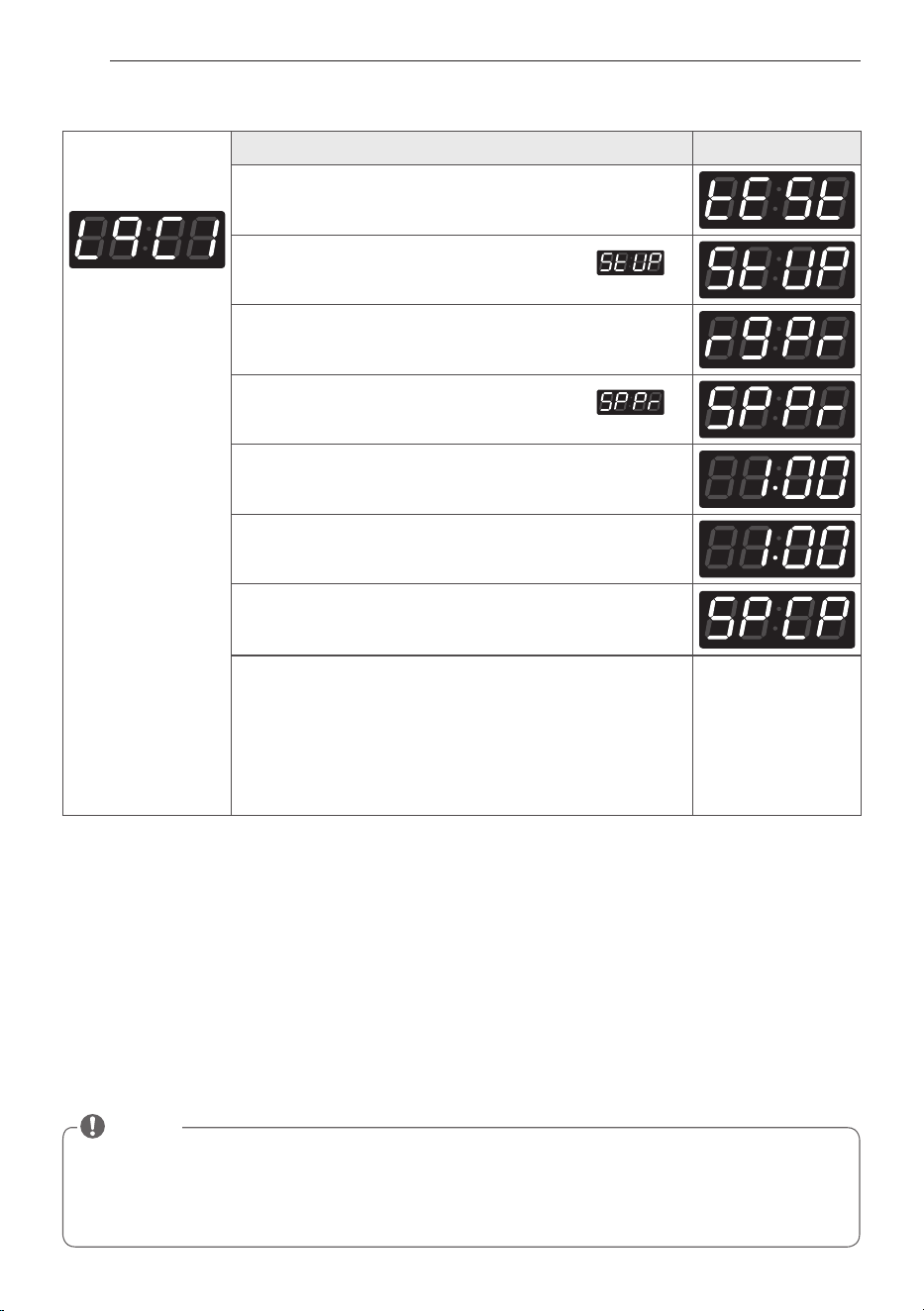

2. how to change special price
• SPCP (special cold price) is not available in dryer.
• SPrP (special warm price) is not available in dryer.
• SPHP (special hot price) is not available in dryer.
• SCPA (add super cycle price) is not available in dryer.
• SPCt (add super wash type) is not available in dryer.
NOTE
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display previous special price.
Press Med Temp.(+) or Low Temp.(-) button to set special price.
(The vend price can be set from 0 to 9,90 in 0.1 increments.)
Press the Start button.
The machine sets up the regular price, then advances to the next
process automatically.
1. Continue to set up the next price.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type – Press “High Temp.” twice.
MFL62512875_150414.indd 20 2015.4.14 9:43:42 AM
21
PROGRAMMING MODE

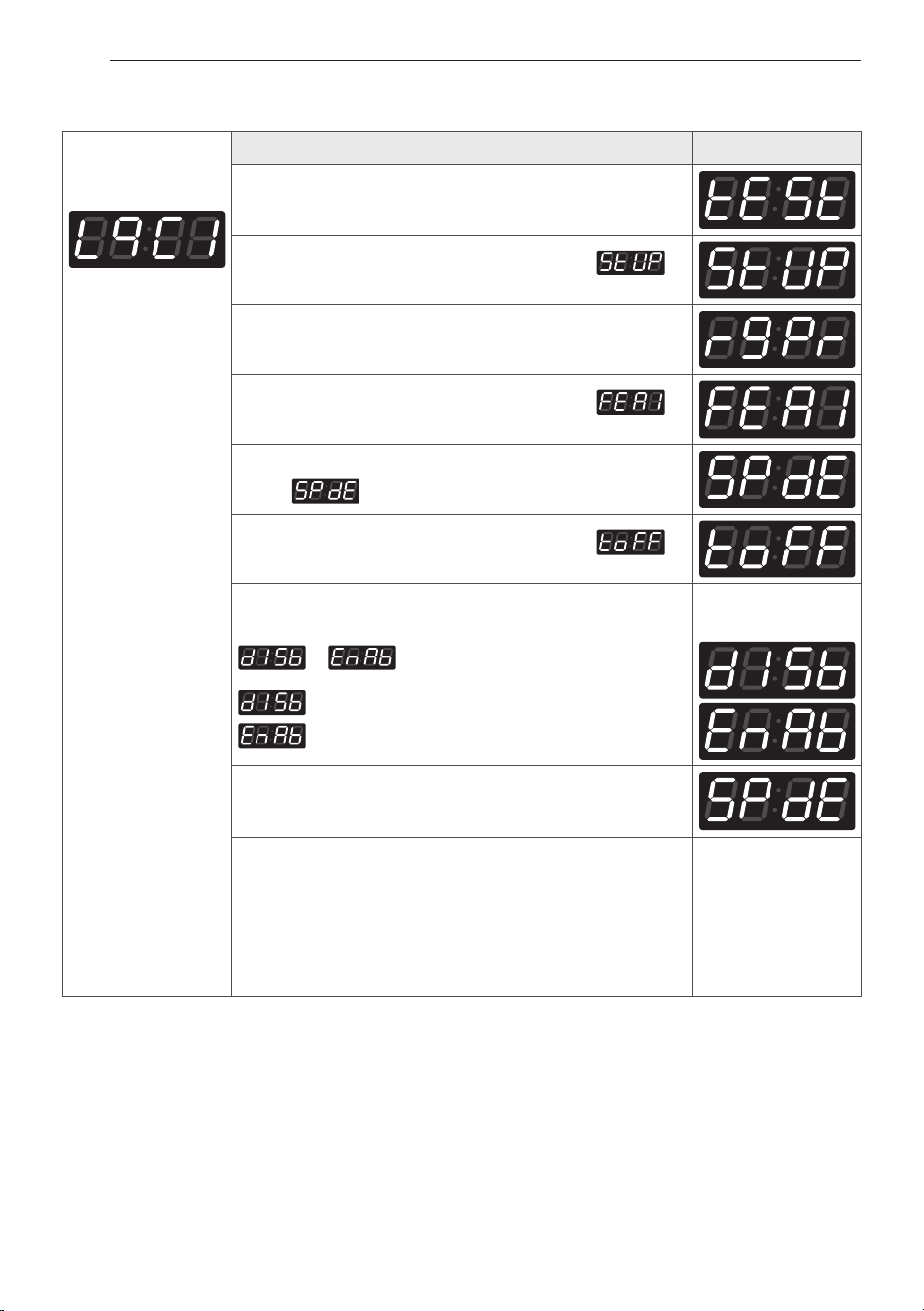

3. how to enter the
■ Structure of ■ Content of
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
• Special price days apply or not
• Disabled
• Add super wash apply or not
• Select vend type
• This function is not available
• Pre-wash apply or not
• Top off apply or not (only for dryer)
• Disable
• Enable
MFL62512875_150414.indd 21 2015.4.14 9:43:46 AM
22
PROGRAMMING MODE

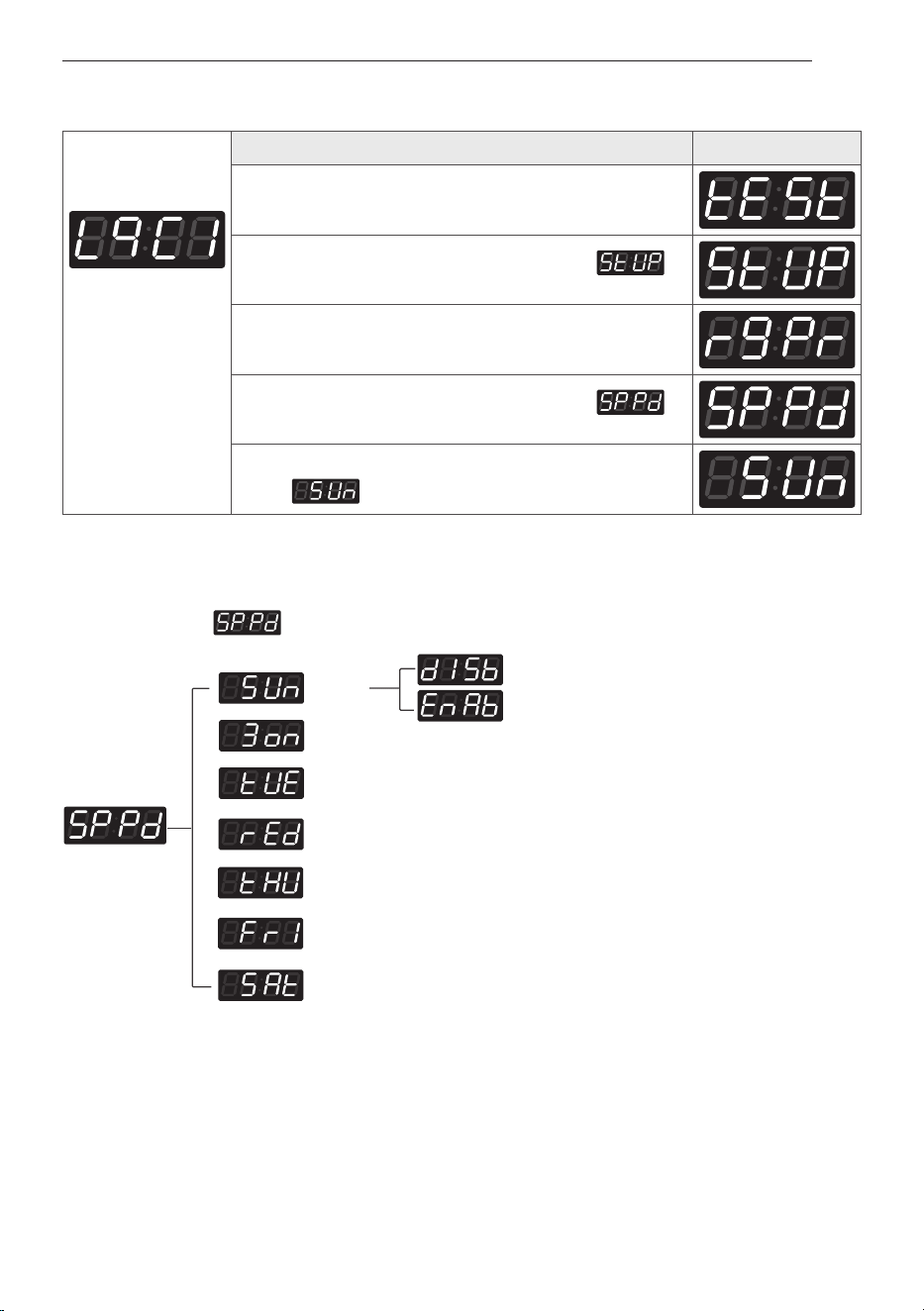

3-1. Special price day setup
• CLEE (clear escrow enable or not) is not available in dryer.
• SUUE (add super wash apply or not) is not available in dryer.
NOTE
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display
.
Press the Start button.
Press Med Temp. or Low Temp. button and then select
or .
Coin type
Card type
One or the other will
display.
Press the Start button.
The machine sets up the special price, then advances to the next
process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
MFL62512875_150414.indd 22 2015.4.14 9:43:47 AM
23
PROGRAMMING MODE

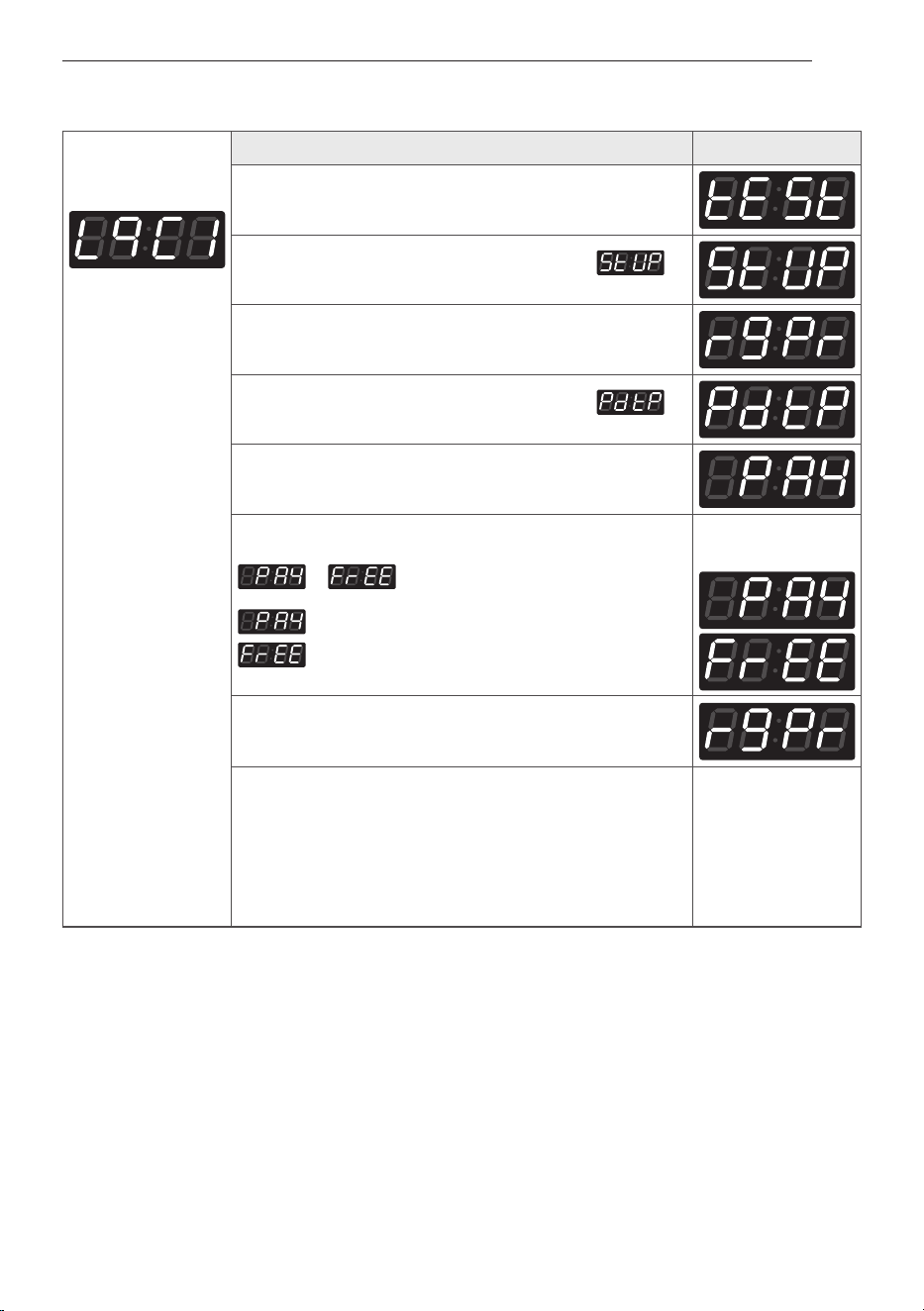

3-2. vend type setup - card type or coin type setup
• SEdE (sensor dry apply or not) is not available in dryer.
• PrSH (Pre-wash apply or not) is not available in dryer.
NOTE
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display
.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press Med Temp. or Low Temp. button and then select
or .
Disable
Enable
One or the other will
display.
Press the Start button.
The machine sets up the vend type, then go to the idle mode
automatically.
MFL62512875_150414.indd 23 2015.4.14 9:43:48 AM
24
PROGRAMMING MODE
3-3. Top off apply or not setup
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display
.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press Med Temp. or Low Temp. button and then select
or .
Disable
Enable
One or the other will
display.
Press the Start button.
The machine sets up the Vend type, then advances to the next
process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
MFL62512875_150414.indd 24 2015.4.14 9:43:49 AM
25
PROGRAMMING MODE
4. how to enter the special price day setup
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display
.
■ Structure of
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
MFL62512875_150414.indd 25 2015.4.14 9:43:50 AM
26
PROGRAMMING MODE
4-1. how to change sunday
As explained on the previous page, other days can be set up by the same method.
NOTE
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display
.
Press the Start button.
Press Med Temp.(+) or Low Temp. button and then select
or .
Disable
Enable
One or the other will
display.
Press the Start button.
The machine sets up the special price day (Sunday), then
advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
MFL62512875_150414.indd 26 2015.4.14 9:43:51 AM
27
PROGRAMMING MODE
5. Special price beginning time setup
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display previous special price beginning time.
Press Med Temp.(+) or Low Temp.(-) button to
select time between 0 and 23.
Press the Start button.
The machine sets up the special price beginning time, then
advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
MFL62512875_150414.indd 27 2015.4.14 9:43:53 AM
28
PROGRAMMING MODE
6. Special price ending time setup
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display previous special price ending time.
Press Med Temp.(+) or Low Temp.(-) button to select time
between 1 and 24.
Press the Start button.
The machine sets up the special price ending time, then advances
to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
When setting up a special price period, the ending time must be later than the beginning time.
NOTE
MFL62512875_150414.indd 28 2015.4.14 9:43:54 AM
29
PROGRAMMING MODE
7. Regular priced dryer cycle time
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display previous regular priced dryer cycle time.
Press Med Temp.(+) or Low Temp.(-) button to select time
between 10 and 99.
Press the Start button.
The machine sets up the regular priced dryer cycle time, then
advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
MFL62512875_150414.indd 29 2015.4.14 9:43:54 AM
30
PROGRAMMING MODE
8. Special priced dryer cycle time
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display previous special priced dryer cycle time.
Press Med Temp.(+) or Low Temp.(-) button to select time
between 10 and 99.
Press the Start button.
The machine sets up the special priced dryer cycle time, then
advances to the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
• CCCC (washing time) is not available in dryer.
• nrPC (rinsing times per cycle) is not available in dryer.
• rt (rinsing time setup) is not available in dryer.
• tSSd (top spin speed) is not available in dryer.
NOTE
MFL62512875_150414.indd 30 2015.4.14 9:43:55 AM
31
PROGRAMMING MODE
9. value of coin 1
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display previous coin 1 value.
Press Med Temp.(+) or Low Temp.(-) button to select value of
coin 1 (The value can be set fronm 0 to 9,90 in 0.1 increments.)
Press the Start button.
The machine sets up the value of coin 1, then advances to the
next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
MFL62512875_150414.indd 31 2015.4.14 9:43:56 AM
32
PROGRAMMING MODE
10. value of coin 2 (Set up for top off price and e-suds coin pulse)
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display previous coin 2 value.
Press Med Temp.(+) or Low Temp.(-) button to select value of
coin 2 (The value can be set fronm 0 to 9,90 in 0.1 increments.)
Press the Start button.
The machine sets up the value of coin 2, then advances to the
next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
• Coin type : Value of coin 2 is same function as setting for the e-Suds coin pulse.
• Card type : Value of coin 2 is same function as the top off price.
(As changing the value of coin 2, you can change the top off price and e-Suds coin pulse.)
NOTE
MFL62512875_150414.indd 32 2015.4.14 9:43:57 AM
33
PROGRAMMING MODE
11. Penny increment pricing offset
This represents the cent increment price offset used when debit card is setup.
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display previous penny increment pricing oset.
Press Med Temp.(+) or Low Temp.(-) button to select value
of PIPo. (0~4)
Press the Start button.
The machine sets up the PIPo, then advances to the next process
automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
• Pence increment pricing offset is available only in card type.
(It hasn’t affected on the coin type’s price setting.)
NOTE
MFL62512875_150414.indd 33 2015.4.14 9:43:58 AM
34
PROGRAMMING MODE
12. Top off time
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display previous top o time.
Press Med Temp.(+) or Low Temp.(-) button to select time
between 1 and 30.
Press the Start button.
The machine sets up the top o time, then advances to the next
process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
MFL62512875_150414.indd 34 2015.4.14 9:43:59 AM
35
PROGRAMMING MODE
13. Beep volume
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display previous value.
Press Med Temp.(+) or Low Temp.(-) button to select High or
Low or O.
Press the Start button.
The machine sets up the beep volume, then advances to the next
process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
MFL62512875_150414.indd 35 2015.4.14 9:44:0 AM
36
PROGRAMMING MODE

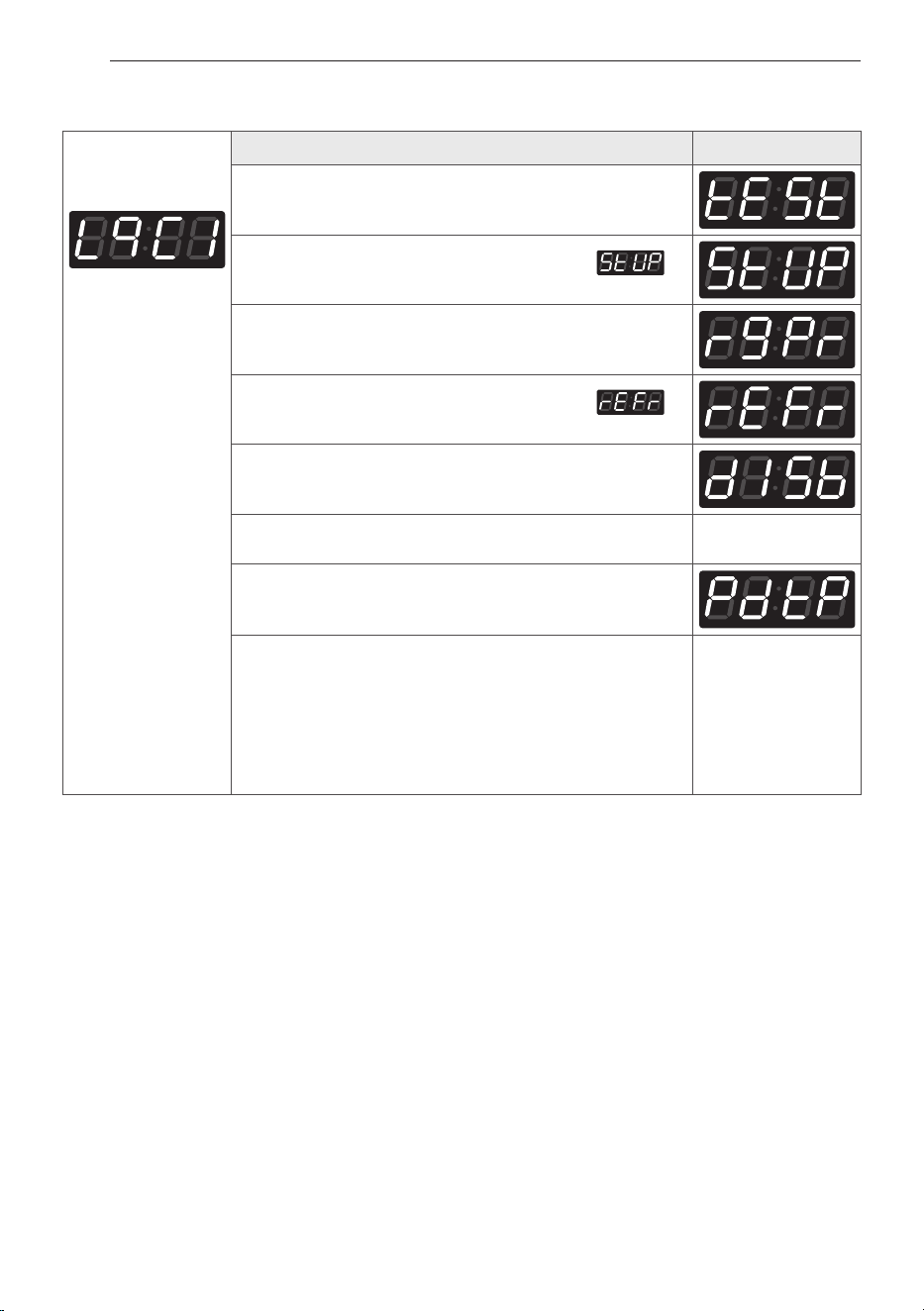

14. Time to keep the coin (Use only for coin type)
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display previous value.
Press Med Temp.(+) or Low Temp.(-) button to select time
between 1 ~ 180 or ‘disable’.
Press the Start button.
The machine sets up the time to keep the coin, then advances to
the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
MFL62512875_150414.indd 36 2015.4.14 9:44:0 AM
37
PROGRAMMING MODE
15. Product type setup – coin/card type or OPL setup
Entering set up
mode.
You will see LqC1
Button display
Press the high Temp. button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
Display previous value.
Press Med Temp. or Low Temp. button and then select
or .
Coin/Card type setting
OPL type setting
One or the other will
display.
Press the Start button.
The machine sets up the time to keep the coin, then advances to
the next process automatically.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
MFL62512875_150414.indd 37 2015.4.14 9:44:1 AM
38
PROGRAMMING MODE
PROGRAMMING MODE - Test Mode
diagnostic tests : (display)
This program has been added for testing the dryer and detecting errors.
Entering the test mode
Machine
data
Name
Button display description
CARd /
COIN
Enter-
ing
the test
mode
1. Entering
programming
mode
Insert service card (card type), Turn on/o toggle switch
(Coin type).
2. High Temp.
Press the High Temp. button.
Then
appears in the display.
3. Start
Enter the diagnostic test mode.
OPL /
Coin
Type
1. Entering
programming
mode.
Push and hold the High Temp. and Low Temp. at the same time.
After that push Med Temp. button for 3 times. Push
Start button.
2. High Temp.
Press the High Temp. button.
Then
appears in the display.
3. Start
Enter the diagnostic test mode.
MFL62512875_150414.indd 38 2015.4.14 9:44:2 AM
39
PROGRAMMING MODE
1.
Pressing the Start button cycles to the next test function.
Number of times
the Start
button is pressed
Checking point display
None LqC 1
1 time
Check the version and code of
machine.
■ ELECTRIC TYPE : P3 OE
■ GAS TYPE : P3 Og
Version and code of machine (All LED on)
Display P3:OE or P3:Og and gU:XX alternately. XX is the
version number.
2 time PDA CHECK Ir--
3 time Motor runs. Measured moisture value (70~239)
4 time
■ ELECTRIC TYPE: Heater runs.
Motor + Heater 1 (2700W)
■ GAS TYPE: GAS valve runs.
Motor + Valve
Current temperature (5~70)
(Displays the temperature inside the drum in ° Celsius.)
5 time
■ ELECTRIC TYPE: Heater runs.
Motor + Heater 1 +Heater 2 (5400W)
■ GAS TYPE: GAS valve runs.
Motor+Valve
Current temperature (5~70)
(Displays the temperature inside the drum in ° Celsius.)
6 time
LED & KEY CHECK
Press High Temp. button.
Press Med Temp. button.
Press Low Temp. button.
Press No Heat button
Version and code of machine
7 time Test ends. LqC1
During check, if the
door is open.
Door switch
(Motor & Heater Off, Buzzer beeps
seven times)
dE
(The door is open. Please close the door completely)
During check, if the
door is closed
Test goes back at step 2.
(Motor on & Heater Off )
Measured moisture value (70~239)
During LqC1 test, if no buttons are pressed for 4 minutes, machine will be turned off automatically.
Do not use
.
NOTE
MFL62512875_150414.indd 39 2015.4.14 9:44:2 AM
40
PROGRAMMING MODE
2. Factory reset - EEPt
After a factory reset, all values are reset to the default values.
Entering set up
mode.
You will see LqC1
Button display
Press the Med Temp. or the Low Temp. Button until
appears in the display.
Press the Start button.
Press the Med Temp. button until appears in the
display.
Press the Start button, then factory reset is done.
is displayed.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Push “High Temp.” + “Low Temp.” and the ‘3’.
• Dryer default value for CARD/COIN machine.
- Drying time 50 Minute
- Top off time 10 Minute
• Drying time in OPL machine can be changed from 10 to 100 Minutes by pressing the cycle button.
NOTE
MFL62512875_150414.indd 40 2015.4.14 9:44:3 AM
41
PROGRAMMING MODE

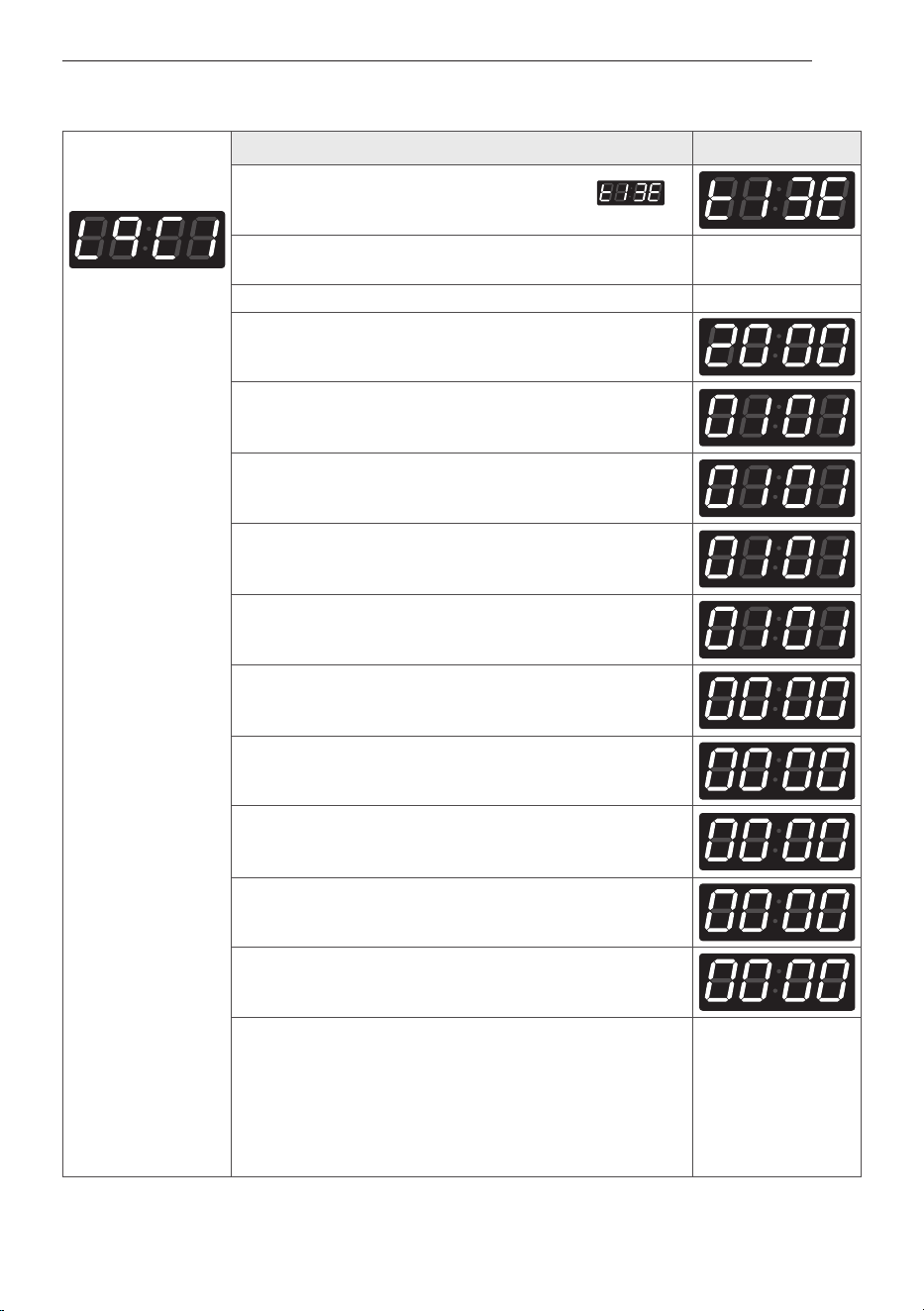

3. Time Set Up
Entering set up
mode.
You will see LqC1
Button display
Press the Med Temp. or the Low Temp. button until
appears in the display.
Press the Start button.
The display cycles through 2000 --> 0101 --> Sat --> 0000.
Press the Start button.
Press Med Temp. (+) or Low Temp.(-) button to select year
between 2000 and 2099.
Press the Start button.
The machine sets up the year, then advances to the next
process automatically.
Press Med Temp. (+) or Low Temp.(-) button to select month
between 01 and 12.
Press the Start button.
The machine sets up the month, then advances to the next
process automatically.
Press Med Temp. (+) or Low Temp.(-) button to select day
between 01 and 31.
Press the Start button.
The machine sets up the day, then advances to the next
process automatically.
Press Med Temp. (+) or Low Temp.(-) button to select hour
between 00 and 23.
Press the Start button.
The machine sets up the hour, then advances to the next
process automatically.
Press Med Temp. (+) or Low Temp.(-) button to select minute
between 00 and 59.
Press the Start button.
The machine sets up the minute.
1. Continue to set up the next mode.
2. Stop the change of setup value and go back to ready mode.
• Coin type - Turn on/o toggle switch.
• Card type - Pull the service card.
• Stack type - 1. Control panel open.
2. Turn on/o toggle switch.
• OPL/Coin Type - Press “High Temp.” twice.
MFL62512875_150414.indd 41 2015.4.14 9:44:4 AM
42
PROGRAMMING MODE
4. Courtesy cycle
Courtesy cycle is like a complimentary cycle given to the customer when the dryer goes out of order when
the customer has made the payment to dry one’s clothes.
Entering set up
mode.
You will see LqC1
Button display
Press the Med Temp. or the Low Temp. Button until
appears in the display.
Press the Start button.
Press the Med Temp. button until appears in the
display.
Press the Start button.
Display will show
.
Select the course you desire.
• In case of dryer card type, it has to insert the cash card after
removing the service card. Then press the cycle course and
the start button. (It is only applicable to the dryer’s card type
specially and there is no subtraction in card balance at the
Courtesy cycle.)
NOTE
Press the Start button.
Display will show the remaining time and start.
MFL62512875_150414.indd 42 2015.4.14 9:44:5 AM
43
PROGRAMMING MODE
5. Cycle Kill
■ Coin
■ Card type
Entering set up
mode.
You will see LqC1
Button display
Press the Med Temp. or the Low Temp. Button until
appears in the display.
Press the Start button.
Press the Med Temp. button until appears in the
display.
Press the Start button.
Display
with beeping.
Go back to ready mode.
Insert
cycle kill card.
descriptions display
Display the current time and
.
Display with beeping.
Go back to ready mode.
■ OPL type
- Dryer machine will end the cycle by opening the door.
NOTE
MFL62512875_150414.indd 43 2015.4.14 9:44:7 AM
44
PROGRAMMING MODE
PROGRAMMING MODE - Collect Mode
Collect Information data : CLCt (display)
The dryer collects the usage data so that the owner can check various information like number of various cycles
used, how many times card or coins used, etc.
Entering the collect mode
❖ Check the collect information reference to the follow lists. The Lists are displayed by abbreviations.
■ Collect Mode data lists
data Name Button display description
Entering
the collect
mode
1. Entering the
programming mode.
Insert service card(card type), Turn on/o toggle switch
(Coin type).
2. high Temp.
Press the High Temp. button until “tESt” appears in the
display.
3. Low Temp.
Press the Med Temp. or Low Temp. button until “CLCt”
appears in the display.
4. Start
Enter the Collect information data.
5. Med Temp. or Low
Temp.
Move to each data list that you want to check by pressing
with Med Temp. or Low Temp. button.
6. Start Display the value of selected data list
No.
Abbreviation
Meaning description
1 rgPr Regular Price 0,00~9,90
2 rgCP Regular Cold Price rgCP is not available in dryer. (It can’t enter.)
3 rgrP Regular Warm Price rgrP is not available in dryer. (It can’t enter.)
4 rgHP Regular Hot Price rgHP is not available in dryer. (It can’t enter.)
5 dELC Dryer Moisture Sense dELC is not available in dryer. (It can’t enter.)
6 ItrC Interval Regular Cycles Number of Regular cycles ( 0~65535 )
7 ItCC Interval Regular Cold Cycles ItCC is not available in dryer. (It can’t enter.)
8 ItAC Interval Regular Warm Cycles ItAC is not available in dryer. (It can’t enter.)
9 ItHC Interval Regular Hot Cycles ItHC is not available in dryer. (It can’t enter.)
10 ItSC Interval Super Cycles ItSC is not available in dryer. (It can’t enter.)
11 IttF Interval Topo Cycles (Dryer Only) Number of Topo cycles ( 0~65535 )
12 ItUC Interval Service Cycles Number of Service cycles (0~65535)
13 ItFC Interval Token Cycles Number of Token cycles (0~65535)
14 ACrC Accumulated Regular Cycles Number of Regular cycles ( 0~65535 )
15 ACCC Accumulated Regular Cold Cycles ACCC is not available in dryer. (It can’t enter.)
16 ACAC Accumulated Regular Warm Cycles ACAC is not available in dryer. (It can’t enter.)
17 ACHC Accumulated Regular Hot Cycles ACHC is not available in dryer. (It can’t enter.)
18 ACSC Accumulated Super Cycles (Washer Only) ACSC is not available in dryer. (It can’t enter.)
19 ACtF Accumulated Topo Cycles (Dryer Only) Number of Topo cycles ( 0~65535 )
20 ACUC Accumulated Service Cycles Number of Service cycles ( 0~65535 )
21 ACFC Accumulated Token Cycles Number of Token cycles (0~65535)
22 ACrt Accumulated Run Time Number of Running minutes ( 0~65535)
MFL62512875_150414.indd 44 2015.4.14 9:44:8 AM
45
PROGRAMMING MODE
■ Collect Mode data lists
No.
Abbreviation
Meaning description
23 Itnr Interval No Runs Itnr is not available in dryer.
24 Ittb Interval Trouble Cycles Money inserted, but no run.
25 ItPd Interval Power Downs No money, but ran.
26 Itdd
Interval Unauthorized Service Door
Openings
Number of Unauthorized Service Door
Openings (0~255)
27 ItAd
Interval Authorized Service Door
Openings
Number of Unauthorized Service Door
Openings (0~255)
28 ItUC
Interval Unauthorized Coin Vault
Openings
Number of Authorized Service Door
Openings (0~255)
29 ItAC Interval Authorized Coin Vault Openings
Number of Authorized Service Door
Openings (0~ 255)
30 Ittl Interval Total Income
Amount of money for Total Income
(0,00~65535)
31 Actl Accumulated Total Income
Amount of money for Total Income
(0,00~65535)
32 IttC Interval Total Cycles Number of Total cycles (0~65535)
33 ACtC Accumulated Total Cycles Number of Total cycles (0~65535)
34 SCPr Super Cycle Price Scpr is not available in dryer. (It can’t enter.)
35 toPr Top O Price 0,00~9,90
36 Itd Interval Money
Amount of money for regular cycle
(0~65535)
37 ACd Accumulated Money
Amount of money for regular cycle
(0~65535)
38 Ittd Interval Topo Money Amount of money for Topo (0~65535)
39 ACtd Accumulated Topo Money Amount of money for Topo (0~65535)
INTERVAL means collecting since last data collection.
ACCUMULATED means collecting over a period of time since last factory reset (EEPt).
Authorized: Turning on/o the toggle switch with PDA Communication.
(Turning on/o the toggle switch within 30 minutes after Communicating with PDA)
Unauthorized: Turning on/o the toggle switch without PDA Communication.
MFL62512875_150414.indd 45 2015.4.14 9:44:8 AM
46
MAINTENANCE
MAINTENANCE
■ Regular cleaning
w
WARNING
To reduce the risk of fire, electric shock, or injury
to persons when using this appliance, follow basic
precautions, including the following:
• Unplug the dryer before cleaning to avoid the risk of
electric shock. Failure to follow this warning can cause
serious injury, fire, electric shock, or death.
• Never use harsh chemicals, abrasive cleaners or solvents
to clean the dryer. They will damage the finish.
Cleaning the Exterior
Proper care of your dryer can extend its life.
The outside of the machine can be cleaned with warm water
and a mild, nonabrasive household detergent.
Immediately wipe off any spills with a soft, damp cloth.
Cleaning the Interior
Wipe around the door opening and seal with a soft, damp cloth to
prevent lint and dust buildup that could damage the door seal.
Clean the window with a soft cloth dampened with warm water and
a mild, nonabrasive household detergent; then wipe dry.
The stainless steel drum can be cleaned with a conventional stainless
steel cleaner, used according to the manufacturer’s specifications.
Never use steel wool or abrasive cleansers; they can scratch or
damage the surface.
Cleaning Around and Under the dryer
Vacuum lint and dust from around the dryer and underneath
it regularly. Vent ductwork should be checked for lint buildup
and cleaned at least once per year. If any noticeable reduction
in airflow or drying performance occurs, immediately check
ductwork for obstructions and blockages.
Maintaining ductwork
Vent ductwork should be checked for lint buildup and cleaned at
least once per year. If any noticeable reduction in airflow or drying
performance occurs, immediately check ductwork for obstructions
and blockages. Contact a qualified technician or service provider.
Cleaning the Lint Filter
Always clean the lint filter after every cycle.
To clean, open the dryer door and pull the lint filter
straight up.Then:
1. Roll any lint off the filter with your fingers, or
2. Vacuum the lint filter, or
3. If the lint filter has become very dirty or clogged with
fabric softener, wash the lint filter in warm, soapy
water and allow to dry thoroughly before reinstalling.
Do not use methylated spirits, solvents, or similar products. Never
use steel wool or abrasive cleansers; they can damage the surface.
NOTE
NEVER operate the dryer without the lint filter in place.
NEVER operate the dryer with a wet lint filter. Recommended
frequency of periodic servicing is once a year
NOTE
Distributer & Service
JLA
Meadowcroft Lane, Ripponden, West Yorkshire,
HX6 4AJ, United Kingdom
T + 44 (0)1422 822282 www.jla.com
LG Electronics Service Europe B.V.
Krijgsman1, 1186 DM Amstelveen, the Netherlands
T:31-20-456-3132
JLA is the distributer & service in UK
Producer
LG Electronics Inc.
76, Seongsan-dong, Changwon-city, Gyeongnam 641-
713, Korea
T. 82-55-269-3723 www.lg.com
NOTE
Distributer & Service
JLA
Meadowcroft Lane, Ripponden, West Yorkshire,
HX6 4AJ, United Kingdom
T : 44 (0)1422 822282 www.jla.com
JLA is the distributer & service in UK
Maglione
Via Vittorio Emanuele II, 6/8 - 25030 Roncadelle (BS)
T : 030-25-85-077 (4 linee r.a.)
Maglione is the distributer & service in ITALY
LG Electronics Service Europe B.V.
Krijgsman1, 1186 DM Amstelveen, the Netherlands
T : 31-20-456-3132
BIJELI SVIJET d.o.o.
Kranjceviceva 50, Zagreb, Croatia
Tel. +385.1.3091.870 www..bijelisvijet.hr
Producer
LG Electronics Inc.
76, Seongsan-dong, Changwon-city, Gyeongnam 641-
713, Korea
T : 82-55-269-3723 www.lg.com
NOTE
Lint Filter
MFL62512875_150414.indd 46 2015.4.14 9:44:10 AM
47

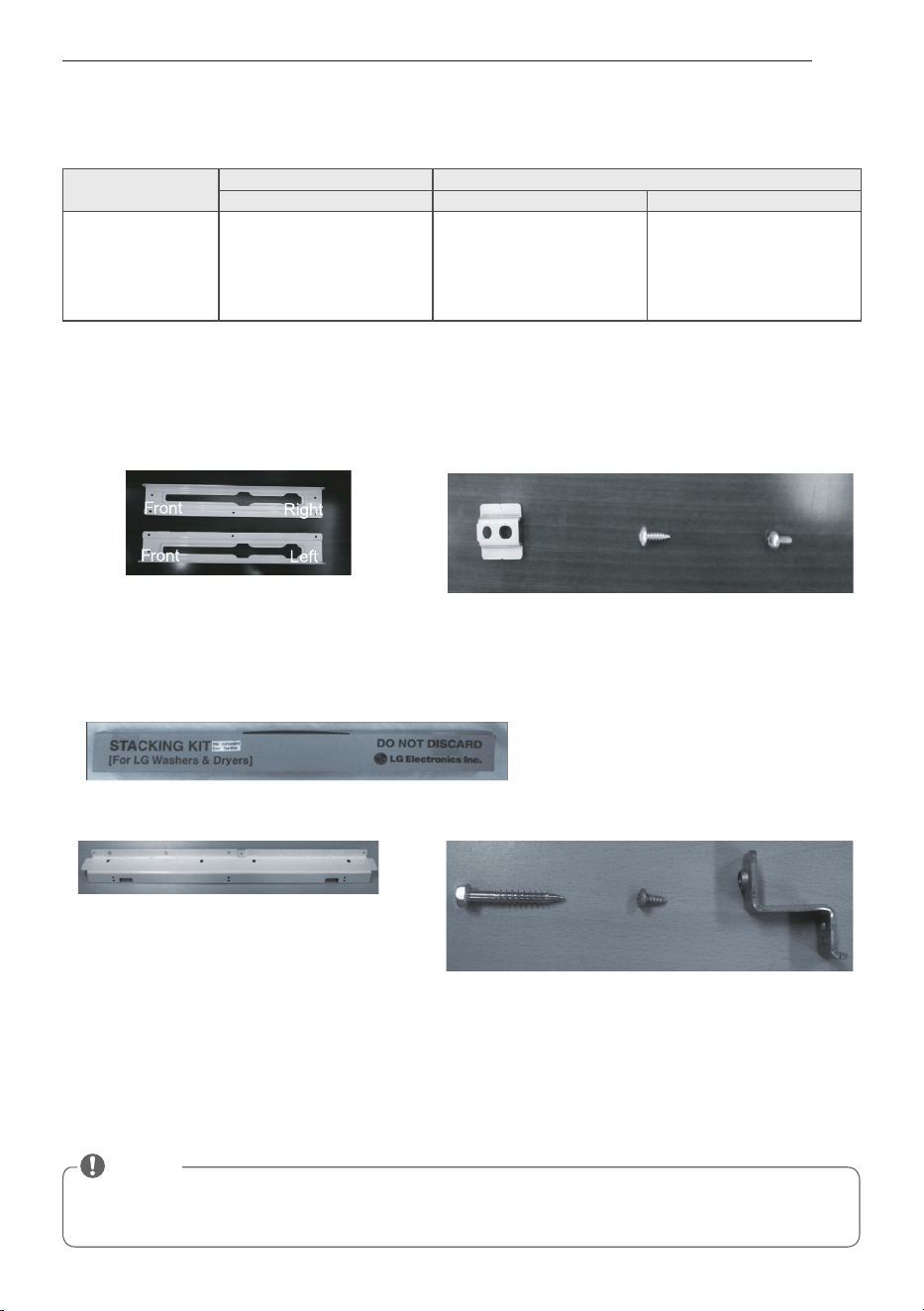

STACK MACHINE INSTALLATION INSTRUCTIONS
STACK MACHINE INSTALLATION INSTRUCTIONS
1. Suitable model for stacking
Stack position
Upper Lower
dryer Washer dryer
Stack position
RN1329Ad5S
RN1329AN7S
RN1329A7S
Rv1329Ad5S
Rv1329AN7S
Rv1329A7S
F1069Fd6
F1069Fd
F1069Fd2
F1069Fd6
F1069Fd
F1069Fd2
RN1329Ad6S
RN1329AN1S
RN1329A1S
Rv1329Ad6S
Rv1329AN1S
Rv1329A1S
2. Sliding kit
- Sliding kit is provided in the upper dryer.
- Sliding kit includes the slide bracket(2), sliding pad(4), screw(10), machine screw(8).
1) Sliding bracket
3. Stacking kit
- Stacking kit is provided in the upper dryer.
- Stacking kit includes the stacking bracket(1), security bracket(3), bolt(1), screw(6).
2) Sliding pad 3) Screw 4) Machine screw
- The machine can be stacked only on the model designated as suitable by LGE.
- Do not stack the washer on the top.
- You can order the parts for stacking from Qualified dealer or Qualified SVC agent of LGE.
NOTE
1) Stacking bracket 2) Bolt 3) Screw 4) Security bracket
MFL62512875_150414.indd 47 2015.4.14 9:44:15 AM
48
STACK MACHINE INSTALLATION INSTRUCTIONS
4. Stacking the machine
5. Stacking bracket installation
- Lift and stack the upper dryer on the lower washer.
- Set the rear of the upper dryer and the rear of the lower washer in the same position.
- Push the upper dryer matching the slide & stacking bracket to make upper and lower front parallel.
- Install the stacking bracket at the rear of the stacked dryer and washer.
- Assemble the six(6) screw to fix the lower washer and upper dryer.
Please refer to Service Manual for detail to explain the how to stack and fix the machine
NOTE
MFL62512875_150414.indd 48 2015.4.14 9:44:26 AM
49
ERROR MODE / POWER FAIL RECOVERY / DEFAULT DRYER SETTINGS
PROBLEM POSSIBLE CAUSE SOLUTION
It is displayed when thermistor is opened or
shorted
Thermistor should be replaced.
It is displayed when thermistor temperature
have increased about 17 degrees for 10
seconds
Thermistor should be replaced.
Disconnection of card reader wire. Check the card reader wire.
ERROR MODE
■ Meaning of Error Codes that LEd displays during occurrence or
problem.
dryer error code
POWER FAIL RECOVERY
In case of power failure the machine stops running but the time display remains on, showing the time just before
power failure.
Press the Start button after the power is restored, then the machine will restart.
DEFAULT DRYER SETTINGS
default Settings default
Cycle Time (Minutes) 50 Minutes
Cool Down Time Cycle 2 Minutes
High Temperature 154,4° F (68° C)
Medium Temperature 140° F (60° C)
Low Temperature 125,6° F (52,5° C)
Top O Time (Minutes per coin) 10 Minutes
Coin #1 Value 0.1
Coin #2 Value 0.1
Minutes/Minutes and seconds Minutes
Fahrenheit/Celsius Fahrenheit
Error Mode On
MFL62512875_150414.indd 49 2015.4.14 9:44:26 AM
50
DECLARATION OF CONFORMITY
MFL62512875_150414.indd 50 2015.4.14 9:44:30 AM
51
MFL62512875_150414.indd 51 2015.4.14 9:44:33 AM
Contact office for compliance of this product :
LG Electronics Inc.
EU Representative, Krijgsman 1,
1186 DM Amstelveen, The Netherlands
MFL62512875_150414.indd 52 2015.4.14 9:44:34 AM
