Use and Care manual
Condensing Dryer
Please read this manual carefully prior to use.
Keep it for future reference.
Write down model name and serial number of your product.
Have all these details ready when you call for service.
2
F
eatures

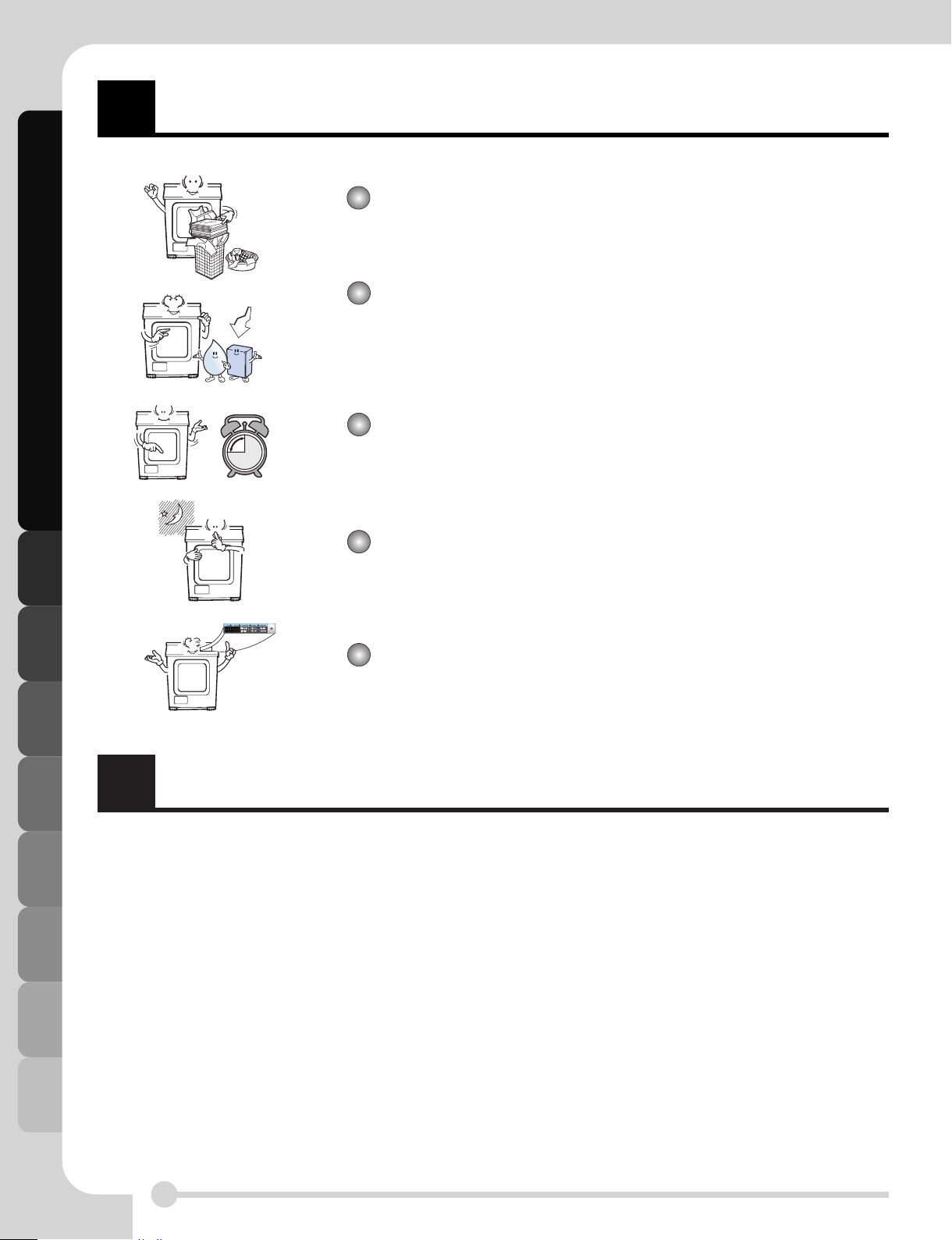

Ultra big Capacity Drum
LG Dryer has 8.0kg capacity which is the ultra big capacity.
EnergyEnergy
save
Lower Energy Consumption
Energy is saved by cutting-edge engineering design of drying
system and by optimized heating control. It’s a real money
saving.
Reduced drying time
Drying time is shortened by efficient air flow mechanism and
optimized heater.
Innovative noise performance
Noise gets reduced by Noise-absorption & screening
technology.
Easy of Use
Wide LED display using electric control.
Safety Instructions ................................................................ 3
Installation Instructions ........................................................ 6
Appearance & design .......................................................... 9
Operating your dryer ............................................................10
Additional Functions............................................................ 14
Caring for your dryer .......................................................... 15
Additional Tips for smart use .............................................. 19
Troubleshooting Guidelines ................................................ 21
Technical Data .................................................................... 23
Warranty.............................................................................. 24
C
ontents
Safety Instructions
3
S
afety instructions

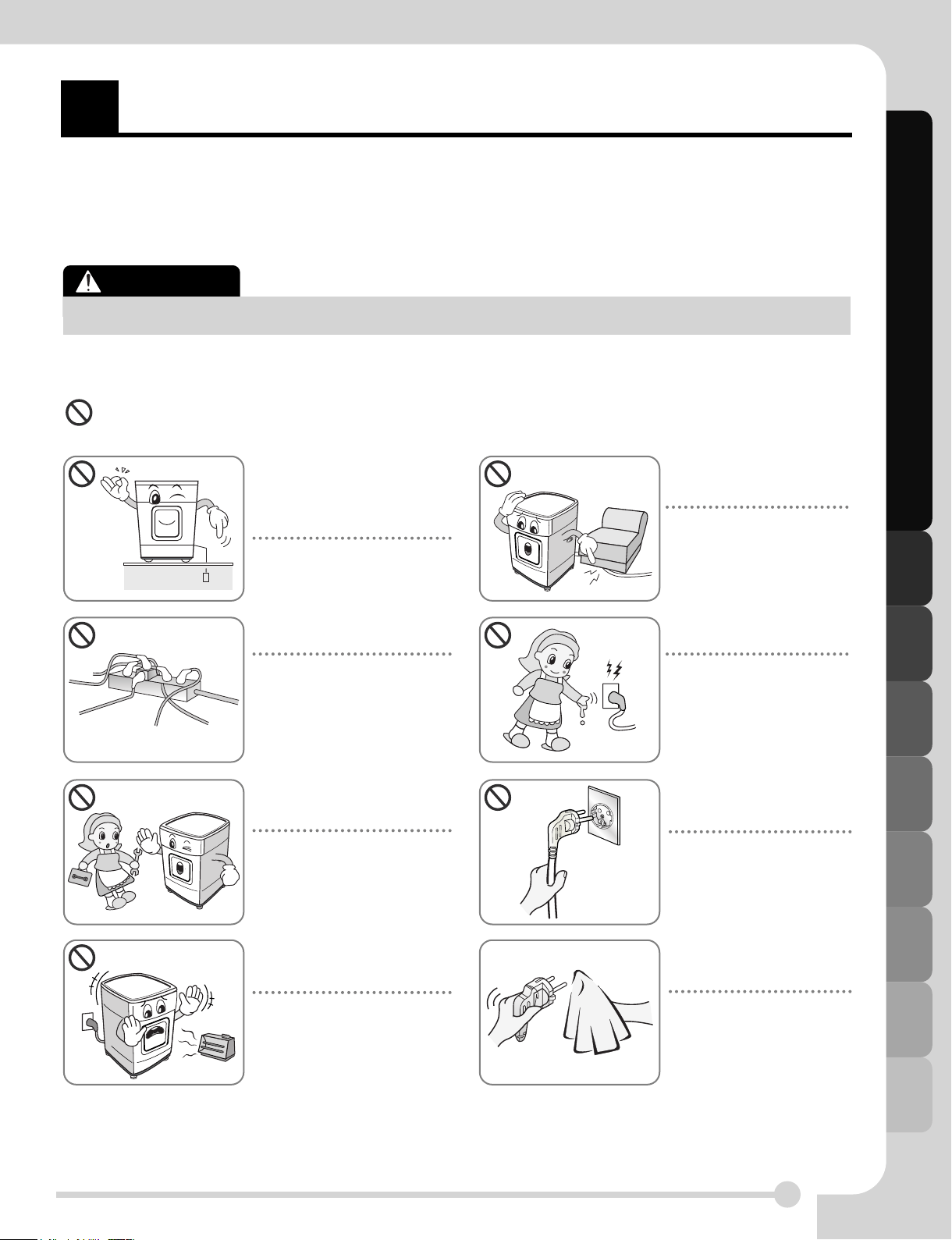

To help reduce any risk of electric shock, fire, or other personal or property injury
when using your dryer, please follow basic safety instructions.
WARNING
Serious injury or death may occur when not observing the following rules.
Not allowed actions.
•Your dryer is only for 230V.
Before plugging power cord,
make sure cord is grounded
and connected to circuit
breaker.
No grounding may cause
breakdowns or an electric
shock.
• Do not plug with several other
appliances power cords.
Abnormal heating of outlet
may cause a fire.
• Disassembly or revision
should be conducted by an
experienced service person.
It may cause breakdowns, a
fire or an electric shock.
•Keep the dryer away from
electric stove, candle and any
inflammable objects.
It may cause melting of some
parts or a fire.
• Do not a damage power cord
or place heavy objects on the
cord.
The damaged power cord
may cause a fire or an
electric shock.
• Do not grasp power cord or
switch with wet hands.
It may cause an electric
shock.
• Disconnect the power cord by
grasping the plug, not the
cord.
It may cause cutting off
wires so results in hot heat or
a fire.
• Wipe out the dirts and stains
around the power cord and
insert firmly to the socket.
Dirts around it and improper
connection may cause a fire.

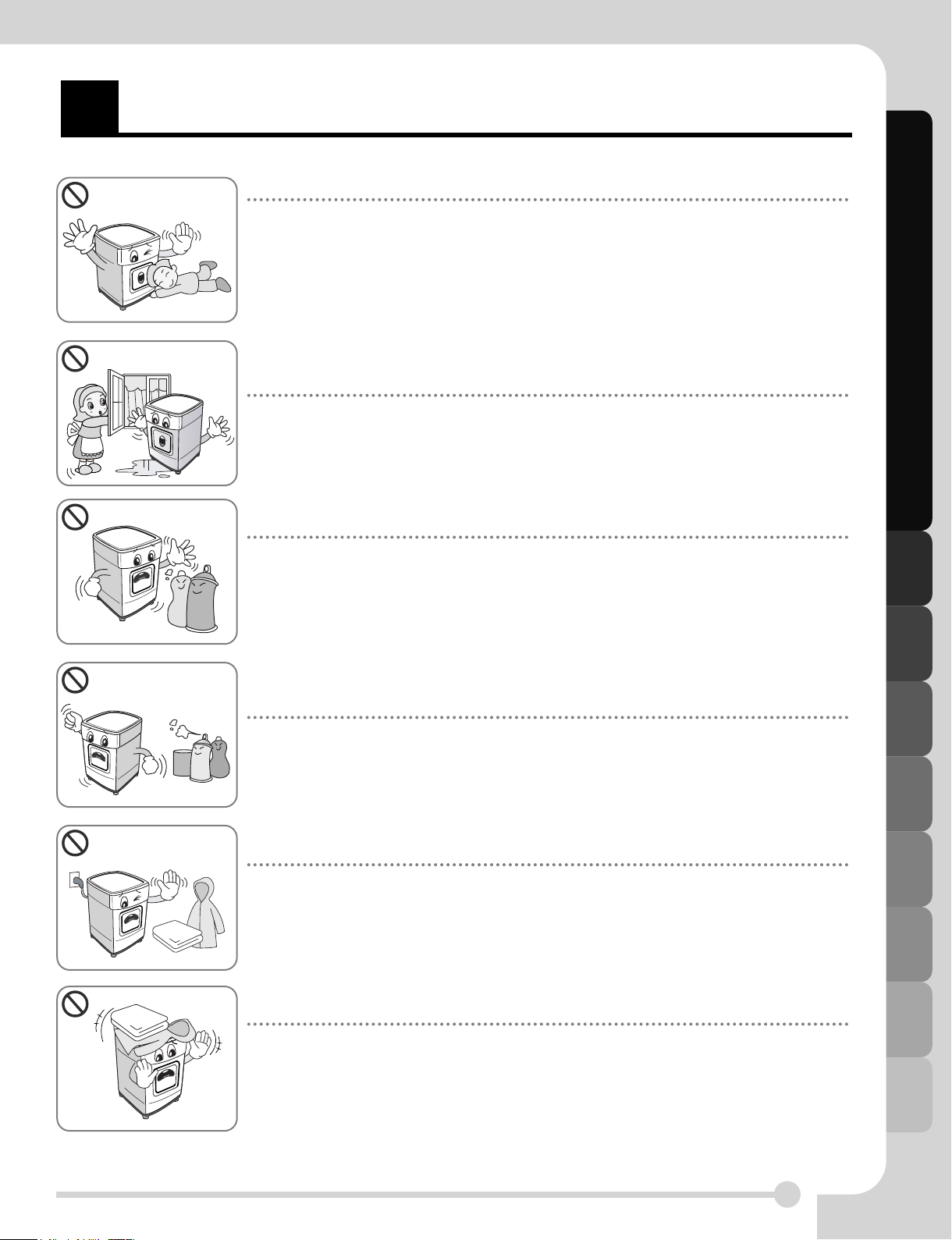

Safety Instructions
4
S
afety instructions
• Do not use damaged power
cord, plug and socket.
It may cause a fire or an
electric shock.
• Prevent pets biting the dryer.
Pets may die from an
electric shock or
appearance may be
damaged.
• Do not install or store the
dryer where it will be exposed
to the weather.
It may cause an electric
shock, a fire, malfunction or
deformation.
• Do not press the button with
sharp edged devices like a
screwdriver or a pin.
It may cause an electric
shock.
• Do not use an extension cord
or an adaptor to connect the
power cord.
It may cause an electric
shock or a fire.
• Do not splash water on to the
dryer.
It may cause a fire or an
electric shock.
• Do not dry articles that have been
cleaned in, washed in, soaked in,
or spotted with combustible of
explosive substances (such as
wax, oil, paint, gasoline,
degreasers, dry-cleaning solvents,
kerosene, etc.)
It may cause an explosion or
a fire.
• Do not place flammable items
near the dryer.
It may cause toxic gas, parts
damage, an explosion or a
fire.
• Unplug the power cord when
cleaning or not using the
dryer.
Water or dirts may cause an
electric shock.
• Keep the dryer away from the
reach of the cockroach and
other insects.
Pets may die from an electric
shock and appearance may
be damaged.
• Do not allow children or pets
to play on or inside the dryer.
Children may fall off. Pets or
children may be wounded by
rotating parts or suffocated
inside drum.
• Before the appliance is
removed from service or
discarded, disassemble the
door and cut off the power
cord to prevent the future use.
It may cause cord damage
and breakdowns.
Otherwise, it may cause
accidents or physical
injuries.
Safety Instructions
5
S
afety instructions
•Young children should be supervised to ensure that they do not play with the appliance.
Children may fall off. Pets or children may be wounded by rotating parts or
suffocated inside drum.
• If this appliance is supplied from a cord extension set or an electrical connector, portable
outlet device must be positioned so that it is not subject to splashing or ingress of
moisture.
It may cause an electric shock, a fire, malfunction and deformation.
• Items that have been Spotted or soaked with vegetable or cooking oil constitute a fire hazard and
should not be placed in a tumble dryer.
It may cause an explosion and a fire by spontaneous combustion.
• Items that have been previously cleaned in washed in soaked in or spotted with
petral/gasoline, dry cleaning solvents or other flammable or explosive substances
should not be used in a tumble dryer.
It may cause an explosion and a fire by spontaneous combustion.
• Items made of foam, rubber, plastic, or other heat-sensitive fabrics (such as bathroom
rugs,nonslip mats or raincoats) should not be dried in a tumble dryer on a heat setting.
It may cause an explosion and a fire by spontaneous combustion.
• Plastic articles such as shower caps or babies waterproof napkin covers should not be
placed in a tumble dryer.
It may cause an explosion and a fire by spontaneous combustion.
Installation Instructions
Safety information
Risk of injury
The dryer is very heavy so you shouldn’t try to
lift it alone.
Do not lift the dryer by grasping any of the
protruding parts e.g. or the jog dial or the door.
– they may break off
Risk of tripping
Risk of tripping caused by hoses hanging down or
cables. Ensure there are no loose hoses or cables.
Check the dryer for damage occurred
during Transportation.
Do not connect the dryer if it has visible signs of damage.
If you are not in confidence, contact your local
agent. Always empty the dryer completely
before transporting it.

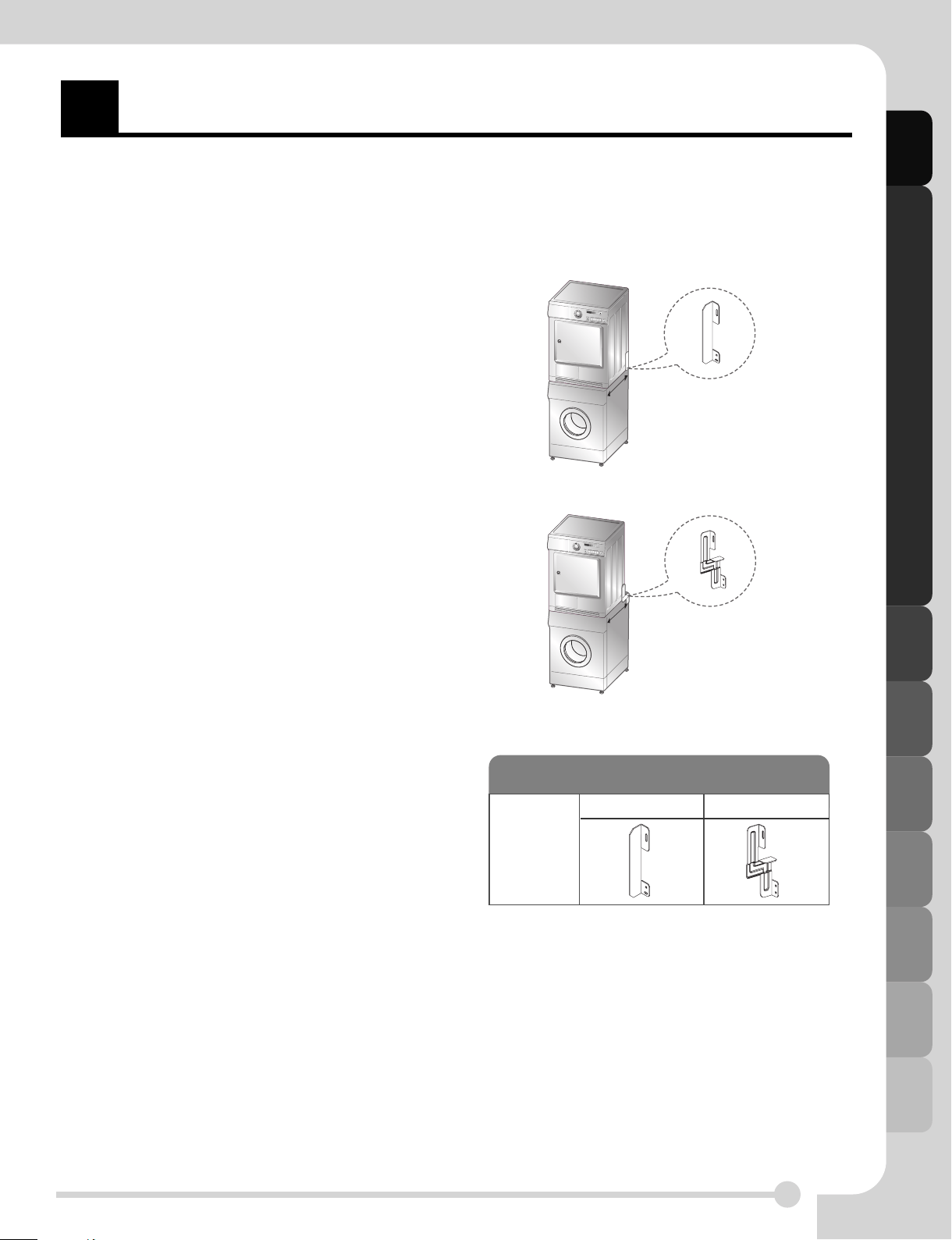

Stacking installation instructions
The LG Dryer can be placed on the top of a front loading washing machine. They are sure to be fixed
with stacking kit (See the next page). This installation must be conducted by an experienced installer in
order to secure robust installation of both washer and dryer. If this work is done very carelessly, dryer
may fall off.
More importantly, a certain washer model has matching models for stacking so advice from the
experienced installer is very critical.
The following instructions will guide you through the initial steps of setting up your dryer.
Please note that every section of this manual provides important information regarding the preparation and
use of your dryer, and it is important that you review this entire manual before proceeding with any
installation or use. Be sure to observe all listed warnings and cautions. These installation instructions are
intended for use by qualified installers. Read these installation instructions completely and carefully.
Your dryer should not be located near gas hob,
cooker, heater or eye level grill as flames from the
burners could cause damage to your dryer. When
the dryer is fitted under a work surface, allow 15
mm space from each side of the dryer for air to
exit the rear grille. This airflow is critical to
condense the water during drying.
If you use this dryer near or stacked on top of
washing machine, seperate main plugs and
sockets must be used for each appliance.
Do not use 2-way adaptor or extension lead.
You can stack the dryer on top of washing
machine to save the space. A stacking kit is
available from your local shop.
6
I
nstallation Instructions
CAUTION
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which
powers only that appliance and has no additional outlets or branch circuits. Check the specification page of
this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed
power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in
electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact
replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the
appliance.
Installation Instructions
7
I
nstallation Instructions
GROUNDING INSTRUCTION
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of
least resistance for the electric current.
This appliance is equipped with a cord having an
equipment grounding conductor and a grounding
plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Condensate Drain
The dryer can drain water without delivering to
water container. Water is directly pumped out of
the dryer.
Additional Grounding Procedure
Some local codes may require a separate ground. In
such cases, the required accessory ground wire,
clamp and screw must be purchased separately.
Stacking Kit
In order to stack this dryer on a LG washing
machine, LG stacking kit is needed.
In order to stack this dryer on LG Washing
machine, you must purchase the LG
stacking kit that is fitted by LG washing
machine top plate size.
•You must use stacking kit according to your
washer Top plate size
Washer top plate size
Shape
600 mm550 mm
550
600
Installation Instructions
8
I
nstallation Instructions

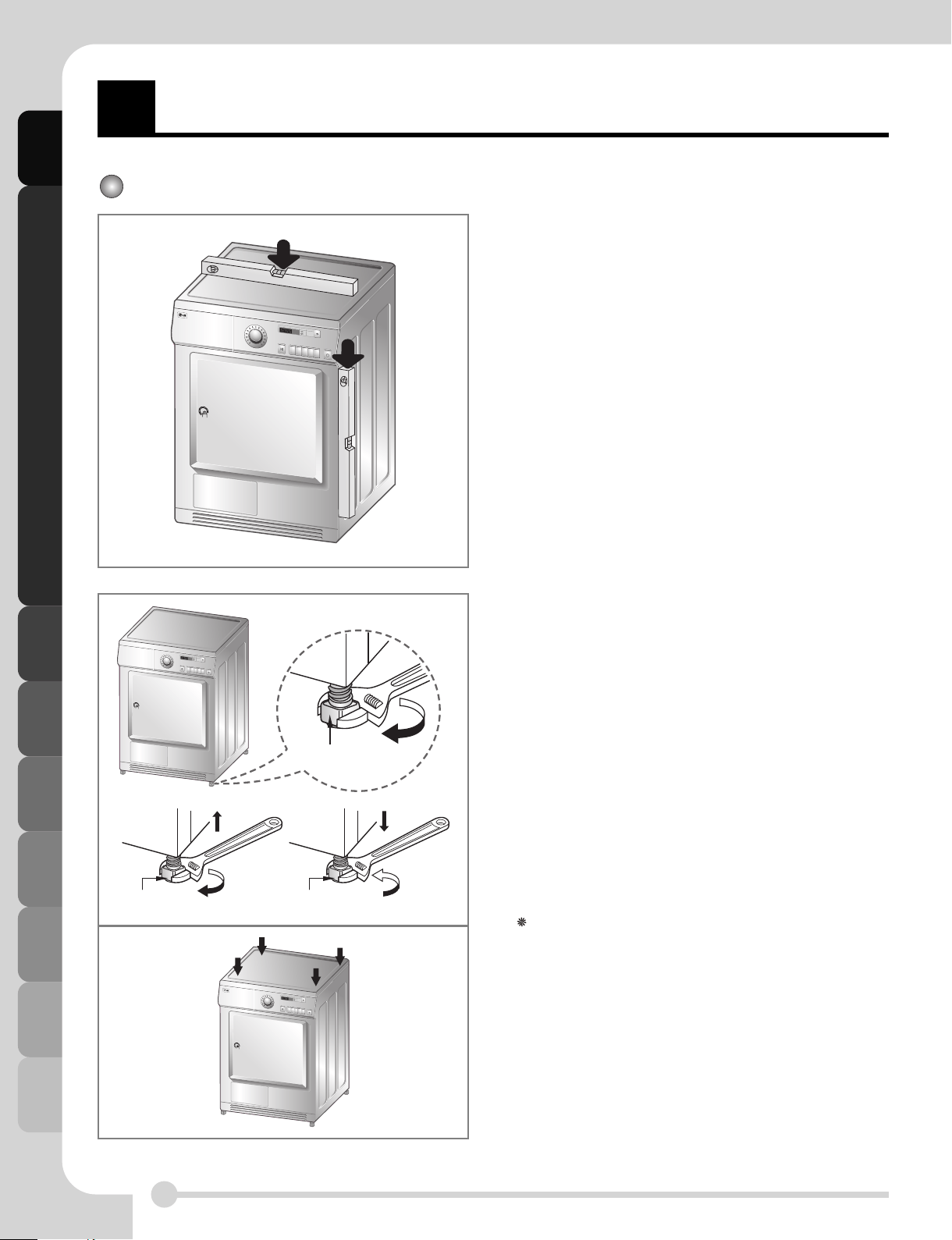

Level the Dryer
1. Leveling the dryer is to prevent undesirable
noise and vibration.
When placing your dryer in an solid and level
area where water is not dripping and freezing,
flammable materials are not stored.
2. If the dryer is not properly level, adjust the front
leveling legs up and down as necessary.
Turn them clockwise to raise and
counterclockwise to lower until the dryer is not
wobbling both front-to-back and side-to-side.
Diagonal Check
When pushing down the edges of the washing
machine, the machine should not move up and down
at all. (Please, check both of two directions)
If machine rocks when pushing the machine top plate
diagonally, adjust the feet again.
Adjustable feet
Adjustable feet Adjustable feet
LowerRaise
Appearance & design
9
A
ppearance & design

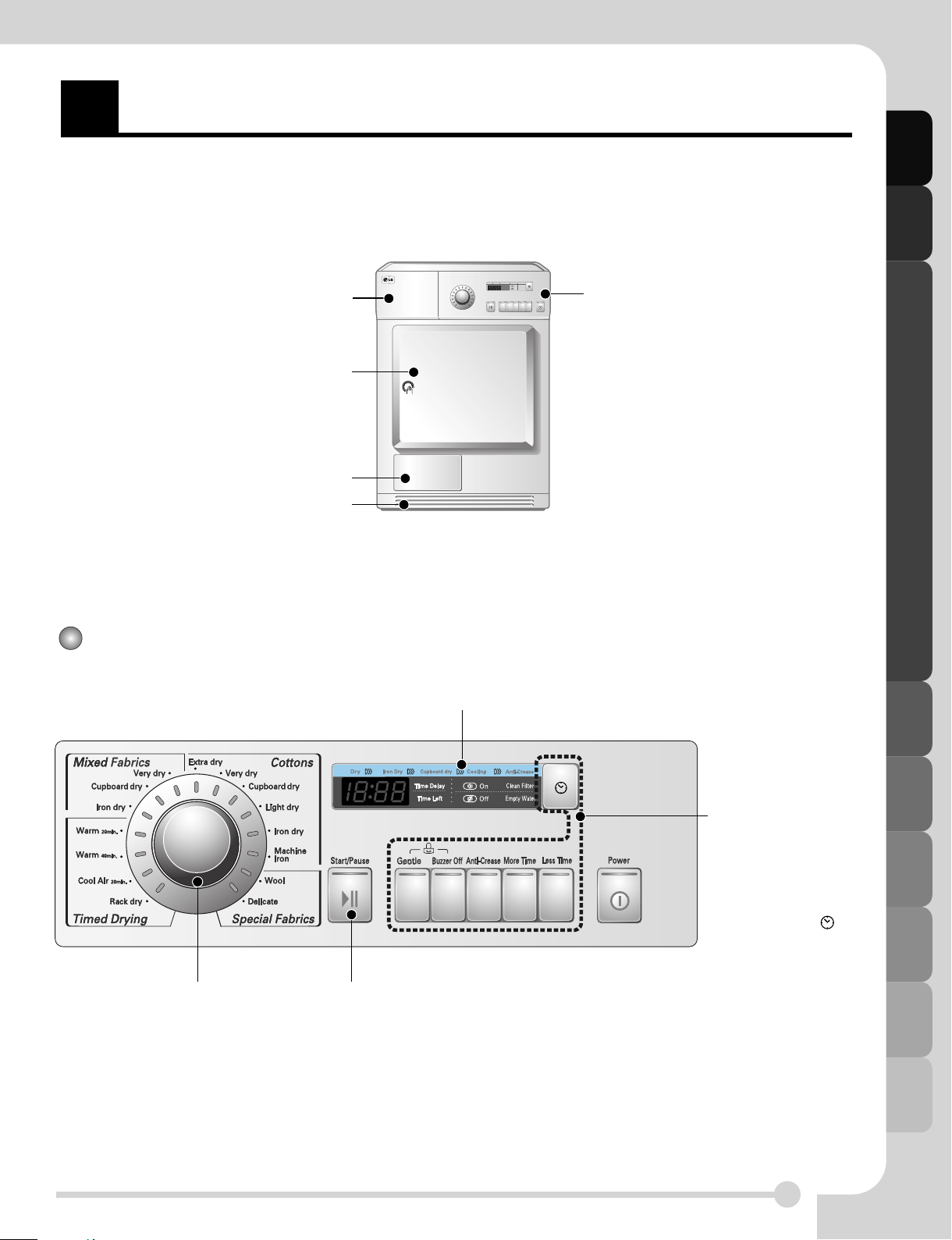

Control Panel
Water container
Door
Control panel
Condenser Cover
Air ventilation grill
Program selector
LED Display
• Time Display
• Indicator lamps
Start/Pause
Additional
function buttons
• Gentle
• Buzzer Off
• Anti-Crease
• More Time
• Less Time
• Time Delay ( )
Operating your dryer
10
O
perating your dryer

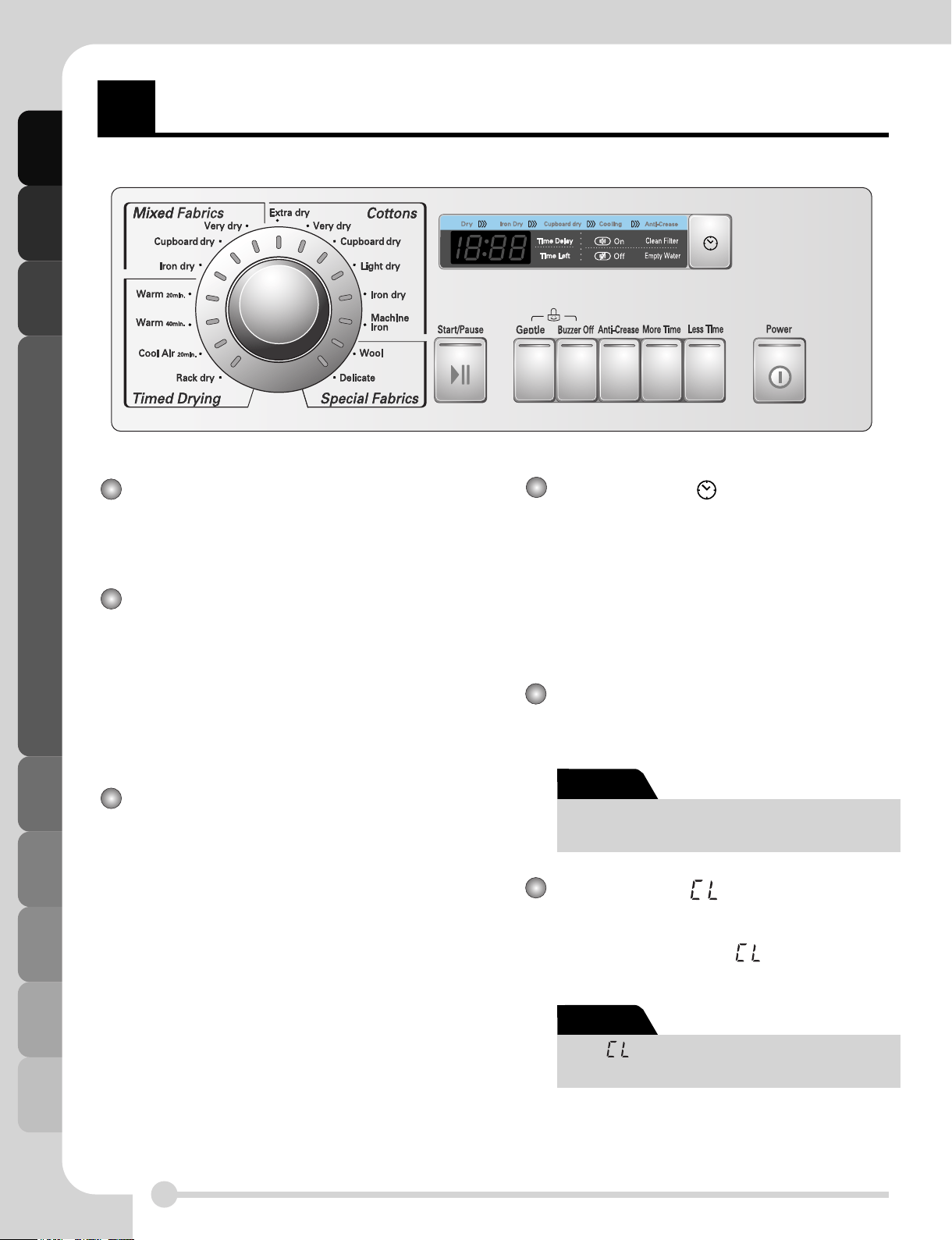

Cycle Selection Table
CAUTION
If the load is less than 1kg, please use "Timed Drying Course"
Your wool should be used in Wool program and heat-sensitive fabrics including silk, underwears,
lingerie should be used in delicates courses.
Otherwise, these clothes can cause undesirable drying results.
Electronic Auto Dry Cycles
Mixed-Fabric cycles
(Note) press the "Gentle" button for heat-sensitive items
Standard
program
Bed linen and table linen, tracksuits,
anorak, blankets
For thick and quilted fabrics which do not need to be ironed.
Very Dry
Extra Dry
Shirts, blouses and sportswear For fabrics which do not need to be ironed.
Cupboard dry
Trousers, dressers, skirts, blouses
Cotton (Whites and coloreds)
(Note) press the "Gentle" button for heat-sensitive items
For fabrics which do need to be ironed.
Towelling, dressing gowns
and bed linen
For thick and quilted fabrics.
Very Dry
Terry towelling, tea towels, towel,
bed linen
For thick and quilted fabrics which do not need to be ironed.
Cupboard dry
Bath towels, tea towels,
underwear, cotton socks
For fabrics which do not need to be ironed.
Light Dry
T-shirts, trousers, underwear,
work clothes
For fabrics which do need to be ironed lightly, not completely.
Iron Dry
Bed linen, table linen, towels, T-shirts
Polo shirts and work clothes
For fabrics which do need to be ironed.
Iron Dry
All fabrics needing freshing, tumbles without heat
Silk, Women's thin clothes, lingerie
Special Fabrics
For fabrics which are heat-sensitive like synthetic fabrics.
sweater, delicate, fabrics, sportshoes
For the fabrics you do not want tumble dry.
Wool
For wool fabrics.
Time Cycles for selected length of time
Bath towels, bath robes, dishclothes,
Quilted fabrics made of acrylic
Small clothes & pre-dried laundry Normal
Normal fabrics using hot temperature for 20minutes
Small clothes & pre-dried laundry
Normal fabrics using hot temperature 40minutes
Warm (20min.)
Warm (40min.)
Rack dry
Delicate
Wool
Cool Air (20min.)
Bed linen, table linen, towels
For fabrics which do need to be pressed. Machine lron
Operating your dryer
11
O
perating your dryer
Before first use of the dryer
Before you use the dryer for the first time, there are some points that you have to check.
After removing package, you will check the product has no problem and is properly installed.
1. Check the dryer is well balanced by using a leveller. In order to check this, you can see and adjust
legs which are suppose to stay put.
2. Check some major parts such as water container, condenser, control panel and drum.
3. It is needed to operate 5 minutes drying to make sure drum inside gets warm.
4. In the early use of dryer, please leave it with door opened and power unplugged after operation to
get rid of probable smell inside.
1. Turn power on.
First, press the ‘‘Power’’ button. The indicator
light above the button will become illuminated
indicating that the machine is all set to run.
2. Open the door.
3. Check the lint filter, water
container and condenser.
The lint filter near the door, should be emptied
after or before drying operation.
Open the door and check if lint filter is cleaned.
If not, please clean it referring to page 15.
Water container and condenser are also
checked to be emptied and cleaned for better
drying result.
4. Place laundry into the drum after
sorting.
The clothes should be sorted by its fabric type
and dryness level and all the strings and belts of
clothes should be well tied and fixed before
being put into the drum.
It is desired that you push laundry all the way
back to keep it away from the door seal.
If not, door seal and clothes may be damaged.
Turn on.
Open the
Door.
Check the
lint filter.
12
Operating your dryer
O
perating your dryer
5. Close the Door.
Before you close the door, make sure fabrics are well
placed inside and that foreign objects, especially
flammable ones, are not caught around door.
6. Select the Drying Cycle you want.
You can choose a cycle by turning the program control
knob until the required program reaches to its indicator.
If you only press Start/Pause button without choosing any
cycle, the dryer will proceed with the Cupboard program.
[Please refer to following Cycle Selection table (page 10) for
the detailed information]
7. Press the Start button.
You can hear drum rotating.
8. After operation is completed, open
the door and remove the laundry.
Careful! the drum inside could be still hot.
(Operation time varies depending on your cycle
selection or options.)
9. Clean the Lint Filters and
empty water container.
The lint filter should be cleaned after each load.
10. Turn off the Dryer.
Press the ‘‘Power’’ button.
Select the
desired
Cycle.
Take out
the laundry.
Clean the
door lint
filter.
Clean the
lower lint
filter.
- Be careful not to trap laundry in between the
loading door and rubbber seal.
CAUTION
- Be careful of the fact that filter should not be
torn when using a vaccum cleaner. If there
is a little residue buildup on filter, you can
scrub lint screen with the brush to remove.
- If you want to open the door while dryer is
operating, please press the Start/Pause
button first, wait until drum completely stops
and then open the door.
CAUTION
Operating your dryer
13
O
perating your dryer
Rack Dry
The dryer Rack is placed inside the dryer like the picture.
Remove and discard packing material before use,
The Rack Dry is designed for use with items that
you do not want to tumble dry including sweaters and
delicate fabrics.
To use the Rack Dry :
1.Open the door.
2.Do not remove the lint screen.
3.Place dryer Rack over the bottom of
the dryer door opening.
Reset the Rack on the dryer back
lodge.
Push down on the frame front to
secure over lint screen.
4.Place wet items on top of the Rack.
Allow space around items for air to
circulate.
The Rack does not move, but the
drum will rotate.
5.Close the door.
6.Select Rack Dry.
1. Insert wire
edge to the
drum centre.
2. Place delicate
fabrics or
sportshoes.
Note
Check the lint filter and remove any lint
accumulated from items dried on the Rack.
Additional Functions
14
A
dditional Functions
Time Delay ( )
You can use the Time Delay function to delay the
finishing time of drying cycle.
Maximum Time Delay is 19 hours.
Minimum Time Delay is 3 hours.
1. Turn the dryer on
2. Select cycle
3. Set time delay hour
4. Press Start/Pause button
More Time/Less Time
Press More Time or Less Time until the desired
drying time is set.
Buzzer Off
This is about buzzer sound on/off.
After power is on and you select cycle, buzzer
will sound when you press a certain button on
the panel.
If you don’t like to hear that sound, just press
Buzzer Off button. The Buzzer is then turned -off.
Gentle
This is used to lengthen the cycle time by
decreasing temperature.
Anti-Crease
Anti-Crease is functioning to prevent creases and
rumples that are formed when the laundry is not
unloaded promptly at the end of drying cycle. In
this function, the dryer repeatedly runs and
pauses to the cycle end.
If the door is open during Anti-Crease process,
this function is cancelled.
Child Lock ( )
For the safety of your children, press Gentle and
Buzzer off buttons at the same time for about 3
seconds. You can see “ ” sign on LED
window.
Note
These buttons are available only with Timed
Drying, before you push Start/Pause button.
Note
For “ ” off, press Gentle and Buzzer off
buttons at the same time for about 3 seconds.
Caring for Your Dryer
15
C
aring for Your Dryer
How important care and cleaning is~
It’s not very difficult to care for your dryer. All you have
to do is to follow the information below.
Clean Lint Filter
Clean lint filter after each use and check it before each
use. It should also be cleaned if the ‘‘Clean Filter’’ light
becomes illuminated and the buzzer sounds during
operation of the dryer:
Cleaning or emptying the filter will reduce drying times
and energy consumption and lengthen the dryer life.
Clean lint filter during a cycle
If “Clean Filter ” indicator lamp flashes during
operation, clean the filter promptly.
1. Cool the dryer down and follow the mentioned
steps.
2. Press the start/Pause button.
Empty water container
Condensed water is collected to water container
You should empty the water container after every
use. Not doing this may result in improper drying
performance.
If water container is full, “Empty Water”
Lamp glows and a buzzer sounds while the dryer is
operating. In this case, water container must be
emptied in 1 hour
1. Draw water
container out.
2. Empty water
container to
sink.
3. Push it back.
4. Press the Start/Pause button.
CAUTION
Wash the lint screen in warm, soapy water.
Dry thoroughly and replace.
WARNING
The condensed water is not suitable for
drinking.
CAUTION
If the laundry is not spun at high speed,
while washing, energy consumption and the
Drying time will increase.
In some case,the laundry lamp flashes
“Empty Water ”,then the dryer might stop.
Note
High speed spinning, while washing, makes
better energy consumption.
A high surrounding temperature & a small room
might increase the drying time as well as energy
consumption.
1. Open the door.
2. Pull the filter out.
3. Clean the filter by
using a vacuum
cleaner or rinsing
under the tap.
4.
Replace the filter.
- Push the filter all
the way down to
avoid
Interference with
the door.
5. Close the door.
Caring for your dryer
16
C
aring for your dryer
Condenser
Condenser is also a very important part for efficient drying performance result so it needs a special care from you.
It is recommended that condenser be cleaned three or four times a year.
1. Open condensing cover by using a coin or flat
blade screwdriver.
2. Open sealing cover by turning
a locking lever.
3. Release the both locking levers turning
towards each other.
Sealing cover
< Front >
< Side >
6. Close all with the reverse order of opening.
CAUTION
- Operating when the heat exchanger is
clogged with lint can damage the dryer.
This also increases energy consumption.
-Do not use sharp objects to clean the heat
exchanger. You could damage it an cause
leaks.
- Never operate the dryer without the heat
exchanger.
5. Clean the condenser completely under the
tap letting water to flow through.
4. Draw the condenser out by inserting a finger
into a hole down the front of condenser.
(Don’t forcefully treat condenser.)
Caring for your dryer
17
C
aring for your dryer
Front Ventilation Grille
Vacuum the front ventilation grill 3~4 time a
year to make sure there must be no build-up of
lints or dirts which cause improper intake air
flow.
Moisture Sensor?
This device functions to sense the moisture
remaining contents of the laundry during
operation which means it must be cleaned all
the time. The main reason of cleaning this part
is to remove the build-up of lime scale on the
surface of sensor. Wipe the sensors inside drum
(Shown in the picture).
Condensed Water Drain-out
Normally, condensed water is pumped up to water
container where water is collected until emptied.
Not only using water container, but water can be drained
out directly to drain hose especially when dryer is stacked
on top of washing machine.
With connecting kit for drain hose, you can simply change
water path and water reroute to the drainage facility.
Please follow the below steps.
1. Unscrew
cover.
2. Take
connecting
kit out.
3. Separate water
container hose
from the kit.
4. Connect drain
hose to the kit.
Caring for your dryer
18
C
aring for your dryer
Reverse the door
The door can be reversed to fit to your own
installation conditions. From the factory, the door
hinge is located on the right side.
1. Unscrew the bottom hinge of the door first
and top hinge. And then place on the blanket
to prevent scratches.
2. Remove the
door lock
cover.
3. Remove the
door lock and
replace where
door lock
cover is
located.
4. Detach both
hinge point
covers.
5. Unscrew two
door hinges.
6. Replace both
hinge point
covers where
door hinge is
located.
7. Replace the
door catch to
the reverse
location.
8. Screw the
door hinges.
CAUTION
1. This work may cause the injury of your
hands so you must be careful to handle
some sharp devices like tork screwdriver or
slotted screwdriver.
2. When the door is revered, the hand sticker
on the door also must be replaced.
Do not use a machine screwdriver.
Additional Tips for smart use
19
A
dditional Tips for smart use
Drying Guide
Energy consumption
Capacity for laundry type
Cotton
Mixed
Wool
Delicate
Cottons Light dry
Cottons Iron dry
Mixed Fabrics Cupboard dry
4.65 kWh
3.55 kWh
1.58 kWh
Woolen Article
Dry woolens in "wool" cycle. Be sure to follow
fabric care label "symbols", first. Wool is not
completely dried from the program so don't repeat
drying. Pull woolens to their original shape and dry
them flat.
Woven and loopknit materials
Some woven and loopknit materials may shrink,
depending on its quality.
Permanent Press and Synthetics
Do not overload your dryer.
Take out permanent press article as soon as the
dryer stops to reduce wrinkles.
Baby clothes and Night gowns
Always check the manufacturer’s instructions.
Rubber and Plastics
Do not dry any items made from or containing
rubber or plastics such as:
a) Aprons, bibs and chair covers
b) Curtains and table clothes
c) Bathmats
Fiber glass
Do not dry fiberglass articles in your dryer.
Glass particles left in the dryer could be picked up
by your clothes the next time you use the dryer and
irritate your skin.
Fabric Care Labels
Clothes have its own wash care labels so drying
according to wash care labels is recommended.
Not only that, the laundry must be sorted according
to size and fabric type.
Do not overload in order to save you energy, time
and best dry performance.
(Applied EN 61121 : 2005 test program)
Below are fabric care labels.
Symbols Instructions
Dry
Tumble dry
Permanent Press /
Wrinkle resistant
Gentle / Delicate
Do not tumble dry
Do not dry
High heating
Medium heating
Low heating
No heat / air
Line Dry / hang to dry
Drip dry
Dry flat
In the shade
8 kg
4 kg
1.5 kg
1.5 kg
Additional Tips for smart use
20
A
dditional Tips for smart use
Spare Parts
Spare parts in your need are provided under the
terms of warranty. Components covered by
warranty is provided free of charge. If coverage
is expired, spare parts must be purchased from
service center.
Accessory parts
• Your dryer comes with accessories such as
Disposal of the dryer
It is desirable for you to dispose the dryer safely
to keep your children away from the possible
injury.
The door and lid and other protruded items must
be taken away and power cord must be cut off
to avoid future use. After that, the dryer is to be
disposed safely.
Service contact
If there is something wrong with your dryer, first
you must be through the troubleshooting table.
In case that you can’t find the same trouble and
you can not handle by yourself, please contact
the service centre.
A service person will ask you some questions
like followings:
1. Your name, address and postcode.
2. Your phone number.
3. Description of trouble.
4. The model No. and the serial No.
of your dryer.
5. The date of purchase.

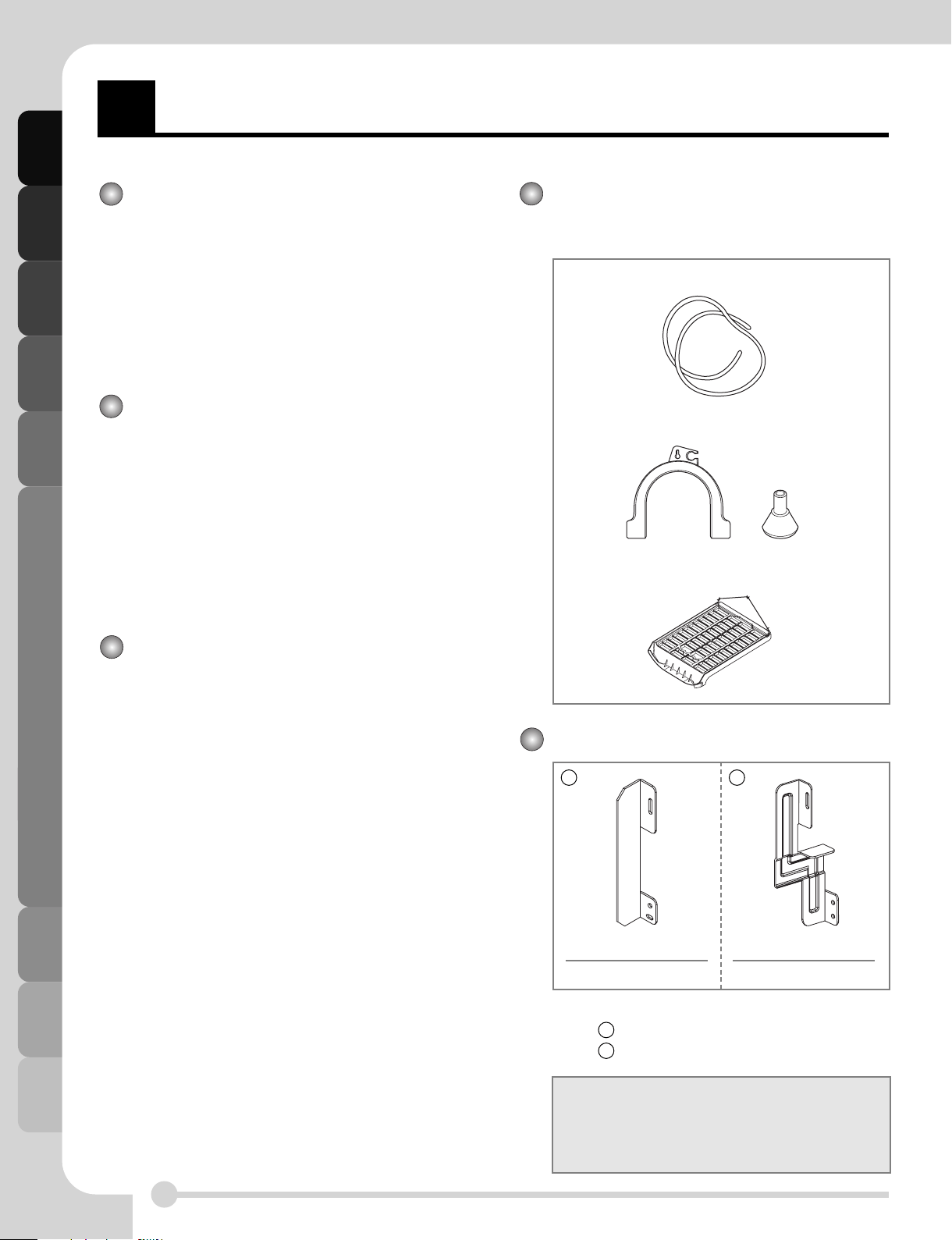

1. Condensing drain hose
2. Hose holder
3. Dryer Rack
If stacking is needed, you must stack
the dryer upon LG washing machine.
In order to do this, stacking kit must
be purchased separately.
• Stacking kit Use condition
- fig : Washer top plate size 550
- fig : Washer top plate size 600
Stacking Kit
Holder : 2EA, Screw : 4EA
Holder : 2EA, Screw : 4EA
Purchased Separately Purchased Separately
1
1
2
2
Troubleshooting Guidelines
21
T
roubleshooting Guidelines
Troubleshooting Tips
To save you time and money, the following page will help answer your questions before service call.
Questions What to do
Dryer doesn't work
1. Check dryer is plugged in.
2. Check "Start" button is pressed.
3. Check door is properly closed.
4. Check Room temperature is below 5°C.
5.
Check a fuse is not blown or the circuit breaker is tripped and replace them.
(Caution : electric dryers generally use two fuses or breakers)
After emptying the water container and Cleaning filter during operation, you must
press Start button, then the dryer operates again.
It takes a long time
to dry
1. Filter should be cleaned after each load.
2. Check water container is emptied.
3. Check cleanness of condenser.
4. Check to select correct program setting for fabric type.
5. Check air ventilation grille or rear vents of the dryer to be obstructed.
6. Check the clothes is "excessively wet".
7. Check correct program selected.
8. Check dryer is overloaded.
"Clean Filter" lamp flashes
1. Check filter is cleaned.
2. Check condenser unit is clogged.
Clothes have lots of
lints
1. Check lint filter is empty.
2. Check dryer has only clean items.
3. Check laundry is properly sorted in the drum.
4. Check laundry is overloaded.
5. Check there is any paper, tissue,or similar item in the pockets of laundry.
The drying time is
not consistent
The drying time for a load will vary depending on the heat setting, the size of the load,
the type of fabrics, the wetness of the clothes and the condition of the lint filter.
Water is leaking
Check the door and sealing cover is dirty and damaged.
The clothes are
wrinkled
Check the laundry is overloaded. Try a shorter drying time
and remove items while they still retain a slight amount moisture.
The clothes shrinked
To avoid shrinkage, please carefully follow the care and use
instructions for your garment, because some fabrics will naturally shrink when washed.
Other fabrics can be washed but will shrink when dried in a dryer.
Troubleshooting Guidelines
22
T
roubleshooting Guidelines
Error Mode
•:LED displays “ ” in case of the door open. The door must be closed and start
Button must be pressed for re-operation.
Drum light does not work
• Connect customer service
•:This is indication to detect and inform high temperature and high humidity of air within a
dryer if stopping the dryer in process. In this case, please use the dryer again after
ventilating air by taking drying all objects and opening the door for more than an hour.
(Contact with the Service Center if such conditions continue even after leaving the door
open for a sufficient time.)
High temperature and high humidity of air continues to remain at the contained dryer by drying object
during drying if the dryer suddenly stops due to power failure or other different causes while drying is
in progress.
Leaving the dryer continuously in such status may reduce durability of the dryer or have a bad effect on
major electrical parts.
Open the door so that high temperature and high humidity of air discharges outside if the dryer will
stop for a long time while drying is in progress.
•:If display errors continues to occur, unplug the power
cords and then call to the Service Center.
Technical Data
23
T
echnical Data

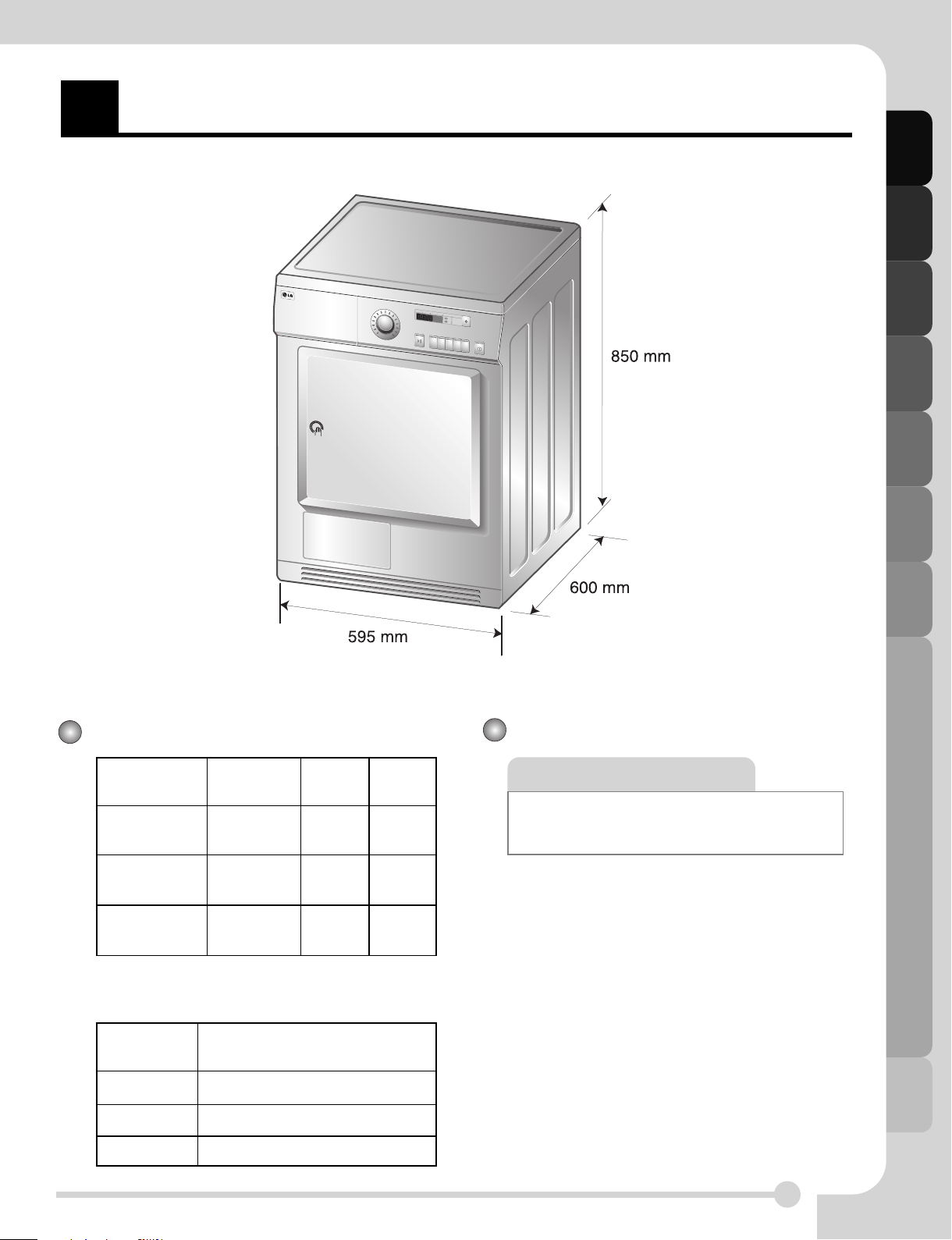

Weight : 50 kg
Electrical Requirements
Ventilation Requirement
You are sure to check the rating plate on the
dryer to make sure the dryer has right rating.
Alcove or under counter
Ensure air flow of 112 cu.ft./min through
dryer
Volts Hertz Watts
230 V
U.K.
Singapore
50 Hz 2600
240 V
Kuwait
50 Hz 2600
240 V
Australia
50 Hz 2250
Alcove or Under Counter
0 mmSides
0 mmTop
25 mmRear
Warranty
24
W
arranty
Disposal of your old appliance
1.When this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive
2002/96/EC.
2.All electrical and electronic products should be disposed of
separately from the municipal waste stream via designated collection
facilities appointed by the government or the local authorities.
3.The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
4.For more detailed information about disposal of your old appliance,
please contact your city office, waste disposal service or the shop
where you purchased the product.
What is not covered.
Service trips to your home to instruct you on the product.
If the product is connected to any voltage other than that shown on the
rating plate.
If the fault is caused by accidents, neglects, misuses of Acts of God.
If the fault is caused by reasons except for normal domestic use or use in
accordance with the owner's manual.
If the fault is caused by pests, for example, rats or cockroaches etc..
Noise or vibration that is considered normal,for example, water drain sound,
spin sound or warning beeps.
Correcting the installation for example, leveling the product, adjustment of
drain.
Normal maintenance recommended by the owner's manual.
Removal of foreign objects/substances from the machine including the pump
and inlet hose filter, for example, grit,nails, bra wires and buttons etc..
Replace fuses in or correct wiring or correct house plumbing.
Correction of unauthorized repairs.
Incidental or consequential damage to personal property caused by possible
defects with this appliance.
If this product is used for commercial purposes, it is not warranted.
(Example:Public places such as public bathroom, lodging house, training
center, dormitory)
If the product is installed outside the normal service area, any cost of
transporatation involved in the repair of the products, or the replacement of
a defective part, shall be borne by the owner.
25
1. The warranty period begins on the purchase
date and is valid for 24 months. Begin of
warranty period is proven if, the buyer submits
purchase receipt together with the warranty
card, filled in and signed by the seller. The
serial number of the product must agree with
the number entered onto the warranty card.
2.
During the warranty period, we will correct
any defects at no cost to you, if it can be
proven that these are attributed to
manufacturing or material defeats.
3.
Damages due to incorrect handling, non-
c
ompliance with instructions for use and normal
wear are not covered by this warranty. Also,
the warranty does not cover wear parts or easily
broken parts (for example, viewing glass, light
bulbs). The buyer is responsible for any
damages during transport as well shipping
and packaging costs.
4. We decide whether to make repairs,
exchange or replace parts. Exchanged or
replaced parts are our property. The original
warranty period is not prolonged if a refrigerator
is repaired or certain parts are replaced.
5. The warranty is nullified if any person
intervenes in the apparatus that are not
authorised by LG Electronics, if the apparatus is
used for commercial purposes.
6.
Alaways keep the original packaging, so that
if the apparatus requires servicing, it can be
transported without damanging it.
7. If a repair is covered by this warranty,
always contact your dealer or an authorised
service centre.
8.
Further claims are excluded. If parts of these
provisions are invalid, they apply in the sense
of the wording. The validity of the other
provisions is not effected.
Warranty Certificate
For offer a 24-month warranty for this apparatus
During the 24-mouth warranty period, we will repair your apparatus at no cost to you or make
available spare parts to your dealer free, if this apparatus fails due to manufacturing or material
defects. Further claims are excluded.
Your warranty conditons on the rear also apply!
Name of buyer :
Type of apparatus : Serial number :
Dealer’s stamp and signature
Purchase date :
Warranty conditions for dryer
26
M
emo
27
M
emo
P/No.: MFL32312516
For U.K. Customer
CUSTOMER SERVICE Tel : 0870 - 873 - LGLG(5454)
Fax. :
0870 -872 -7337
LGEUK SERVICE WEB-SITE :
http://uk.lge.com
