DISHWASHER
INSTRUCTION MANUAL
Model: FCD06SDWHT
Read these instructions carefully before using
your dishwasher. If you follow the instructions,
your dishwasher will provide you with many
years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY
(rev. 10/31/2023 MD)
2
3
READ THIS MANUAL
NOTE
BEFORE CALLING FOR SERVICE
Dear Customer,
■ Please carefully read this manual before using the dishwasher. It will help you to use and
maintain the dishwasher properly.
■ Keep it to refer to at a later date.
■ Pass it on to any subsequent owner of the appliance.
This manual contains sections of Safety Instructions, Operating Instructions, Installation
Instructions and Troubleshooting Tips, etc.
The manufacturer, following a policy of constant development and updating of the product,
may make modifications without giving prior notice.
■ To review the section on Troubleshooting Tips will help you to solve some common
problems by yourself .
■ If you can not resolve the troubles by yourself , please ask for the help of professional
technicians.
4
Table of Contents
SAFETY INFORMATION ..................................................... 6
OPERATING INSTRUCTIONS ............................................ 9
CONTROL PANEL ............................................................... 9
DISHWASHER FEATURES .................................................. 10
PRIOR USING FOR THE FIRST TIME ................................. 11
FILL THE RINSE AID DISPENSER ....................................... 11
FUNCTION OF DETERGENT ............................................. 13
LOADING THE DISHWASHER BASKET ............................. 16
BEFORE OR AFTER LOADING ........................................... 16
LOADING THE BASKET ..................................................... 18
CUTLERY BASKET .............................................................. 19
LOADING THE BASKET AND CUTLERY BASKET .............. 20
STARTING A WASHING PROGRAM ................................. 21
WASH CYCLE TABLE ......................................................... 21
TURNING ON THE APPLIANCE ........................................ 22
CHANGE THE PROGRAM ................................................. 22
AT THE END OF THE WASH CYCLE .................................. 23
5
Farberware is a registered trademark of Farberware Licensing Company, LLC
Manufactured and sold pursuant to a license from Farberware Licensing Company, LLC
© 2023 Farberware Licensing Company, LLC. All rights reserved.
MAINTENANCE AND CLEANING ..................................... 24
FILTERING SYSTEM ........................................................... 24
CARING FOR THE DISHWASHER ..................................... 26
INSTALLATION INSTRUCTION ........................................ 28
POSITIONING THE APPLIANCE ....................................... 28
ABOUT POWER CONNECTION ....................................... 28
WATER CONNECTION ..................................................... 30
START OF DISHWASHER .................................................. 32
TROUBLESHOOTING TIPS ............................................... 33
BEFORE CALLING FOR SERVICE ....................................... 33
ERROR CODES .................................................................. 35
TECHNICAL INFORMATION ............................................ 35
6
GROUNDING INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
■ This appliance must be grounded. In the event of a malfunction or breakdown, grounding
will reduce the risk of electric shock by providing a path of least resistance of electric
current. This appliance is equipped with a cord having an equipment grounding
conductor and a grounding plug.
■ The plug must be plugged into an appropriate outlet that is installed and grounded in
accordance with all local codes and ordinances.
WARNING!
When using your dishwasher, follow the
precautions listed below:
7
WARNING!
WARNING! PROPER USE
■ Improper connection of the equipment-grounding conductor can result in a risk of
electric shock.
■ Check with a qualified electrician or service representative if you are in doubt whether
the appliance is properly grounded. Do not modify the plug provided with the appliance;
If it is not fit for the outlet. Have a proper outlet installed by a qualified electrician.
■ Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
■ Do not touch the heating element during or immediately after use. (This instruction is
only applicable to machines with a visual heating element.)
■ Do not operate your dishwasher unless all enclosure panels are properly in place. Open
the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
■ Do not place any heavy objects or stand on the door when it is open. The appliance
could tip forward.
■ When loading items to be washed:
1. Place sharp items in a way that prevents damage to the door seal.
2. Caution: Load knives and utensils with sharp points downward or horizontally in the
basket.
■ When using your dishwasher, you should prevent plastic items from coming into contact
with heating element.(This instruction is only applicable to machines with a visual
heating element.)
■ Check that the detergent receptacle is empty after completion of the wash cycle.
■ Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For
plastic items not s marked, check the manufacturer’s recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand-washing detergent in your dishwasher. Keep
these products out of the reach of children.
■ Keep children away from detergent and rinse aid, keep children away from the open door
of the dishwasher, there could still be some detergent left inside.
■ This appliance is not intended for use by persons (including children )with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
■ Children should be supervised to ensure that they do not play with the appliance.
■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if
swallowed. Avoid contact with skin and eyes and keep children away from the
dishwasher when the door is open.
8
WARNING! PROPER USE (Cont.)
READ AND FOLLOW THIS SAFETY
INFORMATION CAREFULLY SAVE THESE
INSTRUCTIONS
■ The door should not be left in the open position since this could present a tripping
hazards.
■ If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a similarly qualified person in order to avoid a hazard.
■ Remove the door to the washing compartment when removing an old dishwasher from
service or discarding it.
■ Please dispose of packing materials properly.
■ Use the dishwasher only for its intended function.
■ During installation, the power supply must not be excessively or dangerously bent or
flattened. The door should not be left in the open position since this could present a
tripping hazards. Do not tamper with controls.
■ The appliance is to be connected to the water mains using new hose sets and that old
hose-sets should not be reused.
■ The maximum number of place settings to be washed is 6.
■ The maximum permissible inlet water pressure is 1Mpa.
■ The minimum permissible inlet water pressure is 0.04Mpa.
9
IMPORTANT
OPERATION INSTRUCTIONS

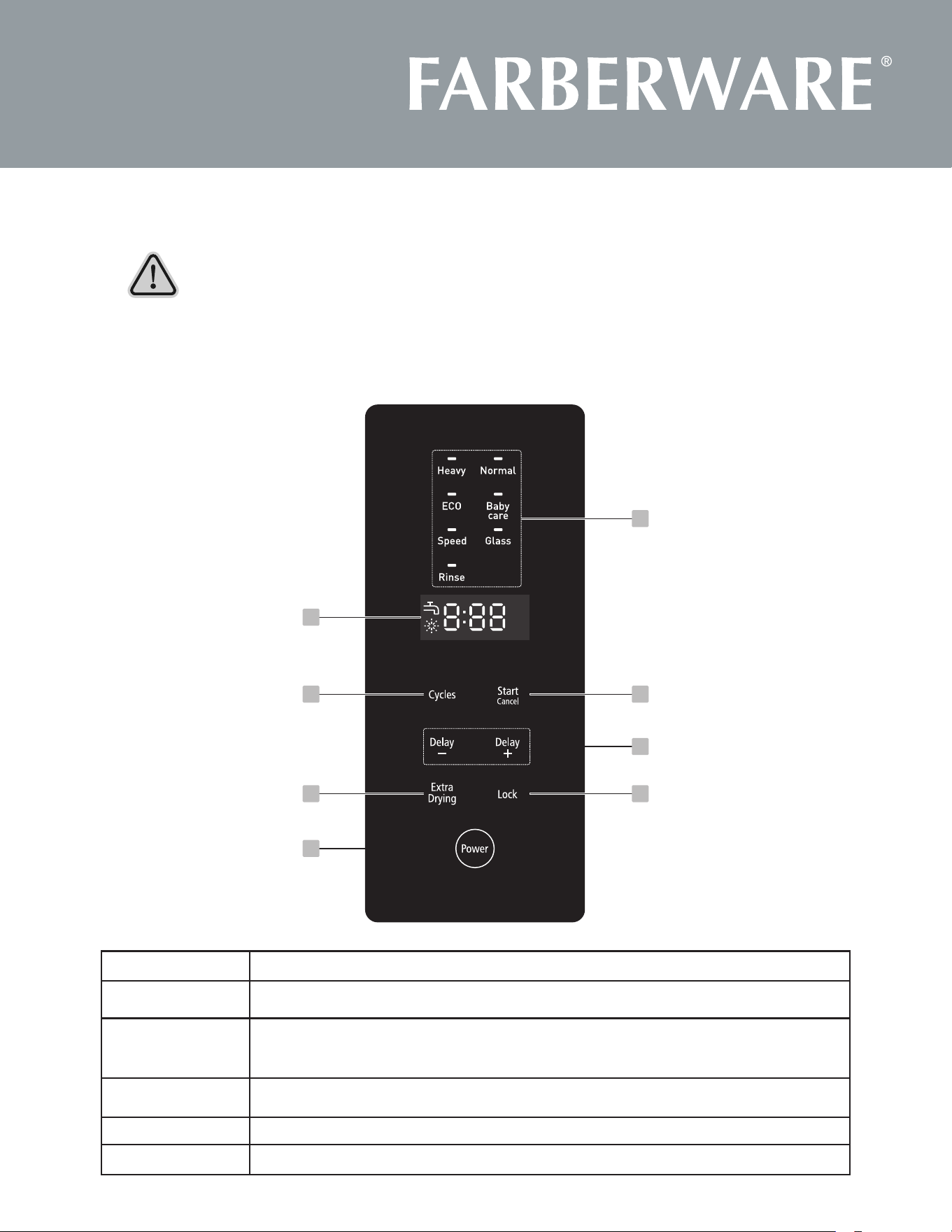

CONTROL PANEL
OPERATION (Button)
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
1. Power
Press this button to turn on your dishwasher.
2. Extra Drying
For better drying result. (It can only be used with Heavy, Normal, ECO, Baby care, Glass)
3. Lock
This option allows you to lock the buttons on the control panel, so children cannot accidentally
start the dishwasher by pressing the buttons on the panel. Only the Power button remains active.
To lock or unlock the buttons on the control panel, press the button for 3 seconds.
4. Delay-/+
Press the “+”button to add the delay time or press the “-”button to decrease the delay time, maxi-
mum 24 hours delay can be defined.
5. Start/Cancel
To start the selected washing program or cancel it when the dishwasher is working.
6. Cycles
Press the buttons to select the appropriate washing program.
8
5
4
3
1
2
6
7
10
7. Screen
• Rinse Aid
• If the “ “ indicator is lit, it means the dishwasher is
low on dishwasher rinse aid and requires a refill
• Water Supply Failure
• If the “ “ indicator is lit, it means that no water is
reaching the dishwasher
•
•
To show the selected program temperature, reminding time
and delay time, error codes etc.
8 Program
Heavy
For heaviest soiled crockery, and normally soiled pots,
pans, dishes etc. With dried-on food.
Normal
For normally soiled loads, such as pots, plates, glasses and
lightly soiled pans. standard daily cycle.
ECO
For lightly soiled loads, such as glasses, crystal and fine
china.
Baby care
For washing baby bottles.
Glass
For lightly soiled crockery and glass.
Speed
A shorter wash for lightly soiled loads that do not need
drying.
Rinse
Use for rinsing dishes, glasses and silverware that will not
be washed right away.
Display

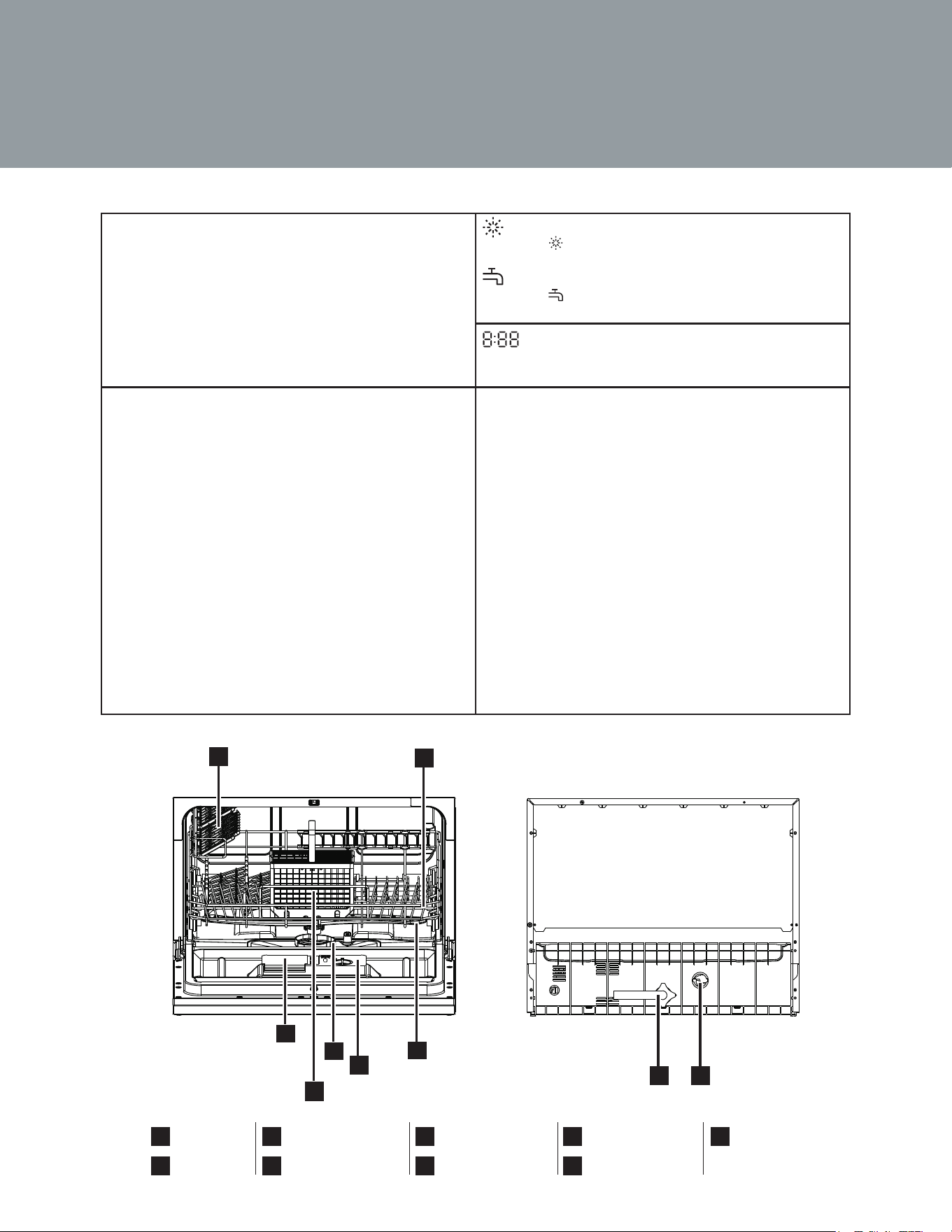

Dishwasher Features
Back View
Front view
8 9
1
2
5
4
6
7
Basket
Detergent Dispenser
Filter assembly
Cutlery Basket
Rinse Aid Dispenser
3
6
Spray Arms
Inlet pipe connector
5
8
7
Drain pipe
9
connector
1
Cup Shelf
2
4
3
11
PRIOR USING FOR THE FIRST TIME
FILL THE RINSE AID DISPENSER
Rinse Aid Dispenser
Function Of Rinse Aid
Attention!
When To Refill The Rinse Aid Dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your
dishes. That can leave spots and streaks. It also improves drying by allowing water to sheet
off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser
is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap
and pour the rinse aid into the dispenser until the level indicator turns completely black. The
volume of the rinse aid container is about 110ml.
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot
and streak free drying.
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other
substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the
appliance.
As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes,
as illustrated below.
Full
3/4 Full
1/2 Full
1/4 Full - Should refill to eliminate spotting
Empty
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-
aid by the color of the optical level indicator C located next to the cap. When the rinse-aid
container is full, the whole indicator will be dark .As the rinse-aid diminishes, the size of the
dark dot decreases. You should never let the rinse aid get below 1 / 4 full.
12
1
2
3
1
2
3

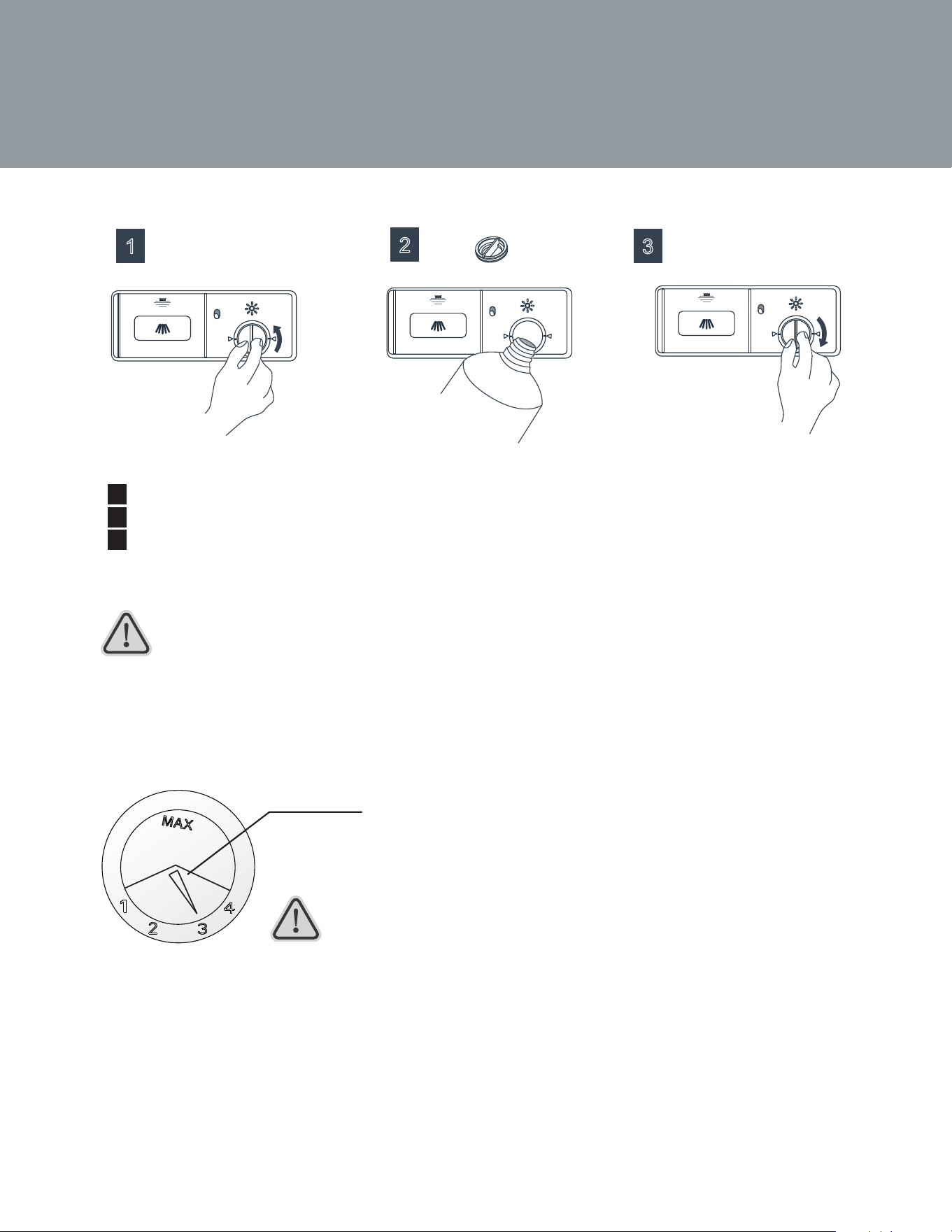

To open the dispenser, turn the cap to the “open” (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with “open” arrow and turning it to the closed
(right) arrow.
Note:
Note:
Clean up any rinse aid split during filling with an absorbent cloth to avoid excessive foaming
during the next wash. Don’t forget to replace the cap before you close dishwasher door.
The rinse aid dispenser has four settings. The
recommended setting is on “3”. If the dishes still are not
drying properly or are spotted, adjust the dial to the next
higher number on “4”.
Increase the dose if there are drops of water or lime spots on
the dishes after washing. Reduce it if there are sticky whitish
stains on your dishes or a bluish film on glassware or knife
blades.
M
A
X
Adjusting Rinse Aid Dispenser
Adjust lever
(Rinse)
13
Note:
Detergent tablets are only for the models with 3 in 1 function or 3 in 1 program.
FUNCTION OF DETERGENT
Proper Use of Detergent
Detergents
Detergents
Concentrated Detergent
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport
it out of the dishwasher. Use only detergent specifically made for use in dishwashers. Keep
your detergent fresh and dry.
Don’t put powder detergent into the dispenser until you’re ready to wash dishes.
Note that detergents with chlorine can remove some stains when used with a high
temperature program.
Based on their chemical composition, dishwasher can be split in two basic types:
The use of “normal” washing programs in conjunction with concentrated detergents reduces
pollution and is good for your dishes; these wash programs are specially matched to the
dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
“normal”wash programs in which concentrated detergents are used can achieve the same
results that can otherwise only be achieved using “heavy” program.
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to ensure the
complete removal of detergent residuals.
There are 3 sorts of detergents
1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chloride
• Conventional, alkaline detergents with caustic components
• Low alkaline concentrated detergents with natural enzymes
14

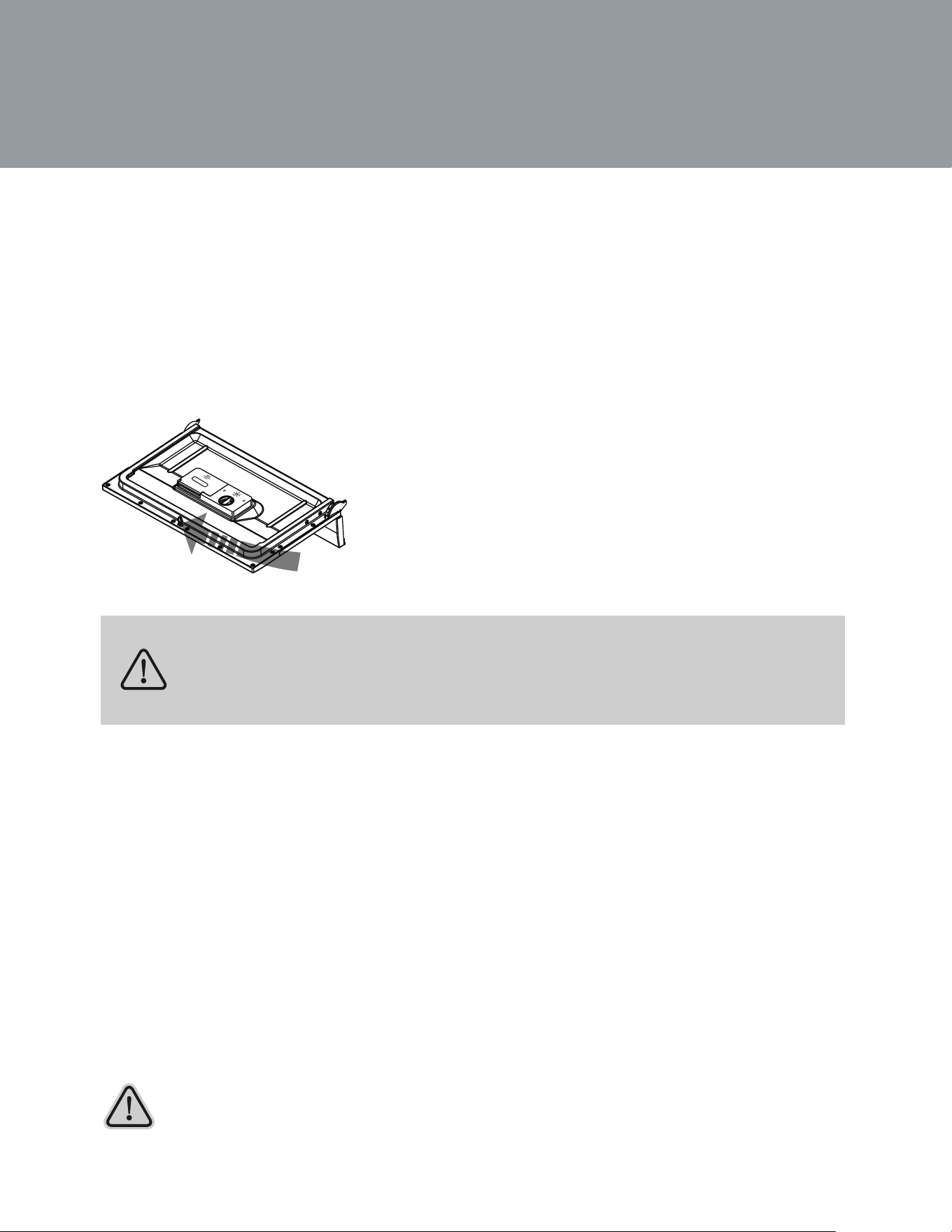

Detergent Dispenser
Amount Of Detergent To Use
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the Wash Cycle Table. Your dishwasher uses less detergent and rinse aid then
conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal
wash load. Also, more heavily soiled items need more detergent. Always add the detergent
just before starting the dishwasher, otherwise it could get damp and will not dissolve
properly.
Dishwasher detergent is corrosive!
Take care to keep it out of reach of children.
1 2
15
25
Push latch to open
Pre-wash Compartment
Detergent powder
Detergent tablet or pad
Note:
WARNING
• If the lid is closed: press release button. The lid springs open.
• Always add the detergent just before starting each wash cycle.
• Only use branded detergent aid for dishwasher.
15

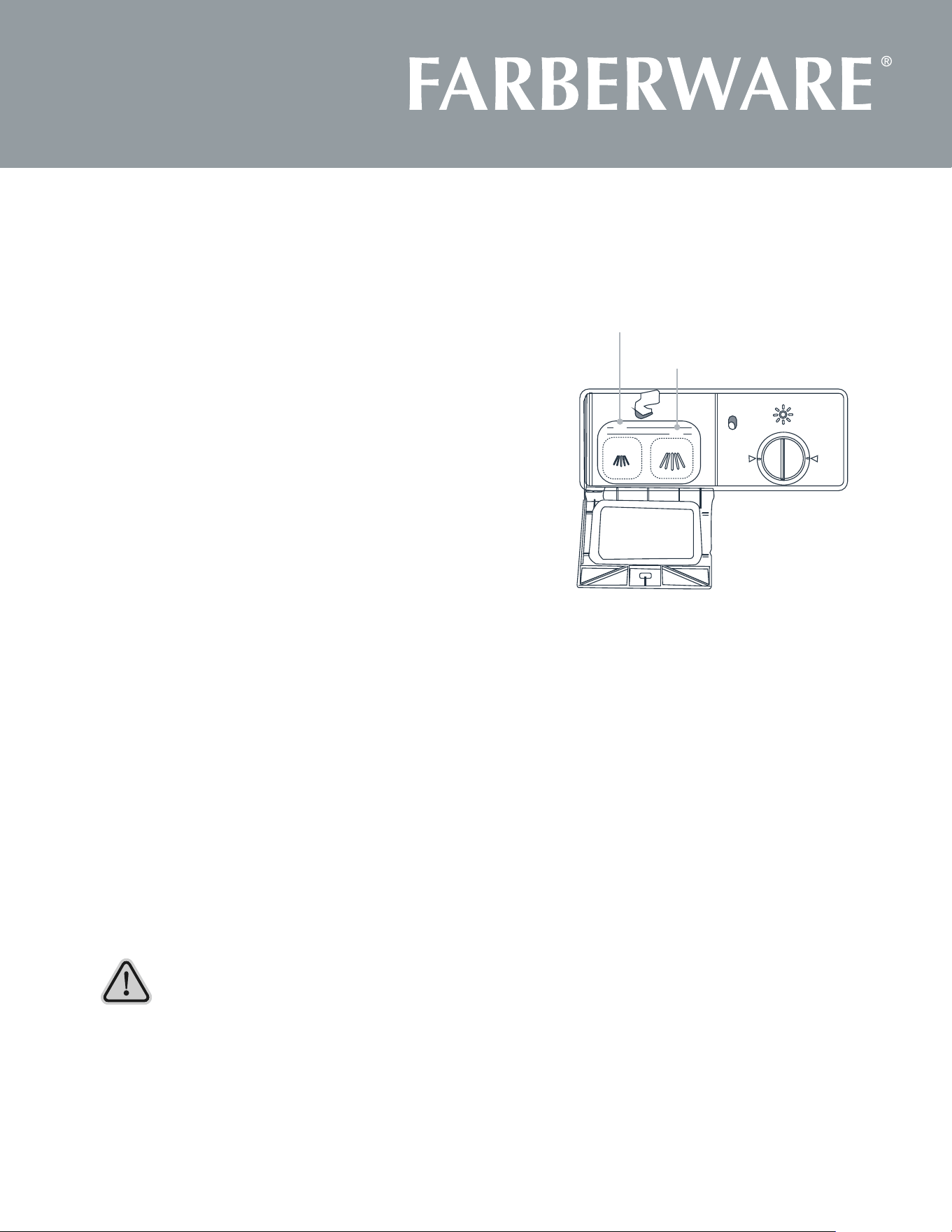

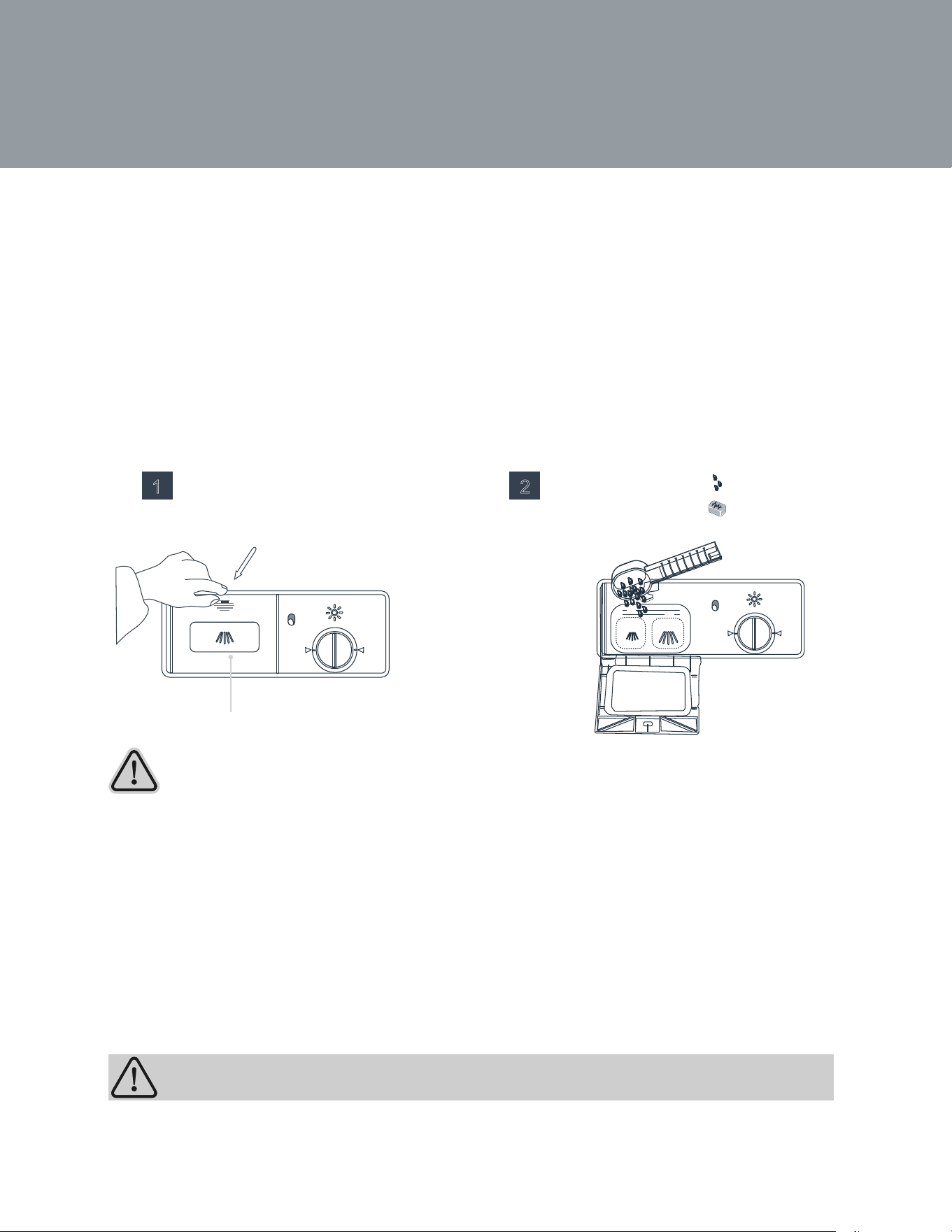

Fill In Detergent
Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as
illustrated on right:
Please observe the manufacturers dosing and
storage recommendations as stated on the detergent
packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber.
This detergent will take effect during the pre-wash phase.
The place can load 15g detergent.
The place can load 25g detergent.
Note:
• You find information about the amount of detergent for the single program on the
last page.
• Please aware, that according to the level soiling and the specific hardness of
water differences are possible.
• Please observe the manufacturer’s recommendations on the detergent packaging.
15
25
For a normal soil level fill to the
MAX fill line B (25 grams).
Fill detergent to the lower fill line A (15 grams)
for lightly soiled dishes such as glassware.
16
LOADING THE DISHWASHER BASKETS
Recommendation
Attention Before Or After Loading The Dishwasher Baskets
To Wash The Following Cutlery/Dishes In The Dishwasher
Are not suitable Are of limited suitability
• Consider buying utensils which are identified as dishwasher-proof.
• Use a mild detergent that is described as ‘kind of dishes’. If necessary, seek
further information from detergent manufacturers.
• For particular items, select a program with as low a temperature.
• To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
• Cutlery with wooden, horn china or
mother-of-pearl handles
• Plastic items that are not heat resistant
• Older cutlery with glued parts that is
not temperature resistant
• Bonded cutlery items or dishes
• Pewter or cooper items
• Crystal glass
• Steel items subject to rusting
• Wooden platters
• Items made from synthetic fibers
• Some types of glasses can become dull
after a large number of washes
• Silver and aluminum parts have a
tendency to discolor during washing
• Glazed patterns may fade if machine
washed frequently
(For best performance of the dishwasher, follow these loading guidelines. Features and
appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans It is not
necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1. Items such as cups, glasses, pots/pans, etc. are face down.
2. Curved items, or those with recesses, should be loaded at a slant so that water can run
off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotated freely during washing.
17
• Load hollow items such as cups, glasses, pans etc. With the opening downward
so that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
• To avoid damage to glasses, they must not touch.
• Load large item which are most difficult to clean into the basket.
• Long bladed knives stored in an upright position are a potential hazard!
• Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the basket.
• Please do not overload your dishwasher. This is important for good results and
for reasonable energy consumption.
Note:
Very small items should not be washed in the dishwasher as they could easily fall
out of the basket
18

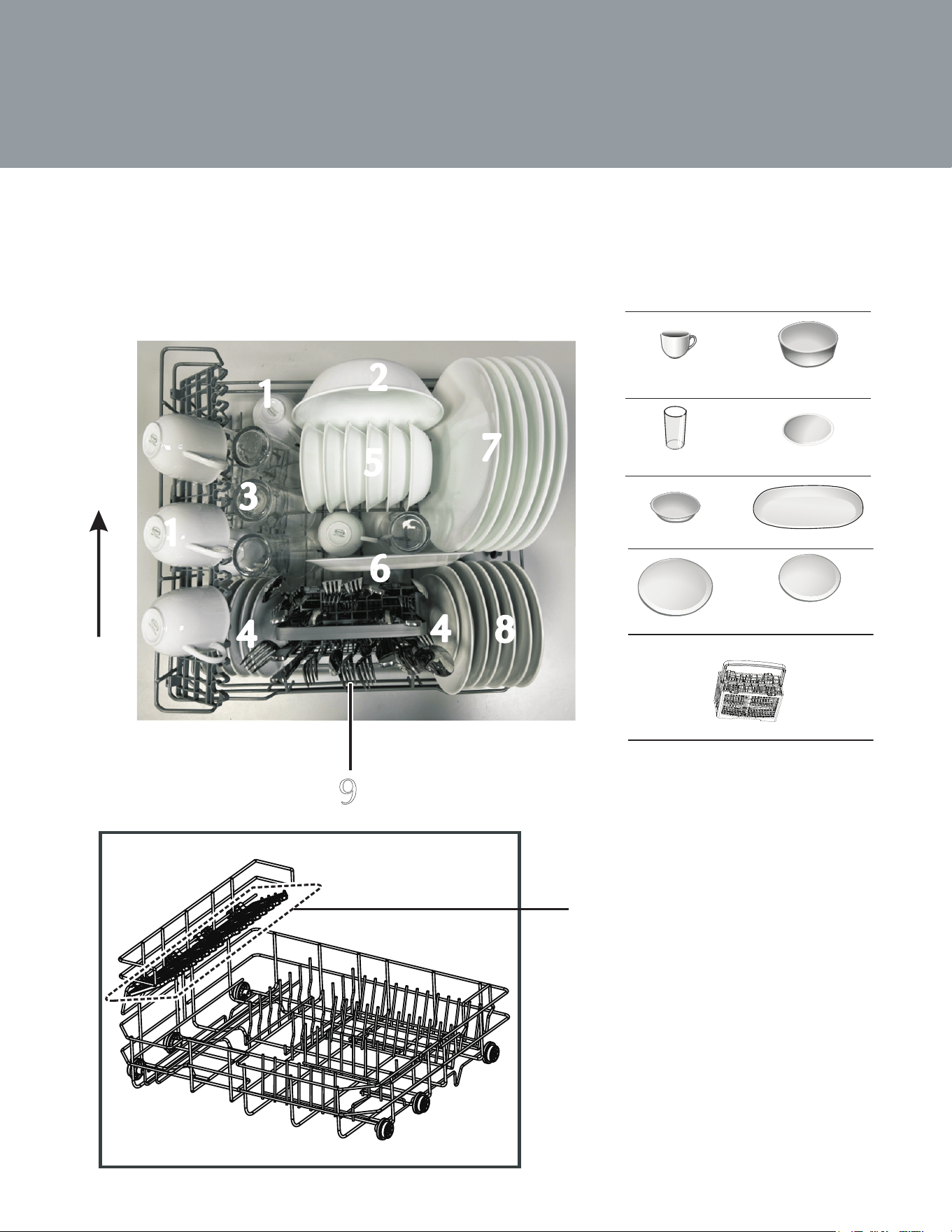

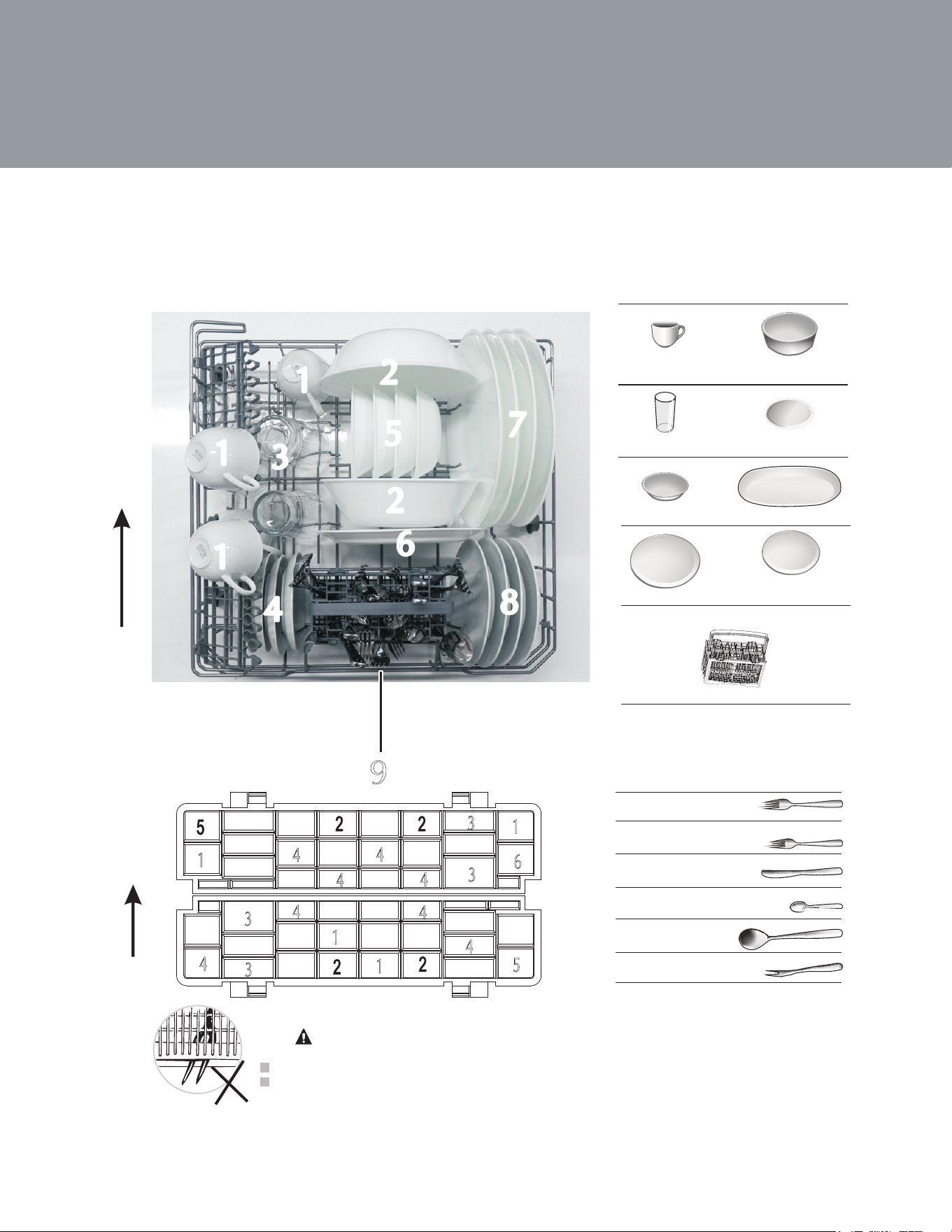

Loading The Basket
Aham: 6 Place Setting
Position the dishes and cookware so that they will not get moved by the spray of water.
Plate racks of Basket
The basket is fitted with plate racks which
can be stowed horizontal if required.
4
Saucers
3
Serving bowl
Glasses
1
Cups
6
7
Oval platter
Dinner plates
Bread and
8
butter plates
Fruit bowl
5
9
Cutlery basket
2
7
2
4
5
8
1
1
4
3
9
6
I
N
19

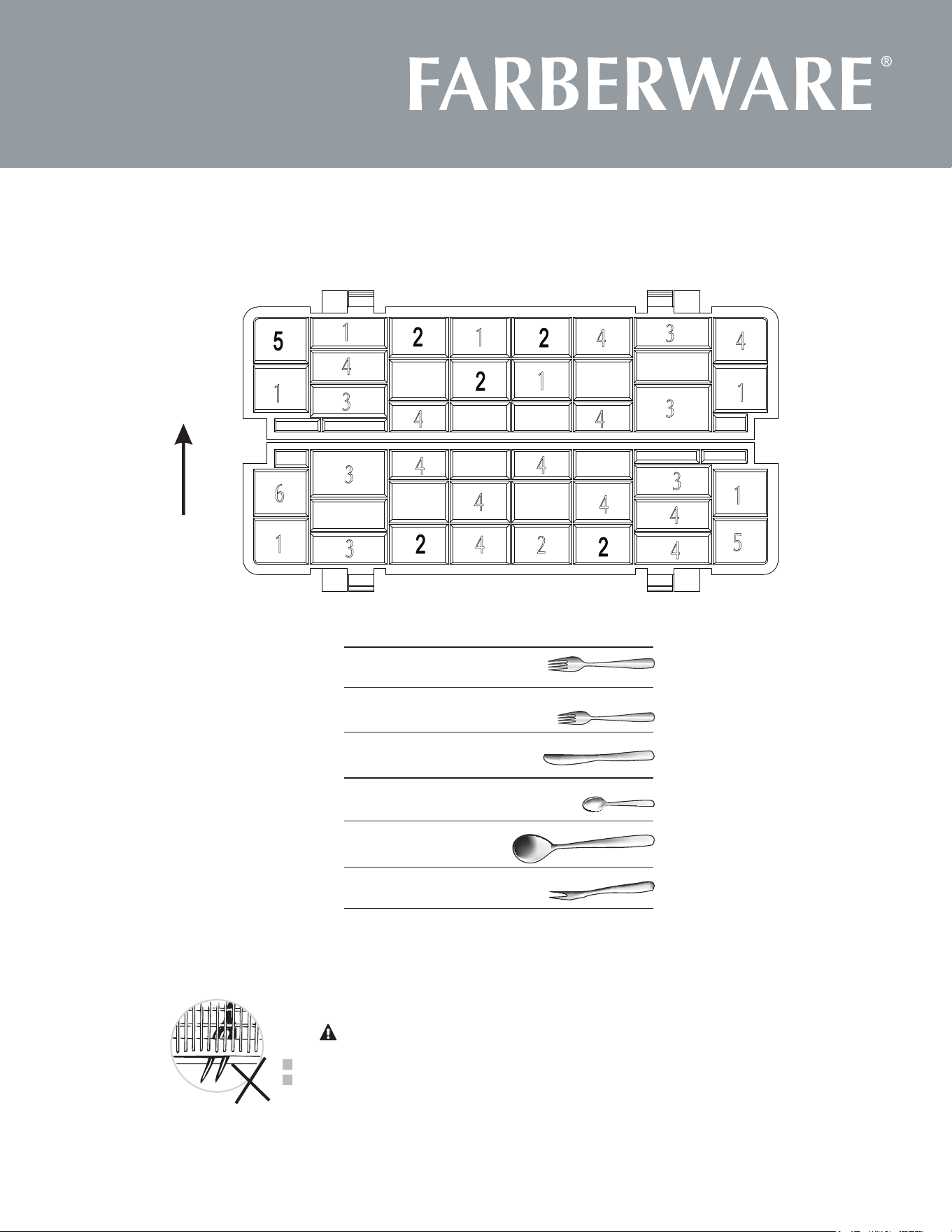

Cutlery Basket
Cutlery should be placed in the cutlery basket with handles at the bottom. If the rack has side baskets, the
spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the
horizontal position at the front of the upper basket as shown.
For personal safety and a top quality clean, place the silverware in the basket:
• They do not nest together.
• Place silverware with handles down.
• Place knives and other potentially dangerous utensils handles-up.
WARNING!
Do not let any item extend through bottom.
Always load sharp utensils with the sharp point down!
3
Teaspoons
1
Dinner forks
6
Serving forks
5
4
Serving spoons
Knives
2
Salad forks
IN
1
1
3
4
3
1
4
1
4
3
1
5
3
4
4
3
1
4
3
1
6
4
4
4
4
4
4
2
20
Loading The Basket And Cutlery Basket
Doe: 4 Place Settings
Position the dishes and cookware so that they will not get moved by the spray of water.
4
Saucers
3
Serving bowl
Glasses
1
Cups
6
7
Oval platter
Dinner plates
Bread and
8
butter plates
Fruit bowl
5
9
Cutlery basket
2
3
Teaspoons
1
Dinner forks
6
Serving forks
4
5
Serving spoons
Knives
2
Salad forks
IN
4
3
4
1
4
3
5
4
4
3
1
3
1
6
4
4
WARNING!
Do not let any item extend through bottom.
Always load sharp utensils with the sharp point down!
1
4
7
2
4
5
8
1
1
3
9
6
I
N
1
2
For personal safety and a top quality clean, place the silverware in the basket.
• They do not nest together.
• Place silverware with handles-down.
• But place knives and other potentially dangerous utensils handles-up.
21

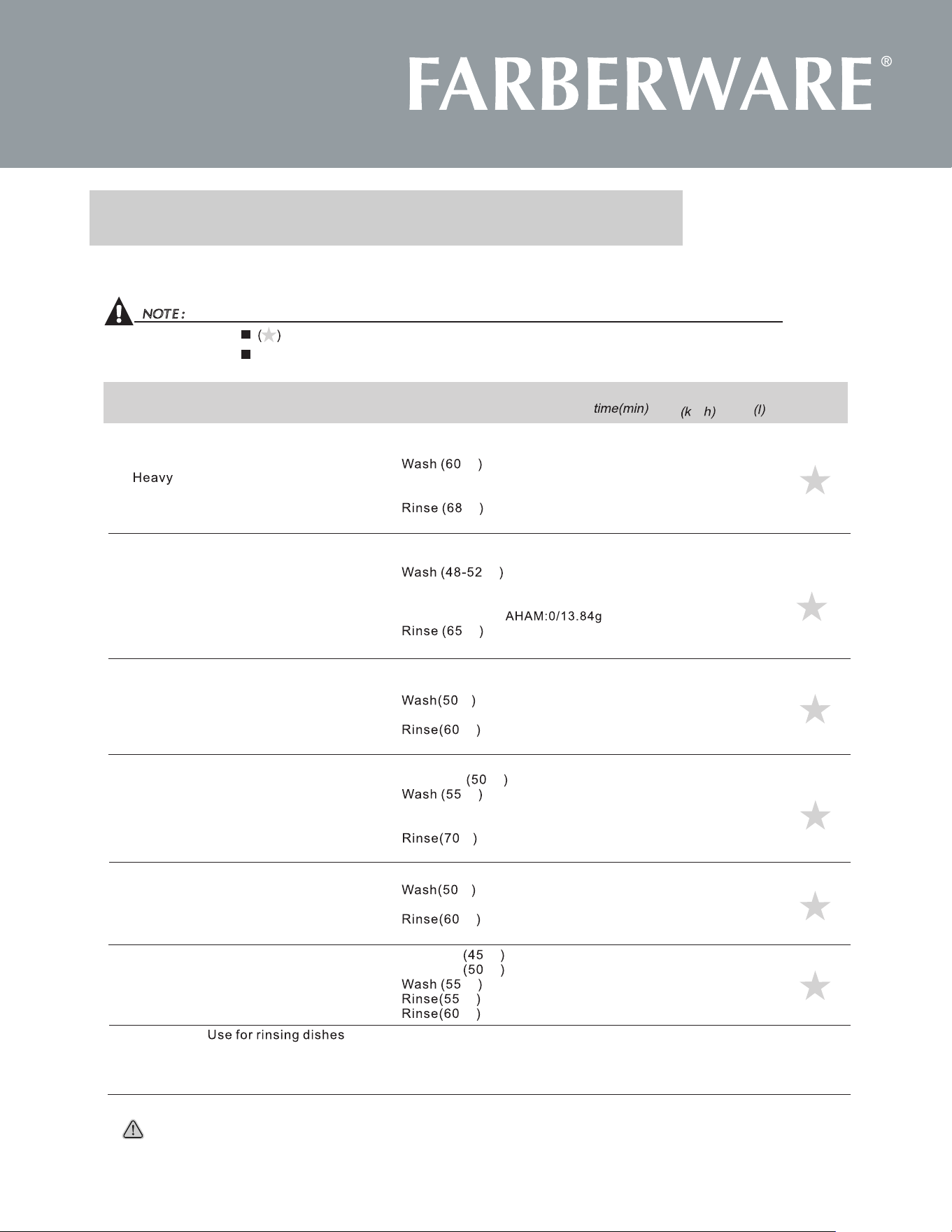

Wash Cycle Table
STARTING A WASHING PROGRAM
Means: need to fill rinse into t he Rinse-Aid Dispenser.
NOTE :
Detergent
pre/main
Cycle Selection
Information
Program
Running
Energy
W
Water
Description
Rinse
of Cycle
Aid
Normal : This program is the test cycle, the rinse-aid dispenser
setting is recommended to Position 3.
For normally soiled loads,
such as pots, plates,glasses
and lightly soiled pans.
standard daily cycle.
For lightly soiled loads,such
as glasses,crystal and
fine china
A shorter wash for lightly
soiled loads that do not
need drying.
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes that have
been sitting with dried food
on them for a while.
0/13.84g
90
127-155
100
45
75
0.51
0.38-0.42
0.49
For lightly soiled loads,
such as glasses, crystal and
fine china.
0.31
0.32
6.3-14.4
12.7
12.5
10.5
10.5
Pre-wash
Pre-wash
℃
Rinse
Rinse
Rinse
℃
Drying
Pre-Wash
Pre-Wash
℃
Rinse
/
℃
24
Drying
4.3
Pre-wash
Pre-wash
℃
℃
Rinse
Rinse
℃
Drying
0.03
Pre-wash
Rinse
Pre-wash
Pre-wash
℃
Rinse
Rinse
℃
Pre-wash
℃
Pre-wash
℃
℃
℃
℃
ECO
Drying
0/13.84g
BabyCare
0/13.84g
0/13.84g
Speed
Normal
Rinse
70
、
glasses and silverware
that will not be wash right
away.
0.28 8.5
Pre-Wash
For lightly soiled crockery
and glass.
℃
Rinse
℃
Drying
0/13.84g
Glass
DOE:0/6.92g
Note:
When you press the Start/Reset button to pause during washing, the program light will stop blinking and the
dishwasher will beep every minute unless you press the Start/Reset button to start.
22
Turning On The Appliance
Change The Program
Forget To Add A Dish?
Starting a wash cycle:
1. Draw out the basket(see the section entitled “Loading the Dishwasher “ );
2. Pour in the detergent (see the section entitled “Detergent and Rinse Aid “ );
3. Insert the plug into the socket. The power supply is 120V/60 Hz;
4. Make sure that the water supply is turned on to full pressure;
5. Close the door and press the Power button to turn on the power supply;
6. Press the program button to select wash program you need
Heavy->Normal->ECO->Baby Care->Glass->Speed->Rinse
7. Then press the Start/Cancel button, the dishwasher begins to start.
Premise: You can modify the washing program, When the dishwasher just
runs for a short time. Otherwise, the detergent may have already been
released, and the appliance may have already drained the wash water. If this
is the case, the detergent dispenser must be refilled (see the section entitled
“Loading the Detergent“).
To change the washing program, press Start/Cancel button more than three seconds the
machine will be in stand by state, then you can change the program to the desired cycle
setting (see the section entitled “Starting a wash cycle“).
The lights show the state of the dishwasher:
a. All phase lights off---------------------------On standby
b. The display no blinking---------------------Being paused
c. The display blinking-------------------------Running
Note:
If you open the door when washing, the machine will pause. When you close the
door, you need to press Start/Cancel button to keep the machine working.
2
After the spray arms stop working, you can open the door
completely.
Add forgotten dishes.
3
5
1
Open the door a little to stop the washing.
4
Close the door
Press the Start/Cancel button, the dishwasher will ru
n
after 10 seconds.
23
At The End Of The Wash Cycle
When the working cycle has finished, the buzzer of dishwasher will sound 8 seconds, then
stop. Turn off the appliance using the Power button, shut off the water supply and open
the door of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid
handling the dishes and utensils while they are still hot and more susceptible to breakage.
They will also dry better.
Since the appliance is standing by, it will power off automatically after 15 minutes without
any operation
■ Switch Off the Dishwasher
All the phase lights are off, only in this case the program has ended.
1. Switch off the dishwasher by pressing the Power button
2. Turn off the water tap!
■ Open the door carefully
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool
down around 15 minutes before removing from appliance.
Open the dishwasher’s door, leave it ajar and wait a few minutes before removing the
dishes. In this way they will be cooler and the drying will be improved.
■ Unloading the dishwasher
It is normal that the dishwasher is wet inside.
It is dangerous to open the door when washing, because the hot
water may scald you.
WARNING
24
MAINTENANCE AND CLEANING
Filtering System
The filter prevent larger remnants of food or other objects from getting inside the pump.

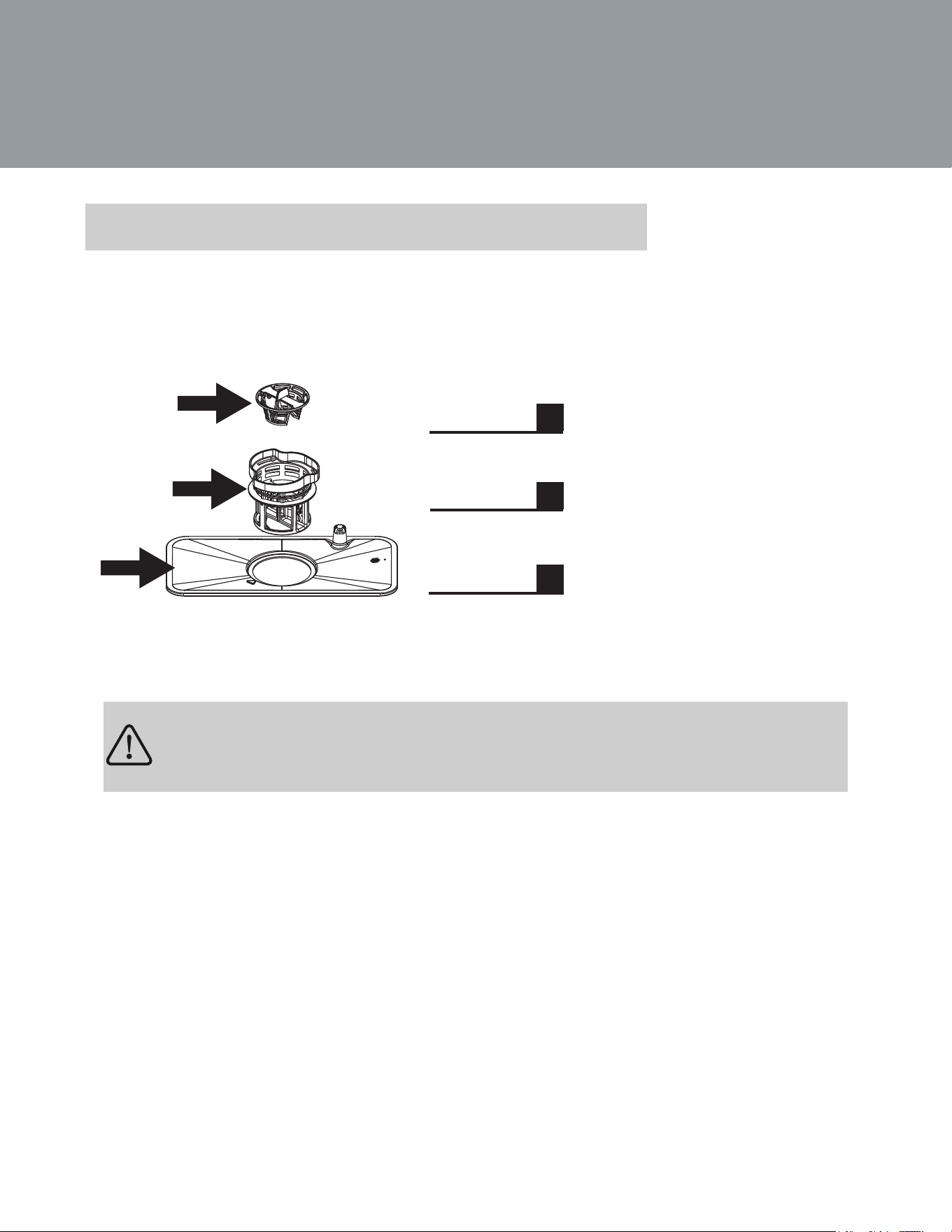

The filter system consists of a coarse filter, a flat (Main filter)
and a micro filter (fine filter).
A
Main filter
Food and soil particles trapped by this filter are pulverized by a
special jet on the spray arm and washed down to drain.
C
Coarse filter
B
Fine filter
Larger items, such as pieces of bone or glass, that could block
the drain are trapped in the coarse filter. To remove the items
caught by the filter, gently squeeze the tap on the top of this
filter and lift out.
C
B
A
Never run the dishwasher without the filters in place.
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance
level of the appliance and damage dishes and utensils.
WARNING
25
Remarks:
Cleaning The Filter
- Inspect the filters for blocking every time the dishwasher has been used.
- By unscrewing the coarse filter you can remove the filter system. Remove any food
remnants and clean the filters under running water.
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts
as shown in the figures in the last page and reinsert the entire assembly in the dishwasher,
positioning in its seat and pressing downward.
When cleaning the filters, don’t knock on them. Otherwise, the
filters could be contorted and the performance of dishwasher
could be debased.
WARNING
Open
Step 1：Counter-rotate the filter assembly(A,B and C),
then lift it all up.
Step 2: Lift B and C up from A;
A
B
C
A
B
C
The End
Note:
Note:
If you follow from Step 1 to Step 3, the filter system will be removed. If you reverse the steps from Step 3 to Step
1, the filter system will be installed.
The entire filter assembly should be cleaned once a week.
26
Caring For The Dishwasher
Protect Against Freezing
Cleaning The Door
To clean the edge around the door, you should use only a
soft warm, damp cloth. To avoid penetration of water into
the door lock and electrical components, do not use a spray
cleaner of any kind.
■ Never use a spray cleaner to clean the door panel as it may
damage the door lock and electrical components.
■ Abrasive agent or some paper towel should not be used
because of the risk of scratching or leaving spots on the
stainless steel surface.
WARNING
The control panel can be cleaned by using a lightly dampened cloth and dry thoroughly.
The exterior use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Please take frost protection measures on dishwasher in Winter. Each time after washing
cycles, please operate as follow:
1. Cut off electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to use up water in sump.
Note:
If your dishwasher cannot work because of the ice, please contact professional
service persons.
27
Cleaning The Spray Arms
How To Keep Your Dishwasher In Shape
The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent
possible clogging. Wash them under running water and carefully replace them in their seats,
checking that their rotary movement is in no way impeded.

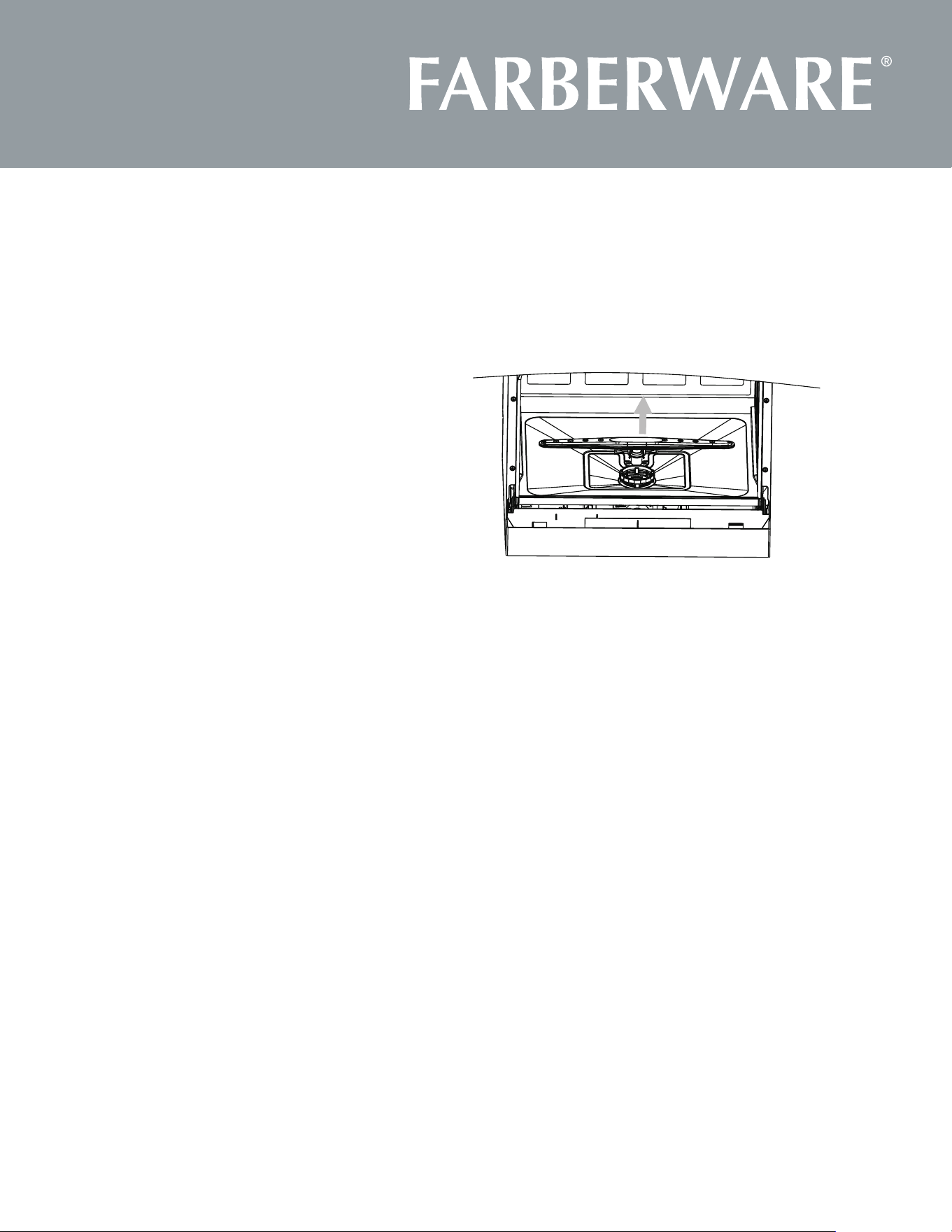

Grasp the middle of the spray arm,
pull it upwards to remove it. Wash the
arms under a jet of running water and
return them carefully to their seat. After
reassembly, check that the spray arms turn
freely. Otherwise, check that they have
been installed correctly.
■ After Every Wash ■ Long-term Storage
■ Remove The Plug
■ Moving The Appliance
■ No Solvents or Abrasive Cleaning
■ Seals
After every wash, turn off the water
supply to the appliance and leave the
door slightly open so that moisture and
odors are not trapped inside.
It is recommend that you run a wash
cycle with the dishwasher empty and
then remove the plug from the socket,
turn off the water supply and leave the
door of the appliance slightly open.
This will help the door seals to last
longer and prevent odors from forming
within the appliance.
Before cleaning or performing
maintenance, always remove the plug
from the socket.
If the appliance must be moved, try
to keep it in the vertical position.
If absolutely necessary, it can be
positioned on its back.
To clean the exterior and rubber parts
of the dishwasher, do not use solvents
or abrasive cleaning products. Only use
a cloth with warm soapy water.
To remove spots or stains from the
surface of the interior, use a cloth
dampened with water with a little
vinegar, or a cleaning product made
specifically for dishwashers.
One of the factors that cause odors
to form in the dishwasher is food that
remains trapped in the seals. Periodic
cleaning with a damp sponge will
prevent this from occurring.
28
INSTALLATION INSTRUCTION
Attention:
The installation of the pipes and
electrical equipments should be done
by professionals.
Warning
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
Failure to do so can result in death
or electrical shock.
Installation Preparation
Positioning The Appliance
About Power Connection
The installation position of dishwasher should be near the existing inlet and drain hoses and
power cord.
One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of
the dishwasher.
Position the appliance in the desired location. The back should rest against the wall behind
it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with
water supply and drain hoses that can be positioned to the right or the left to facilitate proper
installation.
For personal safety
■ DO NOT USE AN EXTENSION CORD OR AN ADAPTER
PLUG WITH THIS APPLIANCE.
■ DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR
REMOVE THE GROUNDING CONNECTION FROM THE
POWER CORD
WARNING
29
Insure proper ground
exists before use
Electrical Requirements
Grounding Instructions
Electrical Connection
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide
separate circuit serving only this appliance.
■ This appliance must be grounded. In the event of a malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least resistance
for the electric current. This appliance is equipped with a cord having an equipment-
grounding conductor and an earthing plug. The plug must be plugged into an appropriate
grounded outlet that is installed and earthed in accordance with all local standards and
requirements.
Ensure the voltage and frequency of the power being
corresponds to those on the rating plate. Only insert the
plug into an electrical socket which is earthed properly. If the
electrical socket to which the appliance must be connected
is not appropriate for the plug, replace the socket, rather than
using a adapters or the like as they could cause overheating
and burns.
■ Improper connection of the equipment earthing conductor can
result in the risk of an electric shock.
■ Check with a qualified electrician or service representative if
you are in doubt whether the appliance is properly grounded.
■ Do not modify the plug provided with the appliance. If the
plug does not fit properly to the outlet, please have a qualified
electrician to install a proper outlet.
WARNING
30
Water Connection
Your dishwasher comes equipped with a ‘quick connect’ assembly (includes inlet and
drain hose). The faucet adapter must be installed on the faucet before you can connect
the dishwasher. This adapter is included inside your dishwasher. The faucet adapter is
compatible with faucets inclusive of either male (outside) or female (inside) threaded faucet
connections.
In order to avoid that there is more water staying in the inlet
hose, please close the faucet after using.

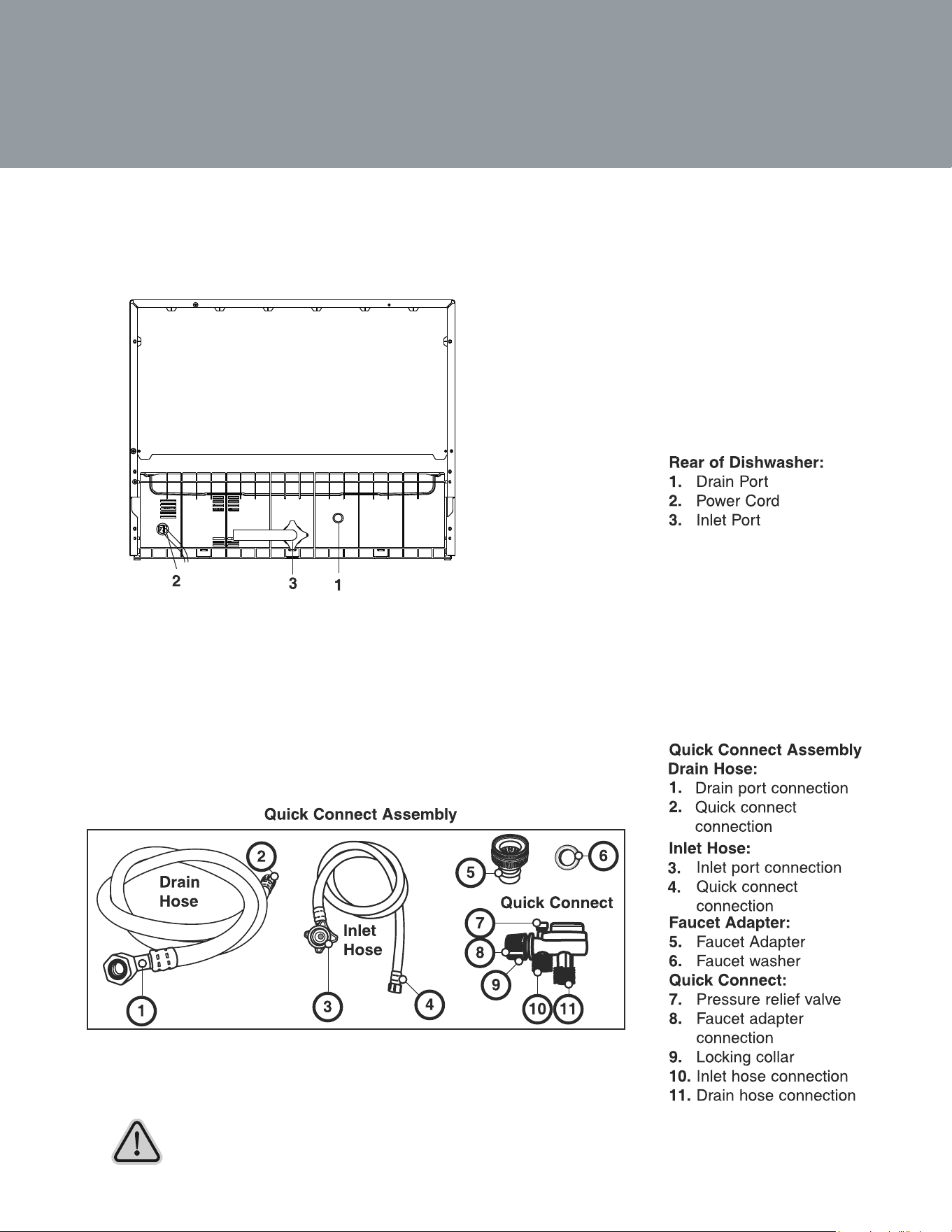

Back View
WARNING
31
Important
1. Screw the faucet adapter onto (or into) the faucet tap. Check for leaks (use Teflon tape to
eliminate if necessary).
2. Connect the six-sided connection of the drain hose to the drain port connection on the
back of the dishwasher cabinet. Do not over-tighten (to avoid damage to threads).
3. Connect the star-shaped connection of the inlet hose to the inlet port on the back of the
dishwasher cabinet. Do not over-tighten (to avoid damage to threads).
4. Connect the circular connection of the drain hose onto the longer (bottom) male
connection on the quick connect.
5. Connect the circular connection of the inlet hose onto the shorter (top) male connection
on the quick connect.
6. Attach the quick connect onto the faucet adapter, by pulling down the outer locking
collar on the quick connect, while pushing the quick connect upward onto the faucet
adapter.
7. When the quick connect snaps onto the faucet adapter, release the locking collar. Verify
the connection is secure.
8. Slowly open the hot water line and check for any sign of water leaks at all hose
connections. If leaks are located, immediately close the water supply and repair the hose
connections.
1. Once you open the water supply line, (even if it is closed immediately thereafter), the
inlet hose will be pressurized.
2. To relieve water pressure from inside the inlet hose, (make sure the water line (faucet) is
closed): press and hold the red pressure relief button on the quick connect until the flow
of water stops.
FAILURE TO RELIEVE WATER PRESSURE, BEFORE DISCONNECTING THE QUICK-
CONNECT FROM THE FAUCET, WILL RESULT IN BACK-PRESSURE OVER-SPRAY, THE
TEMPERATURE OF INCOMING WATER CAN BE VERY HOT, AND BACK-PRESSURE OVER-
SPRAY COULD CAUSE SEVERE BURNS.
DO NOT LET CHILDREN DISCONNECT THE DISHWASHER; CLOSE SUPERVISION OF
CHILDREN IS ALWAYS IMPORTANT AROUND APPLIANCES.
NOTE:
Hard water conditions will adversely affect the washing performance of your dishwasher.
Hard water conditions will also contribute to ‘lime’ (white film substance) deposits and/or
‘scaling’ on the stainless steel surface of the dishwasher tub and heater element, located in
the sump underneath the removable filter screen. To assist in minimizing these conditions,
it is recommended to periodically operate/rinse the inside of the dishwasher (empty) using 1
cup of white vinegar at least once a week.
WARNING
DANGER
32
Disconnecting Your Dishwasher
Start Of Dishwasher
1. Shut off the water supply at the faucet.
2. Disconnect the power supply cord
The following things should be checked before starting the dishwasher.
1. The dishwasher is level and fixed properly
2. The inlet valve is open
3. There is a leakage at the connections of the conducts
4. The wires are tightly connected
5. The power is switched on
6. The inlet and drain hoses are knotted
7. All packing materials and printings should be taken out from the dishwasher
After installation, please make sure to keep this manual.
The content of this manual is very helpful to the users.
ATTENTION:
33
Before Calling For Service
TROUBLESHOOTING TIPS
Possible Causes What To Do
Fuse blown, or the
circuit breaker tripped.
Suds in the tub
Spilled rinse-aid
Replace fuse or reset circuit breaker. Remove any othe
r
appliances sharing the same circuit with the dishwasher
Always wipe up rinse-aid spills immediately.
White film on
inside surface
Review the charts on the following pages may save you from calling for service.
There are rust
stains on cutlery
Knocking noise
in the wash cabinet
Rattling noise
in the wash cabinet
Knocking noise
in the water pipes
Hard water minerals
The lid of softer
is loose.
The affected items are
not corrosion resistant.
The spray arm is
knocking against
an item in a basket.
Item of crockery
are insecure
in the wash cabinet.
This may be caused
by on-site installation
or the cross-section of
the piping.
A program was not
run after dishwasher
salt was added.
Traces of salt have
got into the wash cycle.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishwasher
detergent for the risk of foaming or suds.
Check the lip .Ensure the fix is fine.
Always run the Quick wash program .
without any crockery in the dishwasher and
without selecting the Turbo function (if present),
after adding dishwasher salt.
Interrupt the program, and rearrange the items
which are
obstructing the spray arm.
Interrupt the program,
and rearrange the items of crockery.
Stained tub interior
Detergent with
colorant was used.
This has no influence on dishwasher function.
if in doubt, contact a suitably qualified plumber.
Improper detergent
Make sure that the detergent is the one without
colourant.
Problem
Dishwasher doesn't
start
Closed dishwasher making sure that door latches.
Power supply is not
turned on.
Door of dishwasher
not properly closed.
Make sure the dishwasher is turned on and the door is
closed securely.
Make sure the power cord is properly plugged into the
wall socket.
Kink in drain hose
Water not pumped
from dishwasher
Filter clogged.
Kitchen sink clogged.
Check drain hose.
Check the coarse filter.
(see section titled " Cleaning The Filter " )
Check kitchen sink to make sure it is draining well.
If problem is kitchen sink not draining ,you may need
a plumber rather than a serviceman for dishwasher.
Technical
problems
General
problems
Noise
Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then Start the "soak" wash
cycle to drain out the water . Repeat if necessary.
34
Problem Possible Causes What To Do
See notes in " Loading t
The dishes were not
loaded correctly.
he Dishwasher Baskets ".
The dishes
are not clean
The dishes
are not drying
Cloudiness
on glassware
Black or gray
marks on dishes
Detergent left in
dispenser cups
Select a more intensive program.
See" Wash Cycle Table ".
Use more detergent, or change your detergent.
Rearrange the items so that the spray can rotate freely.
Clean and/or fit the filter combination correctly.
Clean the spray arm jets. See "Cleaning the Spray
Arms".
Use a mild abrasive cleaner to eliminate those marks.
Use less detergent if you have soft water and select
a shortest cycle to wash the glassware and to get
them clean.
Re-loading the dishes properly.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/Refill the rinse-aid
dispenser.
In short programs the washing temperature is lower.
This also lowers cleaning performance. Choose a
program with a long washing time.
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once t
he dishes are barely warm to the touch. Empty the low
basket first. This prevents water form dropping off
dishes in the upper basket.
The program was
not powerful enough.
Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
Not enough detergent
was dispensed.
Item are blocking
the path of spray arms.
Combination of soft
water and too much
detergent.
The filter combination
in the base of wash
cabinet is not clean or
is not correctly fitted.
This may cause
the spray arm jets
to get blocked.
Aluminum utensils
have rubbed against
dishes.
Dishes block
detergent cups.
Improper loading
Too little rinse-aid
Dishes are removed
too soon.
Wrong program
selection
Using cutlery with
a low-quality coating
Unsatisfactory
Unsatisfactory
washing
result
drying
result
35
Error Codes
When some malfunctions come on, the appliance will display error codes to warn you:
Codes Meanings Possible Causes
E1 Longer inlet time. Faucets is not opened, or water intake is
restricted, or water pressure is too low.
E3 Not reaching required temperature. Malfunction of heating element
E4 Overflow Some element of dishwasher leaks.
Ed Failure of communication between
main circuit board with display circuit
board
Open circuit or break of wiring for the
communication.
■ If overflow occurs, turn off the main water supply before
calling a service.
■ If there is water in the base pan because of an overfill or
small leak, the water should be removed before restarting the
dishwasher
WARNING
36

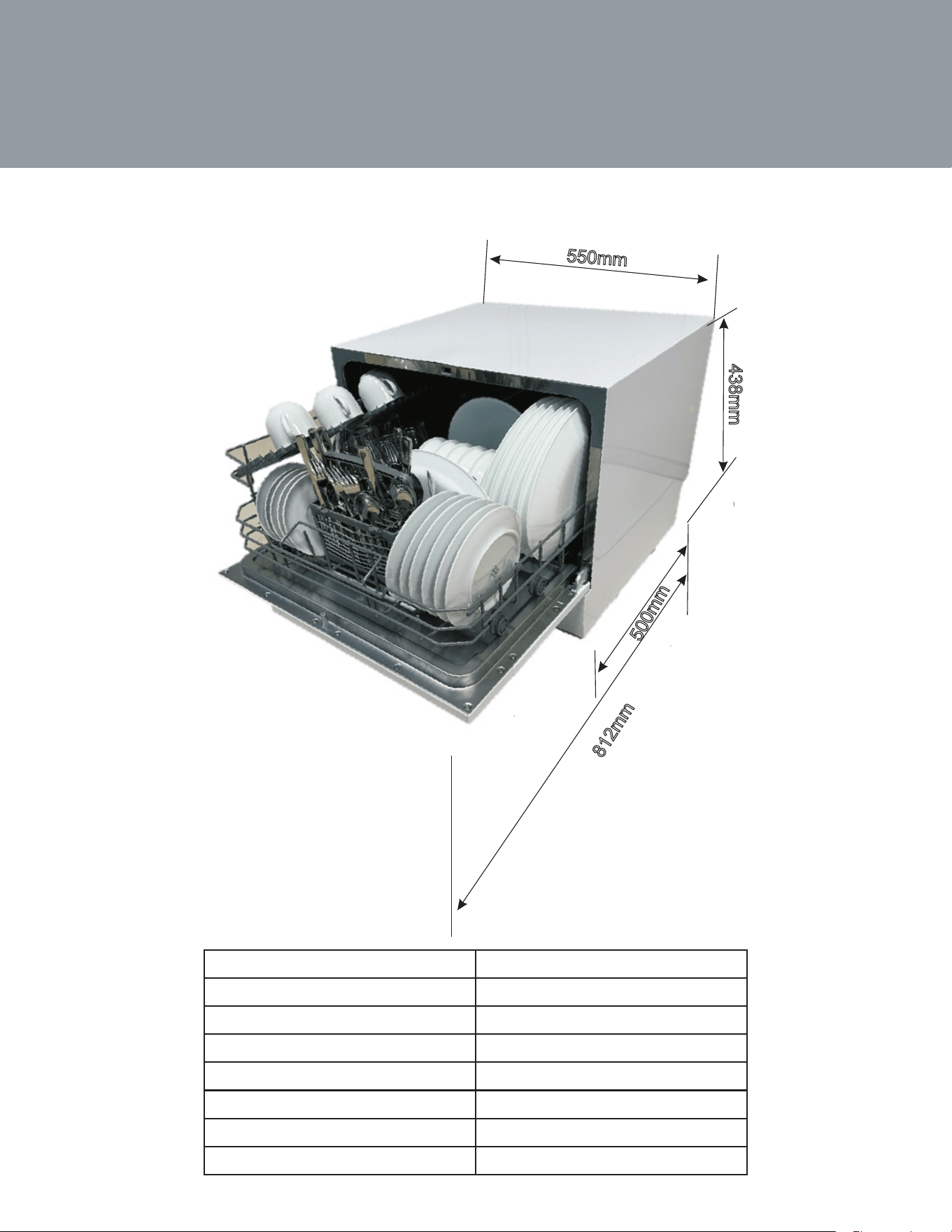

Technical Information
5
5
0
m
m
4
38m
m
8
1
2
m
m
5
0
0
m
m
Height 438mm
Width 550mm
Depth 500mm
Voltage Connected Load See Rating Label
Water Pressure 0.04-1.0mpa
Hot Water Connection Should Be 120°F
Power Supply See Rating Label
Capacity 6 Place Settings
37
ONE YEAR LIMITED WARRANTY
This warranty applies to products purchased and used in the U.S. and Canada.
This is the only expressed warranty for this product and is in lieu of any other warranty or
condition.
This product is warranted to be free from defects in material and workmanship for a period
of one (1) year from the date of original purchase. This warranty is valid for the original retail
purchaser or gift recipient from the date of initial retail purchase and is not transferable.
Keep your original sales receipt as proof of purchase is required to make a warranty claim.
IMPORTANT: This warranty does not cover damages resulting from use not in conformity with
the printed directions, accident, misuse or abuse, alternation, the axing of any attachments
not provided with the product, loss of parts, or subjecting the appliance to any but the specied
voltage. (Read directions carefully.) This warranty is void if the product is used for other than
single-family household use or subjected to any voltage and waveform other than as specied
on the rating label (e.g., 120V ~ 60 Hz).
Englewood Marketing LLC excludes all claims for special, incidental, and consequential
damages caused by breach of express or implied warranty. All liability is limited to the amount
of the purchase price. Every implied warranty, including any statutory warranty or condition of
merchantability or tness for a particular purpose, is disclaimed except to the extent prohibited
by law, in which case such warranty or condition is limited to the duration of this written
warranty. This warranty gives you specic legal rights. You may have other legal rights that
vary depending on where you live. Some states or provinces do not allow limitations on implied
warranties or special, incidental, or consequential damages, so the foregoing limitations may
not apply to you.
To make a warranty claim or if service is required, please call our CUSTOMER SERVICE
NUMBER.
For faster service, please have the model, type, and series numbers ready for the operator to
assist you.
Customer Service Number
Englewood Marketing LLC
In the US 844-918-0509
Email: [email protected]
38
