USER MAN
READ AND SAVE THESE INSTRUCTIONS
UAL
HSE200
HARMONY 200
HEPA Air Purifier
NOTE:
Remove plastic bag from
filter before use
1. Basic Information 4
2. Safety Instructions 5-6
3. Product Diagram 7
4. 3-in-1 Filtration System 8
5. Buttons and Indicators
9
5.1. Control panel
6. Air Purifier Maintenance 10-11
6.1. Cleaning the unit
6.2. Replacing the filter
7. Troubleshooting 12
8. Warranty 13
Contents
READ AND SAVE THESE INSTRUCTIONS
1. Basic Information
Use unit according to instructions provided in the manual. Keep this manual for
future reference.
This appliance can be used by children aged 8 years and above and individuals
with reduced physical, sensory, mental capabilities, or lack of experience if they’ve
been given supervision or instruction concerning the use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be done by children without
supervision.
Model HSE200
Adapter Input
Adapter Output
100-240V~50/60Hz
12VDC,1.0A
Rating
CADR 22.8 CFM
Noise Level 27dB-47 dB
Dimensions
160*160*235mm
6.3*6.3*9.3inch
Net Weight 1.053 KG
4
12V 10W
5
2. Safety Instructions
This appliance is a desktop air purifier. To reduce the risk of fire, electric shock,
or serious injury, basic safety precautions should always be followed when using
electrical appliances. Please read and follow all the safety instructions before
using and only use this air purifier as described in this manual.
This appliance has a polarized plug, which means that one blade is wider than
the other. To reduce the risk of electric shock, this plug is intended to fit in a
polarized outlet only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician. Do not attempt to
bypass this safety feature.
WARNING:
WARNING:
• Do not use the air purifier in
To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan
With Any Solid-State Speed Control Device.
To reduce the risk of fire, electric shock or injury to persons, do not
use replacement parts that have not been recommended by the
manufacturer (e.g. parts made at home using a 3D printer).
wet or humid environments, or outdoors. This
appliance is designed for indoor use only.
• Do not put the air purifier on an uneven floor such as a bed or sofa. Always
make sure to place the air purifier on a flat surface before operating. Leave
more than 20 cm distance between the air purifier and the wall.
• Do not place the air purifier near sources of heat, such as stove tops,
ovens, or radiators.
• Do not handle the unit with wet hands. Thoroughly dry your hands before
handling any part of the air purifier.
• Do not use without removing the plastic wrap from the air purifier and
filters.
• Do not attempt to use other filters with this appliance. Only use Hathaspace
air replacement filters for this unit.
• Do not block the air inlet, outlet.
• Do not insert fingers or objects into the air outlet.
2. Safety Instructions
6
• Do not immerse the air purifier in liquids or clean the appliance with any
liquid to avoid electric shock and/or electrical fires.
• Do not run the power cord under carpeting, rugs, furniture, or appliances.
Place the power cord away from high-traffic areas.
• Do not operate the unit if the power cord or plug is damaged. Doing so may
result in injury or damage to the unit.
• Do not repair the air purifier by yourself if it does not work; it will void
your warranty. If your appliance is no longer working, damaged, or not
functioning properly, discontinue use, unplug immediately and contact
customer support.
• Do unplug the appliance from the power supply before servicing.
• Do inspect the unit frequently. Dirt that has been collected should be
removed regularly to prevent excessive accumulation that may result in
flashover or fire.
Control Panel
HSE200 Air Purifier
FRONT
REAR
Air Outlet
Air Inlet
Power Cord
7
3. Product Diagram
8
4. 3-in-1 Filtration System
3-in-1 Air Filtration Sytem
1. 2. 3.
Your new Hathaspace Air Purifier uses advanced technology to clean the air in
your room.
Uses 3 advanced technologies to keep your air clean, capturing airborne
particles:
1. Pre-filter
Preliminary Polypropylene Pre-filter removes large particles like pet hair,
dust, and floating debris. This helps extend the life of the composite filter.
3. Activated carbon filter
Activated carbon absorbs smoke, odors. and gases in the air.
2. H13 HEPA filter
This high-efficiency HEPA filter can capture small micron particles. These
smaller particles make up the majority of air pollutants like tobacco smoke
and lead dust.
5. Buttons and Indicators
9
No. Icon Function
1
Power on/off
2
Fan speed buttons: Levels 1, 2, 3
Filter reset button
After the unit has been use for 2000 hours,the unit will
remind the user to replace the filter when it is powered on
each time.Three indicators of fan speed flash simultaneously.
long press 3 seconds to enter the filter reset.
1
2
5.1 Control Panel
1 2
3
10
6. Air Purifier Maintenance
6.1 Cleaning the Unit
6.2 Replacing the filter
• Please turn off the power and unplug it before cleaning the air purifier.
• To remove dust, lightly wipe the unit with a soft, clean cloth. If needed, wipe
the unit with a clean damp cloth, then immediately dry it with a clean dry
cloth. Don’t use alcohol, oil, or benzene to clean the unit
• Do not immerse the unit in water
Note: The HEPA filter, PP pre-filter, and the activated carbon filter cannot be
reused, cleaned, or replaced after being used. Please don’t wash them with
water.
To maintain the air purifier’s performance, we suggest replacing the filters
every 3-4 months or 2000 hours.
1) Unplug the air purifier from the electrical outlet.
11
6. Air Purifier Maintenance

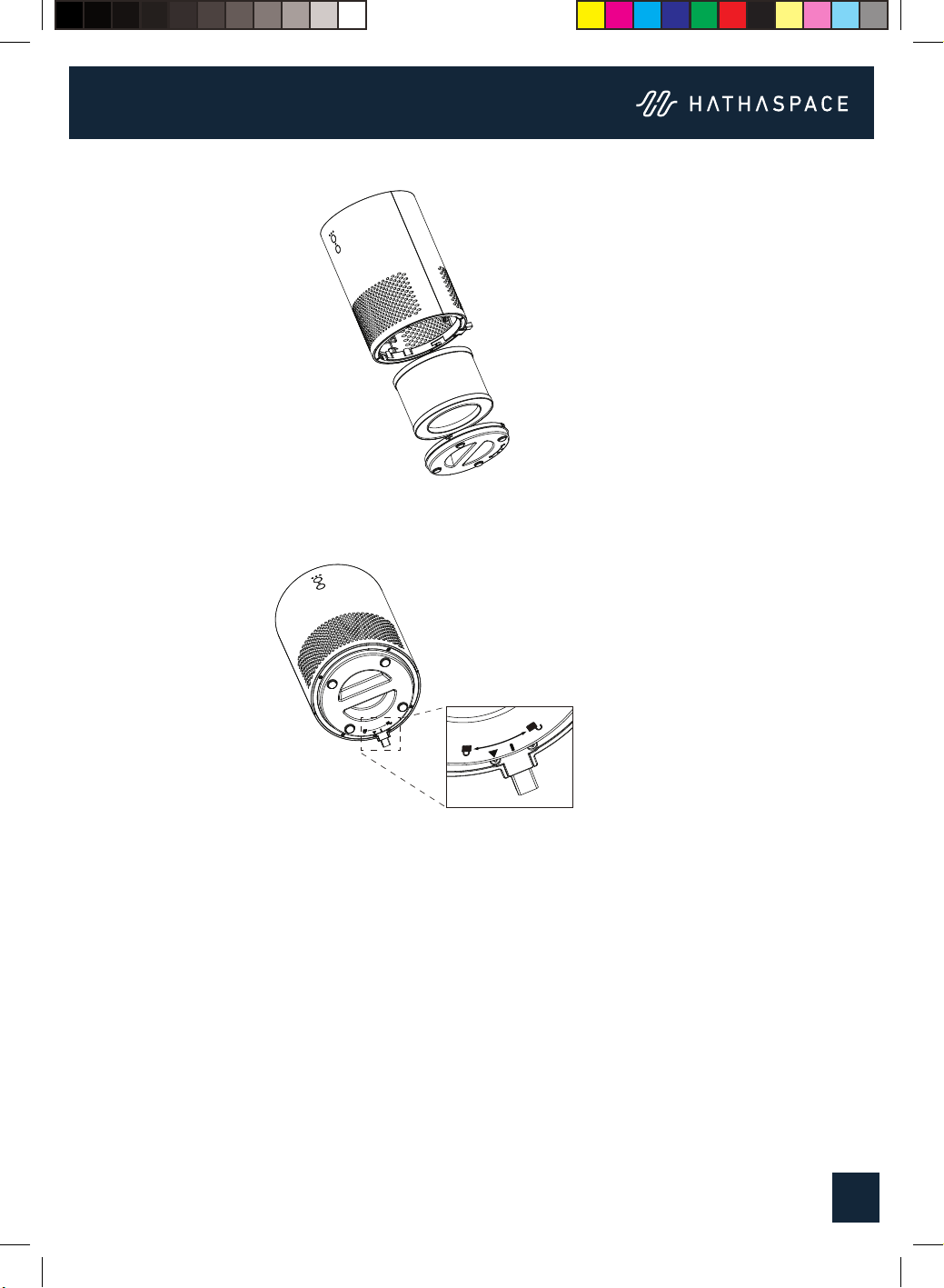

2) Twist the bottom panel counterclockwise to remove the panel.
3) Remove the old filter and dispose of it properly. The filter is not recyclable.
4) Remove the new filter packaging and insert it into the air filter.
5) Turn it clockwise to tighten the bottom panel.
6) Place the air filter on the table again and plug it back into the electrical
outlet. The air purifier will automatically clean the air again.
Note:
• The actual replacement frequency depends on use and air quality. If it is on
day and night or your surrounding air is highly polluted, it will need to be
replaced sooner.
• Please remember to press the “Fan Speed “ button for 3 seconds to reset
the air purifier, otherwise, the filter light will keep blinking.
Troubleshooting
12
Problem Reasons Possible Solution
Air purifier cannot be turned
on or respond to button
controls.
A. No electricity.
B. Power cord is damaged.
C. The outlet is damaged.
D. The air purifier malfunctioned.
A. Check that the unit is properly
plugged into an electrical outlet.
B. Contact Customer Service.
C. Plug into a different outlet.
D. Contact Customer Service.
Airflow is significantly reduced. A. The airflow is blocked by packaging.
B. A low speed is being used.
C. There is not enough clearance for
the air inflow.
D. The Pre-filter may be clogged by
large particles.
E. Filters are installed incorrectly.
A. Remove the packaging.
B. Increase the fan speed.
C. Leave 20cm clearance on all
sides of the air purifier.
D. Clean the Pre-filter or replace
the filter.
E. Make sure the filters are
installed correctly.
Air purifier makes an unusual
noise while the fan is on.
A. The airflow is blocked by packaging.
B. The air purifier is on an inclined
place making the fan blades rub
with the air purifier’s lining.
C. The air purifier may be damaged or
a foreign object may be inside.
A. Remove the packaging.
B. Put the air purifier on even
places.
C. Contact Customer Service.
Strange smell comes from
the purifier.
A. The airflow is blocked by packaging.
B. The air purifier is on an inclined
place making the fan blades rub
with the air purifier’s lining.
C. The air purifier may be damaged or
a foreign object may be inside.
A. Remove the packaging.
B. Put the air purifier on even
places.
C. Contact Customer Service.
Poor air purification quality. A. A low speed is used.
B. The airflow is blocked by packaging.
C. The air outlet is blocked.
D. Filt
ers installed incorrectly.
E. Is being used in open places.
F. The applied area is larger than the
effective range.
G. The quality of the air in the room is
very poor.
H. The room layout is not good.
A. Increase the fan speed.
B. Remove the packaging.
C. Remove any matter that is
blocking the air outlet.
D. Make sure the filters are
installed correctly.
E. Close doors and windows while
using the air purifier.
F. Consider a larger air purifier.
G. Open the window to circulate
new air.
H. Buy more air purifiers or
change the layout if possible.
The filter light is still on after
replacing the filter.
A. Forgot to reset the air purifier. A. Press the “Fan Speed” button
for 3 seconds.
The filter light is on before
6 months.
A. The appliance is run frequently or
the air is highly polluted.
A. Replace the filters.
Hathaspace guarantees all products to be of the highest quality in material,
craftsmanship, and service, effective from the date of purchase.
Hathaspace will replace any product found to be defective due to manufacturer flaws
based on eligibility.
Hathaspace is not responsible in any way for any damages, losses, or inconveniences
caused by equipment failure or by user negligence, abuse, or non-compliant use
according to the user manual or any additional safety, use, or warnings included in the
product packaging and manual.
This warranty does not apply to the following:
• Damage due to abuse, accident, alteration, misuse, tampering, or vandalism
• Improper or inadequate maintenance
• Damage in return transit
Please see warranty details at https://www.hathaspace.com
8. Limited Warranty
9. Customer Support
Hathaspace cherishes your experience. If you have any questions or concerns about your
air purifier, please feel free to contact our customer support team.
Email: [email protected]om
Website: https://hathaspace.com
13
www.hathaspace.com
Hathaspace
HARMONY 200
HEPA AIR PURIFIER
HSE200
Manufactured for Hathaspace EPA Est. No. 87627-CHN-1
© Hathaspace. All rights reserved.
