Multifunction Steam Mop 1300W/230V
Model No. DH265
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used according to these instructions, and properly
maintained, give you years of trouble free performance.
www.dellonda.co.uk
DH265 Issue:1 24/04/2025
2
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings & cautions. Use the product correctly and with
care for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep
these instructions safe for future use.
Specication
• Model No: DH265
• Fuse Rating: 7A
• Maximum Operating Temperature: 100°C
• Maximum Working Pressure: 2bar(29psi)
• Weight: 3.46kg
• Plug Type: 3-Pin BS
• Power Supply Cable Length: 4.7m
• Power: 1300W
• Supply: 230V
• Tank Capacity: 360ml
• Warm Up Time: 20s
Safety Instructions
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using.
• Inspect power supply leads, plugs and all electrical connections for wear and damage.
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
• DO NOT use worn or damaged cables, plugs or connectors.
• Ensure that any faulty item is repaired or replaced immediately by a Sealey qualied technician.
• If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
• Sealey recommend that an RCD (Residual Current Device) is used with all electrical products.
• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the correct fuse.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT pull the plug from the socket by the cable.
• CAUTION - To reduce the risk of re, electric shock, or injury:
• To provide continued protection against risk of electric shock, connect to properly grounded outlets only.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• The liquid or steam must not be directed towards equipment containing electrical components, such as the interior of ovens.
• Children shall NOT play with the appliance.
• Cleaning and user maintenance on the appliance shall not be made by children without supervision.
• The appliance must be unplugged after use and before carrying out user maintenance.
• The appliance shall not be left unattended while it is connected to the supply mains.
• The appliance is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
• Keep the appliance out of reach of children when it is energized or cooling down.
• This product is designed for domestic use only.
• DO NOT use outdoors.
• DO NOT leave the Mop unattended while switched on.
• Turn off the switch and unplug the electrical cord when not in use and before servicing.
• DO NOT allow to be used as a toy. Close attention is necessary when used near children, pets or plants.
• Never direct steam towards people, animals, plants, or equipment containing electrical components, such as interior ovens.
• DO NOT immerse the Folding Mop into water or other liquids.
• DO NOT use with damaged cord or plug. If the Mop is not working as it should, has been dropped, damaged, left outdoors, or immersed into
water, return it Sealey before continuing use.
• If the supply cord is damaged, it must be replaced by the manufacturer or a similarly qualied person to avoid a hazard.
• DO NOT pull or carry by cord, use cord as a handle, close a door on the cord, or pull cord around sharp edges or corners. Keep cord away from
heated surfaces.
• DO NOT use extension cords or outlets with inadequate current carrying capacity.
• Unplug the appliance after use and before carrying out user maintenance on the appliance.
• DO NOT handle plug or Mop with wet hands or operate without shoes.
• DO NOT insert any objects into openings. DO NOT use with any opening blocked.
• DO NOT use without oor cloth in place. DO NOT use without water in the water tank.
• When using on stairs use extra caution.
• Store your Mop indoors in a cool, dry area.
• Keep your work area well lit.
• Never put any cleaning detergents into the Mop. This will make the operation unsafe and damage the unit.
• Never block the steam openings of the product or place it on a soft surface, where the steam openings may be blocked. Keep the steam openings
free of lint, hair, and the like.
• Use only as described in this manual. Use only manufacturer’s recommended accessories.
• DO NOT use in swimming pools containing water.
Refer to
instructions
Warning!
Steam
3
Features
1
3
14
4
5
15
7
8
9
10
11
12
13
6
2
16
17
18
1: Steam switch
2: Steam regulator
3: Power switch
4: Aluminium tube button/extension
nozzle release button
5: Upper cord wrap
6: Aluminium tube 1
7: Lower cord wrap
8: Aluminium tube 2
9: Mop head
10: Detergent tank cover
11: Detergent release button
12: Lock button (slide to release)
13: Lock button (slide to release)
14: Main body
15: Power cord
16: Wall holder (screw to a wall in storage location)
17: Water tank
18: Lock button of water tank
Continues on next page:
Body only conguration
4
19
21
20

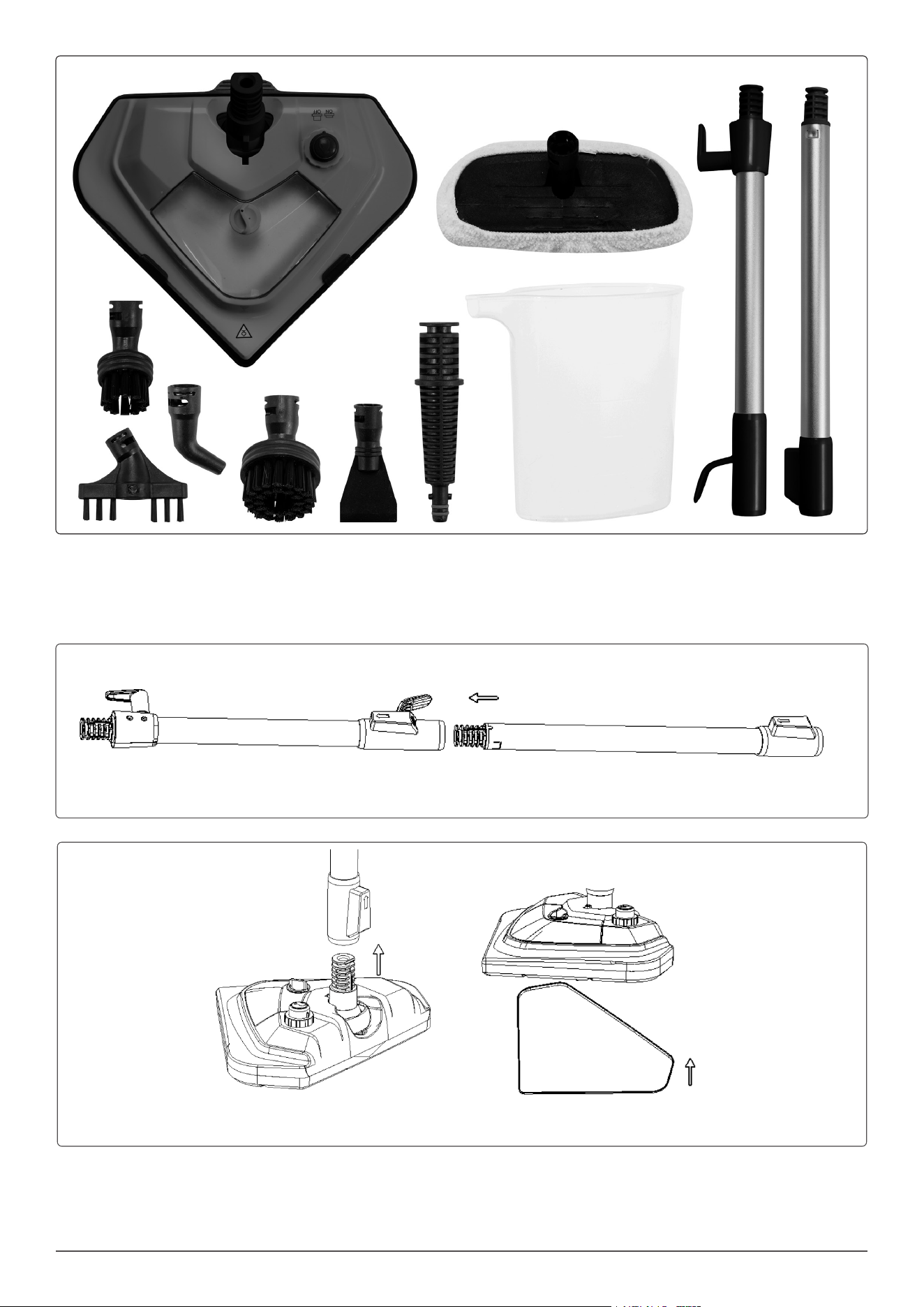

Accessories:
Large Round Brush, Small Round brush, Crevice Brush, Scraper Nozzle, Angle Nozzle, Small Window & Fabric Brush, Extension Nozzle, Microbre
Mop Pad, Small Microbre Pad, Carpet Glider, Measuring Cup, Wall Holder (not shown)
Assembly: Steam Mop
• Step 1: Insert aluminium tube 2 into the aluminium tube 1.
• Step 2: Mop head
• Insert the mop head into the aluminium tube, attach the cloth pad to the bottom of mop head. Use carpet glider as required.
22
19: Measuring cup
20: Cloth pad (tted underneath)
21: Carpet glider (tted to mop head)
22. Extension nozzle
21
5

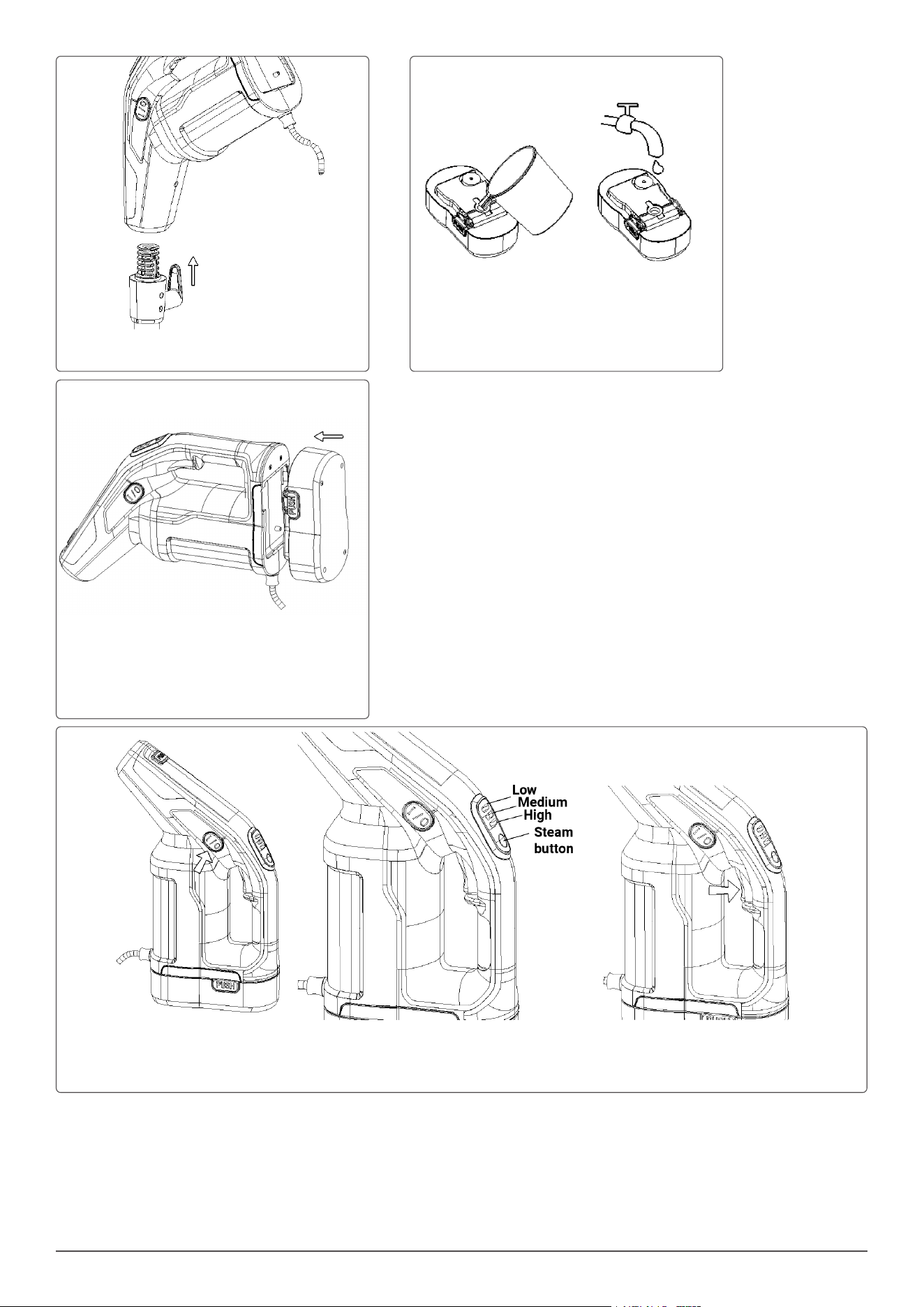

• Step 3: Assemble main body
• Connect main body to mop head and aluminium tube.
• Step 5: Attach water tank
• Attach the water tank (lled with water) to the main
body.
• The buttons on both of sides MUST lock on to the
main body.
• Step 4: Fill water tank:
• Open soft bung on top of tank
• Step 6: Use the mop
• Plug into mains supply, turn on the power switch, after approximately 20 seconds, the steam regulating light will change from red to blue, then
scroll through steam levels (low/med/high), nally pull on the steam switch (1) to deliver steam.
• Step 7: Body only conguration: Refer to inset illustration in Features section. Use accessories tted to the extension nozzle (22).
• Accessories t onto the extension nozzle with a push twist motion.
• Attach extension nozzle (22) to the main body by pushing together until the button (4) clicks.
6
Dellonda
Sealey Group, Kempson Way, Suolk Business Park, Bury St Edmunds, IP32 7AR
www.dellonda.co.uk
Environment Protection, Waste Electrical and Waste Electronic Equipment Regulations
(WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of its useful life, please dispose
of in an environmentally friendly way. Drain any uids (if applicable) into approved containers, in accordance with local waste regulations.
It is our policy to continually improve products and we reserve the right to alter data, specications and parts without prior notice. No
liability is accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
Maintenance
• WARNING! Remove from mains supply before performing Maintenance.
• Drain the remaining water in the tank after use.
• Take of the used cloth pad and wash it, and dry it in an airy place
• Put the power cord on the cord wrap, x the main body on the wall holder.
