OWNER’S MANUAL
FRONT LOADING
Read This Manual
Use all instructions and explanations of
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
application is sold or passed on then ensure
that the new owner always receives those
operation instructions.
CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !
MODEL
TWD-BH90W4M
WASHER DRYER
1
CONTENTS
SAFETY INSTRUCTIONS
INSTALLATION
OPERATIONS
MAINTENANCES
Safety Instructions ..................................................

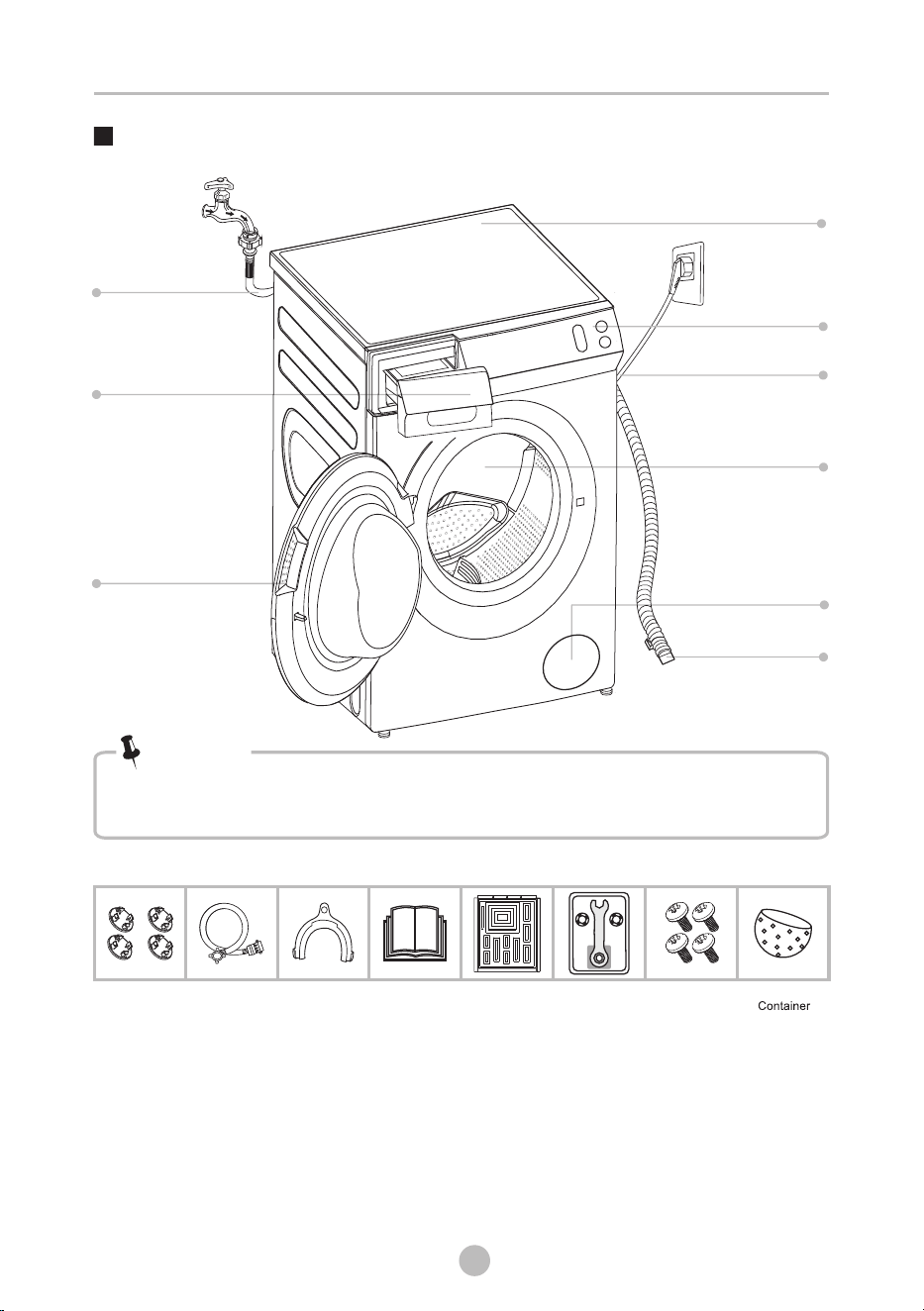

Product Description ................................................
Installation ...........................................................
Quick Start .............................................................
Before Each Washing ..............................................

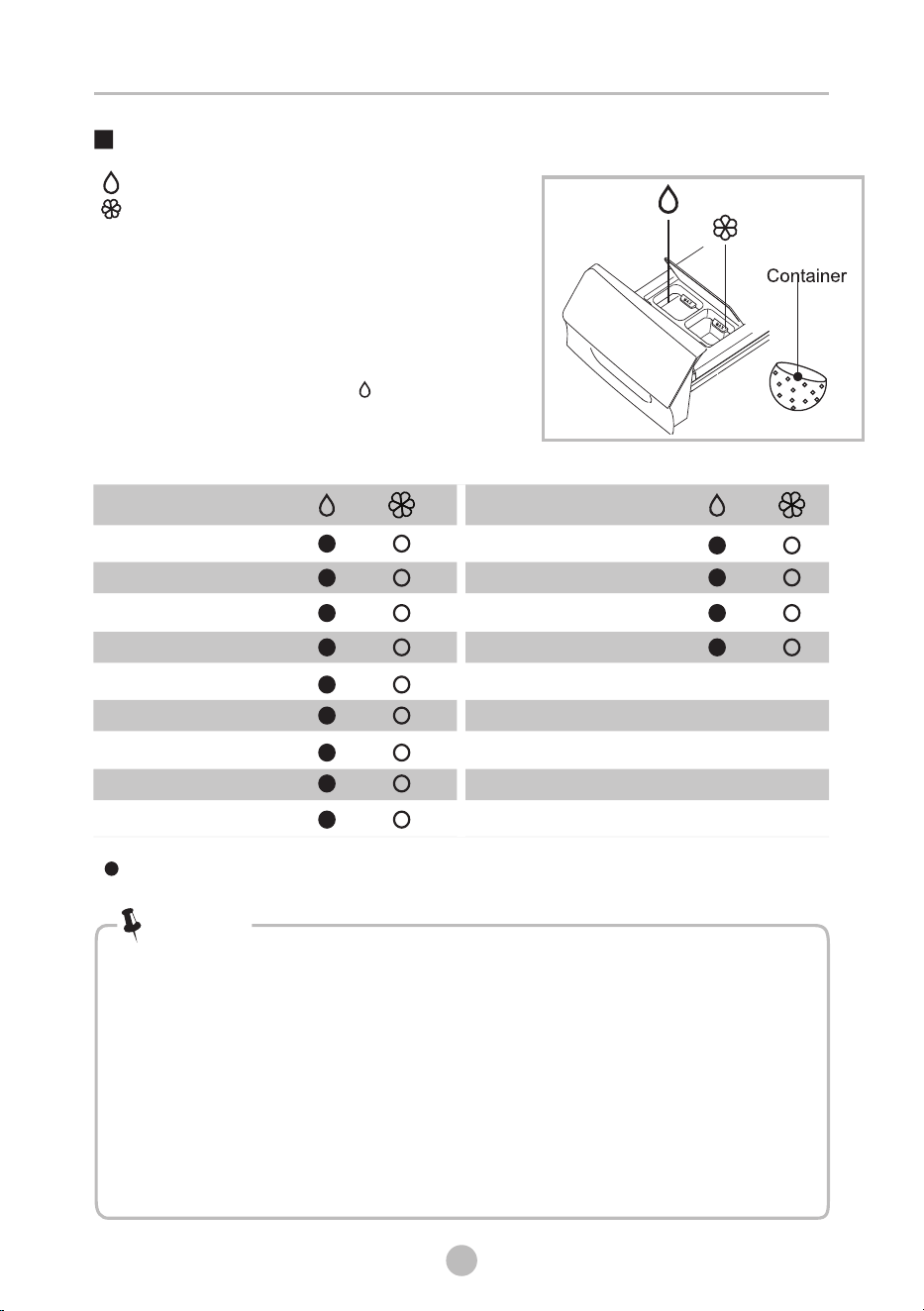

Detergent Dispenser ...............................................
Control Panel .........................................................
Option....................................................................
Other Functions ......................................................
Programmes...........................................................
Washing Programmes Table .....................................
Cleaning And Care .................................................
Trouble Shooting ....................................................
Technical Specifications .........................................
2
10
11
15
17
18
19
20
23
24
25
26
29
30
2
SAFETY INSTRUCTIONS
Safety Instructions
• This appliance is not intended for use by
persons(includingchildren) with reduced
physical,sensory or mental capabilities or lack of
experience and knowledge unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do
not play with the appliance.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• The new hose-sets supplied with the appliance are to
be used and that old hose-sets should not be reused.
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household
and similar applications such as:
− staff kitchen areas in shops, offices and other
working environments;
− farm houses;
− by clients in hotels, motels and other residential type
environments;
− bed and breakfast type environments;
− areas for communal use in blocks of flats or in
launderettes.
• The maximum permissible inlet water pressure, 1 MPa,
for appliances intended to be connected to the water mains.
The minimum permissible inlet water pressure,0.05 MPa, if
this is necessary for the correct operation of the appliance.
3
SAFETY INSTRUCTIONS
Safety Instructions
For your safety,the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• If the supply cord is damaged, it must be replaced by the
The electric shock!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Warning!
！
a potentially dangerous situation which may result in
slight or minor injuries.
This combination of symbol and signal word indicates
Note!
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
This combination of symbol and signal word indicates
Caution!
Warning!
！
！
4
• The new hose-sets supplied with the appliance must
be used and the old hose-sets must not be used.
• Before maintenance, unplug the appliance.
• Always unplug the machine and turn off the water
supply after use. The standard inlet water pressure:
0.05MPa~1MPa.
• This appliance must be grounded. In the event of
malfunction or breakdown , grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current.
• This appliance is equipped with a cord having an
equipment-grounding conductor and grounding plug.
The plug must be plugged into an appropriate outlet that
is properly installed and grounded in accordance with all
local codes and ordinances.
SAFETY INSTRUCTIONS
• Improper connection for the appliance when using
not grounded outlet or when GND terminal of outlet
is not suitable with GND terminal of power plug, can
result in risk of electric shock.. Check with a qualified
electrician or service person if you are in doubt as to
whether the appliance is properly grounded.
• Do not modify the plug provided with the appliance. If it
does not fit the outlet , have a proper outlet installed
by a qualified electrician.
• Make sure that the water and electrical devices must
be connected by a qualified technician in accordance
with the manufacturer's instructions and local safety
regulations.
5
SAFETY INSTRUCTIONS
Risk to children !
• The appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
• Children of less than 3years should be supervised to
ensure that they do not play with appliance.
• Animals and children may climb into the machine. Check
the machine before every operation.
• Children should be supervised that they do not play with
the appliance.
Risk to children !
•
•
•
Pull out its plug from the power socket before cleaning or
maintenance.
Do not use any socket with rated current less than that of
appliance. Never pull out power plug with wet hand.
Please remember to disconnect water and power supply
immediately after the clothes are washed.
• Glass door may be very hot during the operation. Keep
children and pets far away from the machine during the
operation .
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• Plug must be accessible after installation.
Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or spotted with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
• The washer dryer is not to be used if industrial chemicals
have been used for cleaning.
• The exhaust air must not be discharged into a flue which
is for exhausting fumes from appliances burning gas or
other fuels.
Rinse the articles thoroughly by hand before putting them
in the appliance.
The appliance must not be installed behind a lockable
door, a sliding door or a door with a hinge on the opposite
side to that of the washer dryer.
The appliance shall not be installed at a humid place.
The household appliance isn't intended to be built-in.
• The appliance is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• The appliance shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or explosive and corrosive gases.
• The appliance with single inlet valve only can be
connected to the cold water supply.
• Plug must be accessible after installation.
•
•
•
Installing the product!
SAFETY INSTRUCTIONS
Caution!
6
！
7
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
Risk of damaging appliance!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by
a specialized person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.
5.That the hands shall not be inserted into running
water extracting tub.
• Please do not close the door with excessive forces. If it
is found difficult to close the door, please check if the
clothes are put in or distributed well.
• It is forbidden to wash carpets.
Operating the appliance!
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.The suggested program is
“DRUM CLEAN”.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for front load washing machine.
SAFETY INSTRUCTIONS
8
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin,brooch,nail,screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door.Please do not open
the door if there is any water visible.
• Be careful of burning when the product drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.
• If it is unavoidable that fabrics that contain vegetable or
cooking oil or have been contaminated by hair care
products. it be placed in a tumble dryer they should first
be washed in hot water with extra detergent , this will
reduce, but not eliminate, the hazard.
• Adequate ventilation has to be provided to avoid the back
flow of gases into the room from appliances burning other
fuels, including open fires.
• Do not dry unwashed items in the appliance.
Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
be washed in hot with an extra amount of detergent
before being dried in the appliance.
• Items such as foam rubber (latex foam), shower caps, water
proof textiles, rubber backed articles and clothes or pillows
fitted with foam rubber pads should not be dried in the
machine.
SAFETY INSTRUCTIONS
9
SAFETY INSTRUCTIONS
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of
material resources To return your used device, please use
the collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.
.
.
Packaging/Old appliance
•
•
•
•
•
Fabric softeners, or similar products, should be used
as specified by the fabric softener instructions.
The machine whose lid can be opened during water
extraction , that it takes 15s or more for complete
stop of water extracting chamber tub.
The final part of a washer dryer cycle occurs
without heat (cool down cycle) to ensure that the
items are left at a temperature that ensures that
the items will not be damaged.
Remove all objects from pockets such as lighters
and matches before use the appliance.
WARNING: Never stop a washer dryer before the
end of the drying cycle unless all items are quickly
removed and spread out so that the heat is
dissipated.
Accessories
Product Description
• The product line chart is for reference only, please refer to real product as
standard.
Note!
10
INSTALLATION
Drum
Power supply cord
Control panel
Detergent dispenser
Drain pump filter
Door
Water supply hose
Top cover
Drain hose
Transport
plughole
Supply hose
cold water
Drain hose
(
support
optional)
Owner’s manual
Screw(optional)
Rat resistance
panel(optional)
Spanner assembly
(optional)
11
INSTALLATION

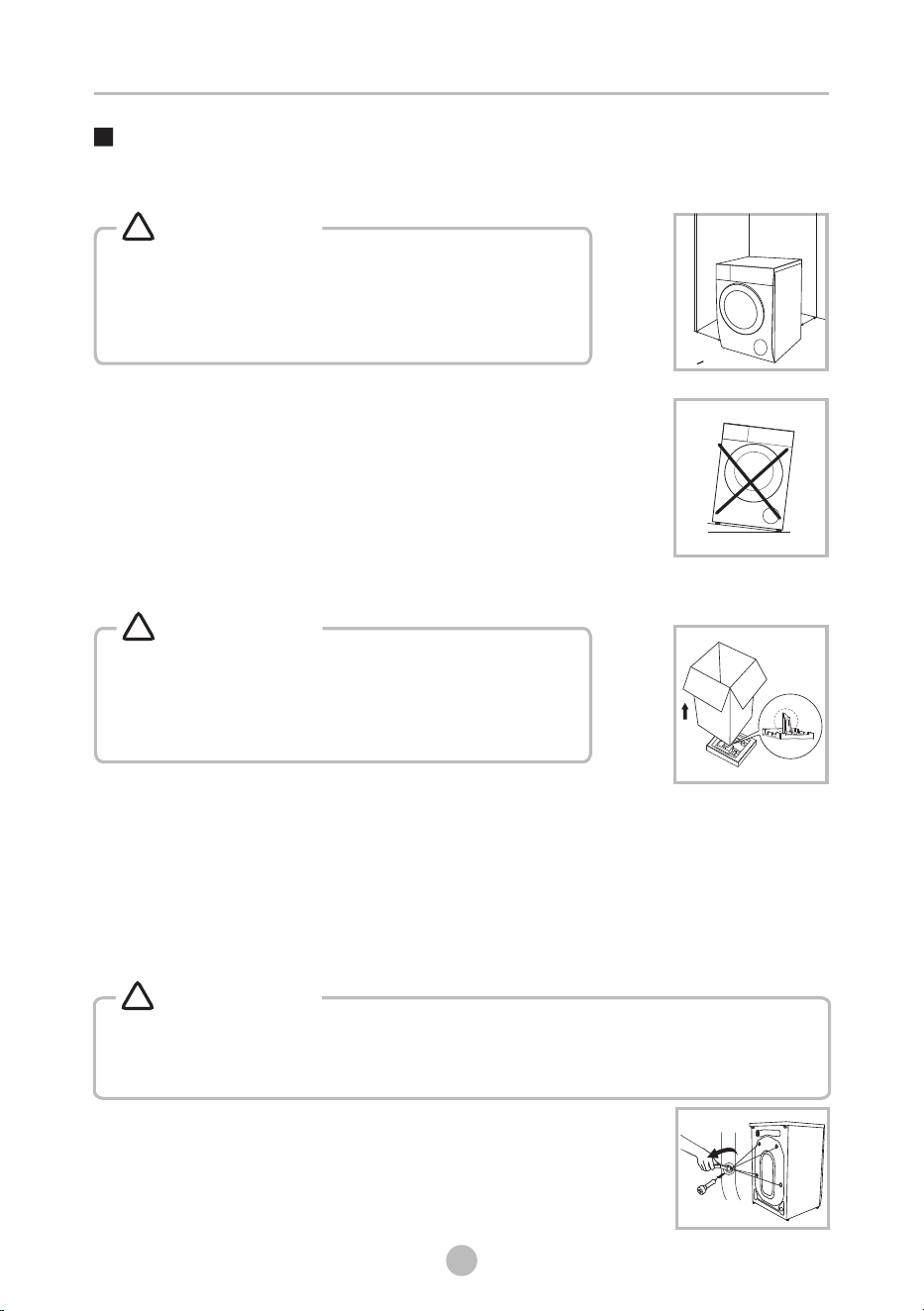

Installation
Before installing the machine, the location characterized
as follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0 C
5.Keep far away from the heat resources such as coal or gas.
°
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Please take the following steps to remove the bolts:
1.Loosen 4 bolts with spanner and then remove them.
2.Cover the hole with transport hole plugs.
3.Keep the transport bolts properly for future use.
Remove transport bolts
• Stability is important to prevent the product from
wandering!
• Make sure that the product should not stand on
the power cord.
Warning!
！
• Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
• There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
• You must remove the transport bolts from the backside before using the product.
• You’ll need the transport bolts again if you move the product , so make sure
you keep them in a safe place.
Warning!
！
w
w
W 20mm>
Installation area
9
12
INSTALLATION

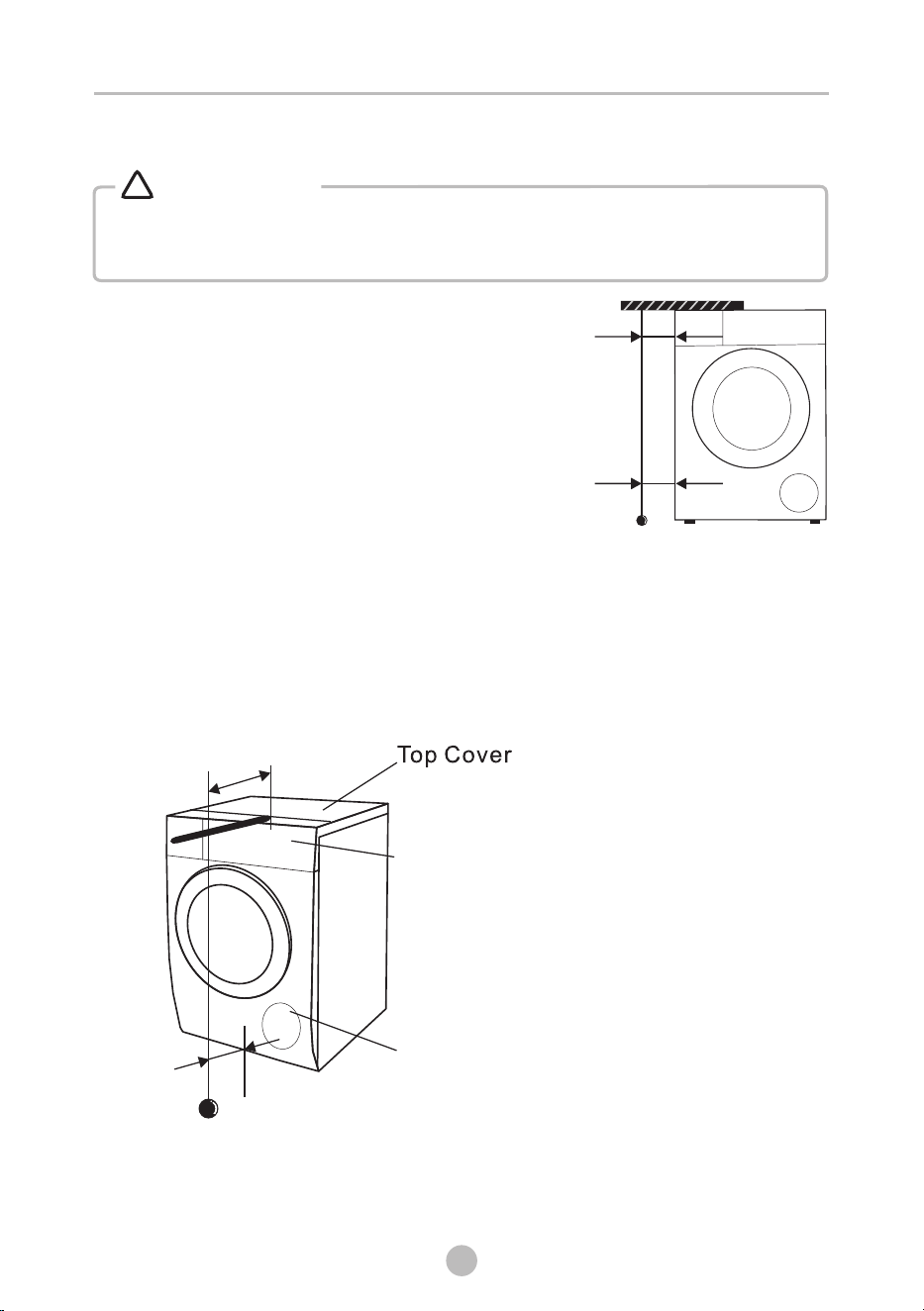

Levelling the washing machine
• Check with the gradienter if the machine placement is balanced and steady.
• If there is no gradienter, check the balance as per the following method.
Warning!
！
b
a
d
Front Cover
Control Panel
1.If it’s balanced from left to right
• Take a long stick, and tie a rope at the end of it.
Bind a heavy object at the end of the rope.
• Hang the rope from the top cover of the
machine. Adjust the legs till the difference
between ‘a’ and ‘b’ is less than 1cm.
2.If it’s balanced from front to back
• Put the stick at the middle of the control panel, and hang the rope in front of the
machine.
• Keep 13cm away from the rope end to the control panel edge( c ). Adjust the legs
till ‘d’ is 5.5-6.5cm (‘d’ is the distance from rope to bottom of front cover).
c
9
13
INSTALLATION

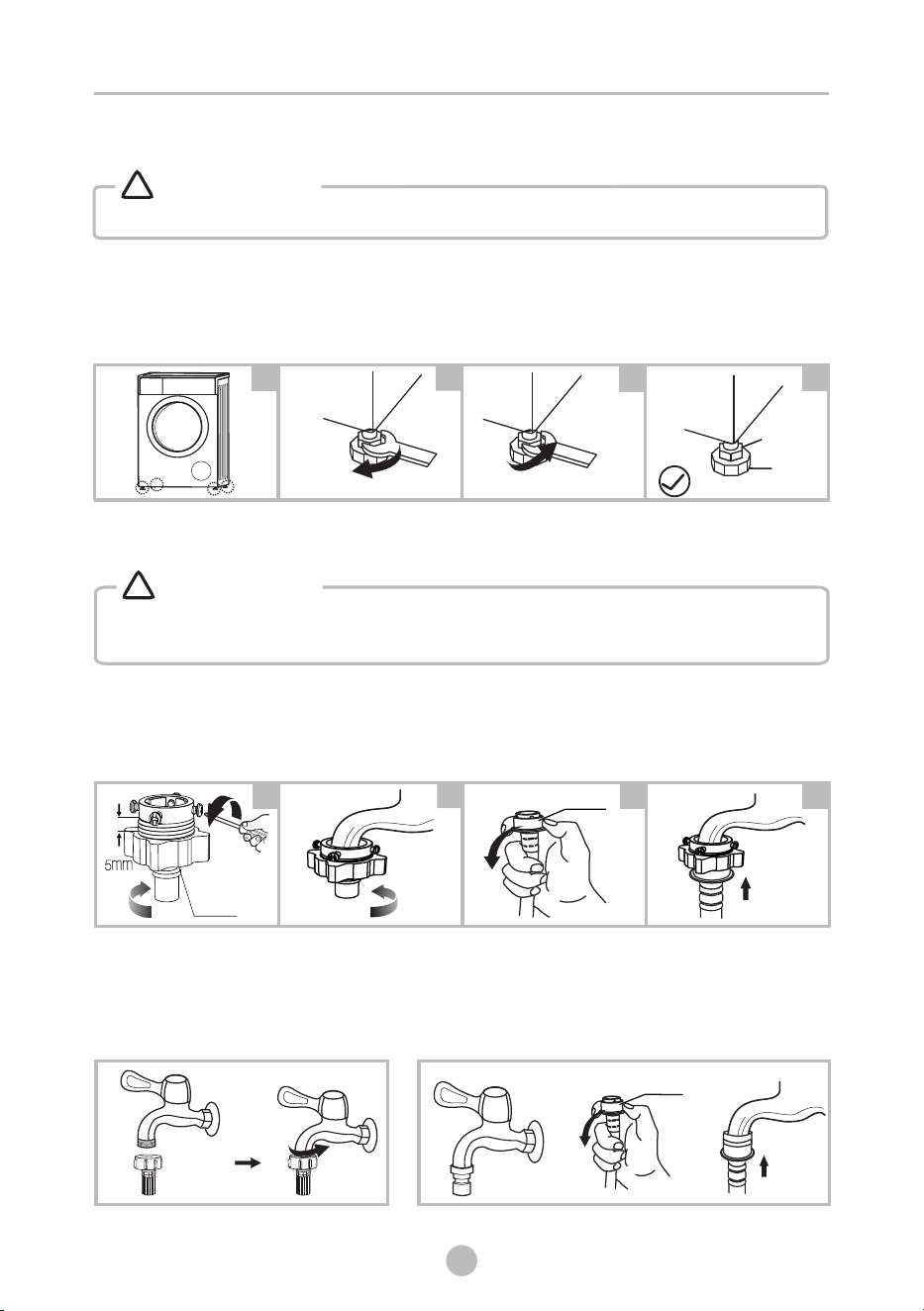

1.Check if the legs are closely attached to the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Loosen the lock nut turn the feet until it closely contacts with the floor.
3.Adjust the legs and lock them with a spanner, make sure the machine is steady.
Levelling the washing machine
• The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply Hose
Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
1.Connection between ordinary tap and inlet hose.
• To prevent leakage or water damage, follow the instructions in this chapter
• Do not kink, crush, modify or sever water inlet hose.
!
2
3
4
1
Raise
Lower
Lock nut
foot
Warning!
！
Warning!
！
Loosen clamp nut and
four bolts
Press the tap end
tightly to the rubber
ring inside the clamp,
and then, tighten the
4 bolts
Press slide bushing,
insert inlet hose into
connecting base
slide bushing
2
3
41
Connection finished
clamp nut
Tap with threads and inlet hose
Special tap for washing machine
2.Connection between screw tap and inlet hose.
slide bushing
10
14
INSTALLATION
Warning!
！

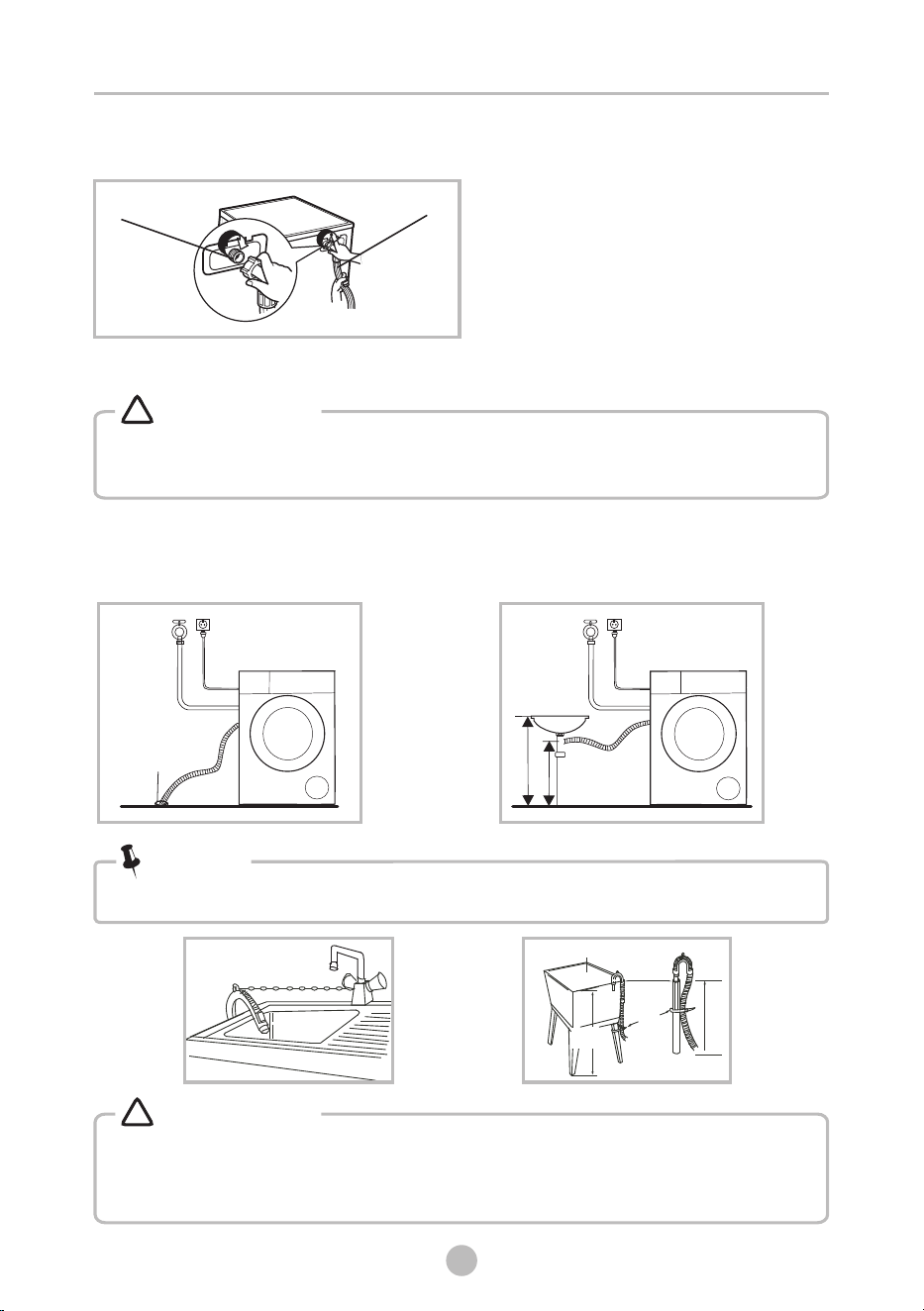

Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the drain port. 2.Connect it to the branch drain pipe of
the trough.
•
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
When installing drain hose, fix it properly with a rope.
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
Drain port
Min.60cm
100cm
Max
.
Trough
Hose Retainer
Bind
Max.100cm
Min.60cm
Min.60cm
Max.100cm
If the machine has
• drain hose support, please install it like the following .
Warning!
！
Warning!
！
Note!
water supply hose
water Inlet valve
Connect the other end of inlet pipe to the inlet valve at the backside of product
and fasten the pipe tightly clockwise.
• Before washing, please make sure it’s installed properly.
• Before washing at first time, the washing machine shall be operated in one
round of the whole procedures without clothes in as follows.The suggested
program is “DRUM CLEAN”.
1. Before Washing
Buzzer beep or “END” on display.
Open tap
Load
Close door
Plug in
Add detergent
Quick Start
3. After Washing
1 2 3 4
2. Washing
Power On
Select Programme
Start up
1 2 3 4
Caution!
OPERATIONS
10
15
Select function or
default(see next page
for details)
5
Add detergent or softener when the display shows note like this “Detergent
and Softener have run out, please add!”
•
Note!
•
When the machine is working, you can slide the sense bar to lighten the screen
and lamp.
If default is selected, step 3 can be skipped.
•
Note!
DETERGENT SOFTENER
！
OPERATIONS
Select function or default
• TEMP./ SPIN/ RINSE/SENSEDOSE
Press the button (TEMP./ SPIN/ RINSE/SENSEDOSE) to adjust the parameter.

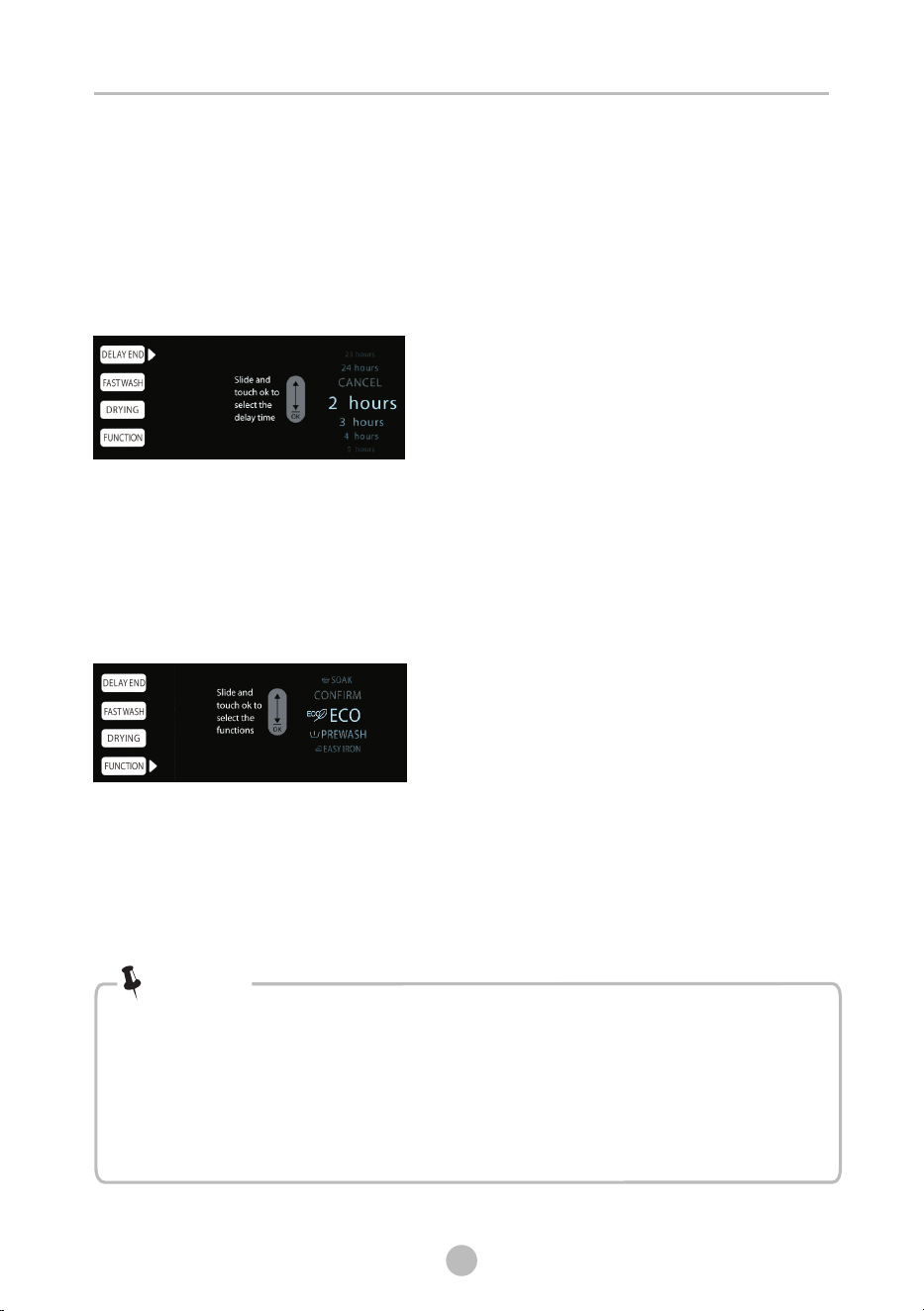

• DELAY END/ FAST WASH/ DRYING
Step1: Press the button( DELAY END/ FAST WASH/
DRYING)
Step2: Slide and touch OK to select different level as
you need. After selecting, the display will highlight
corresponding icons.
Step3:To cancel a selected function-Slide to CANCEL
and touch OK.
Step1: Press the button (FUNCTION)
Step2: Slide and touch OK to select a function. This step can be repeated to select several
functions. The selected functions will be highlighted.
Step3: To cancel a selected function - Slide to a selected function and touch OK till it’s not
highlighted.
Step4: After selecting, slide to CONFIRM and touch OK, the display will show corresponding
icons.
• If you press the same button (DELAY END/ FAST WASH/ DRYING/ FUNCTION) twice,
the display will switch to the program interface. During selecting, if you press other
button (DELAY END/ FAST WASH/ DRYING/ FUNCTION), the display will switch to
other corresponding selection interface.
Note!
10
16
Options:
DELAY END (single choice):CANCEL, 1hour, 2hours, 3hours, 4hours, 5hours…24hours.
FAST WASH (single choice):CANCEL, FAST, FASTER, FASTEST.
DRYING (single choice):CANCEL, LESS, STANDARD, EXTRA.
• The time you select in DELAY END must be more than the time of the current
program and the display will show the time that you can select.
Available functions:
•

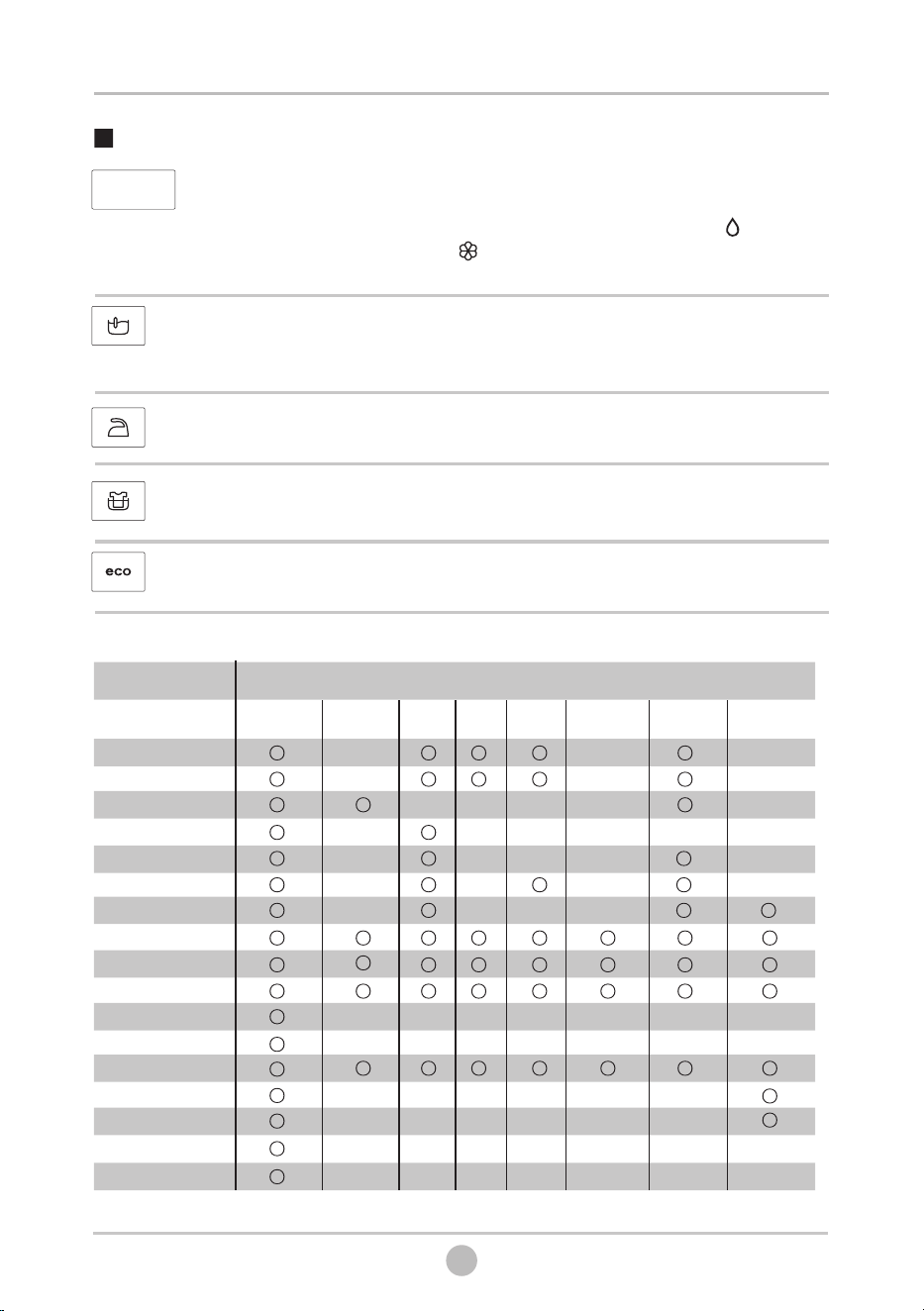

FUNCTION(multiple choice)
Available functions: ECO, PREWASH,EASY IRON, SOAK, CONFIRM
10
17

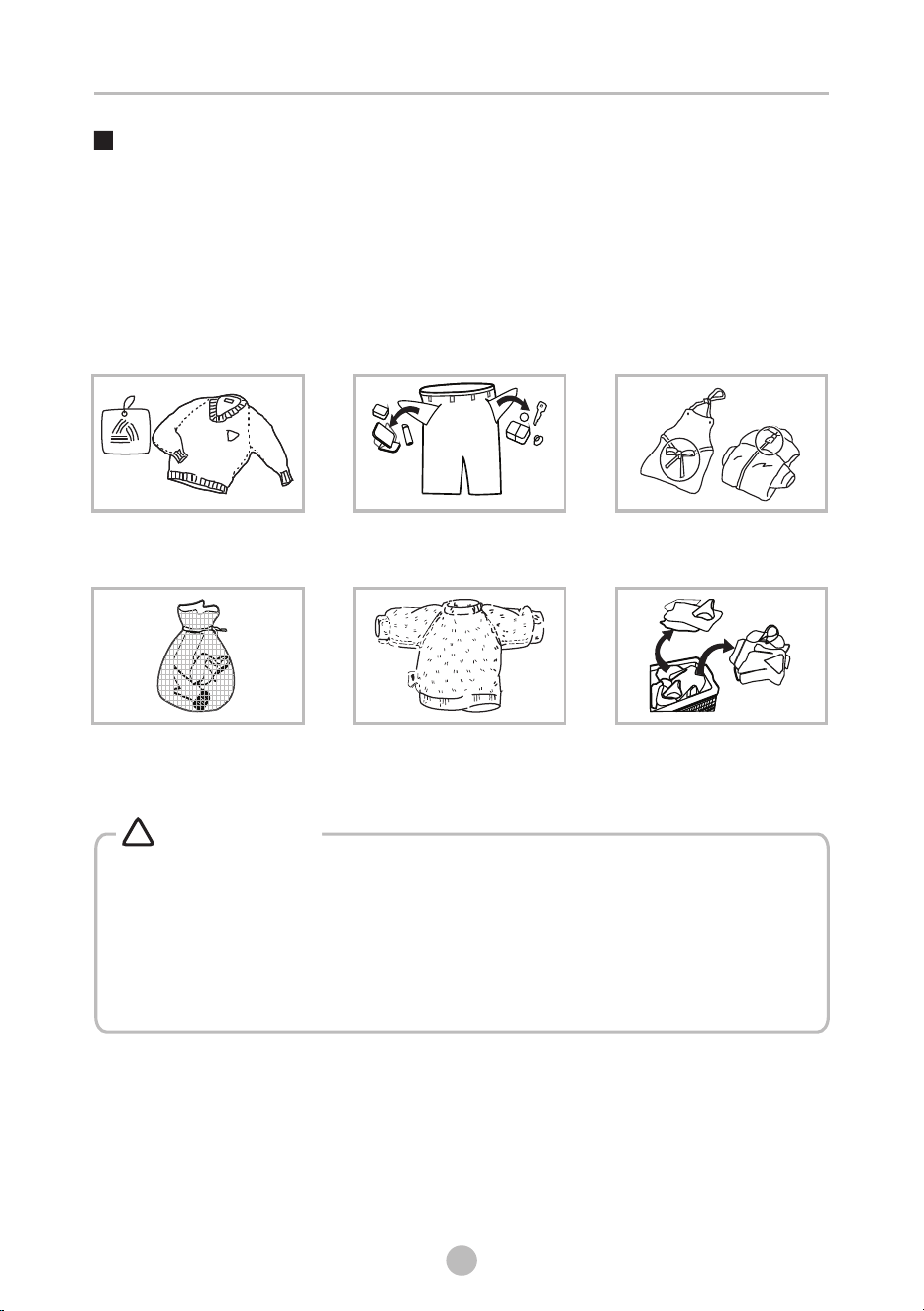

Knot the long strips,zip or
button
• When washing a single clothes, it may easily cause great imbalance and give
alarm. Therefore it is suggested to add one or two more clothes to be washed
together so that washing process can be done smoothly.
• Don't wash the clothes soaked in kerosene, gasoline, alcohol and other
flammable materials.
• The working condition of the washer should be(0-40)°C.If used under 0°C,the
inlet valve and draining system may be damaged. If the machine is placed under
condition of 0°Cor less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose are not frozen
before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label
Before Each Washing
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
！
OPERATIONS
Programme
DOWN JACKET
SPORTSWEAR
ANTI-ALLERGY
WOOL
DELICATE
COLORALIVE
COTTON ECO
COTTON
SYNTHETIC
Means must Means optional ○
Programme
MIX
45' TO WEAR
10' SUPER FAST
BEDLINEN
AUTO DRY
TIME DRY
SPIN ONLY
DRUM CLEAN
Detergent Dispenser
≈Liquid detergent (MAX: 810ml)
Softener (MAX:≈440ml)
Pull out the dispenser
• As for the agglomerated or ropy detergent or additive, before they are
poured into the detergent box, it is suggested to use some water for
dilution to prevent the inlet of detergent box from being blocked and
overflowing while filling water.
• Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumption.
• Pay attention to whether the detergent is dry, and clean the dispenser
regularly especially when the washing machine is not used for long
periods of time.
Note!
10
18
OPERATIONS
If you want to use powder detergent
,you can add it directly into the drum
with clothes by using the container.
Please put the container on the top of
the load to make powder well dissolved.
Don’t choose “Auto”or” ”in
SENSEDOSE, when using powder
detergent.
COLORALIVE
COTTON ECO
MEMORY
COLORALIVE
COTTON ECO
MEMORY
SYNTHETIC
MIX
45' TO WEAR
SYNTHETIC
MIX
45' TO WEAR
COTTON
Cotton Fabric
Washing Program
1:18
Control Panel
On/Off
Product is switched on or off.
Start/Pause
Press the button to start or pause the
washing cycle.
Slider
Available to select or confirm the
programme and function
Option
This allows you to select an additional
function and will light when selected.
Note!
• The chart is for reference only, Please refer to real product as standard.
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
5
10
19
OPERATIONS
PROGRAMME
A
WASH TIME
B
PROGRAMME DESCRIPTION
C
D
WATER CONSUMPTION
E
POWER CONSUMPTION
3
5 4 2 1
A
B
C
D
E
COLORAL IVE
COTTON ECO
MEMORY
COLORAL IVE
COTTON ECO
MEMORY
SYNTHETIC
MIX
45' TO WEA R
SYNTHETIC
MIX
45' TO WEA R
COTTON
Cotton Fabric
Washing Pro gra m
1:18
RINSE
The laundry will undergo extra rinse once after you select it.
FAST WASH
The function can decrease the washing time.
Option
10
20
OPERATIONS
DRYING
The default level is STANDARD ,would increase washing time when choose extra
drying level.
It is suitable for different level of drying (from LESS to EXTRA)
Note!
Drying hints
- Clothes could be dried after spinning
- To ensure quality dry the textiles,please classify them according to their
kinds and the drying temperature.
- Synthetic should be set the proper drying time .
- If you want to iron the clothes after drying,please put them for a while.
Clothes not suitable for drying
- Particularly delicate items such as synthetic curtains,woolen and silk,
clothes with metal inserts,nylon stockings,bulky clothes,such as
anoraks,bedcovers,quilts,sleeping bags and duvets must not be dried.
- Clothes padded with foam-rubber or materials similar to foam-rubber
must not be machine dried.
- Fabrics containing residues of setting lotions or hair sprays, nail
solvents or similar solutions must not be machine dried in order to avoid
the formation of harmful vapours.
•
•
OPERATIONS
RELOAD
This operation can be executed during the washing process. When the drum is
still rolling and there is large amount of water with high temperature in the drum.
The state is unsafe and the door cannot be opened forcefully. To press
[START/PAUSE] for 3 sec. to reload, and small amount of clothes can be added during
washing process. Please follow the steps as bellow:
1.Wait until the drum stops rotation.
2.The door lock is unlocked.
3.Open the door , add clothes to the drum, and close the door. Then press the
[START/PAUSE] button.
START/PAUSE
P 3sress[START/PAUSE] ec.
Add clothes
• Don't use the Reload function when the water level over the edge of the
inner tub or the temperature is higher.
Caution!
10
21
DELAY END
Set the Delay function:
1. Select a programme
2.Press the DELAY END button to choose the time(the delaying time is 1-24 H.)
3.Press [START/PAUSE] to commence the delay operation
Choose the Programme
Start
ON/OFF
Setting time
DELAY
END
Caution!
• If there is any break in the power supply while the machine is operating,
a special memory stores the selected programme and when the power is
restarted, the machine will run the previous program automatically.
• While the machine is delaying, If there is any break in the power supply ,the
machine can’t start up operation automatically. You should set it again.
[ON/OFF]
Cancel the Delay function:
Press the [DELAY END]button,Use SLIDER to select CANCEL.It should be pressed
before starting the programme. If the programme already started, should press the
button to reset the programme.
MEMORY
Memorizes the frequently used program.
Select program and options and Press [TEMP.] 3 sec,then the display will show
“Save success as Memory”.The default is COTTON.The program after selection will
cover the previous program.
！
！
SPIN
Press the button to change the spin speed.
• When the lights of spin speed (600,800,1000,1200,1400) is off, it means
no spin process.
Caution!
10
22
OPERATIONS
TEMP.
Press the button to regulate the temperature(20°C 30°C, 40°C 60°C 90°C
All the lights are off means the water temp. is cold.
, , , )
CHILD LOCK
To avoid mis operation by children.
• Press the [SPIN] 3 sec. to cancel the function.
• The “CHILD LOCK” will lock all buttons except ON/OFF .
• Cut off the power supply , the kid’s protection is to be released.
[ ]
Caution!
ON/OFF START/PAUSE
SPIN
Mute the buzzer
Press the [RINSE] button for 3sec.,the buzzer is mute.
To act the buzzer function, press the button again for 3 seconds. The setting
will be kept until the next reset.
• After Muting the buzzer function, the sounds will not be activated any
more.
Caution!
TEMP.
Programme Default Speed(rpm) Programme Default Speed(rpm)
DOWN JACKET
SPORTSWEAR
ANTI-ALLERGY
WOOL
DELICATE
COLORALIVE
COTTON ECO
COTTON
MIX
45' TO WEAR
10'SUPER FAST
BEDLINEN
AUTO DRY
TIME DRY
SPIN ONLY
SYNTHETIC
800
800
800
800
600
1000
800
800
800
1400
800
800
1400
1400
1000
800
Press SPIN]3 sec.
till buzzer beep.
[
SPIN
Slide the bar
！
！
！
10
23
OPERATIONS
Other Functions
PREWASH
The PREWASH function can get an extra wash before main wash,it is suitable for
washing the dust rises to surface of the clothe.
EASY IRON
The EASY IRON can make the clothes fluffy.
SOAK
In the main wash can get the SOAK function.
ECO
The ECO function can achieve the energy saving performance.
Means optional ○
Programme Option
FAST WASH
RINSE
PRE WASH
DOWN JACKET
SPORTSWEAR
ANTI-ALLERGY
WOOL
DELICATE
COLORALIVE
COTTON ECO
COTTON
SYNTHETIC
MIX
45' TO WEAR
10' SUPER FAST
BEDLINEN
AUTO DRY
TIME DRY
SPIN ONLY
DRUM CLEAN
DELAY END
ECO SOAK
EASY IRON
DRYING
SENSEDOSE
SENSEDOSE
This operation can be executed to decide the way of detergent/softener delivery.
“Auto”means putting both detergent and softener automatically.” ”means only
putting detergent automatically.” ”means only putting softener automatically.
None icons lighten means putting neither detergent nor softener automatically.
10
24
OPERATIONS
10' SUPER FAST
WOOL
Hand or machine-washable wool or richwool textiles.Especially
gentle wash programme to prevent shrinkage, longer programme
pauses (textiles rest in wash liquor).
MIX
Mixed load consisting of textiles made of cotton and synthetics.
COTTON
Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
COTTON ECO
This is program is designed for energy and washing time saving.
SPIN ONLY
Extra spin with selectable spin speed.
SYNTHETIC
Wash synthetic articles, for example: shirts, coats, blending.
While washing the knitting textiles, detergent quantity shall be
reduced due to its loose string construction and easily forming
bubbles.
COLORALIVE
Washing brightly colored clothes, it can protect the colors better.
45’ TO WEAR
This procedure is suitable for washing few and not very dirty clothes
quickly.Clothes is less than 0.5kg.
Wash and Dry a small load within 45 minutes.Clothes is less than 0.5kg.
Programmes are available according to the laundry type.
Programmes
MEMORY
To memorize the frequently used program by pressing [TEMP.]
3 sec. The default setting is COTTON.
BEDLINEN
This program is specially designed for washing Bedlinen.
DRUM CLEAN
This program is specially set in this machine to clean the drum
and tub. It applies 90℃ high temperature water to sterilize the
drum and tub. When this procedure is performed, the clothes
must not be put in the drum. When proper amount of chlorine
bleaching agent is put in, the cleaning effect will be better.
The customer can use this procedure regularly according to
theneed.
ANTI-ALLERGY
This program applies 60℃ high temperature water to achieve
anti-allergy effect.
DELICATE
For delicate , washable textiles ,e.g. made of silk , satin , synthetic ,
fibres or blended fabrics.
SPORTSWEAR
Special care program for sports wear.
DOWN JACKET
Special care program for down jacket.
TIME DRY
Can select drying as set time.
AUTO DRY
This program is designed for drying clothes automatically to
achieve the best dry performance.
“The wool wash cycle of this machine has been approved
by The Woolmark Company for the washing of wool
garments labelled as “hand wash” provided that the
products are washed according to the instructions on the
garment label and those issued by the manufacturer of
this washing machine. M1770.”
Washing Programmes Table
10
25
OPERATIONS
Programme
Default Time
Default Temp.(°C)
DOWN JACKET
SPORTSWEAR
ANTI-ALLERGY
WOOL
DELICATE
COLOR ALIVE
COTTON ECO
COTTON
SYNTHETIC
MIX
45' TO WEAR
10' SUPER FAST
BEDLINEN
AUTO DRY
TIME DRY
SPIN ONLY
DRUM CLEAN
Load(kg)
2.0
2.0
5.0
2.0
2.5
5.0
8.0
8.0
5.0
5.0
0.5
0.5
7.0
8.0
0.5
8.0
--
40
20
60
40
30
Cold
30
40
40
40
Cold
Cold
40
--
--
--
90
1:27
0:45
4:31
0:59
0:50
1:03
0:55
1:18
1:03
1:10
0:45
0:10
1:48
2:00
0:40
0:12
1:10
• In the program “ TIME DRY", you can touch DRYING button to change drying
duration (00:30, 01:00, 01:30, 02:00), suitable for different loading (0.5kg,
1kg, 1.5kg, 2kg).This program contains 10 minutes of default dehydration time,
so the actual display time is 00:40, 01:10, 01:40, 02:10.
• For “AUTO DRY” program,the default display time is 2:00.
but actual time will be adjusted automatically by load or texture.
Drying time for reference:
• The parameters in this table are only for user's reference. The actual parameters
maybe different with the parameters in above mentioned table.
Note!
Cotton fabric(kg)
Estimated time(min.)
3kg 4kg 5kg 6kg 7kg 8kg
150' 200' 230' 270' 300' 330'

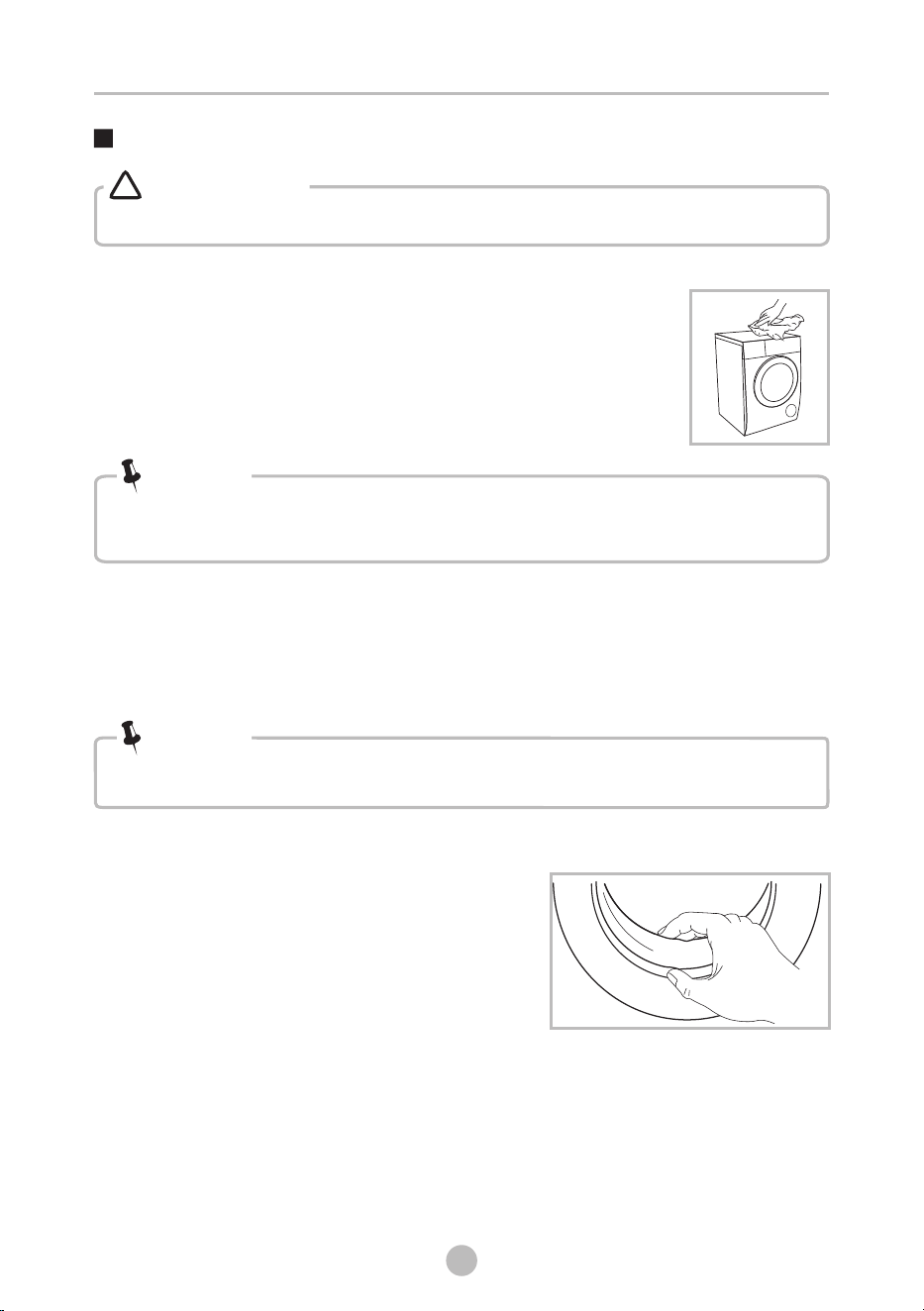

• Before your maintenance starts, please unplug the machine and close the tap.
Cleaning The Cabinet
Cleaning The Drum
• Formic acid and its diluted solvents or equivalent are forbidden, such as
alcohol, solvents or chemical products,etc.
• Don’t put laundry in the washing machine during the drum cleaning.
Cleaning The Gasket And Glass
Warning!
！
Note!
Note!
10
26
Cleaning And Care
The rusts left inside the drum by the metal articles shall be removed immediately
with chlorine-free detergents.
Never use steel wool.
Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use the dry cloth to wipe it off immediately.
No sharp items are allowed.
Wipe the glass and gasket after each wash
to remove lint and stains. If lint builds up it
can cause leaks.
Remove any coins, buttons and other objects
from the gasket after each wash.
MAINTENANCES

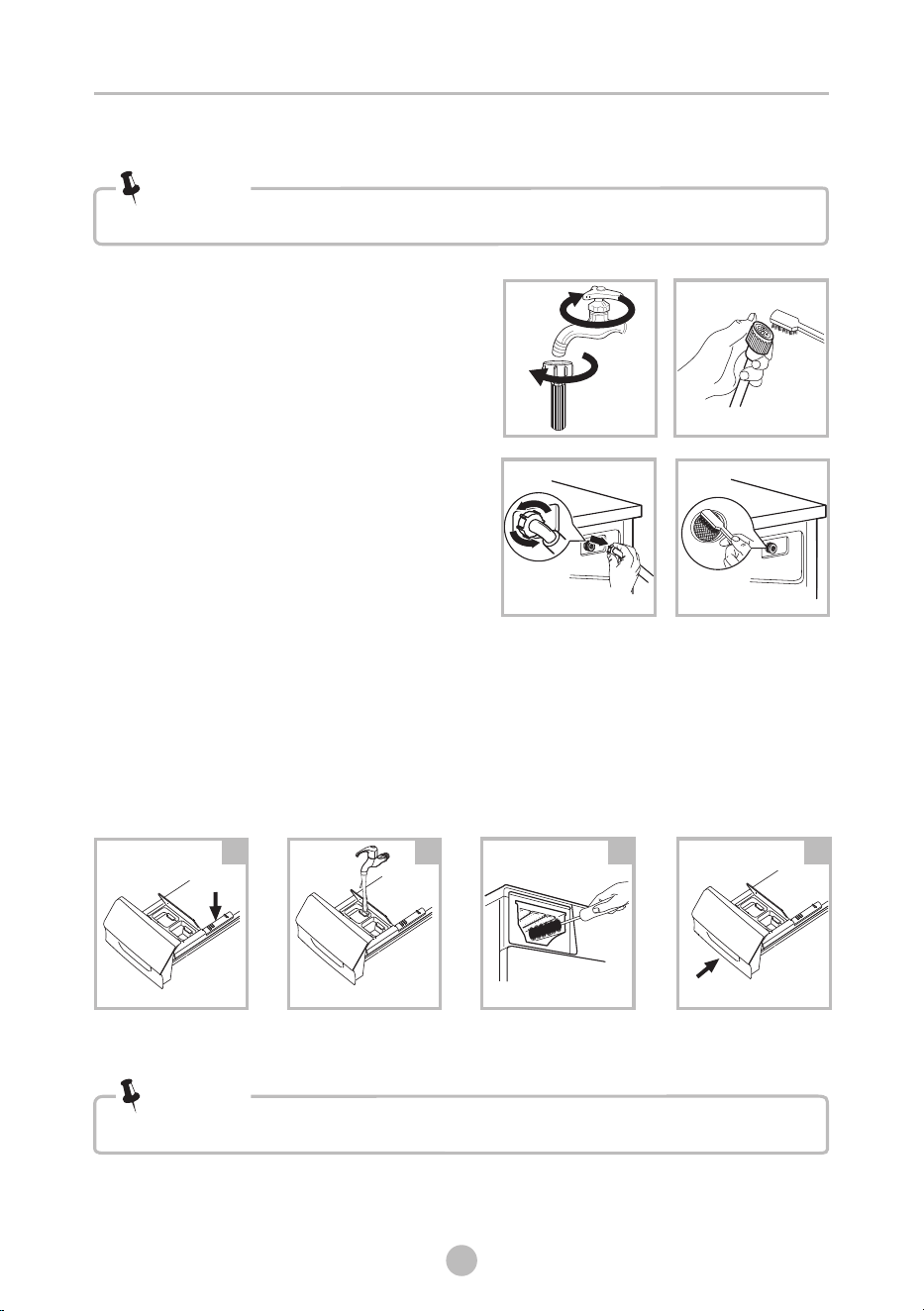

Washing the filter in the water supply hose
1.Close the tap.
2.Remove the water supply hose from the tap.
3.clean the filter.
4.Reconnect the water supply hose.
Cleaning The Inlet Filter
• Inlet filter must be cleaned if there is less water.
Washing the filter in washing machine:
1.
2.Pull out the filter with long nose pliers
and reinstall it back after being washed.
3.Use to clean the filter.
4.Reconnect the inlet pipe.
Screw off the inlet pipe from the backside
of the machine.
the brush
Clean The Detergent Dispenser
• Do not use alcohol,solvents or chemical products to clean the machine.
Pull out the dispenser
drawer with press the A
Clean the dispenser
drawer under water
Clean inside the recess
with an old toothbrush
Insert the dispenser
drawer
1
2
3
4
Note!
Note!
10
27
MAINTENANCES
A
Step:1 & 2 Step:3 & 4
Step:1 & 2 Step:3 & 4
1.Press down the location as indicated in Figure 1,arrow A.
2.Lift the clip up and take out softener cover and wash all grooves with water.
on softener cover
3.Clean inside the recess with a suitable brush such as an old toothbrush.
4.Restore the cover and push the drawer into position.

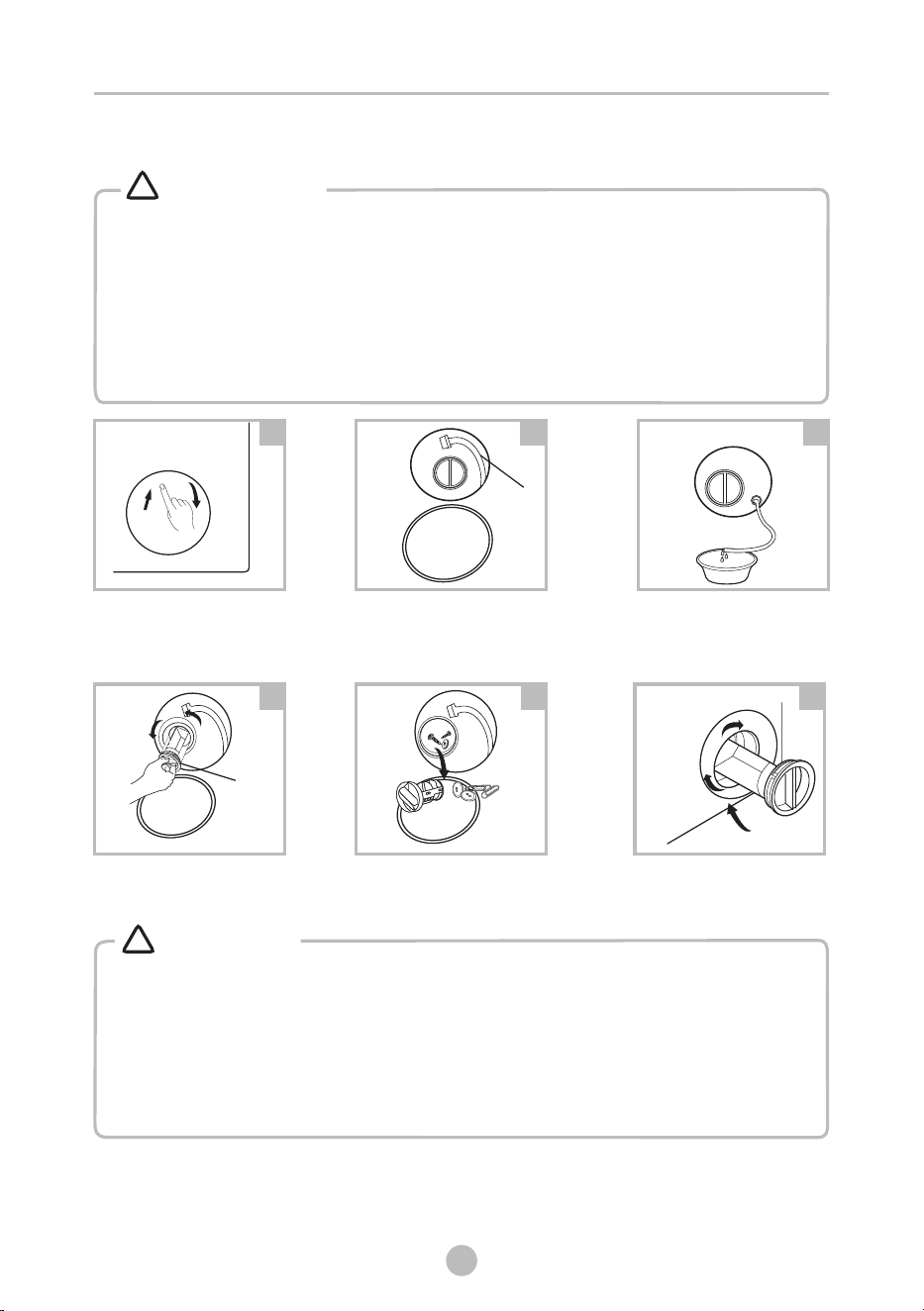

• Make sure that filter cap and emergency drain hose are reinstalled properly, filter
cap should be inserted aligning to hole plates otherwise water may leak.
• When the appliance is in use and depending on the programme selected there can
be hot water in the pump. Never remove the pump cover during a wash cycle, always
wait until the appliance has finished the cycle, and is empty. When replacing the
filter cap, ensure it is securely re-tightened.
Cleaning The Drain Pump Filter
•
• Allow the water to cool down.
• Unplug the machine to avoid electrical shock before maintenance.
• Drain pump filter can filter the lints and small foreign matters from the
washing.
• Clean the filter periodically to ensure the normal operation of washing
machine.
Be careful of the hot water!
Open the lower cover cap
Pull out the emergency drain
hose,and take off the hose cap.
Open the filter cap by turning
to the counter clockwise
Remove extraneous matter
1
2
3
Close the filter cap and the
lower cover cap.
6
5
4
Emergency
drain hose
After water runs out,reset
the drain hose
Warning!
！
10
28
Caution!
MAINTENANCES
Filter cap
！
Trouble Shooting
The start of the appliance does not work or it stops during operation.
First try to find a solution to the problem, If not, contact the service centre.
Description
Reason
Solution
Restart after the door is closed
Check if the clothes is stuck
Door is not closed properly
Door can’t be
opened
Washer's safety
protection design is working
Disconnect the power, restart
the product
Water leakage
The connection between inlet
pipe or outlet hose is not tight
Check and fasten water pipes
Check outlet hose
Clean and wipe the detergent
box
Abnormal noise
Check if the fixing (bolts) have
been removed
Check it’s installed on a solid
and level floor
Indicator or display
does not light
Electrical power cord may
not beplugged in or
connection may be loose.
Make sure plug fits tightly in
wall outlet.Check the power
plug is connected correct.
Washing machine
cannot start up
Detergent residues
in the box
Detergent is dampened
or agglomerated
10
29
MAINTENANCES
• or the display
shows other alarm codes
After the check, activate the appliance. If the problem occurs
again, contact the service.
Note!
Description
Reason
Solution
Check if the water pressure is
too low
Straighten the water pipe
Check if the inlet valve filter is blocked
Check if the drain hose is blocked
Water injecting
problem while
washing
Overtime water draining
Please try again first, call up
service line if there are still
troubles
Others
Water overflow
Stop using the washing machine
and call the service center for repair
Restart after the door is closed
Check if the clothes is stuck
Door is not closed properly
10
24
10
30
Technical Specifications
MAX.Current
Standard Water Pressure
Power Supply
10A
0.05MPa~1MPa
220-240V~,50Hz
H
W
D
MAINTENANCES
Model Washing
Capacity
Dimension
(W*D*H mm)
Net
Weight
Rated
Power
8.0kg 595*635*850 76kg 2000W
TWD-BH90W4M
Dry
Capacity
8.0kg
Dry
Power
1300W
