FLUORESCENT LIGHTING TESTER
Sept. 2011
54-07-2305
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005

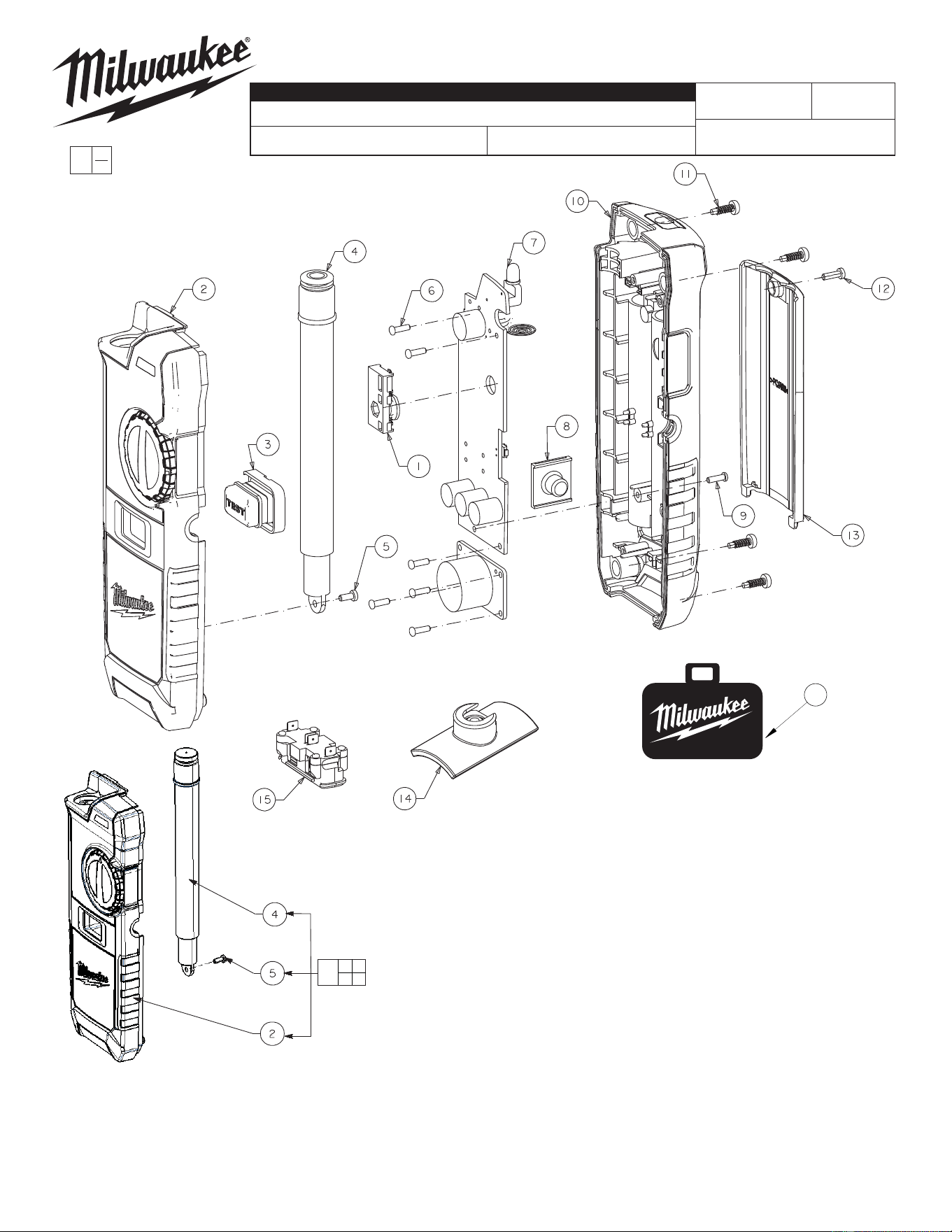

Drwg. 1
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
D61A
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Terminal Holder Assembly (1)
2 31-50-0475 Top Case Assembly (1)
3 --------------- Torch Button (1)
4 42-09-1025 Antenna (1)
5 05-71-0115 Antenna Screw (1)
6 --------------- PCA Screw (6)
7 --------------- PCA (1)
8 --------------- Test Button (1)
9 05-71-0120 Bottom/PCA Screw (1)
10 --------------- Bottom Case (1)
11 05-71-0125 Bottom Case Screw (4)
12 05-81-0095 Battery Door Screw (1)
13 31-21-0070 Battery Door (1)
14 44-66-0235 Antenna Plate (1)
15 --------------- Connector (1)
16 14-46-0405 Housing/Antenna Kit (1)
17 48-55-0175 Soft Carrying Case (1)
