Instruction Manual
PL90HR
Adjustable Headrest w/Built-in 9" TFT-LCD Monitor
with IR Transmitter
HTTP://WWW.PYLEAUDIO.COM
PL90HRBK
Warning
Read this manual before using this product.
This product is composed of precision components
and should not be dissembled Service must be
perfurmed by a factory authorized technician.
Protect the product from moisture and shock.
1
1. When connect the electric power wires, you should make clear about the
positive and negative electrode ( the red one is positive and the black
is negative). If you wrongly connected the fuse in the filter box will be
broken protectively. Please replace the fuse in same parameter.
2. Because the LCD screen is the main component It should be paid
attention to be damp-proof.
3. The device must be installed firmly to prevent falling of device that will
possibly cause injury and device-broken.
4. The connecting-point of direct current (12V) should connect on the Main
line of storage battery as possible as it can , for keeping this device in
normal operation and be away from the large voltage drop influence.
5. There is high voltage cluster in this machine, if you are the professional
person, should never to take part the machine if malfunction and
contact the dealer in time.
Attentions:
2

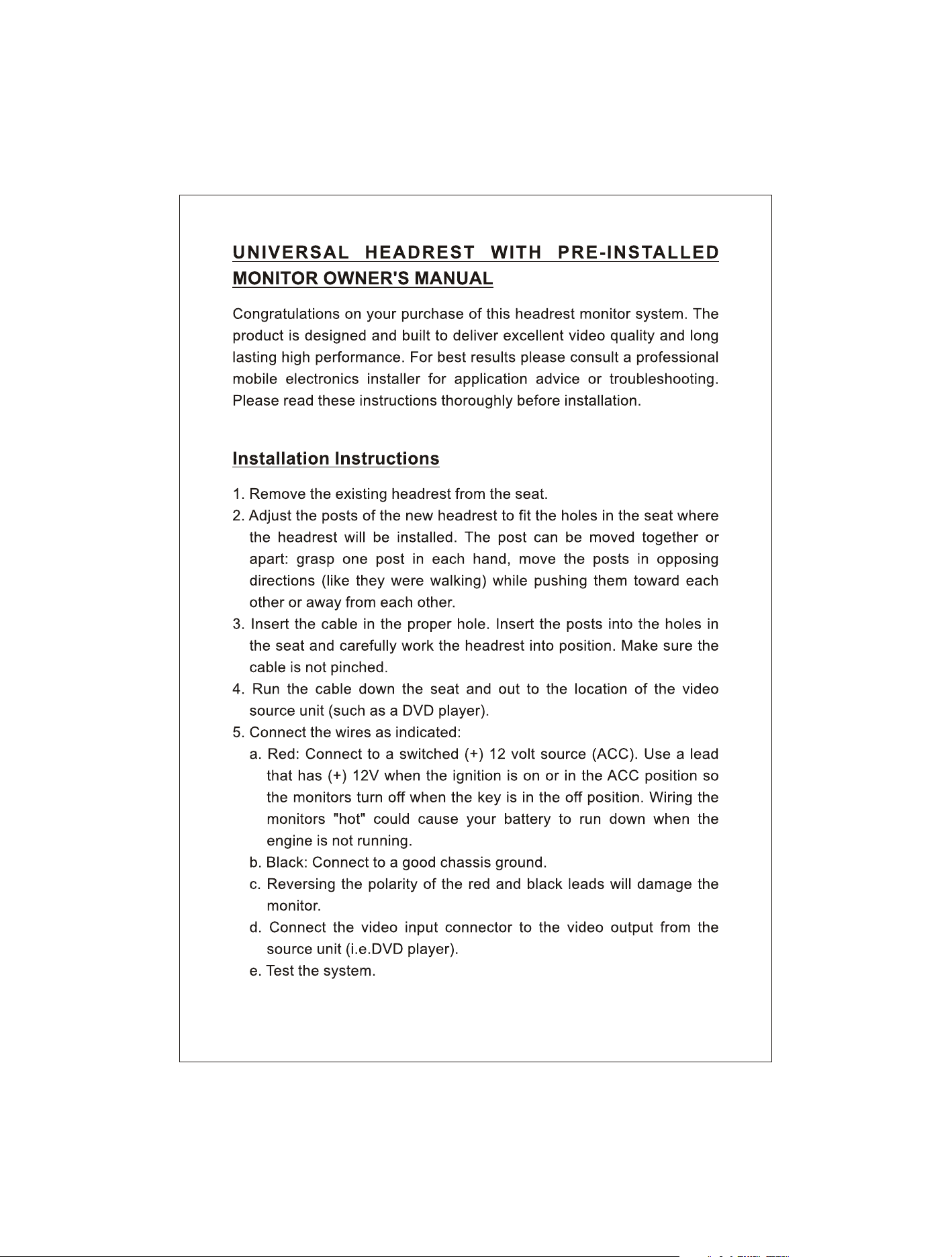

3
VCD/DVD
Sound system
Red line (+12V)
Black line (ground)
Yellow line (signal)

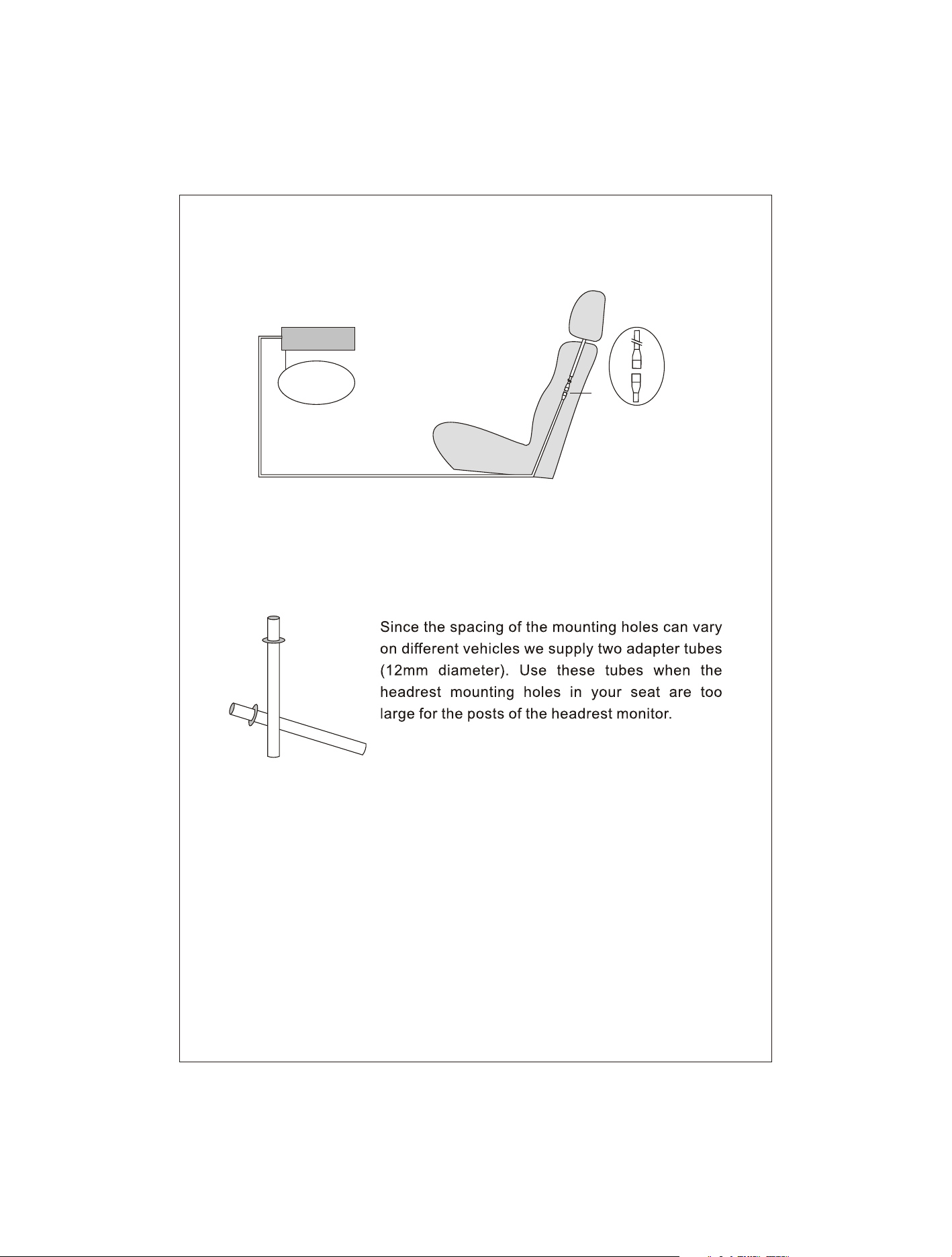

Install the Pillow
How to use the adapter tubes
4

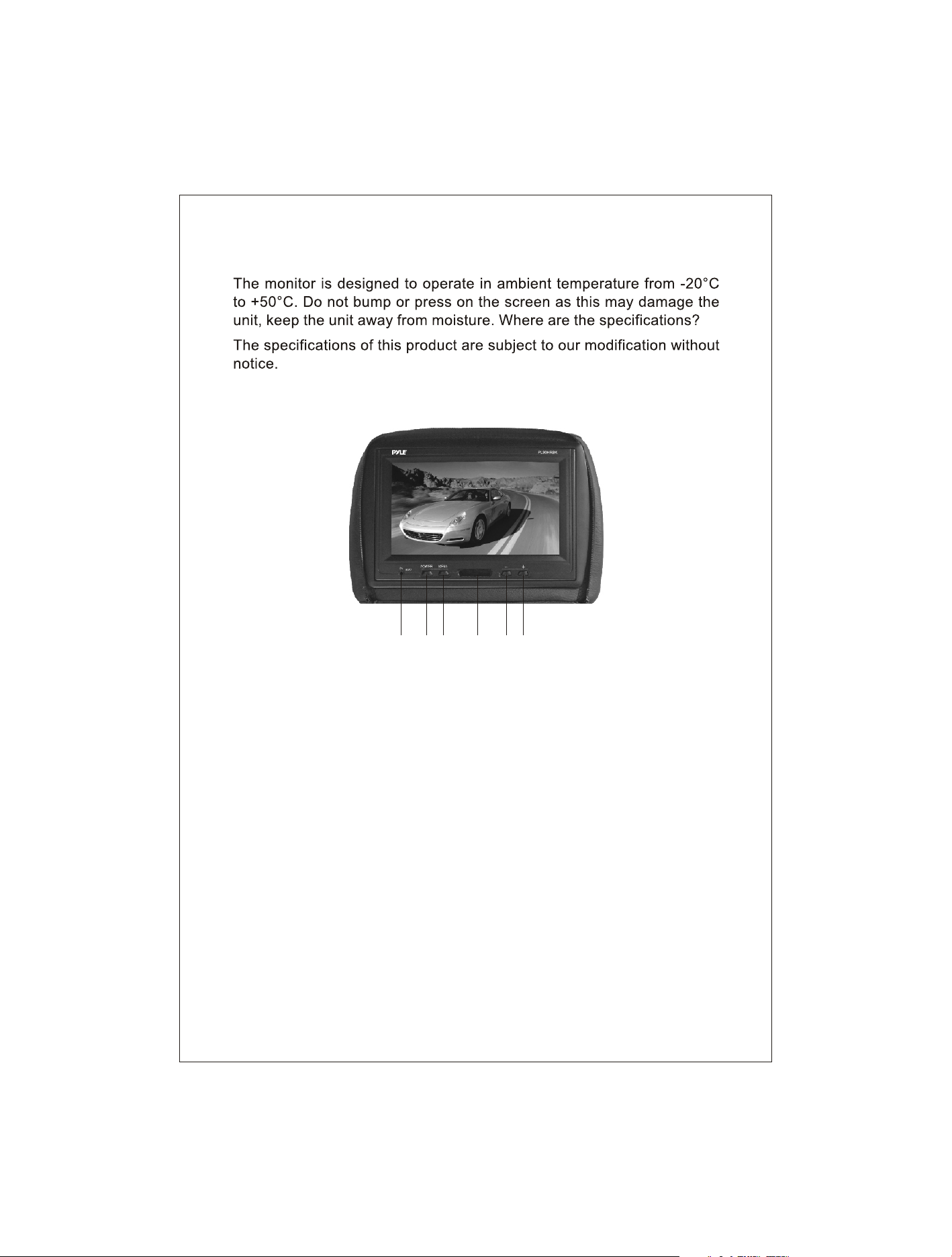

Monitor Controls and Features
1. V2 in(Alternate video input)
2. on/off
3.
Power
Activation of menu indicator
4. IR remote window
6
5. Negative adjustment
. Positive adjustment
123456
5

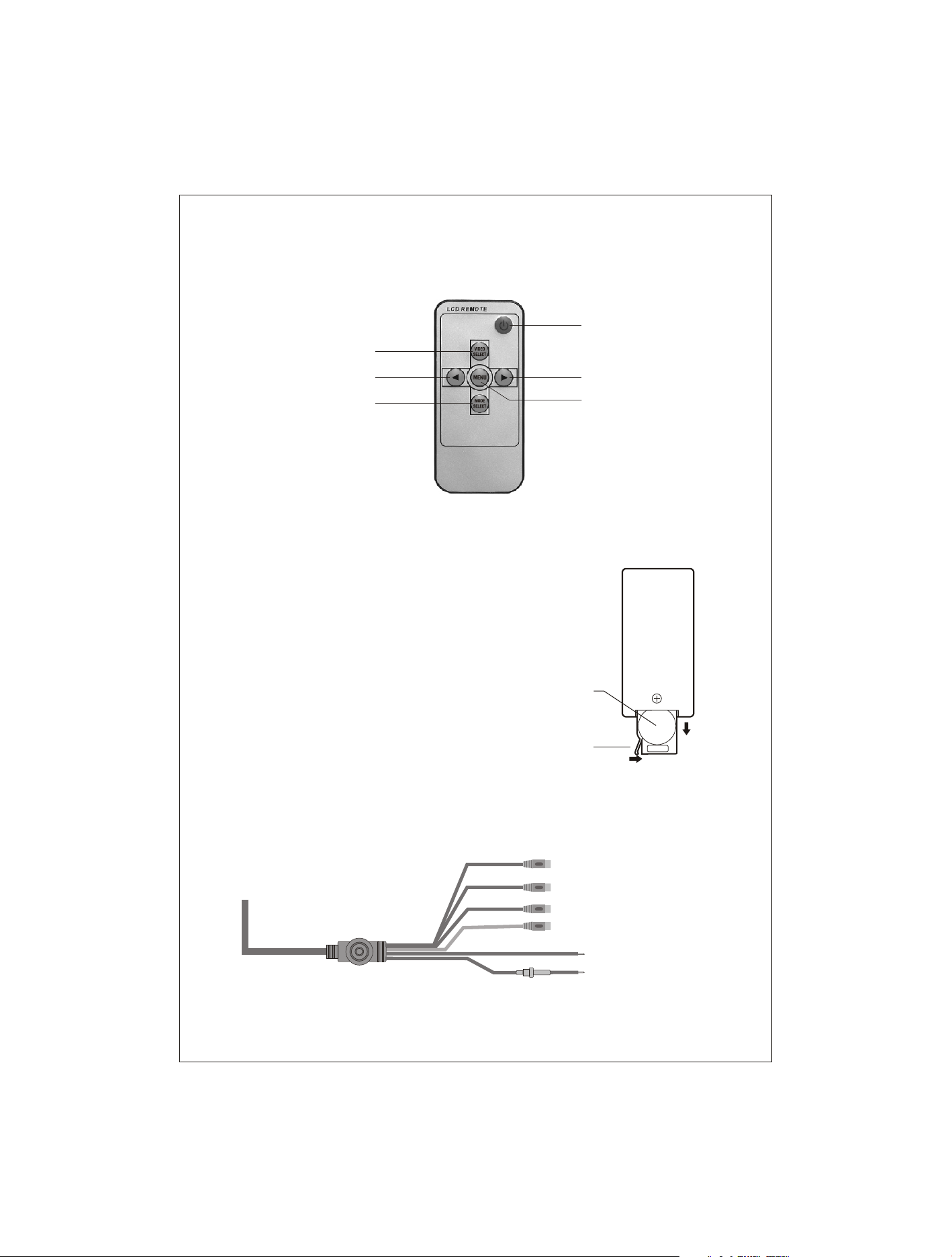

Remote Control
Power ON/OFF
Analog variable increase
Menu button
V1/V2 conversion
Analog variable decrease
Switch for mode
Installation Diagram
Changing the battery in the remote control
The remote battery is held in a small " drawer"
on one edge of the remote. To open this
drawer, press and hold the small button on
the edge of this drawer (as shown below) and
slide the drawer out.
Insert a new battery and push the drawer
back fully into the remote.
Battery
Release button
(Yellow) Video 2 input
(Yellow) Video 1 input
(Red) Audio right input
(White) Audio left input
(Black) Grounding
(Red) Battery +12V
- Available in BLACK, GRAY, TAN
- Adjustable mounting poles to fit any seat
- Poles adjustable from 12.5cm to 20cm
- 9" wide (16:9) TFT LCD monitor
- High resolution: 1024xRGBx600
- 1 set wired AV input
- Faceplate AV mini-jack input
- Color system: PAL/NTSC
- Contrast ratio: 300:1
- Brightness rating: 350 cd/m2
- Built in dual channel IR transmitter
Channel A: 2.3Mhz (left), 2.8Mhz (right)
Channel B: 3.2Mhz (left), 3.8Mhz (right)
- Operating Temperature: -20°C to 50°C
- Storage temperature: -10°C to 70°C
- Environmental humidity: <90%
- Power supply: DC 12V
Specification
6

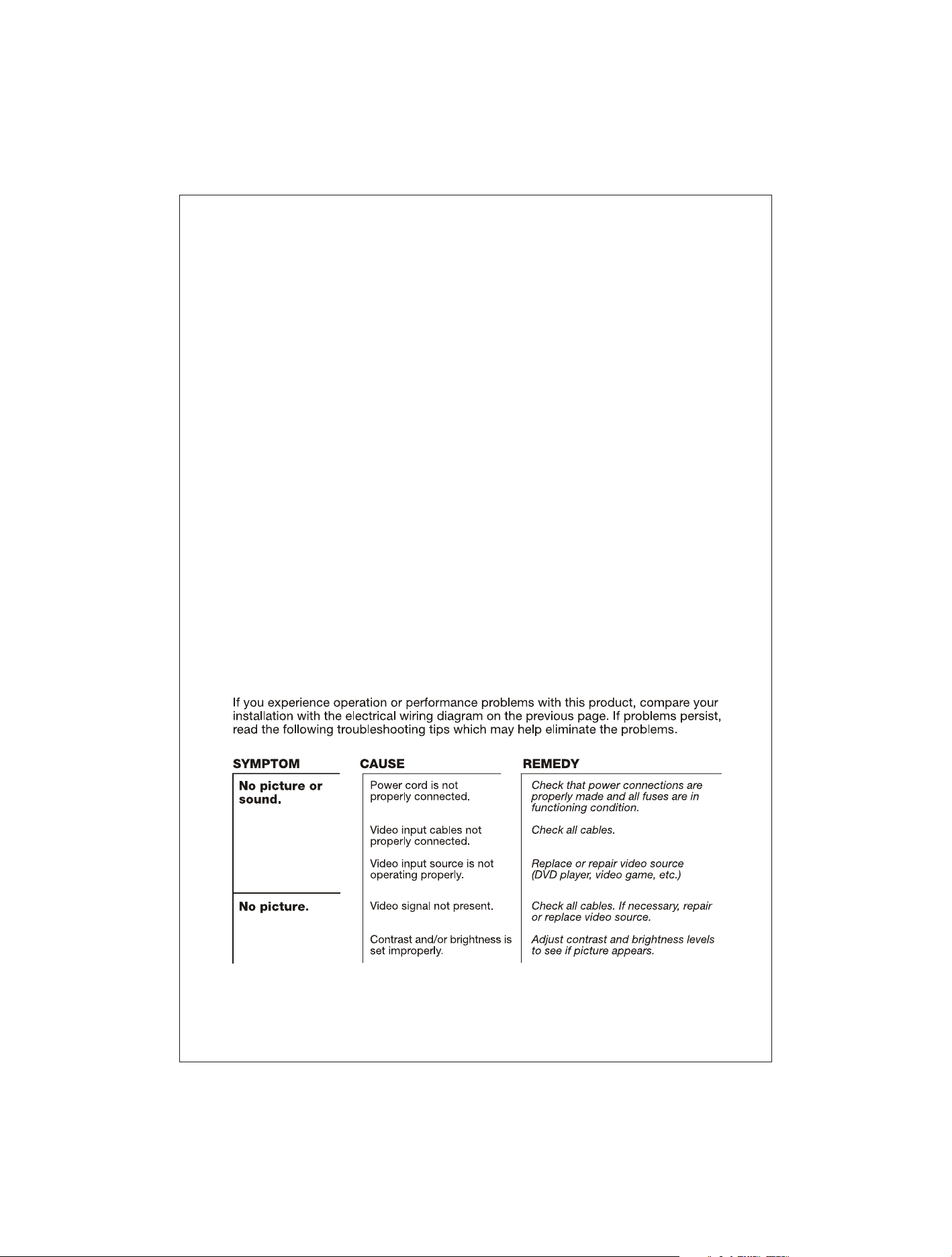

Troubleshooting
7
Acce ssories
9" TFT LCD Pillow Monitor
Wireless Remote Control
Assembling Stick
AV Input Line
Power Wire
User's Manual
1
1
2
1
1
1
