PL73D
Owner's Manual
PL73DTN
Adjustable Headrests w/ Built-In 7-Inch TFT/LCD Monitor w/ Built in DVD Player & IR/FM Transmitter
w/Zipper Hide-Away Cover / Built In Game With Joystick
Description for playing MP5 disks

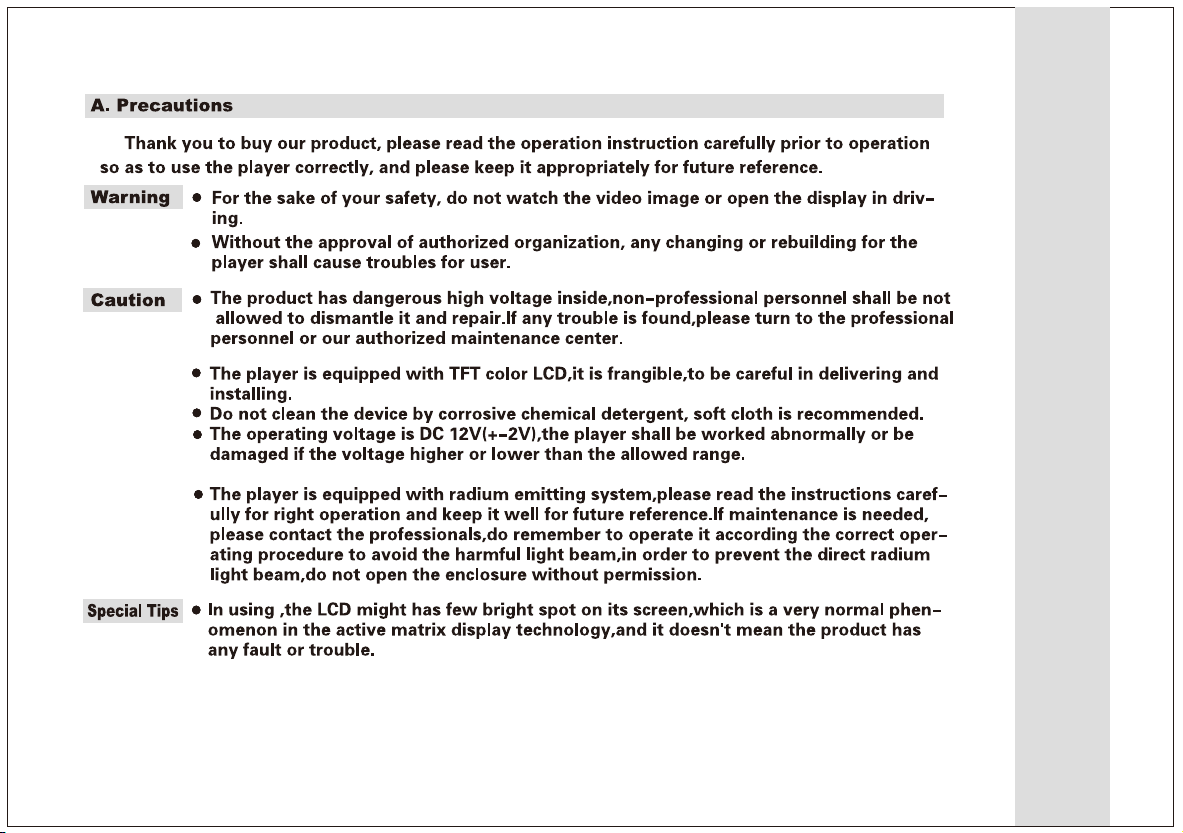

01

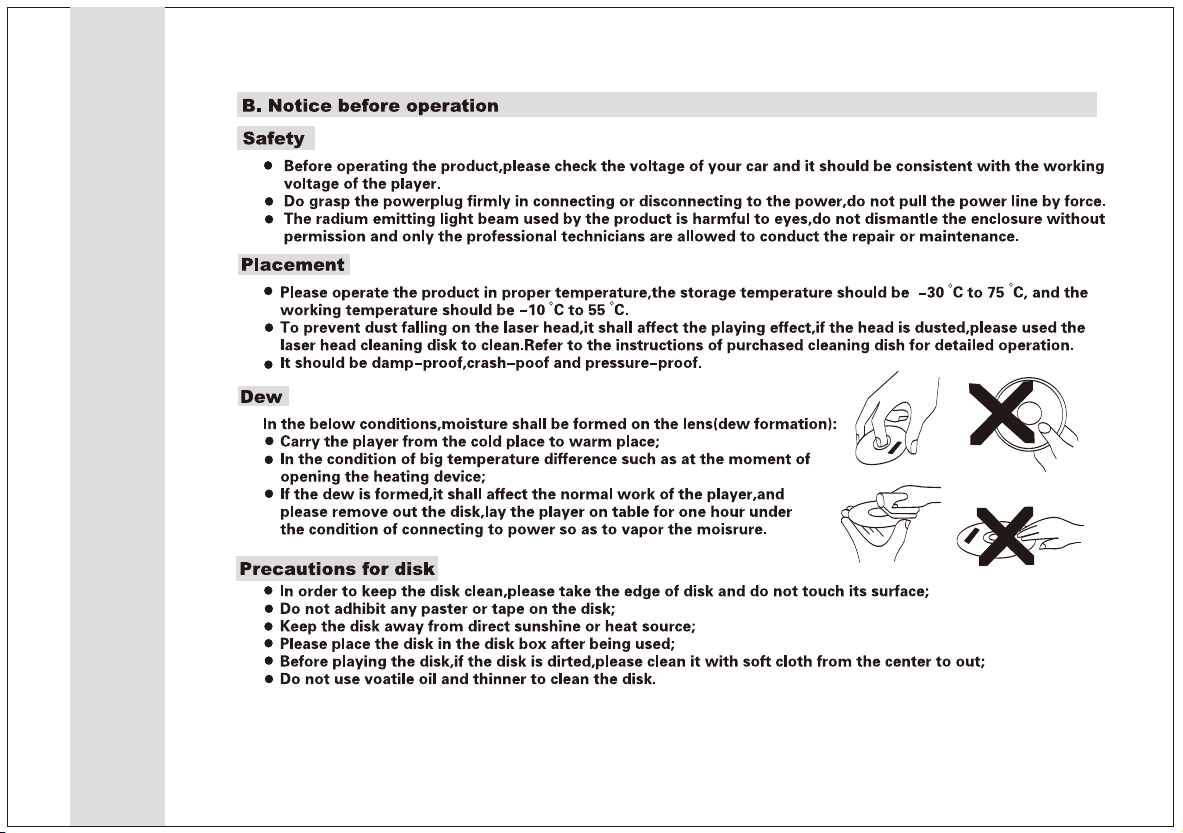

02
03

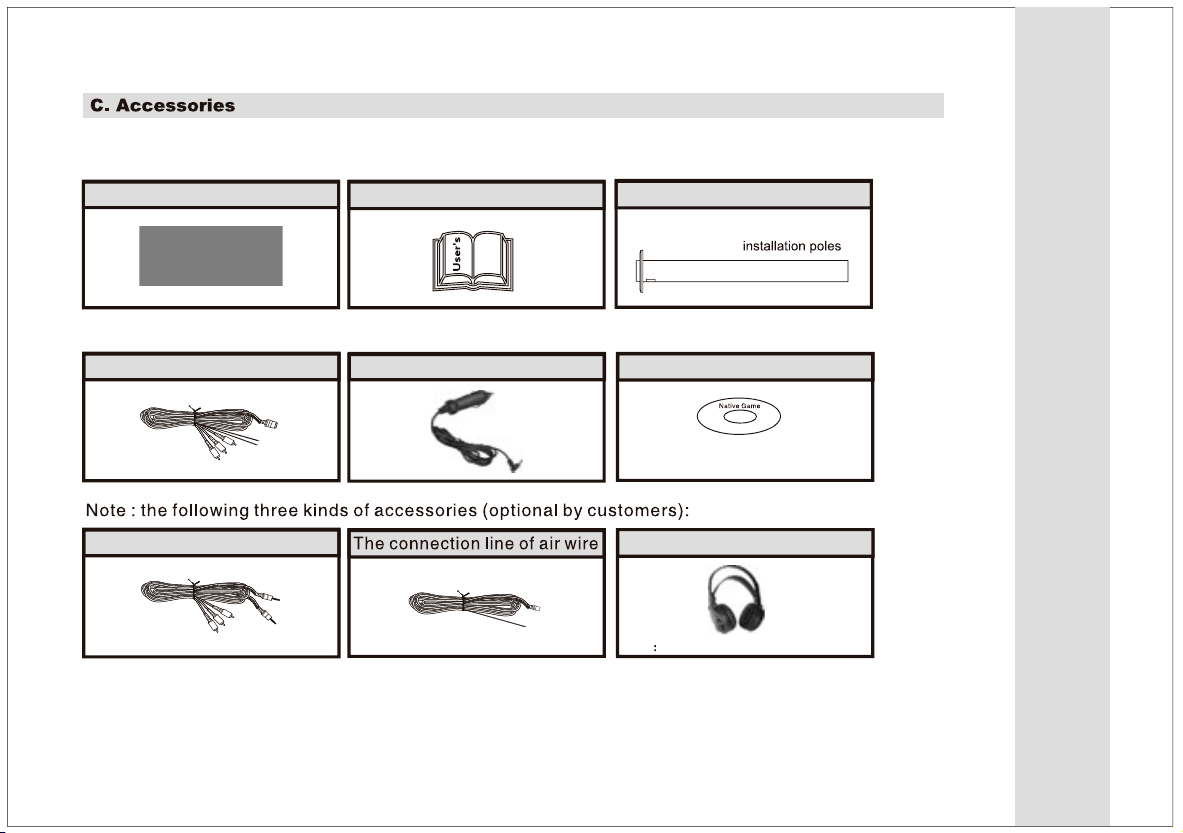

Please check the following accessories after opening the package.
USER’S MANUAL
Manual
Power connection line
Native game disk
Hardware accessories
Audio connection line
According your requirmant
Note Ach:2.3/2.8MHz,Bch:3.2/3.8MHz
the internet into the USB or Memory Cards.
Note: can download the games through
Wireless infrared earphone
According your requirmant
Remote controller & Game joysticks
Cigarette lighter
12mm

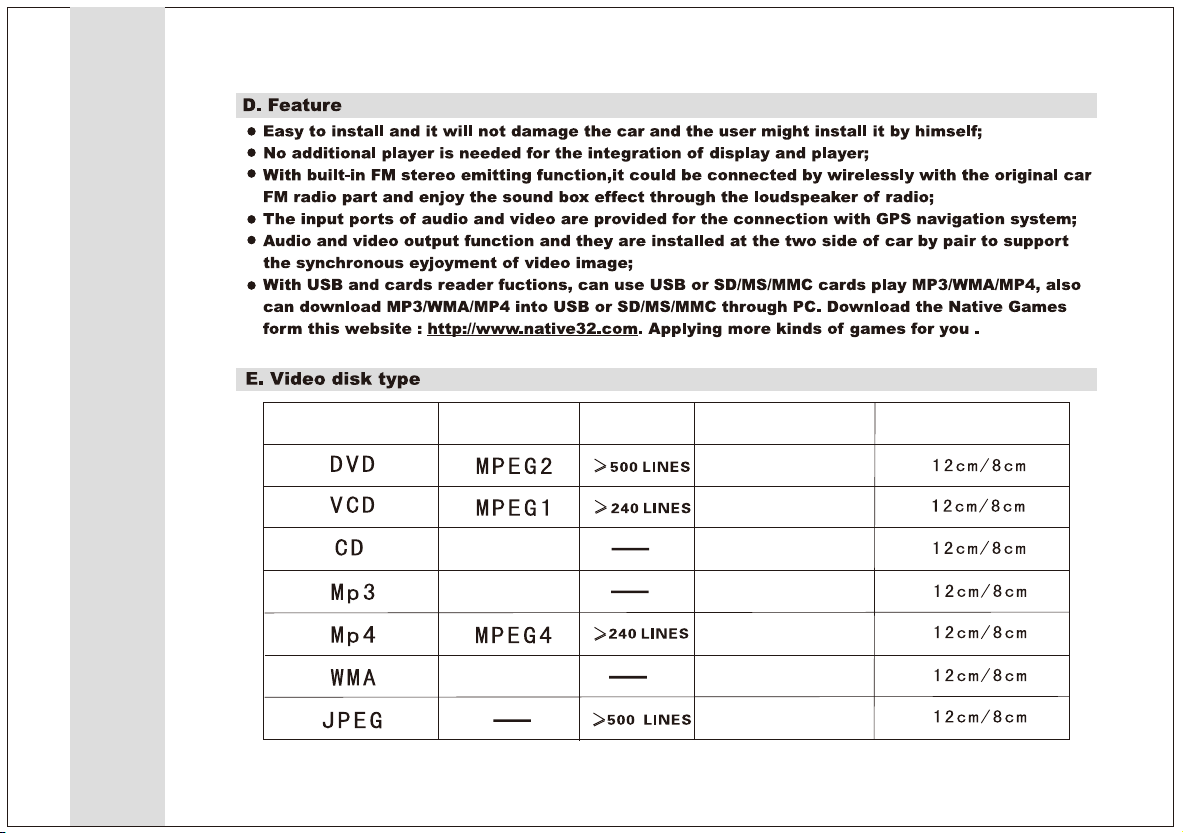

04
TYPE
RECORD
FORMAT
HORIZONTAL
DEFINITION
RECORD CONTENT
DISK SIZE
Digital
Digital
Digital
Audio
Audio+Video
Audio
Audio
Audio+Video
Audio+Video

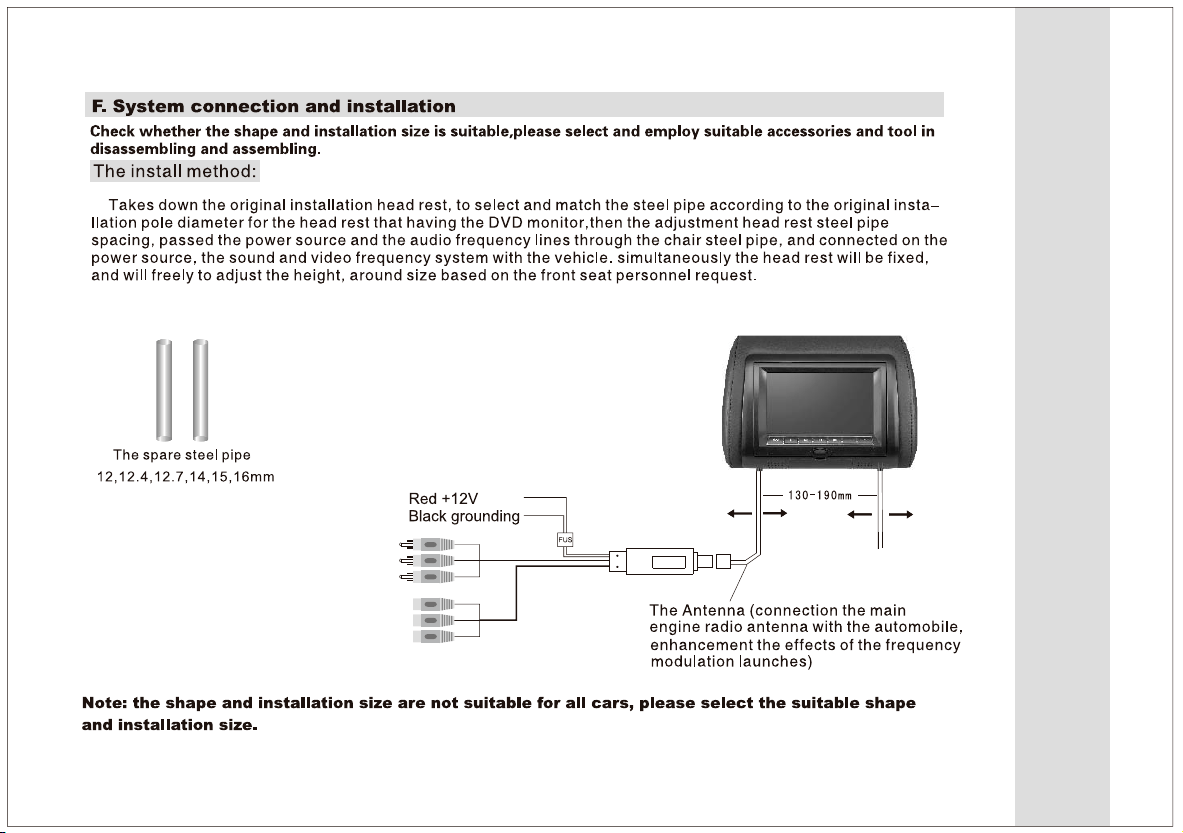

05
(Yellow) Video output
(White) Audio L output
(Red) Audio R output
Fuse box
(Yellow) Video input
(White) Audio L input
(Red) Audio R input

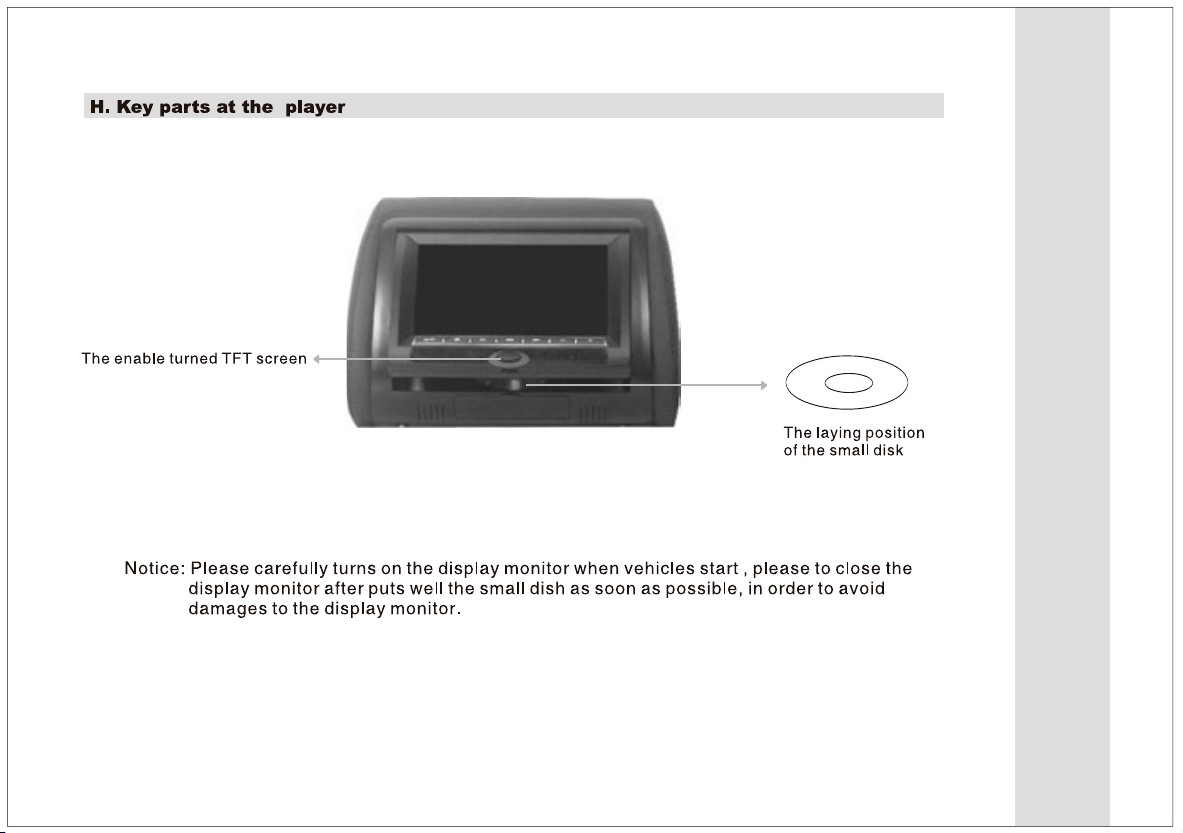

06

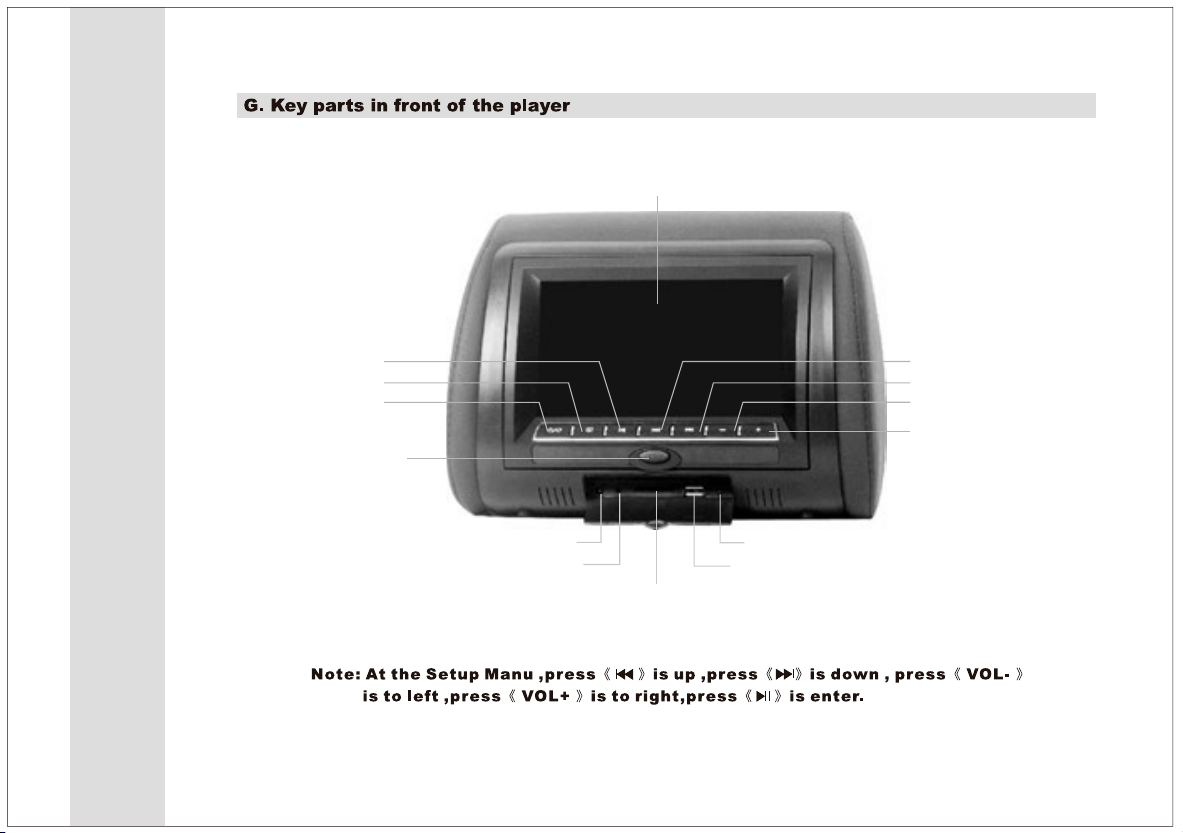

TFT LCD
Previous track key
Next track key
Volume- key
Volume+ key
Play/Pause key
Menu
Power/AV
Open key
DC jack
AV2 in
SD reading port
Earphone jack
USB reading port
07
08

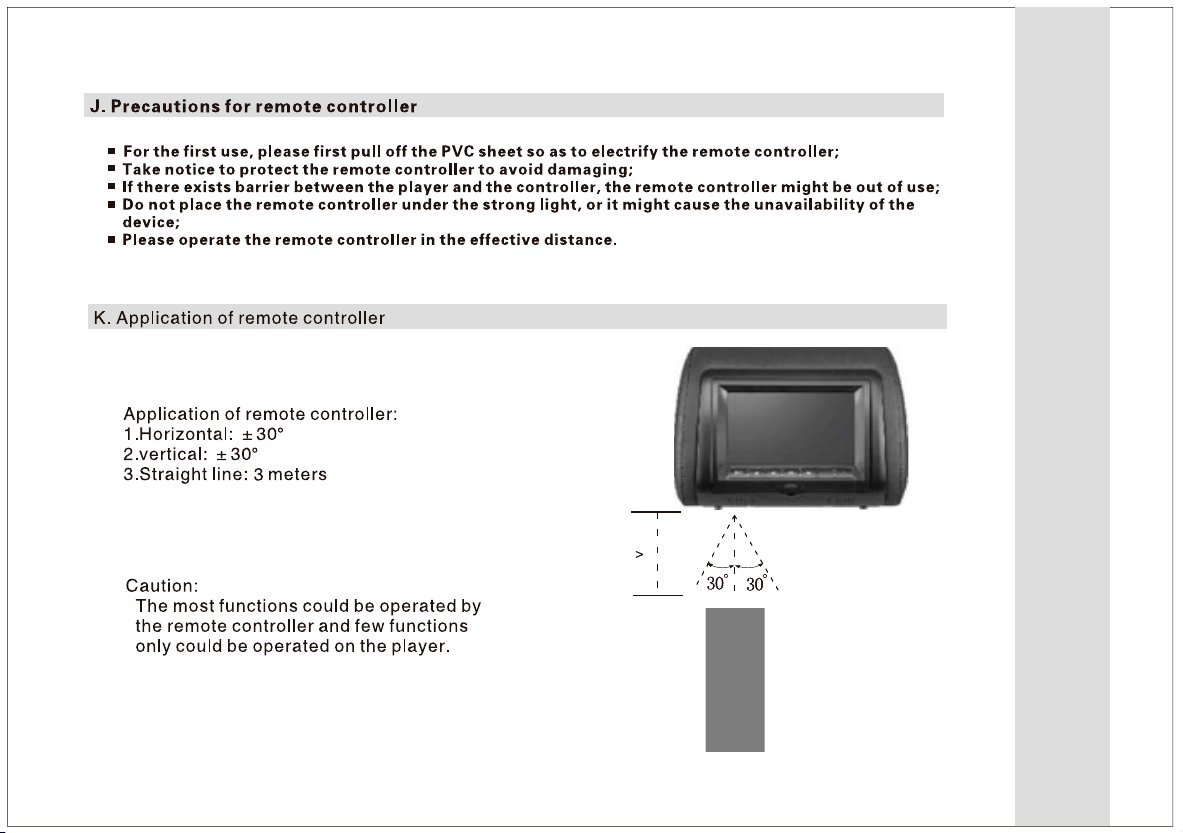

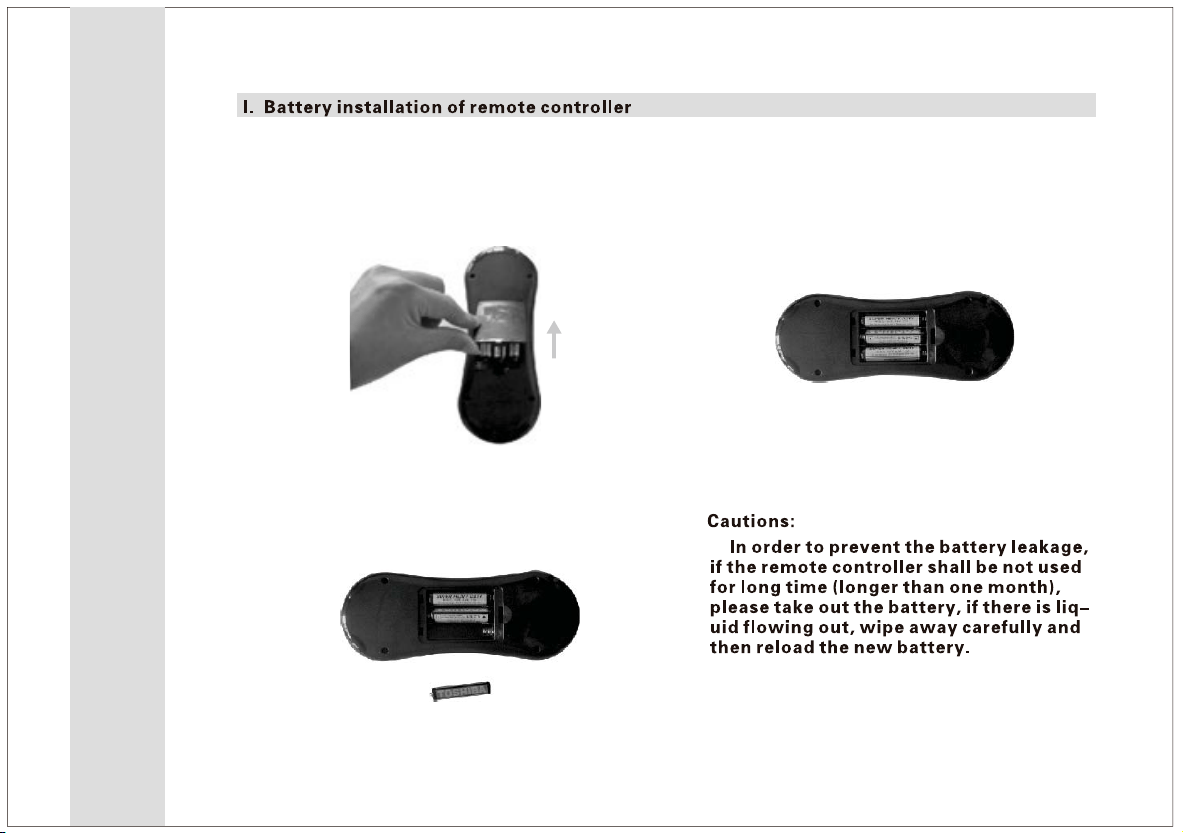

1. please open the battery cover on the back
of the remote control before using it.
2. please loading three NO.7 battery, please note
have bellows side is negative.
3.we can begin to use remote controller
after battery ready finish and close the
battery cover.
09
3 meters
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25

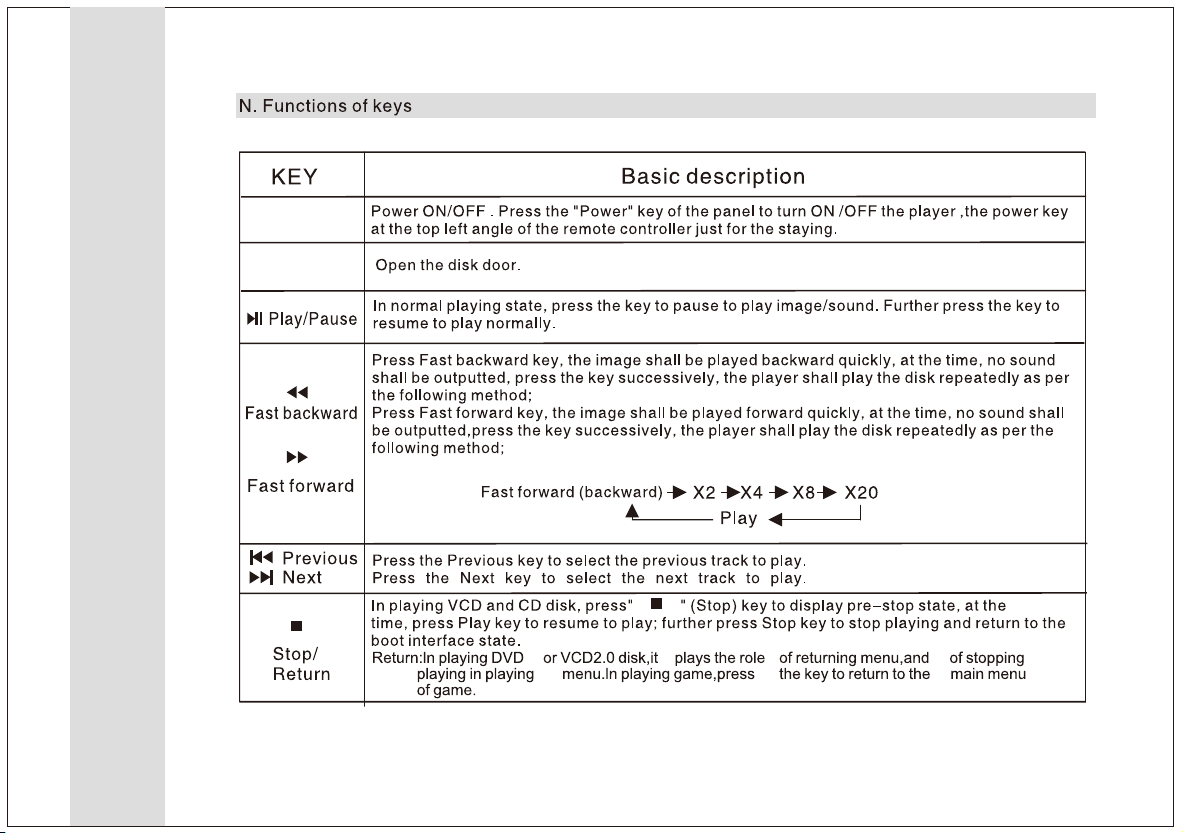

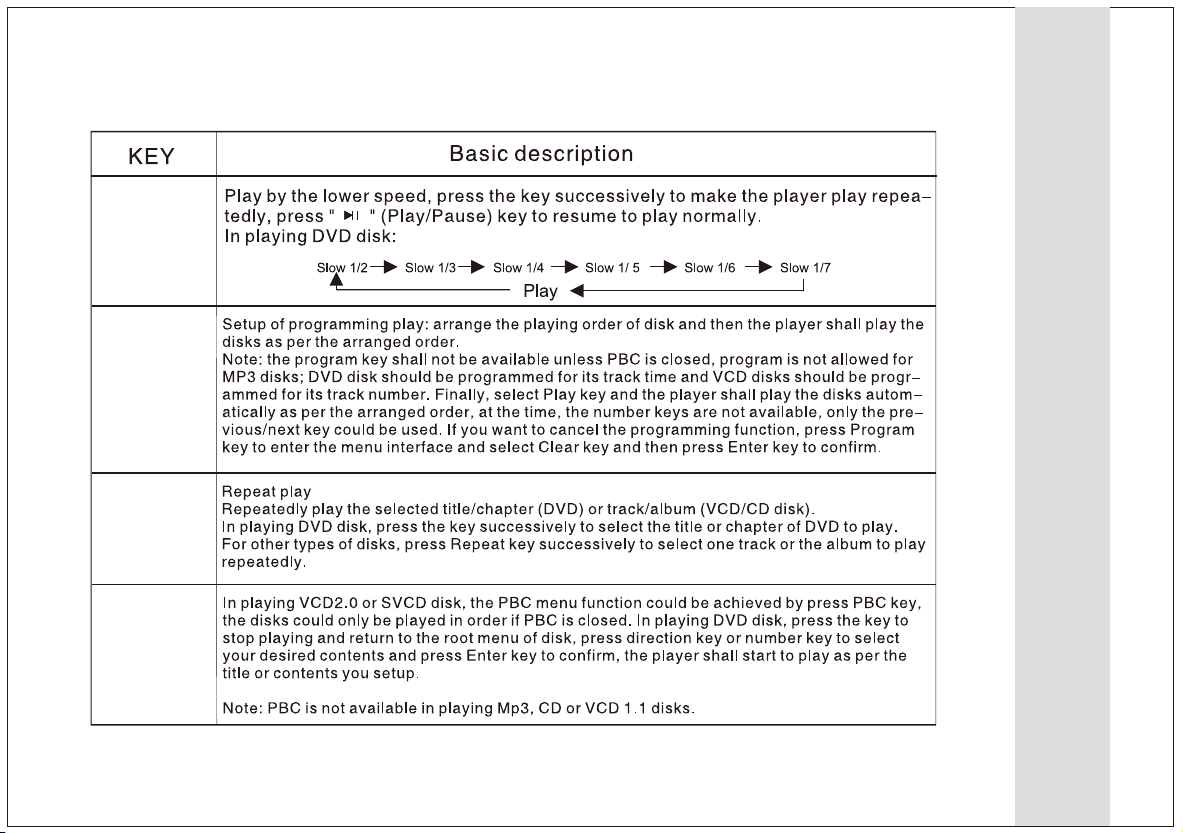

Open/close the PBC menu in playing VCD2.0 and SVCD.
Power on/off
Multiple modes of repeat play shall be available.
Subtitle switching, used for SVCD, DVD and MP4 disks
with multiple subtitles only.
Direction selecting key.
Track programming play.
Open/close DVD setup menu.
Switching the menus of LCD brightness, contrast,
definition, color and tint.
Fast forward or backward.
Play or pause
Stop key
Number selection
DV/AV switching
TFT-LCD switch on/off
Select desired time to play
Switching DVD/USB/SD CARD
Language switching key, used for SVCD, DVD and MP4
disks with multiple languages only, channel switching
key for VCD.
Select the previous or next track.
Adjust the volume.

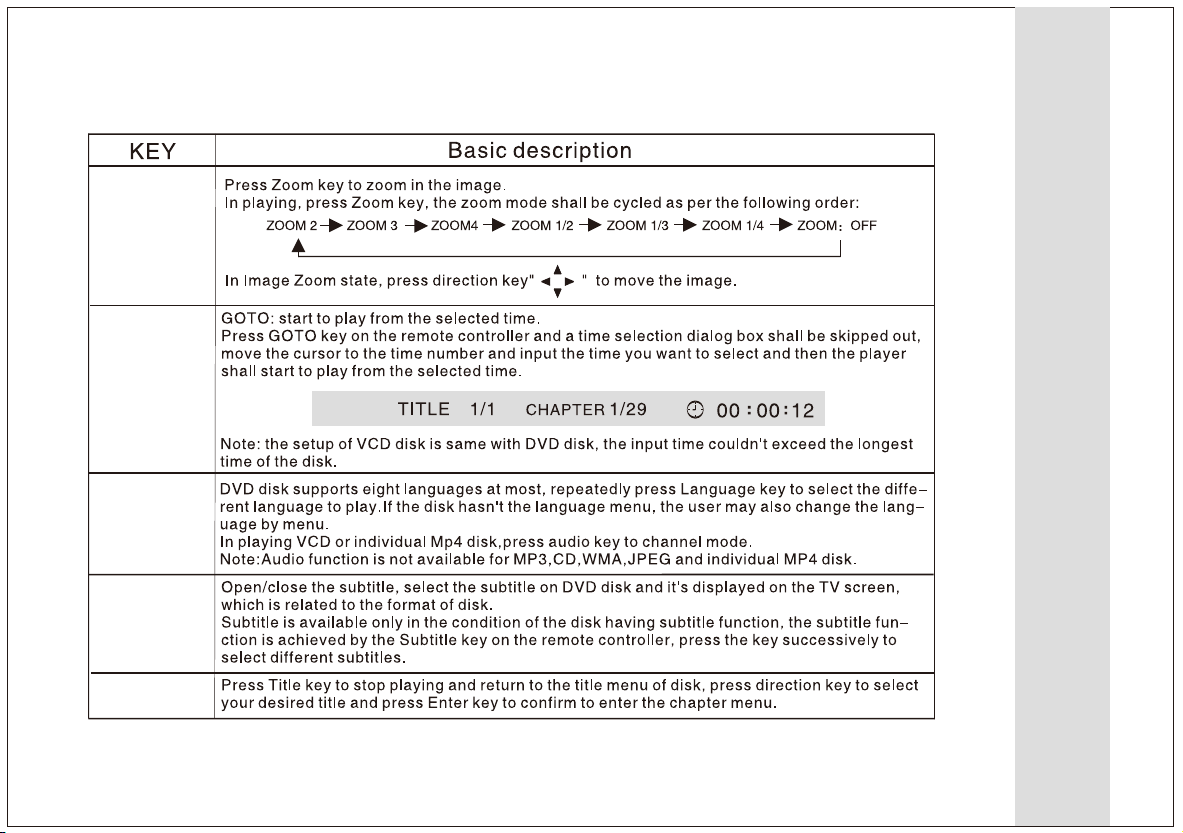

Zoom in/out, multiple modes.
Confirmation

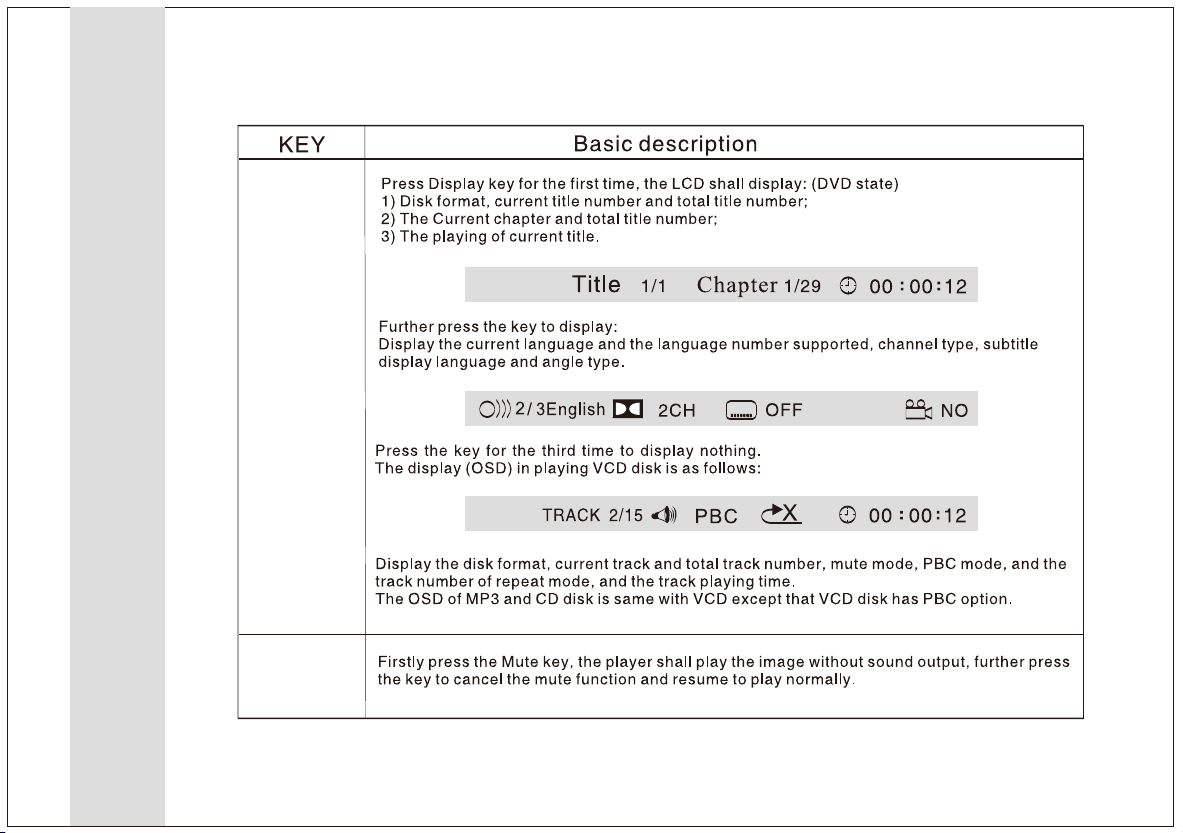

Display the disk information and playing time.
Open/close the sound.
Press the key to return to the title menu in playing DVD disk.
Wireless game control key area.

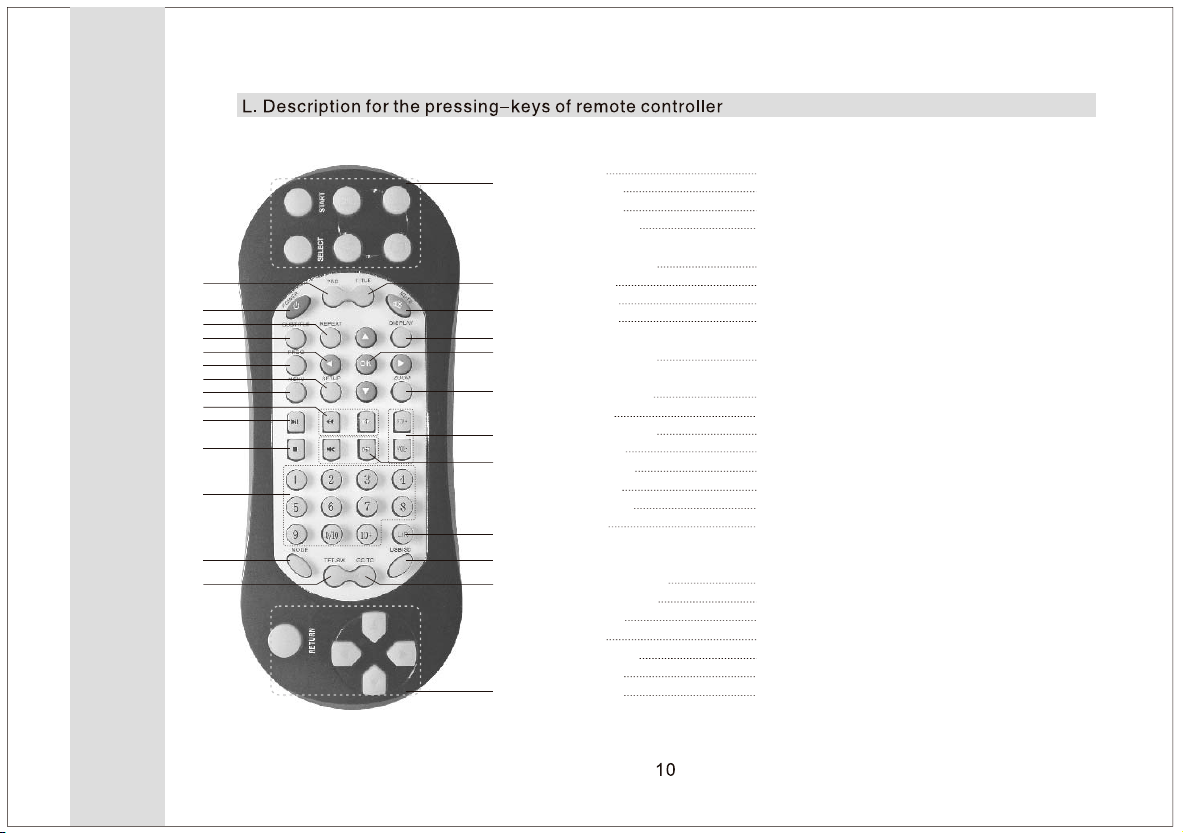

1. PBC
2. POWER
3. REPEAT
4. SUBTITLE
5. Direction key
6. PROG
7. SETUP
8. MENU
9. Fast forward/
backward play
10. Play/Pause
11. Stop
12. Number key
13. MODE
14. TFT-SW
15. GOTO
16. USB/SD
17. L/R
18. Previous/Next
19. VOL-/VOL+
20. ZOOM
21. OK
22. DISPLAY
23. MUTE
24. TITLE
25. Wireless game control key

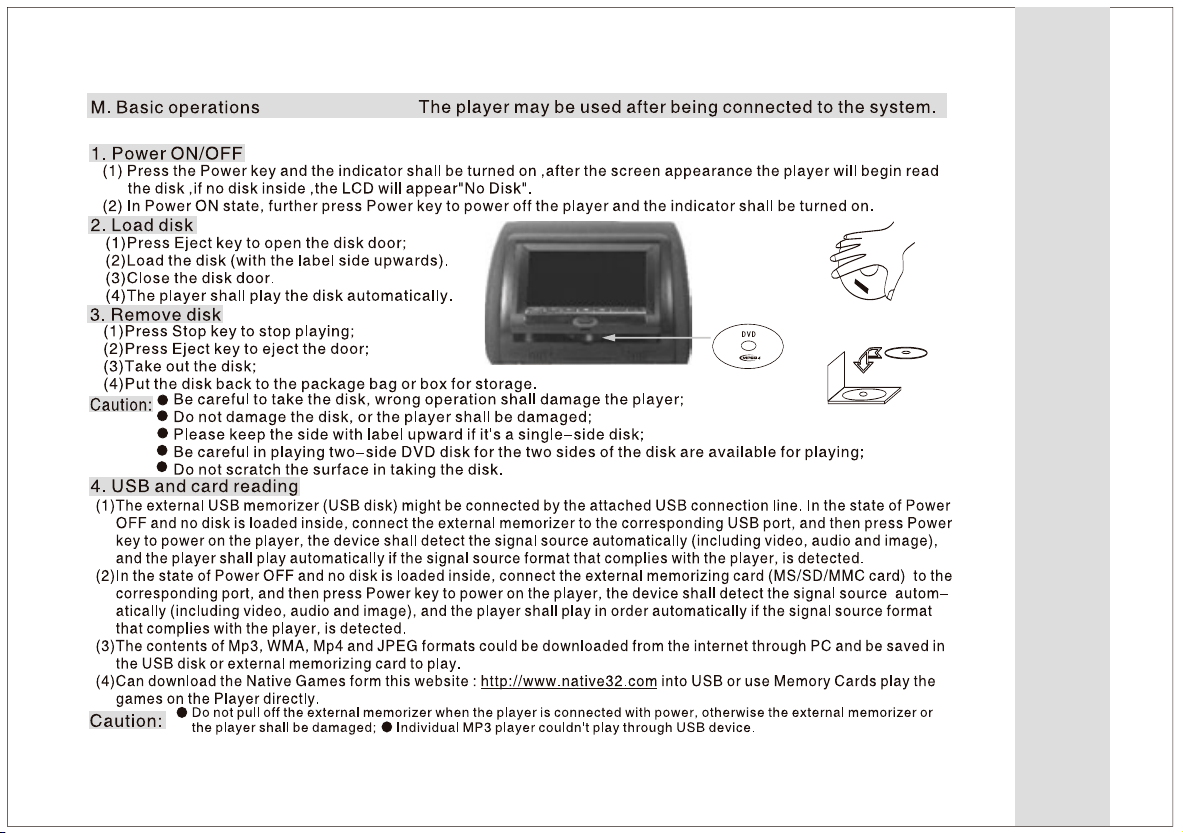

11
12
Open key
POWER
13
PROGRAM
REPEAT
PBC/MENU
SLOW
14
DISPLAY
MUTE
DVD
VCD
15
AUDIO
ZOOM
GOTO
SUBTITLE
TITLE
DVD

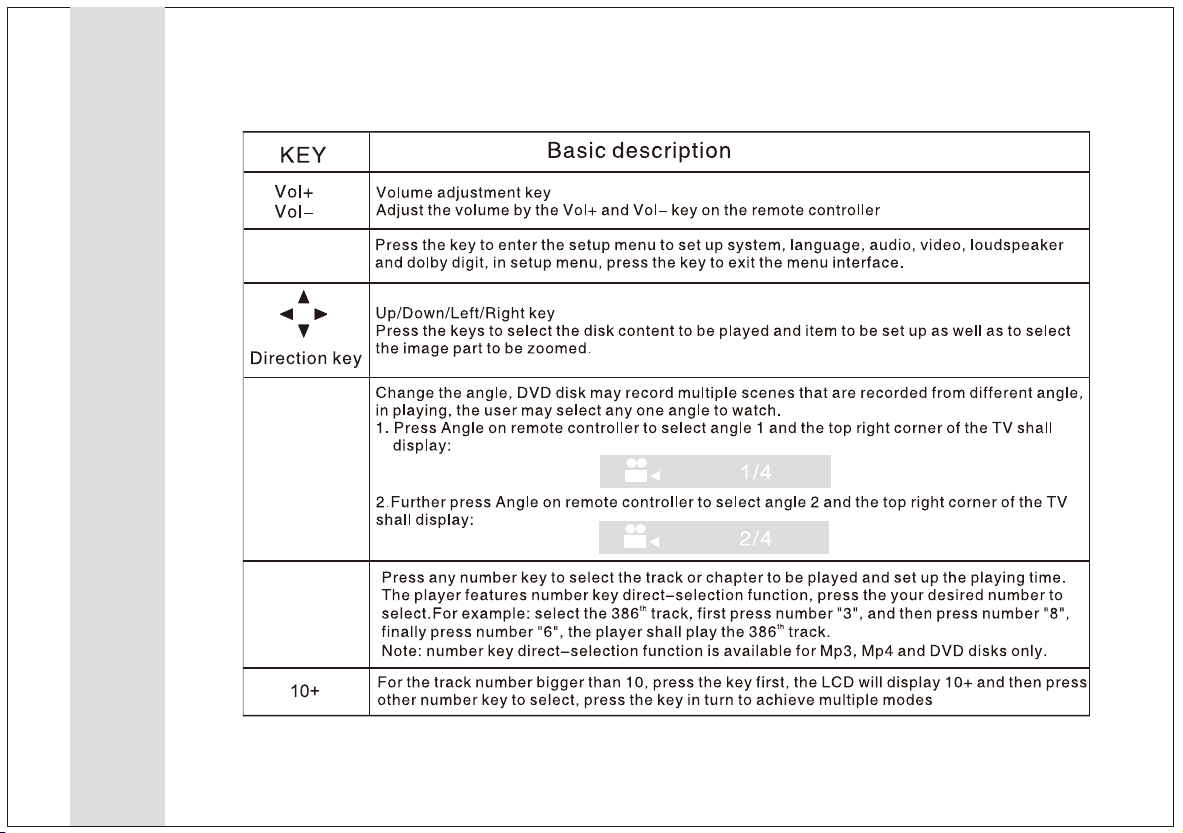

16
1-0/10
SETUP
ANGLE
17

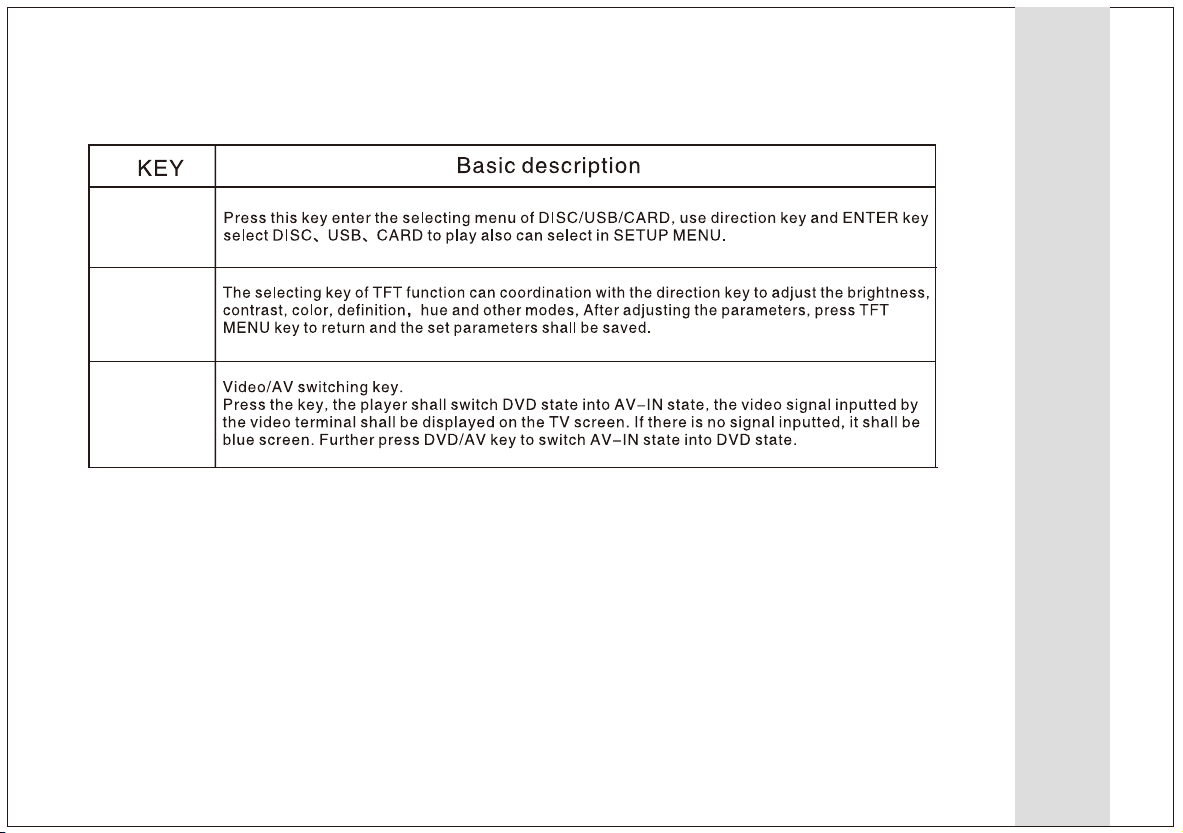

USB/SD
DVD/AV
TFT/MENU
18

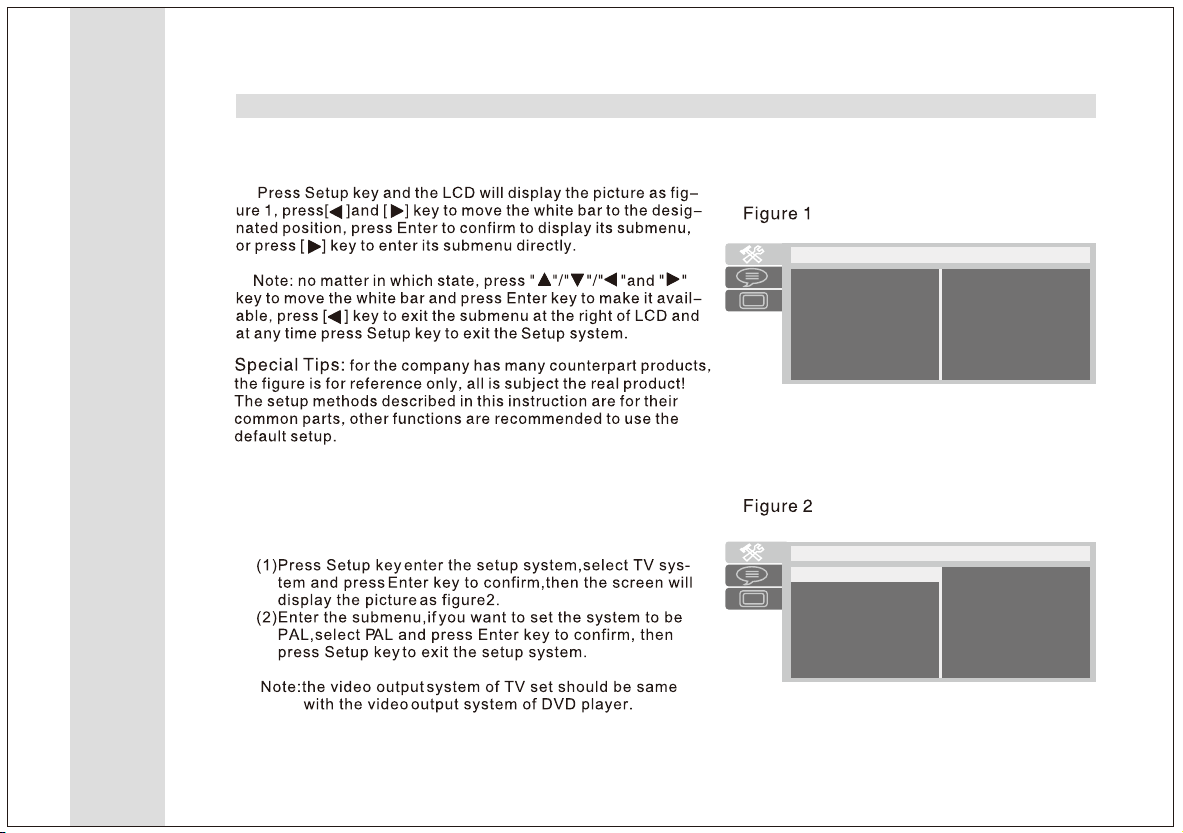

SYSTEM SETUP
System
Power Resume
Type
Password
Rating
Default
SYSTEM SETUP
System
Power Resume
Type
Password
Rating
Default
NTSC
PAL
Auto
1. SYSTEM (see figure 2)
O. Menu operation
19
SYSTEM SETUP
System
Type
Password
Rating
Default
Power Resume On
Off
SYSTEM SETUP
System
Power Resume
Type
Rating
Default
Password
2. POWER RESUME (see figure 3)
(1) Press Setup key enter setup system, select POWER
RESUME then will display the figure 3.
(2) Enter the submenu. If you want to open that function,
select ON then press Enter key, then press Setup key
to exit the setup system.
(1) Press Setup key enter the setup system, select TV system
and press Enter key to confirm, then the screen will
display the picture as figure 4.
3. PASSWORD (see figure 4)
20
SYSTEM SETUP
System
Power Resume
Type
Password
Default
Rating
4. RATING (see figure 5)
Please check figure 5 for details, use directions buttons
to choose what to setup.
1 KID SAFE
2 G
3 PG
4 PG13
5 PG-R
6 R
7 NC-17
8 ADULT
SYSTEM SETUP
System
Power Resume
Type
Password
Rating
Default
5. Default Value (see figure 6)
If you don’t want to save the setup of the functions by
yourself of the picture and voice of the player on the
abnormal condition, please select Reset option and the
DVD player will reset to the ex-factory parameters.
Restore
21

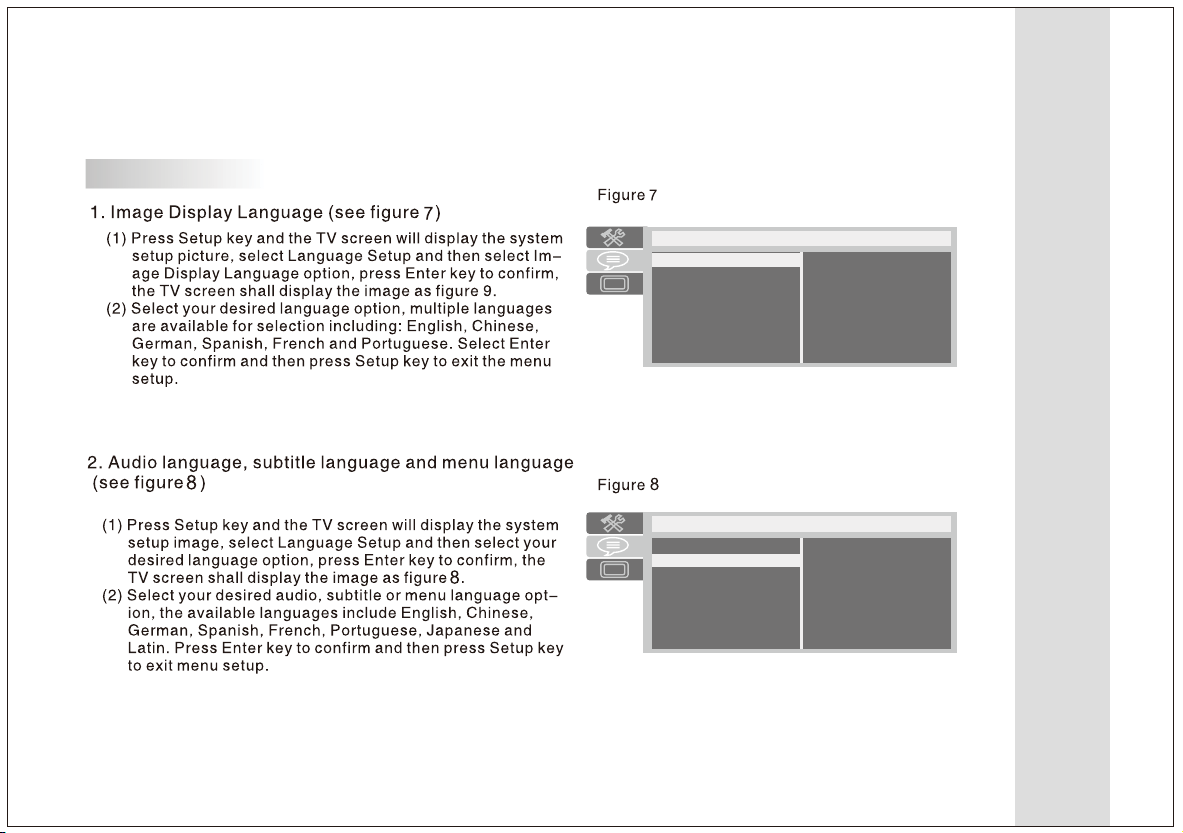

LANGUAGE SETUP
Osd Language
Audio Lang
Subtitle Lang
Menu Lang
English
Chinese
German
Spanish
French
Portuguese
LANGUAGE SETUP
Osd Language
Subtitle Lang
Menu Lang
Audio Lang
Chinese
English
Japan
French
Spanish
Portuguese
Latin
German
Language Setup
22
Note:
LT/RT: if the disk has the PROLOGIC dolby stereo effect,
the disk signal could present living cinema effect by
decoded inside the player.
Stereo: for 5.1 channel output, the audio shall output two
roads of signal (left channel and right channel); the
common stereo signal shall be outputted.
Virtual surround: in playing 5.1 channel recorded disks,
the main channel shall output the virtual surround effect.
Press AUDIO key of remote control
Speaker Setup
Video Setup
VIDEO SETUP
Brightness
Contrast
Hue
Saturation
Sharpness
23

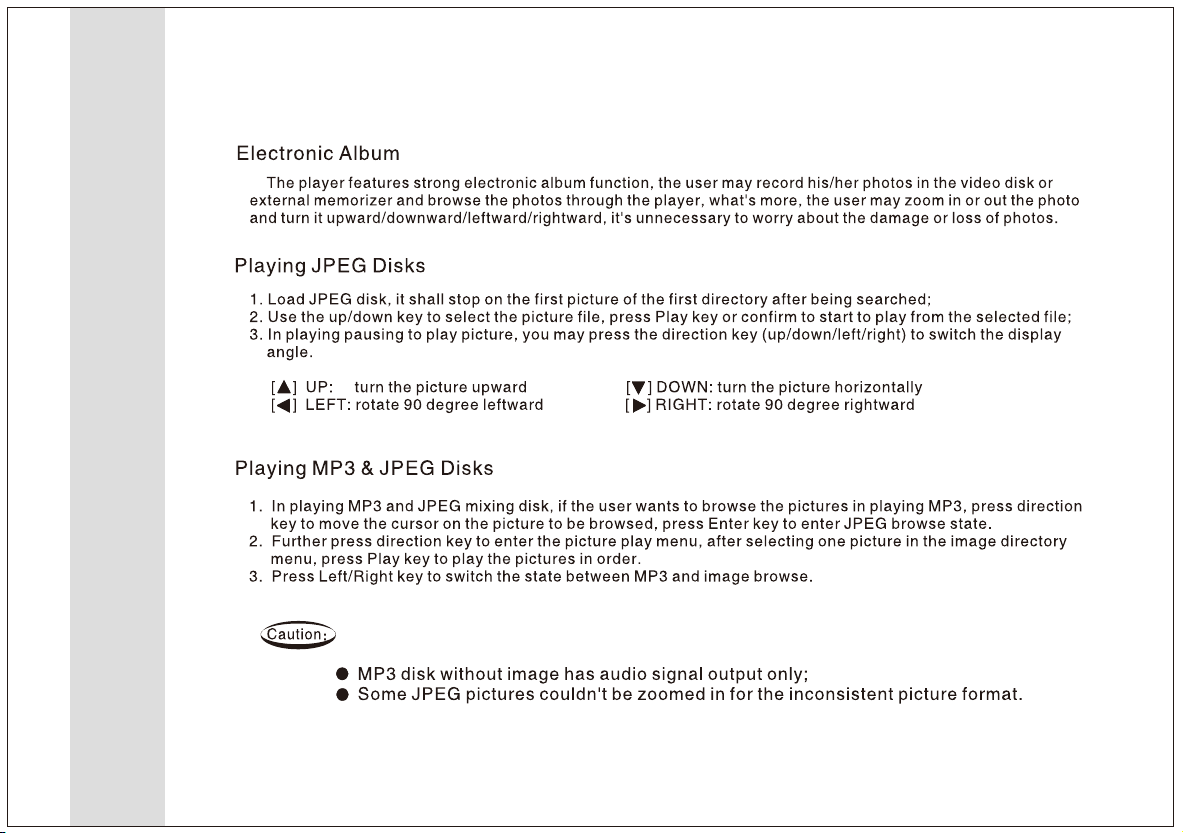

P. Description for playing MP5/MP4/MP3/WMA/JPEG disks
24
25

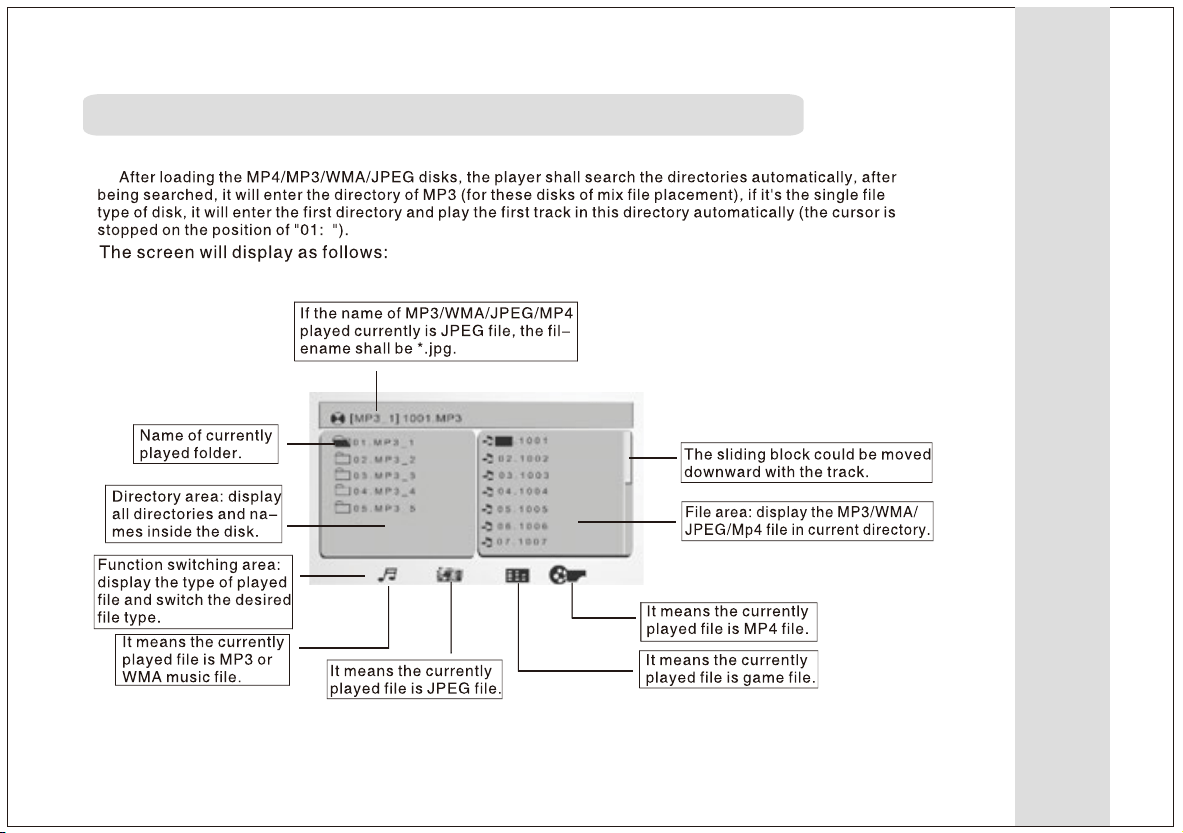

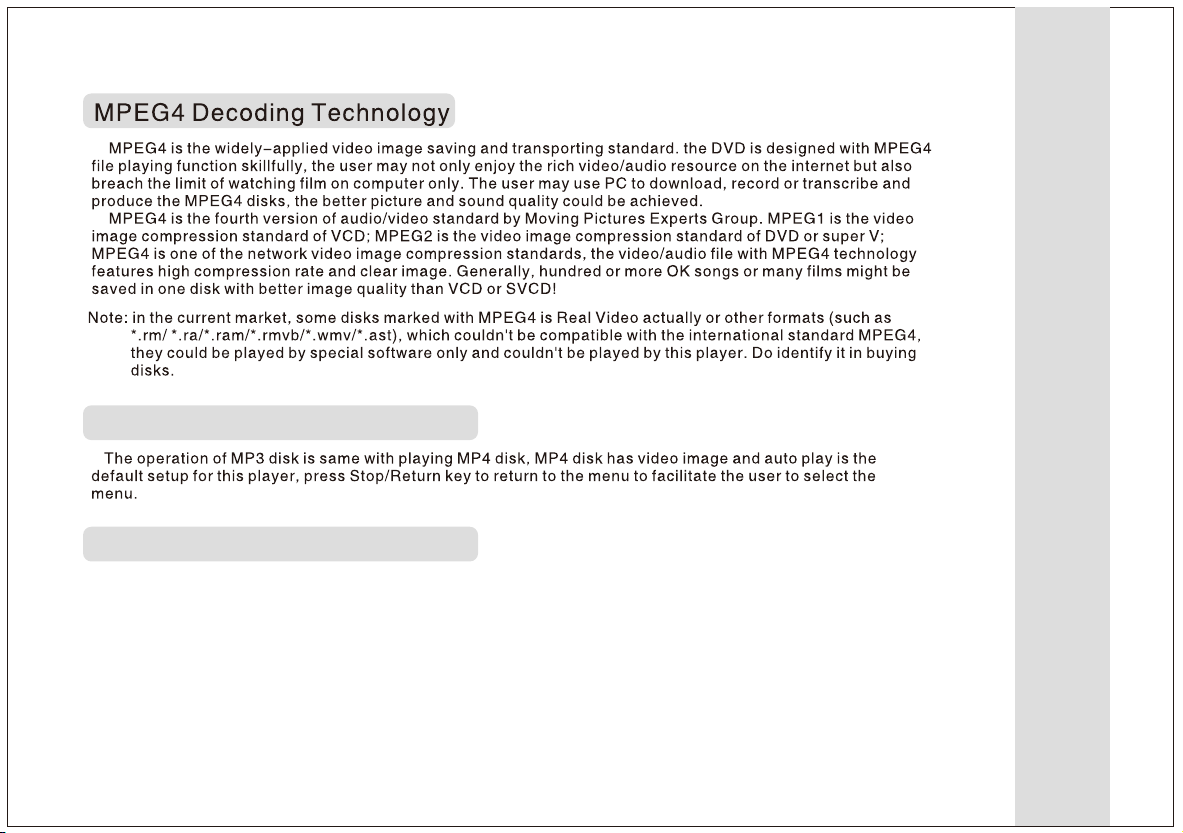

Description for Playing MP4 Disks
Description for Playing MP5 Disks
1. MPEGLayer5 hereinafter referred to as't a MP5, It is by our domestic manufacturers to R&D and promote to market.
2. MP5 player is adopted with the hard and soft multimedia processing technology to make products with high collaborative
sex and expansibility, it is can via relatively low power consumption and technical difficulties save expenses, it is also the
first to ARM11 platform to be used in hand-held multimedia terminal, the highest frequency up to 1 GHz, it is able to player
more video formats, such as AVI, DAT, RM, RMVB etc, it is will give the consumer bring benefits and make industry
bottleneck be solved.
3. About MP5, most of digital manufacturers can't given a specific definition, but we can simply understand that is MP4 with
watch TV function, With the development of The Times, MP3, MP4 and other download audio-visual products already can't
meet the needs of individualized and online consumption, MP5, its core function is the use of the ground and satellite digital
TV channels let we can watch TV online or download digital video function include copy big memory DVD or all the photos
built in to MP5 platform .
26
Play/pause key
Function key
Select game
Direction selecting
key
Return main menu

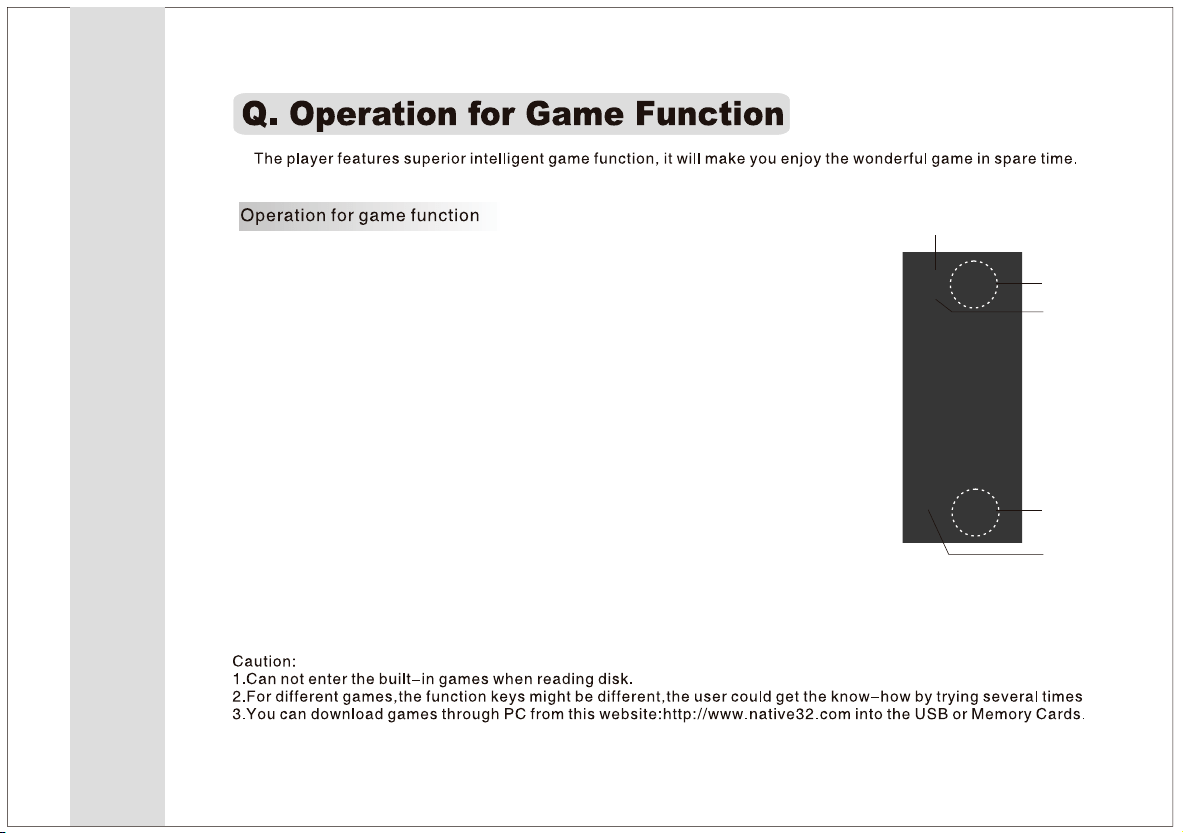

1. Description for built-in game operation
On the no disk or stop playing status, press SETUP on the function controller
or press SELECT on the game controller enter the menu, use direction key
select EMBEDED game or NATIVE game and press START on the game
controller to enter the game.
2. Description for playing the game disk operation
(1) Load game disk (the disk for free), the game main menu shall be displayed
in seconds.
(2) Press direction key of the function controller or game controller to select the
games then press START on the game controller to enter the game.
3. Description for the wireless game controller
(1) Press SELECT to enter the menu of the built-in games.
(2) Press direction key to select the games you like, then press the START to
enter the game.
(3) Enter the game, press the direction key to select upward/downward/leftward/
rightward, A and B key to operate the functions.
(4) Press Return key on the function controller to exit the game.
If enter EMBEDED game, press RETURN can return to the main menu, then use
direction key select EXIT and press START on game controller to exit the game.

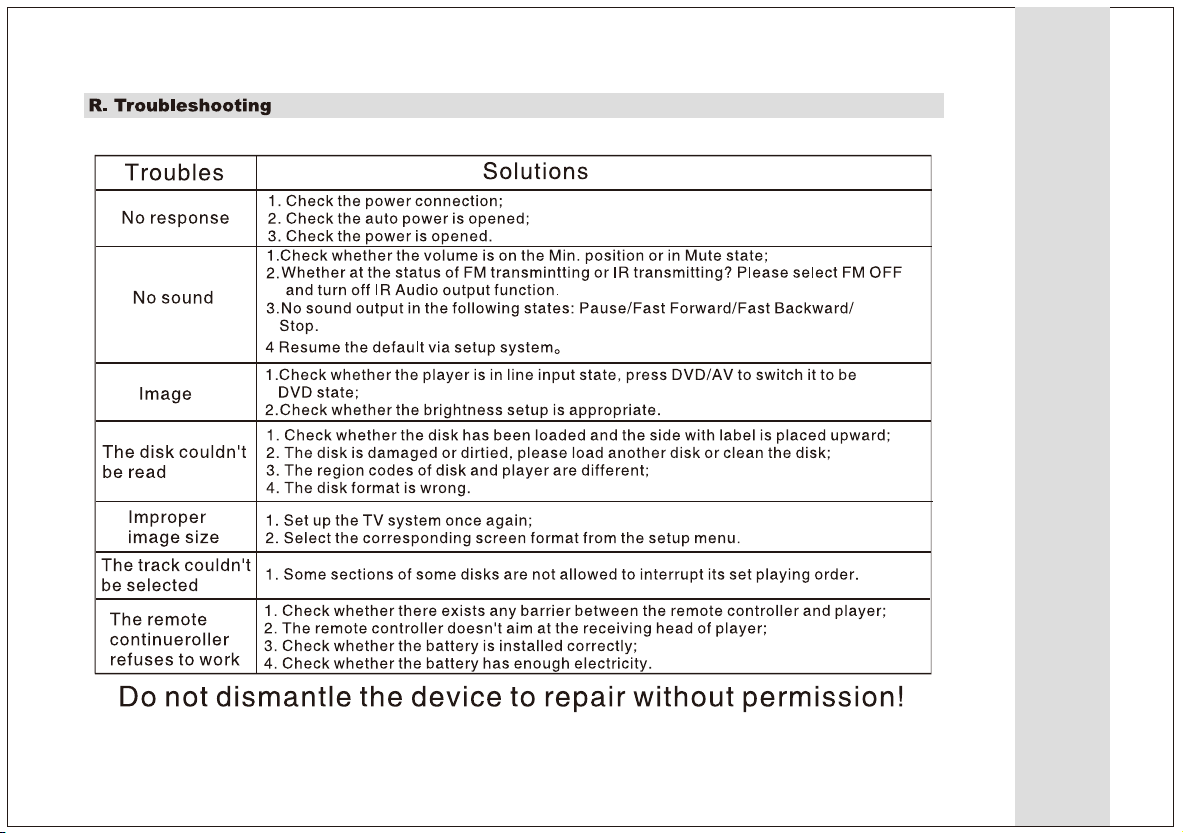

27

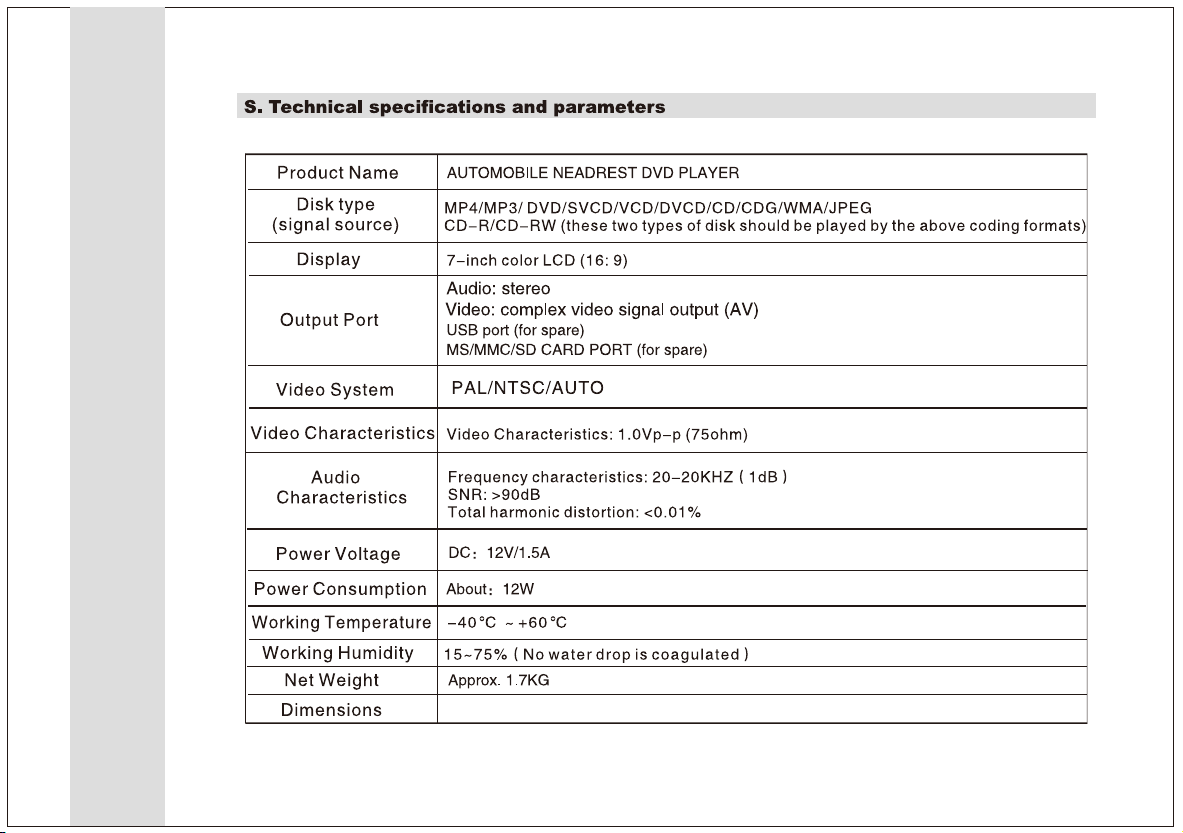

28
(L)270mm x (W)160mm x (D)200mm
