JXPT24K
POWER EDGING TROWEL
Parts Manual
27
1728
29

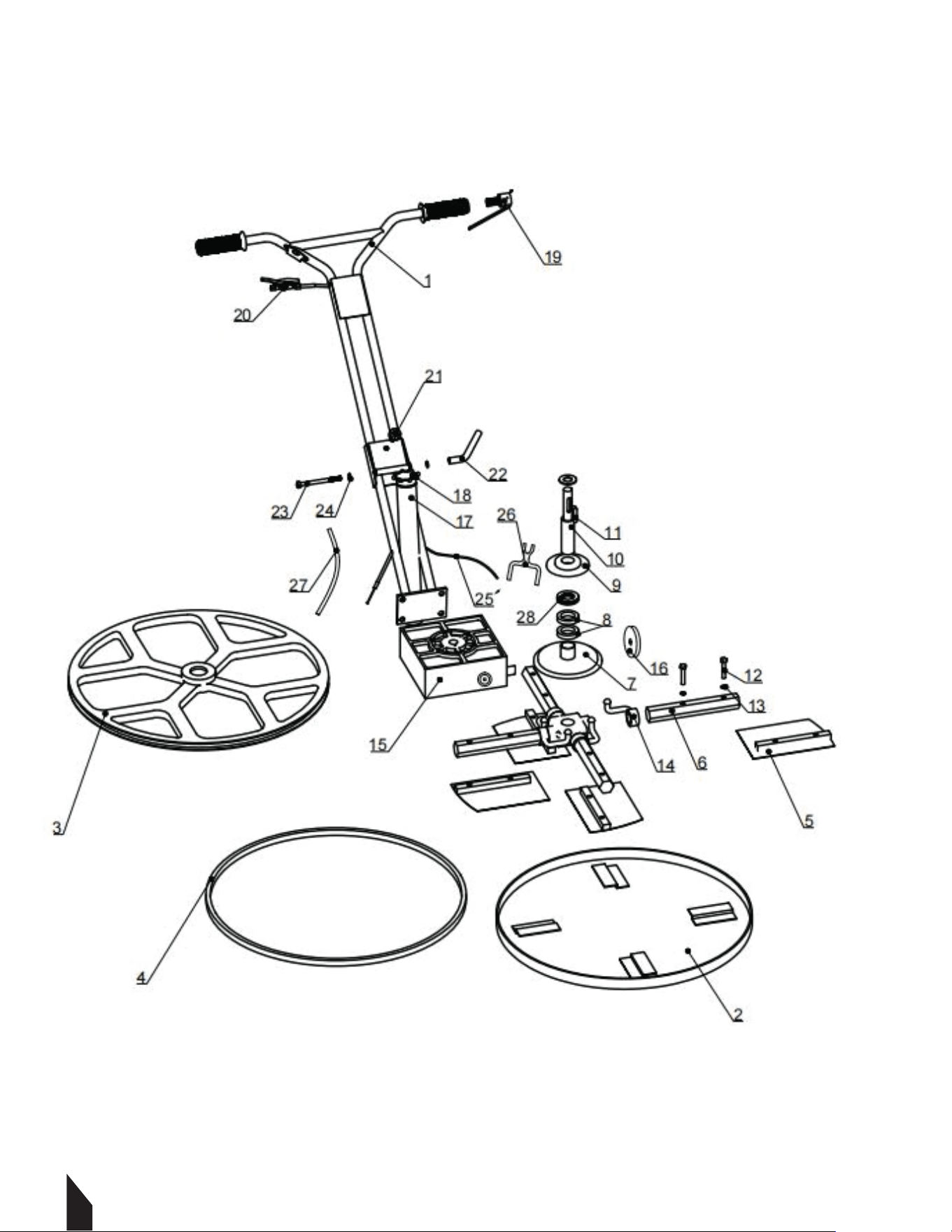

No. Part Name QTY
1 Handle 1
2 Pan 1
3 Guard Frame 1
4 Protection For Gaurd 1
5 Blade 4
6 Blade Arm 4
7 Blade Angle Press Plate 1
8 Bearing 2
9 Driving Plate 1
10 Output Shaft 1
11 Flat Key 2
12 Bolt M8*50 8
13 Spring Washer 8
14 Blade Arm Rotation Sleeve 4
15 Gear Box 1
16 Belt Pulley 1
17 Blade Angle Adjusting Mechanism 1
18 Adjusting Knob 1
19 Emergency Stop Switch 1
20 Throttle Rod 1
21 Fixing Bolt 1
22 Handle Lock Lever 1
23 The Handle Folds The Axis Of Rotation 1
24 Washer 2
25 Sw
itch Wire 1
26 Shifting Fork 1
27 Cable Guard 4
28 Bearing 1
