AIR FRYER OVEN
MODEL NUMBER: TM184-E
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: IMN1000-UL
TM184-E
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions carefully before
operating. VEVOR reserves clear interpretation of our user manual. The
appearance of the product shall be subject to the product you received. Please
forgive us that we won't inform you again if there is any technology or software
updates on our product.
AIR FRYER OVEN
- 2 -
Thank you for purchasing the Air Fryer Oven. Please read the User Manual
carefully before use and keep it in a convenient place for future reference.
SPECIFICATION
1.MODEL NO.: TM184-E
2.POWER: 120VAC 60Hz 1800W
3.PRODUCT SIZE: 355*351*350mm
4.TEMPERATURE RANGE: 200°F-450°F
5.TIME RANGE: 0~ 60 Min
IMPORTANT SAFEGUARDS
Fire and electric shock are present in all electrical appliances and may cause
personal Injury. Read this manual and follow the safety precautions below.
1. Check whether the voltage you use is in line with the rated voltage of the
product.
2. Do not touch hot surfaces, using heat-resistant pads or other supports until the
appliance cools.
3. Please do not use components from non-designated manufacturers. This will
cause harm to the user or pose a potential hazard.
4. Do not immerse the main unit or power cord or plug in water or other liquids to
prevent electric shock.
5. When cleaning and not using, please unplug the plug. Before installing
disassembling parts and cleaning utensils, make sure that the utensils are
completely cooled.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent,
or a similarly qualified person in order to avoid a hazard.
7. During the operation of the appliance, certain components are very hot and
should not be in direct contact. Limited to contact handles or knobs.
- 3 -
8. When removing the plug, grasp the plug and pull out the power cord, and do not
pull the cord.
9. Don't let the power cord hang on the table or place it on a hot surface.
10. Do not approach inflammable gases or electric furnaces or put them in a hot
oven.
11. Do not use a metal cleaning brush to clean.
12. Take good care of this appliance, do not allow a child under 8 years of age to
take it and its power cord. However, this appliance can be used by children aged 8
years and above and persons with reduced physical, sensory, or mental
capabilities or lack of experience and knowledge if given supervision or instruction
concerning using the appliance safely and understanding the hazards.
13. Do not move the appliance when there is hot oil or other hot liquids in the
appliance.
14. Do not use it outdoors. Do not use appliances for other purposes.
15. Do not cover appliances with towels or other articles to ensure the flow of heat
and steam. When appliances are covered or in contact with flammable materials,
they are prone to fire.
16. Appliances can not be used by persons with reduced physical, Sensory, or
mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning the use of the appliance in a safe way.
17. Children should be supervised to avoid playing with the appliance.
18. In the absence of supervision, the child should not do the cleaning and
maintenance work.
19. The main machine of utensils should not be washed in water. When using the
cloth to clean, attention should be paid to preventing water from entering the main
machine to avoid the danger of short circuits, damage, or leakage in the second
use.
20. Pay attention to hot steam. When the appliance is in operation, it generates
heat and emits steam. Take appropriate measures to prevent injury and burns.
21. The appliance cannot be operated as an external timer or a separate remote
control system.
22. This appliance is suitable for households and similar purposes.
- 4 -
23. The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries.
24. Always attach the plug to the appliance first, then plug the cord into the wall
outlet. To disconnect, rum any control to "off," then remove the plug from the wall
outlet.
25. This appliance has a polarized plug (one blade is wider than the other). To
reduce the risk of electric shock, this plug is intended to fit into a polarized outlet
only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician. Do not attempt to modify the plug in any
way.
26. A short power-supply cord is provided to reduce the risk resulting from
becoming entangled in or tripping over a longer cord. Extension cords are
available and may be used if care is exercised in their use. If an extension cord is
used: The marked electrical rating of the extension cord should be at least as great
as the electrical rating of the appliance;
The cord should be arranged so that it will not drape over the countertop or
tabletop where it can be pulled on by children or tripped over unintentionally.
SAVE THE INSTRUCTIONS
FIRST USE
1. When using this product for the first time, the product may have a little smoke or
other flavors. This is a normal phenomenon and will disappear soon. Make sure
the product has good ventilation.
2.Please check that all parts and accessories of the product are intact and
undamaged.
3. Clean all parts of the product according to the "Cleaning and Maintenance"
section.
4. Dry the parts thoroughly and assemble them into the inside of the product. Then,
the product can be put into use.
OPERATION INSTRUCTIONS
- 5 -

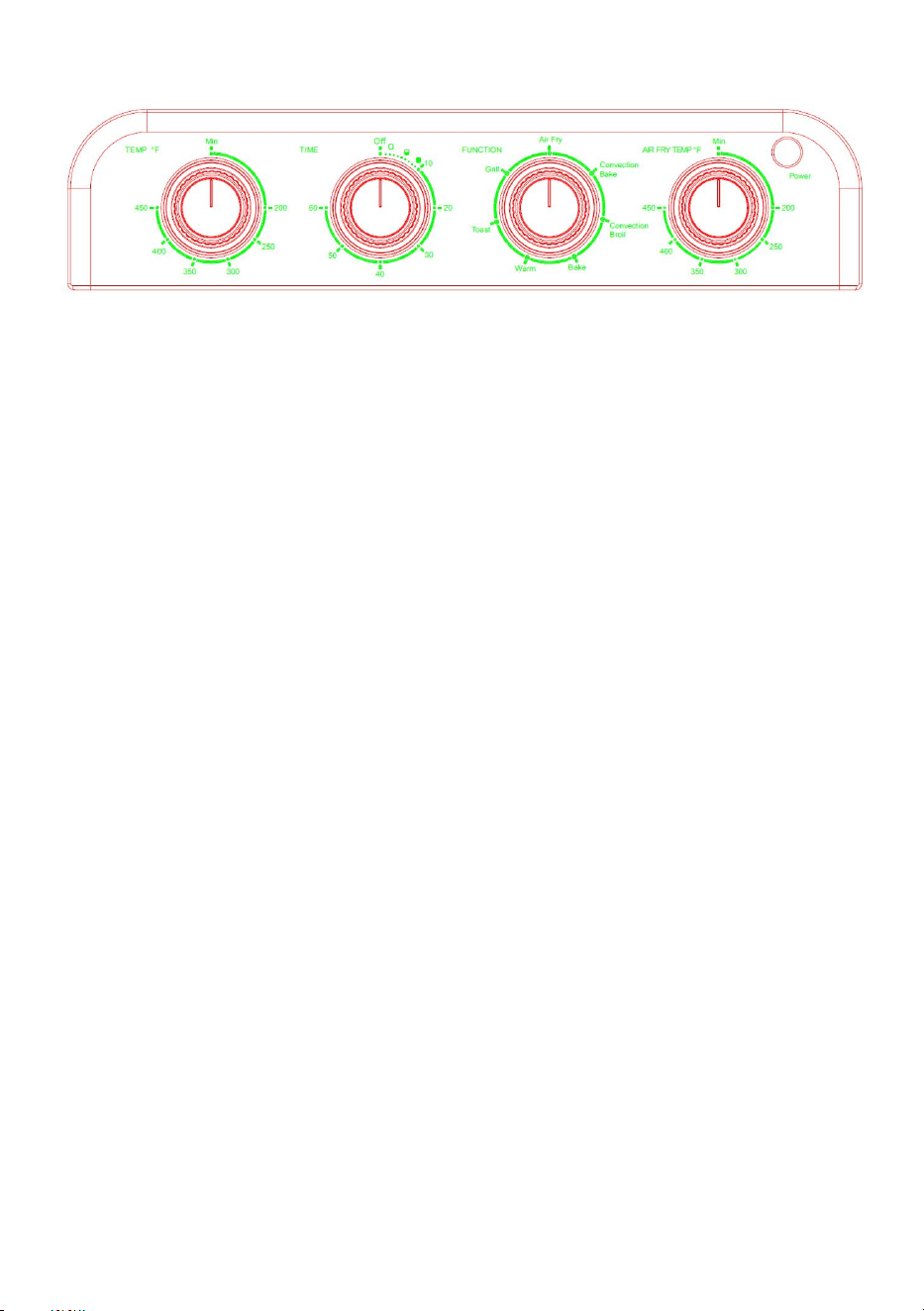

Control Panel
Operation instructions:
1.First,place the electric oven on the platform and make sure the timer knob is in
the "Off" position. Then plug the electrical cord into the socket.
2.Place the prepared food on the baking sheet of the electric oven and close the
glass door of the electric oven.
3.Set the thermostat knob in the desired position
4.Select the function knob to the desired position.
5.Turn the timer knob to set the appropriate baking time and the body will start
working.
(For a better cooking effect, preheat it for 5 minutes before baking food so that the
oven chamber is heated to the expected temperature, and then put in the food.)
A bell will ring at the end of the baking time. If the baking time is unsatisfactory
the baking time can be slightly longer to achieve the best results. After the time is
over, open the oven door and take out the food.
Attention:
①When the prepared food is put into the electric oven, the time knob should be
located in the "off" position.
②With the temperature increase in the oven heating process, the heating element
will gradually turn red. In order to prevent excessive cooking of baked food, please
choose good baking time according to your personal experience or do not leave
the electrical appliance when using.
③This appliance must not be used for other purposes. This product design is only
suitable for household use.
④When the oven door is fully open, items are not allowed to be placed in order to
avoid turning over.
- 6 -
Wiring Diagram
CLEANING AND MAINTENANCE
1. The product must be disconnected from the power supply and cooled
thoroughly before cleaning.
2.Please use soft dry cloth to wipe the inner cavity of the product. Do not use
sharp or frictional materials to wipe the product's internal cavity to protect the
metal coating of the inner cavity.
3.The plate can be washed with water directly, and the water traces are dried with
a dry cloth. Do not soak with detergent or similar detergent.
4.Before packing and storing products, make sure that the products are completely
cooled, clean and dry.
ATTENTION ENVIRONMENT PROTECTION
Attention Environment Protection
Please obey local law: put wasted electric products and devices into proper waste
recycling station.
