CSA/ANSI Z83.26-2020 • CSA 2.37-2020
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and immediately call your gas supplier or fire
department.
DANGER
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or
home.
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
or servicing this equipment.
WARNING:
For Outdoor Use Only
Instruction Manual
Item # 259-5291
Square Patio Heater
C
US
R
WARNING
Installation and service must be performed by a
qualified installer, service agency, or the gas supplier.
CARBON MONOXIDE HAZARD
Please keep this instruction manual for future reference
Questions, problems, missing parts? Before returning to the store, email Yayi at
WARNING:
READ INSTRUCTION MANUAL BEFORE ATTEMPTING TO ASSEMBLE
OR OPERATE THIS PRODUCT.
2
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product. For additional assistance or service, please contact the customer service team
This manual contains important information about the assembly, operation and maintenance of
this patio heater. General safety information is presented in these first few pages and is also
located throughout the manual. Keep this manual for future reference and to educate new users
of this product. This manual should be read in conjunction with the labeling on the product. Safety
precautions are essential when any mechanical or propane fueled equipment is involved. These
precautions are necessary when using, storing, and servicing. Using this equipment with the
respect and caution demanded will reduce the possibilities of personal injury or property damage.
The following symbols shown below are used extensively throughout this manual. Always heed
these precautions, as they are essential when using any mechanical or fueled equipment.
DANGER
DANGER
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.
DANGER
Failure to comply with the precautions and instructions
provided with this heater can result in death, serious
bodily injury and property loss or damage from
hazards of fire, explosion, burn, asphyxiation, and/or
carbon monoxide poisoning. Only persons who can
understand and follow the instructions should use or
service this heater.
WARNING:
FUELS USED IN LIQUEFIED PROPANE GAS
APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF
SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING
BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM.
For more information go to: www.P65Warnings.ca.gov.
Safety Information...........................................................
2-4
Warranty.........................................................................5
Pre-Assembly...……………………...…………………….5
Operating Instructions .........................................14-16
Cleaning .................................................................18
Troubleshooting
....................................................19
TABLE OF CONTENTS
Package Contents
..………………...…………………….6
Assembly..………………………………………....…7-13
Table of Contents ................................
..........................2

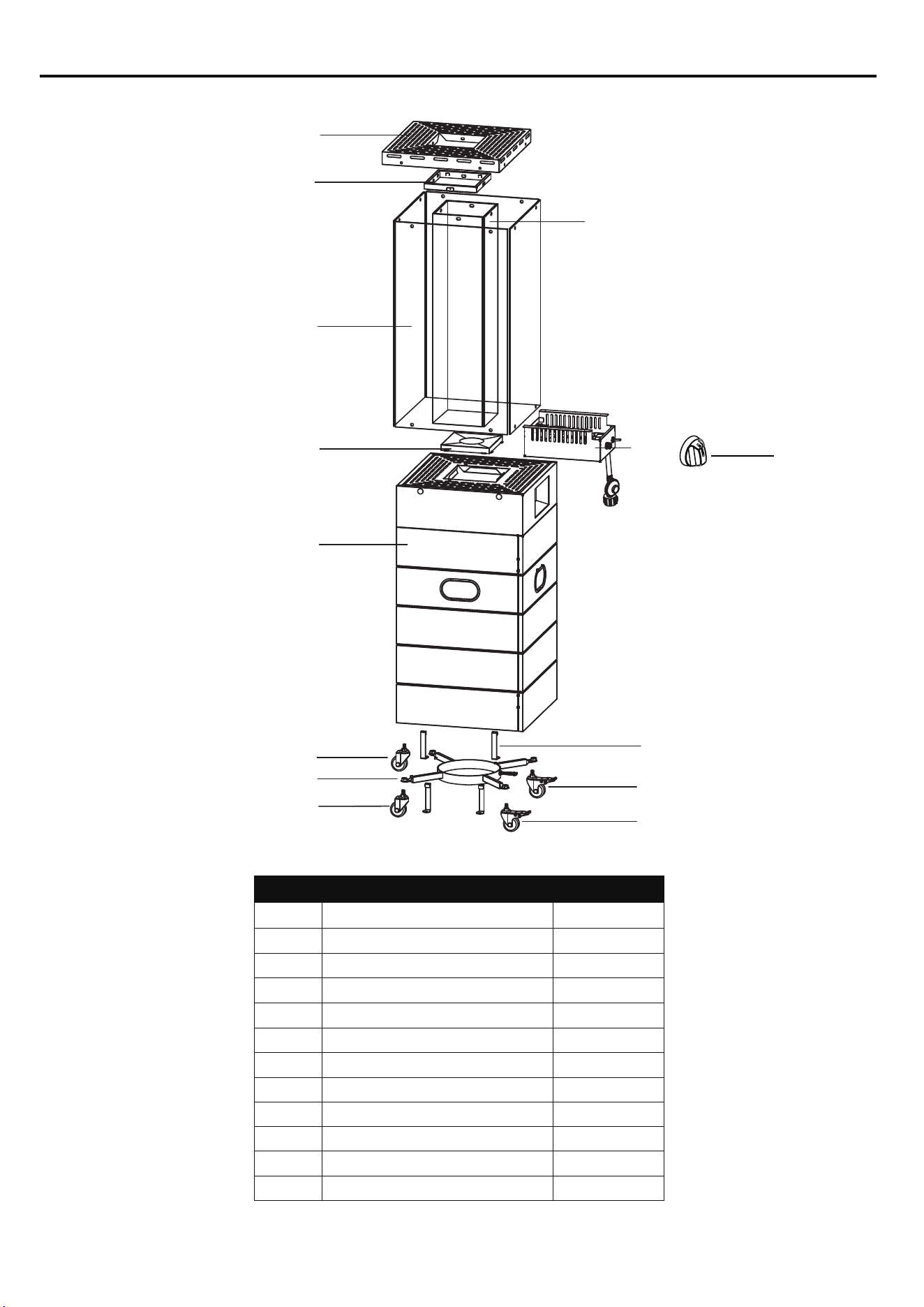

Service Parts
..........................................................
20
DANGER
• EXPLOSION - FIRE HAZARD
• Keep solid combustibles, such as building materials,
paper or cardboard, a safe distance away from the
heater as recommended by the instructions.
• Provide adequate clearances around air openings
into the combustion chamber.
• Never use the heater in spaces which do or may
contain volatile or airborne combustibles, or products
such as gasoline, solvents, paint thinner, dust particles
or unknown chemicals.
• During operation, this product can be a source of
ignition. Keep heater area clear and free from
combustible materials, gasoline, paint thinner, cleaning
solvents and other flammable vapors and liquids. Do
not use heater in areas with high dust content.
Minimum heater clearances from combustible
materials: three (3) feet from the sides & two (2) feet
from the top.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
or servicing this equipment.
Care and Maintenance ..........................................17
3
SAFETY INFORMATION
DANGER
• CARBON MONOXIDE HAZARD
• This heater is a combustion appliance. All
combustion appliances produce carbon monoxide
(CO) during the combustion process. This product is
designed to produce extremely minute, non-hazardous
amounts of CO if used and maintained in accordance
with all warnings and instructions. Do not block air
flow into or out of the heater.
• Carbon Monoxide (CO) poisoning produces flu-like
symptoms, watery eyes, headaches, dizziness, fatigue
and possibly death. You can't see it and you can't
smell it. It's an invisible killer. If these symptoms are
present during operation of this product get fresh air
immediately!
• For outdoor use only.
•
Never use inside house, or other unventilated or
enclosed areas.
•
This heater consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid endangering
your life.
WARNING
We cannot foresee every use which may be made of
our heaters.
Check with your local fire safety authority if you have
questions about heater use.
Other standards govern the use of fuel gases and heat
producing products for specific uses. Your local
authorities can advise you about these.
If no local codes exist, follow National Fuel Gas Code,
ANS Z223.1. In Canada, installation must conform to
local codes. If no local codes exist, follow the current
National standards of CANADA CAN/CGA-B 149.2.
DANGER
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or home.
WARNING: For Outdoor Use Only
DANGER
• EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open flames,
pilot lights, direct sunlight, other ignition sources or
where temperatures exceed 120 degrees F (49°C).
• Propane vapors are heavier than air and can
accumulate in low places. If you smell gas, leave the
area immediately.
• Never install or remove propane cylinder while heater
is lighted, near flame, pilot lights, other ignition sources
or while heater is hot to touch.
• This heater is red hot during use and can ignite
flammables too close to the burner. Keep flammables
at least 3 feet from sides & 2 feet from top. Keep
gasoline and other flammable liquids and vapors well
away from heater.
• Store the propane cylinder outdoors in a well ventilated
space out of reach of children. Never store the propane
cylinder in an enclosed area (house, garage, etc.). If
heater is to be stored indoors, disconnect the propane
cylinder for outdoor storage.
WARNING
WARNING indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING
• This product is fueled by propane gas. Propane gas
is invisible, odorless, and flammable. An odorant is
normally added to help detect leaks and can be
described as a “rotten egg” smell. The odorant can
fade over time so leaking gas is not always detectable
by smell alone.
• Propane gas is heavier than air and leaking propane
will sink to the lowest level possible. It can ignite by
ignition sources including matches, lighters, sparks or
open flames of any kind many feet away from the
original leak. Use only propane gas set up for vapor
withdrawal.
• Store or use propane gas in compliance with local
ordinances and codes or with ANS/NFPA 58. Turn off
propane when not in use.
WARNING
WARNING: This product contains small batteries.
Swallowed small batteries can cause CHOCKING
HAZARD. Seek immediate medical attention if batteries
are swallowed or inhaled. Keep children away from the
small batteries.
4
WARNING
California Proposition 65
Combustion by-products produced when using
this product contain chemicals known to the State
of California to cause cancer, birth defects, and
other reproductive harm.
WARNING
BURN HAZARD
• Never leave heater unattended when hot or in use.
• Keep out of reach of children.
WARNING
• Alert children and adults to the hazards of high surface
temperatures. Stay away from these surfaces to avoid
burning skin or igniting clothing.
• Carefully supervise young children when in the vicinity
of the heater.
• Do not hang clothing or any other flammable materials
from the heater, or place on or near the heater.
• Replace any guard or protective device removed for
servicing the appliance prior to placing back in service.
• Installation and repair should be done by a qualified
service person. The heater should be inspected
before use and annually by a qualified service person.
More frequent cleaning may be required as necessary.
It is imperative that the control compartment, burners,
and circulating air passageway of the appliance be
kept clean.
SAFETY INFORMATION
CAUTION
CAUTION indicates an imminently hazardous situation
which, if not avoided, may result in minor or moderate
personal injury, or property damage.
CAUTION
SERVICE SAFETY
• Keep all connections and fittings clean. Make sure
propane cylinder valve outlet is clean.

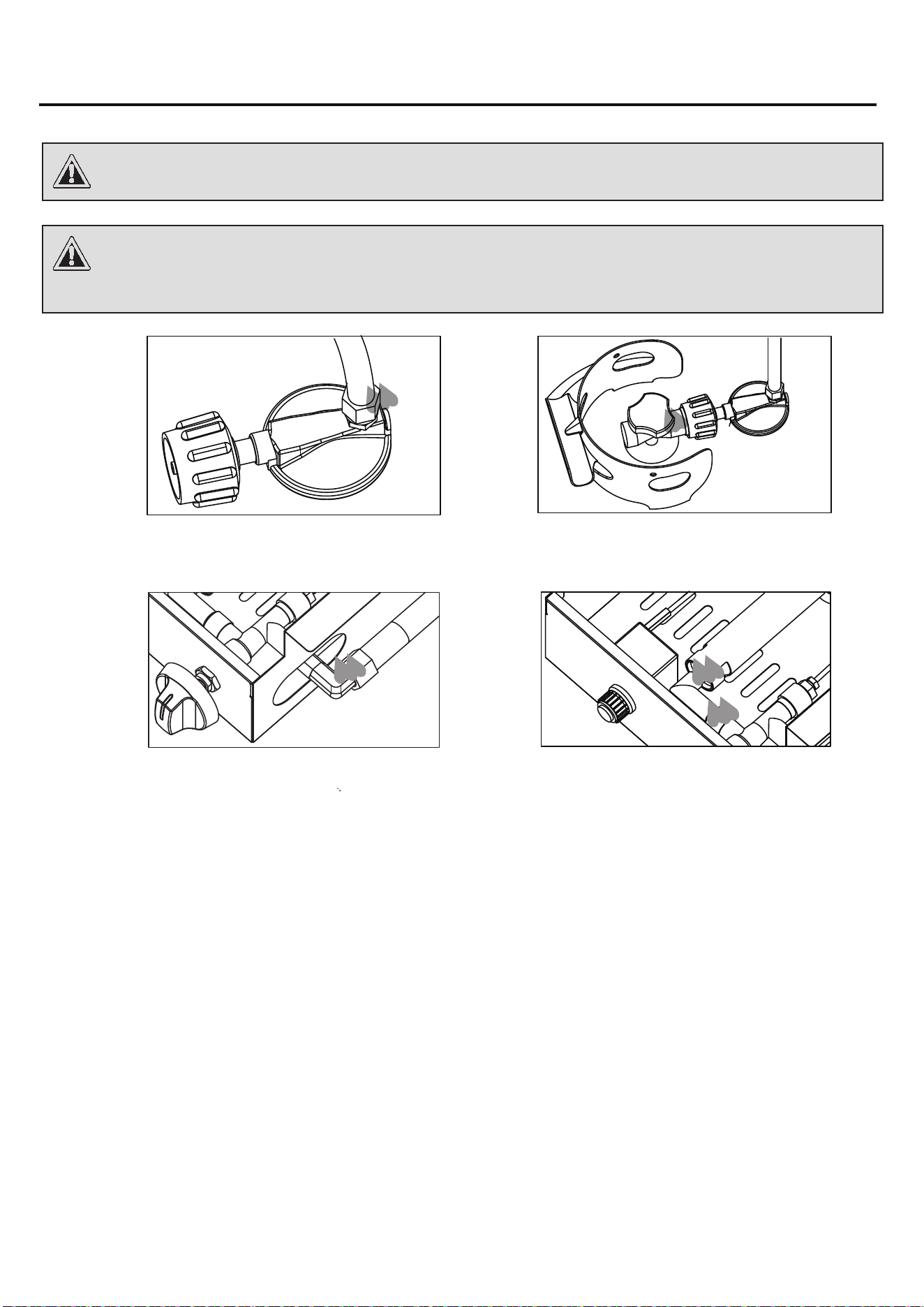

• During set up, check all connections and fittings for
leaks using soapy water. Never use a flame.
• Use as a heating appliance only. Never alter in any
way or use with any device.
WARNING
Certain materials or items, when stored under the
heater, will be subjected to radiant heat and could be
seriously damaged.
CAUTION
• Appliance may shut down in windy conditions in excess of
3 miles per hour (4.83 kilometers per hour).
• Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control
system and any gas control that has been under water.
• The propane gas pressure regulator provided with this
appliance must be used. This regulator is set for an outlet
pressure of 11 inches water column.
• DO NOT burn solid fuels in this appliance.
• This outdoor gas appliance is not intended to be installed
in or on recreational vehicles and/or boats.
• This outdoor appliance is not for use on wood decks or
other flammable surface.
• Before each use of this gas appliance, open the door and/
or the Propane Tank Drawer and inspect the hose. If there
is evidence of excessive abrasion or wear or if the hose is
damaged, the hose assembly must be replaced prior to the
appliance being put into operation. Use only the
replacement hose assembly specified in this manual. Make
sure to leak test.
CAUTION
• Before each use of this gas appliance, inspect the burner.
The burner must be replaced prior to the appliance being
put into operation if it is evident that the burner is damaged.
Use only the replacement burner specified in this manual.
• Make sure to properly locate the gas hose including
locating the hose out of pathways where people may trip
over it or in areas where the hose may be subject to
accidental damage.
• Keep the fuel supply hose away from any heated surface.
• Never use gasoline, kerosene, or any other liquid fuel to
start a fire.
• Always maintain a safe distance from the fire.
• Always supervise children around the fire.
• Never leave a fire unattended.
• The appliance is hot during and after use, always allow
ample cooling time before touching or moving.
This appliance shall be used only in a well-ventilated space and shall not be used in a building, garage, or any other enclosed area.
This appliance may be installed with shelter no more inclusive than the following:
1) With walls on all sides, but with no overhead cover.
2) Within a partial enclosure, which includes an overhead cover and no more than two side walls. These side walls may be parallel, as
in a breezeway, or at right angles to each other.
3) Within a partial enclosure which includes an overhead cover and three side walls, as long as 30% or more of the horizontal
periphery of the enclosure is permanently open.
The replacement of pressure regulators and hose assemblies must be those specified by the appliance manufacturer.
This appliance is not for use at altitude above 2,000 ft (610 m).
5
WARRANTY
1 YEAR LIMITED WARRANTY
NOTE: Please read and understand the entire
m
t
anual before you assemble, operate, or install
he patio heater.
We warrant the metal frame and burner to be free of manufacturing defects to the original purchaser for one year.
Proof of purchase (dated register receipt) is required for warranty claims.

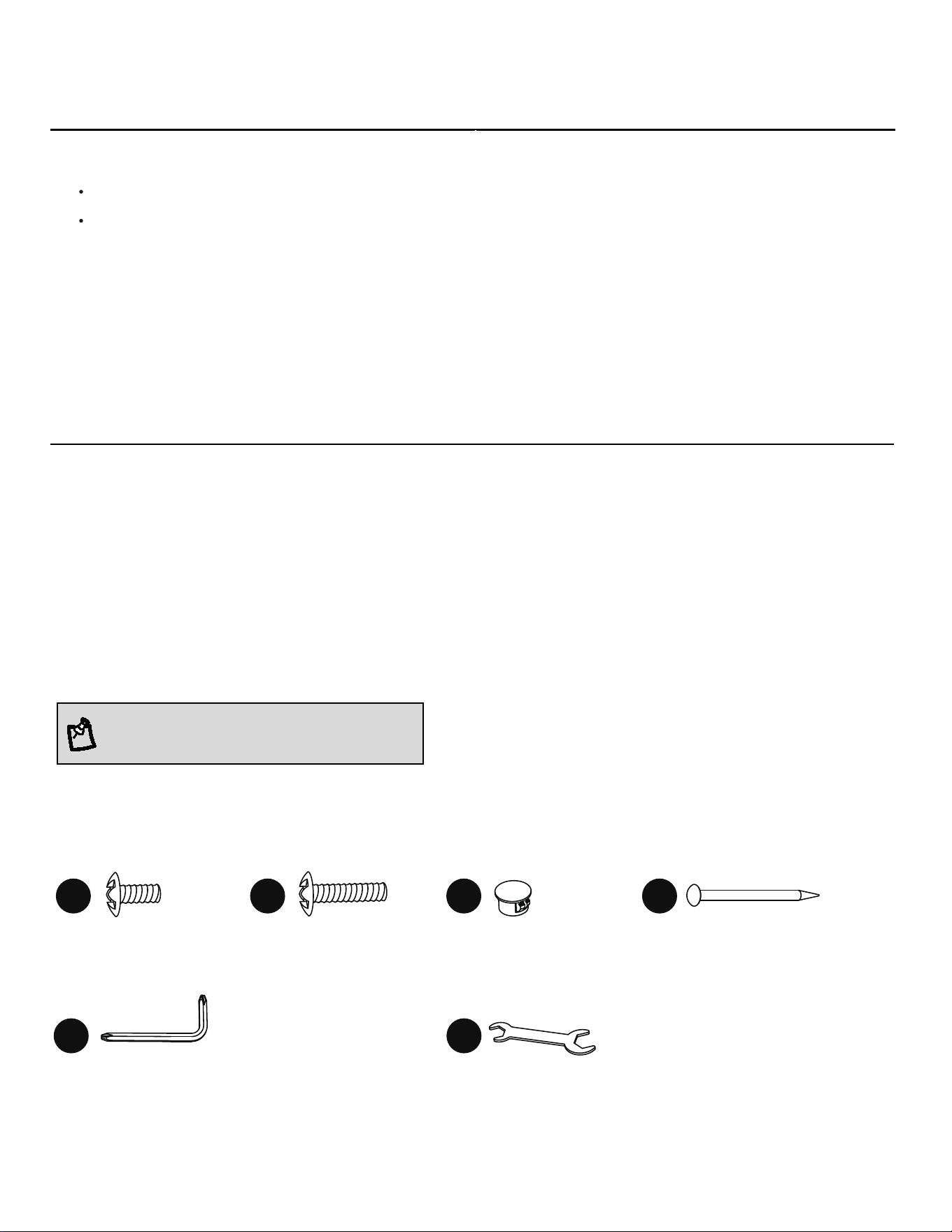

HARDWARE INCLUDED
AA BB
M5 x 15
Qty. 16
M5 x 25
Qty. 4
CC DD
Screw Cover
Qty. 4
D8X180
Ground Stake
Qty. 4
EE FF
Wrench
Qty. 1
Philips Screwdriver
Qty. 1
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty
does not cover commercial use, acts of nature, fire, freezing and abusive use. In addition, purchased parts are not
covered under this warranty. We reserve the right to make substitutions with similar merchandise, if the model in
question is no longer in production. Contact the Customer Service Team at [email protected].
PRE-ASSEMBLY
Carefully remove all pieces from the carton and make sure that you have all parts (refer to the hardware and package contents
list). If you are missing parts, please contact the customer service team at
for further assistance.
Estimated Assembly Time: 60 minutes.
If the glass is damaged,please do not assemble.
Phillips screwdriver w/ medium blade. Leak Detection Solution.
In order to prevent any injuries, please put on the gloves before installation.
YOUR INSTRUCTION MANUAL
Keep and store this Instruction Manual for future reference. It contains important instructions and procedures for safety
and maintenance.

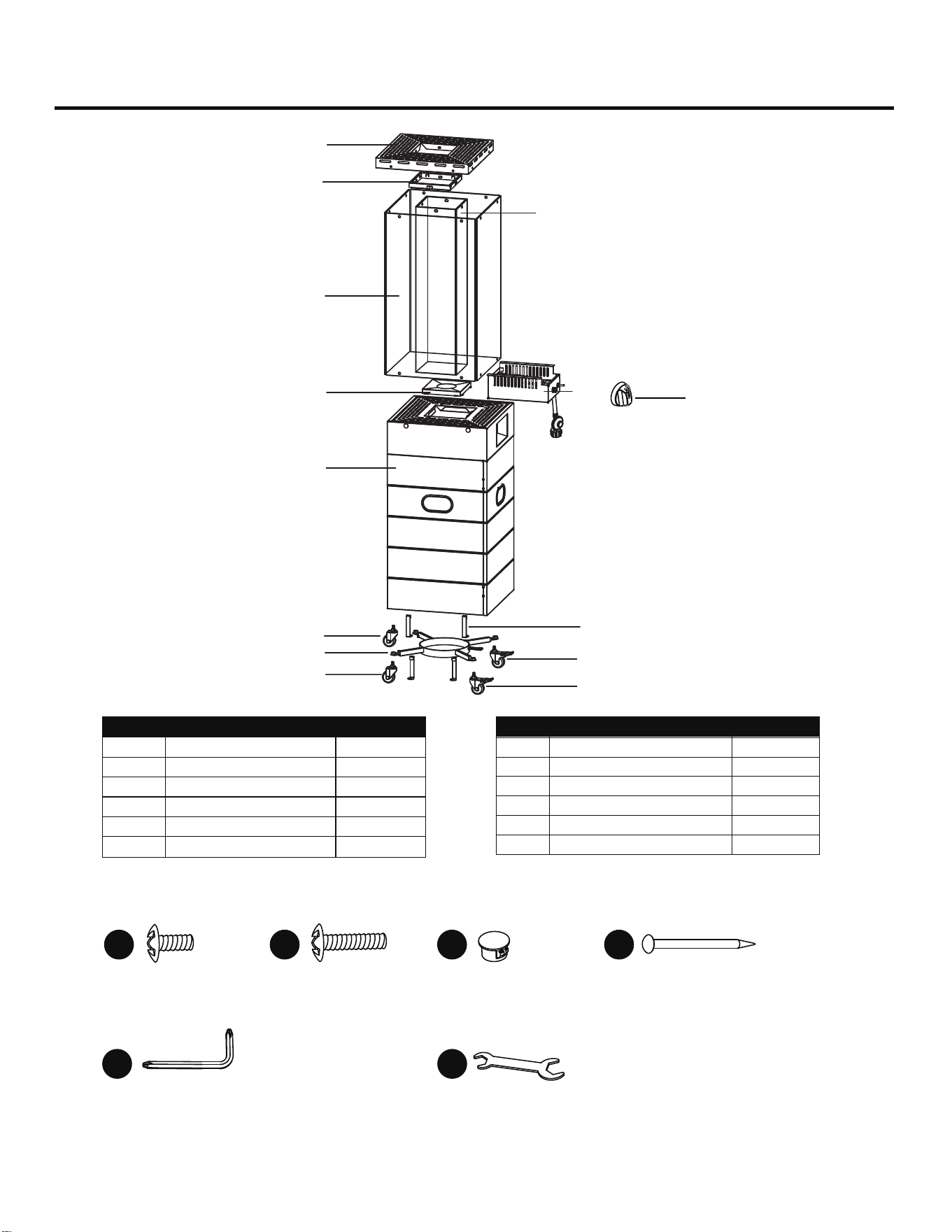

PACKAGE CONTENTS
6
2
Glass Fixture
1
Caster with Locking Device
Gas Tank Support
Ground Fixer
4
NOITPIRCSEDTRAP YTITNAUQ
A
Metal Shield
1
B 1
C
Wide Glass
D
Narrow Glass
E
4
4
F
G
1
H
Base
Deflector
I
Burner
J
Caster
K
1
1
2
A
B
C
D
E
F
G
H
I
J
K
I
H
L
L
ON/OFF Knob
1
7
ASSEMBLY INSTRUCTIONS
Hardware Used
FF
AA
1
This product contain sharp edges on
the panels
cylinder housing and
handle please install with care.
Hardware Used
2

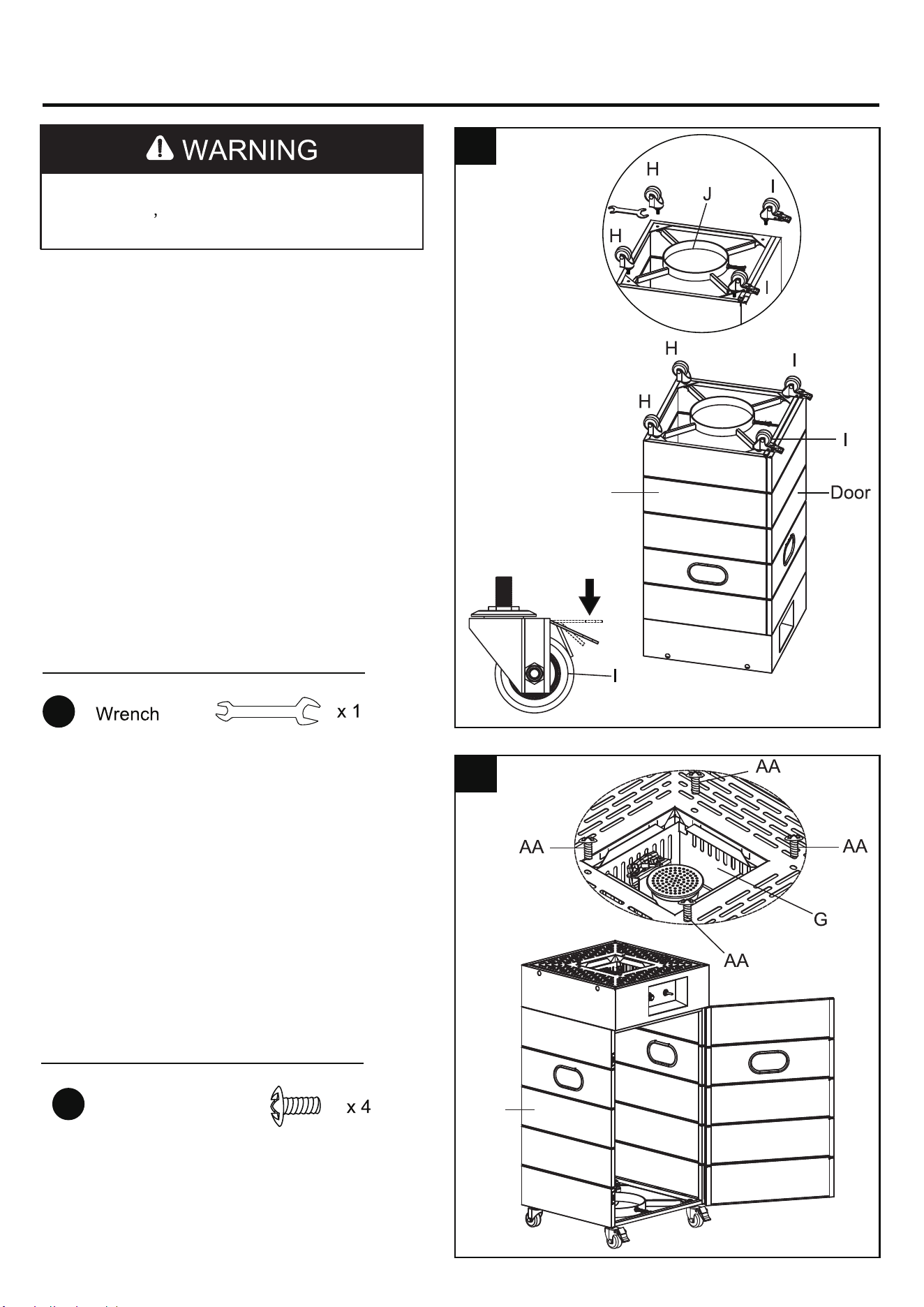

1. Turn over the product base (F) on a
non-abrasive flat surface to prevent scratching,
install the two casters (H), two casters with locking
device (I) with the base (F), gas tank support (J),
tighten them by using wrench (FF), the screw that
in gas tank supoprt is facing the door.
Note:
a. The two casters (H) are installed on two
adjacent holes on the product base (F), so are
the two casters with locking device (I).
b. The screw in the gas tank support (J) is same
direction as door in the base (F).
c. Make sure the locking device on the casters (I)
are pressed down after installation, so that the
heater will not move in any way.
2. Turn over the assembled product base, open
the door, attach burner (G) to base (F) by using
four (4) M5x15mm bolts (AA).
Note: Tighten the bolts with a Phillips screwdriver.
F
F
M5 x15mm
8
ASSEMBLY INSTRUCTIONS

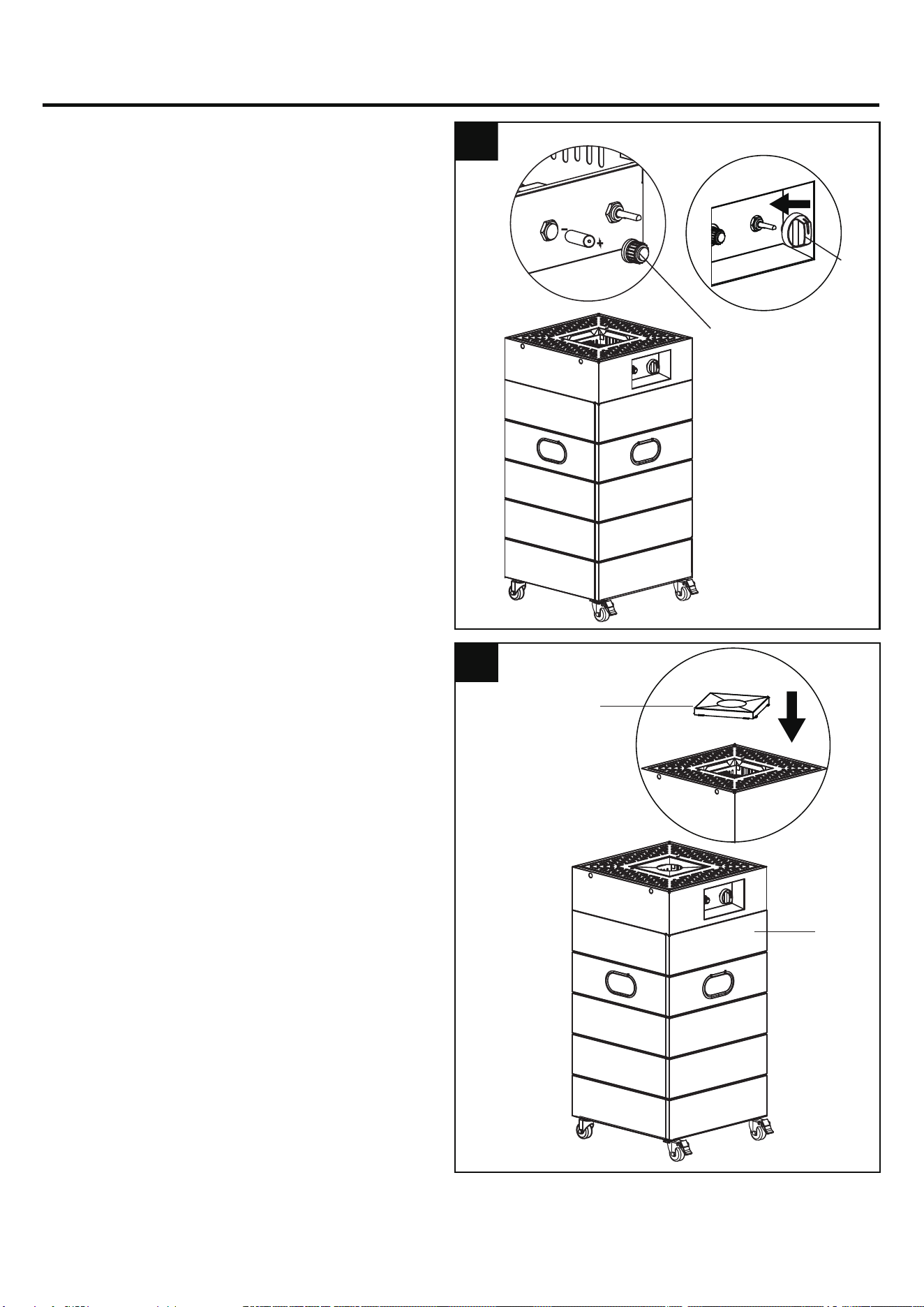

3. Open the igniter button and place the AAA
battery (not included) into the igniter. Then
tighten clockwise.
Attach the ON / OFF knob (L) into the valve in
the burner (G), make sure the anchor point is
facing up.
4. Put deflector (E) into the slot of base (F),
make sure the deflector in the center and flat.
3
4
E
L
Igniter button
AAA Battery (1.5 V)
F
ASSEMBLY INSTRUCTIONS
5
6
C
BB
B
BB
D
D
Hardware Used

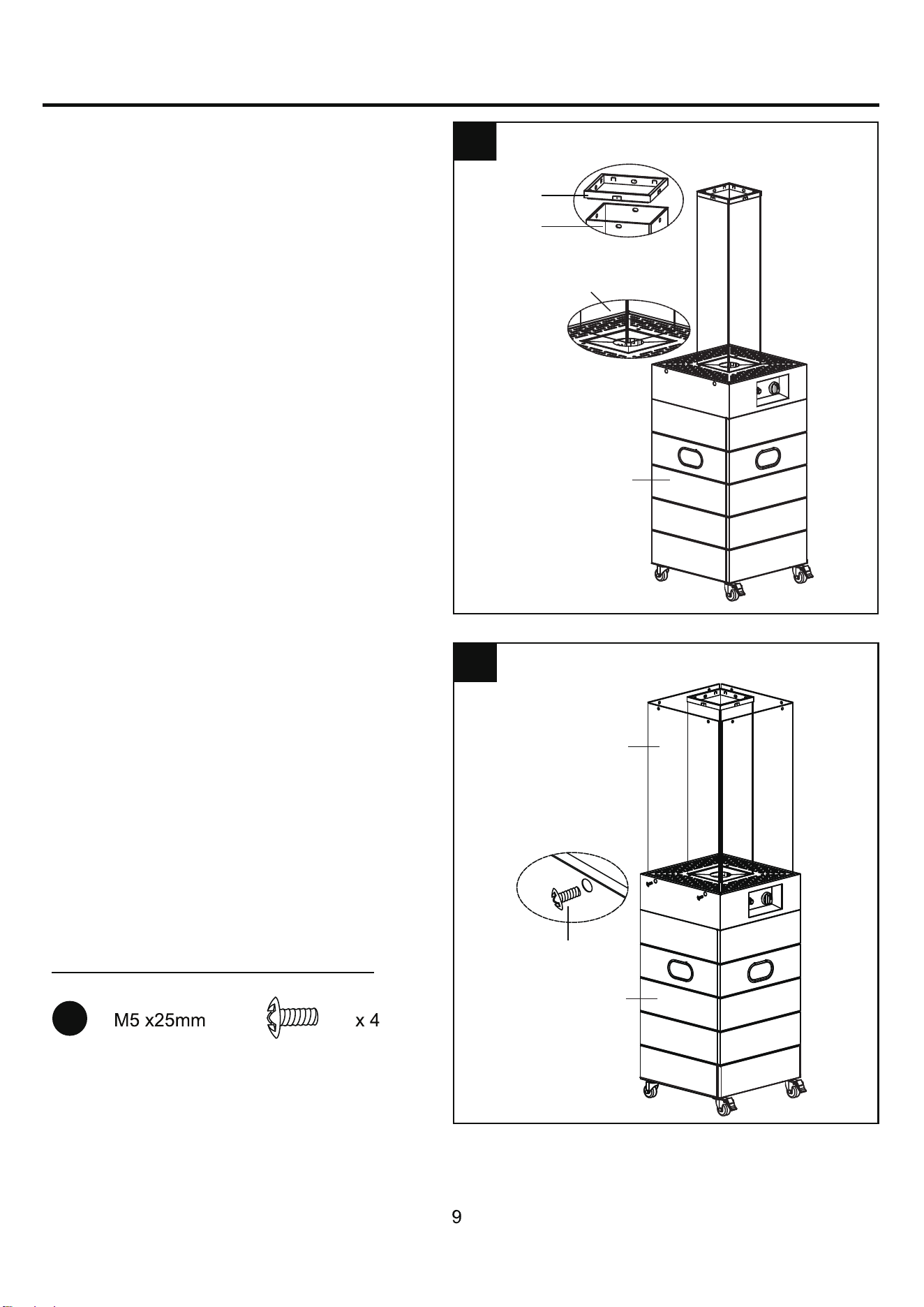

5. Insert the four narrow glass (D) into the gap
in base (F). Cover the four narrow glass (D)
with glass fixture (B) carefully.
6. Insert the four wide glass (C) into the gap
in base (F), then attach them with four (4)
M5 x 25mm bolts (BB) using the Phillips
screwdriver (not included).
Note: DO NOT tighten the bolts completely.
Note: After assembly, the warning icon and
font on the glass faces out and is located in
the top left corner.
F
F

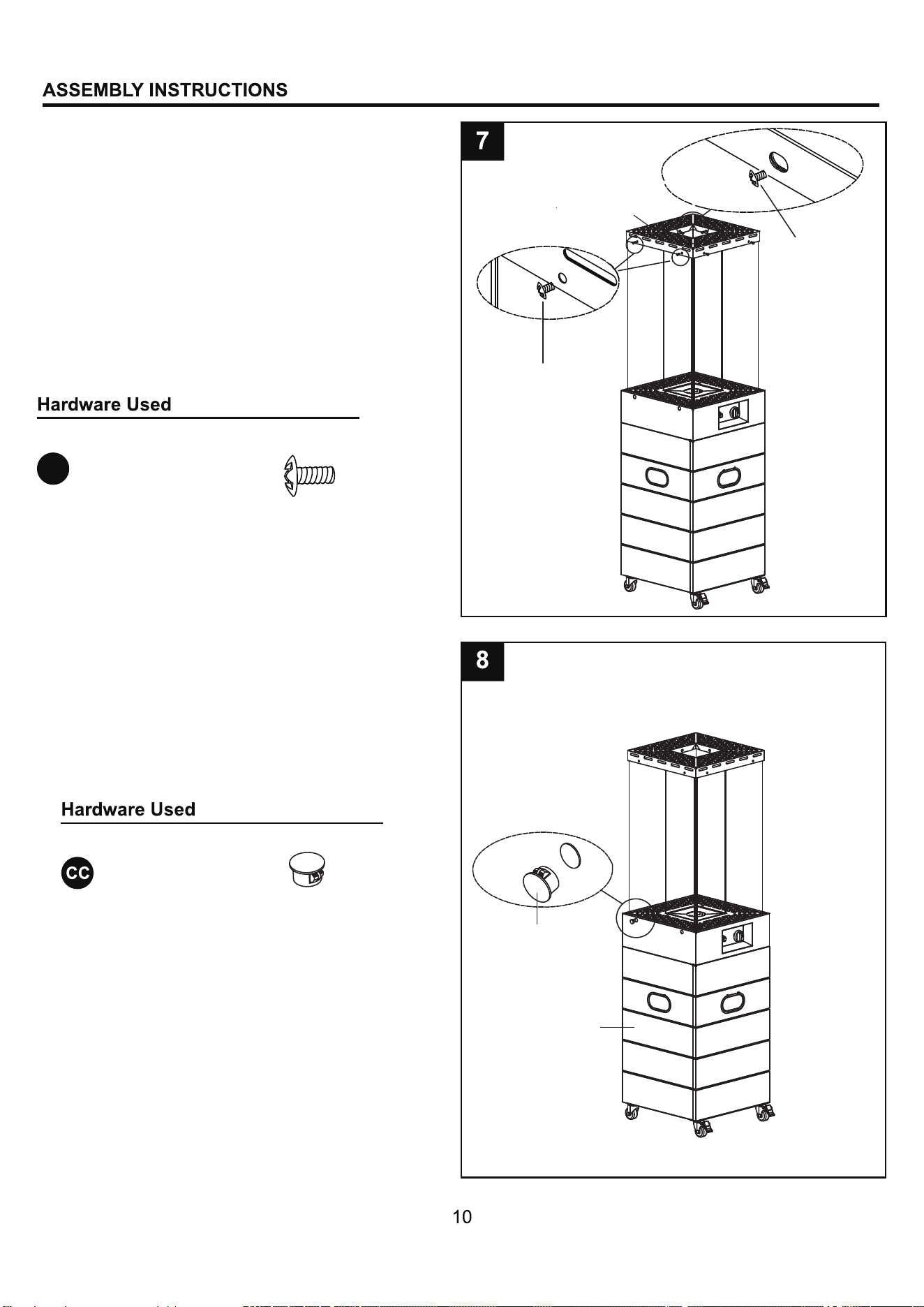

7. With the help of another person, use metal
shield (A) to cover and clamp the glass fixture (B)
and four wide glass (C) carefully, attach metal
shield (A) to glass fixture (B) with four (4)
M5 x15 mm bolts (AA) .
Then attach metal shield (A) to four wide
glass (C) with eight (8) M5 x 15mm bolts (AA).
Note: Tighten all the bolts with a Phillips
screwdriver, but not tighten too much to avoid
the glass pieces being damaged.
8. Insert and press the screw cover (CC) into
the base (F).
x 4
Screw Cover
AA
AA
x 12
AA
M5 x15mm
CC
A
F
11
ASSEMBLY INSTRUCTIONS

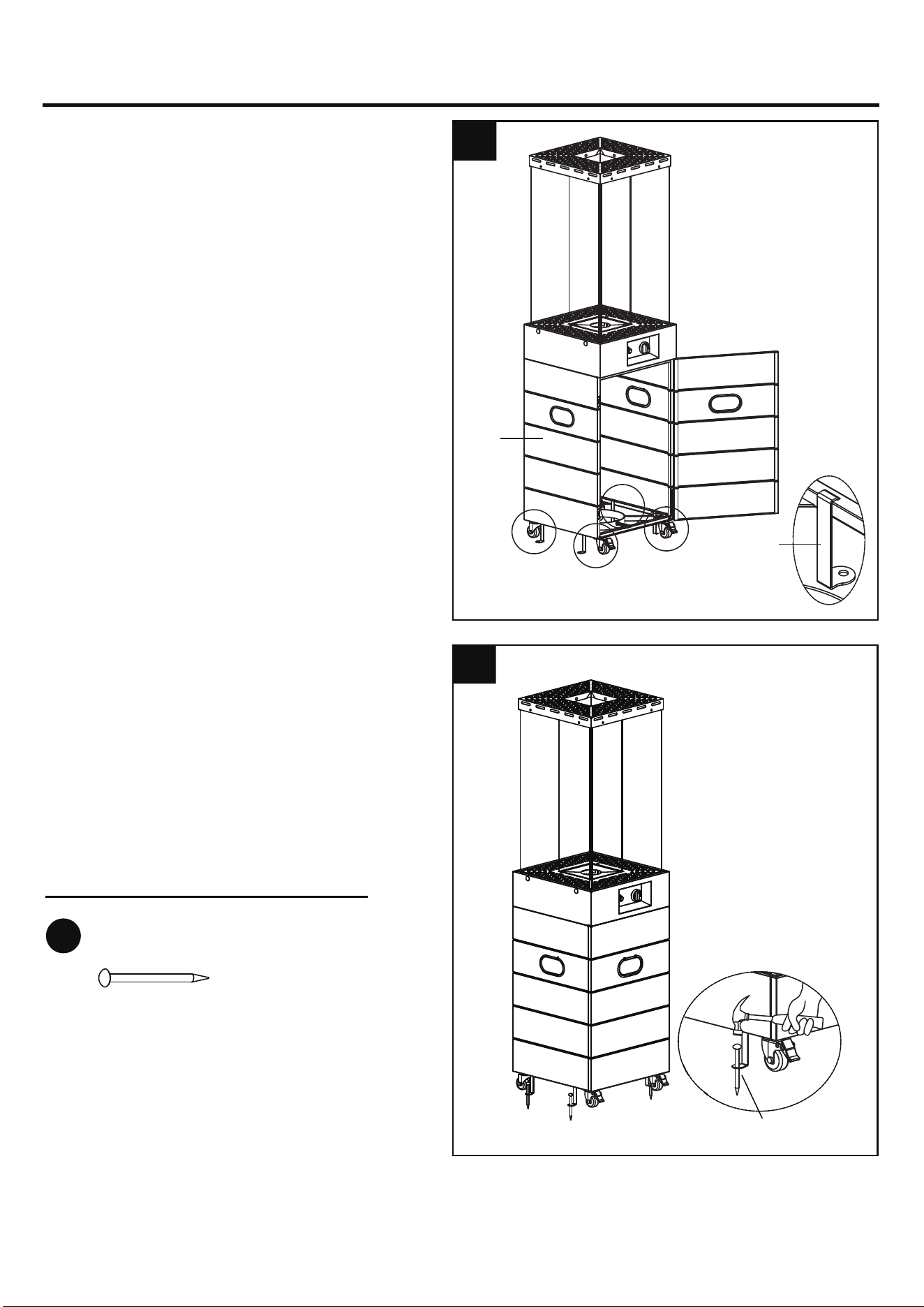

9. Open the door, hang the ground fixer (K) on
bottom of base (F).
10. To prevent heater from strong wind or
incline ground, anchoring the base securely
to the ground with D8x180 ground stake (DD)
by using a hammer (not included).
Hardware Used
x 4
DD
D8 x 180 Ground Stake
9
10
DD
F
K
12
ASSEMBLY INSTRUCTIONS
11

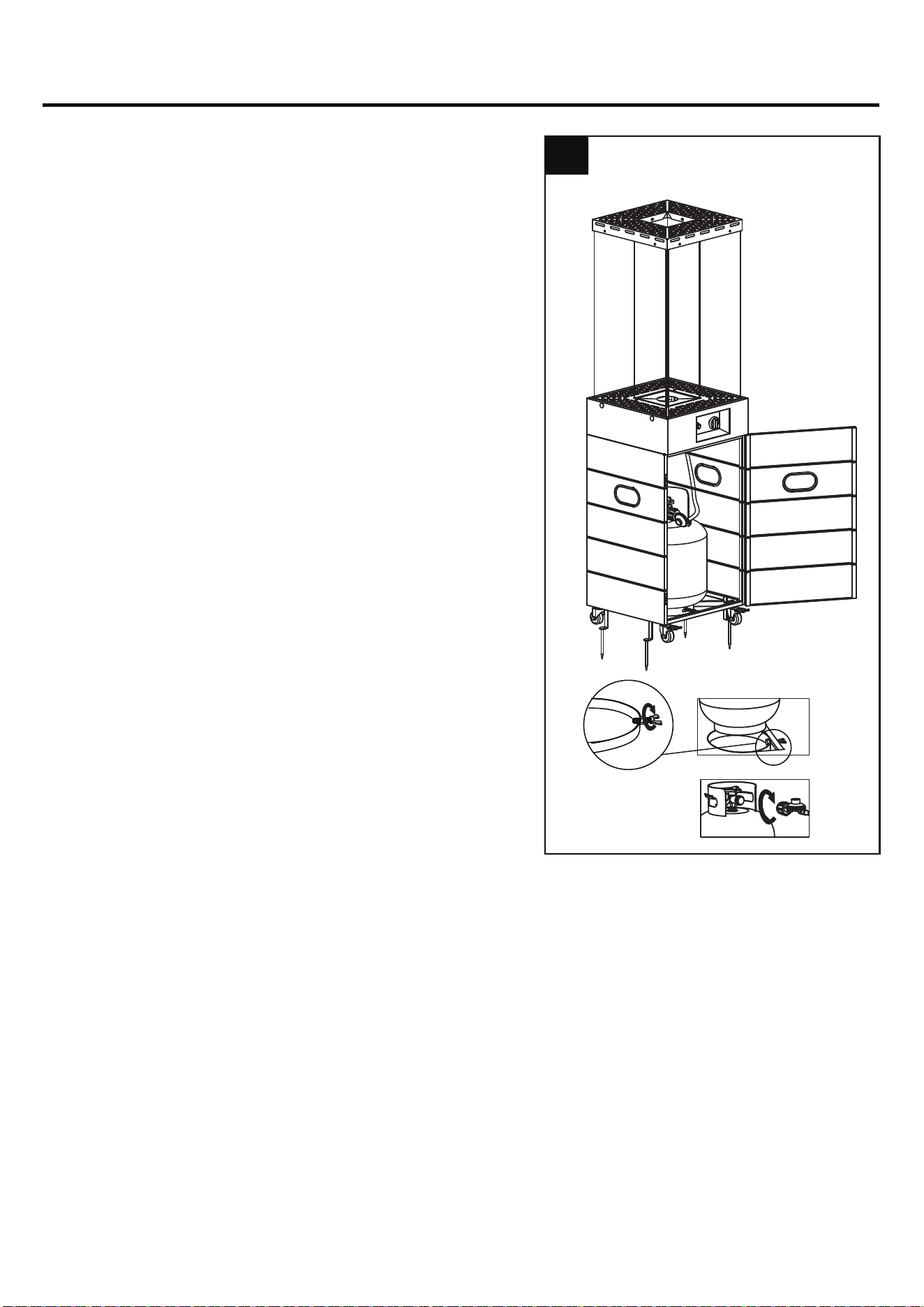

11. Place the gas cylinder into the gas tank support (J).
Secure the cylinder by tightening clockwise the retention
point found on the cylinder holder, so that the cylinder
cannot move from side to side or fall down. Connect the
regulator, screw the black handle clockwise to tighten,
turn the black handle counterclockwise to remove. Do not
cross-thread. The knob on the control panel is turned all
the way to the “OFF” position when the fire pit is NOT in
use.
Use a standard 20 lb. propane cylinder only.
(approximately 12.2 in. / 31cm. in diameter and 17.9 in.
/ 45.5cm high).
Use this heater only with a propane vapor withdrawal
supply system. See chapter 5 of the standard for storage
and handling of liquefied petroleum gas, ANS/NFPA 58.
Your local library or fire department should have this
book. Storage of an appliance indoors is permissible only
if the cylinder is disconnected and removed from the
appliance. A cylinder must be stored outdoors in a well-
ventilated area out of the reach of children. A
disconnected cylinder must have dust caps tightly
installed and must not be stored in a building, garage or
any other enclosed area. The maximum inlet gas supply
pressure: 250 psi /1750 kPa. The minimum inlet gas
supply pressure: 5 psi /35kPa. Manifold pressure with
regulator provided: 11 inch W.C/ 2.74 kPa. The minimum
hourly of 17000 Btu /4.98 kW is required input rating for
an appliance for automatic operation at ratings less than
full input rating. The pressure regulator and hose
assembly supplied with the appliance must be used. The
installation must conform with local codes, or in the
absence of local codes,with national fuel gas code, ANS
Z223.1/NFPA54, natural gas and propane Installation
Code, CSA B149.1, or propane storage and handling
code, B149.2.
13
ASSEMBLY INSTRUCTIONS
Do not store a spare LP-gas cylinder under or near this appliance;
Never fill the cylinder beyond 80 percent full;
Place the dust cap on the cylinder valve outlet whenever the cylinder is not
in use. Only install the type of dust cap on the cylinder valve that is provided with
the cylinder valve. Other type of caps or plugs may result in leakage of propane.

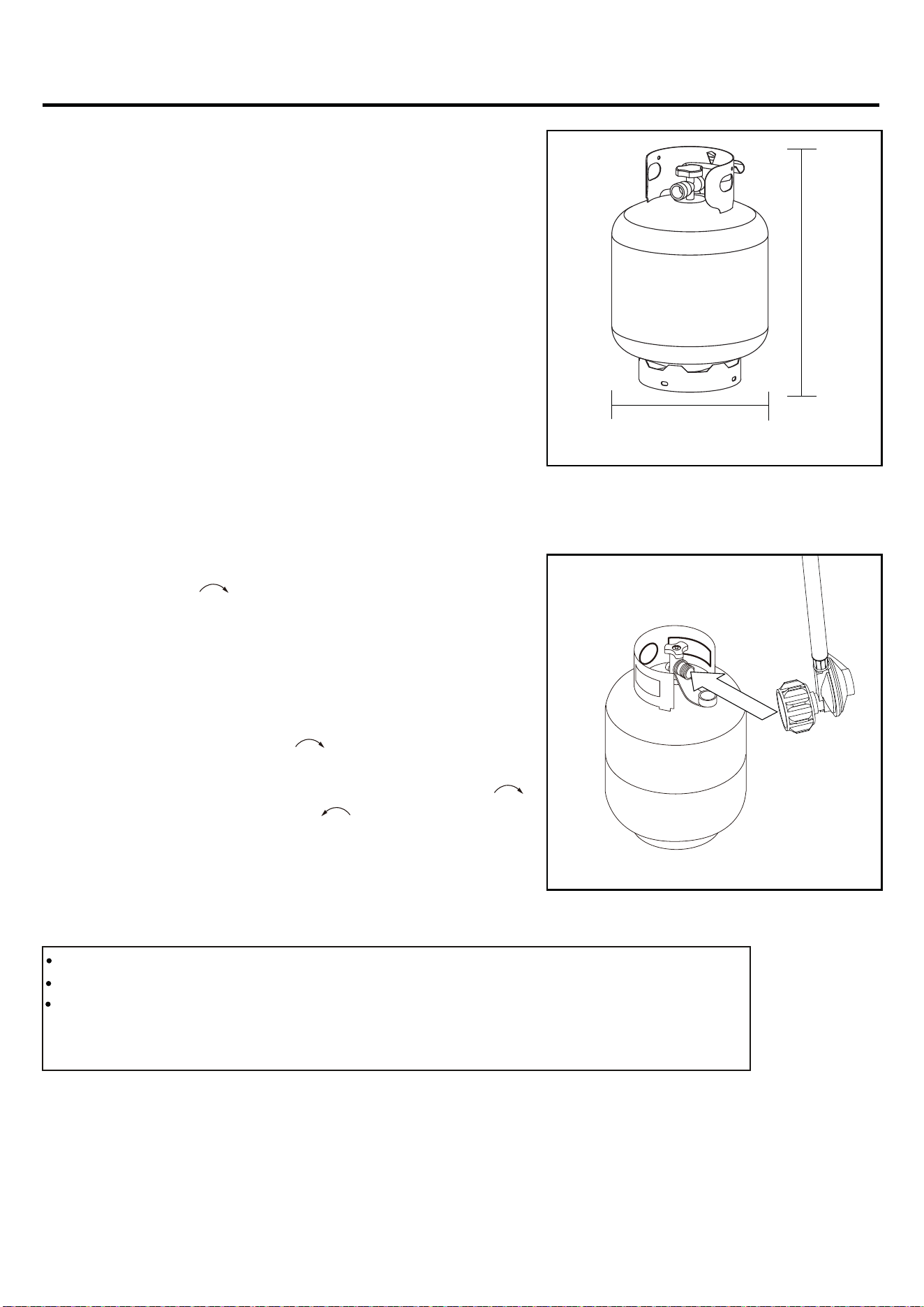

Standard 20 lb. tank
12.2 in. / 31cm
17.9 in. / 45.5cm
A dented, rusted or damaged propane cylinder may be
hazardous and should be checked by your cylinder
supplier. Never use a propane cylinder with a damaged
valve connection.
The propane cylinder must be constructed and marked in
accordance with the specifications for LP gas cylinders of
the U.S. Department of Transportation
(DOT) or the standard for cylinders, spheres and
tubes for transportation of dangerous goods and
commission, CAN/CSA-B339.
The cylinder must have a listed overfilling prevention
device. The cylinder must have a connection device
compatible with the connection for the appliance. The
cylinder used must include a collar to protect the cylinder
valve. Never connect an unregulated propane cylinder to
the heater.
The knob on the LP tank must be closed. Make sure that
the knob is turned clockwise to a full stop. The
cylinder supply system must be arranged vertically for
vapor withdrawal. Check that the control knob on the
control unit is turned off. Hold the regulator in one hand
and insert the nipple into the valve outlet. Be sure the
nipple is centered in the valve outlet. The coupling nut
connects to the large outside threads on the valve outlet.
Hand-tighten the coupling nut clockwise until it comes
to a full stop. Firmly tighten by hand only.
To Disconnect: Fully close the tank valve by turning
clockwise. Turn the coupling nut counterclockwise
until the regulator assembly detaches.
14
OPERATION INSTRUCTIONS
Leak Check
1. Make 2-3 oz. of leak check solution (one part liquid dishwashing detergent and three parts water).
2. Make sure all patio heater and light valves are OFF.
3. Apply several drops of solution where hose attaches to regulator.
4. Apply several drops of solution where regulator connects to cylinder.
5. Turn cylinder valve ON.
If bubbles appear at any connection, there is a leak.
1. Turn cylinder valve OFF.
2. If leak is at hose/regulator connection: tighten connection and perform another leak test. If bubbles
continue appearing, please contact customer service at [email protected].
3. If leak is at regulator/cylinder valve connection: disconnect, reconnect, and perform another leak
check. If you continue to see bubbles after several attempts, cylinder valve is defective and contact
customer service at [email protected].
If NO bubbles appear at any connection, the connections are secure.
NOTE: Whenever gas connections are loosened or removed, you must perform a complete leak test.
Regulator / Cylinder connection
Hose / Regulator connection
WARNING: A leak test must be performed annually or if a part of the gas system is replaced.
WARNING:
Never use an open flame to check for gas leaks. Be certain no sparks or open flames are in the area
while you check for leaks. Sparks or open flames will result in a fire or explosion, damage to property, serious
bodily injury, or death.
gas valve / regulator hose connection
To perform a leak test:
inlet tube / bellows connection
15

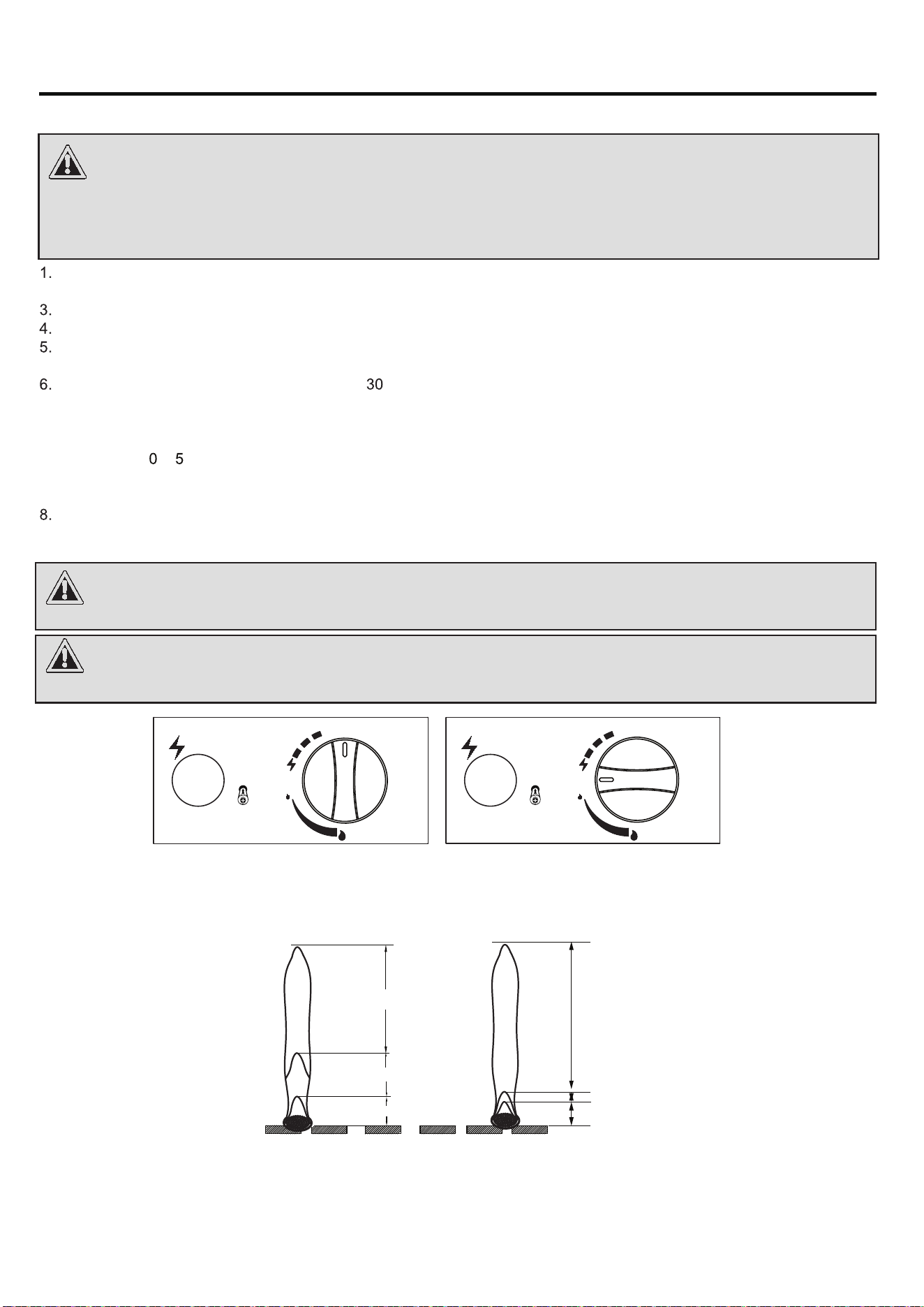

OPERATION INSTRUCTIONS
Figure 1
Igniter-Push
Off
Low
High
(AAA 1.5V 1pc)
Igniter-Push
Off
Low
High
(AAA 1.5V 1pc)
CAUTION: Keep the outdoor gas appliance area clear and free from combustible materials, gasoline and
other flammable vapors and liquids.
LIGHTING
Make sure all labels, packaging and protective films have been removed from the paio heater.
2. Control knob must be in the “OFF” position (Figure 1).
Full open LP cylinder valve.
Press and hold electronic igniter button.
Press the control knob, turn counterclockwise to “Low” position, press and hold. When the burner lights, release the
electronic igniter button (Figure 2).
Continue to depress the gas control knob for seconds and then release. If the flame goes out, repeat the procedure.
7. Adjust the flame to the desired height with the gas control knob. Visually check the burner flames as picture below
(Figure 3).
Observe Flame Height When Lit: The burner will display blue and yellow flames. These flames should be a blue / yellow
color between 1 ~2 in. height (See Figure 3). These flames should not be yellow or produce thick smoke. This would
indicate an obstruction of airflow through the burners. The flames should be blue with straight yellow tops. If excessive
yellow flame is detected, turn off heater and consult “Troubleshooting” on page 19.
If the burner will not light with the electronic igniter, hold a lit long match or lit long butane lighter to the ignition area of
the burner and continue with step 5.
CAUTION: Do NOT obstruct the flow of combustion and ventilation air.
CAUTION: Check and clean burner/venturi tubes for insects and insect nests. A clogged tube can lead to
a fire.
WARNING: If the burner does not light within 10 seconds, turn the valve off and wait 5 minutes for gas
to dissipate before repeating the procedure
WARNING: Surface of the fire pit can remain extremely hot for a period after use. Allow 45 minutes to
cool
to dissipate before repeating the procedure.
Figure 2
Shut Down
1. To extinguish burner depress control knob and continue to turn it clockwise to “OFF”
2. Turn cylinder valve clockwise to “OFF” and disconnect regulator when fire pit is not in use.
Figure 3
Yellow
Yellow
Light Blue
Light Blue
Blue
Blue
Good Bad
16
OPERATION INSTRUCTIONS
Operation Checklist
For a safe and pleasurable heating experience, perform this check before each use.
Before Operating:
1. I am familiar with entire owner’s manual and understand all precautions noted.
2. All components are properly assembled, intact and operable.
3. No alterations have been made.
4. All gas connections are secure and do not leak.
5. Wind velocity is below 10 mph.
6. Unit will operate at reduced efficiency below 40°F.
7. Heater is outdoors (outside any enclosure).
8. There is adequate fresh air ventilation.
9. Heater is away from gasoline or other flammable liquids or vapors.
10. Heater is away from windows, air intake openings, sprinklers and other water sources.
11. Heater is at least 64 in. on top & sides from combustible materials.
12. Heater is on a hard and level surface.
13. There are no signs of spider or insect nests.
14. All burner passages are clear.
15. All air circulation passages are clear.
16. Children and adults should be alerted to the hazards of high surface temperatures and should stay
away to avoid burns or clothing ignition.
17. Young children should be carefully supervised when they are in the area of the heater.
18. Clothing or other protective material should not be hung from the heater, or placed on or near the
heater.
19. Any guard or other protective device removed for servicing the heater must be replaced prior to
operating the heater.
20. Installation and repair should be done by a qualified service person. The heater should be inspected
before use and at least annually by a qualified service person.
21. More frequent cleaning may be required as necessary. It is imperative that control compartment,
burner and circulating air passageways of the heater be kept clean.
Re-lighting:
1. Turn control knob to OFF.
2. Wait at least 5 minutes, to let gas dissipate, before attempting to relight.
3. Repeat the “Lighting” steps on prior page.
WARNING
FOR YOUR SAFETY
Be careful when attempting to manually ignite this
heater. Holding in the control knob for more than 10
seconds before igniting the gas will cause a ball of
flame upon ignition.
WARNING
FOR YOUR SAFETY
Heater will be hot after use. Handle with extreme care.
17
OPERATION INSTRUCTIONS
CARE AND MAINTENANCE
After Operation
1. Gas control is in OFF position.
2. Gas Tank valve is OFF.
3. Disconnect Gas line.
WARNING
FOR YOUR SAFETY:
• Do NOT touch or move heater for at least 45 minutes
after use.
• Reflector is hot to the touch.
• Allow reflector to cool before touching.
To enjoy years of outstanding performance from your heater, make sure you perform the following
maintenance activities on a regular basis:
Keep exterior surfaces clean.
1. Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
2. While cleaning your unit, be sure to keep the area around the burner and pilot assembly dry at all
times. Do not submerge the control valve assembly. If the gas control is submerged in water, do
NOT use it. It must be replaced.
a. Keep the appliance area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
b. Do not obstruct the flow of combustion and ventilation air.
c. Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
3. Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean.
Signs of possible blockage include:
(1)Gas odor with extreme yellow tipping of flame.
(2)Heater does NOT reach the desired temperature.
(3)Heater glow is excessively uneven.
(4)Heater makes popping noises.
(5)Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater
and render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air
may help clear away smaller particles.
4. Carbon deposits may create a fire hazard. Clean burner with warm soapy water if any carbon
deposits develop. Cover your patio heater with an outdoor weather cover when not in use to protect it
from the elements.
Note: In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal.
Frequently check for corroded areas and repair them promptly.
Note: Always allow patio heater to cool COMPLETELY before you cover the patio heater with an
outdoor weather cover or you attempt to service or perform maintenance.
18
CARE AND MAINTENANCE
Storage between uses:
□ Turn the control knob to “OFF” position.
□ Disconnect LP source.
□ Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust
and debris).
□ If desired, cover heater to protect exterior surfaces and to help prevent build up in air passages.
Storage during periods of extended inactivity or when transporting:
□ Turn the control knob to “OFF” position.
□ Disconnect LP source and move to a secure, well ventilated location outdoors. DO NOT store in a location that will
exceed 125°F.
□ Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust
and debris).
□ If desired, cover heater to protect exterior surfaces and to help prevent build up in air passages.
CLEANING
To enjoy years of outstanding performance from your heater, make sure you perform the following
maintenance activities on a regular basis:
□ Keep exterior surface clean.
□ Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
□ While washing your unit, be sure to keep the area around the burner dry at all times. If the gas control is exposed to
water, do NOT try to use it. It must be replaced.
□ Keep the appliance area free and clean from combustible materials, gasoline or other flammable vapors and liquids.
□ At least once a year, the unit should be inspected for the presence of spiders, spider webs or other insects.
□ Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean. Signs of possible
blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heat glow is excessively uneven.
Heat makes popping noises.
□ Spider and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for
use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help clear away smaller particles.
□ Carbon deposits may create a fire hazard. Clean reflector, thermocouple, and emitter screen with a dry cloth if any
carbon deposits develop.
□ The burner is made from stainless steel, but extreme heat and a corrosive environment can cause surface corrosion to
occur. This can be removed with a brass wire brush. Inspect the burner at least annually for cracks, insect nests,
excessive corrosion or any other damage. If the burner is damaged, it must be replaced with a burner specified by the
manufacturer before the appliance is put into operation.
NOTE: Wait until heater is cool before covering.
NOTE: Wait until heater is cool before covering.
19
TROUBLESHOOTING
Problem
The burner
will not ignite.
The burner
flame is too
low.
Carbon
build-up
and/or thick
black smoke
is present.
Possible cuase
The gas cylinder is frosted over.
An opening is blocked.
The control knob is not in the
“ON” position.
(1)
(2)
(3)
The gas pressure is low.
The outdoor temperature is less
than 40°F, and the cylinder is
less than 1/4 full.
(1)
(2)
There is dirt or film on the
reflector and burner screen.
The burner is blocked.
(1)
(2)
Corrective action
Wait until gas cylinder
warms up and becomes
unfrosted.
Clear the blockage.
Turn the control knob to the
“ON” position.
(1)
(2)
(3)
Turn the cylinder valve off
and replace the cylinder.
Use a full gas cylinder.
Check the burner ports for
blockage.
(1)
(2)
(3)
Clean the reflector and
burner screen.
Remove any blockage, and
clean the burner inside and
outside.
(1)
(2)
20
SERVICE PARTS
Glass Fixture
PART DESCRIPTION QUANTITY
A
Metal Shield
1
B 1
C
Wide Glass
D
Narrow Glass
E
2
2
F
1
Base
Deflector
1
A
B
C
D
E
F
G
H
I
J
K
I
H
L
2
1
Caster with locking device
Gas Tank Support
Ground fixer
4
PART DESCRIPTION QUANTITY
G
H
I
Burner
J
Caster
K
1
2
L
ON/OFF Knob
1
HARDWARE INCLUDED
AA BB
M5 x 15
Qty. 16
M5 x 25
Qty. 4
CC DD
Screw Cover
Qty. 4
D8X180
Ground Stake
Qty. 4
EE FF
Wrench
Qty. 1
Philips Screwdriver
Qty. 1
