USER MANUAL
V520

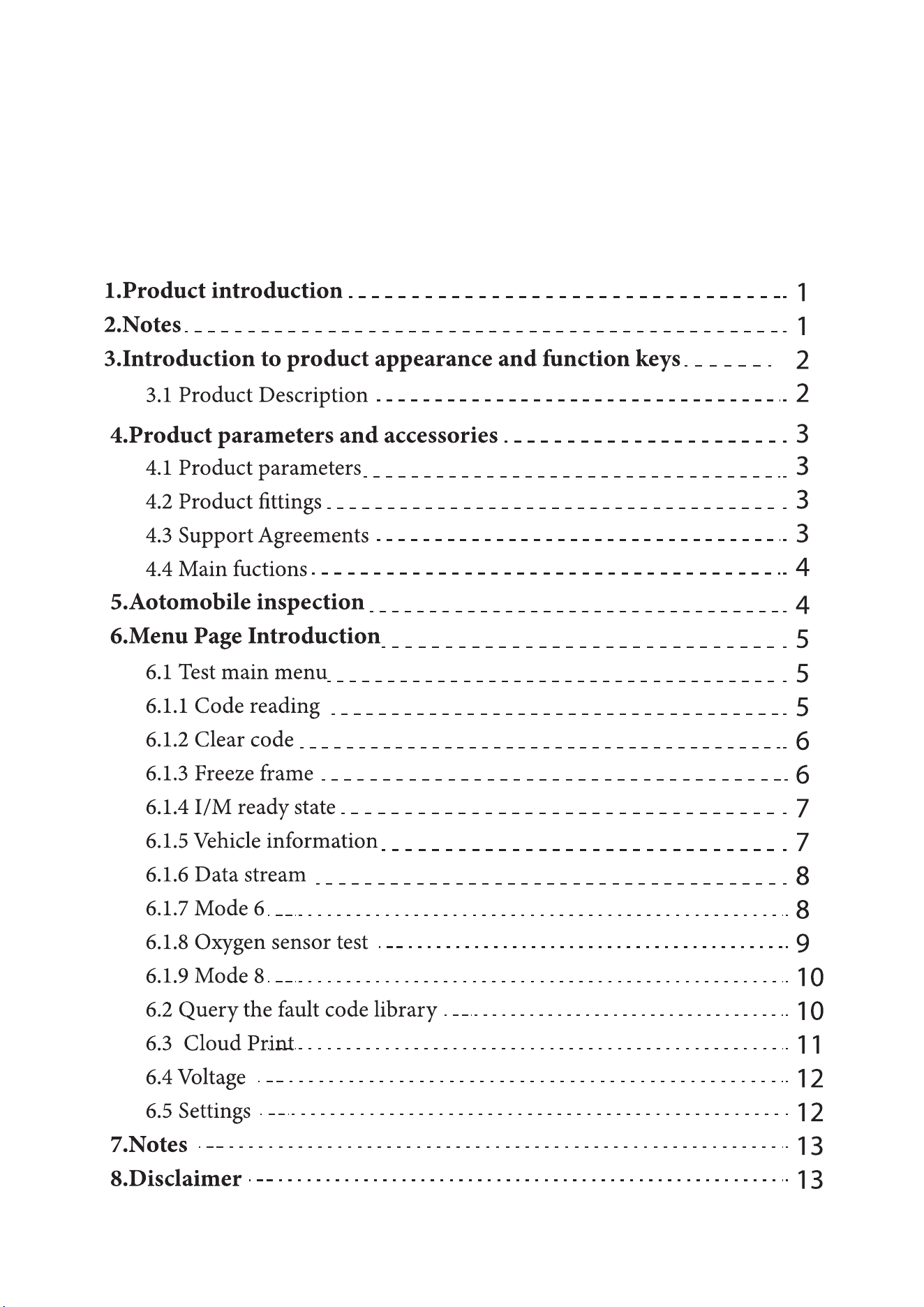

CONTENT
1

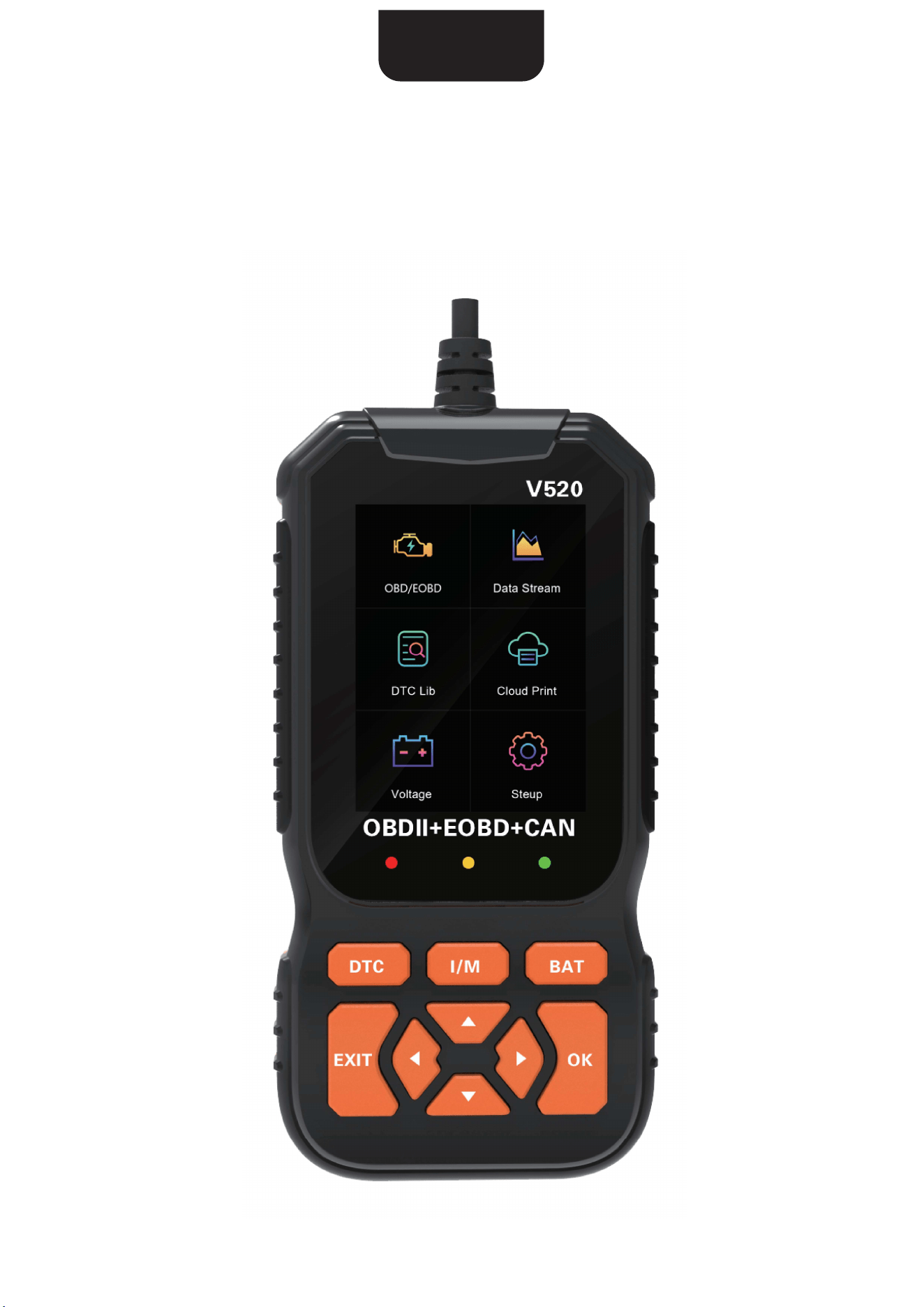

This product is a multi-functional vehicle fault diagnosis instrument,
supporting OBD II/EOBD nine standard protocols. Plug and play, can
quickly read vehicle fault information and vehicle parameters, is a
comprehensive function of the fault diagnosis instrument. Please read
the product manual carefully before using this product, thank you.
1) Do not use abrasive cleaners to clean this product.
2) Do not allow this product to be heated or close to fire sources.
3) Do not expose the product to direct sunlight for a long time.
4) Do not attempt to disassemble this product to make any modifications,
as it does not contain any repair components.
5) Do not use this product in rain.
6) If you do not plan to use this product for a long time, please store it in
a dry environment to avoid extreme temperatures and dust.
1
2
2
3
4
6
7
5
8
9

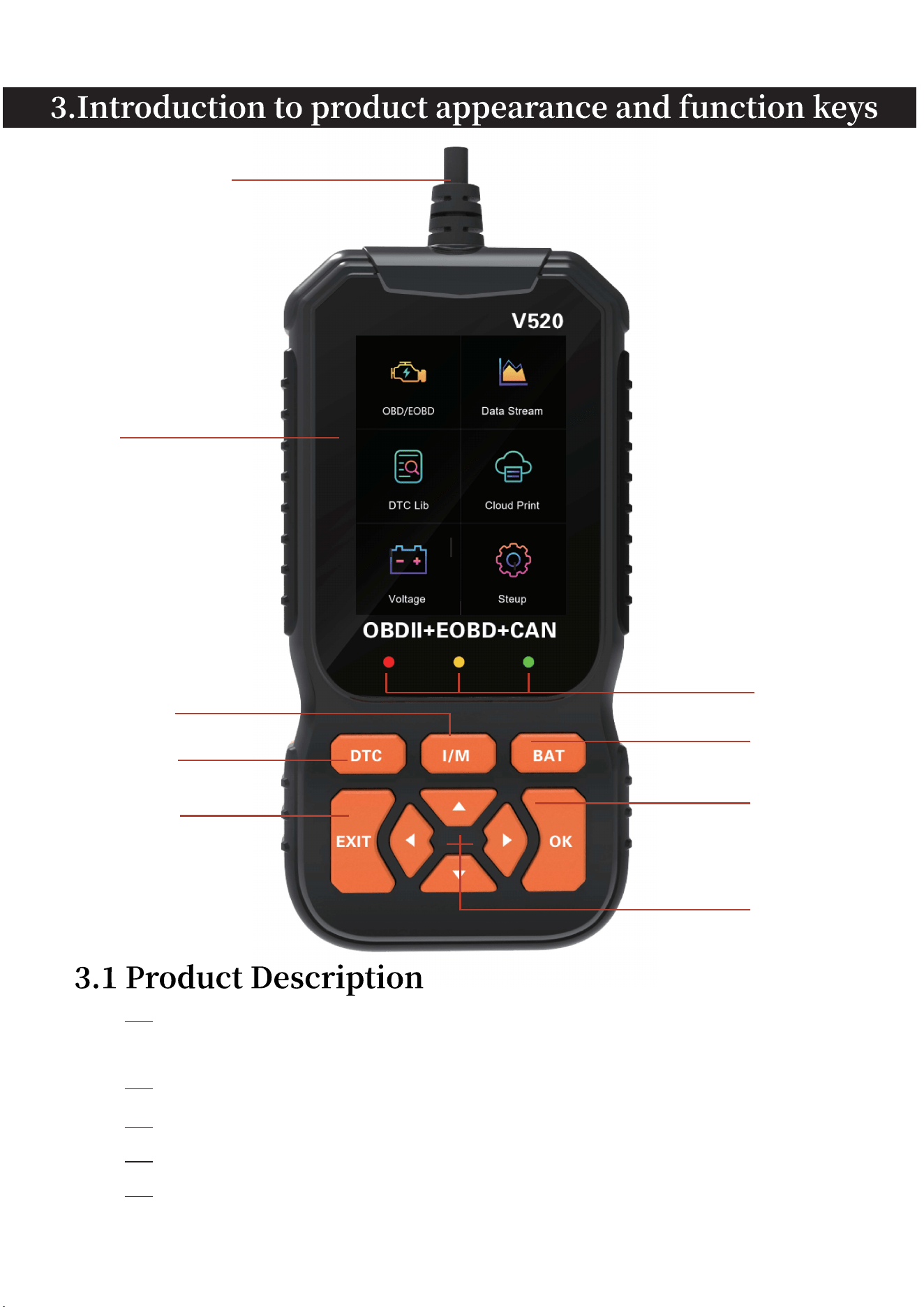

1 Product connection cable for connecting automotive OBD
interface
2 2.8-inch color display screen
3 I/M ready status
4 One-click query fault codes
5 Return to/exit
3
6 - Battery voltage
7 - Confirm
8 - Up/down/left/right
9 - The red light indicates a read failure
The yellow light indicates that the connection is not possible
The green light indicates that the connection is successful
Operating voltage: 9V~16V
Working current: 36~54mA
Operating environment: -30 ~ 70
Storage temperature: -30 ~ 70
Overall dimensions: 171*85*28mm
fittings host *1 Instructions *1
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO 9141-2(5 baud init, 10.4Kbaud)
4. ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO 14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO 15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO 15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO 15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO 15765-4 CAN (29bit ID, 250 Kbaud)
4
Support nine OBD II/EOBD standard protocols
Read the automobile engine fault code
Clear engine fault code
Vehicle fault freeze frame
I/M ready state
Vehicle information
Automobile data flow
Battery voltage reading
Mode 6 detection
Oxygen sensor test
Mode 8 detection
Fault code query
Cloud Print

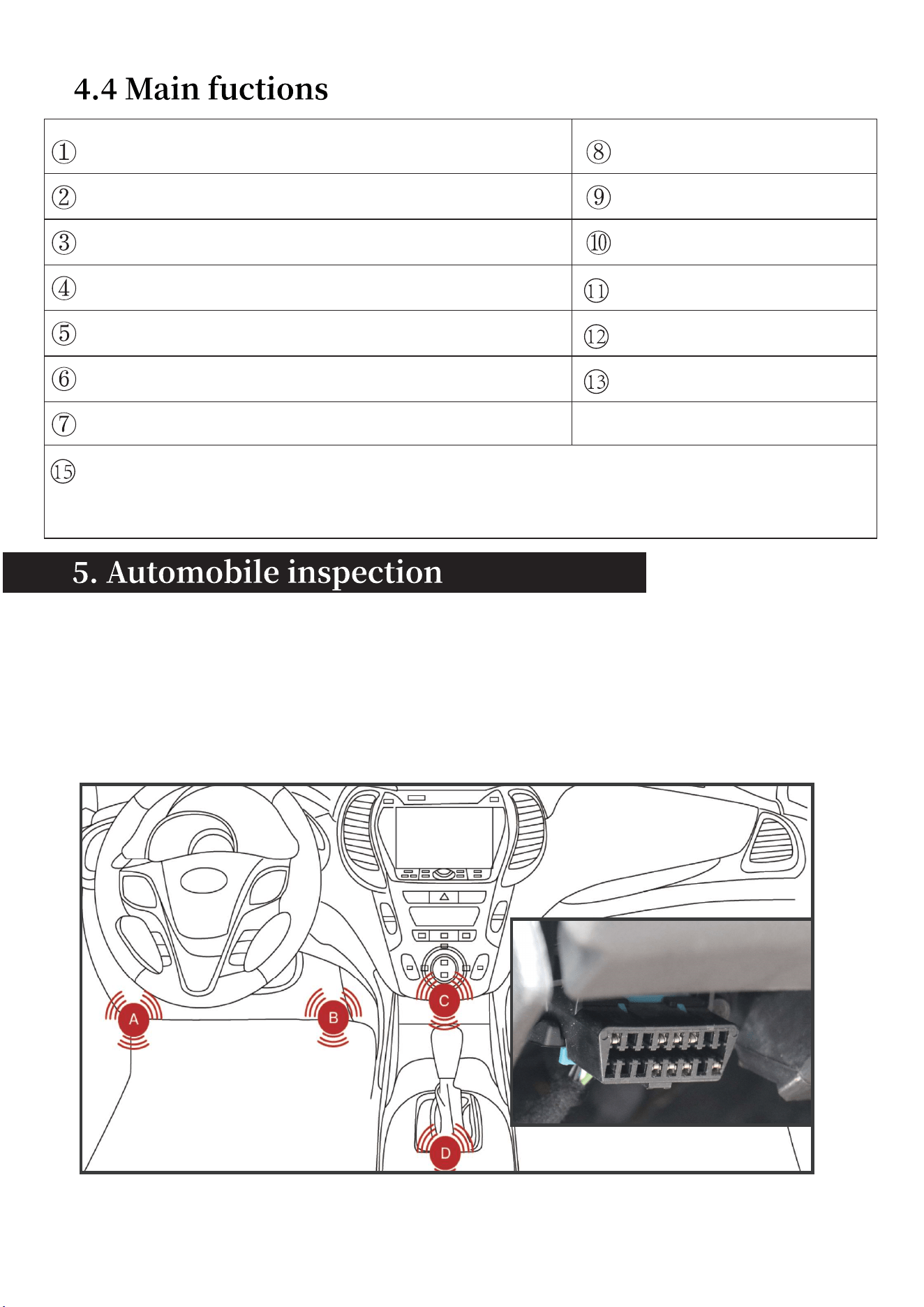

Find the special OBD interface for cars. The positions of OBD
interfaces of different models are different (usually located in the inner
panel at the lower left of the instrument panel, that is, above the
accelerator pedal. For other models, see the figure below)
Start the vehicle after insertion
Support ten languages: English, German, French, Spanish, Italian
Russian, Dutch, Chinese, Japanese, Portuguese
5
Data StreamOBD/EOBD
Cloud PrintDTC Lib
Steup
Voltage
Trouble Codes
P3002
Stored Codes $07E8 BMW
Fuel rail pressure
flow-rate-controlled,
pressure too low

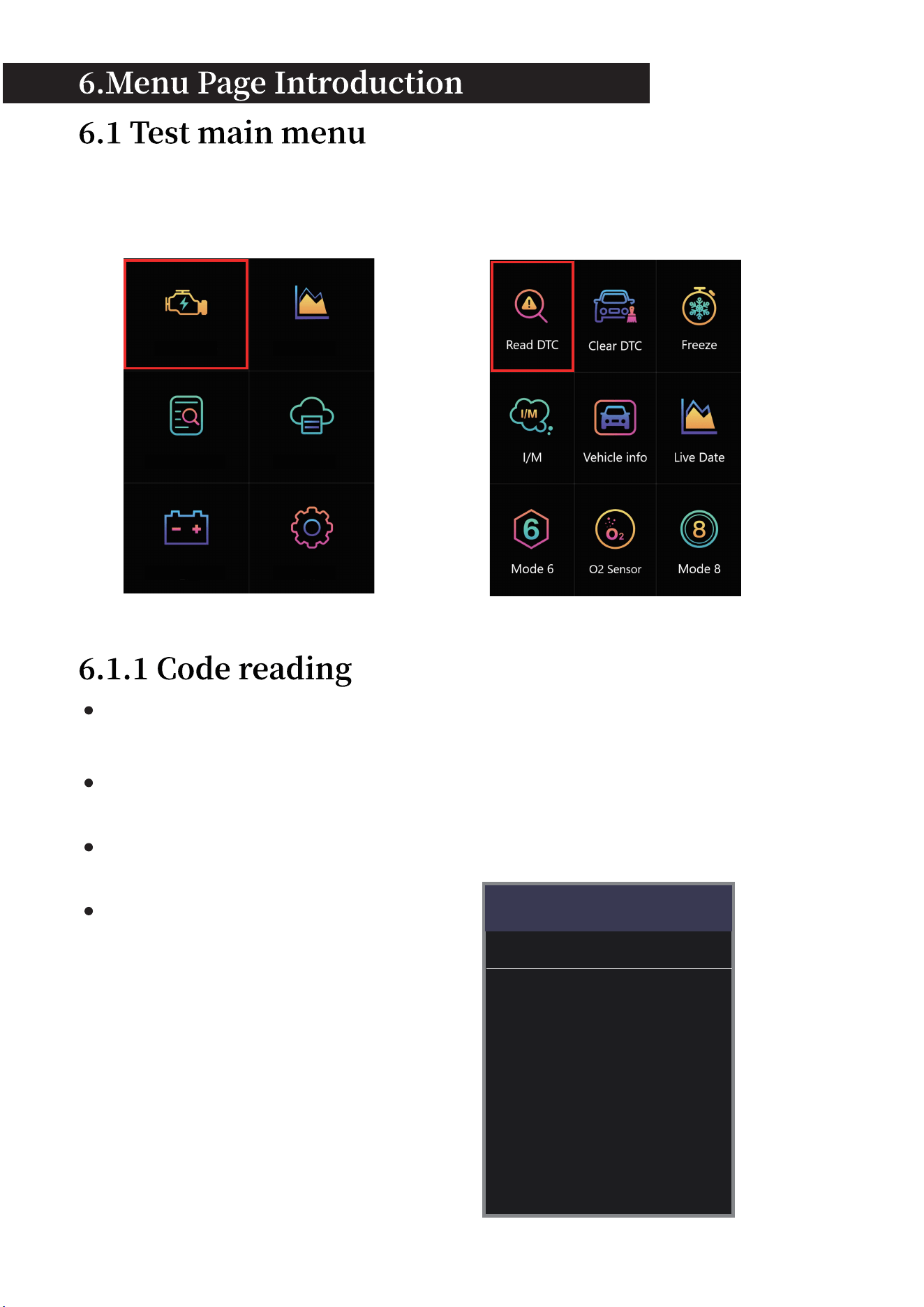

After connecting the vehicle, enter the main page, select the "Diagnosis"
menu, and press the OK key to enter the test function page. This menu has 9
test functions, and you can use the direction function keys to move and select
Select the code reading function, and the product will diagnose the
automobile engine system
If the vehicle has engine fault, the engine fault code and fault definition will
be read
If there are multiple fault codes, you can use the up, down, left and right
buttons to turn pages
Press OK/EXIT to return
6
Erase Codes
Erase trouble codes
Are you sure
NO YES
ViewFreezeFrame
DTCFRZE
FUELSYS1
FUELSYS2
LOAD_PCT(%)
ETC(℃)
SHRTFT1(%)
SHRTFT1(%)
LONGFT1(%)
LONGFT1(%)
P0278
OL
CL
76.9
158
58.6
59.4
60.2
60.9

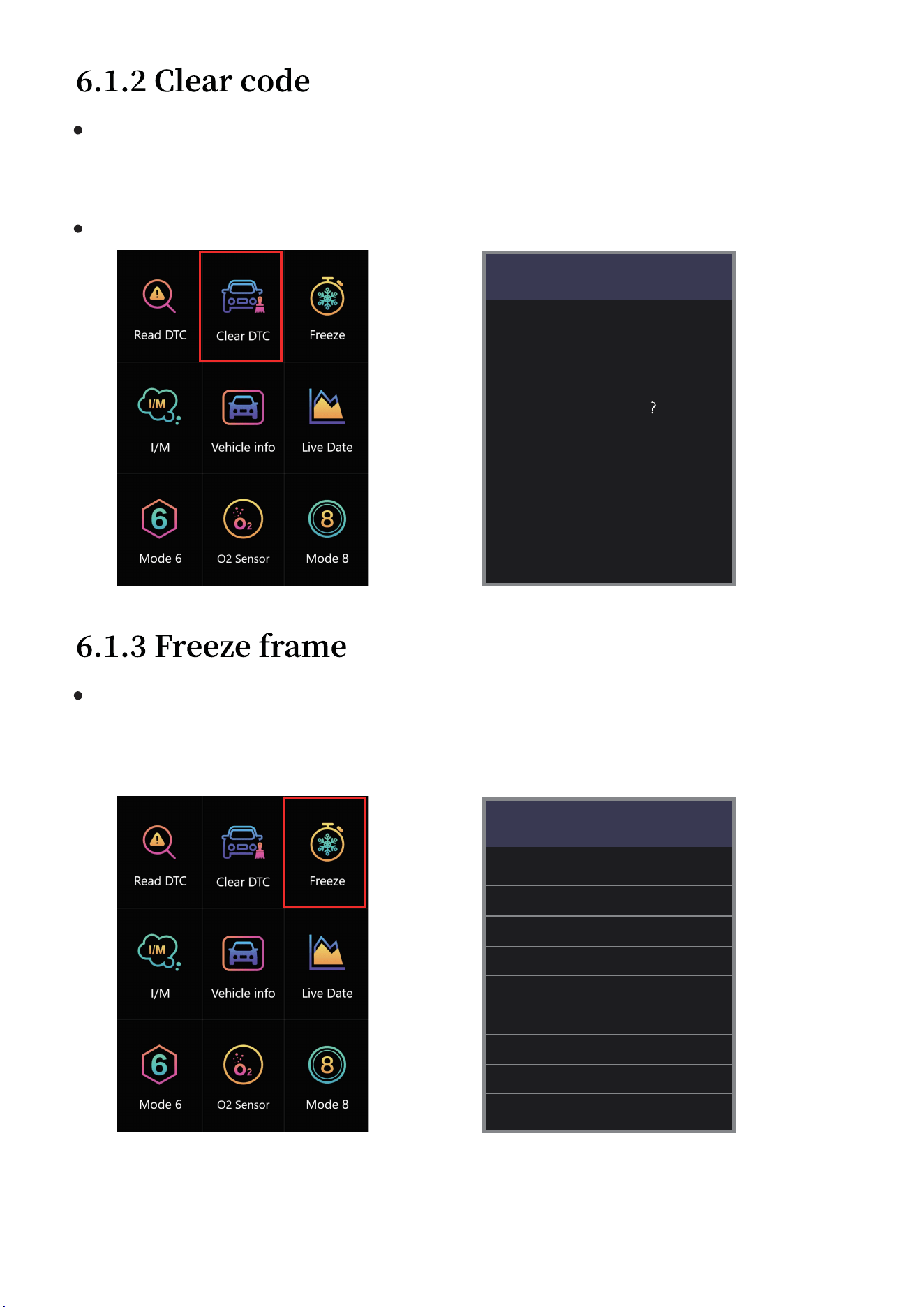

Select “Clear Code” and a confirmation message will appear. After
confirming that the fault code is cleared, the vehicle engine fault light will
go out and the code is cleared successfully
If the clearing fails, it can be cleared when the engine is powered off
Freeze frame refers to the snapshot data automatically recorded by the
automobile computer when the emission system has a fault code, which
is a good function to help determine the cause of the fault
7
Since DTCs Cleared
MIL Status
Misfire Monitor
Fuel System Mon
Comp Component
Catalyst Mon
Htd Catalyst
EVAP System Mon
Sec Air System
A/C Refrig Mon
ON
OK
OK
OK
OK
OK
OK
OK
OK
Vehicle Info
Vehicle ID Number
Calibration ID
Cal.Verif Number

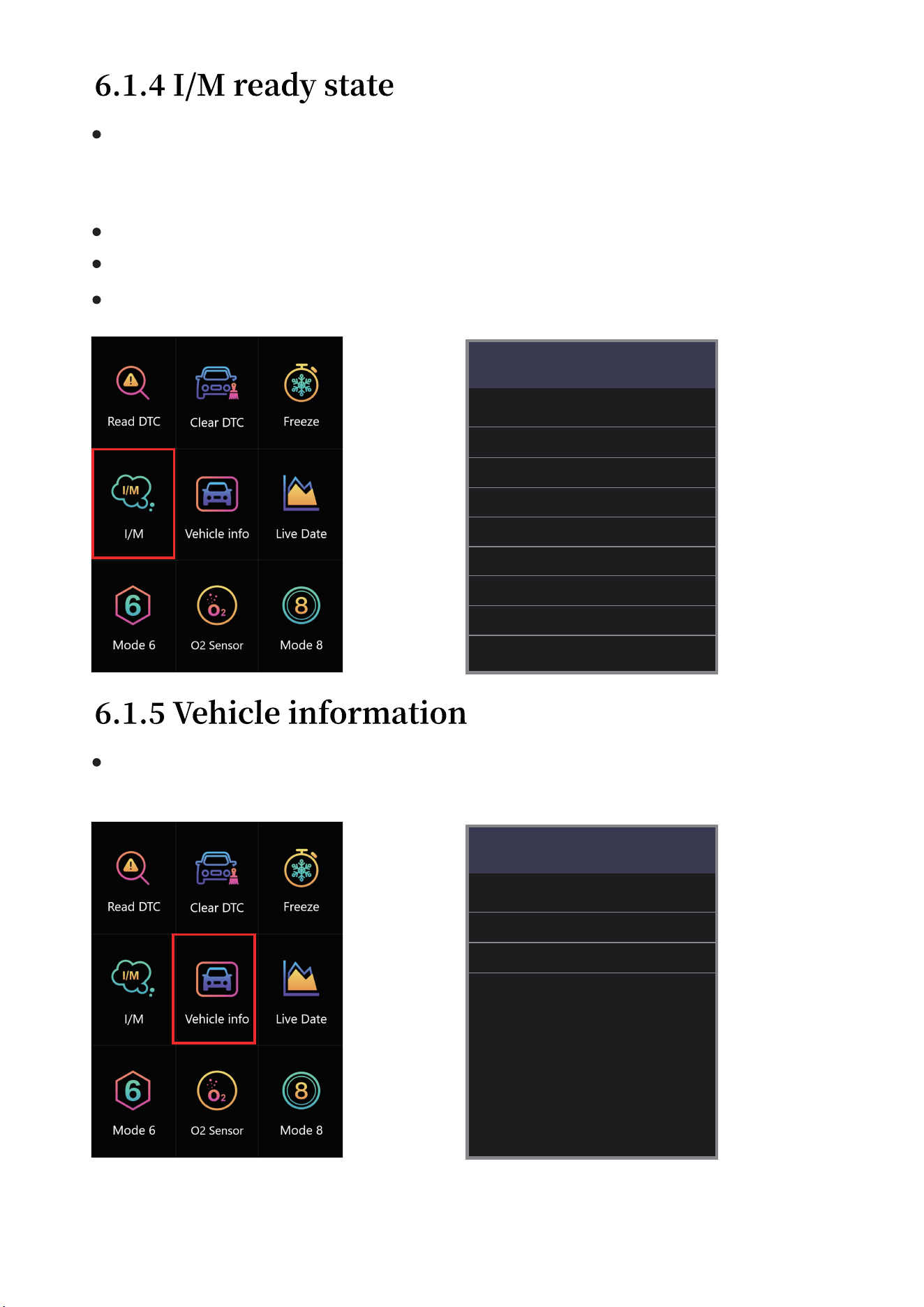

The I/M ready function is used to check whether the car monitor is OK or
N/A. During specific driving time (each monitor has specific driving
conditions and required time)
OK means the monitoring test is completed
INC indicates that the vehicle has not completed monitoring
N/A means that the modified vehicle does not support this monitoring
The vehicle identification code and other information can be viewed after
entering the vehicle information
8
Select mode 6 to enter the vehicle monitoring test
Due to vehicle manufacturer factors, some models may not be able to
read the item
Data Stream
DTC_CNT
DTCFRZF
FUELSYS1
FUELSYS2
LOAD_PCT(%)
ETC(℃)
SHRTFT1(%)
SHRTFT3(%)
LONGFT1(%)
9
P1212
OL-Drive
CL
41
97
23.4
25
54
ON-board monitor
Exhaust gas sensor
monitor bank 1- sensor 1
Exhaust gas sensor
monitor bank 1- sensor 2
Exhaust gas sensor
monitor bank 1- sensor 3
Exhaust gas sensor
monitor bank 1- sensor 4

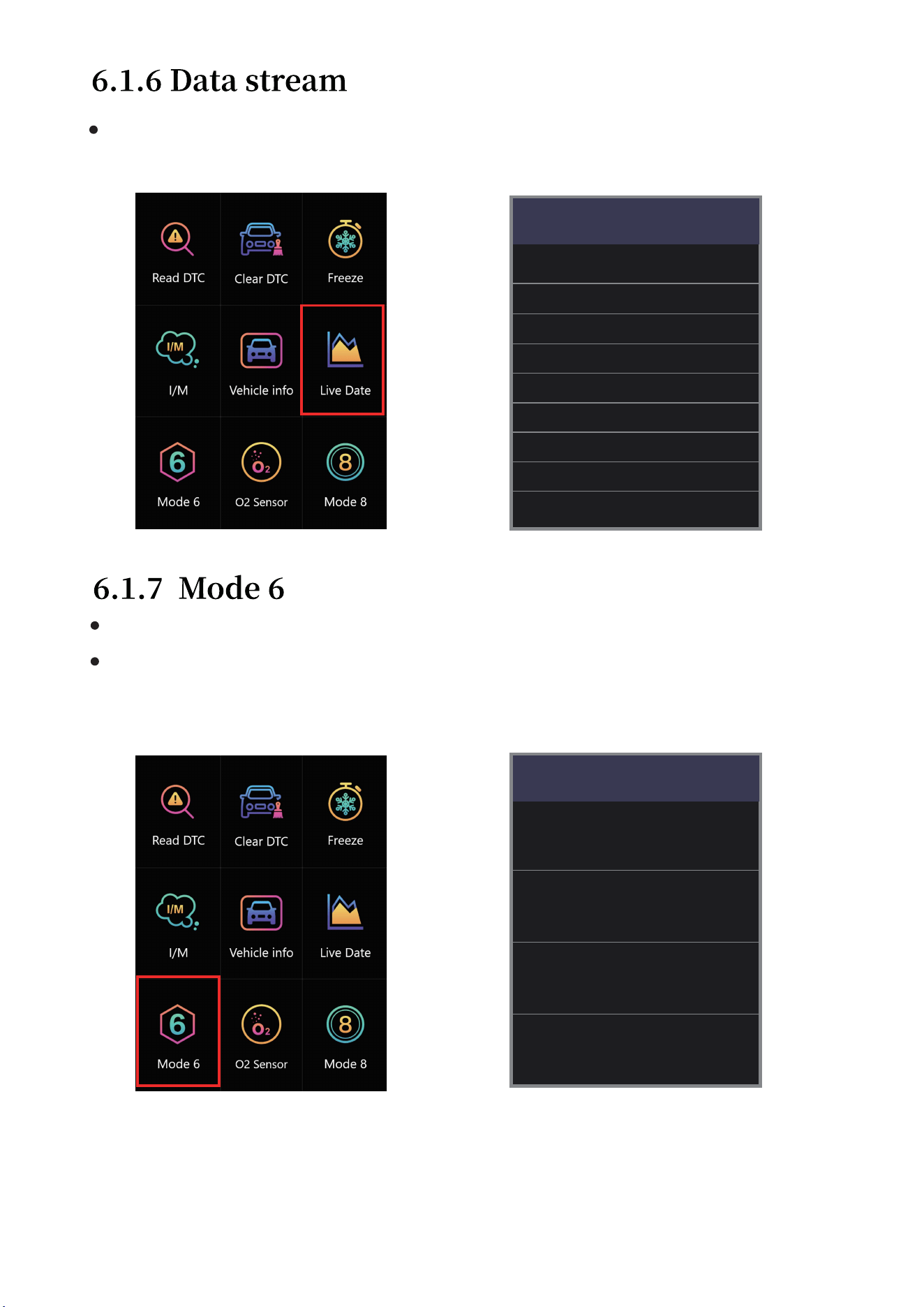

After entering the data stream, the product will read the current real-time
data stream information of the automobile engine
9

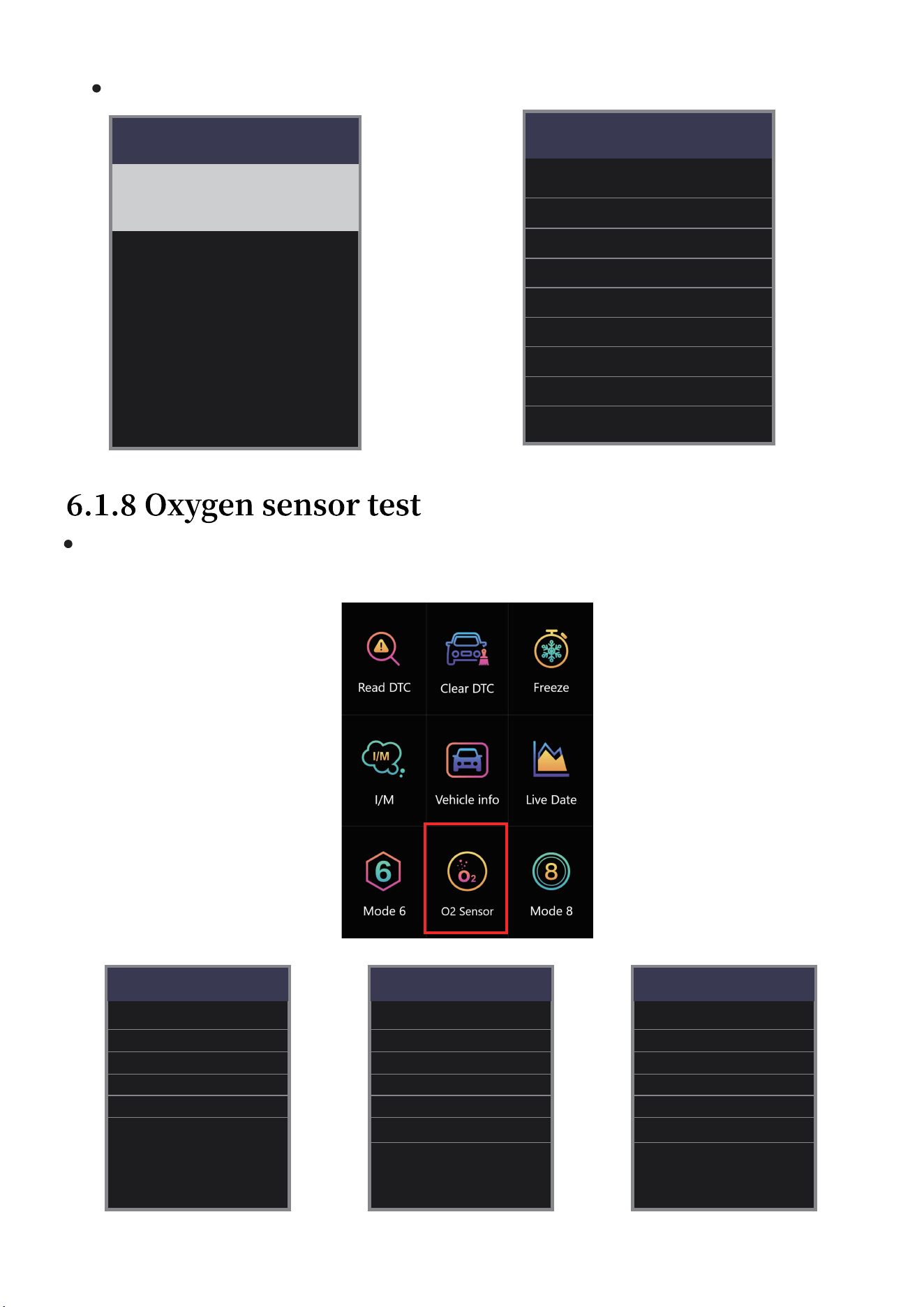

When entering the oxygen sensor test project, the oxygen sensor value of the
tested vehicle will be read to determine whether the detection data is normal
or not
Sensor monitor
No support Test Id 255
The sensor monitoring page is displayed
Sensor value
Test value
Min Limit
Max Limit
Staus
Unit
515
1024
0
Fail
O2 montor test
O2 bank1 sensor 2
O2 bank1 sensor 4
O2 bank2 sensor 1
O2 bank2 sensor 2
O2 bank2 sensor 3
O2 bank1 sensor2
Rich-lean threshold
Lean-rich threshold
Low for switch
High for switch
Rich-lean threshold
Lean-rich threshold
Rich-lean threshold
Test value
Min Limit
Max Limit
Status
Unit
0.500
0.250
0.000
Fail
V
10

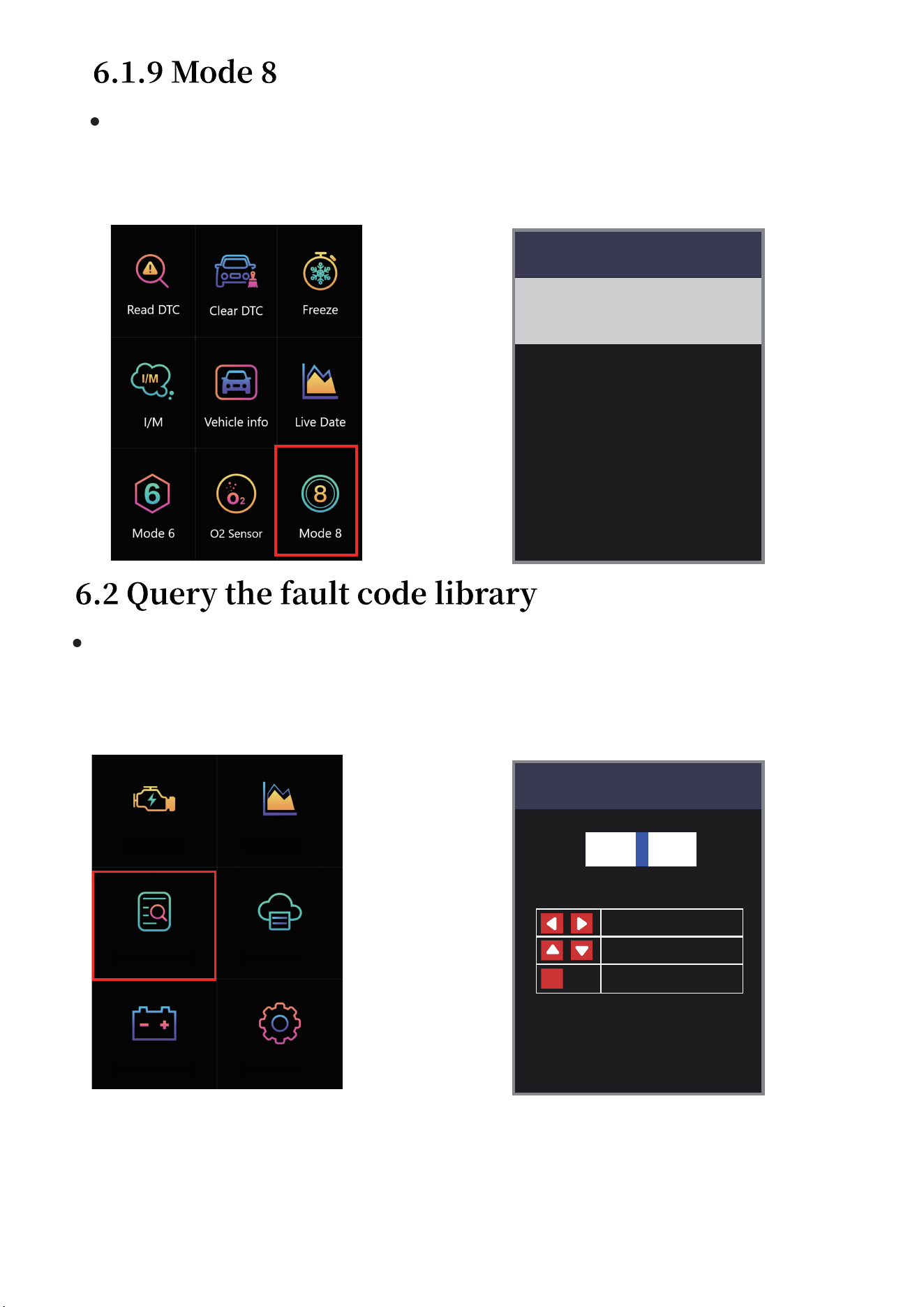

Mode 8 component test project
Due to vehicle manufacturer factors, some models may not be able to
read the item
Enter the query fault code option, the user can use the direction keys to
adjust the fault code, turn to the fault code to be queried and select "OK"
to query the fault definition
Data StreamOBD/EOBD
Cloud PrintDTC Lib
Steup
Voltage
Componenttest
Evaporative system leak test
DTCLookup
Left/Right
ChangeDigit
Confirm
OK
P 2 0 0 0
11

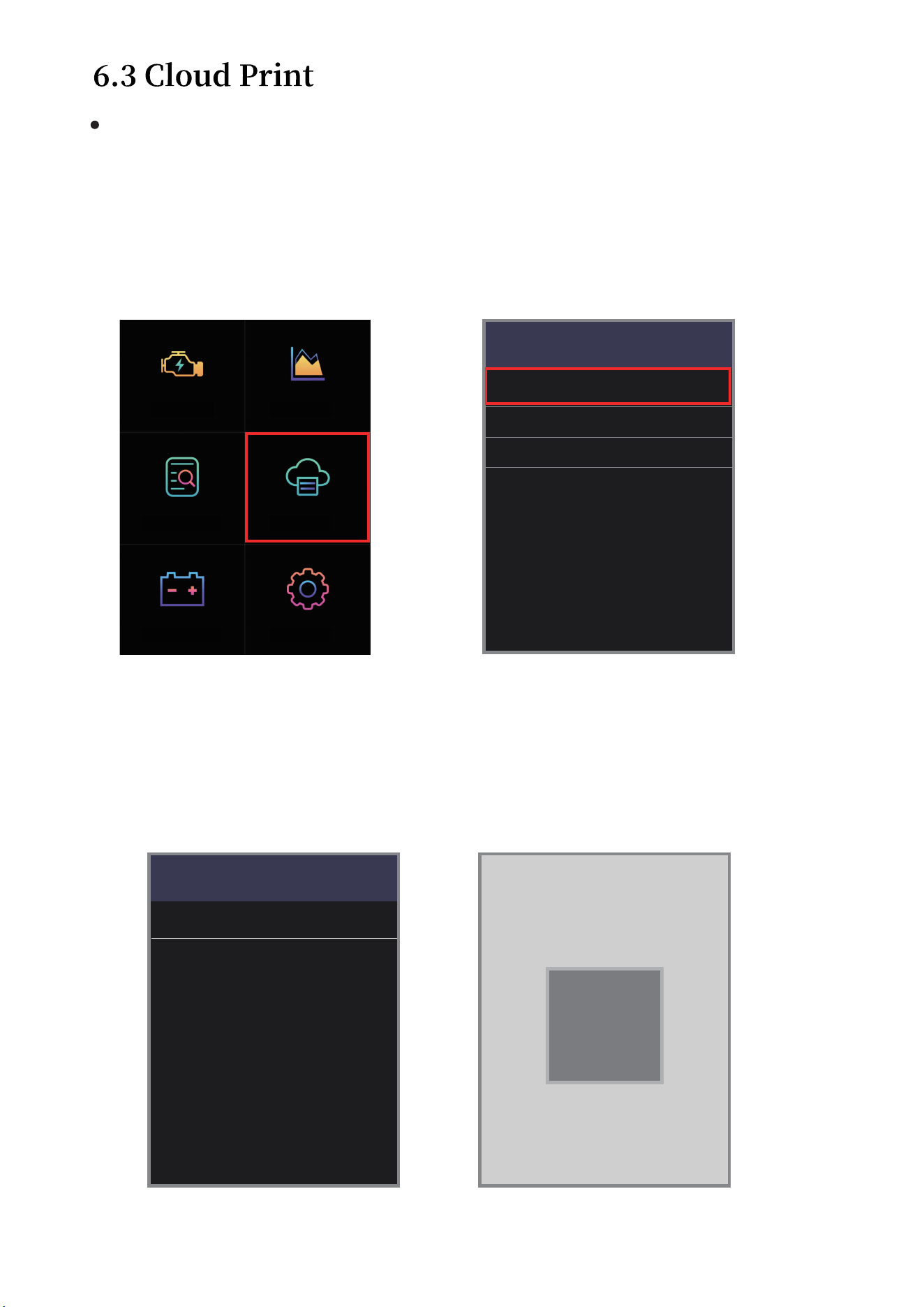

The cloud printing function is very convenient, the product will generate
two-dimensional code after detecting the fault code, data stream, and
frozen frame items, and the detection data will be displayed on the
mobile phone screen by scanning the code with the mobile phone. At this
time, you can save the data displayed on the mobile phone or send it to
other maintenance engineers
After reading the data that needs to be printed, click the "OK" button
again to generate the data two-dimensional code, which can be scanned
by the mobile phone
Note: If the printed item has no data, it needs to be redetected in the
"OBD/EOBD" menu
Trouble Codes
P3002
Stored Codes $07E8 BMW
Fuel rail pressure
flow-rate-controlled,
pressure too low
Data StreamOBD/EOBD
Cloud PrintDTC Lib
Steup
Voltage
Cloud Print
Print DTC
Print Data stream
Print Freeze
Two-dimen-
sional code
12
11.8V
Data StreamOBD/EOBD
Cloud PrintDTC Lib
Steup
Voltage
Data StreamOBD/EOBD
Cloud PrintDTC Lib
Steup
Voltage
System Setup
Language
Unit Of Measure
Contrast
Beep
Color Scheme
About
Voltage

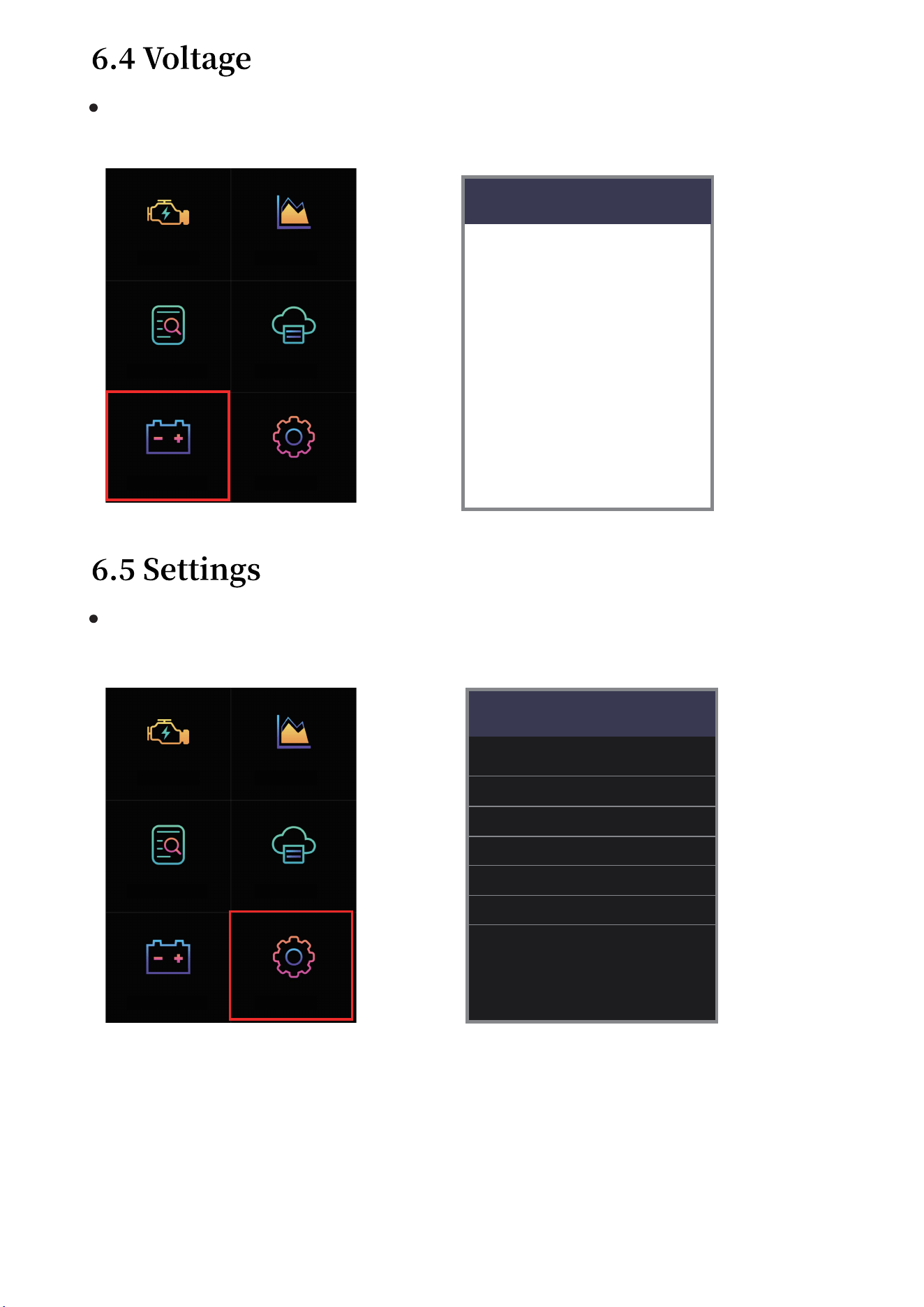

Enter the voltage option to read the current battery voltage data of the
detected vehicle
Enter the setting option to adjust the language, unit and other settings
of multiple product parameters
13
Products are not compatible with new energy vehicles and models that
do not comply with the OBD2 agreement
We are committed to providing customers with unparalleled customer
support before and after sales. Here are our exemption conditions for
products
If any of the following conditions are met, the customer shall not enjoy
the policy within the scope of this limited warranty
a Abnormal use, abnormal conditions, improper storage, exposure to
humidity or unauthorized modification, misuse, negligence, abuse,
accident, change, improper installation or other non fault behaviors,
including damage caused by transportation.
b Our company will not be responsible for the product damage caused
by external reasons (such as collision with objects) or fire, flood, sand,
dust, storm, lightning, earthquake or weather conditions, acts of God
irresistible or battery leakage, theft, fuse breaking, incorrect use of any
power supply.
