ASSEMBLY INSTRUCTIONS
5-TIRE STORAGE SHELVING UNIT
W082061A
SAVE THIS MANUAL FOR FUTURE REFERENCE
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before
using this product.
Thank you for buying a WORKPRO product. This WORKPRO shelving unit has a frame made of aluminum for
resistance to corrosion. The upright posts have a 2-piece design so it can be assembled vertically to create one 48
in. x 24 in. x 72 in. (W x D x H ) unit, or assembled horizontally to create one 48 in. W x 24 in. D x 36 in. H unit with
2 shelves and one 48 in. W x 24 in. D x 36 in. H unit with 3 shelves
48"Wx24"Dx72"H
Distributed by
Hangzhou GreatStar Industrial Co., Ltd.
No.35 Jiuhuan Road, Jiubao Town,
Hangzhou 310019, China
www.greatstartools.com
IT IS STRONGLY RECOMMENDED
THAT THIS PRODUCT IS
PERMANENTLY FIXED TO A WALL
USING AN ANCHOR KIT IF USED IN
AN ENVIRONMENT WITH CHILDREN.
WARNING!
SAFETY AND COMPLIANCE
Be aware of dynamic loading! Sudden load movement may briefly create excess load causing product failure.
Evenly distribute the weight on each shelf, and keep the heaviest loads on the bottom shelf.
Use only on flat, level and hard surface capable of supporting the shelving and any items placed on it.
Remember to only use the shelf on level ground with evenly distributed weight.
Do not store flammable liquids in the unit unless they are secured in an approved container.
Keep bystanders out of the area during assembly.
This product is not a toy. Do not allow children to play with, on or near the unit.
CAUTION!
Please read and understand this entire manual before using the product.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list.
It is recommended that this product be assembled on a clean, soft surface, such as a piece of cardboard. The
assembling task can be performed by one person but availability of a second person will make the task simpler.
Do not stand on, step on, or alter this unit for anything outside the designed function of storage.
Place heavier items on lower shelves and lighter ones on top shelves.
Use care when handling and assembling metal parts.
The metal may have sharp edges or corners. The use of protective gloves is recommended.
Always remember to use proper lifting techniques when moving the boxed or assembled unit.
WARNING!
2
Do not use tools other than required, as this can damage your new item.
CAUTION!
3
COMPONENTS
Ensure all components are present. If any components are missing, do not proceed with assembly. Contact
Brands customer services at [email protected]
ACCESSORIES INCLUDED
TOOLS REQUIRED
#
A
B
C
D
E
F
G
10
10
4
4
5
4
4
LONG BEAM
SHORT BEAM
BOTTOM PILLAR
UPPER COLUMN
WOODEN SHELF
BOTTOM
PROTECTIVE SLEEVE
HEAD COVER
PIC ACCESSORY NAME QUANTITY/PIECE
Do not omit this step, which could protect your floor from scratches.
NOTICE:
ASSEMBLY
4
C (4 x)
D (4 x)
F (4 x)
G (4 x)

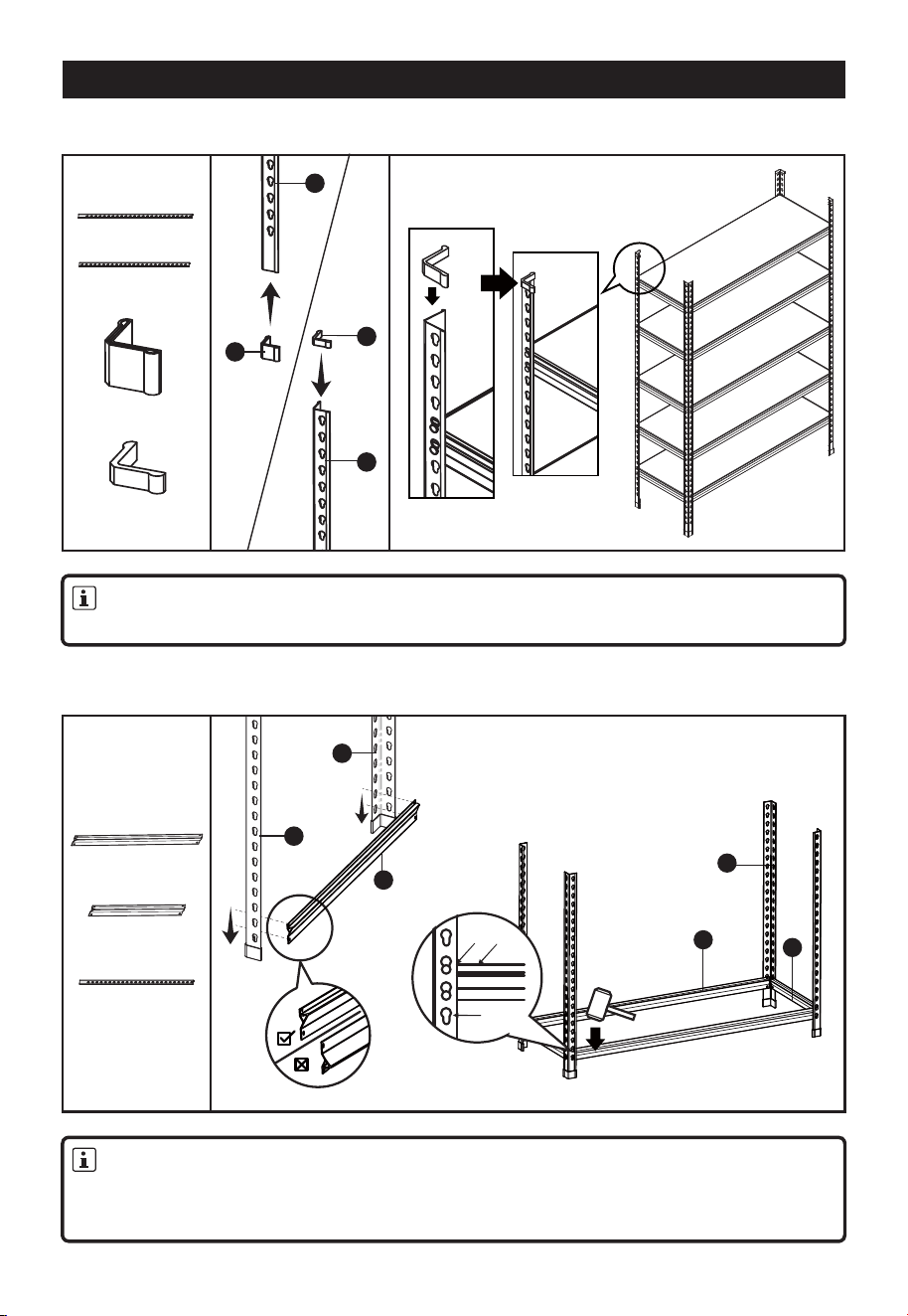

STEP 1:
C
D
F
G
Make sure all the rivets are fully seated into the post slots. You may want to use a rubber mallet (not included) to
help push the rivets into the post slots. This applies to all the rivets used in this unit.
Each of the beams A and braces B on the same level should be at the same height.
NOTICE:
STEP 2:
C
B
C
B (2 x)
C (2 x)
A (2 x)
A
B
Tap
Lightly
Shelf
Ledge
Post Slot
Points
Down
C
ASSEMBLY
5

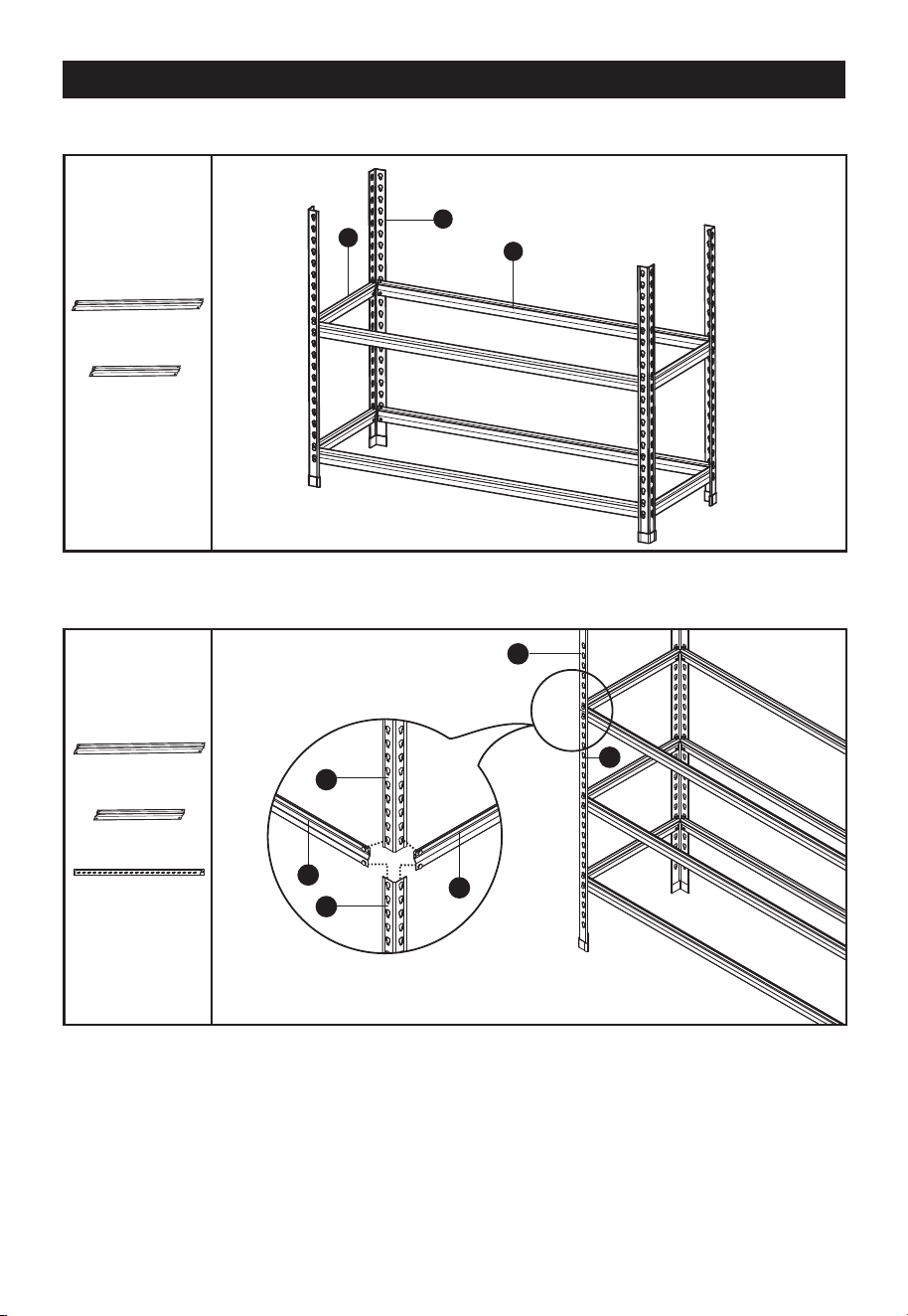

STEP 3:
A (2 x)
B (2 x)
A
B
C
D
D
C
C
STEP 4:
D (4 x)
A (2 x)
B (2 x)
B
A
ASSEMBLY
6

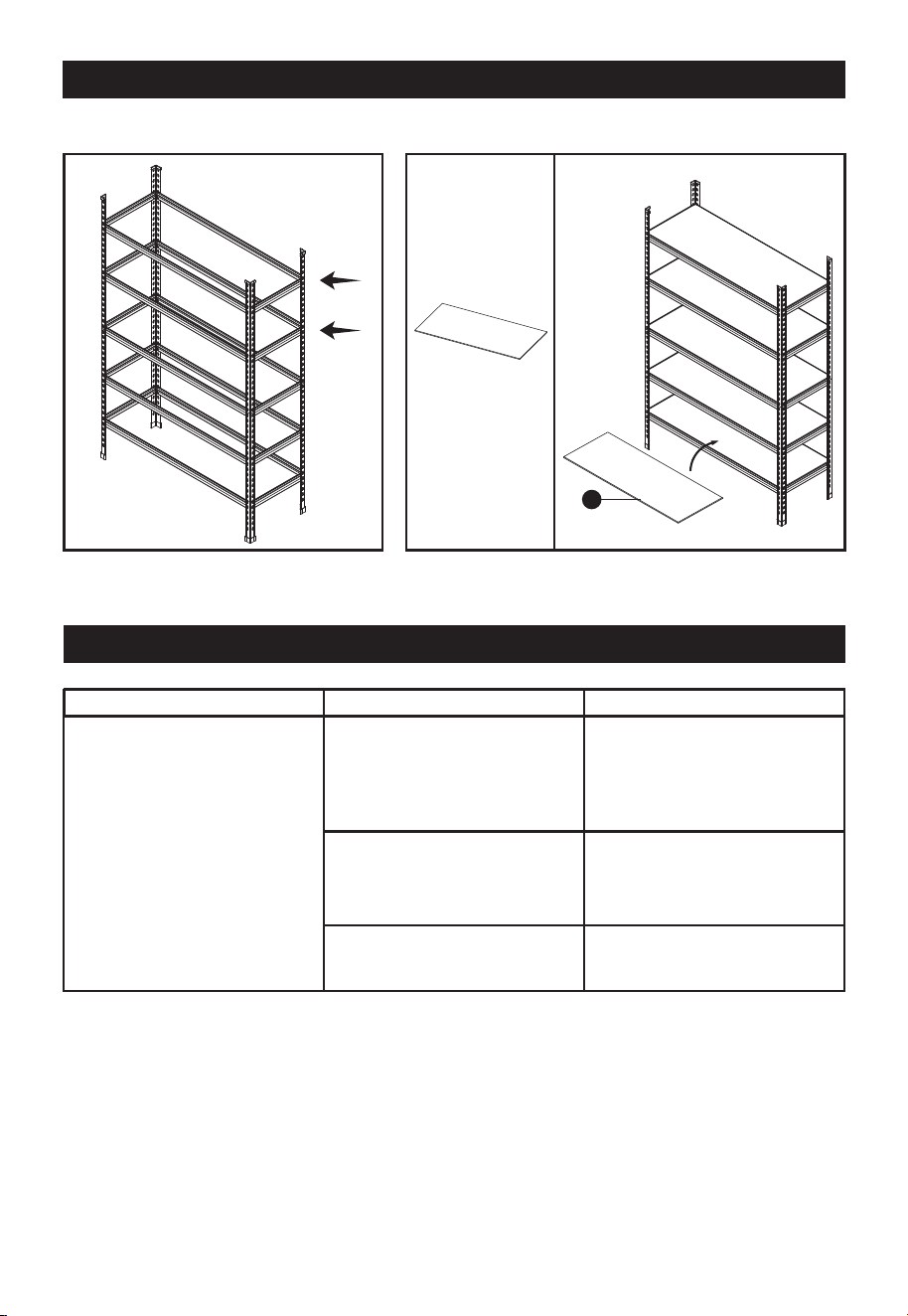

E (5 x)
STEP 5: STEP 6:
E
TROUBLESHOOTING
PROBLEM
Shelf is not level
POSSIBLE CAUSE CORRECTIVE ACTION
Beam(s) or brace(s) used for
the same level are not at the
same height or they are
assembled upside down.
Re-assemble beam(s) or
brace(s).
Fully seat the rivets.
Move the shelf to a flat, level
and hard surface.
Rivets on the beam(s) or
brace(s) are not fully seated
into the post slots.
The ground is uneven or too
soft.
