ADBLUE® LEVER ACTION PUMP
MODEL NO: TP6809
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure health & safety, local authority and general workshop practice regulations are strictly adhered to when using this
equipment.
9 Familiarise yourself with product application and limitations, as well as the specic potential hazards perculiar to this product.
9 Maintain pump in good condition. Use an authorised service agent.
9 Replace or repair damaged parts. Use only genuine parts only. Non authorised parts will invalidate warranty.
9 Pump is specically constructed with Viton seals for transferring AdBlue (diesel engine fuel additive).
9 Can also be used with water, antifreeze, windshield washer uid or mild detergents.
9 Ensure safety eye protection, protective clothing and gloves are worn when using this product.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Maintain correct balance and footing. Ensure the oor is not slippery and wear non-slip footware.
9 Keep children and unauthorised persons away from the working area.
9 Dispose of waste liquids in accordance with local authority regulations.
8 DO NOT use to extract corrosive uids.
8 DO NOT dismantle, tamper with or adapt the pump for any other purpose other than for which it is designed.
8 DO NOT use the pump if it had been dropped or mishandled. Check the pump to ensure there is no damage.
8 DO NOT use the pump as a handle to move the uid drum.
9 Keep the pump clean and store in a safe dry, childproof location.
WARNING! DO NOT allow uncontrolled discharge of uids thus polluting the environment.
2. INTRODUCTION
Lever action pump specifically for use with AdBlue®. The dip tube extends from 350mm to 980mm to fit 100L, 205L drums or
barrels, or 1000L IBC tank. Specially constructed with Viton® seals for transferring AdBlue®. 1.6m Delivery hose for hands-free
applications.
Approximately 500ml per stroke discharge. Can also be used with water, antifreeze, windshield washer fluid or mild detergents.
3. SPECIFICATION
Model no: ...................................................................TP6809
Delivery volume: .............................500ml approx. per stroke
4. ASSEMBLY
Unpack the product and check contents. Should there be any damaged or missing parts contact your local supplier immediately.
4.1. Dip tube assembly
4.2. Thread dip tube (g 2-B) into dip tube (g 2-A) .
4.3. Thread dip tubes (A + B) (g 2) into pump (g 1-1).
4.4. Loosen joint nut (g 1-6) and adjust the length of dip tube (g 1-C) to t the height of the drum and x by re-tightening joint nut.
4.5. Length of assembled dip tubes
4.6. Dip tube (A + B + C) = 690mm - 980mm.
4.7. Dip tubes (B + C) = 350mm - 640mm
Note: Dip tube (C) is located within dip tube (B) and is extended by loosening joint nut (fig 1-6) and pulled out to required length.
Re-tighten joint nut.
4.8. To attach dip tube assembly (B + C)
4.9. Unscrew dip tube (B) from dip tube (A), and unscrew dip tube (A) from the pump (g 1-1) and retain.
4.10. Thread dip tube assembly (B + C) into pump (g 1-1).
4.11. Delivery hose attachment
4.12. Attach delivery hose (g 1-4) to pump outlet and secure with spring hose clamp (g1-5).
TP6809 Issue 1 26/01/21
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Wear protective
clothing
5. OPERATION
5.1. Determine length of dip tube assembly required and insert the pump assembly (g 1) into the 2” BSP drum opening and hand
tighten.
5.2. Locate the pump in the position required and x with the lock nut (g 1-3).
5.3. Place the delivery hose (g1-4) into the receiving tank.
5.4. Stroke the handle (g1-2) up and down rapidly until liquid starts pouring.
WARNING! DO NOT allow uncontrolled discharge of uids thus polluting the environment.
5.5. Turn the air vent cap (g 1-7) counter clockwise to prevent siphoning.
Note: Operate the handle smoothly to help prevent damage to the pump.
WARNING! DO NOT use pump for more than one type of liquid.
WARNING! DO NOT place the pump head upside down, which may the cause the liquid to leak out of the delivery hose.
6. MAINTENANCE
6.1. Before each use inspect the overall condition of the pump for broken, cracked or bent parts that may eect the proper operation.
TP6809. Issue 1 26/01/21
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.

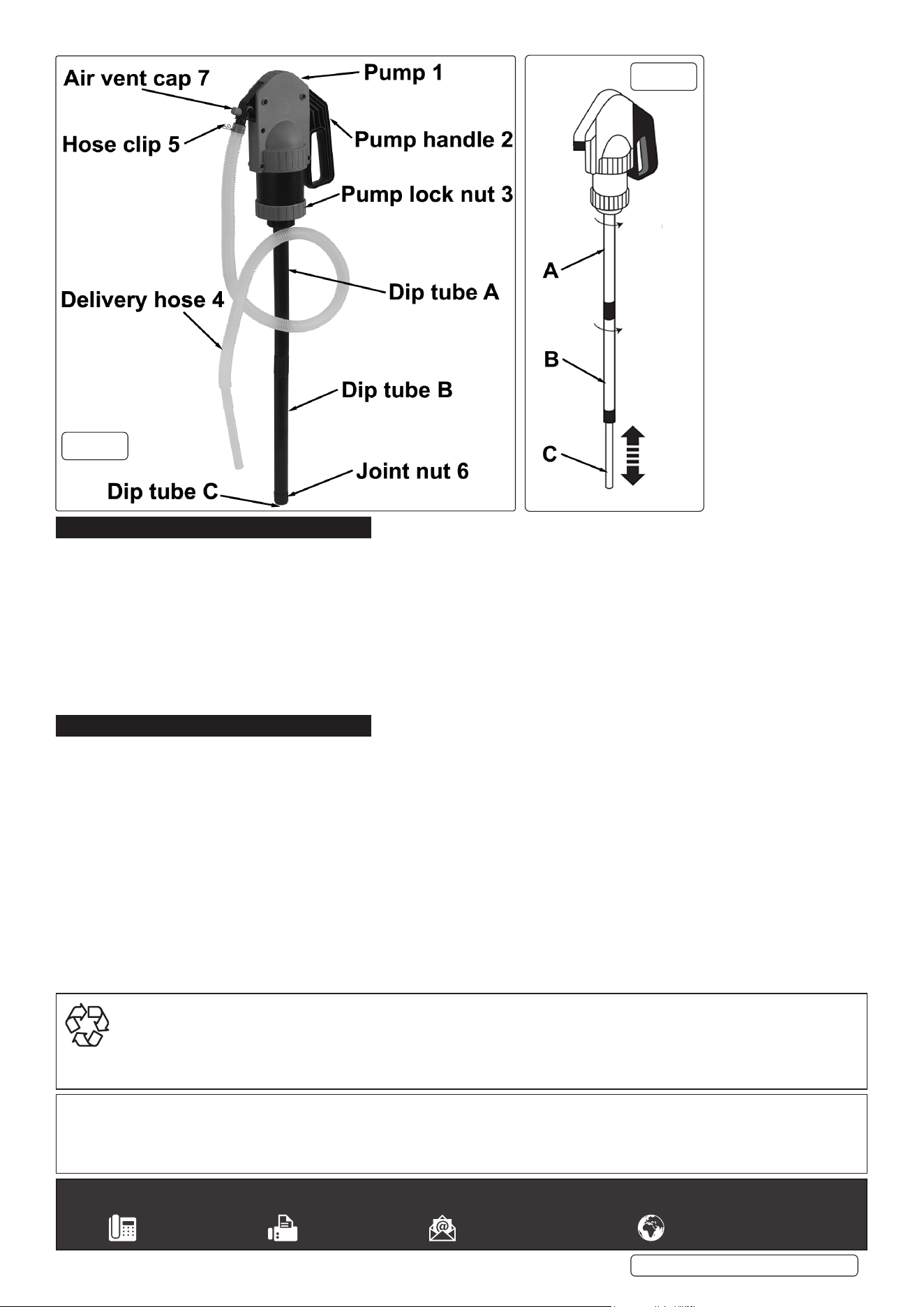

g.1
