PORTABLE
AIR CONDITIONER
FOR MODEL:
PORTHP14000
Before using your air conditioner, please
read this manual carefully and keep it for
future reference, along with your receipt.
USER MANUAL
Contents
Safety Precautions
Cautions
Preparations
Installation
Operation
Maintenance
Faults Diagnosis
Design and Compliance Notes
Sociable Remark
2
3
4
6
10
15
16
17
18
-------------
-----------------
-----------------
-------------------
-----------------
---------------
---------------
-------------------
------
1
Safety Precautions
-Installation must be performed according to the installation instructions. Improper installation
can cause water leakage, electrical shock, or fire.
-Use only the included accessories and parts, and specified tools for the installation. Using
non-standard parts can cause water leakage, electrical shock, fire, and injury or property damage.
-Make sure that the outlet you are using is grounded and has the appropriate voltage. The
power cord is equipped with a three-prong grounding plug to protect against shock. Voltage
information can be found on the nameplate of the unit.
-Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you
intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker
(the fuse or circuit breaker needed is determined by the maximum current of the unit. The
maximum current is indicated on the nameplate located on unit), have a qualified electrician
install the proper receptacle.
-Install the unit on a flat, sturdy surface. Failure to do so could result in damage or excessive
noise and vibration.
-The unit must be kept free from obstruction to ensure proper function and to mitigate safety hazards.
-DO NOT modify the length of the power cord or use an extension cord to power the unit.
-DO NOT share a single outlet with other electrical appliances. Improper power supply can
cause fire or electrical shock.
-DO NOT install your air conditioner in a wet room such as a bathroom or laundry room. Too
much exposure to water can cause electrical components to short circuit.
-
DO NOT install the unit in a location that may be exposed to combustible gas, as this could cause fire.
-The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or to roll
over objects, as these could cause tipping.
-DO NOT operate a unit that it has been dropped or damaged.
-The appliance with electric heater shall have at least 1 meter space to the combustible materials.
-Do not touch the unit with wet or damp hands or when barefoot.
-If the air conditioner is knocked over during use, turn off the unit and unplug it from the main power
supply immediately. Visually inspect the unit to ensure there is no damage. If you suspect the unit
has been damaged, contact a technician or customer service for assistance.
-In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.
-Your air conditioner should be used in such a way that it is protected from moisture. e.g.
condensation, splashed water, etc. Do not place or store your air conditioner where it can fall or be
pulled into water or any other liquid. Unplug immediately if it occurs.
-
All wiring must be performed strictly in accordance with the wiring diagram located inside of the unit.
-The unit's circuit board(PCB) is designed with a fuse to provide overcurrent protection. The
specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.

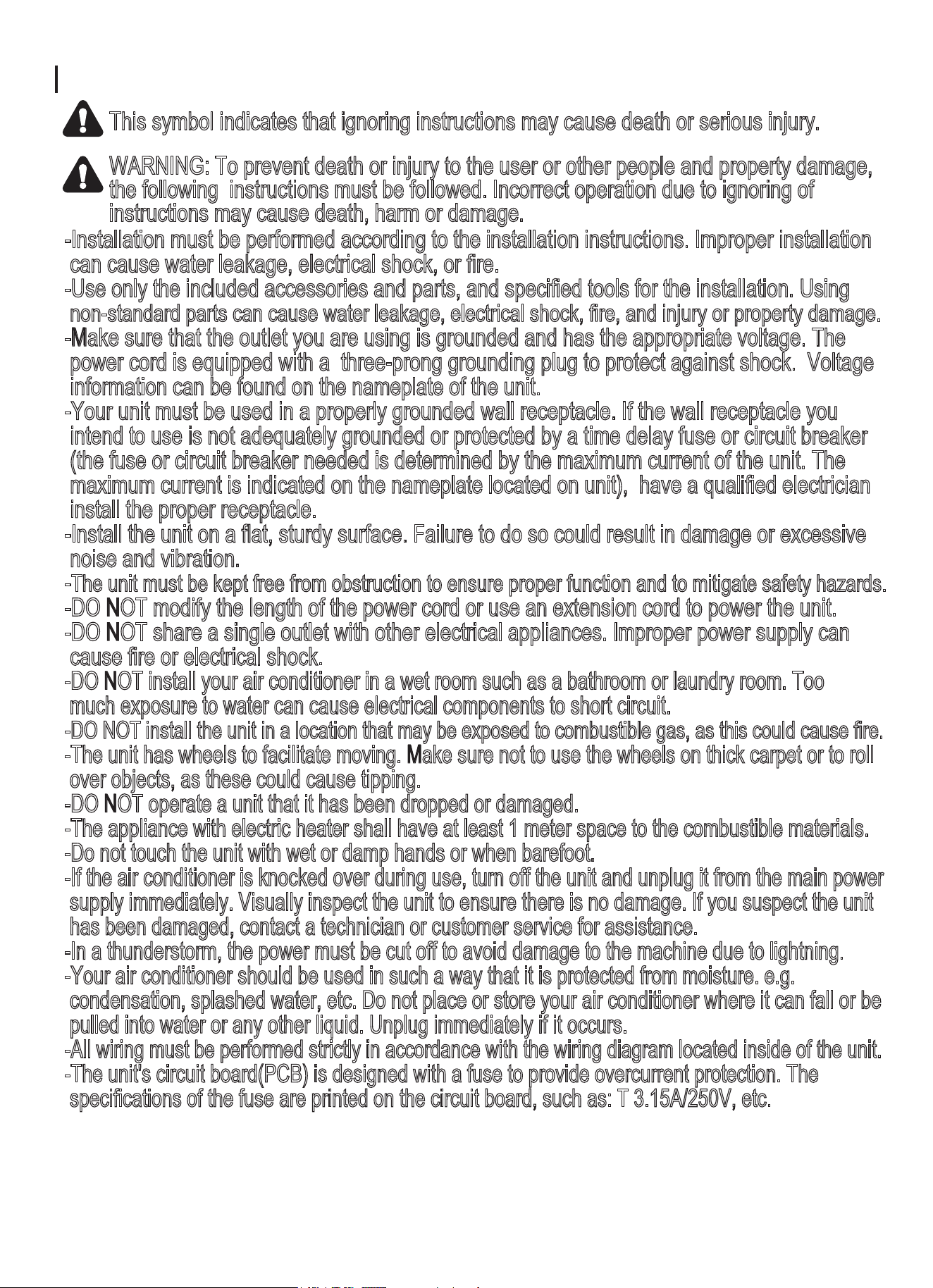

WARNING: To prevent death or injury to the user or other people and property damage,
the following instructions must be followed. Incorrect operation due to ignoring of
instructions may cause death, harm or damage.
This symbol indicates that ignoring instructions may cause death or serious injury.
2
Cautions

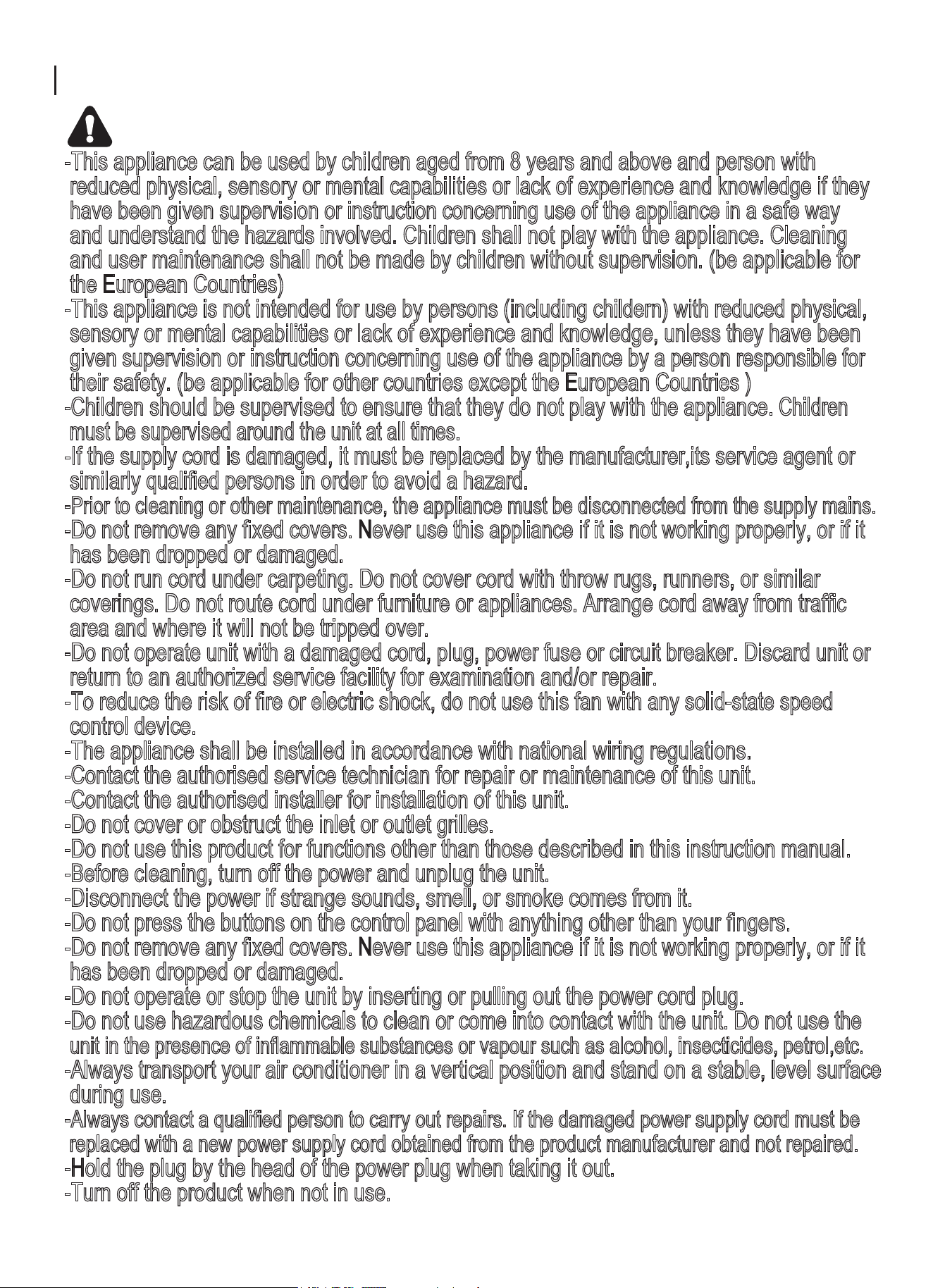

-This appliance can be used by children aged from 8 years and above and person with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision. (be applicable for
the European Countries)
-This appliance is not intended for use by persons (including childern) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. (be applicable for other countries except the European Countries )
-Children should be supervised to ensure that they do not play with the appliance.
Children
must be supervised around the unit at all times.
-If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or
similarly qualified persons in order to avoid a hazard.
-Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
-Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it
has been dropped or damaged.
-Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic
area and where it will not be tripped over.
-Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit or
return to an authorized service facility for examination and/or repair.
-To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed
control device.
-The appliance shall be installed in accordance with national wiring regulations.
-Contact the authorised service technician for repair or maintenance of this unit.
-Contact the authorised installer for installation of this unit.
-Do not cover or obstruct the inlet or outlet grilles.
-Do not use this product for functions other than those described in this instruction manual.
-Before cleaning, turn off the power and unplug the unit.
-Disconnect the power if strange sounds, smell, or smoke comes from it.
-Do not press the buttons on the control panel with anything other than your fingers.
-Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it
has been dropped or damaged.
-Do not operate or stop the unit by inserting or pulling out the power cord plug.
-Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the
unit in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol,etc.
-Always transport your air conditioner in a vertical position and stand on a stable, level surface
during use.
-Always contact a qualified person to carry out repairs. If the damaged power supply cord must be
replaced with a new power supply cord obtained from the product manufacturer and not repaired.
-Hold the plug by the head of the power plug when taking it out.
-Turn off the product when not in use.
Cautions
3

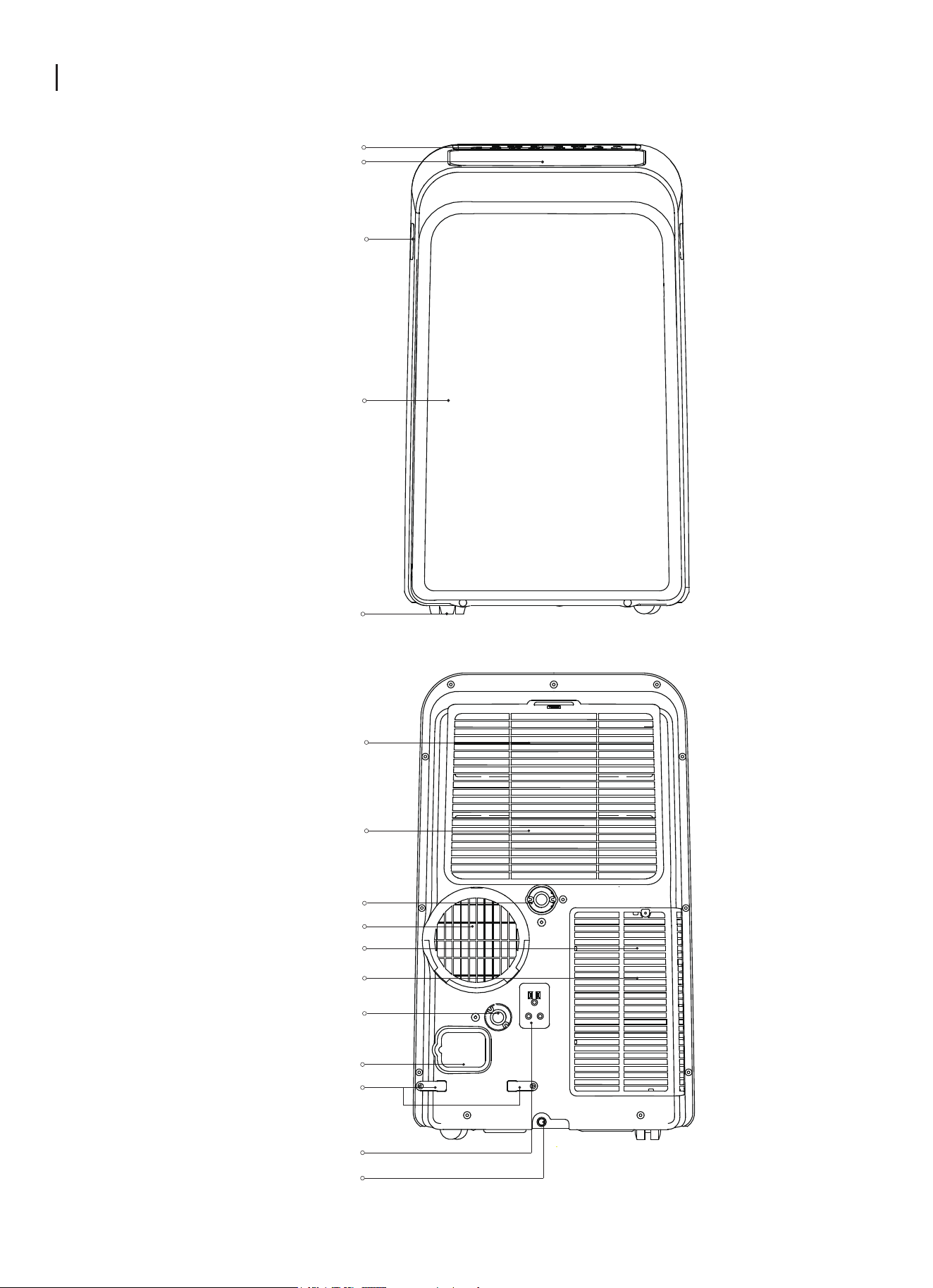

Preparation
rear
front
control panel
handle
(both sides)
horizontal louver
blade
(swing automatically)
Caster
power plug socket
power cord buckle
bottom tray
drain outlet
power cord outlet
drain outlet
(only for pump
heating mode)
upper air filter
(behind the grille)
upper air intake
air outlet
lower air filter
lower air intake
drain outlet
Panel
4
Preparation

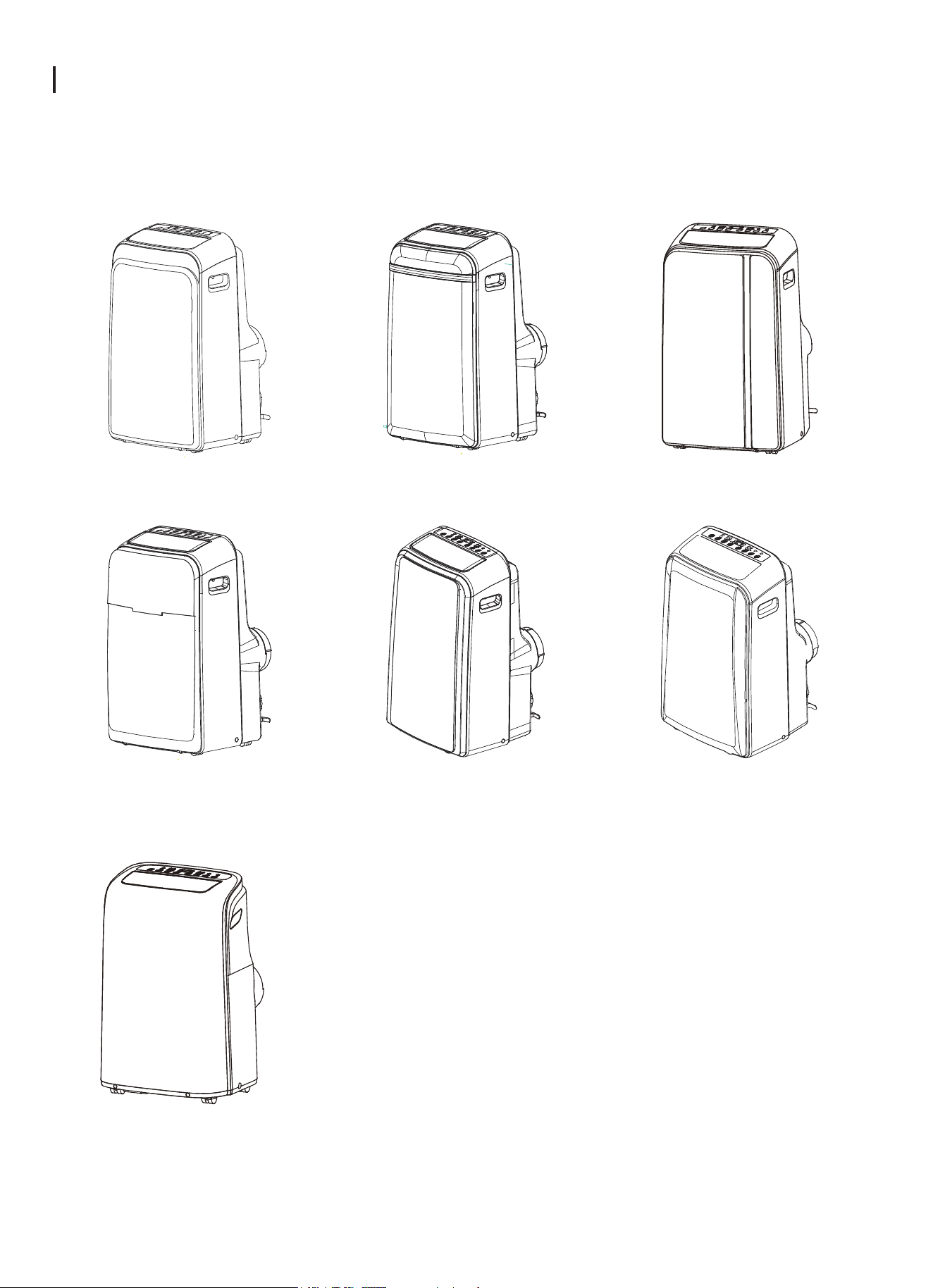

NOTE: The unit you purchased may be look like one of the followings:
5
Installation

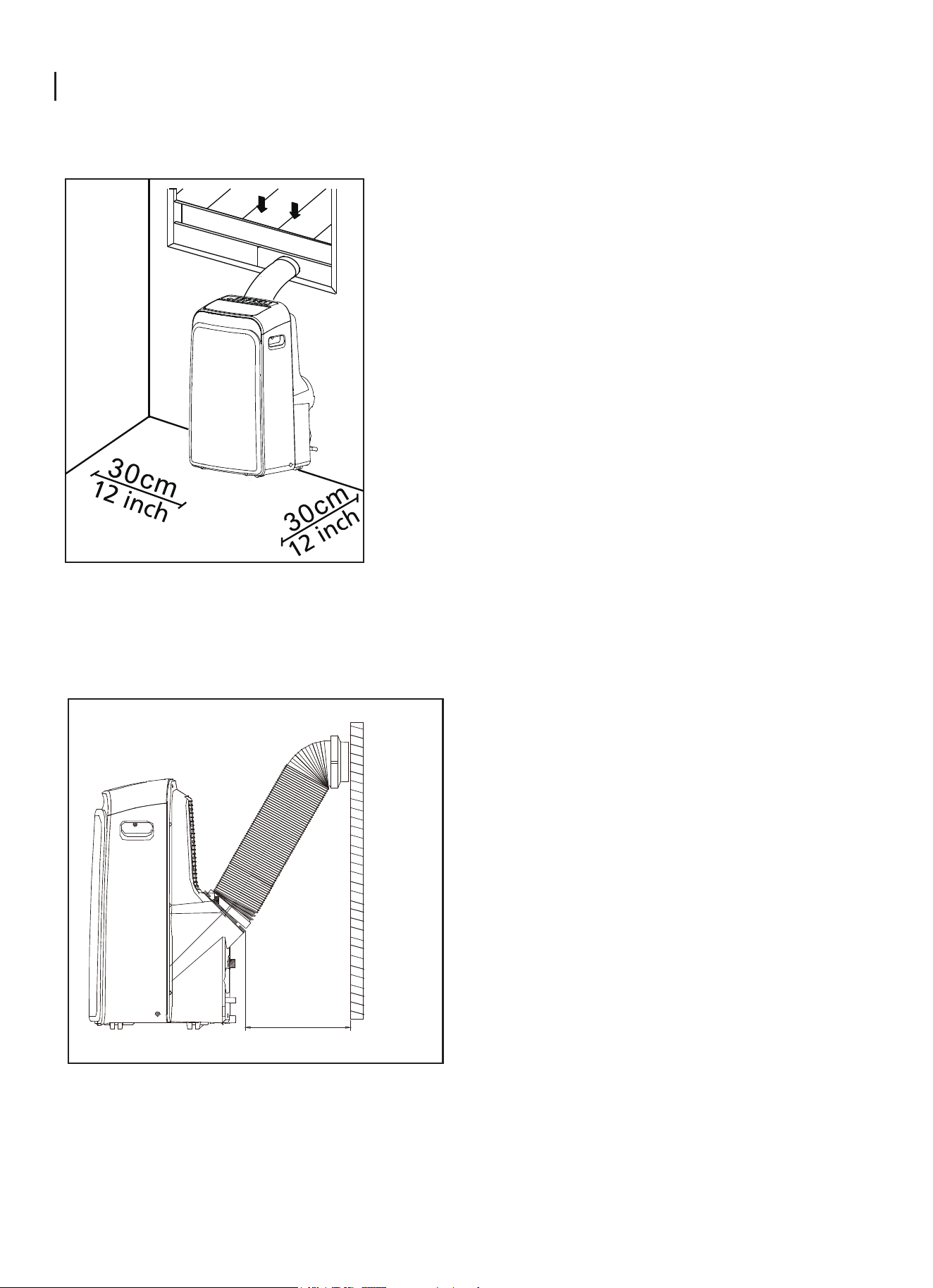

Choosing The Right Location
Recommend Installation
Your installation location should meet the following requirements:
-Make sure that you install your unit on an even surface to
minimize noise and vibration.
-The unit must be installed near a grounded plug, and the
Collection Tray Drain (found on the back of the unit) must be
accessible.
-The unit should be located at least 30cm (12”) from the nearest
wall to ensure proper air conditioning.
-DO NOT cover the Intakes, Outlets or Remote Signal Receptor
of the unit, as this could cause damage to the unit.
NOTE:
All the illustrations in the manual are for explanation
purpose only. Your machine may be slightly different.
The actual shape shall prevail.

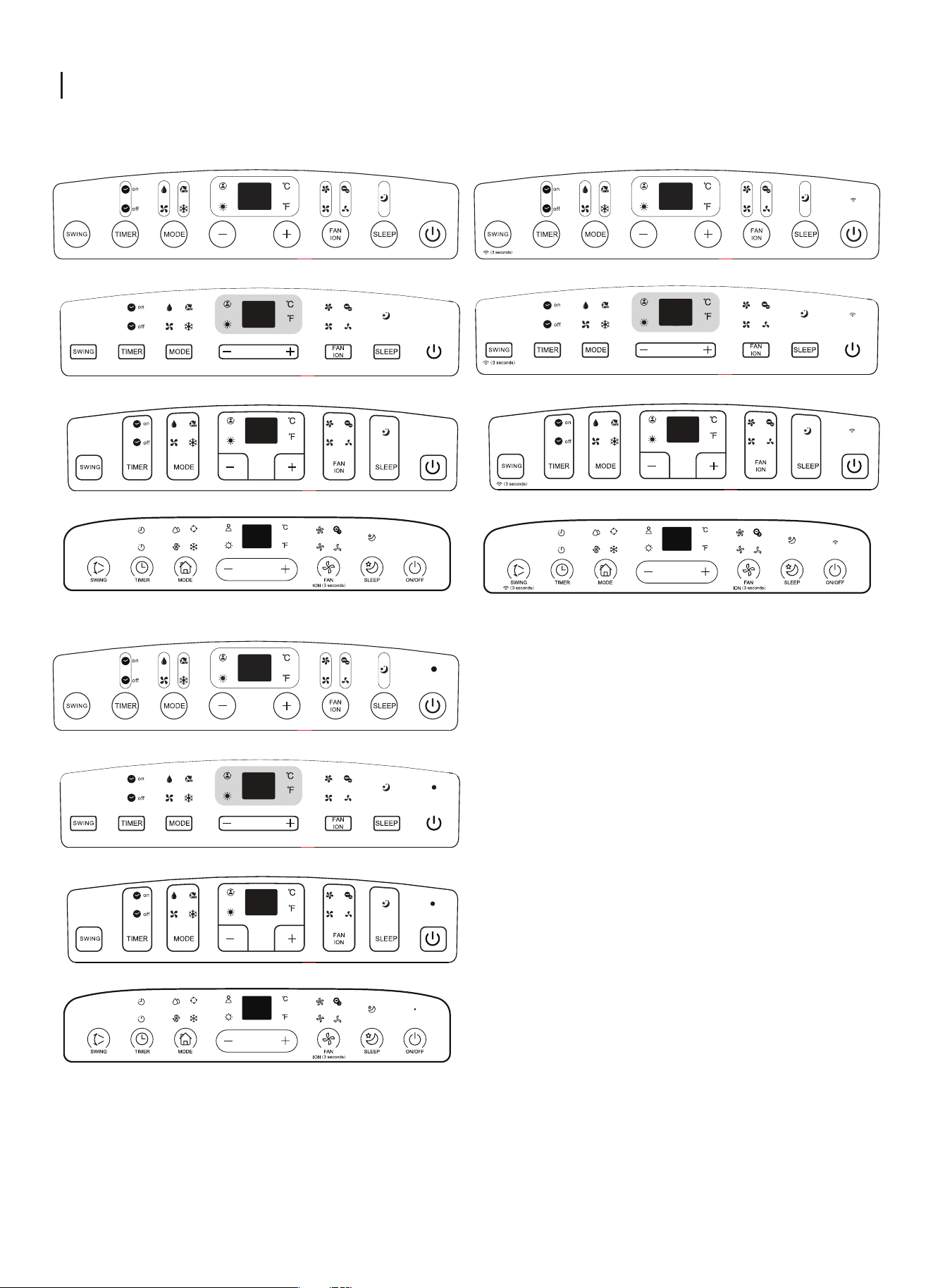

The unit can be controlled by the unit control panel
alone or with the remote controller. This manual does
not include Remote Controller Operations, see the
<<Remote Controll Illustration>> packed with the unit
for details.
When there are wide differences between
“INSTRUCTION MANUAL” and “Remote controll
Illustration” on function description, the description on
“INSTRUCTION MANUAL ” shall prevail.
50cm
19.7inch
6
Installation
Tools Needed
-Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors; -Saw (optional, to shorten window
adaptor for narrow windows)

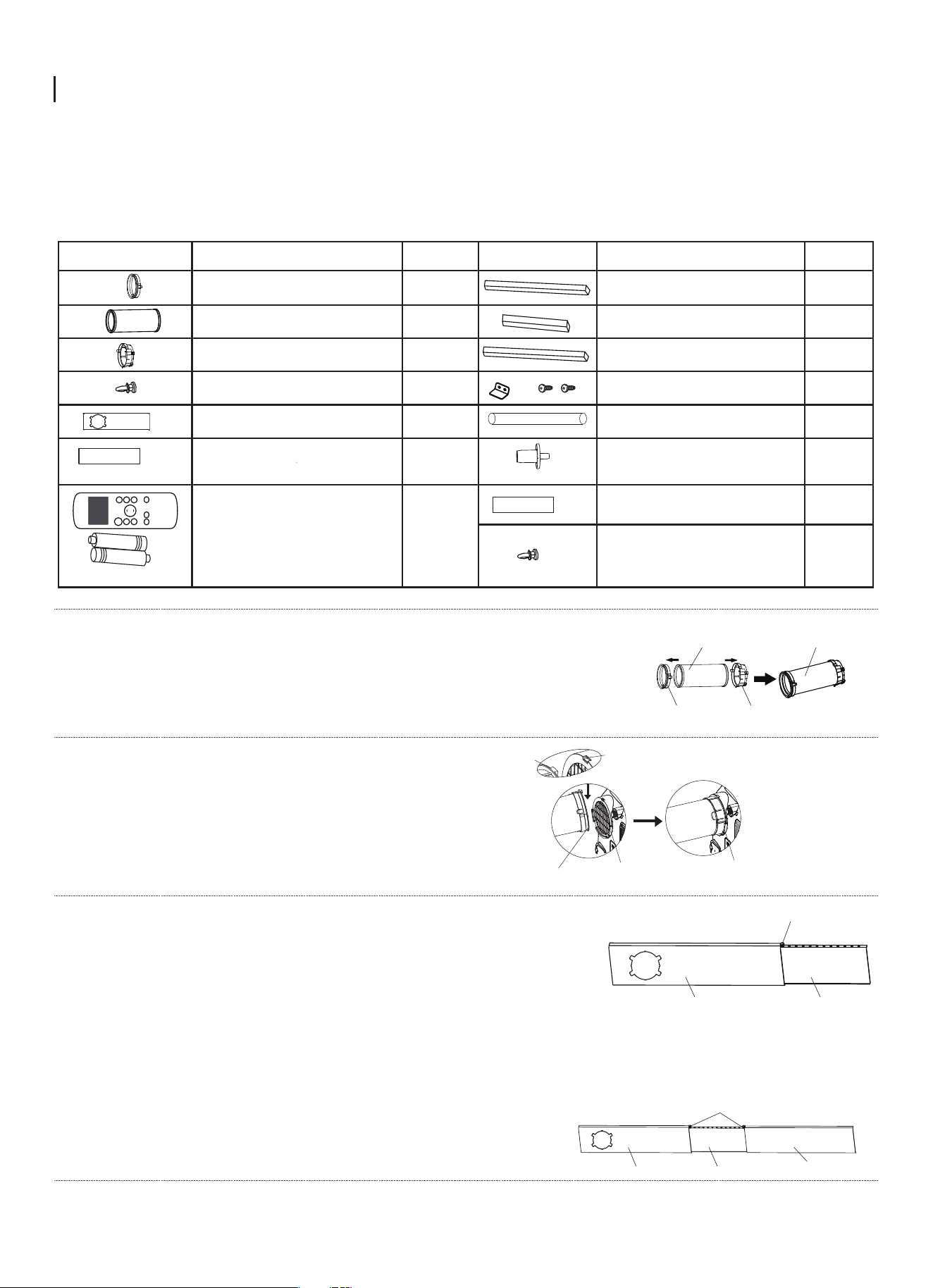

Accessories
Check your window size and choose the fit window slider.
Window Installation Kit
Part
Description
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
2 pc
2 pc
1 set
1 set
Unit Adaptor
Window Slider Adaptor
Window Slider A
Window Slider B
Window Slider C(optional)
Exhaust Hose
Bolt
Foam Seal A (Adhesive)
Foam Seal B (Adhesive)
Foam Seal C (Non-adhesive)
Security Bracket and 2 Screws
Drain Hose
Drain Hose Adaptor(only for
heat pump mode)
Quantity
Part Description
Quantity
1 pc
Bolt(optional)
Remote Controller and
Battery
(For remote control models
only)
Press the exhaust hose into the window slider adaptor
and unit adaptor, clamp automatically by elastic buckles
of the adaptors.
Step One: Preparing the Exhaust Hose assembly
Step Two: Install the Exhaust hose assembly to the unit
Step Three: Preparing the Adjustable Window Slider
1. Depending on the size of your window, adjust the size of the
window slider.
2. If the length of the window requires two window sliders, use the bolt
to fasten the window sliders once they are adjusted to the proper
length.
3. For some models, if the length of the window requires three window
sliders(optional), use two bolts to fasten the window sliders once they
are adjusted to proper length.
Window slider A Window slider B
Bolt
Insert unit adaptor of the Exhaust hose assembly into the
lower groove of the air outlet of the unit while the hook of
the adaptor is aligned with the hole seat of the air outlet
and slide down the Exhaust hose assembly along the arrow
direction for installation.
Hook
Hole Seat
Lower groove
adaptor
Make sure the adaptor is
inserted into the lower
groove of the air outlet.
ON/O FF
TE MP
SH OR T
C UT
TIME R
ON
TIME R
OF F
MODE
FAN
SL E EP
SW ING
LE D
Unit adaptor Window slider
adaptor
Exhaust hose
Exhaust hose
assembly
7
Window slider A Window slider B
Window slider C
Bolts
Installation
Note: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of the
following two installation methods.
Cut the adhesive foam seal A
and B strips to the proper
lengths, and attach them to
the window sash and frame
as shown.
Cut the adhesive foam seal A
and B strips to the proper
lengths, and attach them to
the window sash and frame
as shown.
Cut the non-adhesive foam
seal C strip to match the width
of the window. Insert the seal
between the glass and the
window frame to prevent air
and insects from getting into
the room.
If desired, install the security
bracket with 2 screws as shown.
Insert the window slider
assembly into the window
opening.
Insert the window slider
assembly into the window
opening.

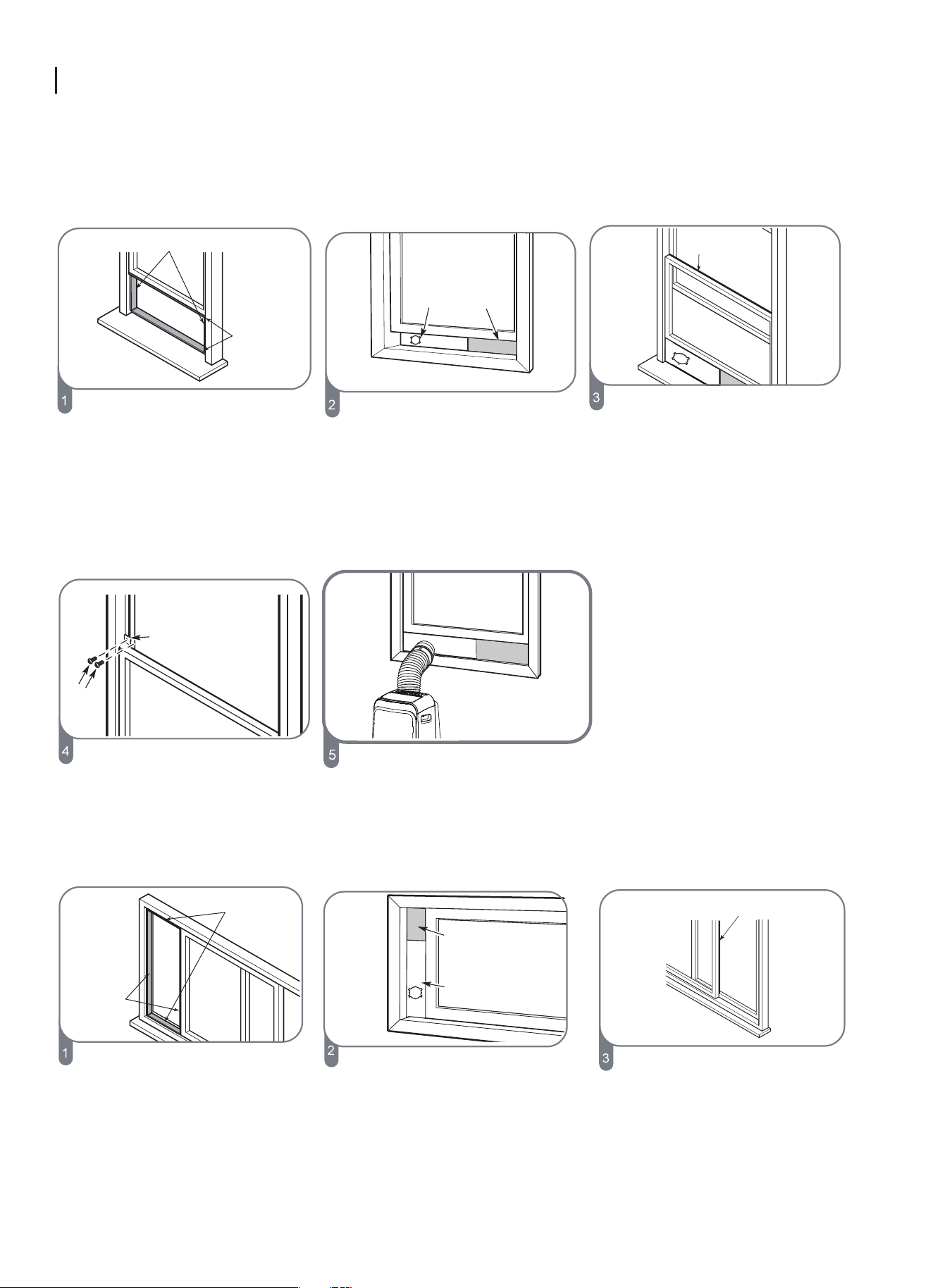

Type 1: Hung Window Installation
Foam seal B
(Adhesive type-shorter)
2 Screws
Security Bracket
Foam seal A
(Adhesive type)
Window slider A
Window slider B
(if required)
Type 2: Sliding Window Installation
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Window slider A
Window slider B
(if required)
Foam seal C
(Non-adhesive type)
Insert the window slider adaptor
into the hole of the window slider.
Cut the non-adhesive foam
seal C strip to match the
window height. Insert the foam
seal between the glass and the
window frame to prevent air
and insects from getting into
the room.
Foam seal C
(Non-adhesive type)
8
Installation
If desired, install the security
bracket with 2 screws as shown.
2 Screws
Security
Bracket
Insert the window slider adaptor
into the hole of the window slider.

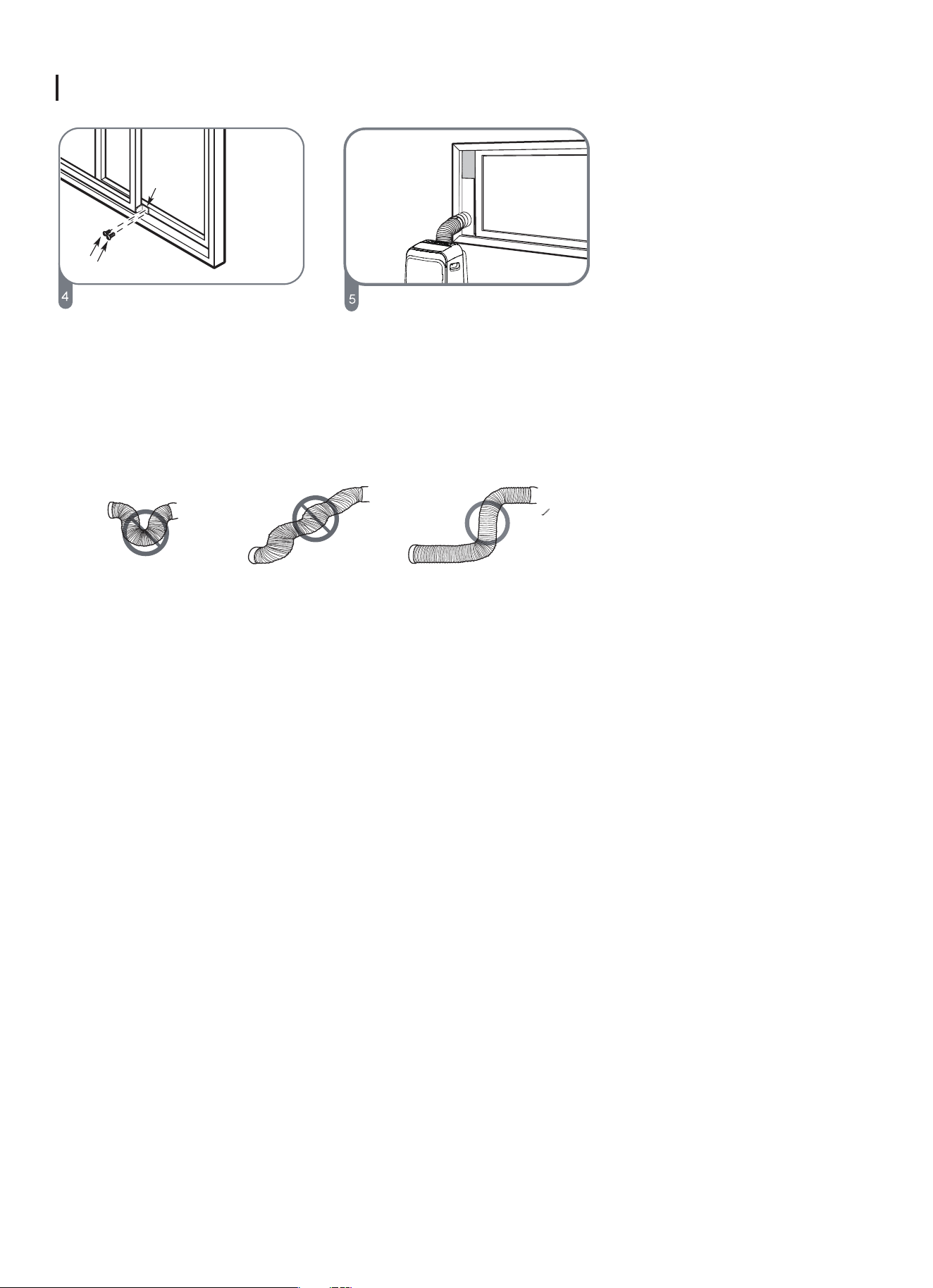

Note: To ensure proper function, DO NOT overextend or bend the hose.
Make sure that there is no obstacle around the air outlet of the exhaust
hose (in the range of 500mm) in order to the exhaust system works
properly. All the illustrations in this manual are for explanation purpose
only. Your air conditioner may be slightly different. The actual shape
shall prevail.
9
NOTE: The control panel may be look like one of the followings:
NOTE: Some features(ION, FOLLOW ME, HEAT, WIRELESS etc.) are optional.
Operation
10
Operation
Swing/Wireless button(wireless is optional)
Sleep/Eco button
Fan/Ion button(Ion is optional)
Used to initiate the Auto swing feature. When
the operation is ON, press the SWING button
can stop the louver at the desired angle.
Used to initiate the SLEEP/ECO
operation.
Timer button
Used to initiate the AUTO ON start time and
AUTO OFF stop time program, in conjuction
with the + & - buttons. The timer on/off indicator
light illuminates under the timer on/off settings.
Mode button
Selects the appropriate operating mode. Each
time you press the button, a mode is selected in
a sequence that goes from AUTO, COOL, DRY,
FAN and HEAT (cooling only models without).
The mode indicator light illuminates under the
different mode settings.
Power button
Power switch on/off.
Up (+) and Down (-) buttons
Used to adjust (increasing/decreasing)
temperature settings in 1°C/1°F increments in
a range of 17°C/62°F to 30°C/86°F or the
TIMER setting in a range of 0~24hrs.
NOTE: The control is capable of displaying
temperature in degrees Fahrenheit or
degrees Celsius. To convert from one to the
other, press and hold the Up and Down
buttons at the same time for 3 seconds.
Control the fan speed. Press to select the
fan speed in four steps-LOW, MID, HIGH
and AUTO. The fan speed indicator light
illuminates under different fan settings
except AUTO speed. When select AUTO
fan speed, all the fan indicator lights turn
dark.
NOTE: Press this button for 3 seconds to
initiate ION feature. The ion generator is
energized and will help to remove pollen
and impurities from the air, and trap them
in the filter. Press it for 3 seconds again to
stop the ION feature.
Used to initiate the Wireless function. For the
first time to use Wireless function, press and
hold the swing button for 3 seconds to initiate
the Wireless connection mode. The LED
DISPLAY shows 'AP' to indicate you can set
Wireless connection. If connection(router) is
successful within 8 minutes, the unit will exit
Wireless connection mode automatically and
the Wireless indicator illuminates. If connection
is failure within 8 minutes, the unit exits
Wireless connection mode automatically.
After Wireless connection is successful ,you
can press and hold SWING and DOWN (-)
buttons at the same time for 3 seconds to turn
off Wireless function and the LED DISPLAY
shows 'OF' for 3 seconds, press SWING and
UP(+) buttons at the same time to turn on
Wireless function and the LED DISPLAY
shows 'ON' for 3 seconds, .
NOTE: When you restart the Wireless function,
it may take a period of time to connect to the
network automatically.
LED display
Shows the set temperature in °C or °F and
the Auto-timer settings. While on DRY and
FAN modes, it shows the room temperature.
Shows Error codes and protection code:
E1-Room temperature sensor error.
E2-Evaporator temperature sensor error.
E3-Condenser temperature sensor error
(on some models).
E4-Display panel communication error.
P1-Bottom tray is full--Connect the drain hose
and drain the collected water away.If
protection repeats,call for service.
Note: When one of the above malfunctions
occurs, turn off the unit, and check for any
obstructions. Restart the unit, if the
malfunction is still present, turn off the unit
and unplug the power cord. Contact the
manufacturer or its service agents or a similar
qualified person for service.
11
Operation
Operation Instructions
COOL operation
-Press the "MODE" button until the "COOL" indicator light
comes on.
-Press the ADJUST buttons "+" or "-" to select your
desired room temperature. The temperature can be set
within a range of 17°C~30°C/62°F~86°F.-Press the
"FAN SPEED" button to choose the fanspeed.
AUTO operation
-When you set the air conditioner in AUTO mode, it will
automatically select cooling, heating(cooling only models
without), or fan only operation depending on what
temperature you have selected and the room
temperature.
-The air conditioner will control room temperature
automatically round the temperature point set by you.
-Under AUTO mode, you can not select the fan speed.
FAN operation
-Press the "MODE" button until the"FAN " indicator light
comes on.
-Press the "FAN SPEED" button to choose the fan speed.
The temperature can not be adjusted.
-Do not put the duct to window.
SLEEP/ECO operation
-Press this button, the selected temperature will increase
(cooling) or decrease(heating) by 1°C/2°F 30 minutes.
The temperature will then increase (cooling) or decrease
(heating) by another 1°C/2°F after an additional 30
minutes. This new temperature will be maintained
for 7 hours before it returns to the originally selected
temperature. This ends the Sleep/Eco mode and the
unit will continue to operate as originally programmed.
NOTE: This feature is unavailabe under FAN or DRY
mode.
TIMER operation
-When the unit is on, press the Timer button will initiate
the Auto-off stop program, the TIMER OFF indicator light
illuminates. Press the UP or down button to select the
desired time. Press the TIMER button again within 5
seconds, the Auto-on start program is initiated.
And the TIMER ON indicator light illuminates. Press the
up or down button to select the desired Auto-on start time.
TIMER operation
-When the unit is off, press the Timer button to initiate
the Auto-on start program, press it again within five
seconds will initiate the Auto-off stop program.
-Press or hold the UP or DOWN button to change the
Auto time by 0.5 hour increments, up to 10 hours, then
at 1 hour increments up to 24 hours. The control will
count down the time remaining until start.
-The system will automatically revert back to display the
previous temperature setting if there is no operation in
a 5 seconds period.
-Turning the unit ON or OFF at any time or adjusting the
timer setting to 0.0 will cancel the Auto Start/Stop timer
program.
-When the malfunctionoccurs, the Auto Start/Stop timed
program will also be cancelled.
HEAT operation(cooling only models without)
-Press the "MODE" button until the "HEAT" indicator
light comes on.
-Press the ADJUST buttons "+" or " - " to select your
desired room temperature. The temperature can be set
within a range of 17°C~30°C/62°F~86°F.
-Press the "FAN SPEED" button to choose the fan speed.
For some models, the fan speed can not be adjusted
bunder HEAT mode.
DRY operation
-Press the "MODE" button until the "DRY" indicator light
comes on.
-Under this mode, you cannot select a fan speed or
adjust the temperature. The fan motor operates at
LOW speed.
-Keep windows and doors closed for the best
dehumidifying effect.
-Do not put the duct to window.
Other features
FOLLOW ME/TEMP SENSING feature(optional)
NOTE:This feature can be activated from the remote
control ONLY. The remote control servesas a remote
thermostat allowing for the precise temperature control
at its location. To activate the Follow Me/Temp Sensing
feature, point the remote control towards the unit and
press the Follow Me/Temp Sensing button. The remote
display is actual temperature at its location. The remote
control will send this signal to the air conditioner every 3
minutes interval until press the Follow Me/Temp Sensing
button again. If the unit does not receive the
Follow Me/Temp Sensing signal during any 7 minutes
interval, the unit will exit the Follow Me/Temp Sensing
mode.
NOTE: This feature is unavailabe under FAN or DRY
mode.
AUTO-RESTART
f the unit breaks off unexpectedly due to the power cut,it
will restart with the previous function setting automatically
when the power resumes.
12
Operation
Water drainage
-During dehumidifying modes, remove the upper drain
plug from the back of the unit, install the drain connector
(5/8" universal female mender) with 3/4" hose(locally
purchased). For the models without drain connector, just
attach the drain hose to the hole. Place the open end of
the hose directly over the drain area in your basement
floor.
WAIT 3 MINUTES BEFORE RESUMING OPERATION
After the unit has stopped, it can not be restarted
operation in the first 3 minutes. This is to protect the unit.
Operation will automatically start after 3 minutes.
AIR FLOW DIRECTION ADJUSTMENT
The louver can be adjusted automatically. Adjust the air
flow direction automatically:
-When the Power is ON, the louver opens fully.
-Press the SWING button on the panel or remote
controller to initiate the Auto swing feature. The louver
willl swing up and down automatically.
-Please do not adjust the louver manually.
Remove the
upper drain plug
√
Continuous
drain hose

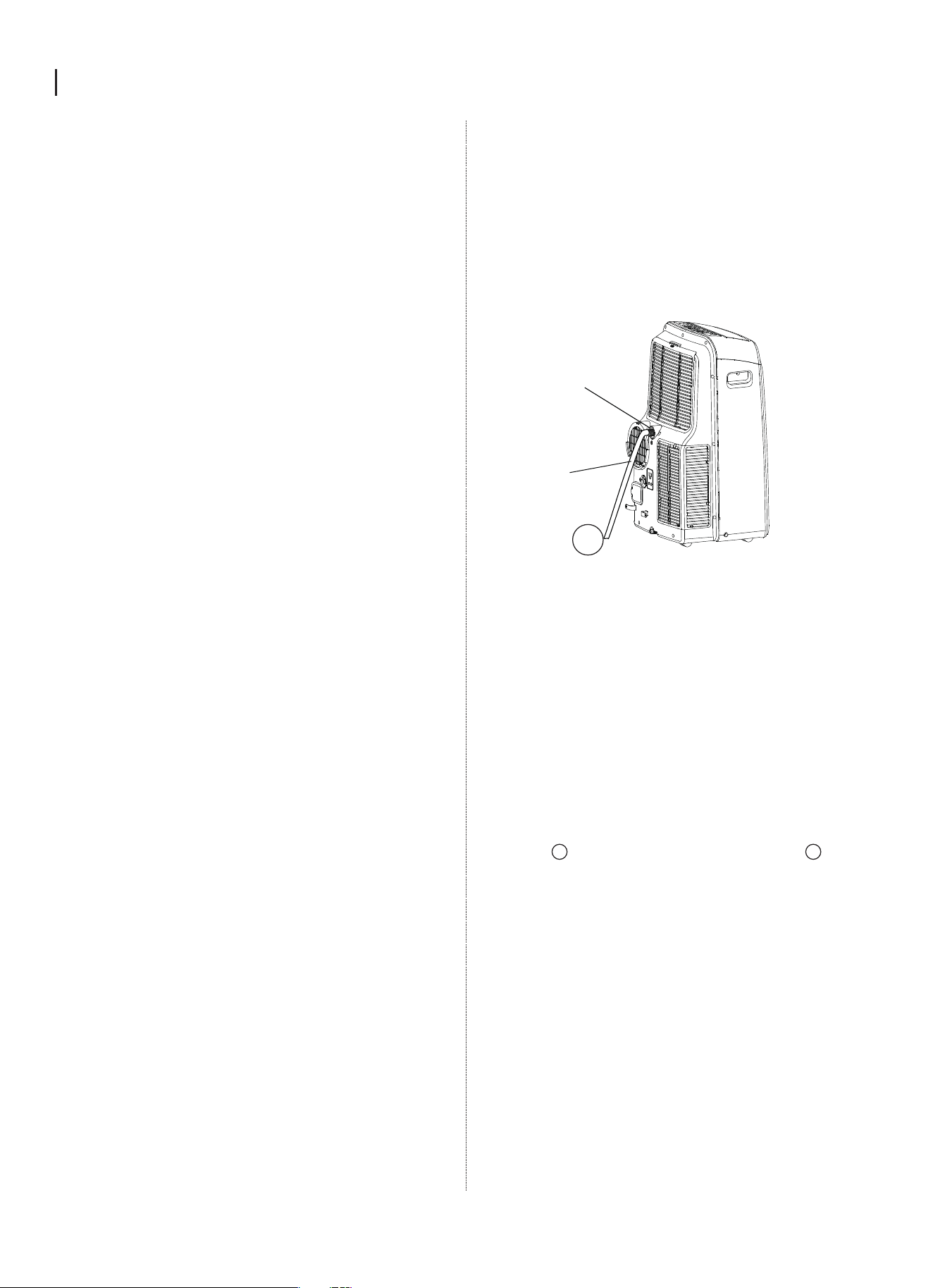

-During heating pump mode, remove the lower drain plug
from the back of the unit, install the drain connector(5/8"
universal female mender) with 3/4" hose(locally
purchased). For the models without drain connector, just
attach the drain hose to the hole. Place the open end of
the Hose adaptor directly over the drain area in your
basement floor.
NOTE: Make sure the hose is secure so there are no
leaks.Direct the hose toward the drain, making sure that
there are no kinks that will stop the warter flowing.Place
the end of the hose into the drain and make sure the end
of the hose is down to let the water flow smoothly.(See
Figs with . Do never let it up.(See Figs with ). When
the continuous drain hose is not used, ensure that the
corresponding drain plug and knob are installed firmly to
prevent leakage.
√ X
13

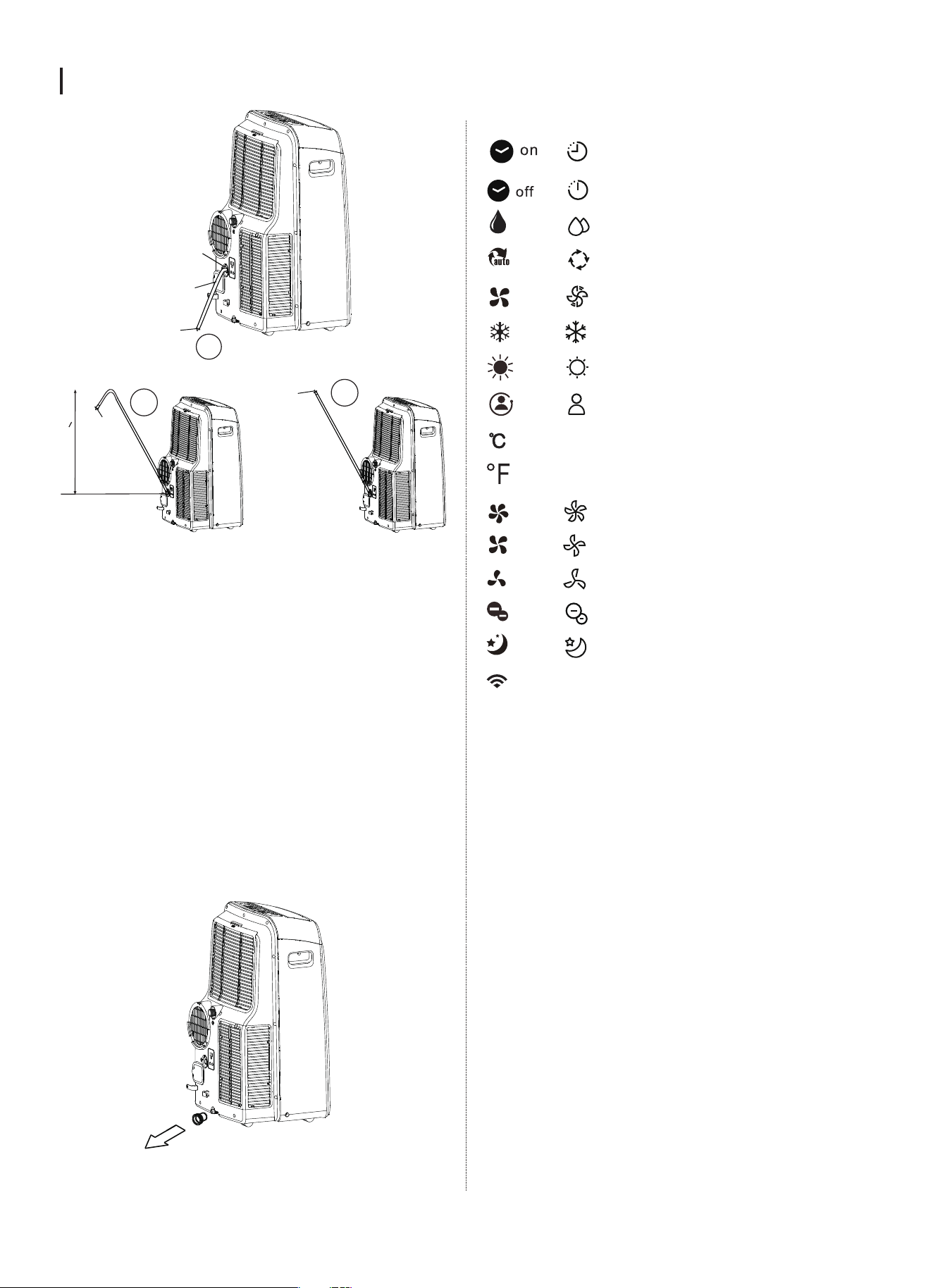

Indicator lights:
Timer on light;
Timer off light;
Dry mode light;
Auto mode light;
Fan mode light;
Cool mode light;
Heat mode light;
Follow me light;
Degrees Fahrenheit;
High fan light;
Med fan light;
Low fan light;
Ion light;
Wireless light;
Sleep mode light;
Degrees Celsius;
Operation
14
√
drain hose
adaptor
Continuous
drain hose
Remove the
lower drain plug
drain hose
adaptor
X
drain hose
adaptor
√
delivery lift <1.8m

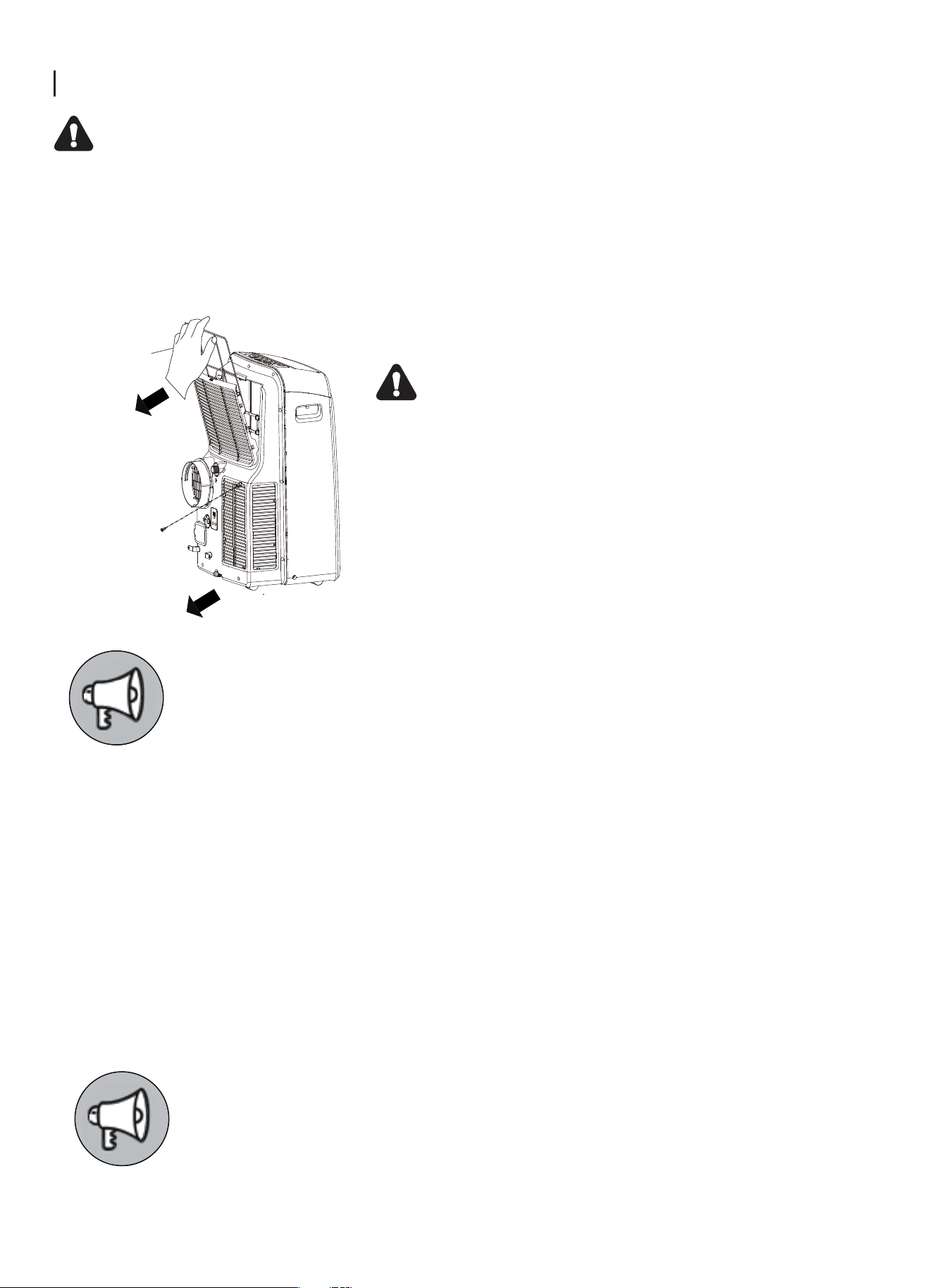

-When the water level of the bottom tray reaches
a predetermined level, the unit beeps 8 times,
the digital display area shows "P1" . At this time
the air conditioning/dehumidification process will
immediately stop. However, the fan motor will
continue to operate(this is normal). Carefully move
the unit to a drain location, remove the bottom drain
plug and let the water drain away. Reinstall the bottom
drain plug and restart the machine until the "P1"
symbol disappears. If the error repeats, call for
service.
NOTE: Be sure to reinstall the bottom drain plug firmly
to prevent leakage before using the unit.
Maintenance
Maintenance Tips
-Always unplug the unit before cleaning or servicing.
-DO NOT use flammable liquids or chemicals to clean the unit.
-DO NOT wash the unit under running water. Doing so causes electrical danger.
-DO NOT operate the machine if the power supply was damaged during cleaning. A damaged power cord must
be replaced with a new cord from the manufacturer.
Clean the Air Filter
Clean the Unit
Store the unit when not in use
-Be sure to clean the air filter every 2 weeks for optimal performance.
-The water collection tray should be drained immediately after P1 error occurs, and before
storage to prevent mold.
-In households with animals, you will have to periodically wipe down the grill to prevent blocked
airflow due to animal hair.
Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry, lint-free cloth.
-Drain the unit’s water collection tray according to the instructions in the following section.
-Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent mold.
-Turn off the appliance and unplug it.
-Clean the air filter according to the instructions in the previous section. Reinstall the clean, dry filter before
storing.
-Remove the batteries from the remote control.
Be sure to store the unit in a cool, dark place. Exposure to
direct sunshine or extreme heat can shorten the lifespan
of the unit.
Remove the air filter
Upper filter
(take out)
Remove the
screw,then
take the lower
filter out.
WARNING:
CAUTION
DO NOT operate the unit
without filter because dirt
and lint will clog it and
reduce performance.
15
Please check the machine according to the following form before asking for maintenance:
Faults Diagnosis
Problem Possible Cause
P1 Error Code
In COOL mode: room
temperature is lower than
the set temperature
The air filter is blocked with
dust or animal hair
The unit is low on
refrigerant
Temperature setting is too
high
The windows and doors in
the room are open
The room area is too large
Troubleshooting
Reset the temperature
Unit does not turn
on when pressing
ON/OFF
button
Unit does not cool
well
The unit is noisy
and vibrates too
much
The unit makes a
gurgling sound
Exhaust hose is not
connected or is blocked
The Water Collection Tray is full.
Turn off the unit, drain the water
from the Water Collection Tray
and restart the unit.
There are heat sources
inside the room
Turn off the unit and clean the
filter according to instructions
Call a service technician to inspect
the unit and top off refrigerant
Decrease the set temperature
Make sure all windows and doors
are closed
Double-check the cooling area
Turn off the unit, disconnect the
hose, check for blockage and
reconnect the hose
Remove the heat sources if
possible
The ground is not level
Place the unit on a flat, level
surface
The air filter is blocked with
dust or animal hair
Turn off the unit and clean the
filter according to instructions
This sound is caused by the
flow of refrigerant inside
the unit
This is normal
16
Design and Compliance Notes
Design Notice
Energy Rating Information
In order to ensure the optimal performance of our products, the design
specifications of the unit and remote control are subject to change
without prior notice.
The Energy Rating for this unit is based on an installation using an
un-extended exhaust duct without window slider adapters (as shown
in the Installation section of this manual).
Unit Temperature Range
≤
Cool 17-35°C (62-95°F)
Dry
Heat(pump heat
mode)
Heat(electrical
heat mode)
13-35°C (55-95°F)
5-30°C (41-86°F)
30°C (86°F)
Mode Temperature Range
Exhaust hose installation
The exhaust hose and adaptor must be installed or
removed in accordance with the usage mode.
For COOL,HEAT(heat pump type) or AUTO mode must be installed
exhaust hose.
For FAN,DEHUMIDIIFY or HEAT(electrical heat type) mode must be
removed exhaust hose.
17
Sociable Remark
When using this unit in the European countries, the following information must be followed:
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste
separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
A) The municipality has established collection systems, where electronic waste can be disposed of at
least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least free of charge.
C) The manufacture will take back the old appliance for disposal at least free of charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal dealers.
Wild disposal of waste in forests and landscapes endangers your health when hazardous substances
leak into the ground-water and find their way into the food chain.
18
Distributed by:
Perfect Aire, LLC
5401 Dansher Rd.
Countryside, IL 60525
844-4PA-AIRE | 844-472-2473
www.perfectaire.us
Specification and performance data is subject to change without notice.
Printed in China
PA/User_PORTHP14000/09282018
