Digital Tower Fan with Night Light
Model: DCTF93NL & DCTF117NL
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY
AND RETAINED FOR FUTURE REFERENCE.
Note also the information presented on the appliance
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE
YOUR WARRANTY
Please read the operating instructions carefully before using your
fan for the first time and keep them in a safe place.
WARNING – This appliance must not be used in a bathroom.
WARNING – Do not use this appliance in the immediate
surroundings of a bath, a shower or a swimming pool.
• If the mains lead is damaged it must only be replaced by the
manufacturers service agent or a similarly qualified person in
order to avoid a hazard.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure they do not play with
the appliance.
• Never immerse the appliance in water or other liquids.
• Operate this unit only on a firm, flat surface.
• Do not place on soft, unstable or non-horizontal/angled
surfaces.
• Never operate the appliance if a cable or connector has been
damaged, after appliance malfunction or if the appliance was
dropped or is otherwise damaged.
• Please ask a professional service agent to repair the product.
Improper repair may cause danger to users.
• Disconnect the appliance from mains power whenever it is not
2
in use, before relocating it, and before cleaning.
• Operate the appliance only at the voltage specified on the
rating label.
• Only connect the unit to a properly installed and easily accessible
socket so that you can quickly disconnect the plug if necessary.
• Do not connect this product to the mains using an extension
lead.
• This fan is only intended for INDOOR RESIDENTIAL applications.
This fan should not be used for commercial or industrial or
leisure applications or in small enclosed spaces.
• Never use the mains lead as a carrying strap or pulling lead.
• To avoid a fire or electrocution hazard, NEVER put the cord
near heat registers, radiator, stoves or heaters.
• DO NOT cover cord with carpeting, throw rugs, runners, or
similar coverings.
• DO NOT route cord under furniture or appliances. Take care to
position the cord away from trac areas and where it will not
be a tripping hazard.
• DO NOT use the unit near windows or where water collects.
Rain and water collection may lead to a risk of fire or electric
shock.
• Only operate this appliance with a minimum of 50cm clearance
all around i.e. away from walls, furniture and overhanging
objects such as curtains or a shelf.
• WARNING: To avoid danger of suocation please remove all
packaging materials particularly plastic and EPS and keep
these away from vulnerable people, children and babies.
• NEVER drop or insert any object or fingers into any openings.
• Do not use the appliance in locations where paint, petrol or
other flammable liquids are used or stored.
• Do not use bug sprays or other flammable cleansers/vapour
sprays on or around the unit.
3
• Always switch o the unit and take the plug out of the socket:
•
If you are not using the unit
•
Before you clean or carry out maintenance on the unit
•
If a fault occurs
•
In the event of an electrical storm.
• Avoid electromagnetic interference. Keep the unit at least 1
metre away from electrical appliances such as televisions &
radios.
• DO NOT use this appliance with an extension lead or power
board.
4
Exposed to the
weather outdoors
Near water If the power cable
wires are frayed or cut
Where small children
may be left unattended
No extension
leads or power
boards
Where there is risk
of fire or close to
a naked flame
Where the power
cable may be
damaged
On a slope or
uneven surface
Where it may be
damaged by
chemicals
If there is a risk
of water falling on
the unit
Where there is a risk
of interference by
foreign objects
This product is not
made for DIY repair
5
Model no. DCTF93NL DCTF117NL
Colour
White
Power supply
220-240V~ 50-60Hz
Rated power
45W
Speed settings
3
Modes 4
Timer 1-12hrs
Air speed 2.7m/s
Oscillating 75°
Controls Button & Remote
Noise level
53.8dB
Weight (net) 3.4kg 3.63kg
Dimensions (w x d x h) 315 x 315 x 960mm 315 x 315 x 1170mm
Specification
• For greater precision, please always refer to the rating label placed on the product.
6

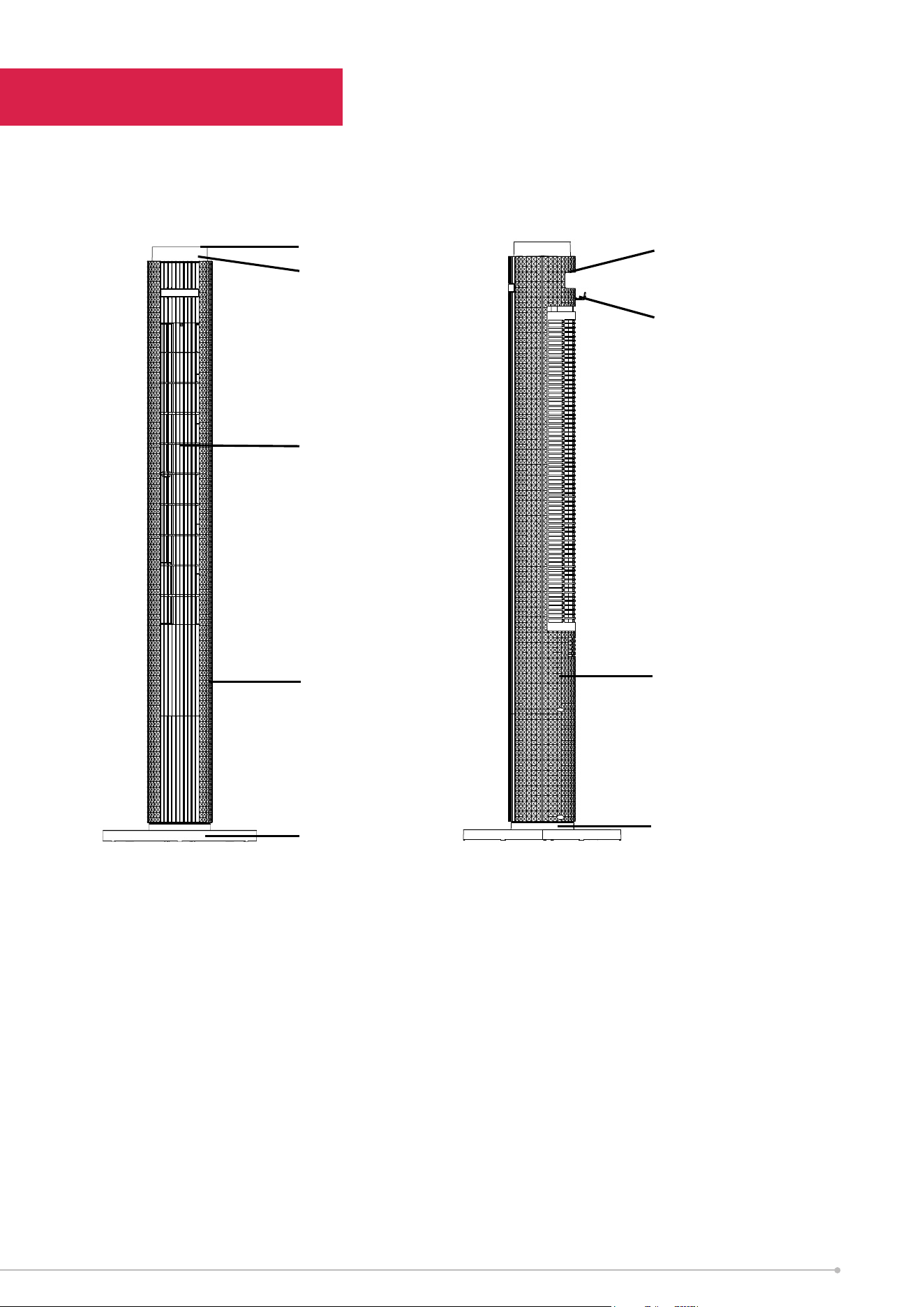

Parts
Control panel Carry handle
LED display
Cable hook
Air outlet
Front cover Back cover
Base
Night light
7
Assembly

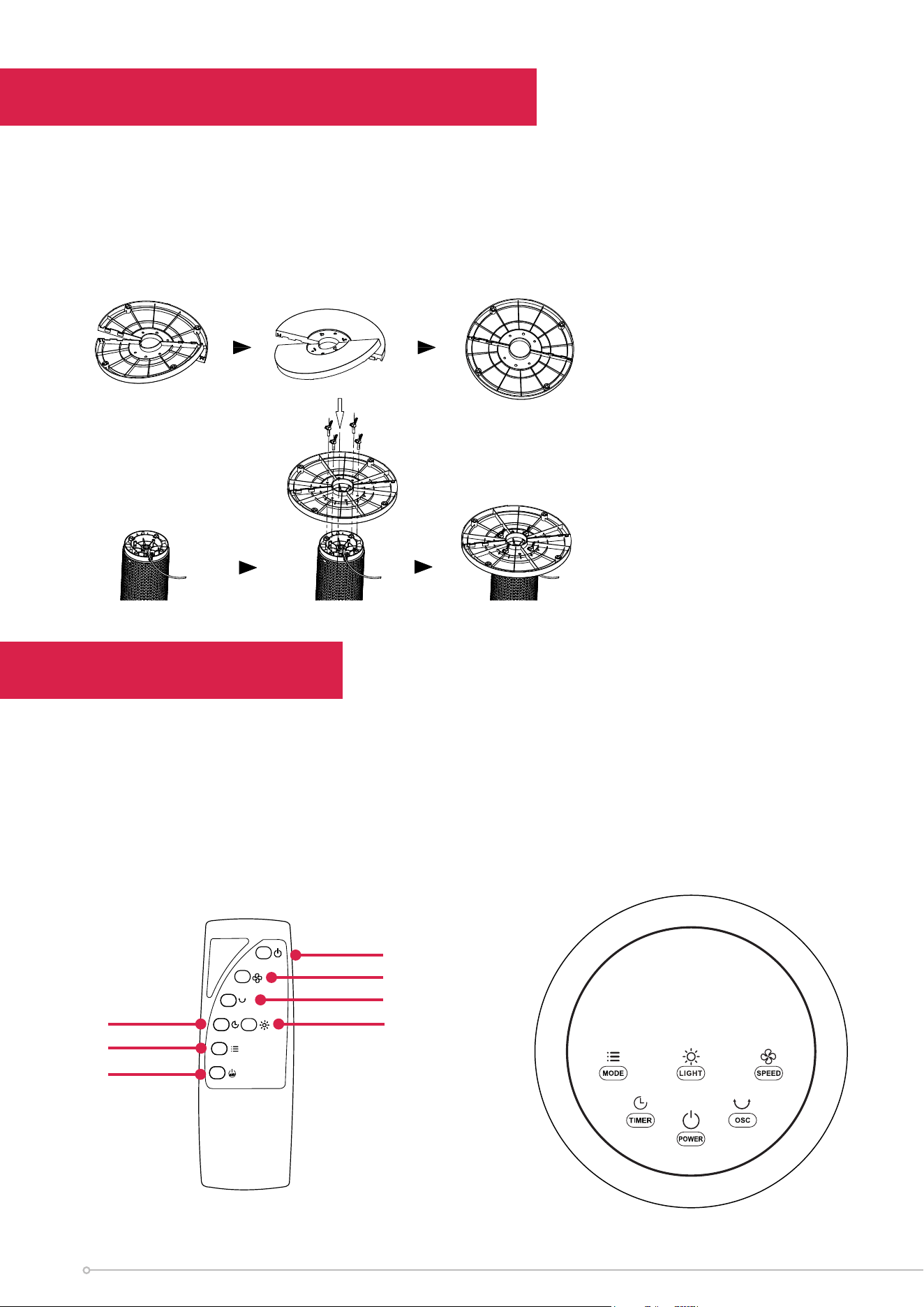

1. Place the two parts of the base together.
2. Line up the Tower Fan with the base.
3. Use the fixed knob to secure the base onto the Tower Fan.
4. Put wire in the recess, then fix the base on the fan body with four
screws(included) and turn the screws clockwise.
Operation
This tower fan can be operated by the Button and remote control. Please refer to the
below diagrams and descriptions.
Remote Control
1. Install 2 x AAA batteries (not included) into the remote.
2. All remote control buttons are labeled as below and all the remote control functions
work identically as the manual controls.
Remote Control
Power
Speed
Oscillation
Night light
Timer
Mode
Display
8
Manual Controls
1.
Place the fan on a table or flat surface. Plug the cord set into an appropriate electrical
outlet.
2. Turn the fan on by pressing the 'POWER' button. Turn the fan o by pressing the
'POWER' button again.
3. You can adjust the fan speed to the desired level: low, medium and high by pressing
the 'SPEED' button. The speed setting is displayed on the LED panel.
4. You can adjust the fan mode by pressing the 'MODE' button. The four modes are
'natural' 'normal' 'sleep' and 'child'.
5.
To set the fans timer, press the 'TIMER' button. This allows you to set the fans length
of operation between 1-12 hours.
6. To make the fan oscillate, press the 'OSC' button. This allows the fan to oscillate up
to 75° .
7. Turn the LED display temporarily o by pressing the 'LED' button on the remote
or by pressing and holding the 'SPEED' button on the control panel for more than
3 seconds. The display will light up again once any control button is pressed.
8.
Turn on the Nightlight by pressing the 'LIGHT' button on the remote or on the
control panel. Turn the Nightlight o by pressing the 'LIGHT' button on the remote
Operation

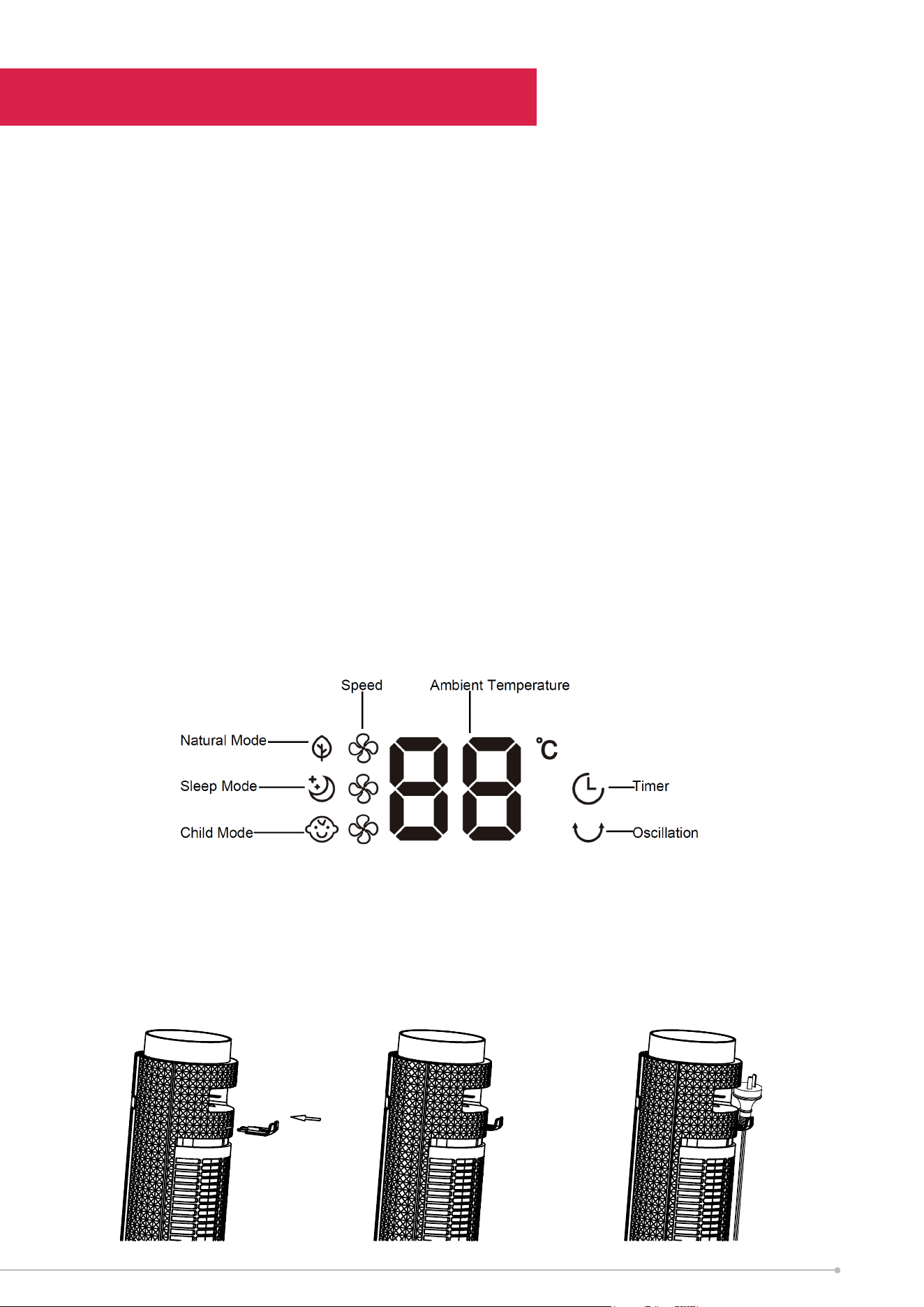

Cable Hook:
The cable hook is packed in the user manual,Take it out and install it on the backside
of the fan. The power cord can be hanged at the cable hook when the fan is not in
use.
9
Operation Modes
1. NORMAL Mode: The default mode is normal mode. Fan will start work at the set
speed.
2.
NATURAL Mode: Fan will start work at low speed (5s), medium speed(5s), high
speed(5s), medium speed(5s), then continue to cycle.
3. SLEEP Mode: (1) If the fan is to high speed, the fan will operate at high speed for 30
minutes, then the fan will transfer to and operate at medium speed for 30 mins, The
fan twill then transfer and operate at low speed for 30 minutes, then will turn o.
(2) If the fan is to medium speed, the fan will operate at medium speed for 30 minutes.
The fan twill then transfer and operate at low speed for 30 minutes, then will turn o.
(3) If the fan is to low speed, the fan will operate at low speed for 30 minutes then will turn o.
The LED display will turn o after 30 seconds if no further input is detected
4. CHILD Mode: The fan will automatically set a timer at 3 hours and the oscillation
function will start. Then fan will begin to operate at high speed for 15 minutes, then
transfer to and operate at medium speed for 15 minutes. The fan will then transfer
to and operate at low speed until the timer finishes. The LED display will turn o
if you don’t control the fan in 30 seconds, touch any button to turn on the display
Operation
10
Cleaning
Over time, dust can accumulate on the fan grille, which can aect the fans
performance. It is recommended to clean the fan at least once a month.
1. Turn the unit OFF and disconnect the appliance from the power supply.
2. Remove any dust build up with a soft brush.
3. Wipe the surface of the unit with a soft damp cloth. Mild detergent can be used
for any stubborn marks.
Do not use abrasive sponges, scouring pads, or a sti brush to clean the unit.
IMPORTANT
The control panel and other parts must not come into contact with water or any
other liquids.
Storage
If not using the unit for an extended period of time. After cleaning please:
• Turn the unit o, unplug and take care of the mains lead & plug.
•
Cover the unit and store it upright in a location where it will not receive direct
sunlight. NB- Prolonged exposure to direct sunlight will discolour the enclosure.
11
If the unit fails to operate eciently, is broken or other problems arise, unplug and
do not operate. Ask for advice by calling your local after sales service agent or the
Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ).
Maintenance
Recycling: Do not dispose of electrical appliances as unsorted
municipal waste. Use separate collection facilities. Contact your
local government for information regarding the collection systems
available. If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the ground water, polluting the
food chain and damaging health and well-being.
Warranty
Please refer to the warranty card in the box for warranty information. For any
troubleshooting advice, please contact the relative Customer Care Centre below.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
8 Lakeview Drive, 38 Harris Road, East Tamaki,
Scoresby 3179, Victoria Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: 0800 666 2824
12
Notes
13
Customer Care: 1300 556 816
customer.care@glendimplex.com.au
www.dimplex.com.au
Supplied by Glen Dimplex Australia
8 Lakeview Drive, Scoresby, Victoria, 3179
