PLANNING GUIDE | OVENS AND COMPANIONS
This comprehensive Planning Guide provides you with the framework and tools to achieve your desired design outcome with Fisher & Paykel appliances. In this guide, you will
find a range of conceptual, detailed, and dimensional product information to bring your ideas to life and create spaces that truly reflect your vision.
CONCEPT DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
CONTENTS
Planning Guide information for Developed and
Detailed Design available in Q3 2024
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
Design Choices 3
Specification Guides
Oven OB24SMPTNB1 8
Steam Oven OS24SMTNB1 9
Steam Oven OS24NMTNB1 12
Convection Speed Oven OM24NMTNB1 13
Coee Maker EB24MSB1 16
Vacuum Seal Drawer VB24SMB1-SET 19
Warming Drawer WB24SMB1-SET 20
i
i
© FISHER & PAyKEL LIMITED 2024 PAGE 390003353A PLANNING GUIDE COOKING - VERSION A - JANUARy 2024
DESIGN CHOICES
Design Choices
PAGE 490003353A PLANNING GUIDE COOKING VERSION A - JANUARy 2024 © FISHER & PAyKEL LIMITED 2024
+ +
Installation in wall
Installation
under-bench
HANDLELESS FAMILY
DIAL AND HANDLE FAMILY
OVENS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
STEAM OVENS STEAM OVENS SPEED OVENS COFFEE MAKER DRAWERS INSTALLATION OPTIONS
COLOUR
Black
Glass
DESIGN CHOICES | CONFIGURATION CONSIDERATIONS
<< CONTENTS
PAGE 590003353A PLANNING GUIDE COOKING VERSION A - JANUARy 2024 © FISHER & PAyKEL LIMITED 2024

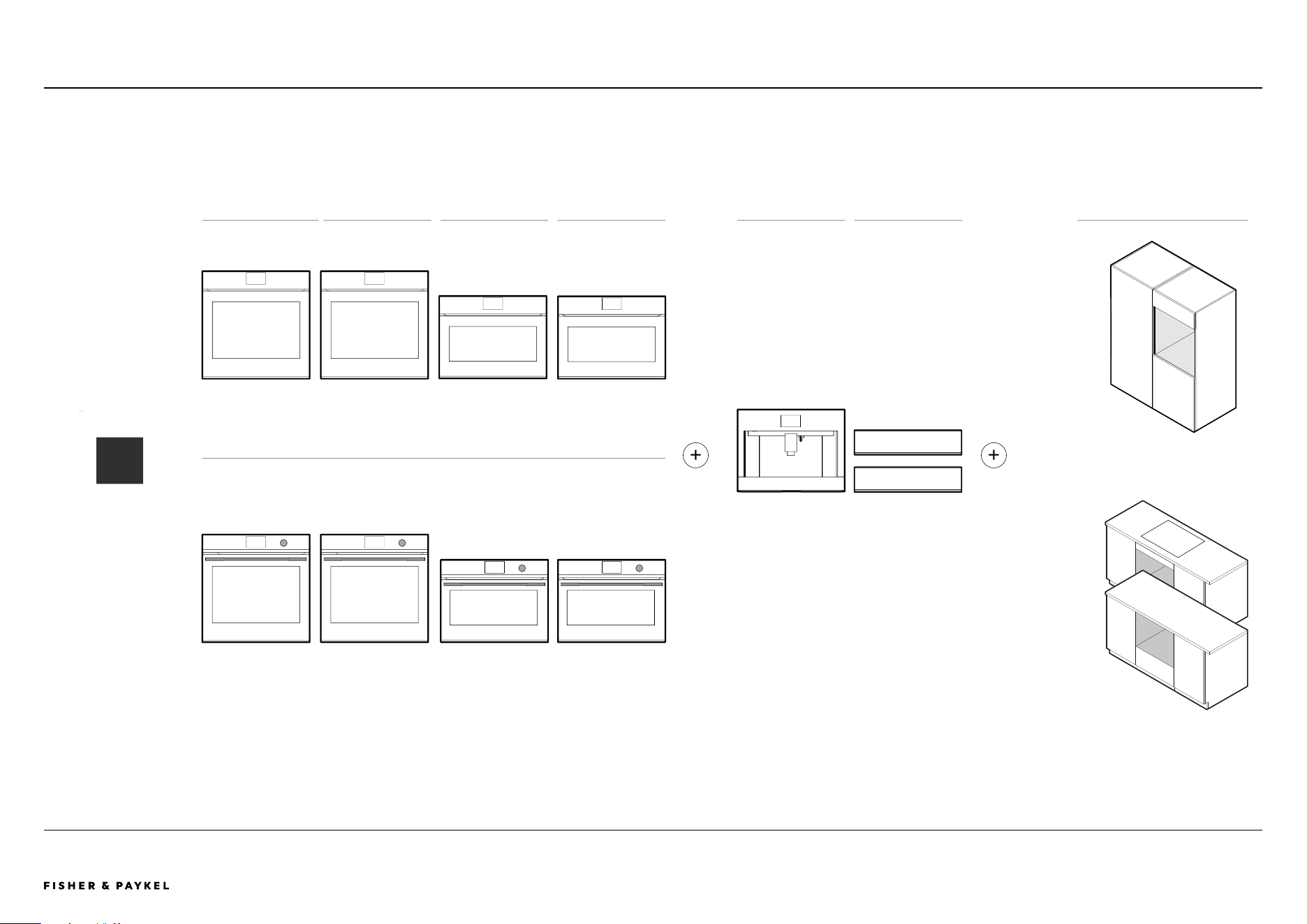

DESIGN CHOICES | CONFIGURATION CONSIDERATIONS
STACKED INSTALLATION
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
GRID INSTALLATIONROW INSTALLATION CONSIDERATION
Different configurations possible,
considerations are height,
colour, dial and handle or handleless.
<< CONTENTS
PAGE 690003353A PLANNING GUIDE COOKING VERSION A - JANUARy 2024 © FISHER & PAyKEL LIMITED 2024
1 2
598mm458mm140mm
HANDLE-LESS OVEN/
COMPANION FAMILY
1 Oven (Available Q3, 2024)
OB24SMPTNB1
2 Steam Oven (Available Q3, 2024)
OS24SMTNB1
3 Steam Oven (Available Q3, 2024)
OS24NMTNB1
4 Convection Speed Oven (Available Q3, 2024)
OM24NMTNB1
5 Coffee Maker
EB24MSB1
6 Vacuum Drawer
VB24SMB1-SET
7 Warming Drawer
WB24SMB1-SET
6 7
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
DESIGN CHOICES | CONFIGURATION CONSIDERATIONS
3 4 5
<< CONTENTS
© FISHER & PAyKEL LIMITED 2024 PAGE 790003353A PLANNING GUIDE COOKING - VERSION A - JANUARy 2024
SPECIFICATION GUIDE
OVEN & STEAM OVEN
Specification Guides
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com

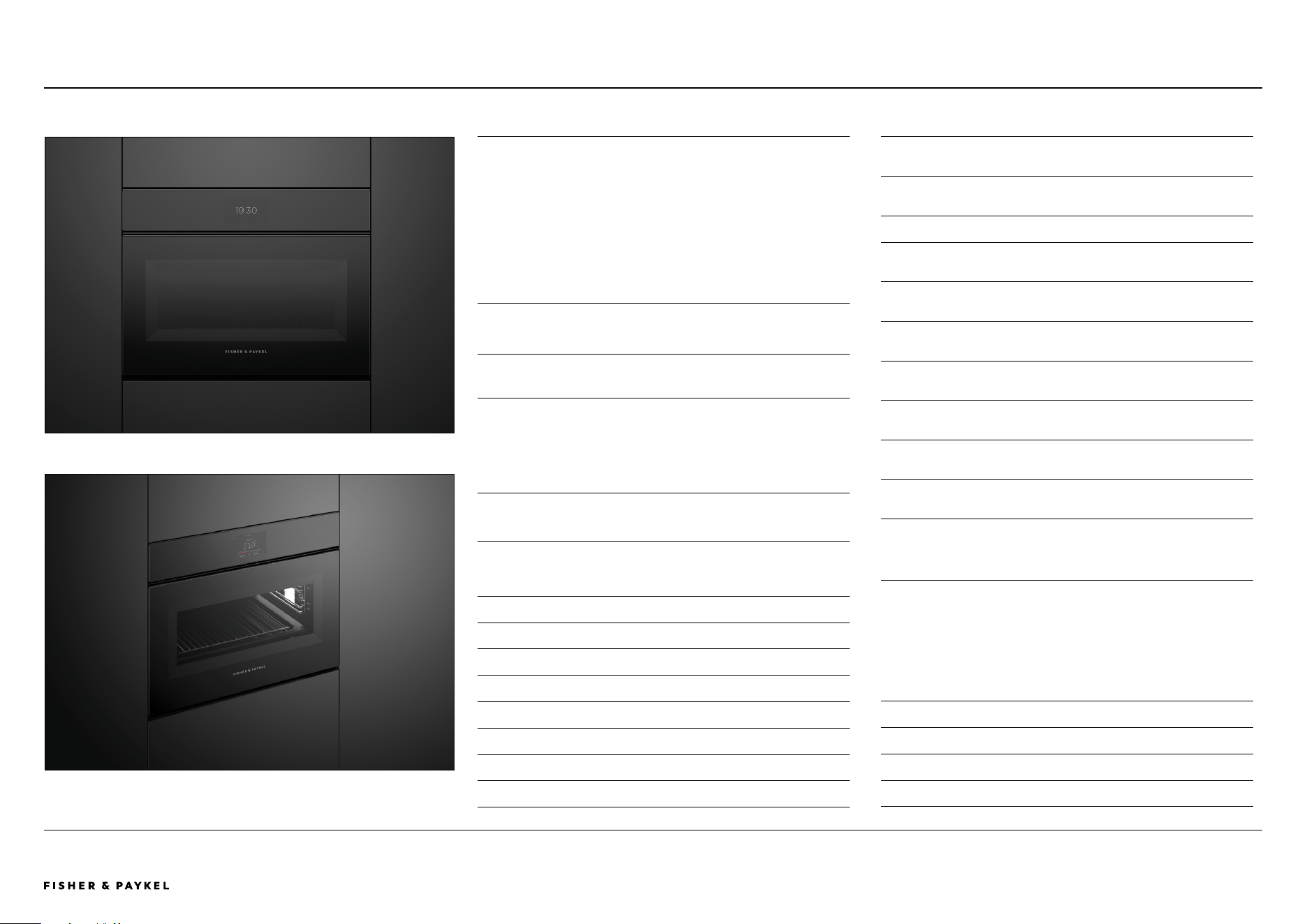

PAGE 8PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024

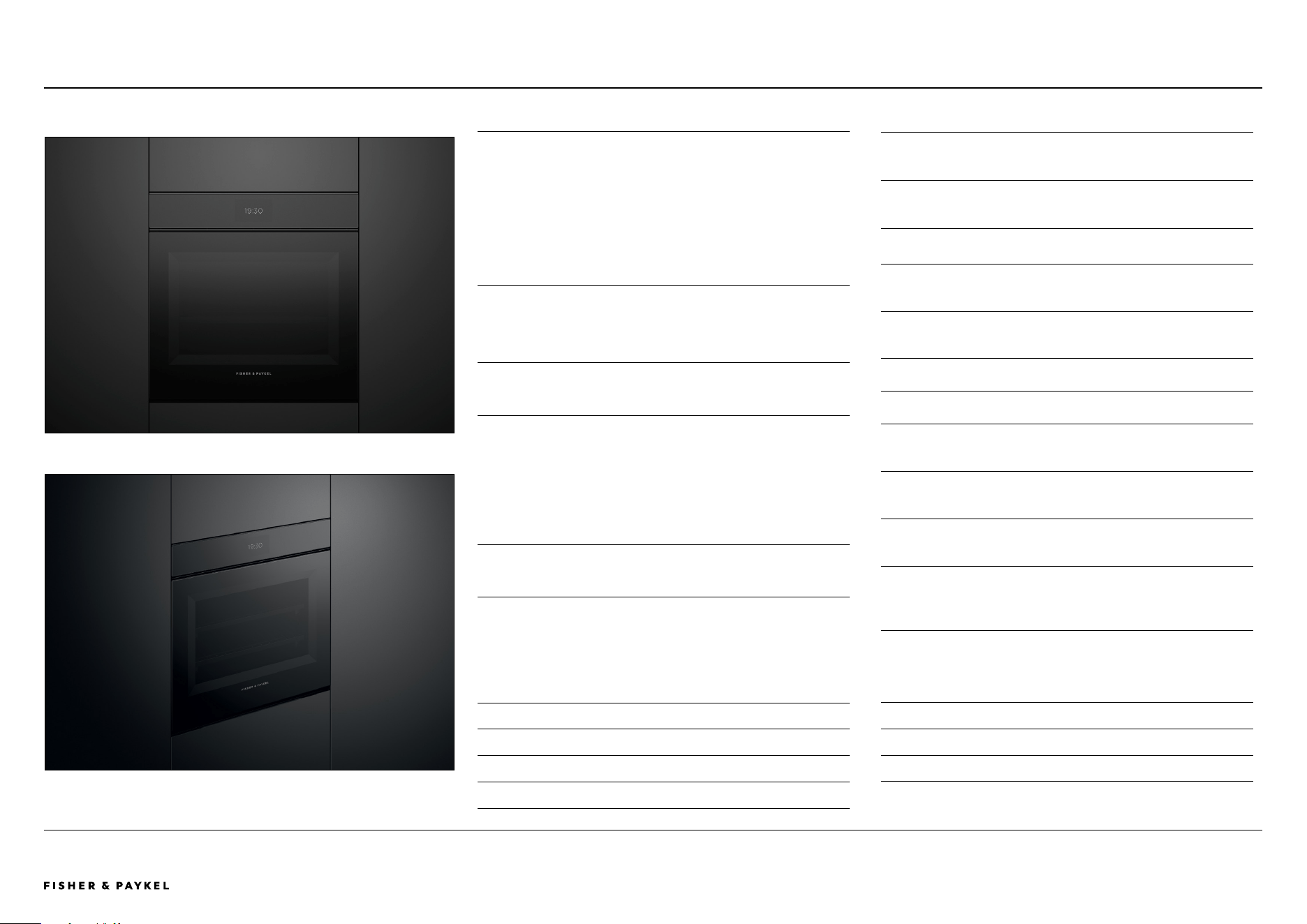

OVERVIEW
Designed to complement our Minimal style appliances, this
handleless oven oers a sleek, uninterrupted aesthetic that
moves beyond traditional oven doors. Perfect for true
handleless kitchen designs, it provides a streamlined look
and ensures a continuous flow across kitchen surfaces. With
a generous 3cu ft capacity, 16 functions, and self-cleaning,
its guided touchscreen ensures perfect results with ease.
PRODUCTS
OB24SMPTNB1 - Black Glass
Oven, 24", 16 Function, Self-cleaning
FEATURES
1
Handleless oven design ensures smooth, uninterrupted
lines in kitchen cabinetry for a cohesive look
2 Designed to complement our Minimal style kitchen
appliances
3 Available in black glass finish
4 Designed to match companion products such as Warming
Drawers
5 Guided touchscreen cooking offers helpful tips for
different food types
6 Generous 3cu ft total capacity
7 16 oven functions including Pastry Bake, Roast, and Air Fry
8 Self-cleaning pyrolytic function breaks down food residue
for an easy clean
9 Even heat circulation with AeroTech™, ideal for multi-shelf
cooking
"0 Includes a Wired Temperature Sensor for real-time
monitoring of cooking temperatures
"1 Voice-activated oven door provides hands-free control,
compatible with Google's voice assistant via the
SmartHQ™ appmonitoring of cooking temperatures
SPECIFICATION GUIDE | OVEN, 24"
OB24SMPTNB1
OB24SMPTNB1
SERIES & STYLE
Series 11
Minimal
ACCESORIES
5
Step Down Wire Shelf
6 Wired Temperature Sensor
7 Unperforated Aluminium Baking Tray
ACCESORIES
1
2x Full Extension Sliding Shelves
2 Grill Rack
3 Smokeless Grill Tray
4 Roasting Dish
Oven OB24SMPTNB1
OB24SMPTNB1
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 9PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
SPECIFICATION GUIDE | STEAM OVEN, 24" OS24SMTNB1
OVERVIEW
The cornerstone of our collection, our handleless
Combination Steam Oven oers a sleek, uninterrupted
aesthetic that moves beyond traditional oven doors. Perfect
for true handleless kitchen designs, it provides a
streamlined look and ensures a continuous flow across
kitchen surfaces. With 23 functions and a sophisticated
balance of full steam and steam assist options at various
temperatures, this oven ensures perfect results.
PRODUCTS
OS24SMTNB1 - Black Glass
Combination Steam Oven, 24", 23 Function
FEATURES
1
Handleless oven design ensures smooth, uninterrupted
lines in kitchen cabinetry for a cohesive look
2 Designed to complement our Minimal style kitchen
appliances
3 Available in black glass finish
4 Perfectly pairs with companion products such as Vacuum
Seal Drawers
5 Guided touchscreen cooking offers helpful tips for
different food types
6 True temperature precision with three levels of steam with
convection
7 23 oven functions including Steam, Sous Vide, Air Fry and
Crisp Regenerate
8 Help reduce food waste by rejuvenating leftovers with
steam for fresh-tasting roasts, and risottos and more
9 Even heat circulation with AeroTech™, ideal for multi-shelf
cooking
"0 Includes a Wired Temperature Sensor for real-time
monitoring of cooking temperatures
"1 Voice-activated oven door provides hands-free control,
compatible with Google's voice assistant via the
SmartHQ™ appmonitoring of cooking temperatures
SERIES & STYLE
Series 11
Minimal
ACCESORIES
9
Perforated Small Dish
"0 Roasting Dish
"1 Smokeless Grill Tray
"2 Wired Temperature Sensor
ACCESORIES
1
Chromed Shelf Runners
2 2x Descale Solutions
3 Flat Brushed Baking Tray
4 2x Full Extension Sliding Shelves
5 Grill Rack
6 Large Solid Dish
7 Step Down Wire Shelf
8 Perforated Large Dish
OS24SMTNB1
Steam Oven OS24SMTNB1
OS24SMTNB1
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 10PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024

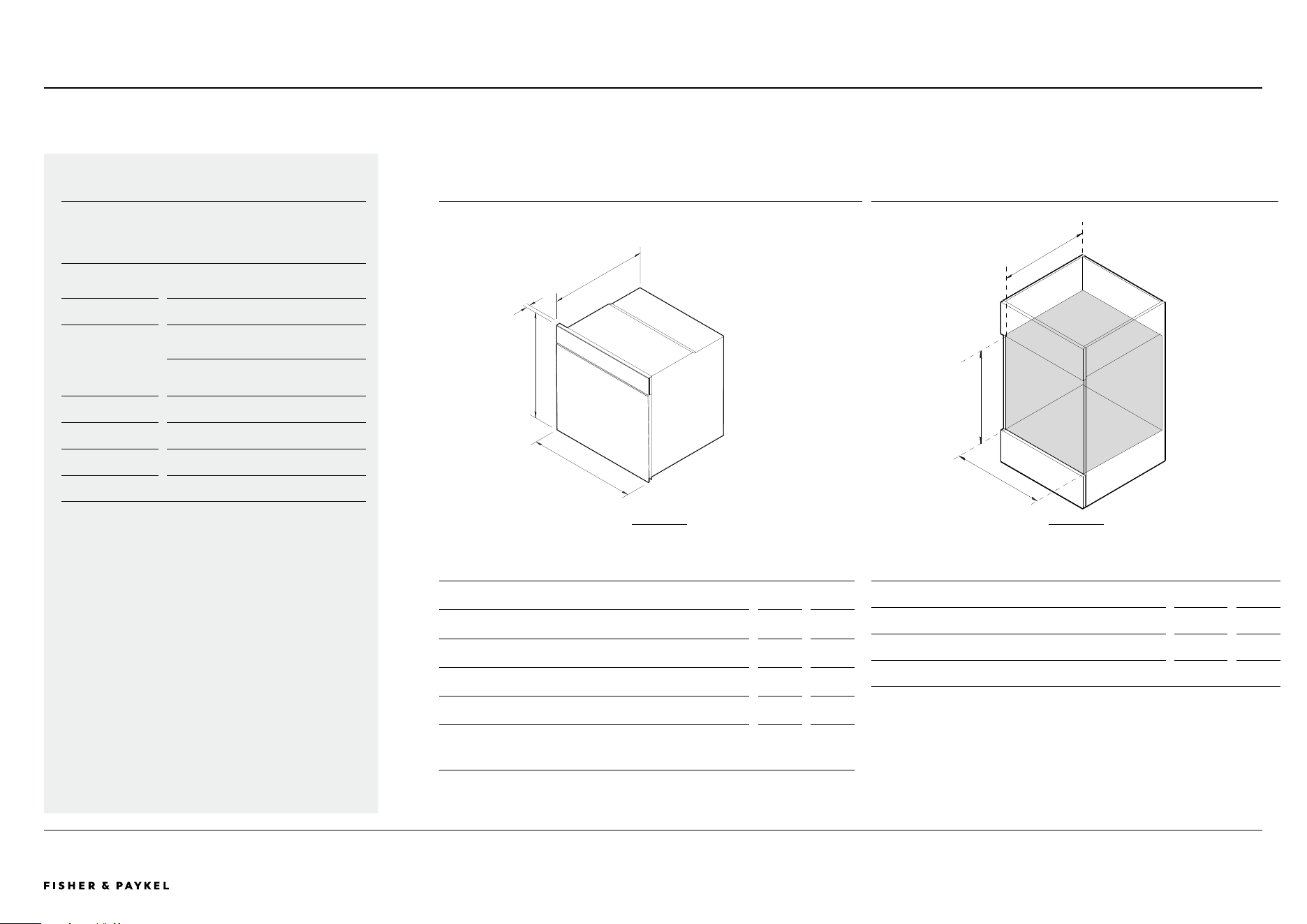

OB24SMPTNB1, OS24SMTNB1SPECIFICATION GUIDE | OVEN & STEAM OVEN, 24"
SPECIFICATIONS
Model No.
OB24SMPTNB1
OS24SMTNB1
Dimensions H 23 9/16 " x W 23 7/16" x D 22 1/4"
Weight
OB24SMPTNB1
97lb (44kg) packaged
OS24SMTNB1
143lb (65kg) packaged
Total capacity 3cu ft (85L)
Electrical
Supply 208 or 240 V, 60 Hz
Service 20 A

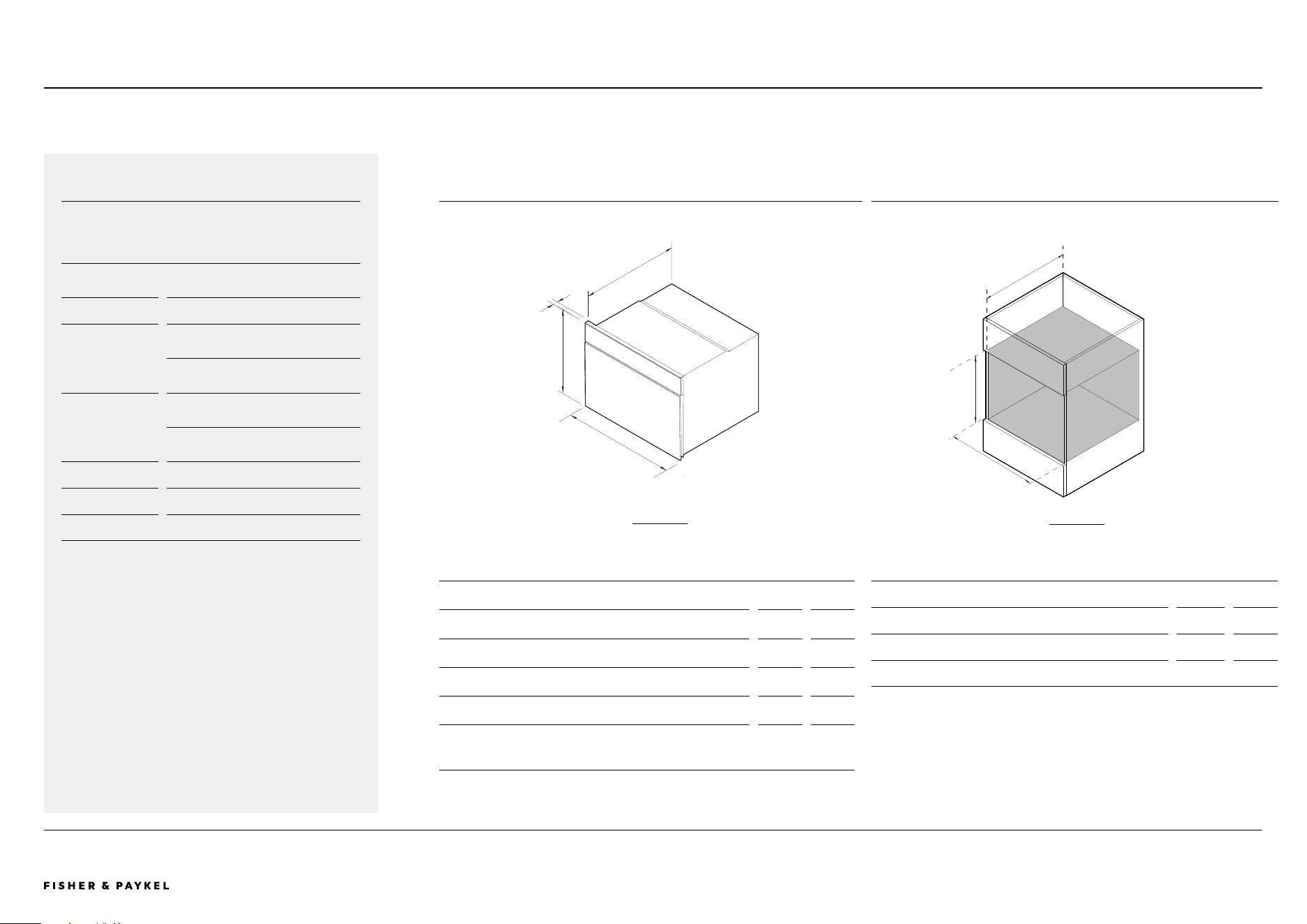

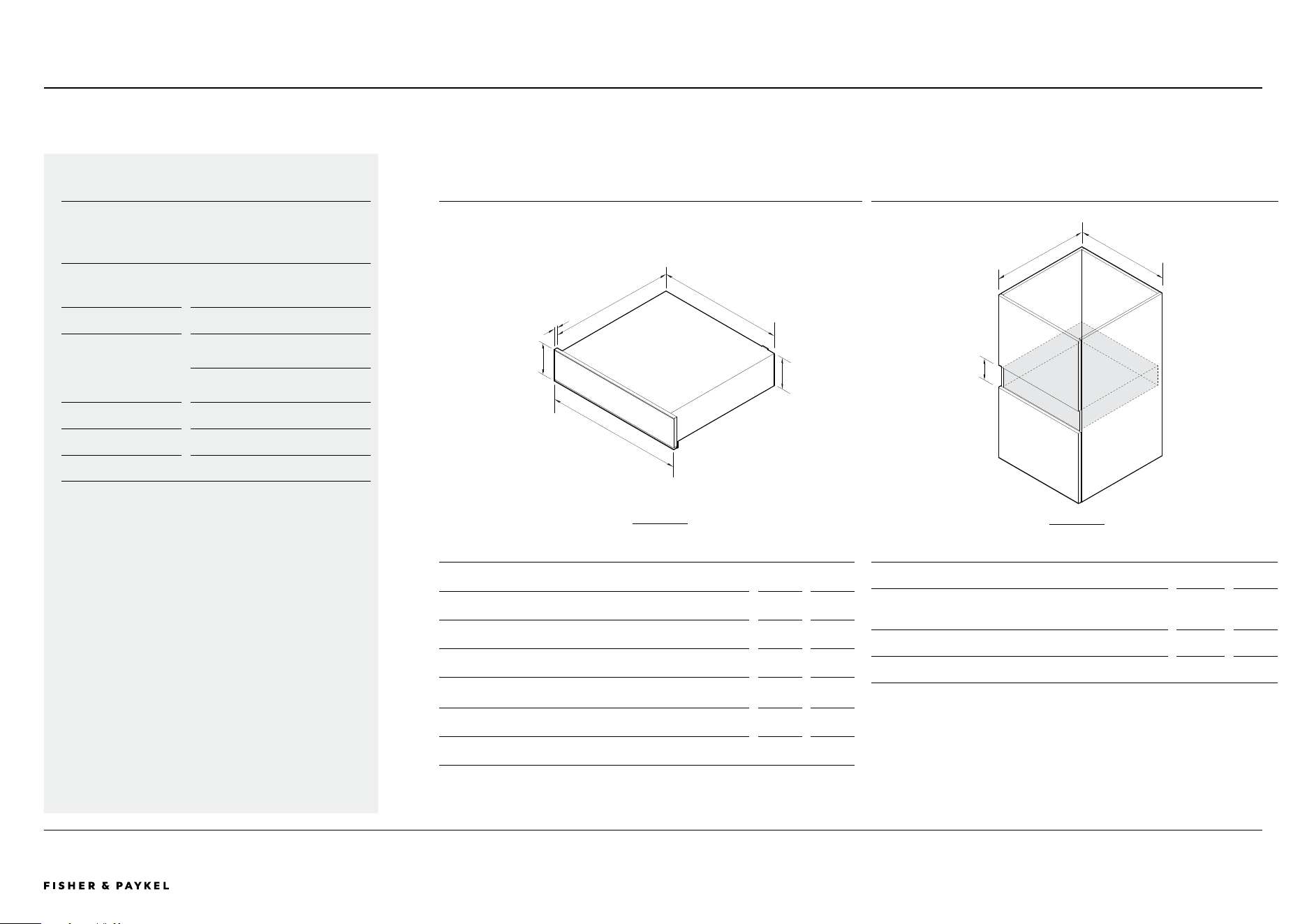

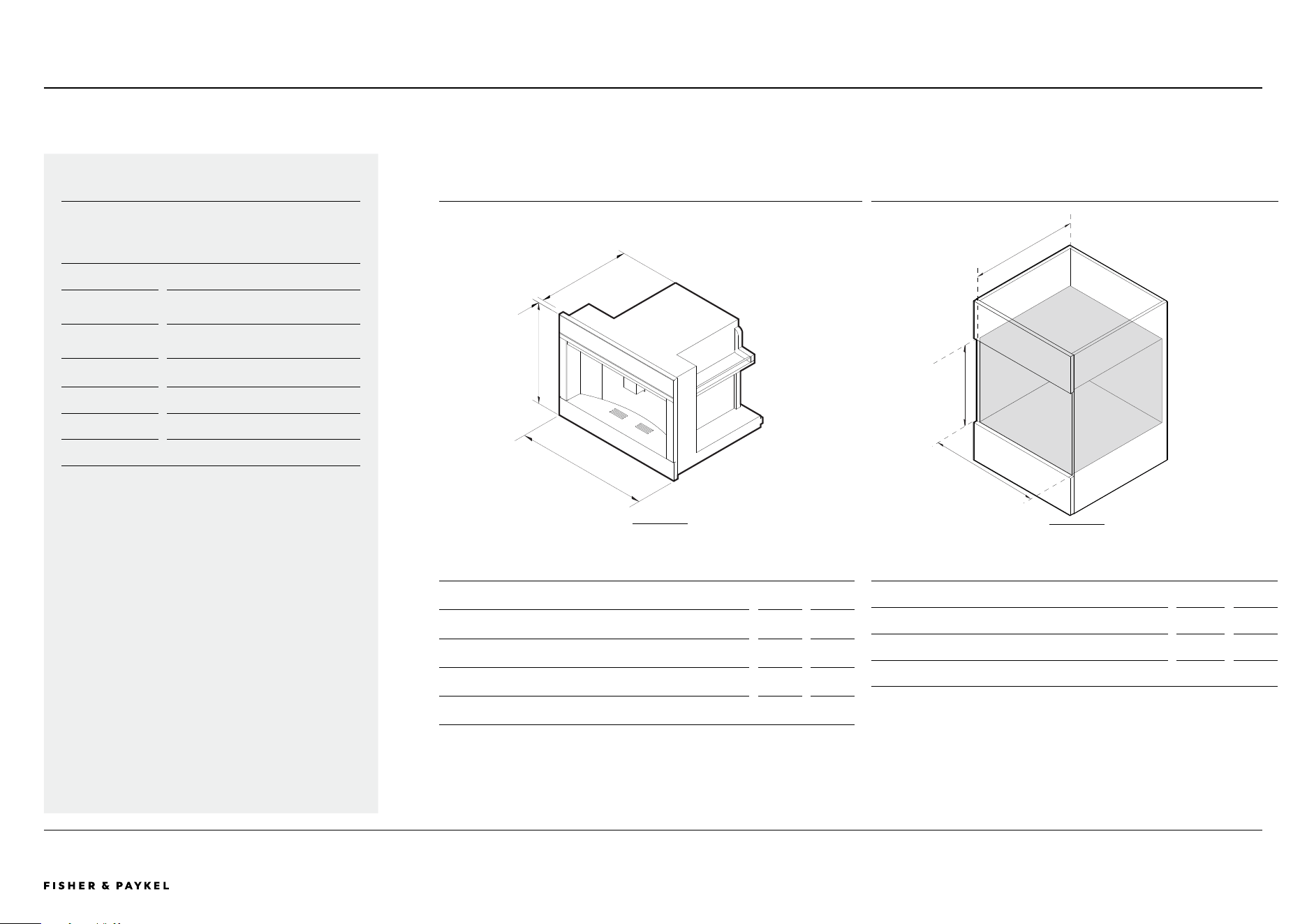

ISO VIEW
ISO VIEW
C
B
A
A
C
B
D
PRODUCT DIMENSIONS CAVITY DIMENSIONS
inch mm
A Overall height 23 9/16 598
B Overall width 23 7/16 596
C Depth of chassis 21 7/16 545
D Depth from front frame (excludes dial and handle) 13/16 20
Depth of oven door when fully open
(measured from front of control panel)
18 1/8 460
inch mm
A Minimum inside height 22 13/16 580
B Minimum inside width 22 1/16 560
C Minimum inside depth 21 5/8 550
<< CONTENTS
© FISHER & PAyKEL LIMITED 2024 PAGE 1190003353A PLANNING GUIDE COOKING - VERSION A - JANUARy 2024
SPECIFICATION GUIDE
STEAM OVEN & CONVECTION SPEED OVEN
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com

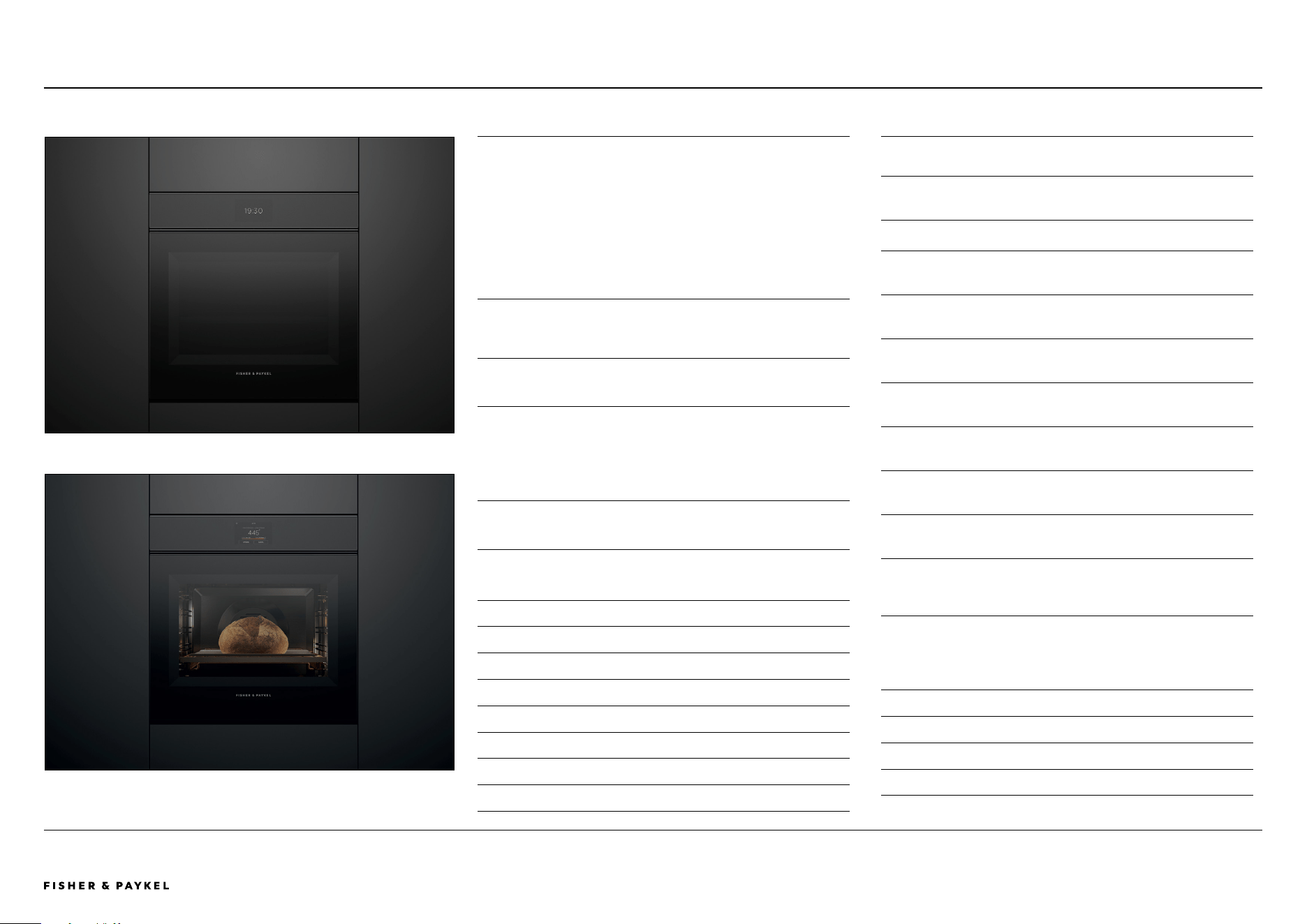

PAGE 12PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
OVERVIEW
The cornerstone of our collection, our handleless
Combination Steam Oven oers a sleek, uninterrupted
aesthetic that moves beyond traditional oven doors. Perfect
for true handleless kitchen designs, it provides a
streamlined look and ensures a continuous flow across
kitchen surfaces. With 23 functions and a sophisticated
balance of full steam and steam assist options at various
temperatures, this oven ensures perfect results.
PRODUCTS
OS24NMTNB1 - Black Glass
Combination Steam Oven, 24", 23 Function
FEATURES
1
Handleless oven design ensures smooth, uninterrupted
lines in kitchen cabinetry for a cohesive look
2 Designed to complement our Minimal style kitchen
appliances
3 Available in black glass finish
4 Perfectly pairs with companion products such as Vacuum
Seal Drawers
5 Guided touchscreen cooking offers helpful tips for
different food types
6 True temperature precision with three levels of steam with
convection
7 23 oven functions including Steam, Sous Vide, Air Fry and
Crisp Regenerate
8 Help reduce food waste by rejuvenating leftovers with
steam for fresh-tasting roasts, and risottos and more
9 Even heat circulation with AeroTech™, ideal for multi-shelf
cooking
"0 Includes a Wired Temperature Sensor for real-time
monitoring of cooking temperatures
"1 Voice-activated oven door provides hands-free control,
compatible with Google's voice assistant via the
SmartHQ™ appmonitoring of cooking temperatures
SPECIFICATION GUIDE | STEAM OVEN, 24" OS24NMTNB1
SERIES & STYLE
Series 9
Minimal
Steam Oven OS24NMTNB1
ACCESORIES
9
Perforated Small Dish
"0 Roasting Dish
"1 Smokeless Grill Tray
"2 Wired Temperature Sensor
ACCESORIES
1
Chromed Shelf Runners
2 2x Descale Solutions
3 Flat Brushed Baking Tray
4 2x Full Extension Sliding Shelves
5 Grill Rack
6 Large Solid Dish
7 Step Down Wire Shelf
8 Perforated Large Dish
OS24NMTNB1
OS24NMTNB1
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 13PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024

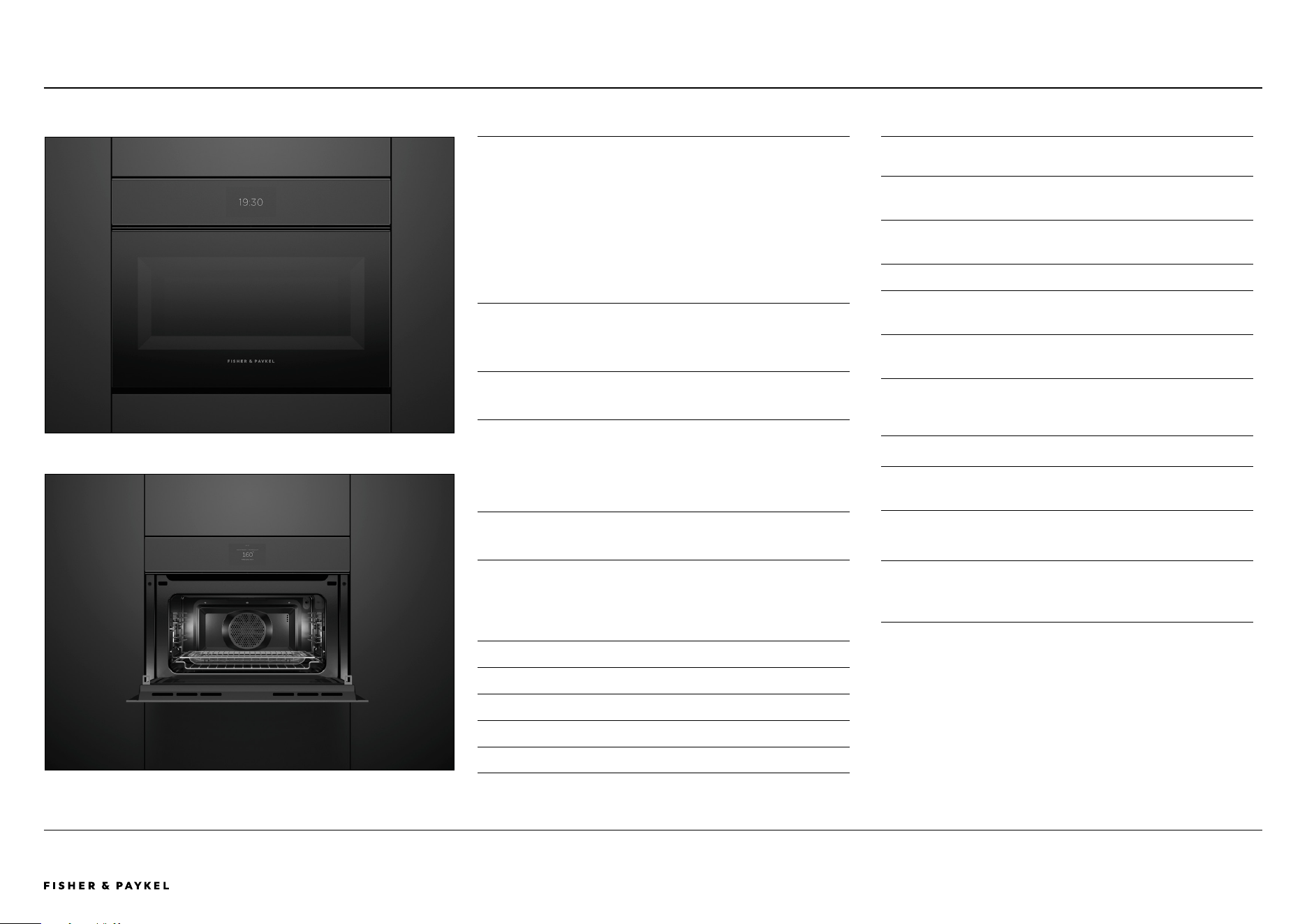

SPECIFICATION GUIDE | CONVECTION SPEED OVEN, 24" OM24NMTNB1
Convection Speed Oven OM24NMTNB1
OVERVIEW
Experience the convenience of speed oven cooking with the
versatility of a convection oven in a compact companion
model. Designed to complement our Minimal style
appliances, this handleless speed oven features a sleek,
seamless look that moves away from traditional oven door
designs. Its compact size and 1.7cu ft capacity provide
convenient placement and ample space for a variety of
dishes, ensuring perfect results.
PRODUCTS
OM24NMTNB1 - Black Glass
Convection Speed Oven, 24", 22 Function
FEATURES
1
Handleless oven design ensures smooth, uninterrupted
lines in kitchen cabinetry for a cohesive look
2 Compact 24" width means this microwave oven can be
placed almost anywhere
3 Designed to complement our Minimal style kitchen
appliances
4 Available in black glass finish
5 Guided touchscreen cooking offers helpful tips for
different food types
6 22 functions, including four speed oven-only, 14 traditional
oven, and four combination settings
7 Convection Speed oven versatility for quick, even heating
across a variety of dishes, ensuring perfect interior
cooking with crisp exteriors
8 Generous 1.7cu ft capacity, with four shelf positions
9 CoolTouch door is safe to touch from the outside,
protecting hands and surrounding cabinetry
"0 Includes a Wired Temperature Sensor for real-time
monitoring of cooking temperatures
"1 Voice-activated oven door provides hands-free control,
compatible with Google's voice assistant via the
SmartHQ™ appmonitoring of cooking temperatures
SERIES & STYLE
Series 9
Minimal
ACCESORIES
1
Chromed Shelf Runners
2 Glass Tray
3 Step Down Wire Shelf
4 Wire Shelf
5 Wired Temperature Sensor
OM24NMTNB1
OM24NMTNB1
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 14PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
OM24NMTNB1, OS24NMTNB1SPECIFICATION GUIDE | STEAM OVEN & CONVENCTION SPEED OVEN, 24"
SPECIFICATIONS
Model No.
OS24NMTNB1
OM24NMTNB1
Dimensions H 18" W 23 7/16" D 22 1/4"
Weight
OS24NMTNB1
155lbs (52kg) packaged
OM24NMTNB1
101lbs (46kg) packaged
Total capacity
OS24NMTNB1
1.94cu ft (55L)
OM24NMTNB1
1.7cu ft (49L)
Electrical
Supply 208 or 240 V, 60 Hz
Service 20 A
C
ISO VIEW
ISO VIEW
PRODUCT DIMENSIONS CAVITY DIMENSIONS
B
A
A
C
B
D
inch mm
A Overall height 18 458
B Overall width 23 7/16 596
C Depth of chassis 21 7/16 545
D Depth from front frame (excludes dial and handle) 13/16 20
Depth of oven door when fully open
(measured from front of control panel)
12 5/8 320
inch mm
A Minimum inside height 17 5/16 440
B Minimum inside width 22 1/16 560
C Minimum inside depth 21 5/8 550
<< CONTENTS
© FISHER & PAyKEL LIMITED 2024 PAGE 1590003353A PLANNING GUIDE COOKING - VERSION A - JANUARy 2024
SPECIFICATION GUIDE
COFFEEMAKER
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 16PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
OVERVIEW
The Built-in Coee Maker features a stylish finish and can
be installed in multiple configurations to suit kitchen design
and preference. With 13 beverage options, our Coee Maker
is designed to consistently pour delicious coee – from Flat
White to Latte or Americano. Favourite coee can be
memorised and set to start at the same time each day, while
the conical burr grinder delivers a consistent grind for the
perfect coee.
PRODUCTS
EB24MSB1 - Black Glass
Coee Maker, 24"
SPECIFICATION GUIDE | COFFEE MAKER, 24"
Coee Maker EB24MSB1
Coee Maker EB24MSB1
EB24MSB1
SERIES & STYLE
Series 9
Minimal
Coee Maker EB24MSB1
FEATURES
1
Designed to pair perfectly with 60cm ovens and
companion products
2 Available in black glass finish
3 Install in multiple configurations to suit your kitchen
design
4 Intuitive touch display
5 13 functions to suit any taste and selection – from
Espresso to Latte
6 Personalised coffee and smart self-learning menu
preferences
7 Stainless steel conical burr grinder with 13 coarseness
positions
8 15 bar pump pressure
9 Self-cleaning function and easy to empty coffee grounds
container and drip tray
"0 84.5fl oz, 2.4L water tank capacity
ACCESSORIES
1
Thermal milk jug (17fl oz, 0.5L)
2 Water filter
3 Coffee spoon
4 Extractable steam outlet
5 Descaling agent bottle
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 17PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
EB24MSB1 SPECIFICATION GUIDE | COFFEE MAKER, 24"
SPECIFICATIONS
Model No. EB24MSG1
Dimensions
H 18" (458mm) x W 23 7/16"
(596mm) x D 18 17/8" (480mm)
Total water tank
capacity
84.5fl oz (2.4L)
Weight 86lbs (39kg) packaged
Electrical
Supply 120 V, 60 Hz
Service 10 A
C
ISO VIEW
ISO VIEW
B
A
A
C
B
PRODUCT DIMENSIONS CAVITY DIMENSIONS
inch mm
A Overall height 18 458
B Overall width 23 7/16 596
C Depth of chassis 18 1/8 460
D Depth from front frame (excludes dial and handle) 13/16 20
inch mm
A Minimum inside height 17 3/4 450
B Minimum inside width 22 1/16 560
C Minimum inside depth 21 7/16 545
<< CONTENTS
© FISHER & PAyKEL LIMITED 2024 PAGE 1890003353A PLANNING GUIDE COOKING - VERSION A - JANUARy 2024
SPECIFICATION GUIDE
WARMING & VACUUM SEAL DRAWER
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 19PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
OVERVIEW
Designed to match our Minimal style appliances, the
Vacuum Seal Drawer is the ideal companion for our
Combination Steam Oven. Prepares food for sous vide
cooking, or vacuum sealing for marinating, food storage and
portioning and resealing. Beautiful to use, with capacitive
touch controls, these drawers deliver the performance to
achieve perfect results.
PRODUCTS
VB24SMB1-SET - Black Glass
Vacuum Seal Drawer, 24", Panel Ready*
*This model comes with an accessory door panel, and is not suitable for use
with a custom door panel
SPECIFICATION GUIDE | VACUUM SEAL DRAWER, 24"
Vacuum Seal Drawer VB24SMB1-SET

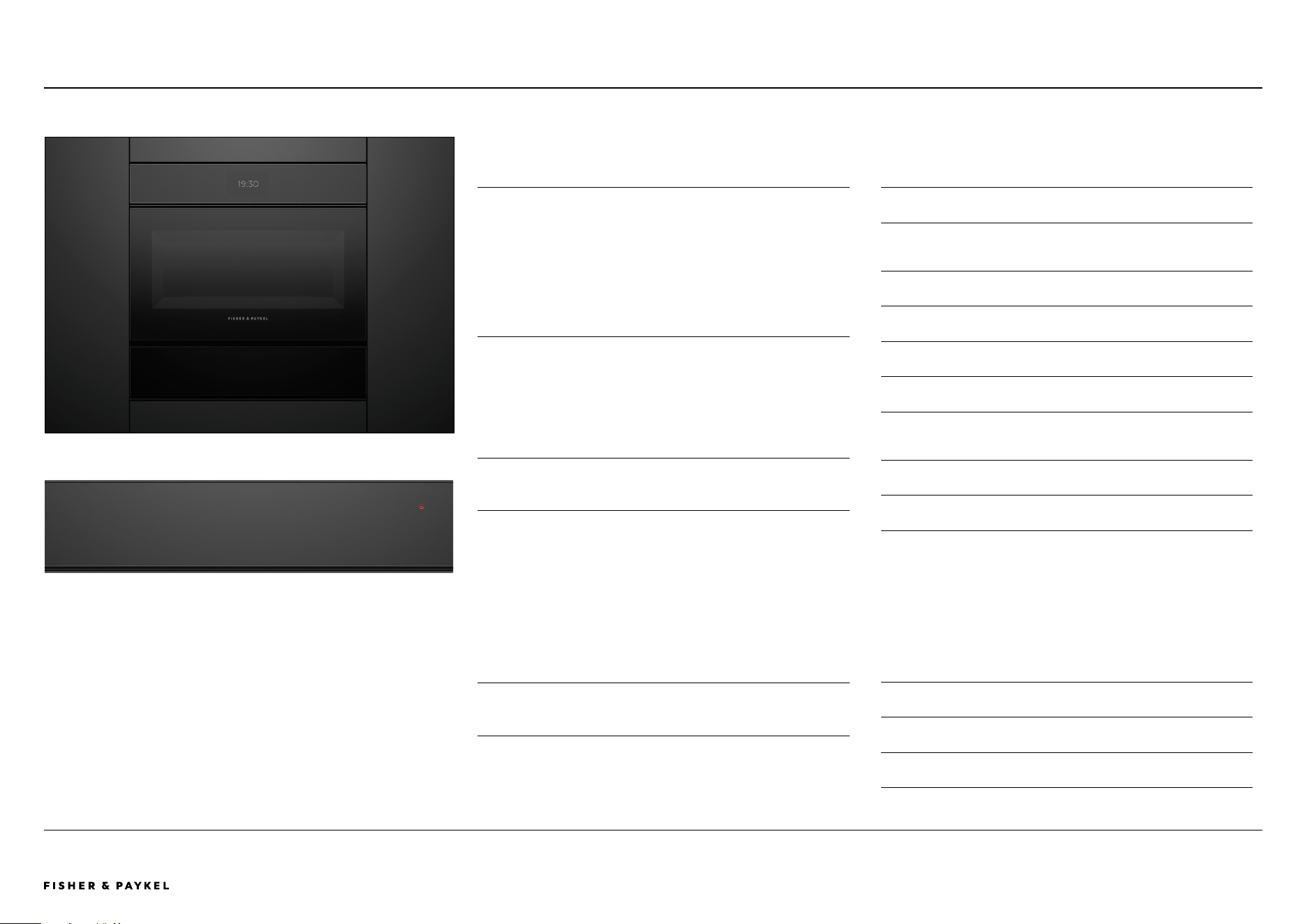

Vacuum Seal Drawer VB24SMB1-SET, paired with Steam Oven OS24NMTDB1
VB24SMB1-SET
SERIES & STYLE
Series 9
Minimal
Vacuum Seal Drawer VB24SMB1-SET
FEATURES
1
Styled to perfectly match our Minimal kitchen appliances
2 Seamless pairing with our Minimal style ovens and other
companion products
3 Push-to-open drawer
4 Three levels of vacuum and heat sealing
5 Easy-to-clean base
6 Easy-to-use capacitive touch controls
7 Vacuum sealing for easy food portioning, marinating,
storage and extended shelf life, or re-sealing
8 Effortless preparation for sous vide cooking
9 Maintenance and moisture indicator
ACCESSORIES
1 Accessory rack for optimising space*
2 Large BPA free vacuum seal bags (50 bags, part 793034)
3 Small BPA-free vacuum seal bags (50 bags, part 793033)
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 20PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
OVERVIEW
Designed to complement our Minimal style ovens, these
warming drawers are handle-free, and push-to-open for a
coherent, considered look. Beautiful to use, with capacitive
touch controls and six tailored functions for warming,
proofing, dehydrating and slow cook. Pair with other
companion products to create a kitchen suite for every
need.
PRODUCTS
WB24SMB1-SET - Black Glass
Warming Drawer, 24", Panel Ready*
*This model comes with an accessory door panel, and is not suitable for use
with a custom door panel
SPECIFICATION GUIDE | WARMING DRAWER, 24"
Warming Drawer WB24SMB1-SET
Warming Drawer WB24SMB1-SET, paired with Coee Maker EB24MSB1
WB24SMB1-SET
SERIES & STYLE
Series 9
Minimal
Warming Drawer WB24SMB1-SET
FEATURES
1
Styled to perfectly match our Minimal kitchen appliances
2 Seamless pairing with our Minimal style ovens and other
companion products
3 Push-to-open drawer
4 Easy-to-use capacitive touch controls
5 Easy-to-clean, smooth-glass base
6 Room for six standard-sized place settings
7 Automatic timing, switch-off functionality
8 Interior LED lighting
9 Versatile with six tailored programmes for warming,
proofing, dehydrating and slow cook
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 21PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
WB24SMB1-SET, VB24SMB1-SETSPECIFICATION GUIDE | WARMING & VACUUM SEAL DRAWERS, 24"
SPECIFICATIONS
Model No.
WB24SMB1-SET
VB24SMB1-SET
Dimensions H 5 1/2" W 23 7/16" D 22 5/16"
Weight
WB24SMB1-SET
49lbs (22kg) packaged
VB24SMB1-SET
84lbs (38kg) packaged
Electrical
Supply 120 V, 60 Hz
Service 10 A
C
ISO VIEW
ISO VIEW
b
e
A
A
f
B
D
c
PRODUCT DIMENSIONS CAVITY DIMENSIONS
inch mm
A Overall height 5 1/2 140
B Overall width 23 7/16 596
C Depth front panel 13/16 20
D Depth of chassis* 21 9/16 547
E Height of chassis 5 1/2 140
F Width of chassis 21 3/8 543
* Including power plug
NOTE: The drawer can fully support 24" Fisher & Paykel wall oven, without adding shelf
in between.
inch mm
A Minimum inside height 5 9/16 142
B Minimum inside width 22 1/16 560
C Minimum inside depth 21 5/8 560
<< CONTENTS
© FISHER & PAyKEL LIMITED 2024 PAGE 2290003353A PLANNING GUIDE COOKING - VERSION A - JANUARy 2024
