PLANNING GUIDE
76CM BUILT-IN OVENS ANDCOMPANIONS
CONTEMPORARY BLACK
SERIES 9 & 11
OVEN | OB76SDPTDB1
STEAM OVEN | OS76NDTDB1
SPEED OVEN | OM76NDTDB1
BUILT-IN COFFEE MAKER | EB60DSXBB1
TRIM KIT | TK76NDBB1
© FISHER & PAYKEL LIMITED 2024 PAGE 290003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
PLANNING GUIDE | OVENS AND COMPANIONS, 76CM
This comprehensive Planning Guide provides you with the framework and tools to achieve your desired design outcome with Fisher & Paykel appliances. In this guide, you will
find a range of conceptual, detailed and dimensional product information to bring your ideas to life and create spaces that truly reflect your vision.
CONCEPT DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
Design Choices
Ovens and Companions - ALL MODELS 4
Configurations - ALL MODELS 5
Overview - ALL MODELS 6
Specification Guides
Oven 8
Built-in Coee Maker with Trim Kit 9
Combination Steam Oven 10
Combination Microwave Oven 11
Dimensions - ALL MODELS 12
Power, Weight and Capacity - ALL MODELS 13
Data Sheets
Oven 15
Built-in Coee Maker with Trim Kit 16
Combination Steam Oven 17
Combination Microwave Oven 18
Planning Considerations

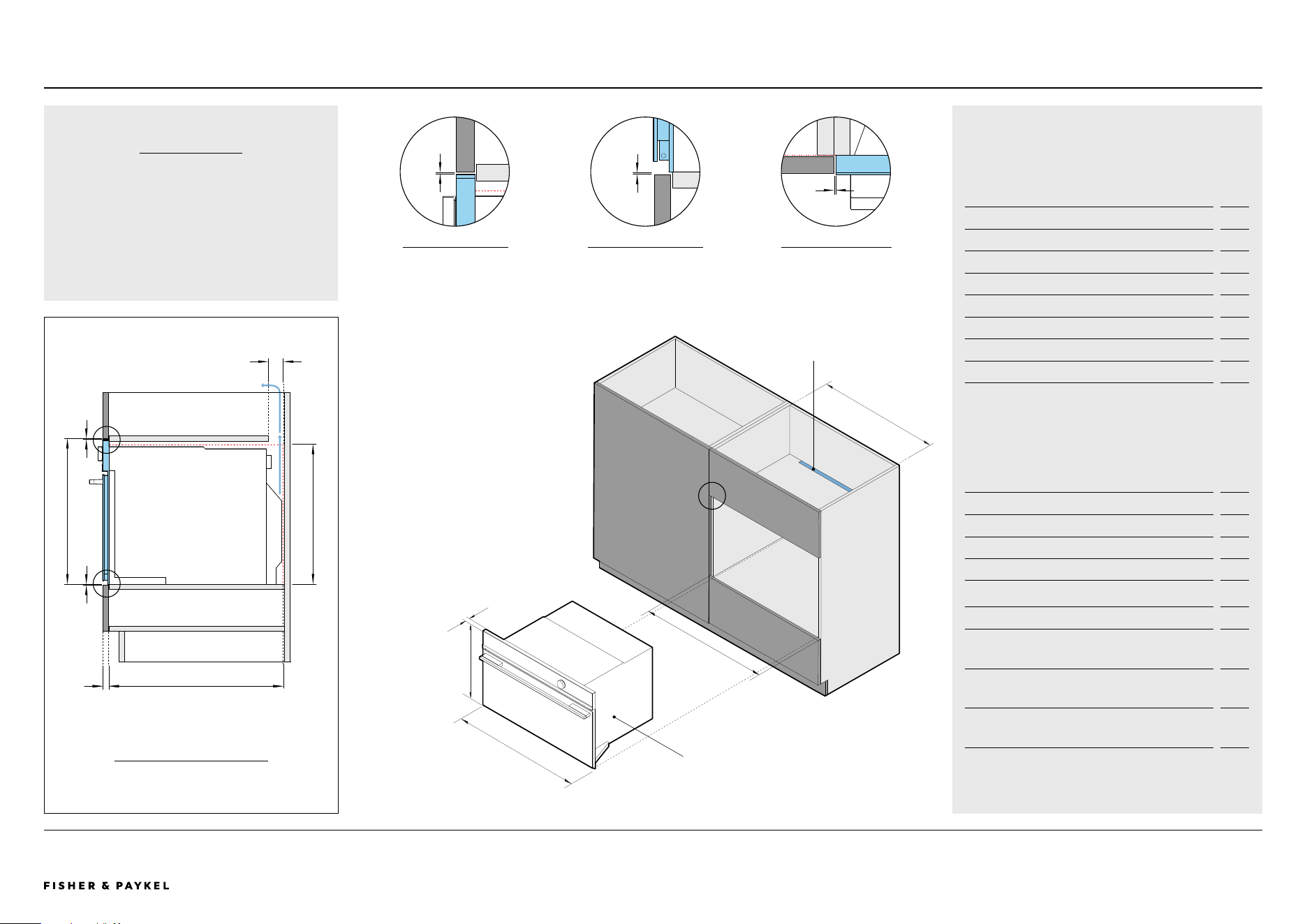

Cabinetry Preparation - ALL MODELS 20

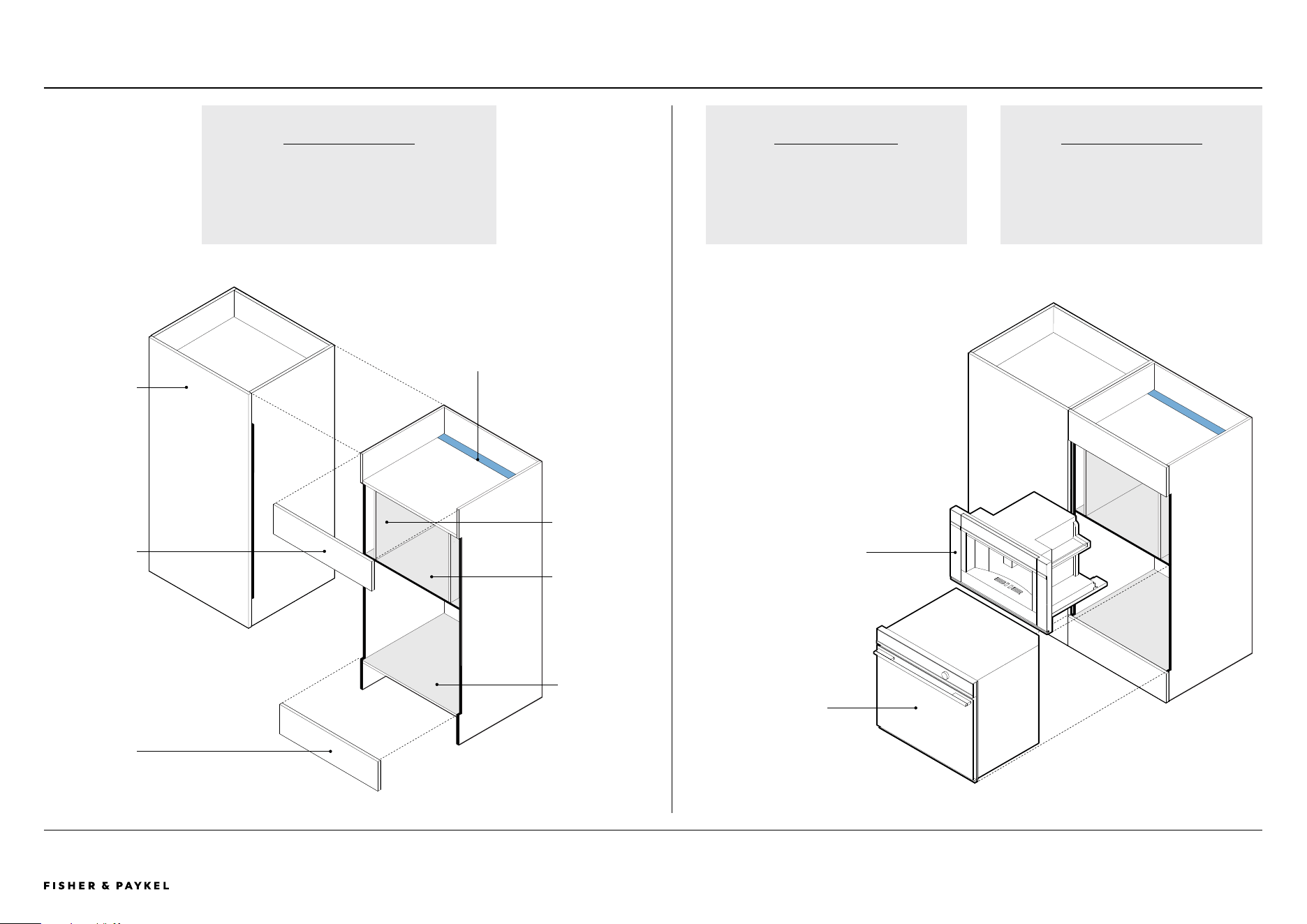

Configurations - ALL MODELS 21
Oven 22
Built-in Coee Maker with Trim Kit 23
Combination Steam Oven 24
Combination Microwave Oven 25
Services
Power Cord Length and Location 27
DEVELOPED AND DETAILED DESIGN PAGE
i
i
© FISHER & PAYKEL LIMITED 2024 PAGE 390003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
DESIGN CHOICES
Design Choices
© FISHER & PAYKEL LIMITED 2024 PAGE 490003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
DESIGN CHOICES | OVENS AND COMPANIONS, 76CM ALL MODELS

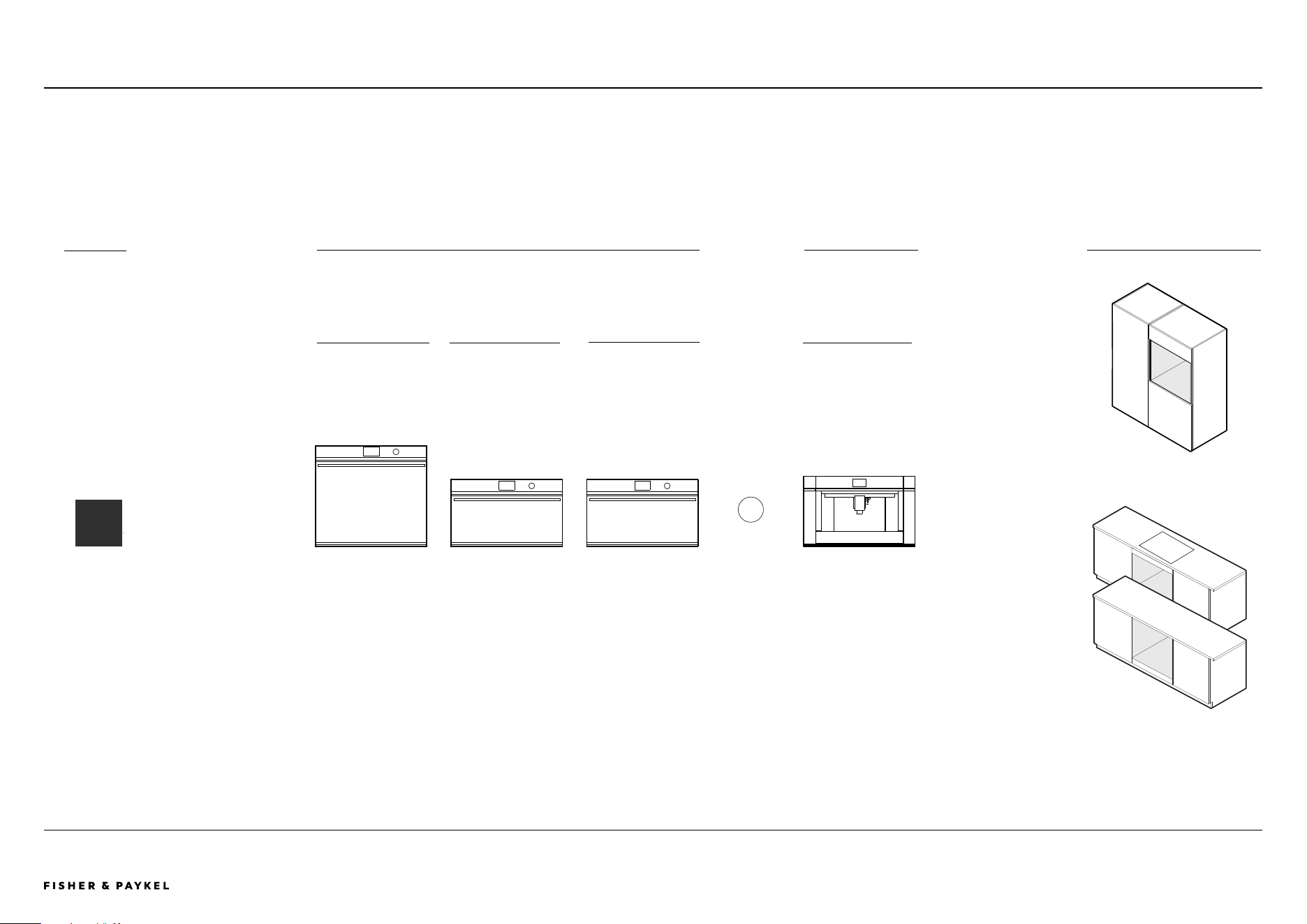

Ovens and Companions - ALL MODELS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
+
BLACK
INSTALLATION IN WALL
INSTALLATION
UNDER-BENCH
OVEN COMBINATION STEAM
CONVECTION SPEED
BUILT-IN COFFEE
MAKER
INSTALLATION OPTIONSCOLOUR OVENS COMPANIONS
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 590003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024

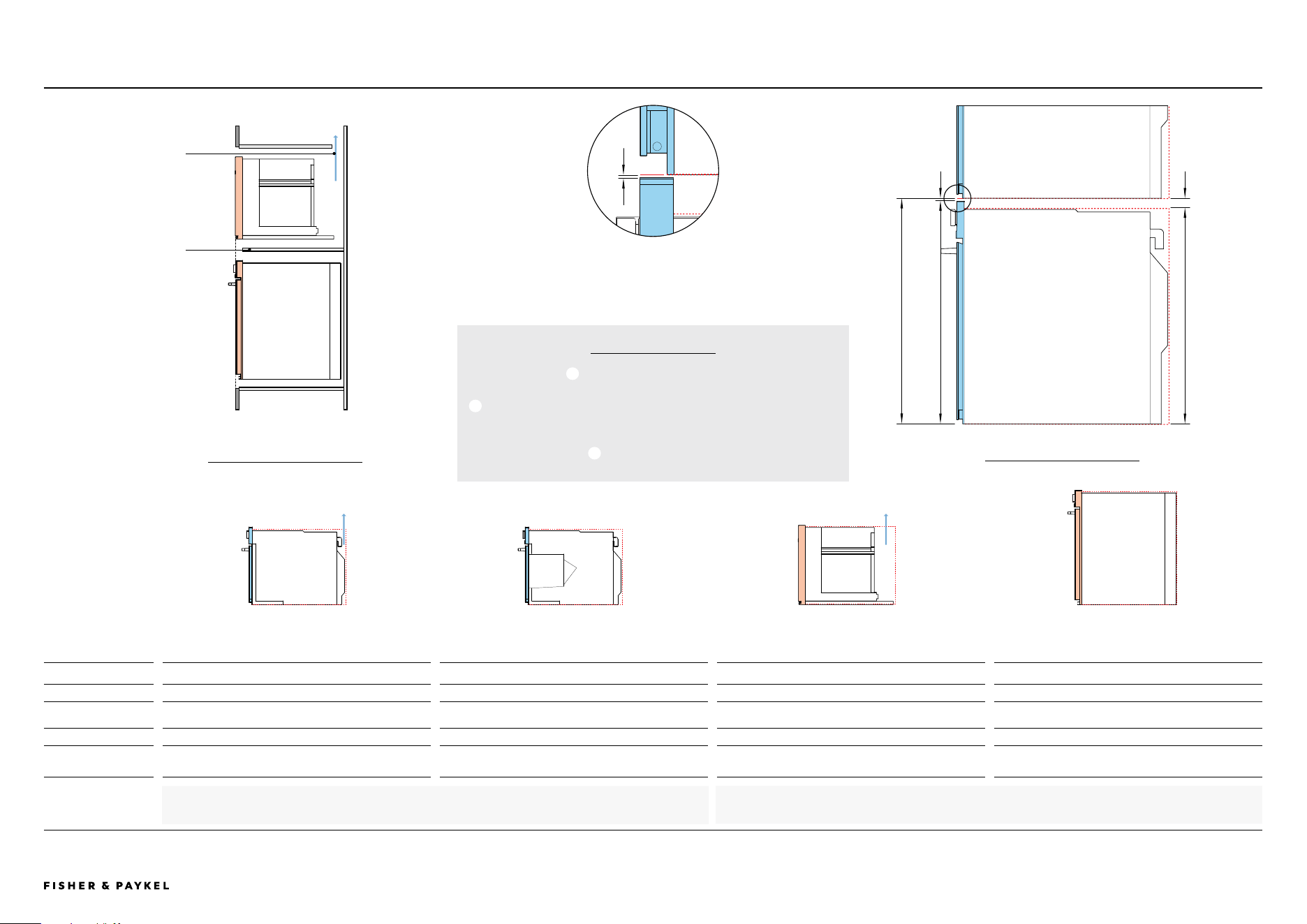

STACKED INSTALLATION GRID INSTALLATION
ROW INSTALLATION
CONSIDERATIONS
Different configurations possible,
consider heights for row and grid
installations.
Note: Stack Height is overall product height with minimum clearance above appliance front panel to upper cabinetry front panel or appliance.
Stack Height
940mm
Stack Height
920mm
ALL MODELSDESIGN CHOICES | CONFIGURATIONS, 76CM
Configurations - ALL MODELS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
Stack Height
1152mm
Stack Height
1172mm
Stack Height
1152mm
Stack Height
692mm
Stack Height
460mm
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 690003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
DESIGN CHOICES | OVERVIEW, 76CM ALL MODELS

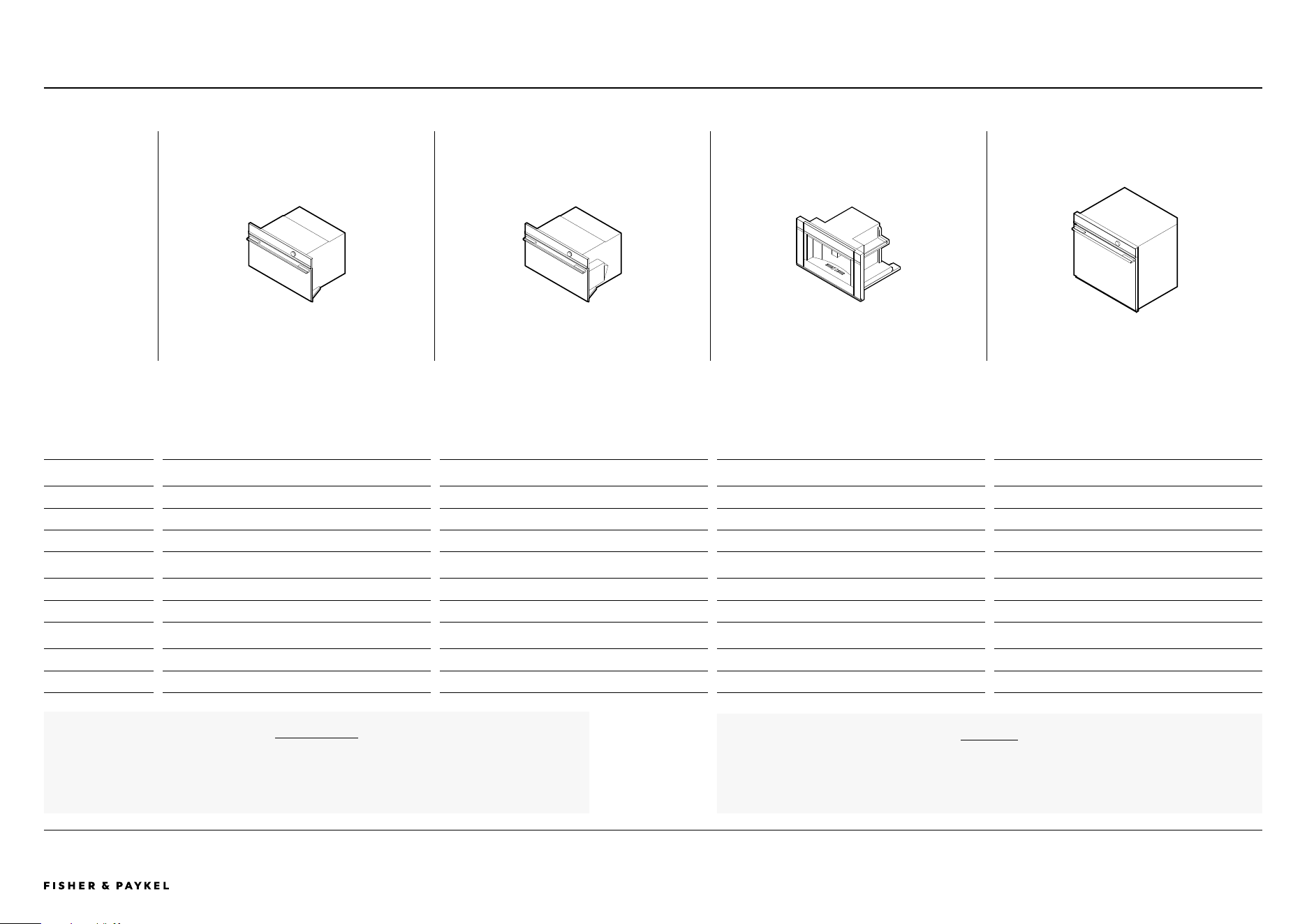

Overview - ALL MODELS
FRONT ELEVATION
COMBINATION STEAM
OVEN
COMBINATION MICROWAVE OVEN BUILT-IN COFFEE MAKER
WITH TRIM KIT
OVEN
Series Series 9 Series 9 Series 9 Series 9
Model Code OM76NDTDB1 OS76NDTDB1 EB60DSXBB1 (TK76NDBB1) OB76SDPTDB1
Interface 5" Touchscreen, Dial Control 5" Touchscreen, Dial Control 4.3" Touchscreen 5" Touchscreen, Dial Control
Height 458mm 458mm 478mm 690mm
Front Panel Thickness 20mm 20mm 40mm 40mm
SIDE ELEVATION
Front Panel Thickness
20mm
40mm
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 790003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
SPECIFICATION GUIDE
SERIES 9 & 11
Specification Guides
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 890003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024

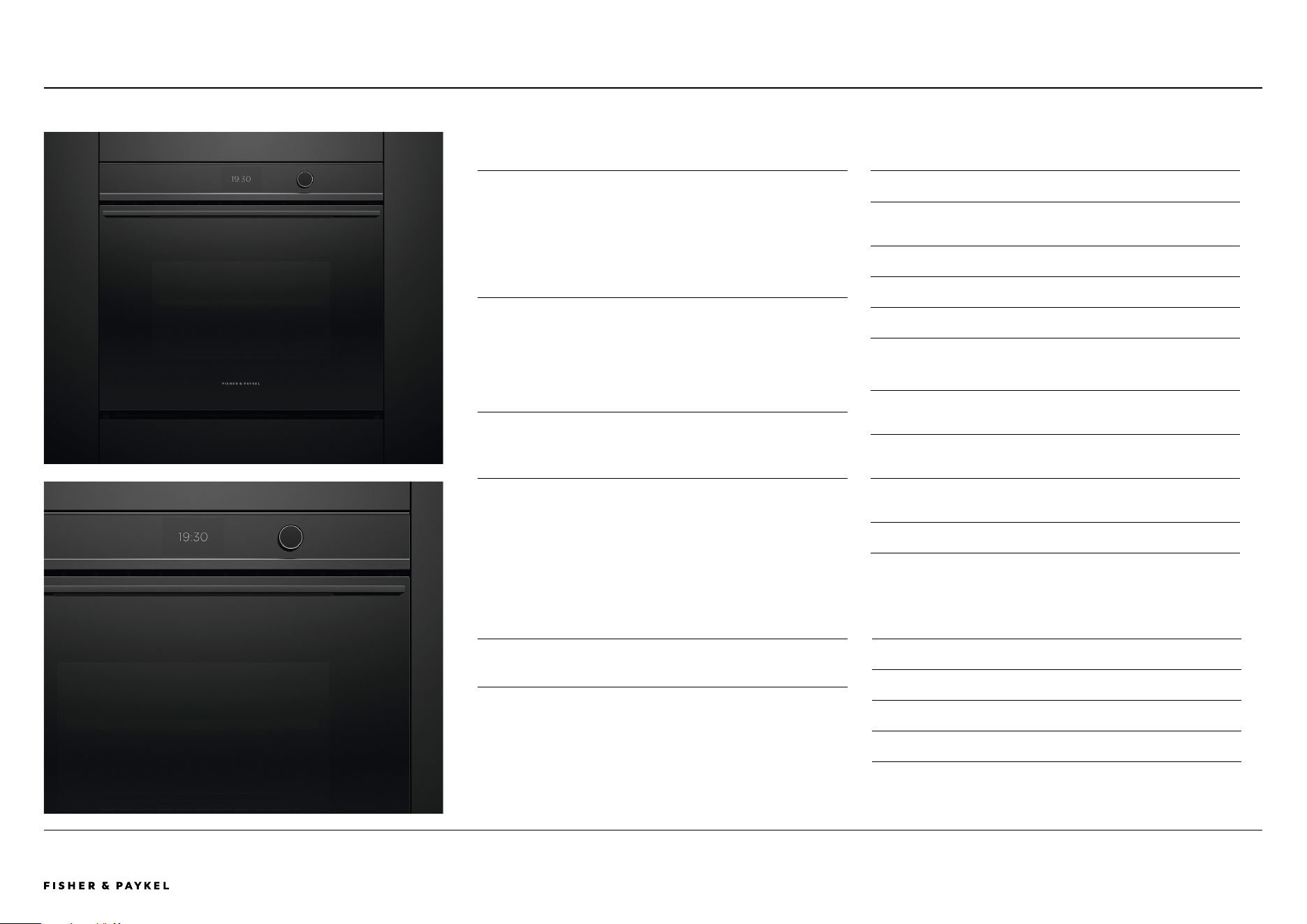

SPECIFICATION GUIDE | OVEN, 76CM
Oven
OVERVIEW
Enhance your kitchen design with the refined styling of the
76cm Oven. Complementing the other products in our
Contemporary Black collection, you can create a coherent,
considered look with ease. Intuitive controls and the
performance to deliver perfect results make this oven
beautiful to use.
PRODUCTS
OB76SDPTDB1
Built-In Oven, 76cm, 17 Function, 115L, Dial Controls,
Touchscreen
SERIES & STYLE
Series 9
Contemporary Black
FEATURES
1
Designed to fit flush with cabinetry
2 Styled to complement our Contemporary Black kitchen
appliances
3 Generous 115L total capacity
4 Intuitive, large 5" touchscreen display with illuminated dial
5 Guided cooking and recipes
6 Perfect results from 17 oven functions including Roastand
Vent Bake, as well as new functions Air Fry, Dehydrate and
Rapid Proof
7 Even heat distribution throughout with AeroTech™
technology
8 Self-cleaning function breaks down food residue foran
easy clean
9 Triple-glazed CoolTouch door is safe to touch from the
outside
"0 Wi-Fi/Connected capability through the SmartHQ™ app
ACCESSORIES
1
Full Extension Sliding Shelves*
2 Self-cleaning-proof side racks*
3 Roasting dish, tray and rack*
4 Wired Temperature Sensor*
*Included with product
OB76SDPTDB1
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 990003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024

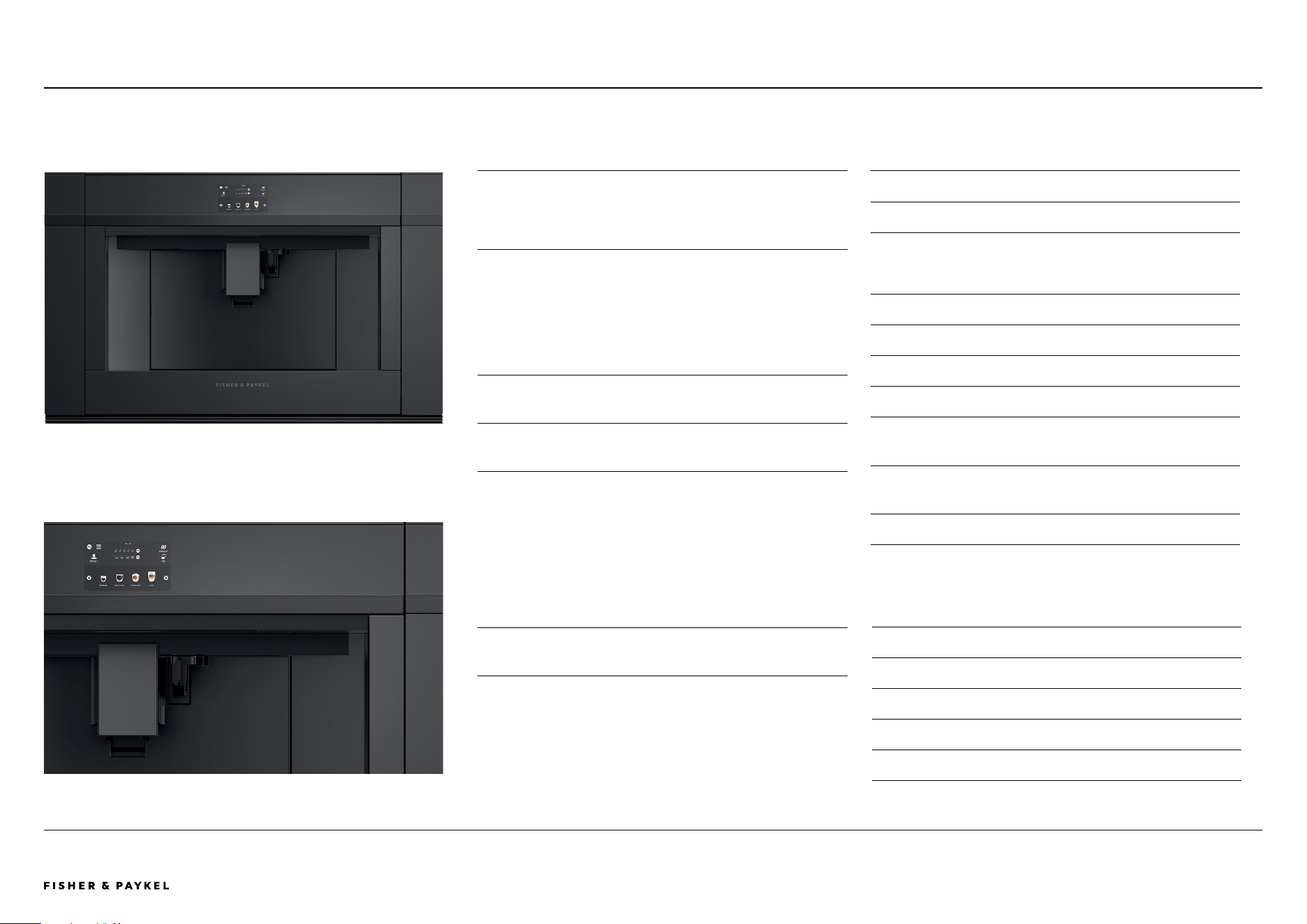

SPECIFICATION GUIDE | BUILT-IN COFFEE MAKER WITH TRIM KIT, 76CM
Built-in Coee Maker with Trim Kit
OVERVIEW
With 13 beverage options, our Coee Maker is designed to
consistently make your coee just the way you like it.
PRODUCTS
EB60DSXBB1
Built-in Coee Maker, 60cm, Touchscreen, Black
TK76NDBB1
Companion Trim Kit, 76cm, Black
Note: Trim Kit purchased separately.
SERIES & STYLE
Series 9
Contemporary Black
FEATURES
1
Elegant black trim
2 Install in multiple configurations to suit your kitchen design
3 Optional 76cm trim kit allows seamless vertical
configuration when paired with a Fisher & Paykel 76cm
Oven
4 Intuitive touch display
5 13 different choices from Espresso to Latte
6 Program your favorite setting
7 5 bar pump pressure
8 Stainless steel conical burr grinder with 13 grinding
coarseness positions
9 Self-cleaning function and easy to empty coffee grounds
container and drip tray
"0 2.5L water tank capacity
ACCESSORIES
1
Optional 76cm trim kit - TK76NDBB1
2 Thermal milk jug*
3 Extractable steam outlet*
4 Coffee spoon*
5 Descaling agent and water filter*
*Included with product
EB60DSXBB1 | TK76NDBB1
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 1090003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024

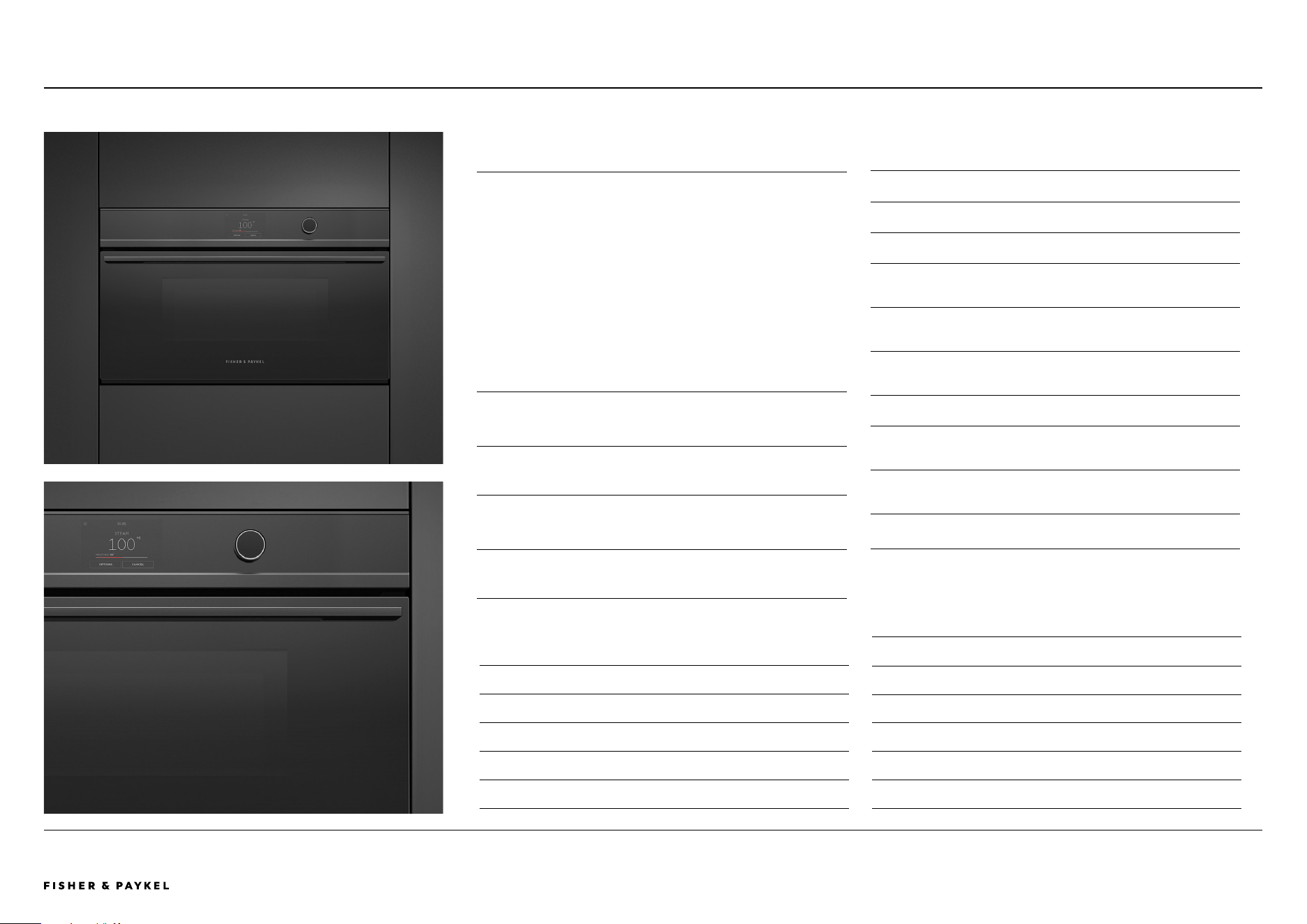

Combination Steam Oven
SPECIFICATION GUIDE | COMBINATION STEAM OVEN, 76CM
OS76NDTDB1
OVERVIEW
With subtle Minimal styling, the compact Combination
Steam Oven fits seamlessly into any kitchen. As a
companion product, this Steam Oven is designed to install
easily and fit perfectly with other companion products. It
features 23 functions, including steam-only, convection-
only, or a combination of both. Reduce the need for oils
and fats with six standalone steam functions, perfect for
creating flavourful and healthy restaurant-quality meals at
home. Beautiful to use, the large 5” touchscreen interface
has simple and intuitive guided cooking, helping to ensure
perfect results.
PRODUCTS
OS76NDTDB1
Combination Steam Oven, 76cm, 23 Function
SERIES & STYLE
Series 9
Contemporary Black
FEATURES
1
Contemporary style, designed to fit flush with cabinetry
2 Generous 55L total capacity with four shelf positions
3 Intuitive, large 5" touchscreen display with illuminated dial
4 23 oven functions including Steam, Sous Vide, Air Fry and
Crisp Regenerate
5 Guided touchscreen cooking makes it simple to cook by
food, function or recipe
6 Moisture control and even heat distribution thanks to
ActiveVent and AeroTech™ technology
7 1.4L water tank
8 Wi-Fi enabled and works with the SmartHQ™ app for
remote control and notifications
9 Steam Clean function ensures a spotless oven with minimal
effort
"0 Soft open and close door
ACCESSORIES
6
Perforated Large Steam Dish*
7 Perforated Small Steam Dish*
8 Large Steam Dish*
9 Wired Temperature Sensor*
"0 Catalytic Panel*
"1 Descale solution* - 2 sachets (Part 580925)
*Included with product
ACCESSORIES
1
Full Extension Sliding Shelf*
2 Wire Shelf*
3 Flat Brushed Baking Tray*
4 Roasting Dish*
5 Grill Rack*
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 1190003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024

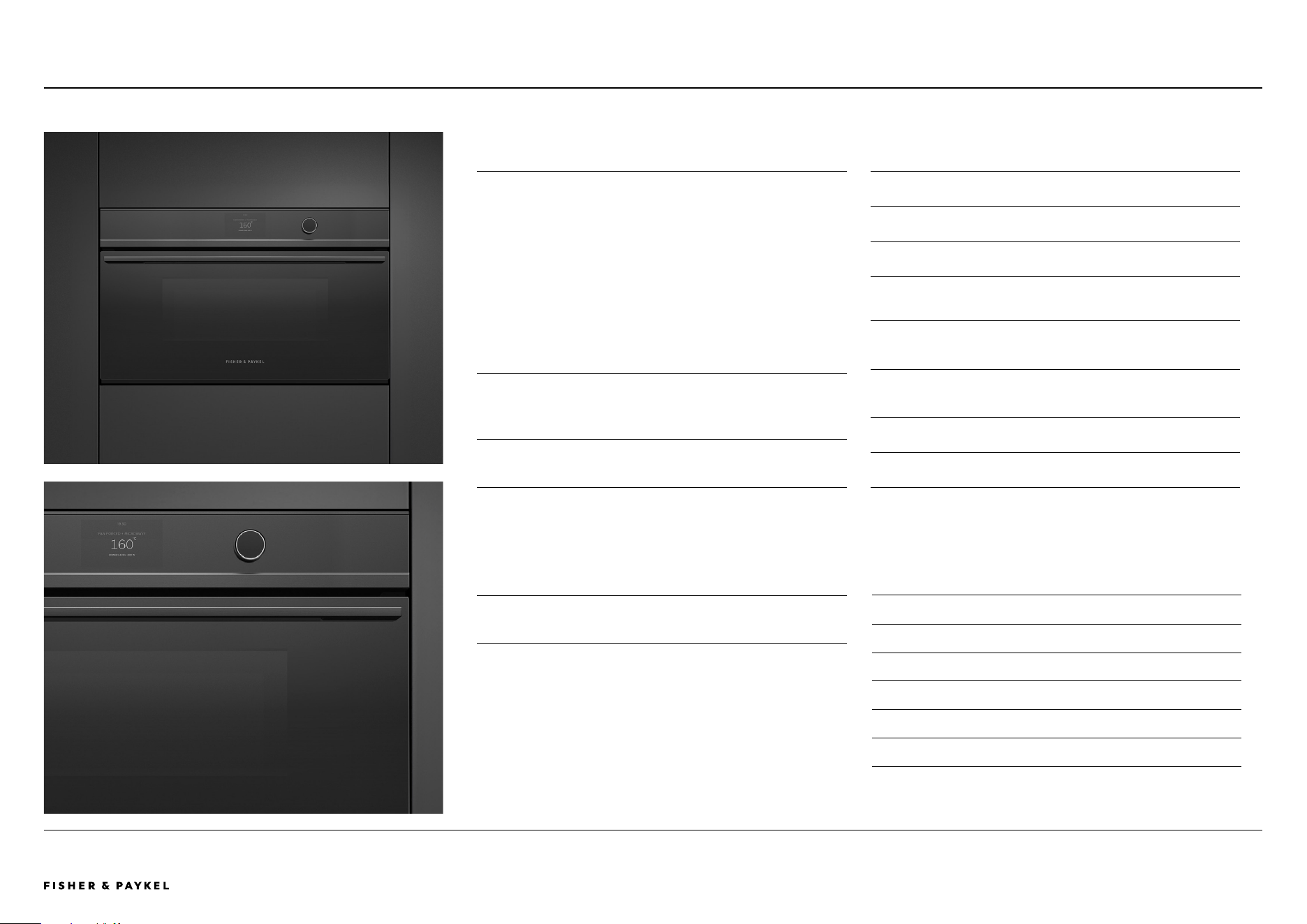

Combination Microwave Oven
OM76NDTDB1
SPECIFICATION GUIDE | COMBINATION MICROWAVE OVEN, 76CM
OVERVIEW
With timeless Contemporary styling, the Combination
Microwave Oven fits seamlessly into any kitchen. As a
companion product, this Microwave Oven is designed to
install easily and fit perfectly with other companion
products such as the Combination Steam Oven. A flexible
appliance that pairs the speed of microwave cooking with
oven technology, which can crisp and brown as it cooks.
Featuring 22 cooking functions on an intuitive touch display
for easy programming of desired cooking mode and
duration.
PRODUCTS
OM76NDTDB1
Combination Microwave Oven, 76cm, 22 Function
SERIES & STYLE
Series 9
Contemporary Black
FEATURES
1
Contemporary style, designed to fit flush with cabinetry
2 49L total capacity
3 Intuitive, large 5" touchscreen display with illuminated dial
4 Four microwave-only functions, 14 traditional oven
functions, and four combination functions
5 A Wired Temperature Sensor precisely monitors cooking in
real time
6 Guided cooking, with the option to access additional
functionality via the SmartHQ™ app
7 Wi-Fi/Connected capability through the SmartHQ™ app
8 Soft open and close door
ACCESSORIES
1
Wire Shelf*
2 Chrome Shelf Runner*
3 Step Down Wire Shelf*
4 Grill Rack*
5 Glass Tray*
6 Wired Temperature Sensor*
*Included with product
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 1290003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024

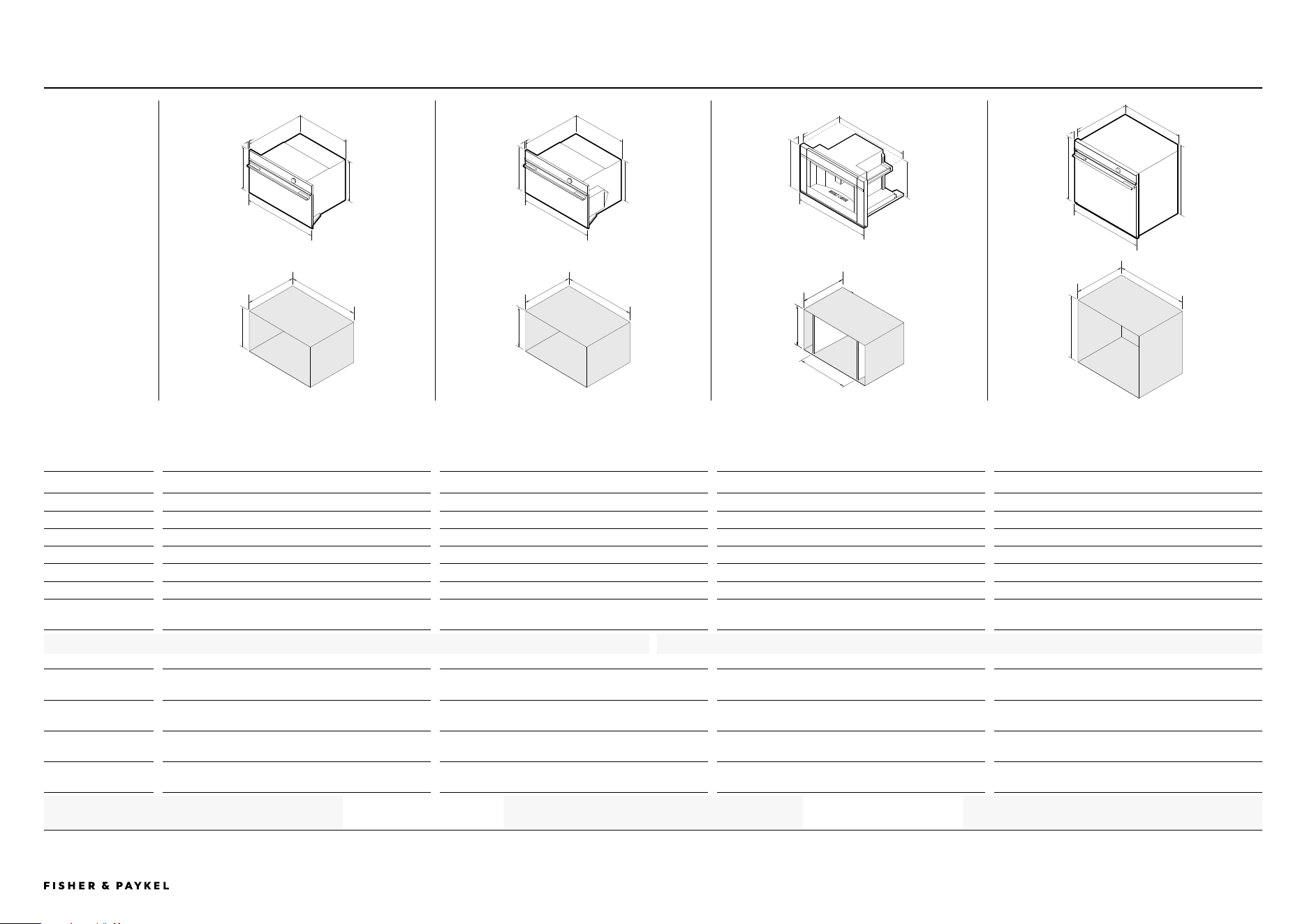

SPECIFICATION GUIDE | DIMENSIONS
PRODUCT
DIMENSIONS
CAVITY
DIMENSIONS
COMBINATION MICROWAVE OVEN
OM76NDTDB1
COMBINATION STEAM OVEN
OS76NDTDB1
BUILT-IN COFFEE MAKER
EB60DSXBB1
Trim Kit TK76NDBB1
OVEN
OB76SDPTDB1
PRODUCT DIMENSIONS
A Overall height 458mm 458mm
478mm
**
690mm
B Overall width 760mm 760mm
760mm
**
760mm
C Chassis height 435mm 435mm 465mm 674mm
D Chassis width 720mm 720mm 560mm 720mm
E Chassis depth 545mm 545mm 530mm 569mm
F Front panel thickness 20mm 20mm
40mm
**
40mm
Depth of oven door
fully open
320mm
* 320mm*
-
550mm
*
CAVITY DIMENSIONS- FLUSH INSTALLATION
G Minimum inside height
of cavity
440mm 440mm 470mm 681mm
H Minimum inside width
of cavity
724mm 724mm
560mm
**
724mm
I Minimum inside depth
of cavity
***
570mm*
570mm
570mm
*
615mm
Recommened cabinet
width
764mm 764mm 764mm 764mm
h
A
B
e
f
d
c
g
I
Dimensions - ALL MODELS
ALL MODELS
* Measured from front of control panel
*Requires ventilation at the rear of the cavity
**Cabinetry requires additional vertical sidewalls to
secure the product
** Measurements with trim kit
***Measured from front of control panel
A
B
e
f
d
c
h
g
I
h
g
I
A
B
e
f
d
c
h
g
I
A
B
e
f
d
c
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 1390003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
For more infomation on cord length, water supply and electrical requirements, refer to the
'Services' section of this Planning Guide.
SERVICES
COMBINATION MICROWAVE OVEN
OM76NDTDB1
COMBINATION STEAM OVEN
OS76NDTDB1
BUILT-IN COFFEE MAKER
EB60DSXBB1
Trim Kit TK76NDBB1
OVEN
OB76SDPTDB1
POWER REQUIREMENTS
Supply 220-240 V, 50 Hz 220-240 V, 50 Hz 220-240 V, 50 Hz 220-240 V, 50 Hz
Service 20 A 20 A 10 A 20 A
Connection Hard wired Hard wired Flex cord 1700mm Hard wired
WEIGHT
Packaged 55kg 55kg EB60DSXBB1 33kg 110kg
Unpackaged 46kg 46kg EB60DSXBB1 24kg 75kg
CAPACITY
Total oven 49L 55L 115L
Total water tank - 1.4L 2.5L -
SPECIFICATION GUIDE | POWER, WEIGHT AND CAPACITY
All Coffee Makers and Steam Ovens have internal water tanks which need to be filled manually.
No external water supply is required.
WATER
Power, Weight and Capacity - ALL MODELS
ALL MODELS
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 1490003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
DATA SHEETS
Data Sheets
© FISHER & PAYKEL LIMITED 2024 PAGE 1590003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------

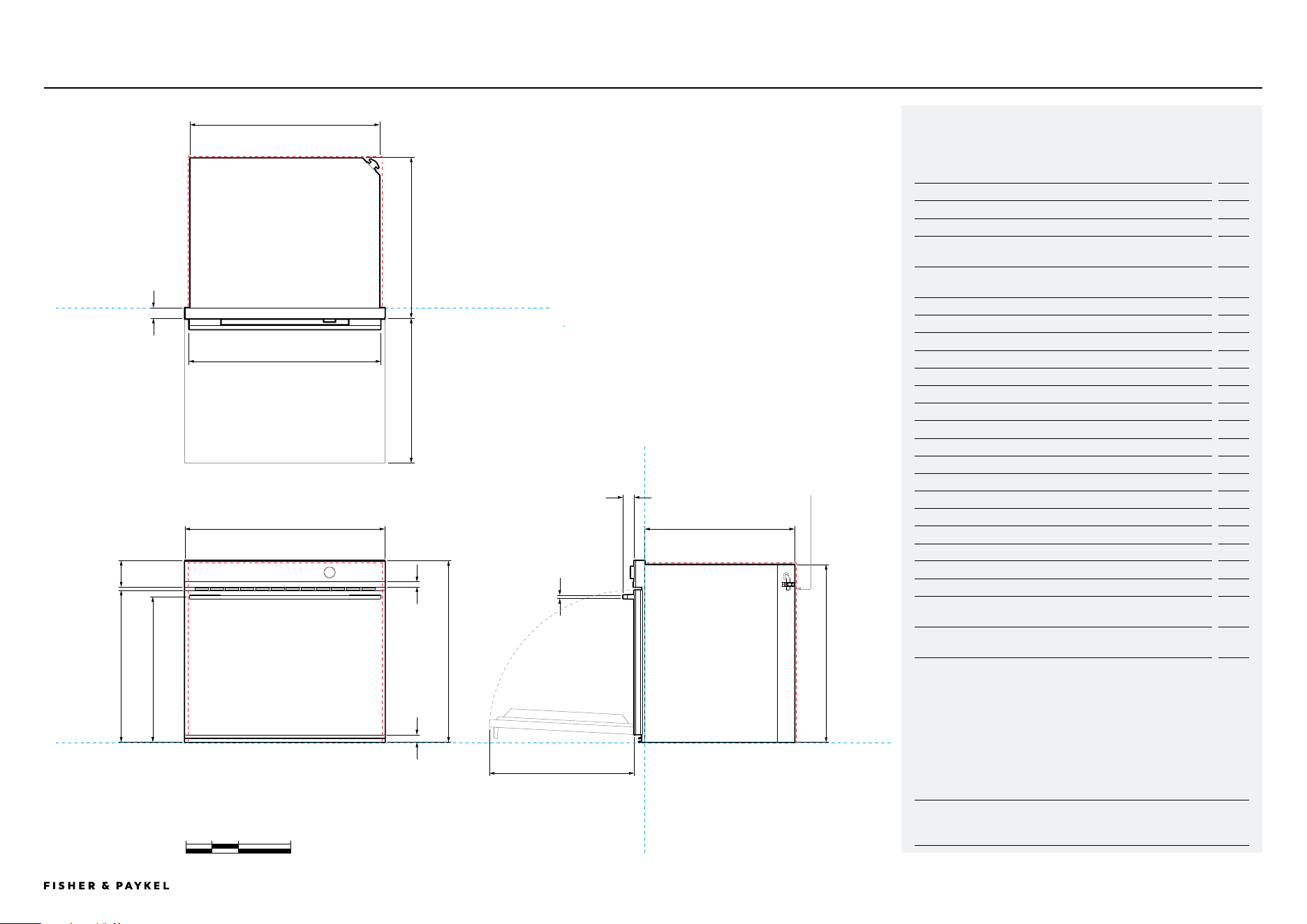

DATA SHEET | OVEN, 76CM
Oven
OB76SDPTDB1
g
d
c
p
m
h
j
k
i
l
o
n
p
f
DATUM: FRONT OF CHASSIS
b
760mm
a
690mm
e
569mm
POWER
OUTLET
LOCATION
DATUM: FRONT OF CHASSIS
PLAN VIEW
FRONT VIEW PROFILE VIEW
Millimeters
0 100 200 400
DATUM : BOTTOM OF CHASSIS
Model no:
Oven, 76cm - OB76SDPTDB1
Product Dimensions
mm
A Overall height of product
690
B Overall width of product
760
C Depth of control panel (excludes handle, front black aluminum
trim and dial)
40
D Depth of chassis and control panel (excludes handle, front black
aluminum trim and dial)
609
E Depth of chassis
569
F Height of chassis
674
G Width of chassis
720
H Height of control panel
100
I Height of black aluminum trim on control panel
20
J Height from bottom datum to top of oven door
578
K Height from bottom datum to centerline of handle
553
L Height from bottom datum to bottom of door
28
M Width of handle
727
N Depth of handle
42
O Thickness of handle
16
P Depth of door when open (measured from front of door)
550
Minimum Clearances- Flush Installation
mm
Minimum inside height of cavity
681
Minimum inside width of cavity
724
Minimum inside depth of cavity*
615
Minimum clearance above oven control panel to upper cabinetry front
panel or appliance
2
Minimum clearance between bottom of oven chassis to lower
cabinetry front panel or appliance
2
*Measured from front of control panel
Note:Depending on cabinet panel thickness a rebate around control panel might be required.
Ensure a 5mm minimum clearance is maintained between the top of the oven chassis and
the cabinetry. Ensure the oven is not bearing any weight from cabinetry or products installed
above.
IMPORTANT NOTE: For full installation and clearance details please refer to our installation
manual.
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 1690003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
EB60DSXBB1, TK76NDBB1
h
g
k
i
j
l
o
n
m
d
c
a
478mm
b
757mm
f
530mm
VENTILATION
TK76NDBB1
TRIM KIT
EB24DSXBB1
BUILT-IN COFFEE
MAKER
SPACERS,
OPTIONAL.
SUPPLIED WITH
COFFEE MAKER
e
DATUM: FRONT
OF CHASSIS
DATUM: FRONT OF CHASSIS
PLAN VIEW
FRONT VIEW PROFILE VIEW
Model no:
Built-in Coffee Maker, 60cm - EB60DSXBB1
Trim Kit, 76cm - TK76NDBB1
Product Dimensions
mm
A Overall height of built-in coffee maker and trim kit
478
B Overall width of built-in coffee maker and trim kit
757
C Overall depth of built-in coffee maker and trim kit (excludes front
metal trim)
570
D Height of chassis and trim kit support brackets
465
E Width of chassis and trim kit support brackets
560
F Depth of chassis and trim kit support brackets
530
G Width of coffee maker
596
H Depth of coffee maker front frame and control panel (excludes
front metal trim)
40
I Height of control panel
100
J Height of metal cap on control panel
20
K Height of horizontal lower section (includes glass and grille)
105
L Height of trim grille
20
M Height of trim kit support brackets
20
N Stepdown from control panel to chassis
13
O Extent built-in coffee maker pulls out (measured from glass front)
435
Minimum Clearances - Flush Installation
mm
Minimum inside height of cavity
470
Minimum inside width of cavity
560
Minimum inside depth of cavity*
570
Overall height of cabinetry (cavity around front frame)
480
Overall width of cabinetry (cavity around front frame)
764
Rear ventilation depth**
50
Rear ventilation width**
560
Minimum clearance above Trim Kit to upper cabinetry front panel or
appliance
2
Minimum clearance between bottom of Trim Kit to lower cabinetry
front panel or appliance
2
*Measured from front of control panel
**Rear ventilation totalling 280cm² is required. The air vent must be located at the rear of
cabinet, it can be positioned at the base, sides, back or top of the cavity.
NOTE: For full installation and clearance details please refer to our installation manual.
DATUM:
BOTTOM OF
CHASSIS

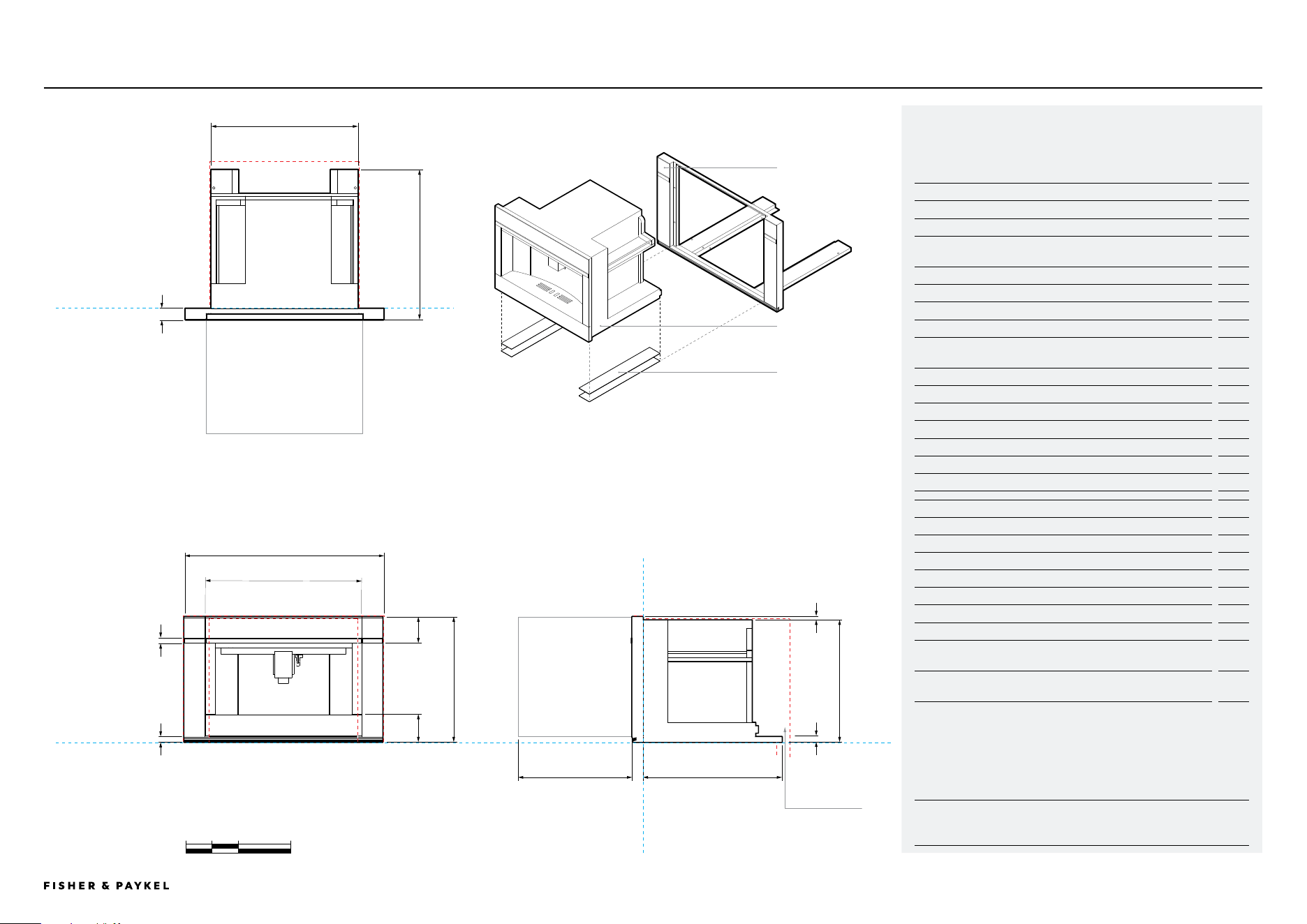

DATA SHEET | BUILT-IN COFFEE MAKER WITH TRIM KIT, 76CM
Built-in Coee Maker with Trim Kit
Millimeters
0 100 200 400
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 1790003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------

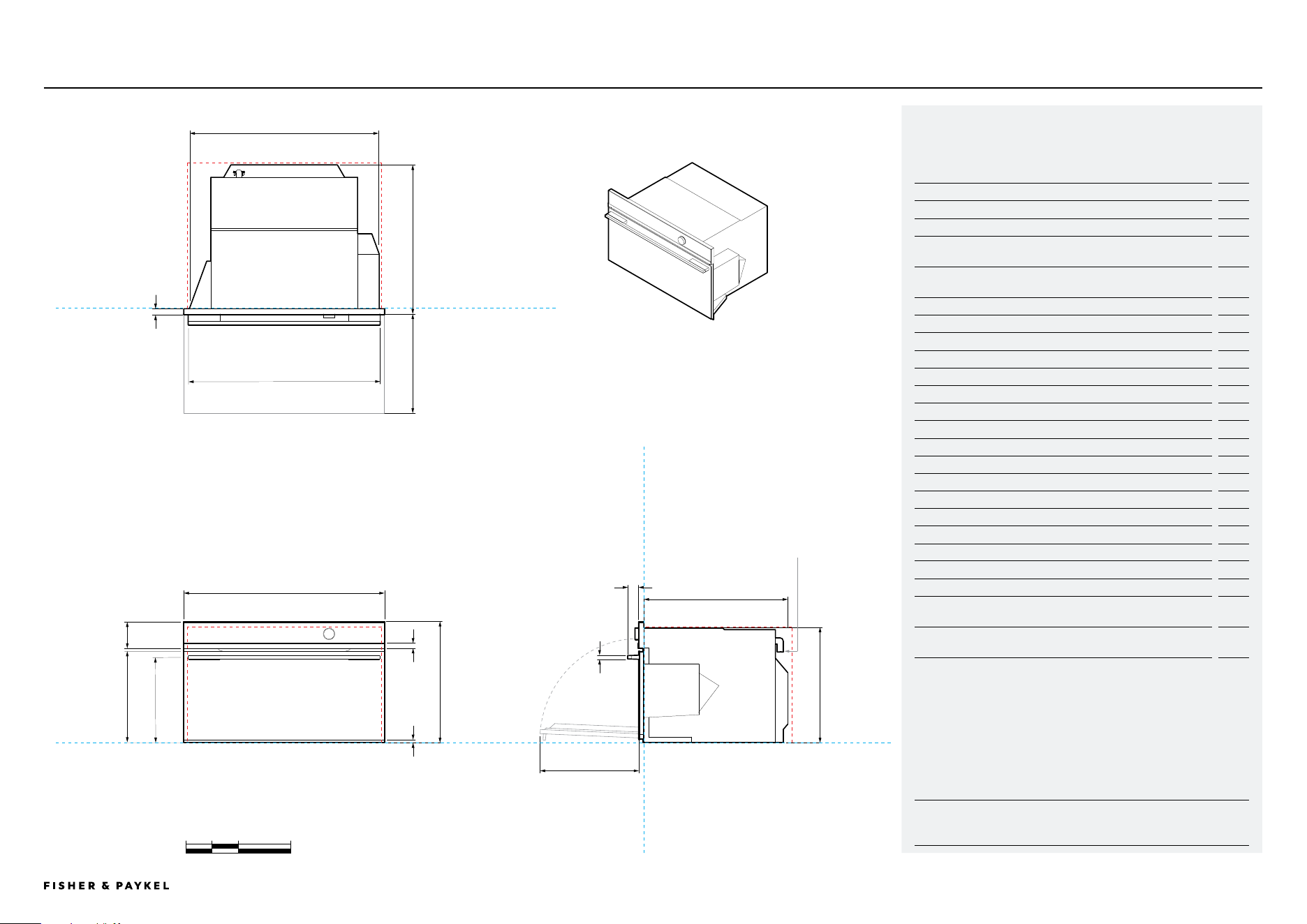

DATA SHEET | COMBINATION STEAM OVEN, 76CM
Combination Steam Oven
OS76NDTDB1
b
760mm
a
458mm
e
545mm
g
d
c
p
m
h
j
k
i
l
o
n
p
f
DATUM: FRONT OF CHASSIS
POWER
OUTLET
LOCATION
DATUM: FRONT OF CHASSIS
PLAN VIEW
FRONT VIEW PROFILE VIEW
DATUM : BOTTOM OF CHASSIS
Model no:
Combination Steam Oven, 76cm - OS76NDTDB1
Product Dimensions
mm
A Overall height of product
458
B Overall width of product
760
C Depth of control panel (excludes handle, front black aluminum
trim and dial)
20
D Depth of chassis and control panel (excludes handle, front black
aluminum trim and dial)
565
E Depth of chassis
545
F Height of chassis
435
G Width of chassis
720
H Height of control panel
100
I Height of black aluminum trim on control panel
20
J Height from bottom datum to top of oven door
347
K Height from bottom datum to centerline of handle
324
L Height from bottom datum to bottom of door
12
M Width of handle
727
N Depth of handle
42
O Thickness of handle
16
P Depth of door when open (measured from front of door)
320
Minimum Clearances - Flush Installation
mm
Minimum inside height of cavity
440
Minimum inside width of cavity
724
Minimum inside depth of cavity*
570
Minimum clearance above oven control panel to upper cabinetry front
panel or appliance
2
Minimum clearance between bottom of oven chassis to lower cabine-
try front panel or appliance
2
*Measured from front of control panel
Ensure a 5mm minimum clearance is maintained between the top of the oven chassis and
the cabinetry. Ensure the oven is not bearing any weight from cabinetry or products installed
above.
NOTE: For full installation and clearance details please refer to our installation manual.
Millimeters
0 100 200 400
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 1890003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------

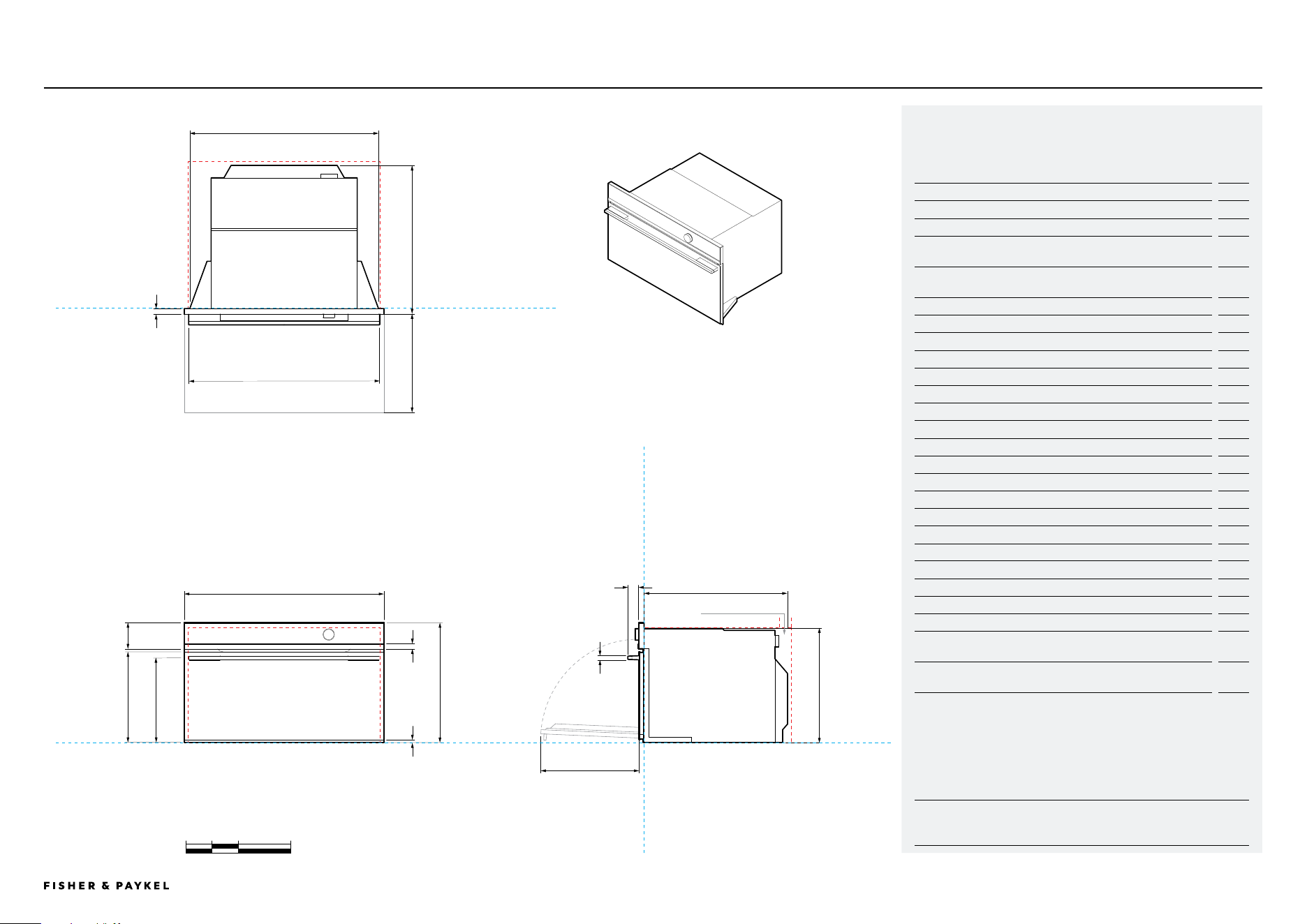

Combination Microwave Oven
b
760mm
a
458mm
e
545mm
g
d
c
p
m
h
j
k
i
l
o
p
f
DATUM: FRONT OF CHASSIS
VENTILATION
DATUM: FRONT OF CHASSIS
PLAN VIEW
FRONT VIEW PROFILE VIEW
DATUM : BOTTOM OF CHASSIS
Model no:
Combination Microwave Oven, 76cm - OM76NDTDB1
Product Dimensions
mm
A Overall height of product
458
B Overall width of product
760
C Depth of control panel (excludes handle, front black aluminum
trim and dial)
20
D Depth of chassis and control panel (excludes handle, front black
aluminum trim and dial)
565
E Depth of chassis
545
F Height of chassis
435
G Width of chassis
720
H Height of control panel
100
I Height of black aluminum trim on control panel
20
J Height from bottom datum to top of oven door
347
K Height from bottom datum to centerline of handle
324
L Height from bottom datum to bottom of door
12
M Width of handle
727
N Depth of handle
42
O Thickness of handle
16
P Depth of door when open (measured from front of door)
320
Minimum Clearances - Flush Installation
mm
Minimum inside height of cavity
440
Minimum inside width of cavity
724
Minimum inside depth of cavity*
570
Rear ventilation depth**
50
Rear ventilation width**
560
Minimum clearance above oven control panel to upper cabinetry front
panel or appliance
2
Minimum clearance between bottom of oven chassis to lower
cabinetry front panel or appliance
2
*Measured from front of control panel
**Rear ventilation totalling 280cm² is required. The air vent must be located at the rear of
cabinet, it can be positioned at the base, sides, back or top of the cavity.
NOTE: For full installation and clearance details please refer to our installation manual.
n
Millimeters
0 100 200 400
DATA SHEET | COMBINATION MICROWAVE OVEN, 76CM OM76NDTDB1
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 1990003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
PLANNING CONSIDERATIONS
Planning Considerations
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 2090003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
PLANNING CONSIDERATIONS | CABINETRY PREPARATION
Cabinetry Preparation - ALL MODELS
BLACK CLASHING
Black clashing recommended on front facing
edges where products are located and on side
cabinets where cabinet is rebated.
ALL MODELS
DIVIDING SHELF
If the cabinetry front panels are thinner than
20mm (less than the thickness of the
appliance front) a rebate is required for the
appliance to achieve a flush finish.
BLACK CLASHING
Black clashing recommended on front facing
edges where products are located and on side
cabinets if cabinet is rebated.
Combination Steam Oven or
Combination Microwave Oven
or Built-in Coffee Maker
Oven
Dividing shelf
Cabinetry front
panel below
Cabinetry front
panel above
Adjacent cabinet
Supporting shelf
Ventilation gap
LEVEL CABINETRY
Check the shelves are level and the side
panels are straight.
Vertical walls for
Built-in Coffee
Maker only
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 2190003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
PLANNING CONSIDERATIONS | CONFIGURATIONS, 76CM
COMBINATION MICROWAVE OVEN
OM76NDTDB1
COMBINATION STEAM OVEN
OS76NDTDB1
BUILT-IN COFFEE MAKER
EB60DSXBB1
Trim Kit TK76NDBB1
OVEN
OB76SDPTDB1
DIMENSIONS
A Overall product height 458mm 458mm
478mm
*
690mm
B Minimum clearance
above
- 2mm 2mm 2mm
C Stack height 460mm 460mm 480mm 692mm
D Minimum inside height
of cavity
440mm 440mm 470mm 681mm
Configurations - ALL MODELS
MINIMUM
DIMENSION
CLEARANCES
Ventilation air vent is
required at rear for some
products.
PRODUCT
PROFILE VIEW
Dividing shelf
location, shelf
must be above
min inside height
of cavity.
STACK EXPLODED
PROFILE VIEW
ALL MODELS
Dividing shelves are
required to support stacked
appliances and to achieve
correct clearance.
Dividing shelves must be
constructed from material
that will support the weight
of the appliances.
Ensure the oven is not
bearing any weight from
cabinetry or products
installed above.
NOTE: Stack height is overall product height with minimum clearance above appliance control panel
or front panel to upper appliance.
*Includes Built-in Coffee Maker rail height
C
D
BACKFRONT
Stack Height
Minimum inside height of cavity
A
B
Minimum clearance above appliance control panel to upper
appliance
B
Overall product height
+
Minimum clearance above appliance control panel or
front panel to upper appliance
=
Stacked Height
STACK HEIGHT
A
B
C
2mm
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 2290003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024

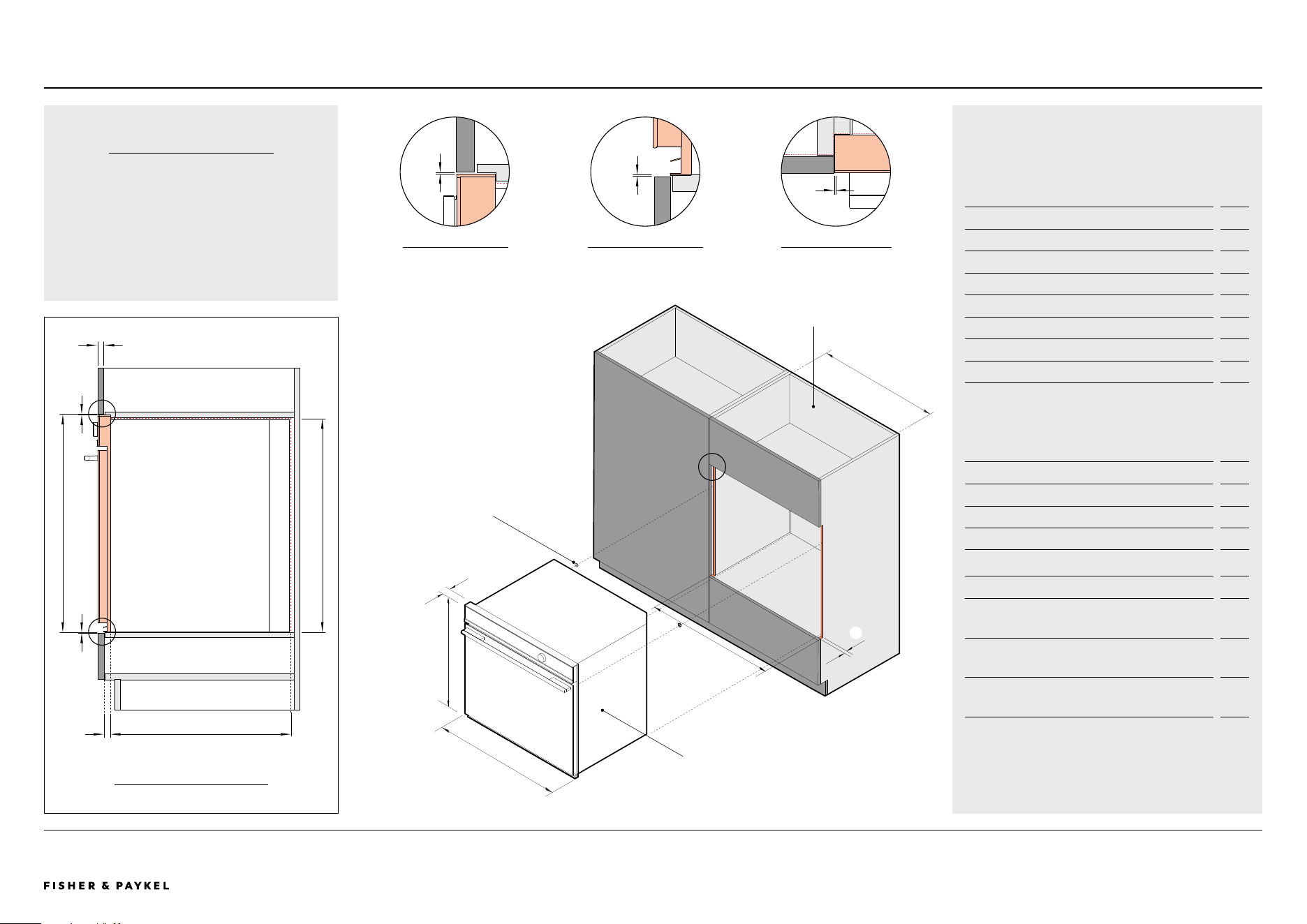

PLANNING CONSIDERATIONS | OVEN, 76CM
Model no:
Oven, 76cm - OB76SDPTDB1
Cabinetry Dimensions - Flush Installation
mm
A Overall cabinet height*
692
B Overall cabinet width
764
C Minimum inside width of cavity
724
D Minimum inside height of cavity
681
E Minimum inside depth of cavity
575
F Thickness of cabinetry front panel** 19
G Thickness of rebate for control panel*** 23
*Overall cabinet height is overall product height with minimum clearance above
oven control panel to upper cabinetry front panel
**Cabinetry shown in drawings 19mm panels
***Oven requires 2mm spacers for screws (supplied x 2)
Product Dimensions mm
H Overall height of product
690
I Overall width of product
760
J Thickness of oven control panel
40
Cabinetry Clearances mm
K Minimum clearance above oven control panel to upper
cabinetry front panel
2
L Minimum clearance between bottom of oven chassis to
lower cabinetry front panel
2
M Minimum clearance between adjacent front panel or
appliance
2
OB76SDPTDB1
CLEARANCE ABOVE
PROFILE VIEW
K
1
BACKFRONT
CABINETRY
PROFILE VIEW
E
F
J
K
A D
2
1
Oven
I
J
H
Closed cabinetry
3
2
CLEARANCE BOTTOM
PROFILE VIEW
L
ADJACENT CABINET
PLAN VIEW
M
3
Oven
C
B
COOKTOP CLEARANCE
If installing a cooktop above the oven,
ensure adequate clearance is provided for the
cooktop as per the cooktop manufacturer’s
instructions.
G
G
2x Spacers
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 2390003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024

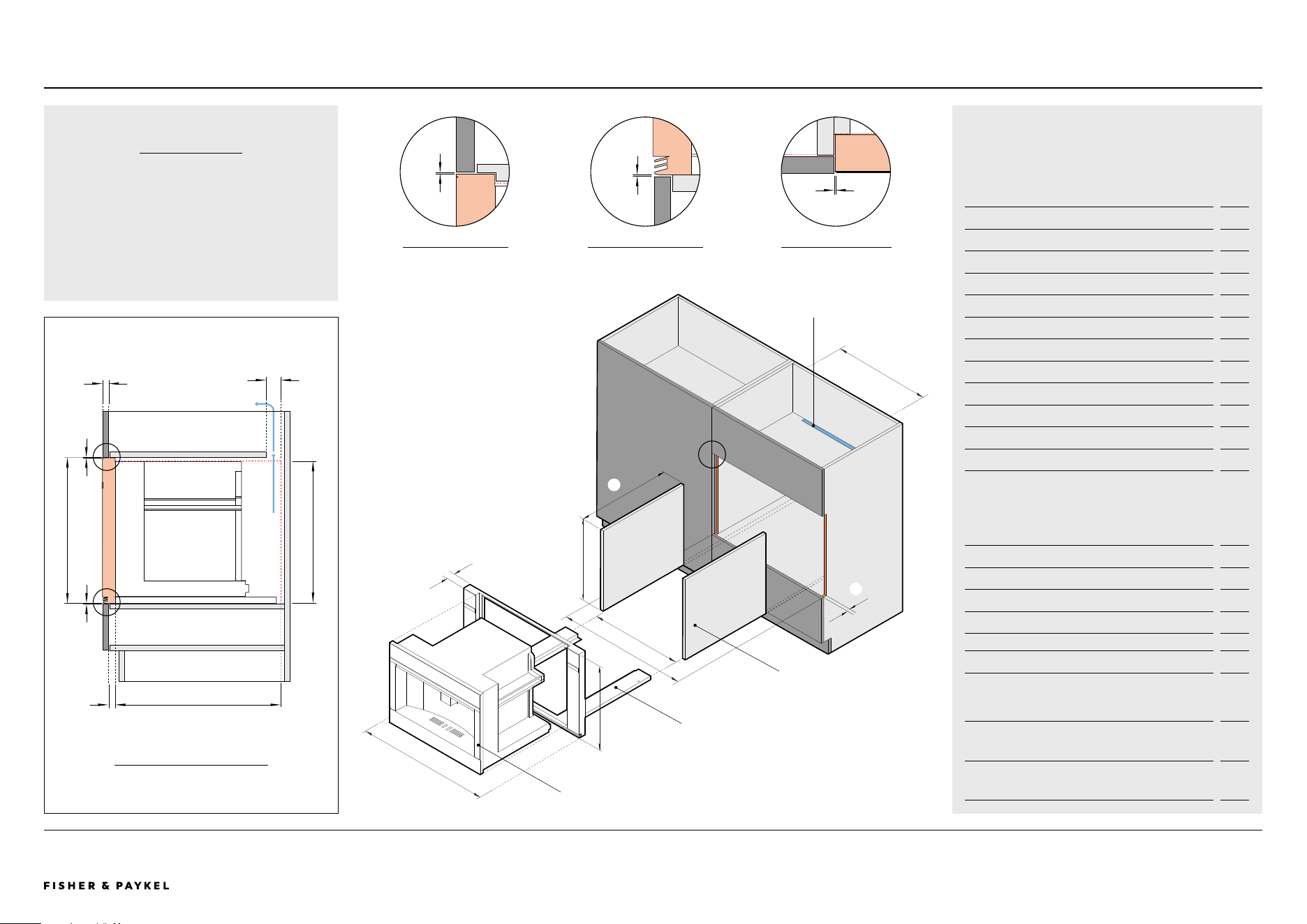

EB60DSXBB1, TK76NDBB1
B
N
O
P
Q
3
C
G
Trim Kit
CLEARANCE ABOVE
PROFILE VIEW
1 2
CLEARANCE BOTTOM
PROFILE VIEW
ADJACENT CABINET
PLAN VIEW
3
Model no:
Built-in Coffee Maker, 60cm - EB60DSXBB1
Trim Kit, 76cm - TK76NDBB1
Cabinetry Dimensions - Flush Installation
mm
A Overall cabinet height with trim kit*
480
B Overall cabinet width
764
C Minimum inside width of cavity
560
D Minimum inside height of cavity
470
E Minimum inside depth of cavity
570
F Minimum height of additional side walls
470
G Width between additional side walls 560
H Minimum depth of additional side walls
570
I Thickness of cabinetry front panel** 19
J Thickness of rebate for control panel 21
K Ventilation gap*** 50
*Overall cabinet height is overall product height with minimum clearance above
coffee maker control panel to upper cabinetry front panel
**Cabinetry shown in drawings 19mm panels.
***A rear ventilation air vent totalling 280cm
2
is required. The air vent must be
located at the rear of the cabinet, it can be positioned at the base, sides, back
or top of the cavity.
Product Dimensions mm
L Overall height of trim kit 478
M Overall width of trim kit 757
N Thickness of trim kit front panel
40
Cabinetry Clearances mm
O Minimum clearance above trim kit front panel to upper
cabinetry front panel
2
P Minimum clearance between bottom of trim kit to
lower cabinetry front panel
2
Q Minimum clearance between adjacent front panel or
appliance
2
VENTILATION
Ventilation of 50mm x 560mm or totalling
280cm
2
is required. The air vent must be
located at the rear of cabinet, it can be
positioned at the base, top, sides, or back.
BACKFRONT
CABINETRY
PROFILE VIEW
E
J
K
A D
2
1
J
K
Built-in Coffee Maker
I
F
H
L
Additional sidewalls
for securing Coffee
Maker, 16-20mm
thickness
J
Ventilation gap
M
PLANNING CONSIDERATIONS | BUILT-IN COFFEE MAKER WITH TRIM KIT, 76CM
Built-in Coee Maker with Trim Kit
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 2490003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
PLANNING CONSIDERATIONS | COMBINATION STEAM OVEN, 76CM OS76NDTDB1
Combination Steam Oven
Model no:
Combination Steam Oven, 76cm - OS76NDTDB1
Cabinetry Dimensions - Flush Installation
mm
A Overall cabinet height*
460
B Overall cabinet width
764
C Minimum inside width of cavity
724
D Minimum inside height of cavity
440
E Minimum inside depth of cavity
550
F Thickness of cabinetry front panel** 16-20
*Overall cabinet height is overall product height with minimum clearance above
oven control panel to upper cabinetry front panel
**Cabinetry shown in drawings 19mm panels. If the front panel is thinner than
20mm a rebate for the Oven is required to achieve a flush finish
Product Dimensions mm
G Overall height of product
458
H Overall width of product
760
I Thickness of oven front panel
20
Cabinetry Clearances mm
J Minimum clearance above oven control panel to upper
cabinetry front panel
2
K Minimum clearance between bottom of oven chassis to
lower cabinetry front panel
2
L Minimum clearance between adjacent front panel or
appliance
2
CLEARANCE ABOVE
PROFILE VIEW
J
1
BACKFRONT
CABINETRY
PROFILE VIEW
E
J
K
A D
2
1
Combination Steam Oven
H
I
G
Closed cabinetry
3
2
CLEARANCE BOTTOM
PROFILE VIEW
K
ADJACENT CABINET
PLAN VIEW
L
3
C
B
COOKTOP CLEARANCE
If installing a cooktop above the oven,
ensure adequate clearance is provided for the
cooktop as per the cooktop manufacturer’s
instructions.
F
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 2590003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
PLANNING CONSIDERATIONS | COMBINATION MICROWAVE OVEN, 76CM OM76NDTDB1
Combination Microwave Oven
Model no:
Combination Microwave Oven, 76cm - OM76NDTDB1
Cabinetry Dimensions - Flush Installation
mm
A Overall cabinet height*
460
B Overall cabinet width
764
C Minimum inside width of cavity
724
D Minimum inside height of cavity
440
E Minimum inside depth of cavity
550
F Thickness of cabinetry front panel** 16-20
G Ventilation gap*** 50
*Overall cabinet height is overall product height with minimum clearance above
oven control panel to upper cabinetry front panel
**Cabinetry shown in drawings 19mm panels. If the front panel is thinner than
20mm a rebate for the Oven is required to achieve a flush finish
***A rear ventilation air vent totalling 280cm
2
is required. The air vent must be
located at the rear of the cabinet, it can be positioned at the base, sides, back
or top of the cavity.
Product Dimensions mm
H Overall height of product
458
I Overall width of product
760
J Thickness of oven front panel
20
Cabinetry Clearances mm
K Minimum clearance above oven control panel to upper
cabinetry front panel
2
L Minimum clearance between bottom of oven chassis to
lower cabinetry front panel
2
M Minimum clearance between adjacent front panel or
appliance
2
CLEARANCE ABOVE
PROFILE VIEW
K
1
BACKFRONT
CABINETRY
PROFILE VIEW
E
J
K
A D
2
1
Combination Microwave Oven
I
J
H
Ventilation gap
3
2
CLEARANCE BOTTOM
PROFILE VIEW
L
ADJACENT CABINET
PLAN VIEW
M
3
C
B
F
VENTILATION
Ventilation of 50mm x 560mm or totalling
280cm
2
is required. The air vent must be
located at the rear of cabinet, it can be
positioned at the base, top, sides, or back.
G
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 2690003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
SERVICES
Services
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 2790003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
BUILT-IN COFFEE MAKER
EB60DSXBB1
OVEN
OB76SDPTDB1
POWER CORD
Power cord free length 1700mm 1500mm*
Location Lower centered Upper left
Connection Flex cord Hard wire**
*The electrician provides sufficient free length of power supply cable to reach from the bottom rear of the cavity to at least 1500mm in front of the bottom edge of the opening
**For more information, refer to the Installation Guide. Ensure power will remain accessible following install to allow access for any future product maintenance.
WATER
Total Capacity 2.4L -
Location Water tank (internal) -
ELECTRICAL
Supply 220-240 V, 50 Hz 220-240 V, 50 Hz
Service 10 A 20 A
Note: Multiple product installation requires the design of power outlets according to local regulations.
Clip
provided
BUILT-IN COFFEE MAKER
The power cable must be long enough to
allow the appliance to be extracted from the
cabinet to fill the coffee bean container. Fix
the power cable with the clip.
SERVICES | POWER CORD LENGTH AND LOCATION
Power Cord Length and Location
Max 1700mm
Minimum 1500mm
CONNECTION
Connections may be located in an adjacent
cabinet to either side of the appliance.
Ensure power will remain accessible following
install to allow access for any future product
maintenance.
Power Cable
Water Tank
1 2
2
1
1 2
OB76SDPTDB1, EB60DSXBB1
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 2890003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
COMBINATION MICROWAVE OVEN
OM76NDTDB1 COMBINATION STEAM OVEN
OS76NDTDB1
POWER CORD
Power cord free length Minimum 1500mm* Minimum 1500mm*
Location Upper right Upper left
Connection Hard wire** Hard wire**
*The electrician provides sufficient free length of power supply cable to reach from the bottom rear of the cavity to at least 1500mm in front of the bottom edge of the opening
**For more information, refer to the Installation Guide. Ensure power will remain accessible following install to allow access for any future product maintenance.
WATER
Total Capacity - 1.4L
Location - Water tank (internal)
ELECTRICAL
Supply 220-240 V, 50 Hz 220-240 V, 50 Hz
Service 20 A 20 A
Note: Multiple product installation requires the design of power outlets according to local regulations.
OM76NDTDB1, OS76NDTDB1SERVICES | POWER CORD LENGTH AND LOCATION
Power Cable
Water Tank
Minimum 1500mm Minimum 1500mm
3
4
3
3
4
4
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 2990003339B PLANNING GUIDE COOKING - VERSION B - MAY 2024
