PLANNING GUIDE | OVENS AND COMPANIONS
This comprehensive Planning Guide provides you with the framework and tools to achieve your desired design outcome with Fisher & Paykel appliances. In this guide, you will
find a range of conceptual, detailed, and dimensional product information to bring your ideas to life and create spaces that truly reflect your vision.
CONCEPT DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
CONTENTS
Planning Guide information for Developed and
Detailed Design available in Q3 2024
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
Design Choices 3
Specification Guides
Oven OB60SMPTNB1, OB60SMPTNG1 8
Steam Oven OS60SMTNB1, OS60SMTNG1 9
Steam Oven OS60NMTNB1, OS60NMTNG1 12
Microwave OM60NMTNB1, OM60NMTNG1 13
Coee Maker EB60MSB1, EB60MSG1 16
Vacuum Seal Drawer VB60SMB1-SET, VB60SMG1-SET 19
Warming Drawer WB60SMB1-SET, WB60SMG1-SET 20
Warming Drawer Tall WB60SMTB1 23
i
i
© FISHER & PAyKEL LIMITED 2024 PAGE 390003353A PLANNING GUIDE COOKING - VERSION A - JANUARy 2024
DESIGN CHOICES
Design Choices
PAGE 490003353A PLANNING GUIDE COOKING VERSION A - JANUARy 2024 © FISHER & PAyKEL LIMITED 2024
+ +
Installation in wall
Installation
under-bench
Grey
Glass
HANDLELESS FAMILY
DIAL AND HANDLE FAMILY
OVENS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
STEAM OVENS STEAM OVENS MICROWAVES COFFEE MAKER DRAWERS INSTALLATION OPTIONS
COLOUR
Black
Glass
DESIGN CHOICES | CONFIGURATION CONSIDERATIONS
*Note: Warming Drawer Tall only available in
Black Glass finish
*
<< CONTENTS
PAGE 590003353A PLANNING GUIDE COOKING VERSION A - JANUARy 2024 © FISHER & PAyKEL LIMITED 2024

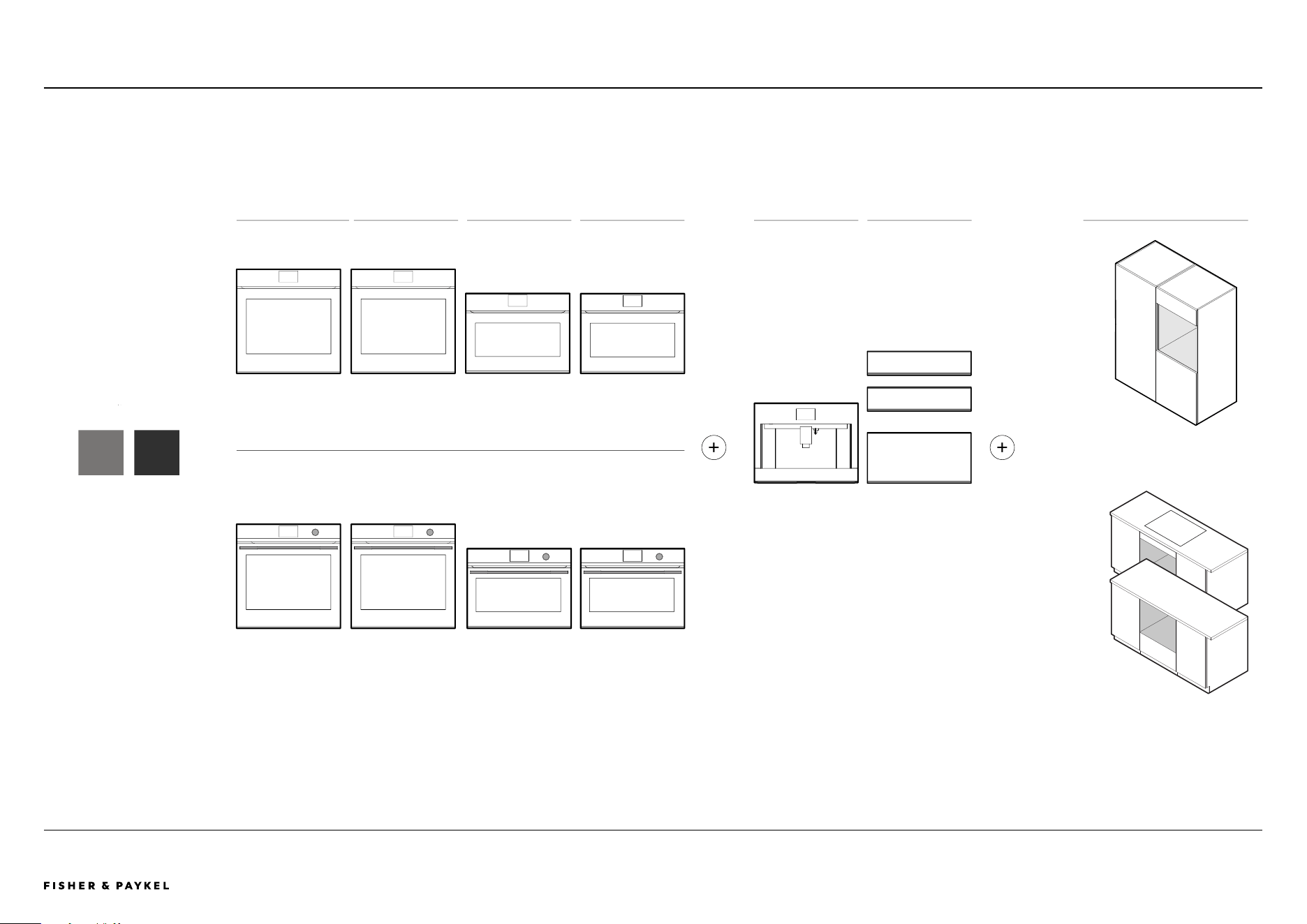

DESIGN CHOICES | CONFIGURATION CONSIDERATIONS
STACKED INSTALLATION
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
GRID INSTALLATIONROW INSTALLATION CONSIDERATION
Different configurations possible,
considerations are height,
colour, dial and handle or handleless.
<< CONTENTS
PAGE 690003353A PLANNING GUIDE COOKING VERSION A - JANUARy 2024 © FISHER & PAyKEL LIMITED 2024
1 2
3
8
4
598mm458mm140mm 290mm
5
HANDLE-LESS OVEN/
COMPANION FAMILY
1 Oven (Available Q3, 2024)
OB60SMPTNB1 - Black glass
OB60SMPTNG1 - Grey glass
2 Steam Oven (Available Q3, 2024)
OS60SMTNB1 - Black glass
OS60SMTNG1 - Grey glass
3 Steam Oven (Available Q3, 2024)
OS60NMTNB1 - Black glass
OS60NMTNG1 - Grey glass
4 Microwave (Available Q3, 2024)
OM60NMTNB1 - Black glass
OM60NMTNG1 - Grey glass
5 Coffee Maker
EB60MSB1- Black glass
EB60MSG1 - Grey glass
6 Vacuum Drawer
VB60SMB1-SET - Black glass
VB60SMG1-SET - Grey glass
7 Warming Drawer
WB60SMB1-SET - Black glass
WB60SMG1-SET - Grey glass
8 Warming Drawer Tall
WB60SMTB1-SET - Black glass
6
7
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
DESIGN CHOICES | CONFIGURATION CONSIDERATIONS
<< CONTENTS
© FISHER & PAyKEL LIMITED 2024 PAGE 790003353A PLANNING GUIDE COOKING - VERSION A - JANUARy 2024
SPECIFICATION GUIDE
OVEN & STEAM OVEN
Specification Guides
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 8PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024

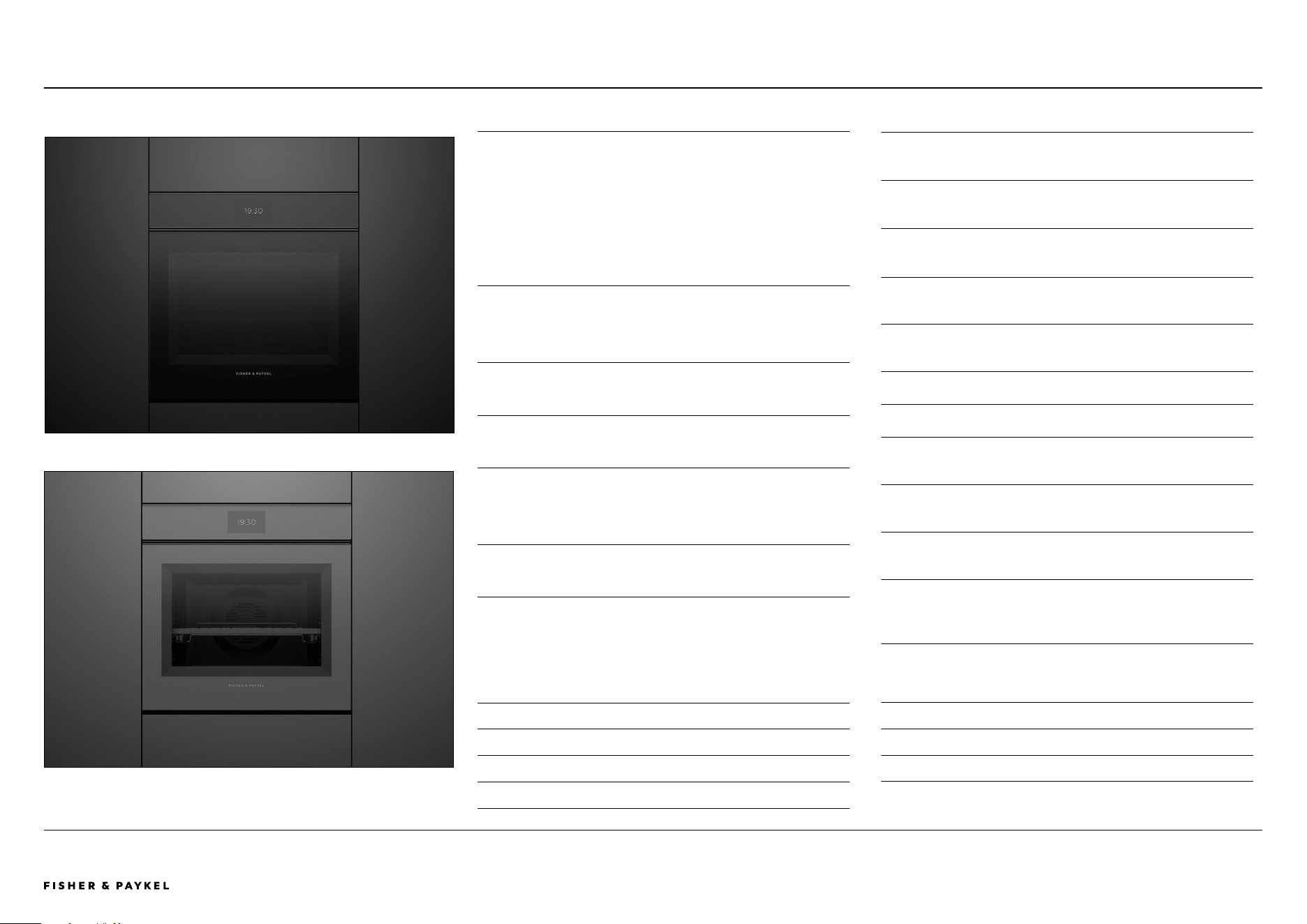

OVERVIEW
Designed to complement our Minimal style appliances, this
handleless oven oers a sleek, uninterrupted aesthetic that
moves beyond traditional oven doors. Perfect for true
handleless kitchen designs, it provides a streamlined look
and ensures a continuous flow across kitchen surfaces. With
a generous 85L capacity, 16 functions, and self-cleaning, its
guided touchscreen ensures perfect results with ease.
PRODUCTS
OB60SMPTNB1 - Black Glass
Oven, 60cm, 16 Function, Self-cleaning
OB60SMPTNG1 - Grey Glass
Oven, 60cm, 16 Function, Self-cleaning
FEATURES
1
Handleless oven design ensures smooth, uninterrupted
lines in kitchen cabinetry for a cohesive look
2 Designed to complement our Minimal style kitchen
appliances
3 Available in both elegant black glass and subtle grey glass
finishes
4 Designed to match companion products such as Warming
Drawers
5 Guided touchscreen cooking offers helpful tips for
different food types
6 Generous 85L total capacity
7 16 oven functions including Pastry Bake, Roast, and Air Fry
8 Self-cleaning pyrolytic function breaks down food residue
for an easy clean
9 Even heat circulation with AeroTech™, ideal for multi-shelf
cooking
"0 Includes a Wired Temperature Sensor for real-time
monitoring of cooking temperatures
"1 Voice-activated oven door provides hands-free control,
compatible with Google's voice assistant via the
SmartHQ™ appmonitoring of cooking temperatures*
*Not available in all markets
SPECIFICATION GUIDE | OVEN, 60CM
OB60SMPTNB1
OB60SMPTNG1
OB60SMPTNB1, OB60SMPTNG1
SERIES & STYLE
Series 11
Minimal
ACCESORIES
5
Step Down Wire Shelf
6 Wired Temperature Sensor
7 Unperforated Aluminium Baking Tray
ACCESORIES
1
2x Full Extension Sliding Shelves
2 Grill Rack
3 Smokeless Grill Tray
4 Roasting Dish
Oven OB60SMPTNB1, OB60SMPTNG1
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 9PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
SPECIFICATION GUIDE | STEAM OVEN, 60CM OS60SMTNB1 , OS60SMTNG1
OVERVIEW
The cornerstone of our collection, our handleless
Combination Steam Oven oers a sleek, uninterrupted
aesthetic that moves beyond traditional oven doors. Perfect
for true handleless kitchen designs, it provides a
streamlined look and ensures a continuous flow across
kitchen surfaces. With 23 functions and a sophisticated
balance of full steam and steam assist options at various
temperatures, this oven ensures perfect results.
PRODUCTS
OS60SMTNB1 - Black Glass
Combination Steam Oven, 60cm, 23 Function
OS60SMTNG1 - Grey Glass
Combination Steam Oven, 60cm, 23 Function
FEATURES
1
Handleless oven design ensures smooth, uninterrupted
lines in kitchen cabinetry for a cohesive look
2 Designed to complement our Minimal style kitchen
appliances
3 Available in both elegant black glass and subtle grey glass
finishes
4 Perfectly pairs with companion products such as Vacuum
Seal Drawers
5 Guided touchscreen cooking offers helpful tips for
different food types
6 True temperature precision with three levels of steam with
convection
7 23 oven functions including Steam, Sous Vide, Air Fry and
Crisp Regenerate
8 Help reduce food waste by rejuvenating leftovers with
steam for fresh-tasting roasts, and risottos and more
9 Even heat circulation with AeroTech™, ideal for multi-shelf
cooking
"0 Includes a Wired Temperature Sensor for real-time
monitoring of cooking temperatures
"1 Voice-activated oven door provides hands-free control,
compatible with Google's voice assistant via the
SmartHQ™ appmonitoring of cooking temperatures*
*Not available in all markets
SERIES & STYLE
Series 11
Minimal
ACCESORIES
9
Perforated Small Dish
"0 Roasting Dish
"1 Smokeless Grill Tray
"2 Wired Temperature Sensor
ACCESORIES
1
Chromed Shelf Runners
2 2x Descale Solutions
3 Flat Brushed Baking Tray
4 2x Full Extension Sliding Shelves
5 Grill Rack
6 Large Solid Dish
7 Step Down Wire Shelf
8 Perforated Large Dish
OS60SMTNB1
OS60SMTNG1
Steam Oven OS60SMTNB1, OS60SMTNG1
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 10PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
OB60SMPTNB1, OB60SMPTNG1, OS60SMTNB1, OS60SMTNG1SPECIFICATION GUIDE | OVEN & STEAM OVEN, 60CM
SPECIFICATIONS
Model No.
OB60SMPTNB1, OB60SMPTNG1,
OS60SMTNB1, OS60SMTNG1
Dimensions H 598mm W 596mm D 565mm
Weight
OB60SMPTNB1, OB60SMPTNG1
44kg (packaged)
OS60SMTNB1, OS60SMTNG1
65kg (packaged)
Total capacity 85L
Electrical
Supply 220 – 240 V, 50 Hz
Service 20 A

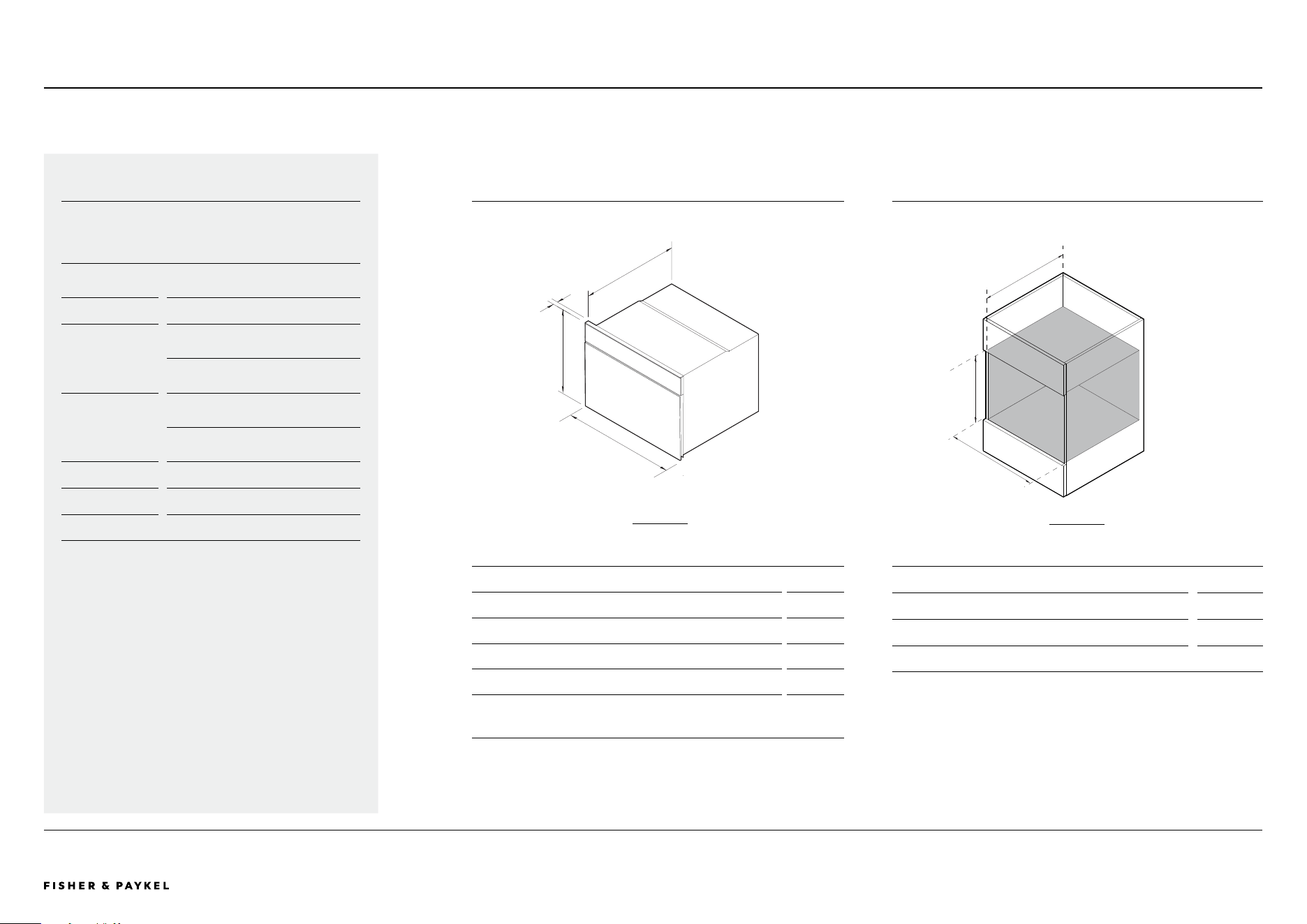

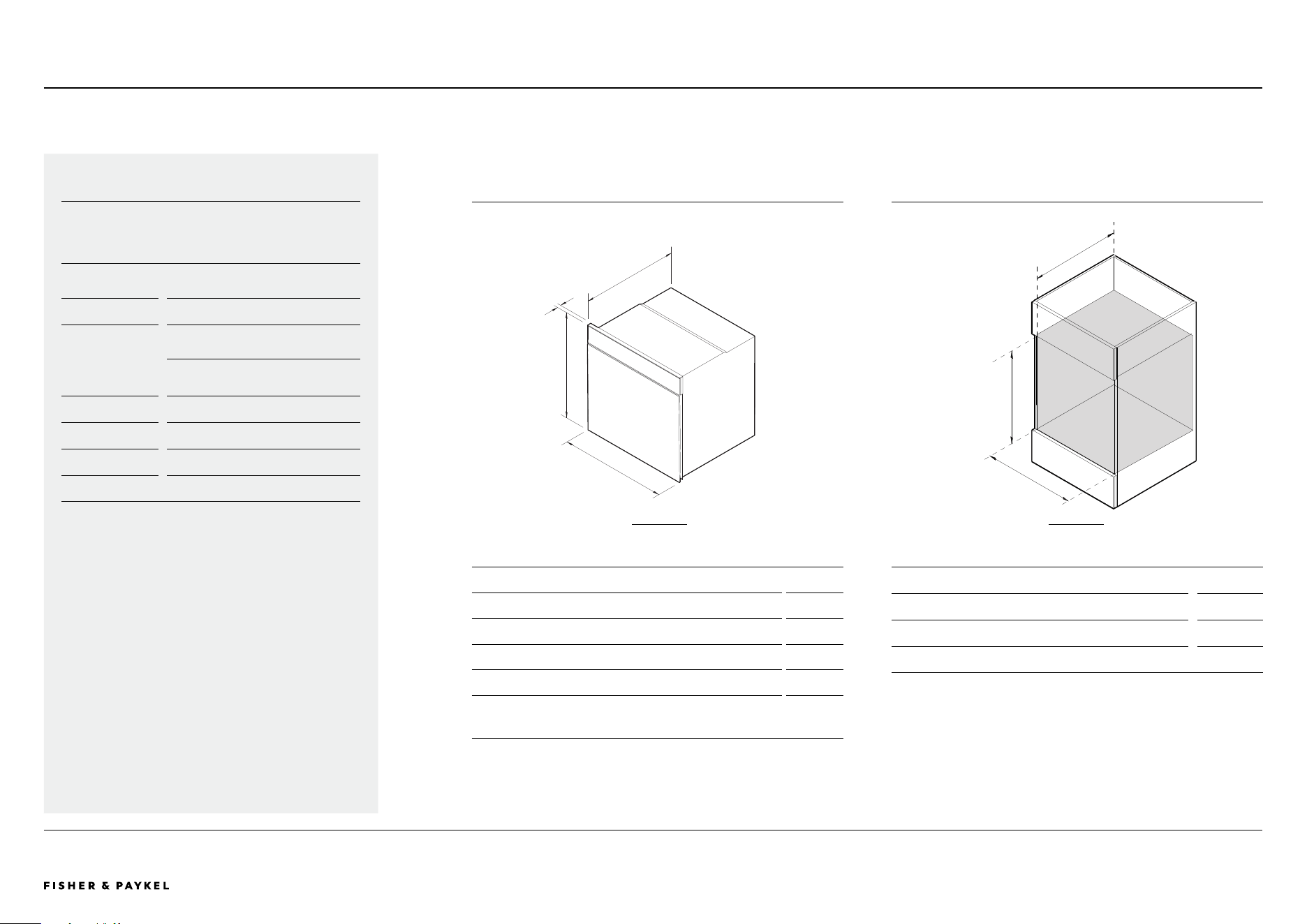

ISO VIEW
ISO VIEW

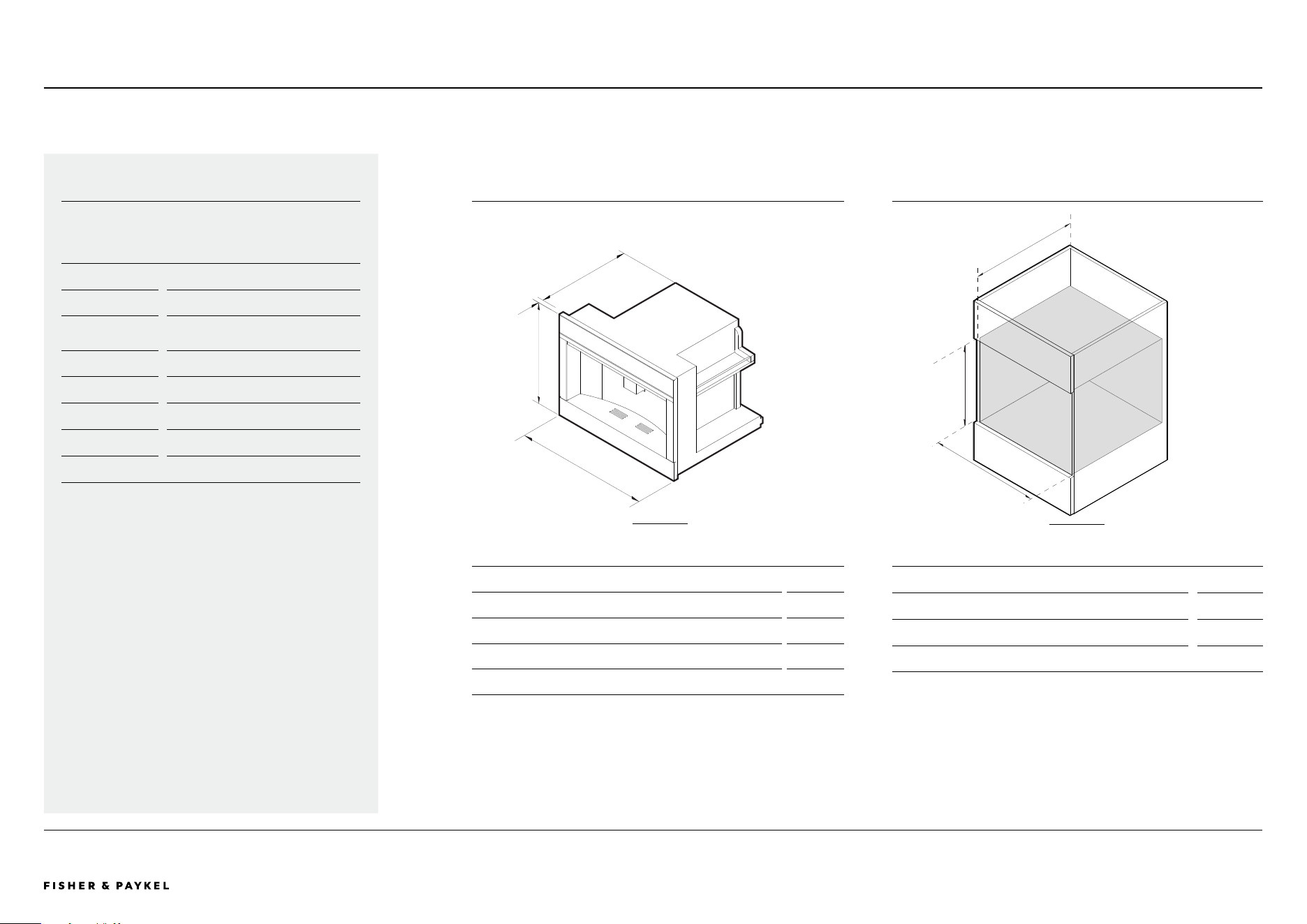

PRODUCT DIMENSIONS
mm
A Overall height 598
B Overall width 596
C Depth of chassis 545
D Depth from front frame (excludes dial and handle) 20
Depth of oven door when fully open (measured from
front of control panel)
460
CAVITY DIMENSIONS
mm
A Minimum inside height 580
B Minimum inside width 560
C Minimum inside depth 550
C
B
A
A
C
B
D
<< CONTENTS
© FISHER & PAyKEL LIMITED 2024 PAGE 1190003353A PLANNING GUIDE COOKING - VERSION A - JANUARy 2024
SPECIFICATION GUIDE
STEAM OVEN & MICROWAVE
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 12PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024

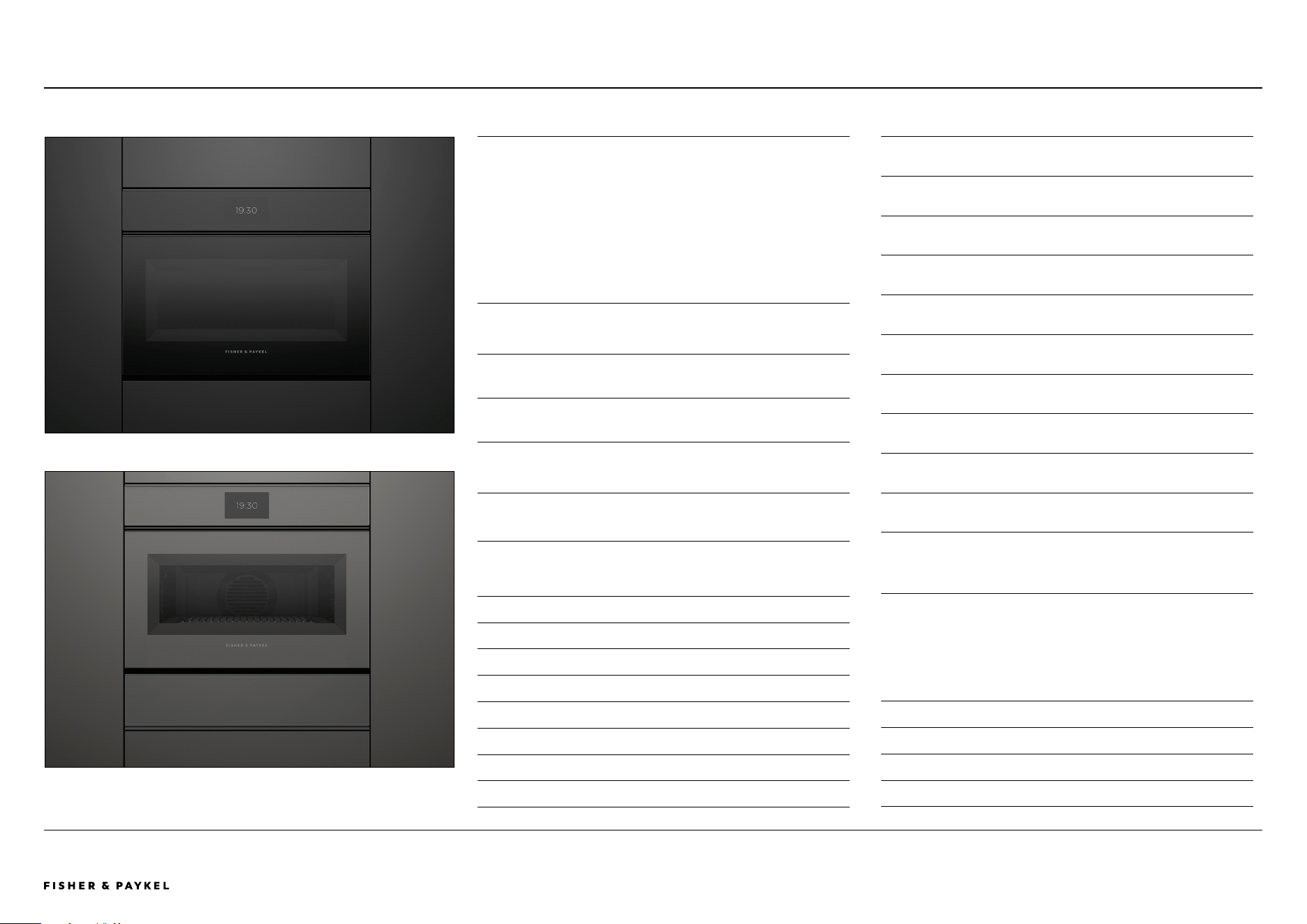

OVERVIEW
The cornerstone of our collection, our handleless
Combination Steam Oven oers a sleek, uninterrupted
aesthetic that moves beyond traditional oven doors. Perfect
for true handleless kitchen designs, it provides a
streamlined look and ensures a continuous flow across
kitchen surfaces. With 23 functions and a sophisticated
balance of full steam and steam assist options at various
temperatures, this oven ensures perfect results.
PRODUCTS
OS60NMTNB1 - Black Glass
Combination Steam Oven, 60cm, 23 Function
OS60NMTNG1 - Grey Glass
Combination Steam Oven, 60cm, 23 Function
FEATURES
1
Handleless oven design ensures smooth, uninterrupted
lines in kitchen cabinetry for a cohesive look
2 Designed to complement our Minimal style kitchen
appliances
3 Available in both elegant black glass and subtle grey glass
finishes
4 Perfectly pairs with companion products such as Vacuum
Seal Drawers
5 Guided touchscreen cooking offers helpful tips for
different food types
6 True temperature precision with three levels of steam with
convection
7 23 oven functions including Steam, Sous Vide, Air Fry and
Crisp Regenerate
8 Help reduce food waste by rejuvenating leftovers with
steam for fresh-tasting roasts, and risottos and more
9 Even heat circulation with AeroTech™, ideal for multi-shelf
cooking
"0 Includes a Wired Temperature Sensor for real-time
monitoring of cooking temperatures
"1 Voice-activated oven door provides hands-free control,
compatible with Google's voice assistant via the
SmartHQ™ appmonitoring of cooking temperatures*
*Not available in all markets
SPECIFICATION GUIDE | STEAM OVEN, 60CM OS60NMTNB1, OS60NMTNG1
SERIES & STYLE
Series 9
Minimal
Steam Oven OS60NMTNB1, OS60NMTNG1
ACCESORIES
9
Perforated Small Dish
"0 Roasting Dish
"1 Smokeless Grill Tray
"2 Wired Temperature Sensor
ACCESORIES
1
Chromed Shelf Runners
2 2x Descale Solutions
3 Flat Brushed Baking Tray
4 2x Full Extension Sliding Shelves
5 Grill Rack
6 Large Solid Dish
7 Step Down Wire Shelf
8 Perforated Large Dish
OS60NMTNB1
OS60NMTNG1
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 13PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
SPECIFICATION GUIDE | MICROWAVE, 60CM OM60NMTNB1, OM60NMTNG1

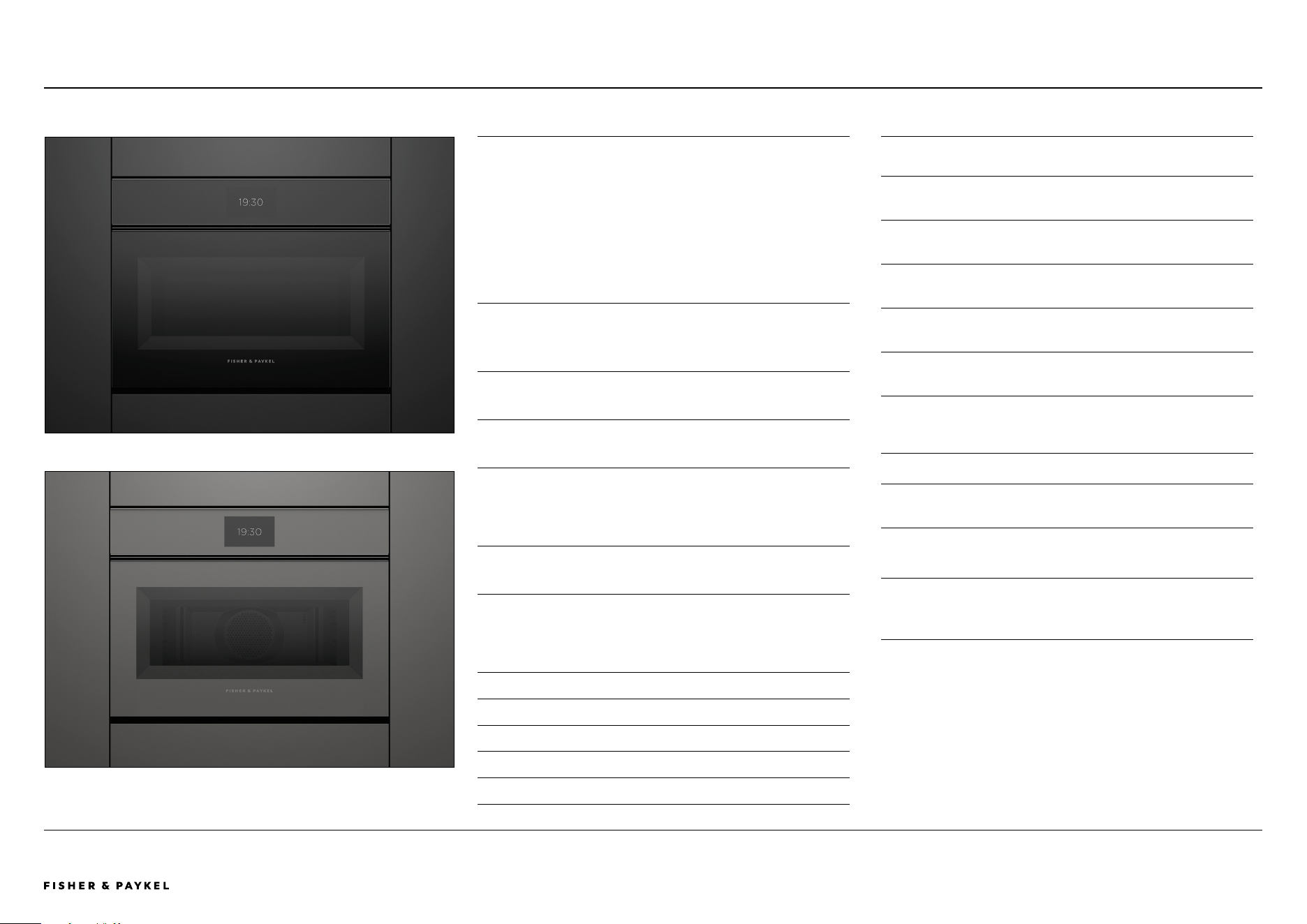

Microwave OM60NMTNB1, OM60NMTNG1
OVERVIEW
Experience the speed of microwave cooking with the
versatility of a convection oven in a compact companion
model. Designed to complement our Minimal style
appliances, this handleless microwave oven features a sleek,
seamless look that moves away from traditional oven door
designs. Its compact size and 49L capacity provide
convenient placement and ample space for a variety of
dishes, ensuring perfect results.
PRODUCTS
OM60NMTNB1 - Black Glass
Combination Microwave Oven, 60cm, 22 Function
OM60NMTNG1 - Grey Glass
Combination Microwave Oven, 60cm, 22 Function
FEATURES
1
Handleless oven design ensures smooth, uninterrupted
lines in kitchen cabinetry for a cohesive look
2 Compact 60cm width means this microwave oven can be
placed almost anywhere
3 Designed to complement our Minimal style kitchen
appliances
4 Available in both elegant black glass and subtle grey glass
finishes
5 Guided touchscreen cooking offers helpful tips for
different food types
6 22 functions, including four microwave-only, 14 traditional
oven, and four combination settings
7 Combi microwave versatility for quick, even heating across
a variety of dishes, ensuring perfect interior cooking with
crisp exteriors
8 Generous 49L capacity, with four shelf positions
9 CoolTouch door is safe to touch from the outside,
protecting hands and surrounding cabinetry
"0 Includes a Wired Temperature Sensor for real-time
monitoring of cooking temperatures
"1 Voice-activated oven door provides hands-free control,
compatible with Google's voice assistant via the
SmartHQ™ appmonitoring of cooking temperatures*
*Not available in all markets
SERIES & STYLE
Series 9
Minimal
ACCESORIES
1
Chromed Shelf Runners
2 Glass Tray
3 Step Down Wire Shelf
4 Wire Shelf
5 Wired Temperature Sensor
OM60NMTNB1
OM60NMTNG1
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 14PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
OM60NMTNB1, OM60NMTNG1, OS60NMTNB1, OS60NMTNG1SPECIFICATION GUIDE | STEAM OVENS & MICROWAVE , 60CM
SPECIFICATIONS
Model No.
OS60NMTNB1, OS60NMTNG1
OM60NMTNB1, OM60NMTNG
Dimensions H 458mm W 596mm D 565mm
Weight
OS60NMTNB1, OS60NMTNG1
52kg (packaged)
OM60NMTNB1, OM60NMTNG
46kg (packaged)
Total capacity
OS60NMTNB1, OS60NMTNG1
55L
OM60NMTNB1, OM60NMTNG
49L
Electrical
Supply 220 – 240 V, 50 Hz
Service 20 A
C
ISO VIEW
ISO VIEW
PRODUCT DIMENSIONS
mm
A Overall height 458
B Overall width 596
C Depth of chassis 545
D Depth from front frame (excludes dial and handle) 20
Depth of oven door when fully open (measured from
front of control panel)
320
CAVITY DIMENSIONS
mm
A Minimum inside height 440
B Minimum inside width 560
C Minimum inside depth 550
B
A
A
C
B
D
<< CONTENTS
© FISHER & PAyKEL LIMITED 2024 PAGE 1590003353A PLANNING GUIDE COOKING - VERSION A - JANUARy 2024
SPECIFICATION GUIDE
COFFEEMAKER
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 16PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
OVERVIEW
The Built-in Coee Maker features a stylish finish and can
be installed in multiple configurations to suit kitchen design
and preference. With 13 beverage options, our Coee Maker
is designed to consistently pour delicious coee – from Flat
White to Latte or Americano. Favourite coee can be
memorised and set to start at the same time each day, while
the conical burr grinder delivers a consistent grind for the
perfect coee.
PRODUCTS
EB60MSB1 - Black Glass
Coee Maker, 60cm
EB60MSG1 - Grey Glass
Coee Maker, 60cm
SPECIFICATION GUIDE | COFFEE MAKER, 60CM

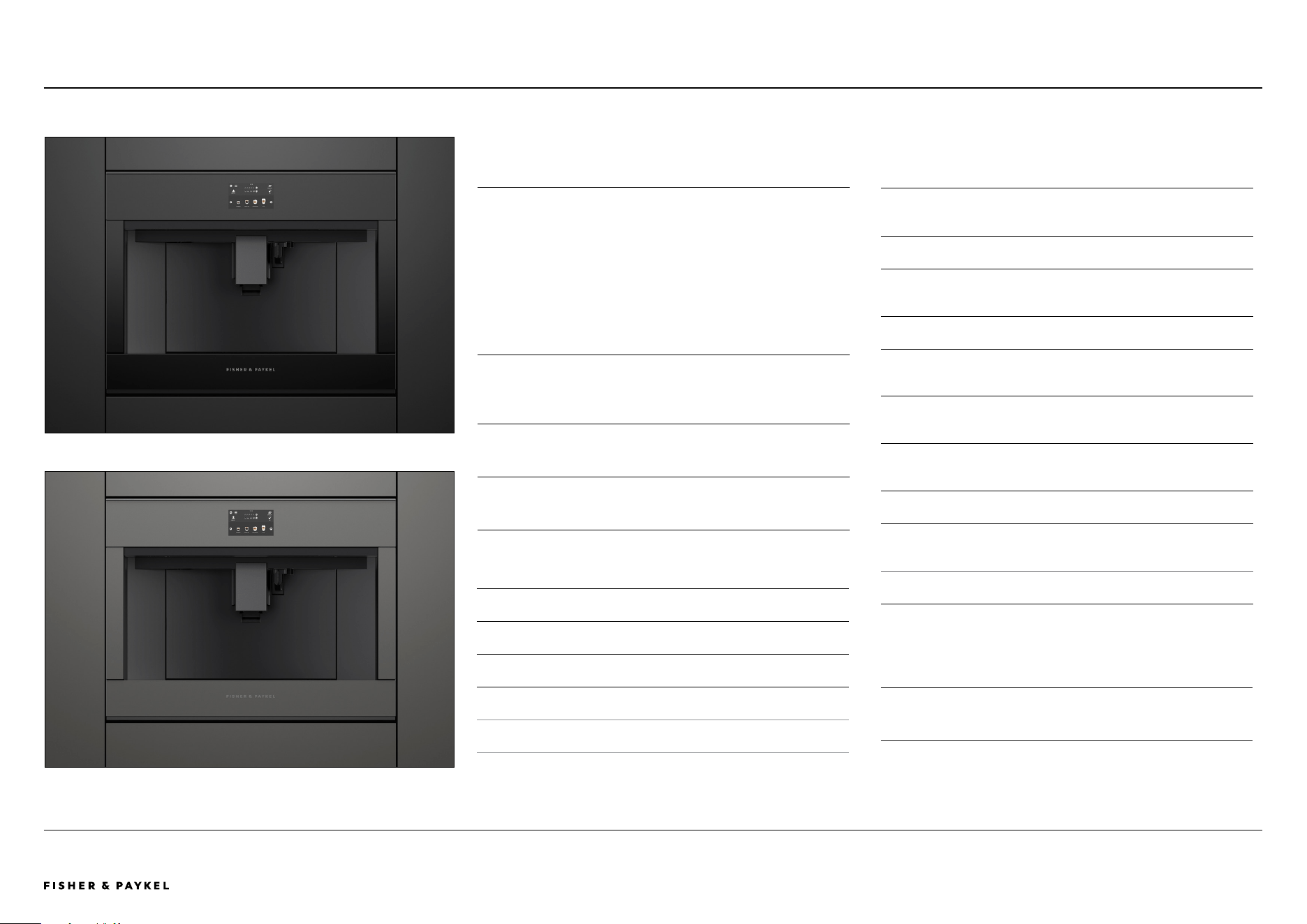

Coee Maker EB60MSB1, EB60MSG1

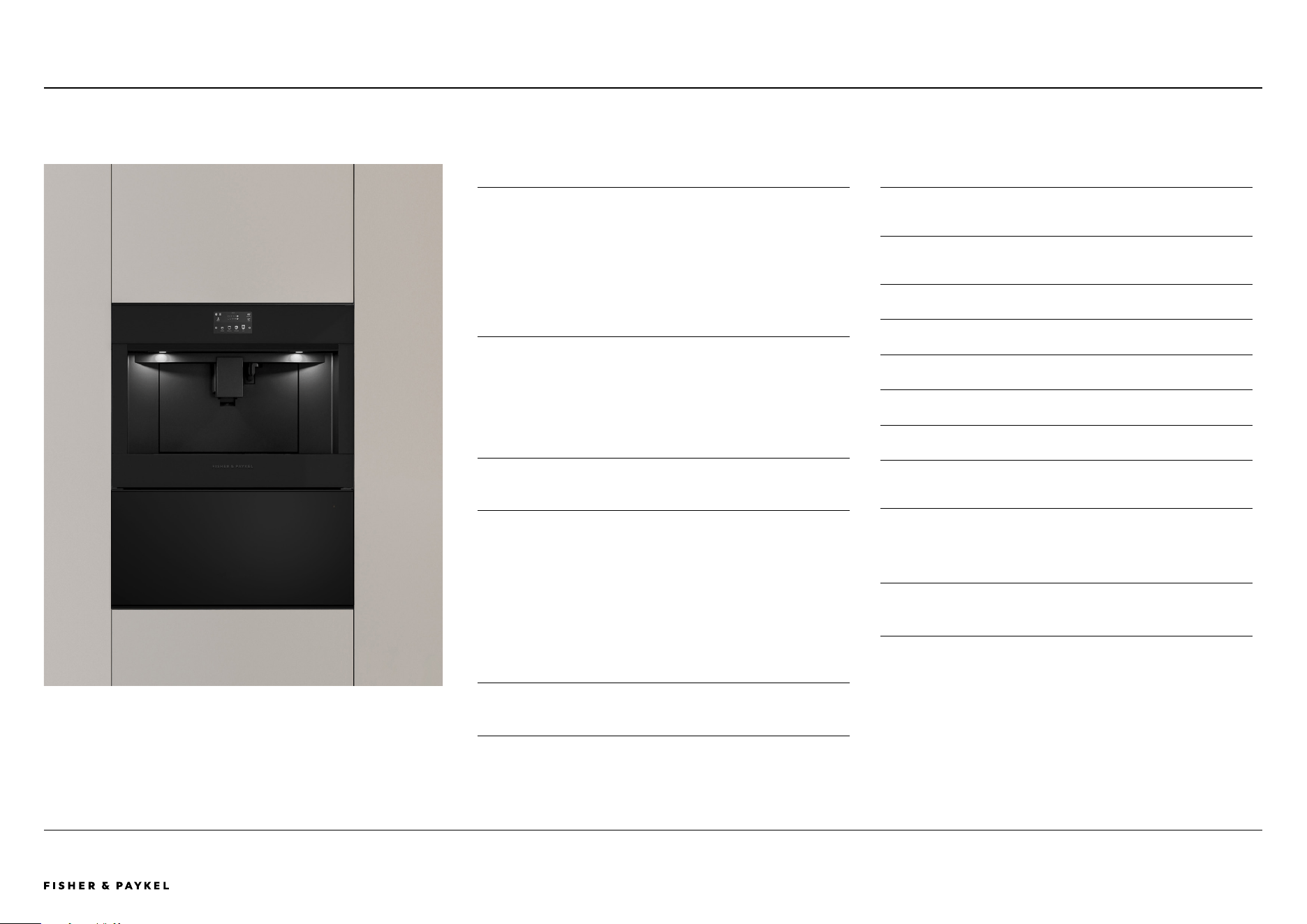

Coee Maker EB60MSB1, paired with Warming Drawer WB60SMB1-SET
Coee Maker EB60MSG1, paired with Warming Drawer WB60SMG1-SET
EB60MSB1, EB60MSG1
SERIES & STYLE
Series 9
Minimal
FEATURES
1
Designed to pair perfectly with 60cm ovens and
companion products
2 Stylish stainless steel finish
3 Install in multiple configurations to suit your kitchen
design
4 Intuitive touch display
5 13 functions to suit any taste and selection – from
Espresso to Latte
6 Personalised coffee and smart self-learning menu
preferences
7 Stainless steel conical burr grinder with 13 coarseness
positions
8 15 bar pump pressure
9 Self-cleaning function and easy to empty coffee grounds
container and drip tray
"0 2.4L water tank capacity
ACCESSORIES
1
Thermal milk jug (0.5L)
2 Water filter
3 Coffee spoon
4 Extractable steam outlet
5 Descaling agent bottle
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 17PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
EB60MSB1, EB60MSG1 SPECIFICATION GUIDE | COFFEE MAKER, 60CM
SPECIFICATIONS
Model No. EB60MSG1, EB60MSB1
Dimensions H 458mm W 596mm D 480mm
Total water tank
capacity
2.4L
Weight 29kg (unpackaged)
39kg (packaged)
Electrical
Supply 220 – 240 V, 50 Hz
Service 10 A
C
ISO VIEW
ISO VIEW
PRODUCT DIMENSIONS
mm
A Overall height 458
B Overall width 596
C Depth of chassis 460
D Depth from front frame (excludes dial and handle) 20
CAVITY DIMENSIONS
mm
A Minimum inside height 450
B Minimum inside width 560
C Minimum inside depth 545
B
A
A
C
B
<< CONTENTS
© FISHER & PAyKEL LIMITED 2024 PAGE 1890003353A PLANNING GUIDE COOKING - VERSION A - JANUARy 2024
SPECIFICATION GUIDE
WARMING & VACUUM SEAL DRAWER
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 19PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024

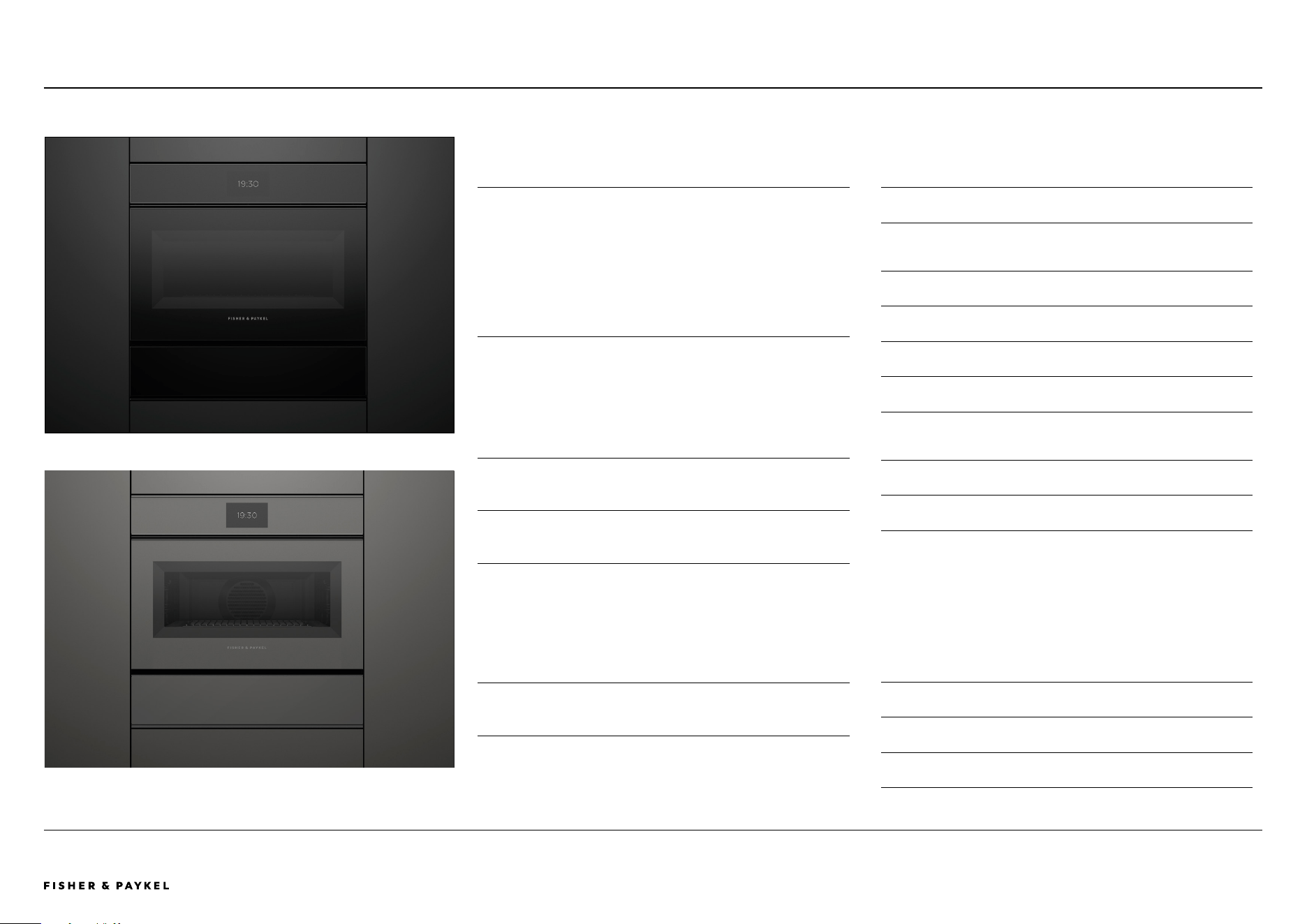

OVERVIEW
Designed to match our Minimal style appliances, the
Vacuum Seal Drawer is the ideal companion for our
Combination Steam Oven. Prepares food for sous vide
cooking, or vacuum sealing for marinating, food storage and
portioning and resealing. Beautiful to use, with capacitive
touch controls, these drawers deliver the performance to
achieve perfect results.
PRODUCTS
VB60SMB1-SET - Black Glass
Vacuum Seal Drawer, 60cm, Panel Ready*
WB60SMG1-SET - Grey Glass
Vacuum Seal Drawer, 60cm, Panel Ready*
*This model comes with an accessory door panel, and is not suitable for use
with a custom door panel
SPECIFICATION GUIDE | VACUUM SEAL DRAWER, 60CM
Vacuum Seal Drawer VB60SMB1-SET, VB60SMG1-SET
Vacuum Seal Drawer VB60SMB1-SET, paired with Steam Oven OS60NMTDB1
Vacuum Seal Drawer VB60SMG1-SET, paired with Coee Oven OS60NMTDG1
VB60SMB1-SET, VB60SMG1-SET
SERIES & STYLE
Series 9
Minimal
FEATURES
1
Styled to perfectly match our Minimal kitchen appliances
2 Seamless pairing with our Minimal style ovens and other
companion products
3 Push-to-open drawer
4 Three levels of vacuum and heat sealing
5 Easy-to-clean base
6 Easy-to-use capacitive touch controls
7 Vacuum sealing for easy food portioning, marinating,
storage and extended shelf life, or re-sealing
8 Effortless preparation for sous vide cooking
9 Maintenance and moisture indicator
ACCESSORIES
1 Accessory rack for optimising space*
2 Large BPA free vacuum seal bags (50 bags, part 793034)
3 Small BPA-free vacuum seal bags (50 bags, part 793033)
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 20PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
OVERVIEW
Designed to complement our Minimal style ovens, these
warming drawers are handle-free, and push-to-open for a
coherent, considered look. Beautiful to use, with capacitive
touch controls and six tailored functions for warming,
proofing, dehydrating and slow cook. Pair with other
companion products to create a kitchen suite for every
need.
PRODUCTS
WB60SMB1-SET - Black Glass
Warming Drawer, 60cm, Panel Ready*
WB60SMG1-SET - Grey Glass
Warming Drawer, 60cm, Panel Ready*
*This model comes with an accessory door panel, and is not suitable for use
with a custom door panel
SPECIFICATION GUIDE | WARMING DRAWER, 60CM
Warming Drawer WB60SMB1-SET, WB60SMG1-SET
Warming Drawer WB60SMB1-SET, paired with Coee Maker EB60MSB1
Warming Drawer WB60SMG1-SET, paired with Coee Maker EB60MSG1
WB60SMB1-SET, WB60SMG1-SET
SERIES & STYLE
Series 9
Minimal
FEATURES
1
Styled to perfectly match our Minimal kitchen appliances
2 Seamless pairing with our Minimal style ovens and other
companion products
3 Push-to-open drawer
4 Easy-to-use capacitive touch controls
5 Easy-to-clean, smooth-glass base
6 Room for six standard-sized place settings
7 Automatic timing, switch-off functionality
8 Interior LED lighting
9 Versatile with six tailored programmes for warming,
proofing, dehydrating and slow cook
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 21PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
WB60SMB1-SET, WB60SMG1-SET, VB60SMB1-SET, VB60SMG1-SET SPECIFICATION GUIDE | WARMING & VACUUM SEAL DRAWERS, 60CM

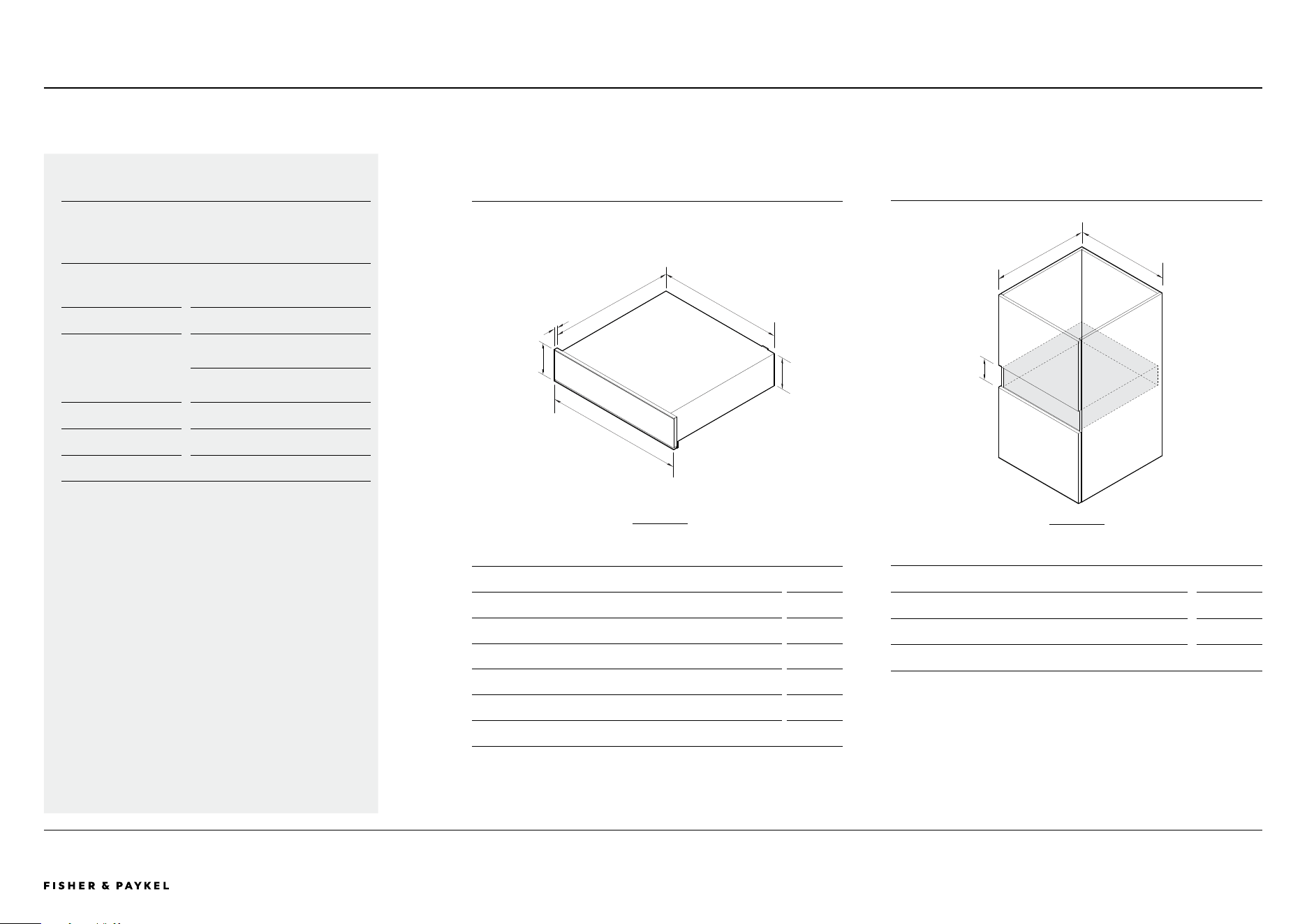

SPECIFICATIONS
Model No.
WB60SMB1-SET, WB60SMG1-SET
VB60SMB1-SET, VB60SMG1-SET
Dimensions H 140mm W 596mm D 567mm
Weight
WB60SMB1-SET, WB60SMG1-SET
22kg (packaged)
VB60SMB1-SET, VB60SMG1-SET
38kg (packaged)
Electrical
Supply 220 – 240 V, 50 Hz
Service 10 A
C
ISO VIEW
ISO VIEW
PRODUCT DIMENSIONS
mm
A Overall height 140
B Overall width 596
C Depth front panel 20
D Depth of chassis* 547
E Height of chassis 140
F Width of chassis 543
* Including power plug
NOTE: The drawer can fully support 60cm Fisher & Paykel wall oven, without
adding shelf in between.
CAVITY DIMENSIONS
mm
A Minimum inside height 142
B Minimum inside width 560
C Minimum inside depth 550
b
e
A
A
f
B
D
c
<< CONTENTS
© FISHER & PAyKEL LIMITED 2024 PAGE 2290003353A PLANNING GUIDE COOKING - VERSION A - JANUARy 2024
SPECIFICATION GUIDE
WARMING DRAWER TALL
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 23PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
OVERVIEW
Designed to complement our Minimal style ovens, these
warming drawers are handle-free, and push-to-open for a
coherent, considered look. Beautiful to use, with capacitive
touch controls and six tailored functions for warming,
proofing, dehydrating and slow cook. Pair with other
companion products to create a kitchen suite for every
need.
PRODUCTS
WB60SMTB1-SET - Black Glass
Warming Drawer Tall, 60cm, Panel Ready*
*This model comes with an accessory door panel, and is not suitable for use
with a custom door panel
SPECIFICATION GUIDE | WARMING DRAWER TALL, 60CM
Warming Drawer Tall WB60SMTB1
Warming Drawer WB60SMTB1-SET, paired with Coee Maker EB60MSB1
WB60SMTB1-SET
SERIES & STYLE
Series 9
Minimal
FEATURES
1
Styled to perfectly match our Minimal kitchen appliances
2 Seamless pairing with our Minimal style ovens and other
companion products
3 Push-to-open drawer
4 Easy-to-use capacitive touch controls
5 Automatic timing and switch-off functionality
6 Easy-to-clean, smooth-glass base
7 Room for 16 standard-sized place settings
8 Versatile with six tailored programmes for warming,
proofing, dehydrating and slow cook
ACCESSORIES
1 Accessory rack for optimising space
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
PAGE 24PLANNING GUIDE COOKING - VERSION A - JANUARy 202490003353A © FISHER & PAyKEL LIMITED 2024
WB60SMTB1-SETSPECIFICATION GUIDE | WARMING DRAWER TALL, 60CM

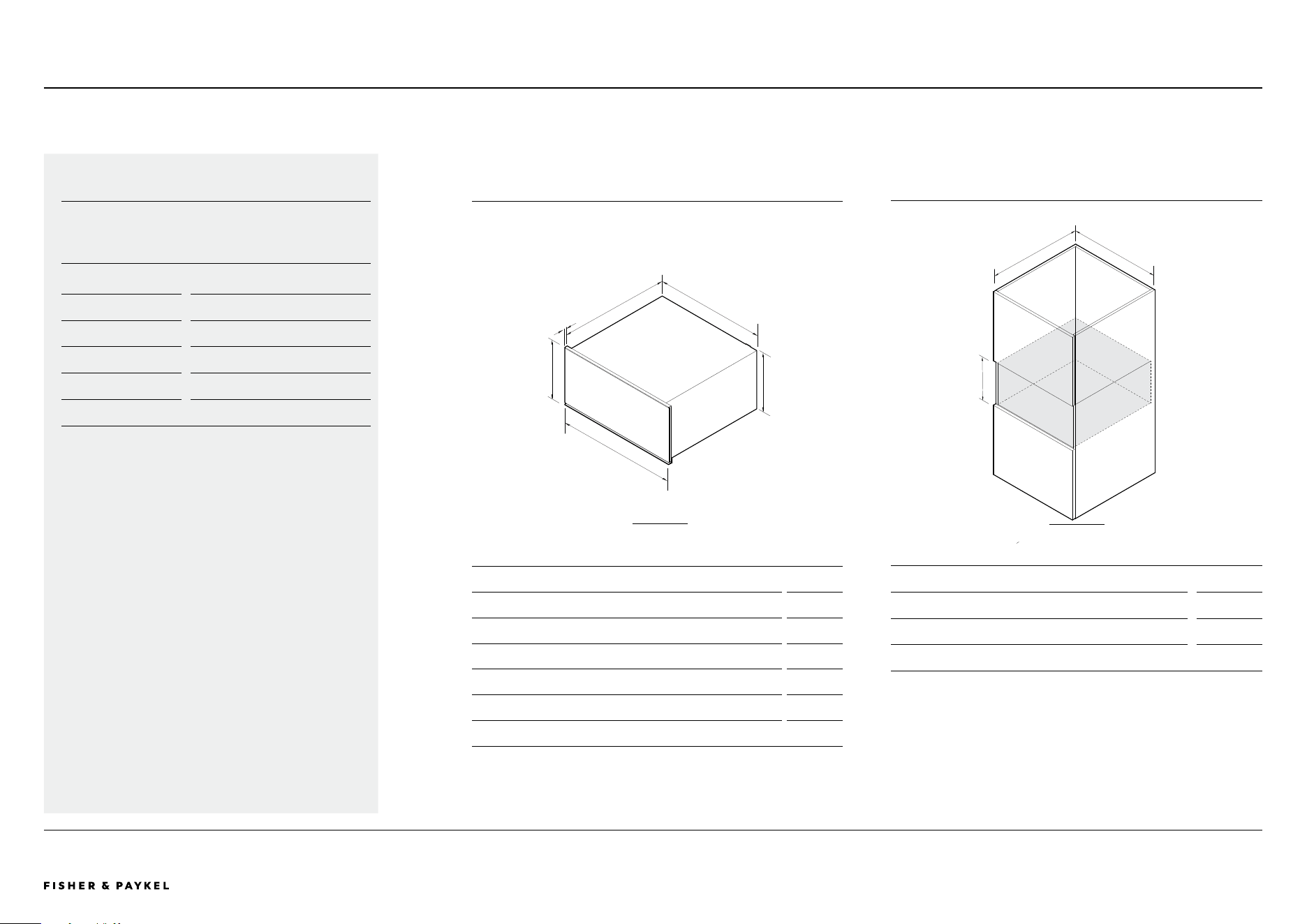

SPECIFICATIONS
Model No. WB60SMTB1-SET
Dimensions H 290mm W 596mm D 567mm
Weight 37kg (packaged)
Electrical
Supply 220 – 240 V, 50 Hz
Service 10 A
C
ISO VIEW
ISO VIEW
PRODUCT DIMENSIONS
mm
A Overall height 290
B Overall width 596
C Depth front panel 20
D Depth of chassis* 547
E Height of chassis 290
F Width of chassis 543
*Including power plug
NOTE: The drawer can fully support 60cm Fisher & Paykel wall oven, without
adding shelf in between.
CAVITY DIMENSIONS
mm
A Minimum inside height 292
B Minimum inside width 560
C Minimum inside depth 550
b
e
A
A
f
B
D
c
<< CONTENTS
© FISHER & PAyKEL LIMITED 2024 PAGE 2590003353A PLANNING GUIDE COOKING - VERSION A - JANUARy 2024
