TYRE INFLATOR WITH CLIP-ON CONNECTOR
MODEL NO: SA9302, SA9312
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
9 Disconnect the gauge from the air supply before changing accessories, servicing or performing any maintenance.
9 Maintain the gauge in good condition (use an authorised service agent), and keep the gauge clean for best and safest performance.
9 Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the
warranty.
9 Locate gauge in a suitable work area, keep area clean and tidy and free from unrelated materials and ensure there is adequate
lighting.
9 Keep children and unauthorised persons away from the work area.
8 DO NOT direct gauge outlet at yourself or at other persons or animals.
8 DO NOT carry by the hose, or yank the hose from the air supply.
8 DO NOT use the gauge for a task which it is not designed to perform.
8 DO NOT operate the gauge when you are tired or under the inuence of alcohol, drugs or intoxicating medication.
8 DO NOT operate gauge if parts are missing or the gauge is damaged, as this may cause failure and/or personal injury.
2. INTRODUCTION
Composite body and dial type gauge with rubber protector. Calibrated in bar and psi. Fitted with 500mm rubber hose and single clip-on
connector (SA9302), or a twin push-on connector (SA9312).
3. SPECIFICATION
Model No:.................................................. SA9302, SA9312
Inlet Size: .................................................................. 1/4”BSP
Maximum Air Supply: .......................................12bar(175psi)
Minimum Air Supply: ................................................... 145psi
Range: .......................................................0-10bar(0-145psi)
4. INSTALLATION
4.0.1. AIR SUPPLY - MAXIMUM PRESSURE 12bar (175psi)
4.1. The supply must be clean and dry - use a suitable lter/water trap if necessary. The supply pressure at the gauge inlet should ideally
be 10bar (145psi).
NOTE: Maximum tyre ination pressure cannot exceed the supply pressure.
Refer to
instruction
manual

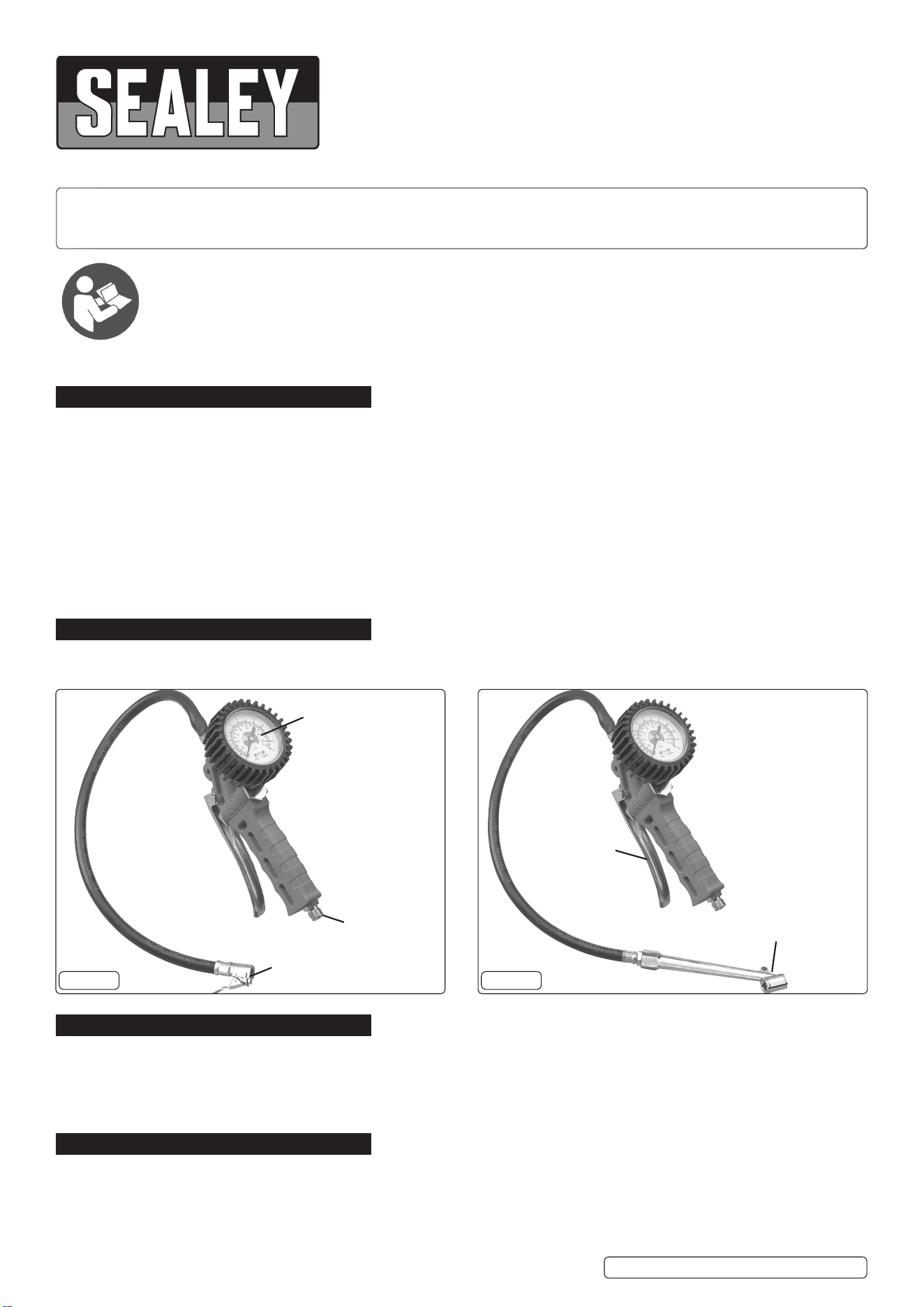

Gauge
Clip-on Connector
1/4” BSP Male
SA9302
Operating Lever
Twin Push-on Connector
SA9302
SA9302, SA9312 Issue 2 (H,F) 10/05/23
Original Language Version
© Jack Sealey Limited
5. OPERATION
5.1. ATTACH ADAPTOR TO VALVE
5.1.1. SA9312 - Push and hold the connector onto the tyre valve using the most convenient side of the twin valve connector.
5.1.2. SA9302 - squeeze the thumb clip on the connector, push the connector onto the tyre valve and release the clip.
5.2. TO INFLATE
5.2.1. Depress the operation lever fully, then release to display tyre pressure.
5.2.2. When reading the pressure, hold the gauge at with respect to the eye to minimise error.
5.2.3. Fully depress operation lever for an appropriate period. Avoid over ination by releasing the lever frequently to check the pressure.
5.3. TO DEFLATE
5.3.1. Depress lever half-way (until air can be heard escaping) for an appropriate period.
5.3.2. Fully depress lever momentarily then release to display new pressure.
IMPORTANT - ALWAYS FULLY DEPRESS LEVER MOMENTARILY BEFORE READING TYRE PRESSURE.
6. MAINTENANCE.
6.1. PERIODIC CHECKS AND MAINTENANCE
6.1.1. For long service and accuracy, the following actions should be carried out at the recommended intervals.
6.2. CHECK OPERATION (WEEKLY)
6.2.1. The gauge should be checked weekly for correct operation.
6.2.2. Look for smooth lever operation and fast, smooth gauge movements.
6.2.3. Check for leaks from tyre connector seals, and for chang or wear of the exible hoses.
6.2.4. Any problems should be immediately rectied.
6.3. CHECK CALIBRATION (QUARTERLY)
6.3.1. We recommend the accuracy of the gauge be checked against a calibrated ‘master’ gauge every 3 months, or at shorter intervals
depending on operator’s own quality procedures.
.
