PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
Features:
• Loudspeaker PA System One
• Rugged, Durable & Reliable Sound
• Wireless BT Streaming Ability
• Wireless BT Music Streaming Ability
• Speaker System: 1x10'' Subwoofer, 2x4” Full Arrange Driver
• Built-in Digital Audio Amplier
• 4 Band DSP Presets to t your requirements: Flat, Live, Dj, Speech
• 2 × XLR/F ¼'' -inch Combo (MIC/Line Input)
• RCA (R+L) Input, XLR (R+L) Output, SpeakOn (R+L) Sat Out
• Connect & Stream Audio from External Devices
• USB Flash Drive & SD Memory Card Readers
• Digital LCD Display
• Rear Panel Rotary Dial & Button Control Center
• SUB Volume, L/R Volume
• Integrated Carry Handles
Wireless BT Streaming:
• Instantly Stream Music from Your BT Devices
• Works with All Your Favorite BT Devices
(iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
• Wireless BT Version: 5.0
• Wireless BT Range: 100'+ Feet
• Wireless BT Network Name: 'Pyle'
What's in the Box:
• Wooden Column Speaker System
• Remote Control
• Power Cable
• (2) SpeakOn Cable
Subwoofer Specs:
• Size: 10'' -inch
• Impendence: 4 Ohm
• Magnet: 50 oz.
• Voice Coil: 60.6mm, 2.5'' -inch
• Sensitivity: 93dB
• Frequency Response: 45Hz - 200Hz
Driver Specs:
• Speaker: 4'' -inch
• Impendence: 16 Ohm
• Sensitivity: 90dB
• Voice Coil: Kapton
• Frequency Response: 200Hz-20kHz
Technical Specs:
• Max Power Output: 1880 Watt
• RMS Power Output: 470 Watt
• Amplier Class: D
• Digital Audio File Compatibility: MP3, WMA
• Maximum SD/USB Flash Memory Support: 32GB
• T.H.D.: 1%
• Crossover Frequency: 200Hz
• Voltage: 100-120V AC 60HZ
• Active Subwoofer Dimensions (L x W x H): 12.6’’ x 18.1’’ x 16.93’’ -inches
• Passive Line Array Dimensions (L x W x H): 5.91’’ x 6.7’’ x 6.3’’ -inches
www.PyleUSA.com
2
www.PyleUSA.com
3
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
Features:
• Loudspeaker PA System One
• Rugged, Durable & Reliable Sound
• Wireless BT Streaming Ability
• Wireless BT Music Streaming Ability
• Speaker System: 1x10'' Subwoofer, 2x4” Full Arrange Driver
• Built-in Digital Audio Amplier
• 4 Band DSP Presets to t your requirements: Flat, Live, Dj, Speech
• 2 × XLR/F ¼'' -inch Combo (MIC/Line Input)
• RCA (R+L) Input, XLR (R+L) Output, SpeakOn (R+L) Sat Out
• Connect & Stream Audio from External Devices
• USB Flash Drive & SD Memory Card Readers
• Digital LCD Display
• Rear Panel Rotary Dial & Button Control Center
• SUB Volume, L/R Volume
• Integrated Carry Handles
Wireless BT Streaming:
• Instantly Stream Music from Your BT Devices
• Works with All Your Favorite BT Devices
(iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
• Wireless BT Version: 5.0
• Wireless BT Range: 100'+ Feet
• Wireless BT Network Name: 'Pyle'
What's in the Box:
• Wooden Column Speaker System
• Remote Control
• Power Cable
• (2) SpeakOn Cable
Subwoofer Specs:
• Size: 10'' -inch
• Impendence: 4 Ohm
• Magnet: 50 oz.
• Voice Coil: 60.6mm, 2.5'' -inch
• Sensitivity: 93dB
• Frequency Response: 45Hz - 200Hz
Driver Specs:
• Speaker: 4'' -inch
• Impendence: 16 Ohm
• Sensitivity: 90dB
• Voice Coil: Kapton
• Frequency Response: 200Hz-20kHz
Technical Specs:
• Max Power Output: 1880 Watt
• RMS Power Output: 470 Watt
• Amplier Class: D
• Digital Audio File Compatibility: MP3, WMA
• Maximum SD/USB Flash Memory Support: 32GB
• T.H.D.: 1%
• Crossover Frequency: 200Hz
• Voltage: 100-120V AC 60HZ
• Active Subwoofer Dimensions (L x W x H): 12.6’’ x 18.1’’ x 16.93’’ -inches
• Passive Line Array Dimensions (L x W x H): 5.91’’ x 6.7’’ x 6.3’’ -inches
www.PyleUSA.com
4
www.PyleUSA.com
5

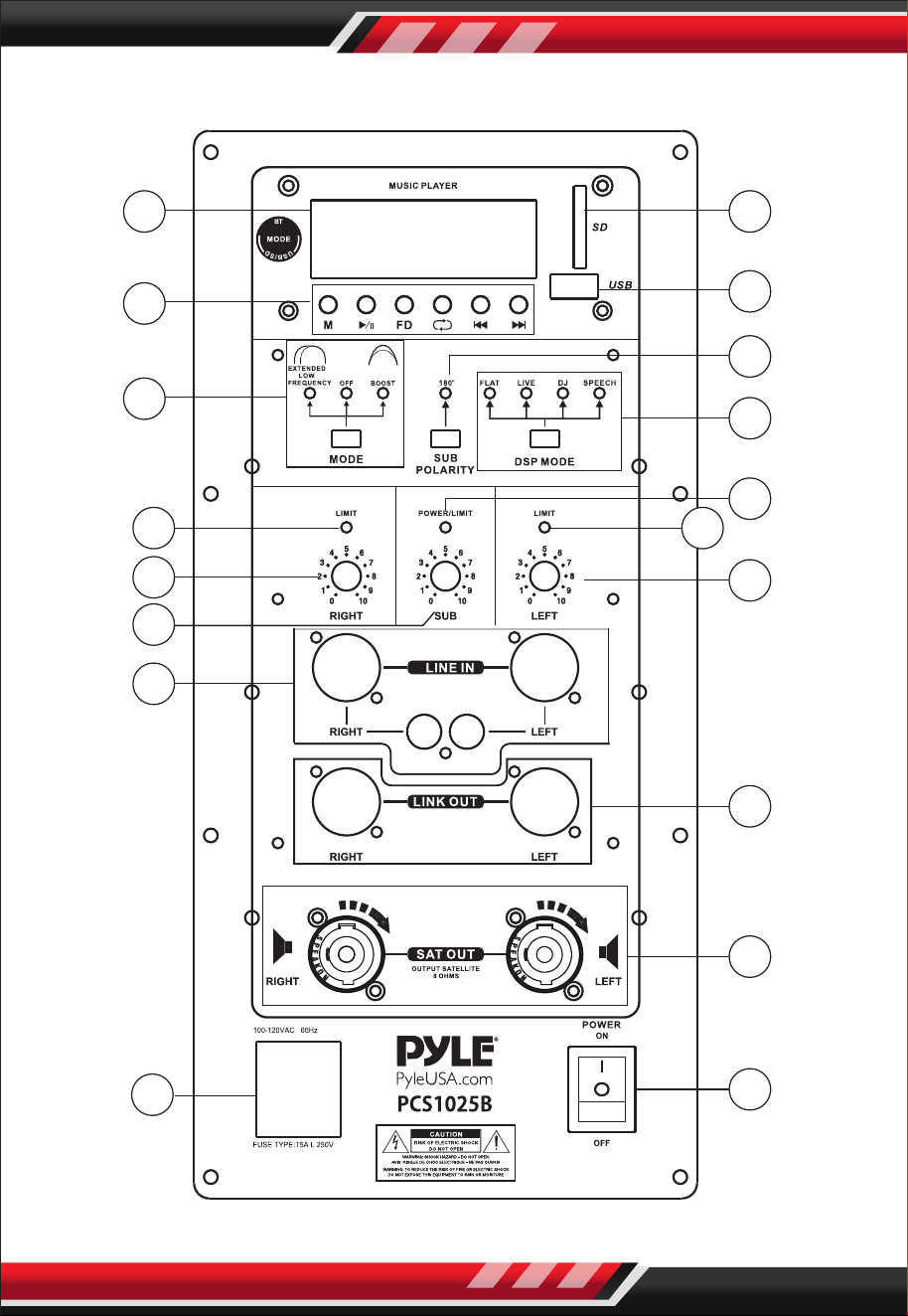

Function Description
1. LCD screen
2. MP3 control
M: USB/SD/BT/convertor
: Play/Pause
FD: FOLDER
: Repeat one / Repeat all / Random
: Previous song
: Next song
3. SD card input
4. USB input
5. Model Sheft of LP extend/ Through/Bass indicator indicated by three
dierent LED light
6. Phase Indicator: When light is o, it indicates that the phase is through
7. DSP MODE
8. Subwoofer Limit LED indicator
9. Left Limit LED indicator
10. Left Volume Control
11. Right Limit LED indicator
12. Right Volume Control
13. Subwoofer Volume Control
14. Right and left channel input Combo socket
RCA line inputs (R+L)
15. Right and left channel output Combo socket
16. Right and left channel speaker out
17. Main power switch (ON/OFF)
18. Fused LEC mains inlet
Function Description
2
1
4
3
5
6
7
10
8
11
12
13
14
15
16
17
18
9
www.PyleUSA.com
4
www.PyleUSA.com
5
Function Description
1. LCD screen
2. MP3 control
M: USB/SD/BT/convertor
: Play/Pause
FD: FOLDER
: Repeat one / Repeat all / Random
: Previous song
: Next song
3. SD card input
4. USB input
5. Model Sheft of LP extend/ Through/Bass indicator indicated by three
dierent LED light
6. Phase Indicator: When light is o, it indicates that the phase is through
7. DSP MODE
8. Subwoofer Limit LED indicator
9. Left Limit LED indicator
10. Left Volume Control
11. Right Limit LED indicator
12. Right Volume Control
13. Subwoofer Volume Control
14. Right and left channel input Combo socket
RCA line inputs (R+L)
15. Right and left channel output Combo socket
16. Right and left channel speaker out
17. Main power switch (ON/OFF)
18. Fused LEC mains inlet
Function Description
2
1
4
3
5
6
7
10
8
11
12
13
14
15
16
17
18
9
