Important notes for users in the U.K.
Mains plug
This apparatus is fitted with an approved 13 Amp plug. To change a
fuse in this type of plug proceed as follows:
1. Remove fuse cover and fuse.
2. Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI
approved type.
3. Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be
cut off and an appropriate plug fitted in its place. If the mains plug
contains a fuse, this should have a value of 5 Amp. If a plug without
a fuse is used, the fuse at the distribution board should not be grea-
ter than 5 Amp.
Note: The severed plug must be disposed of to avoid a possible
shock hazard should it be inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with the following code:
blue = neutral (N), brown = live (L). As these colours may not
correspond with the colour markings identifying the terminals in your
plug, proceed as follows:
• Connect the blue wire to the terminal marked N or coloured black.
• Connect the brown wire to the terminal marked L or coloured red.
• Do not connect either wire to the earth terminal in the plug,
marked E (or e) or coloured green (or green and yellow).
Before replacing the plug cover, make certain that the cord grip is
clamped over the sheath of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may require consent. See
Copyright Act 1956 and The Performer’s Protection Acts 1958 to
1972.
English

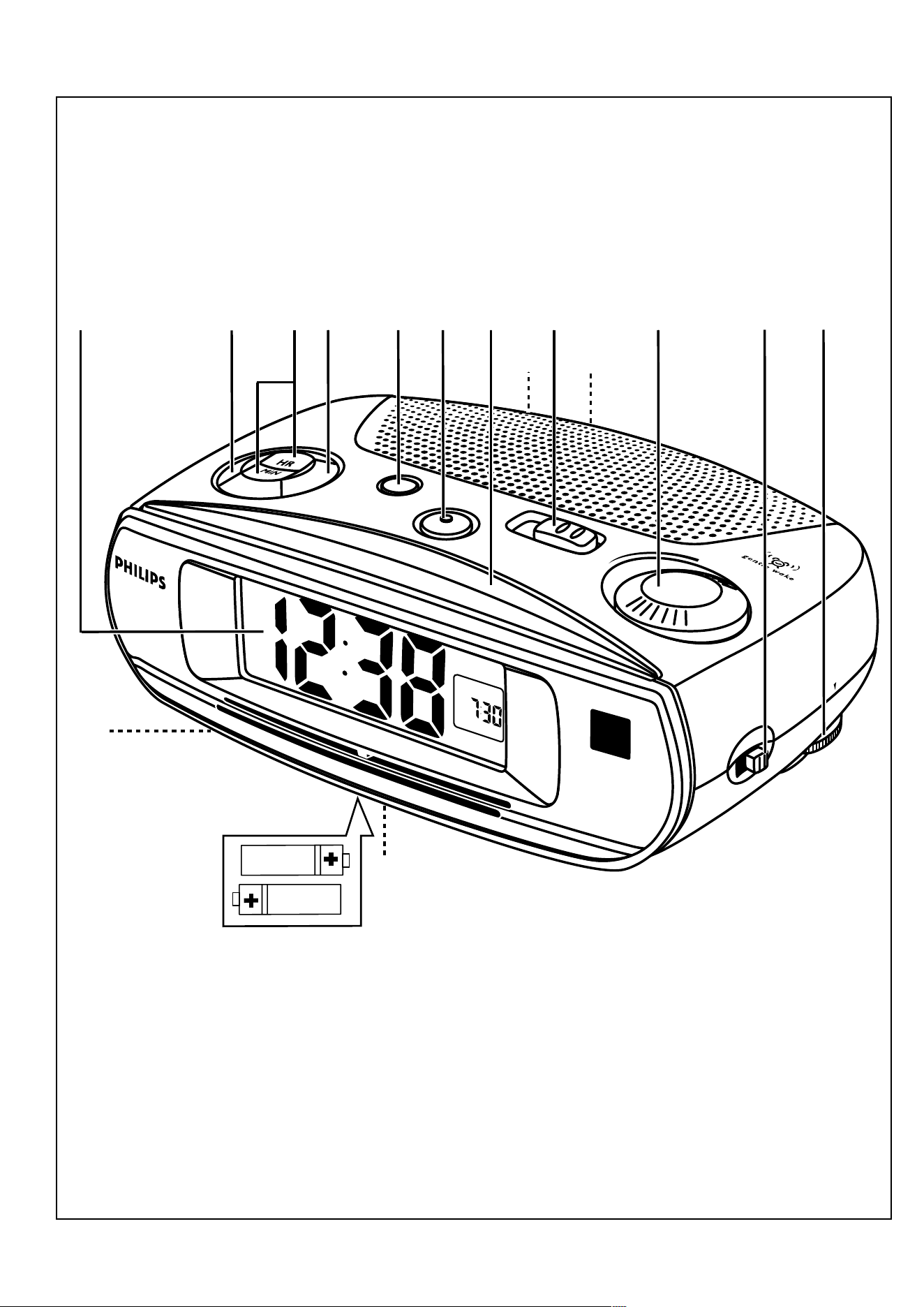

CONTROLS
1
Display - shows the clock / alarm (small display) times and status of the set
2
TIME SET - to set the clock time
3
HR, MIN - to adjust the hours (HR) and minutes (MIN) for clock /alarm times
4
ALARM SET - to set the alarm time
5
SLEEP / RADIO ON - to activate sleep mode and adjust the sleep time
- to switch on the radio
6 ALARM RESET/ RADIO OFF
- to stop the active alarm for 24 hours
- to stop RADIO / SLEEP function
7
REPEAT ALARM /
BRIGHTNESS CONTROL
- to switch off the alarm for a 8 - 9 minute period
- to change the brightness of the display illumination
- to stop SLEEP function
8 ALARM - to select alarm mode OFF / RADIO / BUZZER
9
VOLUME - to adjust the sound level
0
BAND - to select FM-MW (or LW) waveband
!
TUNING - to tune to radio stations
@
Pigtail aerial - to improve FM reception
#
Mains cord - for AC mains supply
$
RESET - press if the set does not react to operation of any button
%
Battery compartment - for backup batteries
The type plate and the production number are located on the bottom of
the set.
INSTALLATION
POWER SUPPLY AND DEMO MODE
1
Check if the mains voltage, shown on the type plate on the bottom of the
set, corresponds to your local mains supply. If it does not, consult your dealer
or service centre.
2
Connect the mains plug into the wall socket. The mains supply is now
switched on and the display will show the PHILIPS demo mode.
➟
PH..IL..IPS scrolls across the display continuously.
•
Press the TIME SET to exit the demo mode and enter time setting mode.
Helpful Hint :
If power breakdown backup batteries are inserted, the display will also show the
PHILIPS demo mode.
3
To disconnect the set completely from the mains supply, withdraw the mains
plug from the wall socket.
POWER BREAKDOWN BACKUP
When the mains power fail, the complete clock radio will be switched off. When
the mains supply returns, the display will show the PHILIPS demo mode and the
correct clock time has to be set again.
To retain the clock time and the set alarm time in the event of an AC mains failure or
disconnection, insert two 1.5V batteries, type R06, UM3 or AA size (not supplied)
into the battery compartment: this will act as a power backup to retain the clock and
alarm times only. (Operation of the backlight illumination, alarm and radio are
excluded).
1
Open the battery door to insert batteries as indicated by the + and – symbols
inside the battery compartment. Close the battery door.
2
Connect the mains plug to the wall socket.
•
Replace the batteries once a year, or as often as necessary.
•
Old and new or different types of batteries should not be used in combination.
Batteries contain chemical substances, so they should be disposed of properly.
BASIC FEATURES
ILLUMINATION BRIGHTNESS
Press
REPEAT ALARM /
BRIGHTNESS CONTROL
once or more.
™ The brightness of the display will change in this sequence:
BRIGHT
➟
DIM
➟
BRIGHT...
Helpful Hint :
When an alarm or the SLEEP function is active, brightness cannot be adjusted.
SETTING THE CLOCK
The time is displayed using the 24 hour clock.
1
Press TIME SET for more than 2 seconds to enter time setting mode.
™ Time displays and flash.
2
Press HR or MIN repeatedly or hold down on the button to adjust the hours
and minutes respectively. Release HR or MIN when you reach the correct
setting.
3
After you have set both the hours and minutes, press TIME SET to confirm
the correct setting.
™ Clock time also starts to run automatically after 60 seconds after you adjust
the time.
Helpful Hint :
Press ALARM SET during time setting will switch to alarm setting mode.
RADIO
1
Press SLEEP / RADIO ON once to switch on the radio.
2
Select your waveband using the BAND switch.
3
Use TUNING to find your radio station.
4
Adjust the sound using VOLUME.
5
Press ALARM RESET / RADIO OFF to switch off.
To improve reception:
FM: extend and position the pigtail aerial to obtain optimum reception.
MW (or LW): uses a built-in antenna inside the set. Direct the antenna by adjusting
the position of your set.
SETTING THE ALARM
General
If you wish to use the alarm, first set the alarm time. There is a choice of two
alarm modes, buzzer or radio. The alarm display shows the alarm time all the time
and the alarm indicator appears if the alarm is set.
Setting the alarm time and mode
1
Press ALARM SET for more than 2 seconds to enter alarm time setting
mode.
™ ALARM and the alarm time digits flash.
2
Press HR or MIN repeatedly or hold down on the button to adjust the hours and
minutes respectively. Release HR or MIN when you reach the correct setting.
3
Press ALARM SET to confirm alarm time setting.
Helpful Hint :
– If you press TIME SET when setting the alarm time, the display switches to the
time setting mode.
– It is not possible to adjust the alarm time when the alarm goes off, or when the
repeat alarm mode is active.
4
To select the alarm mode you wish to be awoken by, set the ALARM switch
to RADIO or BUZZER (
m
) or (
)
appears respectively.
•
If you have selected the radio mode, make sure you have adjusted the volume
loud enough to wake you up!
™ The gentle wake buzzer alarm increases its beep tone frequency within seconds.
SWITCHING OFF THE ALARM
There are three ways of switching off the alarm. Unless you cancel the alarm
completely, the 24 hour alarm reset option will be automatically selected after
59 minutes, from the time your alarm time first goes off.
24 HOUR ALARM RESET
If you want the alarm mode to be stopped immediately but also wish to retain the
same alarm setting for the following day:
•
Press ALARM RESET / RADIO OFF.
™ You will hear a beep tone confirming 24 hour reset activation. The respective alarm
indicator remains in display.
CANCELING THE ALARM COMPLETELY
To cancel the set alarm time before it goes off, or during the alarm call:
•
Set the ALARM switch to OFF.
™ The selected alarm indicator disappears from the display.
REPEAT ALARM
This repeats your alarm call at 8 to 9 minute intervals.
1
During the alarm call,
press REPEAT ALARM /
BRIGHTNESS CONTROL
.
™ The selected alarm indicator flashing during a repeat alarm.
2
Repeat if desired.
SLEEP
About SLEEP
This set has a built-in sleep timer which enables the set to be automatically switched
off during radio playback after a set period of time. There are four sleep times before
the set turns itself off: 60, 30, 15 minutes and off.
Setting SLEEP
1
Press SLEEP / RADIO ON to switch on the radio.
2
Within 1 second, press SLEEP / RADIO ON again once or more to select
your sleep time.
™ Display shows in sequence: SLEEP and the sleep period time options: SL : 60,
SL : 30, SL : 15 and OFF.
3
To cancel sleep, press either:
– ALARM RESET / RADIO OFF
–
REPEAT ALARM /
BRIGHTNESS CONTROL
–
SLEEP / RADIO ON once or more until SLEEP disappears from the
display.
ENVIROMENTAL INFORMATION
We have reduced packaging to the minimum for easy separation into two mono-
materials: cardboard (box), polyethylene (bags, protective foam). Your set consists
of materials which can be recycled if disassembled by a specialized company.
Please observe local regulations on the disposal of packing materials and old
equipment.
Display error/ no reaction to any controls
MAINTENANCE
•
If you do not intend to use the set for a long time, withdraw the mains plug
from the wall socket. and remove the batteries.
•
Do not expose the set to humidity, rain, sand or excessive heat caused by
heating equipment or direct sunlight.
•
To clean the set, use a soft, slightly dampened chamois leather. Do not use
any cleaning agents containing alcohol, ammonia, benzene or abrasives as
these may harm the housing.
TROUBLESHOOTING
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or
service centre. Do not open the set as there is a risk of electric shock.
WARNING: Under no circumstances should you try to repair the set yourself, as this
will invalidate the guarantee.
Problem
– Possible Cause
• Remedy
No sound/power
– Volume not adjusted
• Adjust the volume
No display backlight
– AC mains plug not securely connected
• Connect AC mains plug properly
Display error/ no reaction to any controls
– Electrostatic discharge
• Press the RESET button on the top cabinet with a ball-pen or pull the mains cord
from the AC mains socket for a while and reconnect
Occasional crackling sound during FM broadcast
– Weak signal
•
Adjust the position of the pigtail aerial
Weak MW reception
– Weak radio signal
•
Rotate the set for optimal reception and make sure that the set is placed on a
suitable (non-metallic) surface
Continuous crackling/hiss disturbance during AM(MWor LW) broadcast
– Electrical interference from TV, computer, fluorescent lamp, mobile phone, etc.
• Move set away from other electrical equipment
The alarm does not function
–
Alarm time/mode not set
• See SETTING THE ALARM
– Volume too low for RADIO
• Adjust the volume
–
Radio not tuned to a radio station
• Tune to a radio station
This product complies with the radio interference requirements of the
European Union.
