HUSSONG MANUFACTURING CO., INC.
INSTALLATION AND
OPERATION MANUAL
IMPORTANT INSTRUCTIONS.
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
SAVE THESE INSTRUCTIONS.
English and French installation manuals are available through your
local dealer. Visit our website www.kozyheat.com.
Les manuels d’installation en français et en anglais sont disponibles
chez votre détaillant local. Visitez
www.kozyheat.com
.
OSSEO 29
OSSEO 34
Models OSO-29 & OSO-34
Built-in/Insert Electric Fireplace
Hussong Mfg. Co., Inc.
OSO-29 & OSO-34
Rev.1, November 2020
Starting Serial Number OSO-29: 20-OS2900001-39
Starting Serial Number OSO-34: 20-OS3400001-39
WARNING
Read and understand the entire installation
and operation manual, including all safety
information, before plugging in or using this
product. Failure to do so may result in re,
electric shock, or serious personal injury.
This replace meets the construction and
safety standards of H.U.D. for application
in manufactured homes when installed
according to these instructions.
#OSO-29 #OSO-34 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces
3
Read this manual before installation or operating this appliance.
Please retain this owner’s manual for future reference.
CON GRAT ULAT ION S!
We welcome you as a new owner of a Kozy Heat electric fireplace. Kozy Heat products are
designed with superi components and materials, and assembled by trained crasmen who
take pride in their wk. Our commitment to quality and customer satisfaction has remained
the same f over 40 years. We oer a complete line of gas, wood, and electric fireplaces, along
with stylish accessies to complement any dec. Adding a fireplace is one of the best ways to
increase the value of your home, and we are proud to oer a netwk of dealers throughout the
country to help make your experience everything you imagine. We pride ourselves in being
dedicated not only to functionality and reliability, but also customer safety. We oer our
continual suppt and guidance to help you achieve the maximum benet and enjoyment om
your Kozy Heat electric fireplace.
Jim Hussong
President
Dudley Hussong
Board Chairman
Homeowner Reference Information
We recommend you record the following information:
Model Name: ____________________________________________
Serial Number: ___________________________________________
Dealership Purchased from: ________________________________
Date purchased/installed: __________________________________
Location of replace: ______________________________________
Dealer phone: ___________________________________________
Notes: ______________________________________________________________________________________________________________
____________________________________________________________________________________________________________________
____________________________________________________________________________________________________________________
____________________________________________________________________________________________________________________
#OSO-29 #OSO-34 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces TABLE OF CONTENTS 5
TABLE OF CONTENTS
TABLE OF CONTENTS .....................................................................5
IMPORTANT INSTRUCTIONS .........................................................7
1.0 SPECIFICATIONS .....................................................................8
1.1 Appliance Certication ............................................................................. 8
1.2 California Proposition 65 Warning ........................................................ 8
1.3 Electrical Specications ............................................................................ 8
1.4 Appliance Preparation .............................................................................. 8
1.5 Parts and Hardware ....................................................................................9
1.6 Appliance Dimensions .............................................................................. 10
2.0 ASSEMBLY AND INSTALLATION ............................................ 11
2.1 Installation Planning .................................................................................. 11
2.2 Clearances to Combustibles ................................................................... 11
2.3 Power............................................................................................................... 11
2.4 Rough Opening ........................................................................................... 12
2.5 Front Trim Removal and Installation .................................................... 13
2.6 Nailing Flange Installation ....................................................................... 14
3.0 FACING AND FINISHING .........................................................15
3.1 Facing and Finishing Requirements .................................................... 15
3.2 Optional Shroud Installation .................................................................. 17
4.0 HARD WIRING INSTALLATION ............................................... 19
4.1 Hard Wiring Connection ........................................................................... 19
5.0 APPLIANCE SETUP ..................................................................20
5.1 Glass Front Removal and Installation .................................................. 20
5.2 Media Installation ....................................................................................... 21
6.0 OPERATING INSTRUCTIONS .................................................. 22
6.1 Methods of Operation ............................................................................... 22
7.0 MAINTENANCE INSTRUCTIONS ............................................26
7.1 Cleaning ......................................................................................................... 26
7.2 Maintenance ................................................................................................. 26
7.3 Remote Control Battery Information ................................................... 26
8.0 TROUBLESHOOTING ...............................................................27
9.0 REPLACEMENT PARTS LIST ....................................................28
LIMITED WARRANTY ...................................................................... 30
#OSO-29 #OSO-34 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces IMPORTANT INSTRUCTIONS 7
When using electrical appliances, basic precautions should always
be followed to reduce the risk of re, electric shock, and injury to
persons, including the following:
1. Read all instructions before installing or using the heater.
2. This heater is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, etc. and curtains at
least 36” (914mm) from the front of the heater.
3. Extreme caution is necessary when any heater used by or near
children or invalids and whenever the heater is left operating
and unattended.
4. Do not operate any heater after it malfunctions. Disconnect
power at service panel and have heater inspected by a reputable
electrician before reusing.
5. Do not use outdoors.
6. To disconnect the heater, turn the controls to OFF, and turn o
the power to the heater circuit at the main disconnect panel.
7. Do not insert or allow foreign objects to enter any ventilation
or exhaust opening, as this may cause an electric shock, re, or
damage to the heater.
8. To prevent a possible re, do not block air intakes or exhaust in
any manner.
9. A heater has hot and arcing or sparking parts inside. Do not use
in areas where gasoline, paint, ammable vapors, or liquids are
used or stored.
10. Use this heater only as described in this manual. Any other use
not recommended by Hussong Mfg. Co., Inc. may cause re,
electric shock, or injury to persons.
11. ALWAYS plug the heater directly into a wall outlet/receptacle.
NEVER use with an extension cord or relocation power tap
(outlet/power strip).
12. AVOID FIRE! Inspect all air vents to make sure they are free from
dust, lint, or other blockage before use. Unplug the appliance
and clean with a vacuum ONLY. DO NOT rinse or allow the
appliance to become wet.
13. This heater is not intended to be a primary heat source. It is for
supplemental heat only.
14. ALWAYS disconnect this heater from the power supply before
performing any assembly and cleaning.
15. NEVER plug this heater into an outlet that is old, cracked, or has
any loose wires or connections. Plugging this heater into a faulty
outlet could result in electric arcing within the outlet that could
cause the outlet to overheat or catch re.
16. Verify the plug ts tight in the outlet. Faulty wall outlet
connections or loose plugs can cause the wall outlet to overheat.
17. This heater draws more current than other small heaters.
Overheating may occur even if it has not occurred with the use
of other heaters.
SAVE THESE INSTRUCTIONS
IMPORTANT INSTRUCTIONS
8 SPECIFICATIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-29 #OSO-34 R.1 November 2020
1.0 SPECIFICATIONS
1.1 Appliance Certication
Laboratory: CSA in Cleveland, Ohio, USA
Standards:
CSA C22.2 No 46-13 Electric Air-Heaters
UL 2021 (4th Edition) (Dec. 14, 2016) Fixed and Location-Dedicated
Electric Room Heaters
1.2 California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov.
1.3 Electrical Specications
• This appliance is rated at 120VAC, 60Hz, 1500W. Install on a
dedicated 15 Amp (or higher) breaker.
• The power cord supplied with the appliance has three prongs:
two at blades (live and neutral) and one round pin (ground). If
a 3-slot receptacle is not available, and adapter (not included)
MUST be used. The green grounding lug extending from the
adapter must be connected to a permanent ground such as a
properly grounded outlet box. The adapter should not be used if
a three-slot grounded receptacle is available.
Grounding pin
Adapter
Metal grounding
screw
Cover of grounded
outlet box
Figure 1.1, Adapter
1.4 Appliance Preparation
WARNING: This product includes glass components. Always use
extreme caution when handling glass. Failure to do so could result in
personal injury or property damage.
Remove all parts and hardware from the carton and place them on a
clean, soft, dry surface. Check the parts list to verify all components
are there. Dispose of packaging materials properly. Please recycle
whenever possible.
You will need the following tools (not included):
• Phillips screwdriver
• Stud nder
• Level
• Tape measure
• Electric drill
• 1/4” wood drill bit
• Hammer
#OSO-29 #OSO-34 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces SPECIFICATIONS 9
1.5 Parts and Hardware
Cover Plate
Crystals (small)
Wood Screw
Remote Control
ST Screw
Electrical Grommet
River Rocks Crystals (large)
Nailing Flange
Ember Bed LED Strip
10 SPECIFICATIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-29 #OSO-34 R.1 November 2020
1.6 Appliance Dimensions
Figure 1.2, #OSO-29 & #OSO-34
Table 1.1, Appliance Dimensions for the OSO-29 and OSO-34
Model
Number
A B C D E F G H
OSO-29 31-1/2”
(800mm)
20-1/8”
(510mm)
12”
(304.6mm)
15”
(381mm)
27-11/16”
(703mm)
28-3/4”
(730mm)
11-1/2”
(292mm)
19-7/16”
(492mm)
OSO-34 35-5/16”
(896.9mm)
24-1/8”
(612.8mm)
12”
(304.6mm)
19-1/4”
(489mm)
31-1/2”
(800mm)
32-9/16”
(827mm)
11-1/2”
(292mm)
23-1/2”
(596mm)
#OSO-29 #OSO-34 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces ASSEMBLY AND INSTALLATION 11
2.0 ASSEMBLY AND INSTALLATION
2.1 Installation Planning
NOTE: Follow all national and local electrical codes.
To reduce the risk of re, do not store or use gasoline or other ammable
vapors and liquids in the vicinity of the heater.
This appliance is designed to be built-in or insert mounted (inserted
into an existing replace).
If installing insert mounted,
It is recommended to permanently close the damper in the existing
replace to prevent a cold down draft.
An optional shroud may be purchased from your local dealer for
insert mount installations. Contact your local dealer for details.
If installing for built-in applications,
An optional nishing trim kit is available. The OS29-FTK/OS34-FTK
provides a 3/4” (19mm) nished edge (black metal) to allow a 1/2”
(12mm) nish board and tile or stone to nish up against, creating a
shadow box for the front trim.
Optional hanging side brackets (OS29-CHB/OS34-CHB) are available
for installing Chaska screen fronts with the standard front trim.
The appliance can also be hardwired or plugged into a receptacle
(power cord supplied).
Select a suitable location that is not susceptible to moisture and is
away from drapes and furniture.
2.2 Clearances to Combustibles
Table 2.1, Minimum Clearances to Combustibles
Bottom of appliance 0” (0mm)
Left and right sides of appliance 0” (0mm)
Back of appliance 1/2” (12mm)
Front of appliance 36” (914mm)
Top of viewing opening to 2” (51mm) mantel 2-3/4” (69mm)
Top of viewing opening to ceiling 7-3/4” (197mm)
Top of appliance to enclosure 1/2” (12mm)
2.3 Power
This appliance is rated at 120VAC, 60Hz, 1500W. Install on a dedicated
15 Amp (or higher) breaker. Verify the grounded outlet is in good
working condition and the plug is not loose. Never exceed the
maximum amperage for the circuit. DO NOT plug other appliances
into the same circuit.
12 ASSEMBLY AND INSTALLATION Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-29 #OSO-34 R.1 November 2020
2.4 Rough Opening
• Select a location not prone to moisture and is located at least 36”
(914mm) away from the front of the appliance to combustible
materials such as curtains, drapes, furniture, bedding, paper, etc.
• The dimensions listed below are the minimum rough opening
size requirements with the leveling screws at a minimum length.
Level for the smallest distance necessary for insert mounted
installations.
1. Create a rough opening with electrical. See Figure 2.1.
The vent grill openings on the top and at the rear of the appliance
require a 1/2” (12mm) clearance to framing.
2. Remove the front trim. Refer to Section 2.5 Front Trim Removal
and Installation on page 13.
3. Remove the glass front. Refer to Section 5.1 Glass Front Removal
and Installation on page 20.
Figure 2.1, Rough Opening Dimensions
Table 2.2, Rough Opening Dimensions
Model Number I J K
OSO-29 29-1/2” (749mm) 19-3/4” (501mm) 12” (305mm)
OSO-34 33” (838mm) 23-7/8” (606mm) 12” (305mm)
Dimension ‘J’ includes appliance
height plus 1/2” (12mm) clearance
Dimension ‘K’ includes appliance
depth plus 1/2” (12mm) clearance
NOTE:
Nominal 2” x 4” framing used in framing
#OSO-29 #OSO-34 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces ASSEMBLY AND INSTALLATION 13
2.5 Front Trim Removal and Installation
This appliance has optional shrouds. Contact your local dealer for
more information.
1. With one hand on the front trim to prevent it from falling,
remove the screws from the two sides of the trim (Figure 2.2).
Save screws.
2. Carefully lift the front trim up and away from the appliance
(Figure 2.2). Place it face down on a soft, non-abrasive surface.
3. To reinstall, align the attachment hooks on the back of the front
trim with slots on the appliance. Raise the front trim slightly into
the slots and allow the attachment hooks to lower into position.
Hold trim and secure with (2) screws previously removed.
Figure 2.2, Front Trim Installation and Removal
14 ASSEMBLY AND INSTALLATION Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-29 #OSO-34 R.1 November 2020
2.6 Nailing Flange Installation
1. Power the appliance by plugging into the wall receptacle. For
hard wiring, please remove power cord and complete hard
wiring (See Section 4.1 Hard Wiring Connection on page 19).
2. Attach the four nailing anges by (8) self-tapping (ST) screws
(included) to the side of the rebox.
3. Insert the appliance into the rough opening and secure with (4)
wood screws (included) through the holes in the nailing anges.
Figure 2.3, Nailing Flange Installation Nominal 2” x 4” framing used in framing
#OSO-29 #OSO-34 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FACING AND FINISHING 15
3.0 FACING AND FINISHING
3.1 Facing and Finishing Requirements
3.1.1 Mantel Requirements
WARNING: All minimum clearances to combustible material MUST be
maintained.
• Combustible Mantel Projections: As referenced in Figure 3.1,
the 2" (51mm) mantel can start at 2-3/4" (69mm) above the
top of the viewing opening. Mantel projections can increase 2"
(51mm) of depth for every 1" (25mm) of height starting at the 2"
(51mm) mantel.
3.1.2 Finishing Requirements
• This appliance is designed to accommodate nishing material up
to 5/8" (16mm) thick.
Figure 3.1, Mantel Clearances
4”
(102mm)
2”
(51mm)
5”
(127mm)
2
¾”
(69mm)
6” (152mm)
8” (203mm)
10” (254mm)
Top of viewing opening
Each square represents
1” (25mm)
of mantel projection
Nominal 2” x 4” framing used in framing
16 FACING AND FINISHING Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-29 #OSO-34 R.1 November 2020
Table 3.1, Finishing Material Dimensions
Model Number I J K
OSO-29 29-1/2” (749mm) 19-3/4” (501mm) 12” (305mm)
OSO-34 33” (838mm) 23-7/8” (606mm) 12” (305mm)
Figure 3.2, Finishing Material Dimensions
Finishing Material
Nominal 2” x 4” framing used in framing
#OSO-29 #OSO-34 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FACING AND FINISHING 17
3.2 Optional Shroud Installation
3.2.1 Optional Chaska Series Shroud
and Front Options
This appliance is approved for use with Chaska series fronts and
shrouds. Contact your local dealer or view shrouds and fronts on
www.kozyheat.com.
3.2.1.1 One (1) Piece Shroud
This kit includes: (1) shroud; (4) at head screws
1. Remove and discard the front trim.
2. Align the holes in the shroud with the corresponding holes on
the sides of the appliance.
3. Secure shroud to appliance using (4) at head screws (included).
4. Attach your chosen Chaska front to the shroud.
(2) on right side
(not shown)
Flat head
screw
Figure 3.3, One (1) Piece Shroud Installation
18 FACING AND FINISHING Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-29 #OSO-34 R.1 November 2020
3.2.2 Four (4) Piece Shroud
This kit includes: (1) top shroud piece; (1) bottom shroud piece;
(2) side shroud pieces; (8) screws, M4 x 0.7; (8) washers;
(8) hex nuts, M4 x 0.7; (6) at head screws
1. Remove the front trim.
2. On a at surface, attach the top shroud piece to left and right
shroud pieces using (4) M4 x 0.7 screws, (4) M4 x 0.7 hex nuts,
and (4) washers.
3. Attach the bottom shroud to your left and right shroud pieces
using (4) M4 x 0.7 screws, (4) M4 x 0.7 hex nuts, and (4) washers.
4. Secure shroud to appliance using (6) at head screws.
5. Reinstall front trim.
M4 x 0.7 screw
Washer
Hex nut, M4 x 0.7
Flat head screw
(2) on left side
(not shown)
Figure 3.4, Four (4) Piece Shroud Installation
#OSO-29 #OSO-34 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces HARD WIRING INSTALLATION 19
4.0 HARD WIRING INSTALLATION
4.1 Hard Wiring Connection
WARNING: Turn o the appliance completely and let cool before
servicing. Only a qualied service person should service and repair this
electric appliance.
NOTE: A dedicated 15 Amp (or higher) breaker is required.
If it is necessary to hard wire this appliance, a qualied electrician
must remove the cord connection and wire the appliance directly to
the household wiring.
This appliance must be electrically connected and grounded in
accordance with local codes if hard wired. In the absence of local
codes, use the current ANSI/NFPA 70 'National Electrical Code' in the
United States or the current CSA C22.1 'Canadian Electrical Code' in
Canada.
4.1.1 Hard Wiring Installation
Turn o power from circuit breaker before completing any of these
steps.
The wires are labeled by the yellow clips.
1. Remove the cover plate from the bottom of the right side of the
appliance secured by (3) screws, as shown in Figure 4.1.
2. Remove the wire connectors from the power cord as shown in
Figure 4.2. This power cord may be discarded.
3. Take the new cover plate supplied in the components packet
and knock out the 7/8" (22.2mm) hole.
4. Install the electrical grommet through the hole in the cover
plate. Feed wires through the electrical grommet.
5. Using the wire connectors, connect the green ground wires
together, and the neutral white and blue wires together, then the
hot black wires together. See Figure 4.2
6. Re-install cover plate using (3) screws, as shown in Figure 4.1.
Cover plate
Figure 4.1, Cover Plate Removal
Figure 4.2, Remove Wire Connectors to Power Cord
Figure 4.3, Wiring through Electrical Grommet and Cover Plate
Electrical grommet
20 APPLIANCE SETUP Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-29 #OSO-34 R.1 November 2020
5.0 APPLIANCE SETUP
5.1 Glass Front Removal and Installation
1. Remove the front trim. See 2.5 Front Trim Removal and
Installation on page 13.
2. With one hand on the glass front to prevent it from falling,
remove the screws from the top right and left of the glass. Save
screws.
3. Carefully lift glass front up out of its channel and away from the
appliance. Place it face down on a soft, non-abrasive surface.
4. To reinstall glass front, insert the glass into its channel on the
bottom of the appliance. Hold glass in place and secure with
screws previously removed.
5. Reinstall front trim.

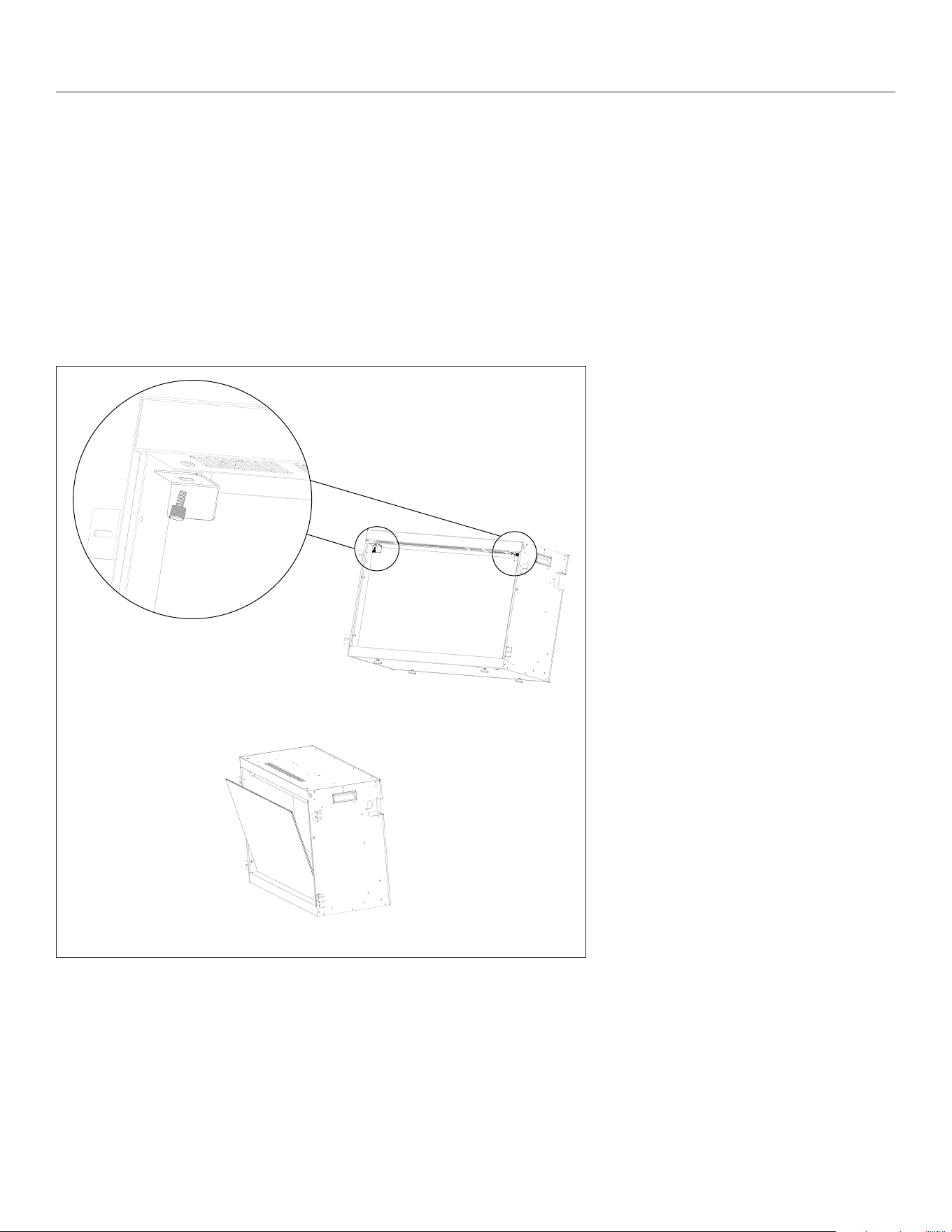

Figure 5.1, Glass Front Removal and Installation (#OSO-29 shown)
#OSO-29 #OSO-34 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces APPLIANCE SETUP 21
5.2 Media Installation
Please make the installation according to the ember media you have
purchased.
The appliance must be in its nal position before any media is installed.
5.2.1 Logs and River Rocks Installation
1. Remove the front trim. See Section 2.5 Front Trim Removal and
Installation on page 13.
2. Remove the glass front. See Section 5.1 Glass Front Removal and
Installation on page 20.
3. Place the ember bed strip into the ember bed slot. See Figure
5.2.
4. Place the logs on the surface of the ember bed strip, and the
river rocks around the logs. See Figure 5.3.
5. Reinstall glass front and front trim.
5.2.2 Decorative Crystals Installation
1. Remove the front trim. See 2.5 Front Trim Removal and
Installation on page 13.
1. Remove the glass front. See 5.1 Glass Front Removal and
Installation on page 20.
2. Place the ember bed strip into the ember bed slot. See Figure
5.2.
3. Carefully place the small crystals onto the ember bed strip, as
shown in Figure 5.4. Apply an even layer the full width and depth
of the ember bed strip.
4. Randomly place the large crystal embers on top of the small
crystal embers. See the example in Figure 5.5.
5. Reinstall glass front and front trim.

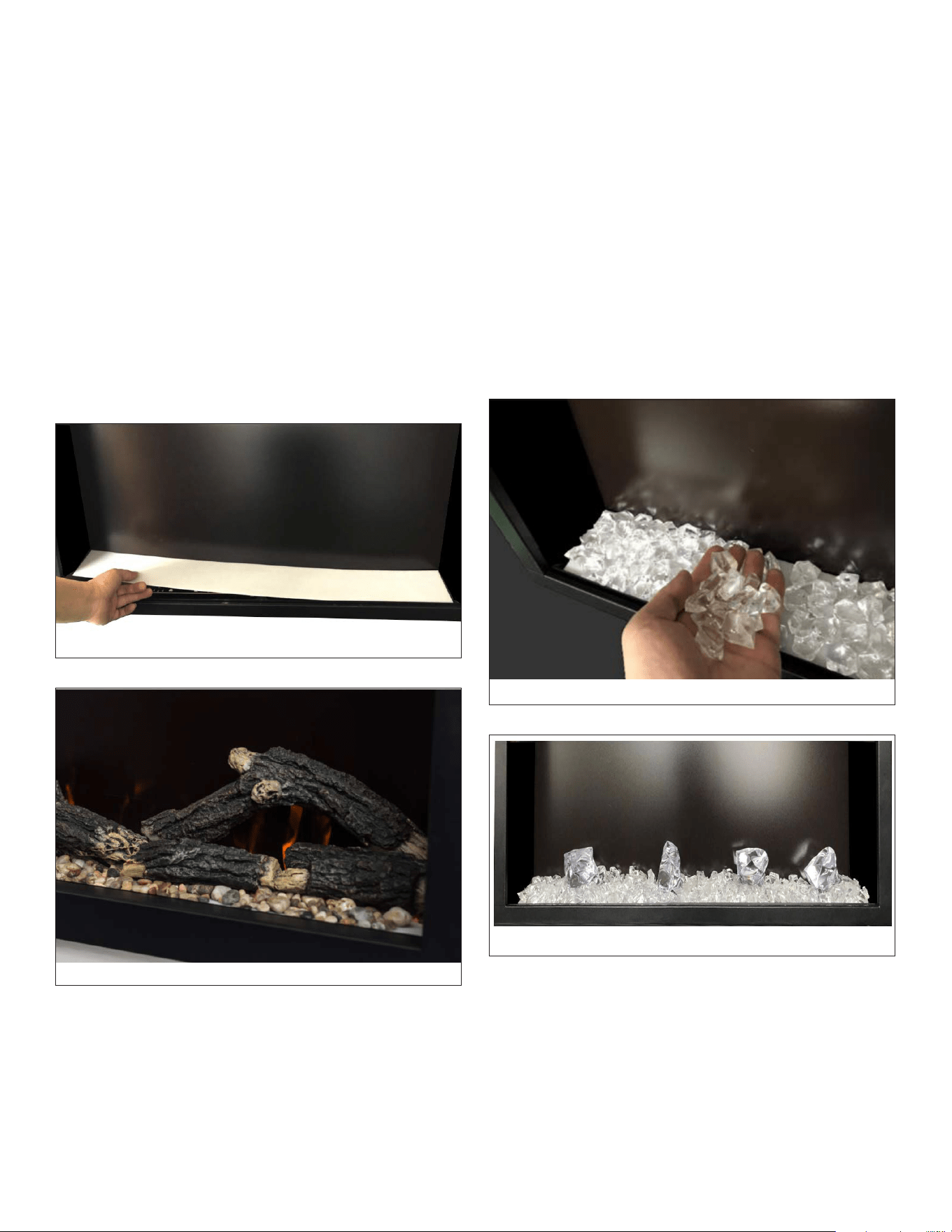

Figure 5.2, Ember Bed Strip Installation
Figure 5.3, Log and River Rocks Installation
Figure 5.4, Small Crystal Installation
Figure 5.5, Example of Large Crystal Installation
22 OPERATING INSTRUCTIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-29 #OSO-34 R.1 November 2020
6.0 OPERATING INSTRUCTIONS
6.1 Methods of Operation
WARNING: Read and understand this entire installation and operation
manual, including all safety information, before plugging in or using
this product. This appliance must be properly installed before use.
Failure to do so could result in electric shock, re, serious injury, or loss
of life. Do not tamper with any controls.
• When the appliance is rst turned on, a slight odor may be
present. This is normal and should not occur again unless the
appliance is not used for a long period of time.

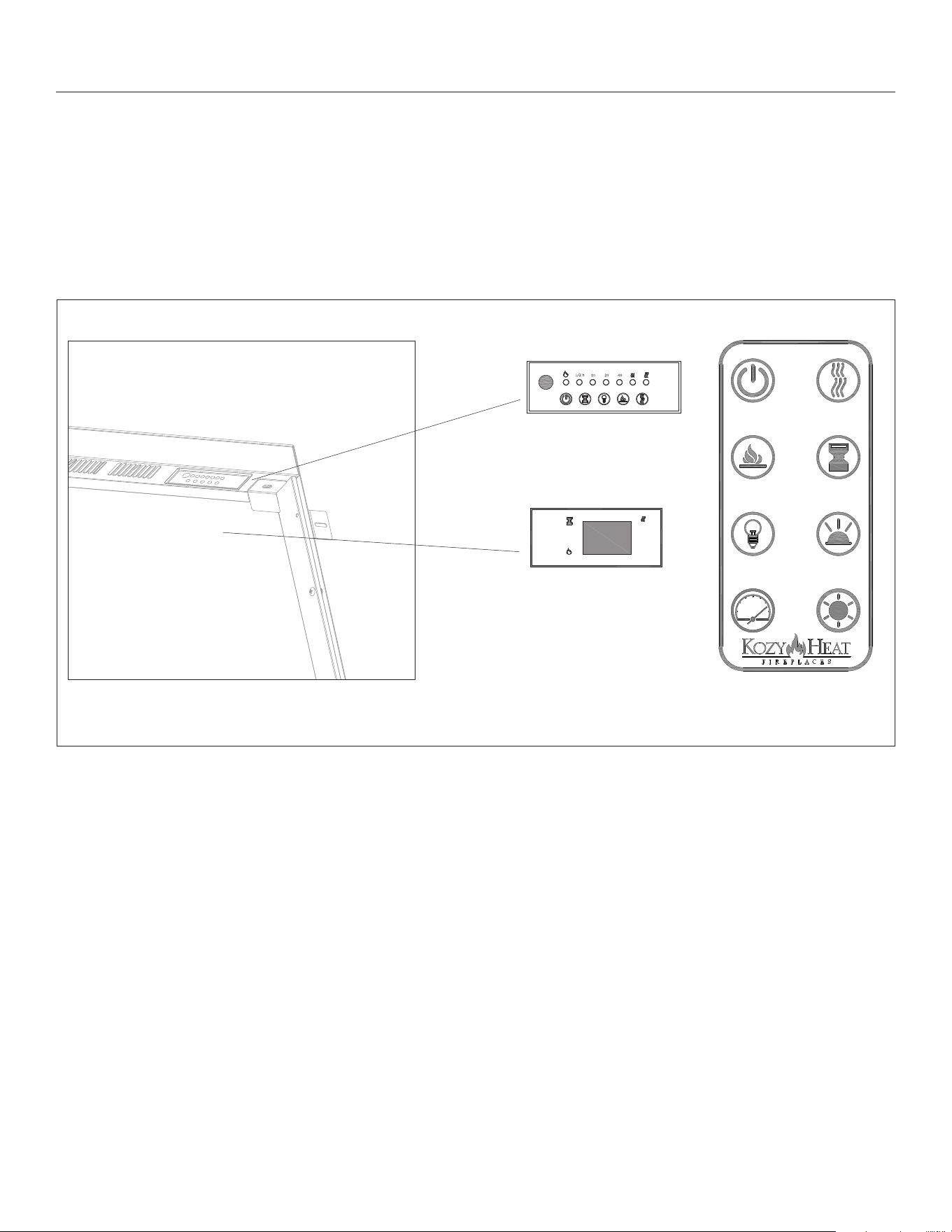

Figure 6.1, Operating Components
Remote Control
#OSO-29 #OSO-34 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces OPERATING INSTRUCTIONS 23
BUTTON FUNCTION ACTION AND INDICATION
ON: Enables control panel functions and remote
control. Turns on appliance.
OFF: Disables control panel functions and remote
control. Turns o appliance.
Press once: Indicator light turns on. Power turns on.
All functions are enabled.
Press again to turn o appliance. Appliance goes to
standby. All functions turn o.
Flame brightness button: Makes ame dimmer or
brighter.
Press once: Flame brightness enabled.
Press again until desired setting is reached.
Flame button: Changes ame color.
Note: This appliance has memory function for ame.
Press once: Flame color illuminates.
Press again until desire color is reach. There are a
total of three colors for ame.
Heater button: Turns heater on and o.
Note: To prevent overheating, the heater will blow cool
air for 8-10 seconds after the heater turns o.
Turns the heater and blower on/o.
Settings:
H0 - Heater and blower o
H1 - Low heater on with 750W
H2 - High heater on with 1500W
Timer button: Controls timer settings to turn o the
appliance at a selected time.
Settings range from (30) minutes to (8) hours.
Press once: Indicator lights turns on. Timer defaults to
(30) minutes.
Press again until desired setting is reached.
6.1.1 Control Panel Operation
24 OPERATING INSTRUCTIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-29 #OSO-34 R.1 November 2020
6.1.2 Remote Control Operation
• To improve operation, aim the remote control at the front of
the appliance. DO NOT press the buttons too quickly. Give the
appliance sucient time to respond to each command.
BUTTON FUNCTION ACTION AND INDICATION
ON: Enables control panel functions and remote
control. Turns on appliance.
OFF: Disables control panel functions and remote
control. Turns o appliance.
Press once: Indicator light turns on. Power turns on.
All functions are enabled.
Press again to turn o appliance. Appliance goes to
standby. All functions turn o.
Flame speed button: Controls the speed of the ame.
There are (3) ame speed settings: 01 (slowest), 02
(medium), 03 (fastest)
Press once: Indicates current ame speed.
Press again until desired setting is reached. Display
shows the settings.
The default setting is 02 (medium speed).
Flame button: Changes ame color.
Note: This appliance has memory function for ame.
Press once: Flame color illuminates.
Press again until desire color is reached. There are a
total of three colors for ame.
Flame brightness button: Makes ame dimmer or
brighter.
Press once: Flame brightness enabled.
Press again until desired setting is reached.
Heater button: Turns heater on and o.
Note: To prevent overheating, the heater will blow cool
air for 8-10 seconds after the heater turns o.
Turns the heater and blower on/o.
Settings:
H0 - Heater and blower o
H1 - Low heater on with 750W
H2 - High heater on with 1500W
#OSO-29 #OSO-34 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces OPERATING INSTRUCTIONS 25
BUTTON FUNCTION ACTION AND INDICATION
Timer button: Controls timer settings to turn o the
appliance at a selected time.
Settings range from (30) minutes to (8) hours.
Press once: Indicator lights turns on. Timer defaults to
(30) minutes.
Press again until desired setting is reached.
Media bed button: Turns on media bed and changes
color.
Note: this appliance has memory function for the ember
bed.
Press once: Turns on ember bed.
Press again until desired color is reached. There are a
total of eleven colors and one is auto-cycle mode.
Media brightness button: Makes media bed dimmer
and brighter.
Press once: brightness becomes active.
Press again until desired setting is reached. There are
a total of four levels of brightness and one pulse (b5).
Note: Media bed colors 2, 3, & 4 on pulse (b5) will pul-
sate an ember eect.
26 MAINTENANCE INSTRUCTIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-29 #OSO-34 R.1 November 2020
7.0 MAINTENANCE INSTRUCTIONS
ALWAYS turn o the appliance and remove from power before cleaning,
performing maintenance, or moving this appliance. Failure to do so
could result in an electric shock, re, or personal injury.
NEVER immerse in water or spray with water. Doing so could result in
an electric shock, re, or personal injury.
7.1 Cleaning
This appliance will require maintenance which should be planned on
an annual basis.
7.1.1 Metal
• Clean using a soft cloth that is slightly dampened with soapy
water.
• DO NOT use with brass polish or household cleaners, as these
products will damage the metal trim.
7.1.2 Glass
• Use a quality glass cleaner sprayed onto a cloth or a towel. Dry
thoroughly with a paper towel or lint-free cloth.
• NEVER use abrasive cleaners, liquid sprays, or any cleaner that
could scratch the surface.
7.1.3 Vents
• Use a vacuum or duster to remove dust and dirt from the heater
and dust areas.
7.1.4 Plastic
• Wipe gently with a slightly damp cloth and a mild solution of
dish soap and warm water.
• NEVER use abrasive cleaners, liquid sprays, or any cleaner that
could scratch the surface.
7.2 Maintenance
WARNING - Risk of electric shock! DO NOT OPEN any panels. There are
no user-serviceable parts inside.
WARNING: No servicing of the internal or electrical parts should be
performed by the consumer. Do not service the appliance yourself.
7.2.1 Electrical and Moving Parts
• The fan motors are factory lubricated and do not require
lubrication.
• Electrical components are integrated in the appliance and are
not serviceable by the consumer.
7.2.2 Storage
• Store heater and power cord in a clean, dry place when not in
use.
7.3 Remote Control Battery Information
WARNING: Keep batteries out of reach of children.
NEVER dispose of batteries in a re. Failure to observe this precaution
may result in an explosion. Properly dispose of your batteries at your
local hazardous material processing center. Check with your local
authority for recycling instructions.
• The remote control uses one CR2025 battery (included).
• To replace the battery,
1. Remove the battery holder. The battery holder is equipped
with a child lock. To remove the battery holder, turn remote
onto the rear side. Press the left side lever towards the center
while pulling the battery holder out of the slot.
2. Replace existing battery, type CR2025, with a new battery.
3. Slide the battery holder into position. The battery holder is
connected to the remote when you hear a ‘click.’
Figure 7.1, Remote Control Battery Replacement
Remote (rear side)
Battery Holder
Battery (CR2025)
#OSO-29 #OSO-34 R.1 November 2020 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces TROUBLESHOOTING 27
8.0 TROUBLESHOOTING
Issue Cause Solution
Appliance will not turn on
when power button on
control panel or remote
control is pressed
Appliance is not plugged into an
electrical outlet.
Check power cord, and plug in appliance if necessary.
Hard wire connections are not
correct.
See Section 4.0 Hard Wiring Installation on page 19.
Appliance has overheated and
safety temperature limit control
has tripped.
Remove power from appliance. Wait (5) minutes. Inspect the appliance
for any blockage in the vent area. If there is dust or lint, vacuum to
remove. Reconnect power to appliance.
Main PCB board issue Inspect the PCB board and replace, if necessary.
Appliance turns o and will
not turn on
House circuit breaker has tripped. Reset house circuit breaker. Verify appliance is installed onto a dedicated
15 amp breaker.
Appliance has overheated and
safety temperature limit control
has tripped.
Remove power from appliance. Wait (5) minutes. Inspect the appliance
for any blockage in the vent area. If there is dust or lint, vacuum to
remove. Reconnect power to appliance.
No warm air exiting
appliance
Heater issue. Inspect the blower and heater and replace, if necessary.
Heater setting not selected. See Section 6.0 Operating Instructions on page 22.
Appliance has overheated and
safety temperature limit control
has tripped.
Remove power from appliance. Wait (5) minutes. Inspect the appliance
for any blockage in the vent area. If there is dust or lint, vacuum to
remove. Reconnect power to appliance.
Hard wire connections are not
correct.
See Section 4.0 Hard Wiring Installation on page 19.
Flame does not move Motor is stalled/malfunctioning. Cycle on/o. If problem persists, consult your local dealer.
Media bed is not glowing
or dimming
Brightness not selected. See Section 6.0 Operating Instructions on page 22.
Media LED issue. Inspect the media LED and replace, if necessary.
Main PCB board issue Inspect the PCB board and replace, if necessary.
Dim or no ame Flame brightness not selected. See Section 6.0 Operating Instructions on page 22.
Flame LEDs issue. Inspect the ame LED and replace, if necessary.
Main PCB board issue Inspect the PCB board and replace, if necessary.
Remote control does not
work
Low/dead batteries. Replace batteries in remote control. See Section 7.3 Remote Control
Battery Information on page 26.
Remote receiver malfunction. Ensure remote receiver is not blocked. Move closer to appliance.
28 REPLACEMENT PARTS LIST Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-29 #OSO-34 R.1 November 2020
9.0 REPLACEMENT PARTS LIST
Replacement parts are available through your local dealer. Contact your local dealer for availability and pricing.
OSO-29 REPLACEMENT PARTS
Front Viewing Glass OS29-FVG Exterior Control Panel OSO-ECP
Back Flame Screen OS29-BFS Electric Spindle Motor OSO-ESM
Heater Blower Assembly OSO-HB1 Main PCB Board OSO-PCB1
Flame LED Strip Assembly OS29-FLS Flame Flicker Spindle OS29-FFS
Ember Bed LED strip OS29-ELS Ember Bed Floor Panel OS29-EFP
Electric Remote Control OSO-ERC Power Cord OSO-PWC
Hussong Manufacturing Co., Inc.
P.O. Box 577
204 Industrial Park Drive
Lakeeld, MN 56150-0577, USA
OSO-29 & OSO-34
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
The following warning is for replacement parts for this appliance.
OSO-34 REPLACEMENT PARTS
Front Viewing Glass OS34-FVG Exterior Control Panel OSO-ECP
Back Flame Screen OS34-BFS Electric Spindle Motor OSO-ESM
Heater Blower Assembly OSO-HB1 Main PCB Board OSO-PCB1
Flame LED Strip Assembly OS34-FLS Flame Flicker Spindle OS34-FFS
Ember Bed LED strip OS34-ELS Ember Bed Floor Panel OS34-EFP
Electric Remote Control OSO-ERC Power Cord OSO-PWC
30 LIMITED WARRANTY
Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #OSO-29 #OSO-34 R.1 November 2020
LIMITED WARRANTY
Warranty Coverage
Hussong Manufacturing Company, Inc. (Hussong Mfg.) warrants this
Kozy Heat electric appliance from the date of purchase to the original
purchaser, that it is free of defects in materials and workmanship at
the time of manufacture. Registering your replace warranty does not
require any documents to be sent in to Hussong Mfg. Please retain
your proof of purchase reecting the date of purchase along with the
serial number and model of your replace for any future warranty
claims.
Warranty Conditions
This warranty only covers Kozy Heat replaces that are purchased
through a Kozy Heat authorized dealer or distributor. A list of Kozy
Heat authorized dealers is available on the Kozy Heat website
(www.kozyheat.com).
1 Year Warranty Period - Parts Only
Warranty coverage beings on the date of original purchase. In the
case of new home construction, warranty coverage begins on the
date of rst occupancy of the dwelling or six months after the sale
of the product by an independent, authorized Kozy Heat dealer/
distributor, whichever occurs earlier. The warranty shall commence no
later than 12 months of the occupancy date.
EXCLUSIONS AND LIMITATIONS
1. This appliance must be installed by a licensed, authorized service technician or contractor. It must be installed, operated and maintained
at all times in accordance with the instructions in the owner’s manual or the warranty is void.
2. This warranty is nontransferable and is made to the original purchaser only.
3. Changes in surface nishes as a result of normal operation. As a heating appliance, some changes in the color of interior and exterior
surface nishes may occur. This is not a aw and is not covered under warranty.
4. Damage to plated surfaces or accessories, if applicable, caused by scratches, ngerprints, melted items or other external sources left on
the surfaces from the use of cleaners is not covered under this warranty.
5. Repair or replacement of parts that are subject to normal wear and tear during the 12 month warranty period. These parts include: paint,
batteries, and discoloration of glass.
6. Damages resulting from: (1) failure to install, operate, or maintain the appliance in accordance with the installation instructions,
operating instructions, and listing agent identication label furnished with the appliance; (2) shipping or improper handling; (3)
improper operation, abuse, misuse, continued operation with damaged, corroded, or failed components, accident, or improperly/
incorrectly performed repairs; (4) environmental conditions; (5) installation or use of components not supplied with the appliance or any
other components not expressly authorized and approved by Hussong Mfg.; (6) modication of the appliance not expressly authorized
and approved by Hussong Mfg. in writing; and/or (7) interruptions or uctuations of electrical power supply to the appliance.
7. Hussong Mfg. may require the defective part to be returned using a pre-authorized RGA number or a photo of the defective component.
Failure to provide either can result in a denied claim.
8. This warranty is void if: (1) the appliance is subject to, or operated in, atmospheres contaminated by chlorine, uorine, or other
damaging chemicals; (2) the appliance is subjected to, or operated in, places with prolonged periods of dampness or condensation or
weather. Examples include but are not limited to outdoors, porches, and laundry rooms; and/or (3) there is any damage to the replace
or other components due to water or weather damage.
9. It is expressly agreed and understood that this warranty is Hussong Mfg.’s sole obligation and purchaser’s exclusive remedy for defective
replace equipment. Hussong Mfg. is free of liability for any damages caused by this appliance, as well as inconvenience expenses
and materials. Incidental or consequential damages are not covered by this warranty. In some states, the exclusion of incidental or
consequential damage may not apply. Hussong Mfg. shall not be held to implied warranties and this warranty shall replace all previous
warranties.
10. This warranty does not cover the appliances ability to heat a desired space, as there are many factors that can impact the heating
performance in each home. Consideration should be implied to the appliance’s location, room size, home design, environmental
conditions, insulation, and tightness of the home.
11. Hussong Mfg. reserves the right to make changes at any time, without notice, in design, material, specications, and prices. Hussong
Mfg. reserves the right to discontinue models and products.
November 2020
