USER GUIDE
2
Getting started
3 Device layout and functions
8 Turning the Chromebook on and off
Basics
10 Keyboard
12 Touchpad
15 Wireless LAN
16 Memory card slot
18 External display
Settings
20 Display brightness
21 Volume
22 Battery
Usage notices
25 Precautions for using the device
29 Ergonomic tips
33 Safety precautions
Appendix
42 Product specifications
43 Important safety information
46 Replacement parts and accessories
49 Regulatory compliance statements
57 WEEE symbol information
59 Samsung package Take-Back
program (USA only)
60 TCO Certified
Table of contents
3
Getting started
Device layout and functions
Leaving the screen idle for extended periods may result
in afterimages (screen burn-in) or ghosting. Turn off
the screen, or turn on the screen saver or power saving
mode when you are not using the Chromebook.
•
Features or options may differ depending on the
model.
•
The items marked as optional may not be provided
or may be provided in different locations.
•
Since some space on the storage device is reserved
for system recovery and operations, the available
space on the storage device may be less than the
actual capacity.
Front view
4
5
3
2
1
9
6
7
8
Getting started
4
Number/Name Description
6
Power button
•
Turns the Chromebook on and off.
7
Numeric
keypad
•
Enter numbers.
8
Keyboard
•
Enter text or control Chromebook
functions.
9
Touchpad
•
Moves the cursor and selects
options.
•
Functions as a mouse.
Number/Name Description
1
Microphone
•
You can use the voice recording
or video call features through the
built-in microphone.
2
Ambient light
sensor
•
Recognizes the brightness of the
environment where you use the
Chromebook.
•
When the surroundings become
dark, the keyboard backlight turns
on.
•
When the surroundings become
bright, the keyboard backlight
turns off.
Do not cover the ambient light
sensor.
3
Front camera
•
Using this camera, you can take
still pictures and record video.
4
Front camera
indicator light
•
This indicates the front camera
operating status.
5
Display
•
The screen's images are displayed
here.
Getting started
5
Number/Name Description
1
Memory card slot
•
Insert a memory card into the
slot.
2
USB 3.2 port
•
Connect various accessories,
such as a mouse, camera, or
keyboard.
3
Earpiece/
Headset jack
•
Connect an earpiece or a
headset to the Chromebook to
listen to audio.
Right view
1 2 3
Getting started
6
The charging feature of the USB Type-C port
Charging the Chromebook
Connect an external power supply (sold separately) to the
USB Type-C port to use it as the auxiliary power or charge the
Chromebook.
Use an external power supply (sold separately) with a rating
level higher than 45 W (20 V, 2.25 A) that supports USB Type-C.
Charging a USB Type-C device
Connect and charge your USB Type-C device by connecting it to
the USB Type-C port.
•
It may take longer to charge the battery when
charging a connected device.
•
The battery power level may be reduced when
charging a connected device while the Chromebook
is powered by the battery.
•
The charging status of the connected device is not
displayed on the Chromebook.
•
This charging feature may not be available on some
devices.
•
When the Chromebook is turned off, the device
connected to the USB Type-C port is not charged.
Left view
1 32
Number/Name Description
1
HDMI port
•
Use to connect an HDMI cable
to an external device.
2
USB Type-C port
•
Connect the supplied adapter to
charge the Chromebook.
•
Connect and charge a USB
Type-C device, or connect to an
external display device.
3
Power LED
•
Shows the operating status of
the Chromebook.
‒
Red: Charging
‒
Green: Fully charged
‒
Blue: Turned on
Getting started
7
Number/Name Description
1
Fan vents
•
Sucks in outside air and discharges
heat generated inside the
Chromebook through these holes.
•
If the vents are blocked the
Chromebook may overheat. Avoid
blocking the vents as this may be
dangerous.
2
Internal
battery
•
Provides power to the Chromebook
when not connected to an adapter.
•
To remove or replace the internal
battery, take it to a Samsung
Service Center. You will be charged
for this service.
3
Speaker
•
Sound is emitted from the
speakers.
•
If the case at the bottom of the device is replaced,
the laser-carved model name, serial number, and
various logos will not be displayed anymore. For
more information, contact a Samsung Service
Center.
•
Remove all of the protective papers from the rubber
feet at the bottom of the Chromebook before use.
Bottom view
1
2
3
3
Getting started
8
3
The Chromebook turns on automatically when the display
panel is opened.
If the Chromebook does not turn on automatically, press
the Power button.
Turning the Chromebook on and
off
Fully charge the battery using the supplied adapter
before using the Chromebook for the first time.
Turning the Chromebook on
1
Before turning on the Chromebook, check that the battery
is charged and charge it if necessary.
2
Open the display panel.
Getting started
9
Controlling the power of the device
You can adjust the settings for the selected power options.
Select the status area on the shelf, select
to open the
Settings window, and then select
System preferences
→
Power
to select the power options.
If the screen is locked in power saving mode
Tap the touchpad or press any key to turn the screen on
and enter the password to unlock the screen.
Turning the Chromebook off
Using screen buttons
1
Select the status area on the shelf.
2
Select
→
Shut down
.
Save all data before turning off the Chromebook.
Using the Power button
Press and hold the Power button for about 2 seconds and
select
Shut down
to shut down the device.
To shut down the device when the system has frozen
unexpectedly, press and hold the Power button for at least
8 seconds.
10
Keys Description
•
Hide the tabs and switch to full-screen
mode.
•
Enter overview mode, which shows all
windows.
•
Take a screenshot or record the screen.
•
Decrease screen brightness.
•
Increase screen brightness.
•
Decrease the keyboard backlight's
brightness.
•
Increase the keyboard backlight's
brightness.
•
Turn on the dictation feature.
•
Check the accessibility features.
•
Pause and resume playback.
•
Mutes the sound.
In mute mode, press the
key to
unmute the sound.
•
Decrease the volume.
•
Increase the volume.
Basics
Keyboard
Hot keys and function keys are discussed in the following
sections.
•
The keyboard image may differ from the actual
keyboard.
•
The keyboard may differ depending on your country.
The following mainly describes the hot keys and
function keys.
Hot key functions
Here is an overview of the hot keys on the top row of the
keyboard.
Keys Description
•
Go to the previous page in your browser
history.
•
Reload your current page.
Basics
11
Launcher key
Press the Launcher key to launch the Launcher.
To change the Launcher key to another key, select the status
area on the shelf, select
→
Device
→
Keyboard and inputs
→
Customize keyboard keys
, and select the function you want.
Shift key
Hold the
shift
key down to enter upper case letters.
Search for keyboard shortcuts
Press the following keys at the same time to check the
keyboard shortcuts supported in Chrome OS.
Basics
12
Touchpad
Use the touchpad to move the cursor or select an item.
•
Use the touchpad only with fingers. The touchpad
will not recognize actions of other objects.
•
Images and the touchpad layout may differ
depending on the model.
Basic touchpad functions
Moving
To move the cursor, move a finger on the touchpad.
Clicking
Tap the touchpad or press the touchpad button.
or
Tap
Click
Double-clicking
Double tap the touchpad or press the touchpad button twice.
or
Tap-tap
Click-click
Basics
13
Gesture functions
Swiping
To scroll up, down, left or right to a desired location, swipe with
two fingers on the touchpad.
or
Pinching
To zoom in, spread two fingers apart on the touchpad. Pinch to
zoom out.
Right-clicking
Press the touchpad with two fingers simultaneously.
Tap
Dragging
To move an icon or an app to a desired location, press and hold
it and then drag it to the target position with the touchpad
button pressed.
Press and hold the
touchpad button
Move
Basics
14
Adjusting the touchpad settings
If the touchpad is too sensitive, adjust its reaction speed.
1
Select the status area on the shelf.
2
Select to open the Settings window.
3
Select
Device
→
Touchpad
and adjust the
Touchpad speed
adjustment bar.
Basics
15
Wireless LAN
Connect the Chromebook to a wireless network to use the
internet.
The pictures in this guide may differ from the actual
product depending on the wireless LAN device model.
About Access Point (AP)
An Access Point (AP) is a network device that bridges wired
and wireless LANs and corresponds to a wireless hub in a wired
network. Multiple devices can be connected to an AP.
Connecting to a Wi-Fi network
1
Select the status area on the shelf and select on the
Wi-Fi option.
2
Select a network from the list of detected wireless
networks.
Wi-Fi List
3
Enter a password, if necessary, and select
Connect
.
Once the Chromebook has been connected to a wireless
network, it will attempt to connect to it automatically
when it is available. If you require a network password,
contact the system administrator.
•
If the Wi-Fi network is successfully connected, the
network icon (
) will be displayed on the shelf.
•
If the Wi-Fi network is not properly connected, the
network icon (
) will be displayed on the shelf.
•
The white part of the network icon on the shelf
represents the signal strength of the Wi-Fi network.
Basics
16
Memory card slot
Use a memory card to transfer data to other devices.
Memory cards are sold separately.
This Chromebook supports the following types of memory
cards.
Abbreviation Description
micro SD
•
micro Secure Digital
micro SDHC
•
micro Secure Digital High Capacity
micro SDXC
•
micro Secure Digital eXtended Capacity
•
Some memory cards may not be fully compatible
with the Chromebook. Using an incompatible card
may damage the Chromebook, the memory card, or
the data stored in it.
•
Use caution to insert the memory card in the
indicated direction.
•
Store the card separately to prevent losing the card
when moving the Chromebook.
•
Memory card speeds vary.
Inserting a memory card
If a memory card adapter or an unnecessary card is inserted in
the memory card slot, remove it. Then insert a memory card
into the slot in the indicated direction.
Basics
17
Removing a memory card
When you push the card, it clicks and disengages from the
memory card slot. Grasp the end of the card and pull it out of
the slot.
•
Available data formats depend on the current
version of the Chrome OS.
•
Data on the card can be saved in the
Downloads
folder under
My files
.
•
The maximum file size will vary depending on
Chrome OS.
Basics
18
2
Connect the other end of the cable to the external display.
<When using a USB Type-C display cable>
USB Type-C port HDMI port
<When using an HDMI cable>
HDMI port HDMI port
External display
Connecting the Chromebook to an external display device can
be useful for presentations or when watching a movie. The
cables and adapters required to connect an external display
are sold separately. The Chromebook supports HDMI cables
and USB Type-C display cables.
USB Type-C display cable HDMI cable
Check the available ports on the display device to
ensure that it is compatible with the Chromebook.
Connecting to a display
1
Connect the cable to the HDMI port or the USB Type-C port
of the Chromebook.
Basics
19
3
Connect the power cord to the external display.
4
Turn on the display and change its display mode to one
that supports an external input.
The Chromebook screen will be extended to the external
display.
You can change to a mirroring mode to show the same
screen on both the Chromebook and the external
display.
Select the status area on the shelf, select
→
Device
→
Display
, and then select the
Mirror Built-in display
switch to turn it on.
20
Settings
Display brightness
Adjust the display brightness to reduce eye strain and save
power.
Controlling brightness using the keyboard
•
Adjust the display brightness by pressing the
key to decrease brightness or the
key to increase
brightness.
•
Whenever you press the or key, the display
brightness will be adjusted by one level.
Controlling brightness using the shelf
1
Select the status area on the shelf.
2
Drag the adjustment bar to the desired brightness.
Brightness adjustment bar
Instructions for Cleaning the display
Clean the display panel with a soft cloth lightly
moistened with Chromebook cleansing detergent
moving in one direction.
Cleaning the display panel with excessive force can
damage the display.
Settings
21
Controlling volume using the shelf
1
Select the status area on the shelf.
2
Drag the adjustment bar to the desired volume.
Volume adjustment bar
Volume
Adjust the system volume or sound volume when playing
music or video.
Controlling volume using the keyboard
•
Adjust the volume by pressing the key to turn down
the volume or the
key to turn up the volume.
•
Whenever you press the or key, the volume will
be adjusted by one level.
•
Mute the sound by pressing the key. In mute mode,
press the
key to unmute the sound.
Settings
22
•
To restore the battery power after cutting it, connect
the adapter.
•
When you connect the adapter to a multiport
adapter to charge the Chromebook, the charging
speed message may appear, but the Chromebook
will be charged normally.
•
If many devices are connected to the multiport
adapter, the Chromebook may not be charged or the
charging time may increase. In this case, connect the
adapter directly to the Chromebook.
•
When the adapter is directly connected to the
Chromebook, the charging speed message will not
appear.
Battery
Fully charge the battery using the supplied adapter before
using the Chromebook for the first time, or when the
Chromebook is completely discharged.
•
Use only Samsung-approved adapters, batteries, and
cables. Unapproved adapters or cables can cause the
battery to explode or damage the Chromebook.
•
Incorrectly connecting the adapter may cause
serious damage to the Chromebook.
•
This Chromebook is equipped with an internal
battery. The battery is not user-serviceable or user-
replaceable.
•
To safely remove or replace the battery, take the
device to a Samsung Service Center. You will be
charged for this service.
•
You can use the Chromebook while it is charging,
but the battery charging time may increase. If the
battery temperature rises too much, the charging
may stop as a safety measure.
Settings
23
3
When the battery is fully charged, the power LED turns
green. Disconnect the adapter from the Chromebook.
Power LED Status
•
Blinks red
: Pre-charging
•
Red
: Charging
•
Green
: Fully charged
•
Blue
: Turned on
Charging the battery
1
Connect the adapter to the USB Type-C port of the
Chromebook.
2
Plug the adapter into an electric socket.
If the battery is fully discharged, the Chromebook will
not turn on immediately with the adapter. A minimum
level of battery power will be charged slowly for safety
while the Power LED blinks red. You can turn on the
Chromebook after the Power LED stops blinking.
Settings
24
4
Unplug the adapter from the electric socket.
Do not allow the adapter to make contact with your
skin for a long time. A low-temperature burn may
result.
Battery status
Check the current remaining battery power on the shelf.
Battery usage time
Batteries are replaceable items and over time the battery's
capacity to hold a charge and its power level is reduced. If
a battery can only hold its charge for half of the time that
it could when new, it is recommended to purchase a new,
replacement battery.
25
Usage notices
Precautions for using the device
•
This user guide is specially designed to detail the
Chromebook's functions and features.
•
The user guide supplied with the Chromebook may vary
depending on the model.
•
Please read this guide when using the Chromebook to
ensure safe and proper use.
•
Optional accessories, some devices, and software referred
to in this guide may not be provided or may not be subject
to upgrades. Note that the Chromebook environment
referred to in the user guide may not be the same as your
environment.
•
Available features and additional services may vary
depending on the Chromebook or operating system.
•
This user guide describes procedures for using the
touchpad, mouse and touch screen. Instructions for using
the touch screen are for models with the touch screen
feature.
•
Images and screenshots are those of the representative
model of the series and may differ in appearance from the
actual product.
•
Content may differ from the final product and is subject to
change without prior notice. For the latest version of the
guide, refer to the Samsung website, www.samsung.com.
Instructional icons and expressions
Warning
: situations that could cause injury to yourself
or others
Caution
: situations that could cause damage to the
Chromebook or other equipment
Note
: notes, usage tips, or additional information
The path you should follow to carry out an instruction.
For example, "select
Settings
→
Device
" indicates that
you should select
Settings
and then
Device
.
Select Click the mouse or tap the touchpad or touch screen.
Usage notices
26
Copyright
Copyright © 2024 Samsung Electronics Co., Ltd.
This guide is protected under international copyright laws.
No part of this guide may be reproduced, distributed,
translated, or transmitted in any form or by any means,
electronic or mechanical, including photocopying, recording, or
storing in any information storage and retrieval system.
Chromebook specifications or the contents of this guide may
be changed without prior notice if the Chromebook's functions
are upgraded.
To service your Chromebook
For inquiries about the Chrome operating system or apps, visit
www.google.com/support/chromeos.
If you have a problem while using the Chromebook hardware,
please contact our Samsung Service Center below or visit
www.samsung.com/sec/support/guarantee.do.
If you replace or upgrade the hardware yourself, the Chrome
operating system will not be automatically updated and the
product will not work properly.
Usage notices
27
You may obtain the complete Corresponding Source code from
website: http://git.chromium.org/gitweb/
This offer is valid to anyone in receipt of this information.
Energy Star (USA only)
As an ENERGY STAR
®
Partner, Samsung
has determined that this Product meets the
ENERGY STAR Guidelines for energy efficiency.
The ENERGY STAR Program has reduced
greenhouse gas emissions and saved energy
through voluntary labeling. Samsung is a proud
ENERGY STAR Partner and commits to meet the guidelines
for this product to be ENERGY STAR certified. By selecting
an ENERGY STAR certified product, you reduce greenhouse
emissions, save energy, and can lower operating cost. For more
information, see http://www.energystar.gov/.
•
The Power Management setting of this product has been
enabled by default and has various timing settings (of up
to 300 minutes for energy saving. In case you don't want
the power management setting enabled, select "Never").
•
To change this in Settings, go to the System menu > Power
& sleep menu > Screen/Sleep timeout option.
This product can be awakened from sleep mode by pressing
the Power button.
Trademarks
•
Samsung and the Samsung logo are trademarks or
registered trademarks of Samsung Electronics Co., Ltd.
•
Bluetooth
®
is a registered trademark of Bluetooth SIG, Inc.
worldwide.
•
Wi-Fi
®
, Wi-Fi Direct
™
, Wi-Fi CERTIFIED
™
, and the Wi-Fi
logo are registered trademarks of the Wi-Fi Alliance.
•
HDMI, the HDMI logo, and
the term High Definition
Multimedia Interface are
trademarks or registered
trademarks of HDMI
Licensing LLC.
•
All other trademarks and copyrights are the property of
their respective owners.
Chrome OS Software License
The software included in this product contains copyrighted
software that is licensed under the GPL/LGPL.
Usage notices
28
Product capacity representation
Memory Capacity Representation
The memory capacity reported in the Chrome OS is less than
the actual capacity of memory. This is because BIOS or a video
adapter uses a portion of memory or claims it for further use.
For example, for 1 GB (= 1,024 MB) memory installed, OS
(Windows, Chrome, etc.) may report the capacity as 1,022 MB or
less.
Operating system and software support
If a problem occurs because of the reinstallation of other
operating systems (OS) or a previous version of an OS
pre-installed on this Chromebook, or a software that does
not support the OS, the company will not provide technical
support, a replacement or refund, and if our service engineer
visits you because of this problem, a service charge will be
applied.
Performance Restrictions
Online games and some games (3D, 2D) may not be supported
and Full HD video and some high bit rate HD video playback
may be slow and stutter on this Chromebook.
Usage notices
29
•
Use an adjustable chair with firm, comfortable support.
•
Adjust the height of your chair so that thighs are horizontal
to the floor and feet are flat on the floor.
•
The back of the chair should support the lower back. Adjust
the backrest to fit your body properly.
•
Sit back fully in your chair and straighten the back and
neck. Avoid leaning forward or craning your neck toward
the Chromebook screen.
•
Avoid using the Chromebook while lying down or on your
lap. If the Chromebook's temperature increases, there is a
danger of burn injury.
•
The instructions in this guide have been prepared
so that they can be applied to the range of needs of
general users. If the user is not included in the range,
the recommendations should be applied according
to the user's needs.
•
Images may differ from actual products.
Ergonomic tips
Maintaining proper posture during Chromebook use is very
important to prevent physical injury. Improper or prolonged
keyboard use may result in repetitive strain injury. Viewing
the monitor screen for extended periods of time may result in
eye strain. Therefore, please follow these guidelines carefully
when setting up and using the Chromebook.
Back and neck
Usage notices
30
•

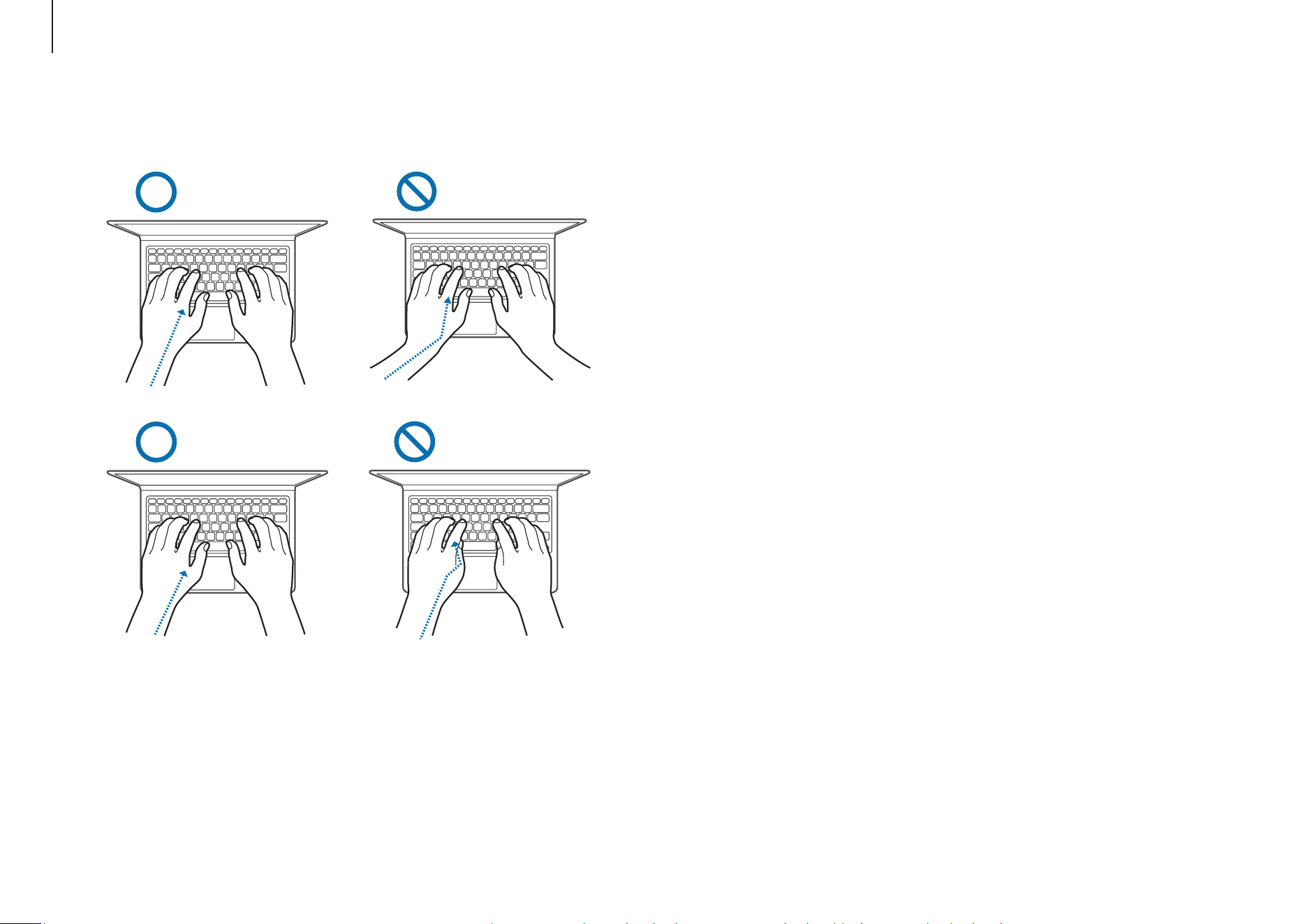

When using the keyboard and touchpad, the shoulders
should be relaxed. The upper arm and forearm should form
an angle that is slightly greater than a right angle, with the
wrist and hand in almost a straight line.
•
Use a light touch when typing or using the touchpad and
keep the hands and fingers relaxed. Avoid rolling the
thumbs under your palms or supporting the wrists on the
desk while typing.
•
Use an external keyboard and mouse when using the
Chromebook for long periods. When using an external
keyboard and mouse, position the devices at the same
height as the Chromebook and within comfortable reach.
Arms and hands
Usage notices
31
Hearing and volume control
VOLUME
Check your volume!
•
Ensure that the volume is not too loud before using a
headset or headphones. Excessive exposure to loud sounds
can cause hearing damage.
•
Always turn the volume down before plugging the
headphones into an audio source and use only the
minimum volume setting necessary to hear your
conversation or music.
•
Avoid using headphones for long periods of time.
•
Default audio settings can be changed by software and
driver updates without your knowledge. Always recheck
equalizer and volume settings before listening to audio.
•
To prevent possible hearing damage, do not listen at high
volume levels for long periods.
Eye position and display illumination
50 cm
•
Position the screen at least 50 cm away from your eyes.
•
Adjust the height of the screen so that its top edge is equal
to or just below the level of your eyes.
•
Avoid setting the screen's brightness settings excessively
high.
•
Keep the screen clean.
•
If wearing glasses, clean them before using the
Chromebook.
•
When referring to printed content while typing, use a
static paper holder to hold the paper at about the same
height as the monitor.
Usage notices
32
•
If anyone related to you has experienced seizures
or blackouts while using a similar product, consult a
physician before using the Chromebook.
•
If you feel discomfort, such as a muscle spasm, or
disoriented, stop using the Chromebook immediately and
consult a physician.
•
To prevent eye strain, take frequent breaks while using the
Chromebook.
Reduce the risk of repetitive motion injuries.
When you repetitively perform actions, such as pressing keys,
drawing characters on a touch screen, or playing games,
you may experience occasional discomfort in your hands,
neck, shoulders, or other parts of your body. When using your
Chromebook for extended periods, hold the Chromebook with
a relaxed grip, press the keys lightly, and take frequent breaks.
If you continue to have discomfort during or after such use,
stop using the Chromebook and consult a physician.
Operating conditions
•
Take at least a 10 minute break every hour.
•
Avoid using the Chromebook in dark locations. Use the
Chromebook with as much ambient light as you would
when reading a book.
•
Indirect illumination is recommended. Use a curtain to
prevent reflections and glare on the screen.
•
While operating a Chromebook and talking on a phone, use
a headset. Using the Chromebook while holding a phone
on your shoulder or with your neck may lead to muscle
strain or injury.
•
Keep frequently used items within reach.
•
Only use the Chromebook within the temperature and
humidity ranges specified in this guide.
Use caution when exposed to flashing lights.
•
While using your Chromebook, leave some lights on in the
room and do not hold the screen too close to your eyes.
•
Seizures or blackouts can occur when you are exposed
to flashing lights while watching videos or playing
Flash-based games for extended periods. If you feel any
discomfort, stop using the Chromebook immediately.
Usage notices
33
Power related
Handle the power cord with care.
•
Do not touch with wet hands.
•
Do not use a damaged power cord.
•
Do not overload a multi-outlet or an extension cord
beyond the specified voltage/current capacity.
•
Correctly insert the plug into the outlet.
•
Do not unplug the power cord by pulling on the cable.
•
Unplug the wall-mount adapter (integrated plug and
power adapter) from the wall outlet while holding the
body and pulling it in the direction of the arrow.
Failure to do so may result in electric shock or fire.
Connect the power cord to the adapter firmly.
An improper connection may result in a fire.
Use the approved adapter or cable included in the product box.
If you use the unapproved adapter or cable, it cause the
damage or malfunction of the Chromebook.
Safety precautions
For your safety and security and to prevent damage, carefully
read the following safety instructions. This 'Safety precautions'
relate to Chromebook use. Some of the content may not be
applicable to your Chromebook.
•
Since this is commonly applied to Samsung
Chromebooks, some pictures may differ from actual
products.
•
The product mentioned in this guide refers to all
items supplied with the Chromebook including
the battery, the adapter, and all other Samsung-
provided accessories.
Warning
Failure to follow the instructions marked with this symbol may
result in physical injury or fatality.
NP UG Rev.5.0
Usage notices
34
Battery usage related
Use manufacturer-approved batteries, adapters, accessories,
and supplies.
•
Using generic batteries or adapters may shorten the life
of your product or cause the Chromebook to malfunction.
They may also cause a fire or cause the battery to explode.
•
Use only Samsung-approved battery and adapter
specifically designed for your device. Incompatible battery
and adapter can cause serious injuries or damage to your
device.
•
Samsung cannot be responsible for the user's safety when
using accessories or supplies that are not approved by
Samsung.
Take care to not allow metal objects such as a key or clip to
touch the battery terminals (metal parts).
This may cause excessive current and result in fire, burns, or
damage to the battery.
If the Chromebook or the Chromebook battery leaks,
emits strange odors, or swells, immediately stop using the
Chromebook and contact a Samsung Service Center.
Failure to do so may result in an explosion or fire.
Use only properly earthed electric sockets or extension cords.
Unearthed electric sockets or extension cords may cause
electric shock. Any connection to unearthed electric sockets or
extension cords may produce an electric field from a current
leak.
If water or other substances enter the product, disconnect
the power cord and contact a Samsung Service Center. For
Chromebooks that are supplied with an optional removable
battery, disconnect the battery.
Failure to do so may result in electric shock or fire caused by a
Chromebook malfunction.
Prevent dust from accumulating on the power cord or the
electric socket. Regularly wipe the power cord and the electric
socket with a dry cloth.
Failure to do so may result in electric shock or fire.
Do not bend or damage the power cord or the adapter with a
heavy or sharp-edged object.
A damaged cable or cord may result in electric shock or fire.
Keep the battery, adapter, and power cord away from infants,
children, and pets.
Failure to do so may result in electric shock or damage.
Usage notices
35
Usage related
Do not use the Chromebook on heated floors or electric pads,
or on beds, blankets, or cushions that block the ventilation of
the Chromebook.
A blocked vent causes the Chromebook to overheat, resulting
in an explosion, fire, burns, or Chromebook malfunction.
Do not use the Chromebook in hot or humid locations, such as
a bathroom, sauna, or inside a car during summer.
Failure to do so may result in Chromebook malfunction or
electric shock.
The Chromebook can be used in locations with an ambient
temperature of 10 °C to 35 °C and a relative humidity of 20%
to 80%RH.
To avoid suffocation, keep the plastic bag away from infants
and children.
Putting a plastic bag over the head may result in suffocation.
Never heat the Chromebook (or the battery) or put the
Chromebook (or the battery) into a fire or microwave.
Failure to do so may result in an explosion or fire.
Replace a run-down battery with a new, Samsung-approved
battery.
Dispose of worn-out batteries properly.
•
There is a danger of fire or explosion.
•
The battery disposal method may differ depending on
your country and region. Dispose of the used battery in an
appropriate way.
When removing the real time clock (RTC) battery, keep it away
from infants and children.
If a child swallows the battery, the child may suffocate. If this
happens, immediately contact a doctor.
Do not throw or disassemble the battery and do not put it into
water.
There is a danger of injury, fire or explosion.
Charge the battery according to the instructions in the guide.
Failure to do so may cause an explosion or fire.
Usage notices
36
Do not touch the Chromebook's surface or the vents for
extended periods while the Chromebook is on.
Contact with the vent or the surface for extended periods may
result in low-temperature burns, such as redness on the skin.
Do not carry your device in your back pockets.
•
The device may be damaged, explode, or result in a fire if
too much pressure is applied to it.
•
You may be injured if you are bumped or fall.
Before cleaning the Chromebook, disconnect all the cables
that are connected to the Chromebook. For Chromebooks that
are supplied with an optional removable battery, disconnect
the battery.
Failure to do so may result in electric shock or fire.
Keep the Chromebook away from water or liquid.
Water or liquid entering the Chromebook may short-circuit the
Chromebook, resulting in electric shock or fire.
If the Chromebook is dropped or broken, disconnect the power
cord and contact a Samsung Service Center. For Chromebooks
that are supplied with an optional removable battery,
disconnect the battery.
Using a broken Chromebook may result in electric shock or
fire.
Usage notices
37
Do not place or use the Chromebook on slanted or vibrating
surfaces.
Failure to do so may result in Chromebook malfunction or
damage.
Do not place heavy objects on the product.
This may cause a problem with the Chromebook. In
addition, the object may fall and cause injury or damage the
Chromebook.
Properly shut down, disconnect and secure the Chromebook
cables before moving it.
Failure to do so may damage the Chromebook or cause
someone to trip over a loose cable.
Caution
Failure to follow instructions marked with this symbol may
result in minor physical injury or damage to the Chromebook.
Installation related
Do not block the ports (holes), vents, etc., of the product and
do not insert objects.
Damage to a component within the Chromebook may cause
electric shock or fire.
When using the Chromebook on its side, ensure the vents are
clear and facing upwards.
Failure to do so, may cause the internal temperature of the
Chromebook to rise and the Chromebook to malfunction or
halt.
Keep the Chromebook's vents at least 15 cm away from walls
and other objects.
Failure to do so may result in physical injury.
Usage notices
38
Close the display panel only after checking if the Chromebook
is turned off.
The temperature may rise and it may cause deformation of the
product.
Do not drop or hit the Chromebook against anything.
Failure to do so may result in physical injury or Chromebook
malfunction.
When handling Chromebook parts, follow the instructions on
the manual supplied with the parts.
Failure to do so may result in damage to the product.
If the product emits smoke or there is a burning smell,
disconnect the adapter from the wall outlet and contact a
Samsung Service Center immediately. For Chromebooks that
are supplied with an optional removable battery, disconnect
the battery.
There is a danger of fire.
Do not store your device near or in heaters, microwaves, hot
cooking equipment, or high pressure containers.
•
The battery may leak.
•
Your device may overheat and cause a fire.
Usage related
Do not use the pen for unintended purposes, such as poking
the body, like eyes or ears, and do not put it in your mouth.
Doing so may result in physical injury.
Do not place a candle, lit cigar, etc., over or on the product.
There is a danger of fire.
Make sure to have the product tested by a safety service
engineer after repairing the product.
Using a repaired product without testing it for safety may
cause an electric shock or fire.
In case of lightning, immediately turn the system off, then
disconnect the power cord from the wall outlet and phone line
from modem.
There is a danger of electric shock or fire.
Connect only permitted devices to the connectors or ports of
the Chromebook.
Failure to do so may result in an electric shock or fire.
Usage notices
39
Keep the Chromebook away from magnetic material.
•
Magnetic materials may cause Chromebook malfunction
or cause the battery to discharge.
•
To avoid damaging the Chromebook or magnetic stripe
cards, such as credit cards, keep magnetic stripe cards
away from the Chromebook.
Do not use your Chromebook in a hospital or on an aircraft that
can be interfered with by radio frequency.
•
Avoid using your Chromebook within a 15 cm range of a
pacemaker, if possible, as your Chromebook can interfere
with the pacemaker.
•
To minimize possible interference with a pacemaker, use
your Chromebook only on the side of your body that is
opposite the pacemaker.
•
If you use medical equipment, contact the equipment
manufacturer before using your Chromebook to determine
whether or not the equipment will be affected by radio
frequencies emitted by the Chromebook.
•
When in a hospital, turn off your Chromebook and follow
all hospital regulations. Radio frequencies emitted from
the Chromebook may affect medical equipment.
Do not insert your fingers into the ports (holes), card slot, or
vents.
There is a danger of injury or electric shock.
Use recommended Chromebook cleansing solutions when
cleaning the product and only use the Chromebook when it is
completely dry.
Failure to do so may result in electric shock or fire.
Do not use the product if it is cracked or broken.
Broken glass or acrylic could cause injury to your hands and
face. Take the device to a Samsung Service Center to have it
repaired.
When using wireless communication (LAN, Bluetooth, etc.)
always follow applicable instructions. For example, airlines
and hospitals have strict requirements.
Avoid exposing a drive to magnetic fields. Security devices
with magnetic fields include airport walk-through devices
and security wands. The airport security devices that check
carry-on luggage use X-rays instead of magnetism and will
not damage a drive.
Usage notices
40
Shut down the Chromebook and disconnect all cables before
disassembling the Chromebook. For Chromebooks that are
supplied with an optional removable battery, disconnect the
battery.
Failure to do so may cause electric shock.
Make sure to close the Chromebook cover before connecting
the power after a reassembly.
There is a danger of electric shock if your body touches an
internal part.
Never disassemble or repair the product by yourself.
There is danger of an accident. Use an authorized Samsung
Service Center.
To connect a device that is not manufactured or authorized
by Samsung, enquire at a Samsung Service Center before
connecting the device.
There is a danger of damaging the product.
Upgrade Related
Do not attempt to upgrade the Chromebook, unless you are
qualified. Otherwise, contact a Samsung Service Center or an
authorized technician.
When you upgrade permitted devices, according to the guide,
follow the specified instructions in the guide to upgrade them.
Do not disassemble any other parts by yourself.
Failure to do so may result in Chromebook malfunction,
electric shock, or fire.
Take care when touching the product or parts.
The Chromebook may be damaged or you may be injured.
Do not disassemble the power supply unit in any
circumstances.
Failure to do so may result in electric shock, fire, or an
explosion.
Usage notices
41
Cautions on preventing data loss (storage device
(such as HDD, SSD, eMMC) management)
Take care not to damage the data on a storage device (such as
HDD, SSD, eMMC).
•
Subjecting the device to physical impacts may result in
data loss.
•
Data may be lost when the Chromebook is turned off or
reset by a power failure while the storage device (such as
HDD, SSD, eMMC) is operating.
•
Data may be lost and irrecoverable because of a
Chromebook virus.
•
Data may be lost if the power is turned off while running
an app.
•
Samsung is not liable for any loss of data on a storage
device (such as HDD, SSD, eMMC).
To prevent data loss caused by damage to a storage device
(such as HDD, SSD, eMMC), please back up the data frequently.
Clean the display screen with a soft cloth dampened with
Chromebook cleansing detergent.
Do not use excessive force. Doing so may damage the display
screen.
Storage and movement related
Do not store the Chromebook in an enclosed space, such as a
Chromebook bag, while it is running.
Failure to do so may result in fire. Completely shut down the
Chromebook before putting the Chromebook into an enclosed
space.
When carrying the Chromebook with other items, such as the
adapter, mouse, books etc., take care not to press anything
against the Chromebook.
If a heavy object is pressed against the Chromebook, a white
spot or stain may appear on the display.
Do not operate or look at the Chromebook while driving a
vehicle.
There is a danger of a traffic accident. Please concentrate on
driving.
For long periods of inactivity or storage, discharge the
battery and separate it from the Chromebook (for external or
removable battery types).
42
Appendix
Product specifications
The system specifications may differ depending on the derived
model. For detailed system specifications, refer to the product
catalog.
Item Specification
Operating
environment
•
Temperature: -5–40 °C for storage,
10–35 °C when operating
•
Humidity: 5–90% for storage,
20–80% when operating
A
C/DC rating
•
Input: 100–240 VAC, 50–60 Hz
•
Output: (PDO) 5 V, 3 A / 9 V, 3 A / 15 V,
3 A / 20 V, 2.25 A
(PPS) 3.3–20 V, 2.25 A
PC r
ating
•
20 VDC, 2.25 A (45 W)
•
Optional components may not be provided or
different components may be provided depending
on the model.
•
The system specifications are subject to change
without notice.
•
For some models, it is not possible to add or replace
storage or memory because of the Chromebook's
design.
Appendix
43
Setting up the system
•
Read and follow all instructions marked on the product
and in the documentation before operating the system.
Retain all safety and operating instructions for future use.
•
Do not use this product near water or a heat source such as
a radiator.
•
Set up the system on a stable work surface.
•
The product should be operated only with the type of
power source indicated on the rating label.
•
Ensure that the electrical outlet to power the equipment is
easily accessible in case of fire or short circuit.
•
If the Chromebook has a voltage selector switch, make
sure that the switch is in the proper position for your area.
•
Openings in the Chromebook case are provided for
ventilation. Do not block or cover these openings. Make
sure you provide adequate space, at least 6 inches (15 cm),
around the system for ventilation when setting up your
work area. Never insert objects of any kind into the
Chromebook ventilation openings.
Important safety information
Safety instructions
The system is designed and tested to meet the latest
standards for safety of information technology equipment.
However, to ensure safe use of this product, it is important
that the safety instructions marked on the product and in the
documentation are followed.
Always follow these instructions to help guard against
personal injury and damage to the system.
Appendix
44
Dispose of batteries according to the manufacturers
instructions. If the CMOS battery requires replacement
ensure that a qualified technician performs the task.
•
When the Chromebook is turned off, a small amount of
electrical current still flows through the Chromebook.
To avoid electrical shock, always unplug all cables, remove
the battery and modem cables from the wall outlets
before cleaning the system.
•
Unplug the system from the wall outlet and contact a
Samsung Service Center if:
‒
The power cord or plug is damaged.
‒
Liquid has been spilled into the Chromebook.
‒
The Chromebook does not operate properly when the
operating instructions are followed.
‒
The Chromebook was dropped or the casing is
damaged.
‒
The Chromebook performance changes.
•
Ensure that the fan vents at the bottom of the casing are
clear at all times. Do not place the Chromebook on a soft
surface, doing so will block the bottom vents.
•
When using an extension cord with this system, make sure
that the total power rating on the products plugged into
the extension cord does not exceed the extension cord
power rating.
•
For Chromebooks with glossy display bezels the user
should consider the placement of the Chromebook as the
bezel may cause reflections from surrounding light and
bright surfaces.
Care during use
•
Do not walk on the power cord or allow anything to rest on
it.
•
Do not spill anything on the Chromebook or its
components. The best way to avoid spills is to not eat or
drink near the Chromebook or its components.
•
Some products have a replaceable CMOS battery on
the system board. There is a danger of explosion if the
CMOS battery is replaced incorrectly. Replace the battery
with the same or equivalent type recommended by the
manufacturer.
Appendix
45
Operating instructions
1
When installing and operating devices please refer to
safety requirements in the user guide.
2
Devices can be used only with the equipment specified in
the technical specifications of the devices.
3
If any smell of burning or smoke is detected from the
Chromebook the unit should be switched off and the
battery removed. The unit should be checked by a qualified
technician before reuse.
4
Service and repair of devices should be carried out by
authorized service centers.
5
Do not allow the portable Chromebook to operate with
the base resting directly on exposed skin for extended
periods of time. The surface temperature of the base will
rise during normal operation (particularly when AC Power
is present). Allowing sustained contact with exposed skin
can cause discomfort or eventually a burn.
Appendix
46
Battery disposal
Do not put rechargeable batteries or products powered
by non-removable rechargeable batteries in the
garbage.
Contact the Samsung Service Center for information on how
to dispose of batteries that you cannot use or recharge any
longer. Follow all local regulations when disposing of old
batteries.
THERE IS RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
Replacement parts and
accessories
Use only replacement parts and accessories recommended by
manufacturer.
To reduce the risk of fire, use only No. 26 AWG or larger
telecommunications line cord.
Do not use this product in areas classified as
hazardous. Such areas include patient care areas
of medical and dental facilities, oxygen rich
environments, or industrial areas.
Appendix
47
•
Laser Safety Note: Use of controls or adjustments
or performance of procedures other than those
specified in this guide may result in hazardous
radiation exposure. To prevent exposure to laser
beams, do not try to open the enclosure of a CD or
DVD drive.
•
Class 1M laser radiation when operating part is open.
Do not view directly with optical instruments.
•
Class 3B invisible laser radiation when open.
Avoid exposure to the beam.
Connecting and disconnecting the adapter
The socket-outlet shall be installed near the equipment and
shall be easily accessible.
Do not unplug the power cord by pulling the cable only.
Laser safety
All systems equipped with CD or DVD drives comply with
the appropriate safety standards, including IEC 60825-1. The
laser devices in these components are classified as "Class 1
Laser Products" under a US Department of Health and Human
Services (DHHS) Radiation Performance Standard. Should
the unit ever need servicing, contact an authorized service
location.
Appendix
48
General requirements
The requirements listed below are applicable to all countries:
•
All power cord sets must be approved by an acceptable
accredited agency responsible for evaluation in the country
where the power cord set will be used.
•
The power cord set must have a minimum current capacity
of 7 A and a nominal voltage rating of 125 or 250 volts AC,
as required by each country's power system (USA only).
•
The appliance coupler must meet the mechanical
configuration of an EN 60 320/IEC 320 Standard Sheet C7
(or C5) connector, for mating with appliance inlet on the
Chromebook.
Power cord requirements
The power cord set (all plugs, cable and adapter plugs) you
received with your Chromebook meets the requirements for
use in the country where you purchased your equipment.
Power cord sets for use in other countries must meet the
requirements of the country where you use the Chromebook.
For more information on power cord set requirements, contact
your authorized dealer, reseller, or service provider.
India only
The power cord set must have a minimum current capacity
and a nominal voltage rating, as required by country's power
system.
Appendix
49
The RF field strength of the wireless device or devices that
may be embedded in the Chromebook are well below all
international RF exposure limits as known at this time.
Because the wireless devices (which may be embedded
into the Chromebook) emit less energy than is allowed in
radio frequency safety standards and recommendations,
manufacturer believes these devices are safe for use.
Regardless of the power levels, care should be taken to
minimize human contact during normal operation.
Some circumstances require restrictions on wireless devices.
Examples of common restrictions are listed on the next page:
Regulatory compliance
statements
Wireless guidance
(If fitted with 2.4 G band, 5 G band or 6 G band)
Low power, Radio LAN type devices (radio frequency
(RF) wireless communication devices), operating in the
2.4 GHz/5 GHz/6 GHz Band, may be present (embedded) in
the Chromebook system. The following section is a general
overview of considerations while operating a wireless device.
Additional limitations, cautions, and concerns for specific
countries are listed in the specific country sections (or country
group sections). The wireless devices in the system are only
qualified for use in the countries identified by the Radio
Approval Marks on the system rating label. If the country you
will be using the wireless device in, is not listed, please contact
your local Radio Approval agency for requirements. Wireless
devices are closely regulated and use may not be allowed.
Appendix
50
•
If the system came equipped with an internal
embedded wireless device, do not operate the
wireless device unless all covers and shields are in
place and the system is fully assembled.
•
Wireless devices are not user serviceable. Do not
modify them in any way. Modification to a wireless
device will void the authorization to use it. Please
contact the manufacturer for service.
•
Only use drivers approved for country in which
the device will be used. Refer to the manufacturer
System Restoration Kit, or contact the
manufacturer's technical support for additional
information.
Explosive Device Proximity Warning
Do not operate a portable transmitter (such as a wireless
network device) near unshielded blasting caps or in an
explosive environment unless the device has been modified to
be qualified for such use.
•
Radio frequency wireless communication can
interfere with equipment on commercial aircraft.
Current aviation regulations require wireless devices
to be turned off while traveling in an airplane.
802.11 (also known as wireless Ethernet or Wi-Fi) and
Bluetooth communication devices are examples of
devices that provide wireless communication.
•
In environments where the risk of interference to
other devices or services is harmful or perceived as
harmful, the option to use a wireless device may
be restricted or eliminated. Airports, hospitals, and
oxygen or flammable gas laden atmospheres are
limited examples where use of wireless devices may
be restricted or eliminated. When in environments
where you are uncertain of the sanction to use
wireless devices, ask the applicable authority for
authorization prior to use or turning on the wireless
device.
•
Every country has different restrictions on the use
of wireless devices. Since your system is equipped
with a wireless device, when traveling between
countries with your system, check with the local
Radio Approval authorities prior to any move or trip
for any restrictions on the use of a wireless device in
the destination country.
Appendix
51
Explosive Device Proximity Warning
Do not operate a portable transmitter (such as a
wireless network device) near unshielded blasting caps
or in an explosive environment unless the device has
been modified to be qualified for such use.
Use On Aircraft Caution
FCC, FAA, and TCCA regulations prohibit airborne
operation of radio-frequency wireless devices because
their signals could interfere with critical aircraft
instruments.
Other wireless devices
Safety notices for other devices in the wireless network:
Refer to the documentation supplied with wireless Ethernet
adapters or other devices in the wireless network.
United States of America and Canada
USA and Canada Safety Requirements and Notices
Do not touch or move antenna while the unit is transmitting or
receiving.
Do not hold any component containing the radio such that
the antenna is very close to touching any exposed parts of the
body, especially the face or eyes, while transmitting.
Do not operate the radio or attempt to transmit data unless
the antenna is connected; if not, the radio may be damaged.
Use in specific environments:
The use of wireless devices in hazardous locations is limited
by the constraints posed by the safety directors of such
environments.
The use of wireless devices on airplanes is governed by
the Federal Aviation Administration (FAA) in the USA and
Transport Canada Civil Aviation (TCCA) in Canada.
The use of wireless devices in hospitals is restricted to the
limits set forth by each hospital.
Appendix
52
This equipment has been tested and found to
comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate
radio frequency energy. If not installed and used in
accordance with the instructions, it may cause harmful
interference. If this equipment does cause harmful
interference to radio or TV reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and
receiver.
•
Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV
technician for help.
The Part 15 radio device operates on a non-interference
basis with other devices operating at this frequency.
Any changes or modification to said product not
expressly approved by Intel could void the user's
authority to operate this device.
FCC Part 15 Information and Notices
Responsible Party – U.S. Contact Information
Samsung Electronics America, Inc.
85 Challenger Road.
Ridgefield Park, NJ 07660
Phone: 1-800-SAMSUNG (726-7864)
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
Appendix
53
Health and safety information
Exposure to Radio Frequency (RF) Signals
Certification Information
This product can contain an embedded radio transmitter
and receiver. It is designed and manufactured not to exceed
the exposure limits for radio frequency (RF) energy set by
the Federal Communications Commission (FCC) of the U.S.
government. These FCC exposure limits are derived from the
recommendations of two expert organizations, the National
Council on Radiation Protection and Measurement (NCRP) and
the Institute of Electrical and Electronics Engineers (IEEE). In
both cases, the recommendations were developed by scientific
and engineering experts drawn from industry, government,
and academia after extensive reviews of the scientific
literature related to the biological effects of RF energy.
Before a new model is available for sale to the public, it must
be certified to the FCC that it does not exceed the exposure
limit established by the FCC. Evaluation per each model is
performed in positions and locations (such as at the bottom on
the body) as required by the FCC.
If necessary, the user should consult the dealer or an
experienced radio/TV technician for additional suggestions.
The user may find the following booklet helpful: "Something
About Interference."
This is available at FCC local regional offices. Our company
is not responsible for any radio or TV interference caused
by unauthorized modifications of this equipment or the
substitution or attachment of connecting cables and
equipment other than those specified by our company. The
correction will be the responsibility of the user. Use only
shielded data cables with this system.
Operation of transmitters in the 5.925-7.125 GHz band is
prohibited for control of or communications with unmanned
aircraft systems.
Appendix
54
For corresponding model only
The Specific Absorption Rate (SAR) is a measure of the rate
of absorption of RF energy by the human body expressed in
units of watts per kilogram (W/kg). The FCC wireless devices to
comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg).
SAR level of this device while operating can be well below
the maximum value. This is because the device is designed to
operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are to
a wireless base station antenna, the lower the power output.
For body worn operation, this model meets the FCC RF
exposure guidelines when used with Samsung accessory
designated for this product. Non-compliance with the above
restrictions may result in violation of FCC RF exposure
guidelines.
RF exposure or SAR information can be viewed on-line at
www.fcc.gov/oet/ea/fccid/. This site uses this product FCC ID
number on the outside of the product. Sometimes it may be
necessary to remove the battery pack to find number. Once
you have the FCC ID number for a particular product, follow the
instructions on the website and it should provide RF exposure
information or values for typical or maximum SAR for particular
product.
Appendix
55
RTC caution
CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Discard used batteries
according to the Manufacturer's instruction.
Manufacturer information
Samsung Electronics Co., Ltd.
129, Samsung-Ro, Yeongtong-Gu, Suwon-City, Gyeonggi-Do,
16677, Korea
Samsung Electronics Vietnam Co., Ltd.
Khu Cong nghiep Yen Phong 1, Yen Trung, Yen Phong, Bac Ninh,
Viet Nam
Tel: +84-222-369-6875
For the web or the phone number of the Samsung Service
Center, refer to the Warranty or contact the retailer where you
purchased your product.
Appendix
56
Innovation, Sciences et Développement
économique Canada
L'émetteur/récepteur exempt de licence contenu dans le
présent appareil est conforme aux CNR d'Innovation, Sciences
et Développement économique Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée
aux deux conditions suivantes :
1. L'appareil ne doit pas produire de brouillage.
2. L'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Avertissement:
Les dispositifs fonctionnant dans la bande 5 150-5 250 MHz
sont réservés uniquement pour une utilisation à l'intérieur a n
de réduire les risques de brouillage préjudiciable aux systèmes
de satellites mobiles utilisant les mêmes canaux.
Les appareils fonctionnant dans la bande
5 925-7 125 MHz ne doivent pas être utilisés pour le contrôle ou
les communications avec des systèmes d'aéronefs sans pilote.
Canada
Innovation, Science and Economic Development
Statement:
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and Economic
Development Canada's licence-exempt RSS(s). Operation is
subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including
interference that may cause undesired operation of the
device.
Industry Canada Caution
The device for operation in the band 5150-5250 MHz is only for
indoor use to reduce the potential for harmful interference to
co-channel mobile satellite systems.
Devices to operate in the 5925-7125 MHz Band shall not be
used for control of or communications with unmanned aircraft
systems.
Appendix
57
Household users should contact either the retailer where
they purchased this product, or their local government office,
for details of where and how they can take these items for
environmentally safe recycling.
Business users should contact their supplier and check the
terms and conditions of the purchase contract. This product
and its electronic accessories should not be mixed with other
commercial wastes for disposal.
For information on Samsung's environmental commitments
and product regulatory obligations, such as REACH, visit our
sustainability page available at www.samsung.com.
India only
For more information on safe disposal and recycling visit
our website www.samsung.com/in or contact our Helpline
numbers - 18002668282, 180030008282.
This product is RoHS compliant.
WEEE symbol information
Correct disposal of this product (Waste Electrical &
Electronic Equipment)
(Applicable in countries with separate collection
systems)
This marking on the product, accessories or literature indicates
that the product and its electronic accessories (for example,
charger, headset, USB cable) should not be disposed of with
other household waste at the end of their working life.
To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate these items
from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources.
Appendix
58
Removing the battery (Europe only)
•
To remove the battery, contact an authorised service
centre. To obtain battery removal instructions, please visit
www.samsung.com/global/ecodesign_energy.
•
For your safety, you must not attempt to remove the
battery. If the battery is not properly removed, it may lead
to damage to the battery and device, cause personal injury,
and result in the device being unsafe.
•
Samsung does not accept liability for any damage or loss
(whether in contract or tort, including negligence) which
may arise from failure to precisely follow these warnings
and instructions, other than death or personal injury
caused by Samsung's negligence.
Correct disposal of batteries in this product
(Applicable in countries with separate collection
systems)
This marking on the battery, manual or packaging indicates
that the batteries in this product should not be disposed of
with other household waste at the end of their working life.
Where marked, the chemical symbols Hg, Cd or Pb indicate
that the battery contains mercury, cadmium or lead above
the reference levels in EC Directive 2006/66. If batteries are
not properly disposed of, these substances can cause harm to
human health or the environment.
To protect natural resources and to promote material re-use,
please separate batteries from other types of waste and
recycle them through your local, free battery return system.
PO BOX 12987, DUBLIN. IE
Appendix
59
Samsung package Take-Back
program
(USA only)
In partnering with select recyclers, Samsung offers packaging
take-back at no cost to you.
Simply call the following number for the locations nearest you.
CRT Processing, LLC
(877) 278-0799
Kathy Severson – Logistics contact
For more recycling information, go to our website:
www.samsung.com/recycling or call 1-800-SAMSUNG.
USA only
This Perchlorate warning applies only to primary CR
(Manganese Dioxide) Lithium coin cells in the product sold or
distributed ONLY in California USA.
"Perchlorate Material- special handling may apply, refer to
www.dtsc.ca.gov/hazardouswaste/perchlorate."
Appendix
60
TCO Certified
A third-party certification according to ISO 14024
Toward sustainable IT products
Say hello
to a more sustainable product
IT products are associated with a wide range of sustainability
risks throughout their life cycle. Human rights violations are
common in the factories. Harmful substances are used both
in products and their manufacture. Products can often have
a short lifespan because of poor ergonomics, low quality and
when they are not able to be repaired or upgraded.
This product is a better choice. It meets all the criteria in
TCO Certified, the world’s most comprehensive sustainability
certification for IT products. Thank you for making a
responsible product choice, that help drive progress towards a
more sustainable future!
Criteria in TCO Certified have a life-cycle perspective and
balance environmental and social responsibility. Conformity is
verified by independent and approved verifiers that specialize
in IT products, social responsibility or other sustainability
issues. Verification is done both before and after the certificate
is issued, covering the entire validity period. The process also
includes ensuring that corrective actions are implemented in
all cases of factory non-conformities. And last but not least, to
make sure that the certification and independent verification
is accurate, both TCO Certified and the verifiers are reviewed
regularly.
Want to know more?
Read information about TCO Certified, full criteria documents,
news and updates at tcocertified.com. On the website you’ll
also find our Product Finder, which presents a complete,
searchable listing of certified products.
TCO Certified
Some content may differ from the Chromebook depending on the region, service provider, software version, or Chromebook model,
and is subject to change without prior notice.
English. 07/2024. Rev. 1.0www.samsung.com
