The Clopay
®
Extreme
™
Series High Performance Sectional Door
System boasts an average opening speed of 24" per second,
allowing productivity to ourish while also delivering the aesthetic
you’re looking for. Tandem nylon rollers improve roller life and reduce
running noise for smooth, quiet operation while safety stays top of
mind with enhanced features such as 3' of light curtain protection,
a cable management system and standard cable tension monitors.
TM
Design pressures (DP) up to 36 PSF
depending on door size, configuration
and exposure. Models tested 50% greater than DP.

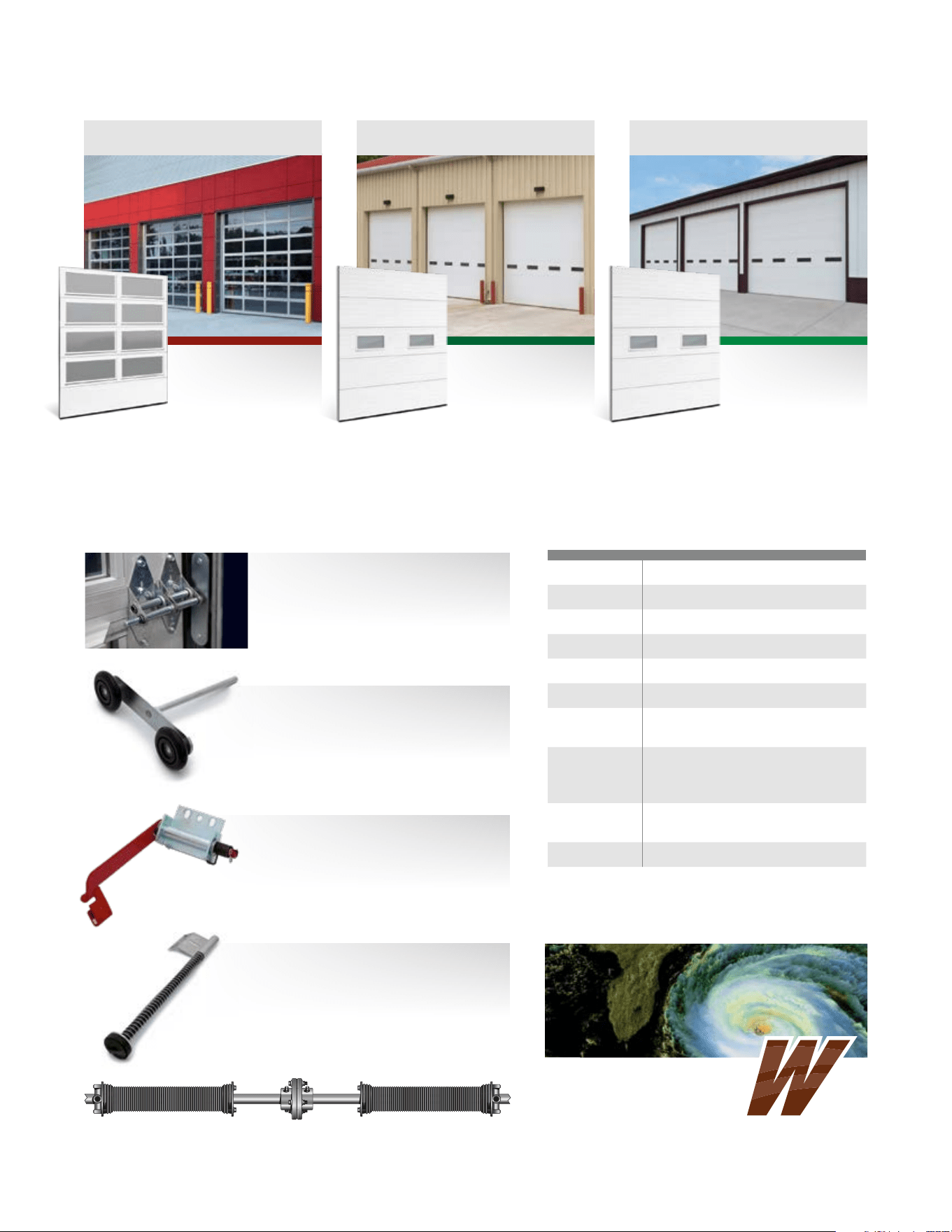

EXTREME
™
SERIES AVAILABILITY
For specific model information visit www.clopaycommercial.com
architectural series energy seriesenergy series with intellicore
EX904, EX904U,
EX3728, EX3729, EX3708,
EX3709, EX3208, EX3209,
EX3158, EX3159,
WINDCODE
®
HARDWARE FEATURES
50,000 cycle springs standard*
Long stem tandem rollers
provide longer roller life and
quieter door operation
Double end stiles
to improve
hinge longevity
Cable snubbers to keep tension
on the cable to prevent it from
coming off of the drum
Pusher springs are used
to prevent cable slack
(required for standard lift track)
Max Width 16'2"
Max Height 14'0"
Max Door Weight 1,000 lbs
Upward Travel 24" per second
Downward Travel 15" per second
Stiles Double end stiles (standard)
Glazing Available
Tempered, insulated tempered,
acrylic and polygal
Springs
50,000 cycle standard*
(Max cycles available
on a single shaft line)
Track Size
2" angle mount track standard
3" track where applicable
Track Type Standard lift, high lift and full vertical lift
STANDARD SPECIFICATIONS
*Cycles can vary depending on door conguration.
EX3200, EX3213,
EX3211, EX3220, EX3150
EX3724, EX3722,
EX3723, EX3721, EX3720,
EX3717, EX3718, EX3715
SAFETY FEATURES
UL325 approved light curtain
that reverses the door’s
downward motion when
the beam is broken
Optional wireless bottom
safety edge that reverses the
door’s downward motion
upon contact with an object
INSTALLATION AND COMMISSIONING CONNECTIVITY
Wi-Fi Connectivity Connectable solution via built-in Wi-Fi
myQ
®
Facility Subscription
First year myQ
®
Facility
subscription included
Over-the-Air Updates Standard via Wi-Fi
Service Cycle Count
On wall controller display;
standard via myQ
®
Facility
Lifetime Cycle Count
On wall controller display;
standard via myQ
®
Facility
Remote Diagnostics
On wall controller display;
standard via myQ
®
Facility
Motor Design
1.25 HP configuration serving single phase
115V/230V and 3-phase 230V configurations;
3-phase 460/575V available with accessory transformer
Wall Controller
Separation of low and high voltage wiring – includes
functionality of 3-button station, PLUS
setting door profile, programming limits, diagnostics
Programming
Complete the following programming at floor level:
set limits; choose door profiles for speed;
set operating modes; select photo entrapment devices
Display
Provides textual status indications including:
n
Absolute cycle count
n
Service cycle count
n
Diagnostics messages
n
Door/operator status
Cycle Counter
Re-settable cycle counter via the wall controller
and/or through myQ
®
Facility
Limit Setting Simple electronic push-button setup via the wall controller
PERFORMANCE REQUIREMENTS
Average Opening Speed 24" per second
Average Closing Speed 15" per second
Daily Duty Cycles 600 cycles/day
Max. Door Weight 1,000 lbs.
Warranted Cycles
600 cycles per day over
2-year warranty period
Drive System Direct drive
Cable tension monitor that
mitigates door operation
when cable slackening occurs
The Extreme
™
Series High Performance Sectional Door
System features a direct drive operator with an opening
speed of 24" per second and up to 600 cycles per day.
The display’s easy-to-read user interface provides ease
of limit-setting at oor level and can connect to the
operator via Wi-Fi to myQ
®
Facility.
CLOPAY
®
EXTREME
™
SERIES
OPERATOR POWERED BY LIFTMASTER
®
CMDC-EXSERIES-22_REV0922
©2022 Clopay Corporation. All rights reserved.
MADE IN USA
For more information on these and other
Clopay products, visit clopaycommercial.com.
Architects and speciers, visit
architectdoorhelp.com.
TRACK AND MOUNTING OPTIONS
2" OR 3"
CLIP MOUNT
CONTINUOUS
ANGLE
2" OR 3"
CLIP MOUNT
REVERSE
ANGLE
3" FULL TAPERED
REVERSE OR
CONTINUOUS
ANGLE
VERTICAL TRACK MOUNTING OPTIONS
STANDARD RADIUS
2" Track
Headroom:
15" Radius = 21" Required
Sideroom = 4-1/2" Required
Backroom = Door Height + 23" Required
3" Track
15" Radius = 22" Required
Sideroom = 5-1/2" Required
Backroom = Door Height + 25" Required
Headroom Available
VERTICAL LIFT
Headroom Available
2" Track
Headroom = Door Height + 14" Required
Sideroom = 4-1/2" Required
Backroom = 23" Required
3" Track
Headroom = Door Height + 14" Required
Sideroom = 5-1/2" Required
Backroom = 23" Required
All track types: 19-3/4" of sideroom on the operator side only is
recommended to slide the operator onto the installed extended shaft.
Spacing between track and door is to be 3/4".
HIGH LIFT
Headroom Available
High lift equals distance from top of
door to bottom of horizontal track.
2" Track
Maximum high lift equals headroom
available minus 14"
Sideroom = 4-1/2" Required
3" Track
Maximum high lift equals headroom
available minus 15"
Sideroom = 5-1/2" Required
(Minimum high lift = 12" Required)
(Maximum high lift available: 120")
