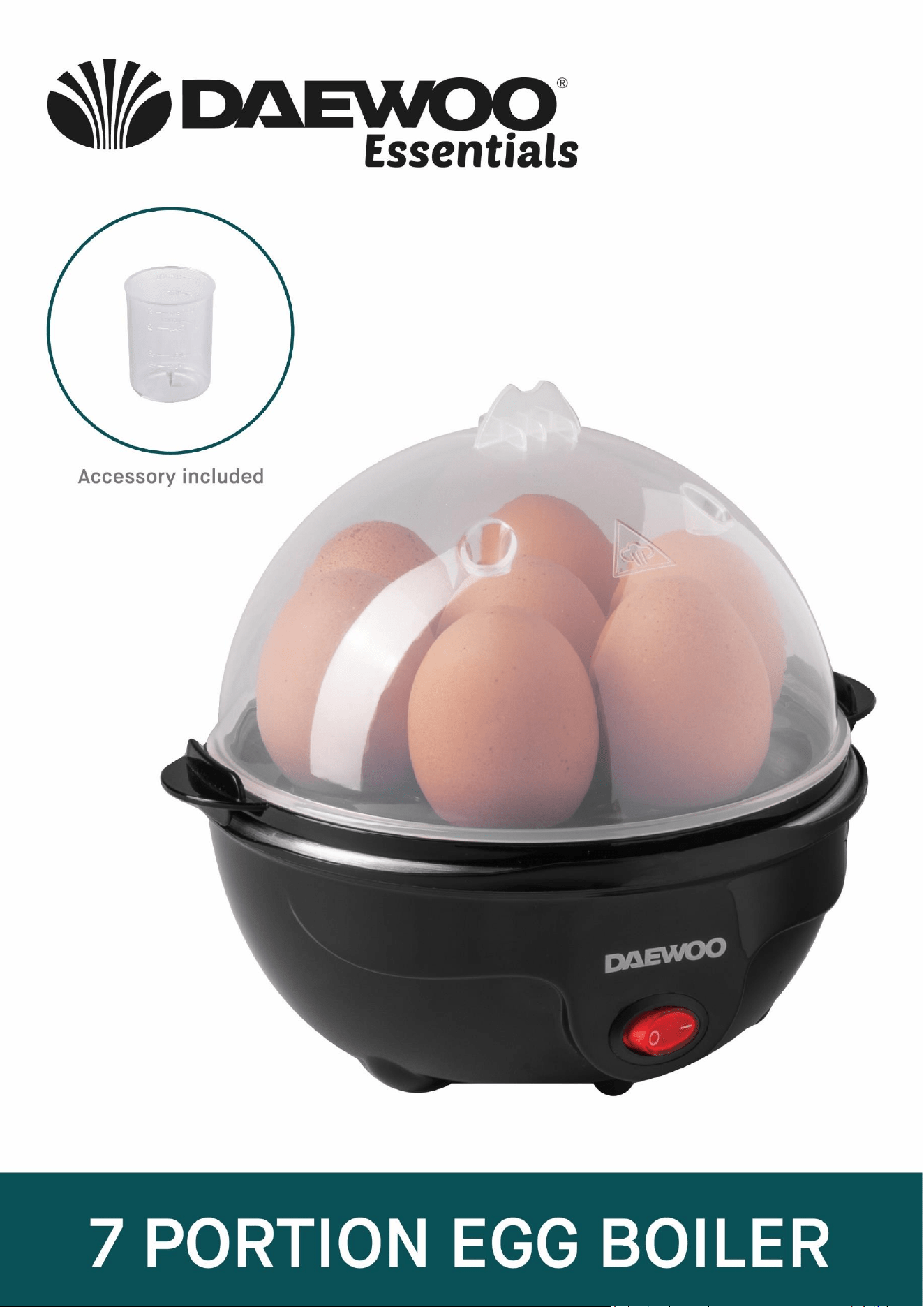

1
7 Portion Egg Boiler
SDA2688
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2
7 Portion Egg Boiler
SDA2688
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions should always
be followed.
Only use the product as described in this user manual. Any other use is
considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury
incurred through improper or incorrect use.
• Read and familiarise yourself with all operating
instructions before using this Egg Boiler.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• DO NOT immerse the appliance or its cord in water or any
other liquids.
• Close supervision is required when using this appliance
near children.
• Never leave this appliance within reach of children.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• DO NOT leave the appliance unattended during use.
• DO NOT leave the appliance unattended whilst connected
3
7 Portion Egg Boiler
SDA2688
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
to the mains supply.
• Always use this appliance on a solid, level, non-flammable
surface.
• DO NOT use this appliance outdoors.
• It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.
• Repairs to electrical appliances should only be performed
by a qualified electrician. Improper repairs may place user
at serious risk.
• DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
• Regular, periodic checks should be carried out on the
mains cable to ensure no damage is evident. Should there
be any signs of damage the appliance should not be used.
• DO NOT allow the mains cable to hang over sharp edges
or come in contact with hot surfaces.
• DO NOT run the mains cable under carpets, rugs, etc.
• Allow the unit to cool before storage.
• Never place the appliance near to flammable material or
high pressure containers.
• This appliance is intended for household use only and
should not be used for industrial purposes.
• If the power cable is damaged, it should only be replaced
by the manufacturer or a suitable qualified after-sales-
service in order to avoid a hazard.
• DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
supplier.
• DO NOT use this appliance for anything other than its
intended use.
• DO NOT push objects into any openings as damage to the
appliance and/or electric shock may occur.
4
7 Portion Egg Boiler
SDA2688
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
• Ensure appliance is situated in an open area, do not allow
it to come in contact with Cupboards, Curtains, wall
coverings, clothing or other flammable materials.
• Unplug after each use. Grasp the plug, not the cord.
• DO NOT cover this appliance or steam vents.
• WARNING! The measuring cup contains a piercing pin
and should be handled with care.
• This Egg Boiler is only designed to cook eggs, any other
foodstuffs may cause damage to the appliance.
Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste. Please ensure it is taken to a
suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk,
enter your postcode to find out your nearest recycling site.
This symbol indicates that the supply uses an alternating current
mains supply.
WARNING!
This designates a hazard with moderate risk, which may
result in severe injury or death if not adhered to.
5
7 Portion Egg Boiler
SDA2688
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Before first use of Your Egg Boiler
• Remove all packing materials and dispose of responsibly.
• Remove the Egg Rack and Measuring Cup and wash in warm soapy water,
rinse and dry thoroughly.
• Wipe over the Egg Boiler body with a clean damp sponge or cloth.
• DO NOT use harsh or abrasive cleaners.
• DO NOT clean any part of your Egg Boiler in a dishwasher
• Never immerse the Egg Boiler in water or any other liquids.
• Always place this appliance on a solid, level, non-flammable surface
Description of Parts
Using Your Egg Boiler
Using the Measuring Cup
• The Measuring Cup (5) has markings
on the side to make it simple to cook
your eggs exactly as you want them.
(See Fig.1) right:
• In the bottom of the measuring cup
there is a Piercing Pin (6) to pierce the
shell of your eggs prior to cooking.
• Fill the Measuring Cup (5) to the firmness mark required, taking into account
the number of eggs to be cooked.
WARNING! The piercing pin is very sharp and care must be taken during use.
1. Cover
2. Egg Rack
3. Heating Plate
4. On/Off Switch
5. Measuring Cup
6. Piercing Pin (underside)
1
2
3
4
5
6
Fig.1
Firmness
Symbol
Soft
Medium
Hard
6
7 Portion Egg Boiler
SDA2688
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Boiling Eggs
1. Fill the Measuring Cup (5) to the desired level with cold water – see above.
2. Pour the water onto the Heating Plate (3).
3. Place the Egg Rack (2) into position.
4. Use the piercing pin on the base of the Measuring Cup (5) to pierce a hole in the
larger end of each egg and place the eggs onto the Egg Rack (2) with the pierced
holes uppermost.
5. Place the Cover (1) onto the Egg Boiler
6. Plug the Egg Boiler into the nearest wall socket.
7. Press the On/Off Switch (4) to the ‘I’ position which will illuminate to indicate
that the Egg Boiler is starting to cook.
8. See the cooking time table below for the time taken to cook the eggs.
9. The Egg Boiler will beep once the cooking time is complete.
10. Press the On/Off Switch (4) to the ‘O’ position to switch off the Egg Boiler and
remove the Cover (1).
11. Take the eggs from the Egg Rack (2) and serve.
WARNING! The eggs will be hot, use suitable oven gloves or similar to
remove them from the egg cooker.
Tips for Best Results
Use fresh eggs for best results.
Allow eggs to reach room temperature before cooking.
Eggs are best served immediately.
If you are setting aside boiled eggs for later, run under cold water and remove the
shell before storing.
Approximate Cooking Times
See table below for approximate cooking times whilst using the Egg Cooker.
Firmness
Approximate cooking times
Soft
7 ½
Minutes
Medium
8 ½
Minutes
Hard
9 ½
Minutes
Technical Specification
Model Number
SDA2688
Rated Voltage
220-240V AC 50-60Hz
Rated Power
350W
Protection Class
I (This appliance must be earthed)
IP Rating
IPX0
7
7 Portion Egg Boiler
SDA2688
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Non-Wireable Mains Plug
If your appliance is supplied with a non-wireable plug fitted to the mains lead and
should the fuse need replacing, you must use an ASTA approved one (conforming
to BS 1362 of the same rating). Never use a plug with the fuse cover missing. If in
doubt, consult a qualified electrician.
If you need to remove the plug – DISCONNECT FROM THE MAINS – and then cut
it off the mains lead and immediately dispose of it safely. Never attempt to reuse
the plug or insert it into a socket outlet as there is a danger of electric shock.
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken
to a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk, enter
your postcode to find out your nearest recycling site.
Troubleshooting Guide
Problem
Possible Solution
The eggs are under or overcooked
Ensure you are filling the measuring
cup to the correct level for the
required amount of eggs
The eggs may be larger or smaller
than used in the cooking guide or may
have been stored in the fridge. For
best results use medium sized eggs at
room temperature.
The Egg Boiler will not switch on
Check the Egg Boiler is switched on at
the mains.
Check that the On/Off Switch has
been pressed and the light is on.
8
7 Portion Egg Boiler
SDA2688
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Daewoo Essentials is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
