Hisense RB395N4BWE Fridge freezer User Manual

English

USER’S OPERATION MANUAL

Before operating this unit, please read this manual

thoroughly, and retain for future reference

RB390N4WBE

RB390N4WCE RB390N4WWE RB395N4BCE

RB390N4ACE

RB395N4WFE

RB395N4WCE

Contents

Safety and warning information. ..........2

Installing your new appliance...............9

Rever sing the door..........................10

Descr iption of the appliance...............14

Displ ay contr ols................................17

Using your applia nce........ .................21

Helpf ul hints and tips.........................24

Clean ing and care.... ..........................25

Trou bleshooting ...............................26

Dispo sal of the appli ance....... ............28

Safety and warning information

For your safety and correct usage, before installing and

first using the appliance,read this user manual carefully,

including its hints and warnings.To avoid unnecessary

mistakes and accidents,it is important to make sure that all

people using the appliance are thoroughly familiar with its

operation and safety features. Save these instructions and

be sure that they remain with the appliance if it is moved or

sold,so that anyone using it throughout its life,will be

properly informed on its usage and safety notices.

For the safety of life and property,keep the precautions of

these user's instructions as the manufacturer is not

responsible for damages caused by omission.

According to EN standard

This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved.Children shall not play with the

appliance.Cleaning and user maintenance shall not be

made by children without supervision.

Children aged from 3 to 8 years are allowed to load and

unload refrigerating appliances.

According to IEC standard

This appliance is not intended for use by persons

Safety for children and others who are vulnerable people

●

(including children) with reduced physical,sensory or

mental capabilities,or lack of experience and knowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person being

responsible for their safety.

Children should be supervised to ensure that they do not

play with the appliance.

Keep all packaging away from children as there is a risk

of suffocation.

If you are discarding the appliance,pull the plug out of the

socket,cut the connection cable (as close to the appliance

as you can) and remove the door to prevent children

playing from suffering an electric shock or from closing

themselves inside it.

If this appliance, featuring a magnetic door seals,is to

replace an older appliance having a spring lock (latch) on

the door or lid,be sure to make the spring lock unusable

before you discard the old appliance.This will prevent it

from becoming a death trap for a child.

WARNING —This appliance is intended to be used

in residential

-staff kitchen areas in shops,offices and other working

environments;

-farm houses and hotels, motels and other residential type

environments;

-bed and breakfast type environments;

-catering and similar non-retail applications.

WARNING — Do not store explosive substances such as

aerosol cans with a flammable propellant in this appliance.

WARNING — If the supply cord is damaged,it must be

replaced by the manufacturer,its service agent or similarly

●

General safety

household and similar applications such as

qualified persons in order to avoid a hazard.

WARNING — Keep ventilation openings,in the appliance

enclosure or in the built-in structure,clear of obstruction.

WARNING — Do not use mechanical devices or other

means to accelerate the defrosting process,other than

those recommended by the manufacturer.

WARNING — Do not damage the refrigerant circuit.

WARNING — Do not use electrical appliances inside the

food storage compartments of the appliance,unless they

are of the type recommended by the manufacturer.

WARNING — The refrigerant and insulation blowing gas

are flammable. When disposing of the appliance,do so only

at an authorized waste disposal centre.Do not expose to

flame.

WARNING —When positioning the appliance,ensure the

supply cord is not trapped or damaged.

WARNING —Do not locate multiple portable socket-

outlets or portable power supplies at the rear of the

appliance.

WARNING—The illuminating lamps must not be replaced

by the user! If the illuminating lamps is damaged,contact

the customer helpline for assistance.

This warning is only for refrigerators that contain

illuminating lamps.

The refrigerant isobutene (R600a) is contained within the

refrigerant circuit of the appliance,a natural gas with a high

level of environmental compatibility,which is nevertheless

flammable.During transportation and installation of the

appliance,ensure that none of the components of the

refrigerant circuit becomes damaged.

●

Replacing the illuminating lamps

Refrigerant

The refrigerant (R600a) is flammable.

WARNING — Refrigerators contain refrigerant and gases

in the insulation.Refrigerant and gases must be disposed

of professionally as they may cause eye injuries or ignition.

Ensure that tubing of the refrigerant circuit is not damage

prior to proper disposal.

The symbol is a warning and indicates the

refrigerant and insulation blowing gas are flammable.

If the refrigerant circuit should be damaged:

-Avoid opening flames and sources of ignition.

-Thoroughly ventilate the room in which the appliance is

situated.

It is dangerous to alter the specifications or modify this

product in any way.

Any damage to the cord may cause a short circuit,fire,

and/or electric shock.

1.The power cord must not be lengthened.

2. Make sure that the power plug is not crushed or

damaged.

A crushed or damaged power plug may overheat and

cause a fire.

3.Make sure that you can access the main plug of the

appliance.

4. Do not pull the main cable.

5. If the power plug socket is loose, do not insert the power

plug. There is a risk of electric shock or fire.

6.You must not operate the appliance without the interior

lighting lamp cover.

7.The fridge is only applied with power supply of single

●

WARNING : Risk of fire / flammable materials

Electrical safety

phase alternating current of 220~240V/50Hz. If fluctuation

of voltage in the district of user is so large that the voltage

exceeds the above scope,for safety sake, be sure to apply

A.C. Automatic voltage regulator of more than 350W to the

fridge.The fridge must employ a special power socket

instead of common one with other electric appliances. Its

plug must match the socket with ground wire.

Do not store flammable gas or liquids in the appliance,

there is a risk of an explosion.

Do not operate any electrical appliances in the appliance

(e.g. electric ice cream makers,mixers etc.).

When unplugging always pull the plug from the mains

socket,do not pull on the cable.

Do not place hot items near the plastic components of

this appliance.

Do not place food products directly against the air outlet

on the rear wall.

Store pre-packed frozen food in accordance with the

frozen food manufacture’s instructions.

The appliances manufactures storage recommendations

should be strictly adhered to.Refer to relevant instructions

for storage.

Do not place carbonated or fizzy drinks in the freezer

compartment as it creates pressure on the container,which

may cause it to explode,resulting in damage to the

appliance.

Frozen food can cause frost burns if consumed straight

from the freezer compartment.

Do not place the appliance in direct sunlight.

Keep burning candles,lamps and other items with naked

flames away from the appliance so that do not set the

appliance on fire.

Daily use

●

The appliance is intended for keeping food stuff and/or

beverages in normal household as explained in this

instruction booklet.You should take care when move it as

the appliance is heavy.

Do not remove or touch items from the freezer

compartment if your hands are damp/wet, as this could

cause skin abrasions or frost/freezer burns.

Never use the base,drawers,doors etc. to stand on or as

supports.

Frozen food must not be refrozen once it has been

thawed out.

Do not consume ice popsicles or ice cubes straight from

the freezer as this can cause freezer burn to the mouth and

lips.

To avoid items falling and causing injury or damage to the

appliance,do

not overload the door racks or put too much

food in the crisper drawers.

●This refrigerating appliance is not intended to be used

as a a built-in appliance.

Before maintenance,switch off the appliance and

disconnect the mains plug from the mains socket.

Do not clean the appliance with metal objects,steam

cleaner,ethereal oils,organic solvents or abrasive

cleansers.

Do not use a sharp objects instead of a plastic scraper

to remove frost from the appliance.

For electrical connection carefully, follow the instructions

given in this manual.Unpack the appliance and check if

there are damages on it.

Do not connect the appliance if it is damaged. Report

possible damages immediately to the place you bought

caution!

Care and cleaning

Installation Important!

it.In this case retain packing.

It is advisable to wait at least four hours before

connecting the appliance to allow the oil to flow back in the

compressor.

Adequate air circulation should be around the appliance,

lacking this leads to overheating. To achieve sufficient

ventilation, follow the instructions relevant to installation.

Wherever possible the back of the product should not be

too close to a wall to avoid touching or catching warm parts

(compressor, ) to prevent the risk of a fire, follow

the instructions relevant to installation.

The appliance must not be locate close to radiators or

cookers.

Make sure that the mains plug is accessible after the

installation of the appliance.

Any electrical work required to do the servicing of the

appliance should be carried out by qualified electrician or

competent person.

This product must be serviced by an authorized Service

Center, and only genuine spare parts must be used.

1)If the appliance is Frost Free.

2)If the appliance contains freezer compartment.

●

Service

condenser

Note:

Leveling of appliance

●

This appliance performs well within

the climate class from SN to T

showed in the table below.It may not

w ork properly if being left at a

temperature above or below the

i ndicated range for a long period.

Stand your appliance in a dry place to

a void high moisture .

Keep the appliance ou t of direct

sunlight, rain or frost. Stand the

a ppliance away from heat sources such

a s stoves,fires or heaters.

For suff icient leveling and air

circulating in the lower rear section of

the appliance, the bottom feet may

n eed to be adjusted. You can adjust

them manually by hand or by using a

suitable spanner.

To allow the doors to self-close, tilt the

top backwards by about 10mm .

Installing your new appliance

Before using the appliance for the first

time, you should be informed of the

following tips.

Ventilation of appliance

In order toimprove efficien cy of

th e cooling system andsave

en ergy, itis necessary to

ma intain good ventilation aroun d the

a ppliance for the di ssipation of heat. For

th is reason,sufficient clear space should

be available aroundthe refrigera tor.

It is advisable for t here to be

5 0-70mm of space fro m the back to the

w all,at least 100mm from its top,at lea st

1 00mm from its side to the wall and a

clear space upfront to allow the doors to

o pen 115°.As shown in fo llow

d iagrams.

Suggest:

Climate class

Ambient temperature

+10°C to +32°C

+16°C to +32°C

+16°C to +38°C

831

717

115

+16°C to +43°C

Reversingthedoor

Thesideatwhichthedooropens

canbechanged,fromtherightside

(assupplied)totheleftside,ifthe

installationsiterequires.

Whenreversing thedoor,

theappliancemustnotbeconnected

tothemains.Ensurethattheplugis

removedfromthemainssocket.

Whenrequired,tilttherefrigerator

backinordertogainaccesstothe

base,youshouldresttheappliance

onsoftfoampackagingorsimilar

materialtoavoiddamagingthe

backboardoftherefrigerator. To

reversethedoor,thefollowingsteps

aregenerallyrecommended.

Differentmodelsmaycorrespondto

different pictures.Modelswillbe

writteninthepicture.Ifsomeparts

arenotshowninthepicture,please

ignoretherelevantdescription.

1.Standtherefrigeratorupright.

Opentheupperdoortotakeoutall

doorracks(toavoidracksdamaged)

andthenclosethedoor.

Warning!

Toolsyouwillneed

●

2.Removepart loosepart from

thetoprightsideofrefrigerator.

3.Removescrews andhinge

.Whentherefrigeratorwith

displayondoor,youneedtopass

connector throughtheholeof

hinge (Pleaseholdupperdoorby

handwheninstalling).

①, ②

③

①

②

②.

Not provided

8mm socket wrench

Thin-blade screwdriver

8mm wrench

Cross-shaped screwdriver

Doorracks

MODEL WITHOUT DISPLAY

① screwsSpecialflange

Upperhinge②

MODEL WITH DISPLAY

① screwsSpecialflange

Upperhinge

Electricalconnector

②

③

① sc rewsSe lf-tapping

Upperhingecover②

4.Removetheupperdoorfromthe

middlehingebycarefullyliftingthe

doorstraightup. Thenplacethe

upperdooronasmoothsurfacewith

itsuppercoverupwards.

Whentherefrigeratorwitha

displayondoor,takescrewhole

cover(right)fromplasticbagand

installitontothetoprightsideof

refrigeratorbody.Thenremove

screwholecover(left)fromthetop

leftsideofapplianceandputitinto

plasticbag.

Whentherefrigeratorwithouta

displayondoor,pulloutscrewhole

coverfromtheleftsideuprightly,

andfixitontherightside.

6.Whentherefrigeratorwitha

displayondoor,removepart from

thetopleftsideofuppercoverand

takeoutpart . Thenremovepart

andputpart into thetopright

sideofuppercover.Refertoabove

operation,installpart andpart

ontothetopleftsideofupper

cover.Installpart ofthetopright

sideofuppercover.Whenthe

refrigeratorwithoutadisplayon

door,skipthisstep.

①

②

③ ④

①

7.Loosescrew andtakedown

part andpart ,Install

replacementdoorstopper-left

provided(intheplasticbag)andpart

(stopblock)totheleftsidewith

screw .Keeppart withthe

applianceforfuturereference.

8.Loosescrewsusedtofixthe

middlehingeandremovemiddle

hinge. Thenremovethelowerdoor.

③

②

③

①

④

① ornercover left

Electricalconnector left

Cornercover right

Electricalconnector right

( )

② ( )

③ ( )

④ ( )

MODEL WITH DISPLAY

Screwholecover Screwholecover

MODEL WITHOUT DISPLAY

9.Placethelowerdooronasmooth

surfacewithitspanelupwards.

Loosescrew andtakedownpart

andpart ,Installreplacement

doorstopper-left provided(inthe

plasticbag)andpart (stopblock)

totheleftsidewithscrew .Keep

part withtheapplianceforfuture

reference.

10.Change screwholecoverson

middlecoverplatefromlefttoright

(asshowninfigurebelow).

③

②

③

11. Tiptherefrigeratorbackwards,

removepart

①

②.

④

12.

13.

14.

15.

Removepart fromthelower

hingepin,looseoutthelowerhinge

pin,changeittothereversehole

site,andthentightenintoposition,

theninstall part onthelower

hingepin.

Slotthelowerdoorontothe

bottomhingepinandholdin

position. Turnthemiddlehingeby

180°,changethewasherontheaxis

tothelowerside,adjustthemiddle

hingetotheappropriatepositionand

theninstallitensuringthelower

doorinsecuredplace.

Movetheupperdoortoan

appropriateposition,andthenfix

③

①

④.

②

③

Replacetheitemsremountin

step11,changepart toleft and

thenfixthemwithscrews Install

part atlast.

Lower hinge part(left)

① Lowerhingepart(right)

Adjustablebottomfeetpart

Self-tappingscrews

Adjustablebottomfeetpart

②

③

④

⑤

①

②

③

④

⑤

Note:washermay

sticktolowerdoor.

Washer

part byscrews .Beforefixpart ,

passconnector throughhinge

refertostep3.(Pleaseholdupper

doorbyhandwheninstalling)

Connectelectricalconnector

asshowninthepicture,thenfixpart

byscrew refertostep2.

②

①

① ②

③ ②

16.

② ③

17. Opentheupperdoor,mountdoor

racksandthencloseit.

Ifyourappliancehashandle,you

havetoreversehandlebyfollow

instructionsbelow .

Removetheupperdoorandplaceit

onasmoothsurfacewithitspanel

upwards.Leverpart andpart ,

thenloosescrews ,asshownin

thepicture.Changehandle tothe

rightside,theninstallscrews ,

part andpart inturn.

Note:

① ④

②

③

②

① ④

② Special screws

③ Handle

① Handle covers

④ Screw hole cov er

① Specialflangescre ws

② Upperhinge

MODEL WITHOUT DISPLAY

① Specialflangescre ws

Upperhinge

Electricalconnec to r

②

③

MODEL WITH DISPLAY

①

②

③ -

electricalconnector

upperhingecover

self tappingscrew

MODEL WITH DISPLAY

Description of the appliance

Theviewofanappliancewithdispenser

Note:

Duetounceasingmodificationofourproducts,somepartsofyour

refrigeratormaybeslightlydifferentfromthisinstructionmanual,

To get more space in the freezer, you can remove drawers(except the bottom

drawer in freezer! ) .To get the best energy of this product, please place all

shelves drawers on their original position as the illustration above.

butits

functionsandusingmethodsremainthesame.

●

1.Cabinet

2.LEDlight&thermostatcontrol

3.Wineshelf(alternative)

4.Glassshelves

5.Crispercover

6.Crisper

7.Tray(alternativewithaupper

8.Middledrawer

9.Lowerdrawer

10.Adjustablefeet

drawer)

11.Refrigeratordoor

12.Refrigeratordoorgasket

13.Upperrack

14.Middlerack

15.Watertank

16.Lowerrack

17.Handle(optional)

18.Freezerdoor

19.Freezerdoorgasket

20.Accessories

Note:

Duetounceasingmodificationofourproducts,somepartsofyour

refrigeratormaybeslightlydifferentfromthisinstructionmanual,

To get more space in the freezer, you can remove drawers(except the bottom

drawer in freezer! ) .To get the best energy of this product, please place all

shelves drawers on their original position as the illustration above.

butits

functionsandusingmethodsremainthesame.

●

Theviewofanappliancewithoutdispenser

Description of the appliance

9.Lowerdrawer

10.Adjustablefeet

11.Refrigeratordoor

12.Refrigeratordoorgasket

13.Upperrack(X2)

14.Lowerrack

15.Handle(optional)

16.Freezerdoor

17.Freezerdoor gasket

1.Cabinet

2.LEDlight&thermostatcontrol

3.Wineshelf(alternative)

4.Glassshelves

5.Crispercover

6.Crisper

7.Tray(alternativewithaupper

drawer)

8.Middledrawer

Note:

Duetounceasingmodificationofourproducts,somepartsofyour

refrigeratormaybeslightlydifferentfromthisinstructionmanual,

To get more space in the freezer, you can remove drawers(except the bottom

drawer in freezer! ) .To get the best energy of this product, please place all

shelves drawers on their original position as the illustration above.

butits

functionsandusingmethodsremainthesame.

●

Theviewofanappliancewithdisplayondoor

Description of the appliance

1.Cabinet

2.LEDlight

3.Wineshelf(alternative)

4.Glassshelves

5.Uppercrisper

6.Crispercover

7.LowerCrisper

8.Upperdrawer

9.Middledrawer

10.Lowerdrawer

11.Adjustablefeet

12.Refrigeratordoor

13.Refrigeratordoorgasket

14.Upperrack(X2)

15.Lowerrack

16.Handle(optional)

17.Freezerdoor

18.Freezerdoorgasket

19.Accessories

Display controls

Displaypanelinsidedoor

Useryourapplianceaccordingtothe

followingcontrolregulations,your

appliancehasthecorresponding

functionsandmodesasthedisplay

panelsshowedinthepicturesbelow.

When the appliance is powered on for the

first time, the backlighting of the icons on

display panel starts working. If no buttons

have been pressed and the doors are

closed, the backlighting will turn off.

Displaypanelinsidedoor

Controlling the temperature

Caution!

For optimum food preservation,

Werecommendthatwhenyoustartyour

refrigeratorforthefirsttime,the

temperaturefortherefrigeratorissetto 4°

C.Ifyouwanttochangethe

temperature,followtheinstructionsbelow

NOTE:High temperature setting will

accelerate food waste.

Whenyousetatemperature,youset

anaveragetemperaturefor the

wholerefrigeratorcabinet.

Temperaturesinsideeach

compartmentmayvaryfromthe

temperaturevaluesdisplayedonthe

panel,dependingonhowmuchfood

youstoreandwhereyouplacethem.

Ambienttemperaturemayalso

affecttheactualtemperatureinside

theappliance.

Fridge

●

Press “ ” to set fridge temperature

between 2°C and 8°C

as needed, and

display panel will display corresponding

values according to the following

sequence.

Note: When the“ ”is lighted, the holiday

mode is activated. Check the Holiday

mode instruction.

Super Freeze will quickly lower the

temperature within the freezer so food will

freeze faster. This can lock in the vitamins

and nutrients of fresh food and keep food

fresh longer.

You can press “ ”

for 3 sec to get into

super freeze mode.

When Super freeze Mode is selected,

the light will be illuminated and the freezer

temperature will be set at -24°C.

In case of the maximum amount of food

to be frozen, please wait about 24 h.

Super freeze automatically switches off

after 52 hours and then the freezer

temperature setting will revert back to the

previous setting.

If you are going to be away for a long

period of time, press “ ”,you can

activate this function.

When Holiday Mode is activated, the

light will be illuminated. The freezer

temperature will be set at -18°C and the

fridge temperature will be set at 15°C.

Do not store any food in the

fridge during this time.

You can switch on or switch off your

Super Freeze( )

Holiday ( )

Important!

3.Switch( )(display panel inside

door)

●

for1seconds, after a

appliance by press this button.

Press “ ” for 3 seconds, after a

buzzer sound, the appliance will be

turned off.

●

Press “ ”

buzzer sound, the appliance will be

turned on.

●

-20 °C

-21 °C

-22 °C -23 °C

-24 °C-14 °C

-19 °C

-17 °C

-16 °C

-15 °C

-18 °C

Display controls

Displaypanelondoor

Controlling the

temperature

For optimum food preservation,

We recommend thatwhen you startyour

refrigerator forthe firsttime,the

temperature forthe refrigerator is set to

4°C.Ifyou want tochange the

temperature, follow the instructions

below.

NOTE:High temperature setting will

accelerate food waste.

Caution!

When you seta temperature, you setan

average temperature forthe whole

refrigerator cabinet.Temperatures inside

each compartment may vary fromthe

temperature values displayed on the

panel, depending on how much food you

store and where you place them.Ambient

temperature may also affectthe actual

temperature inside the appliance.

Press “ZONE CHOICE”, the “ ”light

will turn on. Then press “SET TEMP.”, you

can set fridge temperature between 2°C

and 8°C as needed, and display panel will

display corresponding values according

Fridge

●

to the following sequence.

Press “ZONE CHOICE”, when the “ ”

light turns on. Then press “SETTEMP ”,

you can set freezer temperature between

-14°C and -24°C as needed, and the

display panel will display corresponding

value according to the following

sequence.

Super Freeze will quickly lower the

temperature within the freezer so food will

freeze faster. This can lock in the vitamins

and nutrients of fresh food and keep food

fresh longer.

You can press “SUPER” to get into

super freezer mode.

Whensuper freeze Mode is selected,

the light will be illuminated and the freezer

temperature will be set at -24°C.

In case of the maximum amount of food

to be frozen, please wait about 24 h.

Super freeze automatically switches off

after 52 hours and then the freezer

temperature setting will revert back to the

previous setting.

This function makes the freezer work in a

power saving mode which is useful for

reducing energy consumption when you

are away.

You can press “ECO MODE” to get into

economic energy mode.

When economic energy Mode is

Freezer

Super Freeze( )

Eco energy

●

activated, the light will be illuminated.The

freezer temperature will be set at -17°C

and the fridge temperature will be set at

6°C.

You can switch on or switch off your

appliance by press this button.

Press “ ”for 3 seconds, after a buzzer

sound, meanwhile the digital light will

show “OF”, the appliance will be turned

off.

Press “ ” for 3 seconds, after a

buzzer sound,the appliance will be

turned on.

Switch

●

Alarm

When the door of fridge has been

opened for over 2 minutes, the door alarm

will sound. In case of door alarm, buzzer

will sound 3 times every 1 minute and will

stop alarming automatically after 8

minutes.

To save energy, please avoid keeping

the door open for a long time when using

the appliance. The door alarm can also be

cleared by closing the door.

●

Using your appliance

Yourapplianceissuppliedwitha

numberofaccessoriesandthis

sectiondescribeshowbesttouse

them.

It is suitable for the storage of eggs,

canned liquid, bottled drinks and packed

food, etc. Do not place too many heavy

things in the racks.

There are three shelves in refrigerator

chamber, and they can be taken out to be

cleaned.

Doorrack

ShelfinRefrigeratorchamber

Extra fresh box(optional)

In certain model, there will be an extra

fresh box(drawer). In this drawer you can

get a lower temperature to store fish,

meat and other erodible food .

Normally it will be about 2°C lower than

the other part of the fresh compartment.

You can move the slide bar to set the

temperature. There are some

recommendations in the below table

which you can consult.

●

temporarily

Due to the environment

temperature and setting

temperature both influence the

temperature of extra fresh

box(drawer), the actual temperature

may change in a certain range.

The temperature of this drawer may

lower than zero, so it is normal that

liquid in this drawer was frozen.

You can adjust the slide bar on the

crisper cover to keep differenthumidity in

the crisper.Push the slide bar to the left,

you will keep a higher humidity which can

storage vegetable and fruit long and

fresh,to the right will be lower humidity.

Note:

Flexible wine rack

Crispercover

Fruitandvegetablecrisper

It is for storing bottled wine or drinks,

and it can be taken out to clean.

It is for controlling the temperature of the

crisper and avoiding the vegetable losing

moisture.

It is suitable for the storage of fruits and

vegetable.

●

slidebar

Extrafreshbox

left right

fridgetemp.

set

slidebar

2°C

5°C

8°C

rightmost

food

fish&meat

fruit

vegetables

storageperiod

<3days

<2weeks

<5days

FreezerDrawer

Icecubetray

WaterDispenser

Before Using

It is used to store food which needs to be

frozen, including meat, fish, ice cream,

etc.

It is used to make ice cubes.To make ice

cubes, please fill water into the ice cube

trays and the water level shall not exceed

the top line(ideally eighty percent of the

ice tray volume). Place the tray into the

freezer drawer and wait at least two hours

for the ice cubes to be formed.After the

cubes are formed, gently twist the tray to

separate the cubes and trays.

Thewaterdispenser,locatedinthe

fridgedoor,isforstoringdrinking

water.Withthisapplianceyoucan

obtainchilledwatereasilywithout

openingtherefrigerator. Youshould

beinformedoffollowingtips.

Beforeusingthisapplianceforthe

firsttime,youshoulduseitas

follows.

●

1. Takeoutthemiddlerack.

2.Holdthetwosidesofthewater

tanktightly,thenpullupthewater

tankbyshakingupanddown.

3.Unscrewthehead,thenclean it

andtheinsideofwatertank.

Beforeassembling,pleasedrainthe

waterinsidethetank,andcheck

whetherthewasherreversedornot.

1.Insert theheadintothehole.

2.Fitthetankalongtheguideson

thedoor.

3.Pressdowntwosideofthetank.

4.Whenyouhearaclicksound,that

meanstheinstallationiscompleted.

1.Be careful not to press on the head;

2.Whenfittingthewatertank,

ensuretheheadinsertedintothe

Assembling

Warning!

●

Slot

Guide

holefirst.

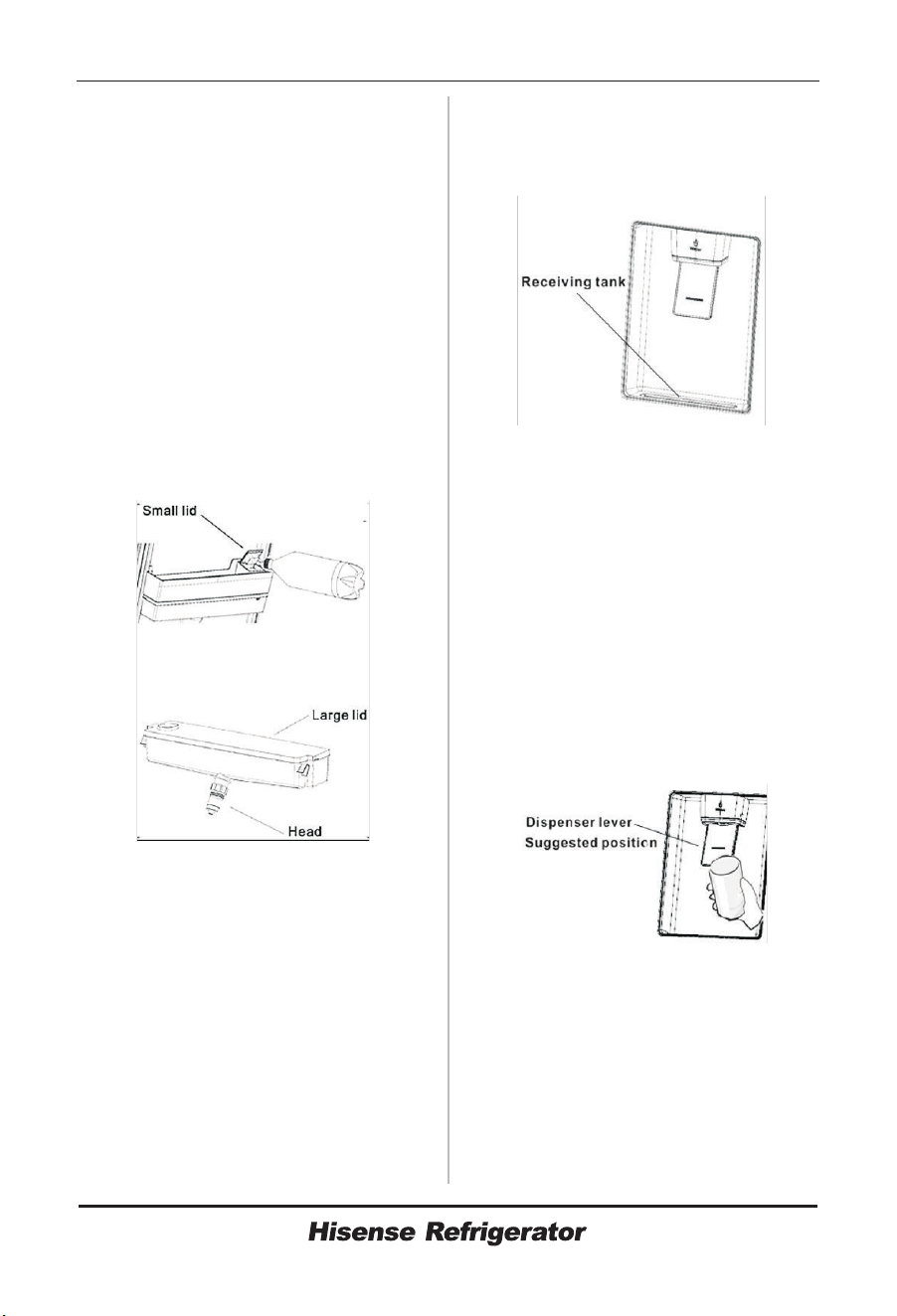

Before you fill the drinking water into

the water tank, ensure that the water

tank is steady and in a correct pos ition.

Fillwithwaterupto3L(whichis

suggested),andnotabovethelevel.

Otherwise,itmayoverflowwhenthe

lidisclose.

1.Werecommendthatyoufillthe

waterbythefollowingway.

2.Openthesmalllidbyrotatingit,

andfillwaterfromtheinletofthe

largelid.Pleaserememberrotate

thesmalllidbacktoit’soriginal

positionwhenfinishfillingwater.

Don'ttouchotherpartsofthe

appliancewhenfillingwater,itmay

causethewaterleakage.

1.Makesurethecoverofthewater

tankisfittedon.

2.Closethefridgedoorandcheck

thedispenser.

Youshouldusethecorrectcupto

receivewaterunderneaththewater

dispenser.

Filling water

Caution!

Warning!

Dispensingwater

ReceivingWater

●

Warning!

Cleaning

Don'tpushthedispenserlever

forwardwithoutcup,itmaycause

thewaterleakfromthedispenser.

1.Putthewatertankoutofthedoor

carefully,andthenwashthetank,lid

andheadlightlyinwater.

Afteryouhavesuccessfully

cleanedtheappliance,youshould

dryitbynaturaldryingorusingthe

dryer.

3.Ifyouhaveusedthewater

dispenserformanytimes,thewater

inthereceivingtankmaydroponthe

floor,whichmaymakeyourfloor

wet,andyou shouldcleanthetank

withdrytowelregularlybefore

overflow.

●

Helpful hints and tips

Energy saving tips

We recommend that you follow the tips

below to save energy.

Try to avoid keeping the door open for

long periods in order to conserve energy.

Ensure the appliance is away from any

sources of heat (Direct sunlight, electric

oven or cooker etc)

Don't set the temperature colder than

necessary.

Don't store warm food or evaporating

liquid in the appliance.

Place the appliance in a well ventilated,

humidity free, room. Please refer to

Installing your new appliance

●

chapter.

If the diagram shows the correct

combination for the drawers, crisper and

shelves, do not adjust the combination as

this is designed to be the most energy

efficient configuration.

Do not place hot food directly into the

refrigerator or freezer the internal

temperature will increase resulting in the

compressor having to work harder and

will consume more energy.

Do cover or wrap the food particularly if

it has a strong flavor.

Place food properly so that air can

circulate freely around it.

Meat (All Types) Wrap in polythene

food: wrap and place on the glass shelf

above the vegetable drawer.Always

follow food storage times and use by

dates suggested by manufacturers.

Cooked food, cold dishes, etc.:

They should be covered and may be

placed on any shelf.

Fruit and vegetables:

They should be stored in the special

drawer provided.

Butter and cheese:

Should be wrapped in airtight foil or

plastic film wrap.

Hints for fresh food refrigeration

Hints for refrigeration

●

Milk bottles:

Should have a lid and be stored in the

door racks.

When first starting-up or after a period

out of use, let the appliance run at least 2

hours on the higher settings before

putting food in the compartment.

Prepare food in small portions to enable

it to be rapidly and completely frozen and

to make it possible to subsequently thaw

only the quantity required.

Wrap up the food in aluminum foil or

polyethylene food wraps which are

airtight.

Do not allow fresh unfrozen food to

touch the food which is already frozen to

avoid temperature rise of the latter.

Iced products if consumed immediately

after removal from the freezer

compartment will probably cause frost

burns to the skin.

It is recommended to label and date

each frozen package in order to keep

track of the storage time.

Ensure that frozen food has been

stored correctly by the food retailer.

Once defrosted food will deteriorate

rapidly and should not be re-frozen. Do

not exceed the storage period indicated

by the food manufacturer.

If the appliance needs to be switched off

for an extended period the following

steps should be taken prevent mould on

the appliance.

1.Remove all food.

2.Remove the power plug from the mains

socket.

3.Clean and dry the interior thoroughly.

4.Ensure that all the doors are wedged

open slightly to allow air to circulate.

Hints for freezing

Hints for the storage of frozen food

Switching off your appliance

Cleaning and care

For hygienic reasons the appliance

(including exterior and interior

accessories) should be cleaned regularly

(at least every two months).

The appliance must not be connected to

the mains during cleaning as there is a

danger of electrical shock! Before

cleaning switch the appliance offand

remove the plug from the mains socket.

To maintain good appearance of your

appliance, you should clean it regularly.

Wipe the control panel with a clean, soft

cloth.

Spray waterontothecleaningcloth

insteadofsprayingdirectlyonthesurface

oftheappliance.Thishelpsensureaneven

distribution of moistureto thesurface.

Clean the doors, handles and cabinet

surfaces with a mild detergent and then

wiped dry with a soft cloth.

Don't use sharp objects as they are

likely to scratch the surface.

Don't use Thinner, Car detergent,

Clorox, ethereal oil,abrasive cleansers or

organic solvent such as Benzene for

cleaning. They may damage the surface

of the appliance and may cause fire.

You should clean the appliance interior

regularly.It will be easier to clean when

food stocks are low. Wipe the inside of the

fridge freezer with a weak solution of

bicarbonate of soda,and then rinse with

warm water using a wrung-out sponge or

cloth.Wipe completely dry before

replacing the shelves and baskets.

Thoroughly dry all surfaces and

removable parts before putting them

back into place.

Although this appliance automatically

Warning!

Exterior cleaning

Caution!

Interior cleaning

●

defrosts, a layer of frost may occur on the

freezer compartment’s interior walls if the

freezer door is opened frequently or kept

open too long.If the frost is too thick,

choose a time when the freezer is nearly

empty and proceed as follow:

1.Remove existing food and accessories

baskets,unplug the appliance from the

mains power and leave the doors open.

Ventilate the room thoroughly to

accelerate the process.

2. When defrosting is completed,clean

your freezer as described above.

Do not use sharp objects to remove frost

from the freezer compartment. Only after

the interior is completely dry should the

appliance be switched back on and

plugged back into the mains socket.

Take care to keep door seals clean.

Sticky food and drinks can cause seals to

stick to the cabinet and tear when you

open the door.Washseal with a mild

detergent and warm water. Rinse and dry

it thoroughly after cleaning.

Only after the door seals are

completely dry should the appliance be

powered on .

Warning:The LED light must not be

replaced by the user! If the LED light is

damaged, contact the customer helpline

for assistance.

Caution!

Door seals cleaning

Caution!

Replacing the LED light:

Troubleshooting

It is normal to frequently hear the sound of the motor, it wi ll

ne ed to run more when in following circumstances:

Tempe rature setting is set col der than necessary

La rge quanti ty of warm food has recently been stored

wi thin the appliance.

Th e temperature outsid e the appliance is too hi gh.

Do ors are kept op en too long or too often.

After your installing the appliance or it has been swit ched

off for a long time.

●

Problem

Possible cause & Solution

Ap pliance is not

wo rking corr ectly

Ch eck whethe r the power cor d is plugged into the power

ou tlet properly.

Ch eck the fuse or circuit of you r power supply,replace

if necessary.

It is normal that the freezer is not operating du ring the

de frost cycle, or for a s hort time after th e applianc e is

sw itched on to prote ct the compressor.

Od ours from the

co mpartments

Th e interior may need to be cleaned

So me food, containers or wrappin g cause odours.

Noise from theappliance

Th e sounds below are quite normal:

Co mpressor running noise s.

Ai r movement noise from the small fan motor in the

freezer comp artment or other compartments.

Gu rgling sou nd similar to water boiling .

Po pping nois e during automatic defrosting.

Cl icking noi se before the compressor start s.

●

Other unusual noises are due to the reasons below and

ma y need you to check and take action:

Th e cabinet is not level.

Th e back of appli ance touch es the wall.

Bo ttles or containers fallen or rolling.

●

The motor runs

continuously

Ifyouexperienceaproblemwithyourapplianceorareconcernedthatthe

applianceisnotfunctioningcorrectly,youcancarryoutsomeeasychecks

beforecallingforservice,pleaseseebelow.

Don’ttrytorepairtheapplianceyourself.Iftheproblempersists

afteryouhavemadethechecksmentionedbelow,contactaqualified

electrician,authorizedserviceengineerortheshopwhereyoupurchasedthe

product.

Warning!

Tempe rature ins ide is

too warm

You may have left the doors open too long or too

frequently; or the doors are kept open by some obstacle;

or the appliance is located with insufficient clearance at

the sides, back and top .

Tempe rature ins ide

is too cold

Do ors can’t be

cl osed easil y

Increase the temperature by following the“Display controls”

chapter.

Ch eck whethe r the top of the refrig erator is tilted back by

10 -15mm to allow the doors to self close, or if something

in side is preventing the door s from closing.

Water drips

on the floor

●

The LED light may be damaged Ref er to replace LED

li ghts in cleaning and care chapter.

The controI system has disabled the lights due to the

do or being kept open too long,close and reopen s the door

to reactivat e the Iights.

The light is not working

Alayer of frost oc curs

in the compartment

Ch eck that the air outlets are not blocked by food and

en sure food is placed within the appliance to allow

su fficient ventilation.E nsure that door is fully closed.To

re move the frost, please re fer to the“Cleaning and care”

ch apter.

The water pan (located at the rear bottom of the cabinet)

may not be properly leveled, or the draining spout under

neath the top of the compressor depot may not be properly

positioned to direct water into this pan, or the water spout is

blocked. You may need to pull the refrigerator away from the

wall to check the pan and spout.

Check if the refrigerator is power-offfor a long time, this may

cause the ice in the bucket to melt into water,and flow to the

floor .

Disposal of the appliance

It is prohibited to dispose of thi s applianc e as household waste.

Pa ckaging ma terials wi th the recycle symbol are recyclable. Dispose of the

pa ckaging in to a sui table wast e collecti on contain er to recycle it.

1. Pull out the mains plug from the mai ns socket.

2. Cut off the power cord and discard with the mains plug.

Re frigerators contain refrigerant and gases in the insulation. Refrigerant

an d gases must be disposed of profess ionally as they may cause eye in juries or

ig nition. En sure that tubing of the refrigerant ci rcuit is not da mage prior to proper

di sposal.

Packaging materials

Before disposal of the appliance

Warning!

To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the

temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage

systems.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in

contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing

or making icecream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh

food.

CorrectDisposalofthisproduct

This symbol on the product or in its packing indicates that this product

ma y not be treated as household waste . Instead, it should be taken to

the appropriate waste collection point for the recycling of electrical and

el ectronic equipment. By ensuring this product is disposed of correctly,

yo u will help prevent potenti al negativ e conseque nces for the

en vironment and human health, which could otherwise be caused by

the inappropriate waste handling of this product. For more det ailed

in formation about the recycling of this product, please con tact your

lo cal counci l your household waste disp osal servi ce, or the shop where

yo u purchase d the product.

*-Freezer

0-star

Chill

FreshFood

Wine

≤ 6-

-6~0

-2~ 3+

0~ 4+

+ +5~ 20

Seafood (fish, shrimp, shellfish), freshwater

aquatic products and meat products

(recommended for 1 month,the longer the storage

time,the worse the taste and nutrition),

are not suitable for frozen fresh food.

Fresh pork, beef, fish, chicken, some packaged

processed foods, etc. (Recommended to eat within

the same day, preferably no later than3 days) .

Partially encapsulated processed foods (non-

freezable foods)

Fresh/frozen pork, beef, chicken, freshwater aquatic

products, etc.(7 days below 0 and above 0

isrecommended for consumption within that day,

preferably no more than 2 days).

Seafood (less than 0 for 15 days, it is not

recommended to store above 0 )

℃ ℃

℃

Fresh pork,beef,fish,chicken,cooked food,etc.

(Recommended to eat within the same

day,preferably no more than 3 days)

red wine,white wine,sparkling wine etc.

Target storage

temp.[ ]

℃

Order

Compartments

TYPE

Appropriate food

Fridge

(***)*-Freezer

***-Freezer

**-Freezer

+2~+8

≤ 18-

≤ 12-

Eggs, cooked food, packaged foo d, fruits and

vegetabl es, dairy products, cakes, drinks and

other foods which are not suitable fo r freezing.

Seafood (fish,shrimp,shellfish ),freshwater

aquatic products and meat products

(recommended for 3 months , he longer the

storage time,the worse the taste and

nutrition),s uitable for frozen fresh food.

Seafood (fish, shrimp, shellfish),freshwater aquatic

products and meat products (recommended for 3

months,

are not suitable for

the longer the storage time,the worse the

taste and nutrition), frozen fresh

food

Seafood (fish, shrimp, shellfish), freshwater

aquatic products and meat products

(recommended for 2 months,the longer the storage

time,the worse the taste and nutrition),

are not suitable for frozen fresh food.

Note: please store different foods according to the compartments or target storage

temperature of your purchased products.

- If the refrigerating appliance is left empty for long periods,switch off,defrost,

clean,dry, and leave the door open to prevent mould developing within the appliance.

Hisense UK Ltd

Ground floor Munroe Court

White Rose Office Park

Millshaw Park Lane

Leeds LS11 0EA

４２８４９５６－Ｆ

Hisense RB395N4BWE Fridge freezer

Product's Documents

Instructions for use

Specifications

Hisense RB395N4BWE Questions and Answers
