STEP 3:
Insert Top Tubes (F/F1) into the Connector Hub (G). Repeat this
step 4 times as shown in Figure 3.
STEP 4:
Attach the Large Canopy Fabric (K) to the Top Frame assembled in Step 3.
Figure 3
F
F
F
Z
F
G
Figure 4
F
K
F1
F1
F1
STEP 9:
Fixed the bottom hole of each of four Pillars (A/B/B1) to a solid surface, ground, patio,
deck etc. by using the Ground Stake (R). Repeat this step to attach the shelves at
each of the four corners as shown in Figure 9.
NOTE: The side tables are adjustable to two heights, 24 in. and 30 in. There is a cap
pre-inserted in the lowest hole on each Pillar. Please remove the cap for the hole first
if you want to adjust the table height to 24 in. for the first time. And then use included
bolt & cap in unused hole in pillar once attached.
Now please enjoy your new grill gazebo.
Figure 9
R
A/B/B1
H
H
Y
B1
B1
M
U
U
M
Metal Finishes and/or Paint
The finish is warranted against blistering, peeling, or
cracking. Fading resulting from exposure to elements,
chemicals, and spills are not covered. Scratches and chips
due to normal wear and use are not covered.
Storage
Your new Gazebo was crafted from steel and treated with a
powder coat finish to protect it from rust. Please periodically
inspect your new Gazebo for any scratches or chips and touch
up with a paint for metal from your local hardware store to insure
many years of use. This product will rust if not protected. If you
are dismantling and storing your Gazebo after use,store in dry
place wiping down and drying off all metal parts.
Exclusions
Damage caused by acts of nature.
Wind damage.
Failure caused by unreasonable, unanticipated or abusive
use.
Normal fade of fabrics, upholstery or woven materials.
Bursting or cracking of tubing due to exposure to water
and freezing temperatures.
P01 P02
P03 P04 P05 P06
P07 P08 P09

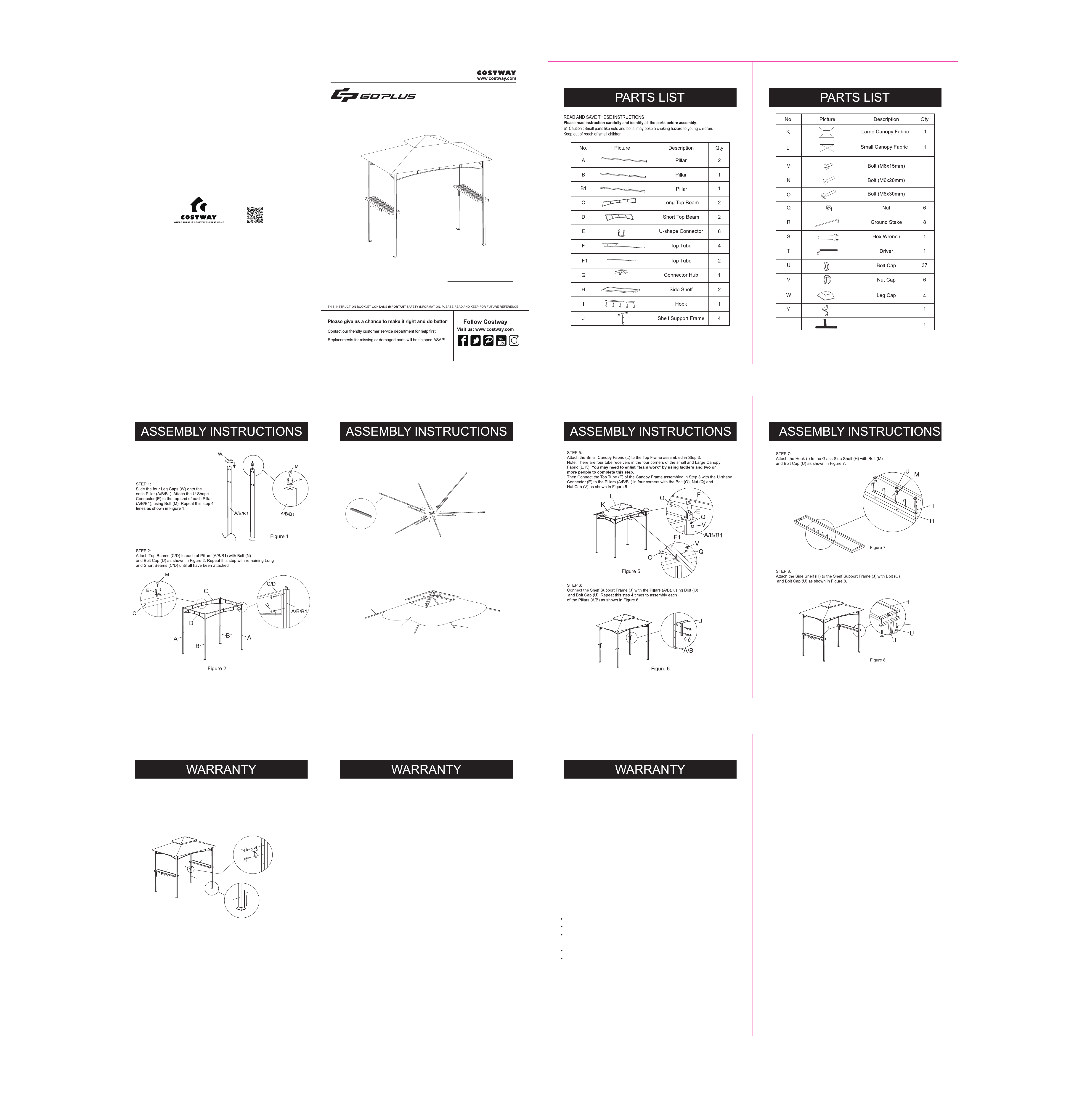

USER'S MANUAL
BBQ Grill Gazebo
OP70423
90 day Limited Warranty
This product is warranted to the original
purchaser against defects in workmanship and
materials. If a product fails during the first 90 days
from date of purchase under the terms of our limited
warranty, please contact customer support.
Manufacturer reserves the right in the case of
discontinued or out of production models, to replace
with an item of similar quality.
Note: You must retain original receipt to obtain
warranty!
Frames
Frames are warranted against defects in materials and
workmanship from the date of original purchase. Damage to
frame or welds due to commercial use, improper assembly,
exposure to water and sub-freezing temperatures, and/or
abuse are not covered.
Fabric
Sling fabric is warranted against separation at the
seams. Fading, mildew and/or discoloration due to
exposure to the elements, chemicals and spills are
not covered.
Z
LDE lamp
