PAC SR-TUN14HX Toyota Tundra Installation Kit User Manual

Stinger HORIZON10 Radio Replacement Kit

for 2014-2021 Toyota Tundra

SR-TUN14HX

Pacific Accessory Corporation

Page 1

Rev: V1

Date:083024

Introduction and Features

Important Notes

The SR-TUN14HX is a complete radio replacement kit for the installation of the Stinger HORIZON10

modular radio in Toyota Tundra.

All modules, cables and adapters are included to retain important features of the factory system, including: steering wheel-mounted

radio controls, factory amplier, factory reverse camera, factory USB port and AM/FM reception. Plug & Play wiring harnesses allow

for quick and easy installation without the need to cut or splice any wiring. The display mounting panel allows mounting the 10 inch

display without modifying/cutting any part of the vehicle’s sub-dash.

1. Adjustment of the vehicle settings through the original radio’s vehicle settings menu will be disabled after installation of the new

radio. It is advised to make sure all settings are as you desire prior to removal of the original radio.

2. The RP4.2-TY11 does not retain Rear Seat Entertainment.

3. To retain SiriusXM Radio, a SXV300 Tuner is required and sold separately.

4. After installation, if you do not initially hear any audio, you may need to cycle the ignition again to initialize the factory amplier.

5. Speaker fading on factory amplied systems is only supported with the “amplied output” connection of the RP4.2-TY11.

6. When using real time fade, if the fader setting is biased more to the front or rear, as the radio turns on the sound may begin at

the default setting and then quickly transition to your custom setting.

7. Radio features such as High Pass Filters (crossovers) will interfere with proper fader function. In order for the RP4.2-TY11’s fader

function to work, the audio from the radio’s output must match so it can compare the front and rear audio levels and determine

the proper fader setting for the factory amplier.

8. If the truck is equipped with a factory 360° camera system, changing camera views using the touch screen will no longer be

available. Camera views can be changed using the steering wheel controls only.

We recommend reading this manual thoroughly to familiarize yourself

with the entire process prior to beginning the installation.

Recommended Tools

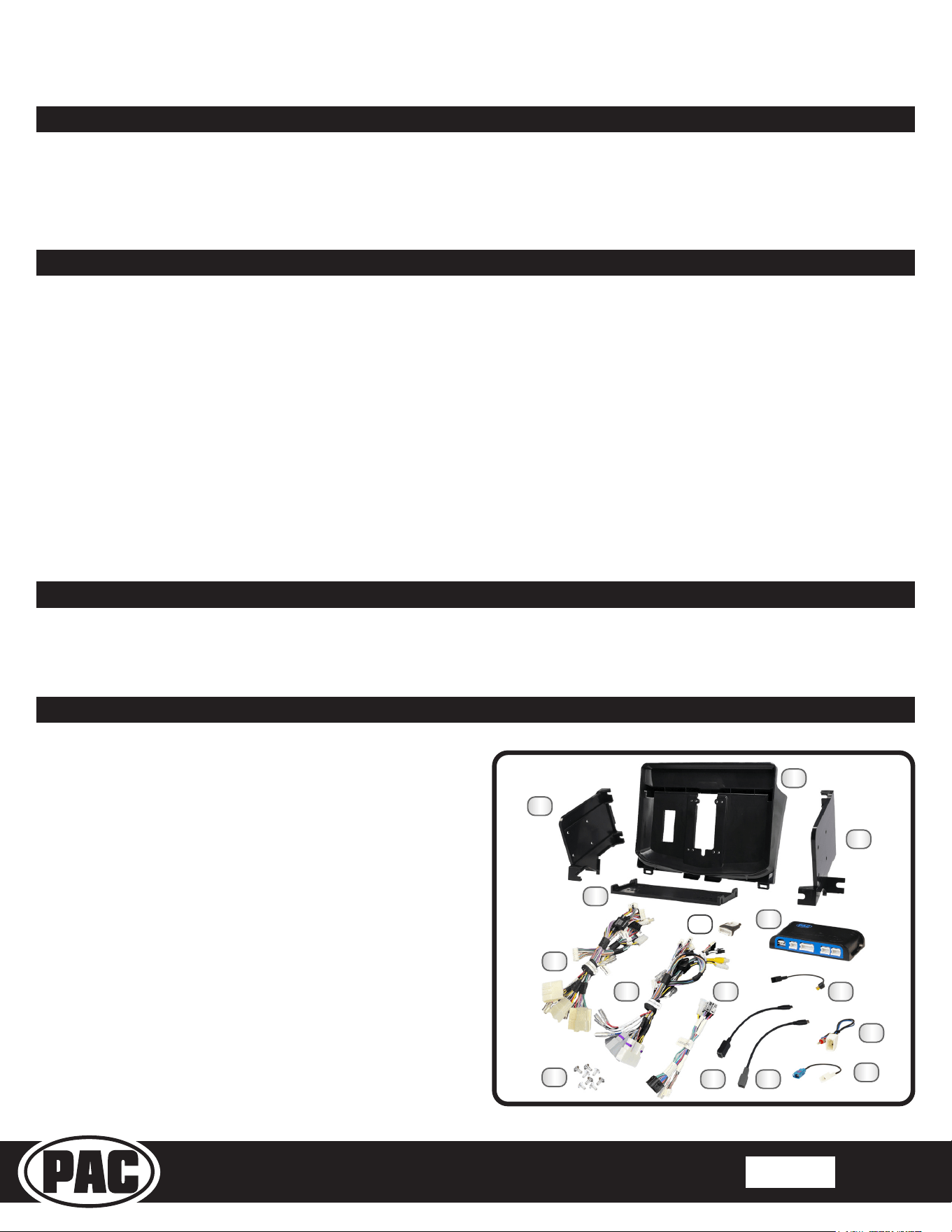

1. LH Side Bracket (TUN14H_LH)

2. HORIZON10 Display Main Frame

3. RH Side Bracket (TUN14H_RH)

4. Module Bracket (H_MODULE_BRKT)

5. Differential Video Adapter (RPA-VA1)

6. Radio Interface (RP4.2-TY11)

7. Main Harness 3 Plug (SR-TAC19H-HAR)

8. Main Harness 4 Plug (SR-TAC16H-HAR)

9. Main Harness Adapter (SR-SRK-ADAPT-IX210)

10. Satellite Radio Antenna Adapter (SAT-02)

11. USB Adapter (USBC-TY3)

12. USB Adapter (USBC-TY1)

13. AM/FM Antenna Adapter (BAA44)

14. GPS Antenna Adapter (GPS-TY01)

15. Mounting Hardware:

8pcs - #10 x 3/8” Truss Head Phillips Screws

Included Components

108

10mm Socket

Ratchet

Socket Extension

Phillips Screwdriver

Plastic Trim Tool

Flush Cutters

NOTE: Along with the SR-TUN14HX components, additional

hardware and wire harnesses from the HORIZON10 (IX210) kit

will also be used in the installation. Refer to the IX210 Installation

Guide for harness and hardware descriptions.

Stinger HORIZON10 Radio Replacement Kit

for 2014-2021 Toyota Tundra

SR-TUN14HX

Pacific Accessory Corporation

Page 2

Rev: V1

Date:083024

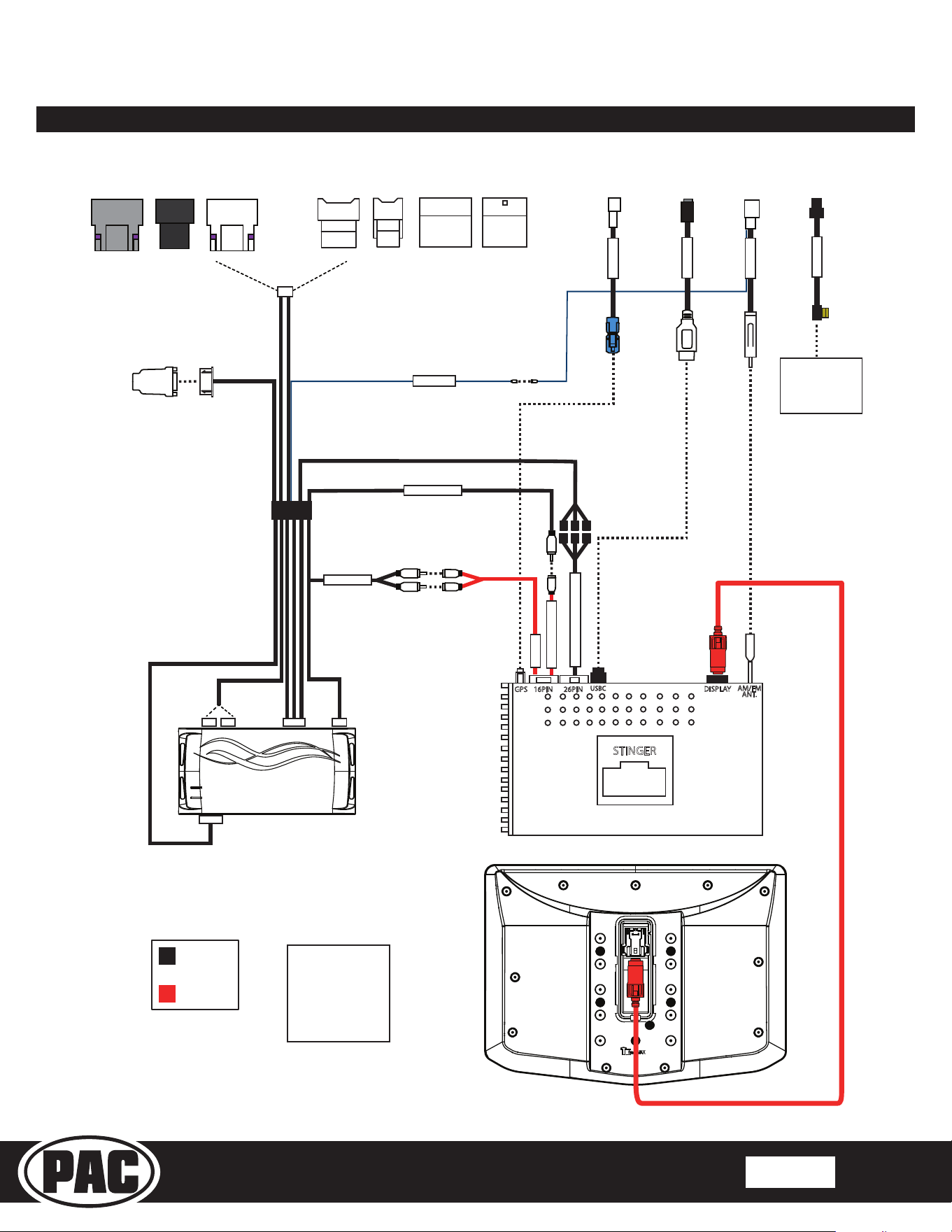

Wiring Overview

SR-TAC16H-HAR

VEHICLE CONNECTORS

SR-TAC19H-HAR

VEHICLE CONNECTORS

USBC

STINGER

DISPLAY

16PIN 26PINGPS

AM/FM

ANT.

Stinger

Connection

Main Harness

Connection

Connections shown are

all required for full

functionality of the kit

and radio. If adding

additional components,

additional connections

will be needed.

Connects to

SXV300 Satellite

Radio Tuner

(sold separately)

REVERSE CAM IN

RPA-VA1

OEM CAMERA

PWR ANT

AUX IN

AUX AUDIO

*Only applicable to

SR-TAC16H-HAR

SR-SRK-ADAPT-IX2XX

GPS-TY01

USBC-TY-

SR-BAA44

SAT-02

Stinger HORIZON10 Radio Replacement Kit

for 2014-2021 Toyota Tundra

SR-TUN14HX

Pacific Accessory Corporation

Page 3

Rev: V1

Date:083024

Section 1: Disassembly

This installation manual will cover the necessary order of procedures to complete the installation

efciently and to avoid redoing any steps. The order will be as follows; Disassembly, In-Vehicle Harness

Connections, Interface and Main Harness Connections, Side Bracket Assembly, Main Frame Assembly

In-Vehicle Connections and Radio Unit Installation.

The installation steps shown are all required for full functionality of the radio. If adding additional

components; cameras, ampliers, satellite radio, etc., additional steps and harnesses will be needed.

Before removing the factory radio, ensure that all vehicle settings that are

programmed using the factory radio are set to the desired settings.

Step 3

Step 6

Step 2

Step 5

Step 1

Step 4

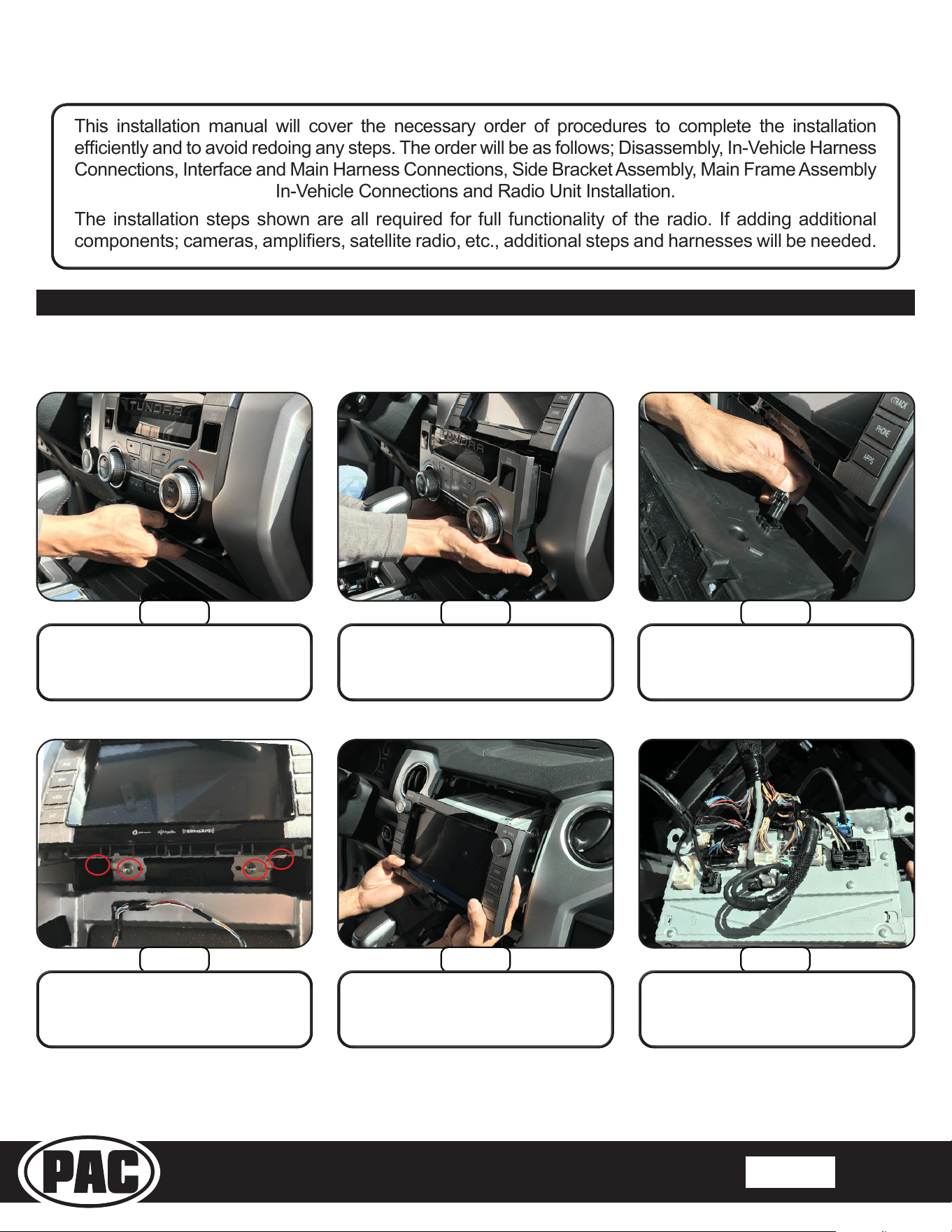

Remove the connector on the

backside of the climate controls

and set panel aside.

Remove all connectors and cables

from the back of the radio.

Remove the climate control

assembly by pulling outward from

the bottom to release the clips.

Remove the radio by pulling

outward from the bottom to

release the clips along the top.

Using a plastic trim tool, remove

the media/switch panel below the

climate controls.

Remove the four 10mm bolts

below the radio.

Stinger HORIZON10 Radio Replacement Kit

for 2014-2021 Toyota Tundra

SR-TUN14HX

Pacific Accessory Corporation

Page 4

Rev: V1

Date:083024

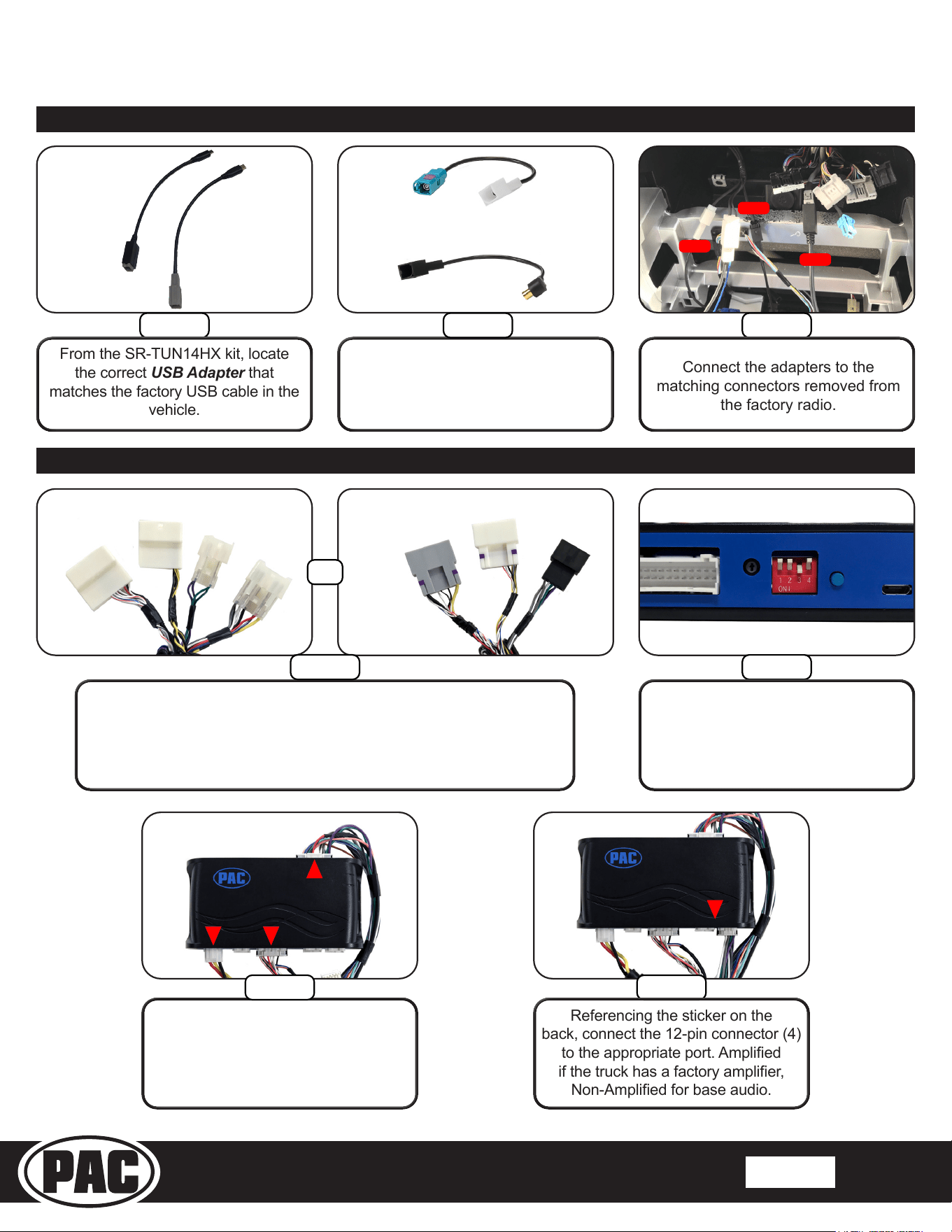

Step 2

Connect the adapters to the

matching connectors removed from

the factory radio.

From the SR-TUN14HX kit, locate

the correct USB Adapter that

matches the factory USB cable in the

vehicle.

USB

GPS

SXM

GPS-03

USBC-TY1

USBC-TY3

Section 2: In-Vehicle Harness Connections

Section 3: Interface and Main Harness Connections

Referencing the radio plugs in the vehicle, determine which

Main Harness will be used: the SR-TAC16H-HAR (4-Plug) or

the SR-TAC19H-HAR (3-Plug).

Step 2

Set dip switch #3 to the down (ON)

position on the side of the

Radio Interface (RP4.2-TY11)

All other switches up (OFF).

Plug in the 3-pin (1), 20-pin (2) and

the 24-pin (3) plugs on the main

harness to the appropriate ports on

the interface.

1 2

Step

Referencing the sticker on the

back, connect the 12-pin connector (4)

to the appropriate port. Amplied

if the truck has a factory amplier,

Non-Amplied for base audio.

Step 3

Step 4

Step 3Step 1

SAT-01

From the SR-TUN14HX kit, locate

the GPS Antenna Adapter and

Satellite Radio Antenna Adapter if

installing a SXM tuner.

Stinger HORIZON10 Radio Replacement Kit

for 2014-2021 Toyota Tundra

SR-TUN14HX

Pacific Accessory Corporation

Page 5

Rev: V1

Date:083024

Section 3: Interface and Main Harness Connections (continued)

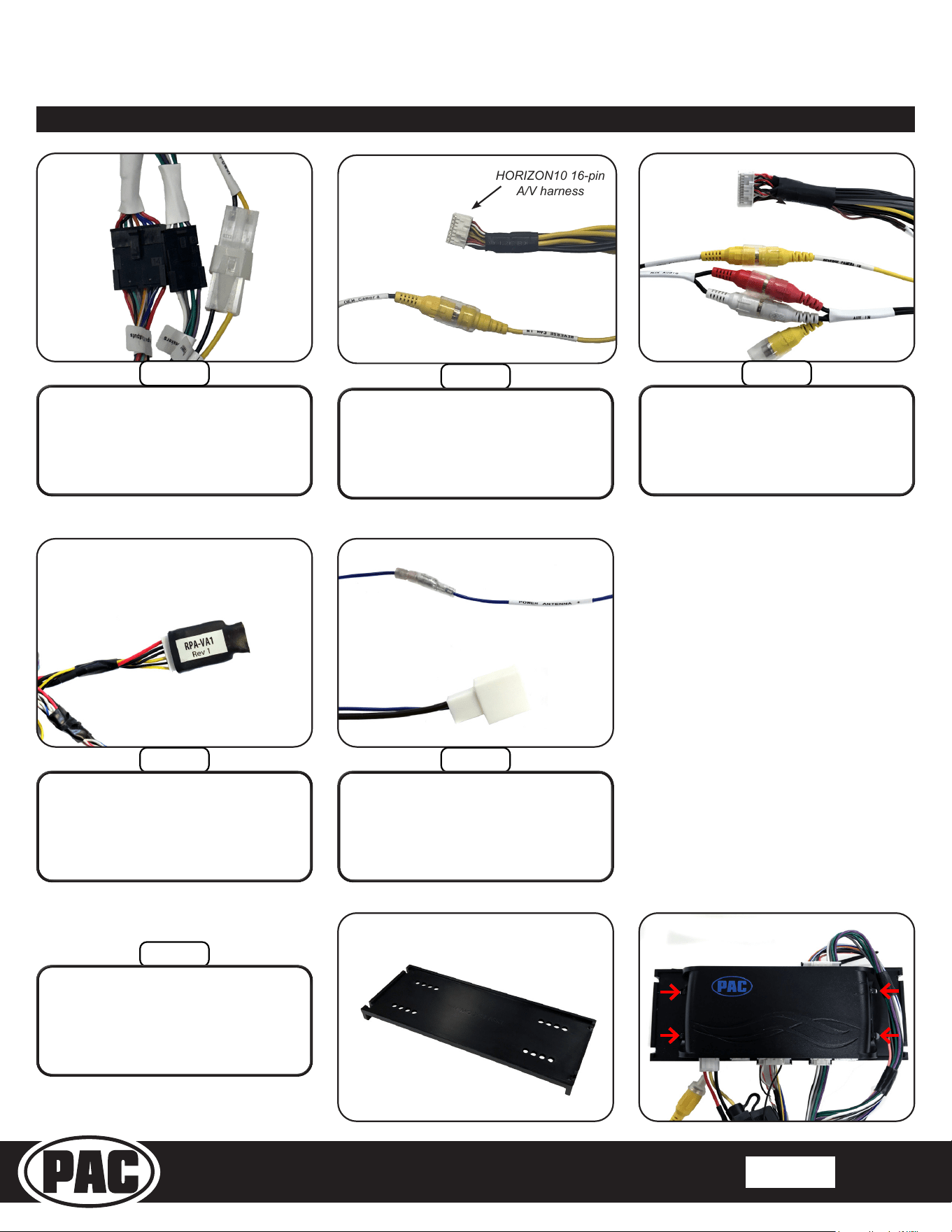

Connect the Radio Harness

Adapter (SR-SRK-ADAPT-IX210) to

the Main Harness (from step 1).

Step 5

Step 6

Connect the “OEM Camera” RCA on

the Main Harness to the “Reverse

Cam In” RCA on the HORIZON10’s

16 Pin AV Harness (PSEH-2103).

For 2014-2018 Tundra, connect

the pair of RCA’s labeled “AUX

Audio” from the Main Harness

(SR-TAC16H-HAR) to the “AUX IN”

RCA’s on the HORIZON10 Harness.

HORIZON10 16-pin

A/V harness

Step 7

From the SR-TUN14HX kit, connect

the Dierential Video Adapter

(RPA-VA1) to the 6-pin plug on the

Main Harness.

Step 8

Connect the blue wire on the AM/

FM Antenna Adapter (BAA44) to

the blue “POWER ANTENNA +”

lead on the Main Harness.

Step 9

Attach the Radio Interface (RP4.2-

TY11) to the Module Bracket (H_

MODULE_BRKT) using supplied zip

ties in four locations.

Module Bracket

(H_MODULE_BRKT)

Step 4

Stinger HORIZON10 Radio Replacement Kit

for 2014-2021 Toyota Tundra

SR-TUN14HX

Pacific Accessory Corporation

Page 6

Rev: V1

Date:083024

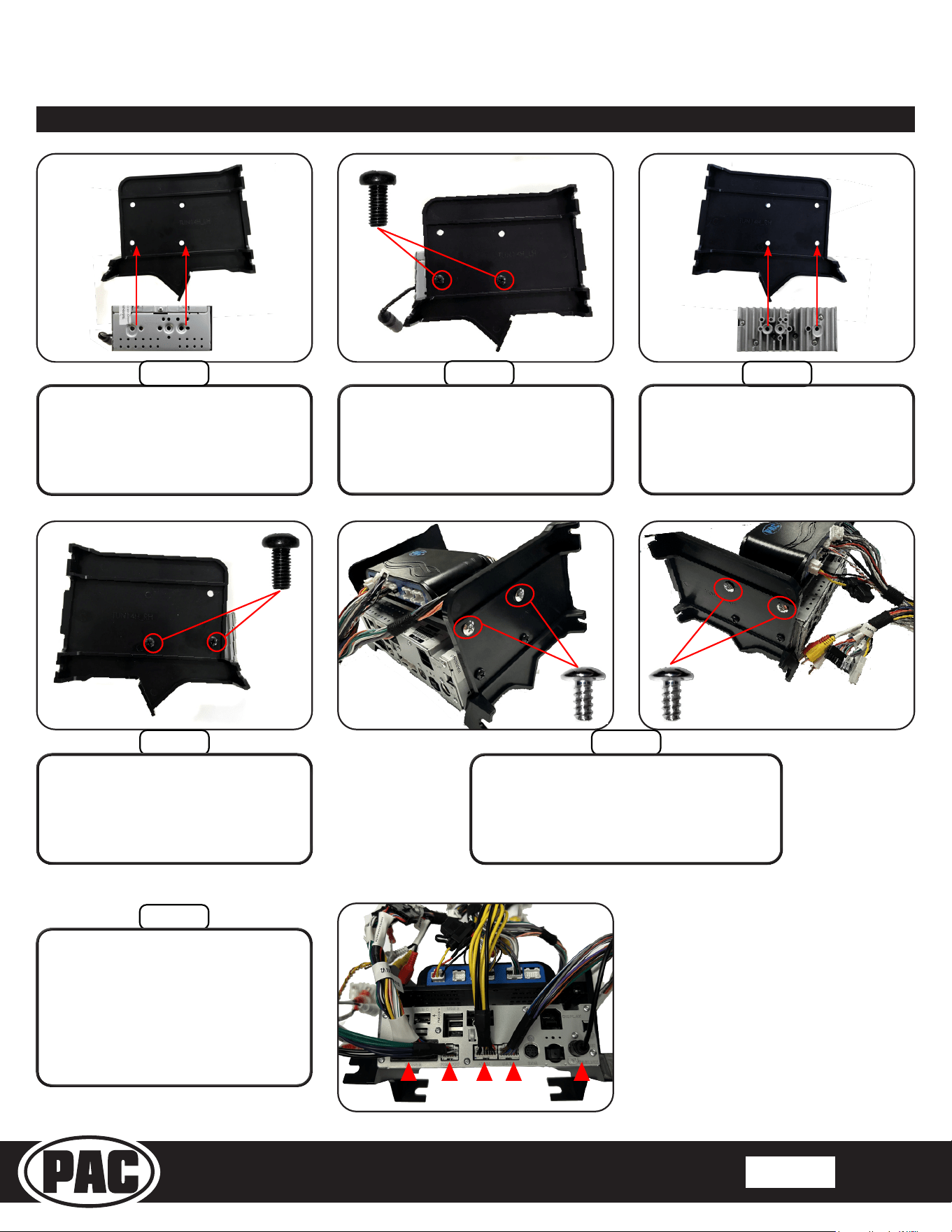

Section 4: Side Bracket Assembly

Step 3

Step 1

Align the lower holes of left hand

bracket (TUN14H_LH) to left side of the

HORIZON10 radio module as shown

above.

Align the lower holes of right hand

bracket (TUN14H_RH) to right side

of the HORIZON10 radio module as

shown above.

Step 2

Step 5

Step 4

Attach the left hand bracket to

the radio module using two M5 x

10 screws from the HORIZON10

hardware.

Attach the right hand bracket to

the radio module using two M5 x

12 screws from the HORIZON10

Position the module bracket between

the side brackets as shown. Align to the

top holes and secure using four #10 x

3/8” truss head philips screws from the

SR-TUN14HX hardware

Step 6

From the main harness, plug in the

26-pin (1), 12-pin (2) and 16-pin (3)

plugs into the HORIZON10 Radio

Module.

Plug in the HORIZON10 14-pin A/V

harness (4). Antenna Adapter into the

Radio Chassis (5).

2 43 5

Stinger HORIZON10 Radio Replacement Kit

for 2014-2021 Toyota Tundra

SR-TUN14HX

Pacific Accessory Corporation

Page 7

Rev: V1

Date:083024

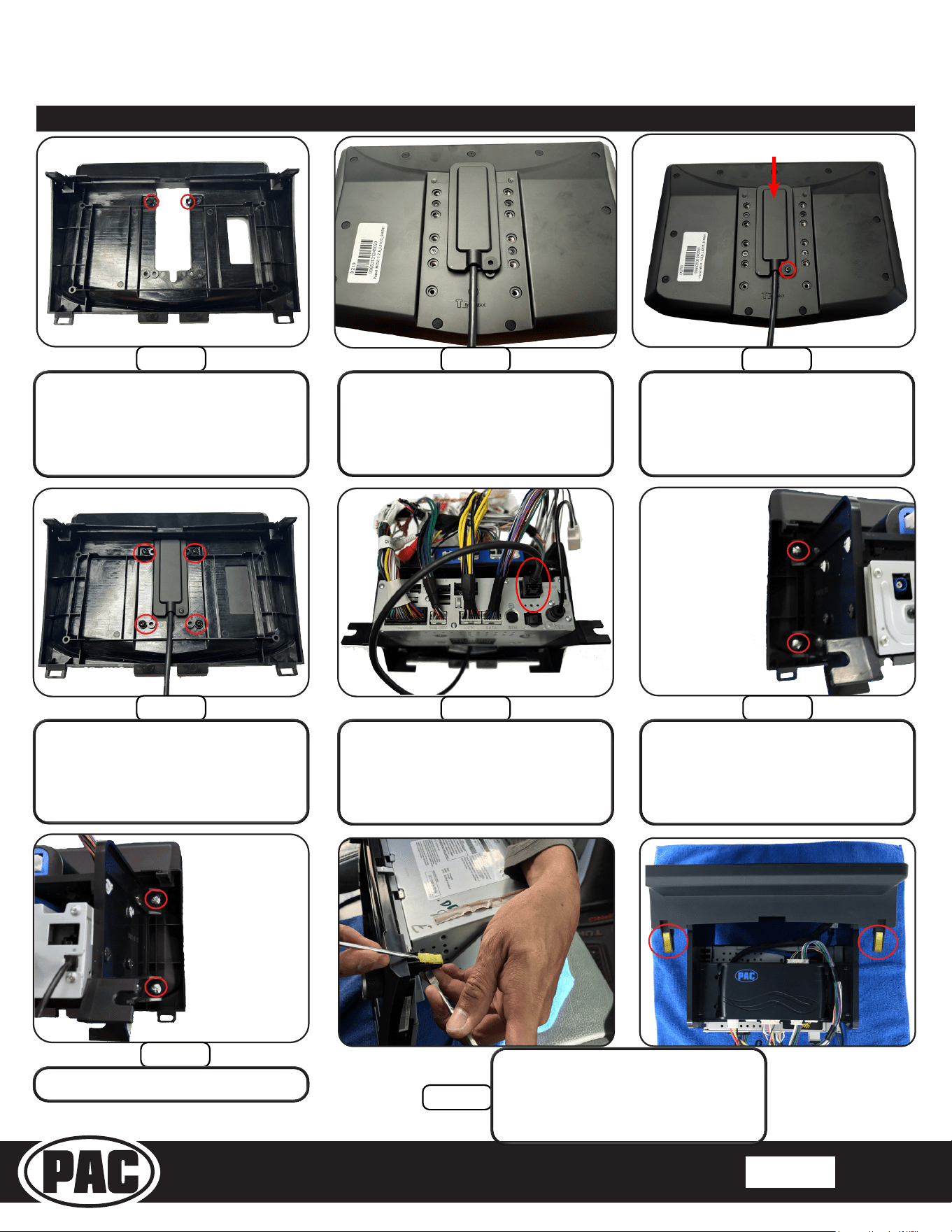

Section 5: Screen Preperation / Main Frame

Step 1

Place the HORIZON10 Panel

Display Mount face down and cut

off the two tabs marked in red.

Step 2

Place the HORIZON10 Panel

Display face down. Connect the

LVDS Display Cable followed by

the LVDS Connector Rear Cover

Step 3

Push the LVDS Connector Rear

Cover down until the screw hole

opening is visible. Insert the

M2.6x6.5 screw to secure the cover.

Step 4

Place the HORIZON10 Touch

Panel Display face down and pass

the cable through the hole. Then

use 4 M4 X12 Screws to secure

Step 5

With the Display face down set

the assembled unit and connect

the LVDS Cable Shown in the red

circle. Note the cable routing.

Step 6A

Align the RH & LH Side Bracket

holes to the Display Main Frame

mounting holes and secure using

four #10x3/8” screws from the SR-

TUN14HX hardware.

Step 6B

See Notes from Step 6A

Step 7

Remove the two retaining clips from

the factory radio and install them

in the same location on the

Display Main Frame.

Cut or break off these tabs

Stinger HORIZON10 Radio Replacement Kit

for 2014-2021 Toyota Tundra

SR-TUN14HX

Pacific Accessory Corporation

Page 8

Rev: V1

Date:083024

Section 6: In-Vehicle Connections and Radio Unit Installation

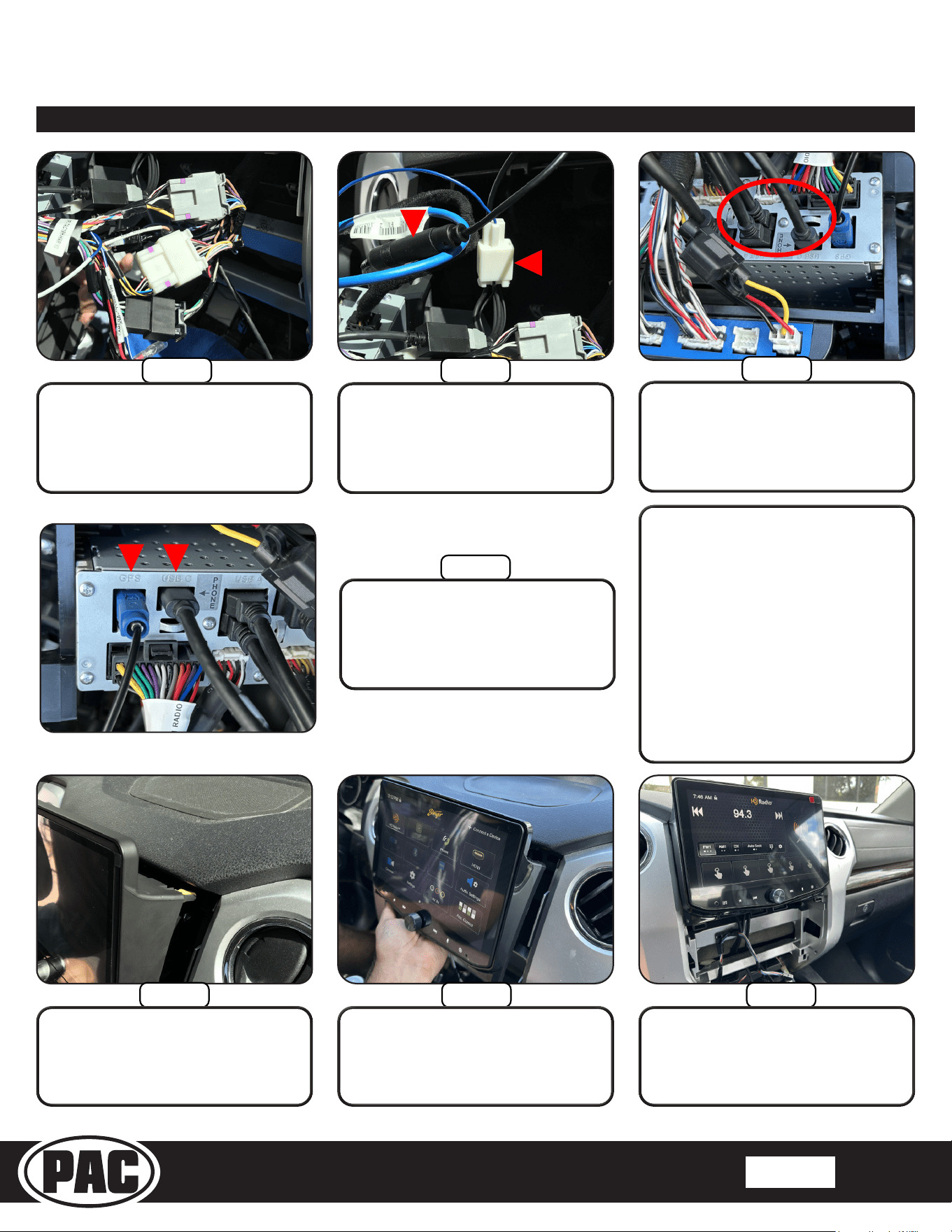

Step 1

Step 5

Connect the three (or four) vehicle

side connectors on the Main

Harness (from Section 3, Step 1) to

the matching vehicle radio plugs.

Slide the radio assembly into

position and align the top

retaining clips to the sub-dash.

Step 3

Step 6

Insert the included USB-C / USB-A

adapters into the ports on the back

of the HORIZION10. See step 4

notes for additional informaiton.

Push to seat the retaining clips.

Install one of the 10mm bolts below

the radio to temporarily hold it in

place.

Step 7

Before reassembling the vehicle, it is

recommended to proceed to Testing

and Verication on the next page.

Step 2

Connect the AM/FM Antenna

Adapter (BAA44) to the

HORIZON10 AM/FM antenna input

(1). Connect the other end to the

vehicle’s AM/FM antenna (2).

Step 4

Plug in the GPS (3) and USB (4)

adapters. Note: The USB-C cable

must be plugged into the USB-C

port for wired Apple CarPlay and

Android Auto functionality.

These are the connections for the

basic installation. If adding additional

components such as a second USB,

SXM tuner or additional cameras,

those connections should be made at

this point, before mounting the radio

module.

NOTE: If the External Microphone is

installed, the setting must be changed

from Internal (Default) to External in

the Phone Settings:

Main Menu > Phone > Settings

Stinger HORIZON10 Radio Replacement Kit

for 2014-2021 Toyota Tundra

SR-TUN14HX

Pacific Accessory Corporation

Page 9

Rev: V1

Date:083024

Restoring Factory Settings

Testing and Verication

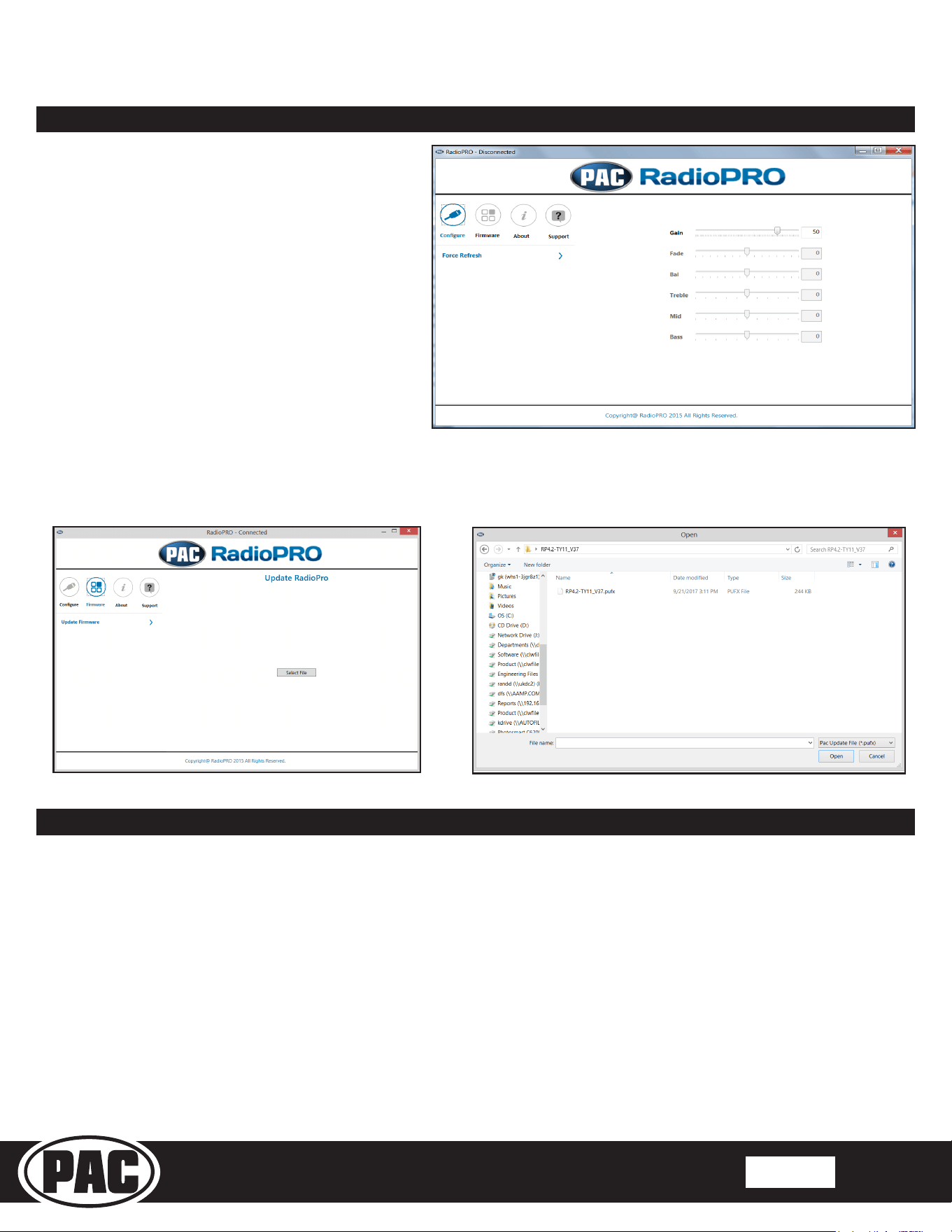

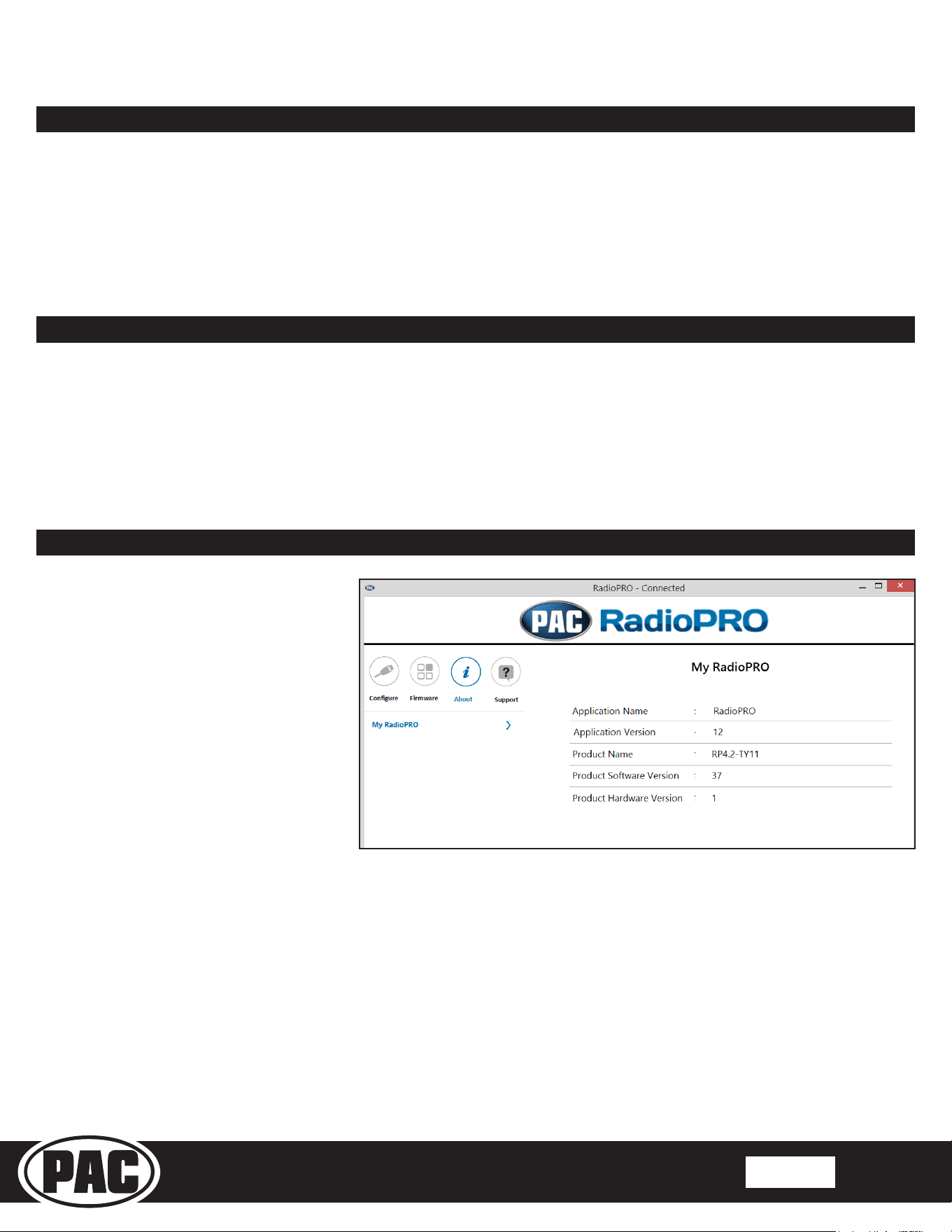

RadioPRO App

Use of the RadioPRO App allows

you to do the following:

• Congure User Interface Options:

• Factory amplier settings

(Bass, Mid, Treble, Gain, Fader

and Balance)

• Real Time Fading

• Update Product Firmware

• Read Firmware/Hardware Versions

PLEASE NOTE:

The interface must be connected to the vehicle when using the following features of the Radio PRO App:

• Factory Amplier Settings

The interface does not need to be connected to the vehicle when using the following features of the Radio PRO App:

• Firmware Updates

• Reading rmware/hardware versions

1. Turn on the radio and check volume, balance and fade. If you do not hear any audio you may need to cycle the ignition to

initialize the factory amplier. If there is still no audio, reset the interface according to the procedure in the next section.

2. For JBL systems, if the overall volume is too low, use the gain adjustment on the side of the RP4.2 interface to set it to the

desired level. The best way to do this is to turn the volume on the radio to 3/4 volume, then turn the gain on the RP4.2 until

some distortion is heard, then back it down a little.

3. Verify that all SWC are functioning properly. If any of the SWC are not functioning properly you may need to reset the

interface.

4. Verify AM/FM Reception, Bluetooth, USB, Apple Carplay, Android Auto and Camera(s) are functioning correctly.

You can restore the RP4.2-TY11 interface to factory default settings by pressing and holding the programming button on the side

of the module until the status LED starts blinking red. Once the LED starts blinking red, release the button. You must release the

button while the LED is blinking red in order to perform the reset. Please note, the LED will go through two stages before it starts

blinking red. First it will blink green, then amber, then red.

This reset will restore the following settings to their factory defaults:

• SWC Mapping

• Factory Amplier Settings

• Real Time Fade will be reset to on

Stinger HORIZON10 Radio Replacement Kit

for 2014-2021 Toyota Tundra

SR-TUN14HX

Pacific Accessory Corporation

Page 10

Rev: V1

Date:083024

Infotainment/Factory Amplier Settings

The RadioPRO app will also allow you to adjust the

settings of the factory amplier. You can adjust Amp

Gain, Fader, Balance, Bass, Mid and Treble and real

time fade. When real time fade is enabled in amplied

systems, it will allow fading to be controlled directly

from the aftermarket radio. Restoring factory settings

on the module will default all values back to middle.

RadioPRO App (continued)

Firmware Updates

The RadioPRO app will also allow you to update the

interface with new rmware as it becomes available.

Please visit www.pac-audio.com or contact our tech

support department to see if there is a rmware update

for your interface.

In order to update the interface all DIP switches must be set to the down position. Connect the interface to your PC and select

“Update Firmware”. Now select “Select File”. Finally, browse to the place where you saved the le and select it. This will begin

the updating process. Once nished, disconnect the interface from the PC and set the DIP switches back according to the radio

you have installed.

Technical Support

Email: support@PAC-audio.com

Phone: 727-592-5991

Chat: PAC-Audio.com

Stinger HORIZON10 Radio Replacement Kit

for 2014-2021 Toyota Tundra

SR-TUN14HX

Pacific Accessory Corporation

Page 11

Rev: V1

Date:083024

Warranty

LIMITED WARRANTY

The quality controls used to manufacture PAC products are designed to ensure your complete satisfaction.

This warranty applies only to the original owner of PAC products purchased from an authorized PAC dealer. It covers PAC

products that, upon inspection by authorized PAC personnel, are found to have failed in normal use due to defects in material or

workmanship. This warranty does not cover installation expenses.

Attempting to service or modify our products, or operate them outside their recommended usage will render this WARRANTY

VOID.

Unless prescribed by law, PAC is not liable for any personal injury, property damage and/or incidental or consequential

damages (including water damage) resulting from product malfunctions, defects and/or misuse. PAC is also not liable for any

products that are altered or improperly installed.

WARRANTY PERIOD AND PROCESS

Within the rst 12 months from date of purchase, subject to the conditions above, PAC will repair or replace product at its sole

discretion if it is found to be defective in material or workmanship. Product must be returned to an authorized PAC dealer with

PROOF OF PURCHASE.

PAC SR-TUN14HX Toyota Tundra Installation Kit

Product's Documents

Installation Guide

Specifications

PAC SR-TUN14HX Questions and Answers
