ROOF RAKE
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
1
MODEL: CY-SF02
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
ROOF RAKE
2
SAFETY INSTRUCTIONS
WARNING:
Read this material before using this product. Failure to do so can
result in serious injury.
Assembly precautions
1. Assemble only should be according to these instructions. Improper
assembly can result in hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves
during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol,
drugs or medication.
6. The product capabilities apply to properly and completely assembled
products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely
supporting the roof rake.
8. For additional information regarding the parts listed in the following
pages, please refer to the Assembly Diagram of this manual. Unwrap
and separate all parts in a clean work area.
Use precautions
1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this
item.
3. Use as intended only.
4. Inspect before every use; do not use if parts are loose or damaged.
5. The shape is for reference only. The actual shape shall prevail.
SAVE THESE INSTRUCTIONS
3

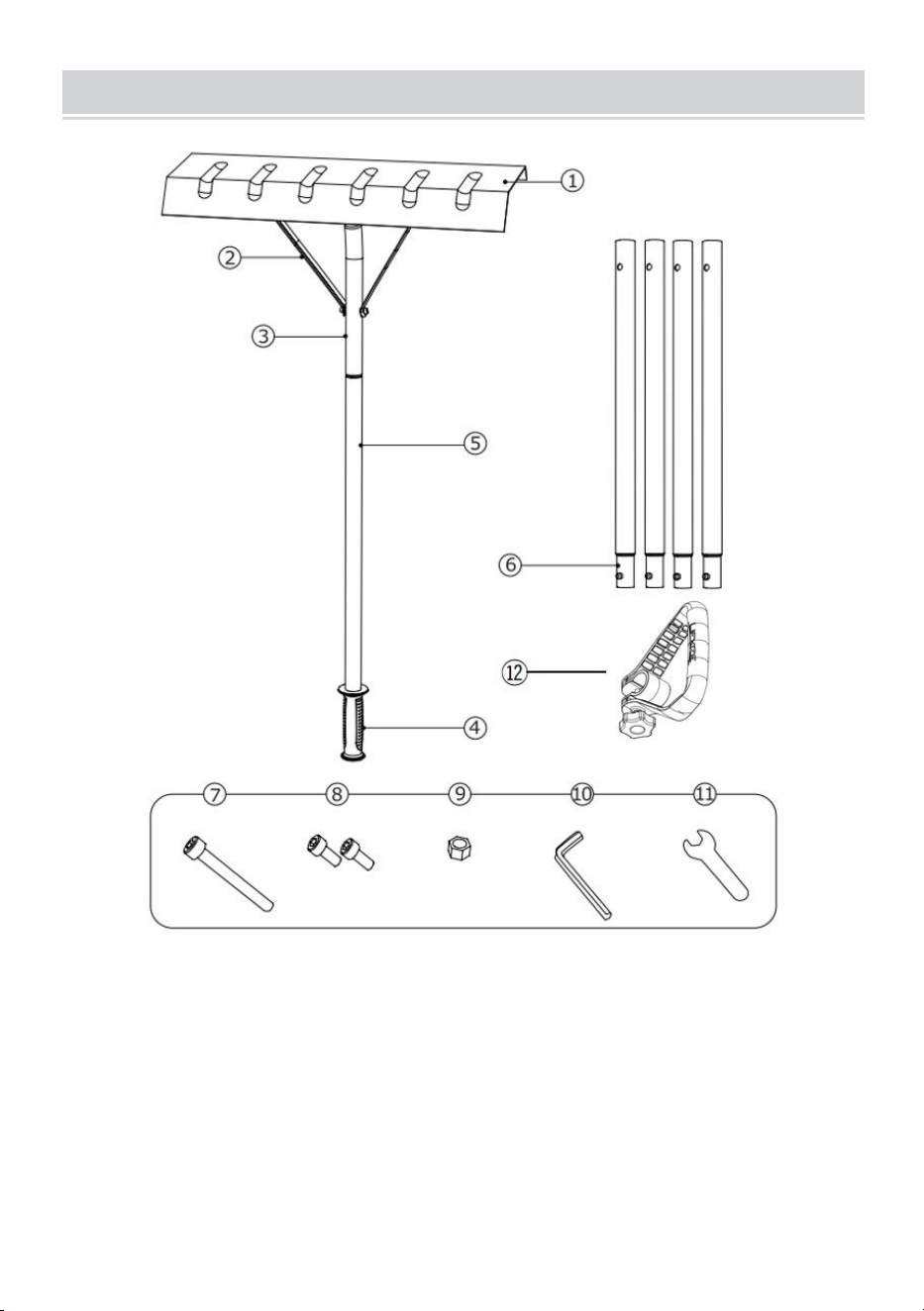

PARTS LIST
1.Roof rake head 5.Pole handle 9.Nut (1)
2.Metal braces (2) 6.Pole extensions 10.Hex wrench
3.Pole adapter 7. Long bolt 11.Open wrench
4. Handle grip 8. Short bolts (2) 12.Ring handle
4
ASSEMBLY STEP

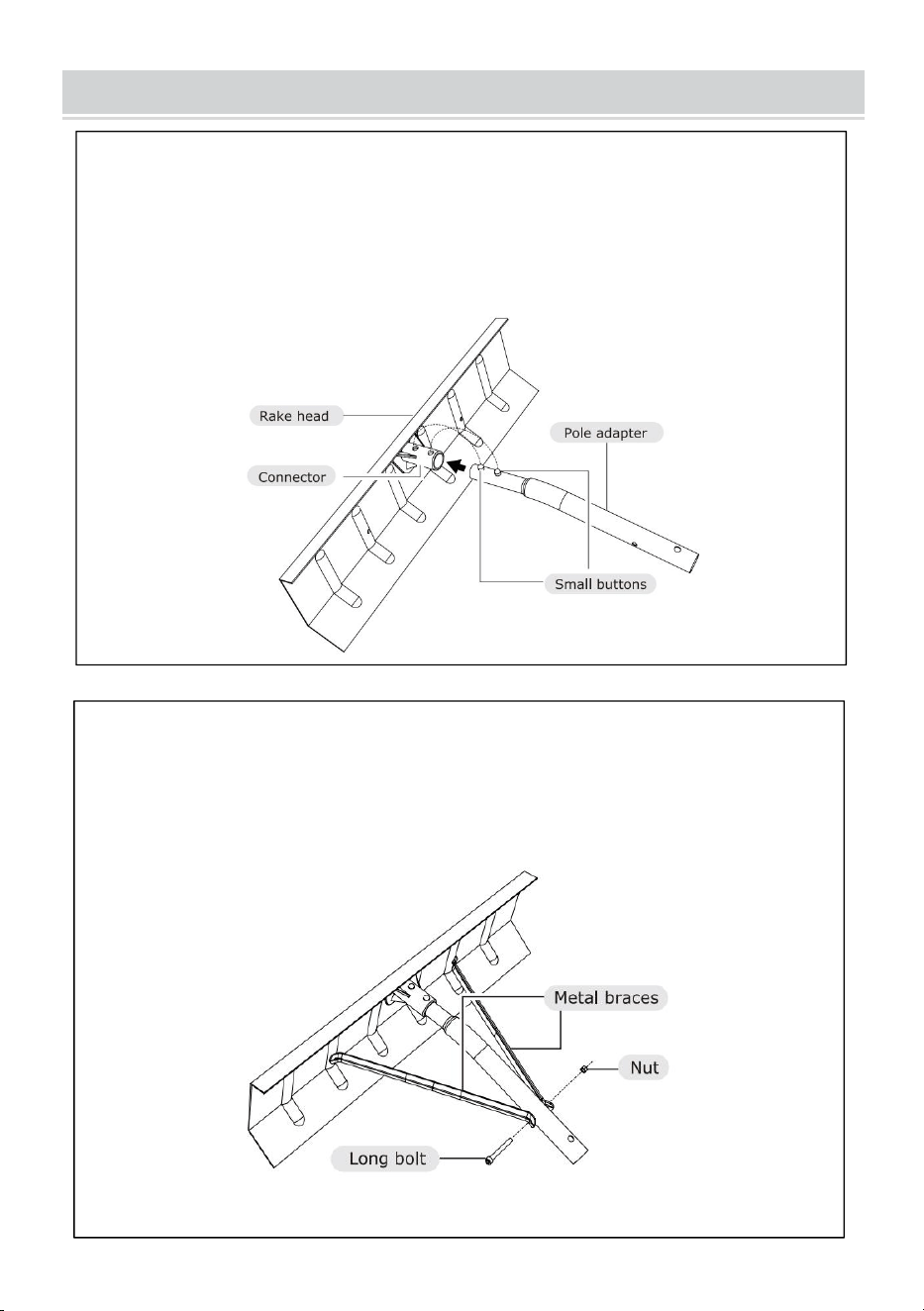

STEP1
Depress the small buttons on the pole adapter and insert the pole
adapter into the connector on the back of the roof rake head.Push
firmly until the two small buttons pop up in the holes on the
connector.
STEP2
Align the holes of the metal braces with the hole on the end of the
pole adapter. Secure them with the long bolt and one nut.
5

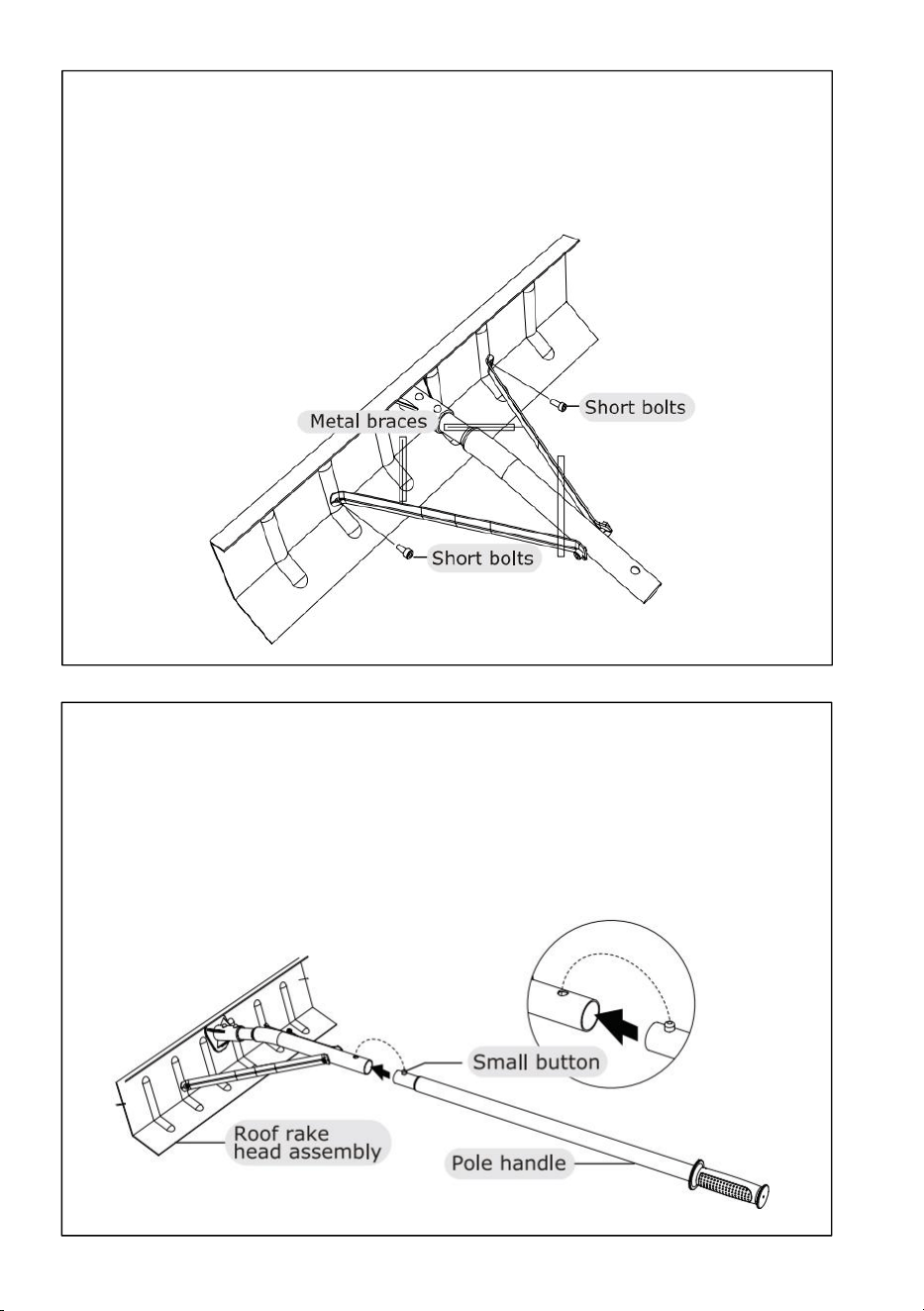

STEP3
Connect the metal braces to the rake head with 2 small bolts as
shown.
STEP4
To connect the roof rake head assembly with the pole handle,
depress the small button at the end of the pole handle and insert it
into the end of the pole adapter. Make sure the small button pops
up in the hole on the pole adapter so the assembly is secured.
6
PRODUCT PARAMETER
MODEL
CY-SF02
Colour
Black and
Type
25 inch plastic scraper
Scraper material
ABS
Scraper width
25inch
Handle material
TPR
STEP5
If additional reach is needed, connect the provided pole extensions
between the pole handle and the rake head assembly. Make sure
the small buttons pop up in the hole on the pole,so the assembly is
secured.Finally,assemble the Ring handle to a suitable position.
