THIS INSTRUCTION BOOKLET CONTAINS SAFETY INFORMATION.PLEASE READ AND KEEP FOR FUTURE REFERENCE.IMPORTANT
USER’S MANUAL
52 Three-leaf Ceiling fan”
E 10001US
S
Follow Costway
Contact Us!
Do NOT return this item.
Contact our friendly customer service department for help rst.fi
Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a at, steady and stable surface.fl
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.
E-mail
US:cs.us@costway.com
UK:cs.uk@costway.com
2
3
Pre-installation-----------------------------------------------------------------------------------------------------------4

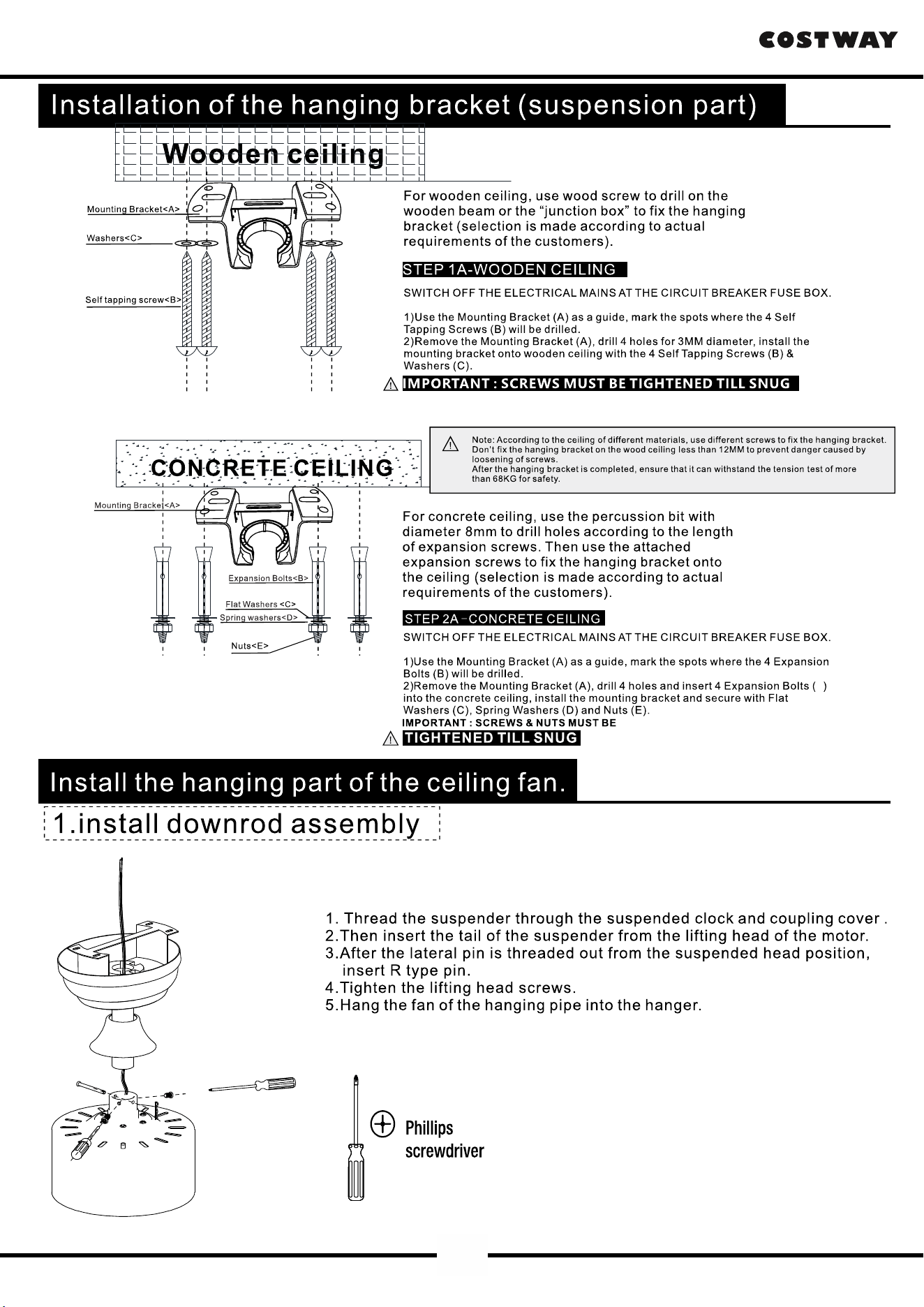

Installation of the hanging bracket------------------------------------------------------------------------------------6

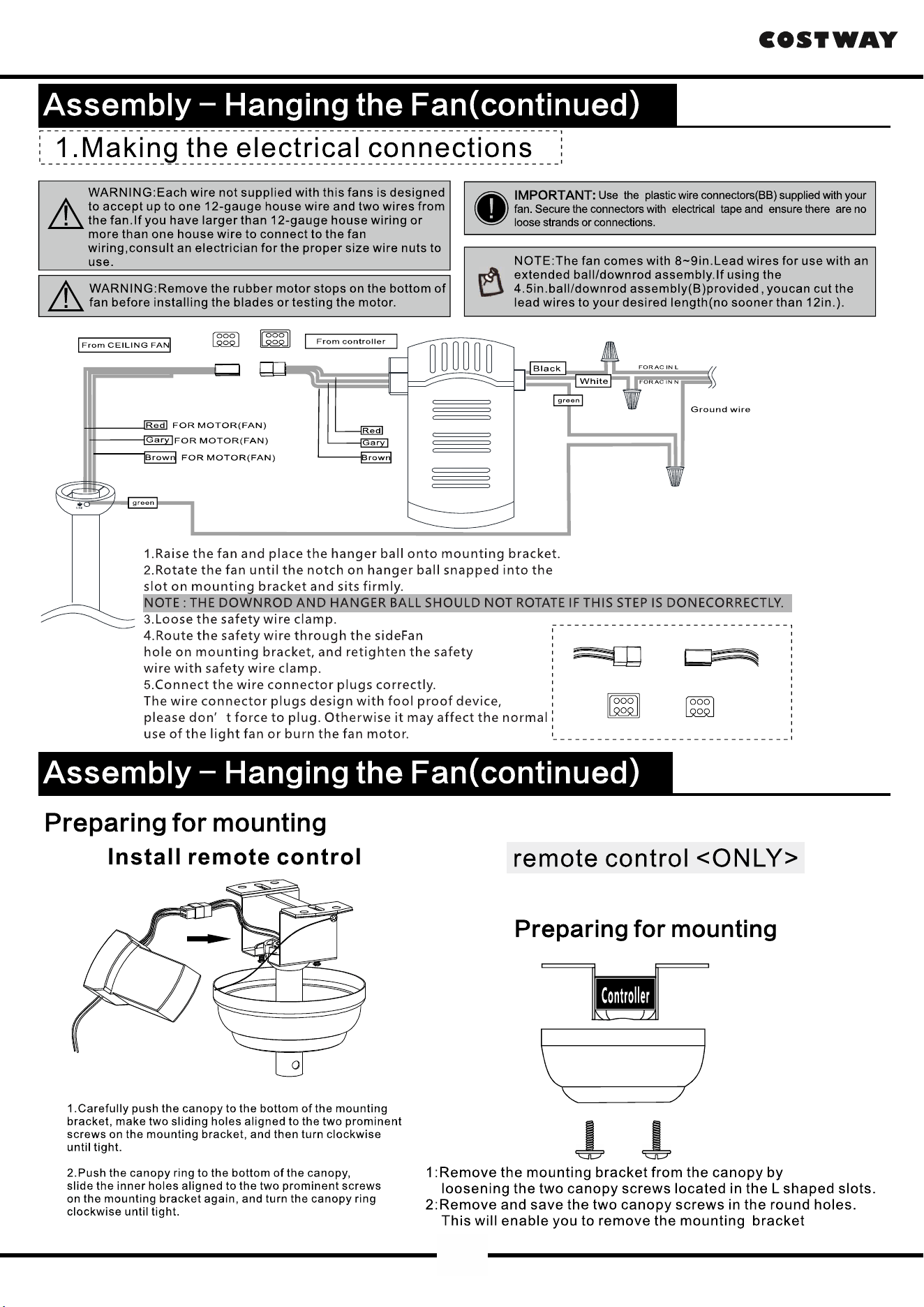

Hanging the fan-----------------------------------------------------------------------------------------------------------7
Attaching the fan Blades------------------------------------------------------------------------------------------------8

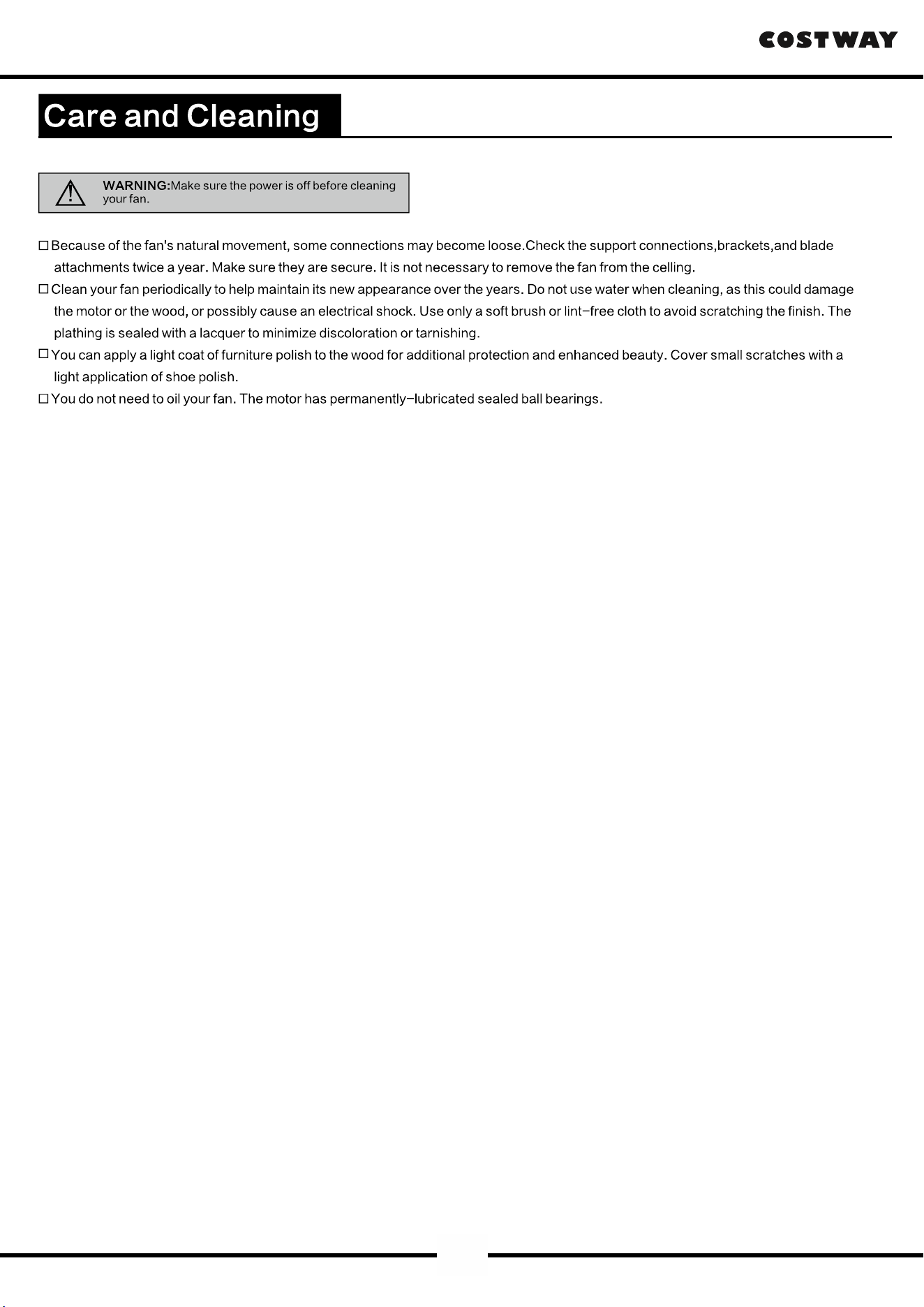

Care and cleaning -------------------------------------------------------------------------------------------------------9
Troubleshooting---------------------------------------------------------------------------------------------------------10
To reduce the risk of electric shock, the electricity
has been turned o at the circuit breaker or fuseff
box before begin.
To avoid possible electric shock,
turn the electricity o at the main fuse box before ff
wiring.If you feel you do not have enough electrical
wiring knowledge or experience,contact a licensed
electrician.
WARNING:
The outlet box and support structure must be securely
mounted and capable of reliably supporting
35lb.(15.9kg).Use only UL listed outlet boxes marked
“Acceptable for Fan Support of 35lbs(15.9kg)or less.”
To avoid personal injury or damage to the fan and
other items, please be careful when working around
or cleaning the fan.
All wiring must be in accordance with the National Electrical
Code NASI/NFPA 70-1999 and local electrical codes.
Electrical installation should be performed by a quali edfi
licensed electriccian.
4
52"
Level 1
Level 2
Level 3
Level 4
Level 5 0.28 36.6 214 5992
0.18 22 184 5152
0.12 14.4 150 4200
0.07 8.7 120 3360
0.05 5.2 86 2408
5.2KG 6.5KG
11.46LB 14.33LB
2.57cu.ft
Cubic
Feet
Net
Weight
Gross
Weight
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment
from the factory for a lifetime after the date of purchase by the original purchaser.The supplier also warrants that all
other fan parts,excluding any glass or acrylic blades,to be free from defects in workmanship and material at the time
of shipment from the factory for a period of one year after the date of purchase by the original purchaser.We agree to
correct such defects without charge or at our option replace with a comparable or superior model if the product is
returned.To obtain warranty service,you must present a copy of the receipt as proof of purchase.All costs of removing
and reinstalling the product are your responsibility.Damage to any part,such as by accident,misuse,improper
installation or by a xing any accessories ,is not covered by this warranty.Because of varying climatic conditions thisffi
warranty does not cover any changes in brass nish ,including rusting,pitting,corroding,tarnishing or peeling.Brassfi
finish of this type give their longest useful life when protected from varying weather conditions.A certain amount of
“wobble”is normal and should not be consided a defect.Servicing performed by unauthorized persons shall render the
warranty invalid.There is no other sxpress warranty.hereby di sclaims any and all warranties,including but not limited
to those of merchantability and tness for a particular purpose to the extent permitted by law.The duration of anyfi
implied warranty which cannot be disclaimed is limited to the time period as speci ed in the sxpress warranty.Somefi
states do not allow a limitation on how long an implied warranty lasts,so the above limitation may not apply to you.The
retailer shall not be liable for incidental,consequental,or special damages arising out of or in connection with product
use or perforance except as may otherwise be accorded by law.Some states do not allow the exclusion of incidental or
consequential damages,so the above exclusion or limitation may not apply to you.This warranty gives speci c legalfi
rights,and you may also have other rights which vary from state to state.This warranty supersedes all prior
warranties.Shipping costs for any return of products as part of a claim on the warranty must be paid by the customer.
5
J
Please check whether above accessories are completed or not?Yes,and install.
Blade 3PCS
( )
7
AA
BB
CC
DD
AA
BB
CC
DD
1 1
EE
EE
7
6
B
7
8
1.
Assembly-Use of remote control
Fan
On/Off
2
3
4
5
1
1H 4H 8H
F/R
Fan On/off
Fan Level 1
Fan Level 2
Fan Level 3
Fan Level 4
Fan Level 5
Auto o after 4hrff
Without any function
Auto o after 8hrff
blade arm screw
When installing the fan blade, the fan blade
screw must be tted into the gasket before installation!fi
9
10
The fan will not start.
interior
Repeat for each blade.Any measurement deviation should be within 1/8 in.
Check this level by selecting a point on the ceiling above the tip of ine of the blades.
Most fan wobble problems are caused when blade levels are unequal.
Measure from a point on the center of each blade to the point on the ceiling.Measure this distance.
Check that all blades and bladearm screws are secure.
Rotate the fan until the next blade is positioned for measurement.
Run the fan for ten minutes.if the fan continues to wobble please contact Customer Service and a
balancing kit will be sent to you.
