ROOF RAKE
USER MANUAL
W
e
c
o
n
t
i
n
u
e
t
o
b
e
c
o
m
m
i
t
t
e
d
t
o
p
r
o
v
i
d
e
y
o
u
t
o
o
l
s
w
i
t
h
c
o
m
p
e
t
i
t
i
v
e
p
r
i
c
e
.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
1
MODEL: CY-SF18
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
ROOF RAKE
2
S
A
F
E
T
Y
I
N
S
T
R
U
C
T
I
O
N
S
WARNING:
Read this material before using this product. Failure to do so can
result in serious injury.
Assembly precautions
1. Assemble only should be according to these instructions. Improper
assembly can result in hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves
during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol,
drugs or medication.
6. The product capabilities apply to properly and completely assembled
products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely
supporting the roof rake.
8. For additional information regarding the parts listed in the following
pages, please refer to the Assembly Diagram of this manual. Unwrap
and separate all parts in a clean work area.
Use precautions
1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this
item.
3. Use as intended only.
4. Inspect before every use; do not use if parts are loose or damaged.
5. The shape and color of slip cloth are for reference only. The actual
shape shall prevail.
SAVE THESE INSTRUCTIONS
3

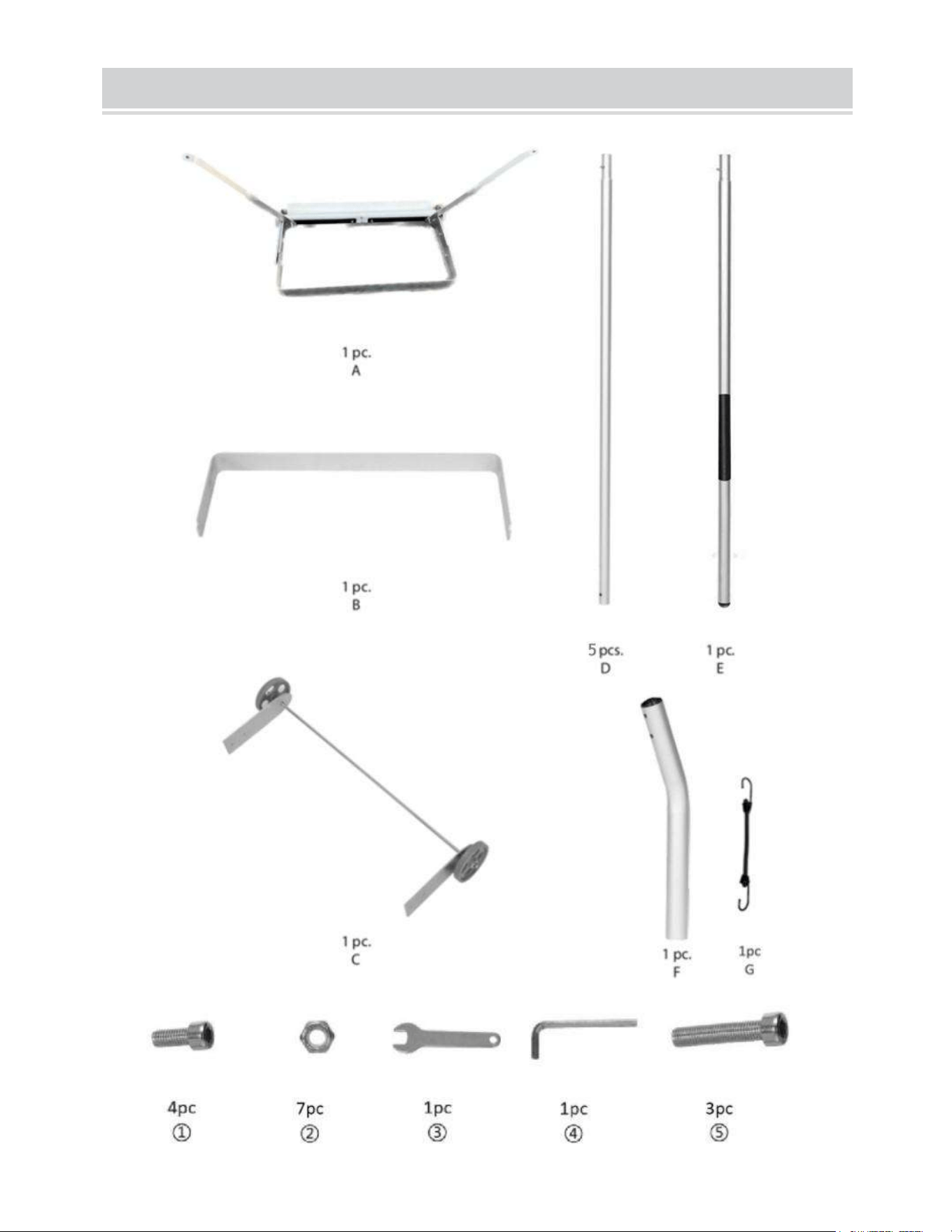

P
A
R
T
S
L
I
S
T
4
A
S
S
E
M
B
L
Y
S
T
E
P
STEP1
Lay Part A within Part C as shown in the picture. Insert Bolt 1 (2pcs.) and Nut 2
(2 pcs.) into the corresponding holes but do not tighten them.
5
STEP2
Connect Part B, Part A, and Part C. The details of how Part B and Part A joined
are shown in the following picture. Insert Bolt 1 (2 pcs.)and Nut 2 (2 pcs.) into
the corresponding holes and tighten all of them with Wrench 3 and Allen Key 4.
6
STEP3
Attach Part F to Part A, using Wrench 3 and Allen Key 4 to tighten. Depending
on the length needed to clean your roof, you can attach up to four (4 pcs.) Part
D onto Part 4, before attaching the handle (Part E).
7
STEP5
Hang one end of the hook(Part G) to the ring of Part A and the other end to the
hole of the handle (section 3) to secure Part A to prevent it from shifting.
T
h
e
t
h
i
r
d
s
e
g
m
e
n
t
G
A
8
P
R
O
D
U
C
T
P
A
R
A
M
E
T
E
R
M
O
D
E
L
C
Y
-
S
F
1
8
Colour White
Type 19in aluminum alloy scraper type
Scraper material aluminium alloy
Scraper width 19in
Handle material TPR
Slipcloth 313cm, PE,white
