EN Instruction for use

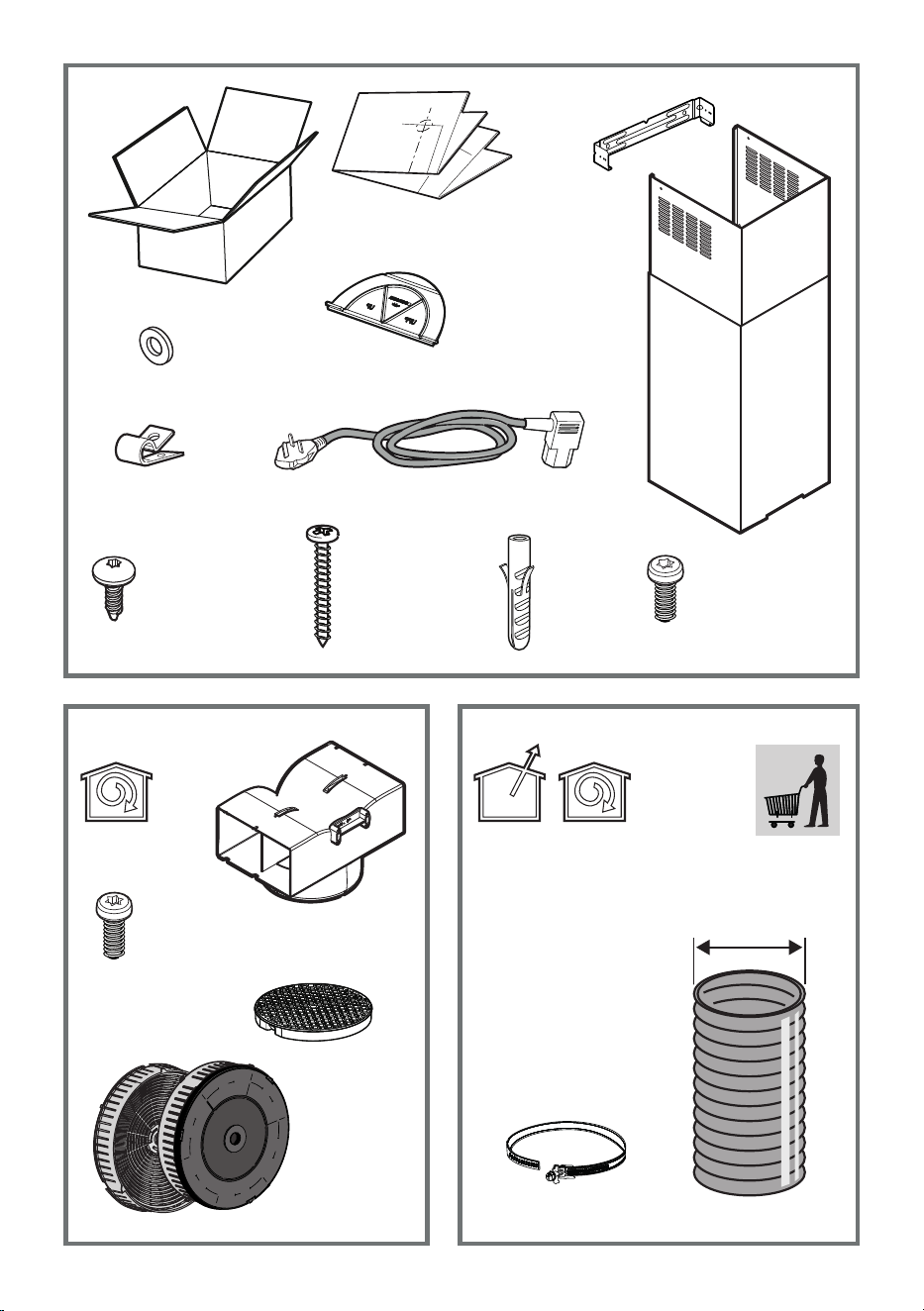

1x
Ø3,5x9,5 mm
5x
Ø5x45 mm
1x
1x
1x
1x
1x
1x
5x
Ø8
1x
2x
Ø2,9x6,5 mm
2x
2x
1x
Ø 150 mm
2x
Ø2,9x6,5 mm
2x
1x
23
= =
= =
5mm
3x Ø8mm
x 2
Ø 8 x 40mm
x 2
Ø 5 x 45mm
x Ø 8mm 2
2 x
Ø5x45mm
3 x
Ø8x40mm

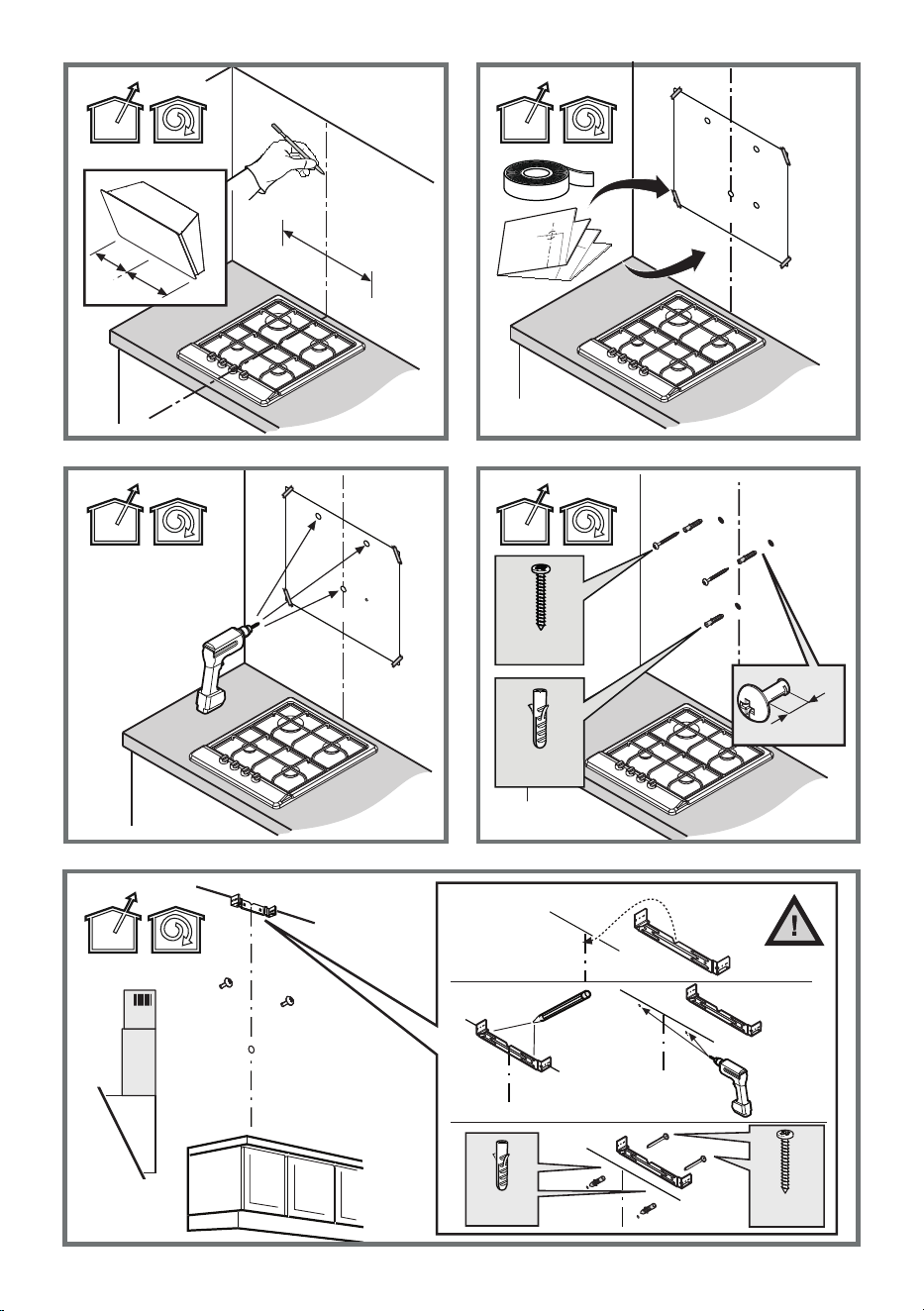

1 2
3
5*
4
6
7
9
8
*
clack!
2x
Ø2,9x6,5mm
.1
.2
OK!
4x
11
10
.2
.1
12
14
13
.2
.1
.2
.1
2x
11
4x
1x
OK!

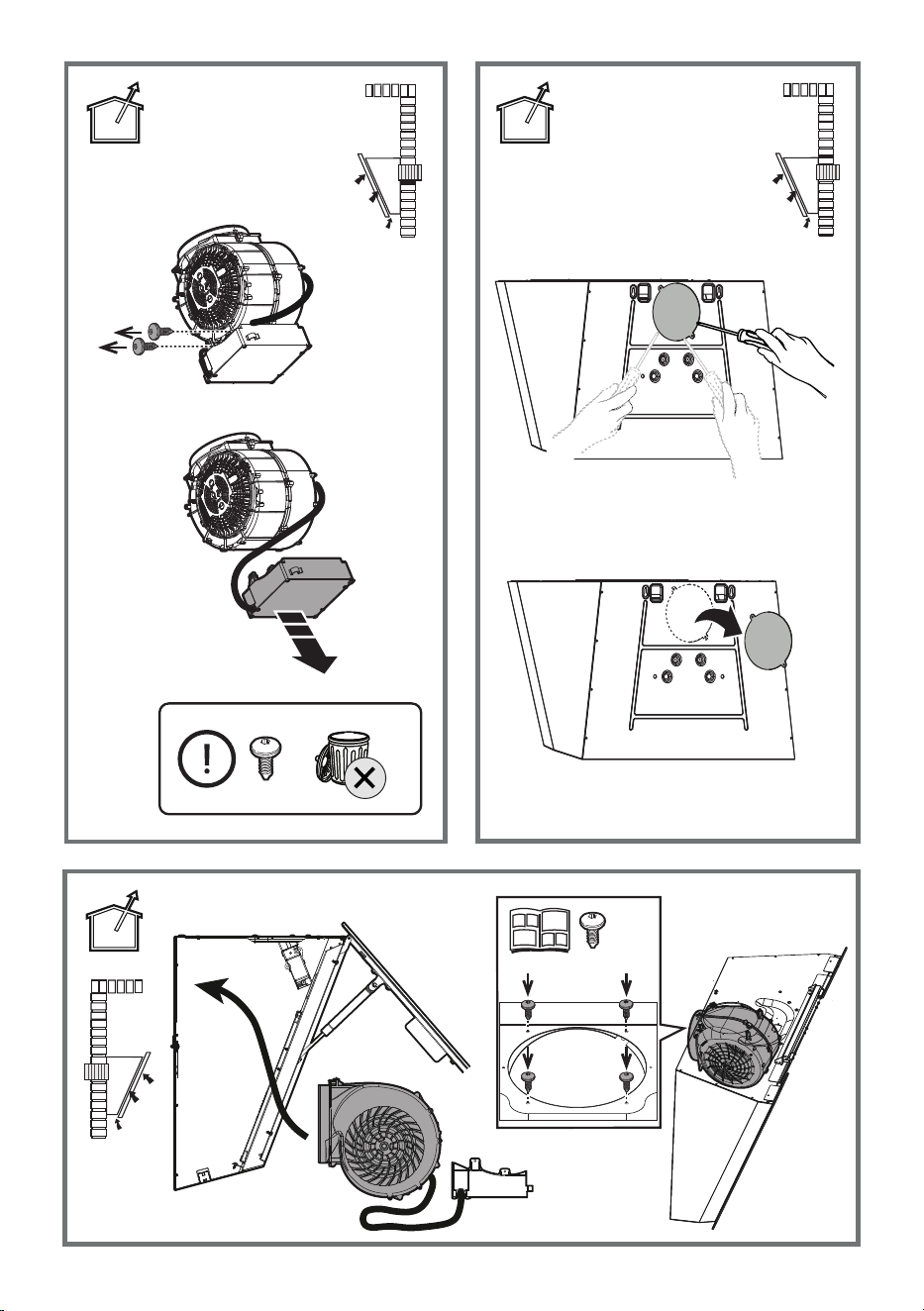

15
16
17
18
19
1x
Ø5x45mm
13
2x
2x
Ø2,9x6,5mm
.1
.2
Ø 150 mm Ø 150 mm
.1
.2
.1

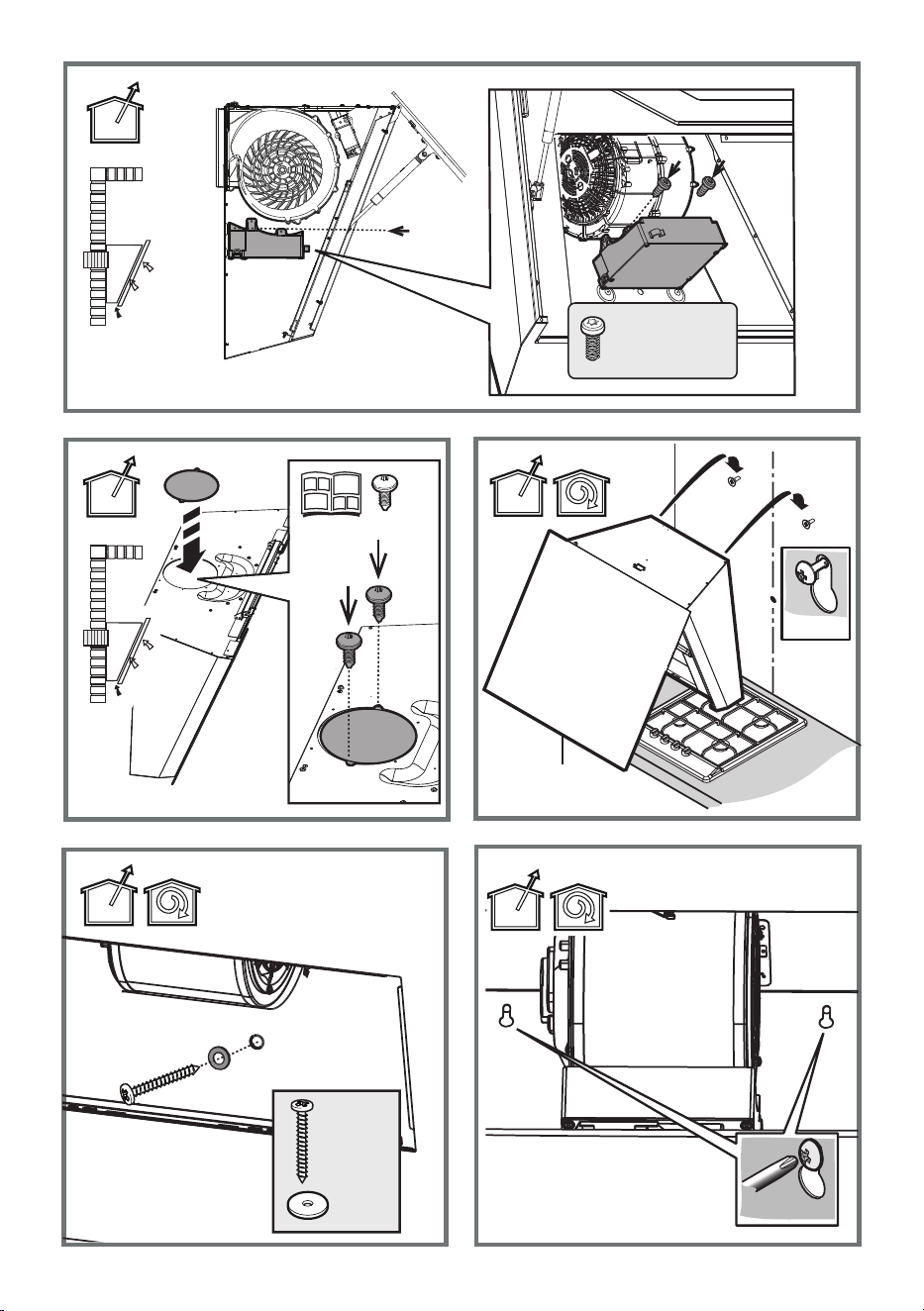

20
21
22
24
23
2x
Ø2,9x6,5mm
x 2
25
26
A
B
EN
GENERAL SAFETY
•Do not make electrical or mechanical changes on the product or on the exhaust
pipes. •Before doing any cleaning or maintenance work, disconnect the product
from the mains power supply by removing the plug or turning off the mains switch.
•For all installation and maintenance operations, always wear work gloves.• •The
product can be used by children over the age of 8 and by people with reduced
physical, sensory or mental capabilities or without experience or the necessary
knowledge, as long as they are properly supervised or have been instructed on
how to safely use the device and understand the inherent dangers.• •Children
must be supervised to make sure that they do not play with the product.•
•Cleaning and maintenance must never be performed by children unless they are
properly supervised. •The room must have sufficient ventilation when the product
is used at the same time as other appliances burning gas or other fuels. •The
product must be cleaned frequently both inside and out (AT LEAST ONCE A
MONTH); always follow the instructions given in the maintenance manual. •Failure
to comply with the rules indicated for cleaning the product and replacing/cleaning
the filters may result in the risk of fire.• •It is strictly forbidden to cook food on the
flame under the product.• WARNING: •When the hob is on, the accessible parts of
the product may become hot.• •Do not connect the product to the electrical power
supply until the installation is complete.• •The regulations laid down by local
authorities must be strictly followed with regard to the technical and safety
measures to adopt for fume extraction.• •The extracted air must not be conveyed
through the same ducts used to extract the fumes generated by gas combustion
or other types of combustion products.• •Do not use or leave the product without
appropriately installed lamps, as this may result in the risk of electric shock.• •The
product must NEVER be used without the grille correctly fitted. •The product must
NEVER be used as a support surface unless expressly indicated.
● Range hoods and other cooking fume extractors may adversely affect the safe
operation of appliances burning gas or other fuels (including those in other rooms)
due to back flow of combustion gases. These gases can potentially result in
carbon monoxide poisoning. After installation of a range hood or other cooking
fume extractor, the operation of flued gas appliances should be tested by a
competent person to ensure that back flow of combustion gases does not occur.
• Use only the fastening screws supplied with the product for its installation, or if
not supplied, purchase the correct type of screws. Use screws of the right length,
as indicated in the installation guide.
● Please note! Failure to install screws and fasteners in accordance with these
instructions may result in electrical hazards.
• To replace the lamp, only use the lamp indicated in the maintenance/lighting
system section of this manual. • Using a naked flame may damage the filters and
cause a fire hazard, and must therefore be avoided under all circumstances. •
2
Extra care must be taken when frying to prevent the oil from overheating and
catching fire. • In case of doubt, contact the authorised service centre or similar
qualified personnel.
Please note! Do not use with a programmer, timer, separate remote control or
any other device that activates automatically.
• The minimum distance between the container support surface on the cooker and
the lower part of the hood must be at least equal to 45 cm (not less than only for
Australia and New Zealand) in case of electric cookers and to 60 cm in case of
gas or mixed cookers.
If the installation instructions of the gas cooker specify a greater distance, take it
into account.
Keep children under the age of 3 away from the appliance. Without the constant
supervision of an adult, keep the appliance out of the reach of children under the
age of 8.
ATTENTION: the appliance is not designed to be operated using an external
device or a separate remote control system.
This appliance is not intended for professional use. Do not use the appliance
outdoors.
To avoid the risk of personal injury, the appliance must be handled and
installed by two or more people.
Installation operations, including any water supply connections (if any) and the
electrical connections, and repairs must be carried out by qualified personnel.
When installation is complete, keep the packaging material (plastic parts,
polystyrene, etc.) out of the reach of children to avoid the risk of suffocation.
Do not use the appliance when barefoot or wet.
Never use steam cleaning appliances - risk of electric shock.
Strictly observe the instructions in this manual. All liability is declined for any
problems, damage or fires caused by failure to comply with the instructions in this
manual. The device is intended for domestic use only, to cook food and extract
the fumes generated by cooking. No other use is allowed (e.g. heating rooms).
The manufacturer declines any liability for inappropriate use or incorrect control
settings.
● Read the instructions carefully: they contain important information on
installation, operation and safety.
● Do not make electrical changes to the device.
● Before installing the device, make sure that none of the components are
damaged. Otherwise, contact the dealer and do not continue with the installation.
• It is important to keep all the manuals accompanying the product so that they
can be consulted at all times. If sold, transferred or moved, make sure it remains
with the product.
The device may have different aesthetic features with respect to the illustrations in this handbook, however the
operating, maintenance and installation instructions remain the same.
3
ELECTRICAL CONNECTION
The mains voltage must correspond to the voltage indicated on the rating plate
located inside the hood. If equipped with a plug, connect the hood to a wall socket
that complies with current standards located in an area that can be accessed
even after installation. If it does not feature a plug (direct connection to the mains)
or the plug is not located in an accessible area, even after installation, apply a
standard double pole switch that ensures complete disconnection from the mains
in category III overvoltage conditions, in accordance with the installation rules.
● Please note! Before reconnecting the circuit to the mains power supply and
making sure that it is working correctly, always check that the power cable is
correctly installed.
Do not use extension cords, power strips or adapters.
If the cable is not fitted with a plug, connect the wires according to the following
table:
Mains voltage and frequency
Refer to the value indicated on the rating plate inside the hood.
Wire connection
: yellow/green
N: blue
L: brown
Replacing the power cable
The hood features a special power cable; if the cable is damaged, contact the
Service Centre for a replacement.
AIR OUTLET
(for suction versions)

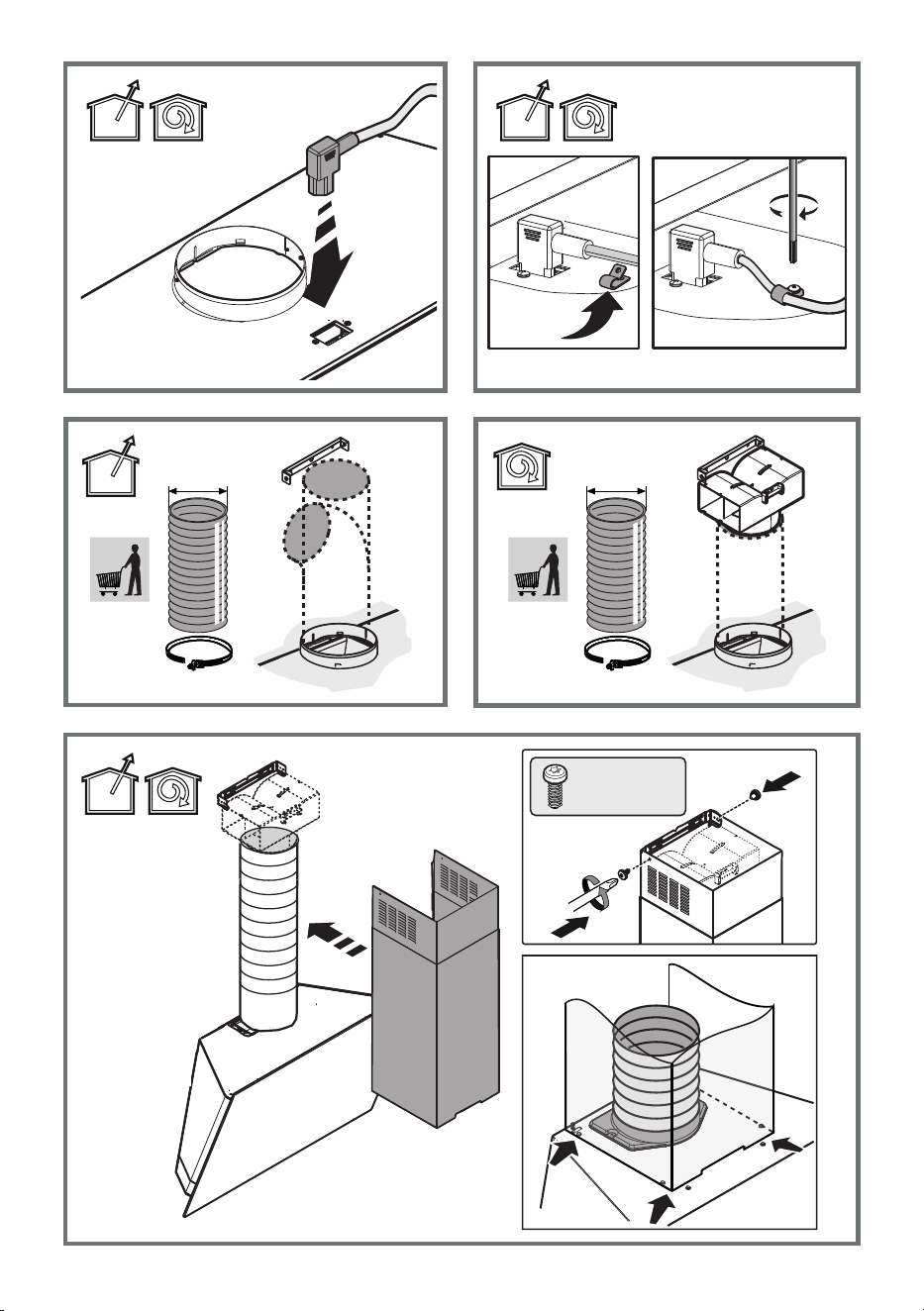

Connect the hood to wall-mounted exhaust pipes and holes with a diameter equivalent to the air outlet (connecting flange).
The use of pipes and outlet holes in the wall with a smaller diameter will reduce the extraction performance and drastically
increase the noise level.
All responsibility in this regard is therefore denied.
! Use a ducting pipe with the shortest length necessary.
! Use a ducting pipe with the least number of bends possible (maximum bend angle: 90°).
! Avoid drastic changes in the ducting pipe diameter.
! The company shall not be held responsible if these regulations are not complied with.

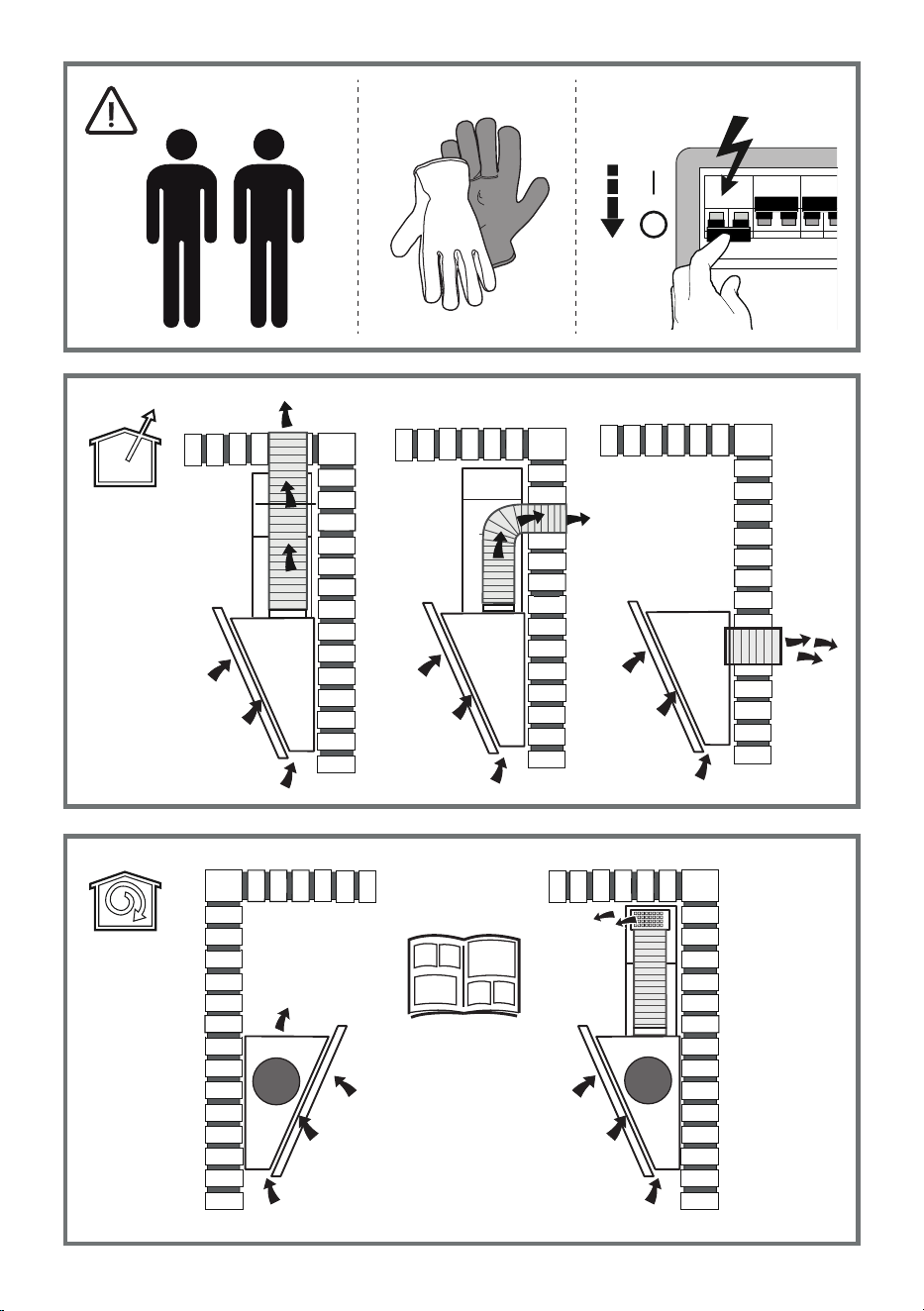

FILTRATION OR SUCTION?
! Your hood is read to be used in the suction version.

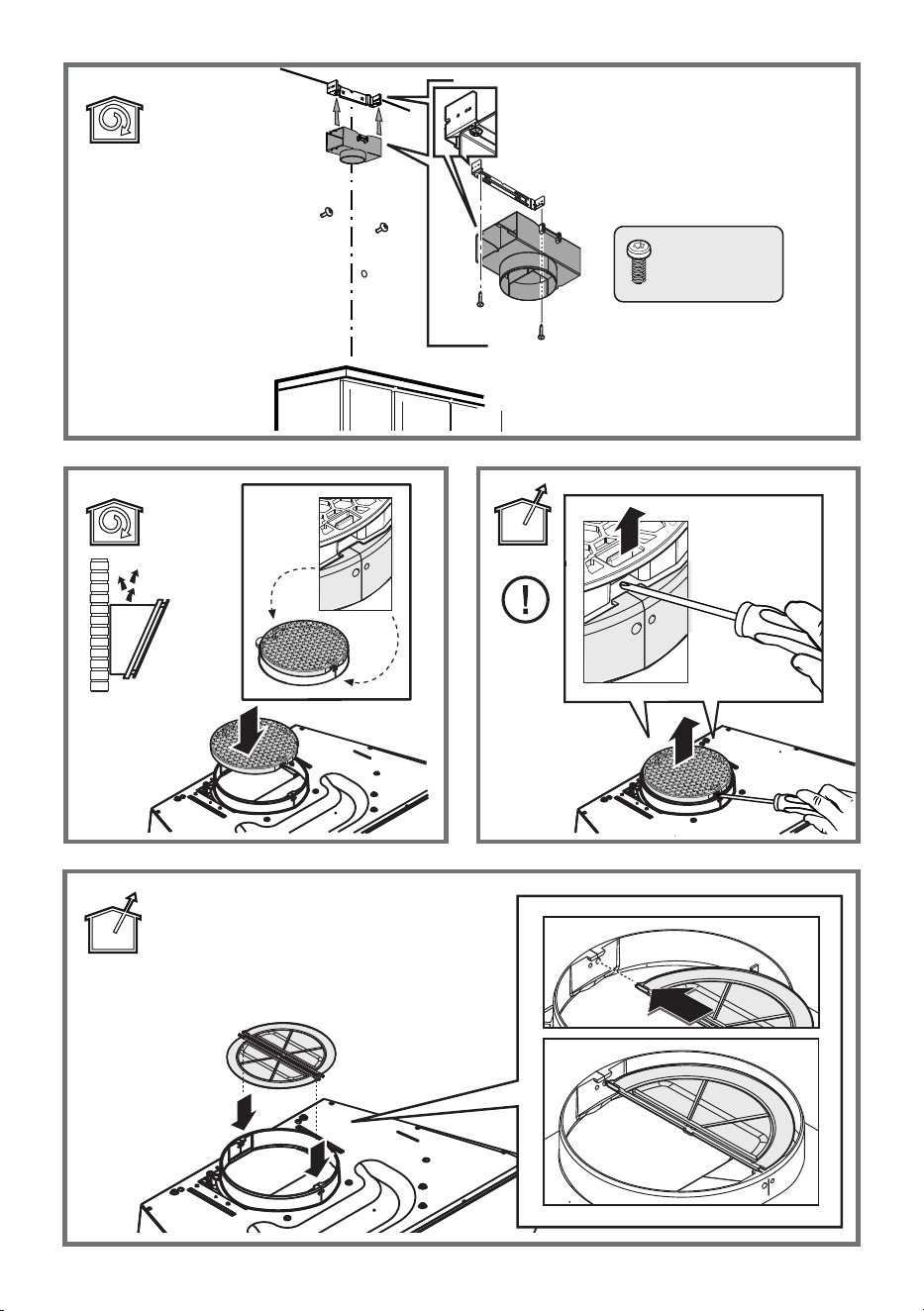

To use the hood in the filtration version, the special ACCESSORY KIT must be installed.
Check, on the first pages of this manual, whether the ACCESSORY KIT is already supplied or needs to be purchased
separately.
Note: If supplied, in some cases, the additional activated carbon filtering system may already be installed on the hood.
Information on how to convert the hood from the suction version to the filtration version is already contained in this manual.
Extraction version
Vapours are evacuated outside through an exhaust pipe attached to the connecting flange.
ATTENTION
The evacuation pipe is not supplied and must be purchased.
The diameter of the exhaust pipe must be equivalent to the diameter of the connecting ring.
If the hood features one or more carbon filters, they must be removed.
4
Filtration version
The suctioned air will be degreased and deodorised before it is sent back into the room. To use the hood in this version, it is
necessary to install an additional activated carbon filter system.
Complete* protection from water drops while you're cooking
The exclusive Hotpoint DropProtect coating prevents water dripping* from your hood.
No more worries about unwanted drips into your pots or onto the hob while you whip up delicious meals.
*based on Whirlpool internal testing considering ordinary conditions of cooking.
CONTROLS
The hood is equipped with a control panel with a suction speed control and a light control to light up the hob.
T1= Motor OFF Key - stand by – reset wash/replace filters signal – disables selection keys
MOTOR OFF
Press briefly to switch the motor off.
RESET FILTERS SIGNALS
After having carried out maintenance of the filters, press the key for 3 seconds. Flashing
led T2 (fats filter) or T3 (carbon filter) will stop flashing.
DISABLING CONTROLS
Pressing the key for 3 seconds the speed selection keys will be disabled.
This function can be useful during the product cleaning operations to avoid operating the hood accidentally.
Press again for 3 seconds to enable again.
T2= Low-speed selection key (suction power) – when flashing it indicates the need to wash the grease filter.
T3= Medium-speed selection key (suction power) - when flashing it indicates the need to wash or replace the carbon
filter. This signal is normally deactivated. To activate the alarm, disabling controls, key T1, press keys T2 and T3 at the
same time to activate it.
At first only key T2 will flash and then both keys T2 and T3 to indicate activation. Repeat the operation to deactivate the
signal. At first keys T2 and T3 will flash and then only key T2 to indicate deactivation.
T4= High-speed selection key (suction power).
T5= Intensive speed selection key (suction power) - duration 5 minutes - press again to return to previous setting.
T6= Light key ON/OFF.
If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. by pulling out the
plug. Then plug it in again and try once more before contacting the Technical Assistance Service.
5
MAINTENANCE
• Cleaning: For cleaning, simply use a cloth moistened
with neutral liquid detergents. Do not use cleaning tools or
instruments.
●
Anti-Grease Filter: It must be cleaned once a
month (or when the filter saturation indication system - if
any - indicates the need for it), with non-aggressive
detergents, either by hand or in a dishwasher at a low
temperature and on a short cycle.
When cleaned in the dishwasher, the metal grease filter
may discolour, but its filtering characteristics remain
unchanged.

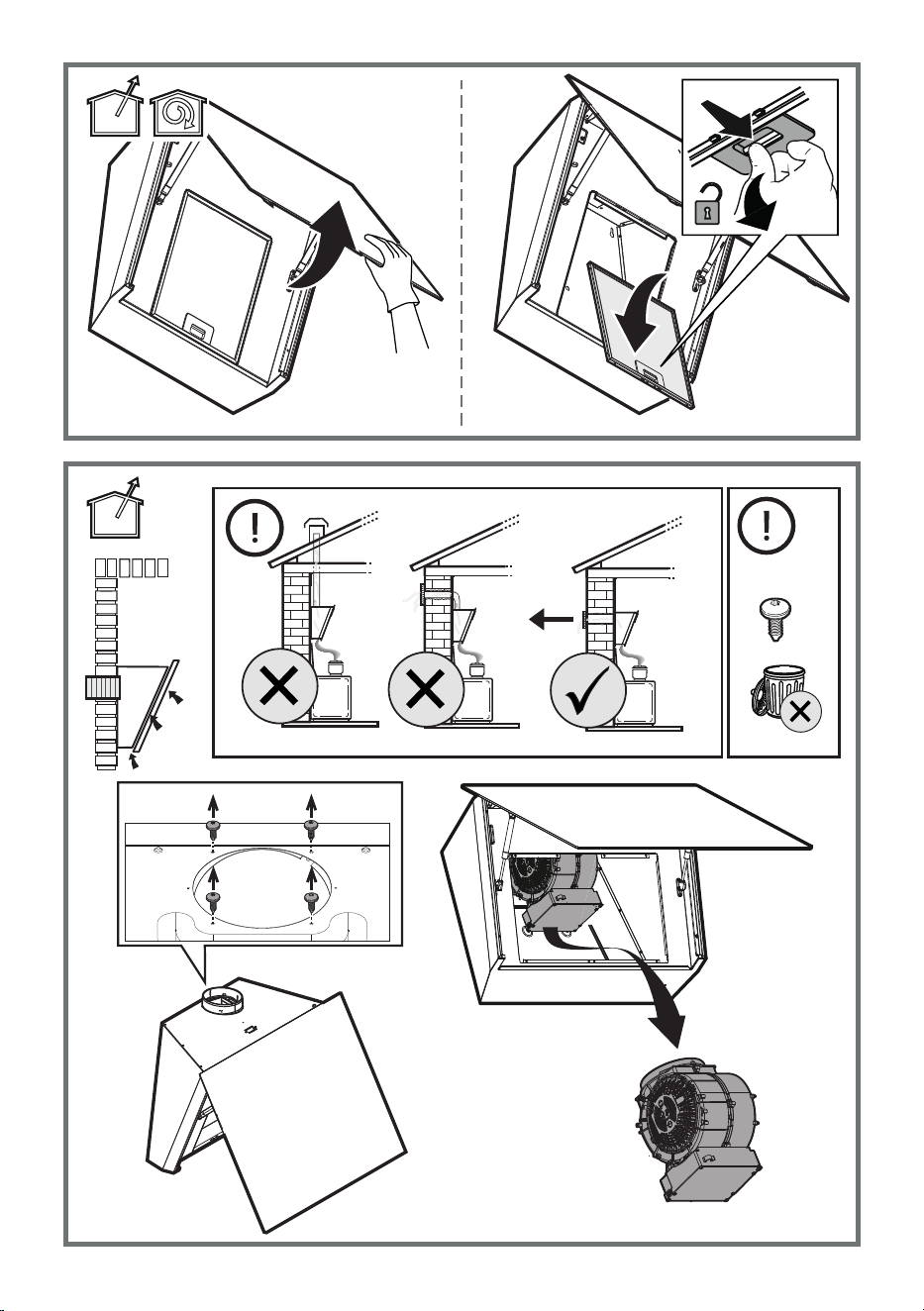

To remove the anti-grease filter, pull the spring release
handle.
●

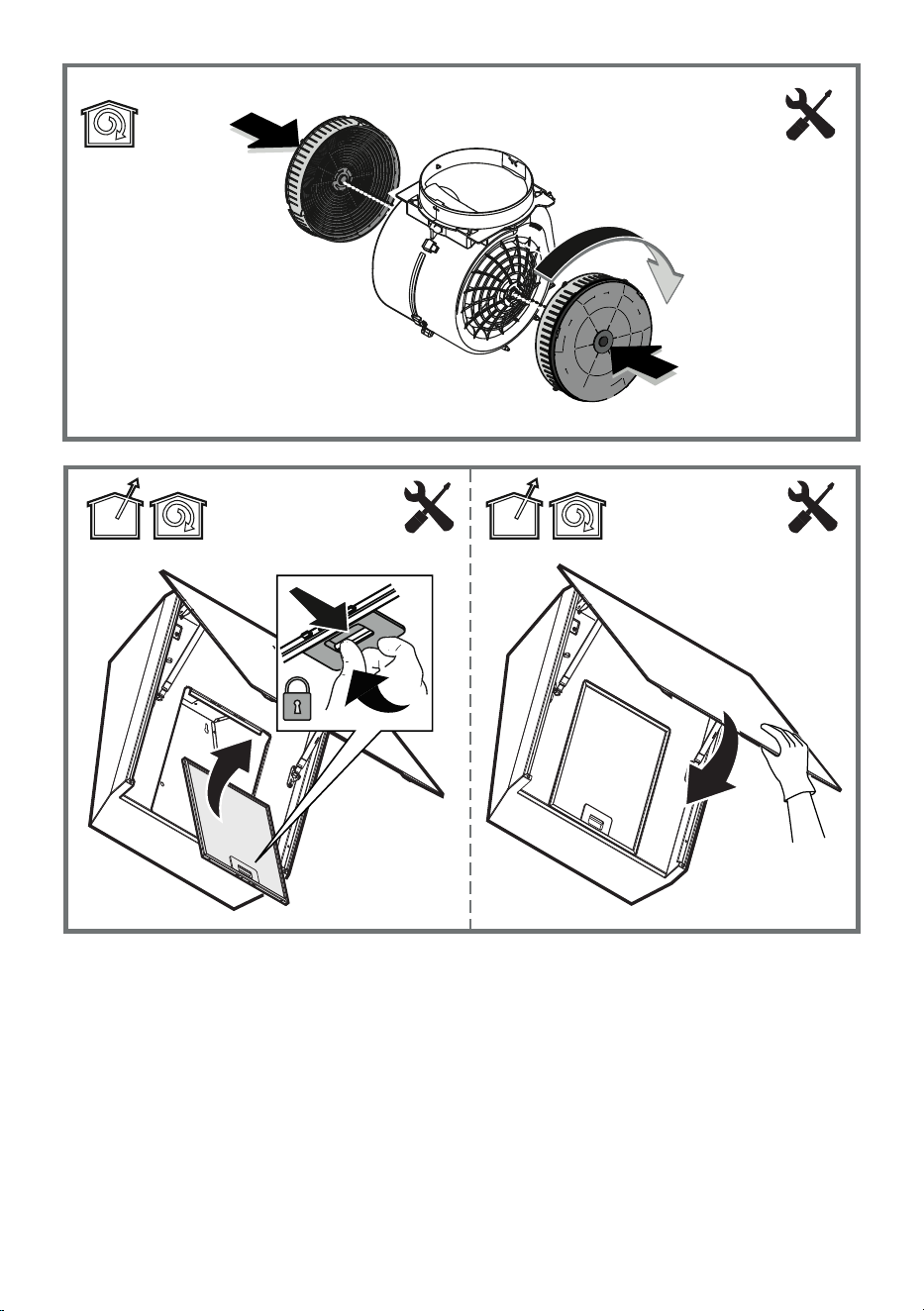

Carbon filter (for filter version only): The
cartridge must be replaced at least every four months. It
CANNOT be washed or regenerated. As indicated in the
drawings section: remove the anti-grease filters, apply a
carbon filter on each side and attach it to the product. Put
the anti-grease filters back in place.
• The carbon filter retains any unpleasant odours
produced during cooking. • The saturation of the carbon
filter can occur after somewhat prolonged use depending
on the type of cooking and how regularly the grease filter
is cleaned.
Illumination
• The lighting system is based on LED technology. LEDs
provide optimal illumination, last up to 10 times longer
than conventional lamps and save 90% of electricity.
●Lighting system : The lighting system cannot be
replaced by the user, contact Customer Service in case of
malfunction.
6
END-OF-LIFE DISPOSAL
This device is marked in compliance with the European Directive 2012/19/EC - UK SI 2013 No.3113, Waste Elec-
trical and Electronic Equipment (WEEE).
Make sure that this product is disposed of correctly. The user helps prevent potential negative consequences for the
environment and for health. The symbol on the product or accompanying documentation indicates that this product should
not be treated as household waste but should be handed over at a suitable collection point for the recycling of electrical and
electronic equipment. Dispose of it in accordance with local regulations for waste disposal. For further information about the
treatment, recovery and recycling of this product, please contact your local authority, the collection service for household
waste or the shop from where the product was purchased.
The packaging material is 100% recyclable and is marked by the recycling symbol
REGULATIONS
Equipment designed, tested and manufactured in compliance with safety regulations: EN/IEC 60335-1; EN/IEC 60335-2-
31, EN/IEC 62233. Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC
60704-2-13;EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301. EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2;
EN/IEC 61000-3-2; EN/IEC 61000-3-3.
RECOMMENDATIONS FOR USE
Recommendations for correct use in order to reduce the impact on the environment: When cooking begins, the device
should be turned on at minimum speed, and left on for a few minutes even after cooking is complete. Increase the speed
only if there is a large quantity of fumes and steam, using the Booster function only in extreme cases. To keep the odour
reduction system running efficiently, replace the carbon filter/s when necessary. To ensure the high performance of the
grease filter, clean it when necessary. To improve efficiency and minimise noise, use the maximum duct diameter indicated
in this manual.
OPERATING ERRORS
If something does not seem to be working, perform the following simple checks before contacting the Service Centre:
• If the hood is not working:
Check that:
-There is no power failure
-A speed has been selected
• If the hood has poor performance:
Check that:
-The selected motor speed is sufficient for the amount of fumes and steam released.
-The kitchen is sufficiently ventilated to allow an air intake.
-The carbon filter is not worn out (hood in filtration version).
• If the hood has switched off during normal operation:
Check that:
-There is no power failure.
-The safety cut-off device has not tripped.
In the event of any malfunctions, disconnect the appliance from the electrical power supply for at least 5 seconds by
unplugging it and then reconnect it, before contacting the Service Centre. If the malfunction persists, contact the Service
Centre.
7

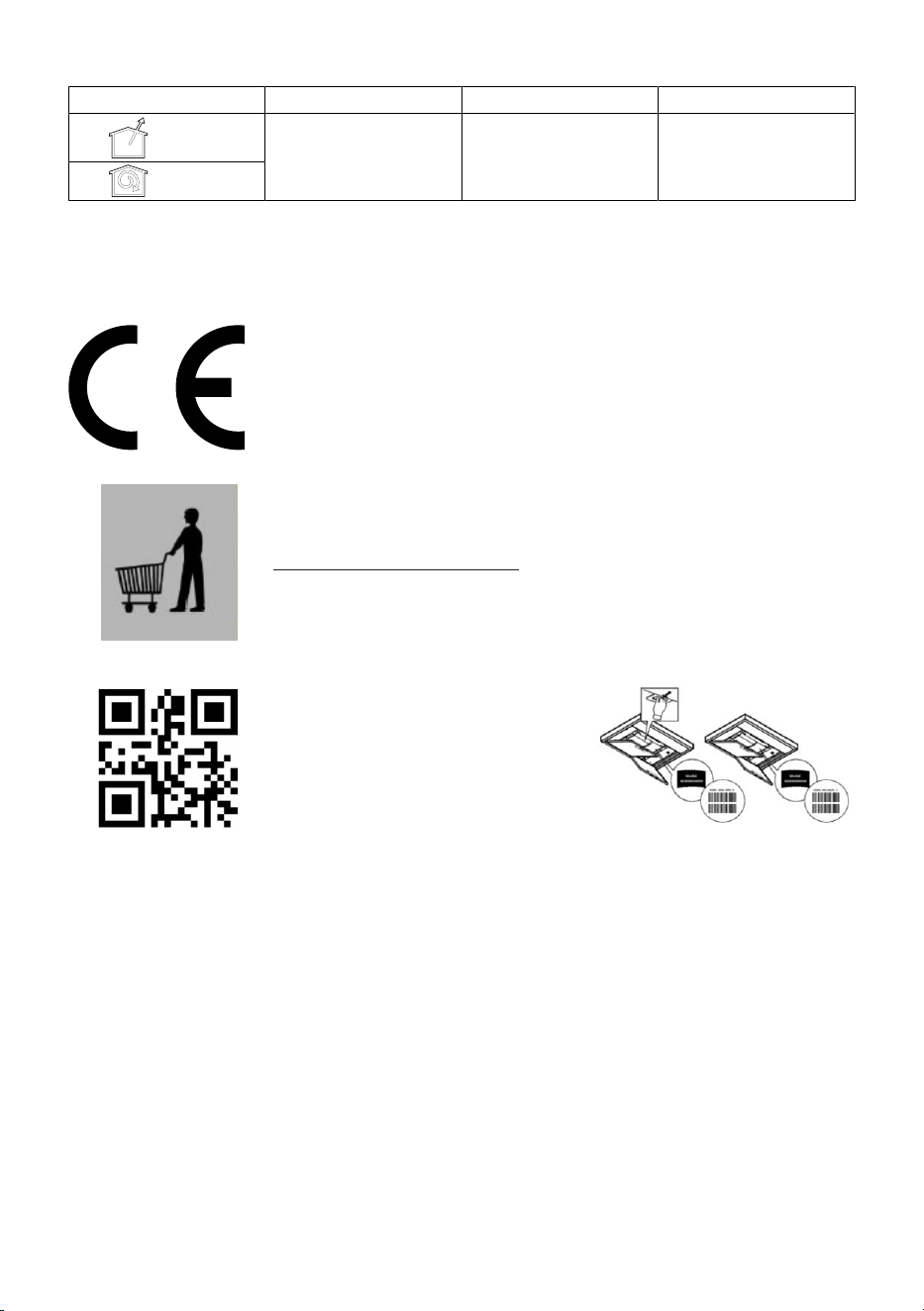

TECHNICAL SPECIFICATIONS
Height (cm) Width (cm) Depth (cm) Φ of the exhaust pipe (cm)
104.5-147.5
60-90 36.8 15
104.5-147.5
Components not supplied with product
To download the safety instructions, user
manual, technical data sheet and energy data:
• Visit the website docs. Hopoint.eu
• Use the QR code
• Alternatively, contact Customer Service (using
the phone number indicated on the warranty
booklet). When contacting Customer Service,
communicate the codes on the product rating
plate.
8
LIB0198518 Ed. 03/24
