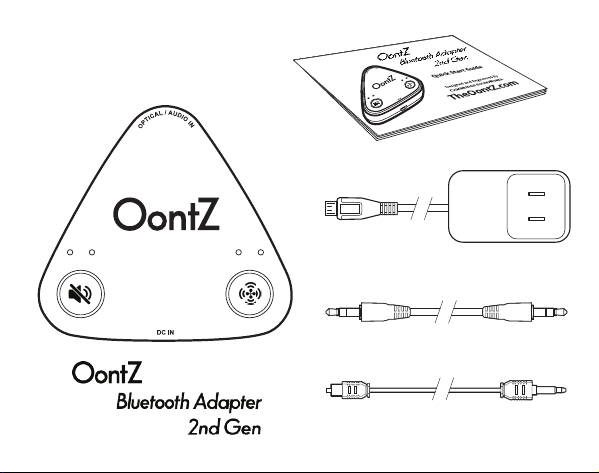

In the Package
Quick-Start Guide
Micro USB Power Adapter
3.5mm Audio Cable
Digital Audio Optical Cable
Analog
Surround
Optical
Mute
Analog
Surround
Optical
Mute
Thank you for being an OontZ Bluetooth Adapter 2nd Gen Owner!
This User Guide first covers the steps to connect your OontZ Bluetooth Adapter to
your TV or device (Laptop, Computer, Tablet, Mac, iPad, or Music Receiver), with the
included Digital Audio Optical Cable or the 3.5mm Audio Cable. Then the steps to
connect the OontZ Bluetooth Adapter wirelessly over Bluetooth to 1, 2, 3 or 4 these
Supported OontZ Speaker Models:
SUPPORTED OONTZ SPEAKER MODELS
- OontZ Angle 3 ULTRA 4th Gen
- OontZ Angle 3 Pro 2nd Gen
• The OontZ Bluetooth Adapter will only work with the Supported OontZ
Speaker Models noted above, for the latest list of supported OontZ speakers
please visit TheOontZ.com/BT-Adapter-2nd-Gen
The OontZ Bluetooth Adapter is designed to transmit the audio from your TV or
device to the OontZ Speaker(s) with our Low latency Feature. The Low Latency
Feature reduces delays that occur in the Bluetooth transmission of the audio which
can cause lip sync issues when playing a video on your TV or device and playing the
audio wirelessly through 1, 2, 3 or 4 OontZ Speakers.
Buttons and Lights
Connectors
Connecting with Television Using Digital Audio Optical Cable
Connecting with Television Using 3.5mm Audio Cable
Connecting with Devices Using 3.5mm Audio Cable
Turning On the OontZ Bluetooth Adapter
Connecting Your OontZ Bluetooth Adapter with Supported OontZ Speaker(s)
Using the OontZ Remote
Using the OontZ App
Troubleshooting
Reset Function
Other Important Notes
Contacting Customer Support
Safety and Precautions
Table of Contents
1
2
3
4
5
6
7 - 9
10 - 11
12 - 18
19
20
21
22
23 - 24
Pages
Optical
- Lit White when the
adapter is connected
to an audio source
with the Digital Audio
Optical Cable
Buttons and Lights
Page 1
Mute Button
- Used when muting the
volume of the connected
OontZ Speakers
Analog
- Lit Green when the
adapter is connected to
an audio source with the
3.5mm Audio Cable
Mute
- Lit Red when the
adapter volume is
muted.
- Flashing Red when
adapter is turned on
and not connected to
an audio source.
Surround
- Lit Orange when OontZ
Speaker(s) are connected to
the OontZ Bluetooth
Adapter
Surround Mode Button
- Used when connecting to
OontZ Speakers
Analog
Surround
Optical
Mute

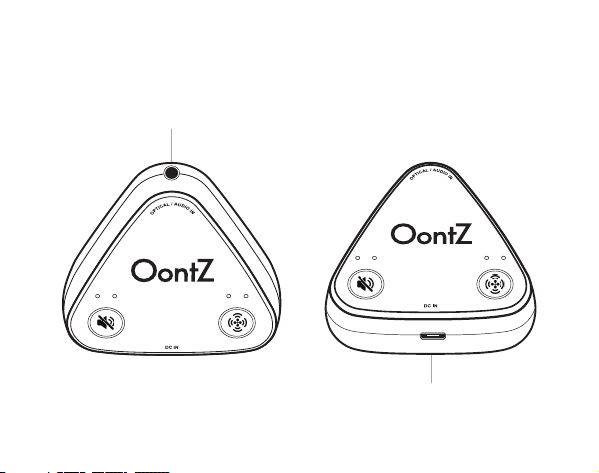

Connectors
Page 2
Optical/Audio In Connector used
for 3.5mm Audio Cable or
Digital Audio Optical Cable
DC IN Power Connector
used for Micro USB Power
Adapter
Analog
Surround
Optical
Mute
Analog
Surround
Optical
Mute
Connecting with Television Using Digital Audio Optical Cable
Page 3
- Plug the longer end of the Digital Audio Optical Cable into the
Optical/Audio In Connector on the OontZ Bluetooth Adapter as
shown below.
- Plug the shorter end of the Digital Audio Optical Cable into the
Optical - Digital Audio Out on your TV as shown below.
- Make sure both ends of the cable are fully inserted.
We recommend to connect to your TV using the Digital Audio Optical Out Connector. If the
TV does not have a Digital Audio Optical Out Connector, use the Analog Audio Connection
as described on Page 4.
ANALOG
AUDIO OUT
L R
DIGITAL
AUDIO OUT
OPTICAL
Digital Audio Optical Cable is included
AUDIO
OUT
Analog
Surround
Optical
Mute
Analog
Surround
Optical
Mute
Connecting with Television Using 3.5mm Audio Cable
Page 4
- Plug one end of the 3.5mm Audio Cable into the Optical/Audio In Connector on the
OontZ Bluetooth Adapter.
- Plug the other end of that 3.5mm Audio Cable into the Headphone or Audio-Out
Connector on your television.
- Make sure both ends of the cable are fully inserted.
-If your TV does not have a Headphone Connector or Audio-Out Connector but does
have Left Right Analog Audio Out you will need a 3.5mm to RCA cable as shown
below.
ANALOG
AUDIO OUT
L R
3.5mm to 3.5mm Audio Cable (included)
OR
3.5mm to RCA audio cable is sold seperately
and is available at:
TheOontZ.com/accessories
AUDIO OUT
HEADPHONE
OUT
- or -
DIGITAL
AUDIO OUT
OPTICAL
L
R
Analog
Surround
Optical
Mute
Connecting with Devices Using 3.5mm Audio Cable
Page 5
- Plug one end of the 3.5mm Analog Cable into the Optical/Audio In Connector on the
OontZ Bluetooth Adapter.
- Plug the other end of that 3.5mm Audio Cable into the Headphone or Audio-Out
Connector on your device.
- Make sure both ends of the cable are fully inserted.
OR
Turning On the OontZ Bluetooth Adapter
Page 6
Step 2: Insert the small end of the Micro
USB Charging Adapter into the DC IN
Micro USB Charging Connector as
shown
Step 1: Connect the wall plug end of
the Micro USB Charging Adapter
into a power outlet.
Step 3:
- If the adapter is connected to an audio
source with the 3.5mm Audio Cable the
Analog light is solid Green.
- If the adapter is connected to an audio
source with the Digital Audio Optical Cable
the Optical light is solid White.
- If the 3.5mm Audio Cable or the Digital
Audio Optical Cable are NOT connected to
the adatper the Mute light is slowly
flashing Red.
Analog
Surround
Optical
Mute
Page 7
Play your music or TV audio wirelessly through speakers up to 66 feet apart
*
* Placing the speakers on the ground or having walls or obstructions between the
speakers will significantly reduce the distance apart the two speakers can play together.
Connect 1, 2, 3 or 4 Supported OontZ speakers with
your OontZ Bluetooth Adapter
Note: The OontZ Bluetooth Adatper 2nd Gen is ONLY compatible
with OontZ Angle 3 ULTRA (4th Gen) and OontZ Angle 3 Pro (2nd Gen) speakers.
Slave Speaker
Full Stereo
Master
Slave Speaker
Full Stereo
Connect to 1, 2, 3 or 4 Speakers
Up to 66 feet apart
*
Up to 66 feet apart
*
Analog
Surround
Optical
Mute
Connect 1, 2, 3 or 4 Supported OontZ speakers with your
OontZ Bluetooth Adapter
You can also use the OontZ app to connect to OontZ speakers - See page 12 for instructions
on using the OontZ app
*Your OontZ Bluetooth Adapter needs to be within 10 unobstructed feet of the OontZ Speakers
to pair and connect. If there is an issue when connecting please move your speakers closer to
the OontZ Bluetooth Adapter, then pair and connect.
Page 8
– Plug in and turn on the OontZ Bluetooth Adapter. (See page 6).
– The OontZ Bluetooth Adapter will serve as the Master.
– Turn on the supported OontZ speaker(s). The speaker(s) will be the Slave Speakers.
– The Slave Speakers must not be connected to any device, their Bluetooth Light must be
flashing. If a speaker has a solid Blue Light it is connected to a device and you need to
disconnect it by pressing and holding down the Bluetooth Button for 3 seconds until the
Bluetooth Light begins flashing.
– On the OontZ Bluetooth Adapter press and release the Surround Button . The
Surround light will be lit solid Orange.
– On the OontZ speaker(s) with a flashing Blue Light, press and release the Bluetooth
Button . The light on the OontZ speaker(s) will flash Orange and the speaker(s) will say
“Surround Mode Receive”.
– After a few seconds each speaker will connect with the OontZ Bluetooth Adapter. The light
on the OontZ speaker(s) will be lit with a solid Orange light.
Turning the speakers off
– Turning the OontZ Bluetooth Adapter will NOT turn off the speaker(s).
– Turning a Slave Speaker(s) off will only turn that speaker off and the other Slave
Speakers will continue to play.
Turning the speakers back on
– Turn all the speakers on and repeat the pairing process - S
ee page 8 for instructions.
Disconnecting the speakers from each other
– To disconnect a single Slave Speaker, press and release the Bluetooth Button on
the speaker. All other Slave Speakers will stay connected to the OontZ Bluetooth
Adapter.
– To disconnect all the speakers, turn off the OontZ Bluetooth Adapter or press and
release the Surround Button on the OontZ Bluetooth Adapter. The speakers will
all be disconnected from the OontZ Bluetooth Adapter.
– If the Slave Speaker(s) are not turned off and are disconnected by pressing and
releasing the Surround Button on the OontZ Bluetooth Adapter. The speakers
will automatically reconnect with the OontZ Bluetooth Adapter when the Surround
Button on the OontZ Bluetooth Adapter is pressed and released again. If a Slave
Speaker is turned off the Bluetooth Button on the speaker will need to be pressed
and released to enter Surround Mode to connect with the OontZ Bluetooth Adapter.
Note: To pair a Slave Speaker with a flashing Orange Light with another device, press
and release the Bluetooth Button . The
Bluetooth Light will begin flashing Blue and
the OontZ speaker is ready to pair and connect with the device.
Page 9
Important Notes
PULL
- The four lights on the OontZ Bluetooth Adapter will flash together indicating the OontZ
Bluetooth Adatper is ready to pair with the Remote.
- Hold the remote within 3 feet (1 meter) of the OontZ Bluetooth Adapter.
– At the same time Press and hold the Bluetooth Button and the Power Button on the
remote for more than two seconds.
– Once the remote has connected with the OontZ Bluetooth Adapter the light labeled Analog will
flash Green six times.
Note: To verify if your remote is paired with the OontZ Bluetooth Adapter press and hold the
Bluetooth Button and the Power Button on the remote for more than two seconds at any
time when the OontZ Bluetooth Adapter is power on. The light labeled Analog on the OontZ
Bluetooth Adapter will flash Green six times when the remote and the OontZ Bluetooth Adapter
are paired.
Page 10
Using the OontZ Remote with the OontZ Bluetooth Adapter
(The OontZ app can also be used to control the OontZ Bluetooth Adapter, refer to Page 12)
To use the OontZ Remote first remove the insulation
strip on the back side of the OontZ Remote as shown.
Once the insulation strip is remove, the OontZ Remote
must be paired with the OontZ Bluetooth Adapter.
– Plug in and turn on the OontZ Bluetooth Adapter. (See page 6).
– Press and hold the Mute Button for more than two seconds on
the OontZ Bluetooth Adapter.
- The four lights on the OontZ Bluetooth Adapter will flash together indicating the OontZ
Bluetooth Adatper is ready to pair with the Remote.
- Hold the remote within 3 feet (1 meter) of the OontZ Bluetooth Adapter.
remote for more than two seconds.
– Once the remote has connected with the OontZ Bluetooth Adapter the light labeled Analog will
flash Green six times.
Note: To verify if your remote is paired with the OontZ Bluetooth Adapter press and hold the
Bluetooth Button and the Power Button on the remote for more than two seconds at any
time when the OontZ Bluetooth Adapter is power on. The light labeled Analog on the OontZ
Bluetooth Adapter will flash Green six times when the remote and the OontZ Bluetooth Adapter
Page 11
Using the OontZ Remote with the OontZ Bluetooth Adapter
Volume Up
- Press one time to increase
the volume of your connected
OontZ speakers one level.
- Press and hold to increase
the volume of your connected
OontZ speakers until the
desired volume is reached.
No Function with OontZ
Bluetooth Adapter
Volume Down
- Press one time to decrease
the volume of your connected
OontZ speakers one level.
- Press and hold to decrease
the volume of your connected
OontZ speakers until the
desired volume is reached.
Mute / Unmute
- Press one time to mute
and again to unmute.
Surround Mode
- Press to connect to your
supported OontZ speaker.
The OontZ Remote Control is used to connect to your supported OontZ speaker
and control the Volume, Mute, and Unmute your connected OontZ speaker. Some
functions on the Remote are designed for the OontZ Angle 3 Pro Soundbar and are
not supported on the OontZ Bluetooth Adapter.
No Function with OontZ
Bluetooth Adapter
Power
- Press to turn on and off
the OontZ Bluetooth
Adapter.
No Function with OontZ
Bluetooth Adapter
Page 12
The OontZ app
Control the features of your
OontZ Bluetooth Adatper from your iPhone or Smartphone
running the Android operation system.
Volume Control - Remotely control the volume of your connected OontZ speakers.
Surround Mode - Connect, Disconnect and manage 1, 2, 3 or 4 supported OontZ speakers.
Support - View the latest online manual and contact the OontZ customer service team.
Speakers - Select to allow the OontZ app to control other supported OontZ speakers.
Download the OontZ app from the Apple App Store® or Google Play™ Store.
1) Open the Apple App Store
®
or Google Play
™
Store on your iPhone or Smartphone
running the Android operating system.
2) Search for the “Oontz” app and install.
3) After the app has been installed the Oontz app will appear on your iPhone or
smartphone.
Page 13
- Plug in and turn on your OontZ Bluetooth Adapter
- Launch the OontZ app and the Home screen will appear
- Select the Menu in the upper left hand corner of the
OontZ app and the Menu screen will appear
- Select ‘Speakers’ from the Menu and the Speaker screen will
appear
- Press the Grey speaker icon on the app to enable the OontZ
app with the OontZ Bluetooth Adapter
- The OontZ app will be enabled with your OontZ Bluetooth
Adapter in a few seconds
- The Grey speaker icon will turn Blue
- The
OontZ app is enabled and ready to use
If the OontZ Bluetooth Adapter icon is already Blue the
OontZ app is already enabled and ready to use.
The OontZ app
To enable the OontZ app with your OontZ Bluetooth Adapter
Page 14
Select the Menu in the upper left hand corner of the app and select
‘Surround Mode’ from the menu.
– Plug in and turn on the OontZ Bluetooth Adapter. (See page 6).
– The OontZ Bluetooth Adapter will serve as the Master.
– Turn on the other OontZ speaker(s). These speakers will be the Slave Speakers.
– The Slave speakers must not be connected to any device, their Bluetooth Light must be flashing
Blue. If a speaker has a solid Blue Light it is connected to a device and you need to disconnect it
by pressing and holding down the Bluetooth Button for 3 seconds until the Bluetooth Light
begins flashing Blue.
Using the OontZ app for Surround Mode
The ‘Master Speaker’
menu will be displayed
and the OontZ Bluetooth
Adapter.
The first time entering
Surround Mode the
OontZ Bluetooth Adapter
will automatically be
selected and the box will
turn from Grey to Blue.
The Surround light will be lit
solid Orange. The OontZ
Bluetooth Adapter will serve as
the Master.
If the OontZ Bluetooth Adapter
has exited Surround Mode.
Surround Mode can be enabled
again by selecting the Grey box
of the OontZ Bluetooth Adapter.
The box will turn from Grey to
Blue.
Connecting 1, 2, 3 or 4 supported OontZ speakers
Page 15
Using the OontZ app for Surround Mode
The selected speaker boxes will turn from Grey to Blue.
The light on the selected speakers will flash Orange.
After a few seconds each speaker will connect with the OontZ
Bluetooth Adapter. The light on each speaker will be lit a solid
Orange
and the speaker will announce “Surround Mode
Receive”.
Press the ‘Slave Speaker’ Button.
The other supported OontZ speakers that are turned on
and within range will be displayed.
Select the Grey boxes in the list of displayed speakers that
you want to connect with the OontZ Bluetooth Adapter in
Surround Mode.
Selecting the Slave Speaker(s)
Page 16
Using the OontZ app for Surround Mode
Disconnecting and reconnecting the OontZ speakers in Surround Mode
To disconnect a Slave speaker in Surround Mode, press
the ‘Slave Speaker’ Button.
Select a desired speaker from the list of displayed
speakers.
Confirm you want the speaker to exit Surround Mode.
The box will turn from Blue to Grey, the speaker will
disconnect from the OontZ Bluetooth Adapter and the
speaker will exit Surround Mode.
If the OontZ Bluetooth Adapter is still in Surround Mode
(Surround Button lit solid Orange), to reconnect a Slave
Speaker just select the Grey box. The Grey box will turn
Blue. The speaker will enter Surround Mode and connect
with the OontZ Bluetooth Adapter.
Page 17
To disconnect a Slave speaker in Surround Mode, press
the ‘Slave Speaker’ Button.
Select a desired speaker from the list of displayed
Confirm you want the speaker to exit Surround Mode.
The box will turn from Blue to Grey, the speaker will
disconnect from the OontZ Bluetooth Adapter and the
speaker will exit Surround Mode.
If the OontZ Bluetooth Adapter is still in Surround Mode
(Surround Button lit solid Orange), to reconnect a Slave
Speaker just select the Grey box. The Grey box will turn
with the OontZ Bluetooth Adapter.
To disconnect all speakers in Surround Mode, press the
‘Master Speaker’ Button.
Select the Blue box displayed for the OontZ Bluetooth
Adapter.
Confirm you want to exit Surround Mode.
The box will turn from Blue to Grey, all speakers will
disconnect.
Slave Speaker(s) have not been turned off after being
disconnected and are in Surround Mode, the speakers will
automatically reconnect when the OontZ Bluetooth Adatper
(Master) is enabled for Surround Mode.
Slave Speaker(s) have been turned off and back on. The
speakers will need to be reconnected. To reconnect using the
OontZ app refer to the instructions on Page 15 and 16 or to
reconnect with the Surround button on the Bluetooth Adapter
refer to instructions on Page 8.
Using the OontZ app for Surround Mode
Page 18
Using the OontZ app for Volume Control and Support
Select the Menu in the upper left hand corner of the app and select “Volume’ to
access the Volume screen and ‘Support’ from the menu to access the Support screen.
- Press ‘User Guide’ to display the latest version of
the online user guide and FAQ for the OontZ
Bluetooth Adapter.
- Press ‘Update Speaker’ to check the version of the
current firmware version on the OontZ Bluetooth
Adatper and whether there is a new version
available.
- Press ‘Contact Us’ to display the customer support
form. Fill in the information in the displayed form to
email to our OontZ support team.
Note: The firmware update may take up to 30
minutes. Make sure the iPhone or Smartphone is
not interrupted by a phone call during the update of
the OontZ Bluetooth Adapter.
- Select ‘Volume Control’ from the menu
to access the Volume Control screen
- Changing the volume will sync the
volume across all the connected OontZ
speakers
Using the OontZ app for Volume Control
Using the OontZ app for Support
Troubleshooting
I am having trouble pairing and connecting to my OontZ Speaker(s).
Please check the following:
– Your speaker(s) are Supported OontZ Speaker Models:
– OontZ Angle 3 ULTRA (4th Gen)
– OontZ Angle 3 Pro (2nd Gen)
Does NOT work with previous generations of OontZ speakers
- For the latest list of Supported OontZ Speakers please visit TheOontZ.com/BT-Adapt-
er-2nd-Gen
– The adapter and your speakers are within an unobstructed 10 feet / 3 meters from each
other.
– The adapter is ready to connect to your OontZ Speaker(s); this is indicated by the
Surround light flashing.
I hear an echo when connected to my TV
– Please make sure the internal speaker is turned off on your TV and only the audio to the
OontZ Bluetooth Adapter is enabled.
– The selection to turn off the internal speaker can usually be found in the TV
on-screen menu under audio settings. Please refer to your TV manual for more
specific instructions.
Page 19
Troubleshooting (continued)
After connecting the OontZ Bluetooth Adapter to my audio source, there is no audio
playing from my OontZ Speaker. Please check the following:
– Your audio source is connected to the adapter via the 3.5mm Audio Cable or Digital
Audio Optical Cable.
– Make sure the audio volume is at an audible level on both your speakers and audio
source.
– Please make sure the settings for your audio source are enabled for the line-out/head-
phone out or the Digital Audio out (depending on the cable you have connected to the
OontZ Bluetooth Adapter).
– Some TVs require selecting the audio output setting to an external speaker in your
TV on-screen menus. The selection for the audio output setting can usually be
found in the TV on-screen menu under audio settings. Please refer to your TV
manual for more specific instructions.
I hear a buzzing sound when connected to my TV.
– When using the Digital Audio Optical Cable connected to the OontZ Bluetooth Adapter
make sure the audio format setting for your TV is enabled for PCM out and not
encoded audio such as Dolby Digital.
– The selection to change the audio format on your TV can usually be found in the TV
on-screen menu under audio settings. Please refer to your TV manual for more specific
instructions.
Page 20
OontZ Bluetooth Adapter - Other Important Notes
Page 22
Speaker Power
- When the OontZ Speakers are playing from battery power and connected to the
OontZ Bluetooth Adapter, the speakers will remain on and will not automatically turn
off after 30 minutes of not playing audio. This will use up the battery charge on the
OontZ Speakers.
We recommend to:
1) Keep each OontZ Speaker plugged into a USB wall charger, which will keep each
OontZ Speaker charged and available. They can remain on and available to play
from the OontZ Bluetooth Adapter.
- Or -
2) Turn off each OontZ Speaker when you are done listening.
When the OontZ
Bluetooth Adapter is on and the OontZ speakers are turned back on. The OontZ
Bluetooth Adapter will automatically reconnect to each OontZ Speaker if they are
within range.
For online troubleshooting tips please visit:
TheOontZ.com/troubleshooting
and select the OontZ Bluetooth Adapter (2nd Gen)
Contact us at:
TheOontZ.com/support
and fill in our customer support form
If you have a question about your OontZ Bluetooth Adapter or
experience an issue with the adapter, our Customer Support Team
wants to assist you.
Customer Support
Page 23
Safety and Precautions
When the OontZ Bluetooth Adapter is plugged in to a power source with the Micro USB
Power Adapter, never use near water, to prevent risk of electric shock.
Read and follow all instructions – All operating and use instructions should be followed.
Protect the Micro USB Power Adapter from being pinched, particularly at the
connectors.
Unplug the Micro USB Power Adapter during lightning storms or when unused for long
periods of time.
Do not place adpater near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
Refer all servicing to qualified personnel. Servicing is required when the speaker has
been damaged in any way.
Do not make alterations to this adapter.
Use this adapter only with the supplied Micro USB Power Adapter which meets local
regulatory requirements (e.g., UL, CSA, VDE, CCC) in accordance with the manufacturer’s
specifications.
Do not place near naked flame sources, such as lighted candles, on or near the speaker.
Do not expose this adapter to excessive heat
(e.g. from storage in direct sunlight, fire or the like)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Page 24
Safety and Precautions (continued)
Apple, iPhone, iPad, iPod, Mac are registered trademarks of Apple Inc.
Amazon, Alexa, Amazon Echo and Amazon Echo Dot are registered trademarks of Amazon.com, Inc.
Bluetooth is a registered trademark of Bluetooth SIG, Inc
UL is a registered trademark of UL.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
Page 25
FCC ID：2AGA6-OONTZBTAD2
FCC ID：2AGA6-OONTZRC
User Manual Ver 2.0
